Agility 50 MY2026
- Model code
- KG10EK(US)
- Model year
- 2026
- Submodel
- Agility 50
- Color
- Flat Deep Green (CG531FA)
- Diagrams
- 31
- Factory catalog
- download PDF

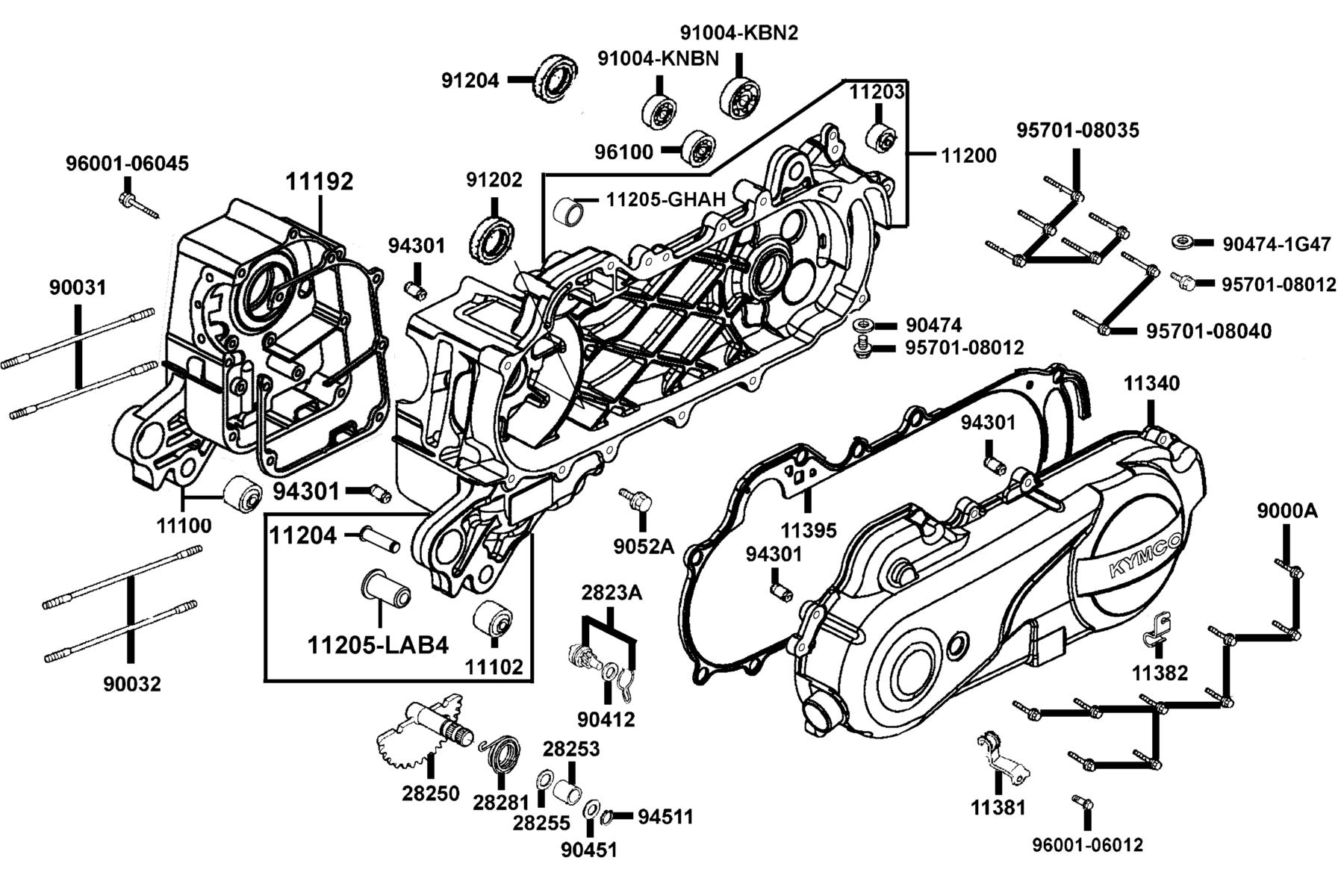

E01 — Crank Case
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 11100-KGBG-C00 | CRANK CASE COMP.,R | 1 | $251.88 USD | View product → |
| 2 | 11102-1G87-C00 | RUB BUSH ENG HANGER | 2 | $21.30 USD | View product → |
| 3 | 11192-KGBG-E90 | GASKET CRANK CASE@A | 1 | $13.74 USD | View product → |
| 4 | 11200-LBD6-C00 | CRANK CASE COMP LEFT | 1 | $378.21 USD | View product → |
| 5 | 11203-GGC7-W10 | BUSH | 1 | $14.31 USD | View product → |
| 6 | 11204-KNBN-C00 | PIN SPG HOOK | 1 | $4.65 USD | View product → |
| 7 | 11205-GHAH-C00 | BUSH 8*12*8 | 2 | $4.59 USD | View product → |
| 8 | 11205-LAB4-C00 | BUSH M STAND | 2 | $17.04 USD | View product → |
| 9 | 11340-LBD6-C00-NEA | COVER COMP L CRANK CASE | 1 | $286.32 USD | View product → |
| 10 | 11381-KHC4-C00 | CLAMPER THROTTLE CABLE | 1 | $28.11 USD | View product → |
| 11 | 11382-LBD6-C00 | CLAMPER BRAKE CABLE | 1 | $4.26 USD | View product → |
| 12 | 11395-LBD6-C00 | GASKET L COVER | 1 | $40.86 USD | View product → |
| 13 | 2823A-LBD6-C00 | GEAR ASSY KICK DRIVEN | 1 | $69.09 USD | View product → |
| 14 | 28250-GBN2-C00 | SPINDLE COMP KICK STARTER | 1 | $67.74 USD | View product → |
| 15 | 28253-GBN2-C00 | BUSH KICK SPDL | 1 | $7.53 USD | View product → |
| 16 | 28255-GFS6-C00 | COLLAR KICK BOSS | 1 | $8.43 USD | View product → |
| 17 | 28281-GBN2-C00 | SPRING KICK RETURN | 1 | $16.11 USD | View product → |
| 18 | 9000A-KTDT-C02 | BOLT ASSY SPECIAL 6*29.5(G) | 9 | $15.99 USD | View product → |
| 19 | 90031-KGBG-C01 | BOLT A STUD 7*168 | 2 | $25.89 USD | View product → |
| 20 | 90032-KGBG-C01 | BOLT B STUD 7x176 | 2 | $15.81 USD | View product → |
| 21 | 90412-3K29-C00 | WASHER THRUST 10M/M | 1 | $4.59 USD | View product → |
| 22 | 90451-GBN2-C00 | WASHER KICK SPINDLE | 1 | $1.65 USD | View product → |
| 23 | 90474-1G47-C00 | WASHER 10.5MM | 1 | $2.97 USD | View product → |
| 24 | 90474-3C33-C00 | WASHER 8MM(T*2) | 1 | $0.99 USD | View product → |
| 25 | 9052A-PUA3-B50 | BOLT ASSY DRAIN PLUG 12*15 | 1 | $7.89 USD | View product → |
| 26 | 91004-KBN2-C00 | BRG BALL RADIAL 6201 | 1 | $94.98 USD | View product → |
| 27 | 91004-KNBN-C00 | BRG BALL RADIAL 6203 | 1 | $70.98 USD | View product → |
| 28 | 91202-GFY6-90C | OIL SEAL 19.8*30*5 | 1 | $12.36 USD | View product → |
| 29 | 91204-KNBN-C00 | OIL SEAL 17*30*6 | 1 | $41.10 USD | View product → |
| 30 | 94301-08140 | DOWEL PIN 8*14 | 4 | $3.00 USD | View product → |
| 31 | 94511-14000 | CIR CLIP EX 14 | 1 | $6.39 USD | View product → |
| 32 | 95701-08012-08G | BOLT FLANGE 8X12(C) | 2 | $3.27 USD | View product → |
| 33 | 95701-08035-08G | BOLT FLANGE 8*35 (C) | 5 | $3.27 USD | View product → |
| 34 | 95701-08040-08G | BOLT FLANGE 8*40 | 2 | $3.27 USD | View product → |
| 35 | 96001-06012-02 | BOLT FLANGE SH 6*12 (Cr) | 1 | $2.61 USD | View product → |
| 36 | 96001-06045-08G | BOLT FLANGE SH 6x45 (C) | 1 | $1.95 USD | View product → |
| 37 | 96100-62033-00 | BEARING BALL RADIAL 6203 | 1 | $44.31 USD | View product → |

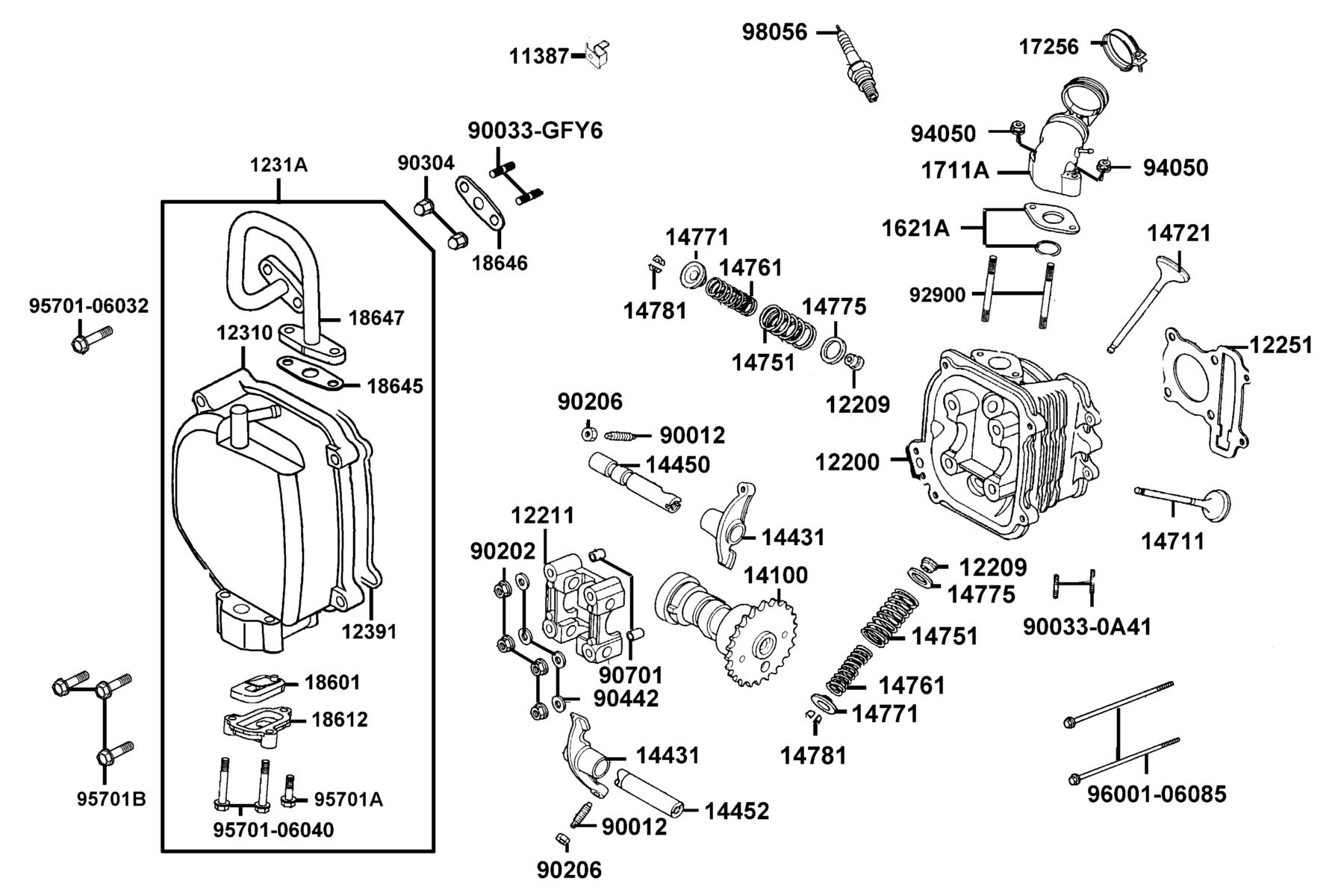

E02 — Cylinder Head
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 11387-KGBG-C00 | CLAMPER BREATHER TUBE | 1 | $10.14 USD | View product → |
| 2 | 12200-KGBG-C10 | CYLINDER ASSY | 1 | $170.07 USD | View product → |
| 3 | 12209-GDB4-C00 | SEAL VALVE STEM | 1 | $23.25 USD | View product → |
| 4 | 12211-KGBG-C00 | HOLDER CAM SHAFT | 1 | $73.59 USD | View product → |
| 5 | 12251-KGBG-C00 | GASKET CYLINDER HEAD | 1 | $57.39 USD | View product → |
| 6 | 12310-KHC5-C00 | COVER COMP HEAD | 1 | $90.57 USD | View product → |
| 7 | 1231A-KHC5-C10 | COVER ASSY HEAD | 1 | $137.34 USD | View product → |
| 8 | 12391-KEE1-C00 | GASKET HEAD COVER | 1 | $38.58 USD | View product → |
| 9 | 14100-KGBG-C00 | SHAFT COMP CAM | 1 | $146.37 USD | View product → |
| 10 | 14431-KGBG-W10 | ARM VALVE ROCKER | 2 | $37.41 USD | View product → |
| 11 | 14450-KGBG-W10 | SHAFT COMP IN ROCKER ARM | 1 | $55.02 USD | View product → |
| 12 | 14452-KGBG-W10 | SHAFT EXH ROCKER ARM | 1 | $23.94 USD | View product → |
| 13 | 14711-KGBG-C0A | VALVE INLET | 1 | $61.14 USD | View product → |
| 14 | 14721-KGBG-C0B | VALVE EXHAUST | 1 | $73.47 USD | View product → |
| 15 | 14751-KGBG-C00 | SPRING VALVE OUTER | 1 | $20.67 USD | View product → |
| 16 | 14761-KGBG-C00 | SPRING VALVE INNER | 1 | $15.06 USD | View product → |
| 17 | 14771-GDB4-C00 | RETAINER VALVE SPRING | 1 | $20.64 USD | View product → |
| 18 | 14775-MFA6-C00 | SEAT VALVE SPG OUTER | 1 | $11.79 USD | View product → |
| 19 | 14781-MFA6-C0C | COTTER VALVE | 1 | $7.65 USD | View product → |
| 20 | 1621A-KGBG-C00 | INSULATOR CARB ASSY | 1 | $12.36 USD | View product → |
| 21 | 1711A-LDC8-E11 | "PIPE ASSY,INLET" | 1 | $68.01 USD | View product → |
| 22 | 17256-KGBG-C00 | BAND INSULATOR | 1 | $11.46 USD | View product → |
| 23 | 18601-KBE2-C00 | REED VALVE COMP | 1 | $35.37 USD | View product → |
| 24 | 18612-GFY6-C00 | COVER REED VALVE | 1 | $13.77 USD | View product → |
| 25 | 18645-GFY6-C00 | GASKET A/I PIPE | 1 | $2.61 USD | View product → |
| 26 | 18646-LDC8-E10 | GASKET A/I PIPE | 1 | $4.26 USD | View product → |
| 27 | 18647-GFY6-C00 | PIPE COMP AIR | 1 | $31.44 USD | View product → |
| 28 | 90012-3C33-C00 | SCREW TAPPET ADJUSTING | 2 | $8.16 USD | View product → |
| 29 | 90033-0A41-C01 | BOLT STUD6*32 | 2 | $4.59 USD | View product → |
| 30 | 90033-GFY6-C11 | BOLT STUD 6*16 | 2 | $4.59 USD | View product → |
| 31 | 90202-GFF6-C00 | NUT FLANGE 7MM | 4 | $4.65 USD | View product → |
| 32 | 90206-0A01-C00 | NUT TAPPET ADJG | 2 | $4.92 USD | View product → |
| 33 | 90304-4H38-C00 | NUT HEX CAP 6MM | 2 | $12.48 USD | View product → |
| 34 | 90442-GFF6-C01 | WASHER SEALING 7MM 7.2*14*2.5 | 4 | $4.65 USD | View product → |
| 35 | 90701-GFF6-C00 | PIN DOWEL SPECIAL 8*14 | 4 | $0.99 USD | View product → |
| 36 | 92900-06050-08G | BOLT STUD ??? 6*50 (CG) | 2 | $9.51 USD | View product → |
| 37 | 94050-06080-G | NUT FLANGE 6MM | 2 | $0.99 USD | View product → |
| 38 | 95701-06025-00 | BOLT FLANGE 6*25 (B) | 1 | $1.86 USD | View product → |
| 39 | 95701-06025-08G | BOLT FLANGE 6*25 | 3 | $0.99 USD | View product → |
| 40 | 95701-06032-08G | BOLT FLANGE 6*32 | 1 | $1.95 USD | View product → |
| 41 | 95701-06040-00 | BOLT FLANGE 6*40 (B) | 2 | $1.65 USD | View product → |
| 42 | 96001-06085-08G | BOLT FLANGE 6*85 | 2 | $3.27 USD | View product → |
| 43 | 98056-5771R-00 | SPARK PLUG (CR7HSA) | 1 | $16.14 USD | View product → |

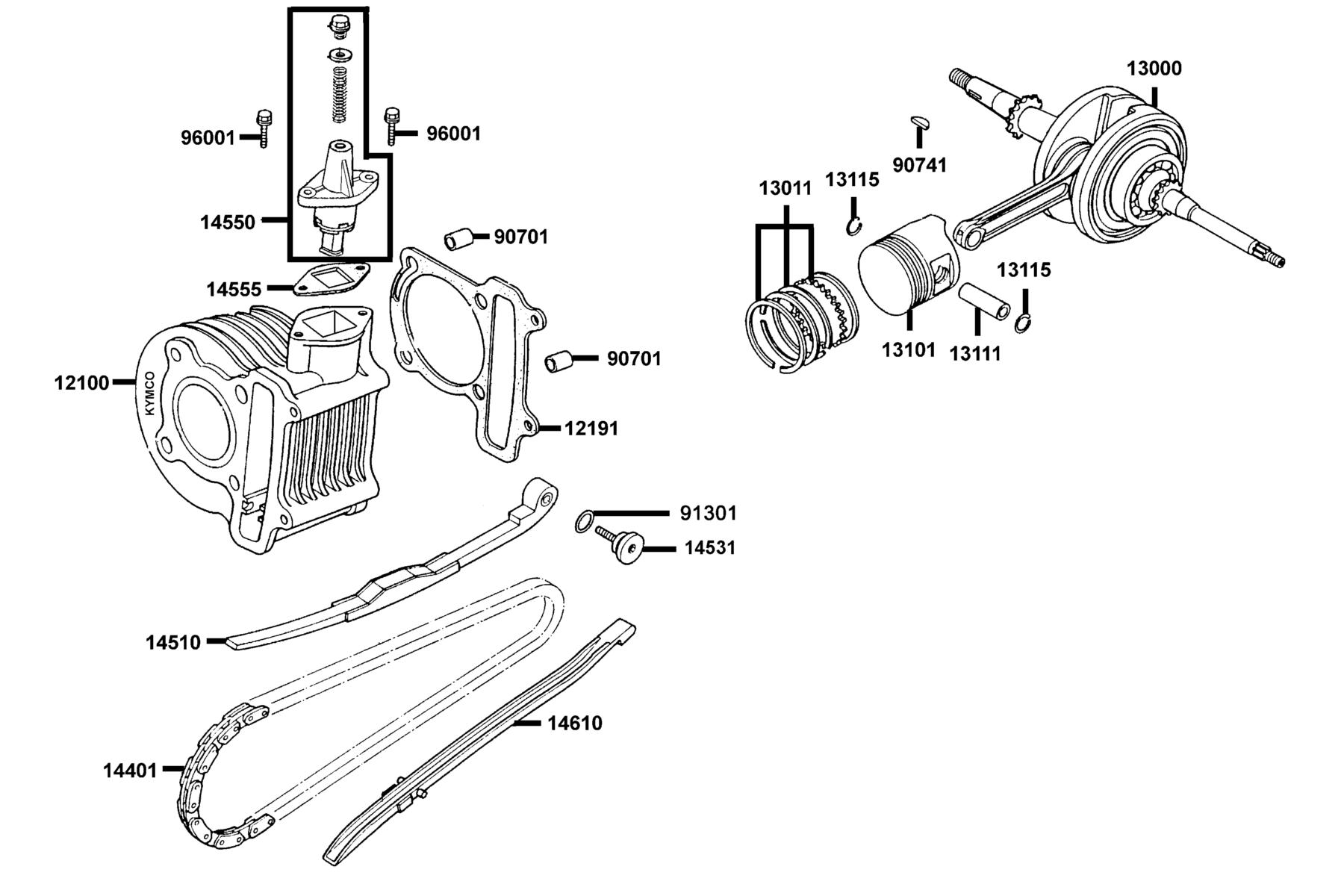

E03 — Cylinder ● Piston ● Crankshaft
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 12100-KGBG-C01 | CYLINDER COMP | 1 | $256.59 USD | View product → |
| 2 | 12191-KGBG-E90 | GASKET CYLINDER @A | 1 | $13.11 USD | View product → |
| 3 | 13000-LDC5-C00 | CRANK SHAFT COMP | 1 | $364.50 USD | View product → |
| 4 | 13011-LBC9-C00 | RING PISTON ASSY | 1 | $106.32 USD | View product → |
| 5 | 13101-LBC9-C00 | PISTON | 1 | $38.04 USD | View product → |
| 6 | 13111-KGBG-C00 | PIN PISTON | 1 | $31.11 USD | View product → |
| 7 | 13115-0A01-C00 | PISTON CLIP PIN | 2 | $1.95 USD | View product → |
| 8 | 14401-KGBG-C00 | CHAIN CAM | 1 | $115.50 USD | View product → |
| 9 | 14510-KGBG-C00 | TENSIONER CAM CHAIN | 1 | $51.42 USD | View product → |
| 10 | 14531-GLR0-W11 | PIVOT CAM CHAIN TENSIONER | 1 | $6.54 USD | View product → |
| 11 | 14550-LDC8-C10 | ADJUSTER CAM CHAIN | 1 | $55.65 USD | View product → |
| 12 | 14555-KKJ9-E90 | GASKET CAM SHAIN ADJUSTER | 1 | $6.39 USD | View product → |
| 13 | 14610-KGBG-C00 | GUIDE COMP CAM CHAIN | 1 | $49.17 USD | View product → |
| 14 | 90701-GFF6-C00 | PIN DOWEL SPECIAL 8*14 | 2 | $0.99 USD | View product → |
| 15 | 90741-0E35-C00 | KEY WOODRUFF | 1 | $20.79 USD | View product → |
| 16 | 91301-GLR0-W10 | O-RING 15.2*1.5 | 1 | $4.92 USD | View product → |
| 17 | 96001-06018-08G | BOLT FLANGE SH 6*18 (C) | 2 | $0.99 USD | View product → |

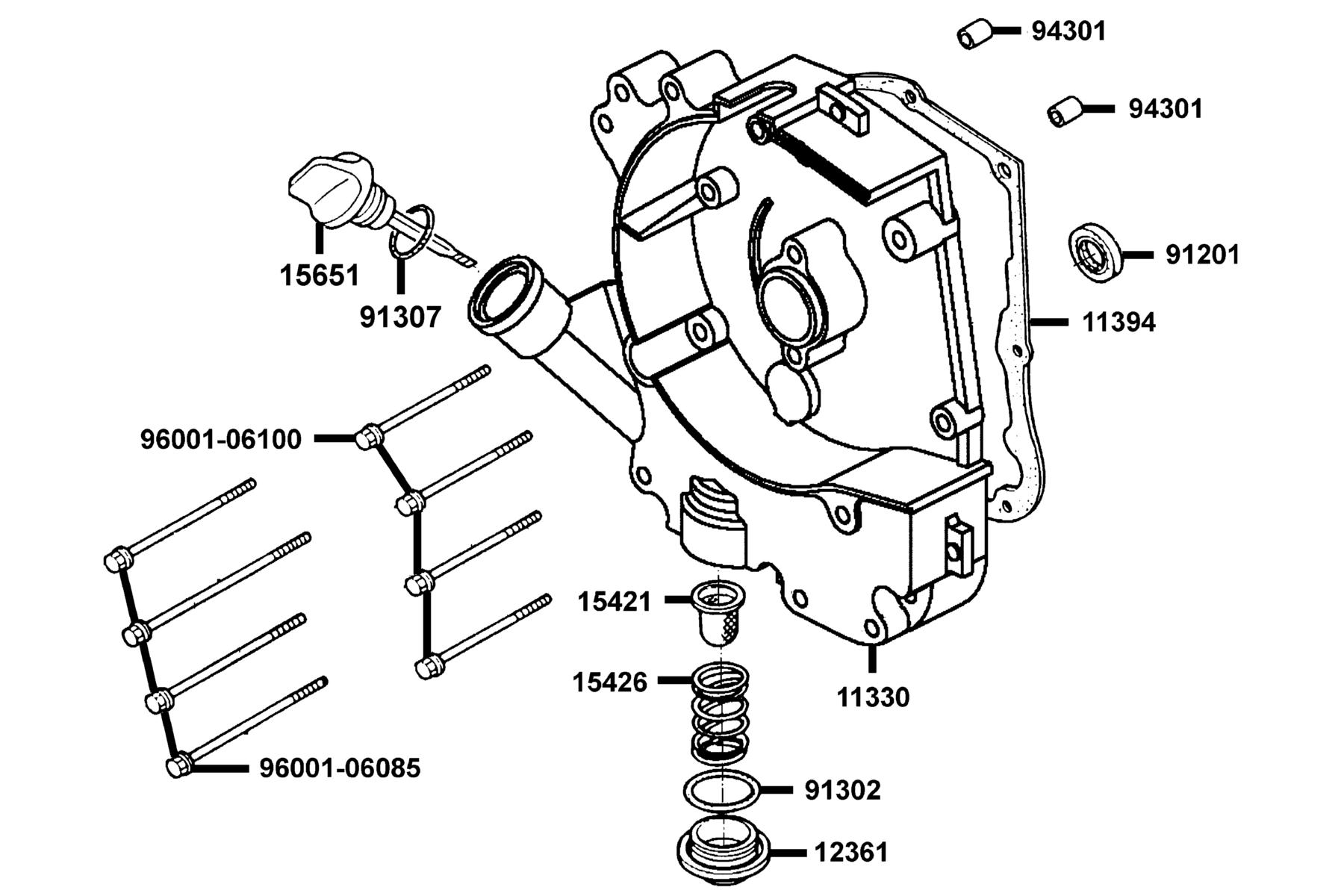

E04 — Right Crankcase Cover
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 11330-LBD6-C00 | COVER COMP R CRANK CASE | 1 | $140.22 USD | View product → |
| 2 | 11394-KGBG-E90 | GASKET.R COVER | 1 | $18.69 USD | View product → |
| 3 | 12361-GFY6-C00 | HOLE CAP TAPPET ADJUSTING | 1 | $8.85 USD | View product → |
| 4 | 15421-1G07-C00 | SCREEN OIL FILTER | 1 | $15.06 USD | View product → |
| 5 | 15426-GAE1-C00 | SPG OIL FILTER SCREEN | 1 | $2.61 USD | View product → |
| 6 | 15651-LDC8-C10 | GAUGE OIL LEVEL | 1 | $11.43 USD | View product → |
| 7 | 91201-KGBG-C00 | OIL SEAL 16.4*30*5 | 1 | $18.69 USD | View product → |
| 8 | 91302-0A01-C00 | O-RING 30.8MM | 1 | $4.92 USD | View product → |
| 9 | 91307-0E35-W10 | O-RING 18*3 | 1 | $4.92 USD | View product → |
| 10 | 94301-08140 | DOWEL PIN 8*14 | 2 | $3.00 USD | View product → |
| 11 | 96001-06085-08G | BOLT FLANGE 6*85 | 4 | $3.27 USD | View product → |
| 12 | 96001-06100-08G | BOLT FLANGE SH 6x100 (C) | 4 | $3.27 USD | View product → |

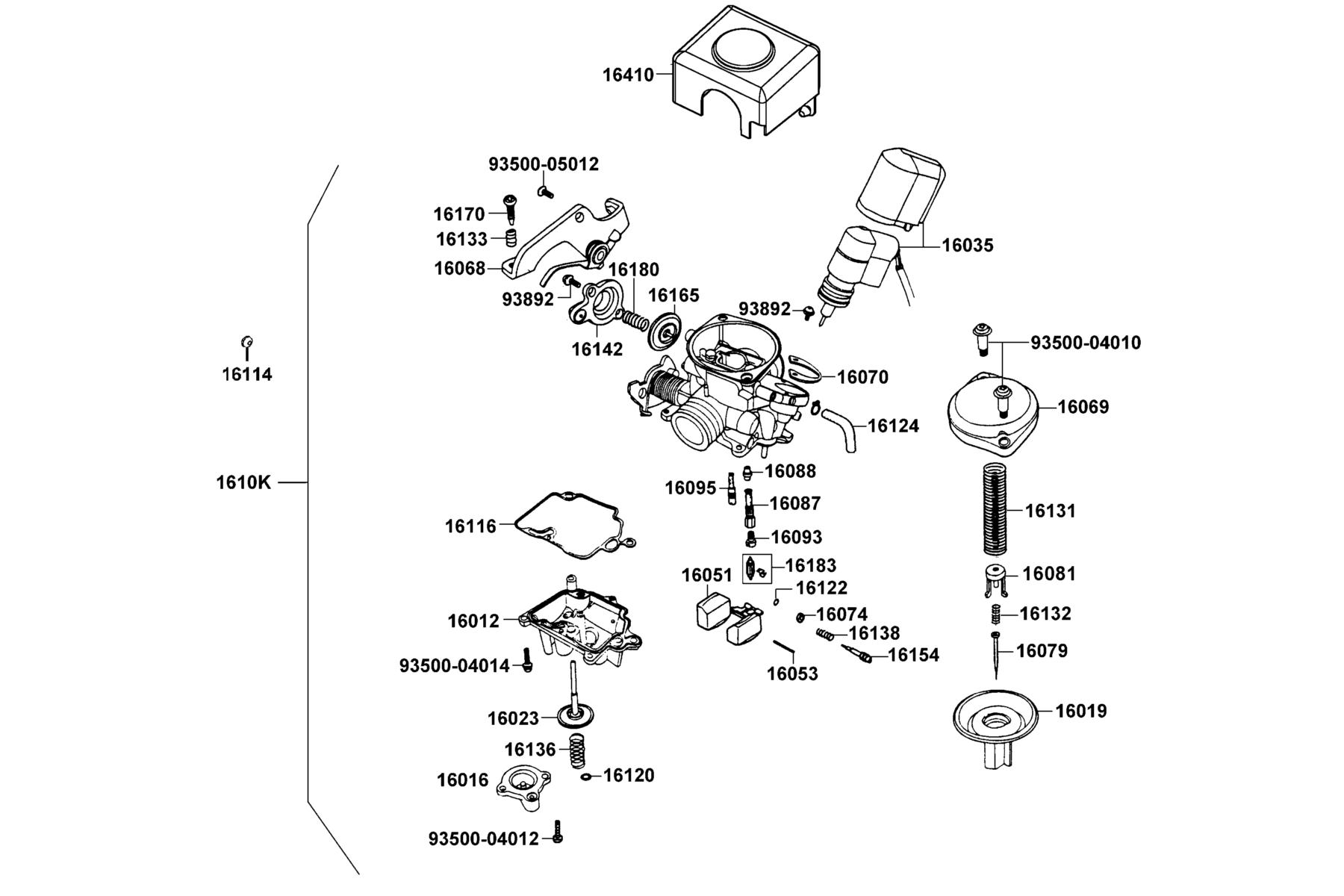

E05 — Carburetor
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 16012-LDC8-C01 | CHAMBER ASSY FLOAT | 1 | $114.54 USD | View product → |
| 2 | 16016-KGC5-900 | COVER ACCP | 1 | $16.14 USD | View product → |
| 3 | 16019-KGC5-900 | VALVE ASSY PISTON | 1 | $41.70 USD | View product → |
| 4 | 16023-KGC5-900 | DIAPHRAGM ASSY ACCP | 1 | $48.78 USD | View product → |
| 5 | 16035-KGC5-900 | UNIT BY-ST **(0) | 1 | $101.31 USD | View product → |
| 6 | 16051-KGC5-90A | BODY FLOAT | 1 | $33.66 USD | View product → |
| 7 | 16053-KEC3-900 | PIN FLOAT | 1 | $4.92 USD | View product → |
| 8 | 16068-KGC5-C00 | PLATE WIRE FIXED COMPL | 1 | $30.63 USD | View product → |
| 9 | 16069-KGC5-C00 | COVER PISTON VALVE DIAPHRAGM | 1 | $8.49 USD | View product → |
| 10 | 16070-KEC3-900 | STOPPER BY-ST | 1 | $4.92 USD | View product → |
| 11 | 16074-KEC3-C00 | WASHER IDLE ADJUIST SCERW | 1 | $0.30 USD | View product → |
| 12 | 16079-KGC5-C00 | NEEDLE ASSY JET | 1 | $34.17 USD | View product → |
| 13 | 16081-KGC5-900 | STOPPER J.N SPG | 1 | $4.92 USD | View product → |
| 14 | 16087-LDC8-E10 | TUBE MAIN EMULSION | 1 | $19.35 USD | View product → |
| 15 | 16088-KEC5-900 | JET NEEDLE | 1 | $39.72 USD | View product → |
| 16 | 16093-5082-000 | MAIN JET #82 | 1 | $20.58 USD | View product → |
| 17 | 1610K-LDC8-M31 | CARBURETOR ASSY | 1 | $528.99 USD | View product → |
| 18 | 16114-LDB5-E00 | SHAFT COVER | 1 | $4.92 USD | View product → |
| 19 | 16116-KGC5-900 | PACKING FLOAT CHAMBER | 1 | $8.67 USD | View product → |
| 20 | 16120-KEC3-900 | O-RING ACCP | 1 | $5.67 USD | View product → |
| 21 | 16122-KEC3-C00 | O-RING IDLE SCREW | 1 | $1.95 USD | View product → |
| 22 | 16124-KEC3-900 | TUBE COMPL 3.5*300 | 1 | $6.54 USD | View product → |
| 23 | 16131-KGC5-C00 | "SPG,PISTON VALVE RETURN" | 1 | $8.16 USD | View product → |
| 24 | 16132-KEC3-900 | SPRING JET NEEDLE | 1 | $1.86 USD | View product → |
| 25 | 16133-KGC5-900 | SPRING THROTTLE ADJUST SCREW | 1 | $1.95 USD | View product → |
| 26 | 16136-KGC5-900 | SPRING ACCP DIAPHRAGM | 1 | $8.88 USD | View product → |
| 27 | 16138-KGC5-C00 | SPRING IDLE ADJUST SCREW | 1 | $4.59 USD | View product → |
| 28 | 16142-KGC5-C00 | COVER ACV | 1 | $10.50 USD | View product → |
| 29 | 16154-KGC5-M30 | SCREW IDLE ADJ | 1 | $27.93 USD | View product → |
| 30 | 16165-KGC5-900 | DIAPHRAGM COMP | 1 | $22.74 USD | View product → |
| 31 | 16170-KGC5-C00 | SCREW THROTTLE ADJUST | 1 | $7.89 USD | View product → |
| 32 | 16180-KGC5-C00 | SPRING ACV | 1 | $4.59 USD | View product → |
| 33 | 16183-KEC3-C00 | VALVE COMPL.FLOAT | 1 | $38.88 USD | View product → |
| 34 | 16410-KGBG-E00 | RUBBER COVER CARB ASSY | 1 | $30.57 USD | View product → |
| 35 | 93500-04010-1A | SCREW 4*10 | 2 | $4.92 USD | View product → |
| 36 | 93500-04012-1A | SCREW 4*12 | 1 | $1.86 USD | View product → |
| 37 | 93500-04014-1A | SCREW PAN 4*14(B) | 1 | $4.92 USD | View product → |
| 38 | 93892-04008-18 | SCREW WASHER 4*8 | 4 | $1.68 USD | View product → |

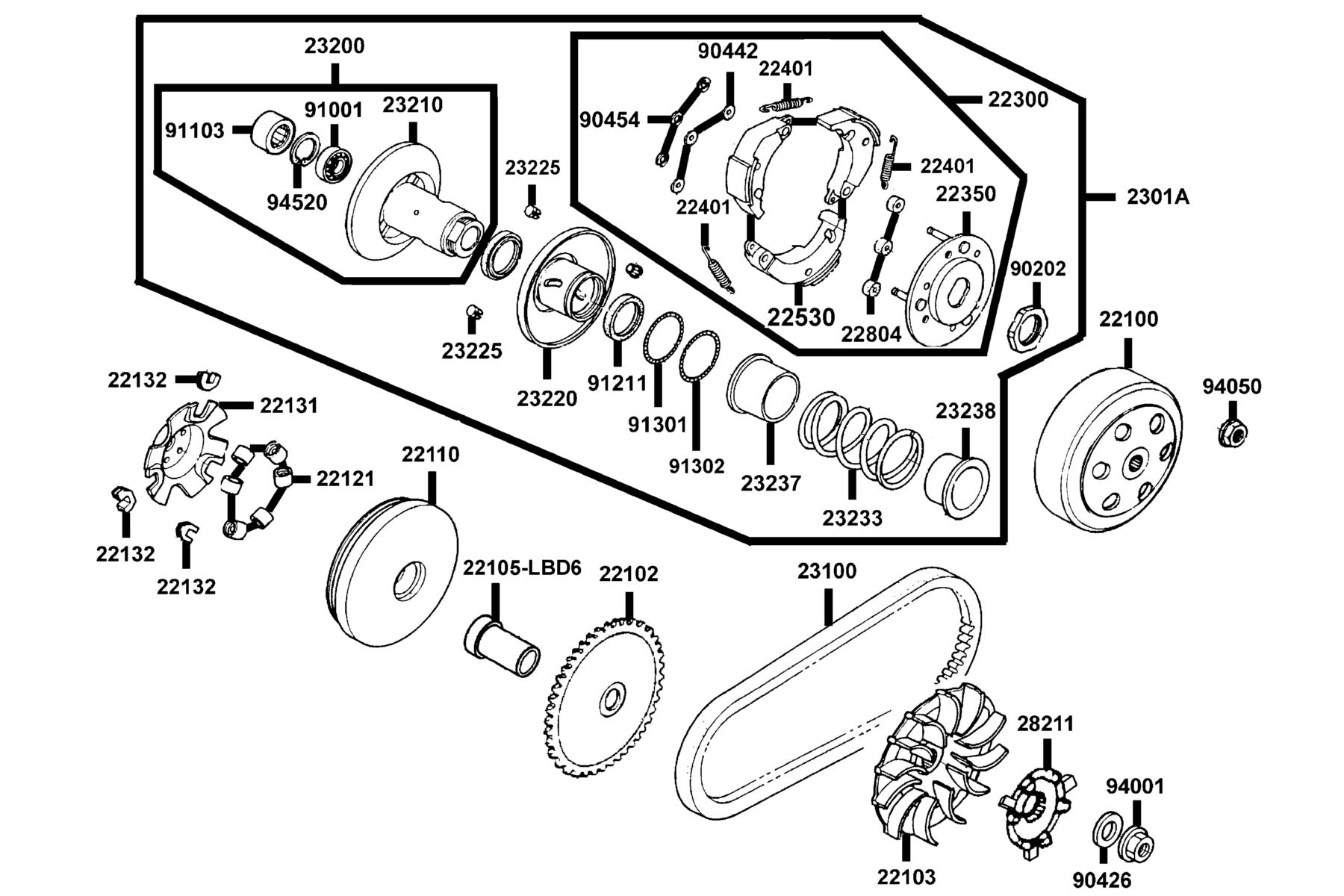

E06 — Driven Pulley
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 22100-LDC8-E10 | CLUTCH OUTER | 1 | $88.92 USD | View product → |
| 2 | 22102-LDC8-E10 | FACE DRIVE | 1 | $58.98 USD | View product → |
| 3 | 22103-KEB7-C00 | FACE CVT COOLING | 1 | $11.79 USD | View product → |
| 4 | 22105-LBD6-C00 | BOSS DRIVE FACE | 1 | $9.78 USD | View product → |
| 5 | 22110-LDC8-E10 | FACE COMP MOVABLE DRIVE | 1 | $48.21 USD | View product → |
| 6 | 22121-LBD6-315 | ROLLER SET WEIGHT (1SET:6PCS)6.5G*6 | 6 | $46.86 USD | View product → |
| 7 | 22131-GHAH-C00 | PLATE RAMP | 1 | $36.93 USD | View product → |
| 8 | 22132-GLW0-315 | PIECE SLIDE(1SET:3PCS) | 3 | $28.35 USD | View product → |
| 9 | 22300-GGAG-C00 | PLATE ASSY DRIVE | 1 | $181.92 USD | View product → |
| 10 | 22350-GKAK-C00 | PLATE COMP DRIVE | 1 | $27.12 USD | View product → |
| 11 | 22401-GJAJ-C00 | SPRING CLUTHC | 3 | $6.54 USD | View product → |
| 12 | 22530-GKAK-C00 | WEIGHT CLUTCH | 3 | $43.41 USD | View product → |
| 13 | 22804-1H48-C00 | RUBBER CLUTCH DUMPER | 3 | $4.59 USD | View product → |
| 14 | 2301A-LDC8-C10 | PULLEY SUB ASSY | 1 | $328.86 USD | View product → |
| 15 | 23100-KEB7-C00 | BELT DRIVE | 1 | $137.31 USD | View product → |
| 16 | 23200-LDC8-C10 | FACE ASSY DRIVEN | 1 | $89.64 USD | View product → |
| 17 | 23210-LDC8-C10 | FACE COMP DRIVEN H1 | 1 | $77.73 USD | View product → |
| 18 | 23220-LDC8-C10 | FACE COMP MOVABLE | 1 | $104.07 USD | View product → |
| 19 | 23225-GAR1-C00 | PIN GUIDE | 3 | $1.95 USD | View product → |
| 20 | 23233-KEE1-C10 | SPG DRIVEN FACE | 1 | $32.10 USD | View product → |
| 21 | 23237-GAR1-C00 | COLLAR SEAL | 1 | $46.74 USD | View product → |
| 22 | 23238-GFY6-C00 | COLLAR SPG | 1 | $61.92 USD | View product → |
| 23 | 28211-KEB7-W10 | RATCHET KICK STARTER | 1 | $36.30 USD | View product → |
| 24 | 90202-1G87-C00 | NUT SPECIAL 28MM | 1 | $14.07 USD | View product → |
| 25 | 90426-KNBN-C01 | WASHER SPECIAL 12MM | 1 | $4.59 USD | View product → |
| 26 | 90442-0D44-C00 | WASHER THRUST 6M/M | 3 | $6.87 USD | View product → |
| 27 | 90454-GBB2-C00 | CIR CLIP 6MM | 3 | $1.95 USD | View product → |
| 28 | 91001-GGA7-C00 | BRG RADIAL BALL 6901U | 1 | $16.14 USD | View product → |
| 29 | 91103-GAR1-C00 | BRG NEEDLE 17*25*18 WS | 1 | $18.87 USD | View product → |
| 30 | 91211-KEE1-C00 | OIL SEAL 34*39*3 | 2 | $18.87 USD | View product → |
| 31 | 91301-KEE1-C00 | O-RING 36*1.5 | 1 | $3.93 USD | View product → |
| 32 | 91302-KEE1-C00 | O-RING 39.8*2.2 | 1 | $2.31 USD | View product → |
| 33 | 94001-12280-0SG | NUT HEX 12MM(C) | 1 | $1.65 USD | View product → |
| 34 | 94050-10080-G | NUT FLANGE 10MM | 1 | $1.95 USD | View product → |
| 35 | 94520-24000 | CIR CLIP IN 24 | 1 | $4.92 USD | View product → |

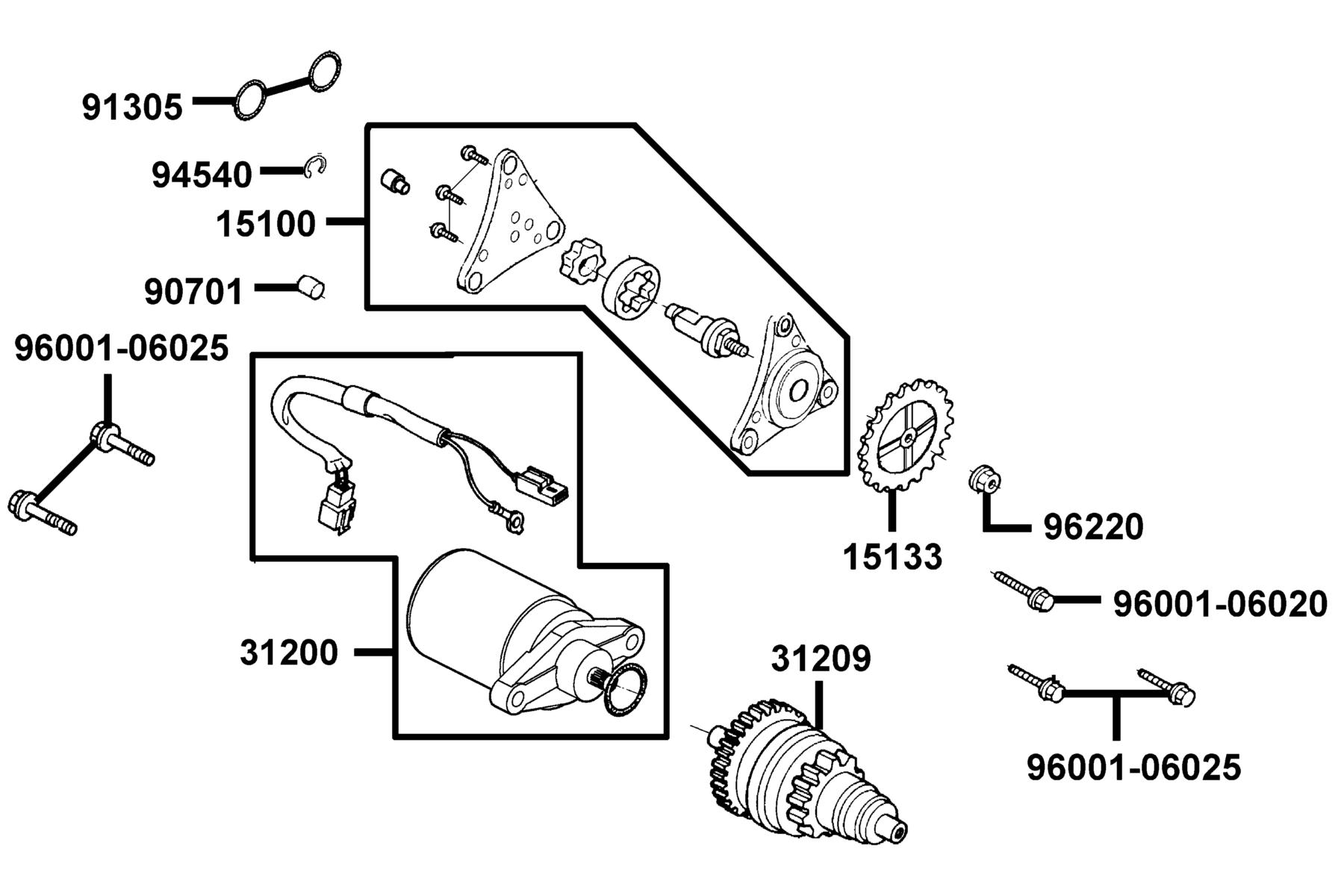

E07 — Starting Motor ● Oil Pump
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 15100-LDC5-C00 | PUMP ASSY OIL | 1 | $69.48 USD | View product → |
| 2 | 15133-LDC5-C00 | "GEAR, OIL PUMP DRIVEN" | 1 | $68.04 USD | View product → |
| 3 | 31200-LDC8-E10 | MOTOR ASSY START **KEE1-90A** | 1 | $174.84 USD | View product → |
| 4 | 31209-KEE1-C01 | PINION ASSY STARTER | 1 | $166.11 USD | View product → |
| 5 | 90701-HDC4-C00 | DOWEL PIN 8*12 | 1 | $2.31 USD | View product → |
| 6 | 91305-0H28-C00 | O-RING 9*1.6 | 2 | $2.61 USD | View product → |
| 7 | 94540-06018 | E RING 6 | 1 | $1.95 USD | View product → |
| 8 | 96001-06020-08G | BOLT FLANGED SMALL | 2 | $2.04 USD | View product → |
| 9 | 96001-06025-08G | BOLT FLANGE SH 6*25 (C) | 3 | $0.99 USD | View product → |
| 10 | 96220-LDC5-C00 | ROLLER 2*14.8 | 1 | $4.92 USD | View product → |

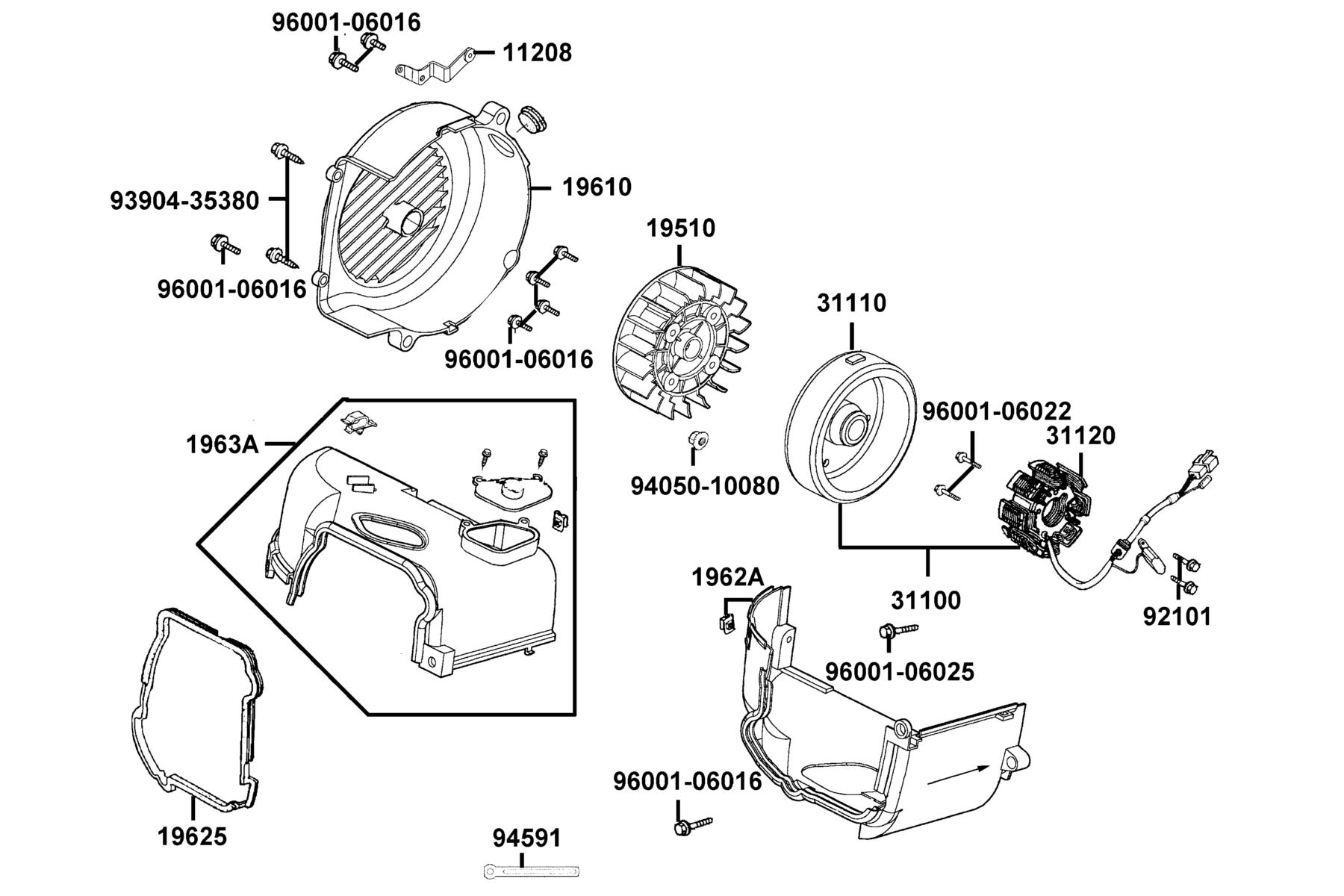

E08 — Fan Cover ● Generator
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 11208-LBD6-C00 | STAY RR TIRE FENDER | 1 | $48.93 USD | View product → |
| 2 | 19510-LDC5-C00 | FAN COMP COOLING | 1 | $27.60 USD | View product → |
| 3 | 19610-LFC2-E10 | "COVER ASSY., FAN" | 1 | $38.52 USD | View product → |
| 4 | 19625-KEE1-C00 | SEAL SHROUND | 1 | $21.03 USD | View product → |
| 5 | 1962A-KEE1-C00 | SHROCD ASSY A | 1 | $20.67 USD | View product → |
| 6 | 1963A-LDC8-E11 | SHROUD ASSY B | 1 | $50.10 USD | View product → |
| 7 | 31100-LDC8-E11 | AC GEN ASSY | 1 | $167.10 USD | View product → |
| 8 | 31110-LEJ2-E11 | FLYWHEEL COMP. | 1 | $198.12 USD | View product → |
| 9 | 31120-LDC8-E10 | STATOR COMP | 1 | $163.77 USD | View product → |
| 10 | 92101-05012-0HG | BOLT HEX 5*12 | 2 | $0.66 USD | View product → |
| 11 | 93904-35380-G | SCREW TAPPING 5*16(K) | 2 | $0.99 USD | View product → |
| 12 | 94050-10080-G | NUT FLANGE 10MM | 1 | $1.95 USD | View product → |
| 13 | 94591-LDC8-E10 | CLIP BIND | 1 | $7.89 USD | View product → |
| 14 | 96001-06016-08G | BOLT FLANGE SH 6x16 (C) | 6 | $0.99 USD | View product → |
| 15 | 96001-06022-08G | BOLT FLANGE SH 6*22 (C) | 2 | $0.99 USD | View product → |
| 16 | 96001-06025-08G | BOLT FLANGE SH 6*25 (C) | 2 | $0.99 USD | View product → |

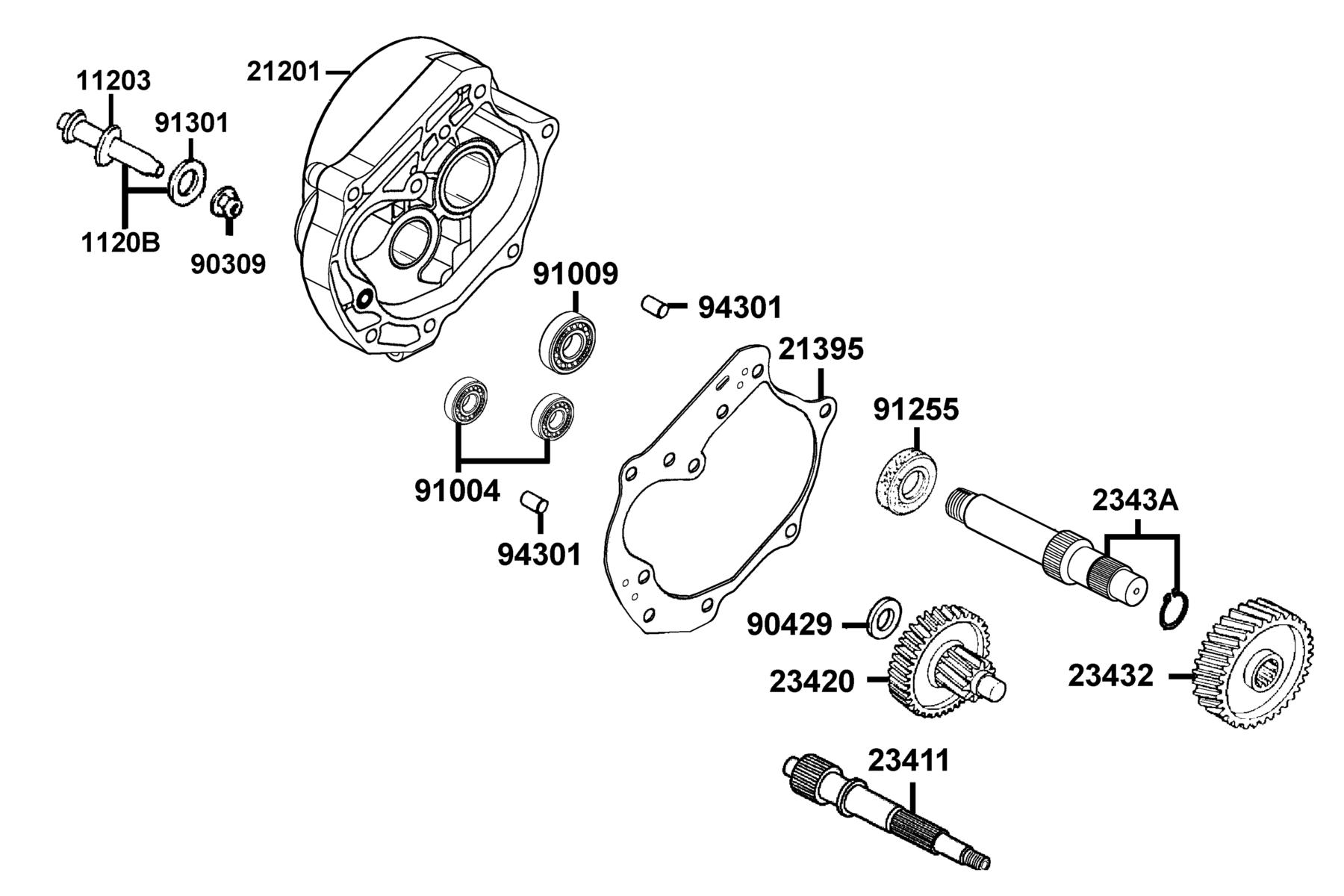

E09 — Transmission
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 11203-KAM1-C00 | PIN BRAKE SHOE ANCHOR | 1 | $23.34 USD | View product → |
| 2 | 1120B-KGN7-C00 | PIN ASSY ANCHOR | 1 | $24.69 USD | View product → |
| 3 | 21200-KFA1-900 | CASE COMP MISSION | 1 | $174.36 USD | View product → |
| 4 | 21395-KNBN-E90 | GASKET MISSION CASE | 1 | $46.02 USD | View product → |
| 5 | 23411-LBD6-C00 | SHAFT DRIVE | 1 | $129.24 USD | View product → |
| 6 | 23420-LBD6-C00 | SHAFT COMP COUNTER | 1 | $110.37 USD | View product → |
| 7 | 23432-LBD6-C00 | GEAR FINAL | 1 | $116.79 USD | View product → |
| 8 | 2343A-KNBN-C00 | SHAFT FINAL | 1 | $139.83 USD | View product → |
| 9 | 90309-PUA3-B50 | NTU FLANGE 8MM | 1 | $3.93 USD | View product → |
| 10 | 90429-KNBN-C00 | WASHER SIDE 12MM | 1 | $29.55 USD | View product → |
| 11 | 91004-KBN2-C00 | BRG BALL RADIAL 6201 | 2 | $94.98 USD | View product → |
| 12 | 91009-GLE0-C00 | BRG BALL RADIAL 6004 UU | 1 | $36.51 USD | View product → |
| 13 | 91255-LDC8-E10 | OIL SEAL 27*42*7 (C???) | 1 | $8.70 USD | View product → |
| 14 | 91301-0C53-W10 | O-RING 7.5*1.5 | 1 | $0.99 USD | View product → |
| 15 | 94301-10200 | DOWEL PIN 10*20 | 2 | $6.39 USD | View product → |

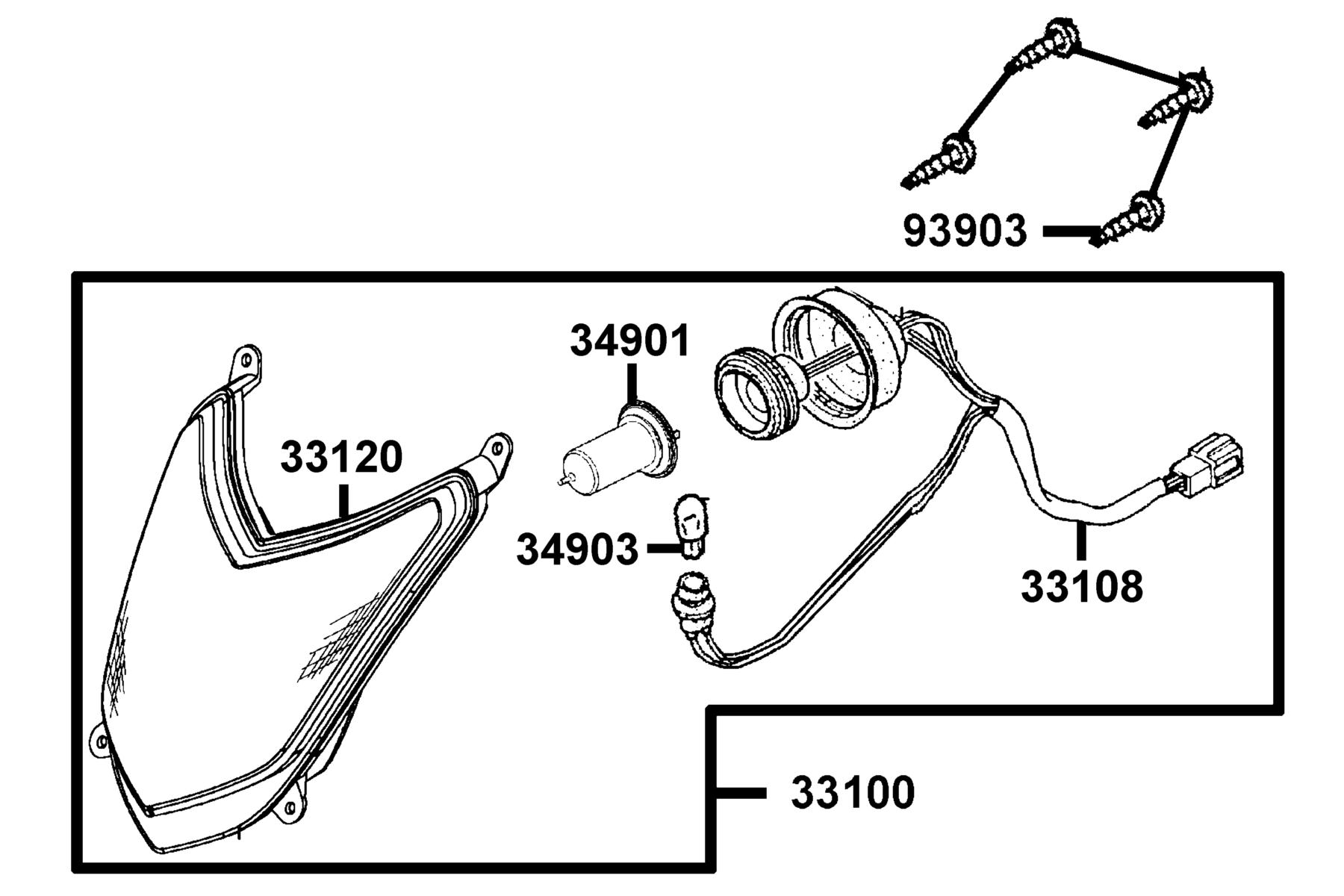

F01 — Head Light
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 33100-LDC8-M30 | LIGHT ASSY HEAD | 1 | $177.15 USD | View product → |
| 2 | 33108-LDC8-M30 | SOCKET COMP HEAD | 1 | $73.20 USD | View product → |
| 3 | 33120-LDC8-M30 | LENS HEAD LIGHT ( LENS ONLY ) | 1 | $125.76 USD | View product → |
| 4 | 34901-LDC8-M30 | BULB HEAD LIGHT | 1 | $100.02 USD | View product → |
| 5 | 34903-LDC8-M30 | BULB POSITON | 1 | $7.53 USD | View product → |
| 6 | 93903-35380-G | SCREW TAPPING 5*16 | 4 | $0.15 USD | View product → |

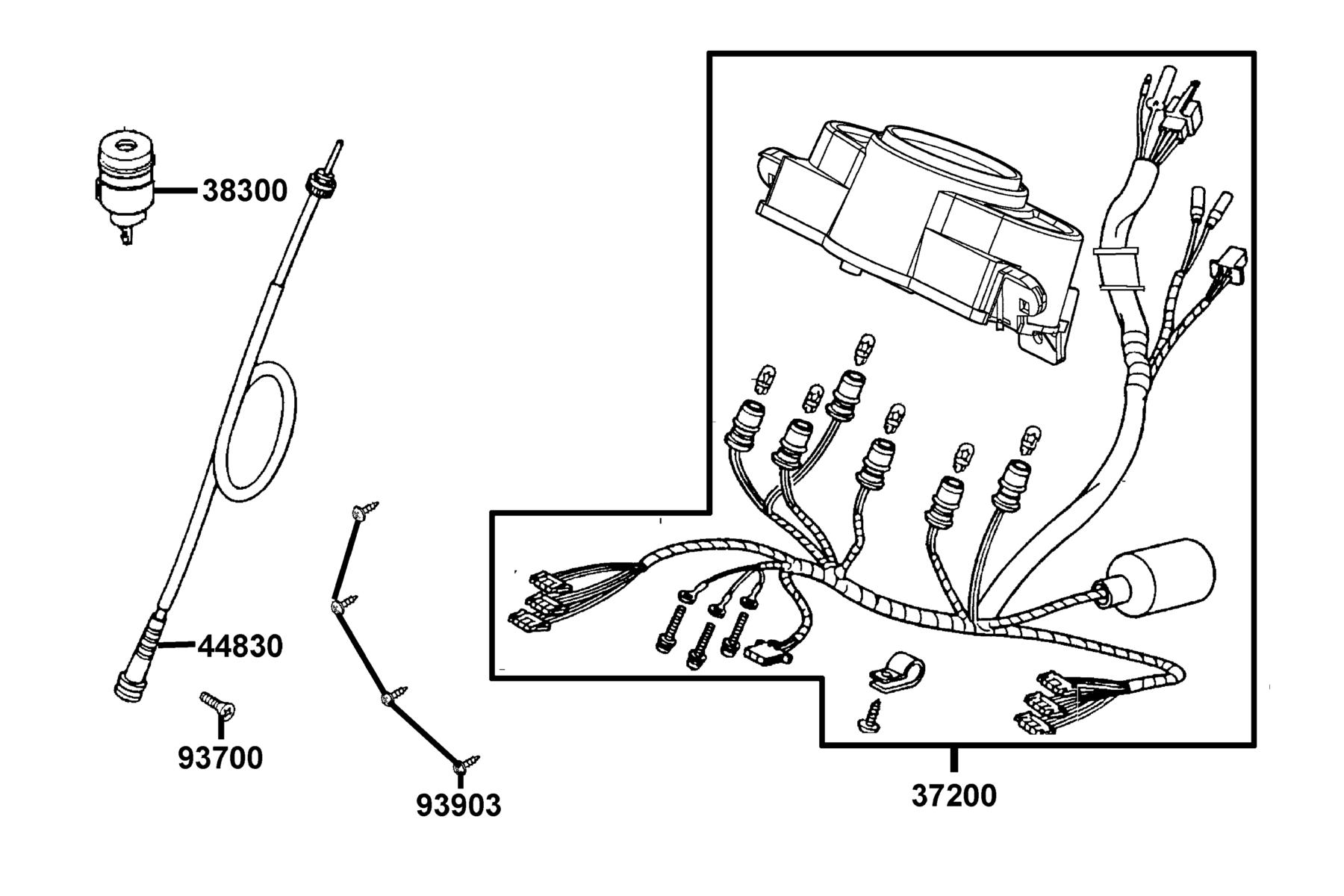

F02 — Speedometer
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 37200-LDC8-M30 | SPEED METER ASSY | 1 | $195.42 USD | View product → |
| 2 | 38300-LDC8-M30 | RELAY ASSY WINKER | 1 | $78.27 USD | View product → |
| 3 | 44830-LDC8-E10 | CABLE COMP SPDMT | 1 | $40.89 USD | View product → |
| 4 | 93700-05018-0HG | SCREW OVAL 5*18 | 1 | $0.99 USD | View product → |
| 5 | 93903-35380-G | SCREW TAPPING 5*16 | 4 | $0.15 USD | View product → |

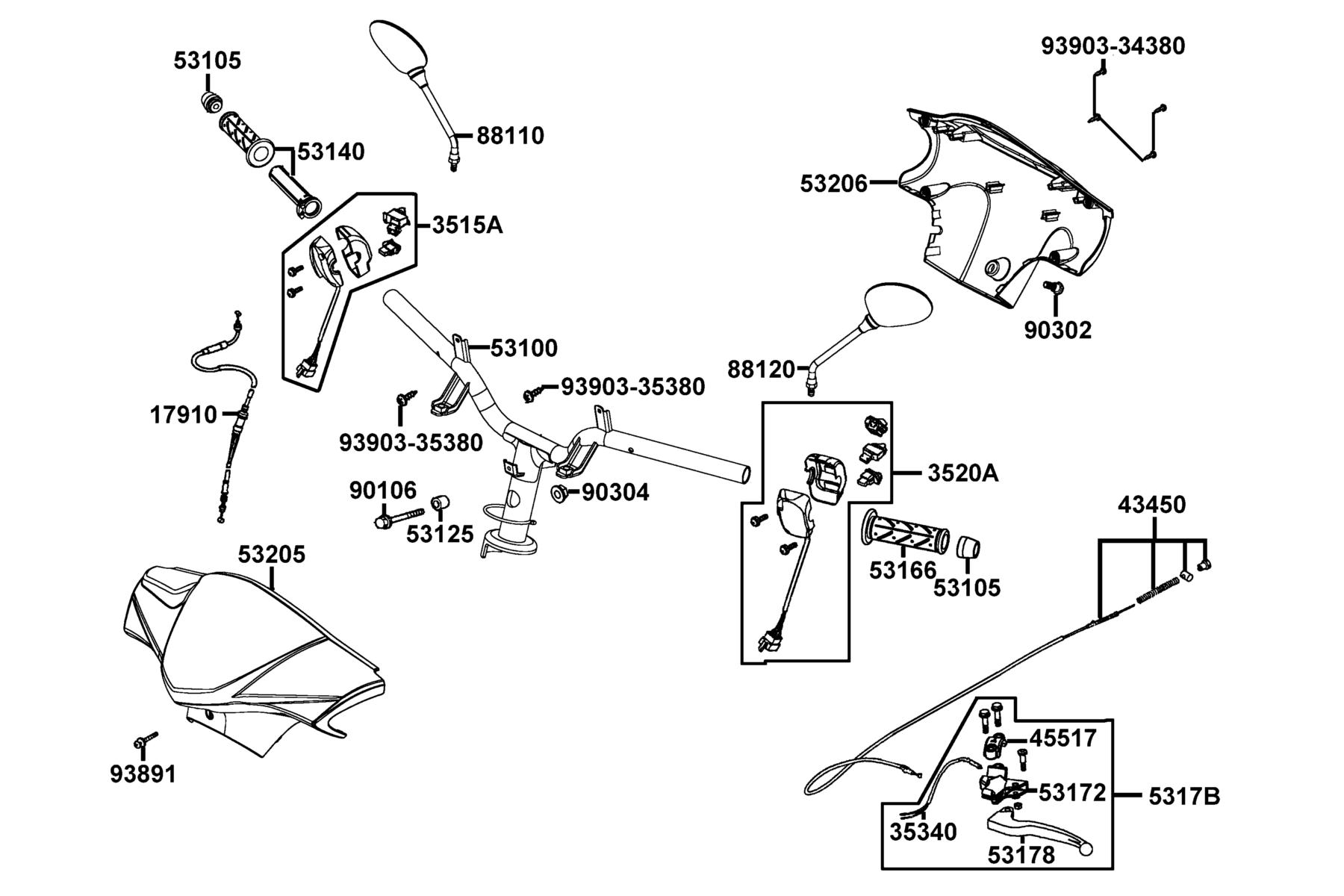

F03 — Handle Steering ● Handle Cover
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 17910-LDC8-E10 | CABLE COMP THROT | 1 | $87.87 USD | View product → |
| 2 | 3515A-LDC8-M30 | SW ASSY RH HNDL COMP | 1 | $123.27 USD | View product → |
| 3 | 3520A-LGB5-E11 | SW ASSY LH HANDLE COMP | 1 | $153.96 USD | View product → |
| 4 | 35340-KKJ9-C00 | SW ASSY FR STOP | 1 | $33.69 USD | View product → |
| 5 | 43450-LDC8-C00 | CABLE COMP RR BRK | 1 | $49.08 USD | View product → |
| 6 | 45517-GFY6-900 | HOLDER HNDL BRKT | 1 | $10.14 USD | View product → |
| 7 | 45517-GFY6-900-invalid | HOLDER HNDL BRKT | 1 | $13.17 USD | View product → |
| 8 | 53100-LCB9-C10 | HANDLE COMP STRG | 1 | $150.48 USD | View product → |
| 9 | 53105-KNBN-C00 | END STRG HANDLE | 2 | $10.14 USD | View product → |
| 10 | 53125-PUA3-B50 | COLLAR HANDLE SET | 1 | $16.11 USD | View product → |
| 11 | 53140-KNBN-C01-N1R | GRIP COMP THROT | 1 | $40.38 USD | View product → |
| 12 | 53166-KNBN-C00-N1R | GRIP L HANDLE | 1 | $28.05 USD | View product → |
| 13 | 53172-KTCT-C00 | BRKT HNDL L | 1 | $33.69 USD | View product → |
| 14 | 53178-KXCX-C00 | LEVER L STRG HANDLE | 1 | $45.42 USD | View product → |
| 15 | 5317B-KFA6-C00 | BRKT ASSY HNDL LH | 1 | $78.48 USD | View product → |
| 16 | 53205-LCB9-M30-UVP | COVER FR HANDLE | 1 | $166.35 USD | View product → |
| 17 | 53206-LCB9-C10-N1R | COVE RHANDLE RR (Black) | 1 | $87.51 USD | View product → |
| 18 | 88110-LCB9-M30 | MIRROR ASSY R BACK | 1 | $100.14 USD | View product → |
| 19 | 88120-LCB9-M30 | MIRROR ASSY L BACK | 1 | $100.14 USD | View product → |
| 20 | 90106-PUA3-B50 | BOLT FLANGE 10*50 | 1 | $4.92 USD | View product → |
| 21 | 90302-KNBN-C01 | BOLT PAN 5*15.5(K) | 1 | $8.97 USD | View product → |
| 22 | 90304-GHE8-C01 | NUT U 10MM(C) | 1 | $21.45 USD | View product → |
| 23 | 93891-05035-07G | SCREW WASHER 5*35(K) | 1 | $4.38 USD | View product → |
| 24 | 93903-34380-G | SCREW TAPPING 4*12 (KG) | 4 | $2.73 USD | View product → |
| 25 | 93903-35380-G | SCREW TAPPING 5*16 | 2 | $0.15 USD | View product → |

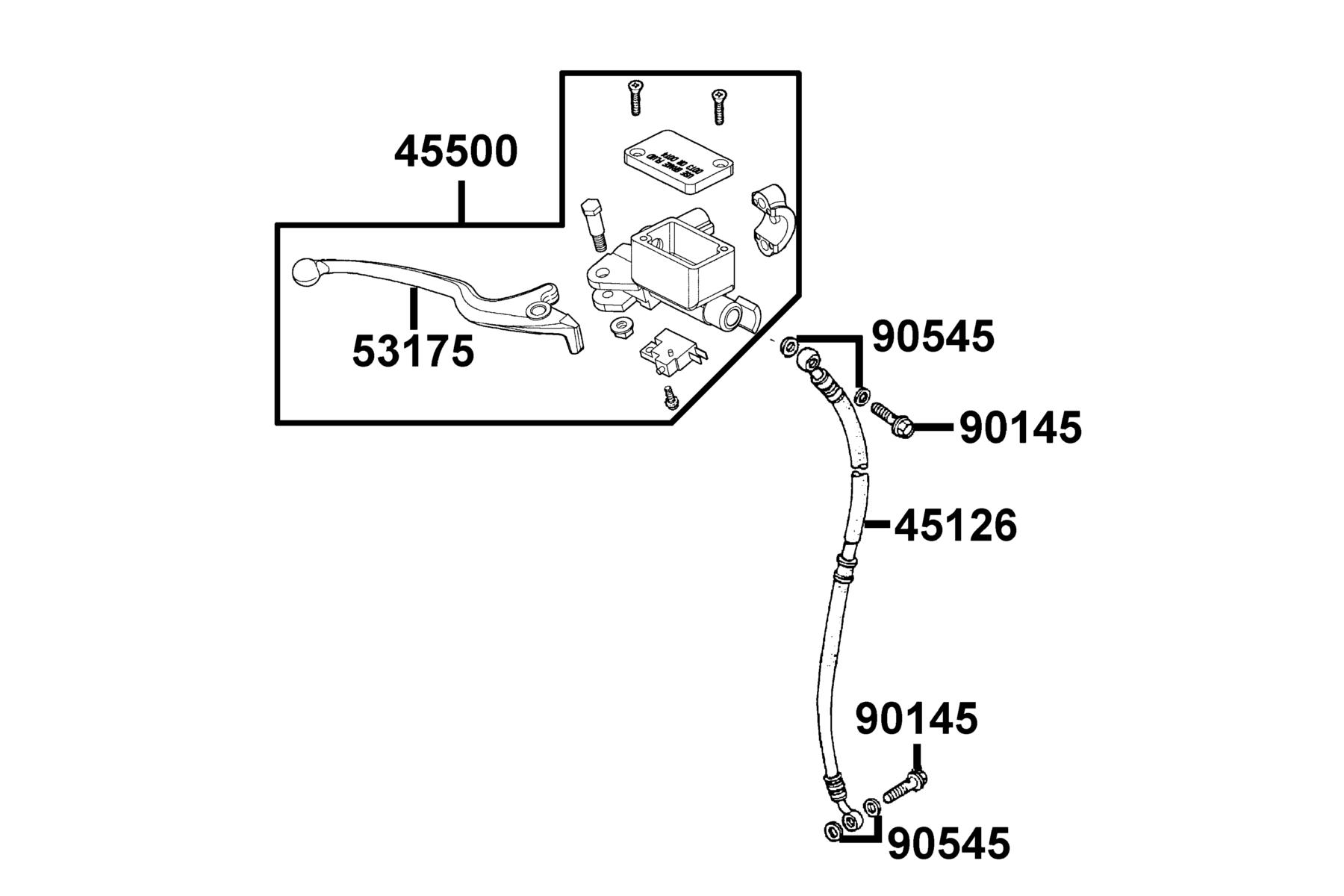

F04 — Brake Master Cylinder
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 45126-LDC8-E10 | HOSE ASSY FR BRAKE | 1 | $92.10 USD | View product → |
| 2 | 45500-LDC8-E10 | CYLINDER ASSY FR MASTER | 1 | $139.92 USD | View product → |
| 3 | 53175-LDC8-E10-M3A | LEVER R STRG HNDL | 1 | $48.42 USD | View product → |
| 4 | 90145-9A61-C01 | OIL BOLT 10*22 | 2 | $82.38 USD | View product → |
| 5 | 90545-3L00-C01 | WASHER OIL BOLT | 1 | $66.33 USD | View product → |

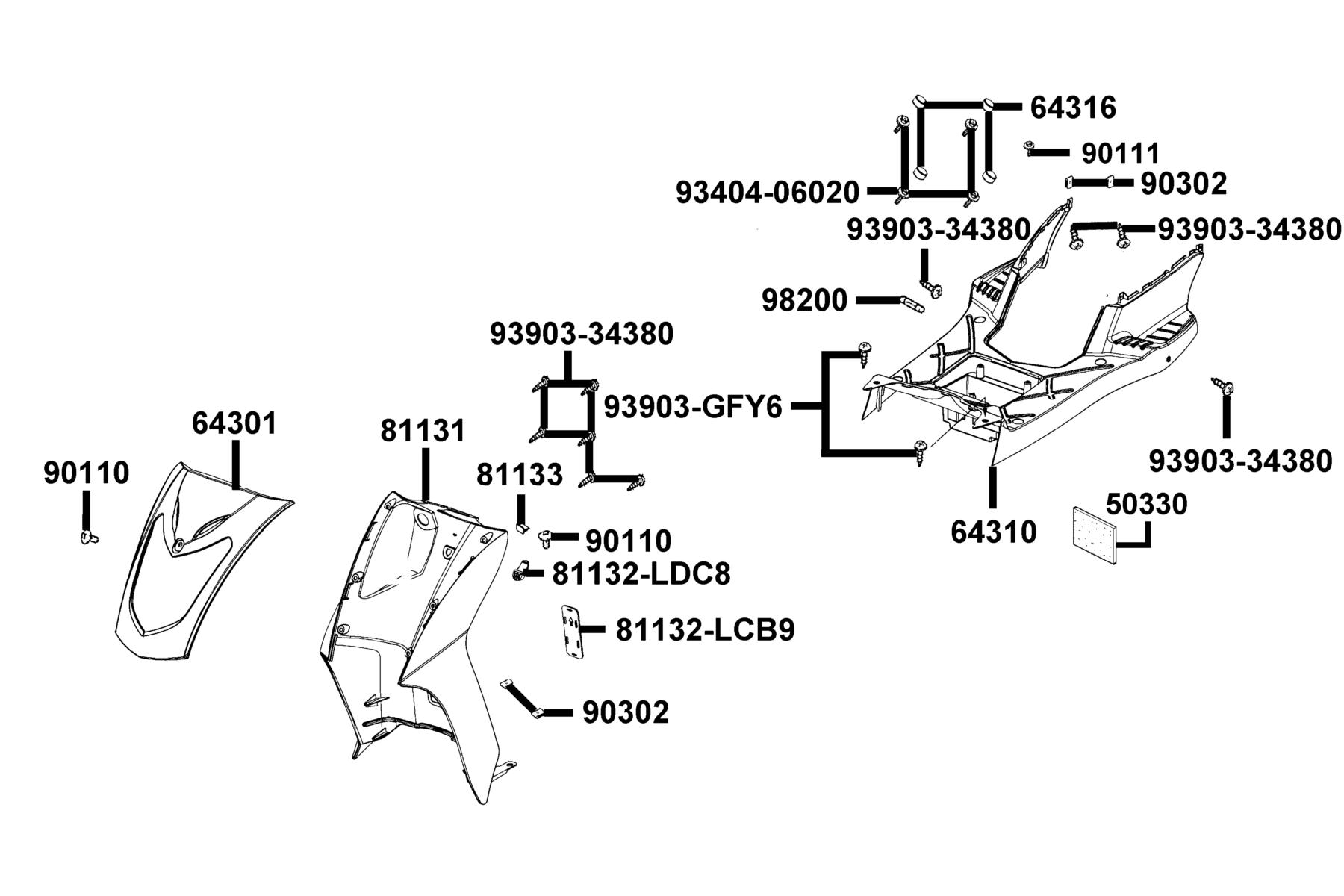

F05 — Front Cover ● Front Fender
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 50330-KEBE-C00 | SEAL BATTER FRONT | 1 | $13.56 USD | View product → |
| 2 | 64301-LCB9-C10-UVP | COVER FR | 1 | $154.11 USD | View product → |
| 3 | 64310-LCB9-C10-N1R | PANEL FLOOR | 1 | $143.97 USD | View product → |
| 4 | 64316-LCB9-C10-N1R | PLUG FLOOR (Black) | 4 | $6.09 USD | View product → |
| 5 | 81131-LCB9-C10-N1R | LEG SHIELD | 1 | $146.40 USD | View product → |
| 6 | 81132-LCB9-C10-N1R | LID LEG SHIELD | 1 | $12.99 USD | View product → |
| 7 | 81132-LDC8-E10-N1R | HOOK LUGGAGE | 1 | $6.09 USD | View product → |
| 8 | 81133-KNBN-C00 | STOPPER LUGGAGE | 1 | $3.39 USD | View product → |
| 9 | 90110-GLW0-C00 | SCREW SPECIAL 6*14(CR) | 2 | $8.16 USD | View product → |
| 10 | 90111-06016-07G | BOLT FLANGE 6*16 (K) | 1 | $4.65 USD | View product → |
| 11 | 90302-SDA4-C01 | NUT SPRING 4MM | 4 | $0.99 USD | View product → |
| 12 | 93404-06020-07G | BOLT-WASH 6x20 | 4 | $3.18 USD | View product → |
| 13 | 93903-34380-G | SCREW TAPPING 4*12 (KG) | 10 | $2.73 USD | View product → |
| 14 | 93903-GFY6-C01 | SCREW TAPPING 4*14(K) | 2 | $4.92 USD | View product → |
| 15 | 98200-10700 | FUSE 7A | 1 | $6.39 USD | View product → |

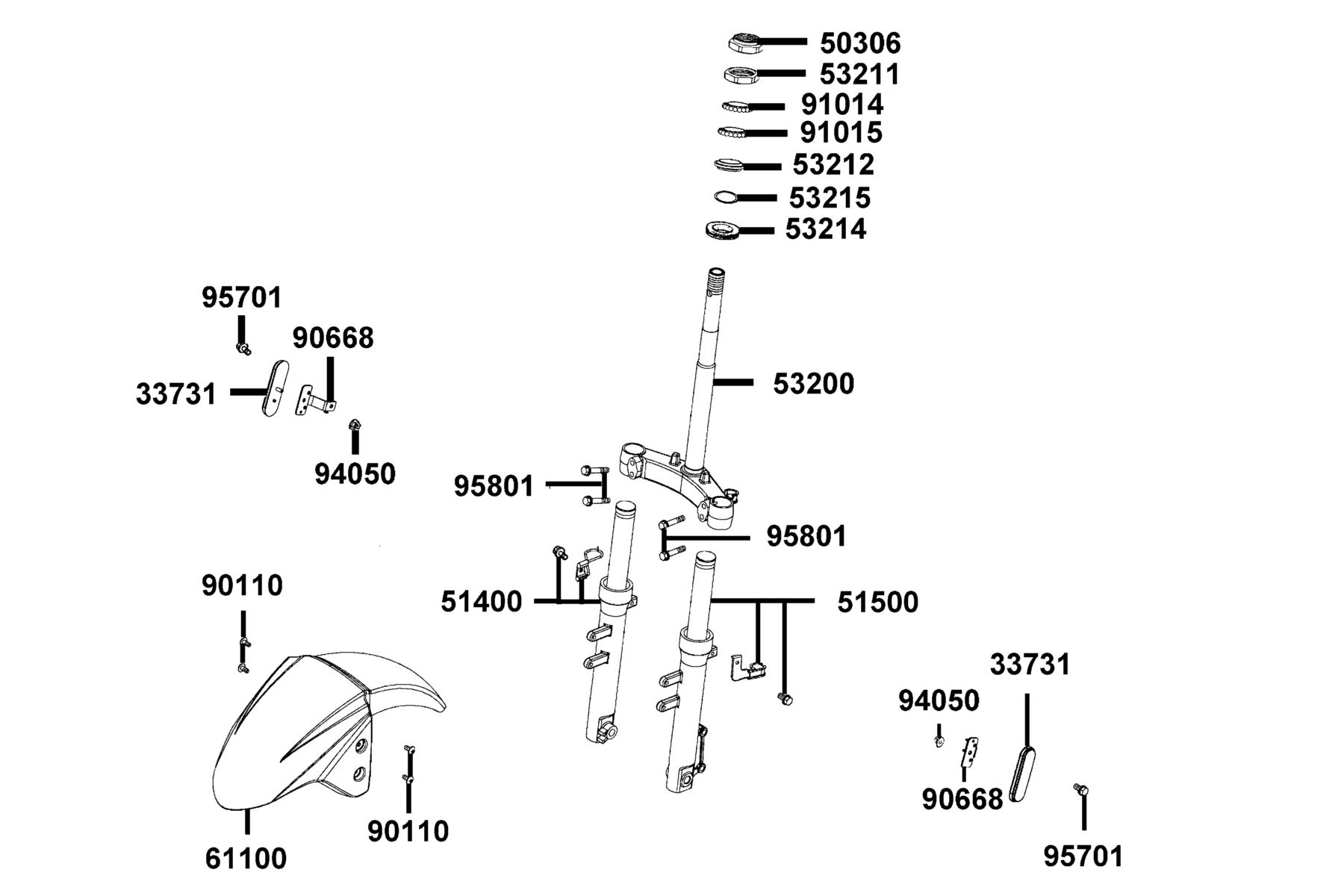

F06 — Stem Steering ● Front Cushion
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 33731-KGB5-EZ0 | REFLEX REFLECTOR SIDE | 2 | $12.84 USD | View product → |
| 2 | 50306-1F96-C00 | NUT STRG STEM LOCK | 1 | $12.12 USD | View product → |
| 3 | 51400-LDC8-E10-NGA | FORK ASSY R FR | 1 | $209.85 USD | View product → |
| 4 | 51500-LDC8-E10-NGA | FORK ASSY L FR | 1 | $209.85 USD | View product → |
| 5 | 53200-LDC8-E10 | STEM COMP STRG | 1 | $167.88 USD | View product → |
| 6 | 53211-GFY6-C00 | RACE STRG TOP CONE | 1 | $16.41 USD | View product → |
| 7 | 53212-2L50-C00 | RACE (STRG BOTTOM) CONE | 1 | $30.66 USD | View product → |
| 8 | 53214-2L50-C00 | DUST SEAL STRG (HEAD) | 1 | $6.39 USD | View product → |
| 9 | 53215-2L50-C00 | WASH STRG HDL DUST-SEAL | 1 | $7.53 USD | View product → |
| 10 | 61100-LDC8-E10-NEP | FENDER FR | 1 | $106.35 USD | View product → |
| 11 | 90110-KEB7-C01 | SCREW SPECIAL 6*14 | 4 | $4.92 USD | View product → |
| 12 | 90668-LDC8-E10 | STAY SIDE REFLECTOR | 2 | $31.11 USD | View product → |
| 13 | 91014-LLJ3-C00 | CAGE STRG TOPP | 1 | $22.65 USD | View product → |
| 14 | 91015-LLJ3-C00 | CAGE STRG BOT | 1 | $28.35 USD | View product → |
| 15 | 94050-05080-G | NUT FLANGE 5MM | 2 | $0.99 USD | View product → |
| 16 | 95701-06012-08G | BOLT FLANGE 6*12 (C) | 4 | $0.99 USD | View product → |
| 17 | 95801-08040-08G | BOLT FLANGE 8*40 | 4 | $4.89 USD | View product → |

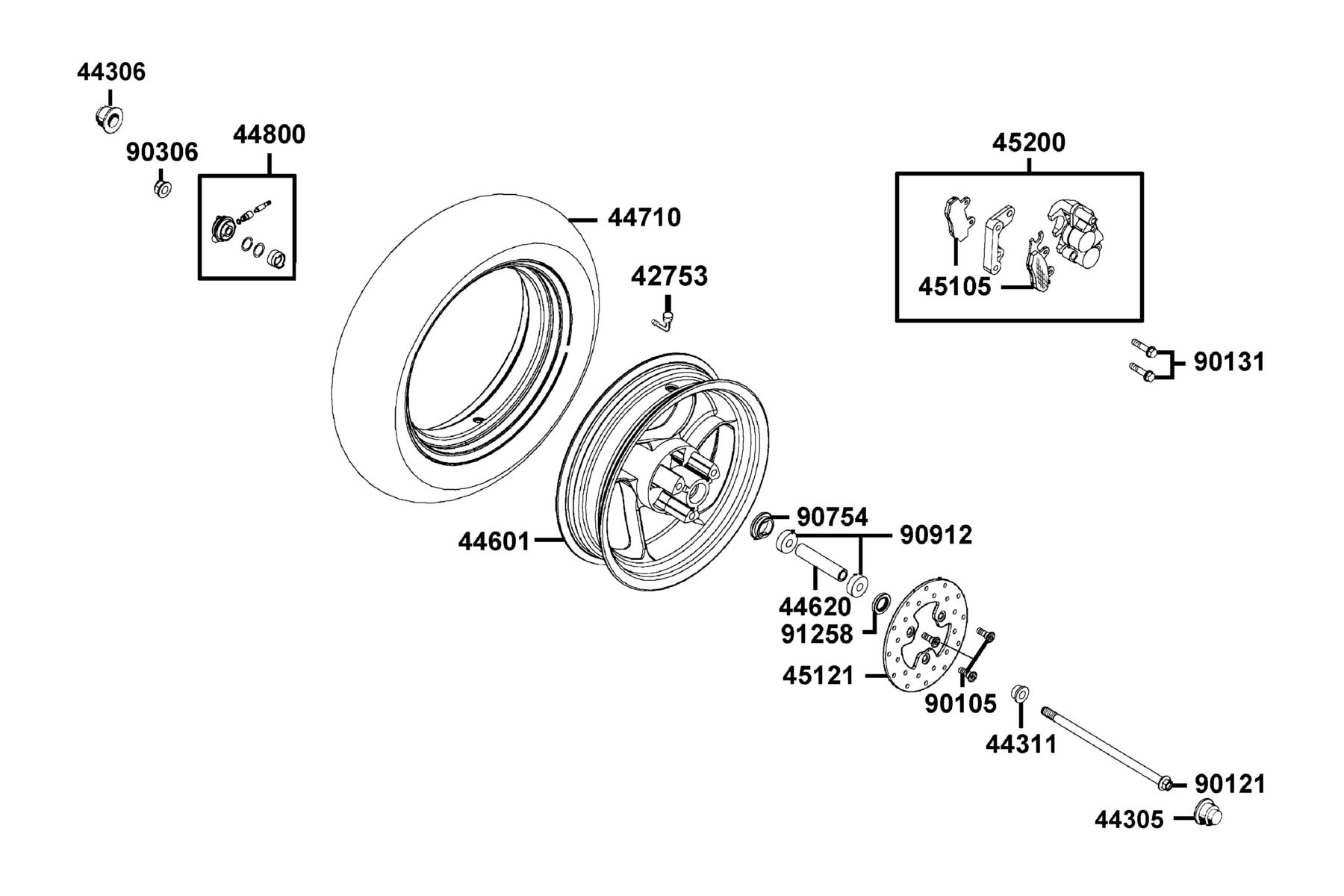

F07 — Front Wheel
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 42753-HHJ1-C00 | CAP VALVE | 1 | $30.66 USD | View product → |
| 2 | 44305-KGE2-E00 | AXLE PROTECTOR L | 1 | $17.82 USD | View product → |
| 3 | 44306-KGE2-E00 | AXLE PROTECTOR R | 1 | $17.82 USD | View product → |
| 4 | 44311-GLW0-W10 | COLLAR FR WHEEL SIDE | 1 | $31.50 USD | View product → |
| 5 | 44601-KEB7-E0E-N1A | WHEEL CAST FR | 1 | $456.00 USD | View product → |
| 6 | 44620-KEB7-C00 | COLLAR FR DIST | 1 | $24.99 USD | View product → |
| 7 | 44710-LDC8-E10 | TIRE ASSY FR | 1 | $512.49 USD | View product → |
| 8 | 44800-LDC8-E10 | GEAR BOX ASSY SPDMT | 1 | $111.00 USD | View product → |
| 9 | 45105-KKD6-305 | PAD COMP A+B | 2 | $95.88 USD | View product → |
| 10 | 45121-LBD5-C00 | DISK FR BRK | 1 | $163.08 USD | View product → |
| 11 | 45200-KKD6-C00-NJA | CALIPER ASSY FR | 1 | $225.51 USD | View product → |
| 12 | 90105-KCR3-C02 | BOLT FR DISK 8*24 | 3 | $9.84 USD | View product → |
| 13 | 90121-KBE2-C01 | BOLT RR FORK PIVOT M12*255 | 1 | $77.52 USD | View product → |
| 14 | 90131-GLW0-C02 | BOLT FLANGE 8*35 | 2 | $7.50 USD | View product → |
| 15 | 90306-KLF0-C02 | NUT FLANGE 12MM(B) | 1 | $15.06 USD | View product → |
| 16 | 90754-GHC8-C00 | DUST SEAL 20*32*5 | 1 | $4.59 USD | View product → |
| 17 | 90912-GHC8-C00 | BEARING 6201 (U) | 2 | $27.39 USD | View product → |
| 18 | 91258-KAM1-C00 | SEAL SPDMT GEAR BOX | 1 | $22.44 USD | View product → |

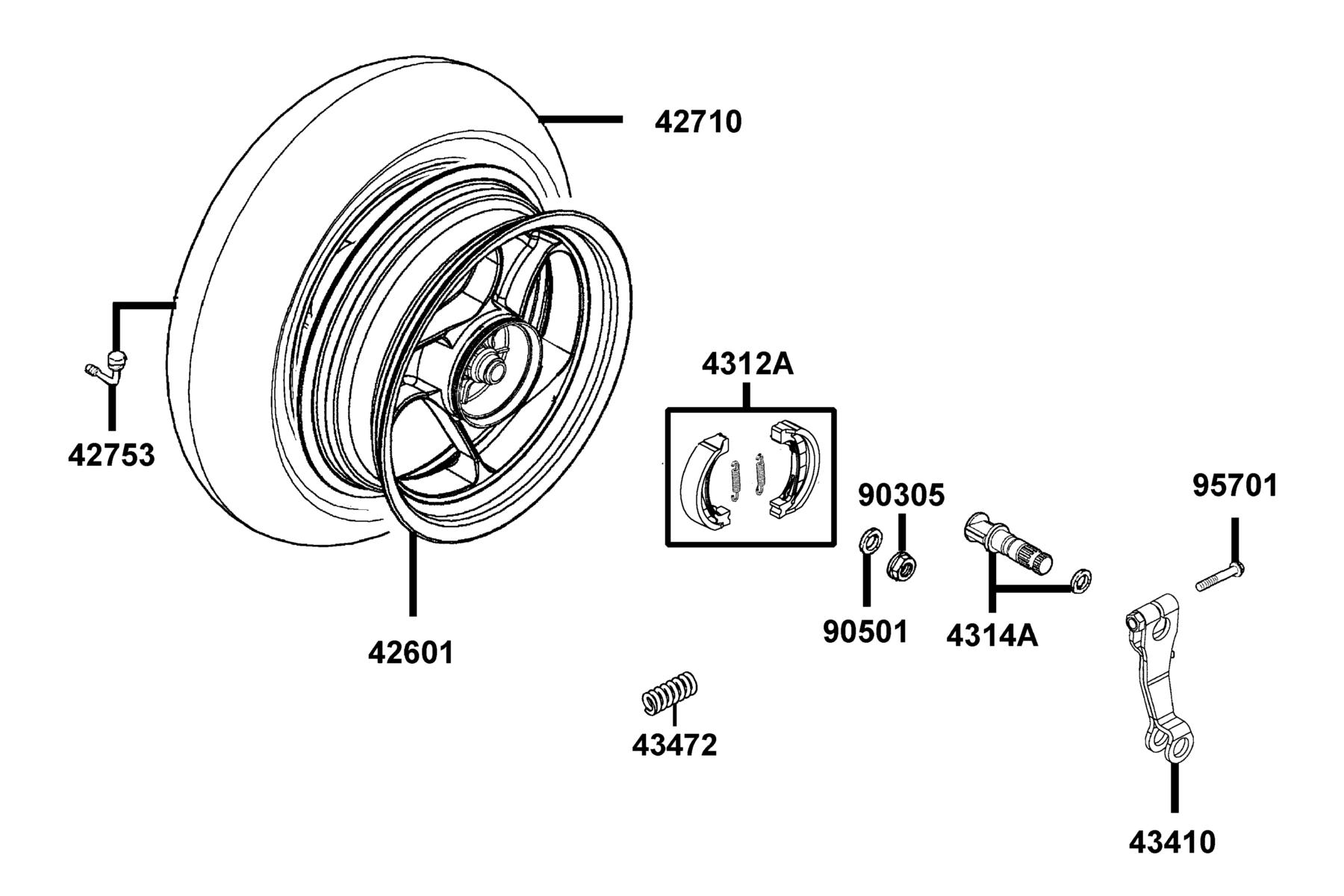

F08 — Rear Wheel
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 42601-KEB7-C00-N1A | WHEEL COMP RR CAST | 1 | $490.83 USD | View product → |
| 2 | 42710-LDC8-E10 | TIRE ASSY RR | 1 | $310.08 USD | View product → |
| 3 | 42753-HHJ1-C00 | CAP VALVE | 1 | $30.66 USD | View product → |
| 4 | 4312A-KXCX-C00 | SHOE ASSY RR BRAKE | 1 | $55.95 USD | View product → |
| 5 | 4314A-KKD6-E00 | CAM ASSY RR BRAKE | 1 | $69.06 USD | View product → |
| 6 | 43410-KFA1-C00 | ARM REAR BRAKE | 1 | $56.10 USD | View product → |
| 7 | 43472-KHG8-C00 | SPG RR BRK ARM | 1 | $2.97 USD | View product → |
| 8 | 90305-PUA3-B51 | NUT U 16MM(C) | 1 | $14.94 USD | View product → |
| 9 | 90501-KNBN-C01 | WASHER 16MM | 1 | $3.27 USD | View product → |
| 10 | 95701-06032-08G | BOLT FLANGE 6*32 | 1 | $1.95 USD | View product → |

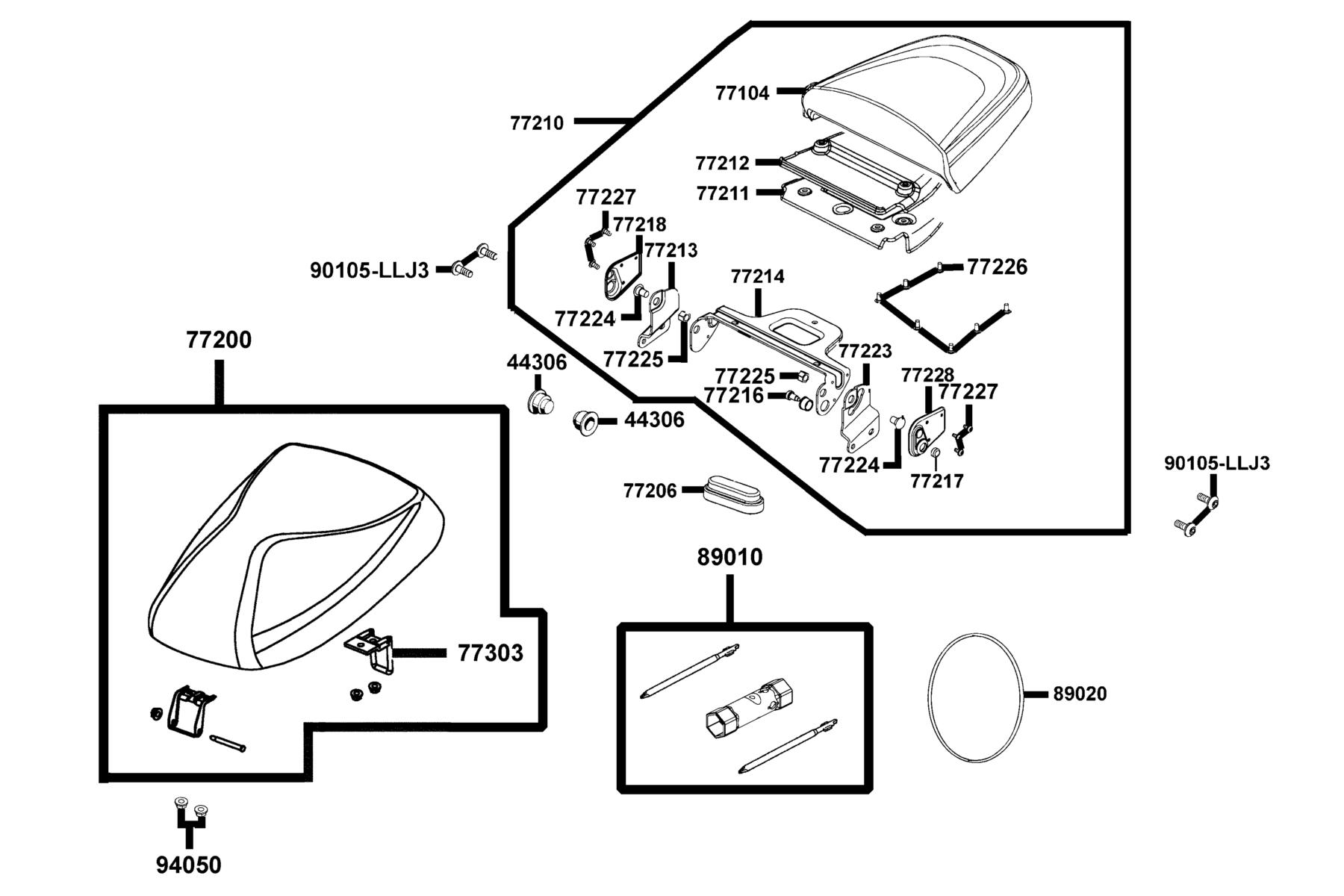

F09 — Seat
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 44306-KGE2-E00 | AXLE PROTECTOR R | 2 | $17.82 USD | View product → |
| 2 | 77104-LCB9-C10 | " SKIN, BACK SEAT" | 1 | $52.02 USD | View product → |
| 3 | 77200-LCB9-C10-T01 | SEAT ASSY | 1 | $188.16 USD | View product → |
| 4 | 77206-LCB9-C10 | RUBBER SEAT CUSHION | 1 | $34.59 USD | View product → |
| 5 | 77210-LCB9-M30-T01 | SEAT ASSY BACK | 1 | $356.40 USD | View product → |
| 6 | 77211-LCB9-C10 | "PLATE COMP.,BACK SEAT" | 1 | $31.44 USD | View product → |
| 7 | 77212-LCB9-C10 | COVER BACK SEAT | 1 | $34.59 USD | View product → |
| 8 | 77213-LCB9-C10 | "STAY LOW, R HINGE" | 1 | $37.41 USD | View product → |
| 9 | 77214-LCB9-C10 | "STAY COMP., UP HINGE" | 1 | $124.59 USD | View product → |
| 10 | 77216-LCB9-C10 | "PIN, SWITCH" | 1 | $6.75 USD | View product → |
| 11 | 77217-LCB9-C10 | "PUSH BUTTOM, SWITCH" | 1 | $5.31 USD | View product → |
| 12 | 77218-LCB9-C10 | GUARD R BACK SEAT | 1 | $10.74 USD | View product → |
| 13 | 77223-LCB9-C10 | "STAY LOW, L HINGE" | 1 | $21.84 USD | View product → |
| 14 | 77224-LCB9-C10 | BOLT SPECIAL M8 | 2 | $7.92 USD | View product → |
| 15 | 77225-LCB9-C10 | NUT M8 | 1 | $3.93 USD | View product → |
| 16 | 77226-LCB9-C10 | NUT M6 | 7 | $4.02 USD | View product → |
| 17 | 77227-LCB9-C10 | BOLT WASHER | 7 | $4.59 USD | View product → |
| 18 | 77228-LCB9-C10 | GUARD L BACK SEAT | 1 | $12.33 USD | View product → |
| 19 | 77303-LCB9-C10 | HOOK SEAT LOCK | 1 | $14.19 USD | View product → |
| 20 | 89010-KGBG-C00 | TOOL SET | 1 | $47.94 USD | View product → |
| 21 | 89020-KKC4-C00 | BAND TOOL SET | 1 | $3.60 USD | View product → |
| 22 | 90105-LLJ3-E01 | BOLT SPECIAL 8MM | 4 | $18.27 USD | View product → |
| 23 | 94050-06080-G | NUT FLANGE 6MM | 2 | $0.99 USD | View product → |

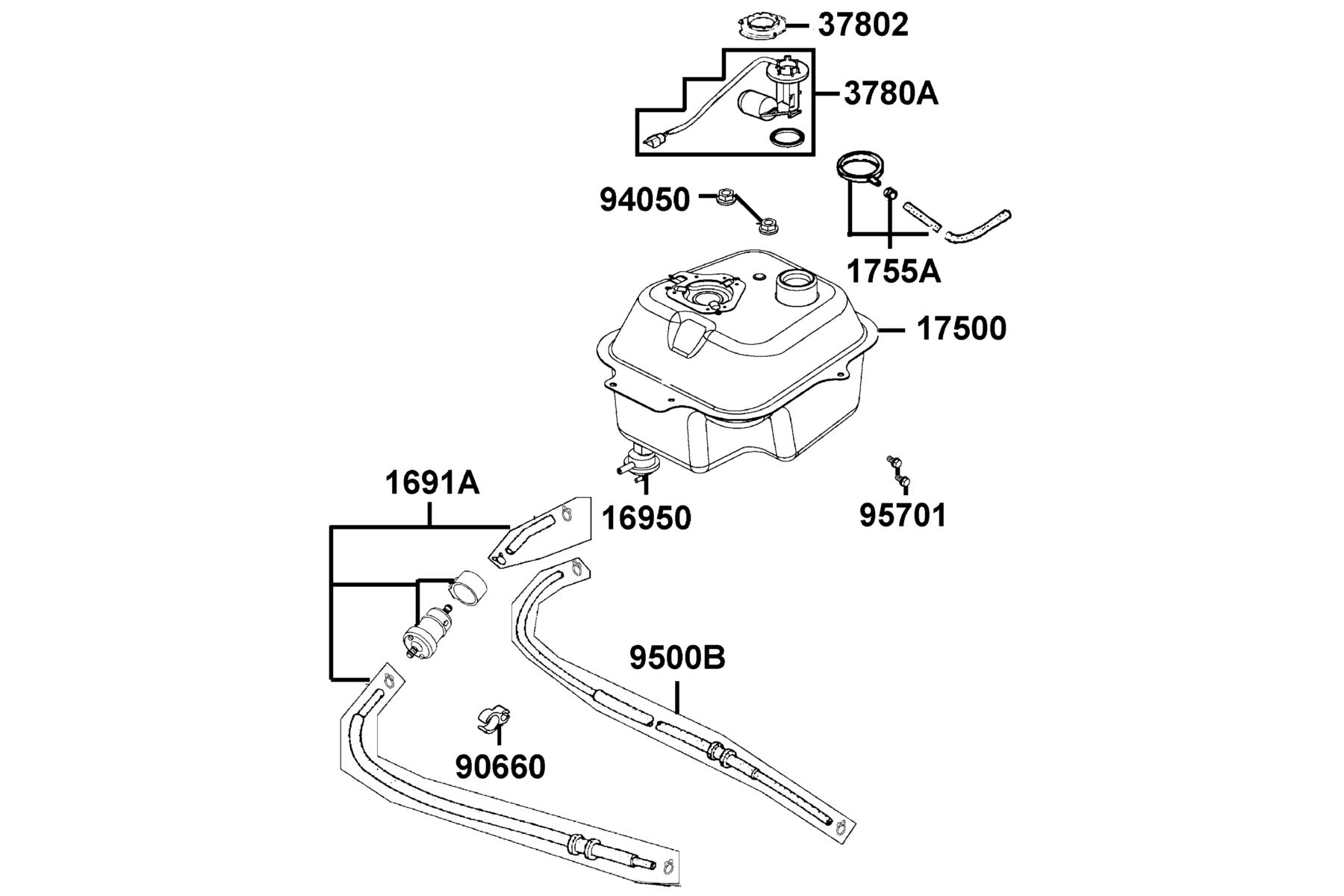

F10 — Fuel Tank
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1691A-LDC8-MY0 | STRAINER ASSY FUEL | 1 | $71.43 USD | View product → |
| 2 | 16950-KKJ9-MY0 | AUTO COCK ASSY FUEL | 1 | $105.06 USD | View product → |
| 3 | 17500-LCB9-C10 | TANK COMP FUEL | 1 | $171.03 USD | View product → |
| 4 | 1755A-KKD5-C10 | TRAY ASSY FUEL CAP | 1 | $67.14 USD | View product → |
| 5 | 37802-GGA7-C00 | RET FUEL UNIT | 1 | $5.22 USD | View product → |
| 6 | 3780A-LDC8-MY0 | FUEL UNIT ASSY | 1 | $67.32 USD | View product → |
| 7 | 90660-KGBG-C00 | CLAMPER TUBE | 1 | $0.99 USD | View product → |
| 8 | 94050-06080-G | NUT FLANGE 6MM | 2 | $0.99 USD | View product → |
| 9 | 9500B-LDC8-E10 | TUBE ASSY VACUUM | 1 | $20.91 USD | View product → |
| 10 | 95701-06012-08G | BOLT FLANGE 6*12 (C) | 2 | $0.99 USD | View product → |

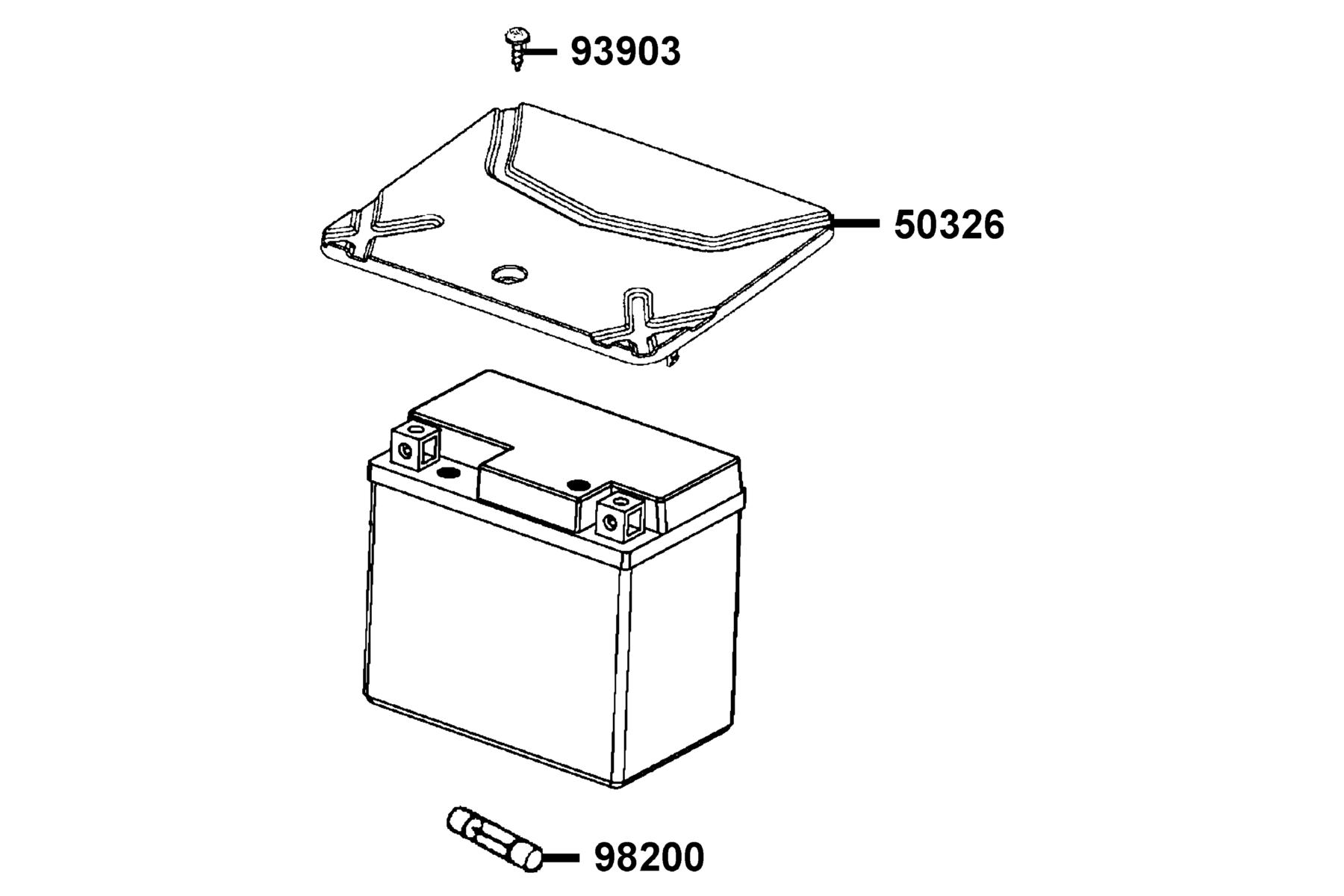

F11 — Battery
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 50326-LCB9-C10-N1R | COVER BATTERY | 1 | $39.12 USD | View product → |
| 2 | 93903-35380-G | SCREW TAPPING 5*16 | 1 | $0.15 USD | View product → |
| 3 | 98200-10700 | FUSE 7A | 1 | $6.39 USD | View product → |

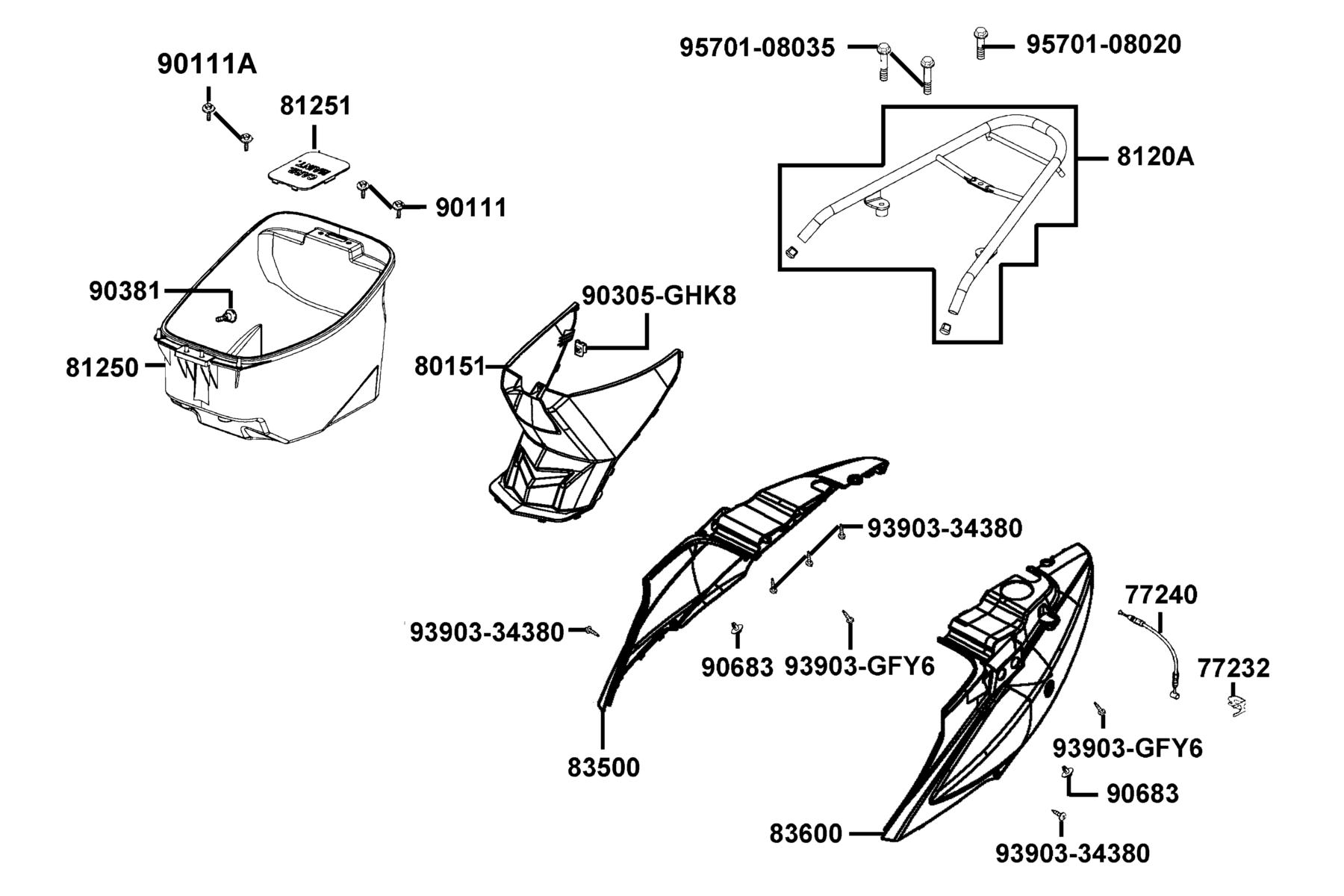

F12 — Body Cover ● Luggage Box
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 77232-KCAC-C00 | SET SPG SEAT LOCK | 1 | $12.78 USD | View product → |
| 2 | 77240-LDC8-E10 | CABLE COMP SEAT LOCK | 1 | $16.20 USD | View product → |
| 3 | 80151-LCB9-C10-N1R | COVER CENTER | 1 | $104.19 USD | View product → |
| 4 | 8120A-LCB9-C10 | CARRIER ASSY LUGGER | 1 | $84.03 USD | View product → |
| 5 | 81250-LCB9-C10-N1R | BOX LUGGAGE (BLACK) | 1 | $158.97 USD | View product → |
| 6 | 81251-LCB9-C10-N1R | LID CARB MAINT (Black) | 1 | $43.83 USD | View product → |
| 7 | 83500-LCB9-C10-UVP | COVER R BODY | 1 | $132.15 USD | View product → |
| 8 | 83600-LCB9-C10-UVP | COVER L BODY | 1 | $132.15 USD | View product → |
| 9 | 90111-06016-07G | BOLT FLANGE 6*16 (K) | 2 | $4.65 USD | View product → |
| 10 | 90111-1G87-C01 | BOLT FLANGE 6MM | 2 | $5.31 USD | View product → |
| 11 | 90305-GHK8-C01 | NUT CLIP 6MM | 1 | $2.61 USD | View product → |
| 12 | 90381-GEZ5-C01 | SCREW SPECIAL 6*17 | 1 | $4.65 USD | View product → |
| 13 | 90683-GAR1-C00 | CLIP BODY COVER | 2 | $4.92 USD | View product → |
| 14 | 93903-34380-G | SCREW TAPPING 4*12 (KG) | 5 | $2.73 USD | View product → |
| 15 | 93903-GFY6-C01 | SCREW TAPPING 4*14(K) | 2 | $4.92 USD | View product → |
| 16 | 95701-08020-07G | BOLT FLANGE 8*20 (K) | 1 | $2.61 USD | View product → |
| 17 | 95701-08035-07G | BOLT FLANGE 8*35 (C) | 2 | $3.27 USD | View product → |

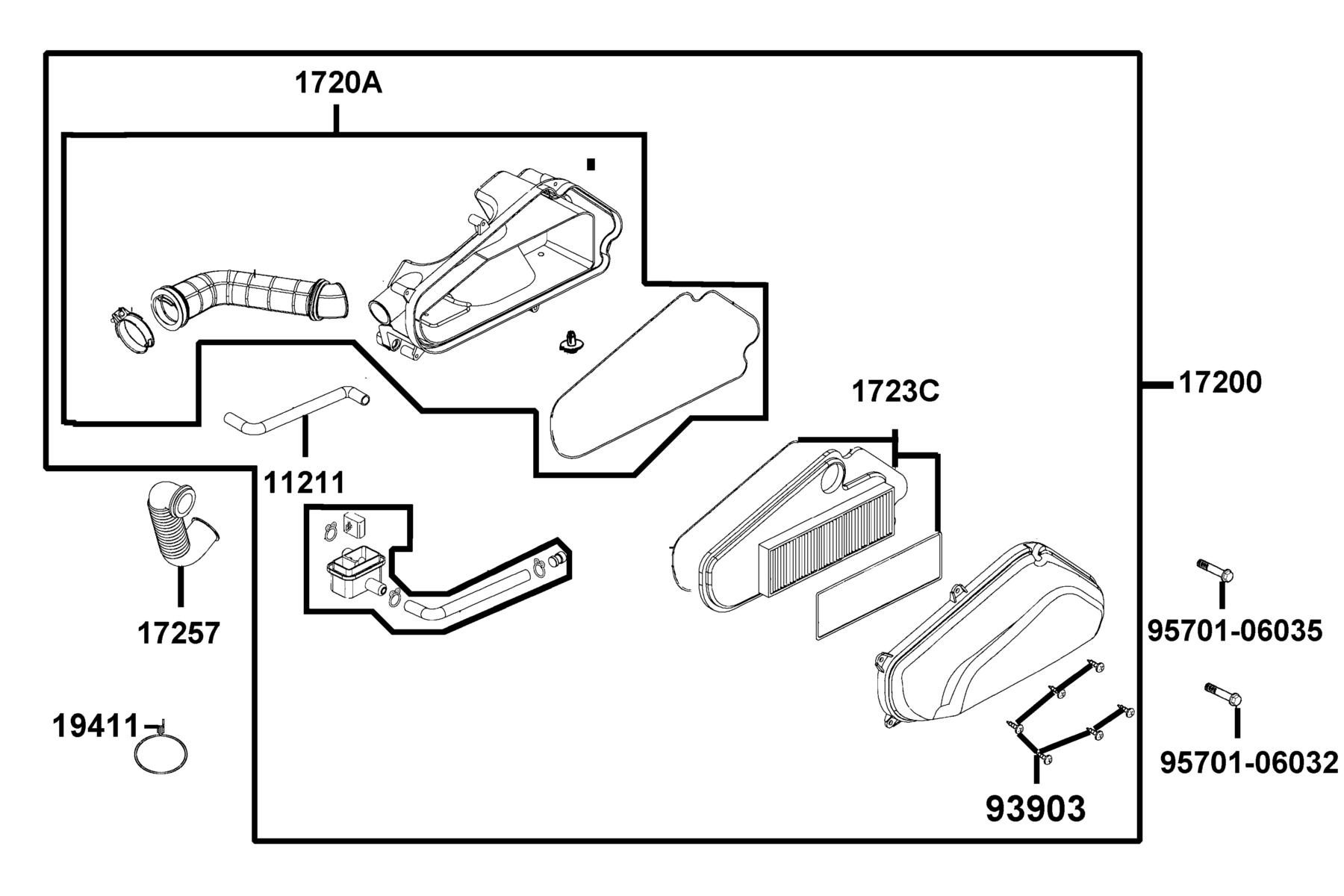

F13 — Air Cleaner
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 11211-LBD6-E00 | TUBE BREATHER | 1 | $26.49 USD | View product → |
| 2 | 17200-LDC8-E11 | AIR/C ASSY | 1 | $139.92 USD | View product → |
| 3 | 1720A-LDC8-E11 | CASE ASSY AIR/C | 1 | $75.30 USD | View product → |
| 4 | 1723C-LBD6-E00 | ELEMENT ASSY AIR/C | 1 | $66.24 USD | View product → |
| 5 | 17257-LDC8-E00 | DUCT AIR/C COVER | 1 | $66.45 USD | View product → |
| 6 | 19411-KNBN-C10 | CLIP HOSE | 1 | $27.12 USD | View product → |
| 7 | 93903-25480 | SCREW TAPPING 5*20 **93903-25460 C.P.N. | 7 | $4.92 USD | View product → |
| 8 | 95701-06032-08G | BOLT FLANGE 6*32 | 1 | $1.95 USD | View product → |
| 9 | 95701-06035-08G | BOLT FLANGE 6*35 | 1 | $1.95 USD | View product → |

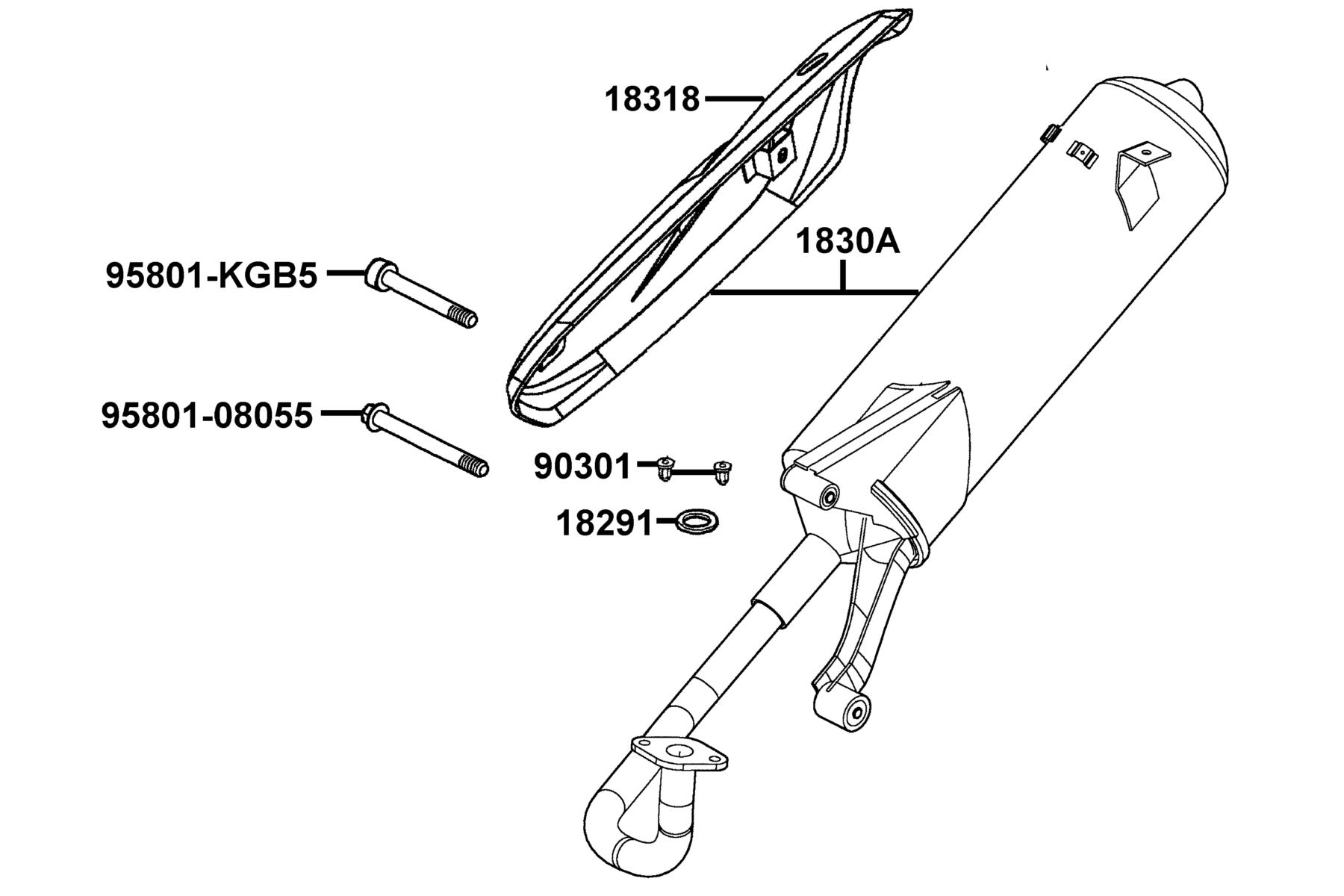

F14 — Exhaust Muffler
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 18291-GGA7-C01 | GASKET EXH PIPE | 1 | $9.78 USD | View product → |
| 2 | 1830A-LDC8-M31 | MUFFLER ASSY EXHAUST | 1 | $455.52 USD | View product → |
| 3 | 18318-LDF7-E10 | PROTECTOR MUFFLER | 1 | $87.63 USD | View product → |
| 4 | 90301-KGBG-C01 | NUT CAP 6MM | 2 | $24.33 USD | View product → |
| 5 | 95801-08055-07G | BOLT FLANGE 8*55 | 1 | $3.93 USD | View product → |
| 6 | 95801-KGB5-C01 | BOLT TORX M8*60 | 1 | $13.62 USD | View product → |

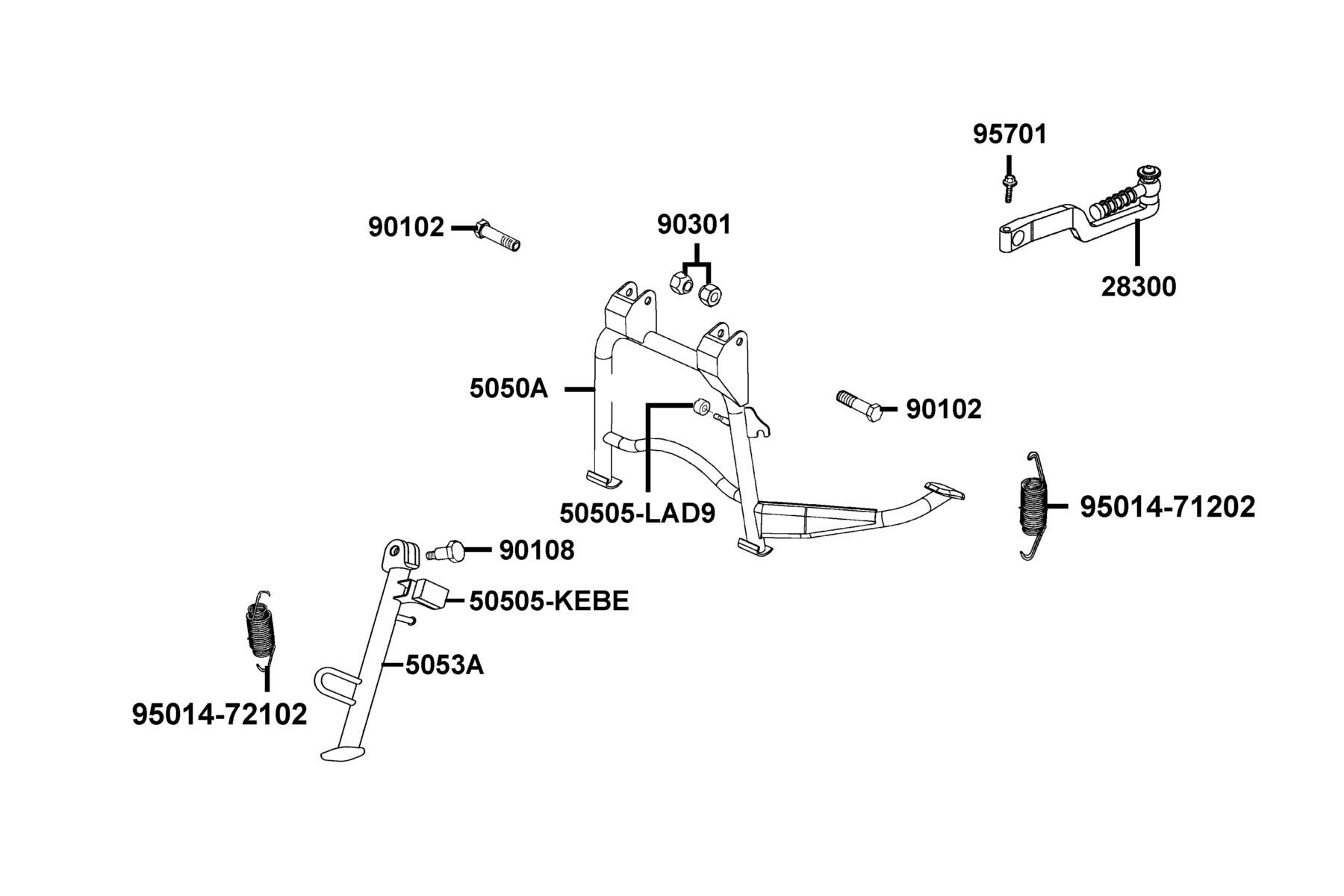

F15 — Stand ● Kick Starter Arm
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 28300-KNBN-C00 | ARM ASSY KICK STARTER | 1 | $43.98 USD | View product → |
| 2 | 50505-KEBE-C00 | STOPPER RUBBER | 1 | $4.26 USD | View product → |
| 3 | 50505-LAD9-C00 | STOPPER RUBBER | 1 | $11.16 USD | View product → |
| 4 | 5050A-LDC8-E10 | STAND COMP MAIN | 1 | $108.24 USD | View product → |
| 5 | 5053A-LDC8-M60 | BAR SIDE STAND | 1 | $47.91 USD | View product → |
| 6 | 90102-GLE0-C00 | BOLT HINGE PIVOT | 2 | $14.07 USD | View product → |
| 7 | 90108-GFY6-C00 | SCREW SIDE STAND PIVOT | 1 | $5.61 USD | View product → |
| 8 | 90301-4C73-C01 | NUT U 6MM(C) | 2 | $19.89 USD | View product → |
| 9 | 95014-71202 | SPG B MAIN STAND | 1 | $12.84 USD | View product → |
| 10 | 95014-72102-M1 | SPG A SIDE STAND | 1 | $6.54 USD | View product → |
| 11 | 95014-72102-invalid | SPG B1 SIDE STAND | 1 | $4.20 USD | View product → |
| 12 | 95701-06022-07G | BOLT FLANGE 6*22 (K) | 1 | $3.03 USD | View product → |

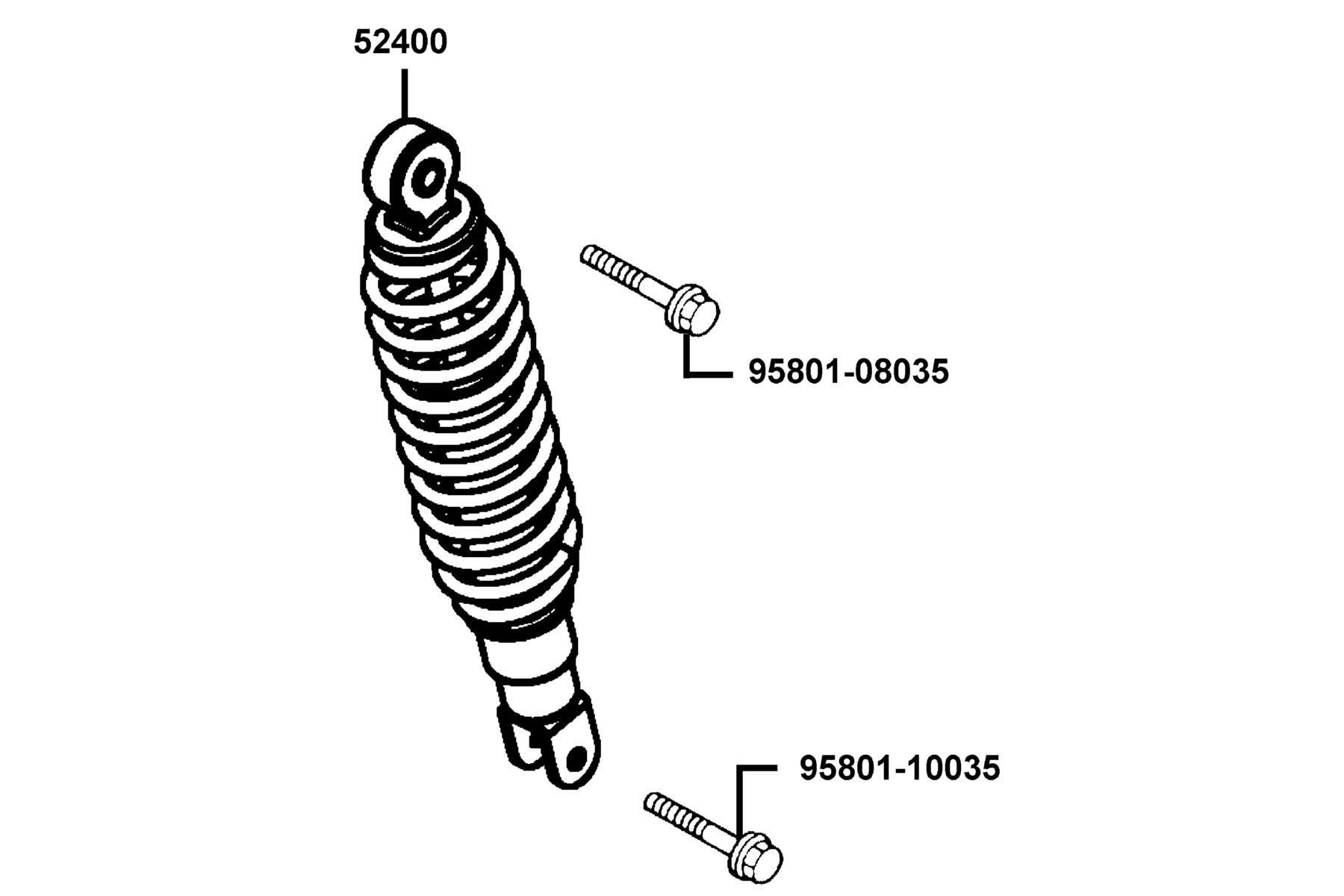

F16 — Rear Cushion
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 52400-LDC8-E10-R8S | CUSHION ASSY RR | 1 | $243.93 USD | View product → |
| 2 | 95801-08032-08G | BOLT FLANGE 8X32 | 1 | $4.26 USD | View product → |
| 3 | 95801-10035-08G | BOLT FLANGE 10X35 | 1 | $5.22 USD | View product → |

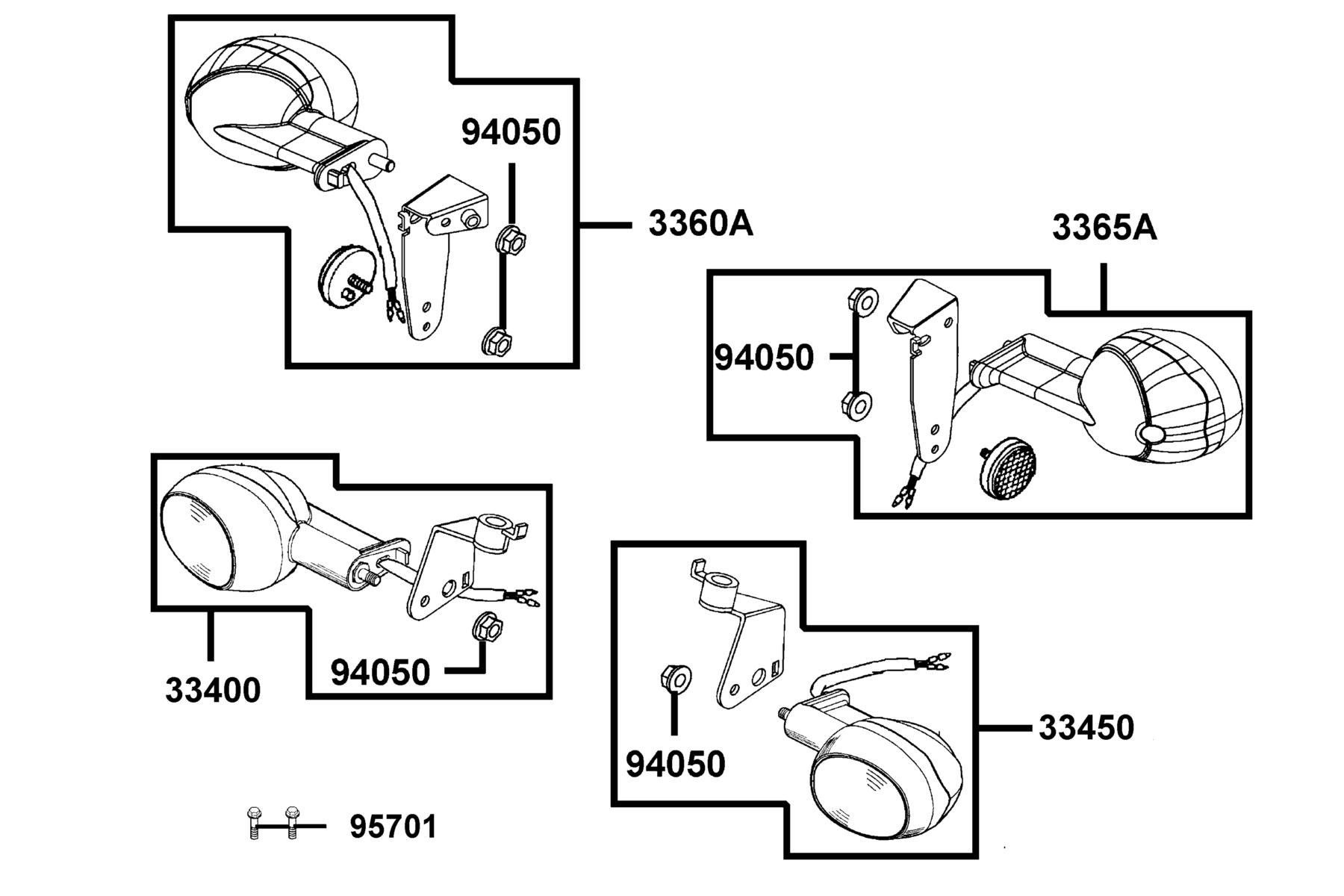

F17 — Front Winker
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 33400-LDC8-M30 | WINKER ASSY R FR | 1 | $116.40 USD | View product → |
| 2 | 33450-LDC8-M30 | WINKER ASSY L FR | 1 | $116.40 USD | View product → |
| 3 | 3360A-LDC8-M30 | WINKER ASSY R RR | 1 | $112.98 USD | View product → |
| 4 | 3365A-LDC8-M30 | WINKER ASSY L RR | 1 | $112.98 USD | View product → |
| 5 | 94050-06080-G | NUT FLANGE 6MM | 4 | $0.99 USD | View product → |
| 6 | 95701-08020-07G | BOLT FLANGE 8*20 (K) | 2 | $2.61 USD | View product → |

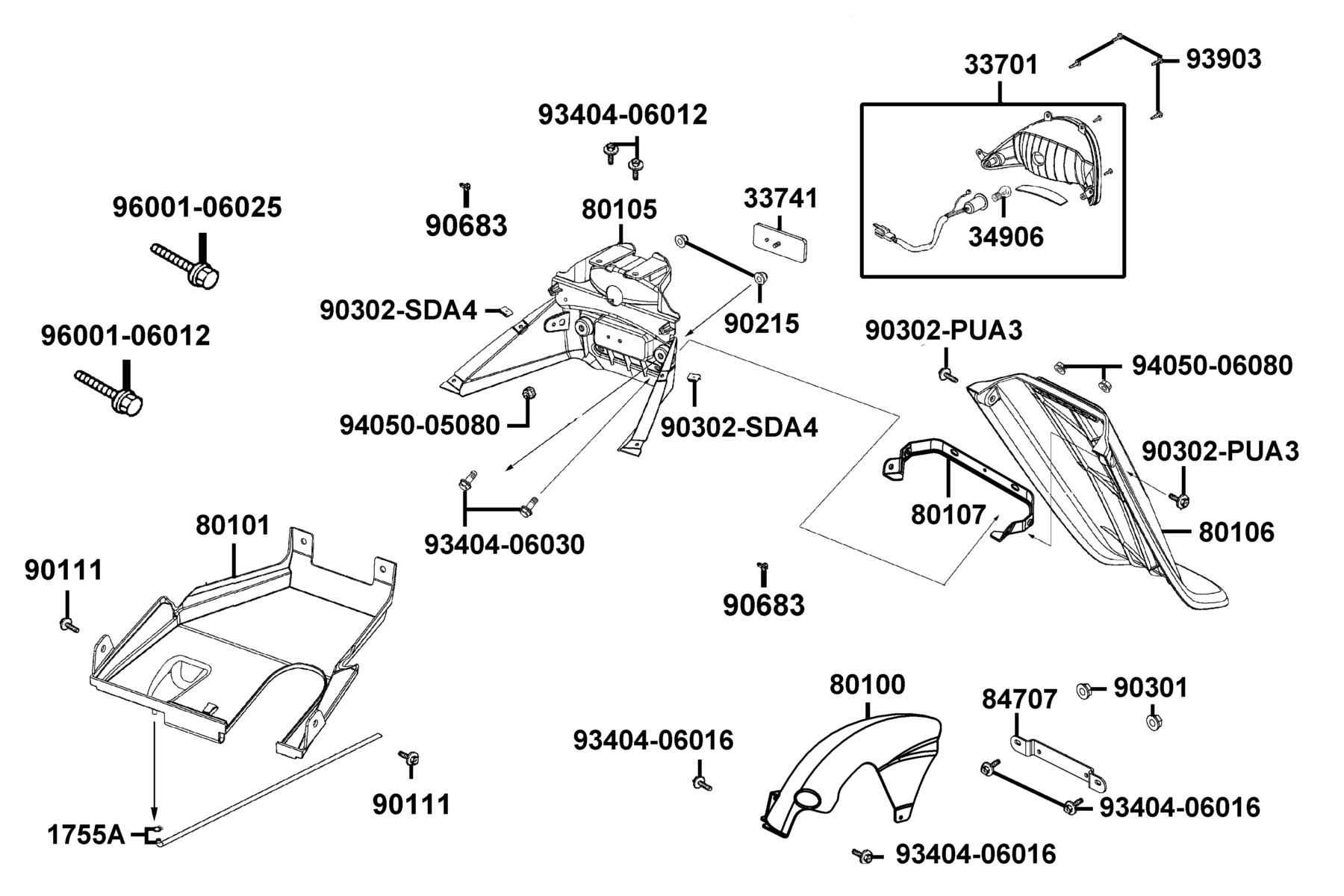

F18 — Tail Light
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 33701-LDC8-M30 | UNIT TAIL LIGHT | 1 | $137.31 USD | View product → |
| 2 | 33741-LDC8-M30 | REFLEX REFLECTOR | 1 | $33.96 USD | View product → |
| 3 | 34906-LBA8-E80 | BULB TAIL & STOP | 1 | $17.79 USD | View product → |
| 4 | 80100-LDC8-E10-N1R | FENDER RR TIRE | 1 | $77.94 USD | View product → |
| 5 | 80101-LCB9-C10-N1R | FENDER RR INNER | 1 | $75.84 USD | View product → |
| 6 | 80105-LDC8-E10-N1R | FENDER RR | 1 | $88.11 USD | View product → |
| 7 | 80106-LDC8-E10-N1R | FENDER RR LOW | 1 | $68.61 USD | View product → |
| 8 | 80107-LDC8-E10 | STAY RR FENDER | 1 | $63.81 USD | View product → |
| 9 | 84707-KGB4-C10 | UNDER NUMBER BRKT | 1 | $23.37 USD | View product → |
| 10 | 90111-06016-07G | BOLT FLANGE 6*16 (K) | 3 | $4.65 USD | View product → |
| 11 | 90215-KKC4-C00 | NUT CAP 6MM | 2 | $9.18 USD | View product → |
| 12 | 90301-6D34-C01 | NUT FLANGE 6MM(C) | 4 | $5.37 USD | View product → |
| 13 | 90302-PUA3-B51 | BOLT-WASH 5*12 | 2 | $4.65 USD | View product → |
| 14 | 90302-SDA4-C01 | NUT SPRING 4MM | 2 | $0.99 USD | View product → |
| 15 | 90683-GAR1-C00 | CLIP BODY COVER | 2 | $4.92 USD | View product → |
| 16 | 93404-06012-07G | 0 | 3 | $1.32 USD | View product → |
| 17 | 93404-06016-08G | BOLT WASHER 6*16 | 2 | $1.65 USD | View product → |
| 18 | 93404-06030-07G | 0 | 2 | $4.11 USD | View product → |
| 19 | 93903-34380-G | SCREW TAPPING 4*12 (KG) | 4 | $2.73 USD | View product → |
| 20 | 94050-05080-G | NUT FLANGE 5MM | 1 | $0.99 USD | View product → |
| 21 | 94050-06080-G | NUT FLANGE 6MM | 1 | $0.99 USD | View product → |
| 22 | 96001-06012-08G | BOLT FLANGE SH 6X12 (C) | 1 | $0.99 USD | View product → |
| 23 | 96001-06025-08G | BOLT FLANGE SH 6*25 (C) | 1 | $0.99 USD | View product → |

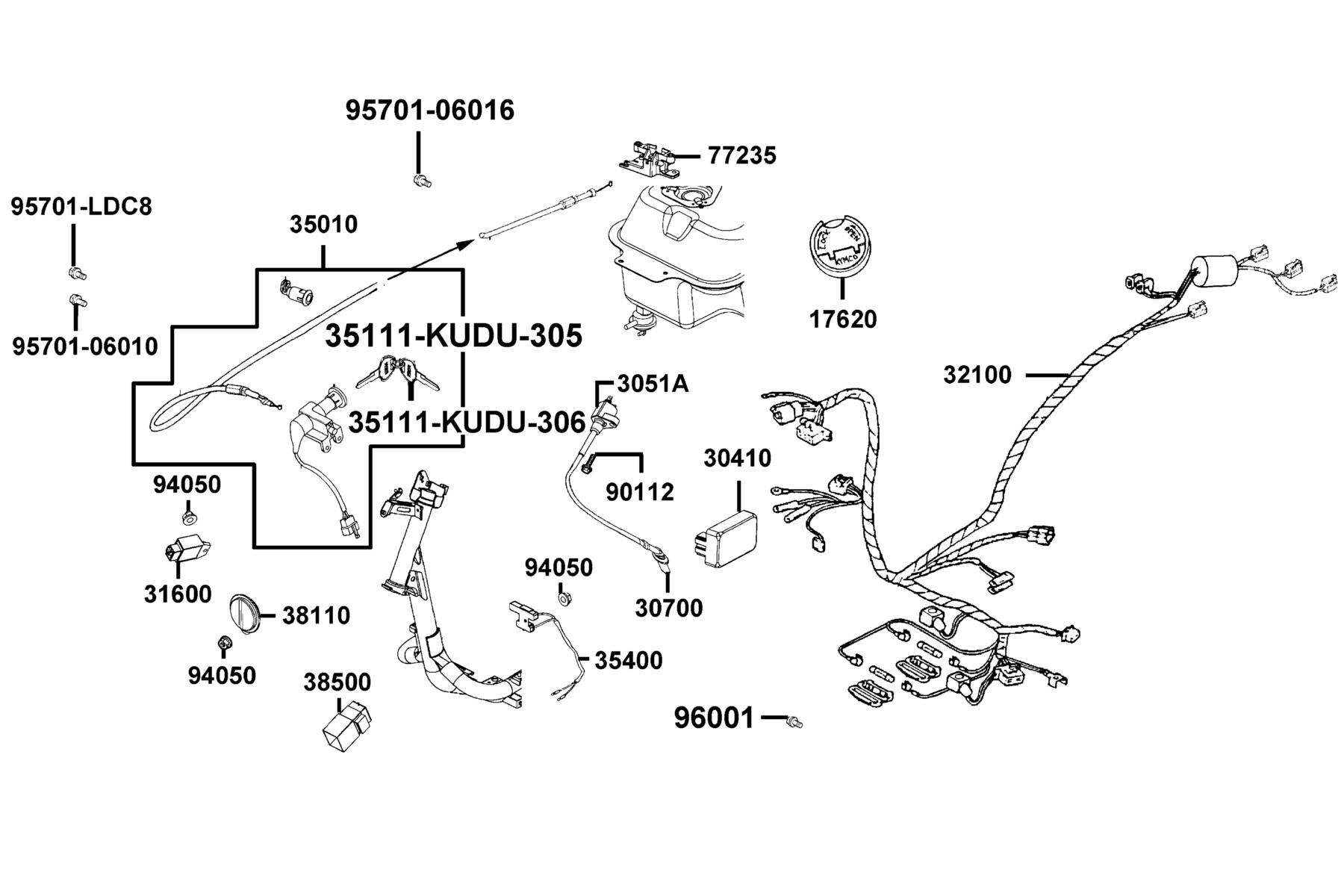

F19 — Wire Harness
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 17620-KGBG-MY0 | CAP COMP FILLER | 1 | $47.49 USD | View product → |
| 2 | 30410-LBD6-C00 | UNIT COMP CDI | 1 | $197.97 USD | View product → |
| 3 | 3051A-KHC4-C00 | COIL ASSY IGN | 1 | $94.47 USD | View product → |
| 4 | 30700-GFY6-C00 | CAP ASSY NOISE SUPPRESOR | 1 | $40.26 USD | View product → |
| 5 | 31600-KUDU-C00 | REG REC COMP | 1 | $95.40 USD | View product → |
| 6 | 32100-LCB9-C10 | HARNESS WIRE | 1 | $122.40 USD | View product → |
| 7 | 35010-LDC8-MY0 | KEY SET | 1 | $322.44 USD | View product → |
| 8 | 35111-KUDU-305 | BLACK KEY R | 1 | $30.42 USD | View product → |
| 9 | 35111-KUDU-306 | BLACK KEY L | 1 | $30.42 USD | View product → |
| 10 | 35400-LDC8-B20 | RESISTOR COMP | 1 | $53.64 USD | View product → |
| 11 | 38110-KEB7-90A | HORN COMP (supplier:D405) | 1 | $40.02 USD | View product → |
| 12 | 38110-KEB7-90A-invalid | HORN COMP (supplier:D405) | 1 | $48.03 USD | View product → |
| 13 | 38500-KKDK-C00 | SET START MAG | 1 | $152.13 USD | View product → |
| 14 | 77235-KGC4-C00 | SEAT CATCH COMP | 1 | $47.31 USD | View product → |
| 15 | 90112-PUA3-B50 | BOLT FLANGE 5*22 | 1 | $0.99 USD | View product → |
| 16 | 94050-06080-G | NUT FLANGE 6MM | 2 | $0.99 USD | View product → |
| 17 | 95701-06010-08G | BOLT FLANGE 6*10 | 1 | $0.99 USD | View product → |
| 18 | 95701-06016-08G | BOLT FLANGE 6*16 (C) | 2 | $0.99 USD | View product → |
| 19 | 95701-LDC8-E11 | BOLT TORQUE 6x16 | 1 | $2.82 USD | View product → |
| 20 | 96001-06016-08G | BOLT FLANGE SH 6x16 (C) | 1 | $0.99 USD | View product → |

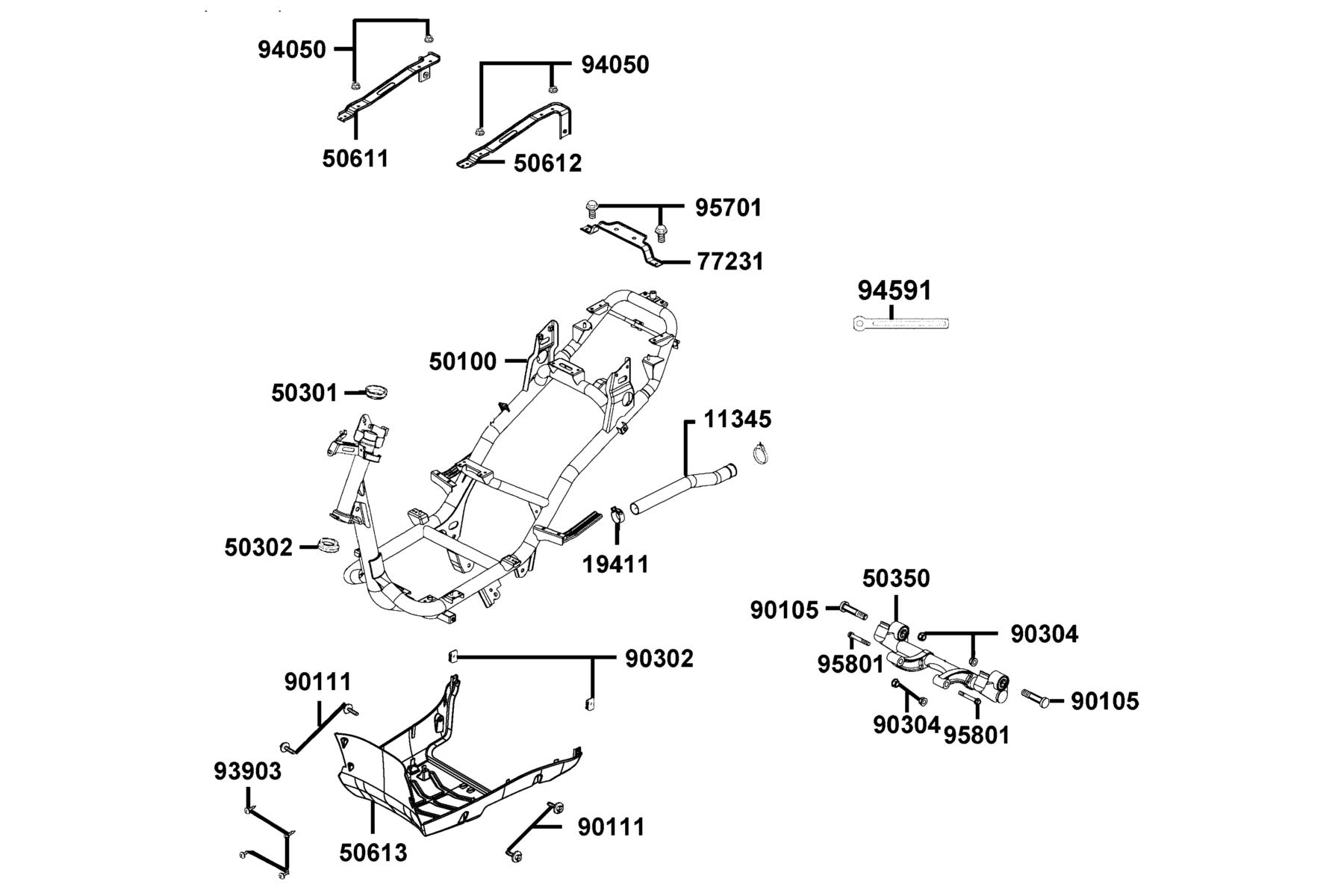

F20 — Frame Body
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 11345-ALA9-E70 | DUCT L COVER | 1 | $52.02 USD | View product → |
| 2 | 19411-KNBN-C10 | CLIP HOSE | 1 | $27.12 USD | View product → |
| 3 | 50100-LDC8-E10 | BODY COMP FRAME | 1 | $513.48 USD | View product → |
| 4 | 50301-KGN7-C00 | RACE UP STRG BALL | 1 | $18.57 USD | View product → |
| 5 | 50302-2H68-C00 | RACE (STRG BOT) BALL | 1 | $15.84 USD | View product → |
| 6 | 50350-LDC8-E10 | HANGER ASSY ENG | 1 | $191.79 USD | View product → |
| 7 | 50611-LCB9-C10 | RNFCT R FLOOR | 1 | $56.58 USD | View product → |
| 8 | 50613-LCB9-C11-N1R | COVER UNDER | 1 | $134.79 USD | View product → |
| 9 | 77231-LCB9-C10 | STAY SEAT RUBBER | 1 | $43.62 USD | View product → |
| 10 | 90105-LDC8-E11 | SQUARE BOLT M10*50 | 2 | $22.74 USD | View product → |
| 11 | 90111-06016-07G | BOLT FLANGE 6*16 (K) | 4 | $4.65 USD | View product → |
| 12 | 90302-SDA4-C01 | NUT SPRING 4MM | 2 | $0.99 USD | View product → |
| 13 | 90304-GHE8-C01 | NUT U 10MM(C) | 4 | $21.45 USD | View product → |
| 14 | 93903-34380-G | SCREW TAPPING 4*12 (KG) | 4 | $2.73 USD | View product → |
| 15 | 94050-06080-G | NUT FLANGE 6MM | 4 | $0.99 USD | View product → |
| 16 | 94591-LDC8-E10 | CLIP BIND | 1 | $7.89 USD | View product → |
| 17 | 95701-06012-08G | BOLT FLANGE 6*12 (C) | 2 | $0.99 USD | View product → |
| 18 | 95801-10070-08G | BOLT FLANGE 8*50(G) | 2 | $7.89 USD | View product → |

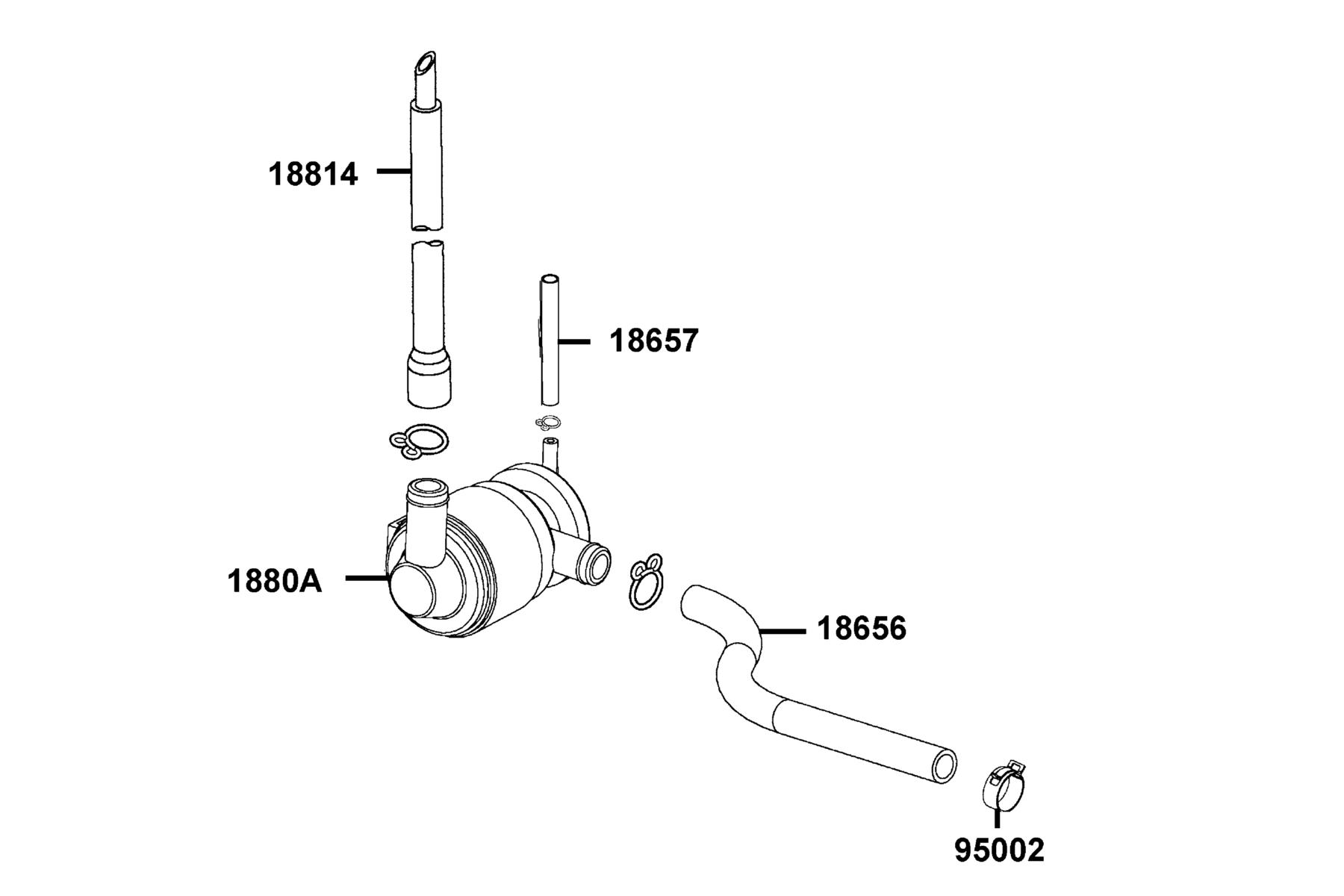

F21 — Air Cleaner Two
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 18656-LDC8-E10 | DUCT ASSY AICV-REED VALVE | 1 | $32.85 USD | View product → |
| 2 | 18657-LDC8-E10 | TUBE ASSY AICV-INNET PIPE | 1 | $17.13 USD | View product → |
| 3 | 1880A-LDC8-E10 | AI/C-AICV ASSY | 1 | $122.70 USD | View product → |
| 4 | 18814-LDC8-E10 | DUCT ASSY AIR-AICV | 1 | $34.92 USD | View product → |
| 5 | 95002-KKD6-C00 | CLAMP D18 TUBE | 1 | $16.41 USD | View product → |

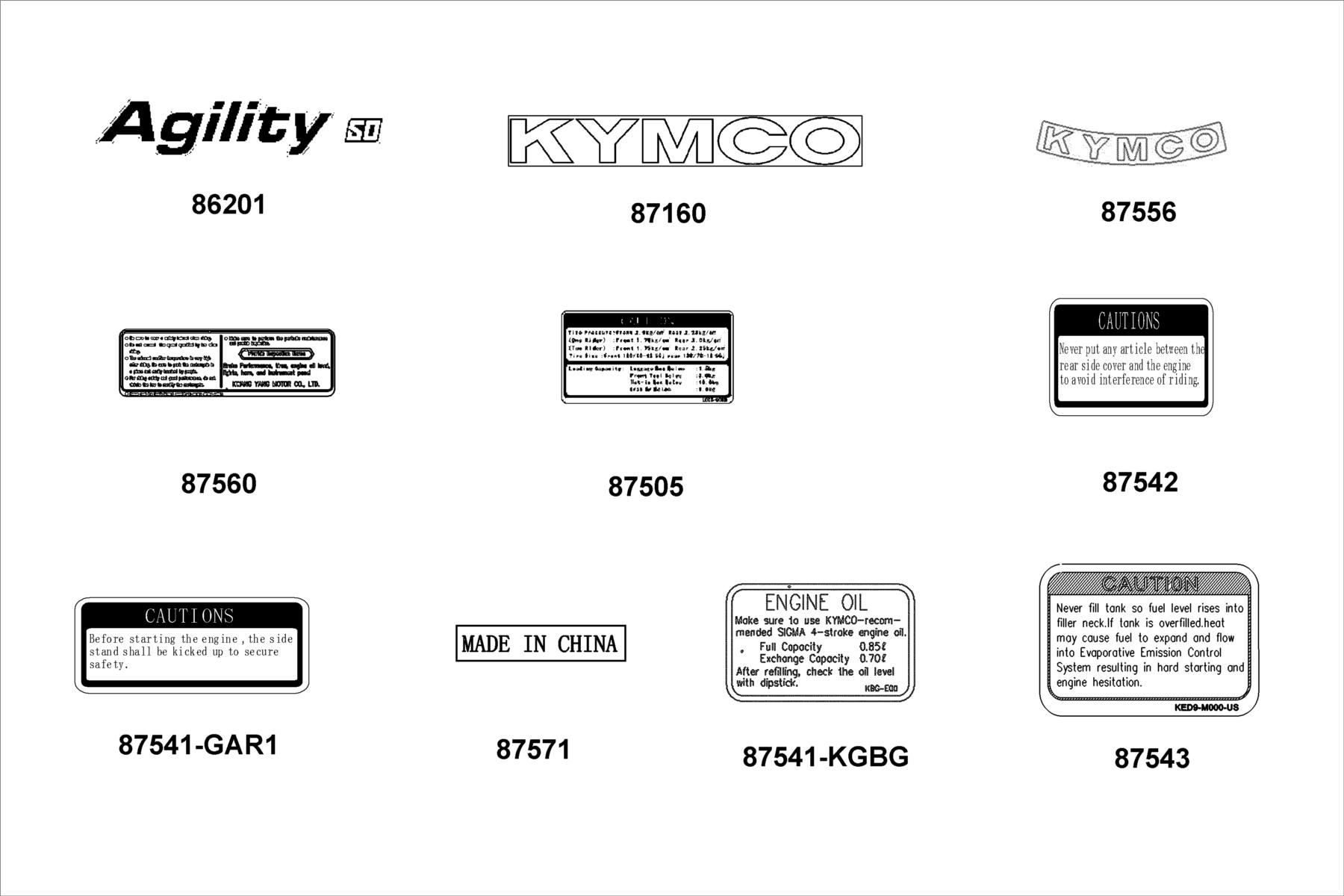

F22 — Emblem ● Stripe
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 86201-LDC8-M33-T05 | EMB-BODY-COVER | 2 | $13.65 USD | View product → |
| 2 | 87160-LDC8-M30-T03 | STRIPE KYMCO | 2 | $14.22 USD | View product → |
| 3 | 87505-LDC8-E10-T01 | LABEL TIRE | 1 | $1.32 USD | View product → |
| 4 | 87541-GAR1-C01-T01 | CAUTION SIDE STAND | 1 | $5.34 USD | View product → |
| 5 | 87541-KGBG-E01-T01 | LABEL OIL CAP | 1 | $6.54 USD | View product → |
| 6 | 87542-GAR1-C01-T01 | MARK MAINT CAUTION R | 1 | $2.97 USD | View product → |
| 7 | 87543-KED9-M30-T01 | LABEL FUEL FILL CAUTION | 1 | $7.80 USD | View product → |
| 8 | 87556-KCLC-C00-T02 | KYMCO?????? | 1 | $9.18 USD | View product → |
| 9 | 87560-GFY6-E11-T01 | MARK DRIVE CAUTION | 1 | $6.87 USD | View product → |
| 10 | 87571-LDC8-B90-T01 | LABEL MIC | 1 | $7.23 USD | View product → |
