Browse › ATVs › MXU 270 › 2023 › MXU 270i EURO (2023MY) Deep Gray

MXU 270i EURO (2023MY) LF60AD(US)

Model code
LF60AD(US)
Model year
2023
Submodel
MXU 270i
Color
Deep Gray (NH409SA)
Diagrams
36
Factory catalog
download PDF

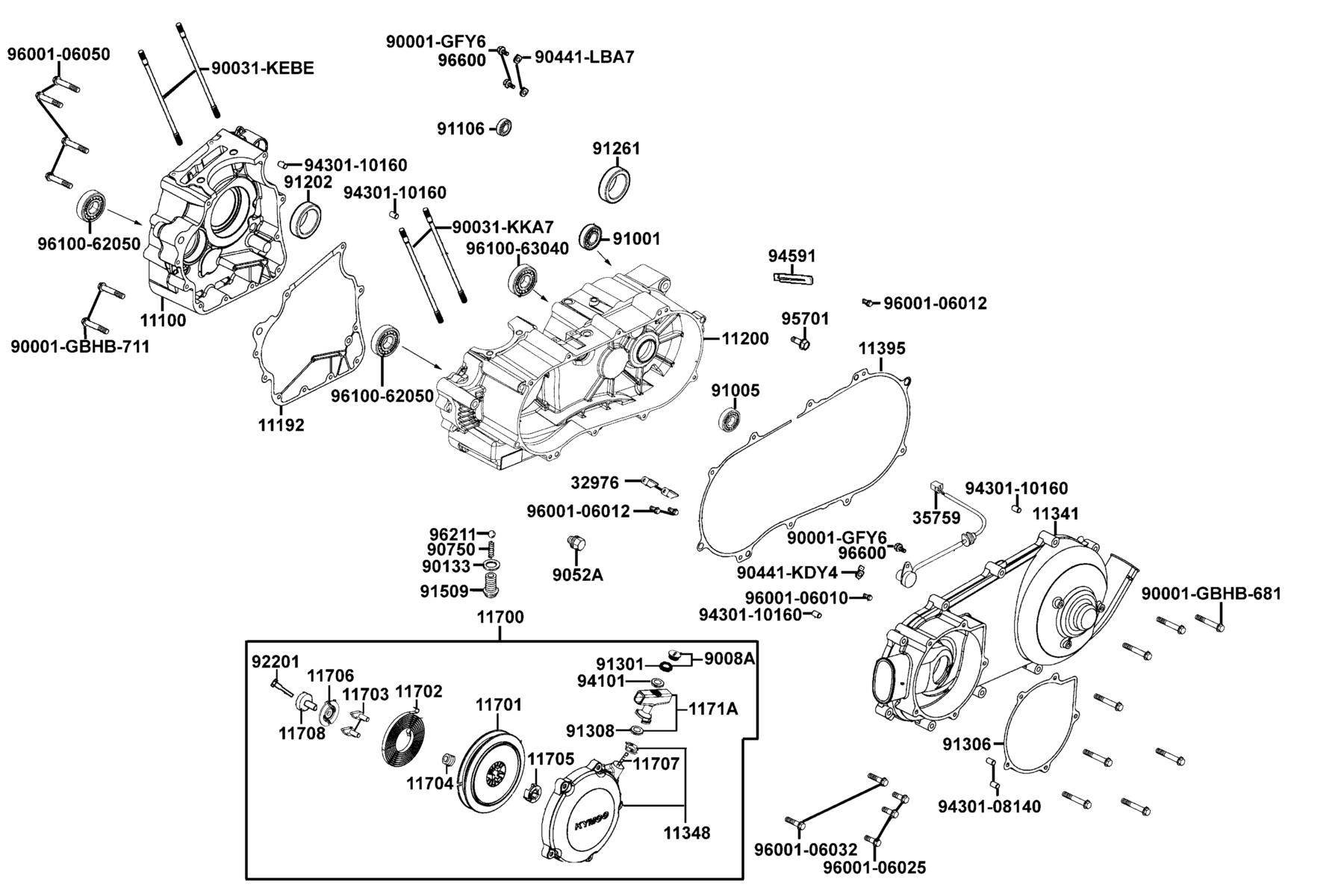

E01 — Crank Case

#PartNameQtyPrice
1 11100-LDE9-E00 CRANK CASE COMP RIGHT 1 $329.43 USD View product →
2 11192-LBA7-900 GASKET CRANK CASE A 1 $35.10 USD View product →
3 11200-LCD9-E00 CRANK CASE COMP LEFT 1 $404.67 USD View product →
4 11341-LBA7-900-N8A COVER LEFT (Bright Silver) 1 $193.05 USD View product →
5 11348-LBA7-900 COVER STARTING 1 $71.64 USD View product →
6 11395-LBA7-900 GASKET L COVER @A 1 $71.97 USD View product →
7 11700-LCA5-E00 RECOIL STARTING 1 $157.92 USD View product →
8 11701-LDE9-E00 REEL STARTING 1 $63.54 USD View product →
9 11702-LCA5-E00 SPIRAL SPG STARTING 1 $19.65 USD View product →
10 11703-LCA5-E00 RACHET STARTING 2 $32.85 USD View product →
11 11704-LCA5-E00 SPRING RACHET GUIDE 1 $15.06 USD View product →
12 11705-LCA5-E00 SPACER STARTING 1 $14.43 USD View product →
13 11706-LCA5-E00 RACHET GUIDE STARTING 1 $16.89 USD View product →
14 11707-LCA5-E00 ROPE STARTING 1 $27.39 USD View product →
15 11708-LCA5-E00 COLLAR 1 $15.84 USD View product →
16 1171A-LCA5-E00 HOLDER ASSY STARTING 1 $21.30 USD View product →
17 32976-1G07-001 CLAMPER WIRE HARNESS 2 $6.06 USD View product →
18 35759-LHM2-E00 SW ASSY GEAR CHANGE 1 $87.63 USD View product →
19 35759-LHM2-E01 SW ASSY GEAR CHANGE 1 $104.13 USD View product →
20 90001-GBHB-681 BOLT FLANGE SHF 6*28 8 $4.92 USD View product →
21 90001-GBHB-711 BOLT FLANGE SHF 6X40 2 $4.92 USD View product →
22 90001-GFY6-901 SOCKET BOLT 6*10 3 $4.53 USD View product →
23 90031-KEBE-900 BOLT A STUD 8*218 2 $18.06 USD View product →
24 90031-KKA7-900 BOLT A STUD 8MM 8*225 2 $29.52 USD View product →
25 9008A-LCA5-E00 COVER ASSY HOLDER 1 $26.37 USD View product →
26 90133-LLB1-900 WASHER BOLT SEAT 1 $2.61 USD View product →
27 90441-KDY4-901 PLATE BRG HOLD 1 $4.92 USD View product →
28 90441-LBA7-900 PLATE BRG HOLD 2 $5.31 USD View product →
29 9052A-LEB1-900 BOLT ASSY DRAIN PLUG 1 $16.38 USD View product →
30 90750-LLB1-900 SPRING BOLT SEAT INNER 1 $4.17 USD View product →
31 91001-KHV8-004 BRG BALL RADIAL 6305 1 $53.70 USD View product →
32 91005-LBA7-900 BRG BALL RADIAL 6005LLU 1 $71.64 USD View product →
33 91106-LBA7-900 BRG NEEDLE 20*26*16 1 $49.65 USD View product →
34 91202-KKC4-90B OIL SEAL 27X42X7 1 $17.28 USD View product →
35 91261-4E15-004 OIL SEAL 25*40*8 1 $9.39 USD View product →
36 91301-KHE7-900 O-RING 17.8*1.9 1 $3.00 USD View product →
37 91306-LBA7-900 GASKET???STARTING COVER 1 $19.65 USD View product →
38 91308-LCA5-E00 O-RING 18.1*3 1 $6.24 USD View product →
39 91509-LLB1-900 BOLT SEAT BALL STOPPER 1 $12.84 USD View product →
40 92201-05025-0G BOLT HEX 5*25 1 $6.51 USD View product →
41 94101-LCA5-E00 WASHER PLAIN 6.5X16X1.0 1 $6.24 USD View product →
42 94301-08140 DOWEL PIN 8*14 2 $3.00 USD View product →
43 94301-10160 DOWEL PIN 10*16 4 $3.00 USD View product →
44 94591-LLB1-900 CLIP 2X100 1 $4.89 USD View product →
45 95701-08012-06 BOLT FLANGE 8*12 1 $6.24 USD View product →
46 96001-06010-06 BOLT FLANGE 6*10 1 $1.95 USD View product →
47 96001-06012-06 BOLT FLANGE SH 6*12 1 $1.95 USD View product →
48 96001-06025-06 BOLT FLANGE SH 6*25 1 $2.61 USD View product →
49 96001-06032-06 BOLT FLANGE SH 6*32 1 $11.46 USD View product →
50 96001-06050-06 BOLT FLANGE SH 6*50 1 $12.12 USD View product →
51 96100-62050-00 BEARING BALL RADIAL 6205 2 $58.29 USD View product →
52 96100-63040-00 BRG BALL RADIAL 6304 1 $53.61 USD View product →
53 96211-12000 BALL STEEL #12 1 $4.92 USD View product →
54 96600-06012-10 SOCKET BOLT 6*12 3 $3.00 USD View product →

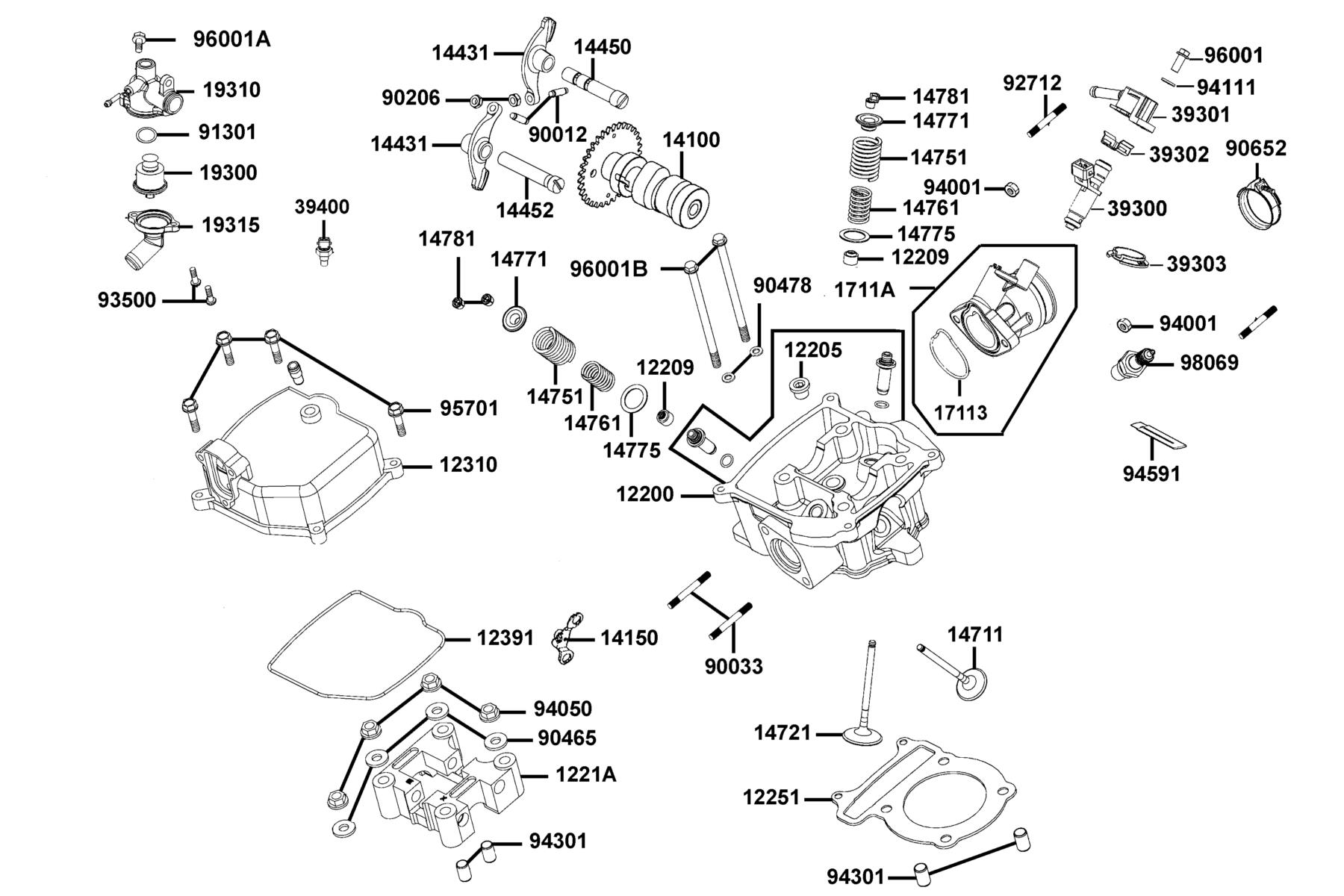

E02 — Cylinder Head Cover ● Cylinder Head

#PartNameQtyPrice
1 12200-AGA1-M00 HEAD COMP CYLN 1 $239.43 USD View product →
2 12205-KHE8-301 BOLT SEALING 12MM 1 $13.17 USD View product →
3 12209-GDB4-68B SEAL VALVE STEM 1 $19.65 USD View product →
4 1221A-LDB2-E00 HOLDER COMP CAM SHAFT 1 $94.98 USD View product →
5 12251-KHE7-901 GASKET CYLINDER HEAD 1 $77.94 USD View product →
6 12310-AGA1-M00 COVER COMP CYLN HEAD 1 $114.30 USD View product →
7 12391-LDB2-E00 GASKET HEAD COVER 1 $64.98 USD View product →
8 14100-LDB2-E00 SHAFT COMP CAM 1 $204.15 USD View product →
9 14150-LDB2-E00 PLATE COMP STOPPER 1 $38.28 USD View product →
10 14431-LDB2-E00 ARM VALVE ROCKER 2 $131.25 USD View product →
11 14450-KEBE-900 SHAFT COMP IN ROCKER ARM 1 $32.10 USD View product →
12 14452-LDB2-E00 SHAFT EX ROCKER 1 $20.28 USD View product →
13 14711-LDF2-900 VALVE INLET 1 $58.74 USD View product →
14 14721-LDB2-E00 VALVE EXHAUST 1 $99.42 USD View product →
15 14751-KHE7-900 SPG VALVE OUTER 2 $16.14 USD View product →
16 14761-KHE7-900 SPG VALVE INNER 2 $14.31 USD View product →
17 14771-GDB4-680 RETAINER VALVE SPRING 2 $14.73 USD View product →
18 14775-MFA6-C00 SEAT VALVE SPG OUTER 2 $11.79 USD View product →
19 14781-MFA6-001 COTTER VALVE 4 $7.95 USD View product →
20 17113-AGA1-M00 O-RING INLET PIPE 1 $3.27 USD View product →
21 1711A-AGA1-M00 PIPE ASSY INLET 1 $89.46 USD View product →
22 1711A-YWA1-M00 PIPE ASSY INLET 1 $110.37 USD View product →
23 19300-KAE1-004 THERMOSTAT ASSY 1 $99.87 USD View product →
24 19310-AGA1-M00 CASE COMP THERMOSTAT 1 $72.57 USD View product →
25 19315-LBA7-900 COVER THERMOSTAT 1 $46.65 USD View product →
26 39300-AGA1-M00 FUEL INJECTOR 1 $193.68 USD View product →
27 39301-AGA1-M00 HOLDER ASSY FUEL 1 $14.73 USD View product →
28 39301-YWA1-M00 HOLDER ASSY FUEL 1 $15.21 USD View product →
29 39302-KKE3-900 CLIP SPRING FUEL INJECTOR 1 $21.99 USD View product →
30 39303-LEB2-900 SEAL HIGH TENSION FUEL INJECT 1 $5.94 USD View product →
31 39400-LEA6-800 WATER TEMP SENSOR 1 $109.50 USD View product →
32 90012-333-0010 SCREW TAPPET ADJUSTING 2 $13.38 USD View product →
33 90033-GFY6-900 BOLT STUD 8*32 2 $4.26 USD View product →
34 90206-001-0010 NUT TAPPET ADJG 2 $3.78 USD View product →
35 90206-0A01-001 NUT TAPPET ADJG 2 $4.92 USD View product →
36 90465-MDC4-001 WASHER 8MM 4 $3.78 USD View product →
37 90478-7L00-001 WASHER A 6MM 2 $4.92 USD View product →
38 90652-GFY6-901 BAND 49 AIR/C CONNECTING TUBE 1 $10.14 USD View product →
39 90652-GFY6-901(wrong) BAND 49 AIR/C CONNECTING TUBE 1 $13.17 USD View product →
40 91301-KHE7-900 O-RING 17.8*1.9 1 $3.00 USD View product →
41 92712-06028-0B BOLT STUD 6*28 2 $4.68 USD View product →
42 93500-05016-0F SCREW PAN 5*16 2 $11.79 USD View product →
43 94001-06080-0S NUT HEX 6MM 2 $4.92 USD View product →
44 94050-08080 NUT FLANGE 8MM 4 $4.92 USD View product →
45 94111-06800 WASHER SPRING 6MM 1 $4.92 USD View product →
46 94301-10160 DOWEL PIN 10*16 4 $3.00 USD View product →
47 94591-KFBF-900 CLIP 2*70 1 $3.78 USD View product →
48 95701-06025-06 BOLT FLANGE 6*25 2 $1.95 USD View product →
49 96001-06014-02 BOLT FLANGE 6*14 1 $3.27 USD View product →
50 96001-06018-06 BOLT FLANGE SH 6*18 1 $12.12 USD View product →
51 96001-06110-06 BOLT FLANGE SH 6*110 2 $0.63 USD View product →
52 98069-5791R-00 SPARK PLUG (DPR7EA-9) 1 $15.96 USD View product →

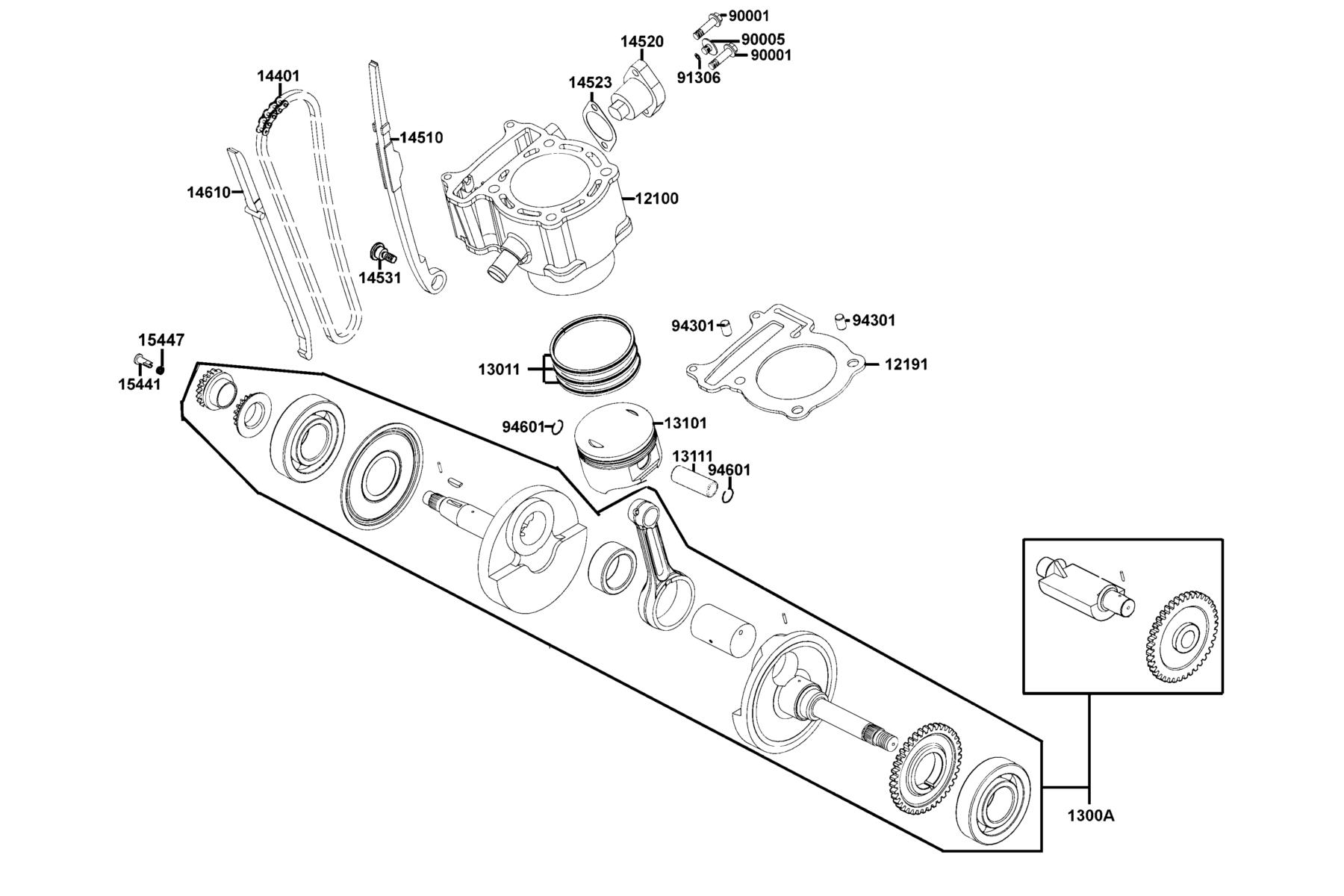

E03 — Cylinder ● Piston ● Crankshaft

#PartNameQtyPrice
1 12100-LDE9-E00 CYLINDER COMP 1 $422.73 USD View product →
2 12191-KHE7-900 GASKET CYLINDER 1 $28.08 USD View product →
3 1300A-LDE9-305 CRANK BALANCER COMP 1 $583.46 USD View product →
4 13011-KHE7-C00 RING SET PISTON 1 $118.08 USD View product →
5 13101-LDB2-E00 PISTON 1 $100.65 USD View product →
6 13111-LDB2-E00 PIN PISTON 1 $33.03 USD View product →
7 14401-LDE9-E00 CHAIN CAM 1 $82.50 USD View product →
8 14510-LDE9-E00 TENSIONER CAM CHAIN 1 $56.31 USD View product →
9 14520-GFY6-90C LIFTER ASSY.. TENSIONER 1 $125.97 USD View product →
10 14523-KED9-920 GASKET TENSIONER LIFTER @A 1 $3.81 USD View product →
11 14531-KHE7-900 PIVOT CAM CHAIN TENSIONER 1 $16.53 USD View product →
12 14610-LDE9-E00 GUIDE COMP CAM CHAIN 1 $36.09 USD View product →
13 15441-1K49-001 OIL THROUGH 1 $16.38 USD View product →
14 15447-1K49-001 SPG OIL THROUGH 1 $4.92 USD View product →
15 90001-GBHB-661 BOLT FLANGE SH 6*22 2 $4.92 USD View product →
16 90005-KED9-900 BOLT SPECIAL 6*6 1 $2.76 USD View product →
17 91306-1E05-691 O-RING 1.5*9.5 1 $4.92 USD View product →
18 94301-10160 DOWEL PIN 10*16 2 $3.00 USD View product →
19 94601-17000 CLIP PISTON PIN 17MM 2 $1.86 USD View product →

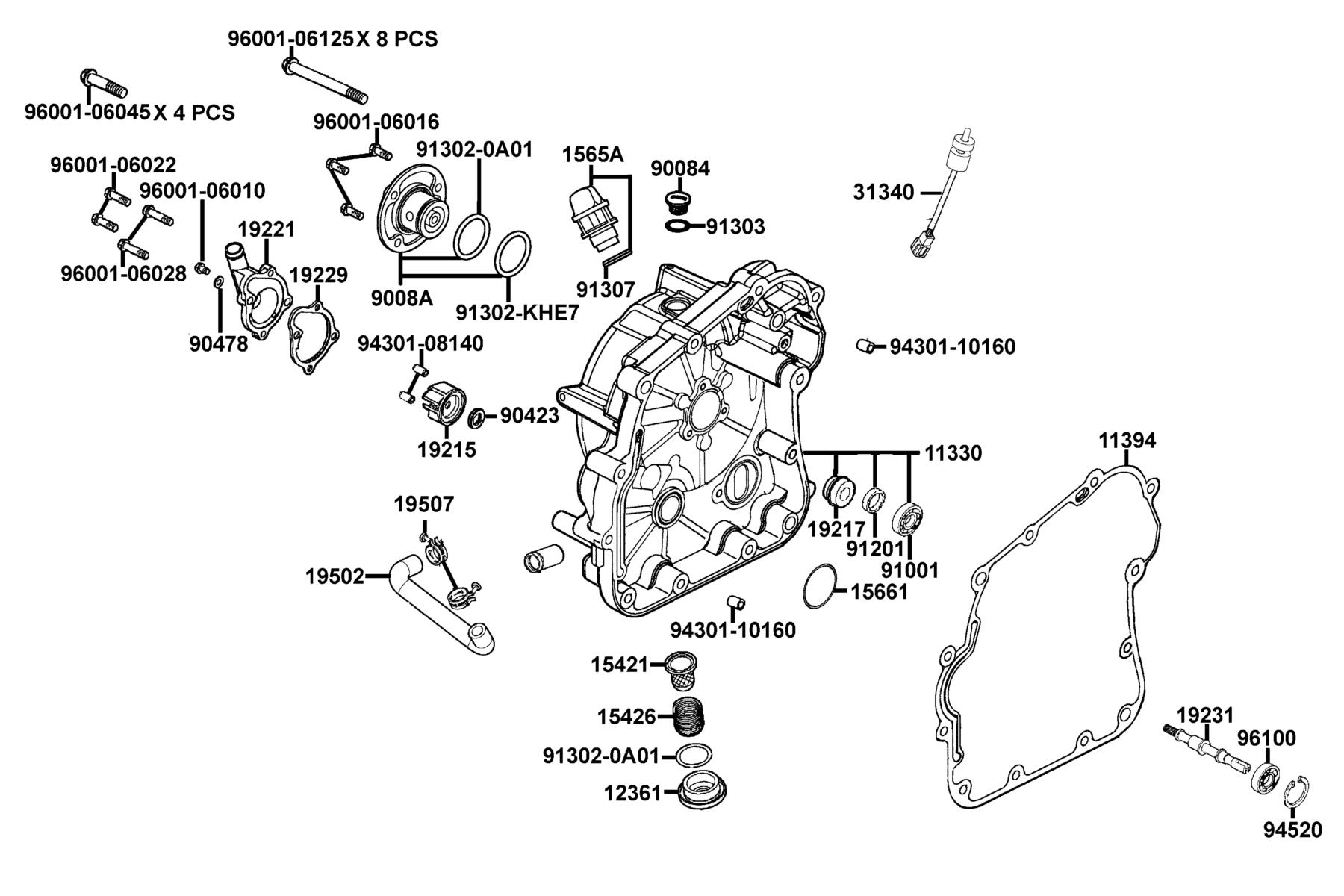

E04 — Right Crankcase Cover ● Water Pump

#PartNameQtyPrice
1 11330-LDE9-E00 COVER COMP R CRANK CASE 1 $327.96 USD View product →
2 11394-LBA7-900 GASKET???R COVER 1 $38.52 USD View product →
3 12361-GFY6-901 HOLE CAP TAPPET ADJUSTING 1 $11.70 USD View product →
4 15421-1G07-001 SCREEN OIL FILTER 1 $15.06 USD View product →
5 15426-GAE1-921 SPG OIL FILTER SCREEN 1 $5.67 USD View product →
6 1565A-KKAK-900 GAUGE OIL LEVEL ASSY 1 $37.29 USD View product →
7 15661-LBA7-900 FINDER OIL LEVEL 1 $32.73 USD View product →
8 19215-KHE7-900 IMPELLER WATER PUMP 1 $37.95 USD View product →
9 19217-ZPA3-E01 SEAL MECHANICAL 1 $72.24 USD View product →
10 19221-KHE7-900-M9A COVER WATER PUMP 1 $55.26 USD View product →
11 19229-LBA7-900 GASKET???WATER PUMP 1 $11.22 USD View product →
12 19231-KKJ9-011 SHAFT WATER PUMP 1 $55.02 USD View product →
13 19502-LBA7-900 HOSE B WATER 1 $23.10 USD View product →
14 19507-PRA1-E00 CLAMP D28(ZNS3) 2 — Part details →
15 31340-AHH8-M00 SPEED SENSOR 1 $90.96 USD View product →
16 90084-4H28-001-NJA CAP ACG (Silver) $0.78 USD View product →
17 9008A-LBA7-900 CAP ASSY R COVER 1 $60.54 USD View product →
18 90423-KKJ9-001 WASHER 7.2*13*1.2 1 $4.59 USD View product →
19 90478-7L00-001 WASHER A 6MM 1 $4.92 USD View product →
20 91001-KKJ9-006 BRG BALL RADIAL 6901 1 $71.67 USD View product →
21 91201-KKJ9-004 OIL SEAL 12*20*4 1 $5.67 USD View product →
22 91302-001-0210 O-RING 30.8M/M 2 $6.72 USD View product →
23 91302-KHE7-900 O-RING 27.4*2.1MM 1 $4.92 USD View product →
24 91303-3G77-001 O-RING 13.8*2.5 1 $4.92 USD View product →
25 91307-0E35-001 O RING 18*3 1 $4.92 USD View product →
26 94301-08140 DOWEL PIN 8*14 2 $3.00 USD View product →
27 94301-10160 DOWEL PIN 10*16 2 $3.00 USD View product →
28 94520-26000 CIR CLIP IN 26 1 $3.78 USD View product →
29 96001-06010-00 BOLT FLANGE SH 6X10 1 $1.65 USD View product →
30 96001-06016-06 BOLT FLANGE SH 6X16 1 $12.12 USD View product →
31 96001-06022-06 BOLT FLANGE SH 6X22 1 $4.26 USD View product →
32 96001-06028-06 BOLT FLANGE SH 6*28 1 $1.95 USD View product →
33 96001-06045-06 BOLT FLANGE SH 6*45 1 $7.23 USD View product →
34 96001-06125-06 BOLT FLANGE SH 6*125 1 $4.92 USD View product →
35 96100-60000-00 BEARING BALL RADIAL 6000 1 $47.91 USD View product →

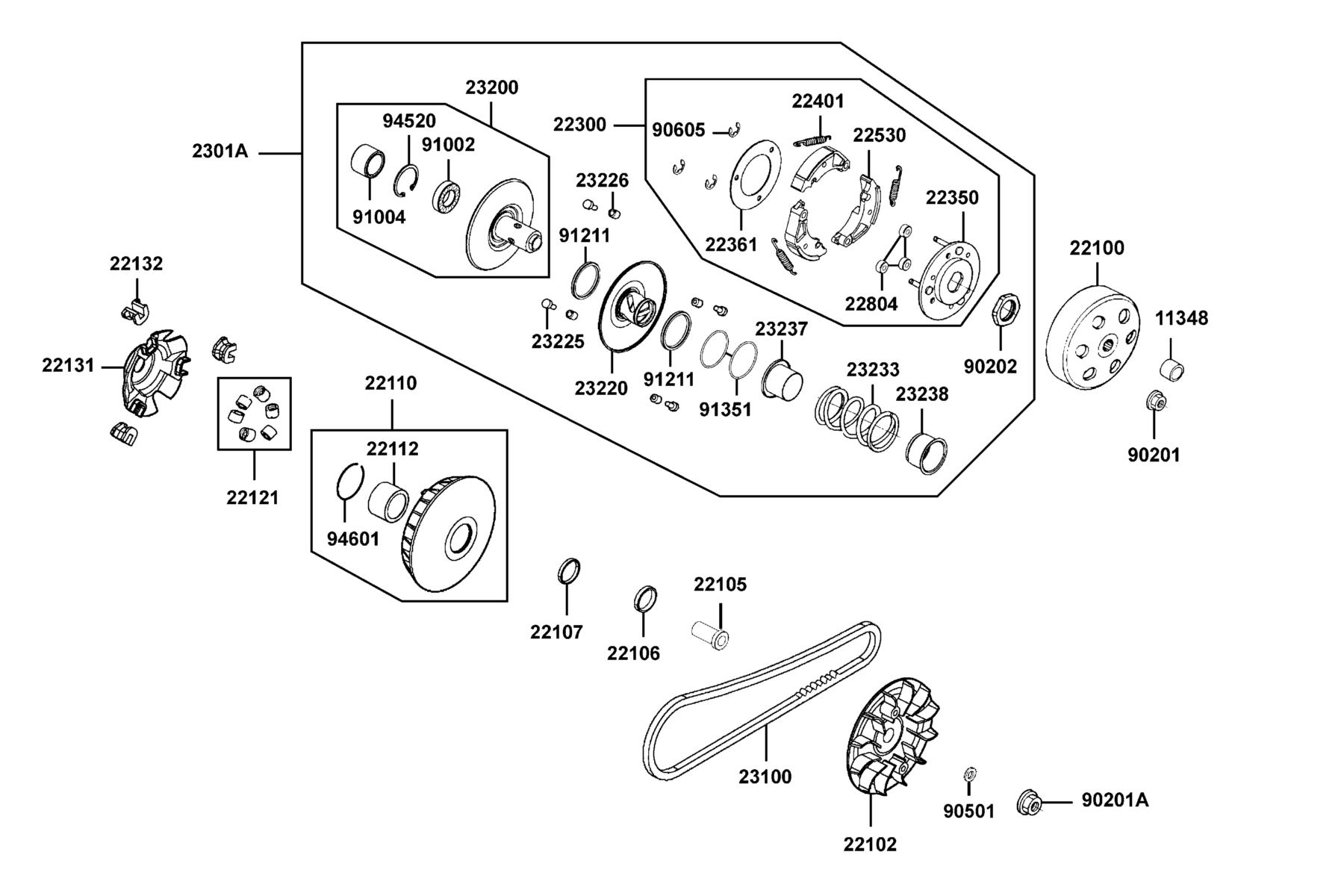

E05 — Drive Pulley

#PartNameQtyPrice
1 11348-AGA1-M00 BOSS DRIVE SHAFT 1 $43.62 USD View product →
2 22100-LEA7-E00 OUTER COMP CLUTCH 1 $151.71 USD View product →
3 22102-KHE7-900 FACE DRIVE 1 $70.59 USD View product →
4 22105-LBA7-900 BOSS DRIVE FACE 1 $69.96 USD View product →
5 22106-LBA7-920 COLLAR DRIVE FACE A 1 $15.45 USD View product →
6 22107-LBA7-910 COLLAR DRIVE FACE B 1 $15.45 USD View product →
7 22110-PRB3-900 FACE COMP MOVABLE DRIVE 1 $77.58 USD View product →
8 22112-KHE7-900 BUSH 27*33*37 1 $19.65 USD View product →
9 22121-KHE7-305 ROLLER SET WEIGHT (1SET:6PCS) 1 $59.61 USD View product →
10 22131-LBA7-900 PLATE RAMP 1 $44.70 USD View product →
11 22132-KHE7-305 PIECE SLIDE SET (1SET:3PCS) 1 $5.37 USD View product →
12 22300-PRB3-900 PLATE ASSY DRIVE 1 $166.89 USD View product →
13 22350-PRB3-900 PLATE COMP DRIVE 1 $44.70 USD View product →
14 22361-LEA7-E00 PLATE CLUTCH SIDE 1 $38.52 USD View product →
15 22401-PRB3-900 SPRING CLUTCH 3 $4.26 USD View product →
16 22530-PRB3-900 WEIGHT CLUTCH 3 $58.74 USD View product →
17 22804-GGB2-001 RUBBER CLUTCH DAMPER 3 $8.19 USD View product →
18 2301A-PRB3-900 PULLEY SUB ASSY 1 $456.75 USD View product →
19 23100-KHE7-90B BELT DRIVE(Maker:MITSUBOSHI) 1 $190.44 USD View product →
20 23200-KHE7-900 FACE ASSY DRIVEN 1 $176.76 USD View product →
21 23220-PRB3-900 FACE COMP MOVABLE DRIVEN 1 $144.66 USD View product →
22 23225-KHE7-900 PIN ROLLER GUIDE 4 $6.78 USD View product →
23 23226-GHC8-004 ROLLER GUIDE 4 $4.92 USD View product →
24 23233-PRB3-900 SPG DRIVEN FACE 1 $65.67 USD View product →
25 23237-PRB3-900 COLLAR SEAL 1 $28.59 USD View product →
26 23238-PRB3-900 COLLAR SPG 1 $17.64 USD View product →
27 90201-KHE7-900 NUT C FLANGE M12 1 $9.39 USD View product →
28 90201-KHR8-75A NUT FLANGE 14MM 1 $9.39 USD View product →
29 90202-1G87-001 NUT SPECIAL 28MM 1 $11.70 USD View product →
30 90202-1G87-001(wrong) NUT SPECIAL 28MM 1 $9.00 USD View product →
31 90501-LBA7-900 WASHER THRUST 16MM 1 $7.92 USD View product →
32 90605-1F66-721 CIR CLIP 7MM 3 $4.92 USD View product →
33 91002-GGA7-70A BRG BALL RADIAL 6902U 1 $51.27 USD View product →
34 91004-KHE7-900 BRG NDL 22X29X18 1 $97.77 USD View product →
35 91211-KHE7-900 SEAL DRIVEN FACE 2 $37.65 USD View product →
36 91351-KHE7-900 O-RING PINION CAP 2 $15.06 USD View product →
37 94520-28000 CIR CLIP IN 28 1 $4.92 USD View product →
38 94601-33000 CLIP PISTON PIN 33MM 1 $4.92 USD View product →

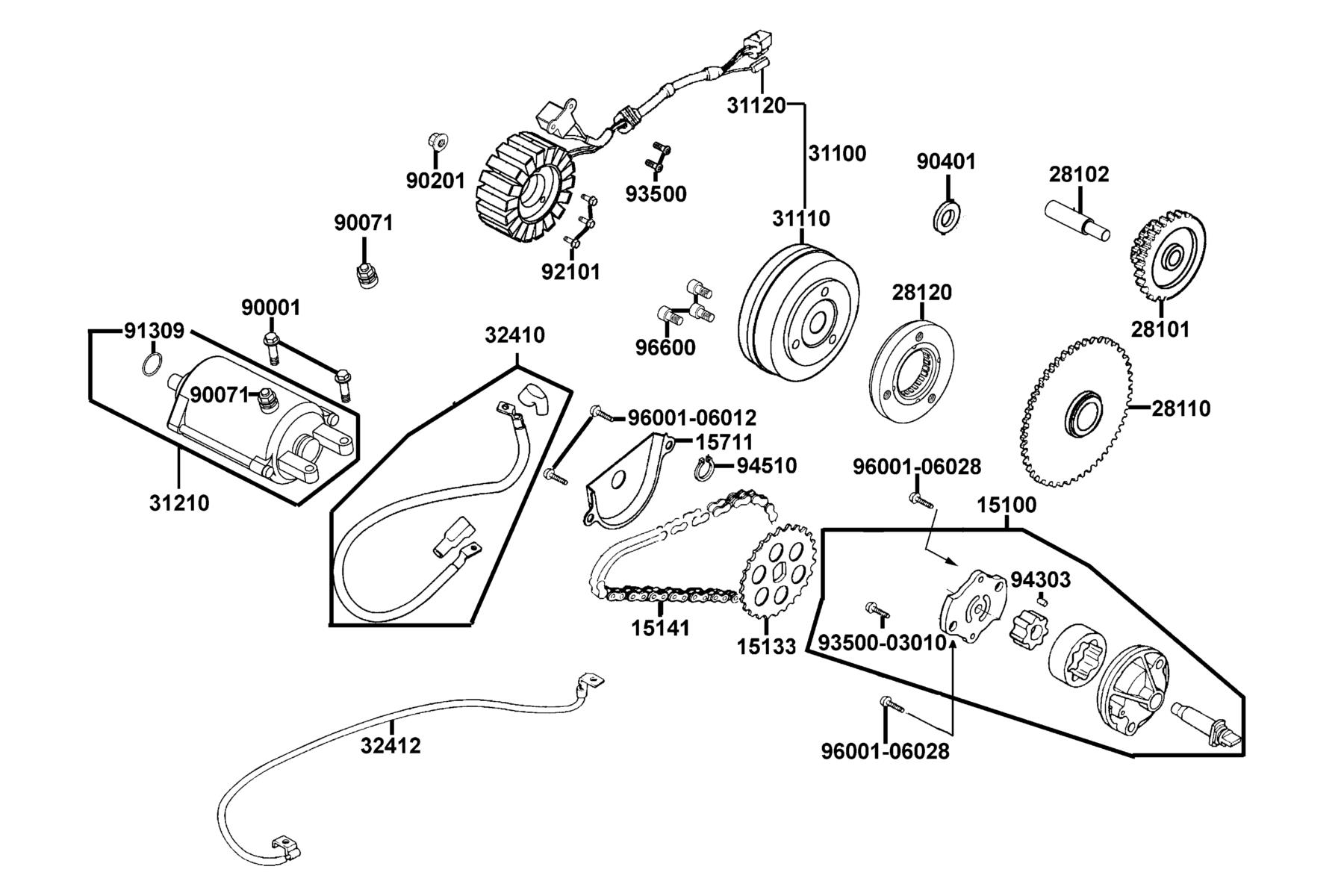

E06 — Starting Motor ● Generator

#PartNameQtyPrice
1 15100-LBA7-900 PUMP ASSY OIL 1 $99.33 USD View product →
2 15133-KAM1-001 SPROCKET OIL PUMP DRIVE 1 $28.98 USD View product →
3 15141-LBA2-E00 CHAIN OIL PUMP 1 $66.45 USD View product →
4 15711-KHE7-900 SEPARATER OIL 1 $14.31 USD View product →
5 28101-KHE7-900 GEAR STARTER REDUCTION 1 $97.56 USD View product →
6 28102-LDE9-E00 SHAFT STARTER REDUCTION 1 $15.06 USD View product →
7 28110-LDB2-E00 GEAR COMP STARTING CLUTCH 1 $121.35 USD View product →
8 28120-LDB2-C00 ONE WAY CLUTCH 1 $93.54 USD View product →
9 31100-AGA1-M00 AC GEN ASS'Y 1 $362.31 USD View product →
10 31110-AGA1-M00 FLYWHEEL COMP 1 $168.87 USD View product →
11 31120-AGA1-M00 STATOR COMP 1 $257.28 USD View product →
12 31210-LBA7-900 MOTOR UNIT STARTER 1 $350.43 USD View product →
13 32410-AGA1-M00 CABLE STARTER MOTOR 1 $63.06 USD View product →
14 32412-AHH8-M00 CABLE EARTH 1 $41.10 USD View product →
15 90001-GBHB-661 BOLT FLANGE SH 6*22 2 $4.92 USD View product →
16 90071-MLB0-001 NUT WASH 6MM 2 $4.92 USD View product →
17 90201-KHR8-75A NUT FLANGE 14MM 1 $9.39 USD View product →
18 90401-KKJ9-001 WASHER THRUST 14*28*2 1 $5.67 USD View product →
19 91309-4E25-004 O-RING 24.4*3.1 1 $4.92 USD View product →
20 92101-05032-0G BOLT HEX 5*32 1 $0.99 USD View product →
21 93500-03010-0F SCREW PAN 3X10 1 $0.99 USD View product →
22 93500-05016-0F SCREW PAN 5*16 1 $11.79 USD View product →
23 94303-04065 DOWEL PIN 4X6.5 1 $5.43 USD View product →
24 94510-10000 CIR CLIP EX 10MM 1 $4.92 USD View product →
25 96001-06012-06 BOLT FLANGE SH 6*12 1 $1.95 USD View product →
26 96001-06028-06 BOLT FLANGE SH 6*28 1 $1.95 USD View product →
27 96600-08015-16 SOCKET BOLT 8*15 1 $21.60 USD View product →

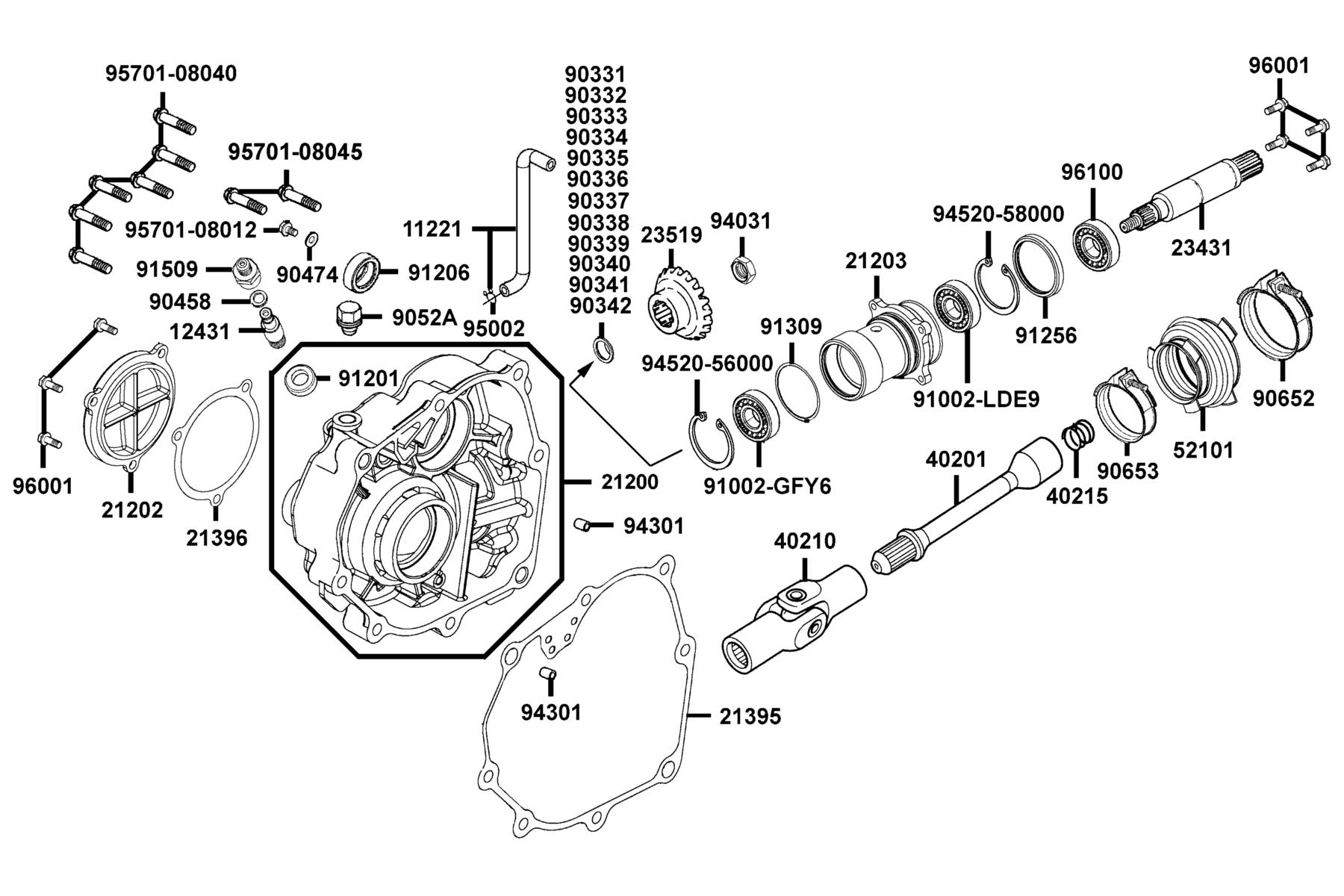

E07 — Case Comp Mission

#PartNameQtyPrice
1 11221-LBA7-900 TUBE MISSION BREATHER 1 $22.08 USD View product →
2 12431-LCD9-E00 GEAR TACHOMETER 1 $75.81 USD View product →
3 21200-LCD9-E00 CASE COMP MISSION 1 $219.57 USD View product →
4 21202-LCD9-E00 CAP MISSION 1 $31.11 USD View product →
5 21203-LCD9-E00 CASE FINAL SHAFT 1 $108.21 USD View product →
6 21395-LCD9-E00 GASKET???MISSION CASE A 1 $39.36 USD View product →
7 21396-LCD9-E00 GASKET???MISSION COVER 1 $11.31 USD View product →
8 23431-LCD9-E00 SHAFT FINAL 1 $107.28 USD View product →
9 23519-PRB3-920 GEAR BEVEL DRIVEN 1 $168.66 USD View product →
10 40201-LCD9-E00 SHAFT PROPELLER 1 $108.57 USD View product →
11 40210-LCD9-E00 JOINT YORK 1 $193.05 USD View product →
12 40215-LCD9-E00 SPG PROPELLER SHAFT 1 $6.06 USD View product →
13 52101-LCD9-E00 BOOT JOINT 1 $17.58 USD View product →
14 90331-LCD9-E00 SHIM DRIVEN BEVEL GEAR A (0.575~0.625) 1 $8.01 USD View product →
15 90332-LCD9-E00 SHIM DRIVEN BEVEL GEAR B (0.625~0.675) 1 $8.01 USD View product →
16 90333-LCD9-E00 SHIM DRIVEN BEVEL GEAR C (0.675~0.725) 1 $8.01 USD View product →
17 90334-LCD9-E00 SHIM DRIVEN BEVEL GEAR D (0.725~0.775) 1 $8.01 USD View product →
18 90335-LCD9-E00 SHIM DRIVEN BEVEL GEAR E (0.775~0.825) 1 $8.01 USD View product →
19 90336-LCD9-E00 SHIM DRIVEN BEVEL GEAR F (0.825~0.875) 1 $8.01 USD View product →
20 90337-LCD9-E00 SHIM DRIVEN BEVEL GEAR G (0.875~0.925) 1 $8.01 USD View product →
21 90338-LCD9-E00 SHIM DRIVEN BEVEL GEAR H (0.925~0.975) 1 $8.01 USD View product →
22 90339-LCD9-E00 SHIM DRIVEN BEVEL GEAR I (0.975~1.025) 1 $8.01 USD View product →
23 90340-LCD9-E00 SHIM DRIVEN BEVEL GEAR J (1.025~1.075) 1 $8.01 USD View product →
24 90341-LCD9-E00 SHIM DRIVEN BEVEL GEAR K (1.075~1.125) 1 $8.01 USD View product →
25 90342-LCD9-E00 SHIM DRIVEN BEVEL GEAR L (1.125~1.175) 1 $8.01 USD View product →
26 90458-LBA7-E00 THRUST WASHER 8MM 1 $5.34 USD View product →
27 90474-3C33-001 WASHER 8MM 1 $2.85 USD View product →
28 9052A-GFY6-950 BOLT ASSY DRAIN PLUG 1 $16.38 USD View product →
29 90652-LCD9-E00 BAND 90 CONNECTING TUBE 1 $24.03 USD View product →
30 90653-LCD9-E00 BAND 71 BOOT 1 $24.03 USD View product →
31 91002-GFY6-90A BRG BALL RADIAL 63/22 (22*56*15) 1 $88.92 USD View product →
32 91002-LDE9-E00 BRG BALL RADIAL 62/28 1 $99.51 USD View product →
33 91201-9A51-004 OIL SEAL 12*18*3 1 $6.75 USD View product →
34 91206-2F86-014 OIL SEAL 14*28*7 1 $16.20 USD View product →
35 91256-LCD9-E00 OIL SEAL 28*59*7 1 $42.30 USD View product →
36 91309-LCD9-E00 O-RING 1 $10.53 USD View product →
37 91509-LBA7-E00 BOLT TACHOMETER 1 $15.90 USD View product →
38 94031-LCD9-E00 NUT HEX 16MM 1 $11.46 USD View product →
39 94301-10160 DOWEL PIN 10*16 2 $3.00 USD View product →
40 94520-56000 CIR CLIP IN 56 1 $14.82 USD View product →
41 94520-58000 CIR CLIP IN 58 1 $14.82 USD View product →
42 95002-02150 CLIP B14.5 TUBE 1 $4.92 USD View product →
43 95701-08012-06 BOLT FLANGE 8*12 1 $6.24 USD View product →
44 95701-08040-06 BOLT FLANGE 8X40 1 $9.06 USD View product →
45 95701-08045-06 BOLT FLANGE 8*45 1 $12.78 USD View product →
46 96001-06020-06 BOLT FLANGE SH 6*20 1 $3.27 USD View product →
47 96100-60090-00 BRG RADIAL BALL 6009 1 $143.34 USD View product →

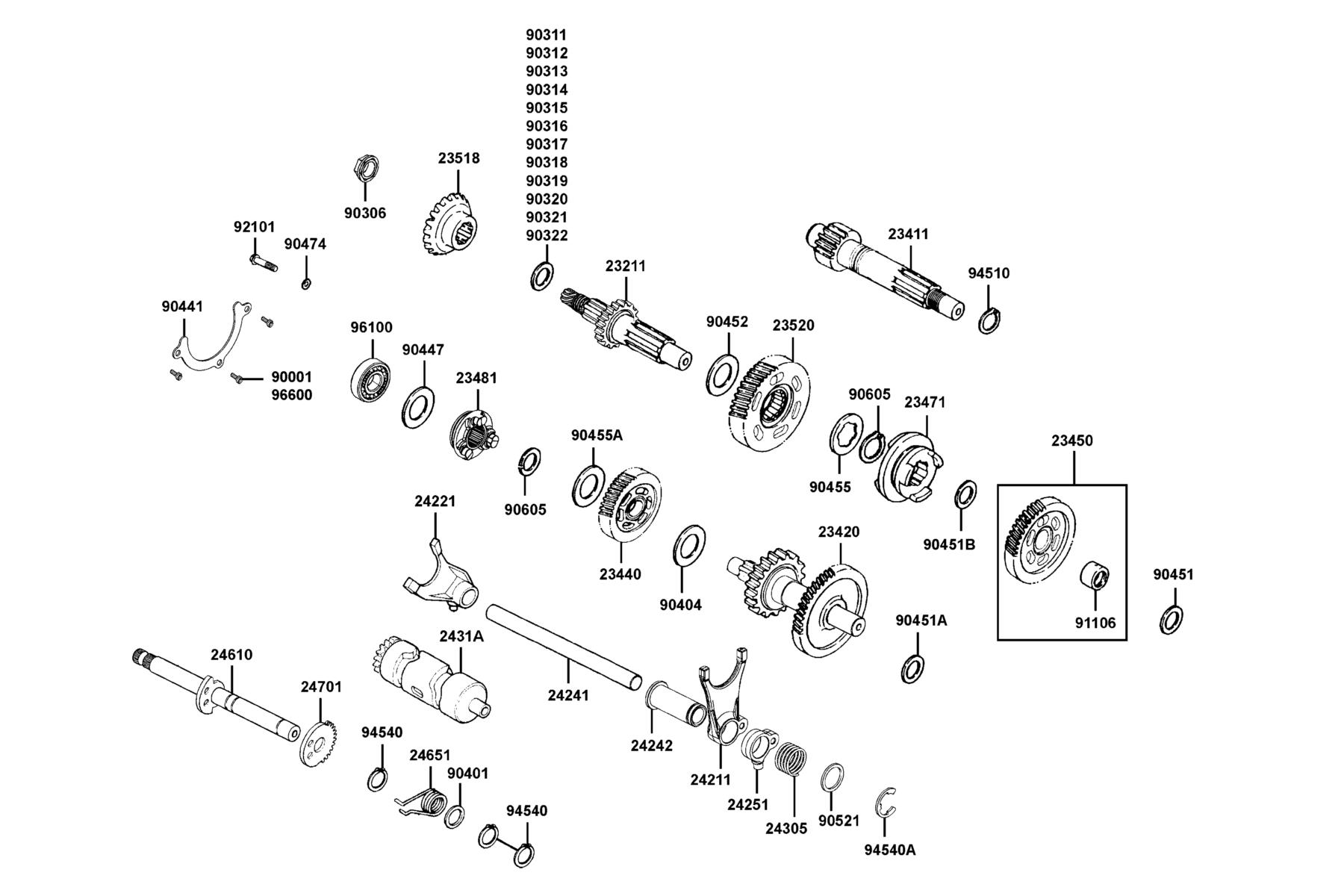

E08 — Transmission

#PartNameQtyPrice
1 23211-PRB3-900 SHAFT MAIN (21T) 1 $194.58 USD View product →
2 23411-LCD9-E00 SHAFT DRIVE 1 $177.66 USD View product →
3 23420-PRB3-900 SHAFT COMP COUNTER (31T/50T) 1 $207.24 USD View product →
4 23440-PRB3-910 GEAR ASSY FORWARD (37T) 1 $140.34 USD View product →
5 23450-PRB3-900 GEAR COMP BACKWARD (61T) 1 $165.90 USD View product →
6 23471-LCD9-E01 SHIFT REVERSE & LOWER 1 $102.12 USD View product →
7 23481-PWA1-E00 SHIFT FORWARD 1 $135.24 USD View product →
8 23518-PRB3-900 GEAR BEVEL DRIVE 1 $166.14 USD View product →
9 23520-PRB3-910 GEAR ASSY LOWER DRIVEN (38T) 1 $132.87 USD View product →
10 24211-LCD9-E00 FORK RIGHT GEAR SHIFT 1 $93.27 USD View product →
11 24221-LCD9-E00 FORK LEFT GEAR SHIFT 1 $147.06 USD View product →
12 24241-LCD9-E00 SHAFT GEAR SHIFT FORK GUIDE 1 $17.94 USD View product →
13 24242-LCD9-E00 SPRING FORK 1 $45.51 USD View product →
14 24251-LCD9-E00 GUIDE RIGHT FORK 1 $46.62 USD View product →
15 24305-PWA1-900 SPRING DRUM 1 $12.09 USD View product →
16 2431A-PRB3-900 DRUM ASSY GEAR SHIFT 1 $136.59 USD View product →
17 24610-LCD9-E00 SPINDLE COMP DRUM SHIFT 1 $55.86 USD View product →
18 24651-PRB3-900 SPRING GEAR SHIFT RETURN 1 $8.49 USD View product →
19 24701-LCD9-E00 GEAR CHANGE HNDL 1 $34.92 USD View product →
20 90001-GFY6-901 SOCKET BOLT 6*10 3 $4.53 USD View product →
21 90306-LCD9-E00 NUT 18MM 1 $20.88 USD View product →
22 90311-LCD9-E00 SHIM FINAL BEVEL GEAR A (0.575~0.625) 1 $9.18 USD View product →
23 90312-LCD9-E00 SHIM FINAL BEVEL GEAR B (0.625~0.675) 1 $9.18 USD View product →
24 90313-LCD9-E00 SHIM FINAL BEVEL GEAR C (0.675~0.725) 1 $9.18 USD View product →
25 90314-LCD9-E00 SHIM FINAL BEVEL GEAR D (0.725~0.775) 1 $9.18 USD View product →
26 90315-LCD9-E00 SHIM FINAL BEVEL GEAR E (0.775~0.825) 1 $9.18 USD View product →
27 90316-LCD9-E00 SHIM FINAL BEVEL GEAR F (0.825~0.875) 1 $9.18 USD View product →
28 90317-LCD9-E00 SHIM FINAL BEVEL GEAR G (0.875~0.925) 1 $9.18 USD View product →
29 90318-LCD9-E00 SHIM FINAL BEVEL GEAR H (0.925~0.975) 1 $9.18 USD View product →
30 90319-LCD9-E00 SHIM FINAL BEVEL GEAR I (0.975~1.025) 1 $9.18 USD View product →
31 90320-LCD9-E00 SHIM FINAL BEVEL GEAR J (1.025~1.075) 1 $9.18 USD View product →
32 90321-LCD9-E00 SHIM FINAL BEVEL GEAR K (1.075~1.125) 1 $9.18 USD View product →
33 90322-LCD9-E00 SHIM FINAL BEVEL GEAR L (1.125~1.175) 1 $9.18 USD View product →
34 90401-KKJ9-001 WASHER THRUST 14*28*2 1 $5.67 USD View product →
35 90404-PWA1-E00 WASHER THRUST 25MM 1 $14.70 USD View product →
36 90441-PWA1-E00 PLATE BRG HOLD 1 $15.21 USD View product →
37 90447-KED9-900 WASHER THRUST 17.2MM 1 $4.92 USD View product →
38 90451-LBA7-900 WASHER THRUST 20MM 1 $5.58 USD View product →
39 90451-LCD9-E00 WASHER THRUST 20MM 1 $17.82 USD View product →
40 90451-LDE9-E00 WASHER THRUST 30*20*3 1 $5.34 USD View product →
41 90452-LBA7-900 WASHER THRUST 25MM 1 $7.53 USD View product →
42 90455-LBA7-900 WASHER SPLINE 25MM 1 $7.92 USD View product →
43 90455-PWA1-E00 WASHER SPLINE 25*31*1.6 1 $14.70 USD View product →
44 90474-3C33-001 WASHER 8MM 1 $2.85 USD View product →
45 90521-0H28-001 DIA WASHER 17*22 1 $4.92 USD View product →
46 90605-KED9-900 SET RING 28MM 2 $4.53 USD View product →
47 91106-LBA7-900 BRG NEEDLE 20*26*16 1 $49.65 USD View product →
48 92101-06020-0G BOLT HEX 6*20 1 $0.99 USD View product →
49 94510-25000 CIR CLIP EX 25 1 $3.78 USD View product →
50 94540-12028 E RING 12 3 $4.53 USD View product →
51 94540-LCD9-E00 E RING 15 SPECIAL 1 $6.93 USD View product →
52 96100-63030-00 BEARING BALL RADIAL 6303 1 $42.84 USD View product →
53 96600-06012-10 SOCKET BOLT 6*12 3 $3.00 USD View product →

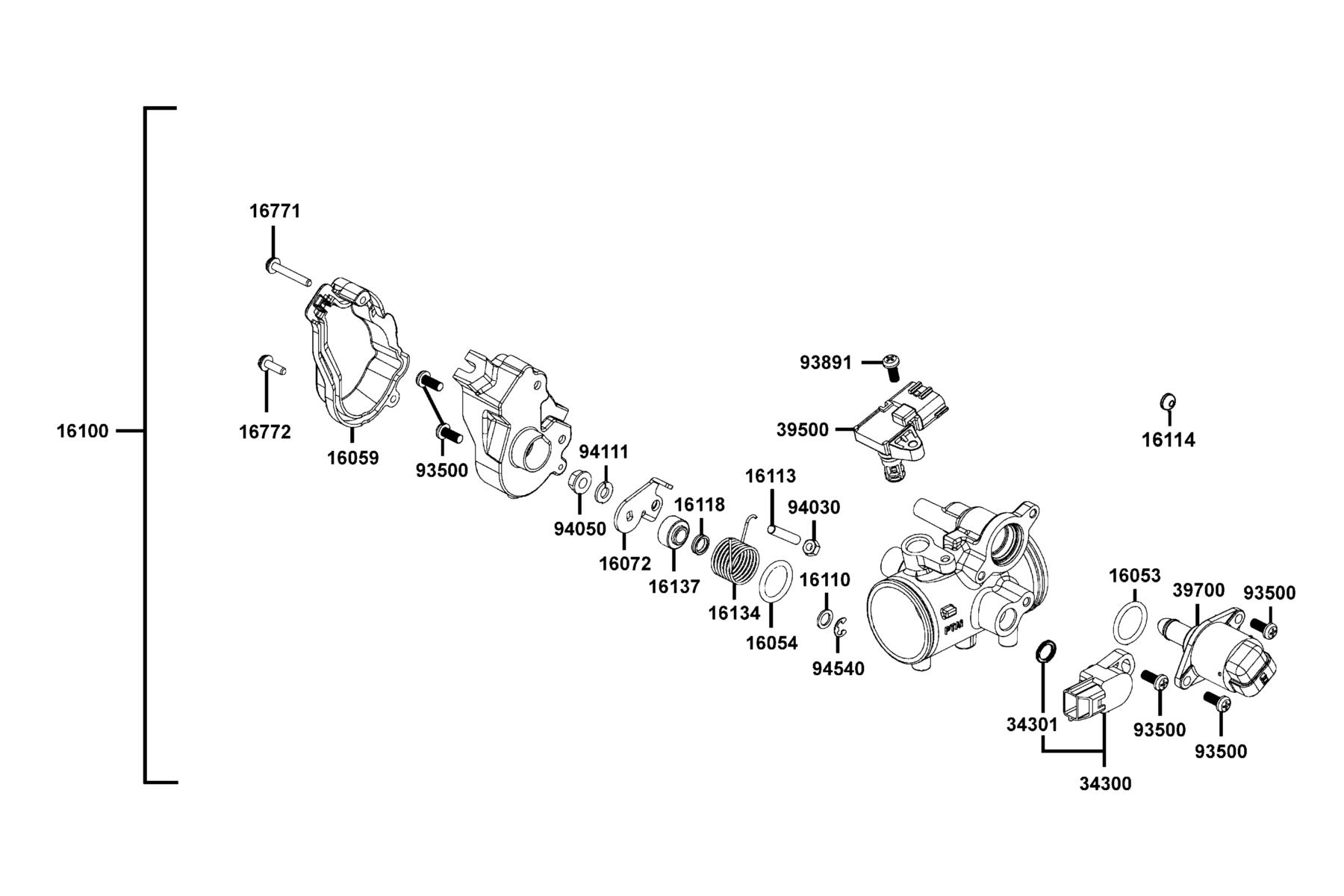

E09 — Throttle Body Assy

#PartNameQtyPrice
1 16053-PTA1-800 SEAL 1 $7.17 USD View product →
2 16054-PTA1-800 OIL RING 1 $7.17 USD View product →
3 16059-LDB5-E00-N1R COVER WIRE STAY (Black) 1 $17.82 USD View product →
4 16072-PTA1-800 DRUM. THROTTLE 1 $19.26 USD View product →
5 16100-AGA1-M00 THROTTLE BODY ASSY 1 $547.23 USD View product →
6 16110-KGC5-900 WASHER SHAFT ASSY 1 $1.86 USD View product →
7 16113-PTA1-800 PILOT SCREW 1 $25.65 USD View product →
8 16114-LDB5-E00 SHAFT COVER 1 $4.92 USD View product →
9 16118-LBF2-900 SEAL THROTTLE SHAFT 1 $19.26 USD View product →
10 16134-LDB5-E00 SPG THROTTLE SHAFT 1 $9.78 USD View product →
11 16137-PTA1-800 COLLAR LEVER 1 $14.31 USD View product →
12 16771-GKAK-220 SCREW-WASHER M4x30 1 $0.99 USD View product →
13 16772-AEC8-E00 SCREW WASHER M4*16 1 $0.99 USD View product →
14 34300-KKE3-900 THROTTLE POSITION SENSOR 1 $105.60 USD View product →
15 34301-KKE3-900 O-RING T.P.S. 1 $4.92 USD View product →
16 39500-PTA1-800 SENSOR T-MAP 1 $234.75 USD View product →
17 39700-PTA1-800 BY PASS VALVE IDLE AIR 1 $234.75 USD View product →
18 93500-05012-0F SCREW PAN 5X12 5 $12.12 USD View product →
19 93891-04012-06 SCREW TAPPING 4*12 1 $4.92 USD View product →
20 94030-PTA1-800 NUT HEX 5mm 1 $7.17 USD View product →
21 94050-06080 NUT FLANGE 6MM 1 $2.31 USD View product →
22 94111-06800 WASHER SPRING 6MM 1 $4.92 USD View product →
23 94540-50029 E CLIP SHAFT 1 $4.92 USD View product →

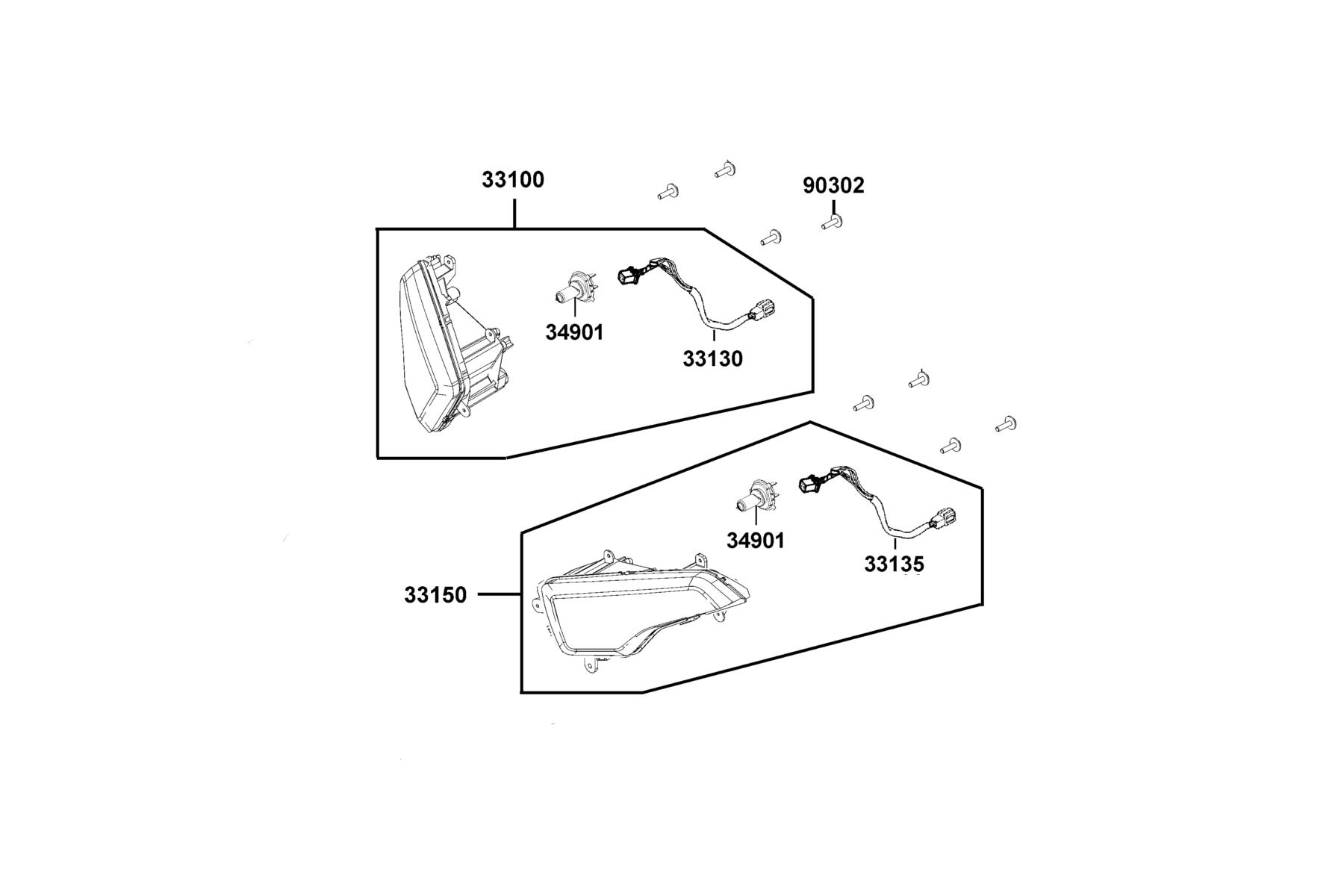

F01 — Head Light

#PartNameQtyPrice
1 33100-AGA2-E00 LIGHT ASS'Y R HEAD 1 $344.70 USD View product →
2 33130-AGA2-E00 SOCKET COMP R 1 $52.26 USD View product →
3 33135-AGA2-E00 SOCKET COMP L 1 $52.26 USD View product →
4 33150-AGA2-E00 LIGHT ASS'Y L HEAD 1 $344.70 USD View product →
5 34901-LDC8-E10 BULB HEAD LIGHT 2 $90.42 USD View product →
6 90302-PWA1-900 BOLT-WASH 5*16 8 $4.92 USD View product →

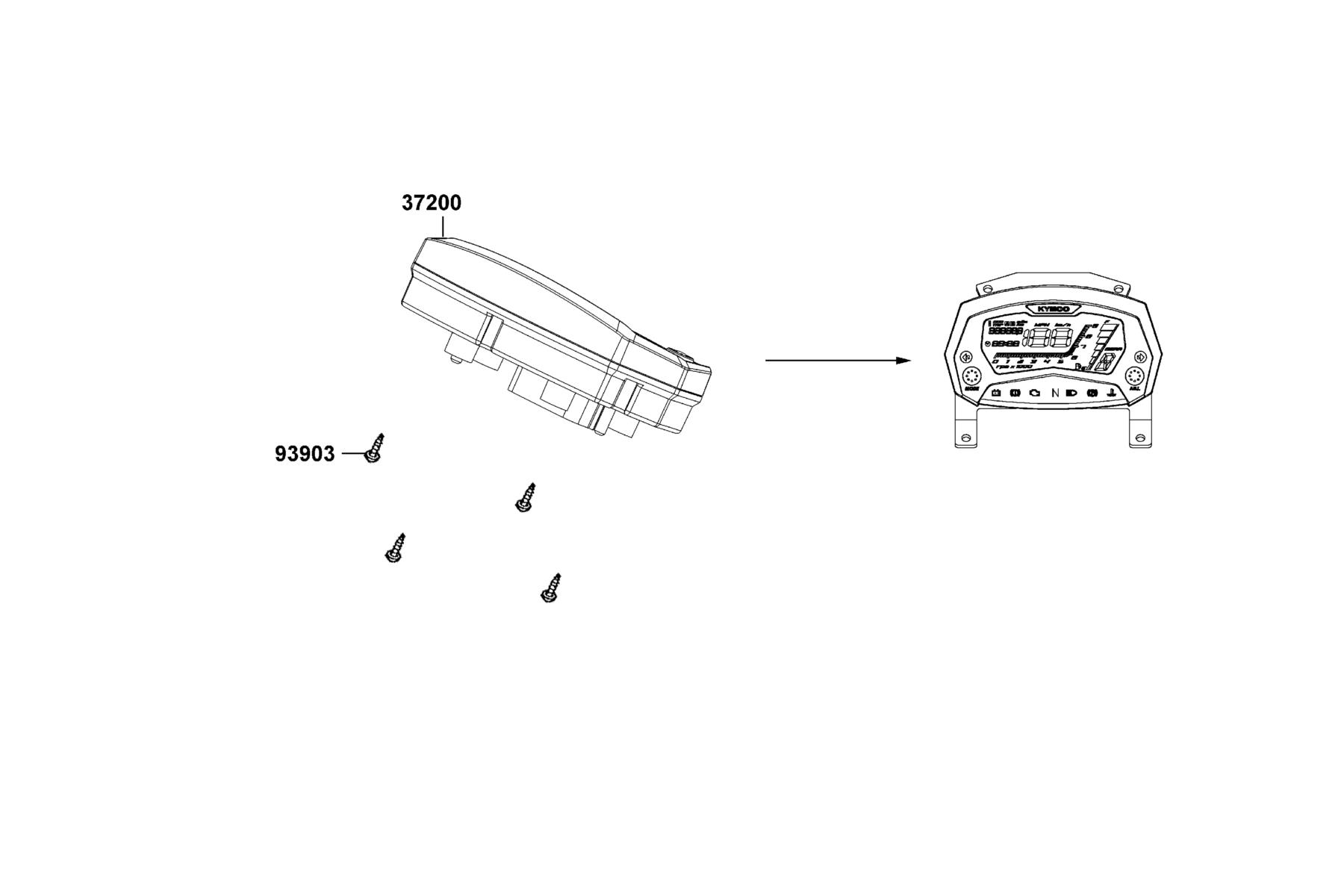

F02 — Speed Meter

#PartNameQtyPrice
1 37200-AGA2-E00 METER ASS'Y SPEED 1 $393.81 USD View product →
2 93903-35360 SCREW TAPPING 5*16 4 $3.78 USD View product →

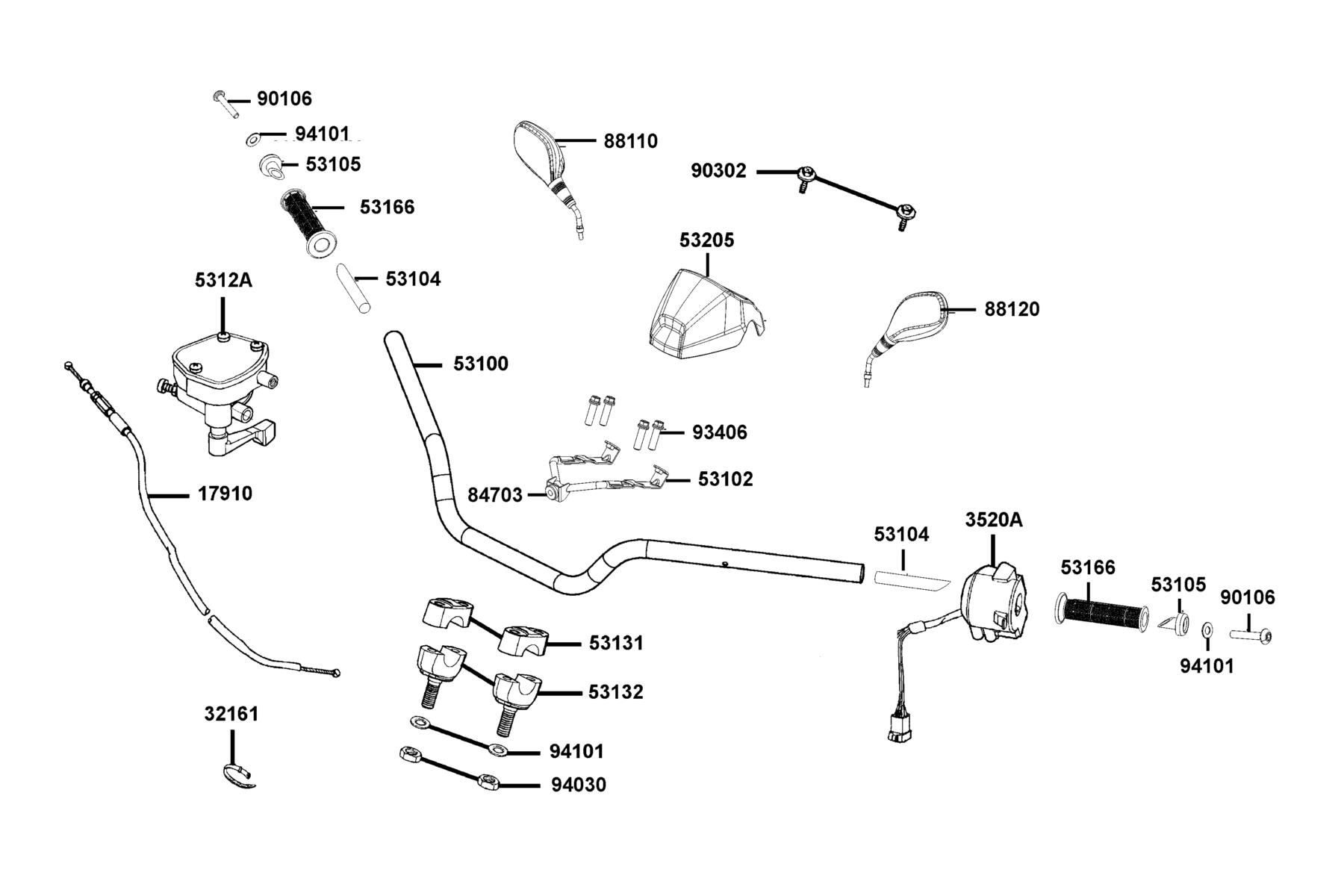

F03 — Handle Steering

#PartNameQtyPrice
1 17910-PRB3-900 CABLE COMP THROTTLE 1 $34.56 USD View product →
2 32161-4D04-001 BAND BI WIRE 1 $4.53 USD View product →
3 3520A-AGA7-E00 SW ASS'Y LH HANDLE COMP 1 $281.04 USD View product →
4 53100-AGA1-M00 HANDLE PIPE STRG 1 $125.94 USD View product →
5 53102-AHH8-M00 STAY HANDLE COVER 1 $47.73 USD View product →
6 53104-PWB1-900 PLUG??? HANDLEBAR 2 $31.17 USD View product →
7 53105-PWB1-900 END HANDLEBAR-BLACK 2 $7.17 USD View product →
8 5312A-AHH8-M00 LEVER ASSY THROT 1 $130.53 USD View product →
9 53131-4K39-001 HOLDER HANDLE PIPE 2 $17.79 USD View product →
10 53132-LLB1-900 HOLDER UNDER HANDLE PIPE 2 $56.58 USD View product →
11 53166-LGC7-E00 GRIP HANDLEBAR 2 $47.94 USD View product →
12 53205-AGA1-M00-U4R COVER HANDLEBAR 1 $89.67 USD View product →
13 84703-LLB1-900 RUBBER TAIL LIGHT 1 $3.96 USD View product →
14 88110-LBA7-E00 MIRROR ASSY R BACK 1 $59.88 USD View product →
15 88120-LBA7-E00 MIRROR ASSY L BACK 1 $59.88 USD View product →
16 90106-KFC2-900 BOLT-WASH 8MM 2 $10.80 USD View product →
17 90302-PWA1-900 BOLT-WASH 5*16 2 $4.92 USD View product →
18 93406-LLB1-900 BOLT-WASHER 8*35 4 $4.92 USD View product →
19 94030-10080 NUT HEX 10MM 2 $12.09 USD View product →
20 94101-10800 WASHER PLAIN 10MM 2 $2.61 USD View product →

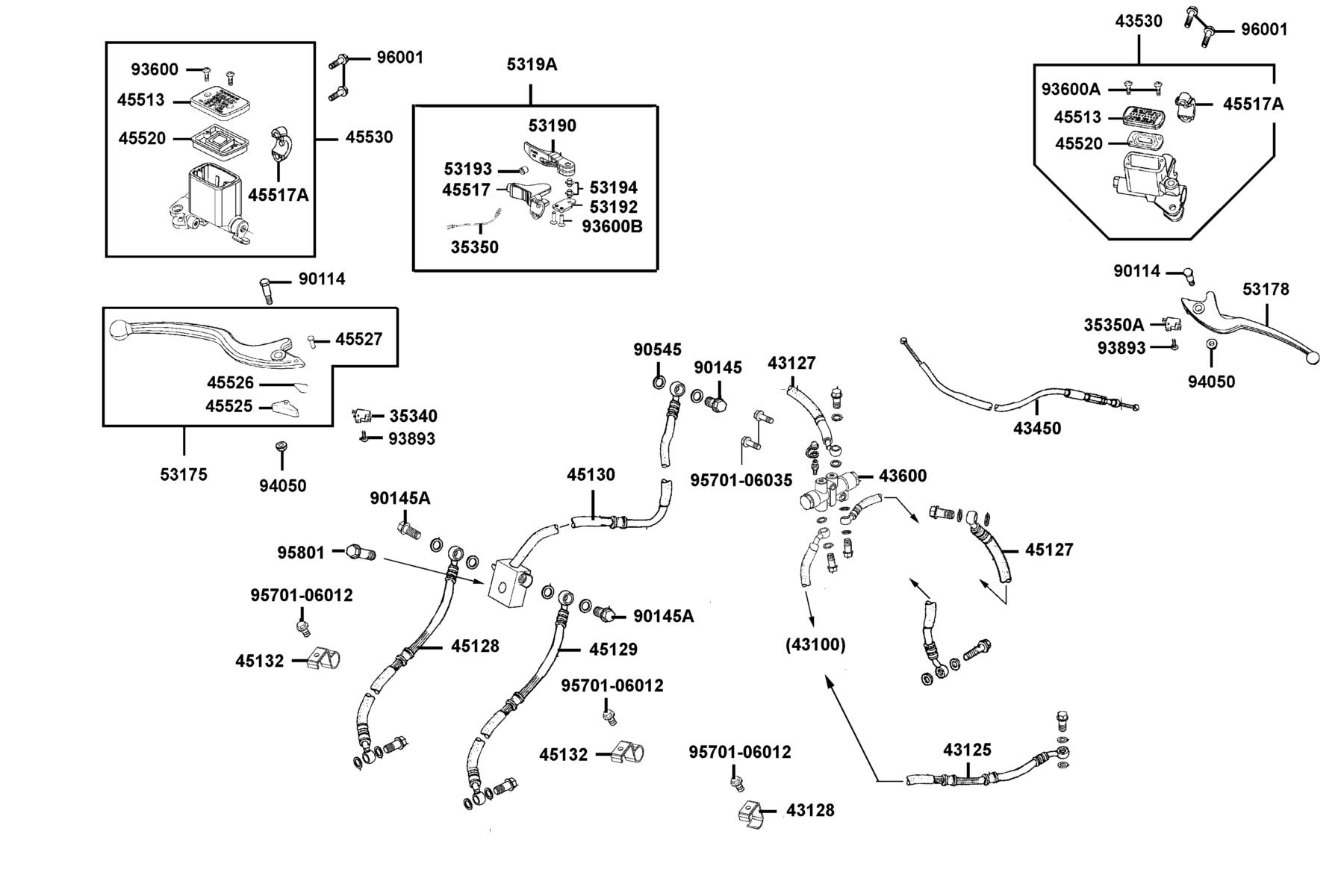

F04 — Master Cylinder

#PartNameQtyPrice
1 35340-LBA7-900 SW ASSY FR STOP 1 $40.38 USD View product →
2 35350-ALC1-E00 SW ASSY STOP 1 $49.68 USD View product →
3 35350-KNBN-901 SW ASSY RR STOP 1 $38.34 USD View product →
4 43125-AHH8-M00 HOSE COMP RR BRK(M/C-PCV) 1 $89.04 USD View product →
5 43127-AHH8-M00 HOSE ASSY RR(PGV-CP)BRK 1 $108.48 USD View product →
6 43128-LBA7-900 CLAMPER RR BRAKE HOSE 1 $17.07 USD View product →
7 43450-PRB3-900 CABLE PARKING BRAKE 1 $75.75 USD View product →
8 43530-KKC4-305 CYLINDER SET RR MASTER 1 $207.54 USD View product →
9 43600-AHH8-M00 PGV ASSY 1 $258.15 USD View product →
10 45127-AHH8-M00 HOSE ASSY FR BRK(LH M/C TO PGV 1 $121.74 USD View product →
11 45128-PRB3-900 HOSE ASSY FR 1 $126.51 USD View product →
12 45129-PRB3-900 HOSE ASSY FR 1 $126.51 USD View product →
13 45130-PRB3-900 HOSE ASSY FR BRK 1 $125.25 USD View product →
14 45132-LBA7-900 CLAMPER FR BRAKE HOSE 2 $16.14 USD View product →
15 45513-KKC4-900 CAP M/C 2 $2.82 USD View product →
16 45517-AGA2-E00 BRACKET PARK BRK 1 $50.55 USD View product →
17 45517-KFAF-910 HOLDER M/C 2 $17.43 USD View product →
18 45517-KFAF-910(wrong) HOLDER M/C 2 $13.41 USD View product →
19 45520-KKC4-900 DIAPHRAGM 2 $1.08 USD View product →
20 45525-LBA7-900 STOPPER 1 $23.40 USD View product →
21 45526-LBA7-900 SPRING 1 $9.39 USD View product →
22 45527-LBA7-900 PIN PARK 1 $9.39 USD View product →
23 45530-LBA7-305 CYLINDER SET FR 1 $39.78 USD View product →
24 53175-LBA7-305 LEVER SET BRK 1 $55.08 USD View product →
25 53178-KFC8-E10-M2A LEVER L STRG HNDL 1 $48.30 USD View product →
26 53190-ALC1-E00 LEVER 1 $51.33 USD View product →
27 53192-PRB3-900 STAY 1 $6.24 USD View product →
28 53193-PRB3-900 STOPPER 1 $5.58 USD View product →
29 53194-PRB3-900 PIVOT 1 $3.27 USD View product →
30 5319A-AGA2-E00 BRAKE ASSY PARKING 1 $169.77 USD View product →
31 90114-1F66-007 BOLT HANDLE LEVER 2 $4.92 USD View product →
32 90145-LEA3-E00 OIL BOLT 10*22 9 $22.86 USD View product →
33 90145-MKS9-61A OIL BOLT 10X22 2 $9.06 USD View product →
34 90145-MKS9-61A(wrong) OIL BOLT 10X22 2 $11.79 USD View product →
35 90545-3L00-001 WASHER OIL BOLT 22 $2.91 USD View product →
36 90545-3L00-001(wrong) WASHER OIL BOLT 22 $3.78 USD View product →
37 93600-04012-1A SCREW FLAT 4*12 2 $5.67 USD View product →
38 93600-04012-1G SCREW FLAT 4*12 2 $5.67 USD View product →
39 93600-PRB3-900 SCREW 6X12 2 $1.95 USD View product →
40 93893-04012-18 SCREW WASHER 4*12 2 $1.86 USD View product →
41 94050-06060 NUT FLANGE 6MM 2 $4.92 USD View product →
42 95701-06012-06 BOLT FLANGE 6X12 3 $1.86 USD View product →
43 95701-06035-06 BOLT FLANGE 6X35 2 $6.24 USD View product →
44 95801-08028-06 BOLT FLANGE 8*28 1 $4.53 USD View product →
45 96001-06022-06 BOLT FLANGE SH 6X22 4 $4.26 USD View product →

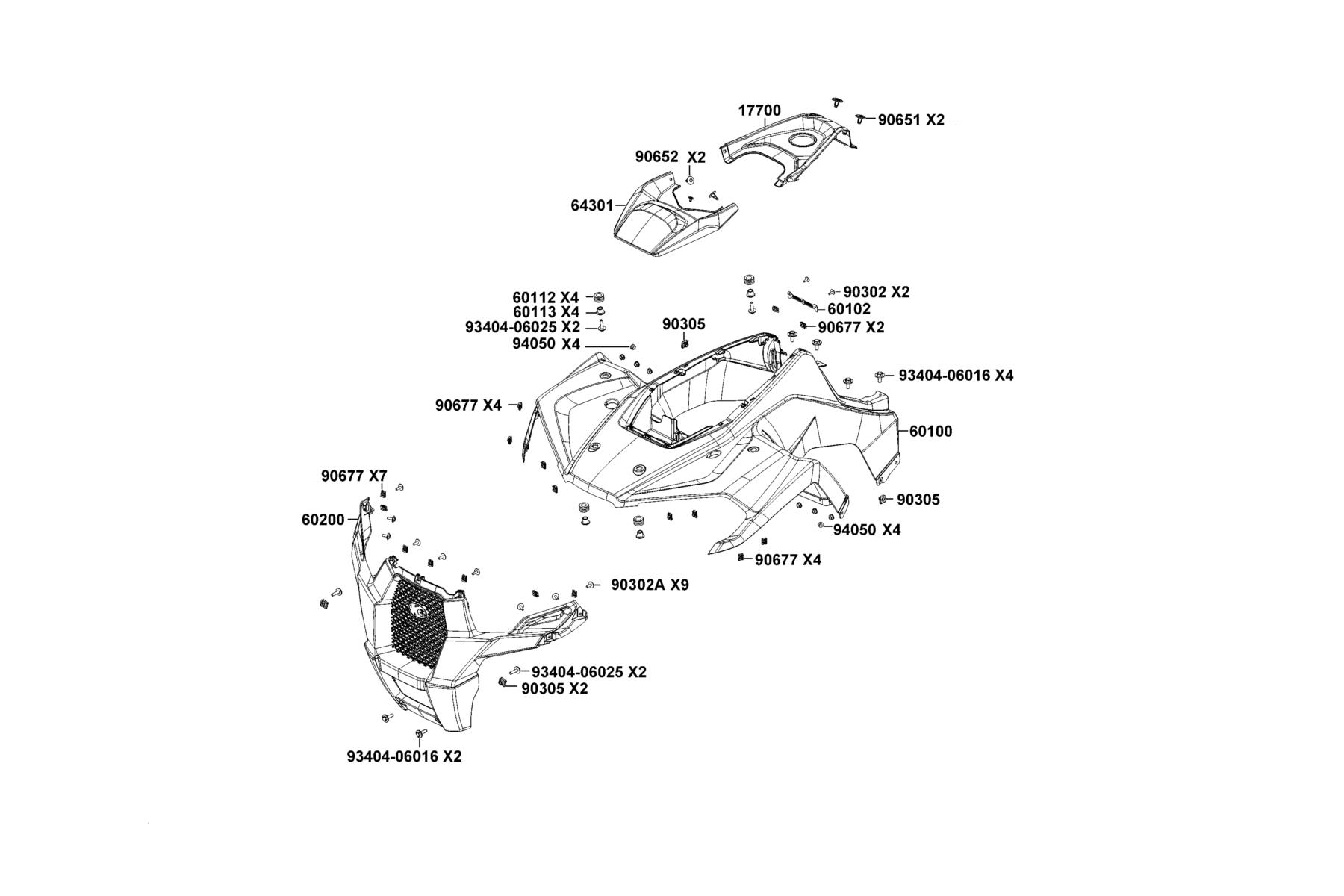

F05 — Fender Front

#PartNameQtyPrice
1 17700-AGA1-M00-U4R COVER TANK ( BLACK ) 1 $371.10 USD View product →
2 60100-AGA1-M00-KDR FENDER FRONT (GRAY) 1 $584.52 USD View product →
3 60102-AGA1-M00 STAY FRONT 1 $7.68 USD View product →
4 60112-PWB1-900 GROMMET 4 $4.29 USD View product →
5 60113-PWB1-900 SPACER STELL 1 $12.48 USD View product →
6 60200-AGA1-M00-N1R MUDGUARD FRONT (Black) 1 $119.22 USD View product →
7 64301-AGA1-M00-U4R ACCESS PANEL RADIATOR 1 $42.15 USD View product →
8 90302-PWA1-900 BOLT-WASH 5*16 9 $4.92 USD View product →
9 90302-PWA5-900 BOLT-WASH 5*12 2 $4.92 USD View product →
10 90305-GHK8-001 NUT CLIP 6MM 4 $4.92 USD View product →
11 90651-LCA5-E00 CLIP FENDER 2 $4.92 USD View product →
12 90652-LCA4-E00 CLIP MUDGUARD 2 $4.92 USD View product →
13 90677-GAR1-004 NUT CLIP 5MM 6 $3.00 USD View product →
14 93404-06016-06 BOLT WASHER 6*16 6 $7.89 USD View product →
15 93404-06025-06 BOLT WASHER 6*25 4 $4.17 USD View product →
16 94050-LDE9-E00 NUT LOCK 8 $2.61 USD View product →

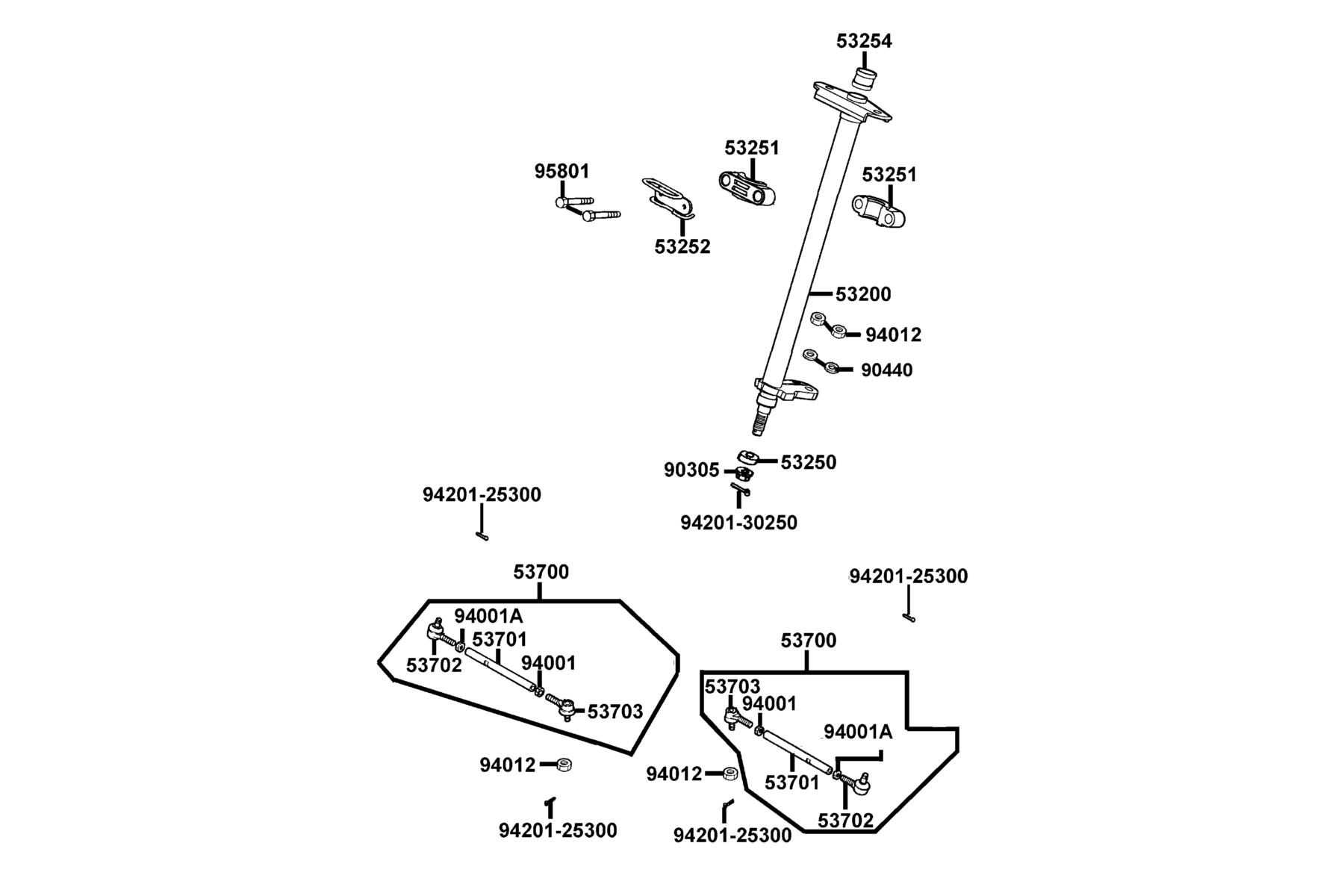

F06 — Stem Steering

#PartNameQtyPrice
1 53200-AHH8-M00 STEM COMP STRG 1 $213.09 USD View product →
2 53250-LBA7-900 COLLAR STEM BOTTOM 1 $8.28 USD View product →
3 53251-LCA5-E00 HOLDER STEM STEERING 2 $24.96 USD View product →
4 53252-LBA7-900 CLAMPER STEM HOLDER 1 $18.72 USD View product →
5 53254-LBA7-900 SLEEVE STEM 1 $9.39 USD View product →
6 53700-PRB3-900 ROD ASSY STEERING 2 $115.86 USD View product →
7 53701-PRB3-900 ROD COMP STEERING 2 $36.24 USD View product →
8 53702-PRB3-900 JOINT R BALL 2 $52.26 USD View product →
9 53703-PRB3-900 JOINT L BALL 2 $52.26 USD View product →
10 90305-MAA1-004 U NUT FLANGE 14MM 1 $5.85 USD View product →
11 90440-KGC4-E00 WASHER PLAIN 10MM 2 $3.27 USD View product →
12 94001-LLB1-800 NUT HEX 10MM 2 $4.53 USD View product →
13 94001-LLB1-900 NUT HEX LH 10MM 2 $4.53 USD View product →
14 94012-LLB1-900 NUT CASTLE 10MM 4 $13.77 USD View product →
15 94201-25300 PIN SPLIT 2.5*30 4 $1.86 USD View product →
16 94201-30250 PIN SPLIT 3X25 1 $4.92 USD View product →
17 95801-08060-06 BOLT FLANGE 8*60 2 $11.31 USD View product →

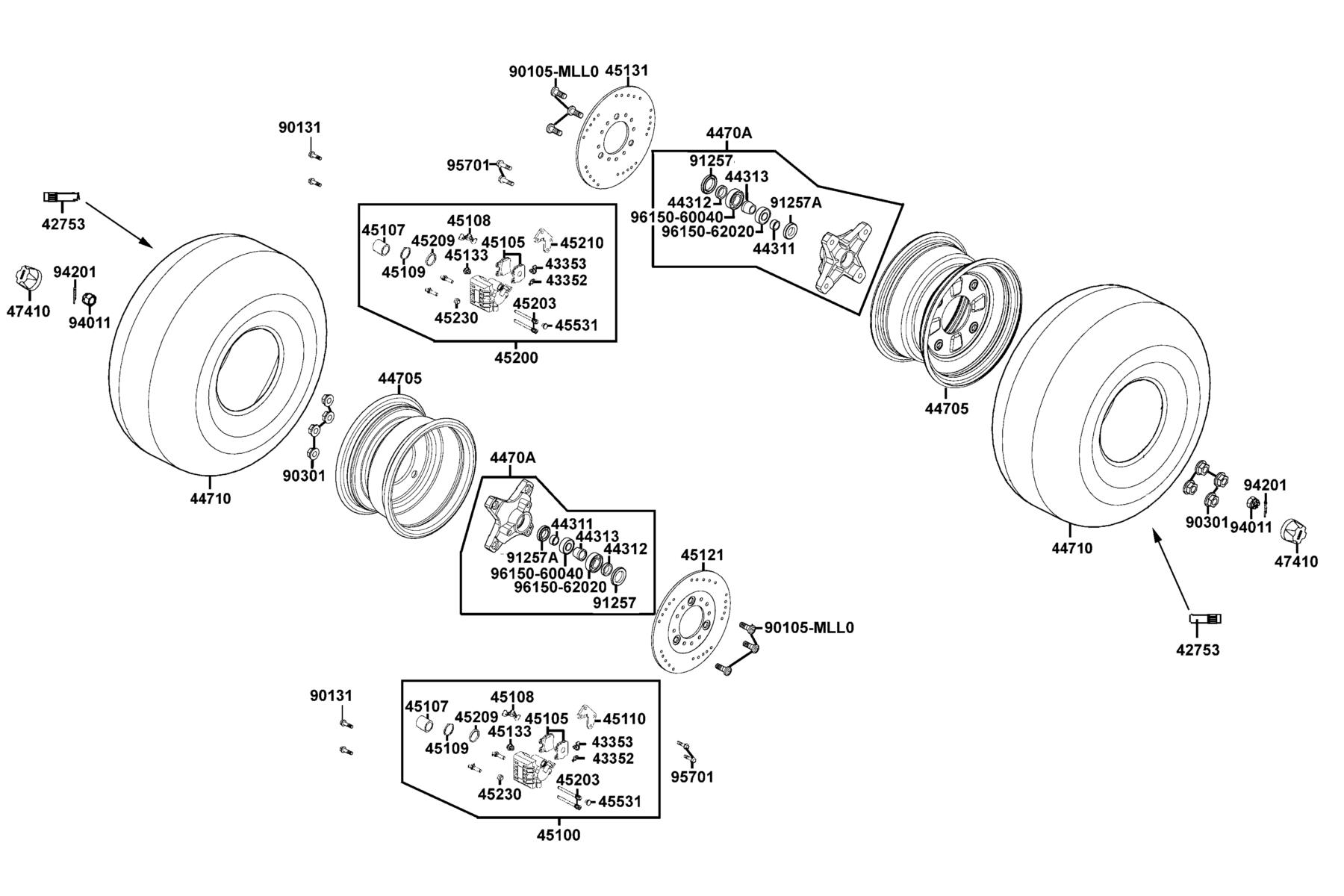

F07 — Front Wheel

#PartNameQtyPrice
1 42753-KNBN-90B VALVE RIM (TR412) 2 $17.70 USD View product →
2 43352-5H68-004 SCREW BLEEDER 2 $12.45 USD View product →
3 43353-4A61-77A CAP BLEEDER 2 $5.67 USD View product →
4 44311-LBA7-900 COLLAR FR WHEEL SIDE A 2 $56.19 USD View product →
5 44312-LBA7-900 COLLAR FR WHEEL SIDE B 2 $56.19 USD View product →
6 44313-LBA7-900 COLLAR FR WHEEL DIST 2 $56.19 USD View product →
7 44705-LCA5-E00-N1S RIM COMP FR WHEEL 2 $39.96 USD View product →
8 4470A-LDE9-900 CONNECTOR ASSY FR 2 $178.38 USD View product →
9 44710-ZXA3-M00 TIRE ASSY FR(AT22*7-10) 2 $412.29 USD View product →
10 45100-LBA7-600 CALIPER ASSY FR R 1 $221.52 USD View product →
11 45105-LBA7-305 PAD SET 2 $55.14 USD View product →
12 45107-KFA6-900 PISTON C/P (??33.96MM) 2 $31.17 USD View product →
13 45108-LBA7-900 SPRING PAD 2 $16.38 USD View product →
14 45109-KFA6-900 DUST SEAL 2 $4.92 USD View product →
15 45110-LBA7-305 BRACKET R 1 $96.69 USD View product →
16 45121-AGA1-M00 DISK FR BRK R 1 $104.34 USD View product →
17 45131-AGA1-M00 DISK FR BRK L 1 $96.90 USD View product →
18 45133-LBA7-900 BOOT A 2 $11.31 USD View product →
19 45200-LBA7-600 CALIPER ASSY FR L 1 $221.52 USD View product →
20 45203-LBA7-900 PIN HANGER 4 $17.07 USD View product →
21 45209-KFA6-900 SEAL PISTON 2 $24.96 USD View product →
22 45210-LBA7-305 BRACKET L 2 $96.69 USD View product →
23 45230-LBA7-900 BUSH PIN 2 $12.09 USD View product →
24 45531-GAR1-951 PLUG 2 $7.17 USD View product →
25 47410-PRB3-900 CAP WHEEL 2 $1.71 USD View product →
26 90105-MLL0-731 BOLT STEP HOLDER 8*24 6 $9.39 USD View product →
27 90131-PRB3-900 BOLT FLANGE 8X20 4 $22.50 USD View product →
28 90301-LBA7-900 NUT WHEEL M10 8 $7.71 USD View product →
29 91257-2L30-006 OIL SEAL 28*42*7 2 $12.09 USD View product →
30 91257-LBA7-900 OIL SEAL 20*35*7 2 $20.76 USD View product →
31 94011-LLB1-900 NUT FLANGE CASTLE 14MM 2 $2.19 USD View product →
32 94201-30300 PIN SPLIT 3*30 2 $4.92 USD View product →
33 95701-08020-06 BOLT FLANGE 8*20 1 $3.78 USD View product →
34 96150-60040-10 BEARING BALL RADIAL 6004 2 $63.24 USD View product →
35 96150-62020-10 BEARING BALL RADIAL 6202 2 $44.07 USD View product →

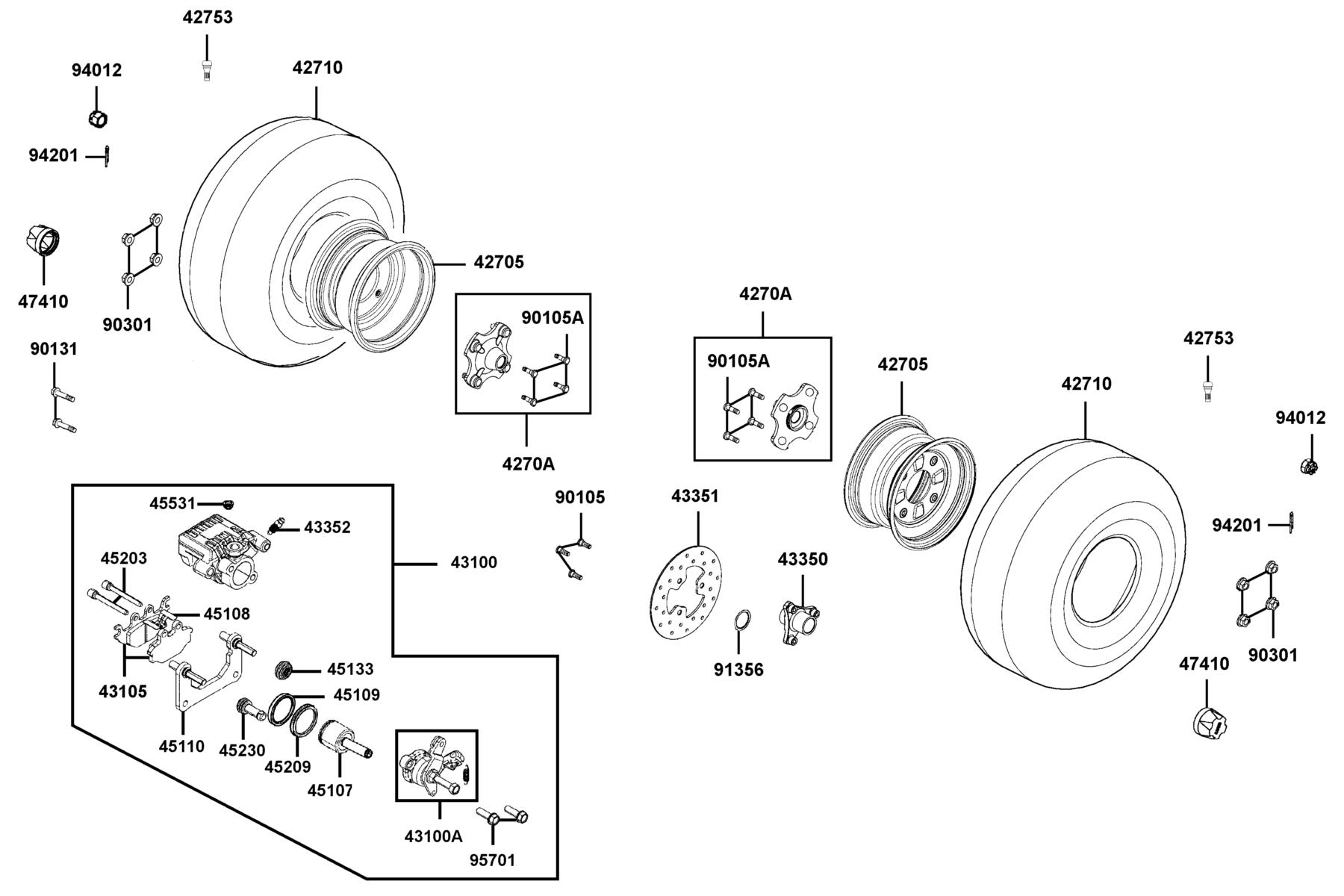

F08 — Rear Wheel

#PartNameQtyPrice
1 42705-LCA5-E00-N1S RIM COMP RR WHEEL 2 $177.06 USD View product →
2 4270A-LCA5-E00 CONNECTOR ASSY RR 2 $149.43 USD View product →
3 42710-ZXA3-M00 TIRE ASSY RR(AT22*10-10) 2 $429.93 USD View product →
4 42753-KNBN-90B VALVE RIM (TR412) 2 $17.70 USD View product →
5 43100-PRB3-305 LEVER ASSY ADJUSTABLE 1 $100.29 USD View product →
6 43100-PRB3-910 CALIPER ASSY REAR 1 $382.89 USD View product →
7 43105-LFE9-306 PAD SET 1 $155.82 USD View product →
8 43350-AGA1-M00 HUB BRK DISK 1 $288.45 USD View product →
9 43351-AGA1-M00 DISK RR BRK 1 $96.90 USD View product →
10 43352-KKD6-E90 SCREW BLEEDER 1 $12.45 USD View product →
11 45107-LDE9-305 PISTON SET C /P (??33.96MM) 1 $44.28 USD View product →
12 45108-LBA7-900 SPRING PAD 1 $16.38 USD View product →
13 45109-KKC4-900 DUST SEAL 1 $16.68 USD View product →
14 45110-LDE9-305 BRACKET CALIPER 1 $80.70 USD View product →
15 45133-LBA7-900 BOOT A 1 $11.31 USD View product →
16 45203-PRB3-900 PIN HANGER 2 $9.51 USD View product →
17 45209-KFA6-900 SEAL PISTON 1 $24.96 USD View product →
18 45230-LBA7-900 BUSH PIN 1 $12.09 USD View product →
19 45531-GAR1-951 PLUG 1 $7.17 USD View product →
20 47410-PRB3-900 CAP WHEEL 2 $1.71 USD View product →
21 90105-LBA7-900 BOLT CONNECTOR ( STUD 10X36 ) 8 $13.17 USD View product →
22 90105-MLL0-731 BOLT STEP HOLDER 8*24 3 $9.39 USD View product →
23 90131-PRB3-900 BOLT FLANGE 8X20 2 $22.50 USD View product →
24 90301-LBA7-900 NUT WHEEL M10 8 $7.71 USD View product →
25 91356-4E25-004 O-RING 29.7X2.4 1 $2.97 USD View product →
26 94012-LDB5-E00 NUT FLANGE CASTLE 18MM 2 $31.44 USD View product →
27 94201-30300 PIN SPLIT 3*30 2 $4.92 USD View product →
28 95701-LBA2-E00 BOLT FLANGE 2 $7.53 USD View product →

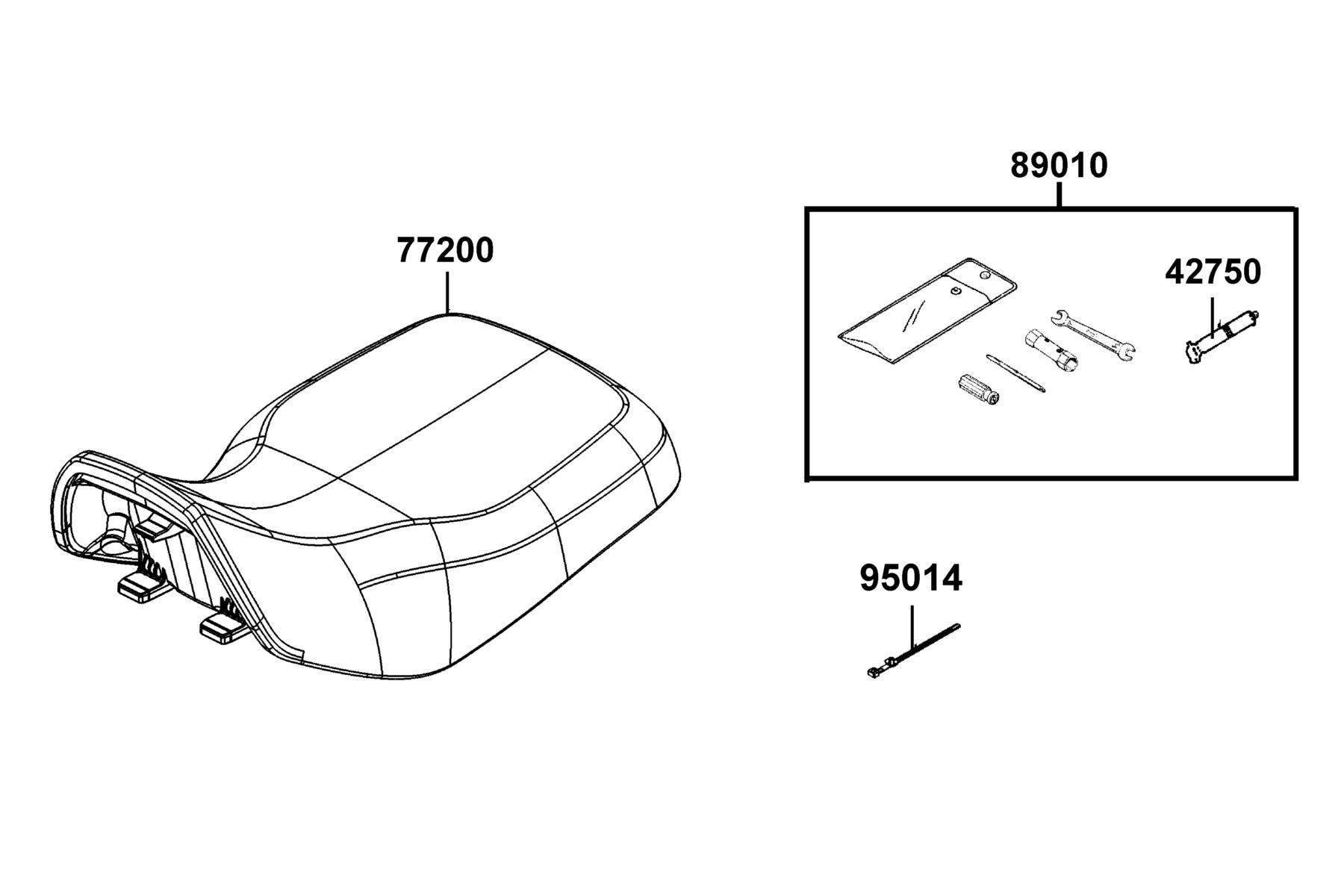

F09 — Seat

#PartNameQtyPrice
1 42750-LDB1-700 GEAR AIR PRESSURE 1 $66.45 USD View product →
2 77200-AGA1-M00-T01 SEAT ASSY 1 $281.76 USD View product →
3 89010-LBA7-900 TOOL SET 1 $86.61 USD View product →
4 95014-PRB3-900 STRAP CABLE 1 $9.51 USD View product →

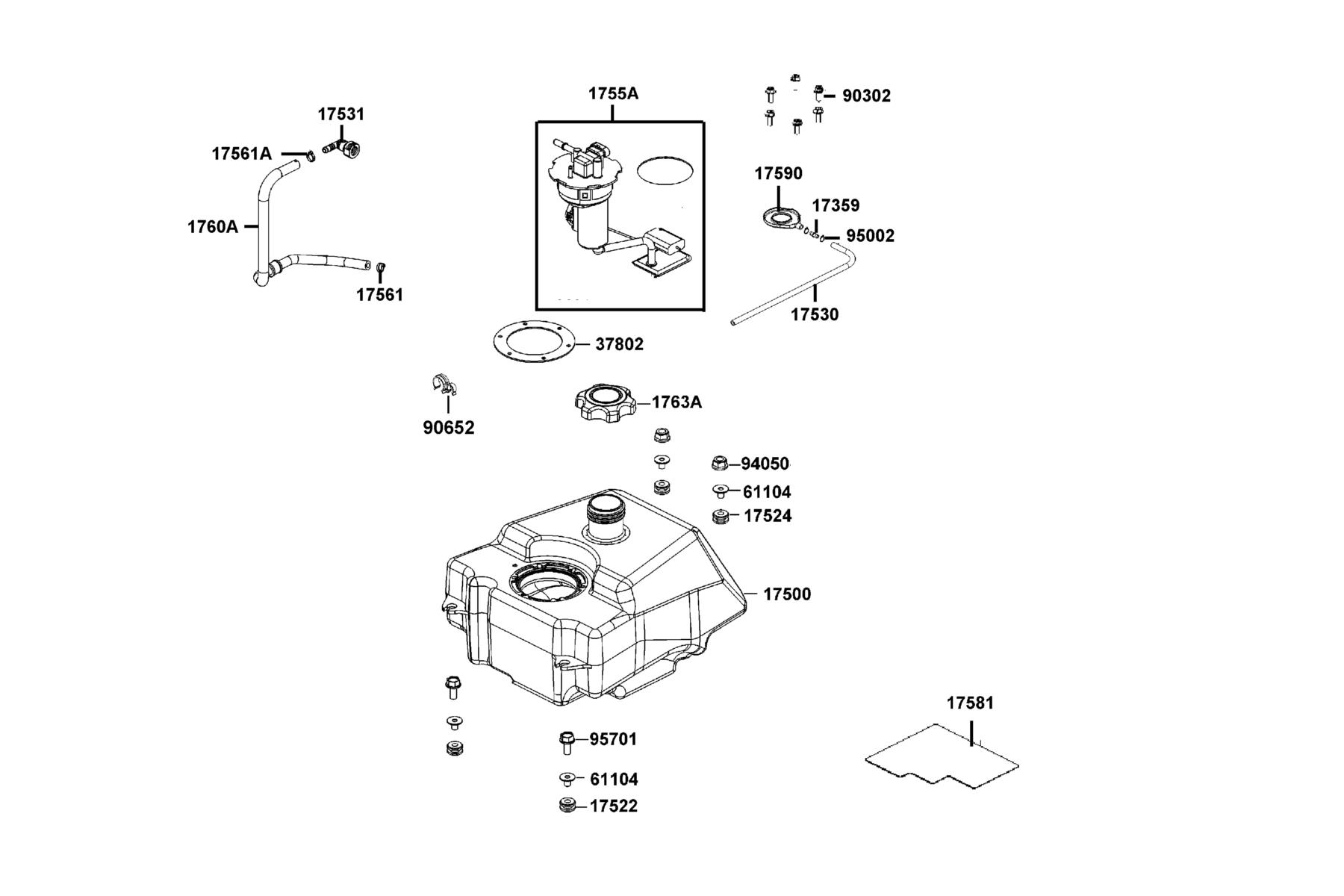

F10 — Fuel Tank

#PartNameQtyPrice
1 17359-4K19-671 JOINT BREATHER TUBE 1 $4.92 USD View product →
2 17500-AGA1-M00 TANK COMP FUEL 1 $546.10 USD View product →
3 17522-LLB1-900 RUBBER FUEL TANK 2 $9.39 USD View product →
4 17524-LLB1-900 RR RUBBER FUEL TANK 2 $4.53 USD View product →
5 17530-AGA1-M00 TUBE DRAIN 1 $5.58 USD View product →
6 17531-ADF8-C00 CONNECTOR FUEL PUMP 1 $69.18 USD View product →
7 1755A-AGA1-M00 PUMP ASS'Y FUEL 1 $574.98 USD View product →
8 17561-LGK8-900 CLIP 12.0 1 $22.17 USD View product →
9 17561-LHG8-E00 CLIP 13 1 $13.77 USD View product →
10 17581-AGA1-M00 SHIELD FUEL TANK 1 $26.28 USD View product →
11 17590-ACB3-M40 TRAY ASSY FUEL CAP 1 $9.84 USD View product →
12 1760A-AGA1-M00 TUBE ASSY FUEL 1 $82.47 USD View product →
13 1763A-AGA1-M00 CAP ASSY FUEL TANK 1 $63.75 USD View product →
14 37802-AGA1-M00 MOUNT FUEL PUMP 1 $38.22 USD View product →
15 61104-357-0010 COLLAR FR FENDER 4 $11.19 USD View product →
16 90302-GBR2-001 BOLT-WASH 5x16 6 $3.99 USD View product →
17 90652-AHH8-M00 CLAMP TUBE 1 $8.49 USD View product →
18 94050-06080 NUT FLANGE 6MM 2 $2.31 USD View product →
19 95002-02120 CLIP B12 TUBE 2 $1.86 USD View product →
20 95701-06022-06 BOLT FLANGE 6*22 2 $4.26 USD View product →

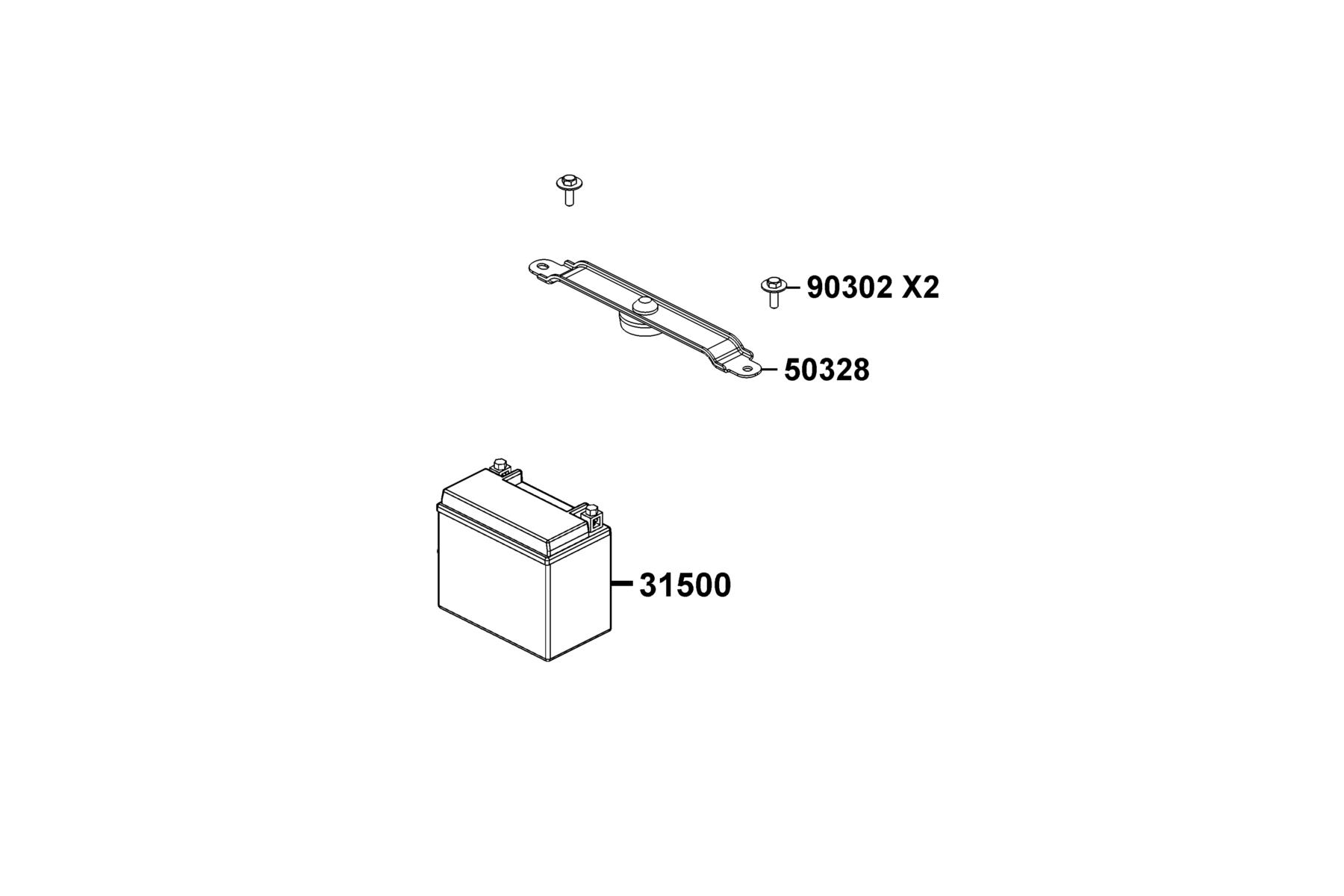

F11 — Battery

#PartNameQtyPrice
1 31500-LBA2-90A BATTERY YTX14-BS 1 $263.31 USD View product →
2 50328-ZXA3-M00 STAY BATTERY 1 $15.84 USD View product →
3 90302-PWA1-900 BOLT-WASH 5*16 2 $4.92 USD View product →

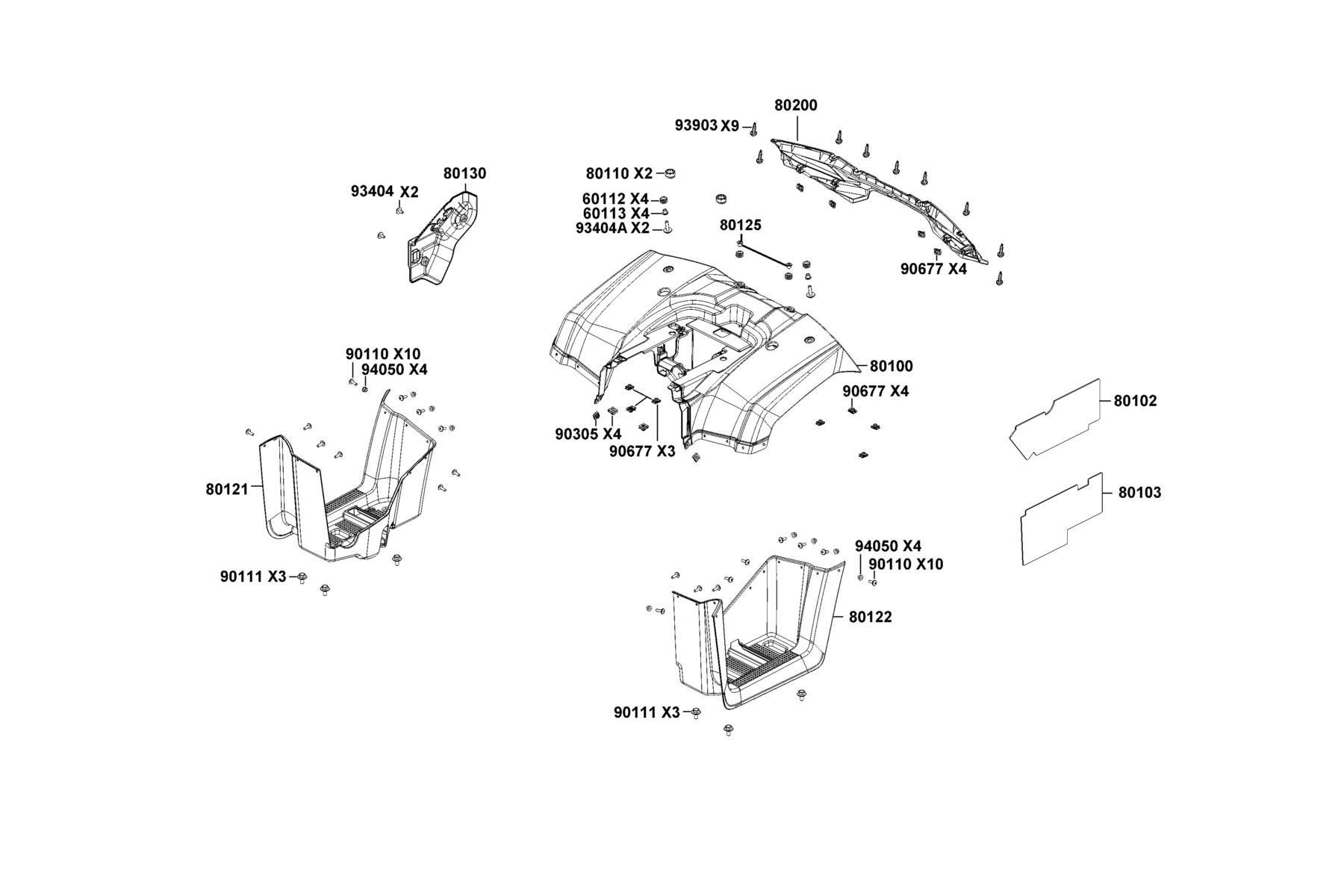

F12 — Fender Rear

#PartNameQtyPrice
1 60112-PWB1-900 GROMMET 4 $4.29 USD View product →
2 60113-PWB1-900 SPACER STELL 4 $12.48 USD View product →
3 80100-AGA1-M00-KDR FENDER REAR 1 $241.50 USD View product →
4 80102-AHH8-M00 SHIELD LH LOWER 1 $4.23 USD View product →
5 80103-AHH8-M00 SHIELD LH UPPER 1 $4.20 USD View product →
6 80110-LBA7-900 RUBBER REAR FENDER 2 $3.66 USD View product →
7 80121-AGA1-M00-N1R FOOTWELL RH (Black) 1 $110.97 USD View product →
8 80122-AGA1-M00-N1R FOOTWELL LH (Black) 1 $110.97 USD View product →
9 80125-LBD4-900 COLLAR FLOOR 2 $4.56 USD View product →
10 80130-LBA7-910 PROTECTOR MASTER CYLINDER 1 $18.66 USD View product →
11 80200-AGA1-M00-N1R MUDGUARD REAR (Black) 1 $129.03 USD View product →
12 90110-PWB1-900 SCREW SPECIAL 6X20 20 $7.17 USD View product →
13 90111-LEB1-900 BOLT FLANGE 6MM 6 $12.12 USD View product →
14 90305-GHK8-001 NUT CLIP 6MM 4 $4.92 USD View product →
15 90677-GAR1-004 NUT CLIP 5MM 11 $3.00 USD View product →
16 93404-06016-06 BOLT WASHER 6*16 2 $7.89 USD View product →
17 93404-06025-06 BOLT WASHER 6*25 2 $4.17 USD View product →
18 93903-35360 SCREW TAPPING 5*16 9 $3.78 USD View product →
19 94050-LDE9-E00 NUT LOCK 8 $2.61 USD View product →

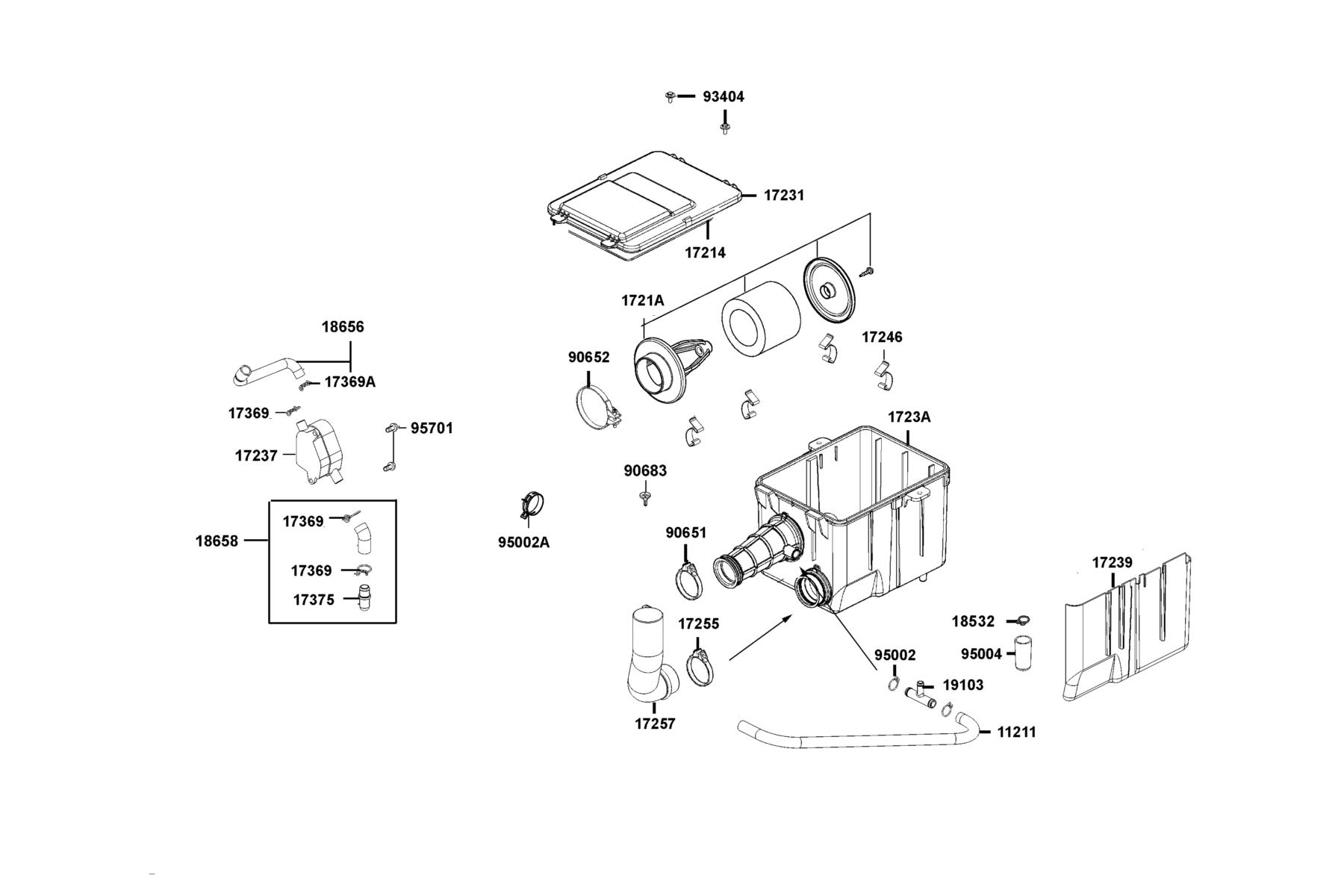

F13 — Air Cleaner

#PartNameQtyPrice
1 11211-PRB3-900 TUBE BREATHER 1 $28.08 USD View product →
2 17214-LBA7-900 SEAL???AIR/C COVER 1 $17.07 USD View product →
3 1721A-LBA7-900 ELEMENT COMP AIR/C 1 $43.17 USD View product →
4 17231-LBA7-900 COVER AIR/C 1 $56.73 USD View product →
5 17237-KED9-900 OIL CATCH ASSY 1 $20.88 USD View product →
6 17239-LBA7-M00 SHIELD AIR/C 1 $19.47 USD View product →
7 1723A-AHH8-M00 CASE ASSY AIR/C 1 $87.87 USD View product →
8 17246-LBA7-900 CLAMP AIR/C 4 $16.14 USD View product →
9 17255-KAK-9000 BAND A AIR/C CONNECTING TUBE 1 $12.09 USD View product →
10 17257-LBA7-900 DUCT A AIR/C CASE 1 $39.75 USD View product →
11 17369-KDB4-671 CLIP BREATHER TUBE 3 $10.14 USD View product →
12 17369-KHC4-900 CLIP BREATHER TUBE 1 $4.53 USD View product →
13 17375-KED9-900 PLUG OIL CATCH 1 $4.53 USD View product →
14 18532-6D34-671 CLIP AIR HOSE 21.5 1 $4.53 USD View product →
15 18656-LBA7-900 TUBE A OIL CATCH 1 $12.12 USD View product →
16 18658-KED9-900 TUBE C OIL CATCH 1 $11.31 USD View product →
17 19103-AGA8-M00 JOINT 3 WAY 1 $97.50 USD View product →
18 90651-AHH8-M00 BAND 57 1 $11.46 USD View product →
19 90652-LLJ3-E00 BAND CONNECTING TUBE 1 $19.65 USD View product →
20 90683-GAR1-004 CLIP BODY COVER 1 $3.00 USD View product →
21 93404-06012-06 BOLT WASHER 6X12 2 $2.61 USD View product →
22 95002-02150 CLIP B14.5 TUBE 2 $4.92 USD View product →
23 95002-KKD6-E05 CLAMP D18 TUBE 1 $17.28 USD View product →
24 95004-LBA7-900 TUBE DRAIN 1 $16.41 USD View product →
25 95701-06012-06 BOLT FLANGE 6X12 2 $1.86 USD View product →

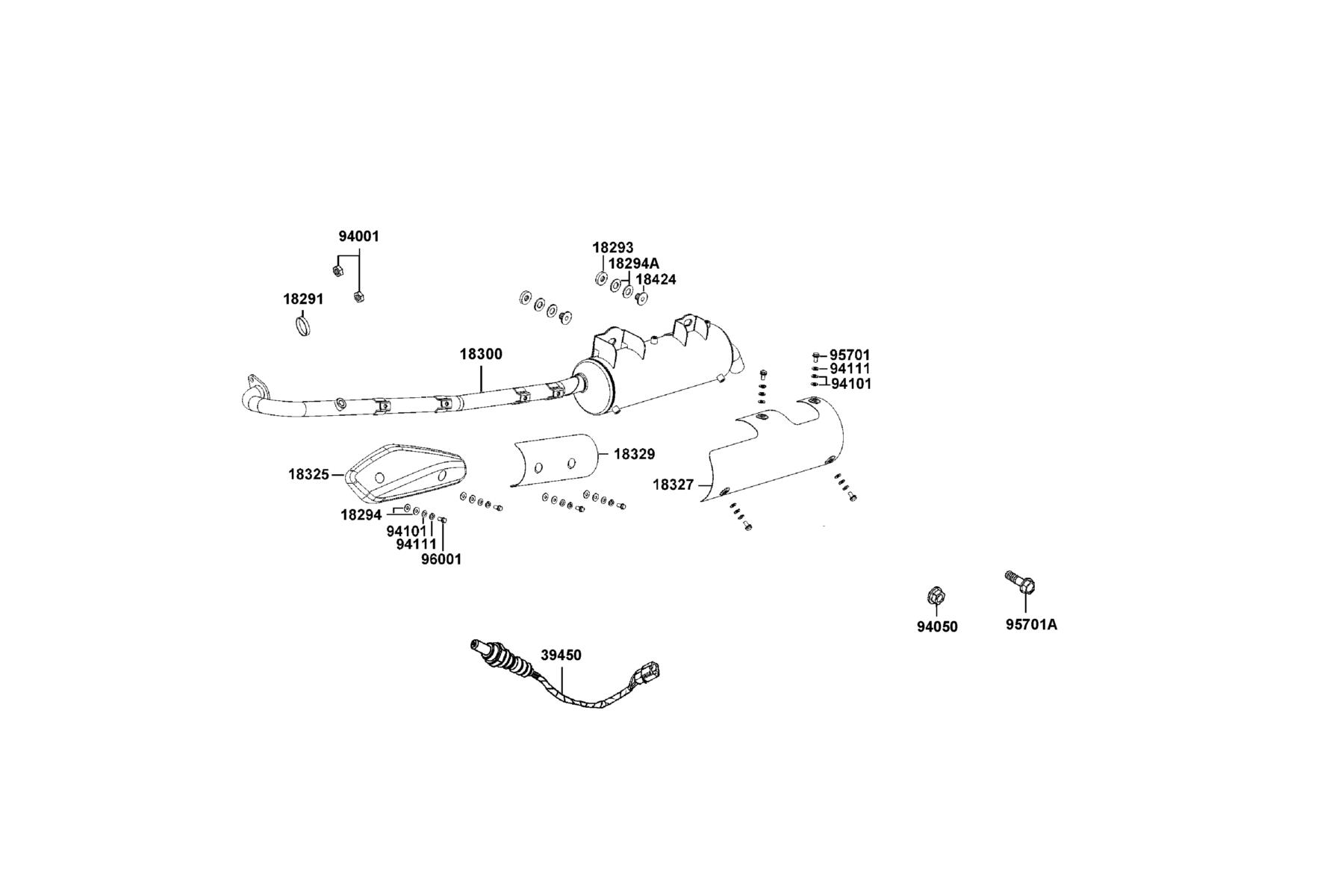

F14 — Exhaust Muffler

#PartNameQtyPrice
1 18291-LBA7-900 GASKET EXHAUST PIPE 1 $13.80 USD View product →
2 18293-LBA7-E00 RUBBER MUFFLER STAY 2 $6.06 USD View product →
3 18294-KTCT-900 PACKING PROTECTOR 8 $6.06 USD View product →
4 18294-LBA7-E00 PACKING MUFFLER STAY 4 $4.92 USD View product →
5 18300-AHH8-M01 MUFFLER COMP EXH 1 $668.16 USD View product →
6 18325-AGA1-M00 PROTECTOR EXH PIPE 1 $91.65 USD View product →
7 18327-AGA1-M00 PROTECTOR B COMP MUFFLER 1 $137.34 USD View product →
8 18329-AGA1-M00 PROTECTOR D COMP MUFFLER 1 $71.04 USD View product →
9 18424-LBA7-E00 COLLAR MUFF STAY 2 $6.24 USD View product →
10 39450-ZVA6-M00 O2 SENSOR 1 $322.38 USD View product →
11 94001-08080-0S NUT HEX 8MM 2 $1.86 USD View product →
12 94050-08080 NUT FLANGE 8MM 1 $4.92 USD View product →
13 94101-06200 WASHER PLAIN 6MM 12 $4.92 USD View product →
14 94111-ACD5-E00 WASHER.SPG 8 $11.79 USD View product →
15 95701-06012-06 BOLT FLANGE 6X12 4 $1.86 USD View product →
16 95701-08025-06 BOLT FLANGE 8*25 1 $5.31 USD View product →
17 96001-06012-06 BOLT FLANGE SH 6*12 4 $1.95 USD View product →

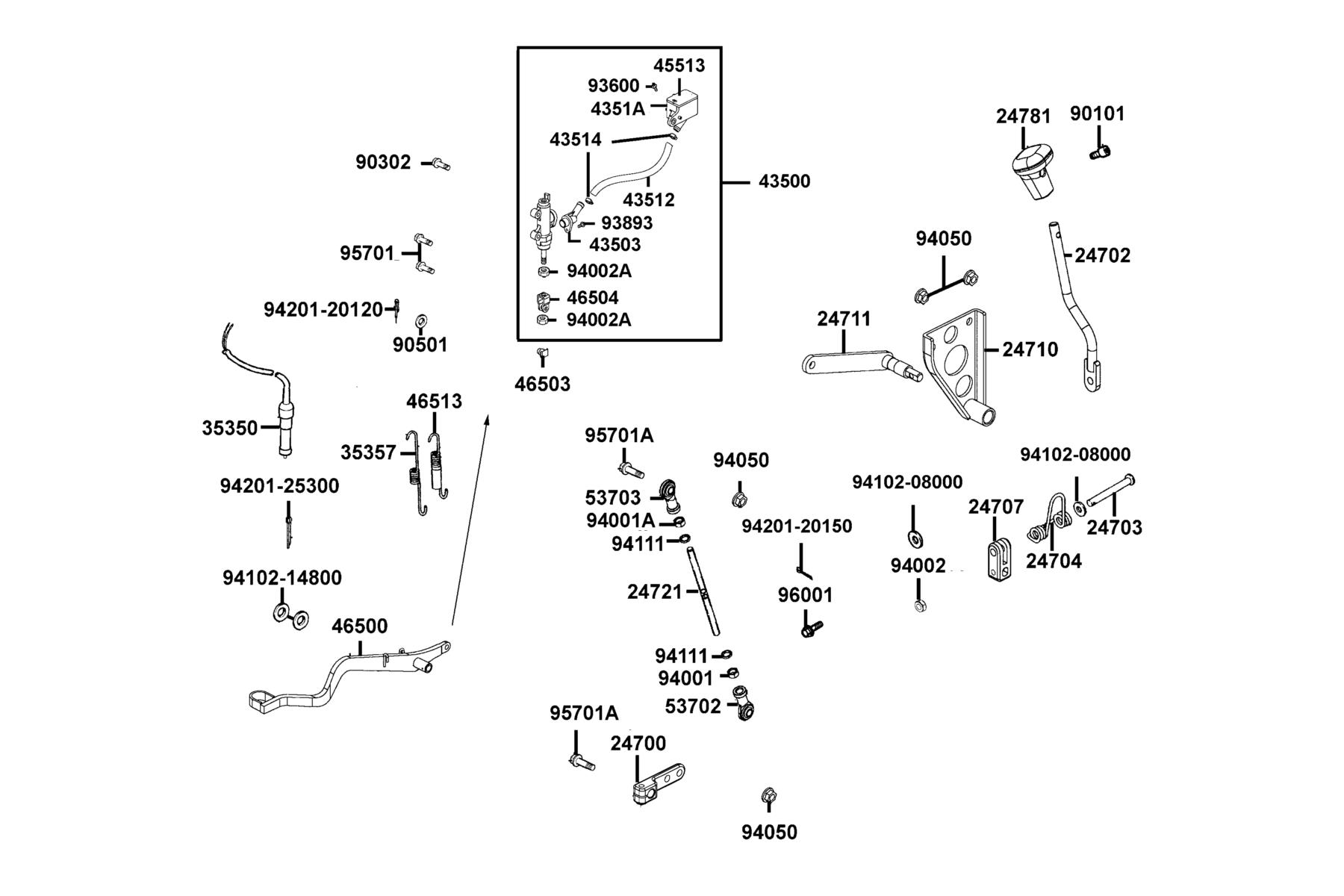

F15 — Master Cylinder Rear

#PartNameQtyPrice
1 24700-LCD9-E00 GEAR CHANGE HNDL LINK 1 $37.65 USD View product →
2 24702-ZXA3-M00 BAR CHANGE HANDLE 1 $21.60 USD View product →
3 24703-LLB1-900 PIN CHANGE HANDLE 1 $5.31 USD View product →
4 24704-LBA7-900 SPRING CHANGE HANDLE 1 $31.17 USD View product →
5 24707-LBA7-900 BRKT CHANGE HANDLE 1 $65.22 USD View product →
6 24710-PWA1-900 STAY CHANGE HNDL ASSY 1 $47.22 USD View product →
7 24711-ZXA3-M00 SHAFT COMP CHANGE HANDLE 1 $35.37 USD View product →
8 24721-LCD9-E00 ROD CHANGE HNDL 1 $23.40 USD View product →
9 24781-AGA1-M00 COVER CHANGE HANDLE 1 $38.22 USD View product →
10 35350-LBA7-900 REAR STOP SW 1 $67.53 USD View product →
11 35357-LBA7-900 SPG STOP SW 1 $13.17 USD View product →
12 43500-LBA7-M30 MASTER CYLINDER ASSY RR 1 $155.37 USD View product →
13 43503-KGC4-E01 CONNECTOR 1 $21.99 USD View product →
14 43512-LBA7-M30 HOSE M/C 1 $25.95 USD View product →
15 43514-4E45-77A CLAMP M/C OIL HOSE 2 $4.53 USD View product →
16 4351A-KFW6-000 OIL CUP ASSY 1 $95.88 USD View product →
17 45513-HBA2-007 CAP M/C 1 $21.99 USD View product →
18 46500-PRB3-900 PEDAL COMP RR BRAKE 1 $88.86 USD View product →
19 46503-KCW3-001 PIN COMP BRK ROD 1 $16.14 USD View product →
20 46504-MBB2-007 JOINT BRK ROD 1 $38.49 USD View product →
21 46513-KED9-900 SPG SET BRK PEDAL 1 $13.17 USD View product →
22 53702-LBA7-900 JOINT R BALL 1 $65.70 USD View product →
23 53703-LBA7-900 JOINT L BALL 1 $65.70 USD View product →
24 90101-LCA5-E00 SOCKET BOLT 5X12 1 $6.06 USD View product →
25 90302-GFY6-940 BOLT-WASH 5*16 1 $1.86 USD View product →
26 90501-3L10-001 WASH 7*12 1 $4.92 USD View product →
27 93600-04040-1G SCREW FLAT 4*40 1 $9.06 USD View product →
28 93893-04012-18 SCREW WASHER 4*12 1 $1.86 USD View product →
29 94001-08080-0S NUT HEX 8MM 1 $1.86 USD View product →
30 94001-LBA7-900 NUT HEX LH 8MM 1 $3.78 USD View product →
31 94002-06060-0S NUT HEX 6MM 1 $0.99 USD View product →
32 94002-08080-0S NUT HEX 8MM 3 $1.95 USD View product →
33 94050-08080 NUT FLANGE 8MM 4 $4.92 USD View product →
34 94102-08000 WASHER PLAIN 8MM 2 $1.86 USD View product →
35 94102-14800 WASHER PLAIN 14MM 2 $4.53 USD View product →
36 94111-08800 WASHER SPG 8MM 2 $4.92 USD View product →
37 94201-20120 PIN SPLIT 2*12 1 $4.92 USD View product →
38 94201-20150 PIN SPLIT 2*15 1 $2.61 USD View product →
39 94201-25300 PIN SPLIT 2.5*30 1 $1.86 USD View product →
40 95701-06022-06 BOLT FLANGE 6*22 2 $4.26 USD View product →
41 95701-08028-06 BOLT FLANGE 8*28 2 $4.53 USD View product →
42 96001-06016-08G BOLT FLANGE SH 6x16 (C) 1 $0.99 USD View product →

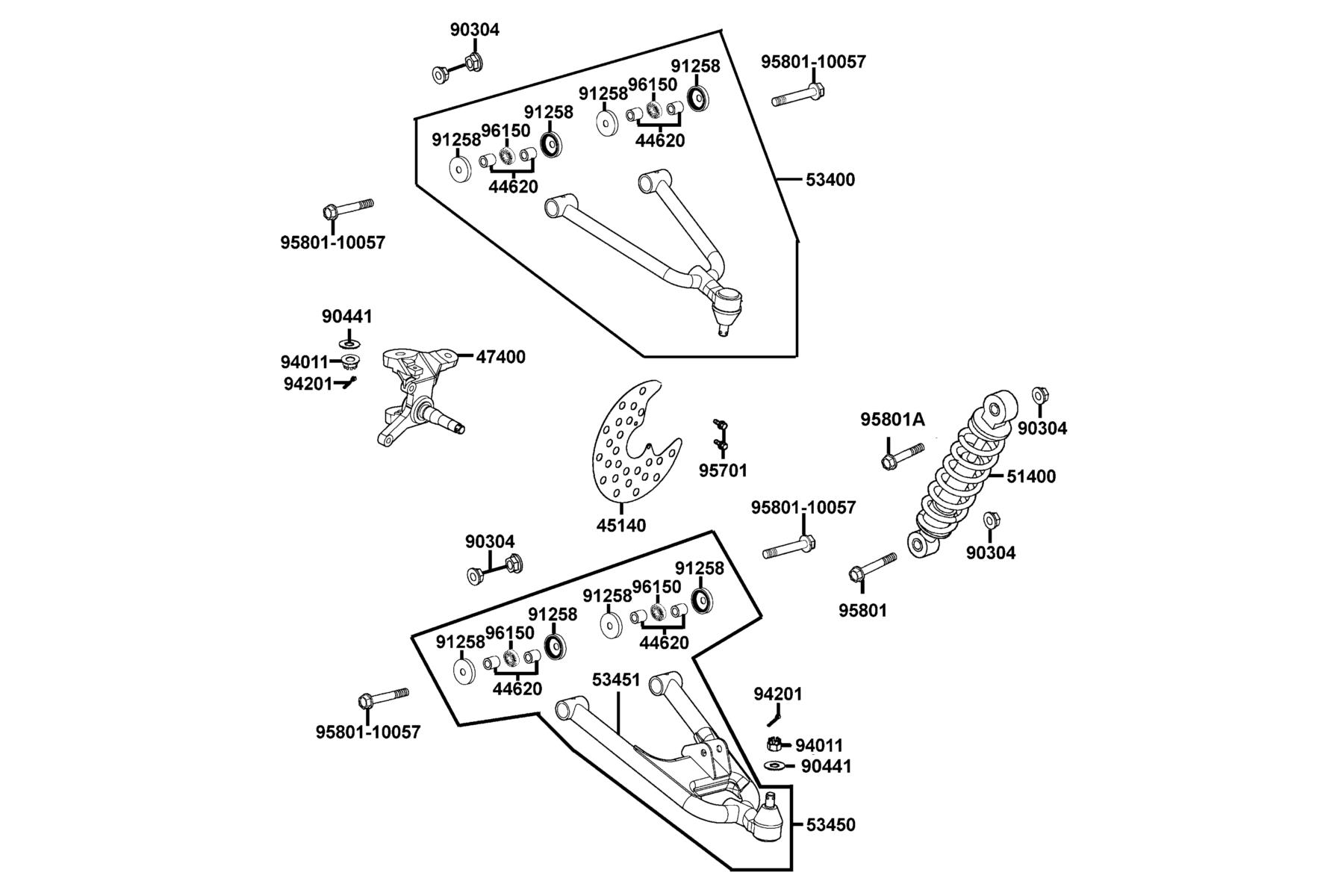

F16 — Cushion ● Right Arm Swing

#PartNameQtyPrice
1 44620-PWA2-900 COLLAR SWING ARM 8 $20.76 USD View product →
2 45140-LCA5-E00 GUARD BRAKE DISK 1 $17.07 USD View product →
3 47400-PRB3-800 KNUCKLE ASSY R STRG 1 $258.15 USD View product →
4 51400-AHH8-M00-N1S CUSHION ASSY FR 1 $354.21 USD View product →
5 53400-PRB3-900-MAS A-ARM ASSY FR UPPER RH 1 $191.70 USD View product →
6 53450-PRB3-900-MAS A-ARM ASSY FR LOWER RH 1 $236.94 USD View product →
7 53451-LCD9-E00 ARM COMP R LOW SWING 1 $224.40 USD View product →
8 90304-GLW0-90A NUT U FLANGE 10MM 6 $9.39 USD View product →
9 90441-GFY6-941 WASHER 12.2*29*2.5 2 $8.67 USD View product →
10 91258-LBA7-900 OIL SEAL 18*26*4 8 $20.76 USD View product →
11 94011-12080-0S NUT CASTLE 12MM 2 $11.70 USD View product →
12 94201-30250 PIN SPLIT 3X25 2 $4.92 USD View product →
13 95701-06010-06 BOLT FLANGE 6*10 2 $4.92 USD View product →
14 95801-10057-06 BOLT FLANGE 10*57 4 $11.31 USD View product →
15 95801-PRB3-800 BOLT FLANGE 10*50 1 $7.23 USD View product →
16 95801-PRB3-900 BOLT FLANGE 10*40 1 $7.23 USD View product →
17 96150-60000-10 BEARING BALL RADIAL 6000 4 $48.24 USD View product →

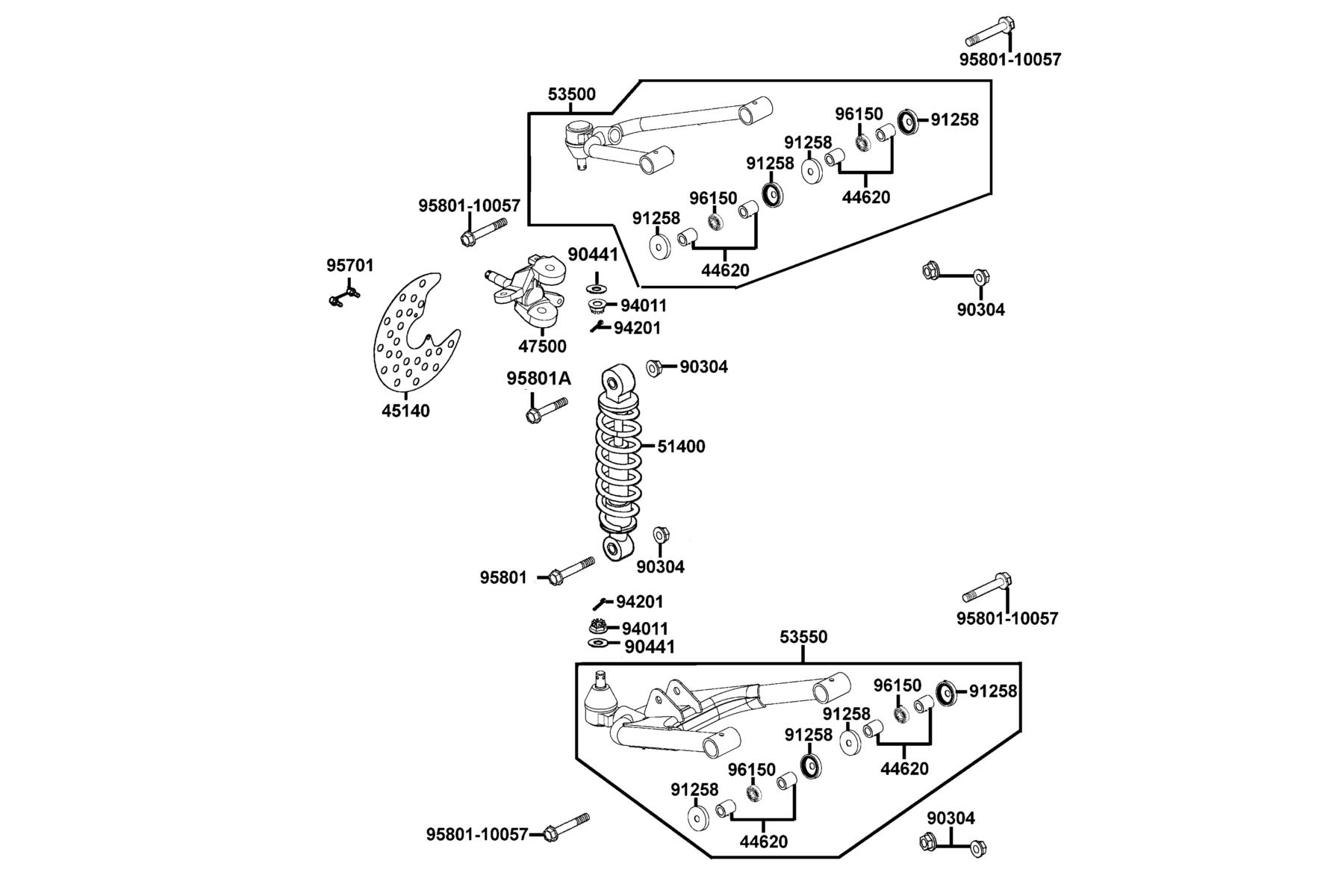

F17 — Cushion ● Left Arm Swing

#PartNameQtyPrice
1 44620-PWA2-900 COLLAR SWING ARM 8 $20.76 USD View product →
2 45140-LCA5-E00 GUARD BRAKE DISK 1 $17.07 USD View product →
3 47500-PRB3-800 KNUCKLE ASSY L STRG 1 $258.15 USD View product →
4 51400-AHH8-M00-N1S CUSHION ASSY FR 1 $354.21 USD View product →
5 53500-PRB3-900-MAS A-ARM ASSY FR UPPER LH 1 $191.70 USD View product →
6 53550-PRB3-900-MAS A-ARM ASSY FR LOWER LH 1 $238.65 USD View product →
7 90304-GLW0-90A NUT U FLANGE 10MM 6 $9.39 USD View product →
8 90441-GFY6-941 WASHER 12.2*29*2.5 2 $8.67 USD View product →
9 91258-LBA7-900 OIL SEAL 18*26*4 8 $20.76 USD View product →
10 94011-12080-0S NUT CASTLE 12MM 2 $11.70 USD View product →
11 94201-30250 PIN SPLIT 3X25 2 $4.92 USD View product →
12 95701-06010-06 BOLT FLANGE 6*10 2 $4.92 USD View product →
13 95801-10057-06 BOLT FLANGE 10*57 4 $11.31 USD View product →
14 95801-PRB3-800 BOLT FLANGE 10*50 1 $7.23 USD View product →
15 95801-PRB3-900 BOLT FLANGE 10*40 1 $7.23 USD View product →
16 96150-60000-10 BEARING BALL RADIAL 6000 4 $48.24 USD View product →

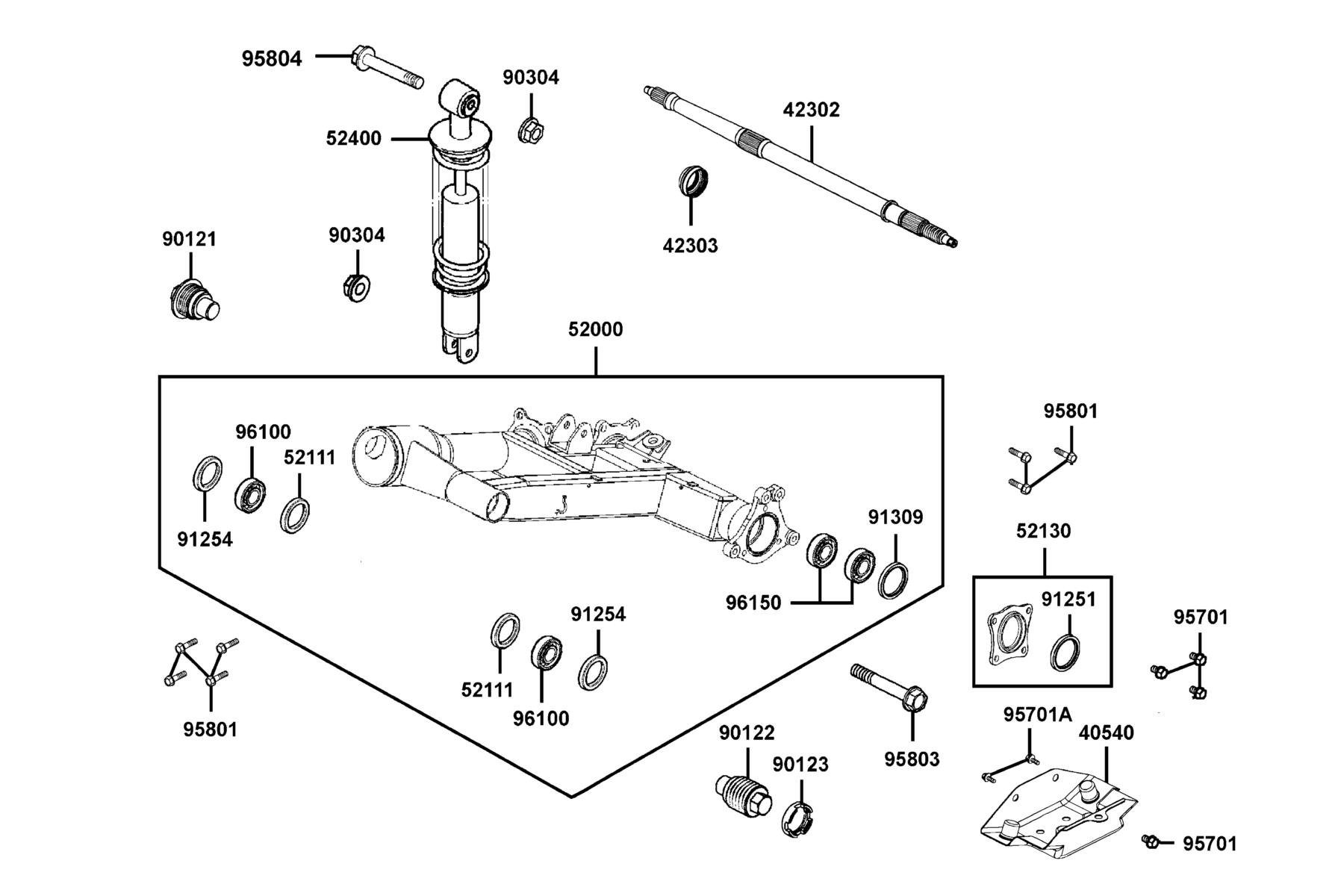

F18 — Rear Fork

#PartNameQtyPrice
1 40540-LCD9-E00 PLATE ASSY SKID 1 $95.88 USD View product →
2 42302-PRB3-900 AXLE RR WHEEL 1 $404.88 USD View product →
3 42303-LDE9-E00 BOOT AXLE SHAFT 1 $16.11 USD View product →
4 52000-PRB3-900 FORK ASSY REAR /P110 1 $512.90 USD View product →
5 52111-LDE9-E00 HOLDER GREASE 2 $16.38 USD View product →
6 52130-PWA1-600 STOPPER ASSY RR 1 $53.79 USD View product →
7 52400-AHH8-M00-N1S CUSH ASSY RR 1 $349.41 USD View product →
8 90121-LCD9-E00 FORK PIVOT BOLT RH 1 $40.53 USD View product →
9 90122-LCD9-E00 FORK PIVOT BOLT LH 1 $43.62 USD View product →
10 90123-LCD9-E00 FORK PIVOT NUT LOCK 1 $33.39 USD View product →
11 90304-GLW0-90A NUT U FLANGE 10MM 2 $9.39 USD View product →
12 91251-PWA1-600 OIL SEAL 38.2*47*6 1 $9.51 USD View product →
13 91254-LDE9-E00 DUST SEAL 26*40*5 2 $13.17 USD View product →
14 91309-LDE9-E00 O-RING 58.4*3 1 $13.53 USD View product →
15 95701-08012-06 BOLT FLANGE 8*12 4 $6.24 USD View product →
16 95701-08016-06 BOLT FLANGE 8*16 2 $4.53 USD View product →
17 95801-10025-06 BOLT FLANGE 10*25 7 $12.09 USD View product →
18 95803-LBA7-900 BOLT FLANGE 10*53 1 $7.53 USD View product →
19 95804-LBA7-900 BOLT FLANGE 10*57 1 $7.23 USD View product →
20 96100-30203-10 BEARING BALL RADIAL 2 $94.86 USD View product →
21 96150-60060-10 BEARING BALL RADIAL 6006 2 $80.70 USD View product →

F19 — Side Case Rr Final

#PartNameQtyPrice
1 12361-GFY6-901 HOLE CAP TAPPET ADJUSTING 1 $11.70 USD View product →
2 41300-PRB3-900 GEAR ASSY RR FINAL 1 $572.96 USD View product →
3 41310-LCD9-E00 L SIDE CASE RR FINAL 1 $190.08 USD View product →
4 41320-LCD9-E00 R SIDE CASE RR FINAL 1 $158.10 USD View product →
5 41405-LCD9-E00 RING STOPPER 1 $4.92 USD View product →
6 41421-LCD9-E00 GEAR PINION 1 $158.40 USD View product →
7 41431-LCD9-E01 GEAR RING 1 $234.87 USD View product →
8 41435-LCD9-E00 JOINT BREATHER 1 $13.50 USD View product →
9 41436-LCD9-E00 PIN RING GEAR STOPPER 1 $17.13 USD View product →
10 41437-LCD9-E00 SHIM STOPPER PIN 1 $9.39 USD View product →
11 41447-LCD9-E00-A SHIM PINION GEAR A (2.015~2.045) 1 $15.45 USD View product →
12 41447-LCD9-E00-B SHIM PINION GEAR B (1.985~2.015) 1 $15.06 USD View product →
13 41447-LCD9-E00-C SHIM PINION GEAR C (1.955~1.985) 1 $15.06 USD View product →
14 41547-LCD9-E00-A SHIM RING GEAR A (1.515~1.545) 1 $15.45 USD View product →
15 41547-LCD9-E00-B SHIM RING GEAR B (1.485~1.515) 1 $15.45 USD View product →
16 41547-LCD9-E00-C SHIM RING GEAR C (1.455~1.485) 1 $15.30 USD View product →
17 42303-LDE9-E00 BOOT AXLE SHAFT 1 $16.11 USD View product →
18 90242-LCD9-E00 NUT LOCK 65MM 1 $20.76 USD View product →
19 90474-3C33-001 WASHER 8MM 2 $2.85 USD View product →
20 91106-LCD9-E00 BRG NEEDLE 14*20*12 1 $45.51 USD View product →
21 91251-LCD9-E00 OIL SEAL 35*70*10 1 $28.98 USD View product →
22 91261-PRB3-900 OIL SEAL 44*60*7 1 $1.86 USD View product →
23 91271-LCD9-E00 OIL SEAL 42*62*7 1 $31.68 USD View product →
24 91301-LCD9-E00 O-RING 74.4*3.1 1 $15.06 USD View product →
25 91302-001-0210 O-RING 30.8M/M 1 $6.72 USD View product →
26 91303-LCD9-E00 O-RING 31.7*3.5 1 $5.31 USD View product →
27 95002-41050-00 CLIP D10.5 TUBE 1 $9.39 USD View product →
28 95005-LCD9-E00 BREATHER TUBE RR GEAR ASSY 1 $20.28 USD View product →
29 95701-08012-06 BOLT FLANGE 8*12 2 $6.24 USD View product →
30 95701-08030-06 BOLT FLANGE 8*30 6 $8.49 USD View product →
31 95701-10035-06 BOLT FLANGE 10X35 2 $5.58 USD View product →
32 96100-60090-00 BRG RADIAL BALL 6009 2 $143.34 USD View product →
33 96100-62060-00 BRG RADIAL BALL 6206 1 $59.16 USD View product →

F20 — Light Tail

#PartNameQtyPrice
1 33700-AGA2-E00 LIGHT ASS'Y RR RIGHT COMB 1 $150.36 USD View product →
2 33710-AGA2-E00 SOCKET COMP R RR COMB 1 $77.46 USD View product →
3 33715-AGA2-E00 SOCKET COMP L RR COMB 1 $77.46 USD View product →
4 33731-PUA6-MX0 REFLEX REFLECTOR 2 $19.26 USD View product →
5 33750-AGA2-E00 LIGHT ASS'Y RR LEFT COMB 1 $150.36 USD View product →
6 33761-PUA6-MX0 REFLEX REFLECTOR, 4 $38.76 USD View product →
7 34905-LCA5-E00 BULB WINKER 12V 10W 2 $19.98 USD View product →
8 34906-LBA8-E80 BULB TAIL & STOP 2 $17.79 USD View product →
9 90302-PWA1-900 BOLT-WASH 5*16 8 $4.92 USD View product →
10 94050-05060 NUT FLANGE 5MM 8 $4.92 USD View product →

F21 — Harness Wire

#PartNameQtyPrice
1 3051A-ZVA6-M00 COIL ASSY IGNITION 1 $123.51 USD View product →
2 30700-PTA1-800 CAP ASSY NOISE SUPPRESOR 1 $68.25 USD View product →
3 31600-ZXA6-M01 REG RECT COMP 1 $233.85 USD View product →
4 3195A-LBA7-E00 HAZARD CONTROL ASSY 1 $103.02 USD View product →
5 32100-AGA1-M00 HARNESS WIRE 1 $541.16 USD View product →
6 32101-LLB1-MX0 SUB CORD 1 $8.49 USD View product →
7 32161-LBA7-900 BAND WIRE 1 $4.14 USD View product →
8 32411-AHH8-M00 CABLE BAT 1 $29.76 USD View product →
9 35010-AGA2-E00 KEY SET 1 $186.33 USD View product →
10 35380-ABE1-E00 SENSOR ANGLE DETECT (D106) 1 $114.06 USD View product →
11 35850-KHB4-90F SET START MAG 1 $68.52 USD View product →
12 38110-KHB4-E0A HORN COMP (D405) 1 $85.02 USD View product →
13 38110-KHB4-E0A-invalid HORN COMP 1 $59.04 USD View product →
14 38200-KHE7-900 BOX COMP FUSE 1 $19.65 USD View product →
15 38300-LFB6-700 RELAY ASSY.. WINKER 1 $124.50 USD View product →
16 38500-LGL3-90A RELAY ASSY LIGHT/D402(12V 20A) 2 $93.66 USD View product →
17 38501-LGL3-90E RELAY COMP LIGHT 4 $87.48 USD View product →
18 38506-AGA1-M00 STAY START RELAY 1 $17.37 USD View product →
19 38506-LFB6-900 CUSHION.RELAY 1 $19.92 USD View product →
20 3920A-AHH8-M00 MODULE ASS'Y ECU 1 $430.80 USD View product →
21 90164-0H28-900 SCREW FLAT U LOCK 6*12 2 $4.92 USD View product →
22 93401-04025-06 BOLT WASHER 4*25 2 $13.95 USD View product →
23 94050-05060 NUT FLANGE 5MM 2 $4.92 USD View product →
24 94050-06080 NUT FLANGE 6MM 4 $2.31 USD View product →
25 95701-06016-06 BOLT FLANGE 6X16 4 $1.65 USD View product →
26 95701-08012-06 BOLT FLANGE 8*12 1 $6.24 USD View product →
27 98200-31000 BLADE FUSE 10A 1 $4.92 USD View product →
28 98200-31500 BLADE FUSE 15A 5 $4.92 USD View product →
29 98200-33000 BLADE FUSE 30A 1 $4.92 USD View product →

F22 — Frame Body

#PartNameQtyPrice
1 50100-AGA1-M00 BODY COMP FRAME 1 $2302.02 USD View product →
2 50166-AHH8-M00 BRKT START MAG SW 1 $9.51 USD View product →
3 50176-AHH8-M00 STAY CANISTER 1 — Part details →
4 50188-LCD9-E00 STAY STOP SW 1 $15.72 USD View product →
5 50219-AHH8-M00 STAY WINKER RELAY 1 $11.46 USD View product →
6 50227-LKA8-E00 STAY. ECU 1 $35.85 USD View product →
7 50351-LBA7-900 BRKT ENG HANGER 2 $18.06 USD View product →
8 50614-ZXA3-M00 STAY R FLOOR PANEL 1 $103.65 USD View product →
9 50615-ZXA3-M00 STAY L FLOOR PANEL 1 $103.65 USD View product →
10 51406-AHH8-M00 RH STAY FR CARRIER 1 $29.76 USD View product →
11 51407-AHH8-M00 LH STAY FR CARRIER 1 $28.95 USD View product →
12 77330-AGA1-M00 REAR CARRIER LUGGAGE 1 $318.81 USD View product →
13 77430-AGA1-M00 FRONT CARRIER LUGGAGE 1 $304.20 USD View product →
14 83620-AGA1-M00 CAP PIPE 2 $2.91 USD View product →
15 83620-LBA7-900 CAP PIPE 2 $3.96 USD View product →
16 85100-AGA1-M00 PIPE COMP FRONT BUMPER 1 $262.68 USD View product →
17 85110-AGA1-M00-MAS PIPE COMP ACCERY FRONT BUMPER 1 $534.39 USD View product →
18 90304-GLW0-90A NUT U FLANGE 10MM 3 $9.39 USD View product →
19 90753-GDB4-68A OIL SEAL 27*40*6 1 $6.39 USD View product →
20 91202-LLB1-900 OIL SEAL 22*35*7 1 $7.53 USD View product →
21 94050-06060 NUT FLANGE 6MM 6 $4.92 USD View product →
22 94050-06080 NUT FLANGE 6MM 2 $2.31 USD View product →
23 94050-08080 NUT FLANGE 8MM 2 $4.92 USD View product →
24 94520-40000 CIR CLIP IN 40 1 $5.67 USD View product →
25 95701-06022-06 BOLT FLANGE 6*22 2 $4.26 USD View product →
26 95701-08016-06 BOLT FLANGE 8*16 20 $4.53 USD View product →
27 95701-08030-06 BOLT FLANGE 8*30 4 $8.49 USD View product →
28 95801-08035-06 BOLT FLANGE 8X35 2 $10.50 USD View product →
29 95801-10090-06 BOLT FLANGE 10*90 2 $9.63 USD View product →
30 95801-10160-06 BOLT FLANGE 10*160 1 $30.72 USD View product →
31 96150-62030-10 BEARING BALL RADIAL 6203 1 $43.62 USD View product →

F23 — Radiator

#PartNameQtyPrice
1 11344-AGA1-M00 DUCT B L COVER 1 $68.19 USD View product →
2 11345-ZXA3-M00 DUCT A L COVER 1 $117.51 USD View product →
3 11346-AGA1-M00 DUCT C L COVER 1 $61.71 USD View product →
4 11346-GFY6-901 BAND L COVER DUCT 1 $14.31 USD View product →
5 11346-KKC3-900 BAND L COVER DUCT 1 $14.70 USD View product →
6 11350-LCA5-E00 ELEMENT DUCT A L COVER 1 $19.65 USD View product →
7 17255-PWA1-900 BAND A CONN TUBE 1 $10.77 USD View product →
8 19005-LBA7-900 SHROUD ASSY 1 $209.43 USD View product →
9 19010-AHH8-M00 RADIATOR COMP 1 $232.38 USD View product →
10 19012-KHD8-900 UNIT RADIATOR 1 $54.18 USD View product →
11 19015-KKC4-900 SHROUD 1 $66.12 USD View product →
12 19018-LBA7-900 STAY UNIT RADIATOR 1 $15.51 USD View product →
13 19020-KED9-900 FAN 1 $36.78 USD View product →
14 19030-LBA7-900 MOTOR ASSY FAN 1 $216.60 USD View product →
15 19101-LBA7-900 TANK RESERVE 1 $73.02 USD View product →
16 19102-LBA7-910-N1R DUCT.COOLING AIR (Black) 1 $27.39 USD View product →
17 19103-PWA1-900 GRID RADIATOR 1 $47.10 USD View product →
18 19104-LBA7-900 HOSE ASSY DRAIN 1 $32.25 USD View product →
19 19105-LCA5-E00 HOSE ASSY RESERVE TANK-PRESSURE VALVE 1 $58.53 USD View product →
20 1910A-LCA5-E00 TANK ASSY RESERVE 1 $66.66 USD View product →
21 19111-GBE2-004 CAP COMP 1 $47.31 USD View product →
22 19210-KKC4-900 CAP RESERVE TANK 1 $9.39 USD View product →
23 19504-LBA7-900 HOSE WATER D RADIATOR-ENG 1 $36.06 USD View product →
24 19505-LBA7-900 HOSE WATER F ENG-RADIATOR 1 $30.15 USD View product →
25 19506-LBA7-900 HOSE WATER G RADIATOR-PRESSURE VALVE 1 $24.03 USD View product →
26 37760-KHD8-900 SW ASSY THERMO 1 $108.39 USD View product →
27 61104-357-0010 COLLAR FR FENDER 2 $11.19 USD View product →
28 64317-LBA7-900 STAY RADIATOR UP 1 $26.01 USD View product →
29 64318-LBA7-900 STAY RADIATOR BOTTOM 1 $39.66 USD View product →
30 84703-LLB1-900 RUBBER TAIL LIGHT 4 $3.96 USD View product →
31 90302-GFY6-901 BOLT-WASH 5*12 4 $3.99 USD View product →
32 90913-LBA7-900 TUBE ASSY WATER PUMP-PRESSURE VALVE 1 $13.17 USD View product →
33 93404-06012-06 BOLT WASHER 6X12 4 $2.61 USD View product →
34 93404-06016-06 BOLT WASHER 6*16 4 $7.89 USD View product →
35 93404-06020-06 BOLT WASHER 6X20 3 $3.00 USD View product →
36 93903-35360 SCREW TAPPING 5*16 6 $3.78 USD View product →
37 93903-KEB7-900-06 SCREW WASHER 4X12 6 $1.86 USD View product →
38 94050-06060 NUT FLANGE 6MM 2 $4.92 USD View product →
39 95002-02070 CLIP B7 TUBE 2 $1.86 USD View product →
40 95002-02100 CLIP B15 TUBE 1 $4.92 USD View product →
41 95002-70000 CLIP C11 TUBE 2 $4.92 USD View product →
42 95002-KGN7-910 CLIP TUBE 2 $3.78 USD View product →
43 95002-KHE7-900 CLIP WATER HOSE 4 $9.39 USD View product →
44 95701-06012-06 BOLT FLANGE 6X12 1 $1.86 USD View product →

F24 — Caution Label

#PartNameQtyPrice
1 86182-LCA5-EVV-T01 SW LABEL 1 $5.22 USD View product →
2 87311-AGA2-E60-T01 EMB CHANGE HANDLE 1 $6.54 USD View product →
3 87322-LBA7-E01-T01 CAUTION SHIFIT GEARS 1 $5.58 USD View product →
4 87505-PWA1-M35-T01 WARNING LABEL TIRE 1 $27.39 USD View product →
5 87514-PWA1-M30-T01 WARNING MAXIMUM CAPACITY 500lbs 1 $18.57 USD View product →
6 87515-LFE9-E00-T01 WARNING GENERAL DECAL 1 $32.73 USD View product →
7 87517-PWA8-M30-T01 WARNING AGE 14 1 $36.48 USD View product →
8 87520-LDB5-M31-T01 CAUTION SHIFT HANGTAG 1 $7.26 USD View product →
9 87522-AHH8-M30-T01 USA EPA HANG TAG 1 $8.49 USD View product →
10 87522-PWA8-E00-T01 HANG TAG Y14+ 1 $19.92 USD View product →
11 87556-LCA5-E00-T01 CAUTION CARRIER MAX LOAD (30kg) 1 $11.46 USD View product →
12 87556-LLB1-E01-T01 CAUTION CARRIER MAX LOAD 1 $12.09 USD View product →
13 87560-PWB1-M35-T01 WARNING DOUBLE RIDER 1 $12.12 USD View product →
14 87571-LCA5-M30-T01 LABEL MIT 1 $4.53 USD View product →
15 87666-LEG2-M31-T01 SVIA CERTIFICATE LABEL 1 $5.19 USD View product →

F25 — Emblem ● Stripe

#PartNameQtyPrice
1 86101-AEF6-C00-T01 STRIPE FRONT COVER 1 $38.91 USD View product →
2 86201-AGA9-M00-T02 EMB FR COVER 2 $62.22 USD View product →
3 86603-AHH8-M00-T02 STRIPE RR FENDER 2 $6.84 USD View product →
4 87206-AHH8-M00-T01 EMB MARK KYMCO-155MM (PP) 1 $48.60 USD View product →

F26 — Key Comp

#PartNameQtyPrice
1 35111-AGA2-305 KEY COMP 1 $21.06 USD View product →
2 35111-AGA2-306 KEY COMP 1 $21.06 USD View product →
3 35113-AGA2-E00 KEY COVER 1 — Part details →

F27 — Aicv

#PartNameQtyPrice
1 16911-AGA1-M00 HOSE ASSY BREATHER 1 $37.71 USD View product →
2 16912-AHH8-M00 HOSE ASSY CANISTER-CHECK VALVE 1 $92.94 USD View product →
3 16950-PRA9-910 VALVE CHECK 1 $50.10 USD View product →
4 17301-LEC1-M00 RUBBER CANISTER MOUNT 2 $8.94 USD View product →
5 17304-AHH8-M00 HOSE ASSY CANISTER-VAPOR CONTROL VALVE 1 $41.61 USD View product →
6 17307-AHH8-M00 HOSE ASSY CANISTER-T JOINT 1 $76.38 USD View product →
7 17310-LEC1-M00 CANISTER COMP 1 $96.45 USD View product →
8 17460-AGA6-M01 VALVE COMP VAPOR CONTROL 1 $43.62 USD View product →
9 17466-LGS6-M3A RUBBER VAPOR CONTROL MOUNT 1 — Part details →
10 17683-AHH8-M00 TUBE ASSY VACUUM 1 $33.48 USD View product →
11 95002-02070 CLIP B7 TUBE 2 $1.86 USD View product →
12 95002-02080 CLIP B8 TUBE 1 $1.86 USD View product →
13 95002-02100 CLIP B15 TUBE 2 $4.92 USD View product →
14 95002-40800-08 CLAMP D8 TUBE 4 $8.49 USD View product →
15 95002-50000 CLIP C9 TUBE 1 $1.86 USD View product →
16 95014-PRB3-900 STRAP CABLE 1 $9.51 USD View product →
