Browse › ATVs › MXU 700 › 2021 › MXU 700i LE(2021) Flat Black

MXU 700i LE(2021) LAADNJ(US)

Model code
LAADNJ(US)
Model year
2021
Submodel
MXU 700i LE
Color
Flat Black (NH397FA)
Diagrams
38
Factory catalog
download PDF

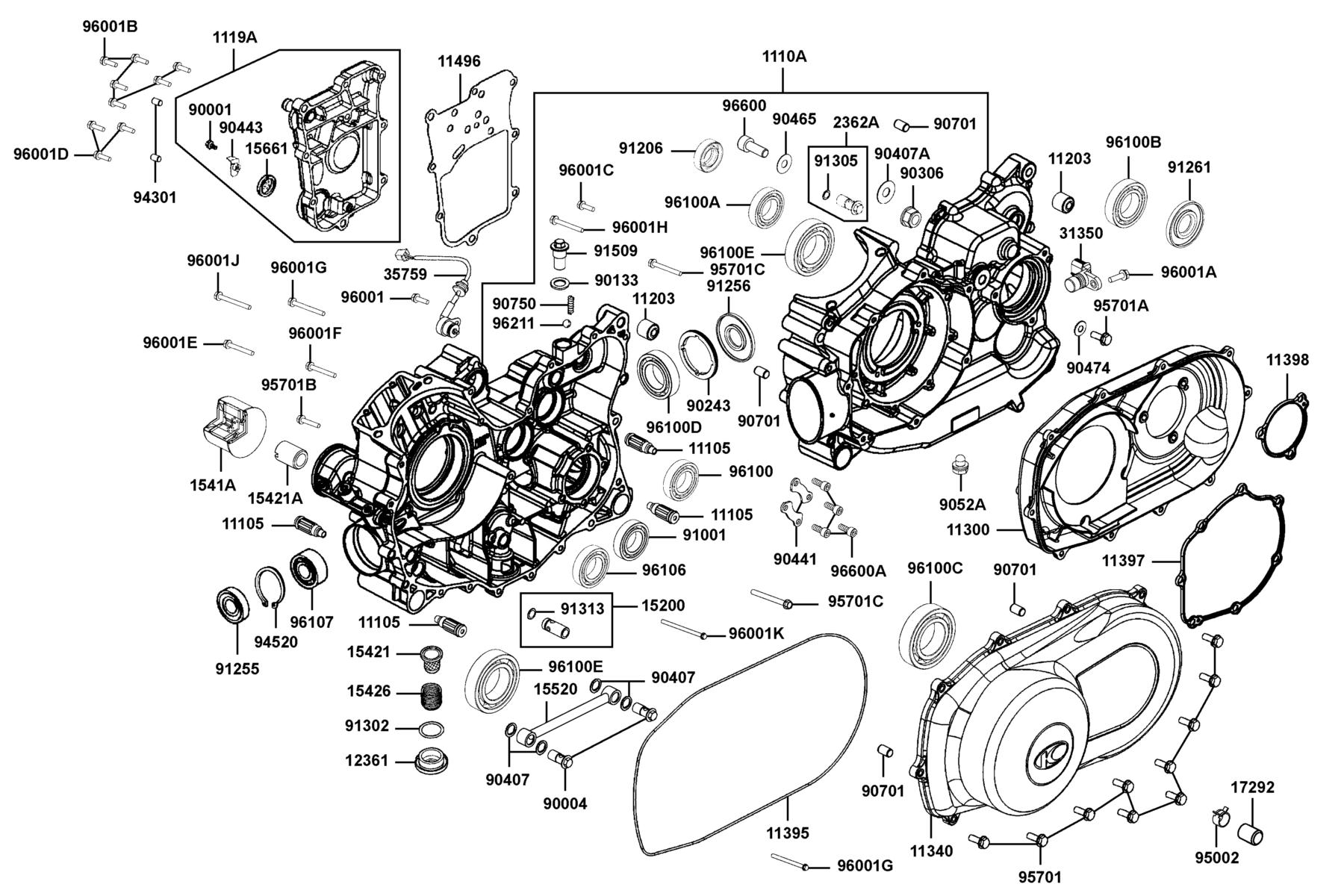

E01 — Crank Case

#PartNameQtyPrice
1 11105-LKM5-E00 LONG RUB BUSH ENG HANGER 1 $89.58 USD View product →
2 1110A-LKM5-305 CRANK CASE R/L ASSY 1 $671.78 USD View product →
3 1119A-LKM5-E00 CASE ASSY R CASE 1 $173.31 USD View product →
4 11203-LKM5-E00 UNDER RUBBER BUSH REAR CUSHION 2 $42.54 USD View product →
5 11300-LKM5-E00 COVER L SIDE 1 $252.39 USD View product →
6 11340-LKM5-E00 COVER COMP L CRANK CASE 1 $272.82 USD View product →
7 11395-LKM5-E00 GASKET L COVER @A 1 $66.27 USD View product →
8 11397-LKM5-E00 GSAKET CVT CASE FRONT 1 $46.41 USD View product →
9 11398-LKM5-E00 GASKET CVT CASE REAR 1 $46.41 USD View product →
10 11496-LKM5-E00 GASKET. R CASE CAP 1 $48.03 USD View product →
11 12361-GFY6-901 HOLE CAP TAPPET ADJUSTING 1 $11.70 USD View product →
12 15200-KED9-900 OIL RELIEF VALVE ASSY 1 $77.94 USD View product →
13 1541A-LBA2-E00 ELEMENT COMP OIL FILTER 1 $45.36 USD View product →
14 15421-1G07-001 SCREEN OIL FILTER 1 $15.06 USD View product →
15 15421-LBA2-E00 BOLT OIL FILTER 1 $37.41 USD View product →
16 15426-GAE1-921 SPG OIL FILTER SCREEN 1 $5.67 USD View product →
17 15520-LDB5-E00 PIPE COMP OIL 1 $76.83 USD View product →
18 15661-LBA7-900 FINDER OIL LEVEL 1 $32.73 USD View product →
19 17292-PWB1-900 PIPE DRAIN 1 $7.17 USD View product →
20 2362A-LDB5-E00 BOLT ASSY PARK 1 $42.84 USD View product →
21 31350-LDB5-E0A SENSOR SPEED 1 $150.54 USD View product →
22 35759-LKM5-E00 SW ASS Y GEAR CHANGE 1 $132.99 USD View product →
23 90001-GFY6-901 SOCKET BOLT 6*10 1 $4.53 USD View product →
24 90004-LBA2-E00 BOLT B OIL PASS 2 $28.05 USD View product →
25 90133-LDB5-E00 WASHER BOLT SEAT 1 $4.53 USD View product →
26 90243-LDB5-E00 NUT LOCK 85 mm 1 $47.70 USD View product →
27 90306-KLF0-004-SY NUT FLANGE 12MM 1 $13.95 USD View product →
28 90407-LBA2-E00 SEALING WASHER OIL PIPE 4 $5.67 USD View product →
29 90407-LDB5-E00 WASHER THRUST 12*30*1 1 $8.28 USD View product →
30 90441-LDB5-E00 PLATE BRG HOLD 2 $11.31 USD View product →
31 90443-LDB5-E00 PLATE FINDER HOLD 1 $8.19 USD View product →
32 90465-MDC4-001 WASHER 8MM 1 $3.78 USD View product →
33 90474-3C33-001 WASHER 8MM 1 $2.85 USD View product →
34 9052A-LDB5-E00 BOLT ASSY DRAIN PLUG 1 $16.38 USD View product →
35 90701-9E65-001 PIN DOWEL 10*16 4 $3.78 USD View product →
36 90750-LDB5-E00 SPG STOPPER 1 $10.77 USD View product →
37 91001-KFBF-90A BEARING BALL RADIAL 6305 1 $143.46 USD View product →
38 91206-LDB5-E00 OIL SEAL 14*24*7 1 $7.53 USD View product →
39 91255-LDB5-E00 OIL SEAL 35*67*7 1 $41.43 USD View product →
40 91256-LDB5-E00 OIL SEAL 35*90*7 1 $65.70 USD View product →
41 91261-LDB5-E00 OIL SEAL 30X72X7 1 $9.87 USD View product →
42 91302-001-0210 O-RING 30.8M/M 1 $6.72 USD View product →
43 91305-GLE0-001 O-RING 9*1.7 1 $4.53 USD View product →
44 91313-KED9-900 O-RING 15.5*1.5 1 $2.61 USD View product →
45 91509-LDB5-E00 BOLT STOPPER 1 $26.49 USD View product →
46 94301-08140 DOWEL PIN 8*14 2 $3.00 USD View product →
47 94520-65000 CIR CLIP IN 65 1 $17.07 USD View product →
48 95002-LHG8-E00 CLAMP.D14 TUBE 1 $9.84 USD View product →
49 95701-06025-06 BOLT FLANGE 6*25 10 $1.95 USD View product →
50 95701-08012-06 BOLT FLANGE 8*12 1 $6.24 USD View product →
51 95701-08035-06 BOLT FLANGE 8*35 1 $5.88 USD View product →
52 95701-08085-06 BOLT FLANGE 8X85 1 $7.53 USD View product →
53 96001-06012-06 BOLT FLANGE SH 6*12 1 $1.95 USD View product →
54 96001-06016-06 BOLT FLANGE SH 6X16 1 $12.12 USD View product →
55 96001-06025-06 BOLT FLANGE SH 6*25 1 $2.61 USD View product →
56 96001-06030-06 BOLT FLANGE SH 6X30 9 $4.92 USD View product →
57 96001-06032-06 BOLT FLANGE SH 6*32 1 $11.46 USD View product →
58 96001-06040-06 BOLT FLANGE SH 6*40 1 $12.12 USD View product →
59 96001-06050-06 BOLT FLANGE SH 6*50 1 $12.12 USD View product →
60 96001-06080-06 BOLT FLANGE SH 6X80 1 $22.50 USD View product →
61 96001-06085-06 BOLT FLANGE 6*85 1 $3.78 USD View product →
62 96001-06090-06 BOLT FLANGE SH 6*90 1 $11.46 USD View product →
63 96001-06100-06 BOLT FLANGE SH 6X100 1 $5.85 USD View product →
64 96100-62040-00 BEARING BALL RADIAL 6204 1 $48.96 USD View product →
65 96100-63030-00 BEARING BALL RADIAL 6303 1 $42.84 USD View product →
66 96100-63040-00 BRG BALL RADIAL 6304 1 $53.61 USD View product →
67 96100-63060-00 BRG BALL RADIAL 6306 1 $72.51 USD View product →
68 96100-64050-00 BRG BALL RADIAL 6405 1 $176.43 USD View product →
69 96100-LBA2-E00 BRG BALL RADIAL 6304 2 $80.28 USD View product →
70 96106-LDB5-E00 BEARING BALL RADIAL 1 $39.30 USD View product →
71 96107-LDB5-E0A BEARING BALL RADIAL 62/63 1 $156.90 USD View product →
72 96211-16000 BALL STEEL #16 1 $6.39 USD View product →
73 96600-08010-16 SOCKET BOLT 8X10 1 $6.06 USD View product →
74 96600-08020-16 SOCKET BOLT 8X20 4 $6.54 USD View product →

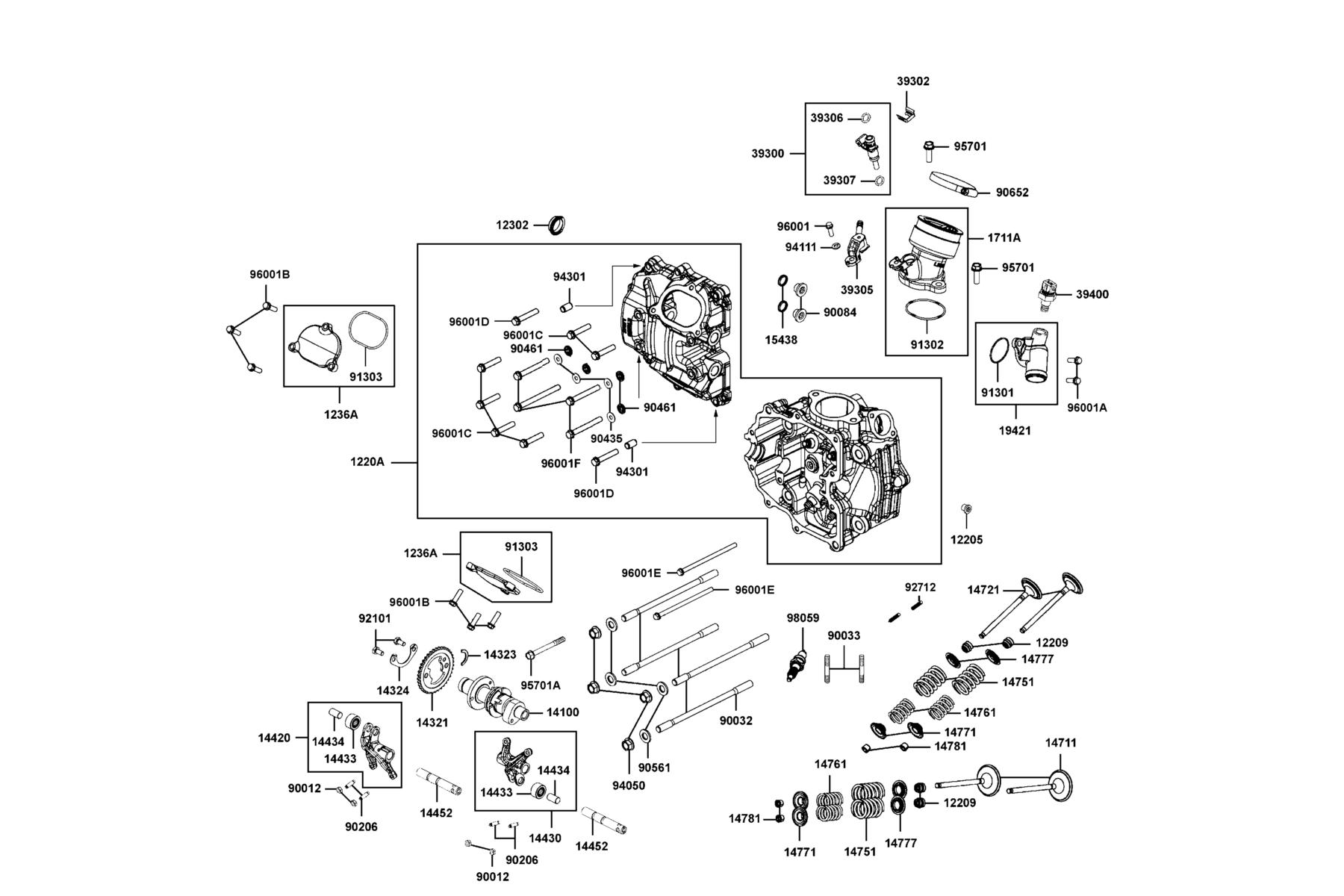

E02 — Cylinder Head Cover ● Cylinder Head

#PartNameQtyPrice
1 12205-KHE8-301 BOLT SEALING 12MM 1 $13.17 USD View product →
2 12209-PUA5-E00 Valve Stem Seal 6mm 4 $18.93 USD View product →
3 1220A-LKM8-900 HEAD ASSY CYLINDER 1 $739.16 USD View product →
4 12302-PTA1-900 PLUG HEAD 1 $48.00 USD View product →
5 1236A-LKM5-E00 HOLDER CAP ASSY TAPPET ADJUSTER 2 $59.82 USD View product →
6 14100-LKM5-E00 SHAFT COMP CAM 1 $560.28 USD View product →
7 14321-LKM5-E00 SPROCKET CAM SHAFT 1 $96.06 USD View product →
8 14323-PWB1-900 C-RING CAM RETAINER 1 $5.31 USD View product →
9 14324-PWB1-900 WASHER LOCK CAMSHAFT 1 $8.28 USD View product →
10 14420-LKM5-E00 ARM COMP EXH VALVE ROCKER 1 $173.31 USD View product →
11 14430-LKM5-E00 ARM COMP IN VALVE ROCKER 1 $173.31 USD View product →
12 14433-LKM5-E00 ARM VALVE ROCKER 2 $108.03 USD View product →
13 14434-LKM5-E00 PIN. ROCKER ARM 2 $47.22 USD View product →
14 14452-LKM5-E00 SHAFT. EXH. ROCKER ARM 2 $124.14 USD View product →
15 14711-LKM5-E00 VALVE. INLET 2 $96.90 USD View product →
16 14721-LKM5-E00 VALVE. EXHAUST 2 $142.59 USD View product →
17 14751-LEH6-E00 SPRING. OUTER VALVE 4 $31.44 USD View product →
18 14761-LEH6-E00 SPRING INNER VALVE 4 $13.95 USD View product →
19 14771-LKM5-E00 RETAINER VALVE SPRING 4 $42.48 USD View product →
20 14777-LKM5-E00 SEAT. VALVE SPRING 4 $29.01 USD View product →
21 14781-LKM5-E00 COTTER VALVE 1 $11.19 USD View product →
22 15438-PWB1-900 GASKET METAL COMPRESSION 2 $38.64 USD View product →
23 1711A-LKM5-900 PIPE ASSY INLET 1 $163.08 USD View product →
24 19421-LKM5-E00 JOINT COMP.. WATER HOSE 1 $73.38 USD View product →
25 39300-LKM5-E00 FUEL INJECTOR 1 $368.64 USD View product →
26 39302-KKE3-900 CLIP SPRING FUEL INJECTOR 1 $21.99 USD View product →
27 39305-LKM5-E00 HOLDER FUEL INJECTOR 1 $67.17 USD View product →
28 39306-LEB2-305 O-RING A INJECTOR /BLACK 1 $30.69 USD View product →
29 39307-LEB2-305 O-RING B INJECTOR /GREEN 1 $27.66 USD View product →
30 39400-LEA6-800 WATER TEMP SENSOR 1 $109.50 USD View product →
31 90012-LKF5-E00 SCREW TAPPET ADJUSTING 4 $34.92 USD View product →
32 90032-LKM5-E00 BOLT B STUD 4 $53.16 USD View product →
33 90033-KGB4-C00 BOLT STUD M8X40 (C) 2 $14.31 USD View product →
34 90206-001-0010 NUT TAPPET ADJG 4 $3.78 USD View product →
35 90206-0A01-001 NUT TAPPET ADJG 4 $4.92 USD View product →
36 90435-HCB3-001 WASHER 6.1MM 4 $4.92 USD View product →
37 90461-AGA5-M00 WASHER SEALING 4 $5.22 USD View product →
38 90561-PWB1-900 WASHER 21X10X2.2 4 $5.31 USD View product →
39 90652-LKM5-E00 C-HOPE(50~70) 1 $37.80 USD View product →
40 91301-KKE5-E00 O RING 28.8x2.4 1 $25.35 USD View product →
41 91302-LKM5-E00 O-RING 1 $0.78 USD View product →
42 91303-LKM5-E00 ORING INSPECTION CAP 2 $22.86 USD View product →
43 92101-06012-0HN BOLT HEX 6X12 2 $4.92 USD View product →
44 92712-06028-0B BOLT STUD 6*28 2 $4.68 USD View product →
45 94050-10060 NUT FLANGE 10MM 4 $5.67 USD View product →
46 94111-06800 WASHER SPRING 6MM 1 $4.92 USD View product →
47 94301-08140 DOWEL PIN 8*14 2 $3.00 USD View product →
48 95701-08025-06 BOLT FLANGE 8*25 2 $5.31 USD View product →
49 95701-08035-06 BOLT FLANGE 8*35 1 $5.88 USD View product →
50 96001-06016-06 BOLT FLANGE SH 6X16 1 $12.12 USD View product →
51 96001-06018-06 BOLT FLANGE SH 6*18 2 $12.12 USD View product →
52 96001-06020-06 BOLT FLANGE SH 6*20 6 $3.27 USD View product →
53 96001-06030-06 BOLT FLANGE SH 6X30 6 $4.92 USD View product →
54 96001-06035-06 BOLT FLANGE SH 6*35 1 $3.93 USD View product →
55 96001-06120-06 BOLT FLANGE SH 6*120 1 $3.54 USD View product →
56 96001-AGA5-M00 BOLT FLANGE SH 6X70 4 $5.58 USD View product →
57 98059-57916-00 SPARK PLUG (CR7E) 1 $38.37 USD View product →

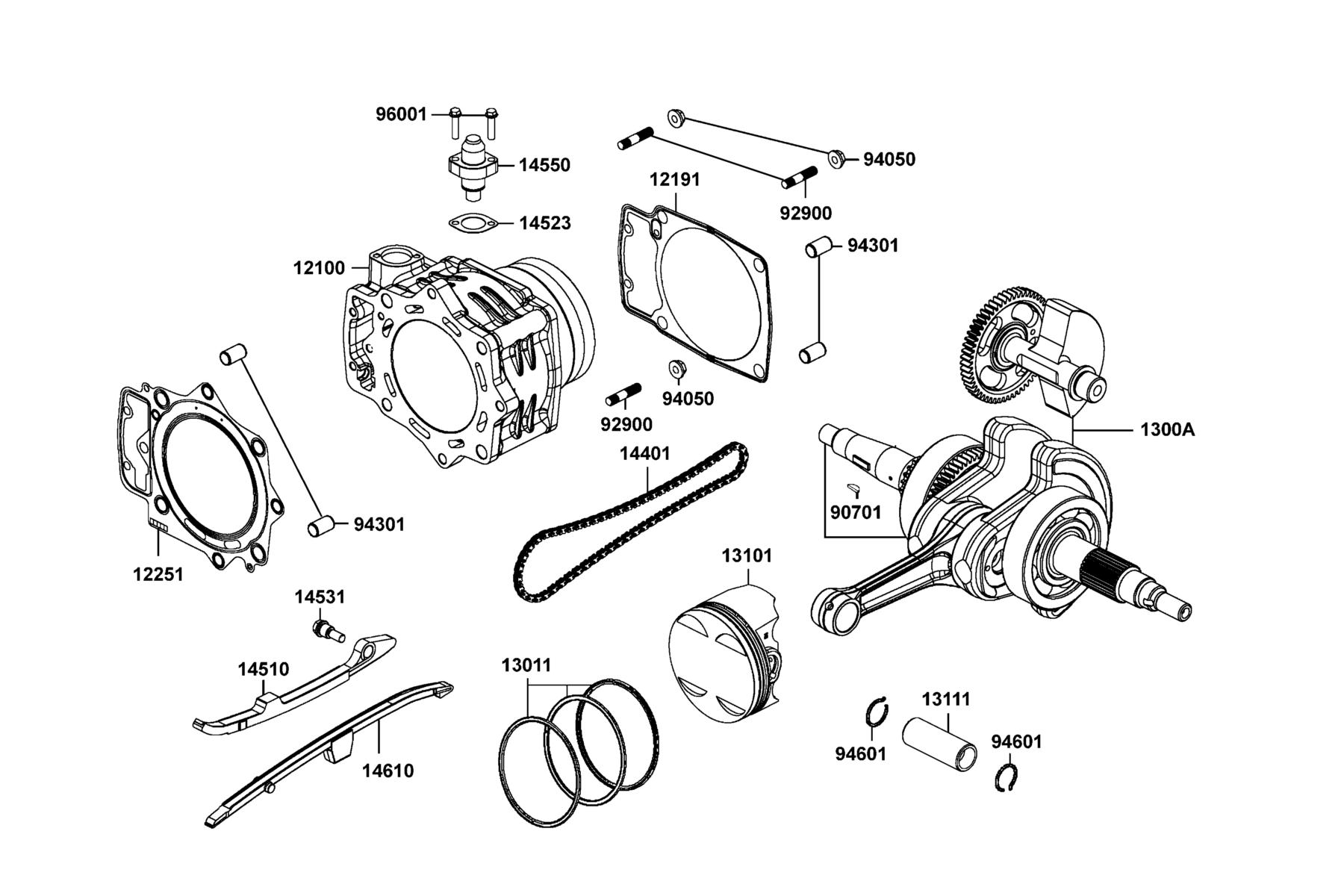

E03 — Cylinder ● Piston ● Crankshaft

#PartNameQtyPrice
1 12100-LKM5-E00 CYLINDER COMP (A) 1 $411.40 USD View product →
2 12191-LKM5-E00 GASKET CYLINDER @A 1 $134.10 USD View product →
3 12251-LKM8-E00 GASKET CYLINDER HEAD 1 $118.14 USD View product →
4 1300A-LKM5-305 CRANK BLANCER COMP 1 $805.90 USD View product →
5 13011-LKM5-E00 RING SET PISTON 1 $137.73 USD View product →
6 13101-LKM5-E00 PISTON 1 $286.29 USD View product →
7 13111-LKM5-E00 PIN PISTON 1 $59.25 USD View product →
8 14401-LKM5-E00 CHAIN CAM (CHN-T092RH2015-120P-M) 1 $198.18 USD View product →
9 14510-LKM5-E00 TENSIONER CAM CHAIN 1 $117.57 USD View product →
10 14523-LKF5-E00 GASKET TENSIONER LIFTER @A 1 $14.34 USD View product →
11 14531-KKJ9-001 PIVOT CAM CHAIN TENSIONER 1 $8.67 USD View product →
12 14550-LKF5-E00 ADJUSTER. CAM CHAIN 1 $154.80 USD View product →
13 14610-LKM5-E00 GUIDE COMP CAM CHAIN 1 $99.36 USD View product →
14 90701-LDB5-E00 KEY WAY ACG 1 $7.53 USD View product →
15 92900-PTA1-900 BOLT STUD 8*40 3 $19.26 USD View product →
16 94050-08080 NUT FLANGE 8MM 3 $4.92 USD View product →
17 94301-12200 DOWEL PIN 12*20 4 $6.39 USD View product →
18 94601-LKM5-E00 CLIP PISTON PIN 2 $7.26 USD View product →
19 96001-06025-06 BOLT FLANGE SH 6*25 1 $2.61 USD View product →

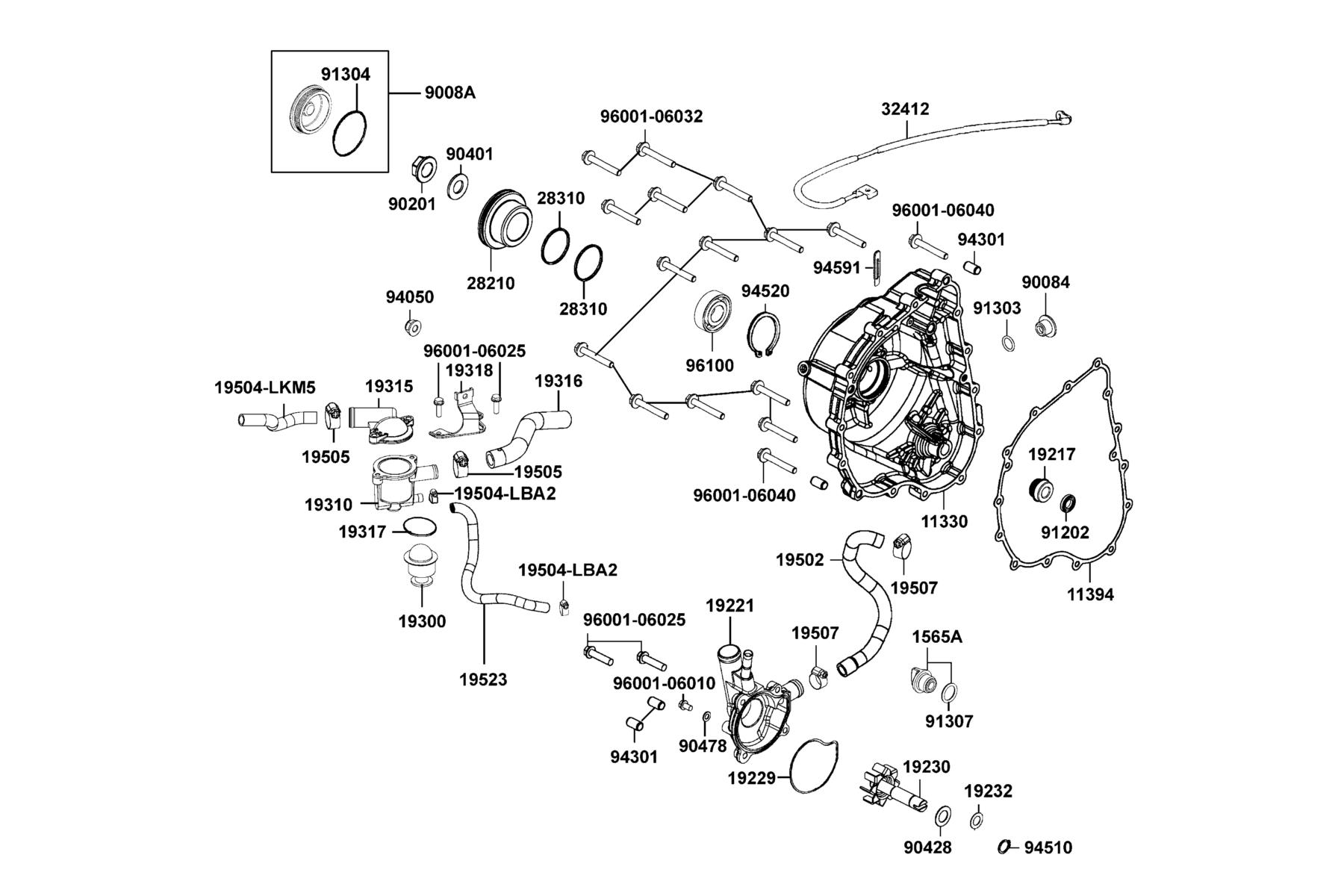

E04 — Right Crankcase Cover ● Water Pump

#PartNameQtyPrice
1 11330-LKM5-E00 COVER COMP R CRANK CASE 1 $333.51 USD View product →
2 11394-LKM5-E00 GASKET. R. COVER A 1 $77.52 USD View product →
3 1565A-PWA1-900 GAUGE OIL LEVEL ASSY 1 $53.43 USD View product →
4 19217-ZPA3-E01 SEAL MECHANICAL 1 $72.24 USD View product →
5 19221-LKM5-E00 COVER. WATER PUMP 1 $62.61 USD View product →
6 19229-LKM5-E00 O-RING. WATER PUMP 1 $36.24 USD View product →
7 19230-LKM5-E00 ASSY WATER PUMP 1 $108.87 USD View product →
8 19232-LBA2-E00 WASHER 21*13.8*1.5 1 $12.09 USD View product →
9 19300-PTA1-900 THERMOSTAT ASSY 1 $132.06 USD View product →
10 19310-LKM5-E00 CASE COMP THERMOSTAT 1 $96.90 USD View product →
11 19315-LBA2-E00 COVER THERMOSTAT 1 $39.00 USD View product →
12 19316-LKM5-E00 HOSE THERMOSTAT 1 $119.70 USD View product →
13 19317-LBA2-E00 RING 48.3X2 1 $9.39 USD View product →
14 19318-LDB5-E00 BRKT THERMOSTAT 1 $39.00 USD View product →
15 19502-LKM5-E00 HOSE. WATER B 1 $104.91 USD View product →
16 19504-LBA2-E00 CLAMP D16.8 2 $13.95 USD View product →
17 19504-LKM5-E00 HOSE WATER D RADIATOR-ENG 1 $96.90 USD View product →
18 19505-LBA2-E00 CLAMP WATER HOSE 2 $15.06 USD View product →
19 19507-PRA1-E00 CLAMP D28(ZNS3) 2 — Part details →
20 19523-LDB5-E00 HOSE A WATER 1 $23.40 USD View product →
21 28210-LKM5-E00 BOSS RACHET 1 $105.66 USD View product →
22 28310-LDB5-E00 RING OIL PATH 2 $74.67 USD View product →
23 32412-AGA8-E00 CABLE EARTH 1 $57.90 USD View product →
24 90084-4H28-001-NJA CAP ACG (Silver) 1 $0.78 USD View product →
25 9008A-LKM5-E00 CAP ASSY 1 $61.14 USD View product →
26 90201-KHR8-75A NUT FLANGE 14MM 1 $9.39 USD View product →
27 90401-KKJ9-001 WASHER THRUST 14*28*2 1 $5.67 USD View product →
28 90428-9H58-001 WASHER THRUST 14MM B 1 $9.78 USD View product →
29 90478-7L00-001 WASHER A 6MM 1 $4.92 USD View product →
30 91202-KGB4-C00 OIL SEAL 13.7*24*5 1 $14.70 USD View product →
31 91303-3G77-001 O-RING 13.8*2.5 1 $4.92 USD View product →
32 91304-LKM5-E00 O-RING 17.8x2.4 1 $7.80 USD View product →
33 91307-0E35-001 O RING 18*3 1 $4.92 USD View product →
34 94050-06080 NUT FLANGE 6MM 1 $2.31 USD View product →
35 94301-08140 DOWEL PIN 8*14 4 $3.00 USD View product →
36 94510-14000 CIR CLIP EX 14 1 $4.92 USD View product →
37 94520-47000 CIR CLIP IN 47 1 $11.31 USD View product →
38 94591-LLB1-900 CLIP 2X100 1 $4.89 USD View product →
39 96001-06010-02 BOLT FLANGE SH 6*10 1 $3.00 USD View product →
40 96001-06025-06 BOLT FLANGE SH 6*25 1 $2.61 USD View product →
41 96001-06032-06 BOLT FLANGE SH 6*32 1 $11.46 USD View product →
42 96001-06040-06 BOLT FLANGE SH 6*40 1 $12.12 USD View product →
43 96100-69060-00 BEARING BALL RADIAL 6906 1 $101.67 USD View product →

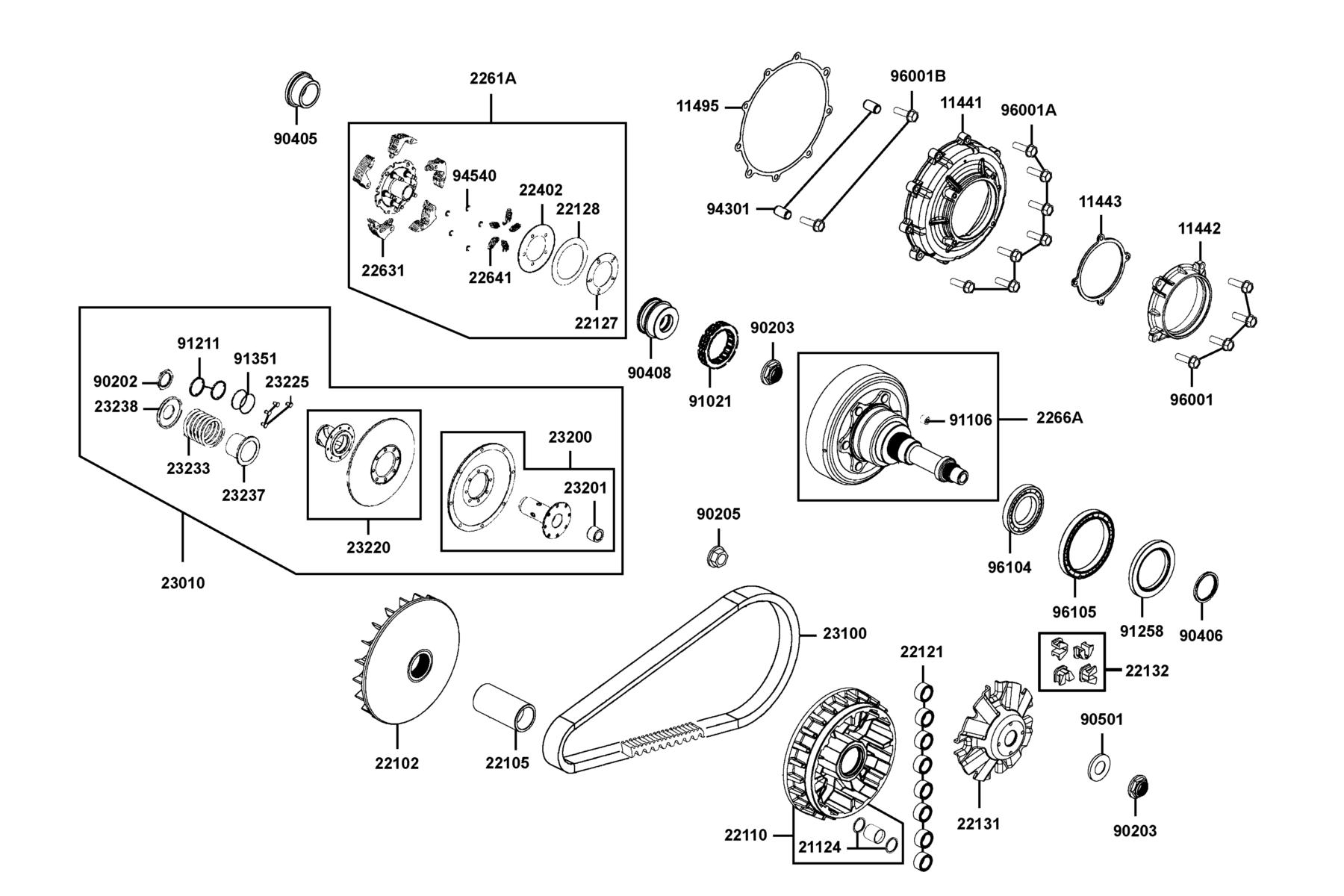

E05 — Drive Pulley

#PartNameQtyPrice
1 11441-LKM5-E00 COVER CLUTCH 1 $170.40 USD View product →
2 11442-LDB5-900 COVER PRIMARY SHAFT 1 $52.26 USD View product →
3 11443-LDB5-900 GASKET PRIMARY SHAFT COVER 1 $14.31 USD View product →
4 11495-LKM5-E00 GASKET CLUTCH COVER A 1 $41.82 USD View product →
5 21124-LKM5-E00 OIL SEAL 42X51X4 1 $33.66 USD View product →
6 22102-LDB5-E00 FACE DRIVE 1 $141.24 USD View product →
7 22105-LDB5-E00 BOSS DRIVE FACE 1 $98.85 USD View product →
8 22110-LKM5-E00 FACE COMP MOVABLE DRIVE 1 $261.54 USD View product →
9 22121-LDB5-305 ROLLER SET WEIGHT (1SET:8PCS) 1 $105.12 USD View product →
10 22127-LDB5-E00 SEAT ADJUSTER SPG 1 $34.32 USD View product →
11 22128-LDB5-E00 PLATE ADJUSTER SPG 1 $34.32 USD View product →
12 22131-LKM5-E00 PLATE RAMP 1 $61.77 USD View product →
13 22132-LKM5-305 PIECE SLIDE SET (1SET:4PCS) 1 $45.78 USD View product →
14 22402-LDB5-E00 SPR ADJUSTER 1 $36.48 USD View product →
15 2261A-LKM5-E00 CLUTCH ASSY.. PRIMARY 1 $581.91 USD View product →
16 22631-LKM5-E00 WEIGHT PRIMARY CLUTCH 5 $72.93 USD View product →
17 22641-LKM5-E00 PRIMARY CLUTH SPG 5 $20.28 USD View product →
18 2266A-LKM5-E00 GEAR ASSY PRIMARY DRIVE 1 $439.18 USD View product →
19 23010-LKM5-E00 PULLEY ASSY. DRIVEN 1 $479.86 USD View product →
20 23100-ZVA6-M00 BELT DRIVE 1 $310.62 USD View product →
21 23200-LDB5-E00 FACE ASSY DRIVEN 1 $262.56 USD View product →
22 23201-LDB5-E00 BUSH FACE DRIVEN 1 $44.85 USD View product →
23 23220-LDB5-E00 FACE COMP MOVABLE DRIVEN 1 $220.20 USD View product →
24 23225-LKM5-E00 PIN ROLLER GUIDE 1 $21.60 USD View product →
25 23233-LDB5-E00 SPG DRIVEN FACE 1 $69.90 USD View product →
26 23237-LDB5-E00 COLLAR SEAL 1 $52.26 USD View product →
27 23238-LDB5-E00 COLLAR SPG 1 $44.85 USD View product →
28 90202-LDB5-E00 NUT SPECIAL 36MM 1 $23.40 USD View product →
29 90203-LDB5-E00 NUT FLANGE 20MM 2 $47.70 USD View product →
30 90205-LDB5-E00 NUT FLANGE 16 MM 1 $47.70 USD View product →
31 90405-LKM5-E00 COLLAR CLUTCH 1 $83.13 USD View product →
32 90406-LDB5-E00 WASHER 25*33*4 1 $13.17 USD View product →
33 90408-LDB5-900 COLLAR PRIMARY DRIVE SHAFT 1 $71.67 USD View product →
34 90501-LKM5-E00 WASHER THRUST 20MM 1 $31.44 USD View product →
35 91021-LDB5-E00 BEARING ONE WAY 1 $174.99 USD View product →
36 91106-LDB5-E00 BRG NEEDLE 14*22*20 1 $119.82 USD View product →
37 91211-LDB5-E00 SEAL DRIVEN FACE 40.2*47*4 1 $3.27 USD View product →
38 91258-LDB5-900 OIL SEAL 56.5*80*7 1 $51.45 USD View product →
39 91351-LDB5-E00 O-RING PINION CAP 2 $16.14 USD View product →
40 94301-08140 DOWEL PIN 8*14 2 $3.00 USD View product →
41 94540-07017 E RING 7MM 5 $4.92 USD View product →
42 96001-06018-06 BOLT FLANGE SH 6*18 4 $12.12 USD View product →
43 96001-06040-06 BOLT FLANGE SH 6*40 1 $12.12 USD View product →
44 96001-06045-06 BOLT FLANGE SH 6*45 1 $7.23 USD View product →
45 96104-LDB5-90A BEARING BALL RADIAL 16008 1 $92.82 USD View product →
46 96104-LDB5-90B BEARING BALL RADIAL 16008 1 $137.19 USD View product →
47 96105-LDB5-90C BRG BALL RADIAL 68150 1 $206.97 USD View product →

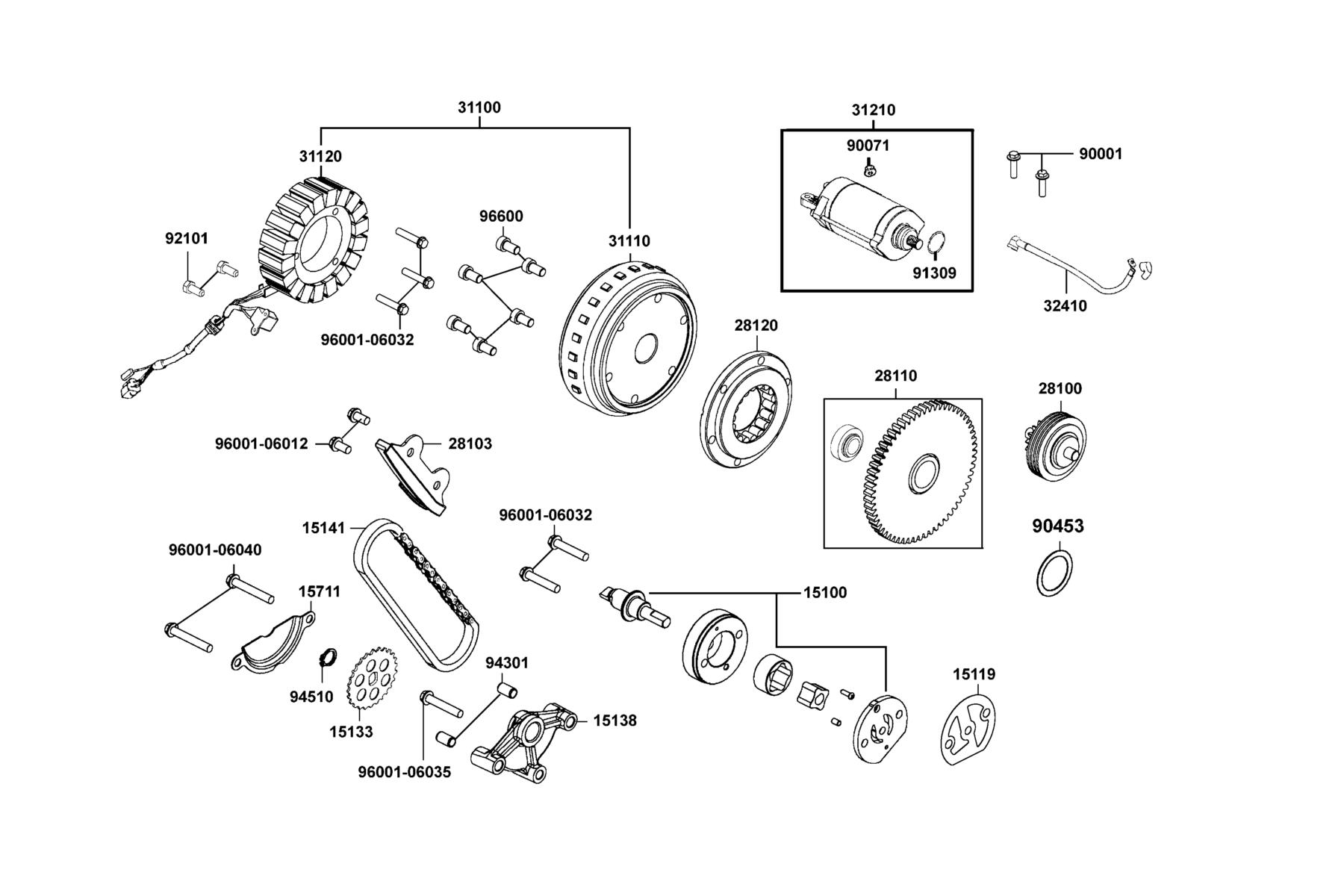

E06 — Starting Motor ● Generator

#PartNameQtyPrice
1 15100-LDB5-E00 PUMP ASSY OIL 1 $123.69 USD View product →
2 15119-LKM5-E00 GASKET OIL PUMP BODY 1 $9.78 USD View product →
3 15133-LBA2-E00 SPROCKET OIL PUMP DRIVE 1 $25.56 USD View product →
4 15138-LDB5-E00 HOLDER OIL PUMP SHAFT 1 $41.73 USD View product →
5 15141-LDB5-E00 CHAIN OIL PUMP 1 $75.36 USD View product →
6 15711-LDB5-E00 SEPARATOR OIL 1 $9.39 USD View product →
7 28100-LKM5-E01 SHAFT COMP REDUCTION 1 $255.42 USD View product →
8 28103-LKM5-E00 GUIDE OIL PUMP CHAIN 1 $61.14 USD View product →
9 28110-LKA8-E00 GEAR COMP.STARTING CLUTCH 1 $176.55 USD View product →
10 28120-KKE5-E0A ONE WAY CLUTCH 1 $434.06 USD View product →
11 31100-LKM5-E00 A.C.GEN. ASSY 1 $616.62 USD View product →
12 31110-LKM5-E00 FLYWHEEL COMP (D406) 1 $525.92 USD View product →
13 31120-LKM5-E00 STATOR COMP (D406) 1 $524.13 USD View product →
14 31210-LKM5-E0A MOTOR UNIT STARTER 1 $235.38 USD View product →
15 32410-AGA8-E00 CABLE. START MOTOR 1 $103.65 USD View product →
16 90001-GBHB-661 BOLT FLANGE SH 6*22 2 $4.92 USD View product →
17 90071-MLB0-001 NUT WASH 6MM 2 $4.92 USD View product →
18 90453-LKM5-E00 WASHER 27.2*36*0.5 1 $25.35 USD View product →
19 91309-4E25-004 O-RING 24.4*3.1 1 $4.92 USD View product →
20 92101-05012-0G BOLT HEX 5X12 1 $11.46 USD View product →
21 94301-08140 DOWEL PIN 8*14 2 $3.00 USD View product →
22 94510-10000 CIR CLIP EX 10MM 1 $4.92 USD View product →
23 96001-06012-06 BOLT FLANGE SH 6*12 1 $1.95 USD View product →
24 96001-06032-06 BOLT FLANGE SH 6*32 1 $11.46 USD View product →
25 96001-06035-06 BOLT FLANGE SH 6*35 1 $3.93 USD View product →
26 96001-06040-06 BOLT FLANGE SH 6*40 1 $12.12 USD View product →
27 96600-08015-16 SOCKET BOLT 8*15 1 $21.60 USD View product →

E07 — Clutch Assy Primary

#PartNameQtyPrice
1 2341A-LKM5-E00 SHAFT ASSY DRIVE 1 $416.36 USD View product →
2 23421-LKM5-E00 SHAFT COUNTER 1 $319.53 USD View product →
3 23450-ZVA6-M00 GEAR COMP BACKWARD 2ND DRIVEN 34T 1 $198.72 USD View product →
4 23471-LDB5-E00 SHIFT FORWARD & LOWER 1 $96.69 USD View product →
5 23473-LDB5-E00 COLLAR 20X17X14 1 $23.40 USD View product →
6 23481-LDB5-E00 SHIFT BACKWARD 1 $133.77 USD View product →
7 23500-LDB5-E00 GEAR COMP LOWER DRIVEN 35T 1 $139.29 USD View product →
8 23510-LDB5-900 GEAR FORWARD DRIVEN 27T 1 $148.68 USD View product →
9 23610-LDB5-E00 STOPPER PARK 1 $44.85 USD View product →
10 23611-LKM5-E00 ARM PARK 1 $138.09 USD View product →
11 23612-LDB5-E00 SPRING A PARK 1 $13.95 USD View product →
12 23613-LDB5-E00 GUIDE PARK 1 $16.14 USD View product →
13 23614-LDB5-E00 SPRING B PARK 1 $4.53 USD View product →
14 24211-LKM5-E00 FORK. RIGHT GEAR SHIFT 1 $154.83 USD View product →
15 24221-ZVA6-M00 FORK LEFT GEAR SHIFT 1 $64.80 USD View product →
16 24241-LKM5-E00 SHAFT GEAR SHIFT FORK GUIDE 1 $38.85 USD View product →
17 24242-LDB5-E00 COLLAR RIGHT FORK 1 $74.22 USD View product →
18 24251-LDB5-E00 GUIDE RIGHT FORK 1 $62.61 USD View product →
19 24305-LDB5-E00 SPRING RIGHT FORK 1 $16.14 USD View product →
20 2431A-LKM5-E00 DRUM ASSY GEAR SHIFT 1 $277.14 USD View product →
21 24610-LKM5-E00 SPINDLE COMP GEAR SHIFT 1 $156.99 USD View product →
22 24620-LKM5-E00 PLATE COMP GEAR SHIFT 1 $96.90 USD View product →
23 24651-LKM5-E00 SPRING GEAR SHIFT RETURN 1 $52.26 USD View product →
24 90001-GFY6-901 SOCKET BOLT 6*10 1 $4.53 USD View product →
25 90402-LEA7-950 WASHER THRUST 14*28*2 1 $51.81 USD View product →
26 90433-KAE1-001 WASHER 14MM 1 $4.92 USD View product →
27 90451-LDB5-E00 WASHER THRUST 17MM 2 $4.53 USD View product →
28 90452-KED9-900 WASHER 25*31*1.5 2 $5.67 USD View product →
29 90454-1G07-001 WASHER THRUST 20MM B 2 $2.61 USD View product →
30 90605-KED9-900 SET RING 28MM 4 $4.53 USD View product →
31 94103-06800 WASHER PLAIN 6MM 1 $4.92 USD View product →
32 94510-20000 CIR CLIP EX 20 2 $6.39 USD View product →
33 94540-12028 E RING 12 3 $4.53 USD View product →

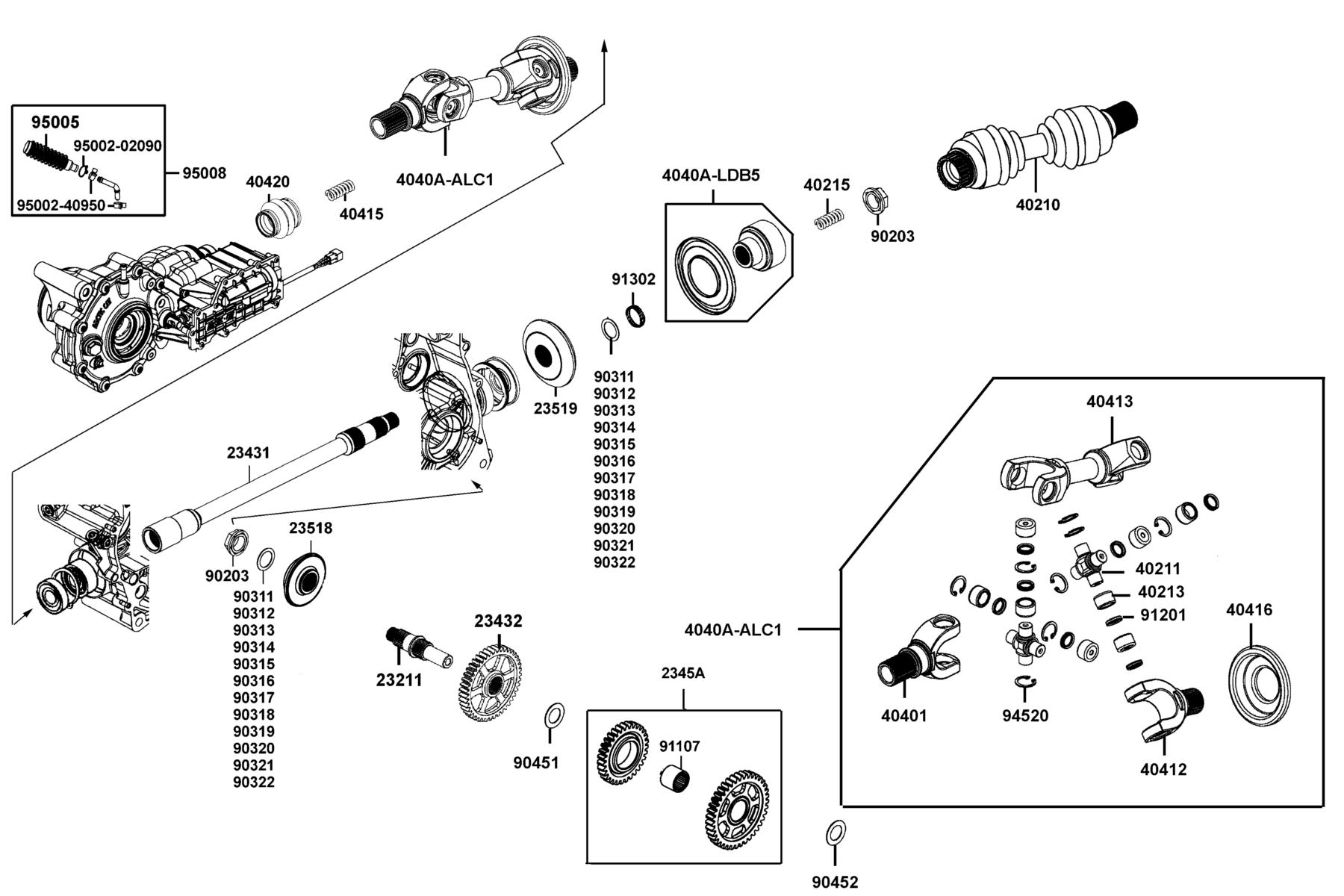

E08 — Shaft Reduction

#PartNameQtyPrice
1 23211-LKM5-E00 SHAFT MAIN 1 $266.25 USD View product →
2 23431-LDB5-E00 SHAFT FINAL 1 $174.09 USD View product →
3 23432-LKM5-E00 GEAR FINAL 1 $295.68 USD View product →
4 2345A-LDB5-E00 GEAR COMP BACKWARD 1 $221.37 USD View product →
5 23518-LKM5-E00 BEVEL GEAR DRIVE 1 $252.72 USD View product →
6 23519-LKM5-E00 BEVEL GEAR DRIVEN 1 $305.10 USD View product →
7 40210-LFE9-E00 CVJ REAR PROPELLER SHAFT 1 $595.44 USD View product →
8 40211-LCD9-E00 SPIDER YORK 4 $40.53 USD View product →
9 40213-LCD9-E00 BRG YORK 12*18*16 16 $38.07 USD View product →
10 40215-LFE9-E00 SPRING REAR PROPELLER SHAFT 1 $12.09 USD View product →
11 40401-ALC1-E00 YORK B FRONT U JOINT 1 $156.99 USD View product →
12 4040A-ALC1-E00 YOKE DRIVE FRONT ASSEMBLY 1 $537.15 USD View product →
13 4040A-LDB5-E00 COUPLING RR PROPELLER 1 $93.60 USD View product →
14 40412-LDB5-E00 YORK A. FRONT U JOINT 1 $101.67 USD View product →
15 40413-ALC1-E00 YORK FRONT U JOINT 2 $186.12 USD View product →
16 40415-LDB5-E00 SPRING FR PROPELLER SHAFT 2 $4.53 USD View product →
17 40416-LDB5-E00 UNIVERSAL JOINT??? PLATE 1 $22.47 USD View product →
18 40420-LFE9-E00 BOOT REAR PROPELLER SHAFT 1 $41.10 USD View product →
19 90203-LDB5-E00 NUT FLANGE 20MM 2 $47.70 USD View product →
20 90311-LDB5-E00 SHIM DRIVE BEVEL GEAR A (0.575~0.625) 2 $1.08 USD View product →
21 90312-LDB5-E00 SHIM DRIVE BEVEL GEAR B (0.625~0.675) 2 $11.31 USD View product →
22 90313-LDB5-E00 SHIM DRIVE BEVEL GEAR C (0.675~0.725) 2 $11.31 USD View product →
23 90315-LDB5-E00 SHIM DRIVE BEVEL GEAR E (0.775~0.825) 2 $1.08 USD View product →
24 90316-LDB5-E00 SHIM DRIVE BEVEL GEAR F (0.825~0.875) 2 $11.31 USD View product →
25 90317-LDB5-E00 SHIM DRIVE BEVEL GEAR G (0.875~0.925) 2 $11.31 USD View product →
26 90318-LDB5-E00 SHIM DRIVE BEVEL GEAR H (0.925~0.975) 2 $11.31 USD View product →
27 90319-LDB5-E00 SHIM DRIVE BEVEL GEAR I (0.975~1.025) 2 $11.31 USD View product →
28 90320-LDB5-E00 SHIM DRIVE BEVEL GEAR J (1.025~1.075) 2 $11.31 USD View product →
29 90321-LDB5-E00 SHIM DRIVE BEVEL GEAR K (1.075~1.125) 2 $11.31 USD View product →
30 90322-LDB5-E00 SHIM DRIVE BEVEL GEAR L (1.125~1.175) 2 $11.31 USD View product →
31 90451-LBA7-900 WASHER THRUST 20MM 1 $5.58 USD View product →
32 90452-LDB5-E00 WASHER THRUST 20*36*3 1 $7.53 USD View product →
33 91107-LDB5-E00 BRG NEEDLE 20*28*23 1 $170.70 USD View product →
34 91201-LCD9-E00 OIL SEAL 13*17.5*4.5 16 $6.39 USD View product →
35 91302-LDB5-E00 O-RING 22MM 1 $4.53 USD View product →
36 94520-19000 CIR CLIP IN 19 16 $10.14 USD View product →
37 95002-02090 CLIP B9 TUBE 1 $4.92 USD View product →
38 95002-40950-08 CLAMP D9.5 TUBE 2 $6.06 USD View product →
39 95005-PWB1-900 BREATH TUBE RR GEAR ASSY 1 $32.10 USD View product →
40 95008-ALC1-E00 HOSE VENT GEARCASE(120mm) 1 $60.69 USD View product →

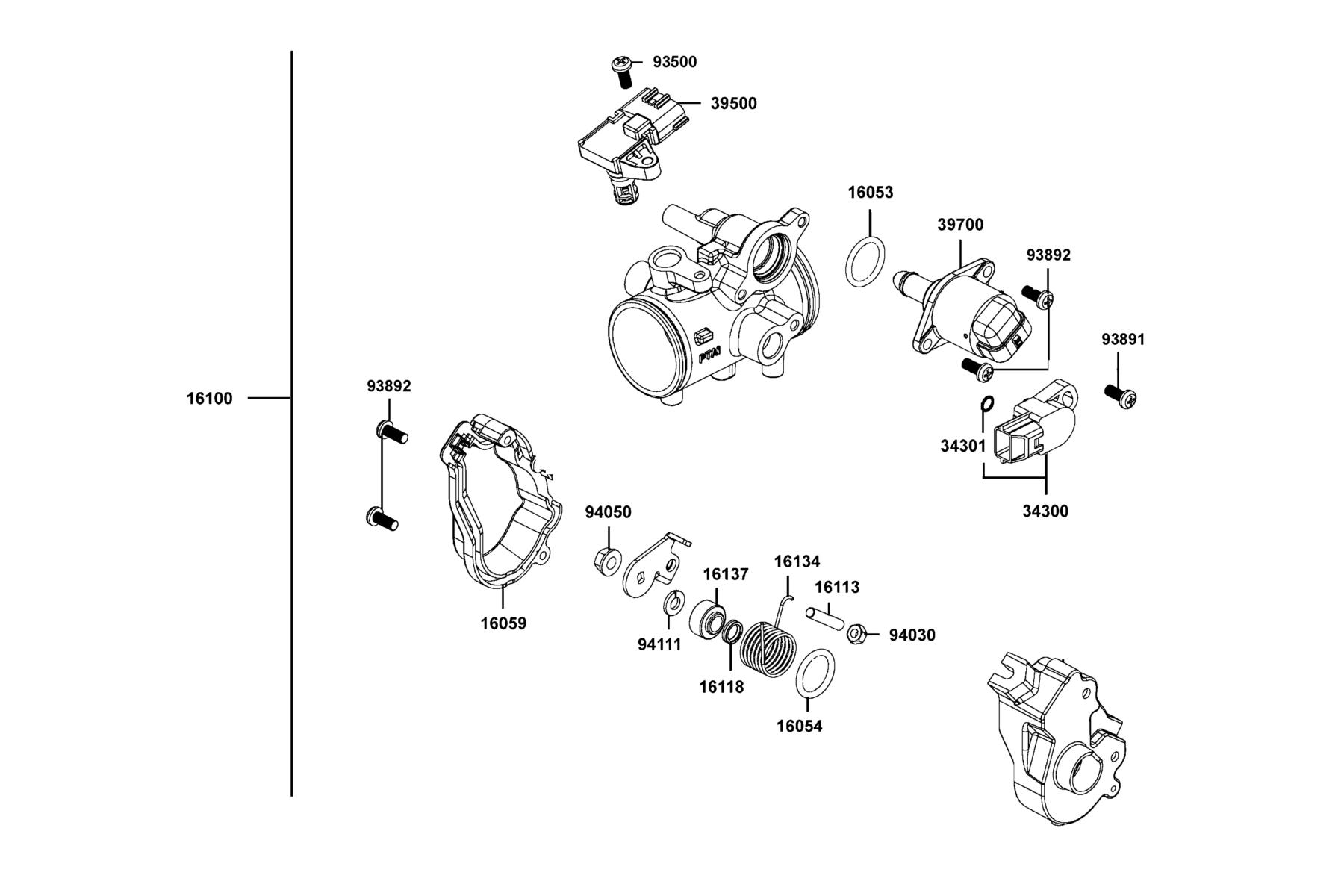

E09 — THROTTLE BODY, ASSY.

#PartNameQtyPrice
1 16053-PTA1-800 SEAL 1 $7.17 USD View product →
2 16054-PTA1-800 OIL RING 1 $7.17 USD View product →
3 16059-LDB5-E00-N1R COVER WIRE STAY (Black) 1 $17.82 USD View product →
4 16100-AGA8-M00 THROTTLE BODY ASSY 1 $565.38 USD View product →
5 16113-PTA1-800 PILOT SCREW 1 $25.65 USD View product →
6 16118-LBF2-900 SEAL THROTTLE SHAFT 1 $19.26 USD View product →
7 16134-LDB5-E00 SPG THROTTLE SHAFT 1 $9.78 USD View product →
8 16137-PTA1-800 COLLAR LEVER 1 $14.31 USD View product →
9 34300-KKE3-900 THROTTLE POSITION SENSOR 1 $105.60 USD View product →
10 34301-KKE3-900 O-RING T.P.S. 1 $4.92 USD View product →
11 39500-PTA1-800 SENSOR T-MAP 1 $234.75 USD View product →
12 39700-PTA1-800 BY PASS VALVE IDLE AIR 1 $234.75 USD View product →
13 93500-05012-0F SCREW PAN 5X12 1 $12.12 USD View product →
14 93891-05016-06 SCREW WASHER 5* 16 1 $1.86 USD View product →
15 93892-05012-06 SCREW WASHER 5*12 4 $11.79 USD View product →
16 94030-PTA1-800 NUT HEX 5mm 1 $7.17 USD View product →
17 94050-06080 NUT FLANGE 6MM 1 $2.31 USD View product →
18 94111-06800 WASHER SPRING 6MM 1 $4.92 USD View product →

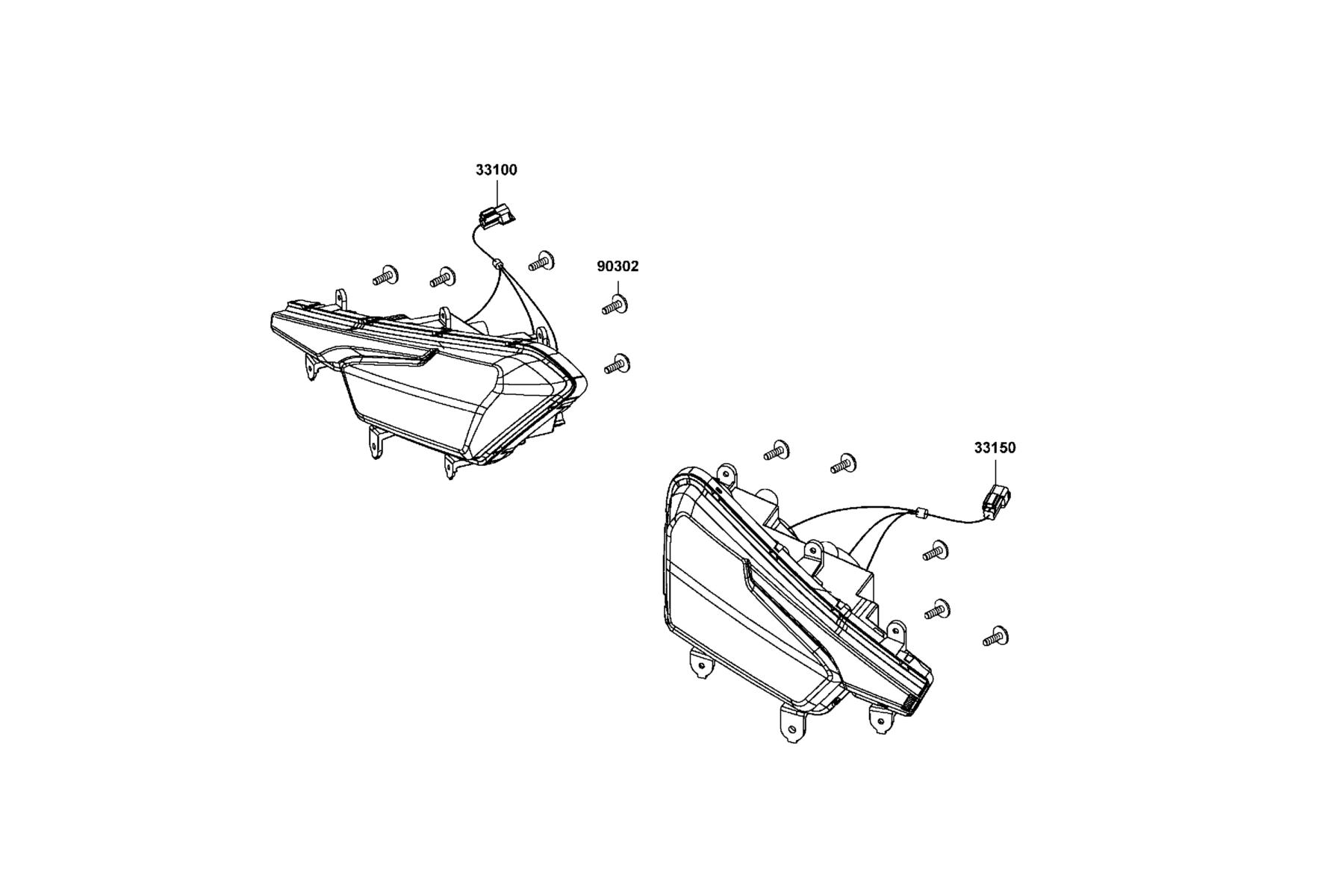

F01 — Head Light

#PartNameQtyPrice
1 33100-AGA8-E00 LIGHT ASSY HEAD R 1 $449.94 USD View product →
2 33150-AGA8-E00 LIGHT ASSY HEAD L. 1 $449.94 USD View product →
3 90302-PWA1-900 BOLT-WASH 5*16 10 $4.92 USD View product →

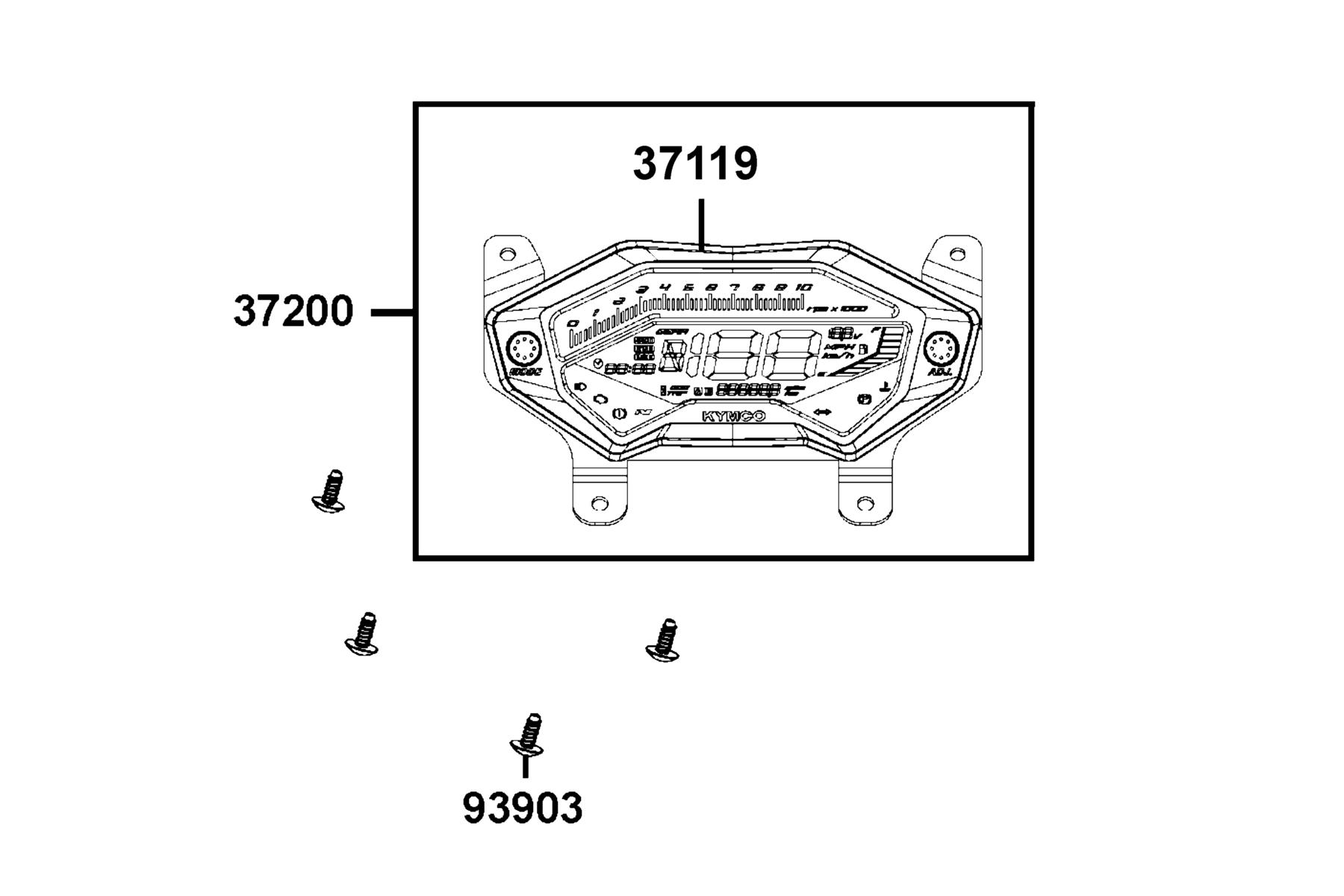

F02 — Speed meter

#PartNameQtyPrice
1 37119-AGA8-E00 LENS ASSY 1 $102.12 USD View product →
2 37200-AGB8-E00 METER ASS Y SPEED 1 $484.53 USD View product →
3 93903-35360 SCREW TAPPING 5*16 4 $3.78 USD View product →

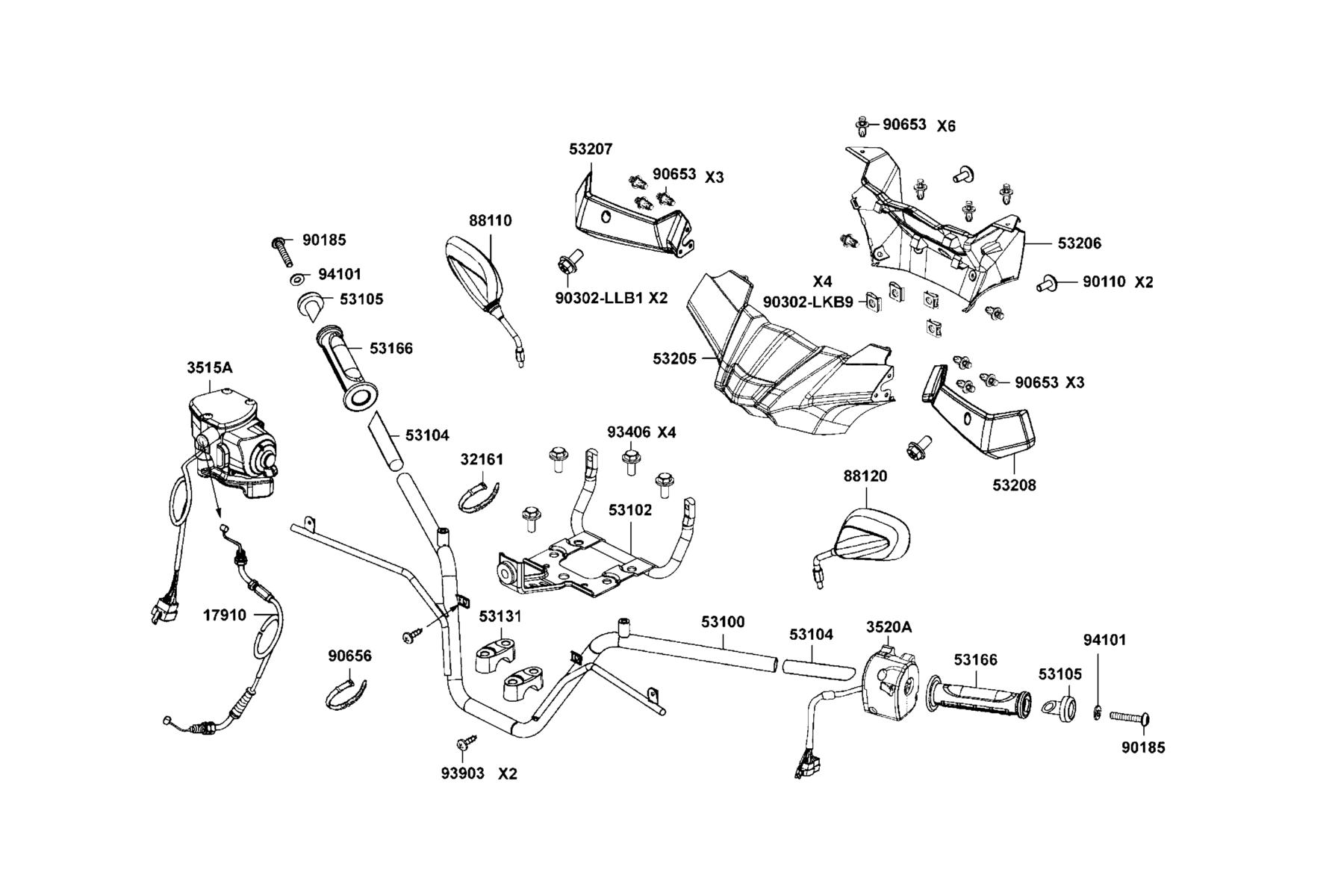

F03 — Handle Steering

#PartNameQtyPrice
1 17910-LDB5-E00 CABLE COMP THROT 1 $39.39 USD View product →
2 32161-4D04-001 BAND BI WIRE 2 $4.53 USD View product →
3 3515A-LFE9-900 SW & THROT ASSY RH HANDLE 1 $263.58 USD View product →
4 3520A-AGA7-E00 SW ASS'Y LH HANDLE COMP 1 $281.04 USD View product →
5 53100-AGA9-E00 HANDLE PIPE STRG 1 $78.63 USD View product →
6 53102-ALC1-E00 STAY HANDLE COVER 1 $90.21 USD View product →
7 53104-PWB1-900 PLUG??? HANDLEBAR 2 $31.17 USD View product →
8 53105-PWB1-900 END HANDLEBAR-BLACK 2 $7.17 USD View product →
9 53131-4K39-001 HOLDER HANDLE PIPE 2 $17.79 USD View product →
10 53166-LGC7-E00 GRIP HANDLEBAR 2 $47.94 USD View product →
11 53205-AGA9-600-JJP COVER.HANDLEBAR 1 $251.46 USD View product →
12 53206-AGA9-600-JJP COVER.REAR HANDLE 1 $188.67 USD View product →
13 53207-ADG6-E00-N1R PROTECTOR R HANDLE (Black) 1 $47.91 USD View product →
14 53208-ADG6-E00-N1R PROTECTOR L HANDLE (Black) 1 $5.19 USD View product →
15 88110-LBA7-E00 MIRROR ASSY R BACK 1 $59.88 USD View product →
16 88120-LBA7-E00 MIRROR ASSY L BACK 1 $59.88 USD View product →
17 90110-PRB3-900 SCREW SPECUAL 5x16 2 $0.48 USD View product →
18 90185-PWB1-900 SOCKET BOLT 8x45 2 $17.82 USD View product →
19 90302-LKB9-900 NUT SPRING 5MM 4 $11.79 USD View product →
20 90302-LLB1-E00 BOLT-WASH 5X12 2 $2.61 USD View product →
21 90653-LKB9-900 CLIP MUDGUARD 12 $2.82 USD View product →
22 90656-KCBC-900 BAND OIL HANDLE 8X146 8 $3.93 USD View product →
23 93406-LLB1-900 BOLT-WASHER 8*35 4 $4.92 USD View product →
24 93903-35360 SCREW TAPPING 5*16 2 $3.78 USD View product →
25 94101-08600 WASH PLAIN 8MM 2 $2.25 USD View product →

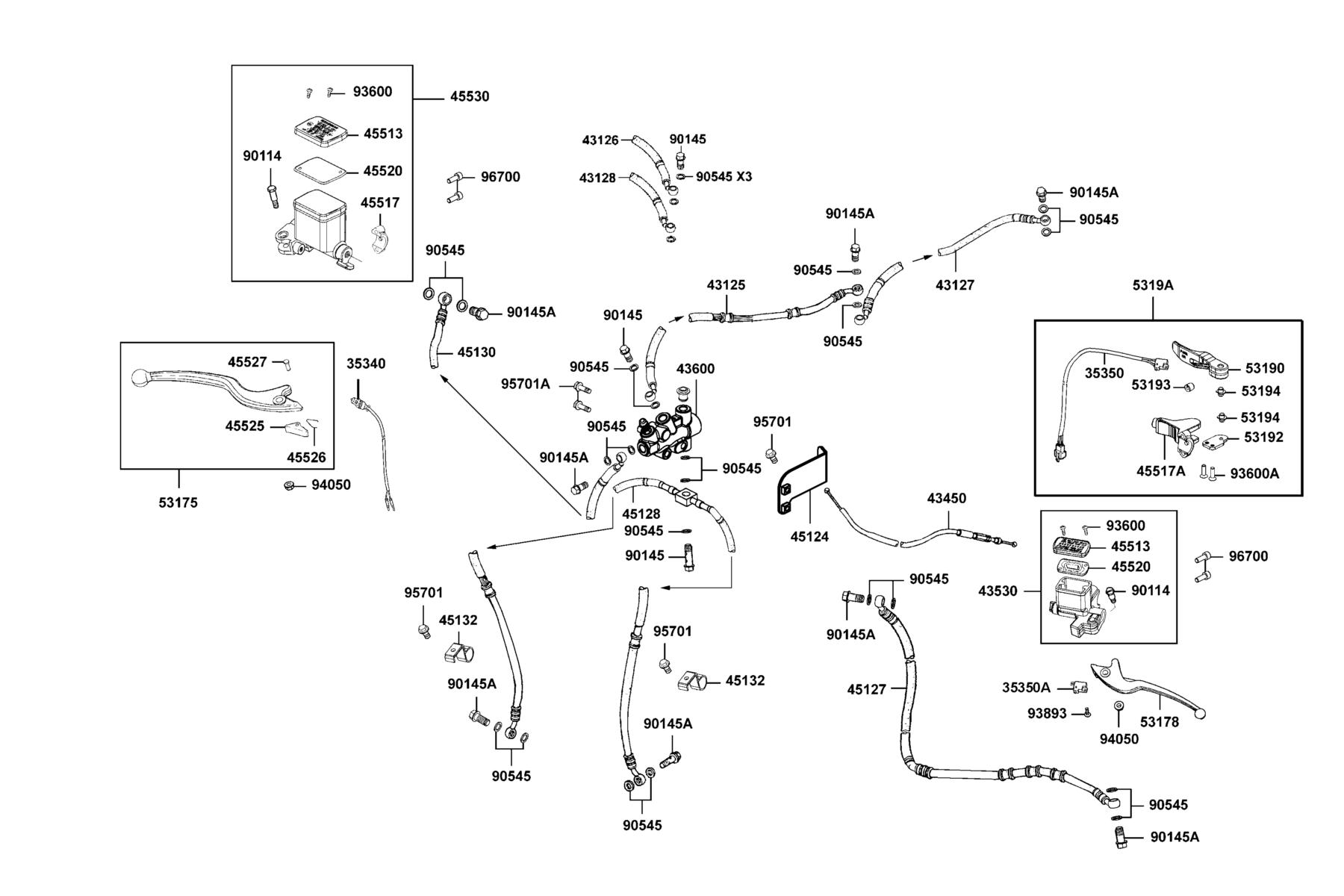

F04 — Master Cylinder

#PartNameQtyPrice
1 35340-LDB5-900 SW ASSY FR STOP 1 $44.85 USD View product →
2 35350-AGA8-E00 SW ASSY STOP 1 $76.41 USD View product →
3 35350-KNBN-901 SW ASSY RR STOP 1 $38.34 USD View product →
4 43125-AAJ5-E00 HOSE ASSY， BRAKE (FOOT TO PGV) 1 $194.16 USD View product →
5 43126-AEC8-E00 HOSE ASSY??? RR BRAKE R 1 $121.17 USD View product →
6 43127-AEC8-E00 HOSE ASSY??? RR BEAKE (FOOT TO PGV) 1 $96.81 USD View product →
7 43128-AEC8-E00 HOSE ASSY??? RR BRAKE L 1 $114.30 USD View product →
8 43450-AEC8-E00 CABLE??? PARKING BRAKE 1 $113.37 USD View product →
9 43530-LFE9-306 MASTER CYLINDER ASSY RR 1 $231.69 USD View product →
10 43600-LDB5-E00 PGV ASSY 1 $204.18 USD View product →
11 45124-AAJ5-E00 STAY PGV 1 $14.25 USD View product →
12 45127-AEC8-E00 HOSE ASSY RR BRAKE 1 $165.87 USD View product →
13 45128-AAJ5-E00 HOSE ASSY BRAKE - JUNCTION 1 $235.68 USD View product →
14 45130-ALC1-E00 HOSE ASSY??? FR BRAKE-RH 1 $103.02 USD View product →
15 45132-LBA7-900 CLAMPER FR BRAKE HOSE 2 $16.14 USD View product →
16 45513-KKC4-900 CAP M/C 2 $2.82 USD View product →
17 45517-KFAF-910 HOLDER M/C 2 $17.43 USD View product →
18 45517-KFAF-910(wrong) HOLDER M/C 2 $13.41 USD View product →
19 45517-PRB3-900 BRACKET PARK BRK 1 $55.95 USD View product →
20 45520-KKC4-900 DIAPHRAGM 2 $1.08 USD View product →
21 45525-LBA7-900 STOPPER 1 $23.40 USD View product →
22 45526-LBA7-900 SPRING 1 $9.39 USD View product →
23 45527-LBA7-900 PIN PARK 1 $9.39 USD View product →
24 45530-LDB5-305 CYLINDER SET FR 1 $226.26 USD View product →
25 53175-LDB5-305-M2A LEVER SET BRK 1 $137.31 USD View product →
26 53178-KEBE-900-M2A LEVER L STRG HNDL 1 $49.50 USD View product →
27 53190-ALC1-E00 LEVER 1 $51.33 USD View product →
28 53192-PRB3-900 STAY 1 $6.24 USD View product →
29 53193-PRB3-900 STOPPER 1 $5.58 USD View product →
30 53194-PRB3-900 PIVOT 2 $3.27 USD View product →
31 5319A-AGA8-E00 BRAKE ASSY PARKING 1 $175.62 USD View product →
32 90114-1F66-007 BOLT HANDLE LEVER 2 $4.92 USD View product →
33 90145-LBA2-E00 OIL BOLT 10*33 2 $29.10 USD View product →
34 90145-LEA3-E00 OIL BOLT 10*22 9 $22.86 USD View product →
35 90545-3L00-001 WASHER OIL BOLT 24 $2.91 USD View product →
36 90545-3L00-001(wrong) WASHER OIL BOLT 24 $3.78 USD View product →
37 93600-04012-1G SCREW FLAT 4*12 4 $5.67 USD View product →
38 93600-PRB3-900 SCREW 6X12 2 $1.95 USD View product →
39 93893-04012-18 SCREW WASHER 4*12 1 $1.86 USD View product →
40 94050-06060 NUT FLANGE 6MM 2 $4.92 USD View product →
41 95701-06012-06 BOLT FLANGE 6X12 3 $1.86 USD View product →
42 95701-06040-06 BOLT FLANGE 6*40 2 $2.61 USD View product →
43 96700-06020-06 SOCKET BOLT 6X20 4 $16.68 USD View product →

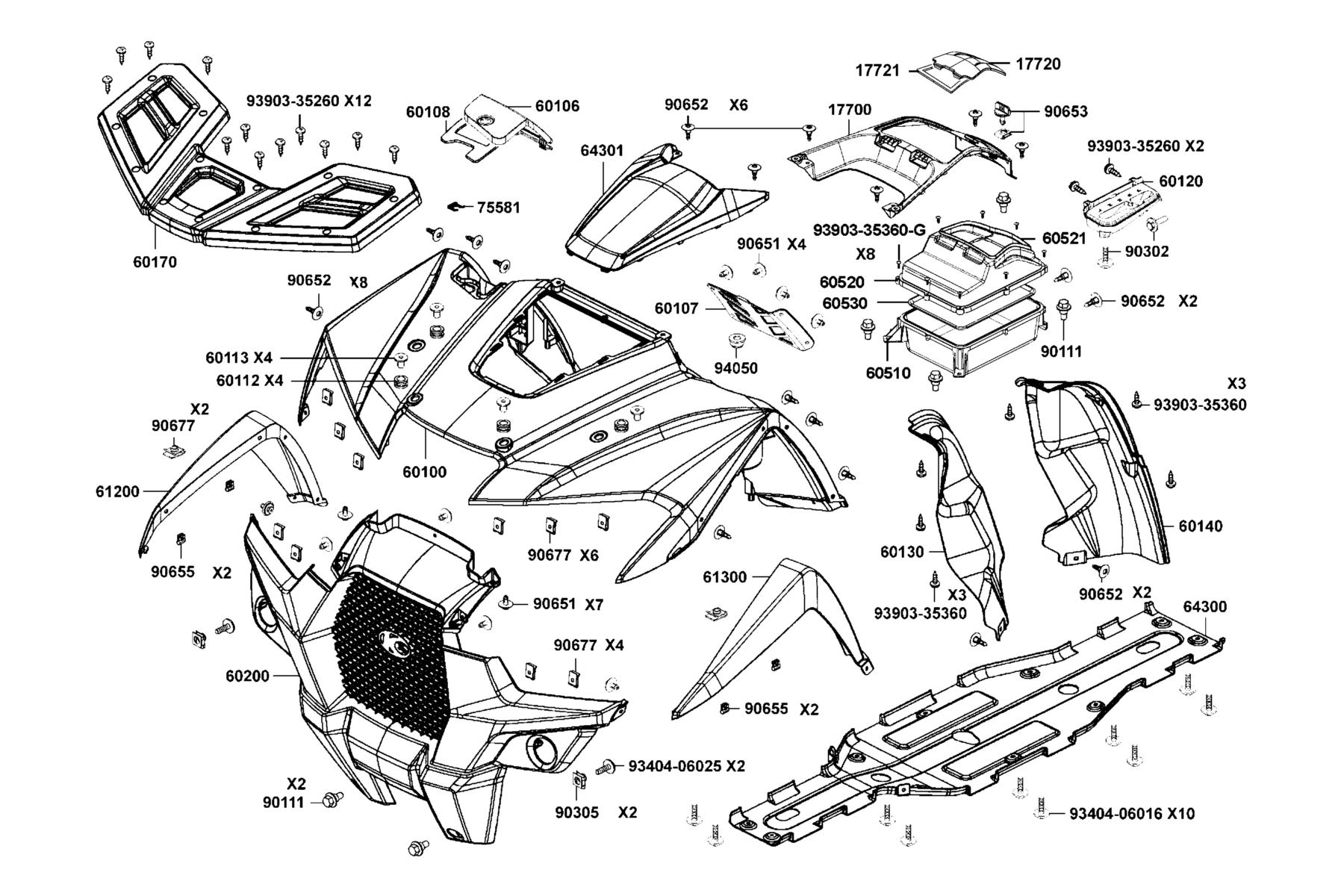

F05 — Fender Front

#PartNameQtyPrice
1 17700-AGA8-600-N1P PANEL STORAGE BOX 1 $133.41 USD View product →
2 17720-AGA8-600-N1P LID STORAGE BOX 1 $216.69 USD View product →
3 17721-AGA8-E00 SEAL LUGG BOX LID 1 $36.54 USD View product →
4 60100-AGA8-600-JJP FENDER FRONT 1 $428.64 USD View product →
5 60100-BBC2-600-JJP FENDER FRONT 1 $403.88 USD View product →
6 60106-AGA8-600-JJP LID TOOL BOX 1 $276.72 USD View product →
7 60106-BBC2-600-JJP LID TOOL BOX 1 $84.96 USD View product →
8 60107-AGA8-E00 HOLDER DRINK 1 $23.85 USD View product →
9 60108-AGA8-E00 SEAL LID 1 $16.14 USD View product →
10 60112-PWB1-900 GROMMET 1 $4.29 USD View product →
11 60113-PWB1-900 SPACER STELL 1 $12.48 USD View product →
12 60120-ALC1-E00-N1R GUIDE COVER CHANGE HANDLE (Black) 1 $25.92 USD View product →
13 60130-LFE9-E01-N1R PROTECTOR R (Black) 1 $68.58 USD View product →
14 60140-LFE9-E01-N1R PROTECTOR L (Black) 1 $68.58 USD View product →
15 60170-AGA8-E01-N1R PANEL.FRONT RACK (Black) 1 $128.04 USD View product →
16 60200-AGA8-E00-N1R MUDGUARD FRONT (Black) 1 $81.99 USD View product →
17 60510-AGA8-E00-N1R LOWER COVER.STORAGE BOX (Black) 1 $5.85 USD View product →
18 60520-AGA8-E00-N1R TOP COVER.STORAGE BOX (Black) 1 $5.85 USD View product →
19 60521-AGA8-E00 PLATE SPLASH GUARD 1 $9.81 USD View product →
20 60530-AGA8-E01 BAG???STORAGE BOX 1 $63.18 USD View product →
21 61200-AGA8-E00-N1R FRONT MUDGUARD.RH SIDE (Black) 1 $20.64 USD View product →
22 61300-AGA8-E00-N1R FRONT MUDGUARD.LH SIDE (Black) 1 $20.64 USD View product →
23 64300-LFE9-E01-N1R PLATE SKID (Black) 1 $111.30 USD View product →
24 64301-AGA8-600-JJP PANEL FRONT 1 $239.25 USD View product →
25 75581-AGA7-E00 SET SPG LOCK KEY 1 $36.06 USD View product →
26 90111-LEB1-900 BOLT FLANGE 6MM 1 $12.12 USD View product →
27 90302-GBR2-001 BOLT-WASH 5x16 2 $3.99 USD View product →
28 90305-GHK8-001 NUT CLIP 6MM 2 $4.92 USD View product →
29 90651-LCA5-E00 CLIP FENDER 6 $4.92 USD View product →
30 90652-LCA4-E00 CLIP MUDGUARD 10 $4.92 USD View product →
31 90653-ZVA6-M00 QUICK RELEASE CLIP 1 $12.12 USD View product →
32 90655-PWA2-900 CLIP FENDER MOUNTING 4 $5.67 USD View product →
33 90677-GAR1-004 NUT CLIP 5MM 16 $3.00 USD View product →
34 93404-06016-06 BOLT WASHER 6*16 16 $7.89 USD View product →
35 93404-06025-06 BOLT WASHER 6*25 2 $4.17 USD View product →
36 93903-35260 SCREW TAPPING 5*12 14 $4.92 USD View product →
37 93903-35360 SCREW TAPPING 5*16 6 $3.78 USD View product →
38 93903-35360-G SCREW TAPPING 5*16 8 $0.99 USD View product →
39 94050-LDE9-E00 NUT LOCK 1 $2.61 USD View product →

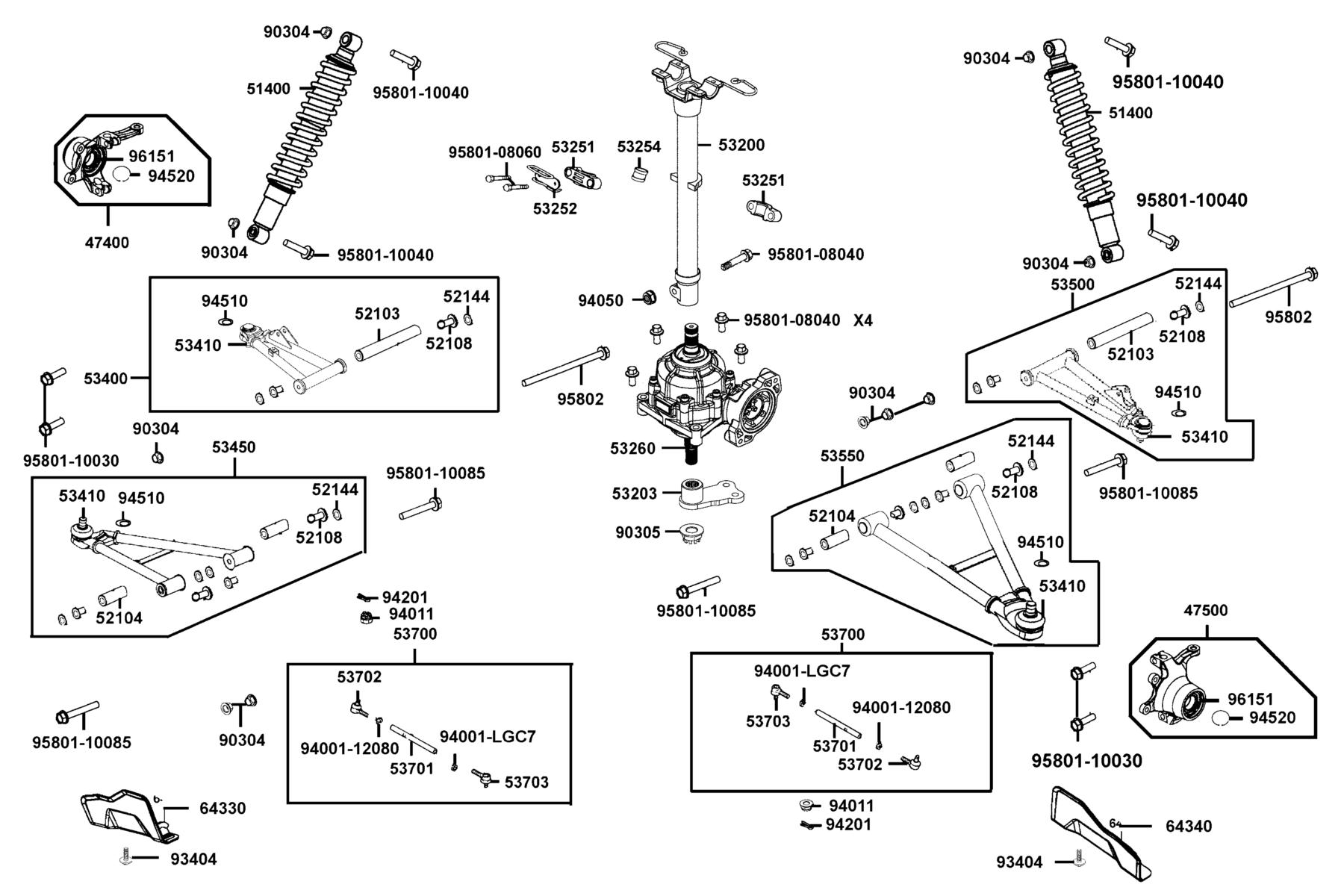

F06 — Stem Steering

#PartNameQtyPrice
1 47400-PWB1-900 KNUCKLE STEERING-RH ASSEMBLY 1 $208.62 USD View product →
2 47500-PWB1-900 KNUCKLE STEERING-LH ASSEMBLY 1 $208.62 USD View product →
3 51400-ALC1-E00-N8S CUSHION ASSY FR 2 $293.58 USD View product →
4 52103-ALC1-E00 SLEEVE SUSPENSION 2 $65.10 USD View product →
5 52104-PWB1-900 SLEEVE SUSPENSION 4 $22.98 USD View product →
6 52108-PWB1-900 BUSHING SUSPENSION 12 $11.31 USD View product →
7 52144-PWB1-900 SEAL SUSPENSION 12 $12.09 USD View product →
8 53200-AAJ5-E00 STEERING POST EPS 1 $168.33 USD View product →
9 53203-AAJ5-E00 PITMAN ARM ASSY. 1 $76.68 USD View product →
10 53251-LCA5-E00 HOLDER STEM STEERING 2 $24.96 USD View product →
11 53252-LBA7-900 CLAMPER STEM HOLDER 1 $18.72 USD View product →
12 53254-LBA7-900 SLEEVE STEM 1 $9.39 USD View product →
13 53260-AAJ5-E01 EPS ASSY 1 $789.36 USD View product →
14 53400-ALC1-E01-N8S A-ARM ASSY FRONT UPPER R 1 $290.04 USD View product →
15 53410-PRB1-900 BALL JOINT ASSY 4 $166.11 USD View product →
16 53450-AGA8-E00-N8S A-ARM ASSY .FR LOWER RH 1 $183.00 USD View product →
17 53500-ALC1-E01-N8S A-ARM ASSY FRONT UPPER L 1 $175.38 USD View product →
18 53550-AGA8-E00-N8S A-ARM ASSY .FR LOWER LH 1 $206.28 USD View product →
19 53700-ALC1-E00 TIE ROD ASSY 2 $187.71 USD View product →
20 53701-ALC1-E00 TIE ROD 2 $168.33 USD View product →
21 53702-ALC1-E00 JOINT R BALL 2 $151.77 USD View product →
22 53703-ALC1-E00 JOINT L BALL 2 $151.77 USD View product →
23 64330-AGA8-E00-N1R GUARD.RH BOOTS (Black) 1 $12.30 USD View product →
24 64340-AGA8-E00-N1R GUARD.LH BOOTS (Black) 1 $13.23 USD View product →
25 90304-GLW0-90A NUT U FLANGE 10MM 10 $9.39 USD View product →
26 90305-KNBN-90B NUT U 16MM 1 $24.99 USD View product →
27 93404-06016-06 BOLT WASHER 6*16 2 $7.89 USD View product →
28 94001-12080 NUT HEX 12MM 2 $23.31 USD View product →
29 94001-LGC7-E00 NUT HEX LH 12MM 2 $23.31 USD View product →
30 94011-LKA8-E00 NUT CASTLE 10MM 4 $21.99 USD View product →
31 94050-08060 NUT FLANGE 8MM 1 $5.31 USD View product →
32 94201-25250 PIN SPLIT 2.5*25 4 $1.86 USD View product →
33 94510-PWB1-900 CIRCLIP EX 29 4 $5.31 USD View product →
34 94520-55000 CIR CLIP IN 55 2 $13.95 USD View product →
35 95801-08040-06 BOLT FLANGE 8*40 5 $6.54 USD View product →
36 95801-08060-06 BOLT FLANGE 8*60 2 $11.31 USD View product →
37 95801-10030-06 BOLT FLANGE 10X30 4 $16.68 USD View product →
38 95801-10040-06 BOLT FLANGE 10X40 1 $21.60 USD View product →
39 95801-10085-06 BOLT FLANGE 10*85 4 $19.59 USD View product →
40 95802-PWB1-900 SCREW CAP-HFH M10X1.25X180 2 $43.56 USD View product →
41 96151-PWB1-900 BEARING WHEEL 2 $160.56 USD View product →

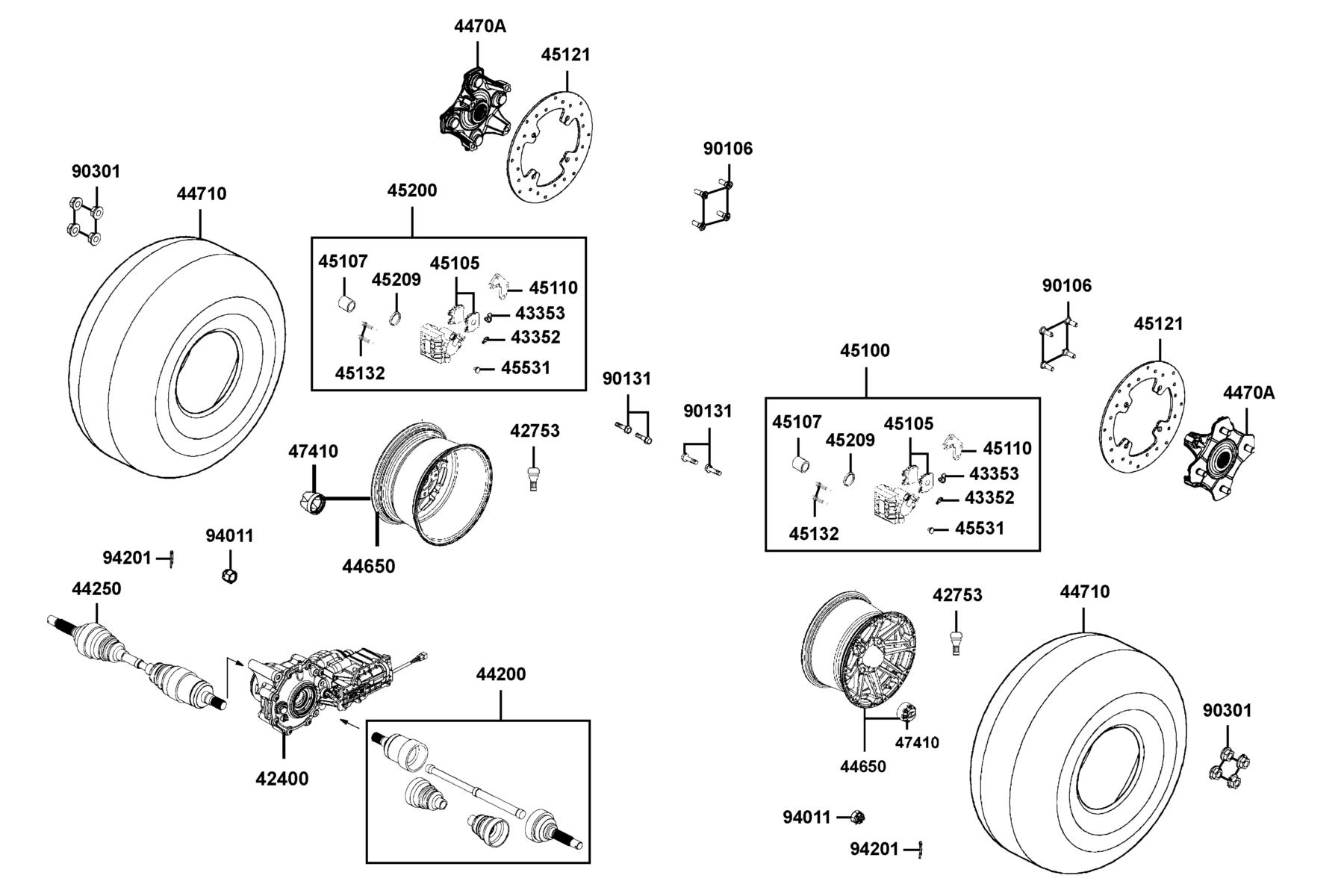

F07 — Front Wheel

#PartNameQtyPrice
1 42400-LKA8-500 E-LOCK GEARCASE FRONT 3.6 1 $1321.02 USD View product →
2 42753-KNBN-90B VALVE RIM (TR412) 2 $17.70 USD View product →
3 43352-KKD6-E90 SCREW BLEEDER 2 $12.45 USD View product →
4 43353-4A61-77A CAP BLEEDER 2 $5.67 USD View product →
5 44200-AGA8-E00 HALF SHAFT FRONT-RH 1 $383.01 USD View product →
6 44250-AGA8-E00 HALF SHAFT FRONT-LH 1 $557.55 USD View product →
7 44650-AGA9-M00 WHEEL SET FRONT 1 $592.26 USD View product →
8 4470A-LFA5-E01 HUB ASSEMBLY 2 $208.53 USD View product →
9 44710-ALC1-E00 TIRE ASSY FR AT26X8-14 6PR 1 $545.42 USD View product →
10 45100-LFE9-E00-NJA CALIPER ASSY FR BRK-RH (Silver) 1 $281.76 USD View product →
11 45105-LFE9-305 PAD SET 2 $137.88 USD View product →
12 45107-LFE9-E00 PISTON C/P (??32.03MM) 2 $47.31 USD View product →
13 45110-LFE9-305 BRACKET 2 $122.88 USD View product →
14 45121-PWB1-900 DISK BRAKE 2 $113.91 USD View product →
15 45132-LDH1-E00 BOOT 4 $23.40 USD View product →
16 45200-LFE9-E00-NJA CALIPER ASSY FR BRK-LH (Silver) 1 $281.76 USD View product →
17 45209-LFE9-E00 SEAL PISTON 4 $32.46 USD View product →
18 45531-GAR1-951 PLUG 2 $7.17 USD View product →
19 47410-AGA8-M00 CAP WHEEL SHAFT 2 $70.20 USD View product →
20 90106-PWB1-900 BOLT SHOULDER 8 $18.24 USD View product →
21 90131-PRB3-900 BOLT FLANGE 8X20 4 $22.50 USD View product →
22 90301-LDB5-E00 NUT WHEEL 8 $18.24 USD View product →
23 94011-PWB1-900 NUT CASTLE FLANGE M22x1.5 2 $52.95 USD View product →
24 94201-30400 PIN SPLIT 3*40 2 $10.14 USD View product →

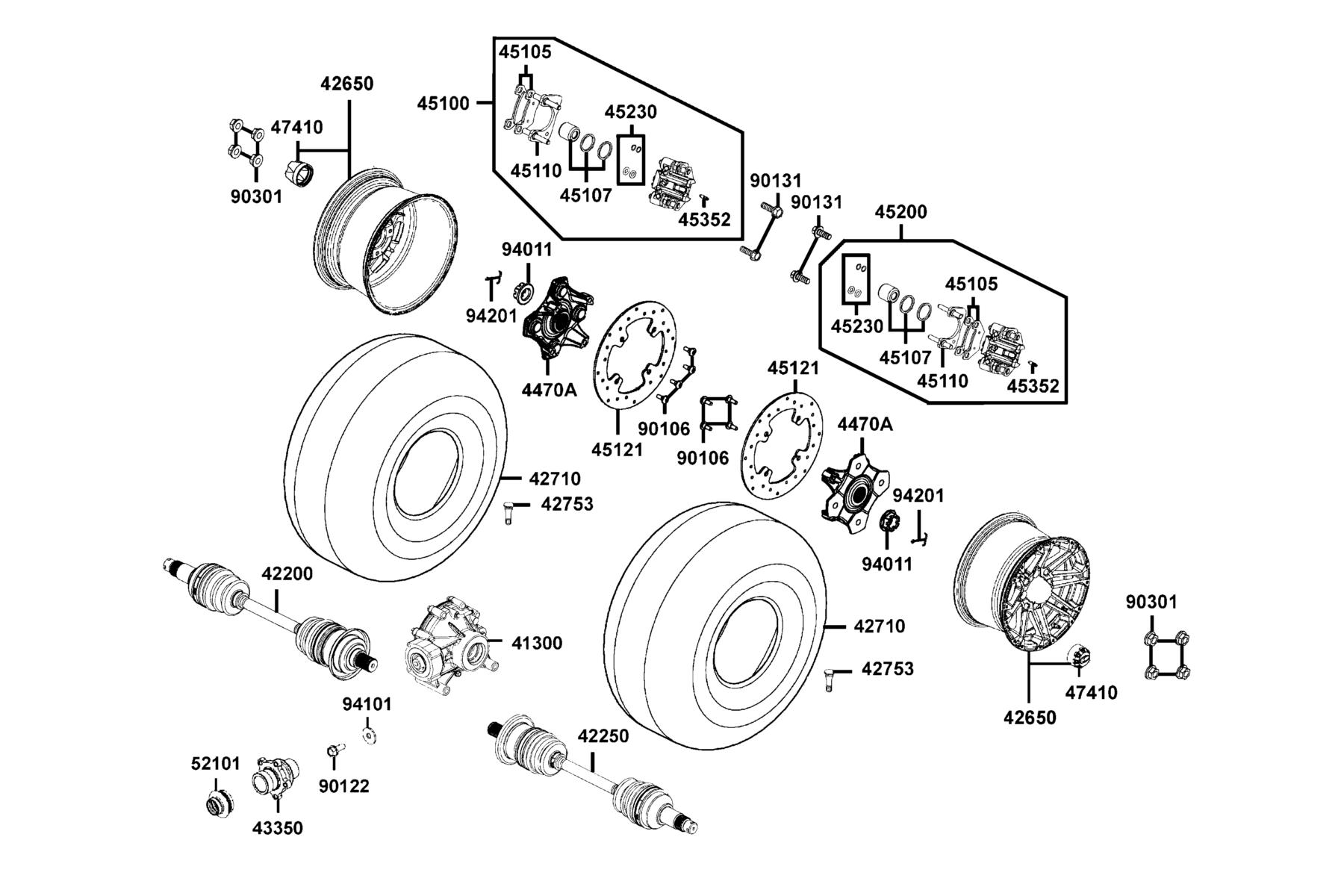

F08 — Rear Wheel

#PartNameQtyPrice
1 41300-AGA8-E00 GEAR ASSY RR FINAL 1 $693.26 USD View product →
2 42200-AGA8-M00 HALF SHAFT REAR-RH 1 $562.17 USD View product →
3 42250-AGA8-M00 HALF SHAFT REAR-LH 1 $566.67 USD View product →
4 42650-AGA9-M00 WHEEL SET REAR 1 $428.36 USD View product →
5 42710-ALC1-E00 TIRE ASSY RR AT26X10-14 6PR 2 $571.26 USD View product →
6 42753-KNBN-90B VALVE RIM (TR412) 2 $17.70 USD View product →
7 43350-LFE9-E00 HOLDER DISK RR BRK 1 $225.09 USD View product →
8 4470A-LFA5-E01 HUB ASSEMBLY 2 $208.53 USD View product →
9 45100-PWB1-600 CALIPER BRAKE RH 1 $501.57 USD View product →
10 45105-PWB1-306 BRAKE PADS 2 $160.32 USD View product →
11 45107-PWB1-305 PISTON AND SEALS (??31.75MM) 2 $129.42 USD View product →
12 45110-PWB1-305 MOUNT BRACKET ASSEMBLS 2 $173.49 USD View product →
13 45121-PWB1-900 DISK BRAKE 2 $113.91 USD View product →
14 45200-PWB1-600 CALIPER BRAKE LH 1 $391.68 USD View product →
15 45230-PWB1-305 GUIDE O RINGS 2 $88.05 USD View product →
16 45352-PWB1-305 BLEEDER 2 $57.06 USD View product →
17 47410-AGA8-M00 CAP WHEEL SHAFT 2 $70.20 USD View product →
18 52101-LFE9-E00 BOOT RR PROPELLER SHAFT 1 $41.97 USD View product →
19 90106-PWB1-900 BOLT SHOULDER 4 $18.24 USD View product →
20 90122-LKA8-E00 BOLT FLANGE 10x20 1 $19.26 USD View product →
21 90131-PRB3-900 BOLT FLANGE 8X20 4 $22.50 USD View product →
22 90301-LDB5-E00 NUT WHEEL 8 $18.24 USD View product →
23 94011-PWB1-900 NUT CASTLE FLANGE M22x1.5 2 $52.95 USD View product →
24 94101-10800 WASHER PLAIN 10MM 1 $2.61 USD View product →
25 94201-30400 PIN SPLIT 3*40 2 $10.14 USD View product →

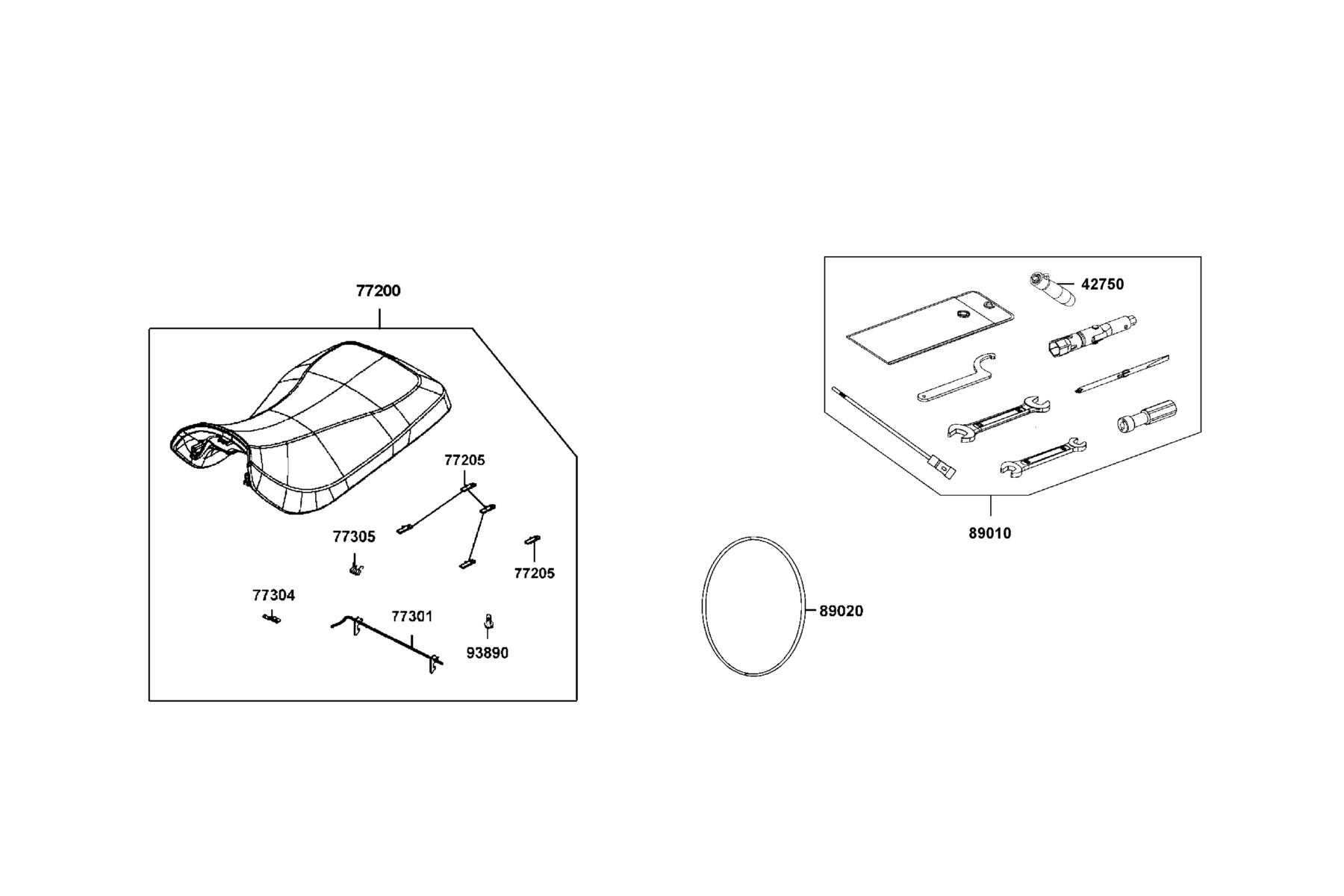

F09 — Seat

#PartNameQtyPrice
1 42750-LDB1-700 GEAR AIR PRESSURE 1 $66.45 USD View product →
2 77200-AGA8-E00-T01 SEAT ASSY (REACH) 1 $420.09 USD View product →
3 77205-2F86-001 RUBBER B SEAT SETTING 5 $8.28 USD View product →
4 77301-ALC1-E00 LOCK COMP SEAT 1 $81.39 USD View product →
5 77304-LDB5-E00 STAY HOOK 1 $4.92 USD View product →
6 77305-LDB5-E00 SPRING HOOK BAR 1 $9.39 USD View product →
7 89010-LFE9-E00 TOOL SET 1 $138.93 USD View product →
8 89020-KKC4-900 BAND TOOL SET 1 $3.00 USD View product →
9 93890-LDB5-E00 BOLT M4 1 $4.92 USD View product →

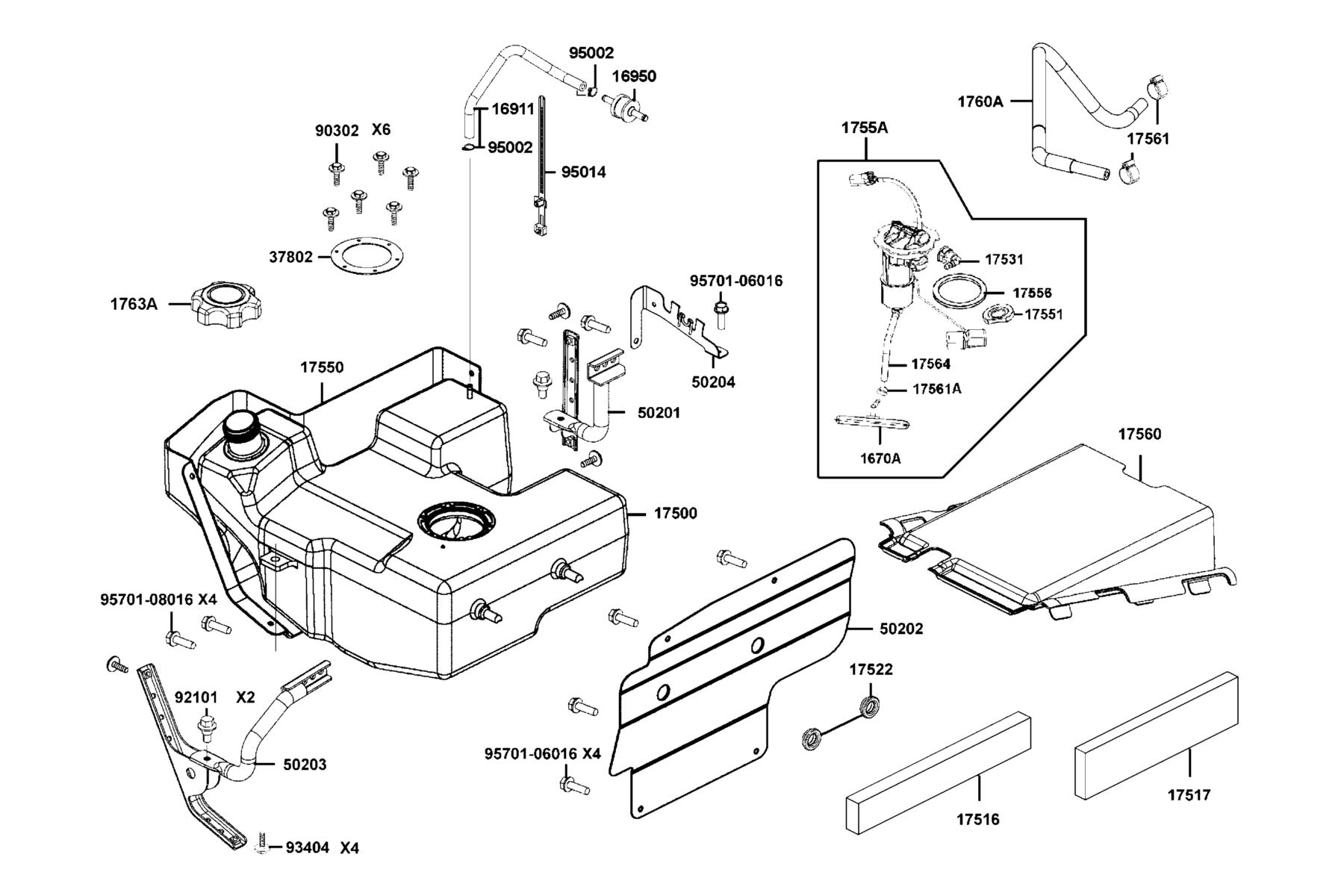

F10 — Fuel Tank

#PartNameQtyPrice
1 16703-AGA8-M01 FUEL FILTER ASSY 1 $50.58 USD View product →
2 1670A-PTA1-800 FUEL FILTER 1 $63.33 USD View product →
3 16911-AGA8-M00 HOSE ASSY BREATHER 1 $37.56 USD View product →
4 16950-PRA9-920 VALVE CHECK 1 $50.10 USD View product →
5 17500-AGA8-M00 TANK, FUEL 1 $508.32 USD View product →
6 17516-AGA8-E00 SPONGE FUEL TANK 1 $36.51 USD View product →
7 17517-AGA8-E00 SPONGE FUEL TANK 1 $14.73 USD View product →
8 17522-PWB1-900 GROMMET FUEL TANK 1 $5.31 USD View product →
9 17531-LGC7-E01 CONNECTOR FUEL PUMP-90 DEGREE 1 $52.50 USD View product →
10 17550-AGA8-M00-N1R PROTECTOR COVER FUEL TANK (Black) 1 $65.58 USD View product →
11 17551-PTA1-800 PUMP REGULATOR STAY 1 $38.49 USD View product →
12 17556-AKB9-M00 PACKING PUMP 1 $69.15 USD View product →
13 17556-PTA1-800 FUEL PUMP SEAL 1 $36.24 USD View product →
14 1755A-AGA8-M01 FUEL PUMP ASSEMBLY 1 $600.58 USD View product →
15 17560-AGA8-E00-N1R SHIELD.HEAT (Black) 1 $61.77 USD View product →
16 17561-LGE5-E00 CLIP 13.5 2 $17.37 USD View product →
17 17561-LKB9-900 CLIP 12.5 1 $8.10 USD View product →
18 17564-AGA8-E00 TUBE FILTER 1 $57.90 USD View product →
19 1760A-AGA8-M00 TUBE ASSY FUEL TANK 1 $113.58 USD View product →
20 1763A-AGA8-E00 CAP ASSY???FUEL TANK 1 $32.97 USD View product →
21 37802-LGC3-E00 MOUNT FUEL PUMP 1 $25.65 USD View product →
22 39600-ACH6-900 REGULATOR FUEL 1 $72.54 USD View product →
23 50201-AGA8-E00 RR PIPE FUEL TANK 1 $44.04 USD View product →
24 50202-AGA8-E00 PLATE. FUEL TANK 1 $53.64 USD View product →
25 50203-AGA8-E00 FR. PIPE. FUEL TANK 1 $51.84 USD View product →
26 50204-AGA8-E00 BRKT CANISTER 1 $4.26 USD View product →
27 90302-GFY6-940 BOLT-WASH 5*16 6 $1.86 USD View product →
28 92101-PWB1-900 SCREW FUEL TANK 2 $15.45 USD View product →
29 93404-06016-06 BOLT WASHER 6*16 4 $7.89 USD View product →
30 95002-02100 CLIP B15 TUBE 3 $4.92 USD View product →
31 95014-PRB3-900 STRAP CABLE 1 $9.51 USD View product →
32 95701-06016-06 BOLT FLANGE 6X16 4 $1.65 USD View product →
33 95701-08016-06 BOLT FLANGE 8*16 4 $4.53 USD View product →

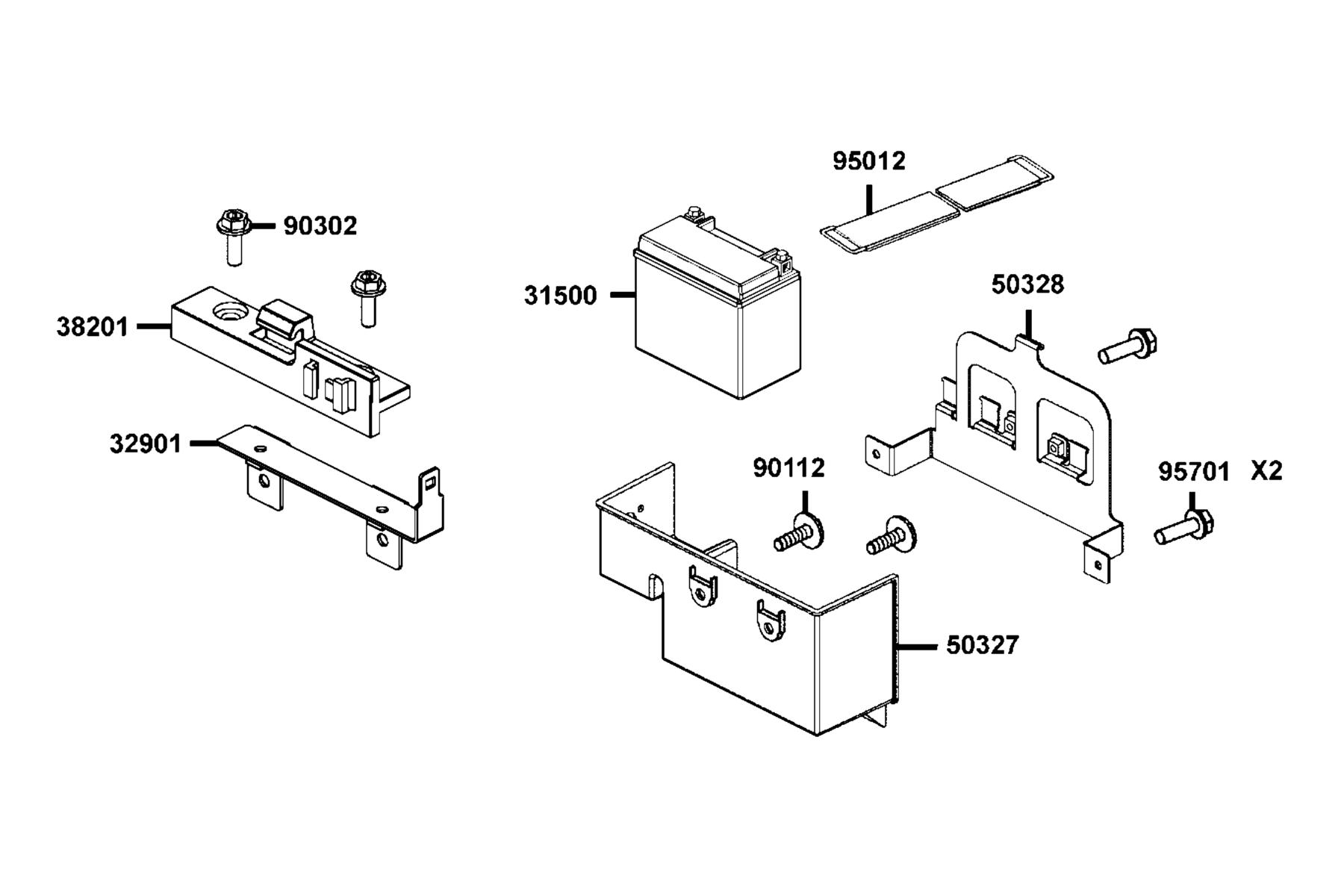

F11 — Battery

#PartNameQtyPrice
1 31500-LDB5-E0A BATTERY YTX20L-BS 1 $396.00 USD View product →
2 32901-AGA8-M00 STAY FUSE BOX 1 $12.78 USD View product →
3 38201-AGA8-M00 FIXED FUSE BOX 1 $6.24 USD View product →
4 50327-AGA8-M00 CASE. BATTERY 1 $20.10 USD View product →
5 50328-AGA8-M00 STAY BATTERY 1 $35.61 USD View product →
6 90112-KNBN-901 BOLT FLANGE 6MM 2 $3.78 USD View product →
7 90302-KEC8-900 BOLT PAN 5*9 2 $9.78 USD View product →
8 95012-KKA7-900 TOOL BAND 1 $22.47 USD View product →
9 95701-06012-06 BOLT FLANGE 6X12 2 $1.86 USD View product →

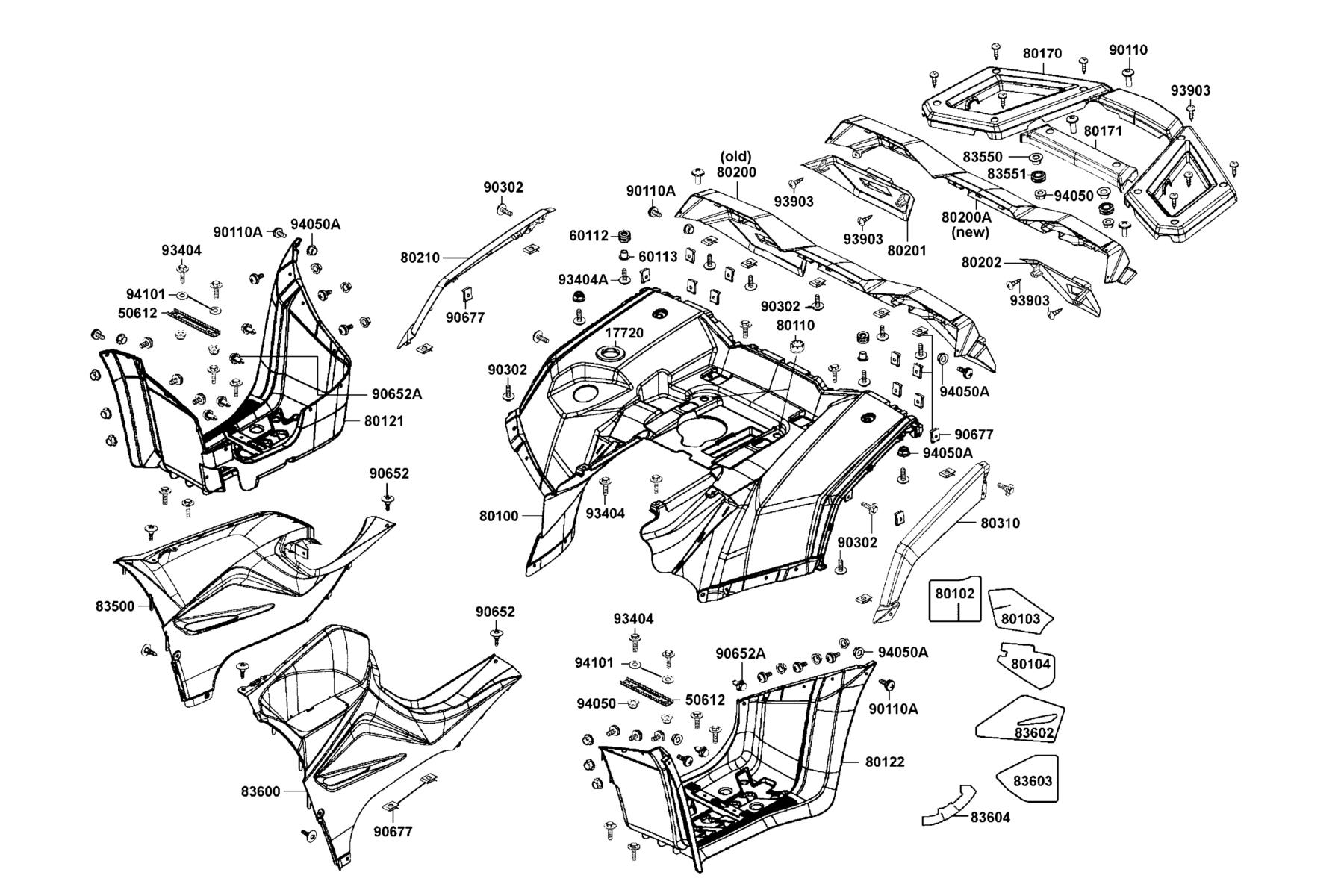

F12 — Fender Rear

#PartNameQtyPrice
1 17720-LBA7-900 TRAY TANK COVER 1 $17.07 USD View product →
2 50612-LDB5-E00 RNFCT FLOOR 2 $25.56 USD View product →
3 60112-PWB1-900 GROMMET 2 $4.29 USD View product →
4 60113-PWB1-900 SPACER STELL 2 $12.48 USD View product →
5 80100-AGA8-600-JJP FENDER REAR 1 $573.00 USD View product →
6 80102-AGA8-E00 SHIELD A.LH 1 $22.38 USD View product →
7 80103-AGA8-E00 SHIELD B.LH 1 $27.90 USD View product →
8 80104-AGA8-E00 SHIELD C.LH 1 $31.95 USD View product →
9 80110-LBA7-900 RUBBER REAR FENDER 2 $3.66 USD View product →
10 80121-ALC1-E00-N1R MUDGUARD R FLOOR (Black) 1 $109.95 USD View product →
11 80122-ALC1-E00-N1R MUDGUARD L FLOOR (Black) 1 $109.95 USD View product →
12 80170-AGA8-E00-N1R PANEL.REAR RACK (Black) 1 $118.89 USD View product →
13 80170-AGA8-E01-N1R PANEL.REAR RACK (Black) 1 $118.95 USD View product →
14 80171-AGA8-E00-N1R COVER,RR PANEL FR (Black) 1 $35.55 USD View product →
15 80200-AGA8-E00-N1R MUDGUARD REAR (Black) 1 $74.34 USD View product →
16 80200-AGA8-E01-N1R MUDGUARD REAR (Black) 1 $71.55 USD View product →
17 80201-AGA8-E00-N1R MUDGUARD REAR END R (Black) 1 — Part details →
18 80202-AGA8-E00-N1R MUDGUARD REAR END L (Black) 1 — Part details →
19 80210-AGA8-E00-N1R REAR MUDGUARD.RH SIDE (Black) 1 $25.68 USD View product →
20 80310-AGA8-E00-N1R REAR MUDGUARD.LH SIDE (Black) 1 $23.85 USD View product →
21 83500-AGA8-E00-N1R PANEL RH SIDE (Black) 1 $117.21 USD View product →
22 83550-KEC8-900 COLLAR 2 $10.35 USD View product →
23 83551-KEC8-900 GROMMET COVER 2 $6.09 USD View product →
24 83600-AGA8-E00-N1R PANEL.LH SIDE ( BLACK ) (Black) 1 $157.20 USD View product →
25 83602-AGA8-E00 SHIELD E.LH 1 $34.35 USD View product →
26 83603-AGA8-E00 SHIELD F LH 1 $13.56 USD View product →
27 83604-AGA8-E00 SHIELD G LH 1 — Part details →
28 90110-KED9-900 SCREW PAN 6*18 2 $5.34 USD View product →
29 90110-PWB1-900 SCREW SPECIAL 6X20 20 $7.17 USD View product →
30 90302-PWA1-900 BOLT-WASH 5*16 14 $4.92 USD View product →
31 90652-LCA4-E00 CLIP MUDGUARD 6 $4.92 USD View product →
32 90652-LDB5-900 CLIP MUDGUARD 6 $5.31 USD View product →
33 90677-GAR1-004 NUT CLIP 5MM 29 $3.00 USD View product →
34 93404-06016-06 BOLT WASHER 6*16 16 $7.89 USD View product →
35 93404-06025-06 BOLT WASHER 6*25 2 $4.17 USD View product →
36 93903-35360 SCREW TAPPING 5*16 8 $3.78 USD View product →
37 94050-06080 NUT FLANGE 6MM 8 $2.31 USD View product →
38 94050-LDE9-E00 NUT LOCK 20 $2.61 USD View product →
39 94101-06800 WASHER PLAIN 6MM 4 $4.92 USD View product →

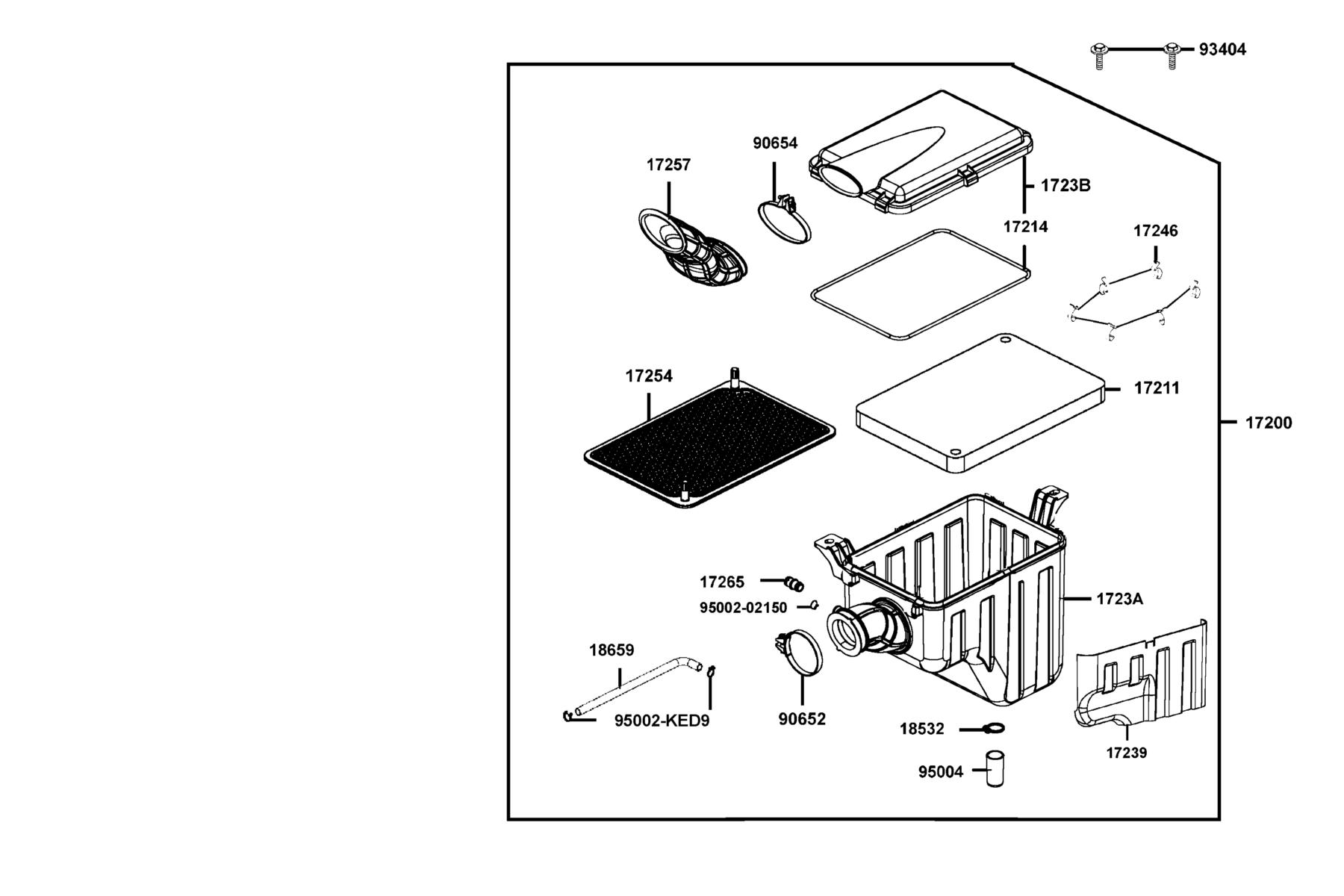

F13 — Air Cleaner

#PartNameQtyPrice
1 17200-AGA8-M01 AIR/C ASSY 1 $396.27 USD View product →
2 17211-LKM5-E00 ELEMENT COMP AIR/C 1 $126.15 USD View product →
3 17214-LDB5-E00 SEAL AIR/C CASE 1 $27.12 USD View product →
4 17239-AGA8-E00 SHIELD AIR/C 1 $33.69 USD View product →
5 1723A-LKM5-E00 CASE ASSY AIR/C 1 $194.22 USD View product →
6 1723B-LKM5-E00 COVER COMP.. AIR/C 1 $170.40 USD View product →
7 17246-LBA7-900 CLAMP AIR/C 6 $16.14 USD View product →
8 17254-LKM5-E00 PUNCHING PLATE 1 $120.45 USD View product →
9 17257-ALC1-E00 DUCT AIR/C CHAMBER 1 $87.00 USD View product →
10 17265-LBA7-900 JOINT BLOW BY 1 $9.39 USD View product →
11 18532-6D34-671 CLIP AIR HOSE 21.5 1 $4.53 USD View product →
12 18659-LKM5-E00 TUBE. BREATHER 1 $48.39 USD View product →
13 90652-LDG7-900 C-HOPE 50~70 1 $32.10 USD View product →
14 90654-LDB5-E00 CLAMP ELLIPSE 1 $23.40 USD View product →
15 93404-06012-06 BOLT WASHER 6X12 2 $2.61 USD View product →
16 95002-02150 CLIP B14.5 TUBE 1 $4.92 USD View product →
17 95002-KED9-M30 CLAMP D14.8 TUBE 4 $10.50 USD View product →
18 95004-LBA7-900 TUBE DRAIN 1 $16.41 USD View product →

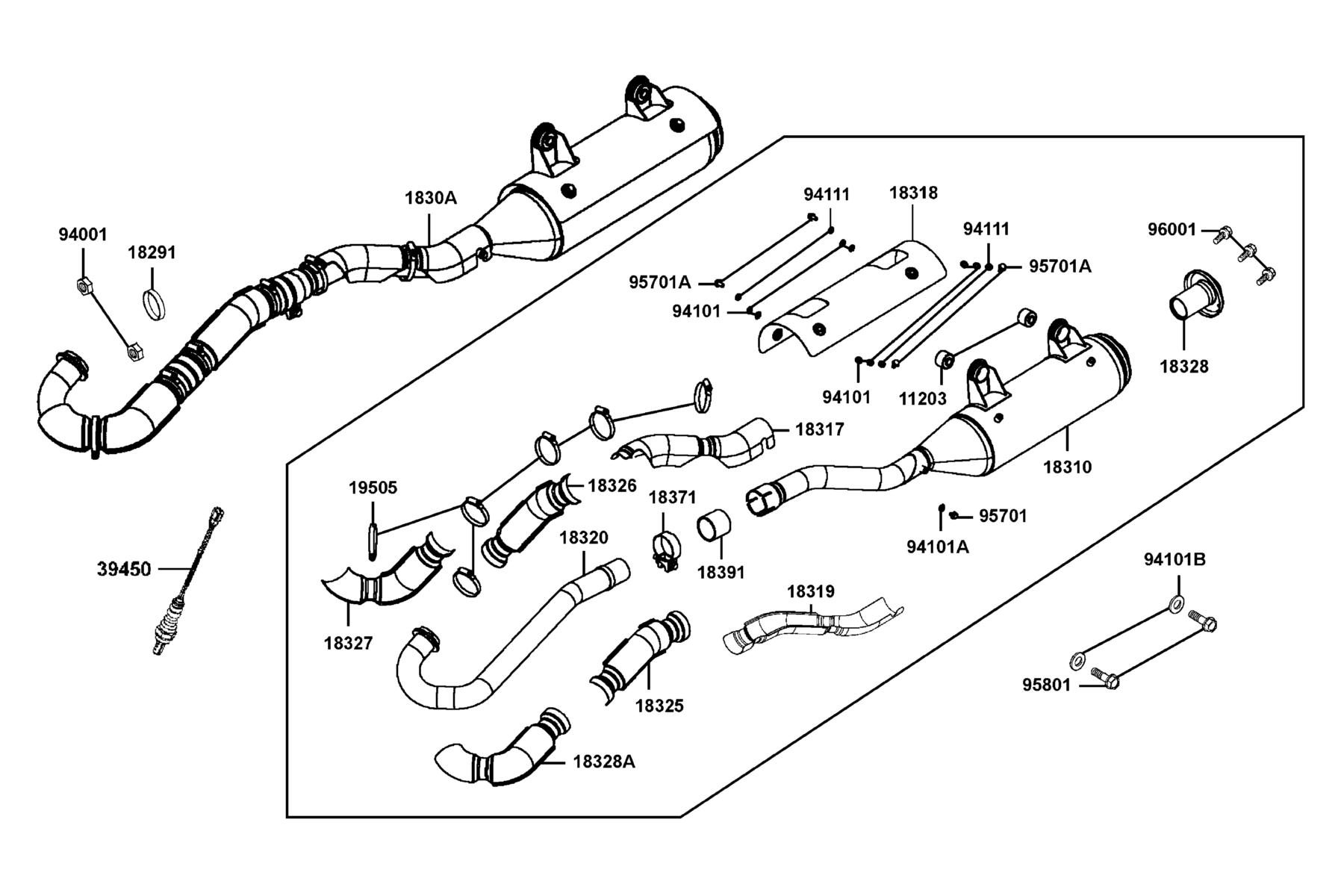

F14 — Exhaust Muffler

#PartNameQtyPrice
1 11203-LDB5-E00 BUSH MUFFLER STAY 2 $34.92 USD View product →
2 18291-BBC2-E00 GASKET EXH PIPE 1 $10.71 USD View product →
3 1830A-AGA8-M00 MUFFLER ASSY. EXH. 1 $774.60 USD View product →
4 18310-LKM5-M30 MUFFLER COMP 1 $736.82 USD View product →
5 18317-AGA8-E00 PROTECTOR A COMP. MUFFLER 1 $51.63 USD View product →
6 18318-ALC1-E00 PROTECTOR MUFFLER 1 $116.13 USD View product →
7 18319-AGA8-E00 PROTECTOR C COMP. MUFFLER 1 $51.63 USD View product →
8 18320-AEC8-E00 PIPE COMP EXHAUST 1 $272.28 USD View product →
9 18325-AGA8-E00 PROTECTOR EXH. PIPE 1 $49.44 USD View product →
10 18326-AGA8-E00 PROTECTOR B EXH PIPE 1 $57.03 USD View product →
11 18327-AGA8-E00 PROTECTOR C EXH. PIPE 1 $66.60 USD View product →
12 18328-AGA8-E00 PROTECTOR D EXH. PIPE 1 $53.79 USD View product →
13 18328-LDB5-E00 SPARK ARRESTOR 1 $127.59 USD View product →
14 18371-LKM5-E00 BAND MUFFLER 1 $91.08 USD View product →
15 18391-LKM5-E00 PACKING MUFFLER 1 $43.17 USD View product →
16 19505-LEA2-900 CLIP HOSE 6 $22.86 USD View product →
17 39450-ZVA6-M00 O2 SENSOR 1 $322.38 USD View product →
18 94001-08080-0S NUT HEX 8MM 2 $1.86 USD View product →
19 94101-06200 WASHER PLAIN 6MM 8 $4.92 USD View product →
20 94101-06700 WASHER PLAIN 6MM 1 $4.92 USD View product →
21 94101-LBA2-E00 WASHER PLATE 10.5*38*3.0 2 $5.67 USD View product →
22 94111-06800 WASHER SPRING 6MM 4 $4.92 USD View product →
23 95701-06008-06 BOLT FLANGE 6X8 1 $4.92 USD View product →
24 95701-06012-06 BOLT FLANGE 6X12 4 $1.86 USD View product →
25 95801-10040-06 BOLT FLANGE 10X40 1 $21.60 USD View product →
26 96001-06012-06 BOLT FLANGE SH 6*12 1 $1.95 USD View product →

F15 — Master Cylinder Rear

#PartNameQtyPrice
1 2450A-LKM5-E00 OPP SHIFT ASSY 1 $139.17 USD View product →
2 24700-LKM5-E00 STAY SHIFT GUIDE 1 $27.39 USD View product →
3 24702-ALC1-E00 BAR SHIFT LEVER 1 $86.16 USD View product →
4 24703-LDB5-E00 BOLT SHIFT LEVER 1 $13.95 USD View product →
5 24704-LDB5-E00 SPRING SHIFT LEVER 1 $33.66 USD View product →
6 24705-LKM5-E00 COVER SHIFT LEVER GUIDE 14 $39.24 USD View product →
7 24706-LDB5-E00 COLLAR SHIFT LEVER 2 $16.14 USD View product →
8 24707-LDB5-E00 BRKT SHIFT LEVER 1 $34.92 USD View product →
9 24710-LKM5-E00 STAY SHIFTER 1 $138.09 USD View product →
10 24711-LKM5-E00 STAY UPPER SHIFT GUIDE 1 $53.34 USD View product →
11 24720-LEE8-E00 ROD ASSY SHIFT 1 $125.22 USD View product →
12 24720-LKM5-E00 ROD ASSY SHIFT 1 $169.59 USD View product →
13 24721-LEE8-E00 ROD SHIFT 1 $148.02 USD View product →
14 24721-LKM5-E00 ROD SHIFT 1 $42.54 USD View product →
15 2478A-ALC1-E00 KNOB SHIFTER ASSY 1 $46.86 USD View product →
16 35350-PWA2-900 REAR STOP SW 1 $68.55 USD View product →
17 35357-LDB5-E00 SPG STOP SW 1 $4.53 USD View product →
18 43500-LFE9-E01 MASTER CYLINDER ASSY FOOT 1 $311.61 USD View product →
19 43514-4E45-77A CLAMP M/C OIL HOSE 2 $4.53 USD View product →
20 46182-5L00-014 CIR CLIP 1 $10.14 USD View product →
21 46500-LFE9-E00 PEDAL COMP RR BRAKE 1 $100.02 USD View product →
22 46501-LFE9-E00 BRKT BRAKE PEDAL 1 $64.38 USD View product →
23 46502-LDB5-E00 ROD RR BRK 1 $39.99 USD View product →
24 46503-KCW3-001 PIN COMP BRK ROD 2 $16.14 USD View product →
25 46503-LDB5-E00 BRKT RR M/C 1 $39.99 USD View product →
26 46514-LDB5-E00 SPG BRK ARM 1 $8.28 USD View product →
27 47215-KHD6-900 OIL CUP 1 $24.96 USD View product →
28 47216-LFE9-900 HOSE 1 $49.02 USD View product →
29 50713-LDB5-E00 SPRING 1 $4.53 USD View product →
30 53702-LBA7-900 JOINT R BALL 1 $65.70 USD View product →
31 53703-LBA7-900 JOINT L BALL 1 $65.70 USD View product →
32 86302-ALC1-E00-T01 EMB GEAR REVEAL CHANGE 1 $39.39 USD View product →
33 90114-1F66-007 BOLT HANDLE LEVER 1 $4.92 USD View product →
34 90302-GBR2-001 BOLT-WASH 5x16 1 $3.99 USD View product →
35 90302-LLB1-E00 BOLT-WASH 5X12 1 $2.61 USD View product →
36 90501-3L10-001 WASH 7*12 2 $4.92 USD View product →
37 90652-PWB1-900 X'MAS TREE CLIP 1 $5.31 USD View product →
38 91212-4B22-007 O-RING 14.8*2.4 1 $14.73 USD View product →
39 93404-06012-06 BOLT WASHER 6X12 1 $2.61 USD View product →
40 93893-04012-17 SCREW WASHER 4*12 2 $1.65 USD View product →
41 94001-08080-0S NUT HEX 8MM 1 $1.86 USD View product →
42 94001-LBA7-900 NUT HEX LH 8MM 1 $3.78 USD View product →
43 94050-06060 NUT FLANGE 6MM 1 $4.92 USD View product →
44 94050-08080 NUT FLANGE 8MM 8 $4.92 USD View product →
45 94102-14800 WASHER PLAIN 14MM 1 $4.53 USD View product →
46 94102-LDB5-E00 WASHER PLAIN 14MM 2 $4.53 USD View product →
47 94103-06800 WASHER PLAIN 6MM 1 $4.92 USD View product →
48 94111-08800 WASHER SPG 8MM 2 $4.92 USD View product →
49 94201-20120 PIN SPLIT 2*12 2 $4.92 USD View product →
50 94201-25300 PIN SPLIT 2.5*30 1 $1.86 USD View product →
51 95701-06016-06 BOLT FLANGE 6X16 2 $1.65 USD View product →
52 95701-08020-06 BOLT FLANGE 8*20 1 $3.78 USD View product →
53 95701-LDB5-E00 BOLT FLANGE 6*16 1 $3.93 USD View product →
54 95801-08028-06 BOLT FLANGE 8*28 2 $4.53 USD View product →
55 96211-08000 BALL STEEL 8 1 $1.83 USD View product →

F16 — Cushion Assy Rr●Control Arm Assy Rr

#PartNameQtyPrice
1 43100-LFA5-E00-NJA CALIPER ASSY REAR (Silver) 1 $97.14 USD View product →
2 43110-LFA5-E00 BRACKET CAILPER 1 $46.86 USD View product →
3 43140-LEC1-E00 ARM BRAKE 1 $21.60 USD View product →
4 43143-LEC1-E00 BOLT DRIVE 1 $4.05 USD View product →
5 43146-LEC1-E00 BRACKET CABLE 1 $3.12 USD View product →
6 43147-LEC1-E00 CAP 1 $0.93 USD View product →
7 43200-LFA5-E00-NJA CALIPER ASSY,REAR LH PARKING B (Silver) 1 $347.91 USD View product →
8 43210-LFA5-E00 BRACKET CALIPER 1 $53.79 USD View product →
9 43240-LFA5-E00 ARM BRAKE 1 $3.75 USD View product →
10 43243-LFA5-E00 BOLT DRIVE 1 $3.27 USD View product →
11 43246-LFA5-E00 BRACKET CABLE 1 $61.56 USD View product →
12 45105-LFA5-305 PAD ASSY 1 $61.56 USD View product →
13 45107-LEC1-E00 PISTON C/P (??25.4MM) 1 $16.77 USD View product →
14 45109-LEC1-E00 SEAL DUST 1 $0.63 USD View product →
15 45109-LFA5-E00 SEAL DUST 1 $5.22 USD View product →
16 45116-LEC1-E00 CLIP 2 — Part details →
17 45117-LEC1-E00 WASHER 1 $3.27 USD View product →
18 45133-LEC1-E00 BOOT 4 $6.24 USD View product →
19 45203-LEC1-E00 PIN HANGER 1 $7.53 USD View product →
20 45232-LEC1-E00 PIN BOLT 2 $15.84 USD View product →
21 45531-LEC1-E00 PLUG 1 $1.95 USD View product →
22 47450-PWB1-900 KNUCKLE REAR ASSEMBLY RH 1 $301.50 USD View product →
23 47452-PWB1-900 BUSHING RR SUSPENSION 8 $36.66 USD View product →
24 47453-PWB1-900 COLLAR SUSPENSION 4 $50.07 USD View product →
25 47550-PWB1-E00 KNUCKLE REAR ASSEMBLY LH 1 $324.90 USD View product →
26 52103-PWB1-900 SLEEVE SUSPENSION 2 $38.85 USD View product →
27 52104-PWB1-900 SLEEVE SUSPENSION 4 $22.98 USD View product →
28 52108-PWB1-900 BUSHING SUSPENSION 12 $11.31 USD View product →
29 52144-PWB1-900 SEAL SUSPENSION 12 $12.09 USD View product →
30 52400-LKM5-E00-N8S CUSHION ASSY RR 1 $329.88 USD View product →
31 54400-AEC8-E00-N8S CONTROL ARM ASSY UPPER R 1 $136.86 USD View product →
32 54450-ALC1-E01-N8S CONTROL ARM ASSY LOWER R 1 $176.64 USD View product →
33 54500-AEC8-E00-N8S CONTROL ARM ASSY UPPER L 1 $136.86 USD View product →
34 54550-ALC1-E01-N8S CONTROL ARM ASSY LOWER L 1 $171.69 USD View product →
35 54600-LFE9-E00 BAR STABILIZER 1 $204.90 USD View product →
36 54601-LFE9-E00 BUSH STABILIZER 2 $32.76 USD View product →
37 54602-LFE9-E00 HOLDER STABILIZER 2 $27.39 USD View product →
38 54610-LFE9-E00 JOINT STABILIZER RH 1 $117.00 USD View product →
39 54620-LFE9-E00 STABILIZER JOINT LH 1 $117.00 USD View product →
40 90131-LFA5-E00 BOLT FLANGE 8X22 4 $5.07 USD View product →
41 90304-GLW0-90A NUT U FLANGE 10MM 18 $9.39 USD View product →
42 93600-LEC1-E00 SCREW FLAT 6MM 2 $3.27 USD View product →
43 94301-08060 NUT HEC 8MM 1 $5.22 USD View product →
44 94520-55000 CIR CLIP IN 55 2 $13.95 USD View product →
45 95701-08016-06 BOLT FLANGE 8*16 4 $4.53 USD View product →
46 95701-LEC1-E00 BOLT ADJUST 1 $9.51 USD View product →
47 95801-10040-06 BOLT FLANGE 10X40 1 $21.60 USD View product →
48 95801-10065-06 BOLT FLANGE 10*65 1 $7.02 USD View product →
49 95801-10085-06 BOLT FLANGE 10*85 4 $19.59 USD View product →
50 95801-10095-06 BOLT FLANGE 10*95 4 $13.17 USD View product →
51 95802-PWB1-900 SCREW CAP-HFH M10X1.25X180 2 $43.56 USD View product →
52 96151-PWB1-900 BEARING WHEEL 2 $160.56 USD View product →

F17 — Winker

#PartNameQtyPrice
1 33400-AFF7-E00 WINKER ASSY R FR 1 $110.64 USD View product →
2 33409-AGA8-E00 STAY WINKER 2 $8.49 USD View product →
3 33450-AFF7-E00 WINKER ASSY L FR 1 $139.26 USD View product →
4 90656-KCBC-900 BAND OIL HANDLE 8X146 2 $3.93 USD View product →
5 90656-KUDU-900-N1R BAND HARNESS WIRE (Black) 2 $4.92 USD View product →
6 93903-35360 SCREW TAPPING 5*16 4 $3.78 USD View product →
7 94050-05060 NUT FLANGE 5MM 2 $4.92 USD View product →

F18 — Light Tail

#PartNameQtyPrice
1 044.698 BULB POSITION LIGHT 12V5W 1 $4.11 USD View product →
2 33700-LFA5-E02 LIGHT ASSY R RR COMB 1 $136.32 USD View product →
3 33701-LFA5-E02 UNIT TAIL LIGHT R 1 $117.51 USD View product →
4 33706-GCN3-67A COVER LICENSE 1 $7.17 USD View product →
5 33709-KBAB-003 PACKING LICENSE 1 $5.67 USD View product →
6 33710-LFA5-E00 SOCKEY COMP R RR COMB 1 $114.48 USD View product →
7 33715-LFA5-E00 SOCKEY COMP L RR COMB 1 $114.48 USD View product →
8 33720-ADB9-E00 LIGHT ASS'Y LICENSE 1 $36.78 USD View product →
9 33725-KHB4-E00 LENS LICENSE 1 $4.92 USD View product →
10 33726-LCA5-E00 SOCKET COMP 1 $9.51 USD View product →
11 33731-PUA6-MX0 REFLEX REFLECTOR 2 $19.26 USD View product →
12 33738-AGA8-E00 STAY REFLECTOR FR SIDE 2 $12.12 USD View product →
13 33739-AGA8-E00 STAY REFLECTOR RR SIDE 2 $12.78 USD View product →
14 33741-KHC5-M00 REFLEX REFLECTOR 1 $21.06 USD View product →
15 33750-LFA5-E02 LIGHT ASSY L RR COMB 1 $136.32 USD View product →
16 33751-LFA5-E02 UNIT TAIL LIGHT L 1 $117.51 USD View product →
17 33761-PUA6-MX0 REFLEX REFLECTOR, 2 $38.76 USD View product →
18 34905-LBA7-E00 BULB WINKER 12V10W 1 $22.71 USD View product →
19 34906-KPCP-900 BULB TAIL & STOP 2 $8.76 USD View product →
20 34906-KPCP-900-invalid BULB TAIL & STOP 2 $11.40 USD View product →
21 44.698 BULB POSITION LIGHT 12V5W 1 $4.11 USD View product →
22 90302-PWA1-900 BOLT-WASH 5*16 12 $4.92 USD View product →
23 91508-KGV7-67A SCREW TAPPING 4*14 2 $3.00 USD View product →
24 93903-34360 SCREW TAPPING 4X12 2 $4.29 USD View product →
25 94050-05060 NUT FLANGE 5MM 9 $4.92 USD View product →
26 94591-KFBF-900 CLIP 2*70 2 $3.78 USD View product →

F19 — Harness Wire

#PartNameQtyPrice
1 30519-AGA8-M00 STAY CABLE COIL 1 $11.70 USD View product →
2 3051A-ZVA6-M00 COIL ASSY IGNITION 1 $123.51 USD View product →
3 30700-PTA1-800 CAP ASSY NOISE SUPPRESOR 1 $68.25 USD View product →
4 31300-AAJ5-E00 MOTOR ASSY EPS 1 $593.61 USD View product →
5 31600-LKM5-E00 REG RECT COMP 1 $381.72 USD View product →
6 31700-KEC8-E00 RECTIFIER COMP DIODE 1 $42.72 USD View product →
7 3195A-LBA7-E00 HAZARD CONTROL ASSY 1 $103.02 USD View product →
8 32100-AGA9-M00 HARNESS WIRE 1 $709.32 USD View product →
9 32101-LLB1-MX0 SUB CORD 1 $8.49 USD View product →
10 35010-AGA7-E00 KEY SET 1 $137.16 USD View product →
11 35100-ALC1-306 SW ASSY COMB 1 $114.30 USD View product →
12 35380-LEA2-900 SENSOR ANGLE DETECT 1 $193.92 USD View product →
13 35850-LDB5-E00 SET START MAG 1 $99.51 USD View product →
14 35859-AGA8-M00 STAY MAG STARTER 1 $29.49 USD View product →
15 36000-AAJ5-E01 ELEC CONTROL ASS'Y EPS 1 $623.04 USD View product →
16 38110-LDB5-E00 HORN COMP 1 $62.85 USD View product →
17 38200-KHE7-900 BOX COMP FUSE 1 $19.65 USD View product →
18 38300-LFB6-700 RELAY ASSY.. WINKER 1 $124.50 USD View product →
19 38500-LGL3-90A RELAY ASSY LIGHT/D402(12V 20A) 2 $93.66 USD View product →
20 38501-LGL3-90E RELAY COMP LIGHT 8 $87.48 USD View product →
21 38506-LFB6-900 CUSHION.RELAY 2 $19.92 USD View product →
22 38900-ACD5-E00 CONTROLLER USB CHARGER 1 $112.29 USD View product →
23 39100-LBA7-E00 EMI FILTER FAN MOTOR 1 $88.74 USD View product →
24 3920A-LKM5-M35 MODULE ASSY ECU 1 $463.56 USD View product →
25 53600-AGA7-305 LOCK STEERING HANDLE 1 $58.74 USD View product →
26 77232-AGA7-305 LOCK ASS'Y INNER BOX 1 $44.04 USD View product →
27 90164-0H28-900 SCREW FLAT U LOCK 6*12 2 $4.92 USD View product →
28 91507-LKE6-900 CLIP 1 $11.79 USD View product →
29 93401-04025-06 BOLT WASHER 4*25 2 $13.95 USD View product →
30 93404-06020-06 BOLT WASHER 6X20 4 $3.00 USD View product →
31 93894-04022-06 SCREW WASHER 4X22 2 $11.46 USD View product →
32 94050-06060 NUT FLANGE 6MM 2 $4.92 USD View product →
33 94050-06080 NUT FLANGE 6MM 2 $2.31 USD View product →
34 94591-LBE1-900 CLIP 2*71 1 $3.27 USD View product →
35 95701-06012-06 BOLT FLANGE 6X12 1 $1.86 USD View product →
36 95701-06016-06 BOLT FLANGE 6X16 3 $1.65 USD View product →
37 95701-06025-06 BOLT FLANGE 6*25 2 $1.95 USD View product →
38 95701-06035-06 BOLT FLANGE 6X35 2 $6.24 USD View product →
39 95701-08025-06 BOLT FLANGE 8*25 2 $5.31 USD View product →
40 98200-31000 BLADE FUSE 10A 1 $4.92 USD View product →
41 98200-31500 BLADE FUSE 15A 5 $4.92 USD View product →
42 98200-33000 BLADE FUSE 30A 1 $4.92 USD View product →
43 98200-34000 BLADE FUSE 40A 1 $24.99 USD View product →

F20 — Frame Body

#PartNameQtyPrice
1 19505-KED9-900 CLAMP WATER HOSE 1 $11.31 USD View product →
2 19505-LBA2-E00 CLAMP WATER HOSE 1 $15.06 USD View product →
3 50100-AGA9-M00 BODY COMP FRAME 1 $934.14 USD View product →
4 50200-AAJ5-E00 STAY??? LOCK 1 $28.59 USD View product →
5 50204-LKM5-M00 HEAT PROTECTOR STAY 1 — Part details →
6 50218-LKM5-E00 STAY ELE SET 1 $75.09 USD View product →
7 50227-LKA8-E00 STAY. ECU 1 $35.85 USD View product →
8 50330-LEA7-E00 SPONGE BATTERY COVER 1 $1.95 USD View product →
9 50614-ALC1-E00 STAY R FLOOR PANEL 1 $176.76 USD View product →
10 50615-ALC1-E00 STAY L FLOOR PANEL 1 $176.76 USD View product →
11 77330-AGA8-E00 CARRIER RR RACK 1 $284.70 USD View product →
12 77335-AGA8-E00 SUPPORT PIPE RR RACK 1 $79.02 USD View product →
13 77430-AGA8-E00 CARRIER FR RACK 1 $196.56 USD View product →
14 85100-AGA8-E00 PIPE COMP FR. BUMPER 1 $267.06 USD View product →
15 85100-AGA8-Y01-MFS PIPE COMP FR. BUMPER 1 $402.72 USD View product →
16 85200-AGA8-E00 SUPPORT PIPE COMP RACK 1 $175.95 USD View product →
17 85501-AGA8-E00 R SUPPORT BAR BUMPER 1 $63.39 USD View product →
18 85502-AGA8-E00 L SUPPORT BAR BUMPER 1 $63.39 USD View product →
19 90304-GLW0-90A NUT U FLANGE 10MM 7 $9.39 USD View product →
20 94050-06080 NUT FLANGE 6MM 2 $2.31 USD View product →
21 94050-08080 NUT FLANGE 8MM 4 $4.92 USD View product →
22 95701-08016-06 BOLT FLANGE 8*16 20 $4.53 USD View product →
23 95701-08025-06 BOLT FLANGE 8*25 4 $5.31 USD View product →
24 95701-KHC5-E00 BOLT TORQUE 8X20 1 $11.31 USD View product →
25 95701-KKA8-900 BOLT TORQUE 6X10 2 $17.82 USD View product →
26 95801-08050-06 BOLT FLANGE 8*50 4 $8.19 USD View product →
27 95801-08065-06 BOLT FLANGE 8*65 4 $6.75 USD View product →
28 95801-10090-06 BOLT FLANGE 10*90 1 $9.63 USD View product →
29 95801-10110-06 BOLT FLANGE 10*110 2 $16.38 USD View product →
30 95801-10195-06 BOLT FLANGE 10*195 2 $21.81 USD View product →

F21 — Radiator

#PartNameQtyPrice
1 11344-AGA8-E00 DUCT B L COVER 1 $108.60 USD View product →
2 11345-AGA8-E00 DUCT A L CASE 1 $89.82 USD View product →
3 11346-LKM5-E00 BAND 75X105 FRONT CVT TUBE 1 $30.33 USD View product →
4 19005-LEE8-E0A SHROUD ASSY 1 $266.49 USD View product →
5 19010-LKM5-E00 RADIATOR COMP 1 $439.59 USD View product →
6 19012-KHD8-900 UNIT RADIATOR 1 $54.18 USD View product →
7 19101-LFE9-E00 TANK RESERVE 1 $56.67 USD View product →
8 19102-LKM5-E00 DUCT COOLING AIR 1 $105.66 USD View product →
9 19103-LKM5-E00 GRID RADIATOR 1 $121.53 USD View product →
10 19104-LDB5-E00 HOSE ASSY DRAIN 1 $16.14 USD View product →
11 19105-AGA8-E00 HOSE ASSY.RESERVE TANK-PRESSURE VALVE 1 $18.57 USD View product →
12 19111-GBE2-004 CAP COMP 1 $47.31 USD View product →
13 19210-KKC4-900 CAP RESERVE TANK 1 $9.39 USD View product →
14 19505-LBA2-E00 CLAMP WATER HOSE 2 $15.06 USD View product →
15 19505-LKM5-E00 HOSE WATER F ENG-RADIATOR 1 $159.48 USD View product →
16 19506-AGA8-E00 WATER HOSE. RADIATOR-PRESSURE VALVE 1 $38.19 USD View product →
17 38914-AGA9-M00 POWER WIRE 1 $186.72 USD View product →
18 61344-AGA8-E00 CHAMBER L. COVER DUCT A 1 $39.09 USD View product →
19 61345-AGA8-E00-N1R CHAMBER L COVER DUCT B (Black) 1 $45.57 USD View product →
20 64317-AGA8-E00 BRKT RADIATOR UPPE 1 $55.83 USD View product →
21 64318-LKM5-E00 BRKT RADIATOR LOWER 1 $74.79 USD View product →
22 84703-LLB1-900 RUBBER TAIL LIGHT 2 $3.96 USD View product →
23 90652-LDB5-900 CLIP MUDGUARD 1 $5.31 USD View product →
24 90652-LDB5-E00 BAND 67 FRONT CVT DUCT 1 $14.04 USD View product →
25 90653-LDB5-E00 BAND 81 REAR CVT DUCT 1 $16.14 USD View product →
26 90653-LKM5-E00 BAND 1 $31.44 USD View product →
27 90914-AGA8-E00 TUBE ASSY WATER 1 $23.10 USD View product →
28 93404-06016-06 BOLT WASHER 6*16 15 $7.89 USD View product →
29 93903-KEB7-900 SCREW WASHER 4*12 6 $12.12 USD View product →
30 94050-06080 NUT FLANGE 6MM 4 $2.31 USD View product →
31 95002-02100 CLIP B15 TUBE 1 $4.92 USD View product →
32 95002-70000 CLIP C11 TUBE 2 $4.92 USD View product →
33 95002-KHE7-900 CLIP WATER HOSE 2 $9.39 USD View product →
34 95701-06012-06 BOLT FLANGE 6X12 1 $1.86 USD View product →
35 95701-08016-06 BOLT FLANGE 8*16 2 $4.53 USD View product →

F22 — Caution Label

#PartNameQtyPrice
1 81218-AFE6-E00-T01 SW BATTERY LABEL 1 $4.23 USD View product →
2 86182-ALC1-EVV-T01 SW LABEL 1 $9.06 USD View product →
3 87322-LBA7-E01-T01 CAUTION SHIFIT GEARS 1 $5.58 USD View product →
4 87505-ALD6-E01-T01 WARNING LABEL TIRE ON-ROAD 1 $22.92 USD View product →
5 87514-LFE9-M35-T01 CAUTION MAXIMUM CAPACITY 1 $19.26 USD View product →
6 87515-LFE9-E00-T01 WARNING GENERAL DECAL 1 $32.73 USD View product →
7 87517-LDB5-E00-T01 CAUTION DRIVE AGE 16 1 $20.28 USD View product →
8 87520-LDB5-M31-T01 CAUTION SHIFT HANGTAG 1 $7.26 USD View product →
9 87522-AGA8-M31-T01 USA EPA HANG TAG 1 $9.27 USD View product →
10 87522-PWB1-E00-T01 HANG TAG GENERAL USE 1 $30.12 USD View product →
11 87529-LFE9-M30-T01 WARNING DECAL DIFF LOCK 1 $32.46 USD View product →
12 87556-AGB8-E00-T01 WARNING LABEL TIRE-ON ROAD (52KG) 1 $6.87 USD View product →
13 87556-AGB8-E01-T01 WARNING LABEL TIRE-ON ROAD (95KG) 1 $6.87 USD View product →
14 87560-PWB1-M35-T01 WARNING DOUBLE RIDER 1 $12.12 USD View product →
15 87666-LEG2-M31-T01 SVIA CERTIFICATE LABEL 1 $5.19 USD View product →

F23 — Emblem●Stripe

#PartNameQtyPrice
1 86101-AGA9-M00-T01 STRIPE FR COVE 1 $10.92 USD View product →
2 86102-AGB8-E00-T01 STRIPE K-LOGO '46mm (PP) 1 $44.67 USD View product →
3 86201-AGA9-M00-T01 EMB FR COVER 1 $59.82 USD View product →
4 86524-AGA9-M30-T01 EMB R FENDER FR 1 — Part details →
5 86534-AGA9-M30-T01 EMB L FENDER FR 1 — Part details →
6 86624-AGA9-M30-T01 EMB R RR FENDER 1 $132.69 USD View product →
7 86634-AGA9-M30-T01 EMB L RR FENDER 1 $204.27 USD View product →

F24 — Separated Parts Of Fr Final Differential

#PartNameQtyPrice
1 39300-LKC3-500 ACTUATOR 1 $410.13 USD View product →
2 42400-LKA8-500 E-LOCK GEARCASE FRONT 3.6 1 $1321.02 USD View product →
3 42402-LFA5-900 PLUG FILL 1 $110.16 USD View product →
4 42403-PWB1-900 O-RING 20X2.5MM 1 $11.46 USD View product →
5 42404-LFA5-900 COLLAR LOCK M64X1.5 RH 1 $125.97 USD View product →
6 42407-LFA5-900 PIN DOWEL 1 $32.73 USD View product →
7 42408-LKC3-500 COUPLER DRIVE 1 $120.06 USD View product →
8 42409-LKC3-500 SHAFT E-LOCK SELECTOR 1 $89.34 USD View product →
9 42410-LFA5-900 PLUG DRAIN MAG 1 $75.12 USD View product →
10 42412-LFA5-900 TAG ID GEARCASE 1 $10.14 USD View product →
11 42413-LKC3-500 GASKET FLANGE 1 $39.81 USD View product →
12 42414-LKC3-500 SHAFT. SELECTOR 1 $30.12 USD View product →
13 42415-LKC3-500 FORK SELECTOR 1 $116.13 USD View product →
14 42416-LKC3-500 COLLAR ACTUATOR 1 $6.78 USD View product →
15 42419-LKC3-500 GASKET HOUSING 1 $26.37 USD View product →
16 42422-LFA5-900 RING RETAINING ONE 1 $28.35 USD View product →
17 42423-LFA5-900 RING RETAINING 1 $32.10 USD View product →
18 42425-LKA8-500 HOUSING GEARCASE-FRONT MACH 1 $475.26 USD View product →
19 42428-LKC3-500 BRACKET ACTUATOR-WELDMENT 1 $39.39 USD View product →
20 42430-LKC3-500 HOUSING???PINION-MACH 1 $112.56 USD View product →
21 42432-LEE8-810 E-LOCK.OPEN TYPE GEARCASE FRONT(3.6).ASSY 1 $549.09 USD View product →
22 42442-LKC3-500 PINION(10 TOOTH)-ASSEMBLY 1 $207.18 USD View product →
23 42448-LFA5-900 SEAL 38*55*14 1 $49.26 USD View product →
24 42449-LFA5-90B BEARING.BALL-DOUBLE ROW 1 $127.92 USD View product →
25 42451-LFA5-900 PLUG OIL LEVEL 1 $47.76 USD View product →
26 42453-LGC3-900 OIL SEAL 48*84*9 2 $87.45 USD View product →
27 42456-LKM8-510 SHAFT INPUT ASSEMBLY 1 $145.65 USD View product →
28 42460-LFA5-900 SHIM 41*49*1.0 1 $20.64 USD View product →
29 42460-LKC3-500 SPRING A E-LOCK 1 $4.92 USD View product →
30 42461-LFA5-900 SHIM 41*49*1.1 1 $20.64 USD View product →
31 42461-LKC3-500 SPRING B E-LOCK 1 $5.67 USD View product →
32 42462-LFA5-900 SHIM 41*49*1.2 1 $18.57 USD View product →
33 42462-LKC3-500 CAP E-LOCK 1 $7.17 USD View product →
34 42463-LFA5-900 SHIM 41*49*1.3 1 $20.64 USD View product →
35 42464-LFA5-900 SHIM 41*49*1.4 1 $20.64 USD View product →
36 42465-LFA5-900 SHIM 41*49*1.5 1 $20.64 USD View product →
37 42465-LKC3-500 SHAFT SELECTOR 1 $230.31 USD View product →
38 42466-LFA5-900 SHIM 41*49*1.6 1 $20.64 USD View product →
39 42466-LKC3-500 STAY..SELECTOR 1 $53.76 USD View product →
40 42467-LFA5-900 SHIM 41*49*1.7 1 $20.64 USD View product →
41 42472-LKC3-500 COVEFR LOCK ASSY 1 $524.25 USD View product →
42 42473-LKC3-500 SHAFT E-LOCK 1 $44.07 USD View product →
43 42475-LEE8-E00 SPRING 1 $1.95 USD View product →
44 42476-LEE8-E00 RING PETAINING 1 $0.99 USD View product →
45 42477-LEE8-E00 COLLAR SLDING LOCK 1 $38.49 USD View product →
46 42478-LEE8-E00 SPRING SHAFT 1 $0.30 USD View product →
47 42480-LKC3-500 FORK E-LOCK 1 $44.67 USD View product →
48 42483-LEE8-E00 PIN PARALLEL 1 $4.26 USD View product →
49 42488-LEE8-E00 BEARING BALL 1 $260.82 USD View product →
50 42491-LEE8-E00 BARB 90 1 $21.30 USD View product →
51 42492-LKC3-500 FLANGE BEARING MACH 1 $53.79 USD View product →
52 42494-LEE8-E00 SHIM 61*69*1.3mm 1 $25.89 USD View product →
53 42495-LEE8-E00 SHIM 61*69*1.4mm 1 $25.89 USD View product →
54 42496-LEE8-E00 SHIM 61*69*1.5mm 1 $25.89 USD View product →
55 42497-LEE8-E00 SHIM 61*69*1.6mm 1 $25.89 USD View product →
56 42498-LEE8-E00 SHIM 61*69*1.7 mm 1 $25.89 USD View product →
57 9008A-LKC3-500 CAP ASSY E-LOCK 1 $25.35 USD View product →
58 90110-LFA5-900 BOLT SPECIAL 6X12 3 $25.35 USD View product →
59 91301-LKC3-500 O-RING 14.8X1.9 1 $6.24 USD View product →
60 94510-05000 CIR CLIP EX5 1 $13.95 USD View product →
61 94510-12000 CIR CLIP EXTERNAL 12 1 $4.92 USD View product →
62 95701-08040-06 BOLT FLANGE 8X40 1 $9.06 USD View product →
63 96100-63050-00 BRG BALL RADIAL 6305 1 $49.86 USD View product →
64 96120-60080-00 BEARING BALL 6008Z 1 $130.89 USD View product →

F25 — Separated Parts Of CVJ

#PartNameQtyPrice
1 42200-AGA8-M00 HALF SHAFT REAR-RH 1 $562.17 USD View product →
2 42208-AGA8-305 WHEEL SIDE BOOT SERVICE KIT 1 $108.69 USD View product →
3 42209-ZWA2-305 DIFF SIDE BOOT SERVICE KIT 1 $162.42 USD View product →
4 42250-AGA8-M00 HALF SHAFT REAR-LH 1 $566.67 USD View product →
5 44200-AGA8-E00 HALF SHAFT FRONT-RH 1 $383.01 USD View product →
6 44208-ZXA6-305 WHEEL SIDE BOOT SERVICE KIT 1 $106.92 USD View product →
7 44209-ALC1-E00 BOOT BAND (L) 2 $35.37 USD View product →
8 44209-ZXA6-305 DIFF SIDE SERVICE KIT 1 $111.06 USD View product →
9 44211-ALC1-E00 BOOT BAND(S) 2 $30.03 USD View product →
10 44213-PWB1-900 CIRCLIP (DOJ MONTH) 2 $17.82 USD View product →
11 44214-PWB1-900 CIRCLIP 2 $16.68 USD View product →
12 44215-PWB1-900 SNAP RING 2 $37.14 USD View product →
13 44216-LEE8-E00 CIRCLIP DOJ STEM 1 $44.31 USD View product →
14 44216-PWB1-900 CIRCLIP (DOJ STEM) 1 $15.36 USD View product →
15 44250-AGA8-E00 HALF SHAFT FRONT-LH 1 $557.55 USD View product →

F26 — Key Comp

#PartNameQtyPrice
1 35111-KUDU-305-M2 KEY COMP (R TANGENT PLANE TJ) 1 $23.64 USD View product →
2 35111-KUDU-306-M2 KEY COMP(L TANGENT PLANE TJ) 1 $35.52 USD View product →
3 35111-LFA5-305-M2 KEY COMP (R TANGENT PLANE/TJ) 1 $49.02 USD View product →
4 35111-LFA5-306-M2 KEY COMP (L TANGENT PLANE/TJ) 1 $49.02 USD View product →

F27 — Separated Parts Of Fr Final Differential

#PartNameQtyPrice
1 12361-GFY6-901 HOLE CAP TAPPET ADJUSTING 1 $11.70 USD View product →
2 41300-AGA8-E00 GEAR ASSY RR FINAL 1 $693.26 USD View product →
3 41310-AGB8-E01 L SIDE CASE RR FINAL 1 $413.91 USD View product →
4 41320-LFE9-E00 R SIDE CASE RR FINAL 1 $186.12 USD View product →
5 41405-LEE8-E00 RING STOPPER 1 $17.82 USD View product →
6 41421-LEE8-E00 GEAR PINION 1 $179.76 USD View product →
7 41431-LEE8-E00 GEAR RING 2 $320.31 USD View product →
8 41435-LCD9-E00 JOINT BREATHER 1 $13.50 USD View product →
9 41436-LCD9-E00 PIN RING GEAR STOPPER 1 $17.13 USD View product →
10 41437-LCD9-E00 SHIM STOPPER PIN 1 $9.39 USD View product →
11 41447-LDB5-E00-A SHIM PINION GEAR A (2.035~2.065) 1 $16.38 USD View product →
12 41447-LDB5-E00-B SHIM PINION GEAR B (1.985~2.015) 1 $16.38 USD View product →
13 41447-LDB5-E00-C SHIM PINION GEAR C (1.935~1.965) 1 $16.38 USD View product →
14 41547-LEE8-E00 C-RING-R90 1 $32.76 USD View product →
15 41548-LEE8-E00-A SHIM RING GEAR (1.435~1.465) 2 $12.39 USD View product →
16 41548-LEE8-E00-B SHIM RING GEAR (1.485~1.515) 2 $12.39 USD View product →
17 41548-LEE8-E00-C SHIM RING GEAR (1.535~1.565) 2 $12.39 USD View product →
18 90242-LDB5-E00 NUT LOCK 74MM 1 $33.00 USD View product →
19 90474-3C33-001 WASHER 8MM 2 $2.85 USD View product →
20 91108-LEE8-E00 BRG NEEDLE 20*22*28 (HK2220) 1 $13.80 USD View product →
21 91251-LEE8-E00 OIL SEAL 38.5*80*10 1 $119.85 USD View product →
22 91261-LEE8-E00 OIL SEAL 48*92*10 1 $60.30 USD View product →
23 91271-LEE8-E00 OIL SEAL 48*68*10 1 $102.78 USD View product →
24 91302-001-0210 O-RING 30.8M/M 1 $6.72 USD View product →
25 95701-08012-08 BOLT FLANGE 8*12 2 $7.53 USD View product →
26 95701-08030-06 BOLT FLANGE 8*30 5 $8.49 USD View product →
27 95701-10035-08G BOLT FLANGE 2 $15.09 USD View product →
28 96100-60090-00 BRG RADIAL BALL 6009 1 $143.34 USD View product →
29 96100-62100-00 BEARING BALL RADIAL 6210 2 $158.16 USD View product →

F28 — Winch Assy

#PartNameQtyPrice
1 3890A-AGB8-E05 ASSY WINCH 1 $765.60 USD View product →
2 38910-LFE9-E05 WINCH COMP 1 $541.16 USD View product →
3 38911-ADG6-E00 ROCKER SWITCH CABLE 1 $173.97 USD View product →
4 38912-LFE9-E02 RELAY ASSY WINCH 1 $431.31 USD View product →
5 38913-LFE9-E02 ROLLER FAIRLEAD 1 $308.52 USD View product →
6 38914-AGA9-E00 POWER WIRE 1 $219.96 USD View product →
7 38916-LFE9-E05 HARDWARE WINCH 1 $54.66 USD View product →
8 38917-LFE9-E02 HOOK PART ACCESSORIES 1 $172.77 USD View product →
9 38918-LFE9-E05 CABLE WIRE 1 $203.85 USD View product →

F29 — Canister

#PartNameQtyPrice
1 15772-5L00-013 CLIP B14.5 TUBE 2 $4.92 USD View product →
2 17301-GFY6-940 RUBBER CANISTER MOUINT 2 $13.17 USD View product →
3 17307-AGA8-M00 HOSE ASSY???CANISTER - T JOINT 1 $139.14 USD View product →
4 17310-AGA8-M00 CANISTER COMP 1 $75.96 USD View product →
5 17686-AGA8-M00 HOSE ASSY???CANISTER - CHECK VALVE 1 $46.65 USD View product →
6 17688-AGA8-M00 TUBE ASSY.VACUUM 1 $41.16 USD View product →
7 90660-KNBN-921 CLAMP TUBE 1 $1.65 USD View product →
8 95002-02070 CLIP B7 TUBE 2 $1.86 USD View product →
9 95002-02080 CLIP B8 TUBE 1 $1.86 USD View product →
10 95002-50000 CLIP C9 TUBE 1 $1.86 USD View product →
