LIKE 150i ABS MY2026
- Model code
- TE30BB(US)
- Model year
- 2026
- Submodel
- Like 150i ABS
- Color
- Pearly Light Green (CG158PA)
- Diagrams
- 31
- Factory catalog
- download PDF

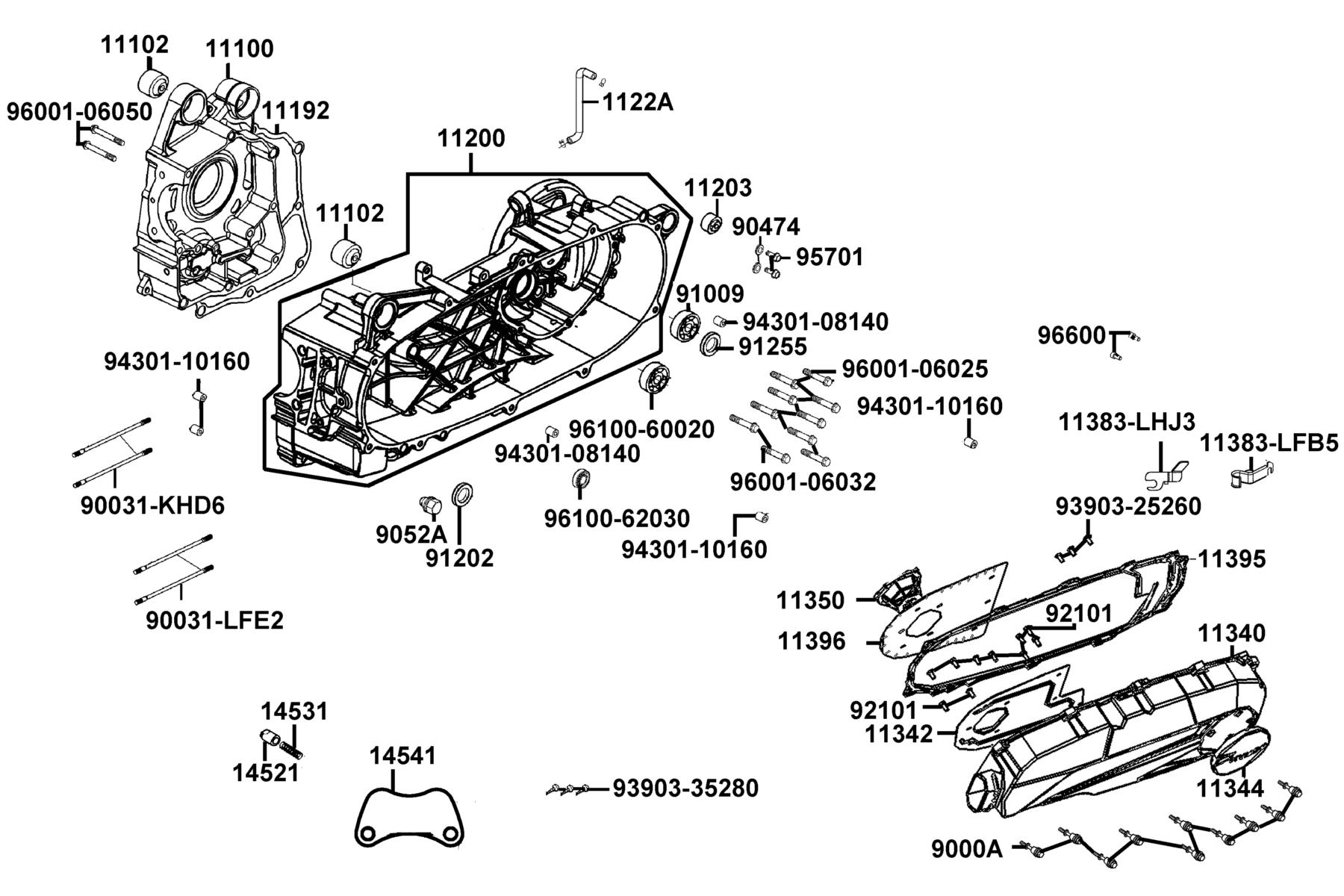

E01 — Crank Case
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 11100-AEA7-E10 | CRANK CASE COMP RIGHT | 1 | $253.95 USD | View product → |
| 2 | 11102-1G87-C00 | RUB BUSH ENG HANGER | 2 | $21.30 USD | View product → |
| 3 | 11192-LEB1-C00 | GASKET CRANK CASE @ A | 1 | $18.87 USD | View product → |
| 4 | 11200-LFB5-C00 | CRANK CASE COMP LEFT | 1 | $286.23 USD | View product → |
| 5 | 11203-GGC7-W10 | BUSH | 1 | $14.31 USD | View product → |
| 6 | 1122A-ACC1-E10 | TUBE ASSY MISSION BREATHER | 1 | $4.26 USD | View product → |
| 7 | 11340-ACC1-E10-N1A | COVER COMP L SIDE | 1 | $297.78 USD | View product → |
| 8 | 11342-ACC1-E10 | PLATE L SIDE | 1 | $17.37 USD | View product → |
| 9 | 11344-ACC1-E10-66P | COVER ASSESSORY | 1 | $58.26 USD | View product → |
| 10 | 11350-LFB5-C00 | "ELEMENT COMP., L COVER" | 1 | $26.76 USD | View product → |
| 11 | 11383-LFB5-C00 | CLAMP(C) | 1 | $7.53 USD | View product → |
| 12 | 11383-LHJ3-C00 | CLAMPER DRAIN TUBE | 1 | $5.58 USD | View product → |
| 13 | 11395-LFB5-C00 | GASKET L COVER @A | 1 | $42.09 USD | View product → |
| 14 | 11396-ACC1-E10 | GASKET L COVER PLATE | 1 | $15.21 USD | View product → |
| 15 | 14521-AAG1-C00 | "PLUG,BEARING PUSH" | 2 | $11.16 USD | View product → |
| 16 | 14531-AAG1-C00 | PIVOT CAM CHIAN TENSIONER | 2 | $2.61 USD | View product → |
| 17 | 14541-ALH4-C00 | "PLATE, BEARING PUSH" | 1 | $7.89 USD | View product → |
| 18 | 9000A-ADG1-C01 | BOLT ASSY SPECIAL | 10 | $22.74 USD | View product → |
| 19 | 90031-KHD6-C01 | BOLT A STUD 8*218 | 2 | $19.89 USD | View product → |
| 20 | 90031-LFE2-C01 | BOLT A STUD 8*225 | 2 | $25.23 USD | View product → |
| 21 | 90474-3C33-C00 | WASHER 8MM(T*2) | 2 | $0.99 USD | View product → |
| 22 | 9052A-LEB1-C01 | BOLT ASSY DRAIN PLUG12*15(C) | 1 | $7.23 USD | View product → |
| 23 | 91009-GLE0-C00 | BRG BALL RADIAL 6004 UU | 1 | $36.51 USD | View product → |
| 24 | 91202-LEB1-900 | OIL SEAL 25*35*5 | 1 | $42.84 USD | View product → |
| 25 | 91255-LDC8-E10 | OIL SEAL 27*42*7 (C???) | 1 | $8.70 USD | View product → |
| 26 | 92101-05012-0HG | BOLT HEX 5*12 | 7 | $0.66 USD | View product → |
| 27 | 93903-25260-G | SCREW TAPPING 5*12(KG) | 3 | $1.65 USD | View product → |
| 28 | 93903-35280-G | SCREW TAPPING 5*12 (K) | 3 | $0.99 USD | View product → |
| 29 | 94301-08140 | DOWEL PIN 8*14 | 2 | $3.00 USD | View product → |
| 30 | 94301-10160 | DOWEL PIN 10*16 | 4 | $3.00 USD | View product → |
| 31 | 95701-08012-07G | BOLT FLANGE 8*12 (G) | 2 | $1.95 USD | View product → |
| 32 | 96001-06025-07G | BOLT FLANGE SH 6*25 (K) | 8 | $1.95 USD | View product → |
| 33 | 96001-06032-07G | BOLT FLANGE 6*32(G) | 2 | $1.65 USD | View product → |
| 34 | 96001-06050-07G | BOLT FLANGE SH 6*50 (K) | 2 | $1.95 USD | View product → |
| 35 | 96100-60020-00 | BRG BALL RADIAL 6002 | 1 | $53.61 USD | View product → |
| 36 | 96100-62030-00 | BRG BALL RADIAL 6203 | 1 | $42.36 USD | View product → |
| 37 | 96600-06016-08G | SOCKET BOLT 6*16(B) | 2 | $2.31 USD | View product → |

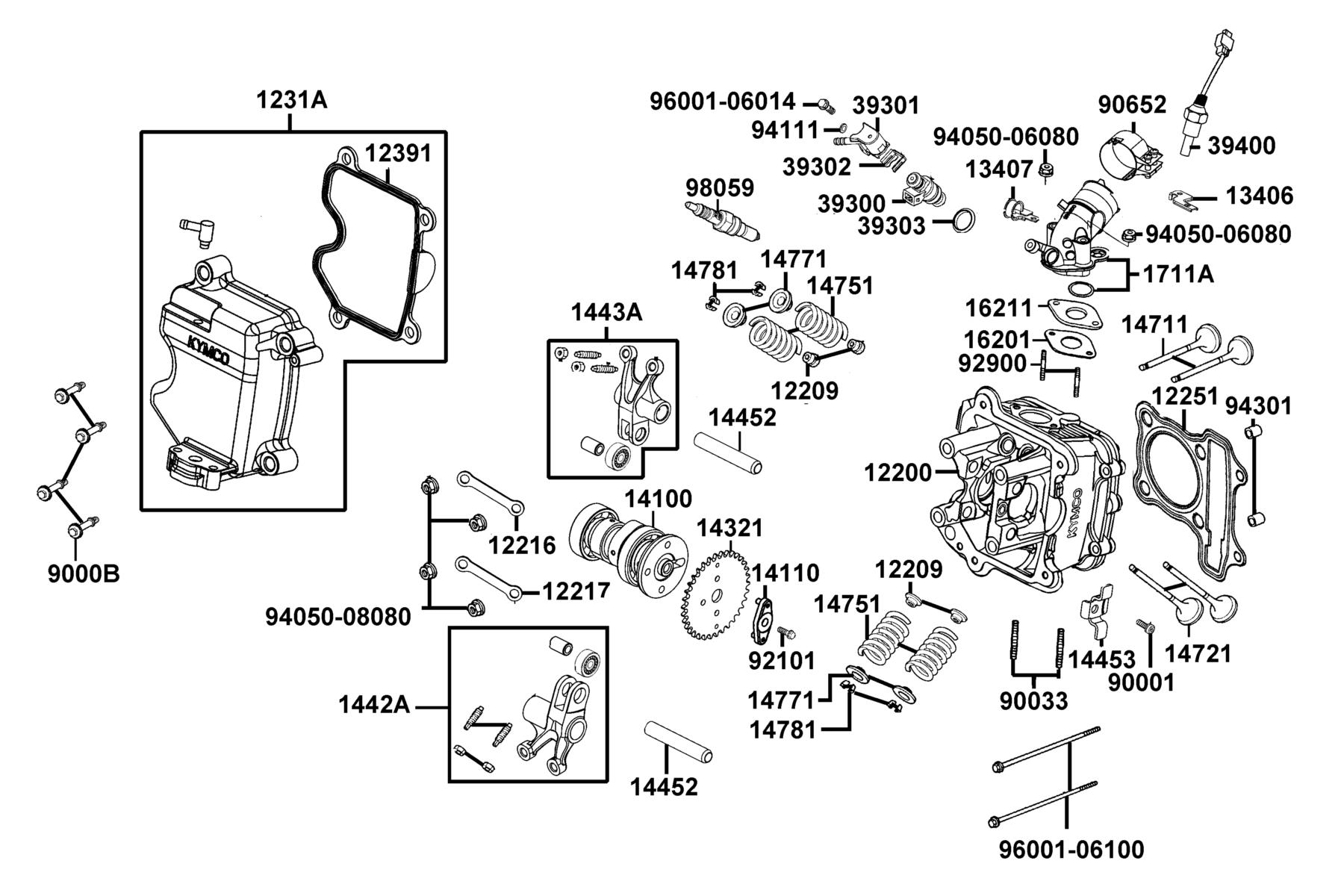

E02 — Cylinder Head
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 12200-LKE7-C00 | HEAD ASSY CYLN | 1 | $187.23 USD | View product → |
| 2 | 12209-KHD6-C00 | SEAL VALVE STEM | 1 | $13.11 USD | View product → |
| 3 | 12216-LEB1-C00 | "FORK A, HOLDER" | 1 | $13.11 USD | View product → |
| 4 | 12217-LEB1-C00 | "FORK B, HOLDER" | 1 | $15.21 USD | View product → |
| 5 | 12251-LKE7-C00 | GASKET CYLINDER HEAD | 1 | $55.95 USD | View product → |
| 6 | 1231A-LKB3-C00 | COVER ASSY HEAD | 1 | $111.30 USD | View product → |
| 7 | 12391-LFE2-C00 | GASKET HEAD COVER | 1 | $116.07 USD | View product → |
| 8 | 13406-LHJ8-C00 | CLAMPER FUEL TUBE | 1 | — | Part details → |
| 9 | 13407-LKC6-C00 | PLATE A??? ECU MODULE | 1 | $5.88 USD | View product → |
| 10 | 14100-LFE2-C00 | CAM SHAFT COMP | 1 | $181.14 USD | View product → |
| 11 | 14110-LEB1-C00 | "FIXTURE,CAMSHAFTP" | 1 | $37.65 USD | View product → |
| 12 | 14321-LEB1-C00 | SPROCKET CAM | 1 | $23.43 USD | View product → |
| 13 | 1442A-LFE2-C00 | "ARM ASSY, VALVE ROCKER" | 1 | $92.31 USD | View product → |
| 14 | 1443A-LFE2-C00 | ARM ASSY, VALVE ROCKER | 1 | $145.83 USD | View product → |
| 15 | 14452-LFA7-C00 | SHAFT EXH ROCKER ARM | 2 | $20.40 USD | View product → |
| 16 | 14453-LKE7-C00 | SET PLATE ROCKER ARM SHAFT | 1 | $15.72 USD | View product → |
| 17 | 14711-LFE2-C0B | VALVE INLET | 1 | $76.53 USD | View product → |
| 18 | 14721-LGL9-C0A | VALVE EXHAUST | 1 | $58.92 USD | View product → |
| 19 | 14751-KHD6-900 | SPG VALVE OUTER | 1 | $27.69 USD | View product → |
| 20 | 14771-KHD6-900 | RETAINER VALVE SRINPG | 1 | $27.39 USD | View product → |
| 21 | 14781-MFA6-C0C | COTTER VALVE | 1 | $7.65 USD | View product → |
| 22 | 16201-LFE2-C00 | GASKET CARB INSULATOR | 1 | $3.93 USD | View product → |
| 23 | 16211-LFE2-C00 | INSULATOR CARB | 1 | $26.76 USD | View product → |
| 24 | 1711A-LFB6-C00 | PIPE ASSY. INLET | 1 | $146.04 USD | View product → |
| 25 | 39300-LEB2-800 | FUEL INJECTOR | 1 | $302.16 USD | View product → |
| 26 | 39301-LKB3-C00 | HOLDER ASSY FUEL | 1 | $15.72 USD | View product → |
| 27 | 39302-KKE3-C00 | CLIP SPRING FUEL INJECTOR | 1 | $14.07 USD | View product → |
| 28 | 39303-LEB2-C00 | "SEAL,HIGH TENSION FUEL INJECT" | 1 | $3.27 USD | View product → |
| 29 | 39400-LHJ3-900 | SENSOR. HEAD TEMPERATURE | 1 | $170.40 USD | View product → |
| 30 | 90001-GFY6-C01 | SOCKET BOLT 6*10 | 1 | $4.59 USD | View product → |
| 31 | 9000B-KHD6-C02 | BOLT ASSY SPECIAL 6X41.5(G) | 4 | $22.74 USD | View product → |
| 32 | 90033-KGB4-C11 | BOLT STUD 8*40 | 2 | $9.18 USD | View product → |
| 33 | 90652-LHJ3-C00 | BAND 48 INLET-PIPE | 1 | $27.69 USD | View product → |
| 34 | 92101-06014-07G | BOLT HEX 6*14 | 1 | $1.65 USD | View product → |
| 35 | 92900-06060-0BG | BOLT STUD ??? 6*60 | 2 | $3.60 USD | View product → |
| 36 | 94050-06080-G | NUT FLANGE 6MM | 2 | $0.99 USD | View product → |
| 37 | 94050-08080-G | NUT FLANGE 8MM | 4 | $1.95 USD | View product → |
| 38 | 94111-06800-G | WASHER SPG 6MM(C) | 1 | $0.30 USD | View product → |
| 39 | 94301-10160 | DOWEL PIN 10*16 | 4 | $3.00 USD | View product → |
| 40 | 96001-06014-08G | BOLT FLANGE SH 6*14 (C) | 1 | $0.99 USD | View product → |
| 41 | 96001-06100-07G | BOLT FLANGE 6*100 | 2 | $4.26 USD | View product → |
| 42 | 98059-58916-00 | PLUG SPARK(CR8E) | 1 | $18.72 USD | View product → |

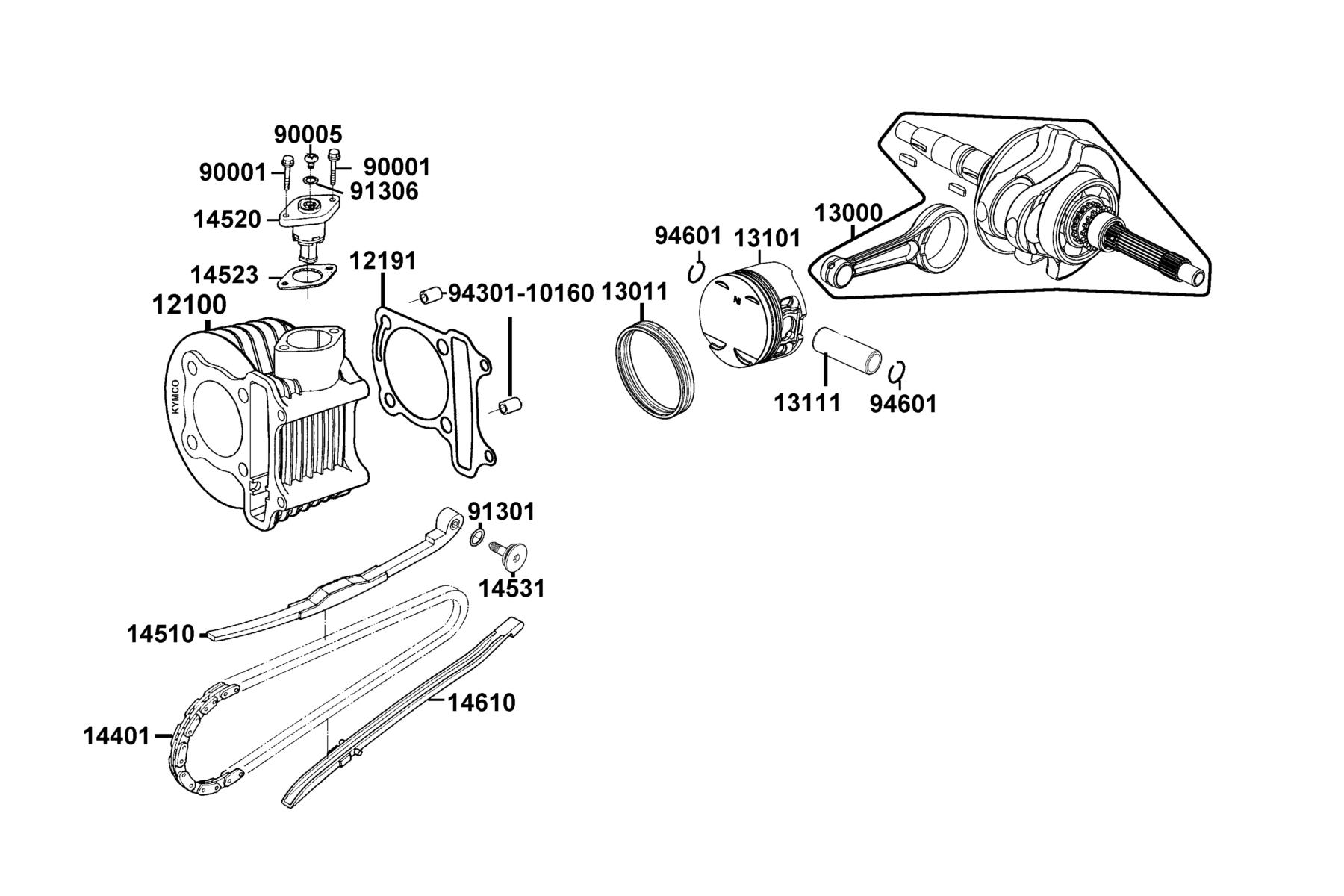

E03 — Cylinder ● Piston ● Crankshaft
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 12100-LFE2-900 | CYLINDER COMP | 1 | $315.78 USD | View product → |
| 2 | 12191-LFE2-C00 | GASKET CYLINDER @A | 1 | $48.60 USD | View product → |
| 3 | 13000-AEB9-E00 | CRANK SHAFT COMP | 1 | $275.55 USD | View product → |
| 4 | 13011-LFE2-C00 | RING ASSY PISTON | 1 | $105.12 USD | View product → |
| 5 | 13101-AAG1-C00 | PISTON | 1 | $55.95 USD | View product → |
| 6 | 13111-KKJ9-C10 | PIN PISTON | 1 | $22.86 USD | View product → |
| 7 | 14401-LFE2-C00 | CHAIN CAM | 1 | $103.92 USD | View product → |
| 8 | 14510-LEB1-C00 | TENSIONER CAM CHAIN | 1 | $54.87 USD | View product → |
| 9 | 14520-LFA7-C00 | LIFTER ASSY TENSIONER | 1 | $45.15 USD | View product → |
| 10 | 14523-KED9-C00 | GASKET TENSIONER LIFTER @A | 1 | $7.92 USD | View product → |
| 11 | 14531-GLR0-W11 | PIVOT CAM CHAIN TENSIONER | 1 | $6.54 USD | View product → |
| 12 | 14610-LEB1-C00 | GUIDE,CAM CHAIN | 1 | $22.11 USD | View product → |
| 13 | 90001-GBHB-C06 | BOLT | 2 | $1.65 USD | View product → |
| 14 | 90005-KAW1-C00 | SCREW PAN 6*6(G) | 1 | $4.65 USD | View product → |
| 15 | 91301-GLR0-W10 | O-RING 15.2*1.5 | 1 | $4.92 USD | View product → |
| 16 | 91306-1E05-C00 | O-RING 1.5*9.5 | 1 | $9.51 USD | View product → |
| 17 | 94301-10160 | DOWEL PIN 10*16 | 2 | $3.00 USD | View product → |
| 18 | 94601-15000 | CLIP PISTON PIN 15MM | 2 | $5.67 USD | View product → |

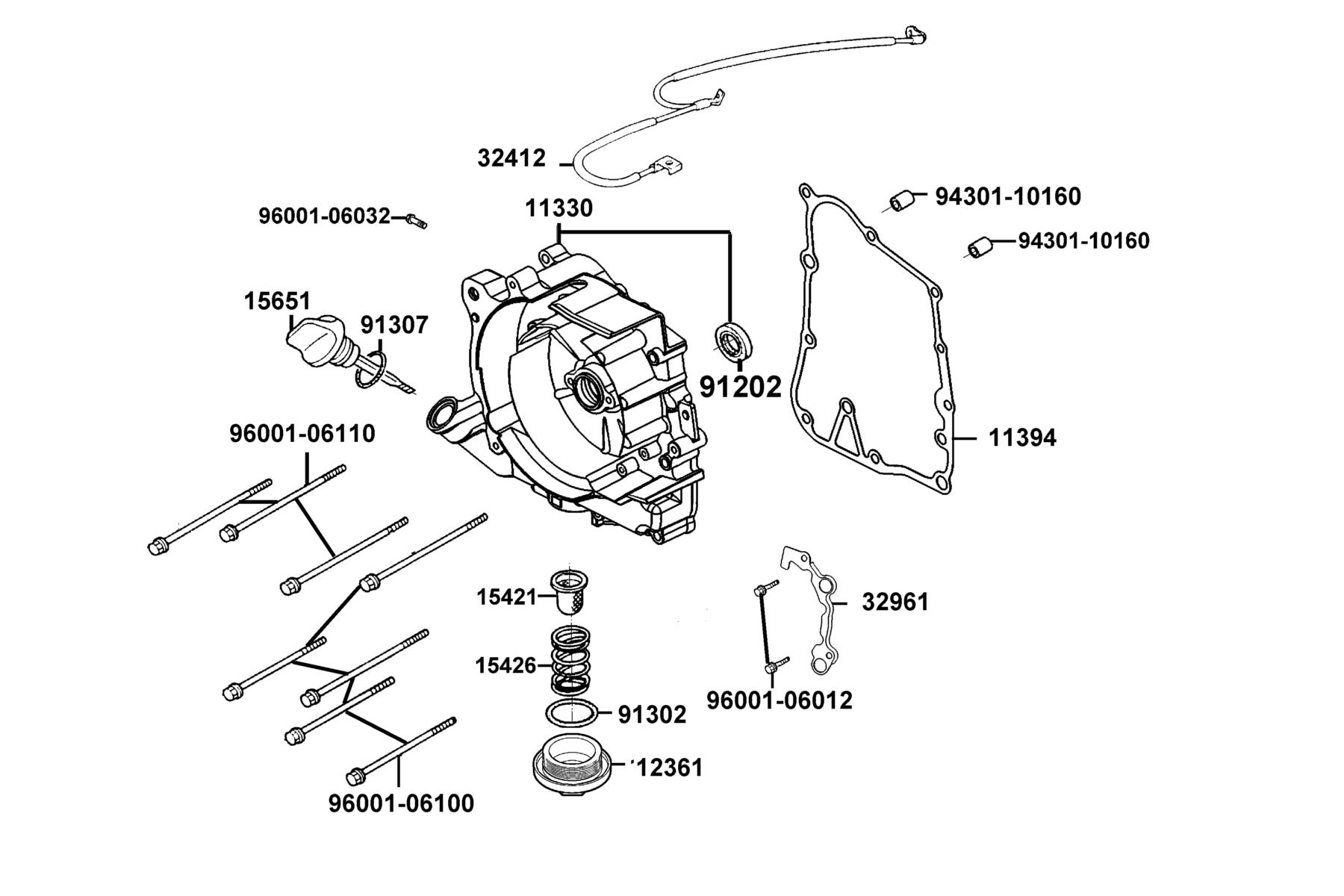

E04 — Right Crankcase Cover
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 11330-LHJ3-C00 | COVER COMP R CRANK CASE | 1 | $102.03 USD | View product → |
| 2 | 11394-AEA7-E10 | GASKET R COVER @A | 1 | $22.11 USD | View product → |
| 3 | 12361-GFY6-C00 | HOLE CAP TAPPET ADJUSTING | 1 | $8.85 USD | View product → |
| 4 | 15421-1G07-C00 | SCREEN OIL FILTER | 1 | $15.06 USD | View product → |
| 5 | 15426-GAE1-C00 | SPG OIL FILTER SCREEN | 1 | $2.61 USD | View product → |
| 6 | 15651-KUDU-W10 | GUAGE OIL LEVEL | 1 | $16.65 USD | View product → |
| 7 | 32412-ACC1-E10 | CABLE EARTH | 1 | $54.21 USD | View product → |
| 8 | 32961-LEB1-C00 | CLAMPER ACG CORD | 1 | $6.87 USD | View product → |
| 9 | 91202-GFY6-90C | OIL SEAL 19.8*30*5 | 1 | $12.36 USD | View product → |
| 10 | 91302-0A01-C00 | O-RING 30.8MM | 1 | $4.92 USD | View product → |
| 11 | 91307-0E35-W10 | O-RING 18*3 | 1 | $4.92 USD | View product → |
| 12 | 94301-10160 | DOWEL PIN 10*16 | 2 | $3.00 USD | View product → |
| 13 | 96001-06012-07G | BOLT FLANGE 6*12(G) | 2 | $0.99 USD | View product → |
| 14 | 96001-06032-07G | BOLT FLANGE 6*32(G) | 1 | $1.65 USD | View product → |
| 15 | 96001-06100-07G | BOLT FLANGE 6*100 | 6 | $4.26 USD | View product → |
| 16 | 96001-06110-07G | BOLT FLANGE SH 6*110 (G) | 2 | $4.59 USD | View product → |

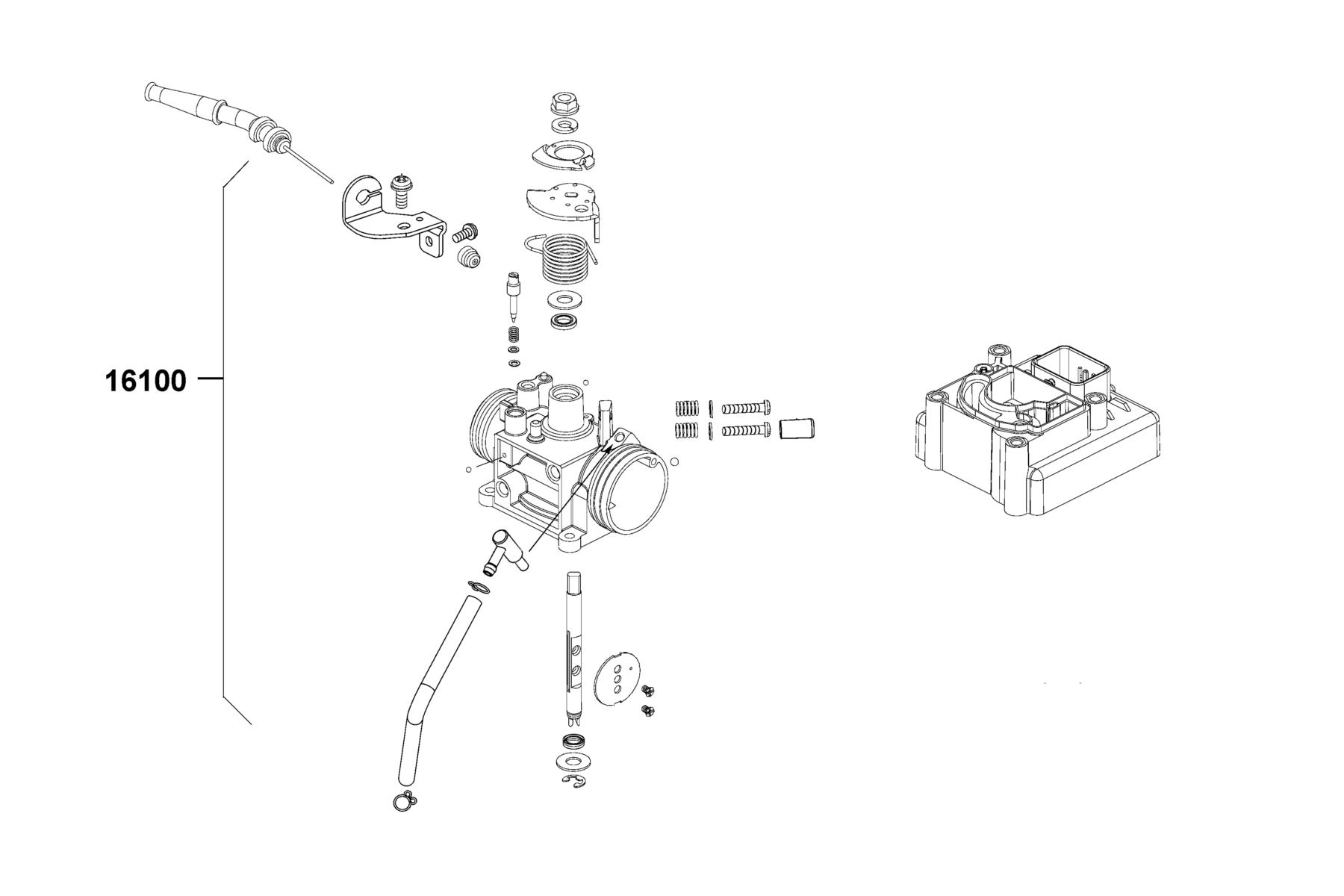

E05 — THROTTLE BODY ASSY
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 16100-AEA7-E10 | THROTTLE BODY ASSY | 1 | $629.92 USD | View product → |

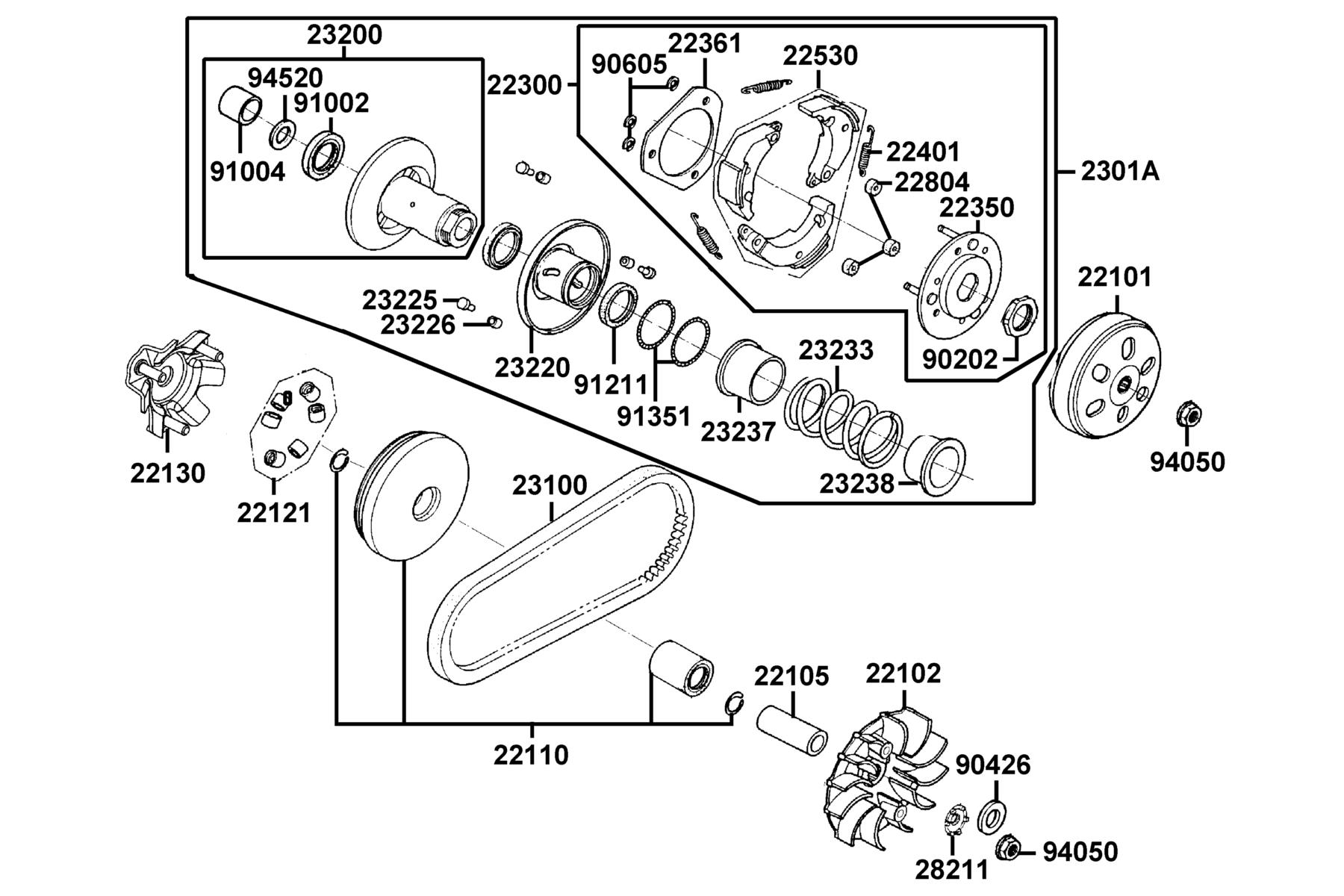

E06 — Driven Pulley
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 22101-LCD3-C00 | OUTER CLUTCH | 1 | $138.27 USD | View product → |
| 2 | 22102-LEB1-C00 | FACE DRIVE | 1 | $62.85 USD | View product → |
| 3 | 22105-LFE2-C00 | BOSS DRIVE FACE | 1 | $30.03 USD | View product → |
| 4 | 22110-LEB1-C00 | FACE COMP MOVABLE DRIVE | 1 | $110.82 USD | View product → |
| 5 | 22121-GFY6-325 | ROLLER SET WEIGHT (1SET:6PCS) | 1 | $68.82 USD | View product → |
| 6 | 22130-LEB1-C00 | RAMP PLATE COMP. | 1 | $51.63 USD | View product → |
| 7 | 22300-LHJ3-C00 | PLATE ASSY. DRIVE | 1 | $143.07 USD | View product → |
| 8 | 22350-LHJ3-C00 | PLATE COMP. DRIVE | 1 | $36.87 USD | View product → |
| 9 | 22361-LHJ3-C00 | PLATE CLUTCH SIDE | 1 | $16.41 USD | View product → |
| 10 | 22401-LHJ3-C00 | SPRING CLUTCH | 1 | $7.89 USD | View product → |
| 11 | 22530-LHJ3-C00 | WEIGHT CLUTCH | 1 | $109.08 USD | View product → |
| 12 | 22804-GBB2-C00 | RUBBER CLUTCH DAMPER | 1 | $25.23 USD | View product → |
| 13 | 2301A-LKE6-C00 | PULLEY SUB ASSY | 1 | $168.15 USD | View product → |
| 14 | 23100-LFB6-C00 | BELT DRIVE | 1 | $164.13 USD | View product → |
| 15 | 23200-LFE2-C00 | "FACE ASSY., DRIVEN" | 1 | $144.12 USD | View product → |
| 16 | 23220-GFY6-C00 | FACE COMP DRIVEN H1 | 1 | $87.63 USD | View product → |
| 17 | 23225-GHC8-C00 | PIN ROLLER GUIDE | 1 | $0.99 USD | View product → |
| 18 | 23226-GHC8-C00 | ROLLER GUIDE | 1 | $1.59 USD | View product → |
| 19 | 23233-LFB6-C00 | SPG DRIVEN FACE | 1 | $52.29 USD | View product → |
| 20 | 23237-GFY6-C00 | COLLAR SEAL | 1 | $47.31 USD | View product → |
| 21 | 23238-LEB1-C00 | COLLAR SPG | 1 | $45.60 USD | View product → |
| 22 | 28211-ADG1-C00 | RATCHET KICK STARTER | 1 | $9.51 USD | View product → |
| 23 | 90202-1G87-C00 | NUT SPECIAL 28MM | 1 | $14.07 USD | View product → |
| 24 | 90426-KNBN-C01 | WASHER SPECIAL 12MM | 1 | $4.59 USD | View product → |
| 25 | 90605-1F66-C00 | CIR CLIP 7MM | 1 | $2.61 USD | View product → |
| 26 | 91002-GGA7-C00 | BRG BALL RADIAL 6902U | 1 | $82.05 USD | View product → |
| 27 | 91004-KHE7-C00 | BRG NDL 22*29*18 | 1 | $41.61 USD | View product → |
| 28 | 91211-KEBE-C00 | SEAL DRIVEN FACE 34*41*4 | 1 | $31.17 USD | View product → |
| 29 | 91351-6B42-C00 | O-RING PINION CAP | 1 | $7.89 USD | View product → |
| 30 | 94050-12080-G | NUT FLANGE 12MM (C) | 2 | $3.60 USD | View product → |
| 31 | 94520-28000 | CIR CLIP IN 28 | 1 | $4.92 USD | View product → |

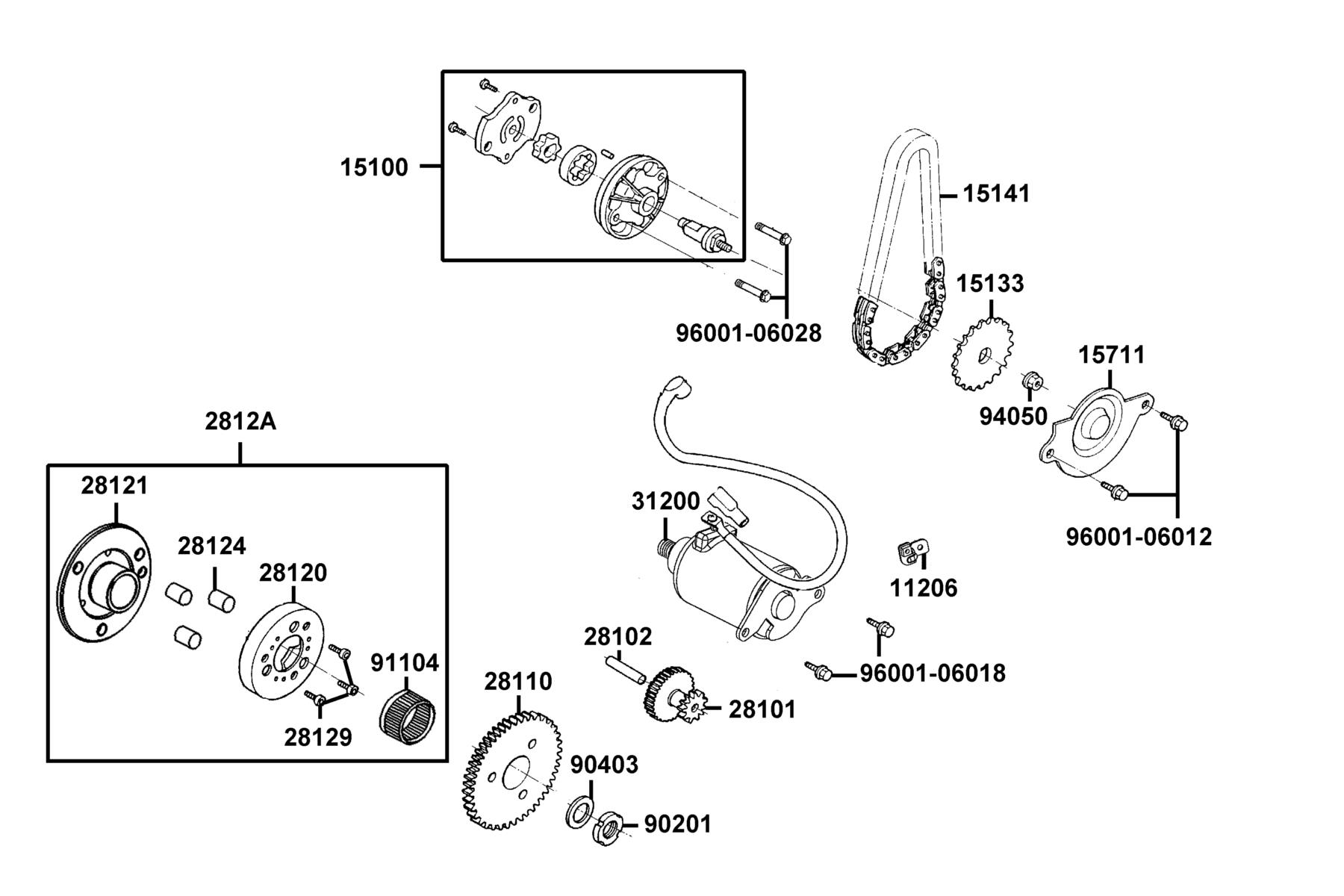

E07 — Starting Motor ● Oil Pump
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 11206-LFB5-C00 | STAY A RR FENDER | 1 | $7.23 USD | View product → |
| 2 | 15100-KFB7-C00 | OIL PUMP ASSY | 1 | $46.86 USD | View product → |
| 3 | 15133-GFY6-W10 | SPROCKET OIL PUMP DRIVE | 1 | $40.56 USD | View product → |
| 4 | 15141-GFY6-C00 | CHAIN OIL PUMP | 1 | $36.24 USD | View product → |
| 5 | 15711-GFY6-C00 | SEPARATER OIL | 1 | $9.51 USD | View product → |
| 6 | 28101-ADG1-C00 | GEAR STARTER REDUCTION | 1 | $62.22 USD | View product → |
| 7 | 28102-GFY6-C00 | SHAFT STARTER REDUCTION GEAR | 1 | $4.26 USD | View product → |
| 8 | 28110-LEB1-C00 | GEAR COMP STARTING DRIVEN | 1 | $132.51 USD | View product → |
| 9 | 28120-GFY6-C0A | OUTER COMP STARTING CLUTCH | 1 | $121.83 USD | View product → |
| 10 | 28121-ADG1-C00 | FLANGE | 1 | $70.29 USD | View product → |
| 11 | 28124-GFY6-C0A | LOCAING PIN | 1 | $4.65 USD | View product → |
| 12 | 28129-GFY6-C0A | SOKET HEAD CAP SCREW | 1 | $4.65 USD | View product → |
| 13 | 2812A-ADG1-C00 | OUTER COMP STARTING CLUTCH | 1 | $195.30 USD | View product → |
| 14 | 31200-ACC1-E10 | MOTOR ASSY START | 1 | $125.22 USD | View product → |
| 15 | 90201-GFY6-901 | NUT LOCK 22MM | 1 | $15.63 USD | View product → |
| 16 | 90403-GFY6-C00 | WASHER THRUST 22.2*31*2.5 | 1 | $4.65 USD | View product → |
| 17 | 91104-GFY6-C00 | BRG NEEDLE 28*32*17 | 1 | $55.44 USD | View product → |
| 18 | 94050-06080-G | NUT FLANGE 6MM | 1 | $0.99 USD | View product → |
| 19 | 96001-06012-07G | BOLT FLANGE 6*12(G) | 2 | $0.99 USD | View product → |
| 20 | 96001-06018-07G | BOLT FLANGE 6*18 | 2 | — | Part details → |
| 21 | 96001-06028-07G | BOLT FLANGE SH 6*28 (G) | 2 | $1.65 USD | View product → |

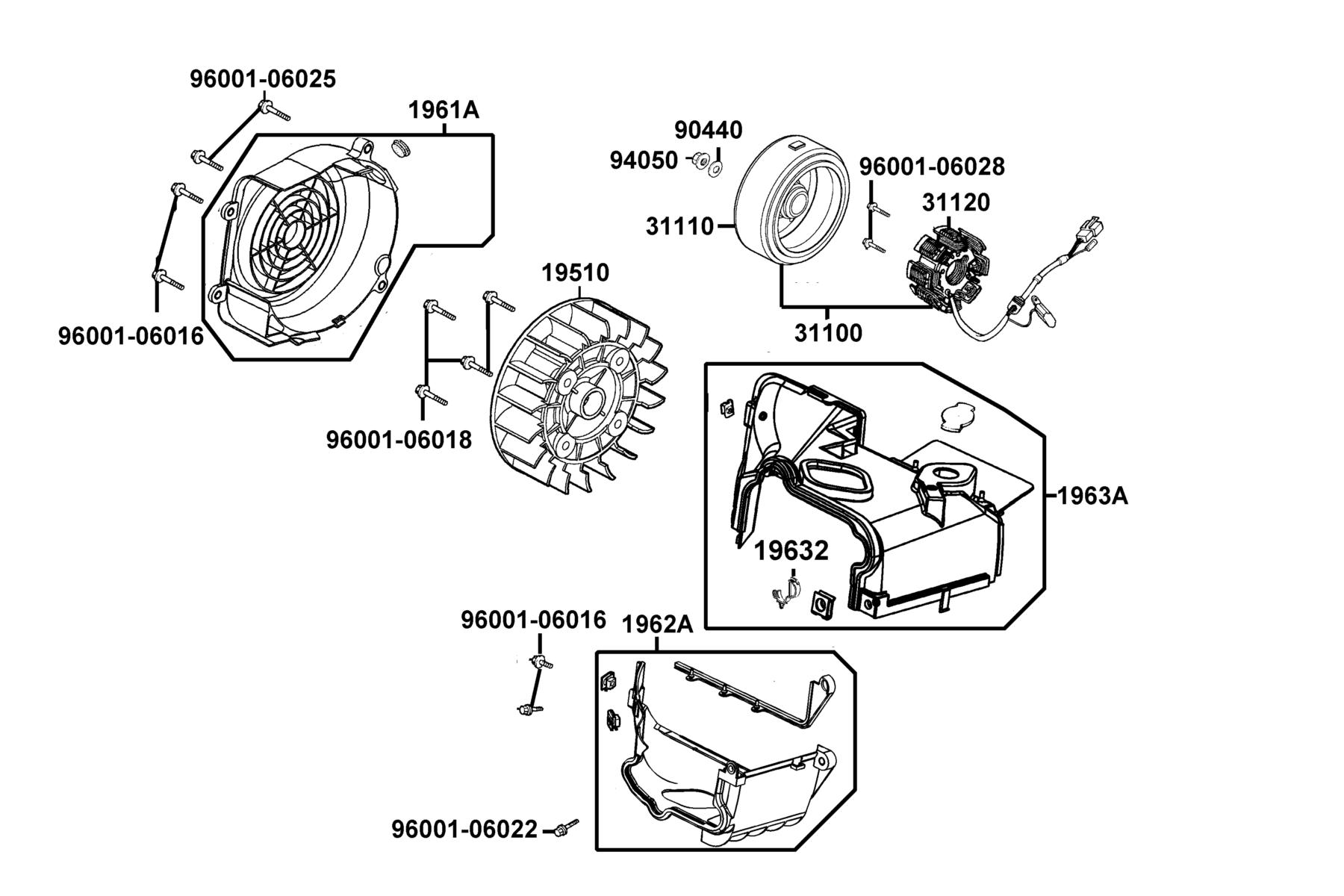

E08 — Fan Cover ● Generator
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 19510-LEB1-C01 | FAN COMP COOLING | 1 | $28.62 USD | View product → |
| 2 | 1961A-LEB1-C00 | COVER ASSY FAN | 1 | $29.52 USD | View product → |
| 3 | 1962A-LKE7-C00 | SHROUD ASSY A | 1 | $70.20 USD | View product → |
| 4 | 19632-LFB6-C00 | CLIP???FUEL HOSE | 1 | $2.97 USD | View product → |
| 5 | 1963A-AEA7-E10 | SHROUD ASSY B | 1 | $67.26 USD | View product → |
| 6 | 31100-ACC1-E10 | AC GEN ASS'Y | 1 | $177.09 USD | View product → |
| 7 | 31110-ACC1-E10 | FLYWHEEL COMP | 1 | $168.27 USD | View product → |
| 8 | 31120-ACC1-E10 | STATOR COMP. | 1 | $225.90 USD | View product → |
| 9 | 90440-1F66-C00 | WASHER PLAIN 12MM | 1 | $8.85 USD | View product → |
| 10 | 94050-12080-G | NUT FLANGE 12MM (C) | 1 | $3.60 USD | View product → |
| 11 | 96001-06016-07G | BOLT FLANGE SH 6*16 (KG) | 4 | $2.04 USD | View product → |
| 12 | 96001-06018-07G | BOLT FLANGE 6*18 | 4 | — | Part details → |
| 13 | 96001-06022-07G | BOLT FLANGE SH 6X22(KC) | 1 | $1.95 USD | View product → |
| 14 | 96001-06025-07G | BOLT FLANGE SH 6*25 (K) | 2 | $1.95 USD | View product → |
| 15 | 96001-06028-07G | BOLT FLANGE SH 6*28 (G) | 2 | $1.65 USD | View product → |

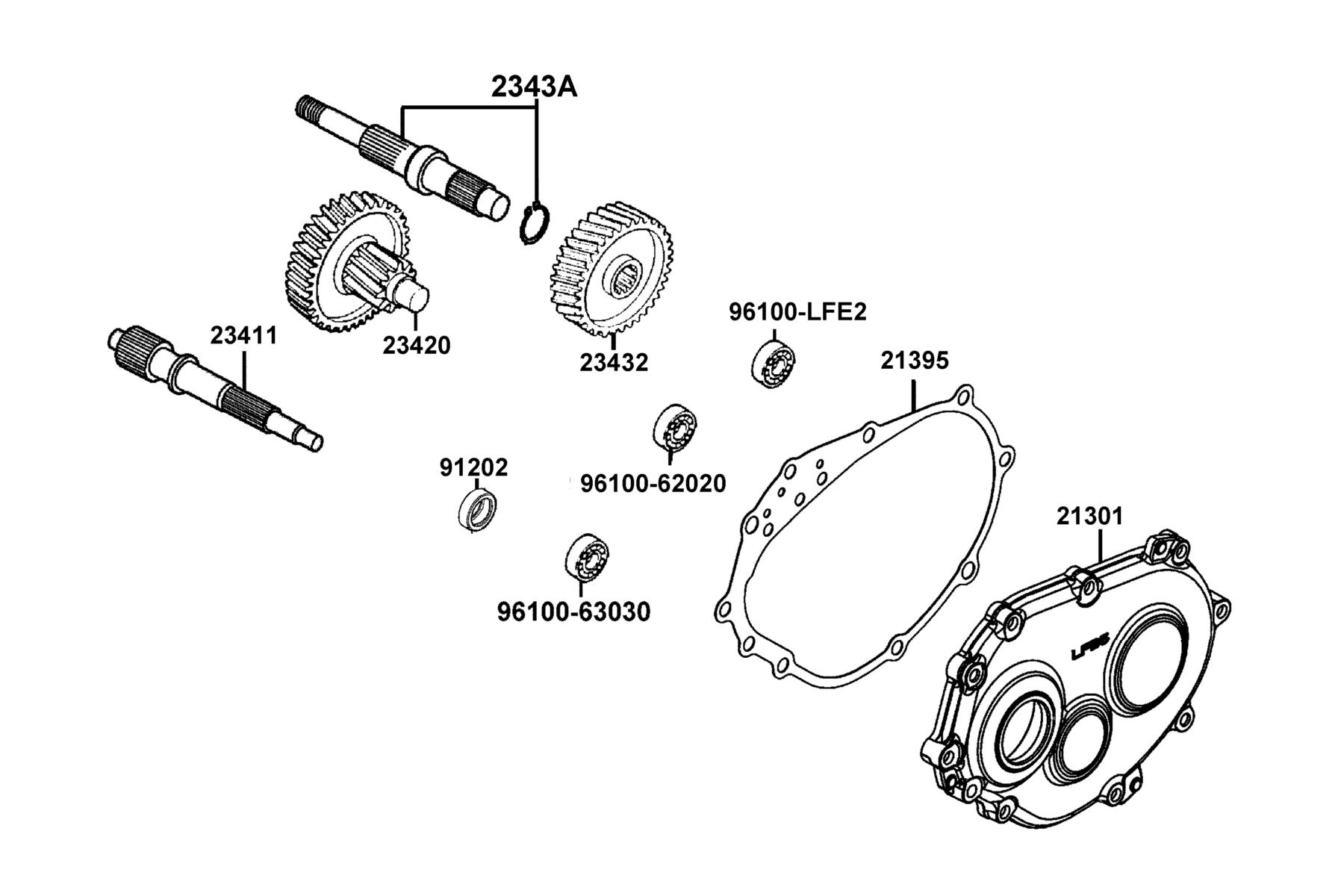

E09 — Transmission
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 21301-LFB5-C00 | COVER MISSION | 1 | $114.90 USD | View product → |
| 2 | 21395-LFB5-C00 | GASKET MISSION CASE | 1 | $18.24 USD | View product → |
| 3 | 23411-LFB5-C00 | SHAFT DRIVE | 1 | $110.37 USD | View product → |
| 4 | 23420-LFB5-C00 | SHAFT COMP COUNTER | 1 | $127.38 USD | View product → |
| 5 | 23432-LFB5-C00 | SHAFT COMP COUNTER | 1 | $87.45 USD | View product → |
| 6 | 2343A-LFB5-C00 | SHAFT FINAL | 1 | $105.66 USD | View product → |
| 7 | 91202-LFE2-C00 | OIL SEAL 22*32*6 | 1 | $16.77 USD | View product → |
| 8 | 96100-62020-00 | BEARING BALL RADIAL 6202 | 1 | $48.24 USD | View product → |
| 9 | 96100-63030-00 | BEARING BALL RADIAL 6303 | 1 | $42.84 USD | View product → |
| 10 | 96100-LFE2-900 | BRG. BALL RADIAL TMB2/22CC4 | 1 | $132.42 USD | View product → |

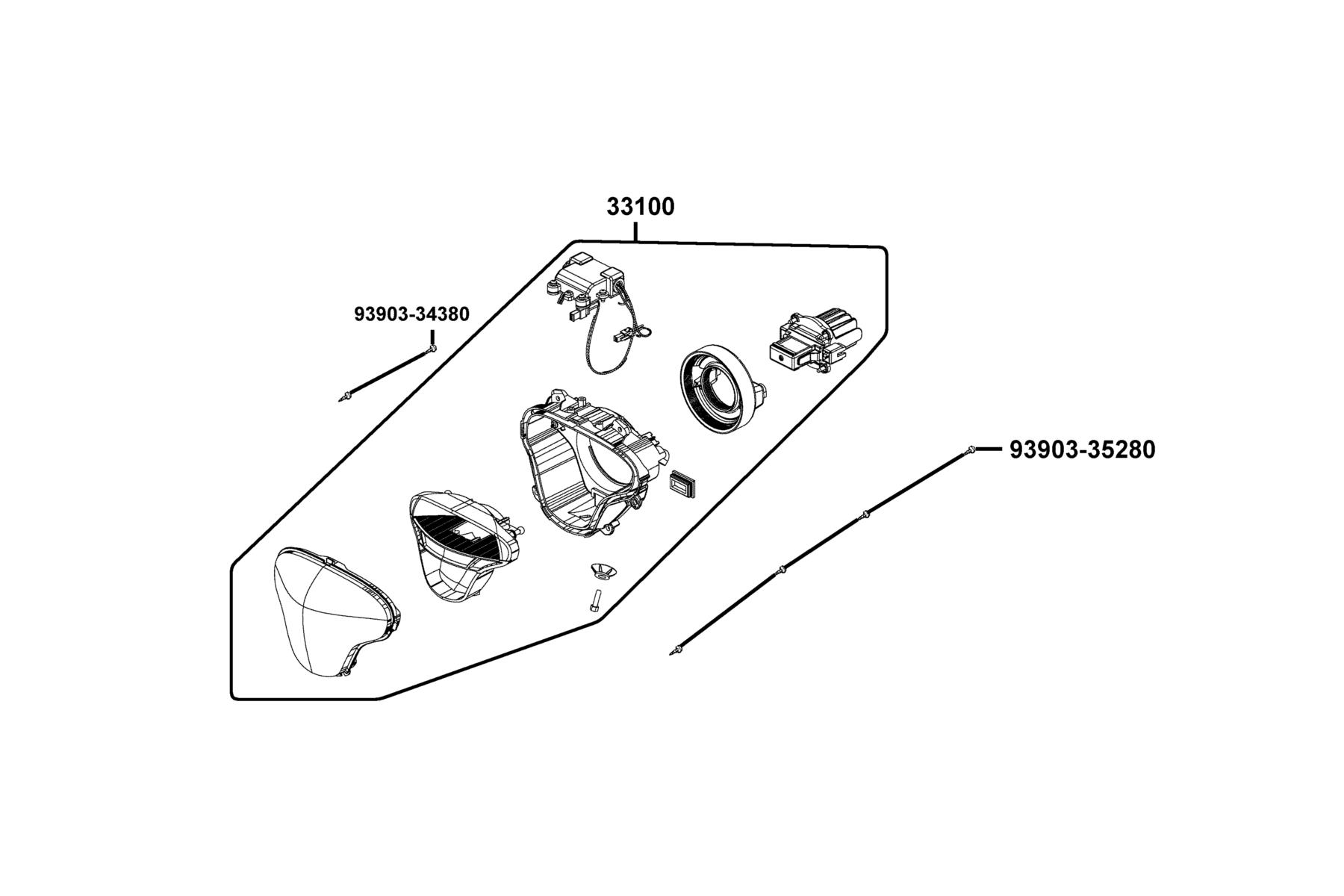

F01 — Head Light
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 33100-AEA7-M30 | LIGHT ASSY HEAD | 1 | $516.64 USD | View product → |
| 2 | 93903-34380-G | SCREW TAPPING 4*12 (KG) | 2 | $2.73 USD | View product → |
| 3 | 93903-35280-G | SCREW TAPPING 5*12 (K) | 4 | $0.99 USD | View product → |

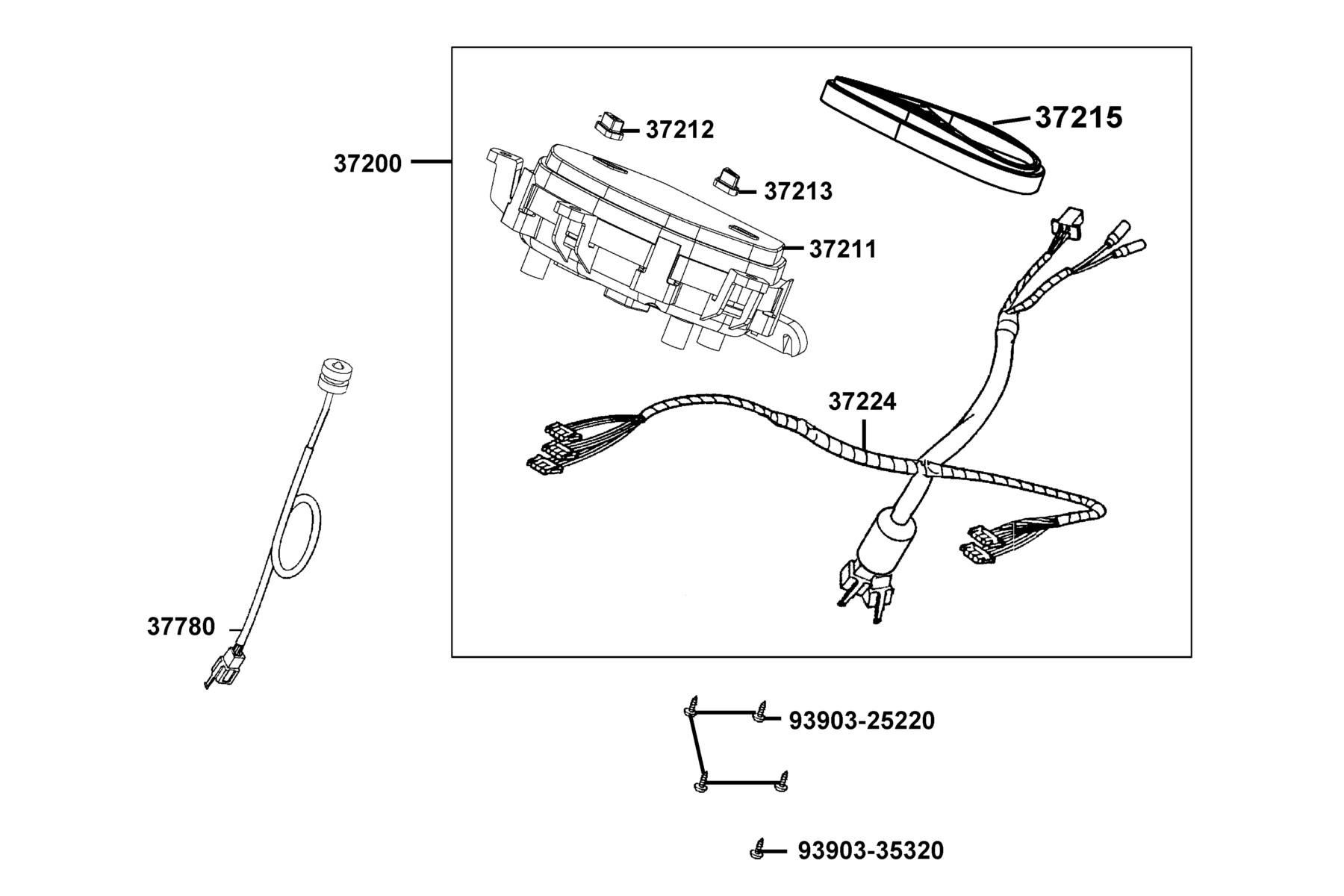

F02 — Speedometer
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 37200-AEA7-M30 | METER ASS'Y, SPEED | 1 | $456.62 USD | View product → |
| 2 | 37211-ACC1-E10 | LENS | 1 | $61.98 USD | View product → |
| 3 | 37212-ACC1-E10 | BUTTON MODE | 1 | $3.60 USD | View product → |
| 4 | 37213-ACC1-E10 | BUTTON ADJ | 1 | $9.06 USD | View product → |
| 5 | 37215-ACC1-E10 | "PLATE,COSMETIC" | 1 | $57.90 USD | View product → |
| 6 | 37224-AEA7-M30 | SOCKERT COMP METER | 1 | $165.21 USD | View product → |
| 7 | 37780-ACD5-C00 | SENSOR ASSY. ROOM TEMP | 1 | $43.17 USD | View product → |
| 8 | 93903-25220-G | SCREW TAPPING 5*12 | 4 | $0.99 USD | View product → |
| 9 | 93903-35320-G | SCREW TAPPING 5*16 | 1 | $1.17 USD | View product → |

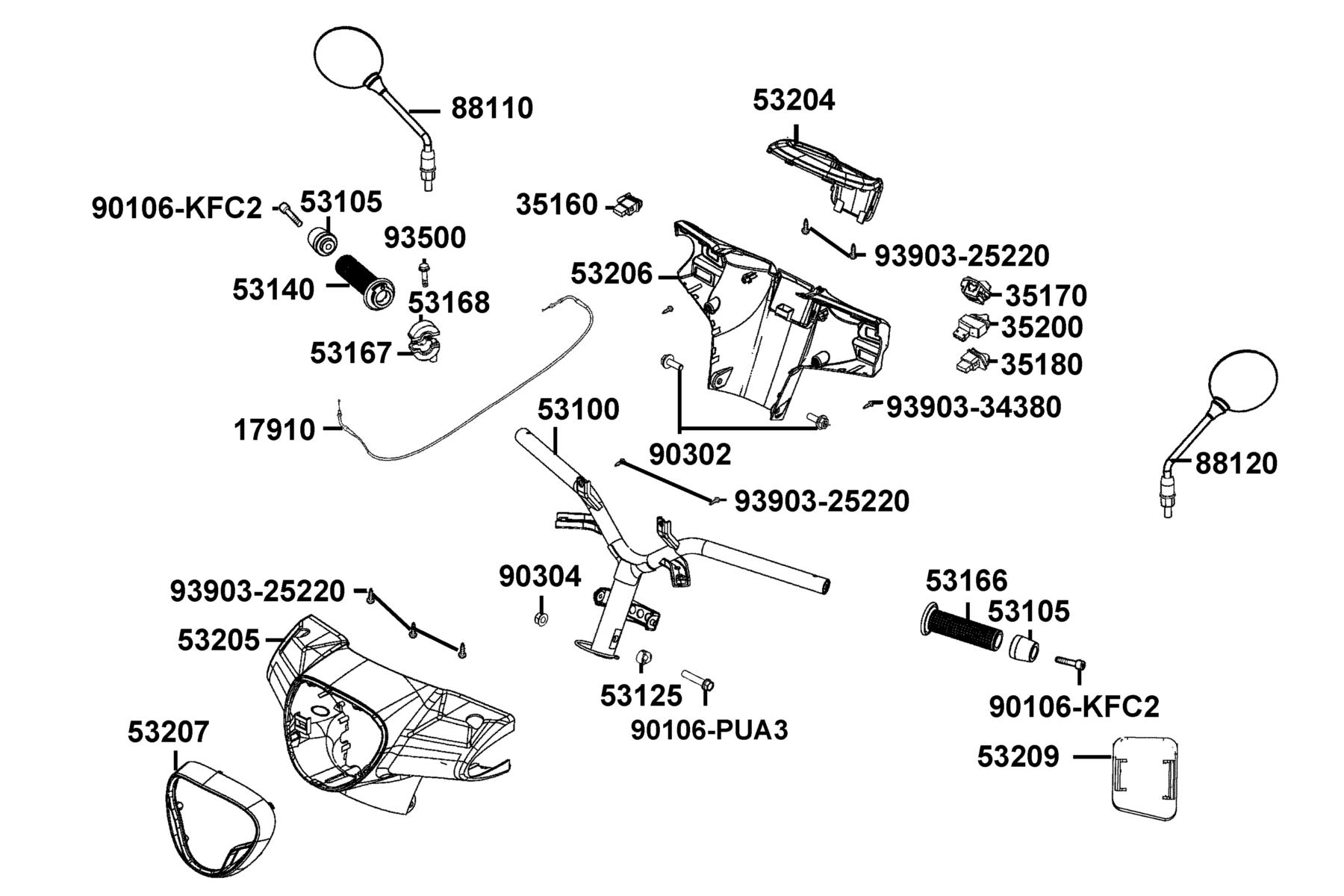

F03 — Handle Steering ● Handle Cover
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 17910-ACC1-E10 | CABLE COMP THROT | 1 | $42.30 USD | View product → |
| 2 | 35160-GFY6-C00 | SW UNIT START | 1 | $28.95 USD | View product → |
| 3 | 35170-KNBN-C00 | SW UNIT DIMMER PASSING | 1 | $45.36 USD | View product → |
| 4 | 35180-GFY6-C00 | SW UNIT HORN | 1 | $28.95 USD | View product → |
| 5 | 35200-GFY6-C00 | SW UNIT WINKER | 1 | $37.59 USD | View product → |
| 6 | 53100-ACC1-E10 | HANDLE COMP STRG | 1 | $122.46 USD | View product → |
| 7 | 53105-LGR5-E10-N1S | END R HANDLE | 2 | $20.58 USD | View product → |
| 8 | 53125-PUA3-B50 | COLLAR HANDLE SET | 1 | $16.11 USD | View product → |
| 9 | 53140-ACC1-E10 | GRIP COMP THROT | 1 | $19.47 USD | View product → |
| 10 | 53166-ACC1-E10 | GRIP L HANDLE | 1 | $32.07 USD | View product → |
| 11 | 53167-GBN2-C00 | HOUSING UND THROT | 1 | $9.39 USD | View product → |
| 12 | 53168-GBN2-C00 | HOUSING UP THROT | 1 | $7.17 USD | View product → |
| 13 | 53204-ACC1-E10-J1P | COVER METER | 1 | $72.33 USD | View product → |
| 14 | 53205-AEA7-M30-85P | COVER HANDLE FR (GLOSS BLACK) | 1 | $126.66 USD | View product → |
| 15 | 53206-ACC1-E10-85P | COVER HANDLE RR | 1 | $103.74 USD | View product → |
| 16 | 53207-ACC1-E10-F1P | COVER HEAD LIGHT | 1 | $70.59 USD | View product → |
| 17 | 53209-ACC1-E10-85P | COVER L SIDE HANDLE | 1 | $25.86 USD | View product → |
| 18 | 88110-AEA7-M30-N1P | MIRROR ASSY R BACK ( BLACK ) | 1 | $72.21 USD | View product → |
| 19 | 88120-AEA7-M30-N1P | MIRROR ASSY L BACK ( BLACK ) | 1 | $72.21 USD | View product → |
| 20 | 90106-KFC2-900 | BOLT-WASH 8MM | 2 | $10.80 USD | View product → |
| 21 | 90106-PUA3-B50 | BOLT FLANGE 10*50 | 1 | $4.92 USD | View product → |
| 22 | 90302-PUA3-B51 | BOLT-WASH 5*12 | 2 | $4.65 USD | View product → |
| 23 | 90304-GHE8-C01 | NUT U 10MM(C) | 1 | $21.45 USD | View product → |
| 24 | 93500-05022-07G | SCREW PAN 5*22 | 1 | $0.99 USD | View product → |
| 25 | 93903-25220-G | SCREW TAPPING 5*12 | 7 | $0.99 USD | View product → |
| 26 | 93903-34380-G | SCREW TAPPING 4*12 (KG) | 2 | $2.73 USD | View product → |

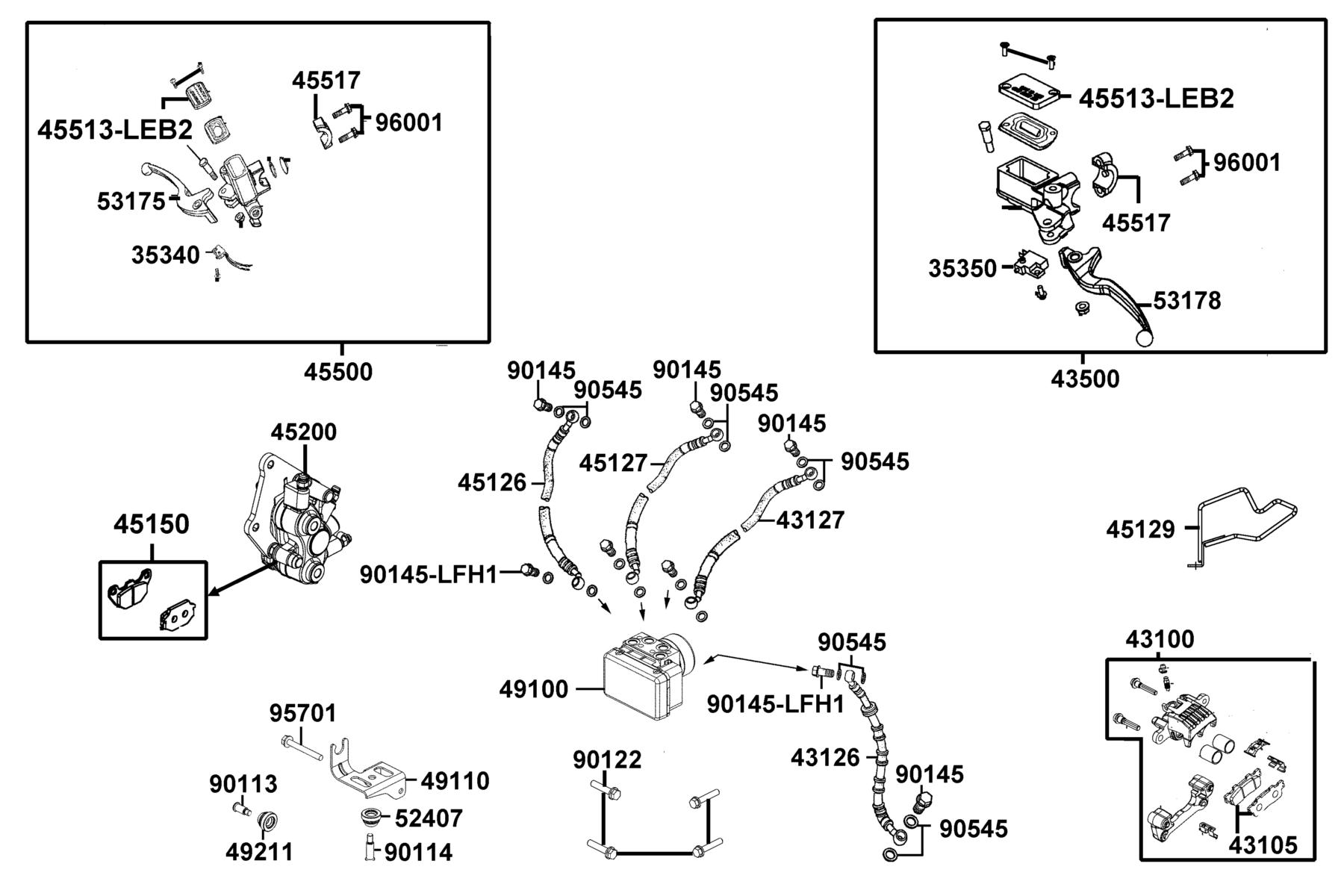

F04 — Brake Master Cylinder
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 35340-KNBN-C00 | SW ASSY FR STOP | 1 | $44.07 USD | View product → |
| 2 | 35350-KNBN-C00 | SW ASSY RR STOP | 1 | $54.00 USD | View product → |
| 3 | 43105-ACC1-305 | PAD SET (A+B) | 1 | $116.07 USD | View product → |
| 4 | 43126-AEA7-E1A | HOSE COMP A RR BRAKE | 1 | $74.58 USD | View product → |
| 5 | 43127-AEA7-E1A | HOSE ASSY B RR BRK | 1 | $48.39 USD | View product → |
| 6 | 43500-LGR5-E10 | M/C ASSY RR | 1 | $169.53 USD | View product → |
| 7 | 45126-AEA7-E1A | HOSE COMP A FR BRK | 1 | $53.76 USD | View product → |
| 8 | 45127-AEA7-E1A | HOSE ASSY B FR BRK | 1 | $49.32 USD | View product → |
| 9 | 45129-ACC1-E10 | CLAMPER FR BRAKE | 1 | $11.16 USD | View product → |
| 10 | 45150-AEA7-305 | PAD COMP A+B | 1 | $116.34 USD | View product → |
| 11 | 45200-AEA7-E10 | CALIPER ASSY, FR | 1 | $158.34 USD | View product → |
| 12 | 45513-LEB2-C00 | CAP M/C | 2 | $15.72 USD | View product → |
| 13 | 45517-KFAF-910 | HOLDER M/C | 2 | $17.43 USD | View product → |
| 14 | 45517-KFAF-910(wrong) | HOLDER M/C | 2 | $13.41 USD | View product → |
| 15 | 49100-LFB6-700 | MODULATOR ASSY ABS | 1 | $835.78 USD | View product → |
| 16 | 49110-LGE5-C01 | ABS STAY | 1 | $12.45 USD | View product → |
| 17 | 49211-LFH1-C00 | RUBBER BUSH | 2 | $1.65 USD | View product → |
| 18 | 52407-LLB1-C00 | RUBBER BUSH | 1 | $0.99 USD | View product → |
| 19 | 53175-KXBX-E00-N1A | LEVER R STRG HNDL (BLACK ) | 1 | $38.49 USD | View product → |
| 20 | 53178-KNBN-C00-M2A | LEVER L STRG HANDLE | 1 | $34.74 USD | View product → |
| 21 | 90113-LGE5-C01 | BOLT FLANGE 6*20 ABS | 1 | $2.61 USD | View product → |
| 22 | 90114-LGE5-C01 | BOLT BLANGE SH 6*30(C) | 1 | $8.97 USD | View product → |
| 23 | 90122-KHC7-C01 | BOLT FLANGE 8*38 | 1 | $5.58 USD | View product → |
| 24 | 90145-LFH1-E00 | OIL BOLT 10x22 | 4 | $29.52 USD | View product → |
| 25 | 90145-MKS9-C00 | OIL BOLT 10*22 | 4 | $7.53 USD | View product → |
| 26 | 90545-3L00-C00 | WASHER OIL BOLT | 16 | $2.31 USD | View product → |
| 27 | 95701-06020-08G | BOLT FLANGE 6*20 (C) | 1 | $2.31 USD | View product → |
| 28 | 96001-06025-02 | BOLT FLANGE SH 6X25 | 1 | $5.58 USD | View product → |

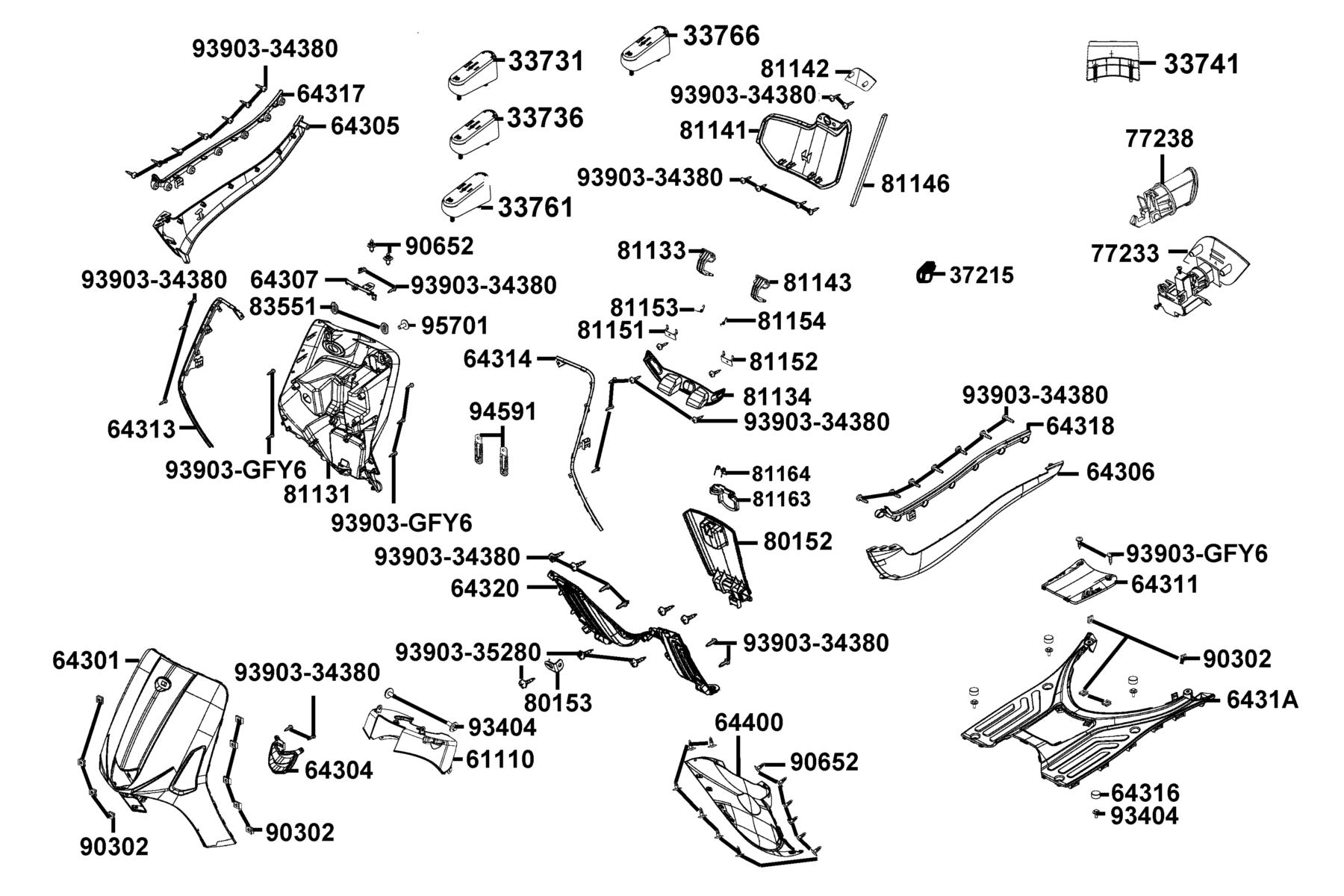

F05 — Front Cover ● Front Fender
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 33731-AEA7-M30 | REFLEX REFLECTOR SIDE | 1 | $36.24 USD | View product → |
| 2 | 33736-AEA7-M30 | REFLEX REFLECTOR L SIDE | 1 | $36.24 USD | View product → |
| 3 | 33741-AEA7-M30 | REFLEX REFLECTOR RR | 1 | $38.91 USD | View product → |
| 4 | 33761-AEA7-M30 | "REFLEX,REFLECTOR R SIDE(RED)" | 1 | $39.06 USD | View product → |
| 5 | 33766-AEA7-M30 | "REFLEX,REFLECTOR L SIDE(RED)" | 1 | $36.51 USD | View product → |
| 6 | 37215-LGM9-C00 | CLAMP | 1 | $1.32 USD | View product → |
| 7 | 61110-ACC1-E10-N1R | FENDER FR INNER (Black) | 1 | $24.72 USD | View product → |
| 8 | 64304-ACC1-E10-F1P | LID FR.COVER LOW | 1 | $33.09 USD | View product → |
| 9 | 64307-ACC1-E10-F1P | COVER FR DEC TOP | 1 | $36.15 USD | View product → |
| 10 | 64311-ACC1-E10-N1R | COVER PUMP (Black) | 1 | $9.51 USD | View product → |
| 11 | 64313-ACC1-E10-F1P | COVER FR DEC R | 1 | $94.83 USD | View product → |
| 12 | 64314-ACC1-E10-F1P | COVER FR DEC L | 1 | $75.81 USD | View product → |
| 13 | 64316-LCB9-C10-N1R | PLUG FLOOR (Black) | 4 | $6.09 USD | View product → |
| 14 | 64317-ACC1-E10-F1P | COVER FLOOR DEC R | 1 | $54.42 USD | View product → |
| 15 | 64318-ACC1-E10-F1P | COVER FLOOR DEC L | 1 | $54.42 USD | View product → |
| 16 | 6431A-ACC1-E10-N1R | "ASSY., PANEL FLOOR" (Black) | 1 | $34.35 USD | View product → |
| 17 | 64320-ACC1-E10-N1R | FLOOR PANEL UP (Black) | 1 | $23.10 USD | View product → |
| 18 | 64400-ACC1-E10-N1R | UNDER COWL (Black) | 1 | $27.45 USD | View product → |
| 19 | 77233-ACC1-E10 | INNER BOX KEY | 1 | $39.72 USD | View product → |
| 20 | 77238-ACC1-E11-N1A | HOOK COMP PUSH LOCK | 1 | $41.82 USD | View product → |
| 21 | 80152-ACC1-E10-85P | FUEL COVER | 1 | $60.27 USD | View product → |
| 22 | 80153-ACC1-E10 | STAY FUEL COVER | 1 | $2.64 USD | View product → |
| 23 | 81131-AEA7-M30-85P | LEG SHIELD | 1 | $199.62 USD | View product → |
| 24 | 81133-ACC1-E10 | HINDE R COVER LEG SHIE | 1 | $5.04 USD | View product → |
| 25 | 81134-ACC1-E10 | PLATE INNER BOX | 1 | $17.97 USD | View product → |
| 26 | 81141-ACC1-E10-85P | COVER LEG SHIELD | 1 | $83.13 USD | View product → |
| 27 | 81142-ACC1-E11-N1P | "LID, COVER LEG SHIELD" | 1 | $34.74 USD | View product → |
| 28 | 81143-ACC1-E10 | HINGE L COVER LEGSHIE | 1 | $5.04 USD | View product → |
| 29 | 81146-ACC1-E10 | FOAM STRIP | 1 | $3.18 USD | View product → |
| 30 | 81151-ACC1-E10 | STAY R LID INNER BOX | 1 | $2.10 USD | View product → |
| 31 | 81152-ACC1-E10 | STAY L LID INNER BOX | 1 | $2.10 USD | View product → |
| 32 | 81153-ACC1-E10 | SPRING R COVER LEG SHIE | 1 | $1.32 USD | View product → |
| 33 | 81154-ACC1-E10 | SPRING L COVER LEG SHIE | 1 | $1.32 USD | View product → |
| 34 | 81163-LKJ1-900 | LID LATCH LEG SHIELD | 1 | $4.56 USD | View product → |
| 35 | 81164-LKJ1-900 | LID SPRING LEG SHIELD | 1 | $0.87 USD | View product → |
| 36 | 83551-ACC1-E10 | GROMMET COVER | 2 | $1.32 USD | View product → |
| 37 | 90302-SDA4-C01 | NUT SPRING 4MM | 13 | $0.99 USD | View product → |
| 38 | 90652-LFB5-C00 | CLIP MUDGUARD | 12 | $2.31 USD | View product → |
| 39 | 93404-06012-07G | 0 | 4 | $1.32 USD | View product → |
| 40 | 93903-34380-G | SCREW TAPPING 4*12 (KG) | 47 | $2.73 USD | View product → |
| 41 | 93903-35280-G | SCREW TAPPING 5*12 (K) | 1 | $0.99 USD | View product → |
| 42 | 93903-GFY6-C01 | SCREW TAPPING 4*14(K) | 7 | $4.92 USD | View product → |
| 43 | 94591-LGR5-E10 | CLIP 1*100 | 2 | $4.92 USD | View product → |
| 44 | 95701-06014-07G | BOLT FLANGE 6X14(KG) | 1 | $1.32 USD | View product → |

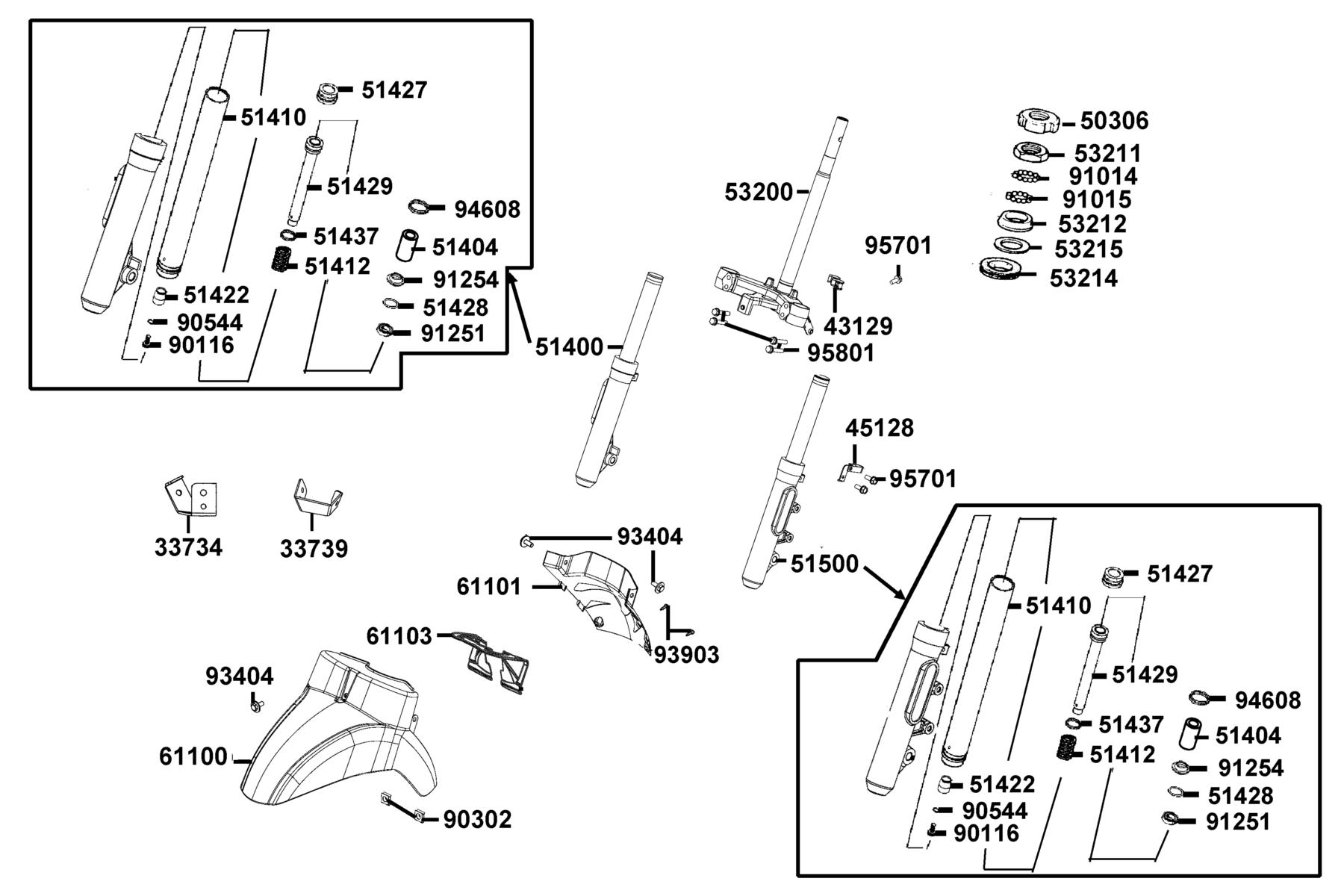

F06 — Stem Steering ● Front Cushion
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 33734-AEA7-M30 | "STAY RH.LH.,REFELX REFLECTOR" | 1 | $10.50 USD | View product → |
| 2 | 33739-AEA7-M30 | "STAY RH.LH.,REFELX REFLECTOR" | 1 | $10.50 USD | View product → |
| 3 | 43129-ALD9-E14 | CLAMPER BRK HOSE | 1 | $8.19 USD | View product → |
| 4 | 45128-ACC1-E10 | CLAMPER FR BRK HOSE | 1 | $12.45 USD | View product → |
| 5 | 50306-1F96-C00 | NUT STRG STEM LOCK | 1 | $12.12 USD | View product → |
| 6 | 51400-AEA7-M30-NEA | FORK ASSY FR R | 1 | $340.20 USD | View product → |
| 7 | 51404-ACC1-E10 | SPRING COLLAR | 2 | $40.62 USD | View product → |
| 8 | 51410-ACC1-E10 | FORK PIPE COMP | 2 | $319.89 USD | View product → |
| 9 | 51412-LEJ2-E10 | REBOUND SPRING | 2 | $6.24 USD | View product → |
| 10 | 51428-LEJ2-E10 | OIL SEAL STOP RING | 2 | $5.31 USD | View product → |
| 11 | 51429-ACC1-E10 | PIPE SEAT COMP | 1 | $62.61 USD | View product → |
| 12 | 51437-LEJ2-E10 | PISTON RING | 2 | $5.31 USD | View product → |
| 13 | 51500-AEA7-M30-NEA | FORK ASSY FR L | 1 | $340.20 USD | View product → |
| 14 | 53200-ACC1-E10 | STEM COMP STRG | 1 | $140.19 USD | View product → |
| 15 | 53211-GFY6-C00 | RACE STRG TOP CONE | 1 | $16.41 USD | View product → |
| 16 | 53212-2L50-C00 | RACE (STRG BOTTOM) CONE | 1 | $30.66 USD | View product → |
| 17 | 53214-2L50-C00 | DUST SEAL STRG (HEAD) | 1 | $6.39 USD | View product → |
| 18 | 53215-2L50-C00 | WASH STRG HDL DUST-SEAL | 1 | $7.53 USD | View product → |
| 19 | 61101-ACC1-E10-1EP | FRONT FENDER B (Dark Peridot) | 1 | $90.15 USD | View product → |
| 20 | 61103-ACC1-E10 | PLATE SPLASH BOARD | 1 | $18.45 USD | View product → |
| 21 | 90302-SDA4-C01 | NUT SPRING 4MM | 2 | $0.99 USD | View product → |
| 22 | 90544-LEJ2-E10 | PACKING | 2 | $5.22 USD | View product → |
| 23 | 91014-LLJ3-C00 | CAGE STRG TOPP | 1 | $22.65 USD | View product → |
| 24 | 91015-LLJ3-C00 | CAGE STRG BOT | 1 | $28.35 USD | View product → |
| 25 | 91251-LEJ2-E10 | SEAL OIL | 2 | $36.78 USD | View product → |
| 26 | 91254-LEJ2-E10 | DUST SEAL | 2 | $19.26 USD | View product → |
| 27 | 93404-06012-07G | 0 | 3 | $1.32 USD | View product → |
| 28 | 93903-GFY6-C01 | SCREW TAPPING 4*14(K) | 2 | $4.92 USD | View product → |
| 29 | 94608-LEJ2-E10 | O-RING 23X2.4 | 2 | $4.92 USD | View product → |
| 30 | 95701-06012-07G | BOLT FLANGE 6*12 (K) | 1 | $0.99 USD | View product → |
| 31 | 95801-08040-08G | BOLT FLANGE 8*40 | 4 | $4.89 USD | View product → |

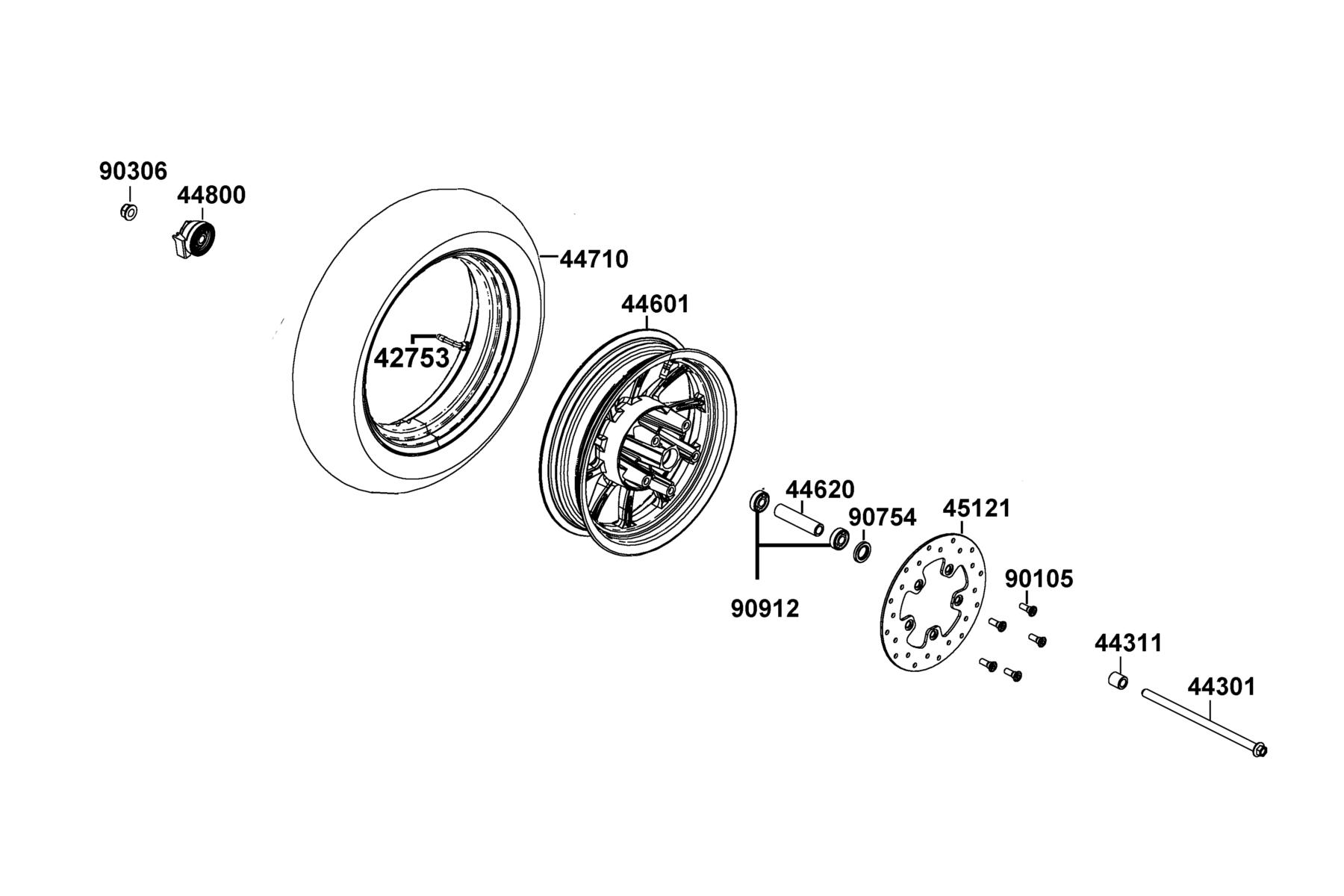

F07 — Front Wheel
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 42753-0F06-C00 | VALAE RIM | 1 | $34.17 USD | View product → |
| 2 | 44301-LEJ2-E13 | AXLE FR WHEEL 12*243(K) | 1 | $42.78 USD | View product → |
| 3 | 44311-KEBE-C00 | COLLAR FR WHEEL SIDE | 1 | $7.89 USD | View product → |
| 4 | 44601-AEA7-E11-NEA | WHEEL FR CAST | 1 | $174.72 USD | View product → |
| 5 | 44620-KHD8-C00 | COLLAR FR DIST | 1 | $15.06 USD | View product → |
| 6 | 44710-ACC1-E10 | TIRE ASSY FR(110/70-12 ) | 1 | $448.50 USD | View product → |
| 7 | 44800-AEA7-E10 | FRONT SPEED SENSOR ABS | 1 | $161.13 USD | View product → |
| 8 | 45121-LGR5-E80 | DISK FR BRK | 1 | $160.53 USD | View product → |
| 9 | 90105-KCR3-C02 | BOLT FR DISK 8*24 | 5 | $9.84 USD | View product → |
| 10 | 90306-LKL5-E31 | NUT U FLANGE 12MM(K) | 1 | $18.96 USD | View product → |
| 11 | 90754-GHC8-C00 | DUST SEAL 20*32*5 | 1 | $4.59 USD | View product → |
| 12 | 90912-KFLF-C00 | BEARING 6201 LLU | 2 | $41.97 USD | View product → |

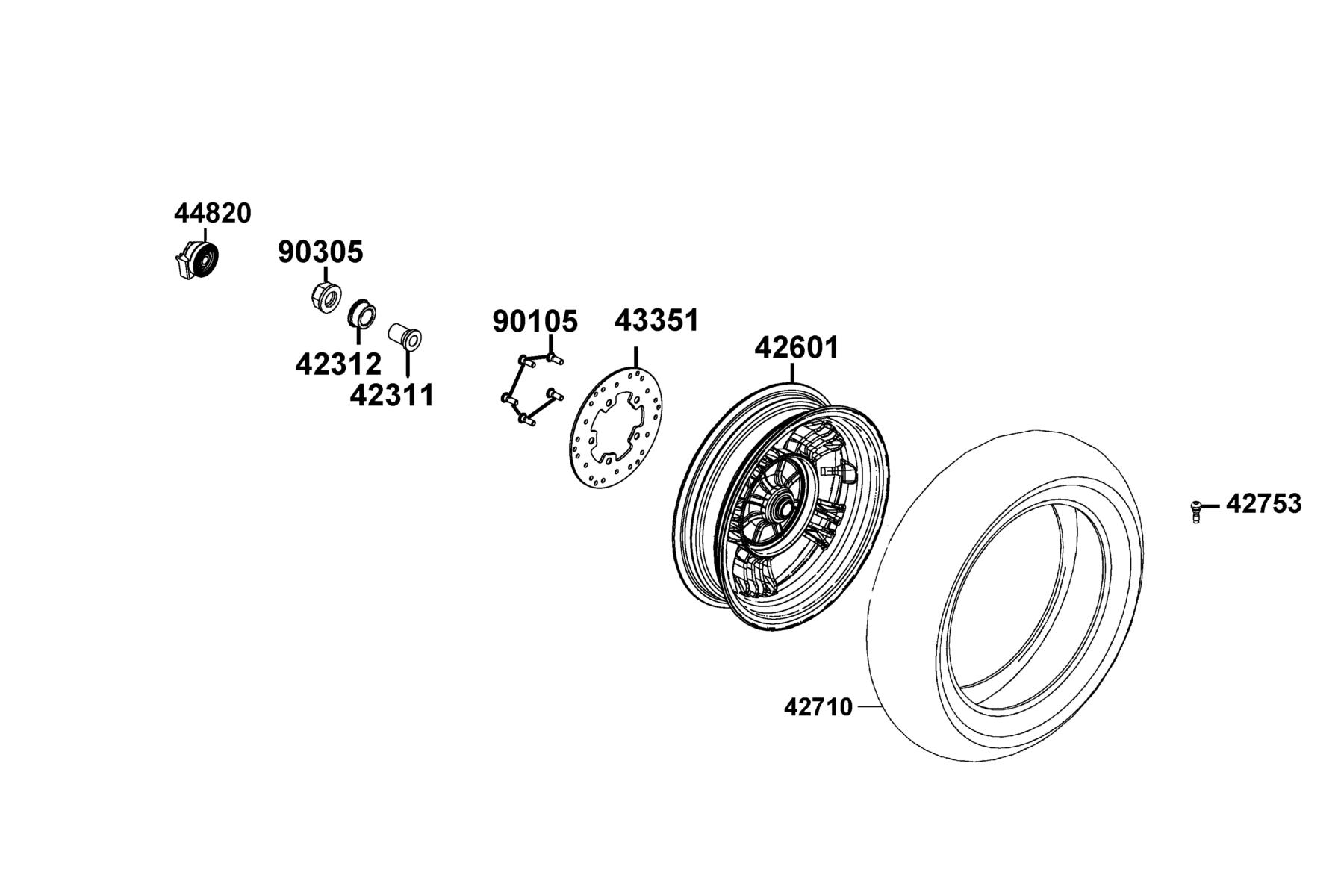

F08 — Rear Wheel
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 42311-LKG2-C00 | COLLAR RR PANDL SIDE | 1 | $13.77 USD | View product → |
| 2 | 42312-KHB4-C00 | CLOLLAR RR AXLE SIDE | 1 | $14.43 USD | View product → |
| 3 | 42601-ACC1-E11-NEA | WHEEL COMP RR CAST | 1 | $168.87 USD | View product → |
| 4 | 42710-LGS6-C10 | TIRE ASSY RR | 1 | $493.02 USD | View product → |
| 5 | 42753-0A01-C00 | VALVE (TR 412) & CAP (C) | 1 | $18.54 USD | View product → |
| 6 | 43351-LFB5-E80 | DISK FR BRK | 1 | $158.76 USD | View product → |
| 7 | 44820-AAG1-600 | REAR SPEED SENSOR ABS | 1 | $100.08 USD | View product → |
| 8 | 90105-KCR3-C02 | BOLT FR DISK 8*24 | 5 | $9.84 USD | View product → |
| 9 | 90305-KFW6-C00 | NUT U FLANGE 16MM(C) | 1 | $11.73 USD | View product → |

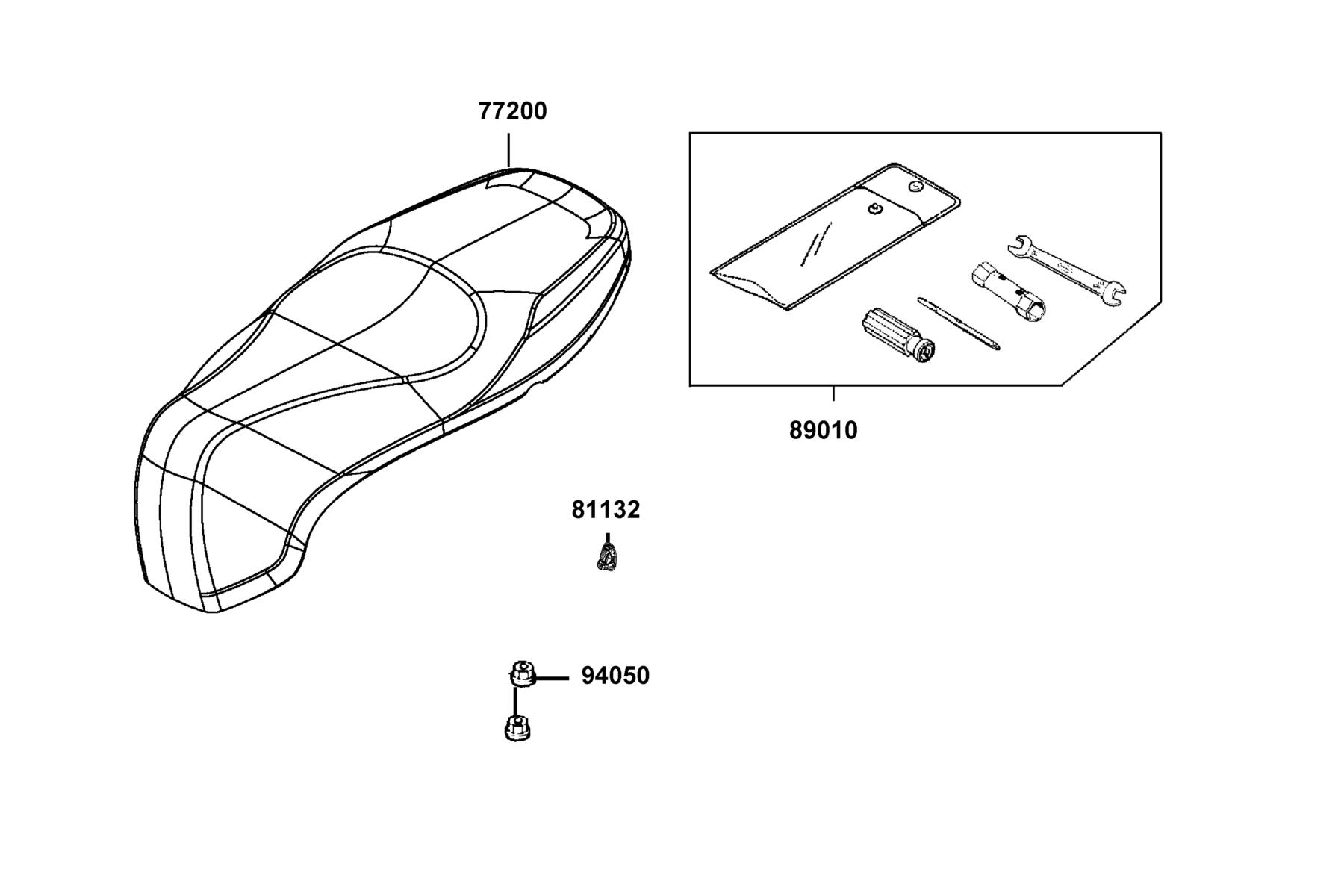

F09 — Seat
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 77200-ACC1-E10-T01 | SEAT ASSY | 1 | $461.94 USD | View product → |
| 2 | 81132-ACC1-C00 | HOOK LUGGAGE | 1 | $5.04 USD | View product → |
| 3 | 89010-KGBG-C00 | TOOL SET | 1 | $47.94 USD | View product → |
| 4 | 94050-06080-G | NUT FLANGE 6MM | 2 | $0.99 USD | View product → |

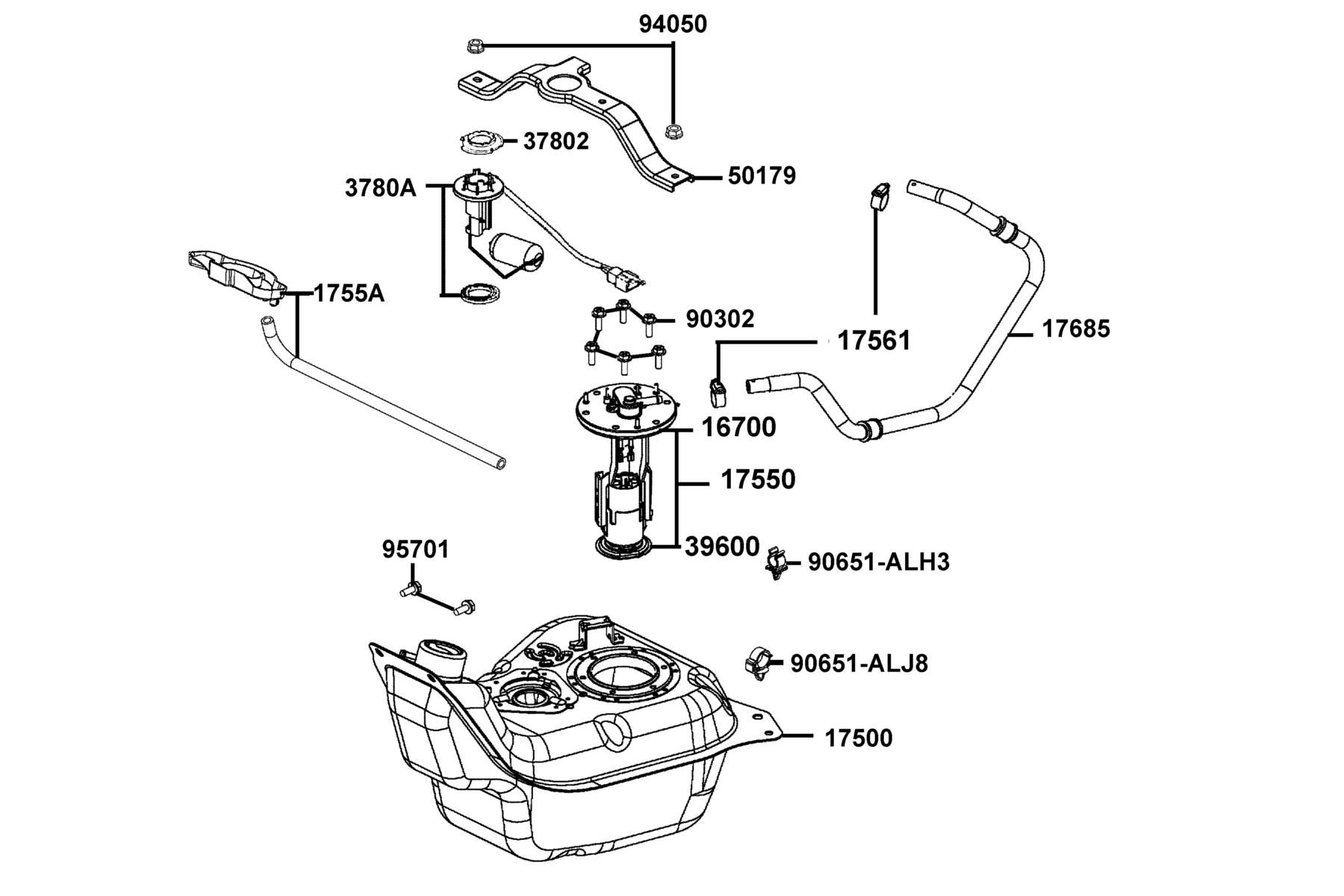

F10 — Fuel Tank
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 16700-ALB8-930 | FUEL PUMP COMP | 1 | $172.56 USD | View product → |
| 2 | 17500-ACC1-E10 | TANK COMP FUEL | 1 | $117.93 USD | View product → |
| 3 | 17550-AEA7-M30 | FUEL PUMP ASSY | 1 | $290.94 USD | View product → |
| 4 | 1755A-ACC1-E10 | TRAY FUEL CAP ASSY | 1 | $32.28 USD | View product → |
| 5 | 17561-LGK8-900 | CLIP 12.0 | 1 | $22.17 USD | View product → |
| 6 | 17685-AEA7-M30 | "TUBE,FUEL" | 1 | $80.10 USD | View product → |
| 7 | 37802-GGA7-C00 | RET FUEL UNIT | 1 | $5.22 USD | View product → |
| 8 | 3780A-AEA7-M30 | FUEL UNIT ASSY | 1 | $117.51 USD | View product → |
| 9 | 39600-LEA1-800 | REGULATOR 60-N001 | 1 | $84.30 USD | View product → |
| 10 | 50179-ACC1-E10 | BRKT FLOOR PANEL | 1 | $27.99 USD | View product → |
| 11 | 90302-PUA3-B51 | BOLT-WASH 5*12 | 6 | $4.65 USD | View product → |
| 12 | 90651-ALH3-700 | CLIP WIRE HARN | 2 | $0.93 USD | View product → |
| 13 | 90651-ALJ8-C00 | CLIP,MUDGUARD | 1 | — | Part details → |
| 14 | 94050-06080-G | NUT FLANGE 6MM | 2 | $0.99 USD | View product → |
| 15 | 95701-06012-08G | BOLT FLANGE 6*12 (C) | 2 | $0.99 USD | View product → |

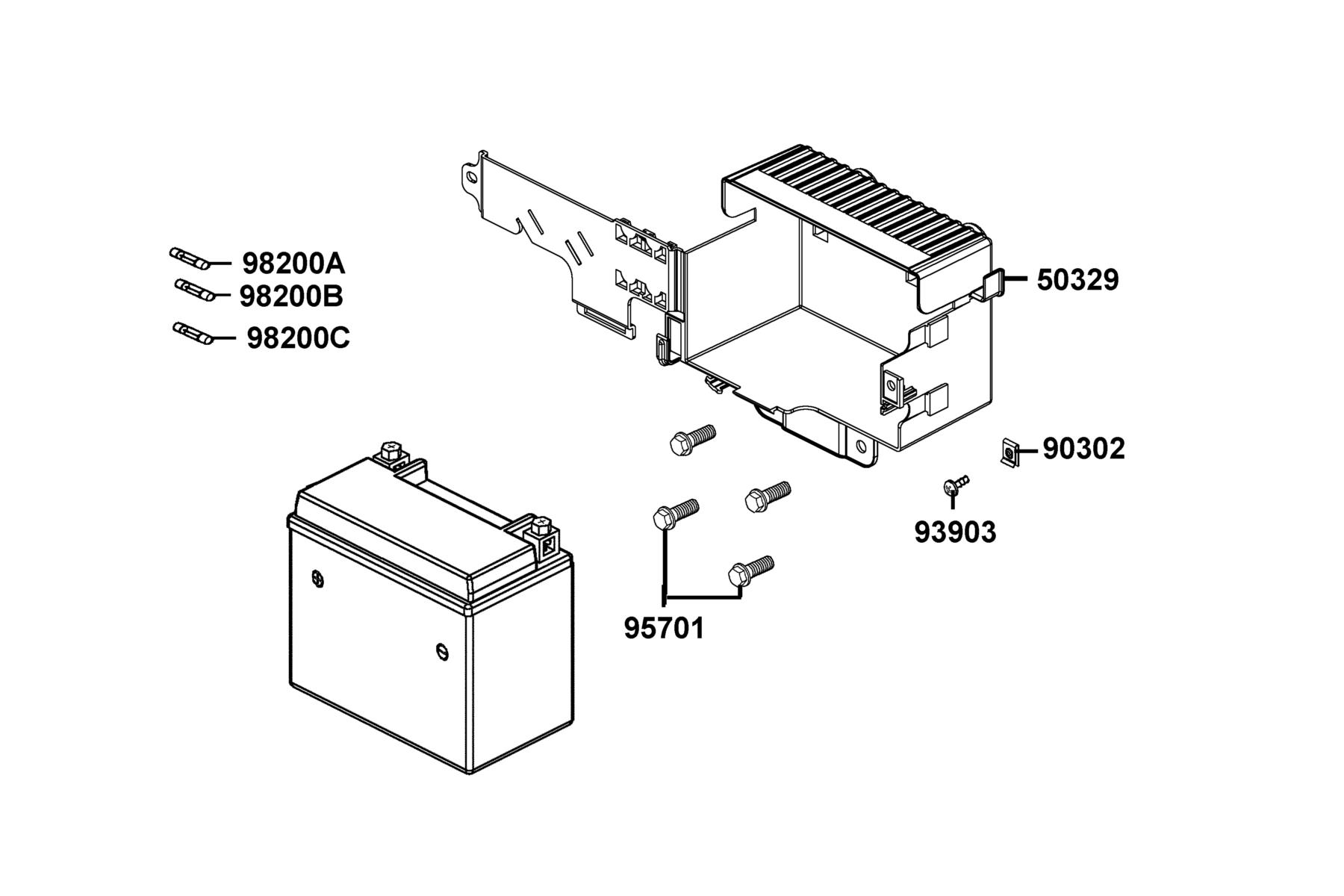

F11 — Battery
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 50329-ACC1-E11-N1R | COVER ASSY BATTERY (Black) | 1 | $25.56 USD | View product → |
| 2 | 90302-SDA4-C01 | NUT SPRING 4MM | 1 | $0.99 USD | View product → |
| 3 | 93903-GFY6-C01 | SCREW TAPPING 4*14(K) | 1 | $4.92 USD | View product → |
| 4 | 95701-06012-08G | BOLT FLANGE 6*12 (C) | 3 | $0.99 USD | View product → |
| 5 | 98200-31000 | BLADE FUSE 10A | 2 | $4.92 USD | View product → |
| 6 | 98200-31500 | BLADE FUSE 15A | 1 | $4.92 USD | View product → |
| 7 | 98200-32500 | BLADE FUSE 25A | 1 | $18.57 USD | View product → |

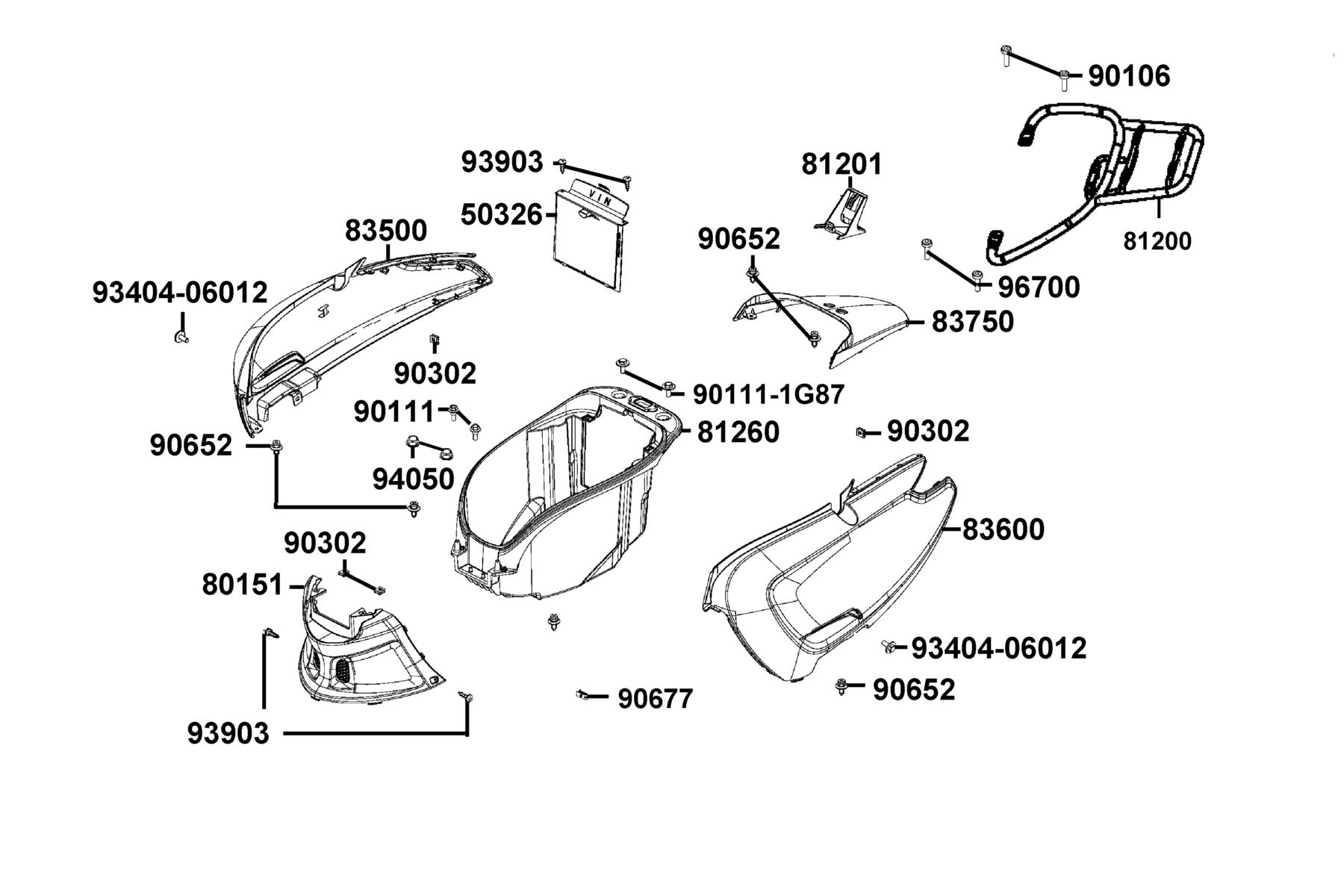

F12 — Body Cover ● Luggage Box
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 50326-ACC1-E10-N1R | COVER BATTERY | 1 | $20.10 USD | View product → |
| 2 | 80151-ACC1-E10-N1R | COVER CENTER (Black) | 1 | $24.96 USD | View product → |
| 3 | 81200-ACC1-E11 | CARRIER RR ASSY | 1 | $233.55 USD | View product → |
| 4 | 81201-AKB7-C00-F1P | COVER BATTERY | 1 | $39.69 USD | View product → |
| 5 | 81260-ACC1-E10-N1R | BOX ASSY LUGGAGE | 1 | $95.97 USD | View product → |
| 6 | 83750-ACC1-E10-N1R | REAR CENTER COVER | 1 | $22.11 USD | View product → |
| 7 | 90106-KFAF-C10 | BOLT WASH 8MM | 2 | $3.27 USD | View product → |
| 8 | 90111-06016-07G | BOLT FLANGE 6*16 (K) | 1 | $4.65 USD | View product → |
| 9 | 90111-1G87-C01 | BOLT FLANGE 6MM | 2 | $5.31 USD | View product → |
| 10 | 90302-SDA4-C01 | NUT SPRING 4MM | 3 | $0.99 USD | View product → |
| 11 | 90652-LCA4-C10 | CLIP MUDGUARD | 4 | $5.67 USD | View product → |
| 12 | 90677-GAR1-C01 | NUT CLIP 5MM | 2 | $1.65 USD | View product → |
| 13 | 93404-06012-07G | 0 | 2 | $1.32 USD | View product → |
| 14 | 93903-GFY6-C01 | SCREW TAPPING 4*14(K) | 5 | $4.92 USD | View product → |
| 15 | 94050-06080-G | NUT FLANGE 6MM | 2 | $0.99 USD | View product → |
| 16 | 96700-08016-02 | BOLT FLANGE SH 8*16(CR) | 2 | $9.18 USD | View product → |

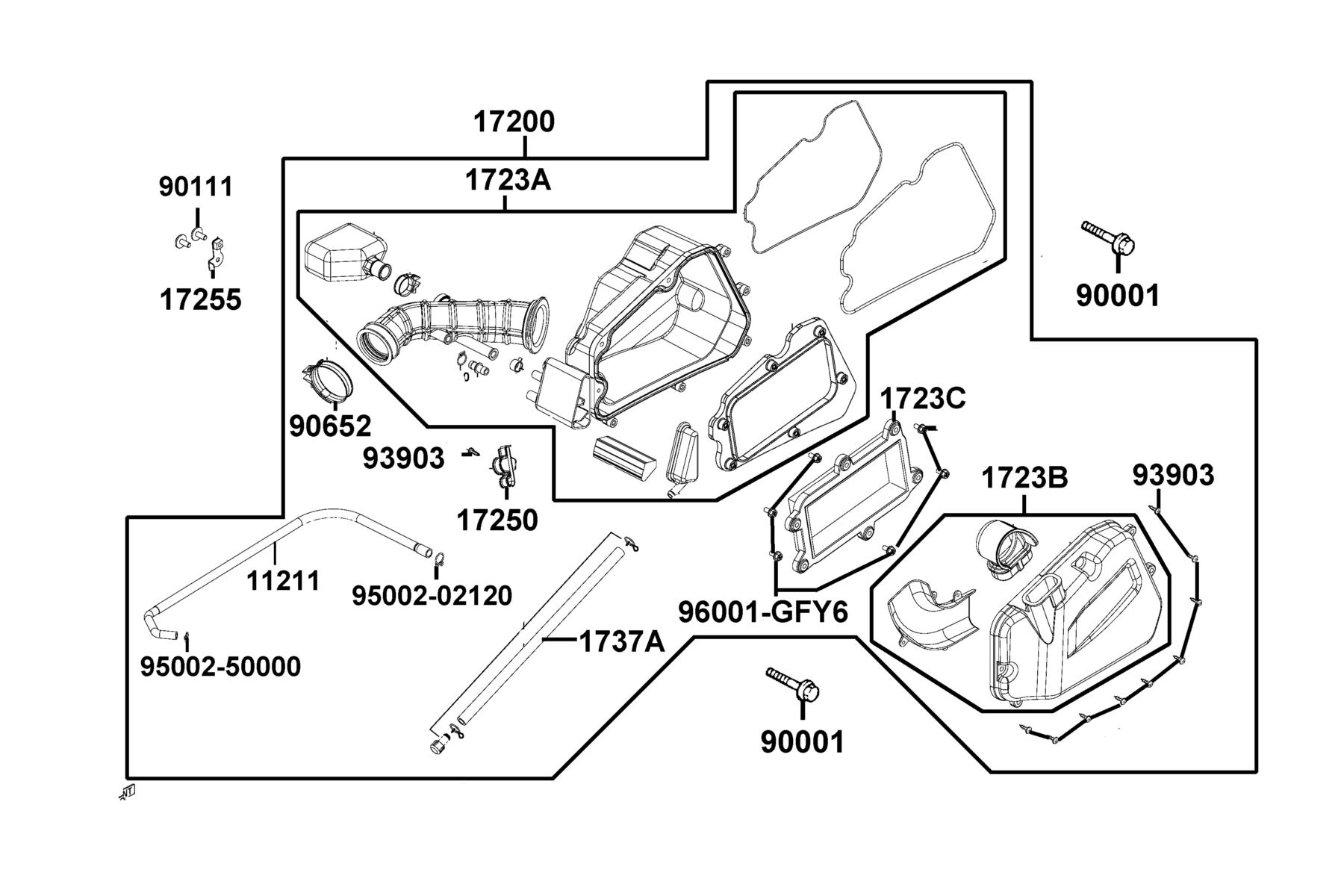

F13 — Air Cleaner
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 11211-ACC1-E10 | TUBE BREATHER | 1 | $34.50 USD | View product → |
| 2 | 17200-ACC1-E10 | AIR/C ASSY | 1 | $123.51 USD | View product → |
| 3 | 1723A-ACC1-E10 | CASE ASSY AIR/C | 1 | $112.02 USD | View product → |
| 4 | 1723B-ACC1-E10 | COVER ASSY AIR/C | 1 | $45.87 USD | View product → |
| 5 | 1723C-ACC1-E10 | ELEMENT ASSY AIR/C | 1 | $44.94 USD | View product → |
| 6 | 17250-ACC1-E10 | STAY AIR/C CASE | 1 | $10.14 USD | View product → |
| 7 | 17255-ACC1-E10 | STAY CHAMBER | 1 | $4.59 USD | View product → |
| 8 | 1737A-LCD3-E00 | V TUBE ASSY | 1 | $10.83 USD | View product → |
| 9 | 90001-KGF1-C01 | BOLT FLANGE SHF6*32(CG) | 2 | $1.95 USD | View product → |
| 10 | 90111-06016-07G | BOLT FLANGE 6*16 (K) | 1 | $4.65 USD | View product → |
| 11 | 90652-LKH3-C00 | BAND AIR/C CONN TUBE | 1 | $8.85 USD | View product → |
| 12 | 93903-25480 | SCREW TAPPING 5*20 **93903-25460 C.P.N. | 9 | $4.92 USD | View product → |
| 13 | 95002-02120 | CLIP B12 TUBE | 1 | $1.86 USD | View product → |
| 14 | 95002-50000 | CLIP C9 TUBE | 1 | $1.86 USD | View product → |
| 15 | 96001-GFY6-C00 | BOLT SPECIAL 5X10 | 6 | $1.65 USD | View product → |

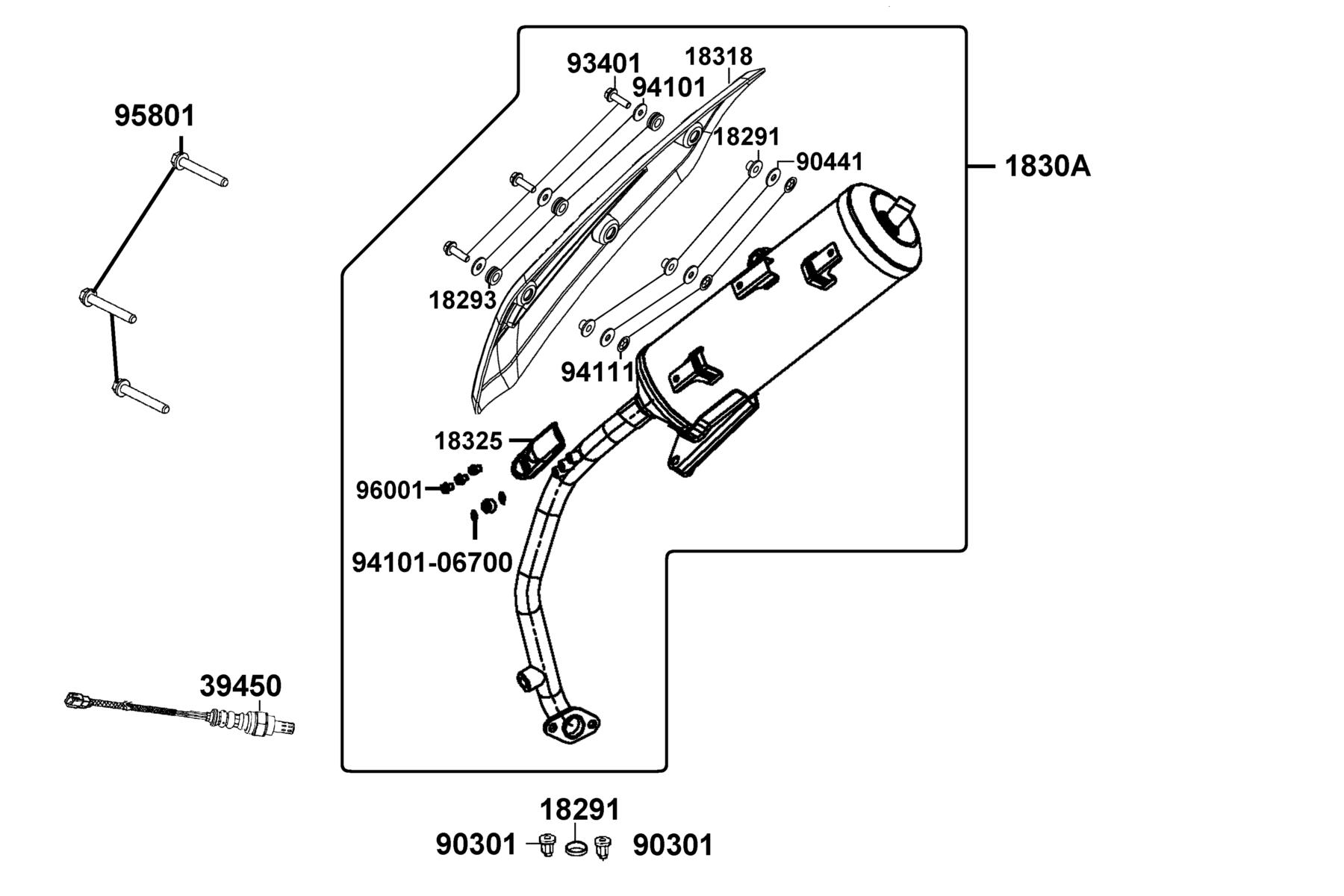

F14 — Exhaust Muffler
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 18291-LEA5-C00 | GASKET EXH PIPE | 1 | $5.88 USD | View product → |
| 2 | 18291-LKG2-C00 | COLLAR | 3 | $2.61 USD | View product → |
| 3 | 18293-LHJ8-900 | RUBBER PKG PROTR | 3 | $11.79 USD | View product → |
| 4 | 1830A-AEA7-M30-N1P | MUFFLER ASSY EXH | 1 | $639.04 USD | View product → |
| 5 | 18318-ACC1-E10-N1P | PROTECTOR MUFF | 1 | $176.01 USD | View product → |
| 6 | 18325-ACC1-E10 | PROTECTOR EXHAUST | 1 | $75.12 USD | View product → |
| 7 | 39450-LEA6-800 | O2 SENSOR | 1 | $292.26 USD | View product → |
| 8 | 90301-GFY6-C01 | NUT (HEX) CAP 8MM | 2 | $15.21 USD | View product → |
| 9 | 90441-ACD5-E00 | WASHER PLATE | 3 | $3.27 USD | View product → |
| 10 | 93401-LEA7-900 | BOLT WASHER 6X22 | 3 | $22.23 USD | View product → |
| 11 | 94101-06700 | WASHER PLAIN 6MM | 3 | $4.92 USD | View product → |
| 12 | 94101-LEA2-C00 | "WASHER PLAIN,6.5X18X1.5" | 3 | $1.65 USD | View product → |
| 13 | 94111-ACD5-E00 | WASHER.SPG | 3 | $11.79 USD | View product → |
| 14 | 95801-08042-07G | BOLT FLANGE 8*42 (K) | 3 | $3.93 USD | View product → |
| 15 | 96001-06008-06 | BOLT FLANGE SH 6*8 | 3 | $4.92 USD | View product → |

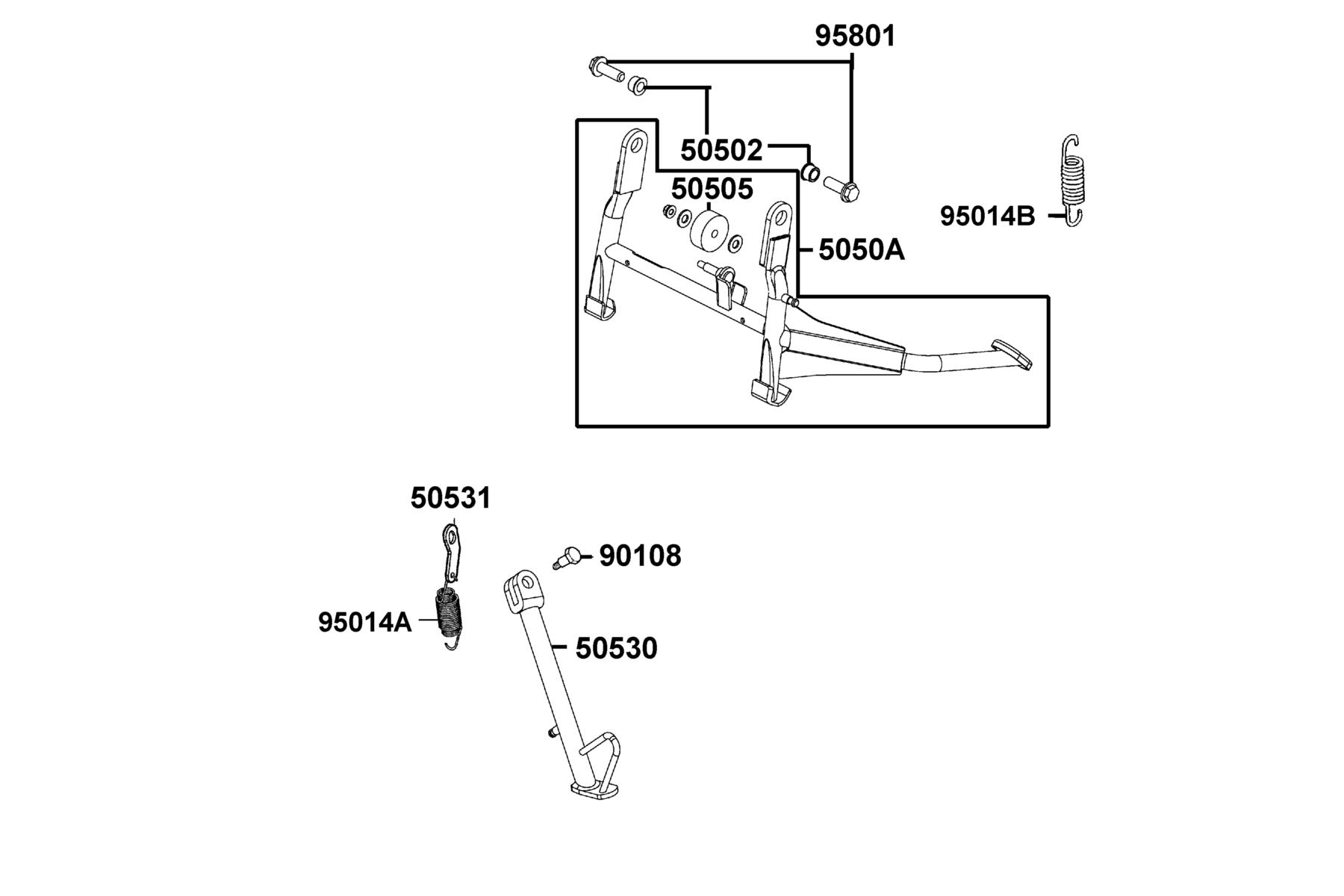

F15 — Stand ● Kick Starter Arm
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 50502-GFY6-C00 | COLLAR MAIN STAND | 2 | $2.97 USD | View product → |
| 2 | 50505-LCB9-C00 | STOPPER RUBBER | 1 | $14.43 USD | View product → |
| 3 | 5050A-ACC1-E10 | STAND COMP MAIN | 1 | $70.59 USD | View product → |
| 4 | 50530-AEA7-C00 | SIDE STAND COMP | 1 | $98.52 USD | View product → |
| 5 | 50531-KEB7-C00 | PLATE SPRING STOPPER | 1 | $5.22 USD | View product → |
| 6 | 90108-KUDU-C01 | SCREW SIDE STAND PIVOT | 1 | $9.18 USD | View product → |
| 7 | 95014-71202-G | SPG ASSY MAIN STAND | 1 | $26.28 USD | View product → |
| 8 | 95014-72204-G | SPG B1 SIDE STAND | 1 | $10.80 USD | View product → |
| 9 | 95801-10030-07G | BOLT FLANGE 10*30 (G) | 2 | $4.92 USD | View product → |

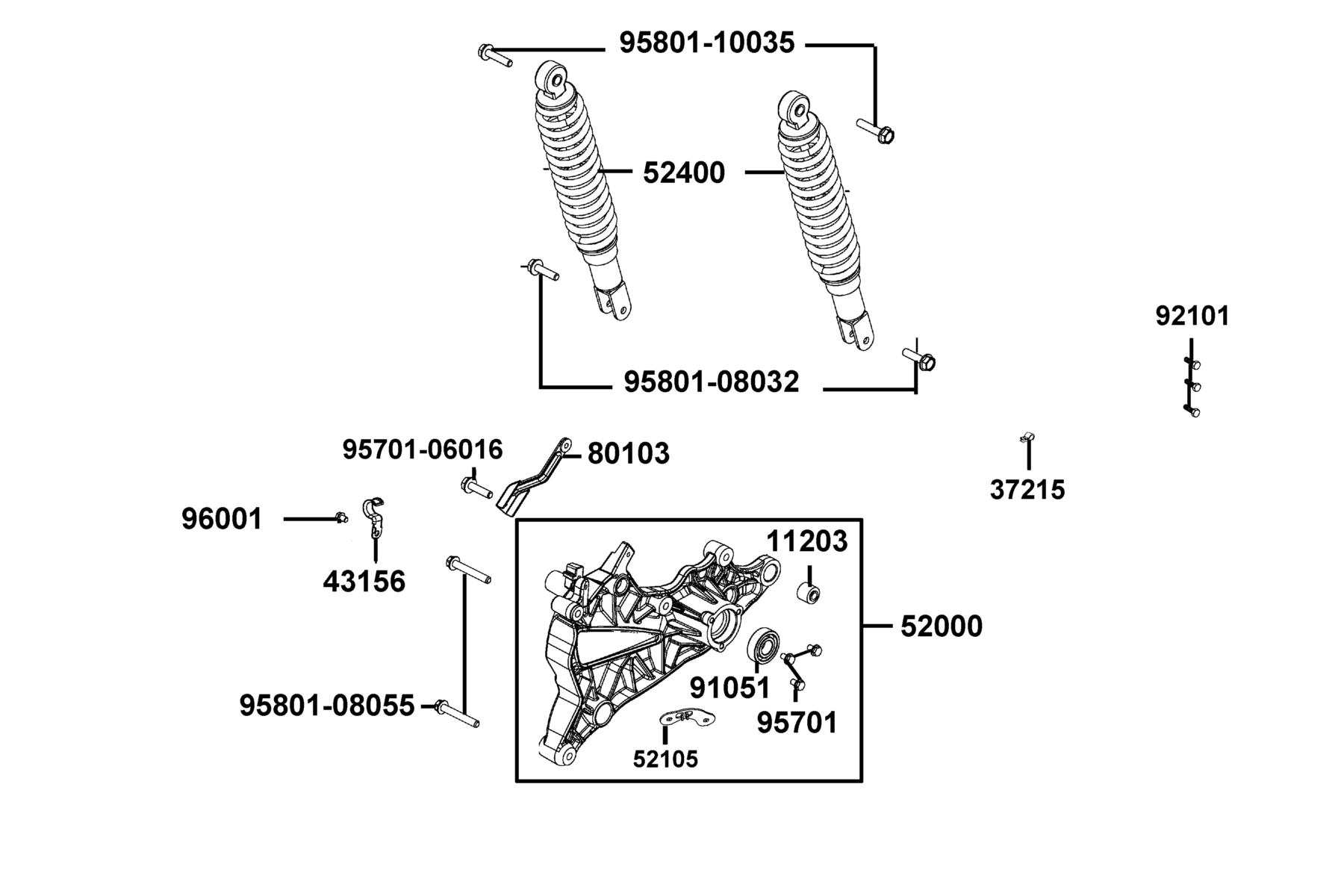

F16 — Rear Cushion
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 11203-GGC7-W10 | BUSH | 1 | $14.31 USD | View product → |
| 2 | 37215-LHJ3-C00 | CLAMP | 1 | $4.65 USD | View product → |
| 3 | 43156-KKC4-C00 | CLAMPER HOSE RR | 1 | $11.16 USD | View product → |
| 4 | 52000-AEA7-E10 | FORK ASSY RR | 1 | $160.05 USD | View product → |
| 5 | 52105-LKB3-C00 | STAY ABS SENSOR | 1 | $6.36 USD | View product → |
| 6 | 52400-ACC1-E10-N1A | CUSHION ASSY REAR | 2 | $166.80 USD | View product → |
| 7 | 80103-LKG2-C00 | PLATE SPLASH BOARD | 1 | $9.27 USD | View product → |
| 8 | 91051-KFBF-C00 | BRG BALL RADIAL 6203 LLU | 1 | $45.15 USD | View product → |
| 9 | 92101-05008-0G | BOLT HEX 5*8 | 3 | $0.93 USD | View product → |
| 10 | 95701-06010-07G | BOLT FLANGE 6*10 (K) | 3 | $0.99 USD | View product → |
| 11 | 95701-06016-07G | BOLT FLANGE SH 6*16 (KG) | 1 | $0.99 USD | View product → |
| 12 | 95801-08032-07G | BOLT FLANGE 8*32(K) | 2 | $3.27 USD | View product → |
| 13 | 95801-08055-07G | BOLT FLANGE 8*55 | 2 | $3.93 USD | View product → |
| 14 | 95801-10035-08G | BOLT FLANGE 10X35 | 2 | $5.22 USD | View product → |
| 15 | 96001-06012-07G | BOLT FLANGE 6*12(G) | 1 | $0.99 USD | View product → |

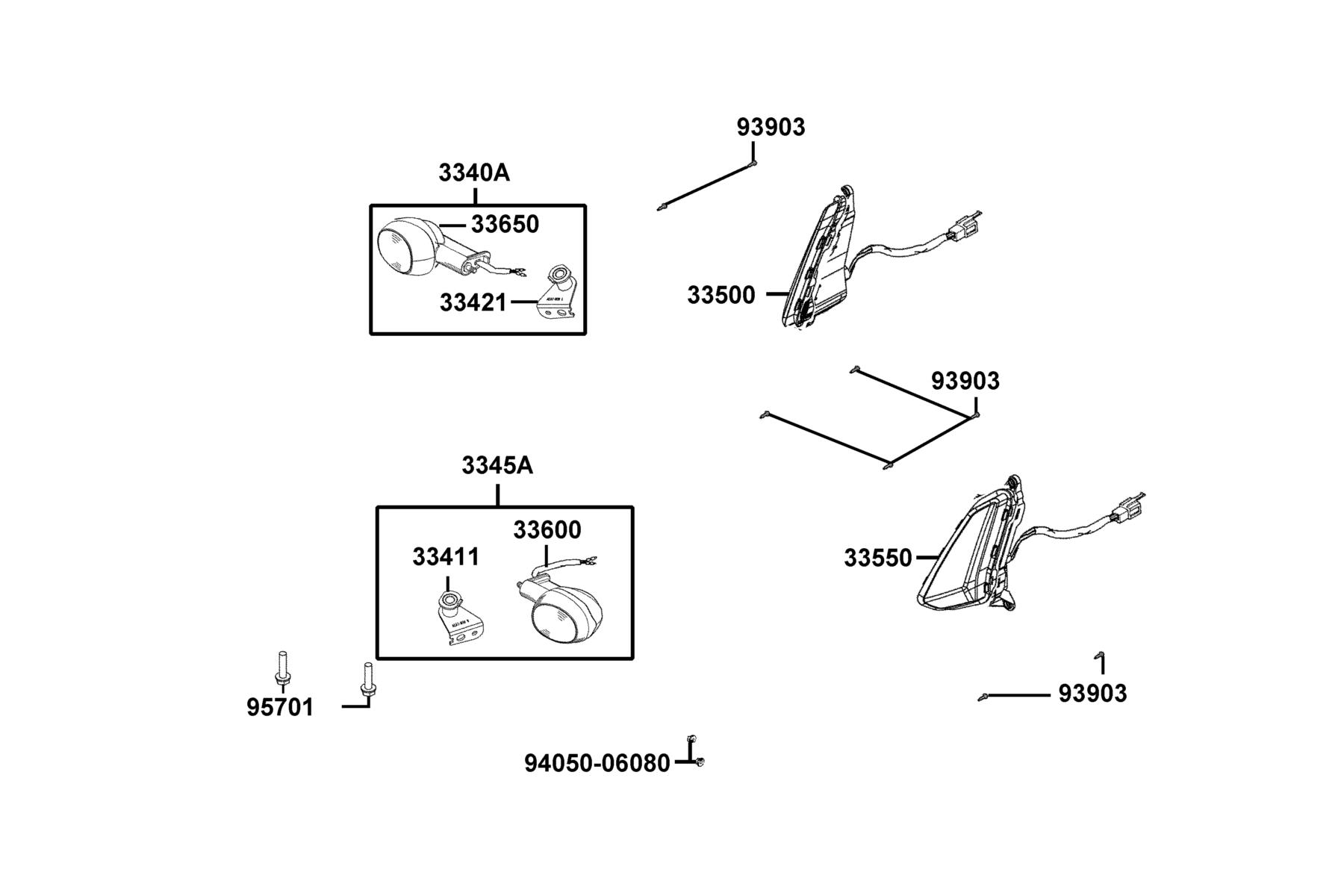

F17 — Front Winker
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3340A-AEA7-M30 | WINKER ASSY RH FR | 1 | $109.86 USD | View product → |
| 2 | 33411-AEA7-M30 | STAY R FR WINKER | 1 | $300.42 USD | View product → |
| 3 | 33421-AEA7-M30 | STAY L FR WINKER | 1 | $69.30 USD | View product → |
| 4 | 3345A-AEA7-M30 | WINKER ASSY LH FR | 1 | $64.59 USD | View product → |
| 5 | 33500-AEA7-M30 | WINKER ASSY R FR | 1 | $191.73 USD | View product → |
| 6 | 33550-AEA7-M30 | WINKER ASSY L FR | 1 | $191.73 USD | View product → |
| 7 | 33600-AEA7-M30 | WINKER ASSY RH RR | 1 | $109.32 USD | View product → |
| 8 | 33650-AEA7-M30 | WINKER ASSY LH RR | 1 | $109.32 USD | View product → |
| 9 | 93903-34380-G | SCREW TAPPING 4*12 (KG) | 8 | $2.73 USD | View product → |
| 10 | 94050-06080-G | NUT FLANGE 6MM | 2 | $0.99 USD | View product → |
| 11 | 95701-06012-07G | BOLT FLANGE 6*12 (K) | 1 | $0.99 USD | View product → |

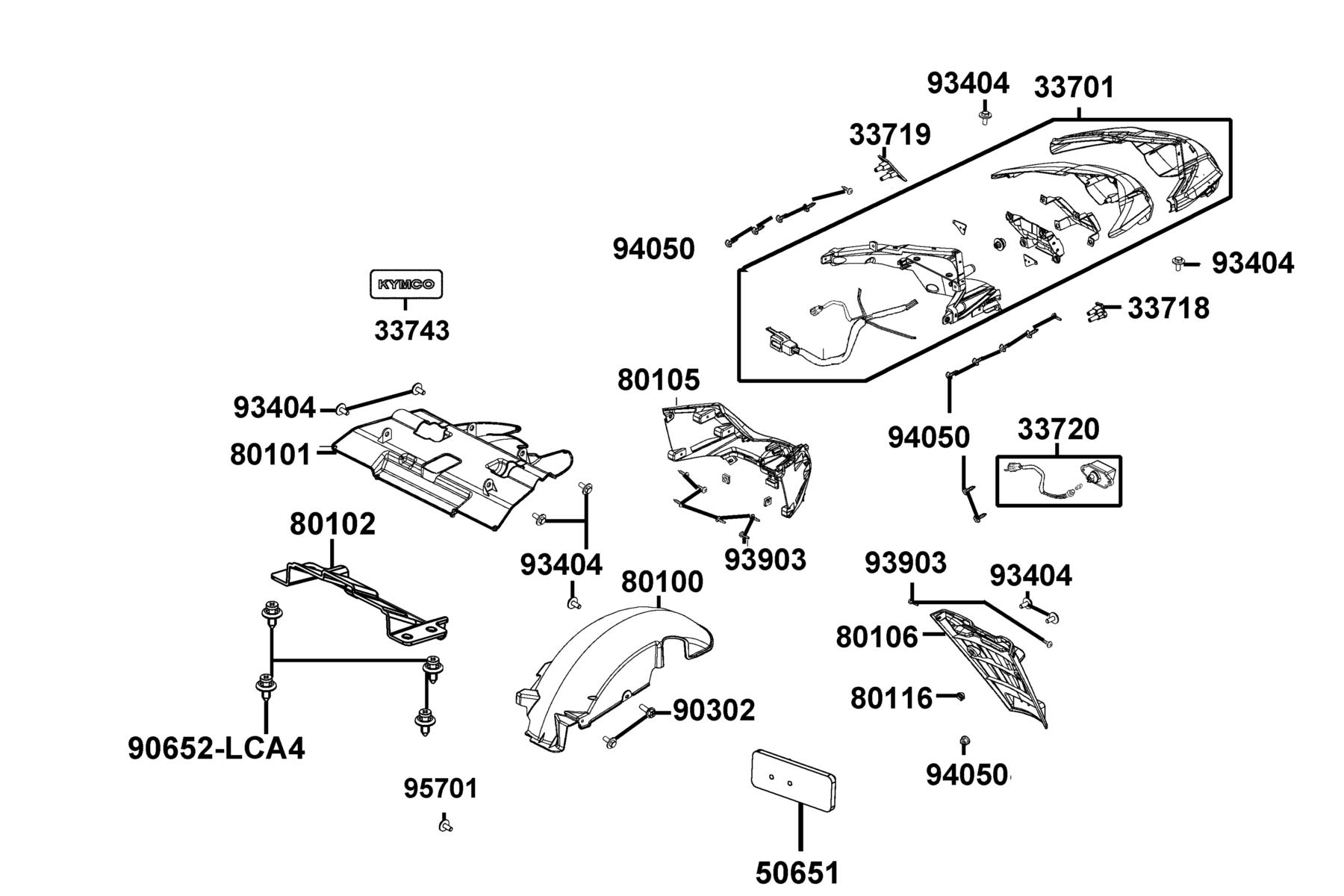

F18 — Tail Light
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 33701-AEA7-M30 | LIGHT ASSY RR COMB | 1 | $589.02 USD | View product → |
| 2 | 33718-ACC1-E10-N1R | LID R RR (Black) | 1 | — | Part details → |
| 3 | 33719-ACC1-E10-N1R | LID L RR (Black) | 1 | — | Part details → |
| 4 | 33720-ADA9-M30 | LIGHT ASSY LICENSE | 1 | $68.04 USD | View product → |
| 5 | 33743-AEA7-M30 | REFLEX REFLECTOR | 1 | $11.16 USD | View product → |
| 6 | 50651-LFC4-E10 | STAY RR FENDER BALANCE | 1 | $8.85 USD | View product → |
| 7 | 80100-ACC1-E10-N1R | FENDER RR TIRE (Black) | 1 | $25.17 USD | View product → |
| 8 | 80101-ACC1-E10-N1R | FENDER RR INNER | 1 | $32.88 USD | View product → |
| 9 | 80102-ACC1-E10 | PLATE SPLASH BOARD | 1 | $9.27 USD | View product → |
| 10 | 80105-ACC1-E10-F1P | FENDER REAR UP | 1 | $99.06 USD | View product → |
| 11 | 80106-AEA7-M30-N1R | FENDER RR LOW | 1 | $37.08 USD | View product → |
| 12 | 80116-ACC1-E10 | RUBBER LICENSE PLATE STOP | 1 | $1.32 USD | View product → |
| 13 | 90302-PUA3-B51 | BOLT-WASH 5*12 | 1 | $4.65 USD | View product → |
| 14 | 90652-LCA4-C10 | CLIP MUDGUARD | 4 | $5.67 USD | View product → |
| 15 | 93404-06012-07G | 0 | 10 | $1.32 USD | View product → |
| 16 | 93903-34380-G | SCREW TAPPING 4*12 (KG) | 13 | $2.73 USD | View product → |
| 17 | 94050-05080-G | NUT FLANGE 5MM | 1 | $0.99 USD | View product → |
| 18 | 95701-05012-07 | BOLT FLANGE 5*12 | 1 | $1.65 USD | View product → |

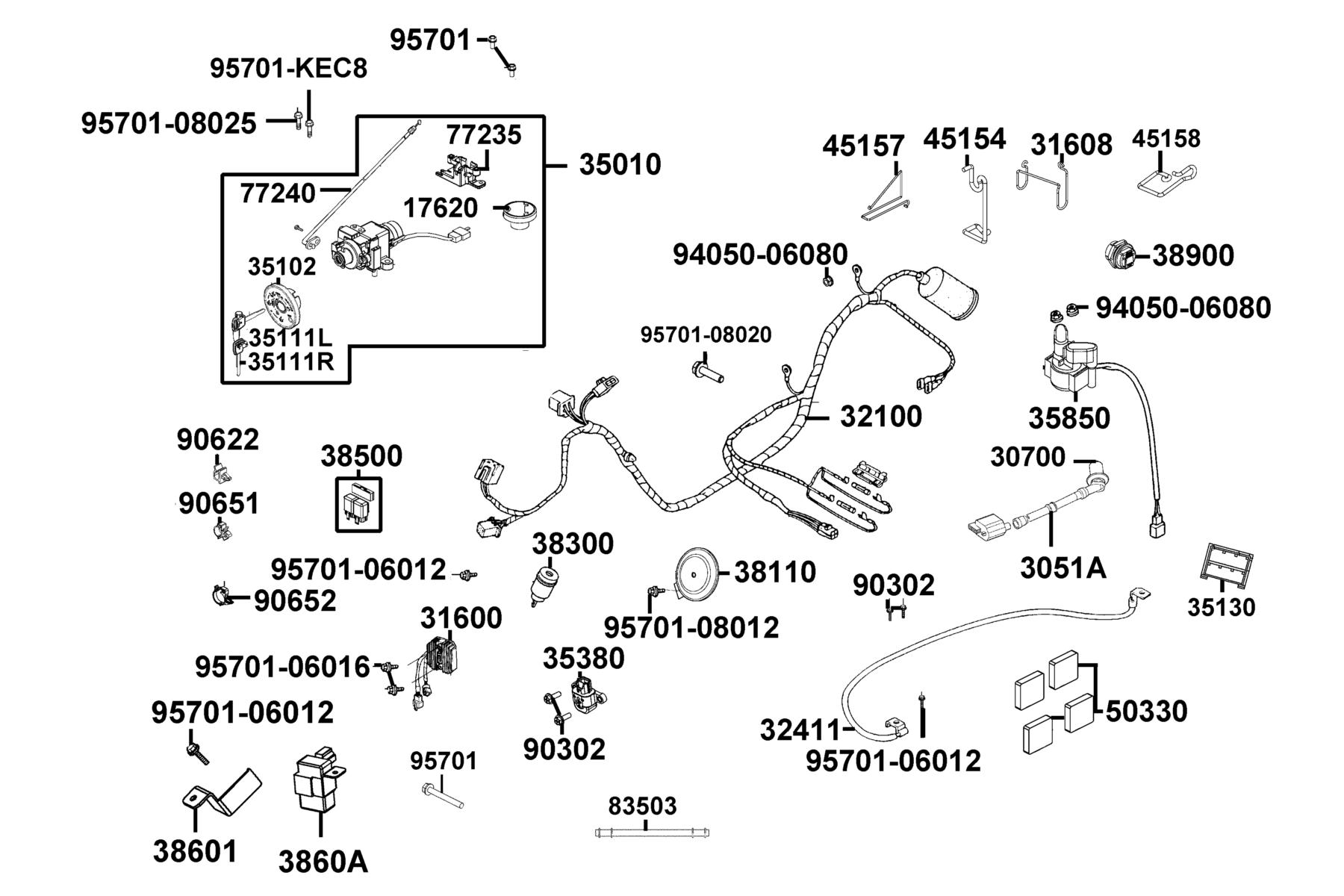

F19 — Wire Harness
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 17620-ADB1-M30 | CAP COMP FUEL FILLER | 1 | $108.69 USD | View product → |
| 2 | 3051A-ACC1-E10 | COIL ASSY IGNITION | 1 | $131.04 USD | View product → |
| 3 | 30700-AEB9-E01 | CAP ASSY NOISE SUPPRESOR | 1 | $84.72 USD | View product → |
| 4 | 31600-ACC1-E10 | REG REC COMP | 1 | $122.52 USD | View product → |
| 5 | 31608-ACC1-E10 | CLIP WIRE | 1 | $13.77 USD | View product → |
| 6 | 32100-AEA7-M30 | HARNESS WIRE | 1 | $530.82 USD | View product → |
| 7 | 32411-ACC1-E10 | CABLE BAT | 1 | $29.49 USD | View product → |
| 8 | 35010-AEA7-M30 | KEY SET | 1 | $404.58 USD | View product → |
| 9 | 35102-ACC1-E10 | SHUTTER MAGNETIC LOCK | 1 | $131.10 USD | View product → |
| 10 | 35111-LDC1-305 | KEY COMP (R TANGENT PLANE/SD) | 1 | $32.22 USD | View product → |
| 11 | 35111-LDC1-306 | KEY COMP (L TANGENT PLANE/SD) | 1 | $32.22 USD | View product → |
| 12 | 35130-LGR4-M30 | SW UNIT KILL | 1 | $31.74 USD | View product → |
| 13 | 35380-ABE1-C00 | SENSOR ANGLE | 1 | $99.39 USD | View product → |
| 14 | 35850-ALL1-C00 | SW ASSY START MAG. | 1 | $38.73 USD | View product → |
| 15 | 38110-KKC3-90B | HORN COMP | 1 | $91.08 USD | View product → |
| 16 | 38300-ADA9-M30 | RELAY ASSY WINKER | 1 | $74.73 USD | View product → |
| 17 | 38500-AAD2-C00 | RELAY ASSY LIGHT | 1 | $125.46 USD | View product → |
| 18 | 38601-ACC1-E10 | "STAY,LIGHT CONTROLLER" | 1 | $10.80 USD | View product → |
| 19 | 3860A-ACC1-E10 | CONTROL ASSY LIGHTING | 1 | $112.71 USD | View product → |
| 20 | 38900-ACC1-E10 | CONTROLLER USB CHARGER | 1 | $112.71 USD | View product → |
| 21 | 45154-ACC1-E10 | CLIP WIRE | 1 | $16.08 USD | View product → |
| 22 | 45157-ACC1-E10 | CLIP WIRE | 1 | $7.89 USD | View product → |
| 23 | 45158-ACC1-E10 | CLIP WIRE | 1 | $4.59 USD | View product → |
| 24 | 50330-ALK5-C00 | SEAL BATTER FRONT | 5 | $1.65 USD | View product → |
| 25 | 77235-KGC4-C00 | SEAT CATCH COMP | 1 | $47.31 USD | View product → |
| 26 | 77240-ACC1-E10 | CABLE SEAT LOCK | 1 | $5.55 USD | View product → |
| 27 | 83503-AEA7-C00-N1R | COVER PROTR SEAT WIRE | 1 | $11.37 USD | View product → |
| 28 | 90302-GFY6-C11 | BOLT-WASH 5*16 | 4 | $4.65 USD | View product → |
| 29 | 90622-LHJ8-900 | CLAMP | 2 | $0.87 USD | View product → |
| 30 | 90651-LKE6-C00 | CLIP， CABLE | 1 | — | Part details → |
| 31 | 90652-LHJ6-900 | "CLIP,MUDGUARD" | 2 | $1.32 USD | View product → |
| 32 | 94050-06080-G | NUT FLANGE 6MM | 3 | $0.99 USD | View product → |
| 33 | 95701-06012-07G | BOLT FLANGE 6*12 (K) | 7 | $0.99 USD | View product → |
| 34 | 95701-06012-08G | BOLT FLANGE 6*12 (C) | 2 | $0.99 USD | View product → |
| 35 | 95701-06016-08G | BOLT FLANGE 6*16 (C) | 2 | $0.99 USD | View product → |
| 36 | 95701-06020-07G | BOLT FLANGE 6*20 (K) | 1 | $0.99 USD | View product → |
| 37 | 95701-08012-08G | BOLT FLANGE 8X12(C) | 1 | $3.27 USD | View product → |
| 38 | 95701-08020-08G | BOLT FLANGE 8*20 | 1 | $3.27 USD | View product → |
| 39 | 95701-08025-08G | BOLT FLANGE 8*25 (C) | 1 | $4.26 USD | View product → |
| 40 | 95701-KEC8-E01 | BOLT FLANGE 8*19 | 1 | $4.92 USD | View product → |

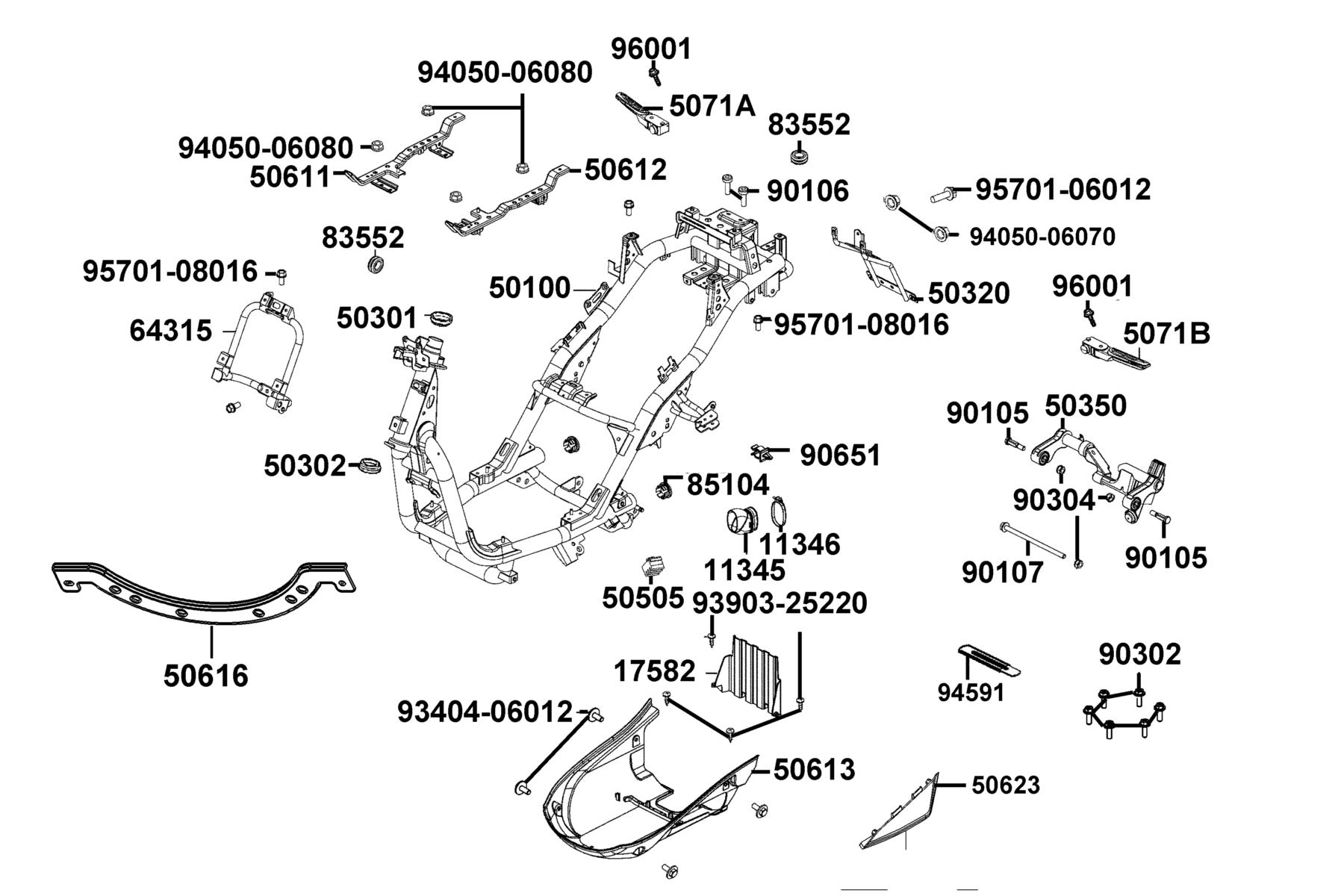

F20 — Frame Body
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 11345-LEA7-C00 | DUCT L COVER ASSY | 1 | $15.06 USD | View product → |
| 2 | 11346-GFY6-C00 | BAND L COVER DUCT | 1 | $12.45 USD | View product → |
| 3 | 17582-ACC1-E10-N1R | HEAT GUARD FUEL TANKE (Black) | 1 | $21.03 USD | View product → |
| 4 | 50100-AEA7-E10 | BODY COMP FRAME | 1 | $850.82 USD | View product → |
| 5 | 50301-KGN7-C00 | RACE UP STRG BALL | 1 | $18.57 USD | View product → |
| 6 | 50302-2H68-C00 | RACE (STRG BOT) BALL | 1 | $15.84 USD | View product → |
| 7 | 50320-AEA7-M30 | "STAY,REAR FENDER" | 1 | $143.46 USD | View product → |
| 8 | 50350-LKE6-C00 | ENG HANGER COMP | 1 | $165.30 USD | View product → |
| 9 | 50611-ACC1-E10 | RNFCT R FLOOR | 1 | $38.94 USD | View product → |
| 10 | 50612-ACC1-E10 | RNFCT L FLOOR | 1 | $38.94 USD | View product → |
| 11 | 50613-ACC1-E10-N1R | UNDER COVER (Black) | 1 | $53.49 USD | View product → |
| 12 | 50616-ACC1-E10 | STAY C FLOOR PANEL | 1 | $35.10 USD | View product → |
| 13 | 50623-ACC1-E10-N1R | STAND COVER (Black) | 1 | $10.80 USD | View product → |
| 14 | 5071A-ACC1-E10 | BAR STEP R ASSY | 1 | $57.66 USD | View product → |
| 15 | 5071B-ACC1-E10 | BAR STEP L ASSY | 1 | $48.06 USD | View product → |
| 16 | 64315-ACC1-E10 | CARRIER FR CONNECT | 1 | $60.42 USD | View product → |
| 17 | 83552-ACC1-E10 | GROMMET COVER | 1 | $2.64 USD | View product → |
| 18 | 85104-ALJ8-E10 | STOPPER | 4 | $4.77 USD | View product → |
| 19 | 90105-LDC8-E11 | SQUARE BOLT M10*50 | 2 | $22.74 USD | View product → |
| 20 | 90106-KFAF-C10 | BOLT WASH 8MM | 2 | $3.27 USD | View product → |
| 21 | 90107-KUDU-C01 | BOLT FLANGE 10*188 | 1 | $21.03 USD | View product → |
| 22 | 90302-GFY6-C11 | BOLT-WASH 5*16 | 1 | $4.65 USD | View product → |
| 23 | 90304-LEA1-C01 | NUT U FLANGE 10MM (G) | 1 | $11.67 USD | View product → |
| 24 | 90651-ALH3-700 | CLIP WIRE HARN | 1 | $0.93 USD | View product → |
| 25 | 93404-06012-07G | 0 | 4 | $1.32 USD | View product → |
| 26 | 93903-25220-G | SCREW TAPPING 5*12 | 4 | $0.99 USD | View product → |
| 27 | 94050-06070-G | NUT FLANGE 6MM | 2 | $0.99 USD | View product → |
| 28 | 94050-06080-G | NUT FLANGE 6MM | 4 | $0.99 USD | View product → |
| 29 | 94591-KFBF-C00 | CLIP 2*70 | 1 | $13.95 USD | View product → |
| 30 | 95701-06012-07G | BOLT FLANGE 6*12 (K) | 1 | $0.99 USD | View product → |
| 31 | 95701-08016-07G | BOLT FLANGE 8*16 (K) | 4 | $2.31 USD | View product → |
| 32 | 96001-06032-07G | BOLT FLANGE 6*32(G) | 2 | $1.65 USD | View product → |

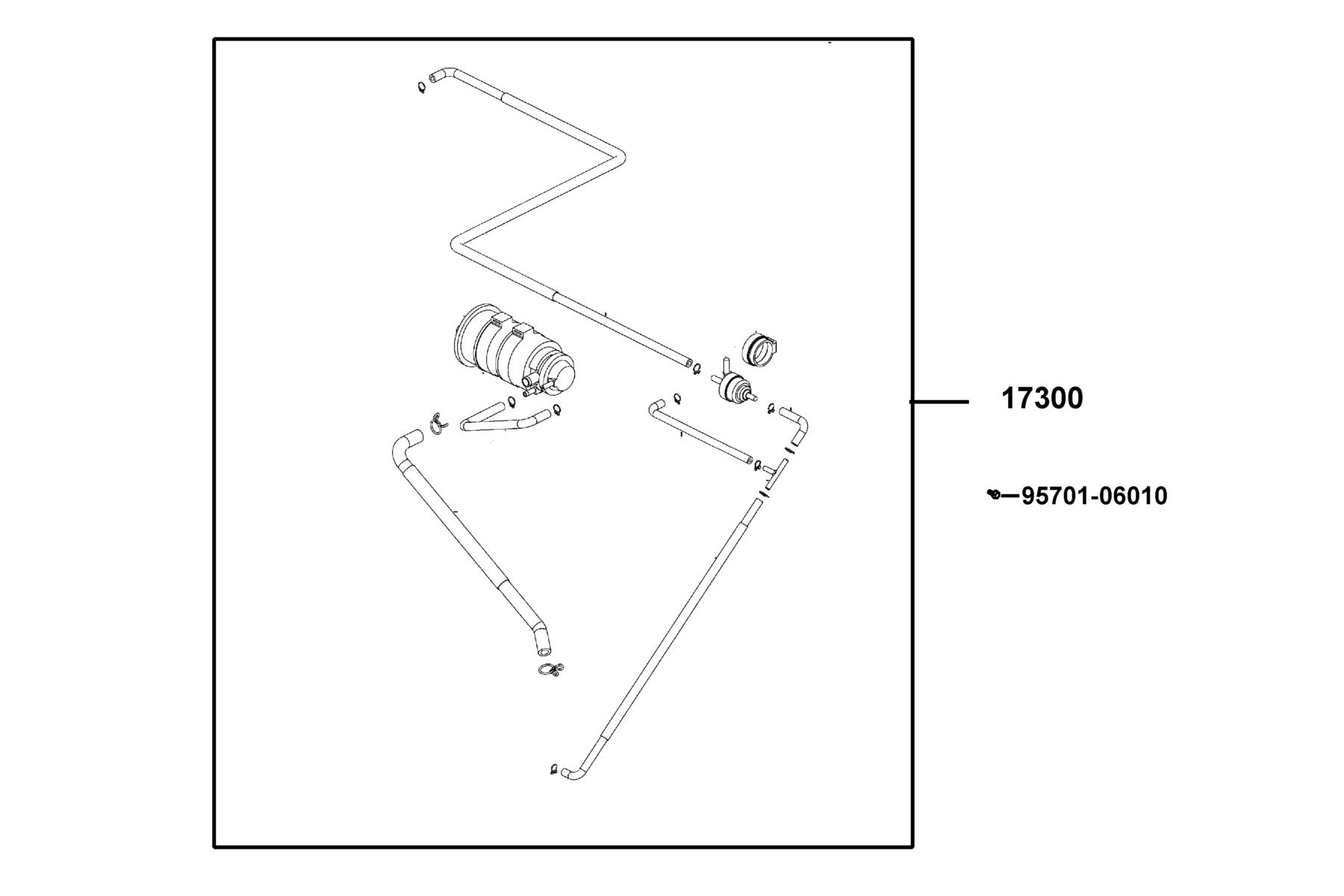

F21 — Air Cleaner Two
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 17300-ACC1-M30 | CANISTER-PCV ASSY | 1 | $224.94 USD | View product → |
| 2 | 95701-06010-08G | BOLT FLANGE 6*10 | 1 | $0.99 USD | View product → |

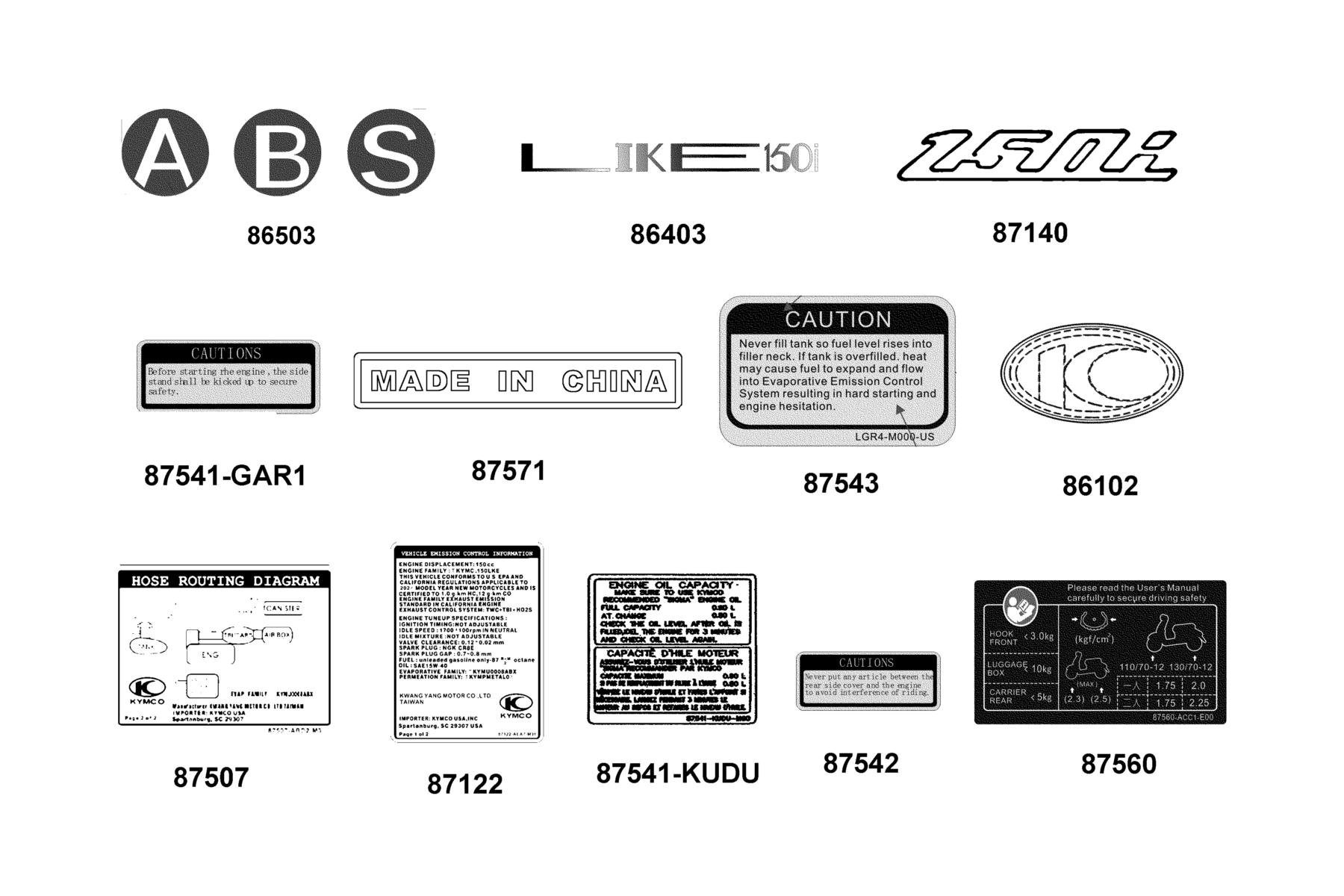

F22 — Emblem ● Stripe
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 86102-ALG1-E00-T01 | EMB K-LOGO | 1 | $47.49 USD | View product → |
| 2 | 86403-AEA7-M30-T01 | STRIPE BODY COVER | 2 | $25.83 USD | View product → |
| 3 | 86503-AEA7-M30-T01 | STRIPE FR COVER | 2 | $7.65 USD | View product → |
| 4 | 87140-AEA7-E00-T01 | EMB MARK 150 TAPE A | 1 | $16.77 USD | View product → |
| 5 | 87541-GAR1-C01-T01 | CAUTION SIDE STAND | 1 | $5.34 USD | View product → |
| 6 | 87541-KUDU-E00-T01 | LABEL OIL CAP | 1 | $6.12 USD | View product → |
| 7 | 87542-GAR1-C01-T01 | MARK MAINT CAUTION R | 1 | $2.97 USD | View product → |
| 8 | 87543-LGR4-M30-T01 | LABEL FUEL FILL CAUTION | 1 | $7.92 USD | View product → |
| 9 | 87560-ACC1-E00-T01 | MARK DRIVE CAUTION | 1 | $7.23 USD | View product → |
| 10 | 87571-LDC8-B90-T01 | LABEL MIC | 1 | $7.23 USD | View product → |
