MXU 450i LE(2019)
- Model code
- LC90ET(US)
- Model year
- 2019
- Submodel
- MXU 450i LE
- Color
- Mat Black (NH294FA)
- Diagrams
- 35
- Factory catalog
- download PDF

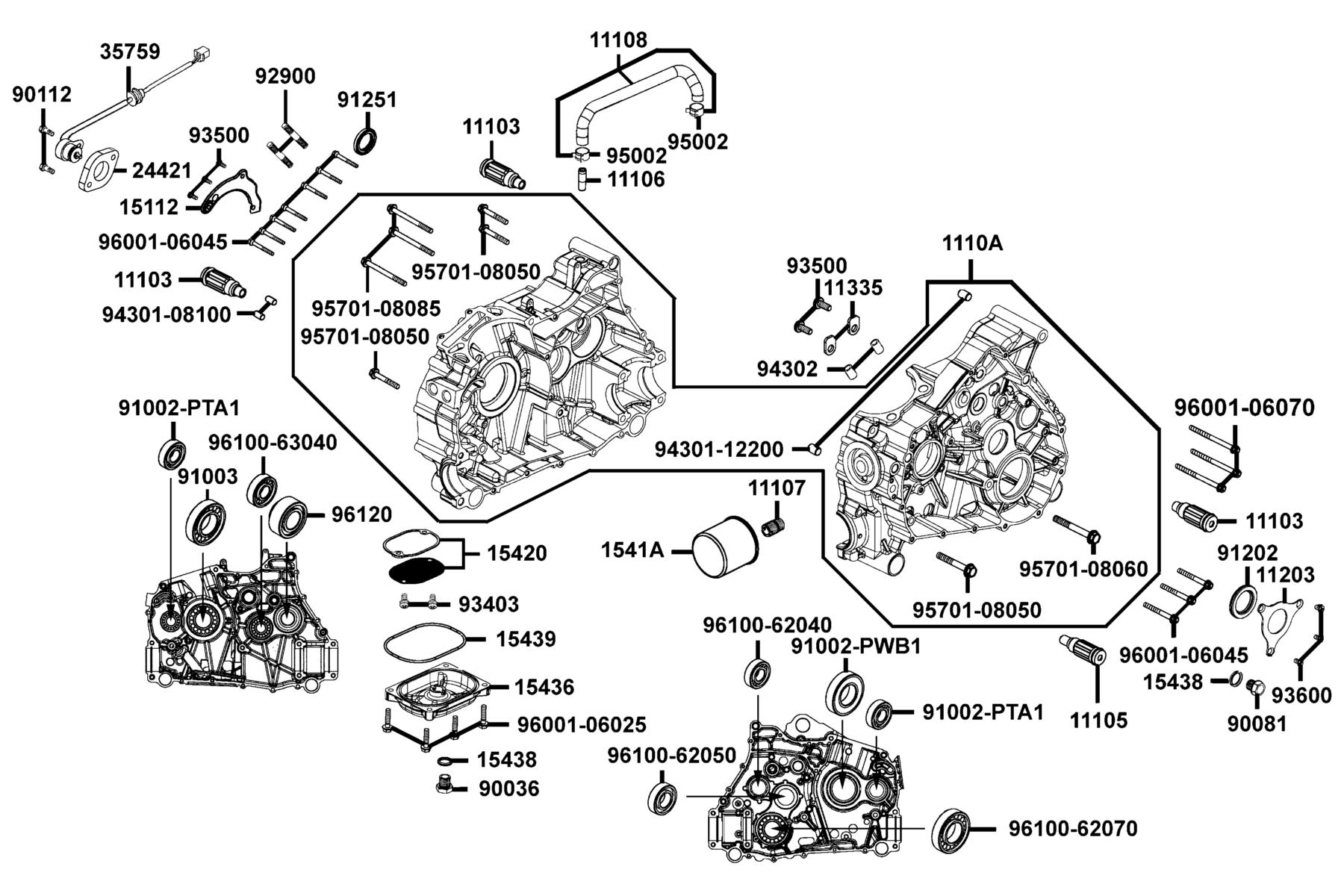

E01 — Right Crank Case
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 11103-PTA1-800 | RUB BUSH ENG HANGER | 3 | $64.23 USD | View product → |
| 2 | 11105-PTA1-800 | LONG RUB BUSH ENG HANGER | 1 | $78.36 USD | View product → |
| 3 | 11106-PWB1-900 | PIPE BREATHER | 1 | $15.63 USD | View product → |
| 4 | 11107-PWB1-900 | PIPE OIL | 1 | $32.10 USD | View product → |
| 5 | 11108-PWB1-900 | HOSE???CRANK CASE VENT | 1 | $23.82 USD | View product → |
| 6 | 1110A-PTA1-900 | CRANK CASE R/L ASSY | 1 | $1953.06 USD | View product → |
| 7 | 11203-PWB1-900 | RETAINER CRANKSHAFT OIL SEAL | 1 | $19.26 USD | View product → |
| 8 | 11335-PWB1-900 | RETAINER BEARING | 2 | $5.31 USD | View product → |
| 9 | 15112-PWB1-900 | PLATE OIL GUIDE RIGHT | 1 | $17.82 USD | View product → |
| 10 | 1541A-PWB1-900 | ELEMENT COMP OIL FILTER | 1 | $47.94 USD | View product → |
| 11 | 15420-PWB1-900 | STRAINER OIL | 1 | $69.90 USD | View product → |
| 12 | 15436-PWB1-900 | CAP OIL STRAINER | 1 | $55.14 USD | View product → |
| 13 | 15438-PWB1-900 | GASKET METAL COMPRESSION | 2 | $38.64 USD | View product → |
| 14 | 15439-PWB1-900 | GASKET MOLDED-OIL STRAINER CAP | 1 | $15.45 USD | View product → |
| 15 | 24421-PWB1-900 | SPACER SHIFT SENSOR | 1 | $8.28 USD | View product → |
| 16 | 35759-PWB1-910 | SW ASSY GEAR CHANGE | 1 | $114.66 USD | View product → |
| 17 | 90036-PWB1-900 | BOLT PLUG DRAIN SPECIAL 14X13.5 (C) | 1 | $29.01 USD | View product → |
| 18 | 90081-PWB1-900 | PLUG CASE 12X14 | 1 | $18.24 USD | View product → |
| 19 | 90112-KRDR-900 | BOLT FLANGE 5*22 | 2 | $7.53 USD | View product → |
| 20 | 91002-PTA1-900 | BRG BALL RADIAL ESB204JR2C3 | 2 | $140.22 USD | View product → |
| 21 | 91002-PWB1-90A | BRG BALL RADIL 6207LUAC3 | 1 | $157.86 USD | View product → |
| 22 | 91003-PWB1-900 | BRG RADIAL BALL 6207-9C3 | 1 | $131.52 USD | View product → |
| 23 | 91202-PWB1-900 | OIL SEAL 34X52X6 | 1 | $37.14 USD | View product → |
| 24 | 91251-PWB1-900 | OIL SEAL 30X44X7 | 1 | $33.66 USD | View product → |
| 25 | 92900-06040-0E | BOLT STUD 6*40 | 2 | $4.53 USD | View product → |
| 26 | 93403-05012-06 | BOLT-WASH 5X12 | 1 | $22.50 USD | View product → |
| 27 | 93500-PWB1-900 | SCREW PAN 6X14 | 5 | $5.31 USD | View product → |
| 28 | 93600-PWB1-900 | SCREW FLAT 6X16 | 3 | $5.31 USD | View product → |
| 29 | 94301-08100 | DOWEL PIN 8*10 | 2 | $4.92 USD | View product → |
| 30 | 94301-12200 | DOWEL PIN 12*20 | 2 | $6.39 USD | View product → |
| 31 | 94302-KKE5-E00 | D12 DOWEL PIN R/L CASE | 2 | $7.17 USD | View product → |
| 32 | 95002-KKD6-E05 | CLAMP D18 TUBE | 2 | $17.28 USD | View product → |
| 33 | 95701-08050-06 | BOLT FLANGE 8*50 | 1 | $11.79 USD | View product → |
| 34 | 95701-08060-06 | BOLT FLANGE 8X60 | 1 | $22.50 USD | View product → |
| 35 | 95701-08085-06 | BOLT FLANGE 8X85 | 1 | $7.53 USD | View product → |
| 36 | 96001-06025-06 | BOLT FLANGE SH 6*25 | 1 | $2.61 USD | View product → |
| 37 | 96001-06045-06 | BOLT FLANGE SH 6*45 | 1 | $7.23 USD | View product → |
| 38 | 96001-06070-06 | BOLT FLANGE SH 6*70 | 1 | $5.88 USD | View product → |
| 39 | 96100-62040-00 | BEARING BALL RADIAL 6204 | 1 | $48.96 USD | View product → |
| 40 | 96100-62050-00 | BEARING BALL RADIAL 6205 | 1 | $58.29 USD | View product → |
| 41 | 96100-62070-00 | BRG RADIAL BALL 6207 | 1 | $11.28 USD | View product → |
| 42 | 96100-63040-00 | BRG BALL RADIAL 6304 | 1 | $53.61 USD | View product → |
| 43 | 96120-PWB1-900 | BEARING BALL D/R 30X62X23.8 | 1 | $162.78 USD | View product → |

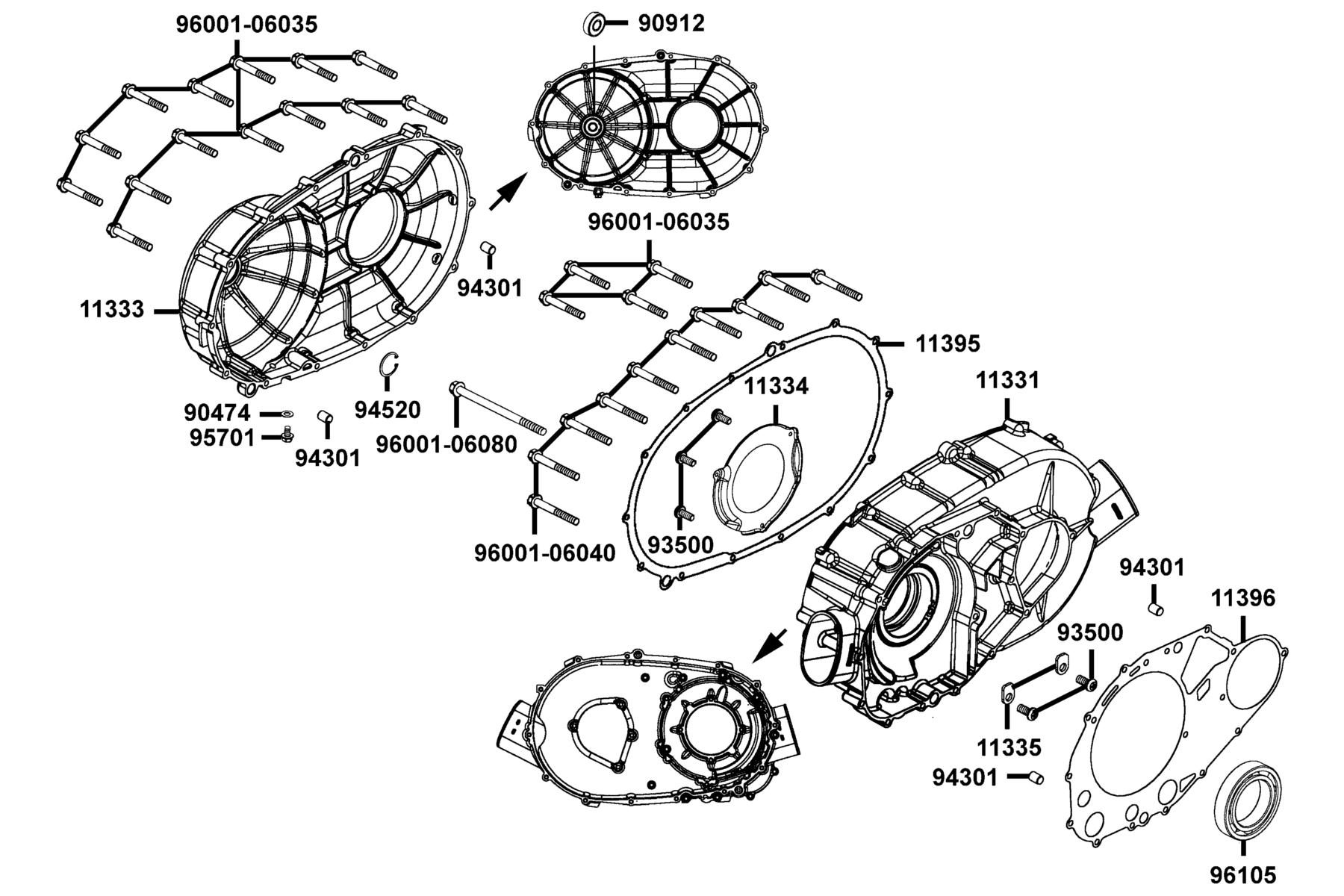

E02 — Cover Right Crank Case
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 11331-PWB1-800 | COVER R CRANK CASE | 1 | $312.51 USD | View product → |
| 2 | 11333-LFA5-900 | COVER R COVER | 1 | $207.96 USD | View product → |
| 3 | 11334-PWB1-900 | PLATE AIR INTAKE | 1 | $39.72 USD | View product → |
| 4 | 11335-PWB1-900 | RETAINER BEARING | 2 | $5.31 USD | View product → |
| 5 | 11395-PWB1-900 | GASKET R COVER | 1 | $83.31 USD | View product → |
| 6 | 11396-PWB1-900 | GASKET R COVER | 1 | $52.50 USD | View product → |
| 7 | 90474-3C33-001 | WASHER 8MM | 1 | $2.85 USD | View product → |
| 8 | 90912-KFLF-00D | BEARING 6201 LLU | 1 | $18.03 USD | View product → |
| 9 | 93500-PWB1-900 | SCREW PAN 6X14 | 5 | $5.31 USD | View product → |
| 10 | 94301-12200 | DOWEL PIN 12*20 | 4 | $6.39 USD | View product → |
| 11 | 94520-32180 | CIR CLIP IN 32 | 1 | $5.31 USD | View product → |
| 12 | 95701-08012-06 | BOLT FLANGE 8*12 | 1 | $6.24 USD | View product → |
| 13 | 96001-06035-06 | BOLT FLANGE SH 6*35 | 1 | $3.93 USD | View product → |
| 14 | 96001-06040-06 | BOLT FLANGE SH 6*40 | 1 | $12.12 USD | View product → |
| 15 | 96001-06080-06 | BOLT FLANGE SH 6X80 | 1 | $22.50 USD | View product → |
| 16 | 96105-LFA5-80B | BEARING BALL RADIAL 6815RS | 1 | $215.40 USD | View product → |

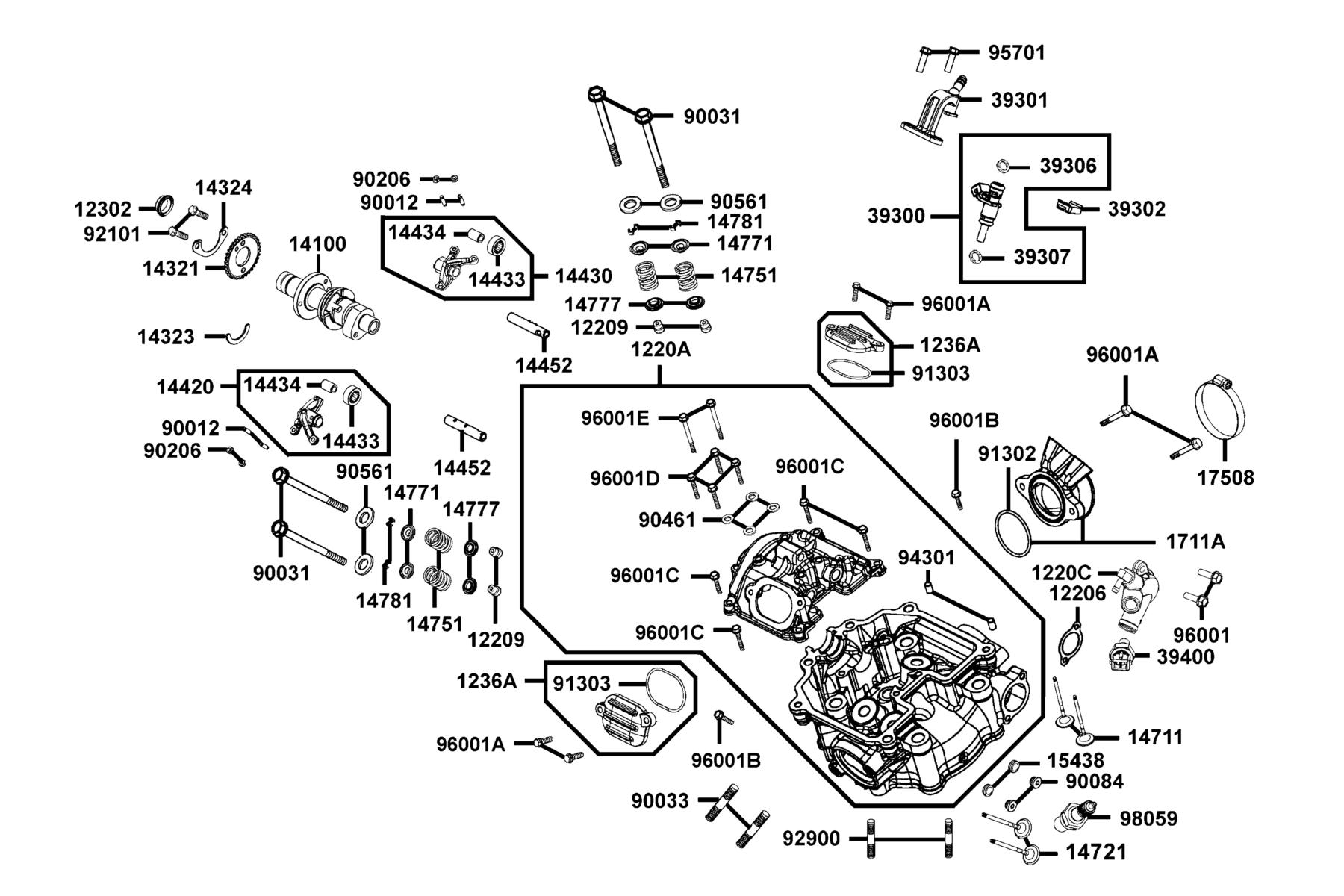

E03 — Cylinder Head Cover ● Cylinder Head
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 12205-KHE8-301 | BOLT SEALING 12MM | 1 | $13.17 USD | View product → |
| 2 | 12206-LBA2-E00 | GASKET WATER COVER | 1 | $4.92 USD | View product → |
| 3 | 12209-PWB1-900 | SEAL VALVE STEM | 4 | $19.26 USD | View product → |
| 4 | 1220A-PTA1-800 | HEAD ASSY CYLINDER | 1 | $1054.86 USD | View product → |
| 5 | 1220C-LGC7-305 | COVER COMP WATER-A | 1 | $71.04 USD | View product → |
| 6 | 12302-PTA1-900 | PLUG HEAD | 1 | $48.00 USD | View product → |
| 7 | 1236A-PWB1-900 | CAP ASSY TAPPET ADJUSTING HOLE | 2 | $41.43 USD | View product → |
| 8 | 14100-PTA1-910 | SHAFT COMP CAM | 1 | $331.53 USD | View product → |
| 9 | 14321-PTA1-900 | SPROCKET CAMSHAFT | 1 | $118.02 USD | View product → |
| 10 | 14323-PWB1-900 | C-RING CAM RETAINER | 1 | $5.31 USD | View product → |
| 11 | 14324-PWB1-900 | WASHER LOCK CAMSHAFT | 1 | $8.28 USD | View product → |
| 12 | 14420-PTA1-900 | ARM COMP EXH VALVE ROCKER | 1 | $178.53 USD | View product → |
| 13 | 14430-PTA1-900 | ARM COMP IN VALVE ROCKER | 1 | $178.53 USD | View product → |
| 14 | 14433-PTA1-900 | ROLLER ASSY ROCKER ARM | 2 | $162.06 USD | View product → |
| 15 | 14434-PTA1-900 | PIN ROCKER ARM | 2 | $64.23 USD | View product → |
| 16 | 14452-PTA1-900 | SHAFT IN ROCKER ARM | 2 | $38.52 USD | View product → |
| 17 | 14711-PTA1-900 | VALVE INLET | 2 | $41.19 USD | View product → |
| 18 | 14721-PTA1-900 | VALVE EXHAUST | 2 | $79.26 USD | View product → |
| 19 | 14751-PTA1-900 | SPRING VALVE OUTER | 4 | $32.46 USD | View product → |
| 20 | 14771-PWB1-900 | RETAINER UPPER SPRING | 4 | $27.39 USD | View product → |
| 21 | 14777-PWB1-900 | SEAT VALVE SPRING | 4 | $16.68 USD | View product → |
| 22 | 14781-MFA6-001 | COTTER VALVE | 8 | $7.95 USD | View product → |
| 23 | 15438-PWB1-900 | GASKET METAL COMPRESSION | 2 | $38.64 USD | View product → |
| 24 | 1711A-LGC3-E01 | MANIFOLD ASSY INLET | 1 | $130.89 USD | View product → |
| 25 | 17508-LGC7-E00 | CLAMP D60 | 1 | $35.85 USD | View product → |
| 26 | 39300-PTA1-800 | INJECTOR FUEL | 1 | $285.39 USD | View product → |
| 27 | 39301-LGC7-E00 | ASSY FUEL RAIL | 1 | $35.85 USD | View product → |
| 28 | 39302-KKE3-900 | CLIP SPRING FUEL INJECTOR | 1 | $21.99 USD | View product → |
| 29 | 39306-LEB2-305 | O-RING A INJECTOR /BLACK | 1 | $30.69 USD | View product → |
| 30 | 39307-LEB2-305 | O-RING B INJECTOR /GREEN | 1 | $27.66 USD | View product → |
| 31 | 39400-LEA6-800 | WATER TEMP SENSOR | 1 | $109.50 USD | View product → |
| 32 | 90012-333-0010 | SCREW TAPPET ADJUSTING | 4 | $13.38 USD | View product → |
| 33 | 90031-PWB1-900 | BOLT UBS 10x170 | 4 | $48.54 USD | View product → |
| 34 | 90033-KGB4-C00 | BOLT STUD M8X40 (C) | 2 | $14.31 USD | View product → |
| 35 | 90206-001-0010 | NUT TAPPET ADJG | 4 | $3.78 USD | View product → |
| 36 | 90206-0A01-001 | NUT TAPPET ADJG | 4 | $4.92 USD | View product → |
| 37 | 90461-PWB1-900 | WASHER SEALING | 4 | $6.06 USD | View product → |
| 38 | 90561-PWB1-900 | WASHER 21X10X2.2 | 4 | $5.31 USD | View product → |
| 39 | 91302-PTA1-800 | O-RING INTAKE MANIFOLD 44.12X2.62 | 1 | $7.17 USD | View product → |
| 40 | 91303-PWB1-900 | ORING INSPECTION CAP | 2 | $13.17 USD | View product → |
| 41 | 92101-06012-0HN | BOLT HEX 6X12 | 2 | $4.92 USD | View product → |
| 42 | 92900-PTA1-900 | BOLT STUD 8*40 | 2 | $19.26 USD | View product → |
| 43 | 94301-08140 | DOWEL PIN 8*14 | 2 | $3.00 USD | View product → |
| 44 | 95701-06016-06 | BOLT FLANGE 6X16 | 1 | $1.65 USD | View product → |
| 45 | 96001-06018-06 | BOLT FLANGE SH 6*18 | 1 | $12.12 USD | View product → |
| 46 | 96001-06020-06 | BOLT FLANGE SH 6*20 | 3 | $3.27 USD | View product → |
| 47 | 96001-06025-06 | BOLT FLANGE SH 6*25 | 1 | $2.61 USD | View product → |
| 48 | 96001-06030-06 | BOLT FLANGE SH 6X30 | 1 | $4.92 USD | View product → |
| 49 | 96001-06060-06 | BOLT FLANE 6*60 | 1 | $3.60 USD | View product → |
| 50 | 96001-06110-06 | BOLT FLANGE SH 6*110 | 1 | $0.63 USD | View product → |
| 51 | 98059-57916-00 | SPARK PLUG (CR7E) | 1 | $38.37 USD | View product → |

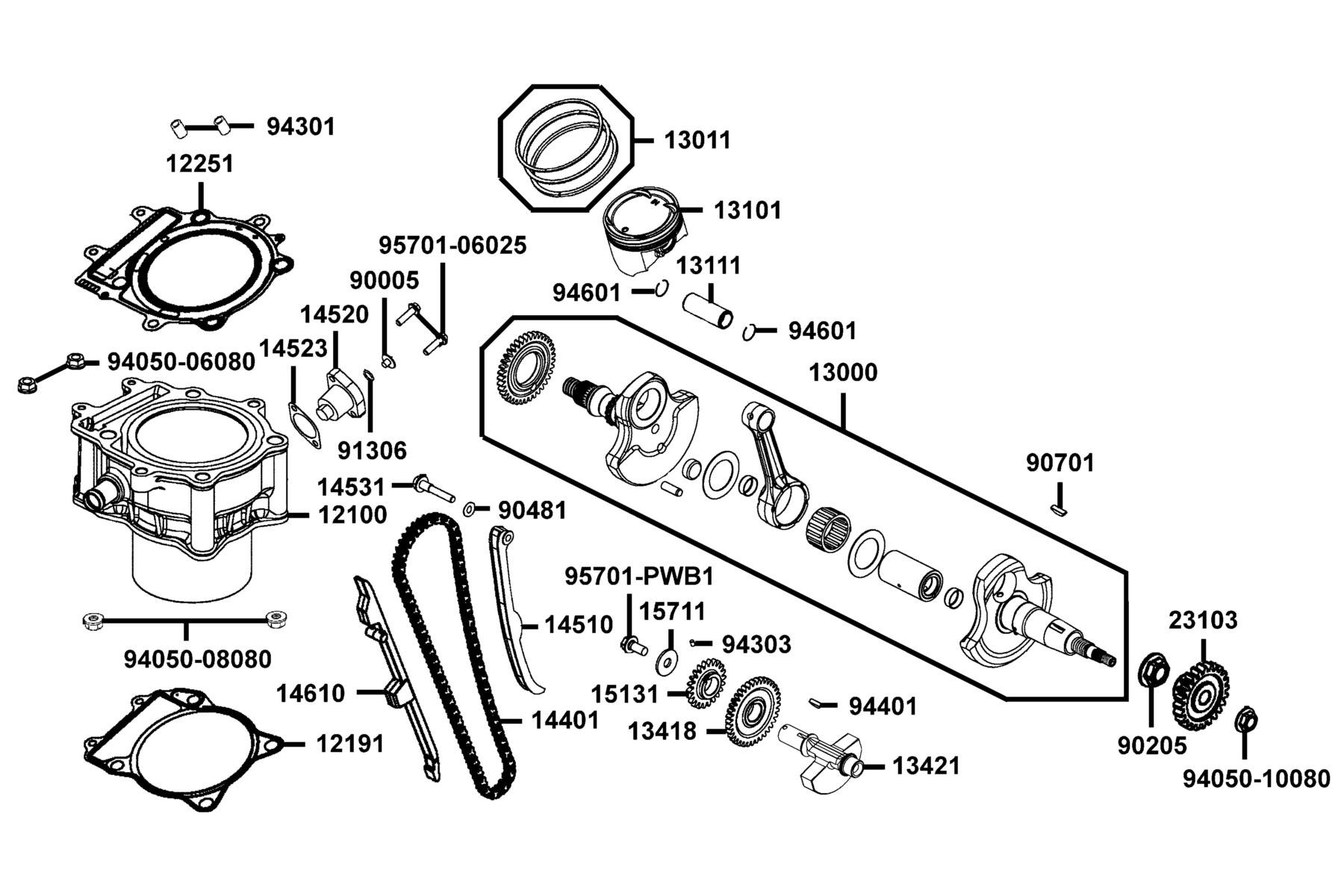

E04 — Cylinder ● Piston ● Crankshaft
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 12100-PTA1-900 | CYLINDER COMP | 1 | $490.02 USD | View product → |
| 2 | 12191-PTA1-900 | GASKET CYLINDER @A | 1 | $82.44 USD | View product → |
| 3 | 12251-PTA1-900 | GASKET CYLINDER HEAD | 1 | $127.20 USD | View product → |
| 4 | 13000-PWB1-800 | CRANK SHAFT COMP | 1 | $468.68 USD | View product → |
| 5 | 13011-PTA1-90B | RING SET PISTON | 1 | $137.76 USD | View product → |
| 6 | 13101-LGC7-E00 | PISTON | 1 | $121.02 USD | View product → |
| 7 | 13111-PWB1-900 | PIN PISTON | 1 | $33.66 USD | View product → |
| 8 | 13418-PWB1-900 | GEAR A??? BALANCER SHAFT | 1 | $124.68 USD | View product → |
| 9 | 13421-ZXA6-M01 | SHAFT BALANCER | 1 | $178.65 USD | View product → |
| 10 | 14401-PWB1-900 | CHAIN CAM | 1 | $146.58 USD | View product → |
| 11 | 14510-PWB1-900 | TENSIONER CAM CHAIN | 1 | $98.10 USD | View product → |
| 12 | 14520-GFY6-90C | LIFTER ASSY.. TENSIONER | 1 | $125.97 USD | View product → |
| 13 | 14523-KED9-920 | GASKET TENSIONER LIFTER @A | 1 | $3.81 USD | View product → |
| 14 | 14531-PWB1-900 | PIVOT TENSION GUIDE | 1 | $14.31 USD | View product → |
| 15 | 14610-PTA1-900 | GUIDE COMP CAM CHAIN | 1 | $66.96 USD | View product → |
| 16 | 15131-PWB1-900 | SPROCKET OIL PUMP DRIVE | 1 | $78.81 USD | View product → |
| 17 | 15711-PWB1-900 | WASHER 10.2X30X2.5 | 1 | $12.09 USD | View product → |
| 18 | 23103-PTA1-900 | GEAR PRIMARY DRIVE | 1 | $143.34 USD | View product → |
| 19 | 90005-KED9-900 | BOLT SPECIAL 6*6 | 1 | $2.76 USD | View product → |
| 20 | 90481-0E35-001 | WASHER 8MM | 1 | $1.65 USD | View product → |
| 21 | 90701-LDB5-E00 | KEY WAY ACG | 1 | $7.53 USD | View product → |
| 22 | 91306-1E05-691 | O-RING 1.5*9.5 | 1 | $4.92 USD | View product → |
| 23 | 94050-06080 | NUT FLANGE 6MM | 2 | $2.31 USD | View product → |
| 24 | 94050-08080 | NUT FLANGE 8MM | 2 | $4.92 USD | View product → |
| 25 | 94050-10080 | NUT FLANGE 10MM | 1 | $4.92 USD | View product → |
| 26 | 94301-12200 | DOWEL PIN 12*20 | 2 | $6.39 USD | View product → |
| 27 | 94303-04065 | DOWEL PIN 4X6.5 | 1 | $5.43 USD | View product → |
| 28 | 94401-16150 | KEY WOODRUFF 16*15 | 1 | $5.31 USD | View product → |
| 29 | 94601-PWB1-900 | CIRCLIP PISTON PIN 20MM | 2 | $5.31 USD | View product → |
| 30 | 95701-06025-06 | BOLT FLANGE 6*25 | 1 | $1.95 USD | View product → |
| 31 | 95701-PWB1-900 | BOLT FLANGE 10X20 | 1 | $13.41 USD | View product → |

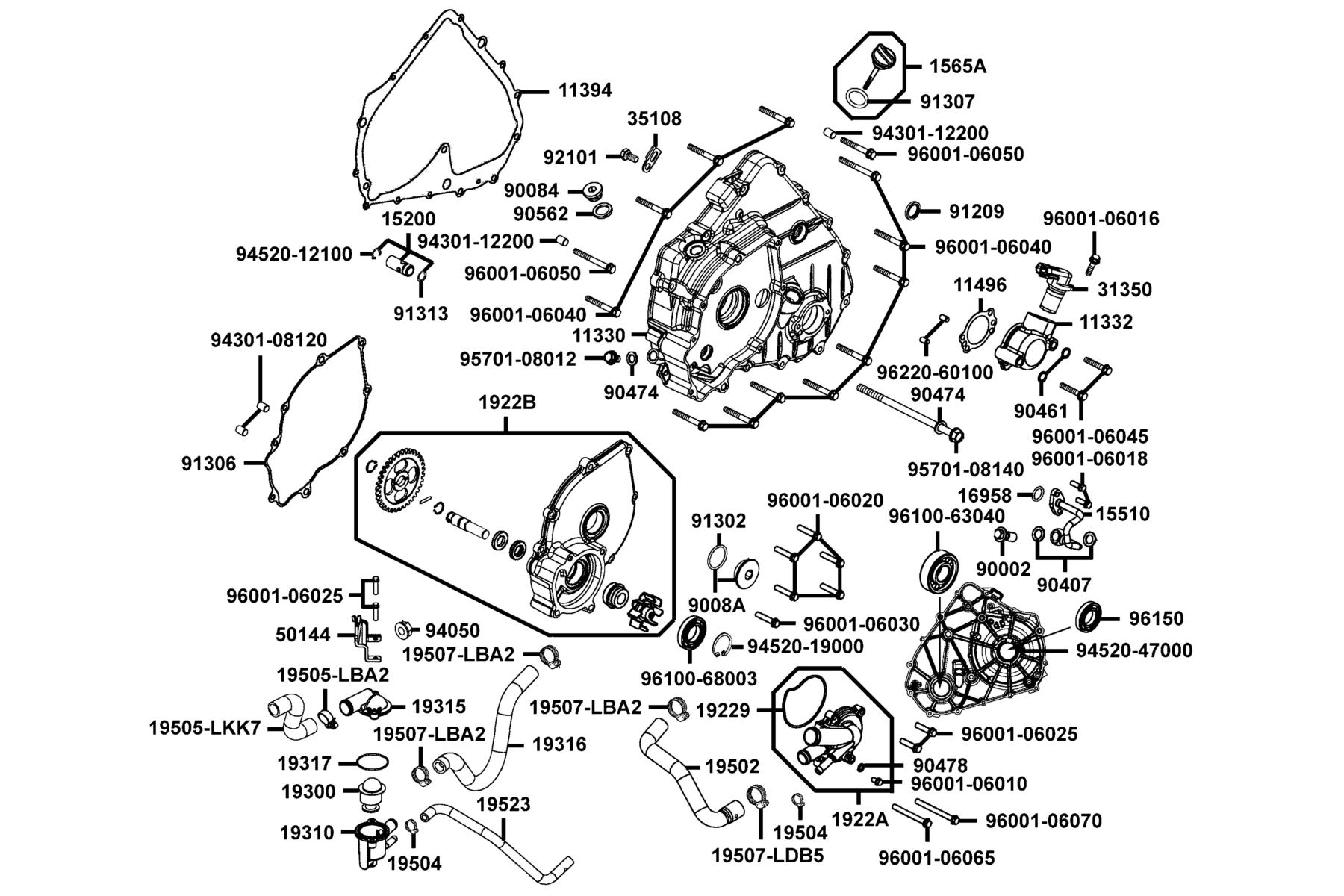

E05 — Cover Left Crank Case
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 11330-PTA1-900 | COVER LEFT CRANK CASE | 1 | $466.47 USD | View product → |
| 2 | 11332-PWB1-900 | HOUSING SPEED SENSOR | 1 | $46.95 USD | View product → |
| 3 | 11394-PWB1-900 | GASKET L COVER | 1 | $75.36 USD | View product → |
| 4 | 11496-PWB1-900 | GASKET SENSOR HOUSING | 1 | $6.06 USD | View product → |
| 5 | 15200-PWB1-900 | OIL RELIEF VALVE ASSY | 1 | $85.71 USD | View product → |
| 6 | 15510-PTA1-900 | PIPE COMP OIL | 1 | $114.48 USD | View product → |
| 7 | 1565A-PWB1-900 | GAUGE ASSY OIL LEVEL | 1 | $9.06 USD | View product → |
| 8 | 16958-PWB1-910 | O-RING 10.77X2.62 | 1 | $4.26 USD | View product → |
| 9 | 19229-LDB5-E00 | RING WATER PUMP | 1 | $25.65 USD | View product → |
| 10 | 1922A-PTA1-900 | COVER ASSY WATER PUMP | 1 | $116.88 USD | View product → |
| 11 | 1922B-PTA1-900 | WATER PUMP ASSY..L. COVER | 1 | $279.03 USD | View product → |
| 12 | 19300-PTA1-900 | THERMOSTAT ASSY | 1 | $132.06 USD | View product → |
| 13 | 19310-LDB5-E00 | CASE COMP THERMOSTAT | 1 | $80.70 USD | View product → |
| 14 | 19315-LBA2-E00 | COVER THERMOSTAT | 1 | $39.00 USD | View product → |
| 15 | 19316-PTA1-900 | HOSE THERMOATAT A | 1 | $57.84 USD | View product → |
| 16 | 19317-LBA2-E00 | RING 48.3X2 | 1 | $9.39 USD | View product → |
| 17 | 19502-PTA1-900 | HOSE WATER B | 1 | $57.90 USD | View product → |
| 18 | 19504-LBA2-E00 | CLAMP D16.8 | 2 | $13.95 USD | View product → |
| 19 | 19505-LBA2-E00 | CLAMP WATER HOSE | 1 | $15.06 USD | View product → |
| 20 | 19505-LKK7-900 | HOSE WATER | 1 | $115.05 USD | View product → |
| 21 | 19507-LBA2-E00 | CLAMP D 27.5 | 3 | $11.31 USD | View product → |
| 22 | 19507-LDB5-E00 | CLAMP D 28 | 1 | $15.45 USD | View product → |
| 23 | 19523-PTA1-900 | HOSE THERMOATAT B | 1 | $40.38 USD | View product → |
| 24 | 31350-LDB5-E0A | SENSOR SPEED | 1 | $150.54 USD | View product → |
| 25 | 35108-PWB1-900 | STAY B ACG STATOR | 1 | $8.28 USD | View product → |
| 26 | 50144-PTA1-900 | BRKT THERMOSTAT STAY | 1 | $25.65 USD | View product → |
| 27 | 90002-KKAK-900 | BOLT B OIL PASS | 1 | $9.33 USD | View product → |
| 28 | 90084-PWB1-900 | CAP ACG | 1 | $19.92 USD | View product → |
| 29 | 9008A-PTA1-900 | CAP ASSY | 1 | $41.73 USD | View product → |
| 30 | 90407-KAM1-001 | SEALING WASHER B OIL PIPE JOIN | 2 | $1.86 USD | View product → |
| 31 | 90461-PWB1-900 | WASHER SEALING | 2 | $6.06 USD | View product → |
| 32 | 90474-3C33-001 | WASHER 8MM | 2 | $2.85 USD | View product → |
| 33 | 90478-7L00-001 | WASHER A 6MM | 1 | $4.92 USD | View product → |
| 34 | 90562-PWB1-900 | WASHER 16X22X2 | 1 | $5.31 USD | View product → |
| 35 | 91209-PWB1-900 | OIL SEAL 12X22X9 | 1 | $10.14 USD | View product → |
| 36 | 91302-5G67-004 | O-RING 27.4*2.4 | 1 | $10.14 USD | View product → |
| 37 | 91306-PTA1-900 | GASKET.STARTING COVER | 1 | $49.02 USD | View product → |
| 38 | 91307-0E35-001 | O RING 18*3 | 1 | $4.92 USD | View product → |
| 39 | 91313-KED9-900 | O-RING 15.5*1.5 | 1 | $2.61 USD | View product → |
| 40 | 92101-05012-0G | BOLT HEX 5X12 | 1 | $11.46 USD | View product → |
| 41 | 94050-06060 | NUT FLANGE 6MM | 1 | $4.92 USD | View product → |
| 42 | 94301-08120 | DOWEL PIN 8*12 | 2 | $4.53 USD | View product → |
| 43 | 94301-12200 | DOWEL PIN 12*20 | 2 | $6.39 USD | View product → |
| 44 | 94520-12100 | CIR CLIP IN 12 | 1 | $3.78 USD | View product → |
| 45 | 94520-19000 | CIR CLIP IN 19 | 1 | $10.14 USD | View product → |
| 46 | 94520-47000 | CIR CLIP IN 47 | 1 | $11.31 USD | View product → |
| 47 | 95701-08012-06 | BOLT FLANGE 8*12 | 1 | $6.24 USD | View product → |
| 48 | 95701-08140-06 | BOLT FLANGE 8*140 | 1 | $30.90 USD | View product → |
| 49 | 96001-06010-00 | BOLT FLANGE SH 6X10 | 1 | $1.65 USD | View product → |
| 50 | 96001-06016-06 | BOLT FLANGE SH 6X16 | 1 | $12.12 USD | View product → |
| 51 | 96001-06018-06 | BOLT FLANGE SH 6*18 | 1 | $12.12 USD | View product → |
| 52 | 96001-06020-06 | BOLT FLANGE SH 6*20 | 1 | $3.27 USD | View product → |
| 53 | 96001-06025-06 | BOLT FLANGE SH 6*25 | 1 | $2.61 USD | View product → |
| 54 | 96001-06030-06 | BOLT FLANGE SH 6X30 | 1 | $4.92 USD | View product → |
| 55 | 96001-06040-06 | BOLT FLANGE SH 6*40 | 1 | $12.12 USD | View product → |
| 56 | 96001-06045-06 | BOLT FLANGE SH 6*45 | 1 | $7.23 USD | View product → |
| 57 | 96001-06050-06 | BOLT FLANGE SH 6*50 | 1 | $12.12 USD | View product → |
| 58 | 96001-06065-06 | BOLT FLANGE SH 6X65 | 1 | $12.72 USD | View product → |
| 59 | 96001-06070-06 | BOLT FLANGE SH 6*70 | 1 | $5.88 USD | View product → |
| 60 | 96100-63040-00 | BRG BALL RADIAL 6304 | 1 | $53.61 USD | View product → |
| 61 | 96100-68003-00 | BEARING BALL RADIAL 6800 | 1 | $56.19 USD | View product → |
| 62 | 96150-PWB1-90B | BEARING CONRAD S/R(16005) | 1 | — | Part details → |
| 63 | 96220-60100 | ROLLER 6X10 | 2 | $4.92 USD | View product → |

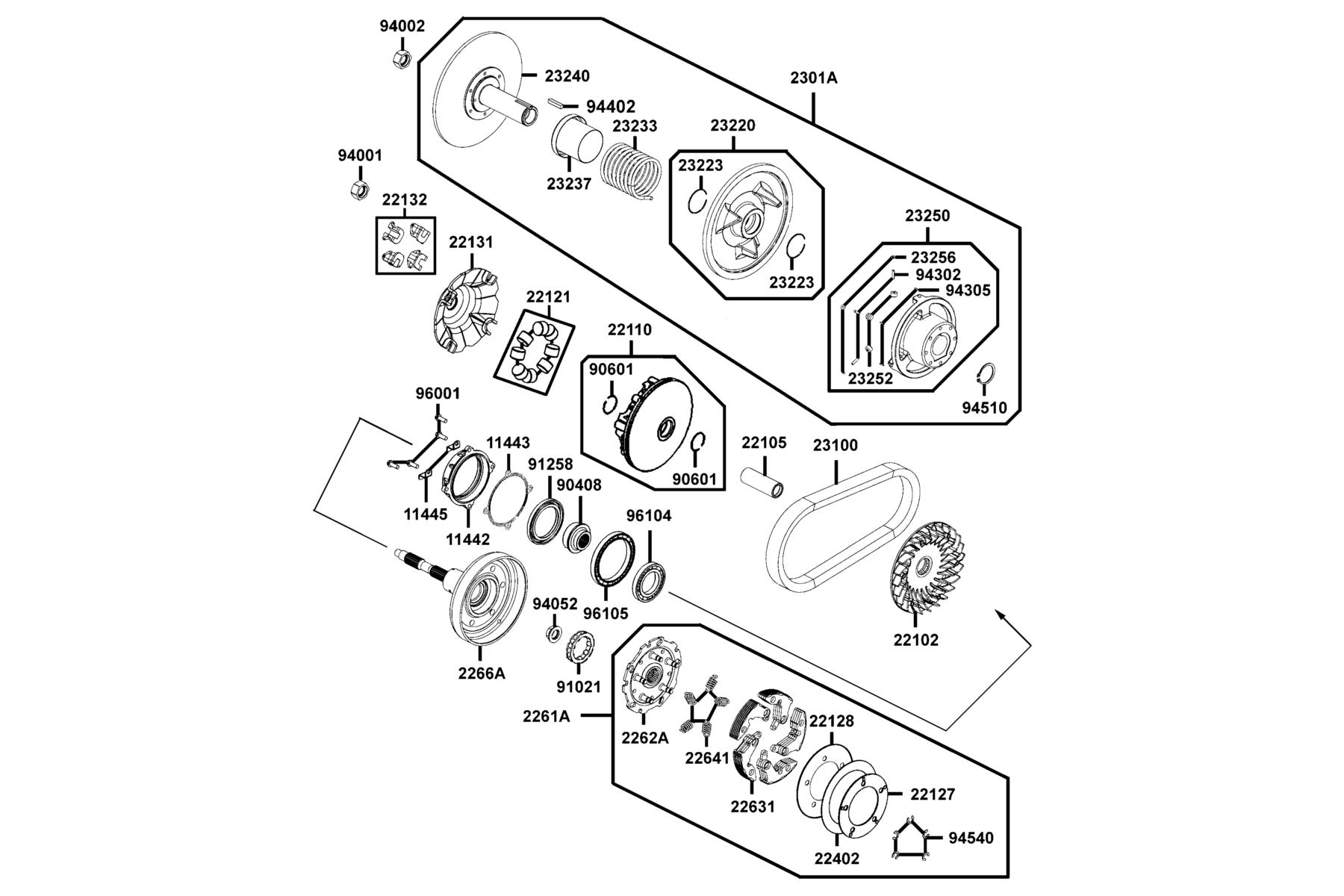

E06 — Drive Pulley
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 11442-LDB5-900 | COVER PRIMARY SHAFT | 1 | $52.26 USD | View product → |
| 2 | 11443-LDB5-900 | GASKET PRIMARY SHAFT COVER | 1 | $14.31 USD | View product → |
| 3 | 11445-LFA5-800 | PLATE PRIMARY SHAFT COVER | 2 | $13.95 USD | View product → |
| 4 | 22102-ZXA6-M01 | FACE DRIVE | 1 | $106.14 USD | View product → |
| 5 | 22105-PWB1-900 | BOSS DRIVE FACE | 1 | $71.22 USD | View product → |
| 6 | 22110-ZXA6-M01 | FACE COMP MOVABLE | 1 | $139.02 USD | View product → |
| 7 | 22121-LGC7-305 | ROLLER SET WEIGHT (1SET:8PCS) | 1 | $107.13 USD | View product → |
| 8 | 22127-PWB1-900 | SEAT ADJUSTER SPG | 1 | $34.23 USD | View product → |
| 9 | 22128-PWB1-900 | PLATE ADJUSTER SPG | 1 | $46.38 USD | View product → |
| 10 | 22131-PWB1-900 | PLATE RAMP | 1 | $53.22 USD | View product → |
| 11 | 22132-PWB1-305 | PIECE SLIDE SET (1SET:4PCS) | 1 | $20.91 USD | View product → |
| 12 | 22402-PWB1-900 | SPG ADJUSTER | 1 | $36.51 USD | View product → |
| 13 | 2261A-PWB1-800 | CLUTCH ASSY PRIMARY | 1 | $568.95 USD | View product → |
| 14 | 2262A-PWB1-800 | PLATE COMP PRIMARY DRIVE | 1 | $265.26 USD | View product → |
| 15 | 22631-PWB1-900 | WEIGHT COMP PRIMARY CLUTCH | 5 | $211.74 USD | View product → |
| 16 | 22641-PWB1-900 | PRIMARY CLUTCH SPG | 5 | $6.24 USD | View product → |
| 17 | 2266A-PWB1-800 | GEAR ASSY PRIMARY DRIVE | 1 | $413.76 USD | View product → |
| 18 | 2301A-LGC7-E00 | PULLEY SUB ASSY DEIVEN | 1 | $434.56 USD | View product → |
| 19 | 23100-PWB1-900 | BELT DRIVE | 1 | $339.51 USD | View product → |
| 20 | 23220-ZXA6-M01 | FACE COMP MOVABLE | 1 | $177.15 USD | View product → |
| 21 | 23223-LFA5-900 | CLIP 38MM | 2 | $4.92 USD | View product → |
| 22 | 23233-LGC7-E00 | SPG DRIVEN FACE | 1 | $108.87 USD | View product → |
| 23 | 23237-PWB1-900 | COLLAR SEAL | 1 | $59.97 USD | View product → |
| 24 | 23240-ZXA6-M01 | FACE ASSY DRIVEN | 1 | $244.95 USD | View product → |
| 25 | 23250-ZXA6-M01 | CAP ASSY DRIVEN CLUTCH | 1 | $157.08 USD | View product → |
| 26 | 23252-PWB1-900 | ROLLER DRIVEN CLUTCH | 3 | $26.37 USD | View product → |
| 27 | 23256-PWB1-900 | WASHER THRUST | 3 | $4.92 USD | View product → |
| 28 | 90408-PWB1-800 | COLLAR PRIMARY DRIVE SHAFT | 1 | $10.68 USD | View product → |
| 29 | 90601-PWB1-900 | CLIP 30MM | 2 | $4.92 USD | View product → |
| 30 | 91021-LDB5-E00 | BEARING ONE WAY | 1 | $174.99 USD | View product → |
| 31 | 91258-LDB5-900 | OIL SEAL 56.5*80*7 | 1 | $51.45 USD | View product → |
| 32 | 94001-PWB1-900 | NUT FLANGE 16MM | 1 | $19.71 USD | View product → |
| 33 | 94002-PWB1-900 | NUT FLANGE 16MM | 1 | $12.09 USD | View product → |
| 34 | 94052-LFA5-800 | NUT.FLANGE 18mm | 1 | $49.02 USD | View product → |
| 35 | 94302-06025 | PIN CAM ROLLER | 3 | $10.14 USD | View product → |
| 36 | 94305-03161 | PIN SPG 3x16 | 3 | $15.45 USD | View product → |
| 37 | 94402-LFA5-900 | KEY 6x6x30 | 1 | $12.45 USD | View product → |
| 38 | 94510-35150 | CIRCLIP EX 35 | 1 | $12.09 USD | View product → |
| 39 | 94540-07017 | E RING 7MM | 5 | $4.92 USD | View product → |
| 40 | 96001-06018-06 | BOLT FLANGE SH 6*18 | 1 | $12.12 USD | View product → |
| 41 | 96104-LDB5-90A | BEARING BALL RADIAL 16008 | 1 | $92.82 USD | View product → |
| 42 | 96105-LFA5-80B | BEARING BALL RADIAL 6815RS | 1 | $215.40 USD | View product → |

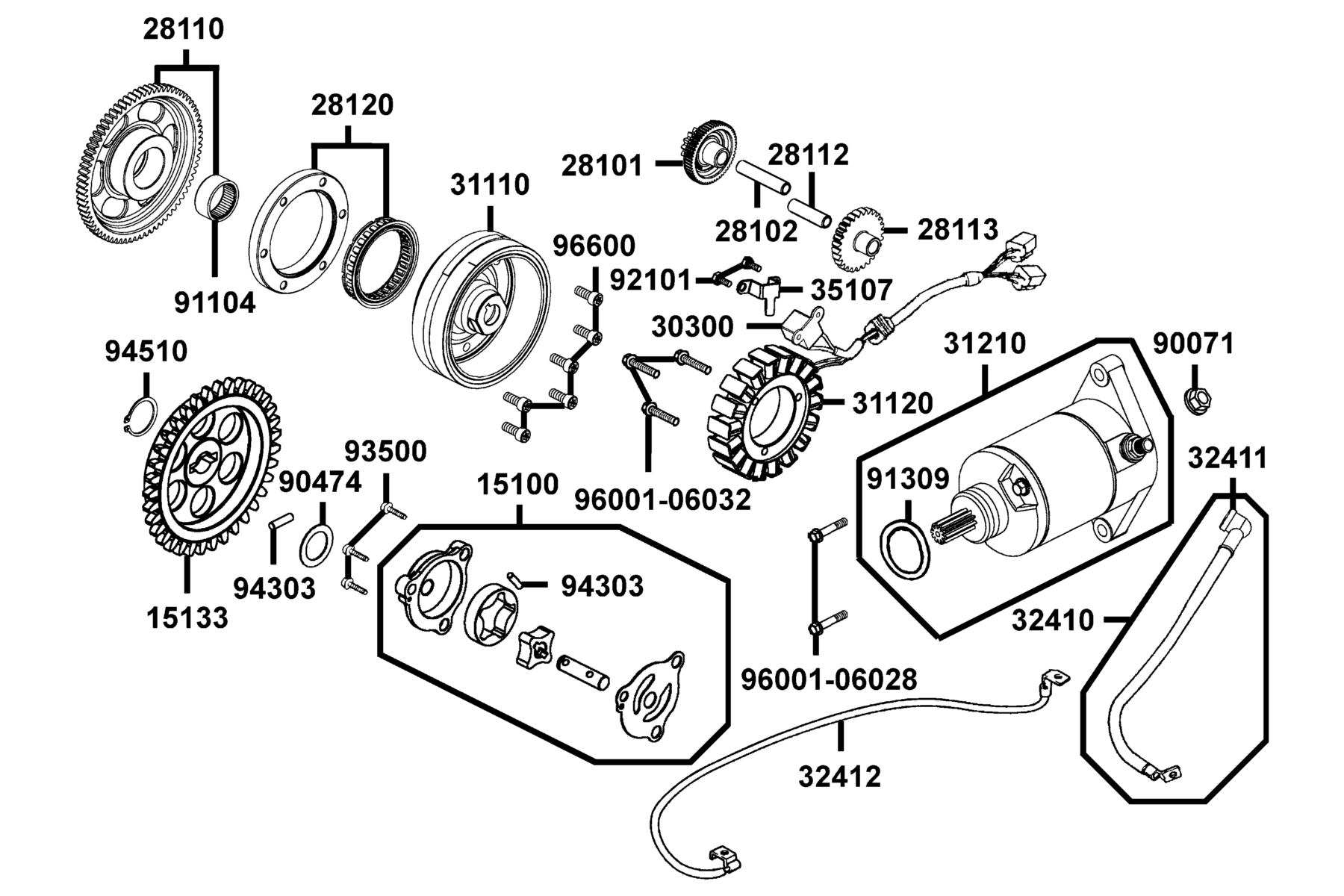

E07 — Starting Motor ● Generator
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 15100-PWB1-900 | OIL PUMP ASSY | 1 | $133.89 USD | View product → |
| 2 | 15133-PWB1-900 | SPROCKET OIL PUMP DRIVEN | 1 | $69.48 USD | View product → |
| 3 | 28101-PWB1-900 | GEAR STARTER REDUCTION | 1 | $112.89 USD | View product → |
| 4 | 28102-PWB1-900 | SHAFT STARTER REDUCTION GEAR | 1 | $15.45 USD | View product → |
| 5 | 28110-PWB1-900 | GEAR COMP STARTING CLUTCH | 1 | $203.19 USD | View product → |
| 6 | 28112-PWB1-900 | SHAFT A STARTER REDUCTION GEAR | 1 | $15.45 USD | View product → |
| 7 | 28113-PWB1-900 | GEAR A STARTER REDUCTION | 1 | $83.31 USD | View product → |
| 8 | 28120-PWB1-90A | OUTER COMP. STARTING CLUTCH | 1 | $343.56 USD | View product → |
| 9 | 30300-KED9-900 | GENERATOR COMP PULSE | 1 | $98.34 USD | View product → |
| 10 | 31110-PTA1-800 | FLYWHEEL COMP (D406) | 1 | $240.45 USD | View product → |
| 11 | 31120-LFA5-E00 | STATOR COMP (D406) | 1 | $247.68 USD | View product → |
| 12 | 31210-PTA1-800 | MOTOR UNIT STARTER | 1 | $475.86 USD | View product → |
| 13 | 32410-PTA1-800 | CABLE STARTER MOTOR | 1 | $120.90 USD | View product → |
| 14 | 32411-2C53-001 | COVER STARTING MOTOR TERMINAL | 1 | $10.14 USD | View product → |
| 15 | 32412-PTA1-800 | CABLE EARTH | 1 | $137.10 USD | View product → |
| 16 | 35107-PWB1-900 | STAY A ACG STATOR | 1 | $9.06 USD | View product → |
| 17 | 90071-MLB0-001 | NUT WASH 6MM | 1 | $4.92 USD | View product → |
| 18 | 90474-1G47-001 | WASHER 10.5MM | 1 | $2.61 USD | View product → |
| 19 | 91104-PWB1-90A | BRG NEEDLE 31X39X18 | 1 | $140.22 USD | View product → |
| 20 | 91309-4E25-004 | O-RING 24.4*3.1 | 1 | $4.92 USD | View product → |
| 21 | 92101-05012-0G | BOLT HEX 5X12 | 1 | $11.46 USD | View product → |
| 22 | 93500-06025-0FN | SCREW PAN 6X25 | 1 | $24.99 USD | View product → |
| 23 | 94303-04160 | PIN 4x16 | 2 | $5.43 USD | View product → |
| 24 | 94510-10000 | CIR CLIP EX 10MM | 1 | $4.92 USD | View product → |
| 25 | 96001-06028-08N | BOLT FLANGE SH 6X28 | 2 | $4.59 USD | View product → |
| 26 | 96001-06032-06N | BOLT FLANGE SH 6X32 | 1 | $12.12 USD | View product → |
| 27 | 96600-LDB5-E00 | SOCKET BOLT 8*20 | 6 | $7.53 USD | View product → |

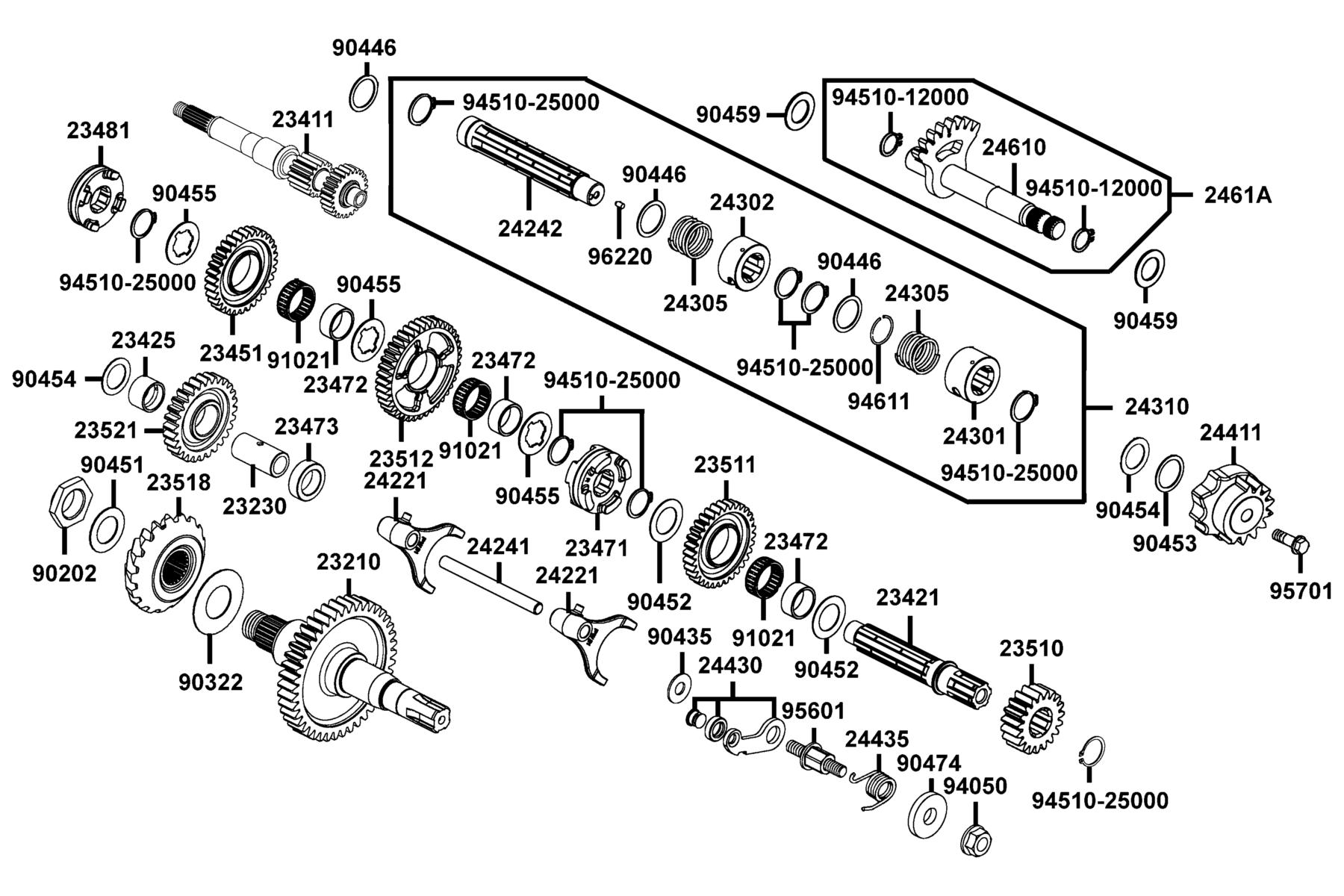

E08 — Clutch Assy Primary
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 23210-PWB1-900 | SHAFT COMP MAIN | 1 | $206.25 USD | View product → |
| 2 | 23230-PWB1-900 | SHAFT BACKWARD IDLE | 1 | $32.10 USD | View product → |
| 3 | 23411-PTA1-900 | SHAFT DRIVE | 1 | $402.33 USD | View product → |
| 4 | 23421-PWB1-900 | SHAFT COUNTER | 1 | $134.97 USD | View product → |
| 5 | 23425-PWB1-900 | BUSH BACKWARD IDLE GEAR | 1 | $35.25 USD | View product → |
| 6 | 23451-PWB1-900 | GEAR???BACKWARD DRIVEN 32T | 1 | $161.43 USD | View product → |
| 7 | 23471-PWB1-900 | SHIFT FORWARD&LOW | 1 | $126.42 USD | View product → |
| 8 | 23472-PWB1-900 | RING 25 INNER | 3 | $31.17 USD | View product → |
| 9 | 23473-PWB1-900 | COLLAR 20X30X9.5 | 1 | $32.10 USD | View product → |
| 10 | 23481-PWB1-900 | SHIFT BACKWARD | 1 | $114.66 USD | View product → |
| 11 | 23510-PWB1-900 | GEAR???FORWARD DRIVEN 19T | 1 | $119.58 USD | View product → |
| 12 | 23511-PTA1-900 | GEAR??? FORWARD DRIVEN 33T | 1 | $276.09 USD | View product → |
| 13 | 23512-PWB1-900 | GEAR LOWER DRIVEN 40T | 1 | $166.17 USD | View product → |
| 14 | 23518-PWB1-900 | BEVEL GEAR???DRIVE | 1 | $146.04 USD | View product → |
| 15 | 23521-PWB1-900 | GEAR BACKWARD IDLE 28T | 1 | $156.39 USD | View product → |
| 16 | 24221-PWB1-900 | FORK SHIFT | 2 | $178.17 USD | View product → |
| 17 | 24241-PWB1-900 | SHAFT SHIFT FORK | 1 | $24.66 USD | View product → |
| 18 | 24242-PWB1-900 | SHAFT DRUM GEAR SHIFT | 1 | $226.26 USD | View product → |
| 19 | 24301-PWB1-900 | DRUM FORWARD | 1 | $126.39 USD | View product → |
| 20 | 24302-PWB1-900 | DRUM BACKWARD | 1 | $123.81 USD | View product → |
| 21 | 24305-PWB1-900 | SPRING DRUM | 2 | $20.91 USD | View product → |
| 22 | 24310-PWB1-900 | DRUM ASSY GEAR SHIFT | 1 | $288.69 USD | View product → |
| 23 | 24411-PWB1-900 | GEAR DRUM SHIFT | 1 | $47.34 USD | View product → |
| 24 | 24430-PWB1-900 | STOPPER COMP DRUM | 1 | $24.66 USD | View product → |
| 25 | 24435-PTA1-800 | SPRING TORSION CAM ARM | 1 | $12.45 USD | View product → |
| 26 | 24610-PWB1-900 | SPINDLE COMP DRUM SHIFT | 1 | $46.65 USD | View product → |
| 27 | 2461A-PWB1-900 | SPINDLE ASSY DRUM SHIFT | 1 | $52.95 USD | View product → |
| 28 | 90202-PWB1-900 | NUT DRIVE B GEAR M20X1.5 | 1 | $31.17 USD | View product → |
| 29 | 90322-PWB1-900 | SHIM DRIVEN BEVEL GEAR L (1.125~1.175) | 1 | $12.09 USD | View product → |
| 30 | 90435-HCB3-001 | WASHER 6.1MM | 1 | $4.92 USD | View product → |
| 31 | 90446-PWB1-900 | WASHER 25X32X1 | 3 | $7.89 USD | View product → |
| 32 | 90451-LBA7-900 | WASHER THRUST 20MM | 1 | $5.58 USD | View product → |
| 33 | 90452-LBA7-900 | WASHER THRUST 25MM | 2 | $7.53 USD | View product → |
| 34 | 90453-1G07-001 | WASHER THRUST 20M/M | 1 | $2.61 USD | View product → |
| 35 | 90454-KED9-900 | WASHER THRUST 20*1 | 2 | $4.92 USD | View product → |
| 36 | 90455-LBA7-900 | WASHER SPLINE 25MM | 3 | $7.92 USD | View product → |
| 37 | 90459-PWB1-900 | WASHER 12X20X1 | 2 | $5.31 USD | View product → |
| 38 | 90474-7D04-000 | WASHER 6*17*23 | 1 | $4.92 USD | View product → |
| 39 | 91021-PWB1-90B | BRG NEEDLE KT30X35X12.8 | 3 | $44.85 USD | View product → |
| 40 | 94050-06080 | NUT FLANGE 6MM | 1 | $2.31 USD | View product → |
| 41 | 94510-12000 | CIR CLIP EXTERNAL 12 | 2 | $4.92 USD | View product → |
| 42 | 94510-25000 | CIR CLIP EX 25 | 8 | $3.78 USD | View product → |
| 43 | 94611-PWB1-900 | CLIP DRUM SHAFT | 1 | $4.92 USD | View product → |
| 44 | 95601-PWB1-900 | SUPPORT CAM STOPPER | 1 | $23.64 USD | View product → |
| 45 | 95701-06025-06 | BOLT FLANGE 6*25 | 1 | $1.95 USD | View product → |
| 46 | 96220-40080 | ROLLER 4*8 | 1 | $4.92 USD | View product → |

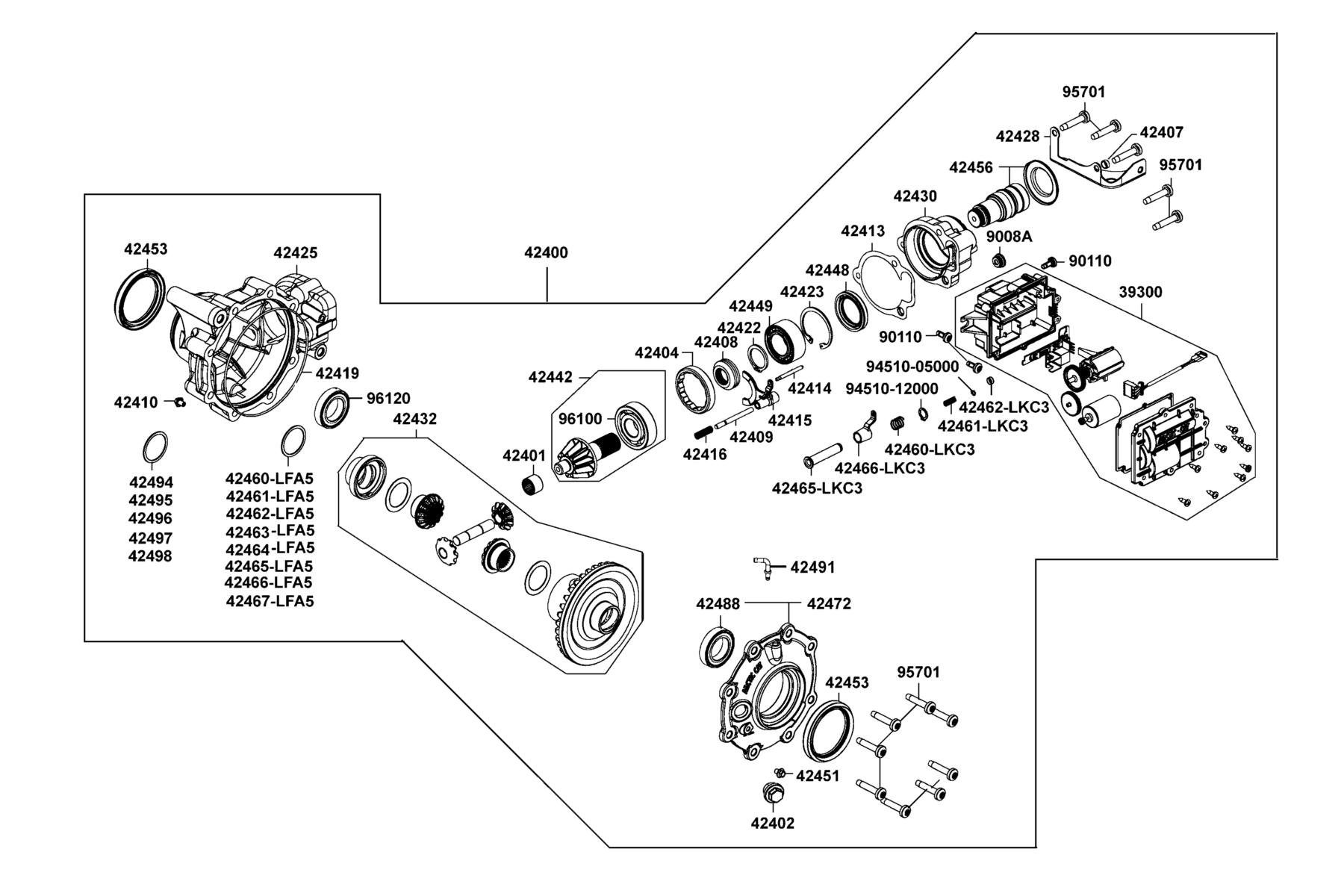

E09 — Gear Case Front
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 39300-LKC3-500 | ACTUATOR | 1 | $410.13 USD | View product → |
| 2 | 42400-AEB8-500 | GEARCASE FRONT(3.1)-ASSEMBLY | 1 | $1309.96 USD | View product → |
| 3 | 42401-LFA5-90B | BEARING.NEEDLE(16NQ2316) | 1 | $53.16 USD | View product → |
| 4 | 42402-LFA5-900 | PLUG FILL | 1 | $110.16 USD | View product → |
| 5 | 42404-LFA5-900 | COLLAR LOCK M64X1.5 RH | 1 | $125.97 USD | View product → |
| 6 | 42407-LFA5-900 | PIN DOWEL | 1 | $32.73 USD | View product → |
| 7 | 42408-LKC3-500 | COUPLER DRIVE | 1 | $120.06 USD | View product → |
| 8 | 42409-LKC3-500 | SHAFT E-LOCK SELECTOR | 1 | $89.34 USD | View product → |
| 9 | 42410-LFA5-900 | PLUG DRAIN MAG | 1 | $75.12 USD | View product → |
| 10 | 42413-LKC3-500 | GASKET FLANGE | 1 | $39.81 USD | View product → |
| 11 | 42414-LKC3-500 | SHAFT. SELECTOR | 1 | $30.12 USD | View product → |
| 12 | 42415-LKC3-500 | FORK SELECTOR | 1 | $116.13 USD | View product → |
| 13 | 42416-LKC3-500 | COLLAR ACTUATOR | 1 | $6.78 USD | View product → |
| 14 | 42419-LKC3-500 | GASKET HOUSING | 1 | $26.37 USD | View product → |
| 15 | 42422-LFA5-900 | RING RETAINING ONE | 1 | $28.35 USD | View product → |
| 16 | 42423-LFA5-900 | RING RETAINING | 1 | $32.10 USD | View product → |
| 17 | 42425-LKA8-500 | HOUSING GEARCASE-FRONT MACH | 1 | $475.26 USD | View product → |
| 18 | 42428-LKC3-500 | BRACKET ACTUATOR-WELDMENT | 1 | $39.39 USD | View product → |
| 19 | 42430-LKC3-500 | HOUSING???PINION-MACH | 1 | $112.56 USD | View product → |
| 20 | 42432-AEB8-E00 | GEAR FRONT (34 TOOTH)-WELDMENT | 1 | $404.98 USD | View product → |
| 21 | 42442-LKC3-600 | PINION ( 11 TOOTH)-ASSEMBLY | 1 | $170.34 USD | View product → |
| 22 | 42448-LFA5-900 | SEAL 38*55*14 | 1 | $49.26 USD | View product → |
| 23 | 42449-LFA5-90B | BEARING.BALL-DOUBLE ROW | 1 | $127.92 USD | View product → |
| 24 | 42451-LFA5-900 | PLUG OIL LEVEL | 1 | $47.76 USD | View product → |
| 25 | 42453-LGC3-900 | OIL SEAL 48*84*9 | 2 | $87.45 USD | View product → |
| 26 | 42456-LKM8-510 | SHAFT INPUT ASSEMBLY | 1 | $145.65 USD | View product → |
| 27 | 42460-LFA5-900 | SHIM 41*49*1.0 | 2 | $20.64 USD | View product → |
| 28 | 42460-LKC3-500 | SPRING A E-LOCK | 1 | $4.92 USD | View product → |
| 29 | 42461-LFA5-900 | SHIM 41*49*1.1 | 2 | $20.64 USD | View product → |
| 30 | 42461-LKC3-500 | SPRING B E-LOCK | 1 | $5.67 USD | View product → |
| 31 | 42462-LFA5-900 | SHIM 41*49*1.2 | 2 | $18.57 USD | View product → |
| 32 | 42462-LKC3-500 | CAP E-LOCK | 1 | $7.17 USD | View product → |
| 33 | 42463-LFA5-900 | SHIM 41*49*1.3 | 2 | $20.64 USD | View product → |
| 34 | 42464-LFA5-900 | SHIM 41*49*1.4 | 2 | $20.64 USD | View product → |
| 35 | 42465-LFA5-900 | SHIM 41*49*1.5 | 2 | $20.64 USD | View product → |
| 36 | 42465-LKC3-500 | SHAFT SELECTOR | 1 | $230.31 USD | View product → |
| 37 | 42466-LFA5-900 | SHIM 41*49*1.6 | 2 | $20.64 USD | View product → |
| 38 | 42466-LKC3-500 | STAY..SELECTOR | 1 | $53.76 USD | View product → |
| 39 | 42467-LFA5-900 | SHIM 41*49*1.7 | 2 | $20.64 USD | View product → |
| 40 | 42472-LKC3-500 | COVEFR LOCK ASSY | 1 | $524.25 USD | View product → |
| 41 | 42488-LEE8-E00 | BEARING BALL | 1 | $260.82 USD | View product → |
| 42 | 42491-LEE8-E00 | BARB 90 | 1 | $21.30 USD | View product → |
| 43 | 42494-LEE8-E00 | SHIM 61*69*1.3mm | 1 | $25.89 USD | View product → |
| 44 | 42495-LEE8-E00 | SHIM 61*69*1.4mm | 1 | $25.89 USD | View product → |
| 45 | 42496-LEE8-E00 | SHIM 61*69*1.5mm | 1 | $25.89 USD | View product → |
| 46 | 42497-LEE8-E00 | SHIM 61*69*1.6mm | 1 | $25.89 USD | View product → |
| 47 | 42498-LEE8-E00 | SHIM 61*69*1.7 mm | 1 | $25.89 USD | View product → |
| 48 | 9008A-LKC3-500 | CAP ASSY E-LOCK | 1 | $25.35 USD | View product → |
| 49 | 90110-LFA5-900 | BOLT SPECIAL 6X12 | 3 | $25.35 USD | View product → |
| 50 | 94510-05000 | CIR CLIP EX5 | 3 | $13.95 USD | View product → |
| 51 | 94510-12000 | CIR CLIP EXTERNAL 12 | 1 | $4.92 USD | View product → |
| 52 | 95701-08040-06 | BOLT FLANGE 8X40 | 13 | $9.06 USD | View product → |
| 53 | 96100-63050-00 | BRG BALL RADIAL 6305 | 1 | $49.86 USD | View product → |
| 54 | 96120-60080-00 | BEARING BALL 6008Z | 1 | $130.89 USD | View product → |

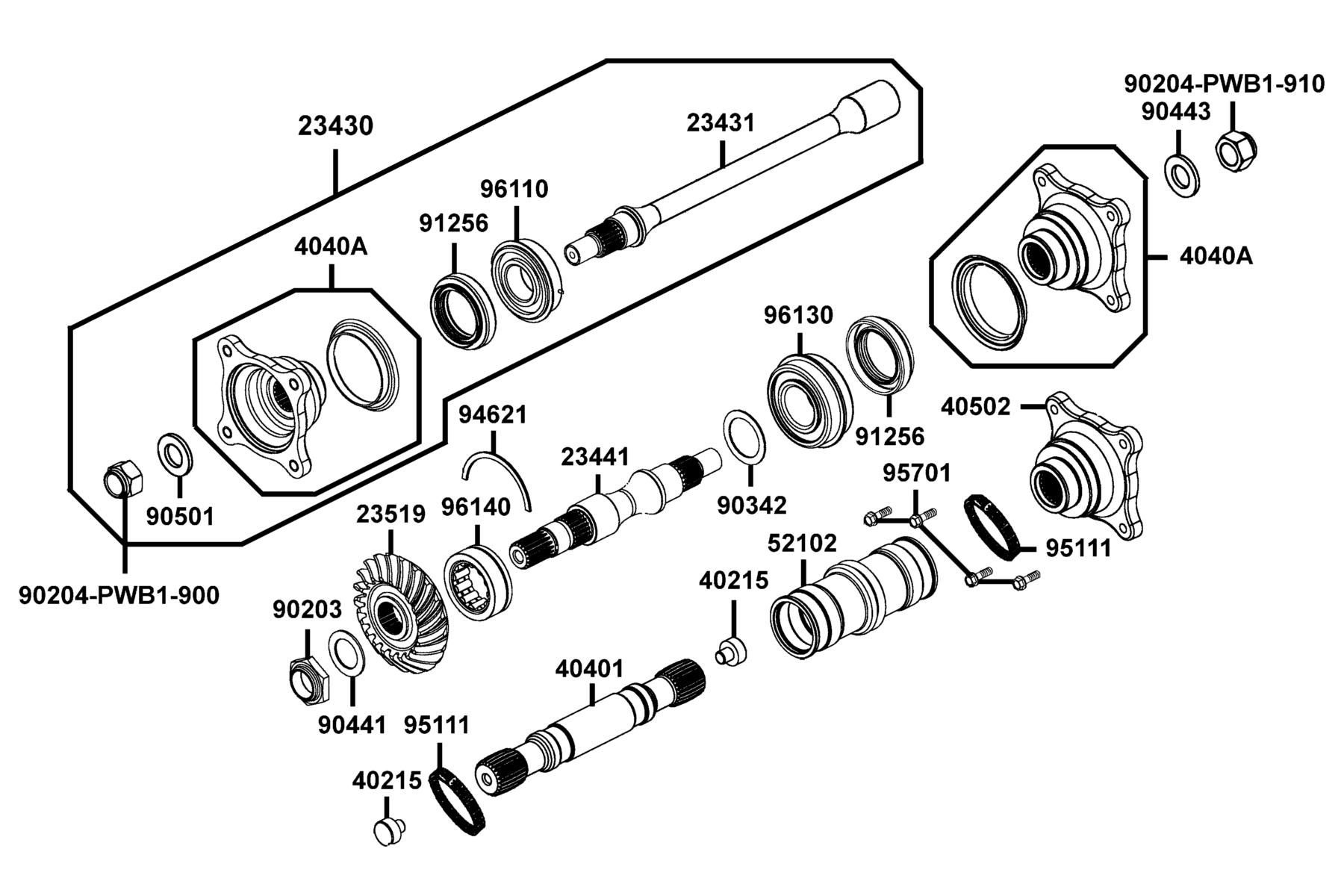

E10 — Shaft Drive Front
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 23430-PWB1-900 | SHAFT ASSY FINAL DRIVEN FR | 1 | $201.54 USD | View product → |
| 2 | 23431-PWB1-900 | SHAFT FINAL DRIVEN FRONT | 1 | $162.66 USD | View product → |
| 3 | 23441-PWB1-900 | SHAFT FINAL DRIVEN REAR | 1 | $155.58 USD | View product → |
| 4 | 23519-PWB1-900 | BEVEL GEAR???DRIVEN | 1 | $141.48 USD | View product → |
| 5 | 40215-PWB1-900 | BUMPER DRIVESHAFT | 2 | $5.31 USD | View product → |
| 6 | 40401-PWB1-900 | SHAFT PROPELLER FRONT | 1 | $98.52 USD | View product → |
| 7 | 4040A-PWB1-900 | COUPLING REAR OUTPUT SHAFT | 2 | $131.97 USD | View product → |
| 8 | 40502-PRB2-900 | FLANGE OUTPUT | 1 | $94.86 USD | View product → |
| 9 | 52102-PWB1-900 | BOOT COUPLER-FRONT | 1 | $33.42 USD | View product → |
| 10 | 90203-PWB1-900 | NUT DRIVEN B GEAR M22X1.5 | 1 | $33.66 USD | View product → |
| 11 | 90204-PWB1-900 | NUT HEX SHOULDER (M16X1.5) | 1 | $32.76 USD | View product → |
| 12 | 90204-PWB1-910 | NUT HEX SHOULDER (M16X1.5) | 1 | $38.28 USD | View product → |
| 13 | 90342-PWB1-900 | SHIM DRIVEN BEVEL GEAR L (1.125~1.175) | 1 | $12.09 USD | View product → |
| 14 | 90441-LBA2-E00 | WASHER 22*34*2.5 | 1 | $15.06 USD | View product → |
| 15 | 90443-KKE5-E00 | WASHER 16mm | 1 | $15.06 USD | View product → |
| 16 | 90501-KNBN-901 | WASHER 16MM | 1 | $5.67 USD | View product → |
| 17 | 91256-PWB1-900 | OIL SEAL 34X52X9 | 2 | $3.48 USD | View product → |
| 18 | 94621-PWB1-900 | RING DRIVEN BEARING | 1 | $9.06 USD | View product → |
| 19 | 95111-PWB1-900 | CLAMP BOOT | 2 | $18.24 USD | View product → |
| 20 | 95701-08020-06 | BOLT FLANGE 8*20 | 4 | $3.78 USD | View product → |
| 21 | 96110-PWB1-900 | BRG BALL SNAP 25X52X15 | 1 | $122.22 USD | View product → |
| 22 | 96130-PWB1-900 | BEARING BALL D/R 25X52X20.6 | 1 | $183.72 USD | View product → |
| 23 | 96140-PWB1-900 | BRG ROLLER 30X50X17 | 1 | $155.28 USD | View product → |

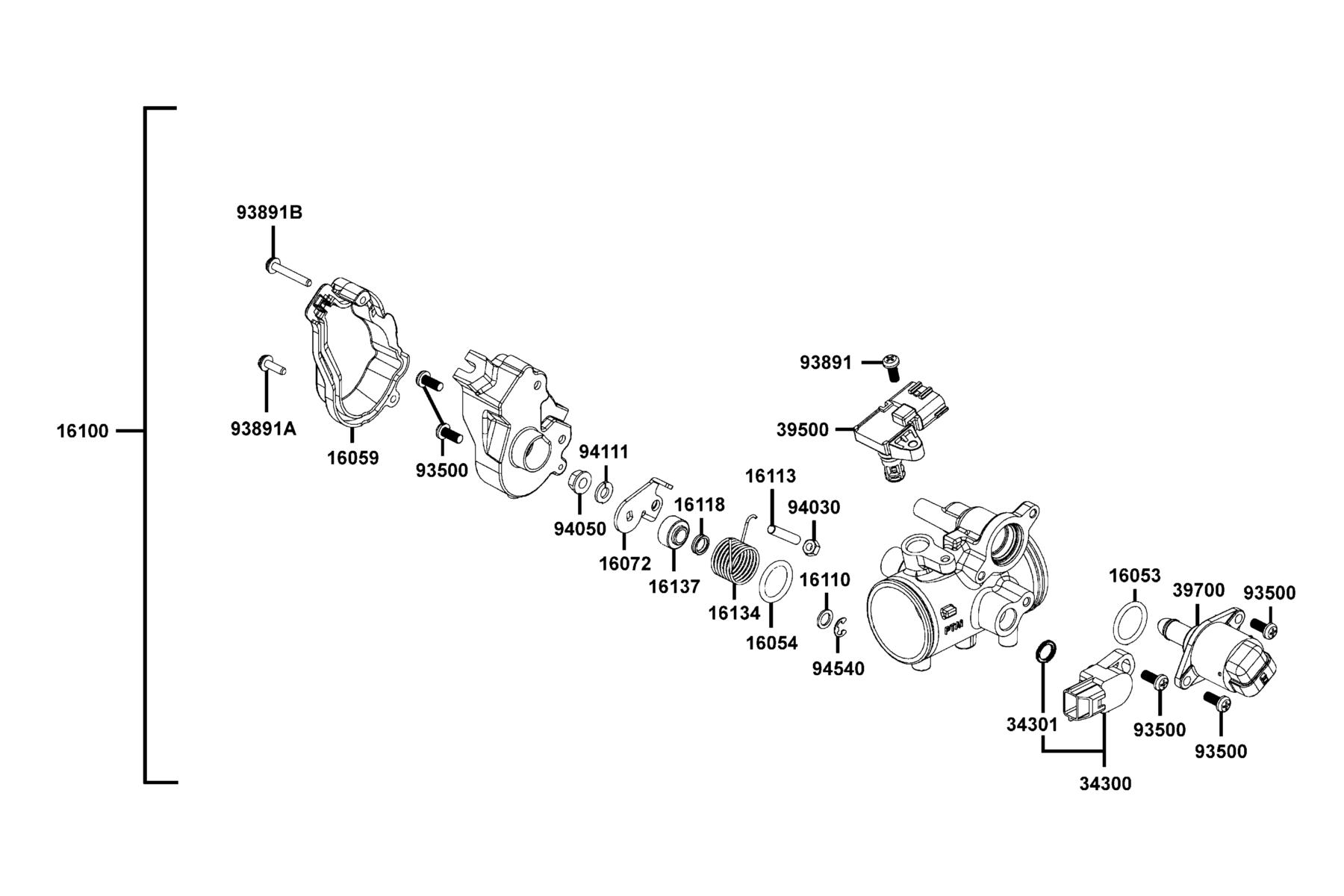

E11 — Throttle Body Assy
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 16053-PTA1-800 | SEAL | 1 | $7.17 USD | View product → |
| 2 | 16054-PTA1-800 | OIL RING | 1 | $7.17 USD | View product → |
| 3 | 16059-LDB5-E00-N1R | COVER WIRE STAY (Black) | 1 | $17.82 USD | View product → |
| 4 | 16072-PTA1-800 | DRUM. THROTTLE | 1 | $19.26 USD | View product → |
| 5 | 16100-PTA1-800 | THROTTLE BODY ASSY | 1 | $840.88 USD | View product → |
| 6 | 16110-KGC5-900 | WASHER SHAFT ASSY | 1 | $1.86 USD | View product → |
| 7 | 16113-PTA1-800 | PILOT SCREW | 1 | $25.65 USD | View product → |
| 8 | 16118-LBF2-900 | SEAL THROTTLE SHAFT | 1 | $19.26 USD | View product → |
| 9 | 16134-LDB5-E00 | SPG THROTTLE SHAFT | 1 | $9.78 USD | View product → |
| 10 | 16137-PTA1-800 | COLLAR LEVER | 1 | $14.31 USD | View product → |
| 11 | 34300-KKE3-900 | THROTTLE POSITION SENSOR | 1 | $105.60 USD | View product → |
| 12 | 34301-KKE3-900 | O-RING T.P.S. | 1 | $4.92 USD | View product → |
| 13 | 39500-PTA1-800 | SENSOR T-MAP | 1 | $234.75 USD | View product → |
| 14 | 39700-PTA1-800 | BY PASS VALVE IDLE AIR | 1 | $234.75 USD | View product → |
| 15 | 93500-05012-0F | SCREW PAN 5X12 | 1 | $12.12 USD | View product → |
| 16 | 93891-04012-06 | SCREW TAPPING 4*12 | 1 | $4.92 USD | View product → |
| 17 | 93891-04014-06 | SCREW WASHER 4X14 | 1 | $4.92 USD | View product → |
| 18 | 93891-04028-06 | SCREW WASHER 4X28 | 1 | $4.92 USD | View product → |
| 19 | 94030-PTA1-800 | NUT HEX 5mm | 1 | $7.17 USD | View product → |
| 20 | 94050-06080 | NUT FLANGE 6MM | 1 | $2.31 USD | View product → |
| 21 | 94111-06800 | WASHER SPRING 6MM | 1 | $4.92 USD | View product → |
| 22 | 94540-50029 | E CLIP SHAFT | 1 | $4.92 USD | View product → |

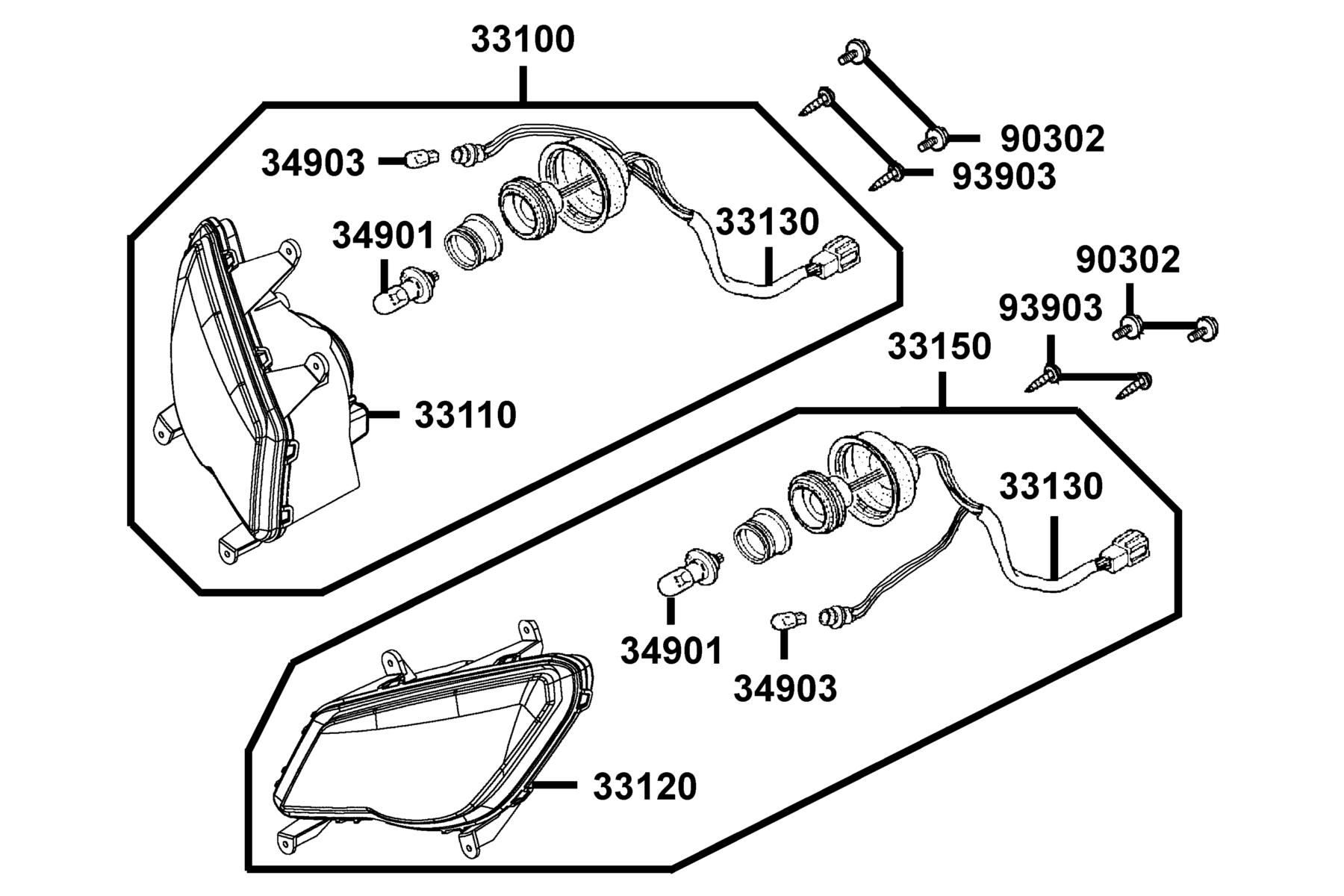

F01 — Head Light
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 044.698 | BULB POSITION LIGHT 12V5W | 2 | $4.11 USD | View product → |
| 2 | 33100-LFA5-E00 | LIGHT ASS'Y R HEAD | 1 | $227.64 USD | View product → |
| 3 | 33110-LFA5-E00 | UNIT HEAD LIGHT R | 1 | $170.16 USD | View product → |
| 4 | 33120-LFA5-E00 | UNIT HEAD LIGHT L | 1 | $170.16 USD | View product → |
| 5 | 33130-LFA5-E00 | SOCKET COMP | 2 | $93.24 USD | View product → |
| 6 | 33150-LFA5-E00 | LIGHT ASSY L HEAD | 1 | $227.64 USD | View product → |
| 7 | 34901-KFA6-900 | BULB HEAD LIGHT (HSI 12V 35/35W) | 2 | $38.37 USD | View product → |
| 8 | 44.698 | BULB POSITION LIGHT 12V5W | 2 | $4.11 USD | View product → |
| 9 | 90302-PWA1-900 | BOLT-WASH 5*16 | 4 | $4.92 USD | View product → |
| 10 | 93903-35260 | SCREW TAPPING 5*12 | 4 | $4.92 USD | View product → |

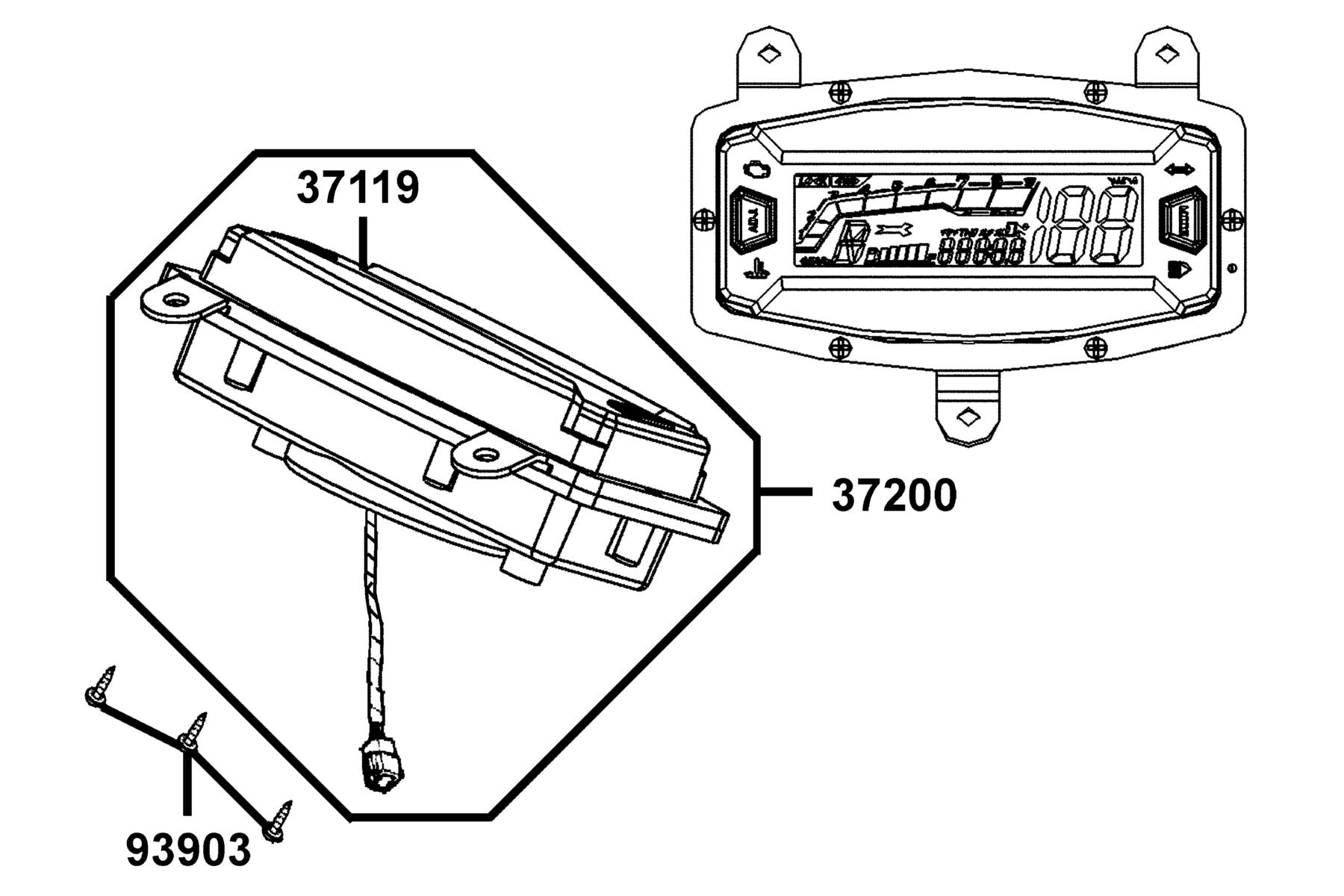

F02 — DIGITAL GAUGE
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 37119-PTA1-800 | LENS ASSY | 1 | $96.84 USD | View product → |
| 2 | 37200-AEB8-M00 | DIGITAL GAUGE | 1 | $538.41 USD | View product → |
| 3 | 93903-35360 | SCREW TAPPING 5*16 | 3 | $3.78 USD | View product → |

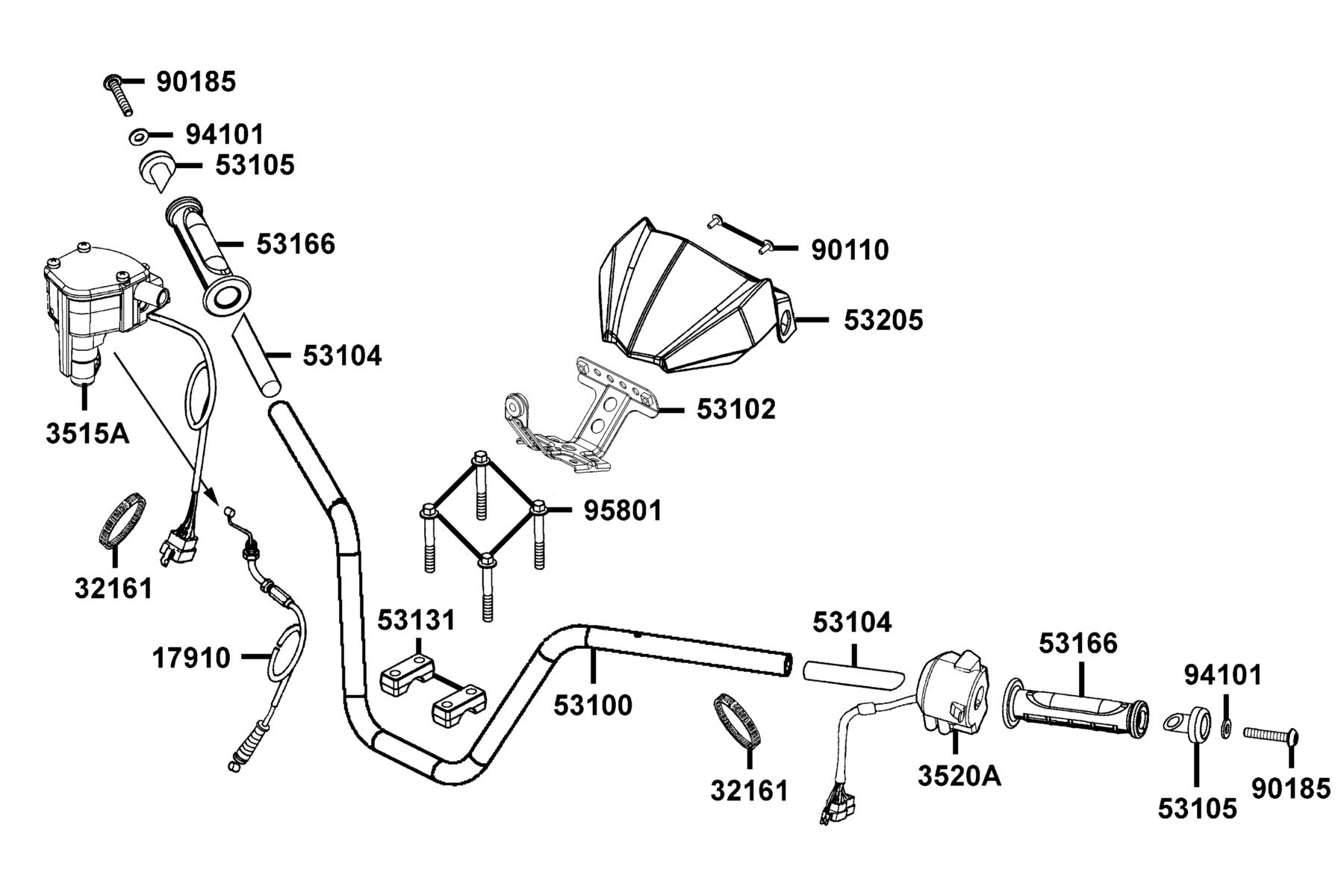

F03 — Tube Handlebar
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 17910-LFA5-E00 | CABLE COMP THROT | 1 | $61.59 USD | View product → |
| 2 | 32161-4D04-001 | BAND BI WIRE | 2 | $4.53 USD | View product → |
| 3 | 3515A-LFE9-900 | SW & THROT ASSY RH HANDLE | 1 | $263.58 USD | View product → |
| 4 | 3520A-PWB1-900 | SW ASSY HANDLE COMP | 1 | $159.66 USD | View product → |
| 5 | 53100-LFA5-900 | TUBE HANDLEBAR | 1 | $112.74 USD | View product → |
| 6 | 53102-LGC3-E00 | STAY HANDLE COVER | 1 | $52.71 USD | View product → |
| 7 | 53104-PWB1-900 | PLUG??? HANDLEBAR | 2 | $31.17 USD | View product → |
| 8 | 53105-PWB1-900 | END HANDLEBAR-BLACK | 2 | $7.17 USD | View product → |
| 9 | 53131-PWB1-900 | CAP STEERING ADJUSTER | 2 | $47.34 USD | View product → |
| 10 | 53166-PWB1-900 | GRIP???HANDLEBAR | 2 | $17.82 USD | View product → |
| 11 | 53205-LKK7-6V0-JBP | COVER HANDLE | 1 | $204.81 USD | View product → |
| 12 | 90110-PWA2-900 | BOLT SPECIAL 6*16 | 2 | $4.29 USD | View product → |
| 13 | 90185-PWB1-900 | SOCKET BOLT 8x45 | 2 | $17.82 USD | View product → |
| 14 | 94101-08600 | WASH PLAIN 8MM | 2 | $2.25 USD | View product → |
| 15 | 95801-08055-06 | BOLT FLANGE 8*55 | 1 | $6.84 USD | View product → |

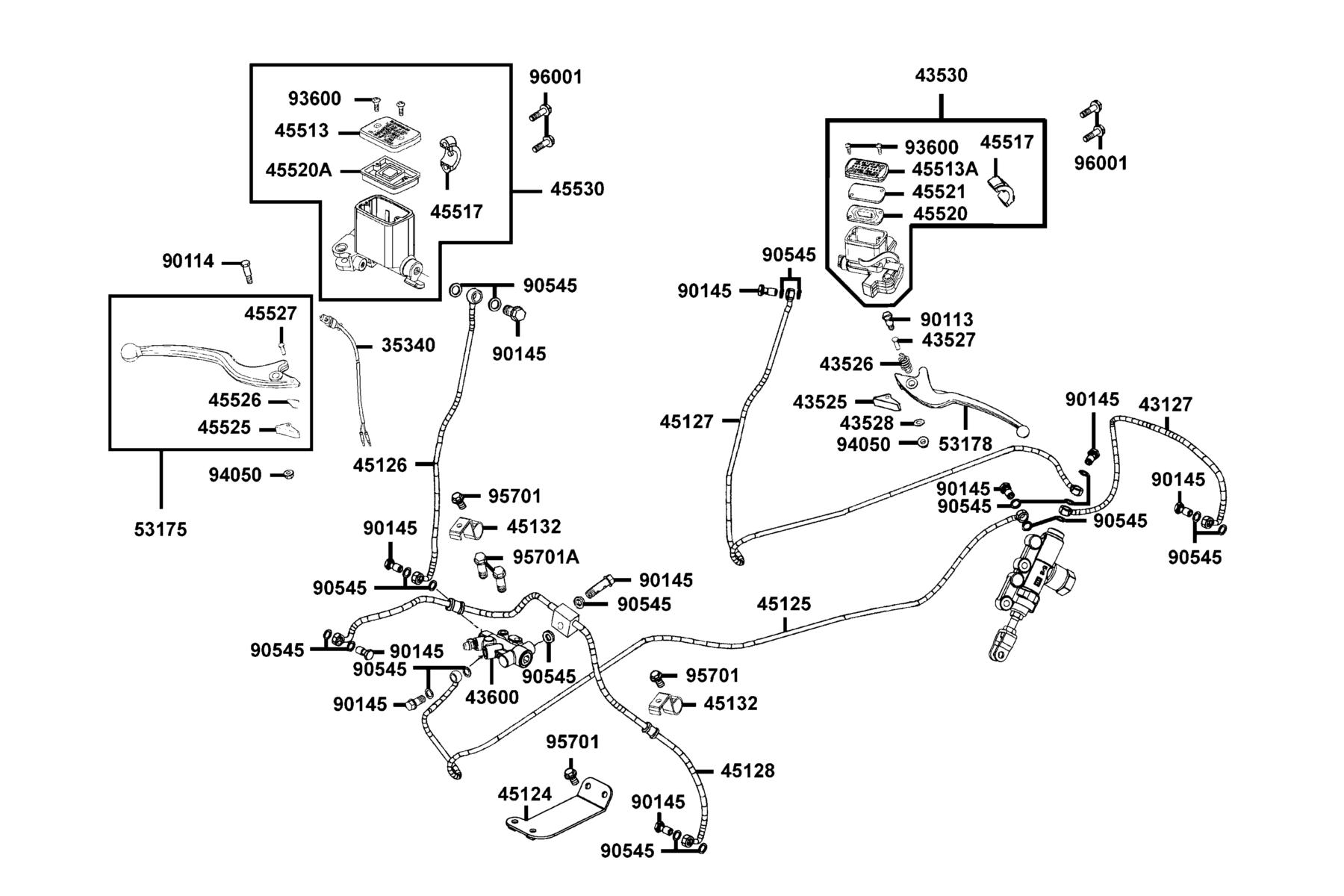

F04 — Master Cylinder
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 35340-LDB5-900 | SW ASSY FR STOP | 1 | $44.85 USD | View product → |
| 2 | 43127-LFA5-E00 | HOSE???BRAKE-SECONDARY | 1 | $154.38 USD | View product → |
| 3 | 43525-PWA1-900 | LEVER PARKING | 1 | $27.39 USD | View product → |
| 4 | 43526-PWA1-900 | SPRING RETURN | 1 | $10.14 USD | View product → |
| 5 | 43527-PWA1-900 | PIN | 1 | $10.14 USD | View product → |
| 6 | 43528-PWA1-900 | CLIP | 1 | $5.31 USD | View product → |
| 7 | 43530-LFA5-306 | CYLINDER SET RR MASTER | 1 | $255.81 USD | View product → |
| 8 | 43600-LDB5-E00 | PGV ASSY | 1 | $204.18 USD | View product → |
| 9 | 45124-PWB1-E00 | STAY PGV | 1 | $18.24 USD | View product → |
| 10 | 45125-LFA5-E00 | HOSE??? BRAKE-JUNCTION/DIRM | 1 | $156.12 USD | View product → |
| 11 | 45126-LFA5-E00 | HOSE ASSY FR BRK | 1 | $140.55 USD | View product → |
| 12 | 45127-LFA5-E00 | HOSE BRAKE LH M/C-FOOT M/C | 1 | $167.97 USD | View product → |
| 13 | 45128-LFA5-E01 | HOSE FR BRK | 1 | $230.73 USD | View product → |
| 14 | 45132-LBA7-900 | CLAMPER FR BRAKE HOSE | 2 | $16.14 USD | View product → |
| 15 | 45513-KKC4-900 | CAP M/C | 1 | $2.82 USD | View product → |
| 16 | 45513-LEA7-E00 | CAP MASTER CYLINDER | 1 | $47.01 USD | View product → |
| 17 | 45517-KFAF-900 | HOLDER M/C | 1 | $20.91 USD | View product → |
| 18 | 45520-KKA8-900 | DIAPHRAGM | 1 | $42.30 USD | View product → |
| 19 | 45520-KKC4-900 | DIAPHRAGM | 1 | $1.08 USD | View product → |
| 20 | 45521-LEA7-E00 | PLATE DIAPHRAGM | 1 | $37.65 USD | View product → |
| 21 | 45525-LBA7-900 | STOPPER | 1 | $23.40 USD | View product → |
| 22 | 45526-LBA7-900 | SPRING | 1 | $9.39 USD | View product → |
| 23 | 45527-LBA7-900 | PIN PARK | 1 | $9.39 USD | View product → |
| 24 | 45530-LDB5-305 | CYLINDER SET FR | 1 | $226.26 USD | View product → |
| 25 | 53175-LFA5-305 | LEVER SET BRK | 1 | $125.70 USD | View product → |
| 26 | 53178-PWA1-900-M3A | LEVER L STRG HANDLE (SILVER ) | 1 | $58.29 USD | View product → |
| 27 | 90113-KKA8-900 | BOLT L STEERING HANDLE | 1 | $9.39 USD | View product → |
| 28 | 90114-1F66-007 | BOLT HANDLE LEVER | 1 | $4.92 USD | View product → |
| 29 | 90145-LEA3-E00 | OIL BOLT 10*22 | 10 | $22.86 USD | View product → |
| 30 | 90545-3L00-001 | WASHER OIL BOLT | 21 | $2.91 USD | View product → |
| 31 | 90545-3L00-001(wrong) | WASHER OIL BOLT | 21 | $3.78 USD | View product → |
| 32 | 93600-04012-1G | SCREW FLAT 4*12 | 4 | $5.67 USD | View product → |
| 33 | 94050-06060 | NUT FLANGE 6MM | 2 | $4.92 USD | View product → |
| 34 | 95701-06012-06 | BOLT FLANGE 6X12 | 3 | $1.86 USD | View product → |
| 35 | 95701-06040-06 | BOLT FLANGE 6*40 | 2 | $2.61 USD | View product → |
| 36 | 96001-06022-06 | BOLT FLANGE SH 6X22 | 4 | $4.26 USD | View product → |

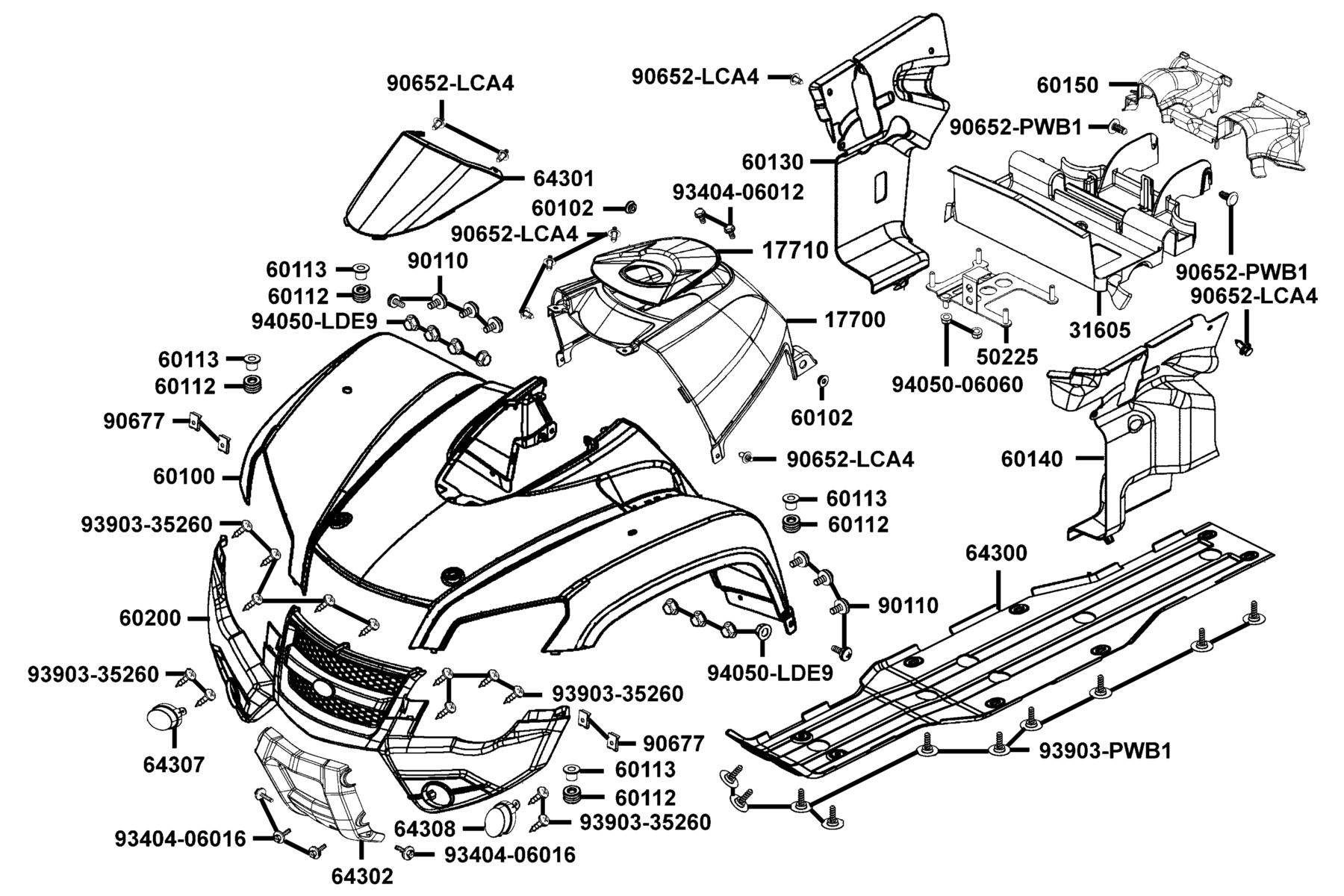

F05 — Fender Front
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 17700-LKK7-600-JBP | COVER TANK | 1 | $308.64 USD | View product → |
| 2 | 17710-LKK7-600-JBP | CAP TANK COVER | 1 | $102.24 USD | View product → |
| 3 | 31605-PRB2-900-N1R | TRAY ELECTRICAL (Black) | 1 | $66.03 USD | View product → |
| 4 | 50225-PRB2-900 | STAY ECU | 1 | $56.16 USD | View product → |
| 5 | 60100-LFA5-600-JBP | FENDER FRONT | 1 | $515.25 USD | View product → |
| 6 | 60102-PWB1-900 | GROMMET PANEL-SIDE | 2 | $4.89 USD | View product → |
| 7 | 60112-PWB1-900 | GROMMET | 4 | $4.29 USD | View product → |
| 8 | 60113-PWB1-900 | SPACER STELL | 4 | $12.48 USD | View product → |
| 9 | 60130-LGC7-E00-N1R | PANEL.SPLASH RIGHT (Black) | 1 | $46.74 USD | View product → |
| 10 | 60140-LGC7-E00-N1R | PANEL SPLASH LEFT (Black) | 1 | $43.29 USD | View product → |
| 11 | 60150-LFA5-E01-N1R | COVER WATERPROOF (Black) | 1 | $42.87 USD | View product → |
| 12 | 60200-LFA5-E00-N1R | MUDGUARD FRONT (Black) | 1 | $94.68 USD | View product → |
| 13 | 64300-PWB1-910-N1R | PLATE SKID (Black) | 1 | $140.64 USD | View product → |
| 14 | 64301-LFA5-E00-N1R | COVER FRONT (Black) | 1 | $36.72 USD | View product → |
| 15 | 64302-LFA5-E01-N1R | BUMPER FRONT (Black) | 1 | $55.14 USD | View product → |
| 16 | 64307-LFA5-900-N1R | CAP R FR MUDGUARD (Black) | 1 | $11.94 USD | View product → |
| 17 | 64308-LFA5-900-N1R | CAP L FR MUDGUARD (Black) | 1 | $11.94 USD | View product → |
| 18 | 90110-PWB1-900 | SCREW SPECIAL 6X20 | 8 | $7.17 USD | View product → |
| 19 | 90652-LCA4-E00 | CLIP MUDGUARD | 8 | $4.92 USD | View product → |
| 20 | 90652-PWB1-900 | X'MAS TREE CLIP | 2 | $5.31 USD | View product → |
| 21 | 90677-GAR1-004 | NUT CLIP 5MM | 4 | $3.00 USD | View product → |
| 22 | 93404-06012-06 | BOLT WASHER 6X12 | 2 | $2.61 USD | View product → |
| 23 | 93404-06016-06 | BOLT WASHER 6*16 | 4 | $7.89 USD | View product → |
| 24 | 93903-35260 | SCREW TAPPING 5*12 | 13 | $4.92 USD | View product → |
| 25 | 93903-PWB1-900 | SCREW BODY-SELF TAP #12x3/4 A | 10 | $9.99 USD | View product → |
| 26 | 94050-06060 | NUT FLANGE 6MM | 2 | $4.92 USD | View product → |
| 27 | 94050-LDE9-E00 | NUT LOCK | 8 | $2.61 USD | View product → |

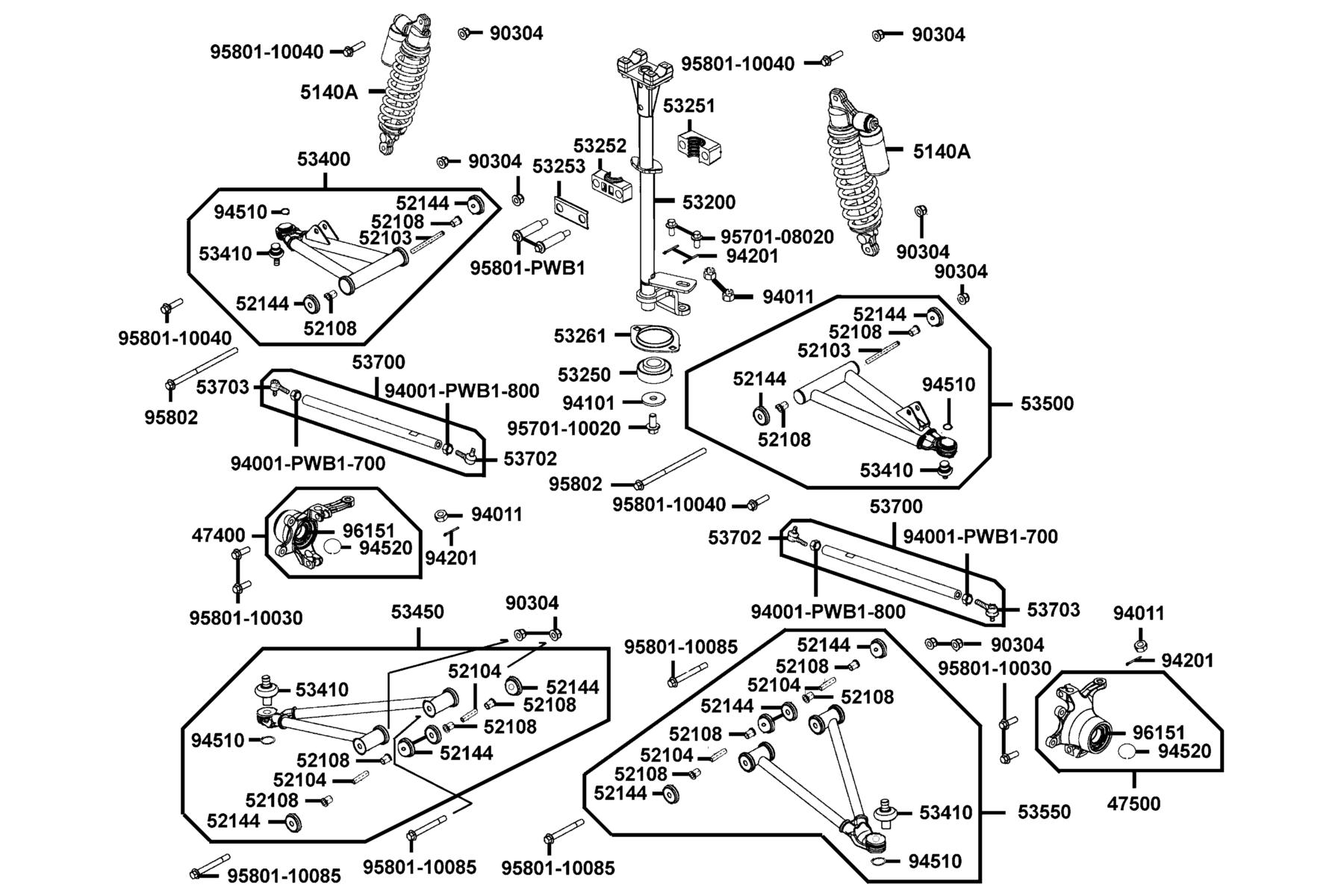

F06 — Post Steering
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 47400-PWB1-900 | KNUCKLE STEERING-RH ASSEMBLY | 1 | $208.62 USD | View product → |
| 2 | 47500-PWB1-900 | KNUCKLE STEERING-LH ASSEMBLY | 1 | $208.62 USD | View product → |
| 3 | 5140A-ACD3-E00-R8S | CUSHION SET FR | 2 | $550.86 USD | View product → |
| 4 | 52103-PWB1-900 | SLEEVE SUSPENSION | 2 | $38.85 USD | View product → |
| 5 | 52104-PWB1-900 | SLEEVE SUSPENSION | 4 | $22.98 USD | View product → |
| 6 | 52108-PWB1-900 | BUSHING SUSPENSION | 12 | $11.31 USD | View product → |
| 7 | 52144-PWB1-900 | SEAL SUSPENSION | 12 | $12.09 USD | View product → |
| 8 | 53200-PWB1-900 | POST STEERING | 1 | $299.25 USD | View product → |
| 9 | 53250-PWB1-900 | BEARING STEERING-LOW SPEED | 1 | $87.45 USD | View product → |
| 10 | 53251-PWB1-900 | HOUSING LOWER | 1 | $34.59 USD | View product → |
| 11 | 53252-PWB1-900 | HOUSING UPPER | 1 | $38.64 USD | View product → |
| 12 | 53253-PWB1-900 | CAP HOUSING | 1 | $10.14 USD | View product → |
| 13 | 53261-PWB1-900 | FLANGE BEARING-TWO MTG HOLE | 1 | $12.09 USD | View product → |
| 14 | 53400-PRB1-900-MAS | A-ARM FRONT-UPPER-RH-ASSY | 1 | $318.45 USD | View product → |
| 15 | 53410-PRB1-900 | BALL JOINT ASSY | 1 | $166.11 USD | View product → |
| 16 | 53450-PWB1-900-MAS | A-ARM FRONT LOWER RH ASSY | 1 | $221.97 USD | View product → |
| 17 | 53500-PRB1-900-MAS | A-ARM FRONT-UPPER-LH-ASSY | 1 | $318.45 USD | View product → |
| 18 | 53550-PWB1-900-MAS | A-ARM FRONT LOWER LH ASSY | 1 | $221.97 USD | View product → |
| 19 | 53700-PWB1-900 | TIE ROD -ASSY | 2 | $130.17 USD | View product → |
| 20 | 53702-PWB1-900 | JOINT R BALL | 2 | $93.90 USD | View product → |
| 21 | 53703-PWB1-900 | JOINT L BALL | 2 | $93.90 USD | View product → |
| 22 | 90304-GLW0-90A | NUT U FLANGE 10MM | 10 | $9.39 USD | View product → |
| 23 | 94001-PWB1-700 | NUT HEX LH 10MM | 2 | $4.92 USD | View product → |
| 24 | 94001-PWB1-800 | NUT HEX 10MM | 2 | $21.84 USD | View product → |
| 25 | 94011-LKA8-E00 | NUT CASTLE 10MM | 4 | $21.99 USD | View product → |
| 26 | 94101-PWB1-900 | WASHER FLAT | 1 | $5.31 USD | View product → |
| 27 | 94201-25250 | PIN SPLIT 2.5*25 | 4 | $1.86 USD | View product → |
| 28 | 94510-PWB1-900 | CIRCLIP EX 29 | 4 | $5.31 USD | View product → |
| 29 | 94520-55000 | CIR CLIP IN 55 | 2 | $13.95 USD | View product → |
| 30 | 95701-08020-06 | BOLT FLANGE 8*20 | 2 | $3.78 USD | View product → |
| 31 | 95701-10020-06 | BOLT FLANGE 10*20 | 1 | $6.24 USD | View product → |
| 32 | 95801-10030-06 | BOLT FLANGE 10X30 | 4 | $16.68 USD | View product → |
| 33 | 95801-10040-06 | BOLT FLANGE 10X40 | 1 | $21.60 USD | View product → |
| 34 | 95801-10085-06 | BOLT FLANGE 10*85 | 4 | $19.59 USD | View product → |
| 35 | 95801-PWB1-900 | SCREW SHOULDER-HFH M8 | 2 | $25.65 USD | View product → |
| 36 | 95802-PWB1-900 | SCREW CAP-HFH M10X1.25X180 | 2 | $43.56 USD | View product → |
| 37 | 96151-PWB1-900 | BEARING WHEEL | 2 | $160.56 USD | View product → |

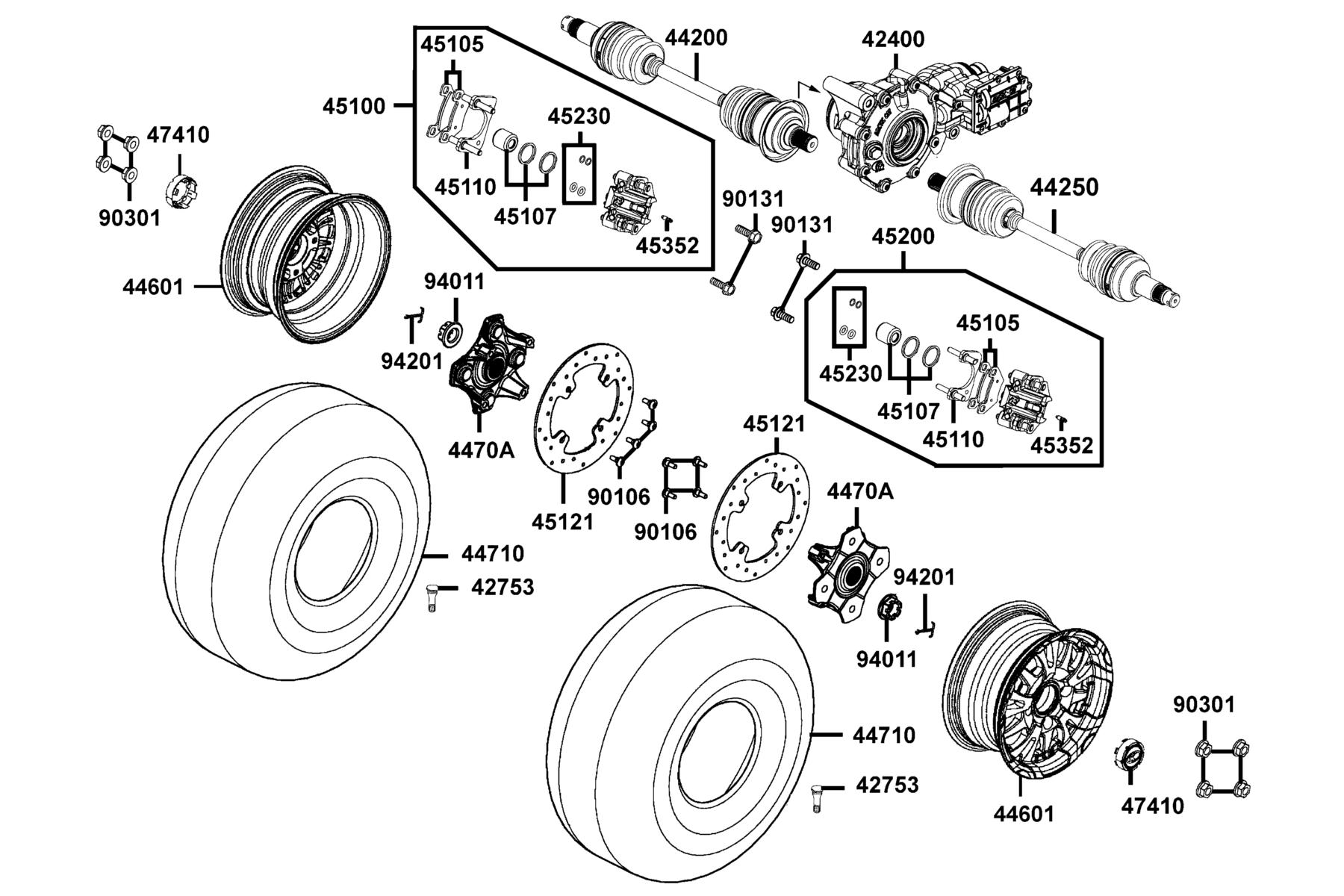

F07 — Front Wheel
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 42400-AEB8-500 | GEARCASE FRONT(3.1)-ASSEMBLY | 1 | $1309.96 USD | View product → |
| 2 | 42753-KNBN-90B | VALVE RIM (TR412) | 2 | $17.70 USD | View product → |
| 3 | 44200-ZXA6-M02 | HALFSHAFT. FRONT | 1 | $485.13 USD | View product → |
| 4 | 44250-AEB8-M01 | HALF SHAFT FRONT-LH | 1 | $409.16 USD | View product → |
| 5 | 44601-LKK7-E00 | WHEEL FR CAST | 2 | $518.97 USD | View product → |
| 6 | 4470A-LFA5-E00 | HUB ASSEMBLY | 2 | $160.32 USD | View product → |
| 7 | 44710-LFA5-900 | TIRE ASSY FR AT24*8-12 4P TL /KENDA | 2 | $479.43 USD | View product → |
| 8 | 45100-PWB1-600 | CALIPER BRAKE RH | 1 | $501.57 USD | View product → |
| 9 | 45105-PWB1-306 | BRAKE PADS | 2 | $160.32 USD | View product → |
| 10 | 45107-PWB1-305 | PISTON AND SEALS (??31.75MM) | 2 | $129.42 USD | View product → |
| 11 | 45110-PWB1-305 | MOUNT BRACKET ASSEMBLS | 2 | $173.49 USD | View product → |
| 12 | 45121-PWB1-900 | DISK BRAKE | 2 | $113.91 USD | View product → |
| 13 | 45200-PWB1-600 | CALIPER BRAKE LH | 2 | $391.68 USD | View product → |
| 14 | 45230-PWB1-305 | GUIDE O RINGS | 2 | $88.05 USD | View product → |
| 15 | 45352-PWB1-305 | BLEEDER | 2 | $57.06 USD | View product → |
| 16 | 47410-ALD6-E00 | CAP WHEEL CENTER | 2 | $36.15 USD | View product → |
| 17 | 90106-PWB1-900 | BOLT SHOULDER | 8 | $18.24 USD | View product → |
| 18 | 90131-PRB3-900 | BOLT FLANGE 8X20 | 4 | $22.50 USD | View product → |
| 19 | 90301-PWB1-900 | NUT LUG-M10 (60 DEG) | 8 | $16.41 USD | View product → |
| 20 | 94011-PWB1-900 | NUT CASTLE FLANGE M22x1.5 | 2 | $52.95 USD | View product → |
| 21 | 94201-30400 | PIN SPLIT 3*40 | 2 | $10.14 USD | View product → |

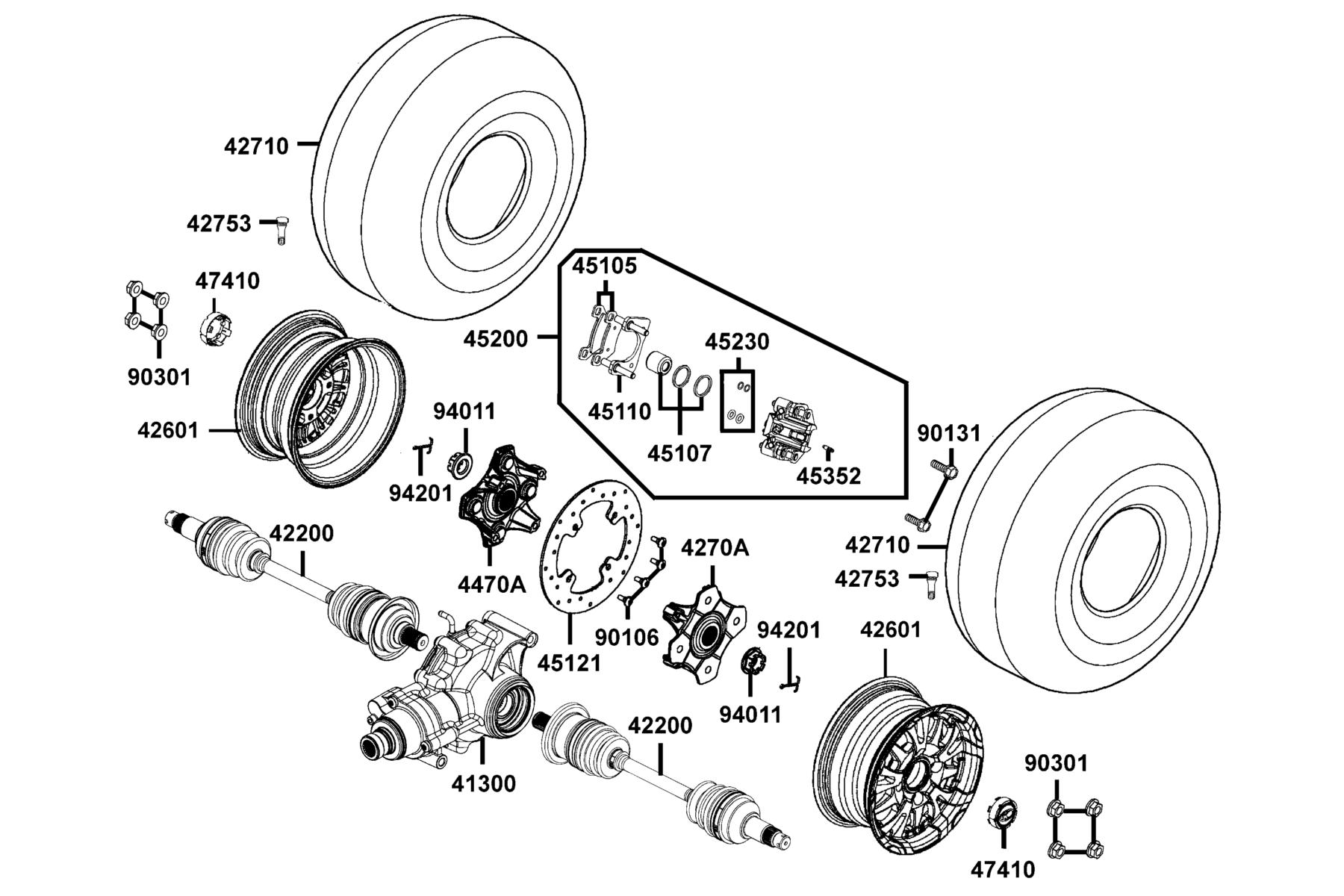

F08 — Rear Wheel
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 41300-LGC3-900 | GEARCASE REAR(3.1) ASSEMBLY | 1 | $1184.74 USD | View product → |
| 2 | 42200-ZXA6-M02 | HALFSHAFT. REAR | 2 | $485.13 USD | View product → |
| 3 | 42601-LKK7-E00 | WHEEL RR CAST | 2 | $518.97 USD | View product → |
| 4 | 4270A-LFA5-E00 | HUB ASSEMBLY | 1 | $131.79 USD | View product → |
| 5 | 42710-LFA5-900 | TIRE ASSY RR AT24*10-12 4P TL /KENDA | 2 | $301.20 USD | View product → |
| 6 | 42753-KNBN-90B | VALVE RIM (TR412) | 2 | $17.70 USD | View product → |
| 7 | 4470A-LFA5-E00 | HUB ASSEMBLY | 1 | $160.32 USD | View product → |
| 8 | 45105-PWB1-306 | BRAKE PADS | 2 | $160.32 USD | View product → |
| 9 | 45107-PWB1-305 | PISTON AND SEALS (??31.75MM) | 1 | $129.42 USD | View product → |
| 10 | 45110-PWB1-305 | MOUNT BRACKET ASSEMBLS | 1 | $173.49 USD | View product → |
| 11 | 45121-PWB1-900 | DISK BRAKE | 1 | $113.91 USD | View product → |
| 12 | 45200-PWB1-600 | CALIPER BRAKE LH | 2 | $391.68 USD | View product → |
| 13 | 45230-PWB1-305 | GUIDE O RINGS | 1 | $88.05 USD | View product → |
| 14 | 45352-PWB1-305 | BLEEDER | 1 | $57.06 USD | View product → |
| 15 | 47410-ALD6-E00 | CAP WHEEL CENTER | 2 | $36.15 USD | View product → |
| 16 | 90106-PWB1-900 | BOLT SHOULDER | 4 | $18.24 USD | View product → |
| 17 | 90131-PRB3-900 | BOLT FLANGE 8X20 | 2 | $22.50 USD | View product → |
| 18 | 90301-PWB1-900 | NUT LUG-M10 (60 DEG) | 8 | $16.41 USD | View product → |
| 19 | 94011-PWB1-900 | NUT CASTLE FLANGE M22x1.5 | 2 | $52.95 USD | View product → |
| 20 | 94201-30400 | PIN SPLIT 3*40 | 2 | $10.14 USD | View product → |

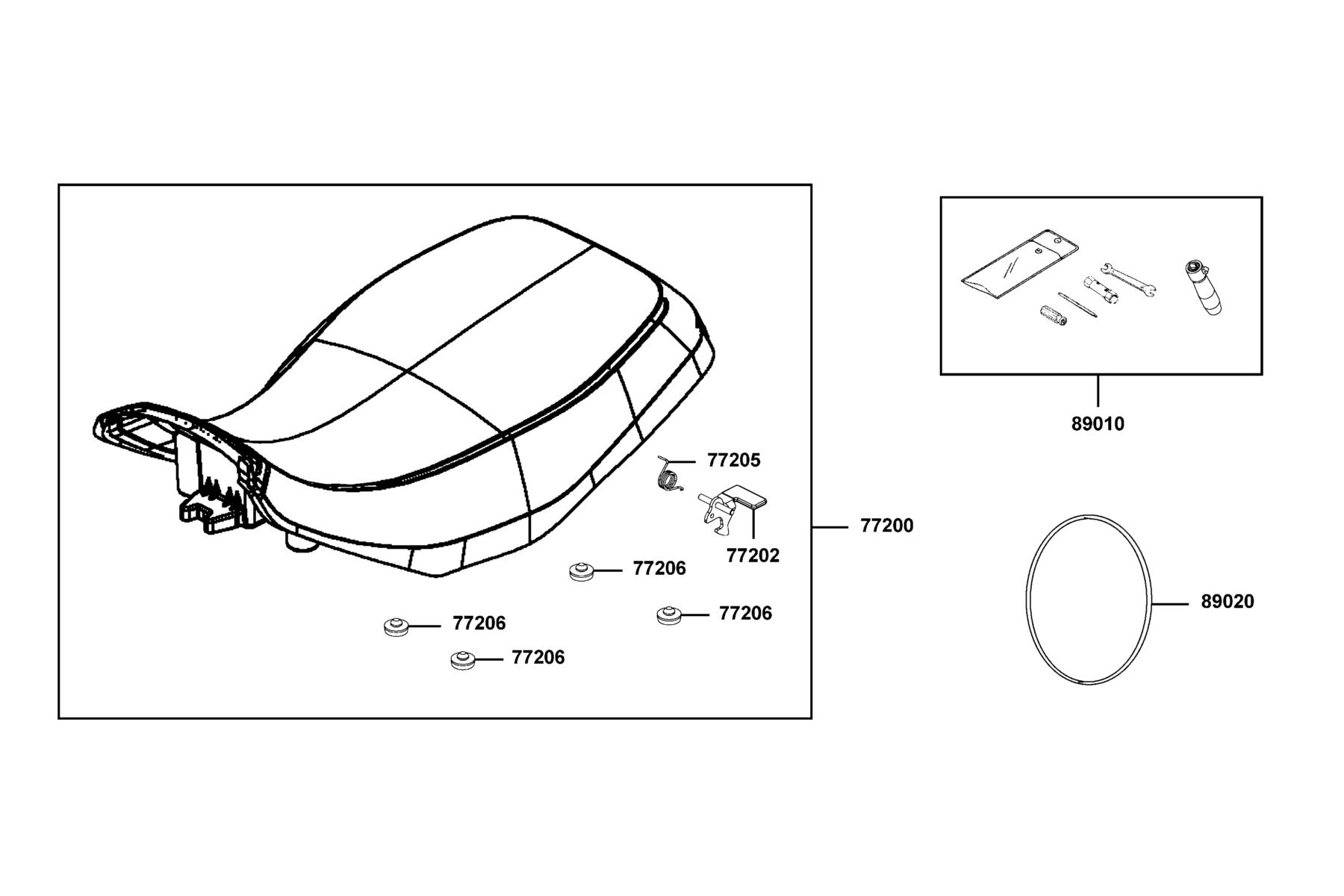

F09 — Seat
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 77200-LFA5-E00-T01 | SEAT ASSY (REACH) | 1 | $203.82 USD | View product → |
| 2 | 77202-PWB1-900 | CATCH SEAT WELDMENT | 1 | $38.37 USD | View product → |
| 3 | 77205-PWB1-900 | SPRING LATCH | 1 | $28.95 USD | View product → |
| 4 | 77206-LBA7-900 | RUBBER SEAT CUSH | 4 | $7.53 USD | View product → |
| 5 | 89010-PWB1-900 | TOOL SET | 1 | $105.48 USD | View product → |
| 6 | 89020-KKC4-900 | BAND TOOL SET | 1 | $3.00 USD | View product → |

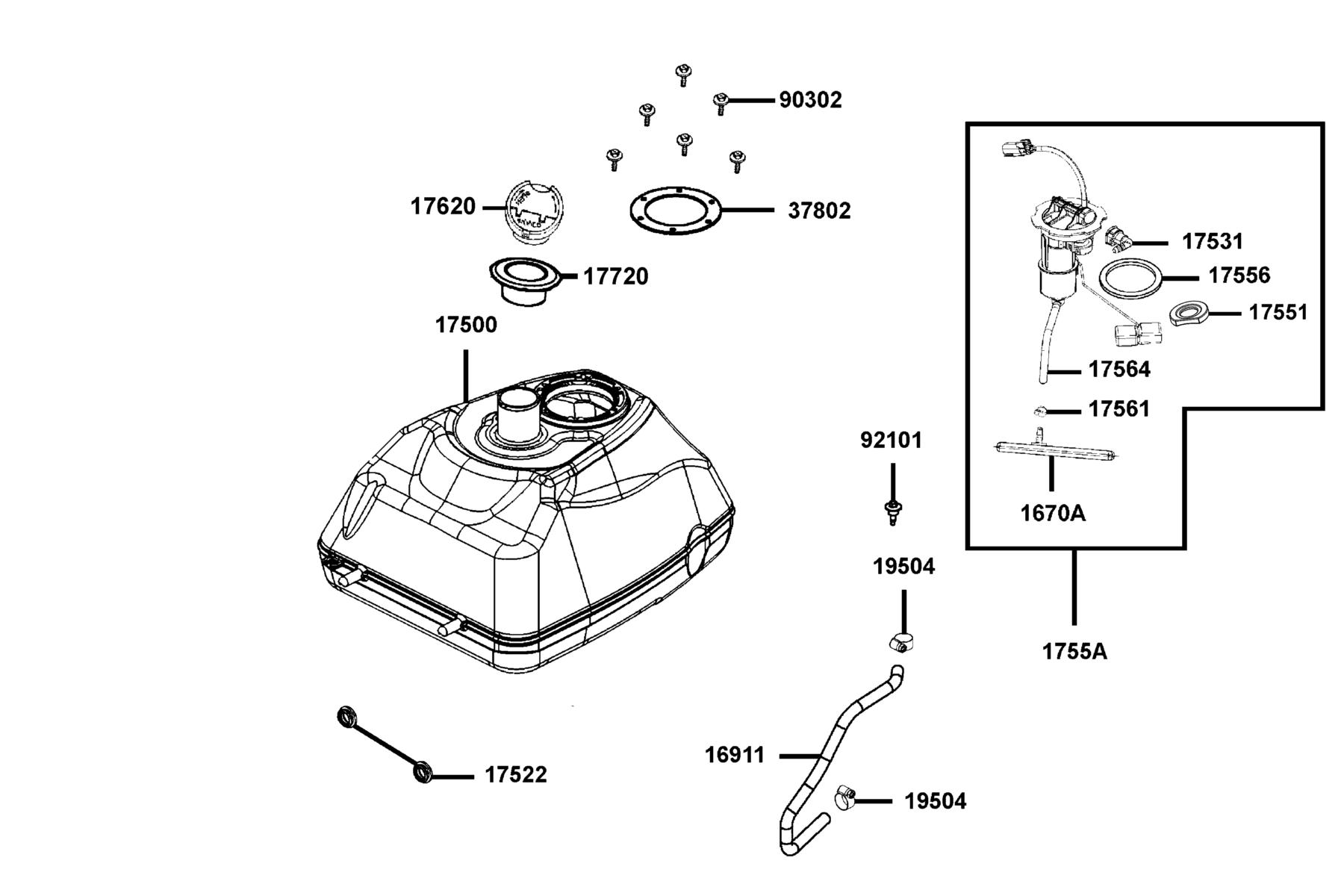

F10 — Fuel Tank
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670A-PTA1-800 | FUEL FILTER | 1 | $63.33 USD | View product → |
| 2 | 16911-LGC7-920 | TUBE FUEL | 1 | $70.38 USD | View product → |
| 3 | 17500-LGC3-MY3 | TANK COMP FUEL | 1 | $580.35 USD | View product → |
| 4 | 17522-PWB1-900 | GROMMET FUEL TANK | 2 | $5.31 USD | View product → |
| 5 | 17531-LGC7-E01 | CONNECTOR FUEL PUMP-90 DEGREE | 1 | $52.50 USD | View product → |
| 6 | 17551-PTA1-800 | PUMP REGULATOR STAY | 1 | $38.49 USD | View product → |
| 7 | 17556-PTA1-800 | FUEL PUMP SEAL | 1 | $36.24 USD | View product → |
| 8 | 1755A-AEB8-M0B | FUEL PUMP ASSEMBLY | 1 | $600.58 USD | View product → |
| 9 | 17561-LKB9-900 | CLIP 12.5 | 2 | $8.10 USD | View product → |
| 10 | 17564-PTA1-800 | TUBE FUEL | 1 | $60.00 USD | View product → |
| 11 | 17620-ABC9-900 | CAP COMP FUEL FILLER | 1 | $143.25 USD | View product → |
| 12 | 17720-LGC3-MY3 | TRAY TANK COVER | 1 | $21.93 USD | View product → |
| 13 | 19504-LBA2-E00 | CLAMP D16.8 | 2 | $13.95 USD | View product → |
| 14 | 37802-LGC3-E00 | MOUNT FUEL PUMP | 1 | $25.65 USD | View product → |
| 15 | 90302-LLB1-E00 | BOLT-WASH 5X12 | 6 | $2.61 USD | View product → |
| 16 | 92101-PWB1-900 | SCREW FUEL TANK | 1 | $15.45 USD | View product → |

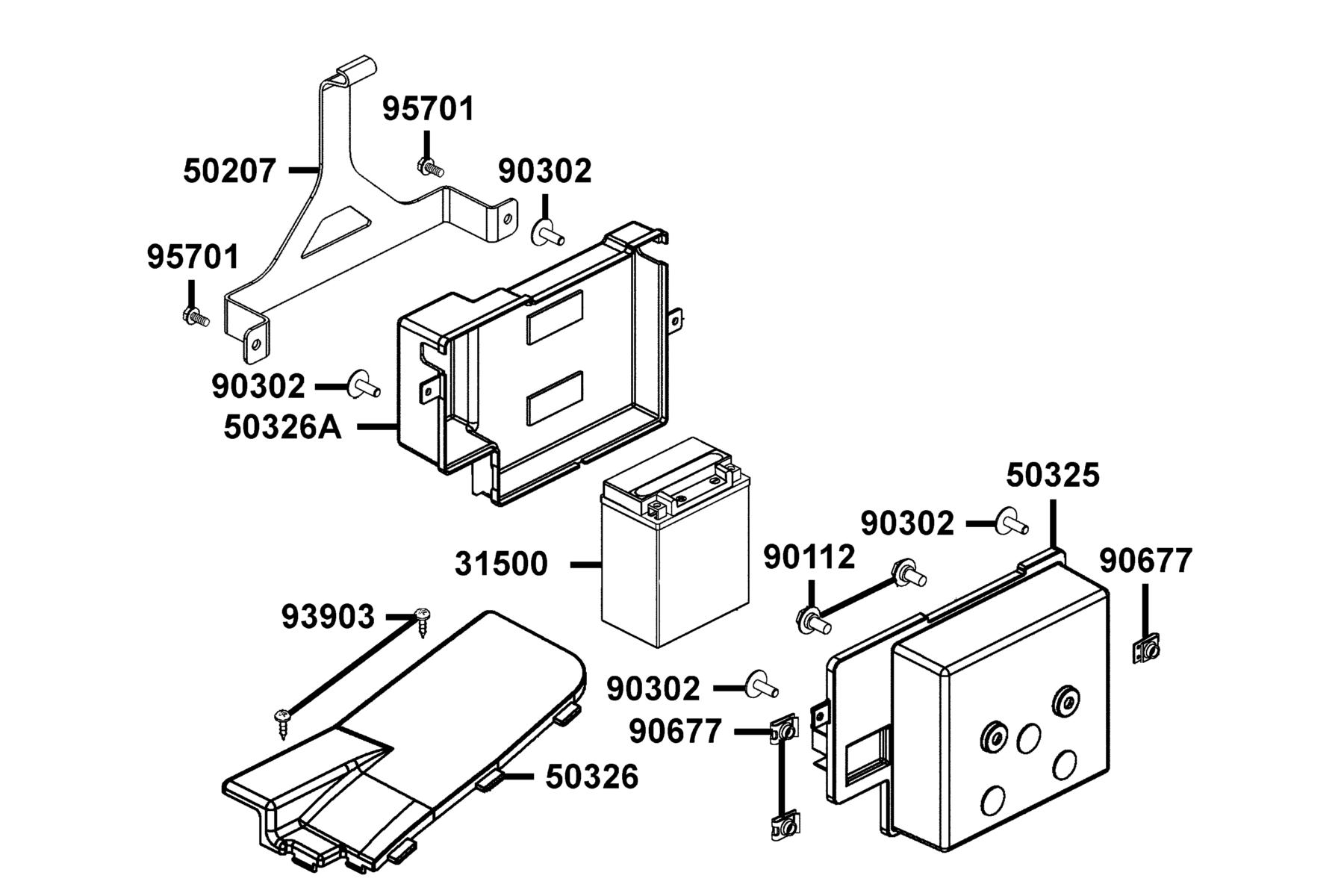

F11 — Battery
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 31500-LDB5-E0A | BATTERY YTX20L-BS | 1 | $396.00 USD | View product → |
| 2 | 50207-LGC7-E00 | STAY BATTERY | 1 | $48.99 USD | View product → |
| 3 | 50325-LGC7-E00-N1R | CASE.BATTERY (Black) | 1 | $49.02 USD | View product → |
| 4 | 50326-LFA5-600-JBP | COVER BATTERY | 1 | $18.57 USD | View product → |
| 5 | 50326-LGC7-E00-N1R | COVER BATTERY (Black) | 1 | $49.02 USD | View product → |
| 6 | 90112-KNBN-901 | BOLT FLANGE 6MM | 2 | $3.78 USD | View product → |
| 7 | 90302-PWA1-900 | BOLT-WASH 5*16 | 4 | $4.92 USD | View product → |
| 8 | 90677-GAR1-004 | NUT CLIP 5MM | 3 | $3.00 USD | View product → |
| 9 | 93903-GFY6-900 | SCREW TAPPING 4*14 | 2 | $2.61 USD | View product → |
| 10 | 95701-06012-06 | BOLT FLANGE 6X12 | 2 | $1.86 USD | View product → |

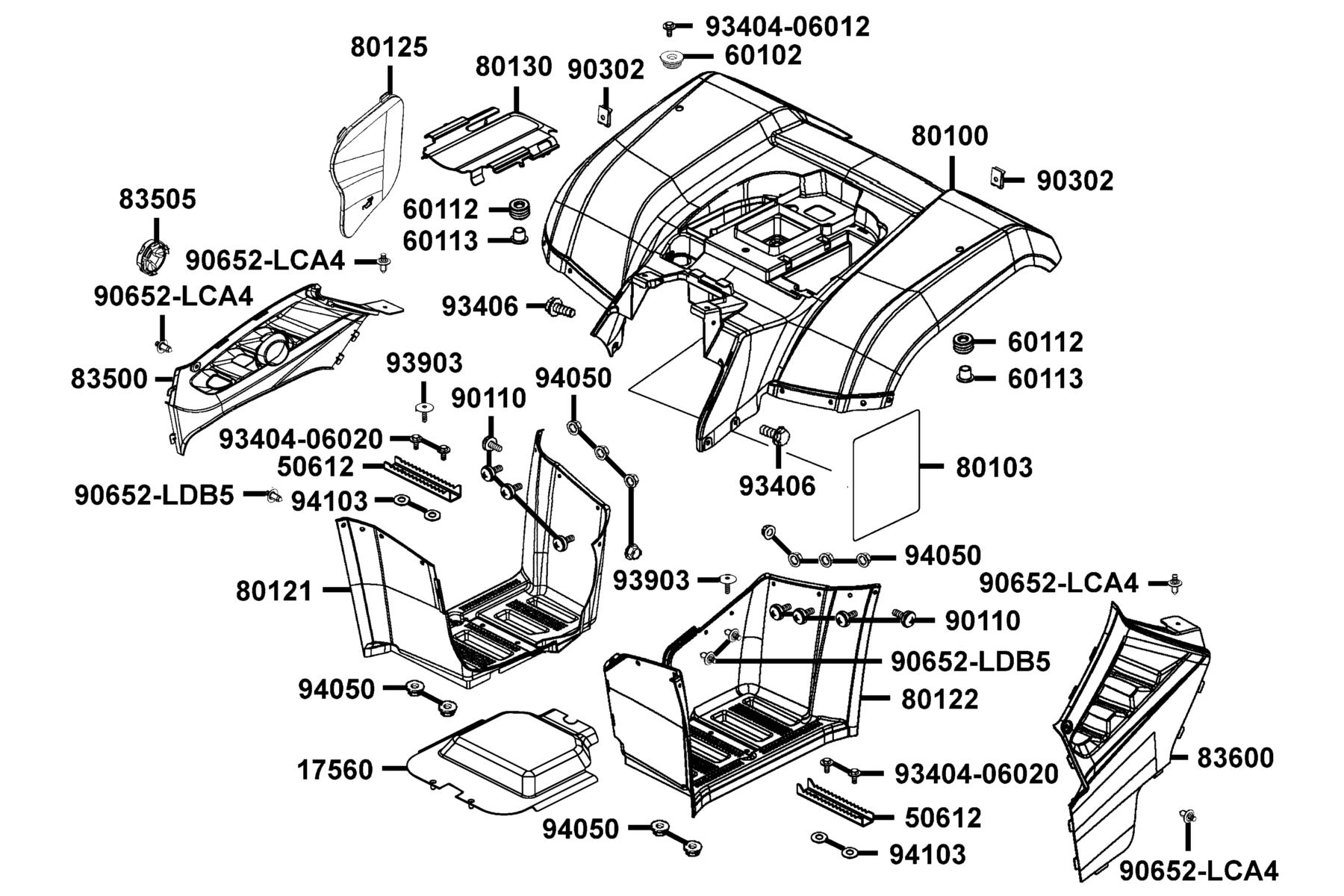

F12 — Fender Rear ● Mudguard Floor
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 17560-LGC7-E00-N1R | SHIELD HEAT (Black) | 1 | $94.11 USD | View product → |
| 2 | 50612-PWB1-900 | FOOTPEG | 2 | $32.10 USD | View product → |
| 3 | 60102-PWB1-900 | GROMMET PANEL-SIDE | 1 | $4.89 USD | View product → |
| 4 | 60112-PWB1-900 | GROMMET | 2 | $4.29 USD | View product → |
| 5 | 60113-PWB1-900 | SPACER STELL | 2 | $12.48 USD | View product → |
| 6 | 80100-LKK7-600-JBP | FENDER REAR | 1 | $558.90 USD | View product → |
| 7 | 80103-LFA5-E00 | SHIELD LH | 1 | $34.74 USD | View product → |
| 8 | 80121-LFA5-E01-N1R | MUDGUARD R FLOOR (Black) | 1 | $102.24 USD | View product → |
| 9 | 80122-LGC3-E00-N1R | MUDGUARD L FLOOR (Black) | 1 | $136.95 USD | View product → |
| 10 | 80125-LGC3-E00-N1R | COVER OIL LEVEL GAUGE (Black) | 1 | $13.47 USD | View product → |
| 11 | 80130-PWB1-E00-N1R | SHIELD REAR GEARCASE (Black) | 1 | $41.07 USD | View product → |
| 12 | 83500-LKK7-E76-N1R | COVER R SIDE (Black) | 1 | $77.85 USD | View product → |
| 13 | 83505-LKK7-E00-N1R | CAP SIDE COVER (Black) | 1 | $11.55 USD | View product → |
| 14 | 83600-LGC3-E00-N1R | COVER L SIDE (Black) | 1 | $147.30 USD | View product → |
| 15 | 90110-PWB1-900 | SCREW SPECIAL 6X20 | 8 | $7.17 USD | View product → |
| 16 | 90302-SA4-0040 | NUT SPRING 4MM | 2 | $4.26 USD | View product → |
| 17 | 90652-LCA4-E00 | CLIP MUDGUARD | 4 | $4.92 USD | View product → |
| 18 | 90652-LDB5-900 | CLIP MUDGUARD | 3 | $5.31 USD | View product → |
| 19 | 93404-06012-06 | BOLT WASHER 6X12 | 1 | $2.61 USD | View product → |
| 20 | 93404-06020-06 | BOLT WASHER 6X20 | 4 | $3.00 USD | View product → |
| 21 | 93406-08016-06 | BOLT WASHER 8X16 | 2 | $12.09 USD | View product → |
| 22 | 93903-PWB1-900 | SCREW BODY-SELF TAP #12x3/4 A | 2 | $9.99 USD | View product → |
| 23 | 94050-LDE9-E00 | NUT LOCK | 12 | $2.61 USD | View product → |
| 24 | 94103-06800 | WASHER PLAIN 6MM | 4 | $4.92 USD | View product → |
F13 — Air Box Cyclonic
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 17200-LFA5-E00 | AIR BOX ASSEMBLY | 1 | $168.72 USD | View product → |
| 2 | 17206-PWB1-900 | CATCH AIR BOX | 3 | $18.24 USD | View product → |
| 3 | 17208-PWB1-900 | SPACER STEEL | 3 | $10.14 USD | View product → |
| 4 | 17212-PWB1-900 | FILTER SPRING | 1 | $32.10 USD | View product → |
| 5 | 17214-PWB1-900 | GASKET AIR BOX | 1 | $38.85 USD | View product → |
| 6 | 17215-PWB1-900 | CHAMBER AIR INTAKE | 1 | $124.14 USD | View product → |
| 7 | 1721A-PWB1-900 | FILTER AIR-UNI | 1 | $52.74 USD | View product → |
| 8 | 17221-PWB1-900 | TRAP | 1 | $7.26 USD | View product → |
| 9 | 17228-PWB1-900 | BRACKET MOUNT-AIR CHAMBER | 1 | $20.91 USD | View product → |
| 10 | 17230-PWB1-900 | BODY AIR BOX-CYCLONIC | 1 | $64.77 USD | View product → |
| 11 | 17231-PWB1-900 | COVER AIR BOX-CYCLONIC | 1 | $53.64 USD | View product → |
| 12 | 17253-PWB1-900 | BOOT INTAKE-CARB | 1 | $60.18 USD | View product → |
| 13 | 17254-PWB1-900 | BOOT AIR IN-CARB-LRG | 1 | $15.45 USD | View product → |
| 14 | 17255-PWB1-900 | BOOT AIR IN CARB SML | 1 | $19.92 USD | View product → |
| 15 | 17256-LGC3-E01 | BOOT THROTTLE BODY-CHAMBER | 1 | $35.85 USD | View product → |
| 16 | 17257-PWB1-900 | BOOT INTAKE AIR BOX | 1 | $78.81 USD | View product → |
| 17 | 17258-PWB1-900 | BOOT INTAKE TOP - AIR BOX | 1 | $53.58 USD | View product → |
| 18 | 17259-PWB1-900 | BOOT INTAKE BOTTOM - AIR BOX | 1 | $51.18 USD | View product → |
| 19 | 17291-PWB1-900 | VALVE AIR CLEANER | 1 | $15.45 USD | View product → |
| 20 | 17292-PWB1-900 | PIPE DRAIN | 1 | $7.17 USD | View product → |
| 21 | 17505-PWB1-900 | CLAMP D70 | 2 | $20.91 USD | View product → |
| 22 | 17507-PWB1-900 | CLAMP D66 | 5 | $27.39 USD | View product → |
| 23 | 24704-PWB1-900 | SPRING SHIFT | 3 | $8.28 USD | View product → |
| 24 | 90302-LLB1-E00 | BOLT-WASH 5X12 | 2 | $2.61 USD | View product → |
| 25 | 90309-GLW0-90A | NUT U FLANGE 8MM | 3 | $6.06 USD | View product → |
| 26 | 90505-4E25-001 | WASHER 8MM | 3 | $3.00 USD | View product → |
| 27 | 95002-41250-00 | CLIP D12.5 TUBE | 1 | $3.27 USD | View product → |
| 28 | 95002-KED9-M30 | CLAMP D14.8 TUBE | 1 | $10.50 USD | View product → |
| 29 | 96001-08050-08 | BOLT FLANGE SH 8X50 | 3 | $10.14 USD | View product → |
F14 — Exhaust Muffler
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 18291-PTA1-900 | SEAL EXHAUST PIPE | 1 | $25.65 USD | View product → |
| 2 | 18293-PWB1-900 | GROMMENT MUFFLER | 3 | $22.98 USD | View product → |
| 3 | 18305-PWB1-900 | SPRING EXTENSION | 2 | $20.91 USD | View product → |
| 4 | 1830A-LGC3-900 | EXHAUST ASSY | 1 | $453.94 USD | View product → |
| 5 | 18310-LGC3-900 | MUFFLER BODY - WELDMENT | 1 | $435.06 USD | View product → |
| 6 | 18317-PWB1-900 | SHIELD EXHAUST PIPE | 1 | $125.34 USD | View product → |
| 7 | 18318-PWB1-900 | COVER MUFFLER | 1 | $83.31 USD | View product → |
| 8 | 18320-PTA1-900 | PIPI COMP EXHAUST-BLACK | 1 | $165.39 USD | View product → |
| 9 | 18328-LFA5-910 | SPARK ARRESTER - WELDMENT | 1 | $167.91 USD | View product → |
| 10 | 18329-PWB1-700 | GASKET.SPARK ARRESTER | 1 | $26.64 USD | View product → |
| 11 | 18339-PWB1-900 | BAND EXHAUST PIPE SHIELD | 2 | $49.68 USD | View product → |
| 12 | 18391-PTA1-900 | GASKET EXH TAILPIPE | 1 | $120.90 USD | View product → |
| 13 | 93403-PWB1-900 | BOLT-WASHER 6X12 | 3 | $10.50 USD | View product → |
| 14 | 94050-08080 | NUT FLANGE 8MM | 2 | $4.92 USD | View product → |
| 15 | 96001-08016-08 | BOLT FLANGE SH 8X16 | 3 | $4.59 USD | View product → |
F15 — Fwd / Rev Shift Assy ● Master Cylinder Rear
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 24080-PWB1-900 | ARM GEAR SELECT ASSY | 1 | $99.78 USD | View product → |
| 2 | 24702-LFA5-E00 | LEVER SHIFT WELDMENT | 1 | $71.22 USD | View product → |
| 3 | 24703-PWB1-900 | AXLE PIVOT | 1 | $52.26 USD | View product → |
| 4 | 24704-PWB1-900 | SPRING SHIFT | 1 | $8.28 USD | View product → |
| 5 | 24705-PWB1-900 | BUSHING SHIFT | 2 | $18.24 USD | View product → |
| 6 | 24707-LFA5-E00 | AXLE WELDMENT | 1 | $69.90 USD | View product → |
| 7 | 24708-PWB1-900 | O RING 016 | 2 | $18.24 USD | View product → |
| 8 | 2470A-LFA5-E00 | FWD / REV SHIFT ASSY | 1 | $179.64 USD | View product → |
| 9 | 24721-PWB1-900 | ADJUSTER SHIFT LINKAGE | 1 | $42.84 USD | View product → |
| 10 | 24722-PWB1-900 | ROD SHIFTER ADJUSTABLE RH | 1 | $53.64 USD | View product → |
| 11 | 24723-PWB1-900 | ROD SHIFTER ADJUSTABLE LH | 1 | $53.64 USD | View product → |
| 12 | 24781-LFA5-E00 | KNOB??? SHIFTER | 1 | $15.45 USD | View product → |
| 13 | 2478A-LFA5-E00 | SHIFTER KNOB ASSY | 1 | $38.85 USD | View product → |
| 14 | 35340-PWB1-E00 | SWITCH BRAKE PRESSURE DOUBLE BANJO | 1 | $176.76 USD | View product → |
| 15 | 43500-LHM2-E00 | M/C ASSY FOOT | 1 | $331.53 USD | View product → |
| 16 | 46500-LGN5-E00-MAS | LEVER COMP BRAKE | 1 | $118.86 USD | View product → |
| 17 | 46503-LFA5-E00 | PIN CLEVIS | 1 | $25.65 USD | View product → |
| 18 | 86302-LFA5-E00-T01 | EMB GEAR REVERAL CHANGE | 1 | $32.10 USD | View product → |
| 19 | 90111-PWB1-900 | BOLT FLANGE 6MM | 1 | $8.85 USD | View product → |
| 20 | 90301-6D34-671 | NUT FLANGE 6MM | 1 | $3.00 USD | View product → |
| 21 | 90501-3L10-001 | WASH 7*12 | 1 | $4.92 USD | View product → |
| 22 | 90545-3L00-001 | WASHER OIL BOLT | 3 | $2.91 USD | View product → |
| 23 | 90545-3L00-001(wrong) | WASHER OIL BOLT | 3 | $3.78 USD | View product → |
| 24 | 90652-PWB1-900 | X'MAS TREE CLIP | 1 | $5.31 USD | View product → |
| 25 | 94001-10080-0S | NUT CASTLE 10MM | 1 | $3.51 USD | View product → |
| 26 | 94001-LLB1-900 | NUT HEX LH 10MM | 1 | $4.53 USD | View product → |
| 27 | 94050-06060 | NUT FLANGE 6MM | 1 | $4.92 USD | View product → |
| 28 | 94102-08000 | WASHER PLAIN 8MM | 1 | $1.86 USD | View product → |
| 29 | 94102-PWB1-900 | WASHER FLAT | 1 | $4.92 USD | View product → |
| 30 | 94103-08800 | WASHER PLAIN 8MM | 1 | $3.00 USD | View product → |
| 31 | 94201-20120 | PIN SPLIT 2*12 | 1 | $4.92 USD | View product → |
| 32 | 94540-06012 | E RING 6 | 1 | $4.92 USD | View product → |
| 33 | 95701-06022-06 | BOLT FLANGE 6*22 | 1 | $4.26 USD | View product → |
| 34 | 95701-08012-06 | BOLT FLANGE 8*12 | 1 | $6.24 USD | View product → |
| 35 | 95701-08016-06 | BOLT FLANGE 8*16 | 1 | $4.53 USD | View product → |
| 36 | 96001-06020-06 | BOLT FLANGE SH 6*20 | 1 | $3.27 USD | View product → |
F16 — Control Arm Assy
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 47450-PWB1-900 | KNUCKLE REAR ASSEMBLY RH | 1 | $301.50 USD | View product → |
| 2 | 47452-PWB1-900 | BUSHING RR SUSPENSION | 8 | $36.66 USD | View product → |
| 3 | 47453-PWB1-900 | COLLAR SUSPENSION | 4 | $50.07 USD | View product → |
| 4 | 47550-PWB1-900 | KNUCKLE REAR ASSEMBLY LH | 1 | $301.50 USD | View product → |
| 5 | 52103-PWB1-900 | SLEEVE SUSPENSION | 2 | $38.85 USD | View product → |
| 6 | 52104-PWB1-900 | SLEEVE SUSPENSION | 4 | $22.98 USD | View product → |
| 7 | 52108-PWB1-900 | BUSHING SUSPENSION | 12 | $11.31 USD | View product → |
| 8 | 52144-PWB1-900 | SEAL SUSPENSION | 12 | $12.09 USD | View product → |
| 9 | 5240A-ACD3-E00-R8S | CUSHION SET RR | 2 | $550.86 USD | View product → |
| 10 | 54400-PRB1-900-MAS | CONTROL ARM RH UPPER ASSY | 1 | $165.84 USD | View product → |
| 11 | 54450-LFA5-E00-MAS | A-ARM RH LOWER ASSEM | 1 | $177.66 USD | View product → |
| 12 | 54500-PRB1-900-MAS | CONTROL ARM LH UPPER ASSY | 1 | $165.84 USD | View product → |
| 13 | 54550-LFA5-E00-MAS | A-ARM LH LOWER ASSEM | 1 | $177.66 USD | View product → |
| 14 | 90304-GLW0-90A | NUT U FLANGE 10MM | 14 | $9.39 USD | View product → |
| 15 | 94520-55000 | CIR CLIP IN 55 | 2 | $13.95 USD | View product → |
| 16 | 95801-10040-06 | BOLT FLANGE 10X40 | 1 | $21.60 USD | View product → |
| 17 | 95801-10065-06 | BOLT FLANGE 10*65 | 1 | $7.02 USD | View product → |
| 18 | 95801-10085-06 | BOLT FLANGE 10*85 | 4 | $19.59 USD | View product → |
| 19 | 95801-10095-06 | BOLT FLANGE 10*95 | 4 | $13.17 USD | View product → |
| 20 | 95802-PWB1-900 | SCREW CAP-HFH M10X1.25X180 | 2 | $43.56 USD | View product → |
| 21 | 96151-PWB1-900 | BEARING WHEEL | 2 | $160.56 USD | View product → |
F17 — Control Arm Assy
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 41300-LGC3-900 | GEARCASE REAR(3.1) ASSEMBLY | 1 | $1184.74 USD | View product → |
| 2 | 41311-LFA5-900 | COLLAR SHAFT SPLINED | 1 | $153.39 USD | View product → |
| 3 | 41431-LFA5-900 | GEAR REAR | 1 | $477.81 USD | View product → |
| 4 | 41435-LFA5-900 | BARB 90 DEG | 1 | $72.93 USD | View product → |
| 5 | 41436-LFA5-900 | BUTTON THRUST | 1 | $50.58 USD | View product → |
| 6 | 41438-LFA5-900 | SHIM 6.3*18*1.0 | 1 | $15.06 USD | View product → |
| 7 | 41439-LFA5-900 | SHIM 6.3*18*1.1 | 1 | $15.06 USD | View product → |
| 8 | 41440-LFA5-900 | SHIM 6.3*18*1.2 | 1 | $15.06 USD | View product → |
| 9 | 41441-LFA5-900 | SHIM 6.3*18*1.3 | 1 | $15.06 USD | View product → |
| 10 | 41442-LFA5-900 | SHIM 6.3*18*1.4 | 1 | $15.06 USD | View product → |
| 11 | 41443-LFA5-900 | SHIM 6.3*18*1.5 | 1 | $15.06 USD | View product → |
| 12 | 41444-LFA5-900 | SHIM 6.3*18*1.6 | 1 | $15.06 USD | View product → |
| 13 | 41445-LFA5-900 | SHIM 6.3*18*1.7 | 1 | $15.06 USD | View product → |
| 14 | 42401-LFA5-90B | BEARING.NEEDLE(16NQ2316) | 1 | $53.16 USD | View product → |
| 15 | 42402-LFA5-900 | PLUG FILL | 1 | $110.16 USD | View product → |
| 16 | 42404-LFA5-910 | COLLAR LOCK M64X1.5 LH | 1 | $144.51 USD | View product → |
| 17 | 42407-LFA5-900 | PIN DOWEL | 1 | $32.73 USD | View product → |
| 18 | 42410-LFA5-900 | PLUG DRAIN MAG | 1 | $75.12 USD | View product → |
| 19 | 42412-LFA5-900 | TAG ID GEARCASE | 1 | $10.14 USD | View product → |
| 20 | 42413-LFA5-900 | GASKET FLANGE | 1 | $23.64 USD | View product → |
| 21 | 42419-LFA5-900 | O-RING 150*2MM | 1 | $18.06 USD | View product → |
| 22 | 42422-LFA5-900 | RING RETAINING ONE | 1 | $28.35 USD | View product → |
| 23 | 42423-LFA5-900 | RING RETAINING | 1 | $32.10 USD | View product → |
| 24 | 42425-LFA5-910 | HOUSING GEARCASE REAR MACH | 1 | $454.98 USD | View product → |
| 25 | 42430-LFA5-910 | HOUSING PINION-MACH | 1 | $158.79 USD | View product → |
| 26 | 42442-LFA5-900 | PINION(11 TOOTH)-ASSEMBLY | 1 | $400.35 USD | View product → |
| 27 | 42446-LFA5-900 | COLLAR RETAINING | 1 | $45.36 USD | View product → |
| 28 | 42448-LFA5-900 | SEAL 38*55*14 | 1 | $49.26 USD | View product → |
| 29 | 42449-LFA5-90B | BEARING.BALL-DOUBLE ROW | 1 | $127.92 USD | View product → |
| 30 | 42451-LFA5-900 | PLUG OIL LEVEL | 1 | $47.76 USD | View product → |
| 31 | 42453-LGC3-900 | OIL SEAL 48*84*9 | 2 | $87.45 USD | View product → |
| 32 | 42454-LFA5-910 | COVER GEARCASE-RR MACH | 1 | $375.87 USD | View product → |
| 33 | 42456-LFA5-900 | SHAFT INPUT ASSEMBLY | 1 | $175.62 USD | View product → |
| 34 | 42460-LFA5-900 | SHIM 41*49*1.0 | 2 | $20.64 USD | View product → |
| 35 | 42461-LFA5-900 | SHIM 41*49*1.1 | 2 | $20.64 USD | View product → |
| 36 | 42462-LFA5-900 | SHIM 41*49*1.2 | 2 | $18.57 USD | View product → |
| 37 | 42463-LFA5-900 | SHIM 41*49*1.3 | 2 | $20.64 USD | View product → |
| 38 | 42464-LFA5-900 | SHIM 41*49*1.4 | 2 | $20.64 USD | View product → |
| 39 | 42465-LFA5-900 | SHIM 41*49*1.5 | 2 | $20.64 USD | View product → |
| 40 | 42466-LFA5-900 | SHIM 41*49*1.6 | 2 | $20.64 USD | View product → |
| 41 | 42467-LFA5-900 | SHIM 41*49*1.7 | 2 | $20.64 USD | View product → |
| 42 | 90403-LFA5-900 | WASHER WAVE SPRING | 1 | $23.70 USD | View product → |
| 43 | 94005-PWB1-900 | HOSE BARB INTAKE MANIFOLD | 1 | $4.17 USD | View product → |
| 44 | 94006-PWB1-900 | ROUTING CLIP SNAP-IN | 1 | $3.60 USD | View product → |
| 45 | 95002-02100 | CLIP B15 TUBE | 1 | $4.92 USD | View product → |
| 46 | 95002-40950-08 | CLAMP D9.5 TUBE | 2 | $6.06 USD | View product → |
| 47 | 95005-PWB1-900 | BREATH TUBE RR GEAR ASSY | 1 | $32.10 USD | View product → |
| 48 | 95007-LFA5-900 | HOSE VENT-GEARCASE | 1 | $41.43 USD | View product → |
| 49 | 95009-LFA5-900 | HOSE | 1 | $0.99 USD | View product → |
| 50 | 95701-08040-06 | BOLT FLANGE 8X40 | 1 | $9.06 USD | View product → |
| 51 | 96100-63050-00 | BRG BALL RADIAL 6305 | 1 | $49.86 USD | View product → |
| 52 | 96120-60080-00 | BEARING BALL 6008Z | 2 | $130.89 USD | View product → |
F18 — Light Tail
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 33700-LFA5-900 | LIGHT ASS Y R RR COMB | 1 | $139.92 USD | View product → |
| 2 | 33710-LFA5-900 | SOCKEY COMP RR COMB | 1 | $78.27 USD | View product → |
| 3 | 33740-LFA5-E00 | REFLECTOR ASSY R RR | 1 | $48.54 USD | View product → |
| 4 | 33744-LFA5-E00 | PACKING R REFLECTOR RR | 1 | $33.66 USD | View product → |
| 5 | 33745-LFA5-E00 | REFLECTOR ASSY L RR | 1 | $48.54 USD | View product → |
| 6 | 33749-LFA5-E00 | PACKING L REFLECTOR RR | 1 | $33.66 USD | View product → |
| 7 | 33750-LFA5-900 | LIGHT ASS Y L RR COMB | 1 | $139.92 USD | View product → |
| 8 | 34905-LCA5-900 | BULB POSITION 12V5W | 2 | $32.10 USD | View product → |
| 9 | 34906-KPCP-900 | BULB TAIL & STOP | 2 | $8.76 USD | View product → |
| 10 | 34906-KPCP-900-invalid | BULB TAIL & STOP | 2 | $11.40 USD | View product → |
| 11 | 93903-35260 | SCREW TAPPING 5*12 | 8 | $4.92 USD | View product → |
| 12 | 94050-05060 | NUT FLANGE 5MM | 2 | $4.92 USD | View product → |
F19 — Harness Wire
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3051A-PRB8-900 | COIL ASS'Y IGNITION | 1 | $122.55 USD | View product → |
| 2 | 30700-PTA1-800 | CAP ASSY NOISE SUPPRESOR | 1 | $68.25 USD | View product → |
| 3 | 31600-PRB8-900 | REG RECT COMP | 1 | $322.77 USD | View product → |
| 4 | 31601-LDB5-E00 | SOCKET COMP DC 12V | 1 | $71.67 USD | View product → |
| 5 | 32100-AEB8-M00 | HARNESS WIRE | 1 | $644.08 USD | View product → |
| 6 | 32411-LGN5-E00 | CABLE BAT | 1 | $36.51 USD | View product → |
| 7 | 35010-LFA5-900 | KEY SET | 1 | $100.95 USD | View product → |
| 8 | 35111-LFA5-305-M2 | KEY COMP (R TANGENT PLANE/TJ) | 1 | $49.02 USD | View product → |
| 9 | 35111-LFA5-306-M2 | KEY COMP (L TANGENT PLANE/TJ) | 1 | $49.02 USD | View product → |
| 10 | 35380-LDF2-900 | SENSOR ANGLE DETECT | 1 | $168.24 USD | View product → |
| 11 | 35850-LBA2-E00 | SET START MAG | 1 | $112.17 USD | View product → |
| 12 | 38200-PWB1-900 | BOX COMP FUSE | 1 | $157.44 USD | View product → |
| 13 | 38500-LGL3-90A | RELAY ASSY LIGHT/D402(12V 20A) | 2 | $93.66 USD | View product → |
| 14 | 3920A-LKK7-E00 | ASSY ECU | 1 | $424.54 USD | View product → |
| 15 | 90656-KCBC-900 | BAND OIL HANDLE 8X146 | 21 | $3.93 USD | View product → |
| 16 | 93401-04025-06 | BOLT WASHER 4*25 | 1 | $13.95 USD | View product → |
| 17 | 93894-04022-06 | SCREW WASHER 4X22 | 1 | $11.46 USD | View product → |
| 18 | 94050-06080 | NUT FLANGE 6MM | 8 | $2.31 USD | View product → |
| 19 | 98200-33000 | BLADE FUSE 30A | 2 | $4.92 USD | View product → |
| 20 | 98200-41000 | FUSE 10A | 6 | $14.31 USD | View product → |
| 21 | 98200-41500 | FUSE 15A | 3 | $14.31 USD | View product → |
F20 — Frame Body
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 38914-AEB8-M08 | POWER WIRE | 1 | $171.24 USD | View product → |
| 2 | 50100-AEB8-M00 | BODY CUMP FRAME | 1 | $1153.86 USD | View product → |
| 3 | 50505-KEBE-900 | STOPPER RUBBER | 2 | $4.92 USD | View product → |
| 4 | 50614-PWB1-900 | FOOTREST WELDMENT | 2 | $120.90 USD | View product → |
| 5 | 60160-LGC7-E01-N1R | PROTECTOR HOSE (Black) | 1 | — | Part details → |
| 6 | 77330-LKK7-MG0 | RACK REAR | 1 | $240.84 USD | View product → |
| 7 | 77345-LKK7-E00 | TUBE REAR MOUNT-REAR RACK | 2 | $114.54 USD | View product → |
| 8 | 77352-LFA5-E00 | TUBE RACK MOUNT | 1 | $120.09 USD | View product → |
| 9 | 77430-LKK7-E00 | RACK FRONT | 1 | $380.19 USD | View product → |
| 10 | 77437-LGC3-E00 | TUBE REAR MOUNTIMG-FRONT | 1 | $130.89 USD | View product → |
| 11 | 80110-LBA7-900 | RUBBER REAR FENDER | 2 | $3.66 USD | View product → |
| 12 | 83620-LFA5-E00 | CAP PIPE | 4 | $28.47 USD | View product → |
| 13 | 85100-LKK7-MG0 | BUMPER FRONT | 1 | $431.67 USD | View product → |
| 14 | 85102-LKK7-M00 | PLATE WINCH | 1 | $51.99 USD | View product → |
| 15 | 90304-GLW0-90A | NUT U FLANGE 10MM | 2 | $9.39 USD | View product → |
| 16 | 90652-LDB5-900 | CLIP MUDGUARD | 2 | $5.31 USD | View product → |
| 17 | 91307-PWB1-900 | O-RING 10.82X1.778 | 2 | $4.92 USD | View product → |
| 18 | 93404-06016-06 | BOLT WASHER 6*16 | 2 | $7.89 USD | View product → |
| 19 | 94050-08060 | NUT FLANGE 8MM | 6 | $5.31 USD | View product → |
| 20 | 95701-06020-06 | BOLT FLANGE 6*20 | 2 | $2.25 USD | View product → |
| 21 | 95701-08016-06 | BOLT FLANGE 8*16 | 16 | $4.53 USD | View product → |
| 22 | 95801-08025-06 | BOLT FLANGE 8*25 | 2 | $4.59 USD | View product → |
| 23 | 95801-08030-06 | BOLT FLANGE 8*30 | 2 | $6.24 USD | View product → |
| 24 | 95801-08042-06 | BOLT FLANGE 8*42 | 2 | $9.39 USD | View product → |
| 25 | 95801-08050-06 | BOLT FLANGE 8*50 | 2 | $8.19 USD | View product → |
| 26 | 95801-10110-06 | BOLT FLANGE 10*110 | 4 | $16.38 USD | View product → |
| 27 | 95801-10185-06 | BOLT FLANGE 10X185 | 2 | $32.76 USD | View product → |
F21 — Cooler Oil
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 11344-PWB1-900 | DUCT BELT-AIR IN | 1 | $48.54 USD | View product → |
| 2 | 11346-PWB1-900 | CLAMP PLASTC-SCREW-OVAL | 2 | $14.31 USD | View product → |
| 3 | 11347-PWB1-900 | CLAMP PLASTC-SCREW-OVAL | 1 | $12.09 USD | View product → |
| 4 | 11354-LGN5-E00 | BOOT AIR-OUT | 1 | $121.56 USD | View product → |
| 5 | 11354-PWB1-900 | BOOT AIR-IN | 1 | $37.98 USD | View product → |
| 6 | 19005-LDB5-E00 | SHROUD ASSY | 1 | $287.13 USD | View product → |
| 7 | 19010-LKK7-900 | RADIATOR COMP | 1 | $385.35 USD | View product → |
| 8 | 19012-KHD8-900 | UNIT RADIATOR | 1 | $54.18 USD | View product → |
| 9 | 19015-LBA2-E00 | SHROUD COMP | 1 | $85.89 USD | View product → |
| 10 | 19018-PTA1-900 | STAY.UNIT RADIATOR | 1 | $18.24 USD | View product → |
| 11 | 19020-LBA2-E00 | FAN COOLING | 1 | $59.70 USD | View product → |
| 12 | 19030-LDB5-E00 | MOTOR ASSY FAN | 1 | $391.89 USD | View product → |
| 13 | 19101-PTA1-900 | TANK RESERVE | 1 | $66.96 USD | View product → |
| 14 | 19104-PTA1-900 | HOSE ASSY DRAIN | 1 | $32.46 USD | View product → |
| 15 | 19105-PTA1-E00 | HOSE ASSY.WATER | 1 | $41.82 USD | View product → |
| 16 | 19111-GBE2-004 | CAP COMP | 1 | $47.31 USD | View product → |
| 17 | 19210-KKC4-900 | CAP RESERVE TANK | 1 | $9.39 USD | View product → |
| 18 | 19503-PTA1-E00 | HOSE ASSY.WATER | 1 | $24.66 USD | View product → |
| 19 | 19504-LKK7-E00 | HOSE WATER | 1 | $123.63 USD | View product → |
| 20 | 19505-LBA2-E00 | CLAMP WATER HOSE | 2 | $15.06 USD | View product → |
| 21 | 19506-LKK7-E00 | HOSE WATER | 1 | $55.29 USD | View product → |
| 22 | 19507-LBA2-E00 | CLAMP D 27.5 | 2 | $11.31 USD | View product → |
| 23 | 40201-PWB1-900 | SHAFT PROPELLER-REAR | 1 | $122.34 USD | View product → |
| 24 | 40215-PWB1-900 | BUMPER DRIVESHAFT | 2 | $5.31 USD | View product → |
| 25 | 40502-PRB2-900 | FLANGE OUTPUT | 1 | $94.86 USD | View product → |
| 26 | 52101-PWB1-900 | BOOT COUPLER | 2 | $30.12 USD | View product → |
| 27 | 61104-357-0010 | COLLAR FR FENDER | 2 | $11.19 USD | View product → |
| 28 | 64317-LKK7-900 | BRKT R RADIATOR | 1 | $109.47 USD | View product → |
| 29 | 64318-LKK7-900 | BRKT L RADIATOR | 1 | $105.78 USD | View product → |
| 30 | 93404-06012-06 | BOLT WASHER 6X12 | 6 | $2.61 USD | View product → |
| 31 | 93404-06016-06 | BOLT WASHER 6*16 | 4 | $7.89 USD | View product → |
| 32 | 93404-06020-06 | BOLT WASHER 6X20 | 2 | $3.00 USD | View product → |
| 33 | 93404-06025-06 | BOLT WASHER 6*25 | 2 | $4.17 USD | View product → |
| 34 | 93903-45360 | SCREW TAPPING 5*16 | 3 | $1.65 USD | View product → |
| 35 | 93903-LDB5-E00 | SCREW TAPPING 4*14 | 4 | $12.84 USD | View product → |
| 36 | 95002-02070 | CLIP B7 TUBE | 1 | $1.86 USD | View product → |
| 37 | 95002-02100 | CLIP B15 TUBE | 1 | $4.92 USD | View product → |
| 38 | 95002-45000 | CLIP C8 TUBE | 1 | $4.53 USD | View product → |
| 39 | 95002-70000 | CLIP C11 TUBE | 2 | $4.92 USD | View product → |
| 40 | 95111-PWB1-900 | CLAMP BOOT | 2 | $18.24 USD | View product → |
| 41 | 95112-PWB1-900 | CLAMP 30mm-BOOT | 2 | $16.68 USD | View product → |
| 42 | 95701-06012-06 | BOLT FLANGE 6X12 | 2 | $1.86 USD | View product → |
| 43 | 95701-08020-06 | BOLT FLANGE 8*20 | 4 | $3.78 USD | View product → |
F22 — Separated Parts Of Halfshaft
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 42200-ZXA6-M02 | HALFSHAFT. REAR | 1 | $485.13 USD | View product → |
| 2 | 42208-ZXA6-305 | WHEEL SIDE BOOT SERVICE KIT | 1 | $108.06 USD | View product → |
| 3 | 42209-ZXA6-305 | DIFF SIDE BOOT SERVICE KIT | 1 | $110.34 USD | View product → |
| 4 | 44200-ZXA6-M02 | HALFSHAFT. FRONT | 1 | $485.13 USD | View product → |
| 5 | 44208-ALC1-305 | WHEEL SIDE BOOT SERVICE KIT | 1 | $132.42 USD | View product → |
| 6 | 44208-ZXA6-305 | WHEEL SIDE BOOT SERVICE KIT | 1 | $106.92 USD | View product → |
| 7 | 44209-ALC1-305 | DIFF SIDE BOOT SERVICE KIT | 1 | $146.70 USD | View product → |
| 8 | 44209-ALC1-E00 | BOOT BAND (L) | 1 | $35.37 USD | View product → |
| 9 | 44209-ZXA6-305 | DIFF SIDE SERVICE KIT | 1 | $111.06 USD | View product → |
| 10 | 44210-ALC1-E00 | BOOT BAND (L) | 1 | $32.28 USD | View product → |
| 11 | 44211-ALC1-E00 | BOOT BAND(S) | 1 | $30.03 USD | View product → |
| 12 | 44213-PWB1-900 | CIRCLIP (DOJ MONTH) | 2 | $17.82 USD | View product → |
| 13 | 44214-PWB1-900 | CIRCLIP | 2 | $16.68 USD | View product → |
| 14 | 44215-PWB1-900 | SNAP RING | 2 | $37.14 USD | View product → |
| 15 | 44216-PWB1-900 | CIRCLIP (DOJ STEM) | 1 | $15.36 USD | View product → |
| 16 | 44219-ALC1-E00 | BOOT BAND(S) | 1 | $30.03 USD | View product → |
| 17 | 44250-AEB8-M01 | HALF SHAFT FRONT-LH | 1 | $409.16 USD | View product → |
F23 — Caution Label
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 86182-LGN5-MVV-T01 | SW LABEL | 1 | $17.64 USD | View product → |
| 2 | 87505-PWB1-M31-T01 | WARNING LABEL TIRE | 1 | $9.39 USD | View product → |
| 3 | 87514-LFA5-E00-T01 | WARNING MAXIMUM CAPACITY | 1 | $10.14 USD | View product → |
| 4 | 87515-LFE9-E00-T01 | WARNING GENERAL DECAL | 1 | $32.73 USD | View product → |
| 5 | 87517-PWB1-M35-T01 | WARNING AGE-16 | 1 | $32.76 USD | View product → |
| 6 | 87522-PWB1-E00-T01 | HANG TAG GENERAL USE | 1 | $30.12 USD | View product → |
| 7 | 87556-LFA5-E01-T01 | WARNING CARRIER MAX LOAD (68 kg) | 1 | $12.09 USD | View product → |
| 8 | 87560-PWB1-M35-T01 | WARNING DOUBLE RIDER | 1 | $12.12 USD | View product → |
| 9 | 87571-LCA5-M30-T01 | LABEL MIT | 1 | $4.53 USD | View product → |
F24 — Emblem ● Stripe
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 86101-AEB8-M30-T01 | STRIPE FR FENDER | 1 | $76.74 USD | View product → |
| 2 | 86102-LDB5-900-T01 | STRIPE K-LOGO 28.5MM | 1 | $41.43 USD | View product → |
| 3 | 86223-AEB8-M33-T01 | STRIPE R FUEL TANK | 1 | $69.09 USD | View product → |
| 4 | 86233-AEB8-M33-T01 | STRIPE L FUEL TANK | 1 | $69.09 USD | View product → |
| 5 | 86523-AEB8-M31-T01 | STRIPE R FENDER FR | 1 | $86.37 USD | View product → |
| 6 | 86533-AEB8-M31-T01 | STRIPE L FENDER FR | 1 | $86.37 USD | View product → |
