DOWNTOWN GT 350 SK64JD(US)

Model code
SK64JD(US)
Model year
2026
Submodel
DOWNTOWN GT 350
Color
Mat Black (NH105FA)
Diagrams
33
Factory catalog
download PDF

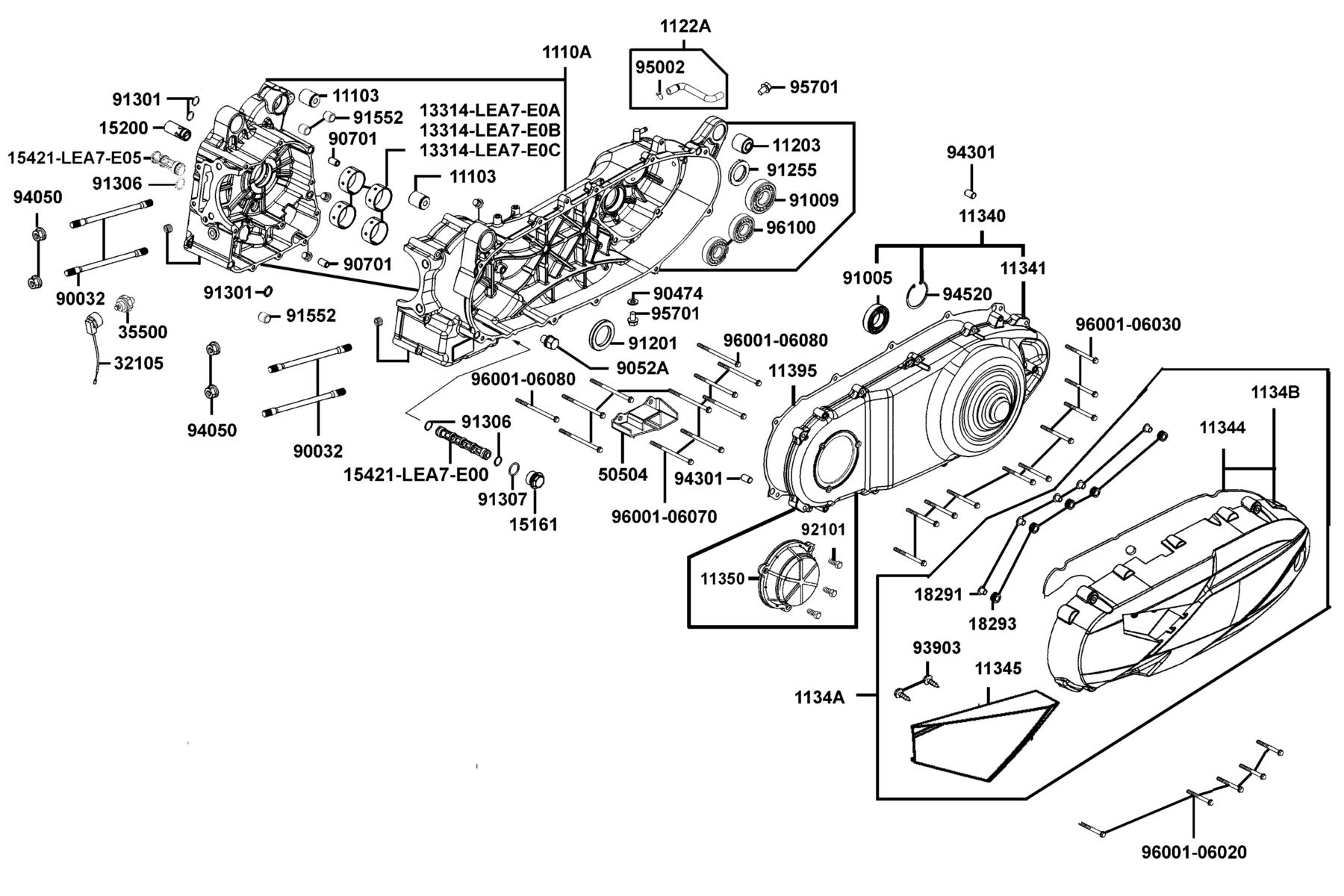

E01 — Crank Case

#PartNameQtyPrice
1 11103-KHE7-900 RUB BUSH ENG HANGER 2 $15.33 USD View product →
2 1110A-ACD5-305 CRANKCASE ASSEMBLY 1 $654.24 USD View product →
3 11203-LBA2-E00 RUB BUSH L CASE 1 $27.30 USD View product →
4 1122A-LEA7-E00 TUBE ASSY BREATHER 1 $25.65 USD View product →
5 11340-ACD5-E03 COVER COMP L.CRANK CASE 1 — Part details →
6 11341-LEA7-E01 COVER L CRANK CASE 1 $225.33 USD View product →
7 11344-ACD5-E00 FOAM TEXTURE 1 $94.41 USD View product →
8 11345-ACD5-E00-JBP SIDE COVER L COVER 1 $103.26 USD View product →
9 1134A-ACD5-E00-JBP L COVER COVER COMP (Mat Black) 1 — Part details →
10 1134B-ACD5-E00-JBP L COVER COVER COMP (Mat Black) 1 — Part details →
11 11350-ACD5-E03 ELEMENT ASSY L COVER 1 $40.95 USD View product →
12 11395-LEA7-E00 GASKET???L COVER 1 $128.67 USD View product →
13 13314-LEA7-E0A BEARING CRANK SHAFT A (RED/1.995~1.998) 1 $74.22 USD View product →
14 13314-LEA7-E0B BEARING CRANK SHAFT A (GREEN/1.991~1.994) 1 $74.22 USD View product →
15 13314-LEA7-E0C BEARING CRANK SHAFT A (BLACK/1.986~1.990 1 $74.22 USD View product →
16 15161-PUA5-E00 PLUG SCREW SECTION FILTER 1 $66.96 USD View product →
17 15200-KED9-900 OIL RELIEF VALVE ASSY 1 $77.94 USD View product →
18 15421-LEA7-E00 SCREEN OIL FILTER 1 $66.96 USD View product →
19 15421-LEA7-E05 SCREEN OIL FILTER 1 $96.84 USD View product →
20 18291-KKC4-900 COLLAR 5 $4.92 USD View product →
21 18293-KKC4-900 RUBBER 5 $4.92 USD View product →
22 32105-BAA7-E00 SUB HARNESS 1 $47.31 USD View product →
23 35500-KED9-900 SW ASSY OIL PRESSURE 1 $102.96 USD View product →
24 50504-ACD5-E00 STAY MAIN STAND COMP 1 $40.41 USD View product →
25 90032-LEA7-E00 BOLT B STUD 10*180 4 $51.81 USD View product →
26 90474-3C33-001 WASHER 8MM 1 $2.85 USD View product →
27 9052A-LEB1-900 BOLT ASSY DRAIN PLUG 1 $16.38 USD View product →
28 90701-9E65-001 PIN DOWEL 10*16 2 $3.78 USD View product →
29 91005-LBA7-900 BRG BALL RADIAL 6005LLU 1 $71.64 USD View product →
30 91009-KHE7-900 BRG BALL RADIAL 6205LLU 1 $66.18 USD View product →
31 91201-LEA7-E00 OIL SEAL 35*50*7 1 $53.43 USD View product →
32 91255-LKG7-E00 OIL SEAL 34*54*8 1 — Part details →
33 91301-2L00-001 O-RING 10*1.6 3 $7.17 USD View product →
34 91306-PUA5-E00 O-RING 13*1.5 2 $14.31 USD View product →
35 91307-PUA5-E00 O-RING 18*2 1 $16.68 USD View product →
36 91552-LEA7-E00 COLLAR.10.5MM 3 $16.68 USD View product →
37 92101-05012-0G BOLT HEX 5X12 3 $11.46 USD View product →
38 93903-25360 SCREW TAPPING 5*16 2 $4.92 USD View product →
39 94050-10060 NUT FLANGE 10MM 4 $5.67 USD View product →
40 94301-10160 DOWEL PIN 10*16 2 $3.00 USD View product →
41 94520-47000 CIR CLIP IN 47 1 $11.31 USD View product →
42 95002-50000 CLIP C9 TUBE 1 $1.86 USD View product →
43 95701-08012-06 BOLT FLANGE 8*12 2 $6.24 USD View product →
44 96001-06020-06 BOLT FLANGE SH 6*20 5 $3.27 USD View product →
45 96001-06030-06 BOLT FLANGE SH 6X30 10 $4.92 USD View product →
46 96001-06070-06 BOLT FLANGE SH 6*70 9 $5.88 USD View product →
47 96001-06080-06 BOLT FLANGE SH 6X80 2 $22.50 USD View product →
48 96100-63020-00 BRG BALL RADIAL 6302 2 $47.01 USD View product →

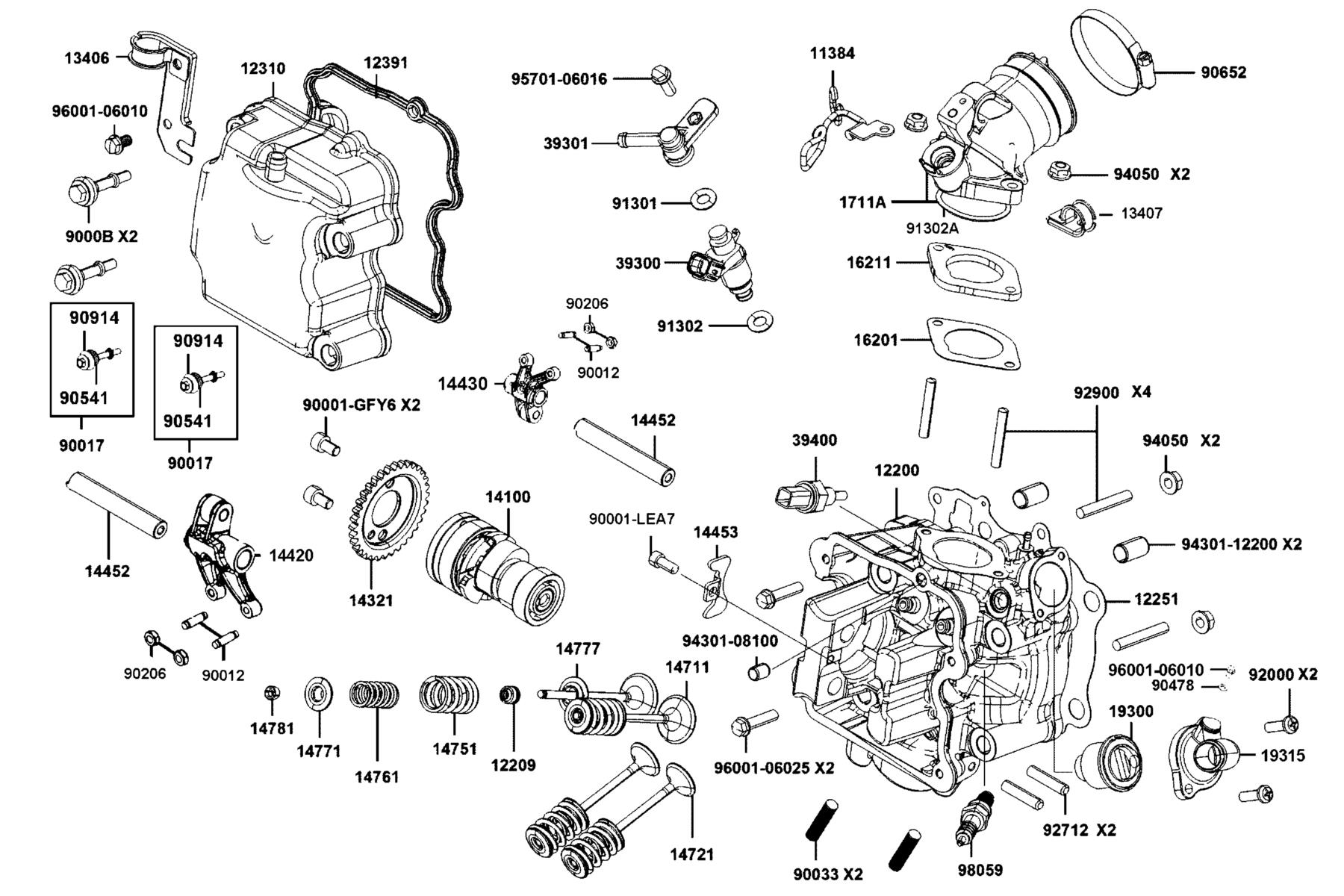

E02 — Cylinder Head Cover ● Cylinder Head

#PartNameQtyPrice
1 11384-BAA7-E00 CLIP ASSY 1 — Part details →
2 12200-BAA7-E00 HEAD COMP CYLINDER 1 $393.30 USD View product →
3 12209-GDB4-68B SEAL VALVE STEM 1 $19.65 USD View product →
4 12251-ACD5-E00 GASKET CYLINDER HEAD 1 $53.88 USD View product →
5 12310-LEA7-E00 COVER COMP CYLN HEAD 1 $165.39 USD View product →
6 12391-LEA7-E00 GASKET HEAD COVER 1 $132.18 USD View product →
7 13406-LEA7-E00 PLATE FUEL INJECTOR 1 $19.26 USD View product →
8 13407-LKC6-900 PLATE A ECU MODULE 1 — Part details →
9 14100-BAA7-E00 SHAFT COMP CAM 1 $205.08 USD View product →
10 14321-LEA7-E00 SPROCKET CAMSHAFT 1 $121.56 USD View product →
11 14420-ACD5-E00 ARM COMP. EXH VALVE ROCKER 1 $330.84 USD View product →
12 14430-ACD5-E00 ARM COMP. IN VALVE ROCKER 1 $355.53 USD View product →
13 14452-LEA7-E00 SHAFT EX ROCKER ARM 2 $48.99 USD View product →
14 14453-LEA7-E00 SET PLATE ROCKER ARM SHAFT 1 $11.70 USD View product →
15 14711-LGE5-E00 VALVE INLET 1 $61.14 USD View product →
16 14721-LEA7-E00 VALVE EXHAUST 2 $132.18 USD View product →
17 14751-LEA7-E00 SPRING VALVE OUTER 4 $28.35 USD View product →
18 14761-LEA7-E00 SPRING VALVE INNER 4 $25.65 USD View product →
19 14771-GDB4-680 RETAINER VALVE SPRING 4 $14.73 USD View product →
20 14777-LBA2-E00 SEAT VALVE SPG 4 $13.95 USD View product →
21 14781-MFA6-001 COTTER VALVE 8 $7.95 USD View product →
22 16201-LEA7-E00 GASKET???CARB INSULATOR A 1 $19.26 USD View product →
23 16211-LEA7-E00 INSULATOR CARB 1 $25.65 USD View product →
24 1711A-LEA7-E05 PIPE ASSY INLET 1 $147.66 USD View product →
25 19300-LFA7-E0A THERMOSTAT ASSY. 1 $201.75 USD View product →
26 19315-LFA7-E00 COVER THERMOSTAT 1 $53.43 USD View product →
27 39300-LDF2-M90 INJECTOR UNIT FUEL 1 $244.86 USD View product →
28 39400-LDF2-800 WATER TEMP SENSOR 1 $93.90 USD View product →
29 90001-LEA7-E00 SOCKET BOLT 1 $8.67 USD View product →
30 9000B-KHD6-900 BOLT ASSY SPECIAL 6*41.5 2 $29.73 USD View product →
31 90012-333-0010 SCREW TAPPET ADJUSTING 4 $13.38 USD View product →
32 90017-KKE5-E00 BOLT ASSY HEAD COVER 2 $32.46 USD View product →
33 90033-KGB4-C00 BOLT STUD M8X40 (C) 2 $14.31 USD View product →
34 90206-001-0010 NUT TAPPET ADJG 4 $3.78 USD View product →
35 90206-0A01-001 NUT TAPPET ADJG 4 $4.92 USD View product →
36 90478-7L00-001 WASHER A 6MM 1 $4.92 USD View product →
37 90541-KED9-900 RUBBER MOUNTING 2 $5.67 USD View product →
38 90652-LDG7-900 C-HOPE 50~70 1 $32.10 USD View product →
39 90914-KED9-900 WASHER HEAD COVER BOLT 2 $6.78 USD View product →
40 91301-LDF2-M90 O-RING 7.3*2.2 (BLACK) 1 $28.35 USD View product →
41 91302-LDF2-M90 SEAL RING 6.5X2.5 (BLACK) 1 $33.45 USD View product →
42 91302-LEA7-E00 O-RING 1 $25.65 USD View product →
43 92000-05016-0G BOLT HEX 5X16 2 $11.79 USD View product →
44 92712-06028-0B BOLT STUD 6*28 2 $4.68 USD View product →
45 92900-06040-0E BOLT STUD 6*40 4 $4.53 USD View product →
46 94050-06080 NUT FLANGE 6MM 4 $2.31 USD View product →
47 94301-08100 DOWEL PIN 8*10 1 $4.92 USD View product →
48 94301-12200 DOWEL PIN 12*20 2 $6.39 USD View product →
49 95701-06016-06 BOLT FLANGE 6X16 1 $1.65 USD View product →
50 96001-06010-06 BOLT FLANGE 6*10 3 $1.95 USD View product →
51 96001-06025-06 BOLT FLANGE SH 6*25 2 $2.61 USD View product →
52 96700-06010-16 SOCKET BOLT 6*10 (C) 1 — Part details →
53 98059-57916-00 SPARK PLUG (CR7E) 1 $38.37 USD View product →

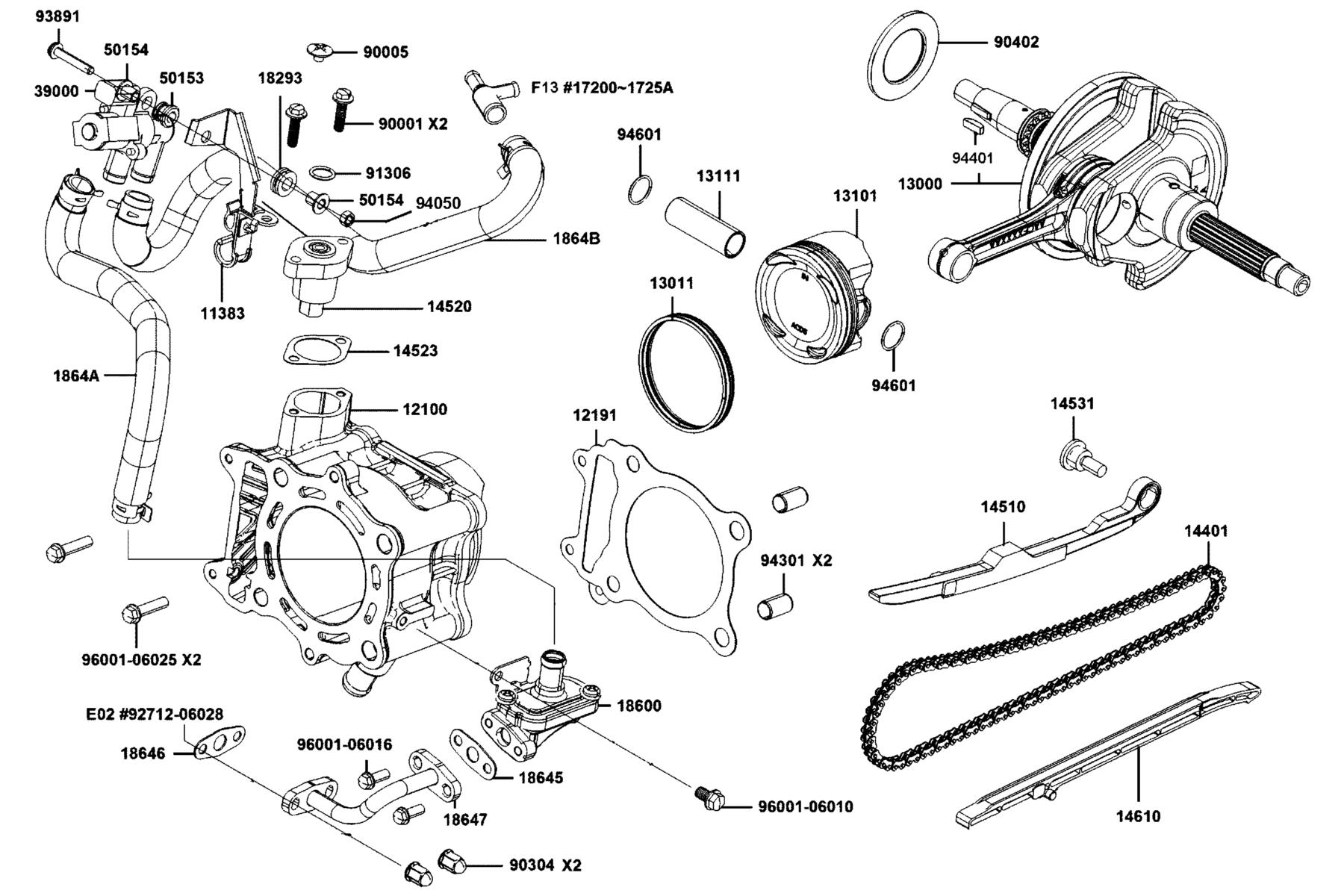

E03 — Cylinder ● Piston ● Crankshaft

#PartNameQtyPrice
1 11383-BAA7-E00 CLAMPER A RR BRK HOSE 1 — Part details →
2 12100-ACD5-E00 CYLINDER COMP 1 $315.78 USD View product →
3 12191-ACD5-E00 GASKET CYLINDER 1 $17.07 USD View product →
4 13000-ACD5-E00 CRANK SHAFT COMP 1 $460.29 USD View product →
5 13101-ACD5-E00 PISTON 1 $100.71 USD View product →
6 13111-KKE5-E01 PIN PISTON 1 $49.26 USD View product →
7 14401-PWB1-C00 CHAIN CAM 1 $175.62 USD View product →
8 14510-LEA7-E00 TENSIONER CAM CHAIN 1 $82.44 USD View product →
9 14520-KED9-900 LIFTER ASSY TENSIONER 1 $115.17 USD View product →
10 14523-KED9-920 GASKET TENSIONER LIFTER @A 1 $3.81 USD View product →
11 14531-KHE7-900 PIVOT CAM CHAIN TENSIONER 1 $16.53 USD View product →
12 14610-LEA7-E00 GUIDE COMP CAM CHAIN 1 $51.12 USD View product →
13 18293-LHJ8-900 RUBBER PKG PROTR 1 $11.79 USD View product →
14 18600-BAA7-E00 REED VALVE ASS'Y 1 — Part details →
15 18645-LEB1-900 GASKET A/I PIPE 1 $4.92 USD View product →
16 18646-GFY6-941 GASKET A/I PIPE 1 $4.92 USD View product →
17 18647-BAA7-E00 PIPE COMP.2ND AIR 1 — Part details →
18 1864A-BAA7-E00 TUBE ASSY C BREATHER 1 — Part details →
19 1864B-BAA7-E00 TUBE ASSY. C BREATHER 1 — Part details →
20 39000-LDF2-800 VALVE UNIT SOLENOID 1 $169.50 USD View product →
21 50153-LDF2-900 RUBBER SOLENOID VALVE 1 $8.28 USD View product →
22 50154-BAC8-E00 COLLAR 1 $7.17 USD View product →
23 90001-GBHB-661 BOLT FLANGE SH 6*22 2 $4.92 USD View product →
24 90005-KED9-900 BOLT SPECIAL 6*6 1 $2.76 USD View product →
25 90304-4H38-001 NUT HEX CAP 6MM 2 $6.78 USD View product →
26 90402-LEA7-E00 THRUST WASHER 36X60X3 1 $38.52 USD View product →
27 91306-1E05-691 O-RING 1.5*9.5 1 $4.92 USD View product →
28 93891-05030-06 SCREW WASHER 5*30 1 $4.92 USD View product →
29 94050-05080-G NUT FLANGE 5MM 1 $0.99 USD View product →
30 94301-12200 DOWEL PIN 12*20 2 $6.39 USD View product →
31 94401-25140 WOODRUFF KEY 25*14 1 $6.78 USD View product →
32 94601-KKE5-E01 CLIP PISTON PIN 2 $5.46 USD View product →
33 96001-06010-08G BOLT FLANGE SH 6*10 (C) 1 $1.17 USD View product →
34 96001-06016-08G BOLT FLANGE SH 6x16 (C) 2 $0.99 USD View product →
35 96001-06025-06 BOLT FLANGE SH 6*25 2 $2.61 USD View product →

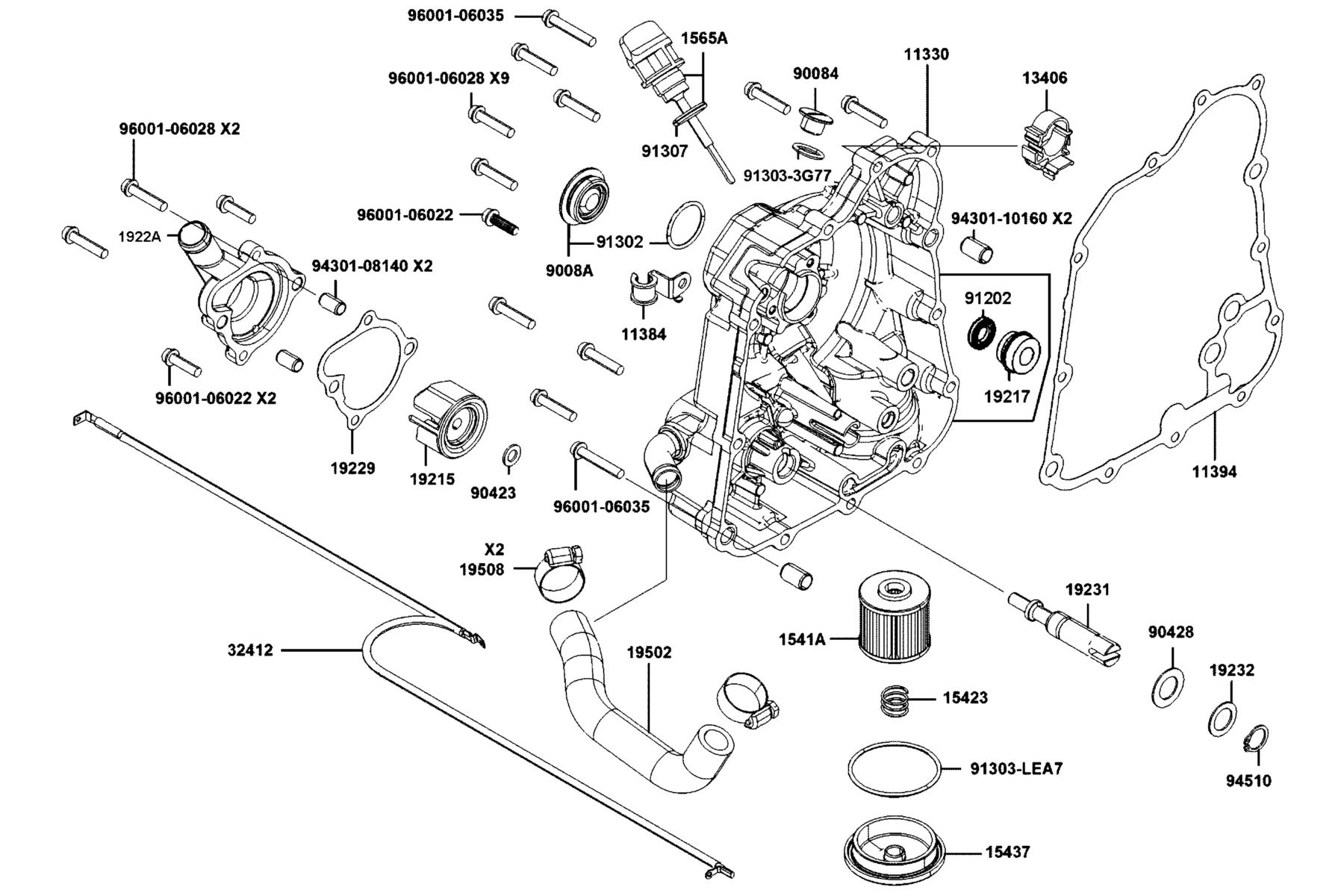

E04 — Right Crankcase Cover ● Water Pump

#PartNameQtyPrice
1 1133A-BAA7-E00-MLA COVER ASSY R CRANK CASE 1 — Part details →
2 11384-LEA7-E05 CLIP WATER PIPE 1 $17.37 USD View product →
3 11394-LEA7-E00 GASKET R COVER @A 1 $60.66 USD View product →
4 13406-BAB7-C00 CLAMPER ASSY FUEL TUBE 1 — Part details →
5 1541A-LEA7-E00 ELEMENT ASSY OIL FILTER 1 $38.85 USD View product →
6 15423-KKC3-900 SPRING CAP OIL 1 $9.78 USD View product →
7 15437-LEA7-E00 CAP OIL FILTER 1 $53.43 USD View product →
8 1565A-GFY6-900 GAUGE OIL LEVEL ASSY 1 $10.53 USD View product →
9 19215-BAA7-E00 WATER PUMP WHEEL 1 — Part details →
10 19217-AEE2-900 MECHANICAL SEAL 1 $73.08 USD View product →
11 19229-LEA7-E00 GASKET WATER PUMP 1 $32.46 USD View product →
12 1922A-LGE5-E00-NEA COVER WATER PUMP 1 — Part details →
13 19231-BAA7-E00 SHAFT WATER PUMP 1 $62.34 USD View product →
14 19232-LBA2-E00 WASHER 21*13.8*1.5 1 $12.09 USD View product →
15 19502-LEA7-E00 HOSE B WATER 1 $57.84 USD View product →
16 19508-LBA2-E00 CLAMP D23 2 $7.53 USD View product →
17 32412-BAA7-E00 CABLE,EARTH 1 — Part details →
18 90084-KKF9-901-NEA CAP ACG 1 $18.57 USD View product →
19 9008A-PTA1-900-NEA CAP ASSY 1 $21.60 USD View product →
20 90423-BAA7-E00 WASHER 7.2*13*1.2 1 $5.61 USD View product →
21 90423-KKJ9-001 WASHER 7.2*13*1.2 1 $4.59 USD View product →
22 90428-9H58-001 WASHER THRUST 14MM B 1 $9.78 USD View product →
23 90428-BAA7-E00 WASHER THRUST 13.8MM 1 — Part details →
24 91202-LKG2-900 OIL SEAL 13.7*24*5 1 $38.94 USD View product →
25 91302-5G67-004 O-RING 27.4*2.4 1 $10.14 USD View product →
26 91303-3G77-001 O-RING 13.8*2.5 1 $4.92 USD View product →
27 91303-LEA7-E00 O-RING 52.5x2.5 1 $11.70 USD View product →
28 91307-0E35-001 O RING 18*3 1 $4.92 USD View product →
29 94301-08140 DOWEL PIN 8*14 2 $3.00 USD View product →
30 94301-10160 DOWEL PIN 10*16 2 $3.00 USD View product →
31 94510-14000 CIR CLIP EX 14 1 $4.92 USD View product →
32 96001-06022-06 BOLT FLANGE SH 6X22 3 $4.26 USD View product →
33 96001-06028-06 BOLT FLANGE SH 6*28 11 $1.95 USD View product →
34 96001-06035-06 BOLT FLANGE SH 6*35 2 $3.93 USD View product →

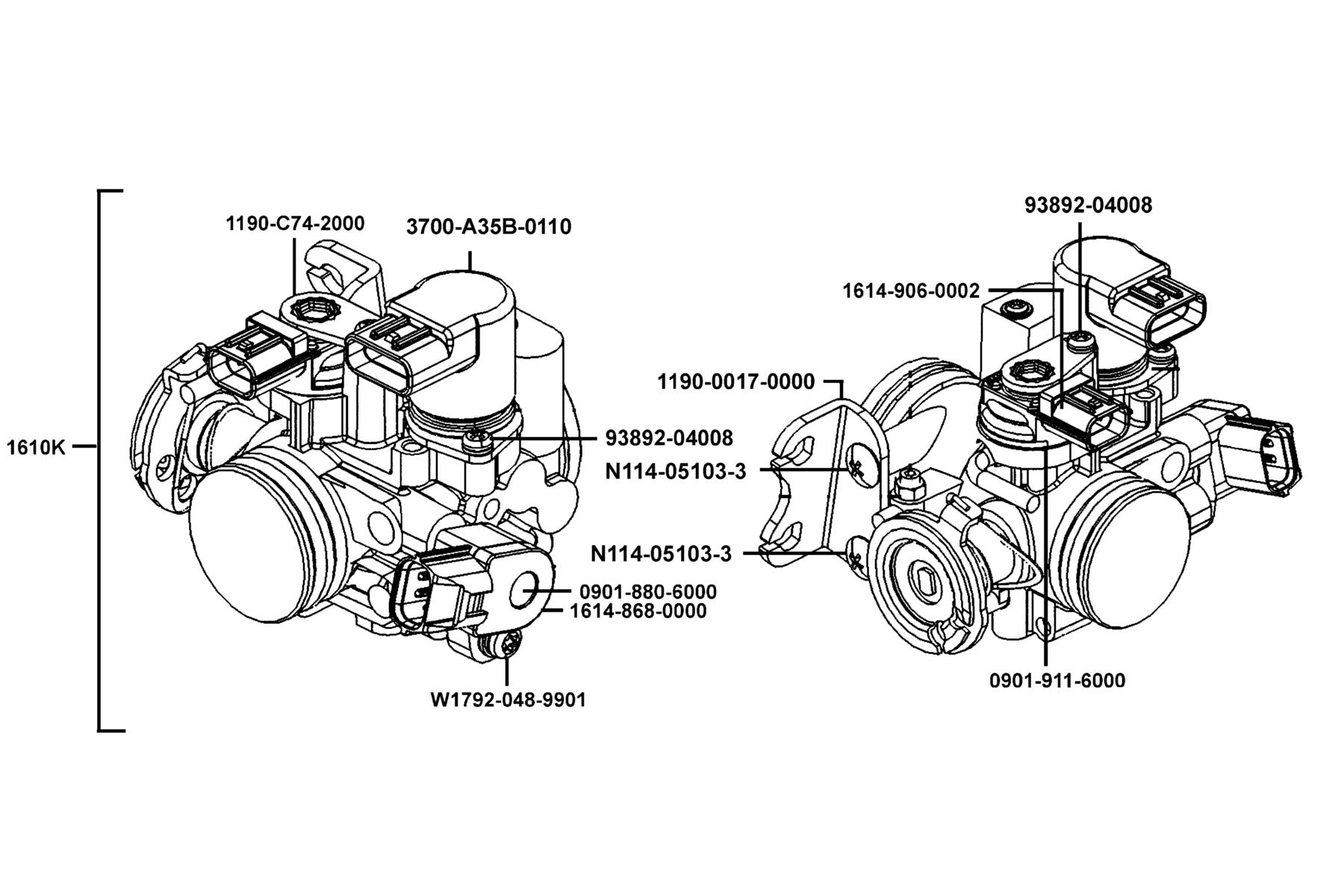

E05 — Throttle Body Assy

#PartNameQtyPrice
1 0901-880-6000 O-RING/TPS 1 $4.92 USD View product →
2 0901-911-6000 O-RING 1 $6.06 USD View product →
3 1190-0017-0000 BRACKET/THROTTLE CABLE 1 $74.22 USD View product →
4 1190-C74-2000 STAY PLATE 1 $39.99 USD View product →
5 1610K-ACD5-900 THROTTLE BODY ASSY 1 $501.40 USD View product →
6 1614-868-0000-S THROTTLE POSITION SENSER 1 $311.85 USD View product →
7 1614-906-0002 MAP SENSOR 1 $215.76 USD View product →
8 3700-A35B-0110 ISC VALVE 1 $376.56 USD View product →
9 93892-04008-16 SCREW WASHER 4X8 3 $8.85 USD View product →
10 N114-05103-3 SCREW WASHER 2 $7.23 USD View product →
11 W1792-048-9901 SCREW TORX M5*0.8/TPS 1 $9.06 USD View product →

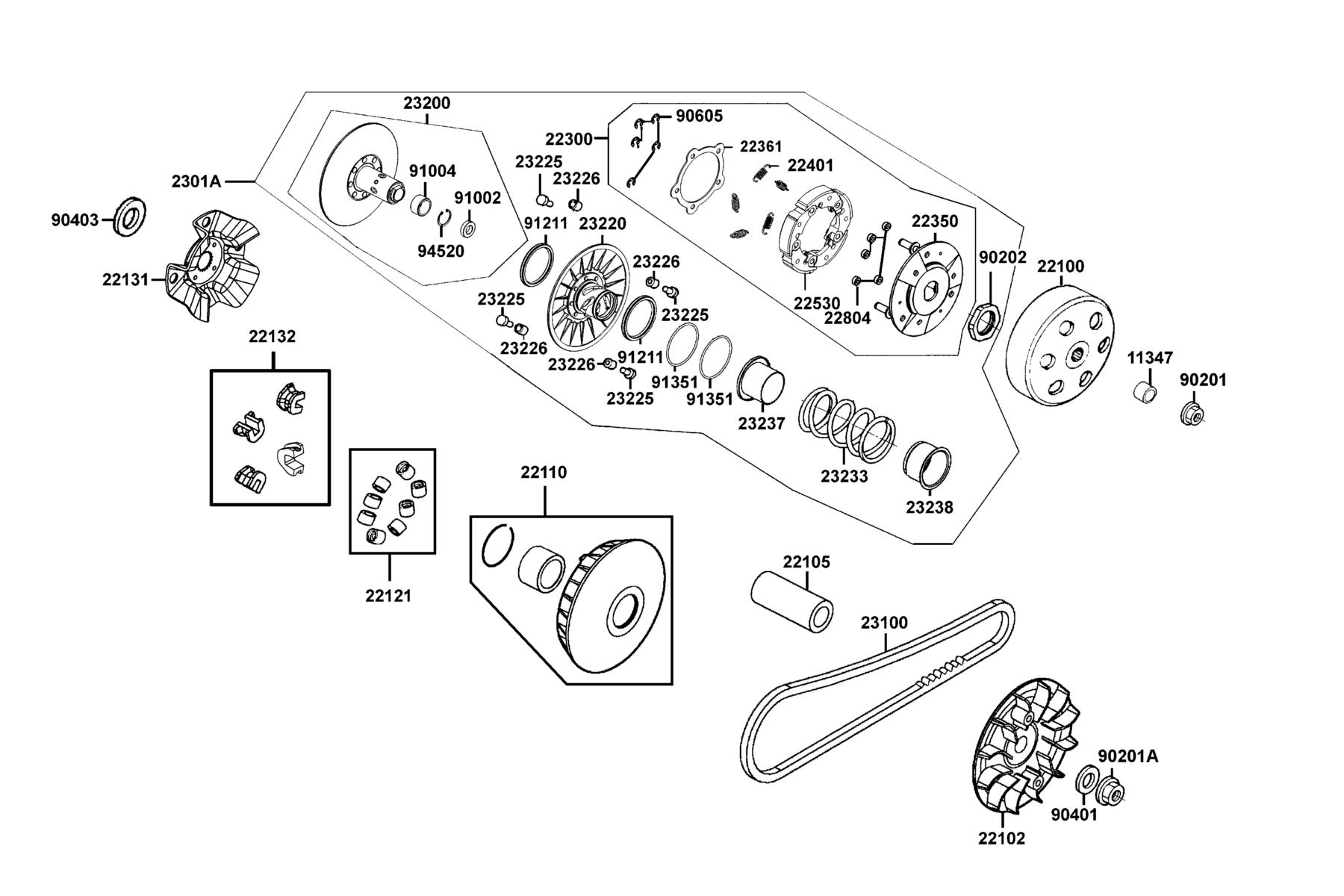

E06 — Drive Pulley

#PartNameQtyPrice
1 11347-LEA7-E00 BOSS DRIVE SHAFT 1 $62.49 USD View product →
2 22100-ACD5-E01 OUTER COMP CLUTCH 1 $151.77 USD View product →
3 22102-LEA7-E00 FACE DRIVE 1 $125.10 USD View product →
4 22105-LGF9-E00 BOSS DRIVE FACE 1 $86.58 USD View product →
5 22110-ACD5-E00 FACE COMP MOVABLE DRIVE 1 $125.55 USD View product →
6 22121-ACD5-305 ROLLER SET WEIGHT(1SET:8 PCS) 1 — Part details →
7 22131-LGE5-E00 PLATE RAMP 1 $68.25 USD View product →
8 22132-PWB1-305 PIECE SLIDE SET (1SET:4PCS) 4 $20.91 USD View product →
9 22300-BAA7-E00 PLATE ASSY DRIVE 1 $179.67 USD View product →
10 22350-ACD5-E01 PLATE COMP DRIVE 1 $49.05 USD View product →
11 22361-LBA2-E00 PLATE CLUTCH SIDE 1 $52.05 USD View product →
12 22401-BAA7-E00 SPRING CLUTCH 5 $8.67 USD View product →
13 22530-LKF5-E01 WEIGHT CLUTCH 5 $59.64 USD View product →
14 22804-GGB2-001 RUBBER CLUTCH DAMPER 5 $8.19 USD View product →
15 2301A-BAA7-E00 PULLEY SUB ASSY 1 $338.70 USD View product →
16 23100-LEA7-E00 BELT. DRIVE 1 $440.22 USD View product →
17 23200-LGE5-E00 FACE ASSY DRIVEN 1 $393.36 USD View product →
18 23220-ACD5-E00 FACE COMP. MOVABLE DRIVEN 1 $424.89 USD View product →
19 23225-LEA7-E00 PIN. ROLLER GUIDE 4 $14.31 USD View product →
20 23226-LEA7-E00 ROLLER GUIDE 4 $14.31 USD View product →
21 23233-LEA7-E00 SPG DRIVEN FACE 1 $78.36 USD View product →
22 23237-KHE7-900 COLLAR SEAL 1 $36.24 USD View product →
23 23238-KHE7-900 COLLAR SPG 1 $36.78 USD View product →
24 90201-KHE7-900 NUT C FLANGE M12 1 $9.39 USD View product →
25 90201-KHR8-75A NUT FLANGE 14MM 1 $9.39 USD View product →
26 90202-LEA7-E00 NUT SPECIAL 28mm 1 $9.90 USD View product →
27 90401-LEA7-E00 WASHER THRUST 14*28*2 1 $16.68 USD View product →
28 90403-LEA7-E00 THRUST WASHER 20.2X35X2.35 1 $19.26 USD View product →
29 90605-1F66-721 CIR CLIP 7MM 3 $4.92 USD View product →
30 91002-GGA7-70A BRG BALL RADIAL 6902U 1 $51.27 USD View product →
31 91004-LEA7-E00 BRG.NEEDLE 25X32X14 1 $137.10 USD View product →
32 91211-KHE7-900 SEAL DRIVEN FACE 2 $37.65 USD View product →
33 91351-KHE7-900 O-RING PINION CAP 2 $15.06 USD View product →
34 94520-28000 CIR CLIP IN 28 1 $4.92 USD View product →

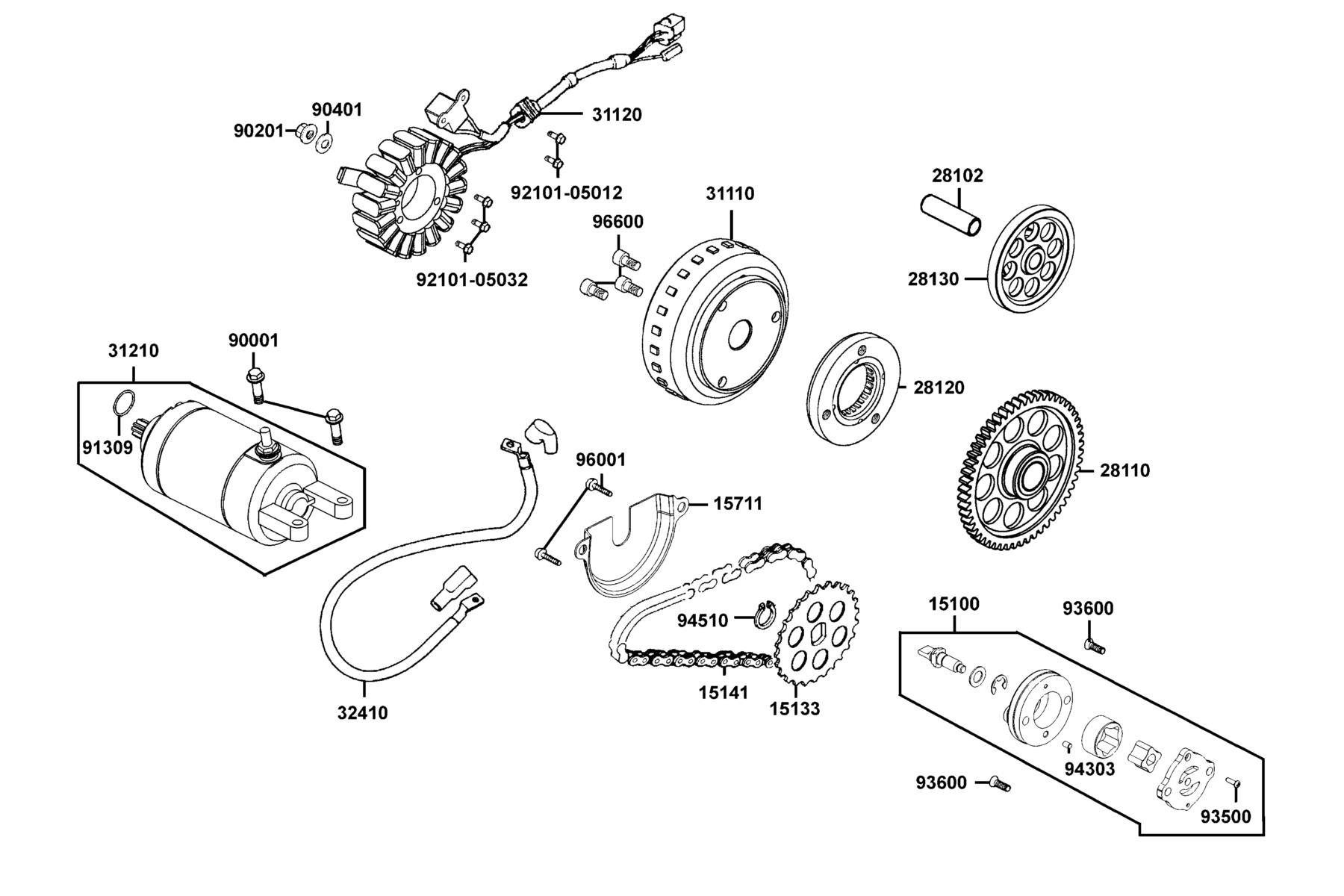

E07 — Starting Motor ● Generator

#PartNameQtyPrice
1 15100-LEA7-E00 PUMP ASSY OIL 1 $124.59 USD View product →
2 15133-LGF9-E00 SPROCKET OIL PUMP 1 $49.02 USD View product →
3 15141-LGF9-E00 CHAIN OIL PUMP 1 $78.36 USD View product →
4 15711-LEA7-E00 SEPARATOR OIL 1 $19.26 USD View product →
5 28102-LEA7-E00 SHAFT STARTER REDUCTION 1 $35.85 USD View product →
6 28110-LEA7-E00 GEAR COMP STARTING CLUTCH 1 $156.96 USD View product →
7 28120-LDB2-C00 ONE WAY CLUTCH 1 $93.54 USD View product →
8 28130-LEA7-E00 GEAR STARTER REDUCTION 1 $156.96 USD View product →
9 31110-AKC8-E00 FLYWHEEL COMP 1 $168.30 USD View product →
10 31120-ACD5-E00 STATOR COMP (D402) 1 $179.01 USD View product →
11 31210-LEA7-E00 MOTOR UNIT..STARTER 1 $454.98 USD View product →
12 32410-BAA7-E00 CABLE. START MOTOR 1 $121.41 USD View product →
13 90001-GBHB-661 BOLT FLANGE SH 6*22 2 $4.92 USD View product →
14 90201-KHR8-75A NUT FLANGE 14MM 1 $9.39 USD View product →
15 90401-KKJ9-001 WASHER THRUST 14*28*2 1 $5.67 USD View product →
16 91309-4E25-004 O-RING 24.4*3.1 1 $4.92 USD View product →
17 92101-05012-0G BOLT HEX 5X12 2 $11.46 USD View product →
18 92101-05032-0G BOLT HEX 5*32 1 $0.99 USD View product →
19 93500-03010-0F SCREW PAN 3X10 1 $0.99 USD View product →
20 93600-06032-0F SCREW FLAT 6*32 2 $0.99 USD View product →
21 94303-04065 DOWEL PIN 4X6.5 1 $5.43 USD View product →
22 94510-10000 CIR CLIP EX 10MM 1 $4.92 USD View product →
23 96001-06012-06 BOLT FLANGE SH 6*12 2 $1.95 USD View product →
24 96600-08015-16 SOCKET BOLT 8*15 4 $21.60 USD View product →

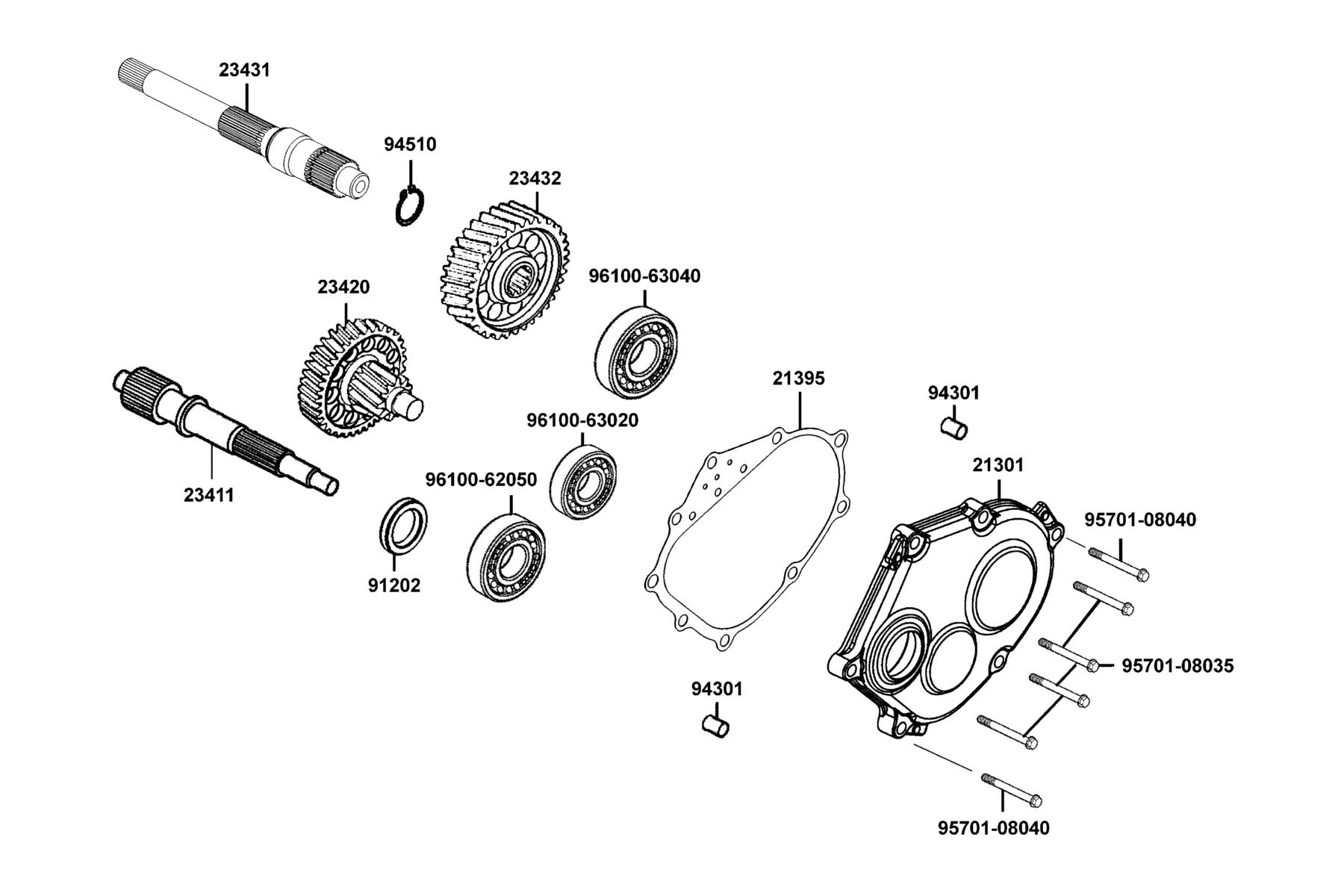

E08 — Shaft Reduction

#PartNameQtyPrice
1 21301-LEA7-E00 COVER MISSION 1 $284.91 USD View product →
2 21395-LEA7-E00 GASKET MISSION COVER 1 $59.70 USD View product →
3 23411-LEA7-E00 SHAFT DRIVE 1 $179.79 USD View product →
4 23420-LEA7-E00 SHAFT COMP COUNTER 1 $316.68 USD View product →
5 23431-LEA7-E00 SHAFT FINAL 1 $200.58 USD View product →
6 23432-LEA7-E00 GEAR FINAL 1 $176.55 USD View product →
7 91202-LEA7-E0A OIL SEAL 25*35*6 1 $37.80 USD View product →
8 94301-10160 DOWEL PIN 10*16 2 $3.00 USD View product →
9 94510-25000 CIR CLIP EX 25 1 $3.78 USD View product →
10 95701-08035-06 BOLT FLANGE 8*35 7 $5.88 USD View product →
11 95701-08040-06 BOLT FLANGE 8X40 2 $9.06 USD View product →
12 96100-62050-00 BEARING BALL RADIAL 6205 1 $58.29 USD View product →
13 96100-63020-00 BRG BALL RADIAL 6302 1 $47.01 USD View product →
14 96100-63040-00 BRG BALL RADIAL 6304 1 $53.61 USD View product →

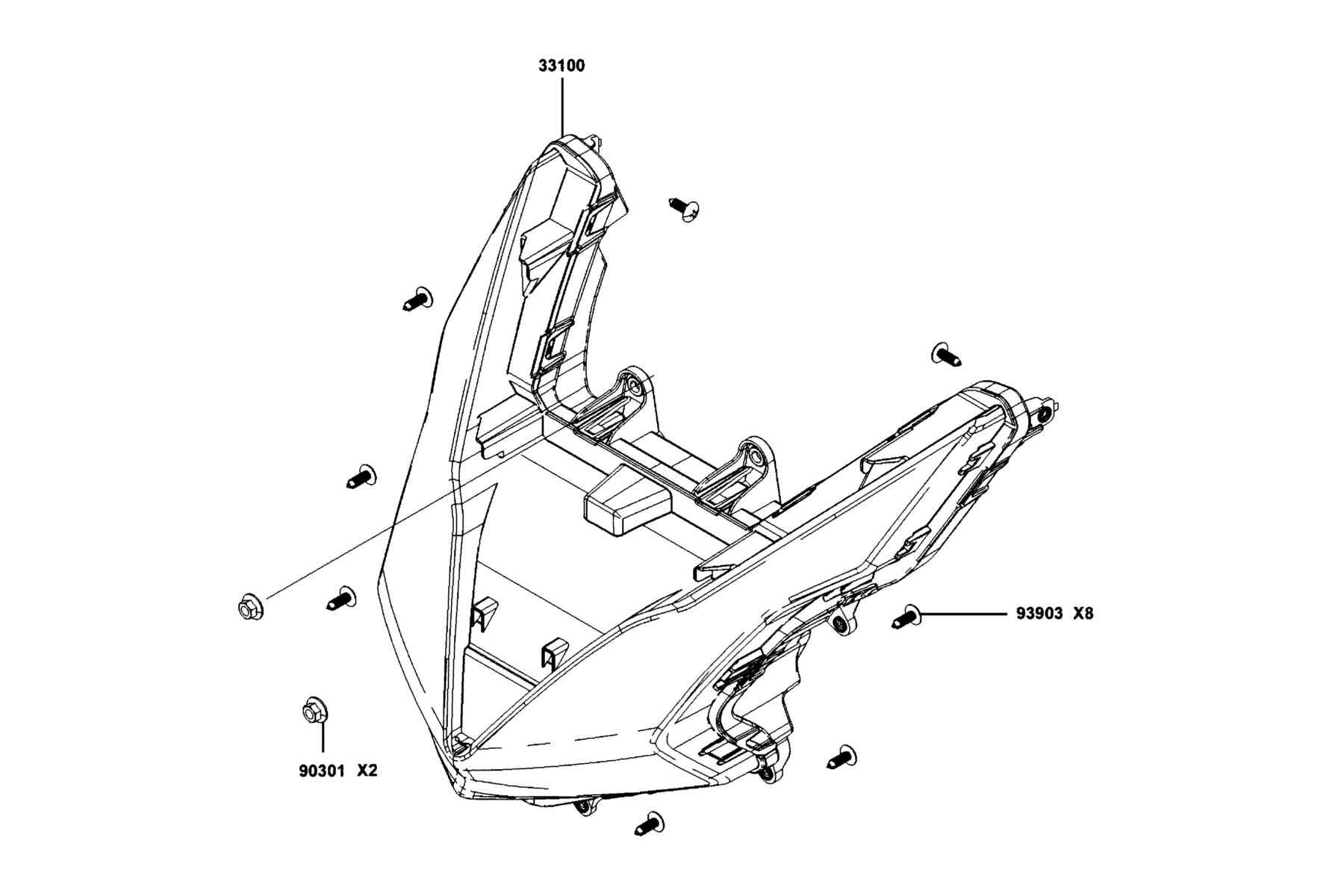

F01 — Head Light

#PartNameQtyPrice
1 33100-BAA7-M30 LIGHT UNIT.HEAD 1 — Part details →
2 90301-6D34-671 NUT FLANGE 6MM 2 $3.00 USD View product →
3 93903-25260 SCREW TAPPING 5*12 8 $1.86 USD View product →

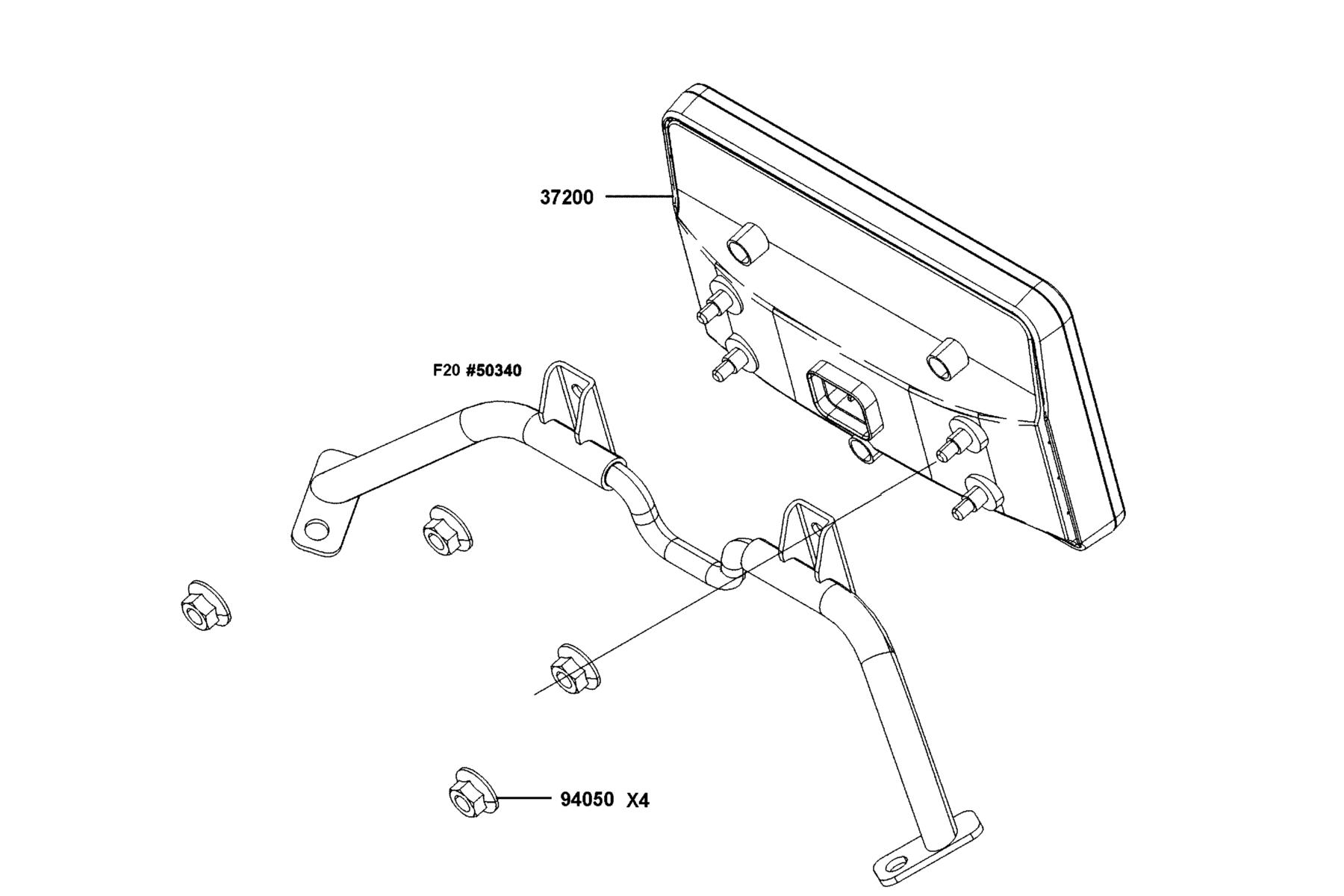

F02 — Speed meter

#PartNameQtyPrice
1 37200-BAA7-M30 METER ASSY SPEED 1 $436.26 USD View product →
2 94050-06060 NUT FLANGE 6MM 4 $4.92 USD View product →

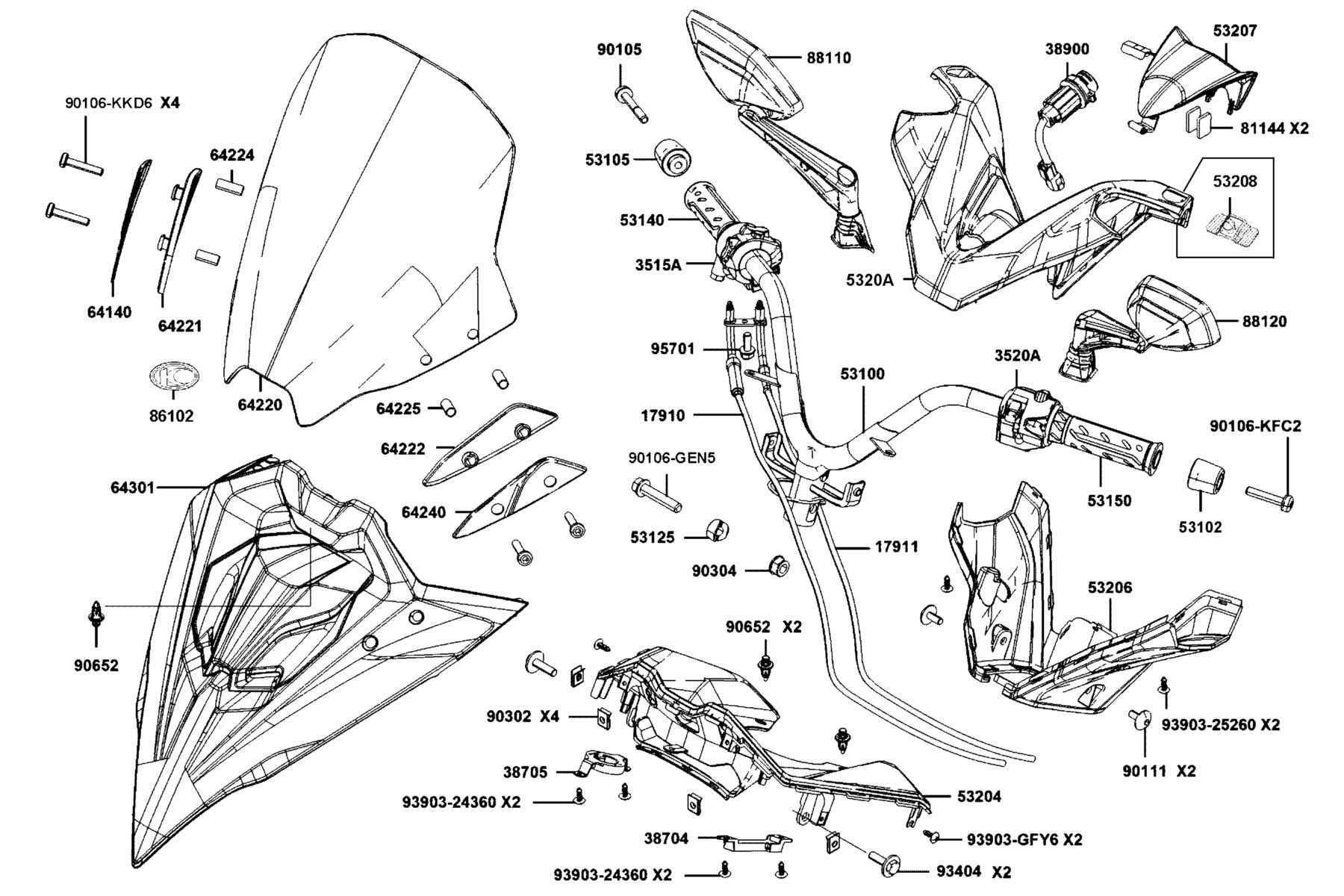

F03 — Handle Steering

#PartNameQtyPrice
1 17910-ACD5-E10 CABLE A COMP THROT 1 $82.74 USD View product →
2 17911-ACD5-E10 CABLE B COMP THROT 1 $67.95 USD View product →
3 3515A-BAA7-E00 SW ASSY RH HANDLE COMP 1 $135.03 USD View product →
4 3520A-AEE2-600 SW. ASSY.. LH. HANDLE COMP 1 — Part details →
5 38704-AGE2-E00 ANTENNA COMP LONG RANGE 1 $115.23 USD View product →
6 38705-AGJ5-E00 ANTENNA COMP SHORT RANGE 1 $61.71 USD View product →
7 38900-BBB3-900 USB POWER SOURCE 1 $174.78 USD View product →
8 53100-BAA7-E00 HANDLE COMP STRG 1 $140.07 USD View product →
9 53102-LEA5-E00-NES END HANDLE 1 $50.82 USD View product →
10 53105-LEA5-E00-NES END R STRG HANDLE 1 $50.82 USD View product →
11 53125-LEA7-E00 COLLAR 1 $32.46 USD View product →
12 53140-LHJ3-900-N1R GRIP COMP THROT (Black) 1 $42.78 USD View product →
13 53150-LEA6-900-N1R GRIP COMP L HANDLE (Black) 1 $28.05 USD View product →
14 53204-BAA7-E00-N1P LEG SHIELD UP 1 — Part details →
15 53206-BAA7-E00-N1R COVER HANDLE LOW (Black) 1 $53.16 USD View product →
16 53207-BAA7-E00-JEP TOP COVER HANDLE COVER 1 — Part details →
17 53208-BAA7-E00 HANDLE COVER RUBBER 1 — Part details →
18 5320A-BAA7-E00-N1R COVER HANDLE UP ASSY (Black) 1 — Part details →
19 64140-BAA7-E00 COVER R WIND SCREEN 1 — Part details →
20 64220-BAA7-E00 WIND SCREEN 1 $258.06 USD View product →
21 64221-BAA7-E00 RUBBER R WIND SCREEN 1 $59.73 USD View product →
22 64222-BAA7-E00 RUBBER L WIND SCREEN 1 $59.73 USD View product →
23 64224-BAA7-E00 COLLAR WIND SCREEN 1 $14.04 USD View product →
24 64225-BAA7-E00 COLLAR WIND SCREEN 1 — Part details →
25 64240-BAA7-E00 COVER L WIND SCREEN 1 — Part details →
26 64301-BAA7-E00-N1P COVER A FRONT 1 $131.01 USD View product →
27 81144-AKD3-900 STEEL MAGNET 1 — Part details →
28 86102-AEE2-500-T01 STRIPE K-LOGO 1 — Part details →
29 88110-BAA7-M30 MIRROR ASSY R BACK 1 $128.19 USD View product →
30 88120-BAA7-M30 MIRROR ASSY L BACK 1 $114.90 USD View product →
31 90105-KHB4-900 BOLT WASH M8*60 1 $21.21 USD View product →
32 90106-GEN5-901 BOLT FLANGE 10*50 1 $15.06 USD View product →
33 90106-KFC2-900 BOLT-WASH 8MM 1 $10.80 USD View product →
34 90106-KKD6-E00 BOLT SPECIAL 8*42 4 $27.39 USD View product →
35 90111-LGC6-E01 SCREW PAN 6X14 2 $3.66 USD View product →
36 90302-SA4-0040 NUT SPRING 4MM 4 $4.26 USD View product →
37 90304-LEA1-900 NUT U FLANGE 10MM 1 $11.31 USD View product →
38 90652-LFB5-900 CLIP MUDGUARD 3 $7.17 USD View product →
39 93404-06012-07G 0 2 $1.32 USD View product →
40 93903-24360 SCREW TAPPING 4*12 4 $4.92 USD View product →
41 93903-25260 SCREW TAPPING 5*12 2 $1.86 USD View product →
42 93903-GFY6-900 SCREW TAPPING 4*14 2 $2.61 USD View product →
43 95701-06012-06 BOLT FLANGE 6X12 1 $1.86 USD View product →

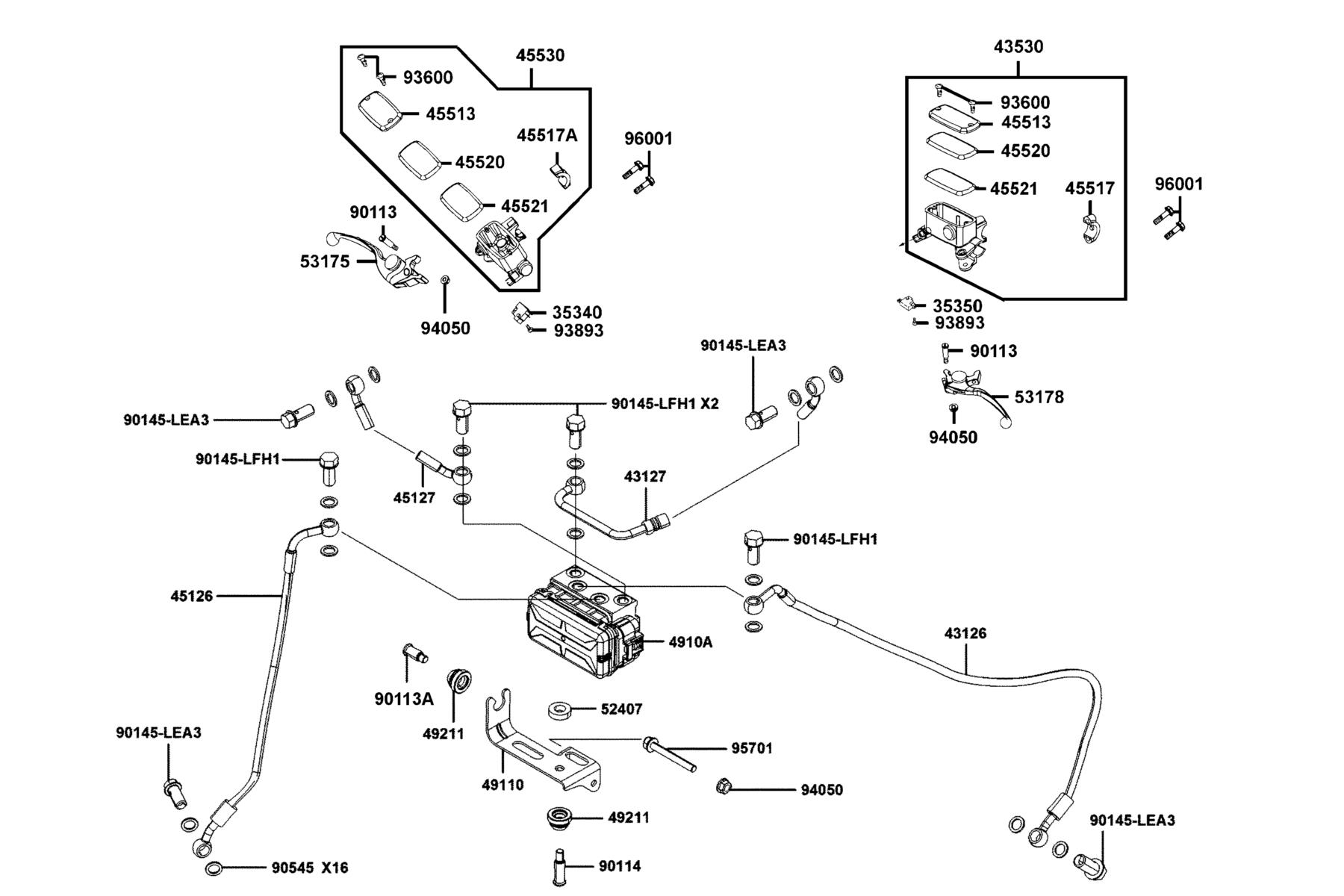

F04 — Master Cylinder

#PartNameQtyPrice
1 35340-LKF5-E01 SW ASSY FR STOP 1 $107.22 USD View product →
2 35350-LKF5-E01 SW ASSY RR STOP 1 $107.22 USD View product →
3 43126-BAA7-E00 HOSE COMP A RR BRK 1 — Part details →
4 43127-BAA7-E00 HOSE COMP B RR BRK 1 — Part details →
5 43530-LEA7-305 CYLINDER SET MASTER 1 $300.42 USD View product →
6 45126-BAA7-E00 HOSE COMP A FR BRK 1 $53.79 USD View product →
7 45127-BAA7-E00 HOSE COMP FR BRK 1 — Part details →
8 45513-LEA7-E00 CAP MASTER CYLINDER 2 $47.01 USD View product →
9 45517-LBA2-E00 HOLDER M/C 2 $36.36 USD View product →
10 45517-LKF5-E00 HOLDER M/C 1 $29.10 USD View product →
11 45520-KKA8-900 DIAPHRAGM 2 $42.30 USD View product →
12 45521-LEA7-E00 PLATE DIAPHRAGM 2 $37.65 USD View product →
13 45530-LBA2-308 CYLINDER SET FR MASTER 1 $210.42 USD View product →
14 4910A-BAA7-E00 MODULATOR ASSY ABS WITH VARIANT CODING 1 — Part details →
15 49110-AEE2-700 STAY ABS 1 $38.52 USD View product →
16 49211-LFH1-E00 RUBBER BUSH| 1 $13.11 USD View product →
17 52407-LLB1-900 RUBBER RR CUSH 1 $4.17 USD View product →
18 53175-LKF5-E00-M3A LEVER R STRG HANDLE 1 $145.32 USD View product →
19 53178-LKF5-E00-M3A LEVER L STRG HANDLE 1 $145.32 USD View product →
20 90113-KKA8-900 BOLT L STEERING HANDLE 2 $9.39 USD View product →
21 90113-LGE5-E01 BOLT FLANGE 6X20 ABS 1 $26.37 USD View product →
22 90114-LGE5-E01 BOLT FLANGE 6X30.5 ABS 1 $27.39 USD View product →
23 90145-LEA3-E00 OIL BOLT 10*22 4 $22.86 USD View product →
24 90145-LFH1-E00 OIL BOLT 10x22 4 $29.52 USD View product →
25 90545-3L00-001 WASHER OIL BOLT 16 $2.91 USD View product →
26 90545-3L00-001(wrong) WASHER OIL BOLT 16 $3.78 USD View product →
27 93600-04012-1G SCREW FLAT 4*12 4 $5.67 USD View product →
28 93893-04012-18 SCREW WASHER 4*12 2 $1.86 USD View product →
29 94050-06060 NUT FLANGE 6MM 2 $4.92 USD View product →
30 95701-06050-06 BOLT FLANGE 6*50 1 $4.92 USD View product →
31 96001-06028-06 BOLT FLANGE SH 6*28 4 $1.95 USD View product →

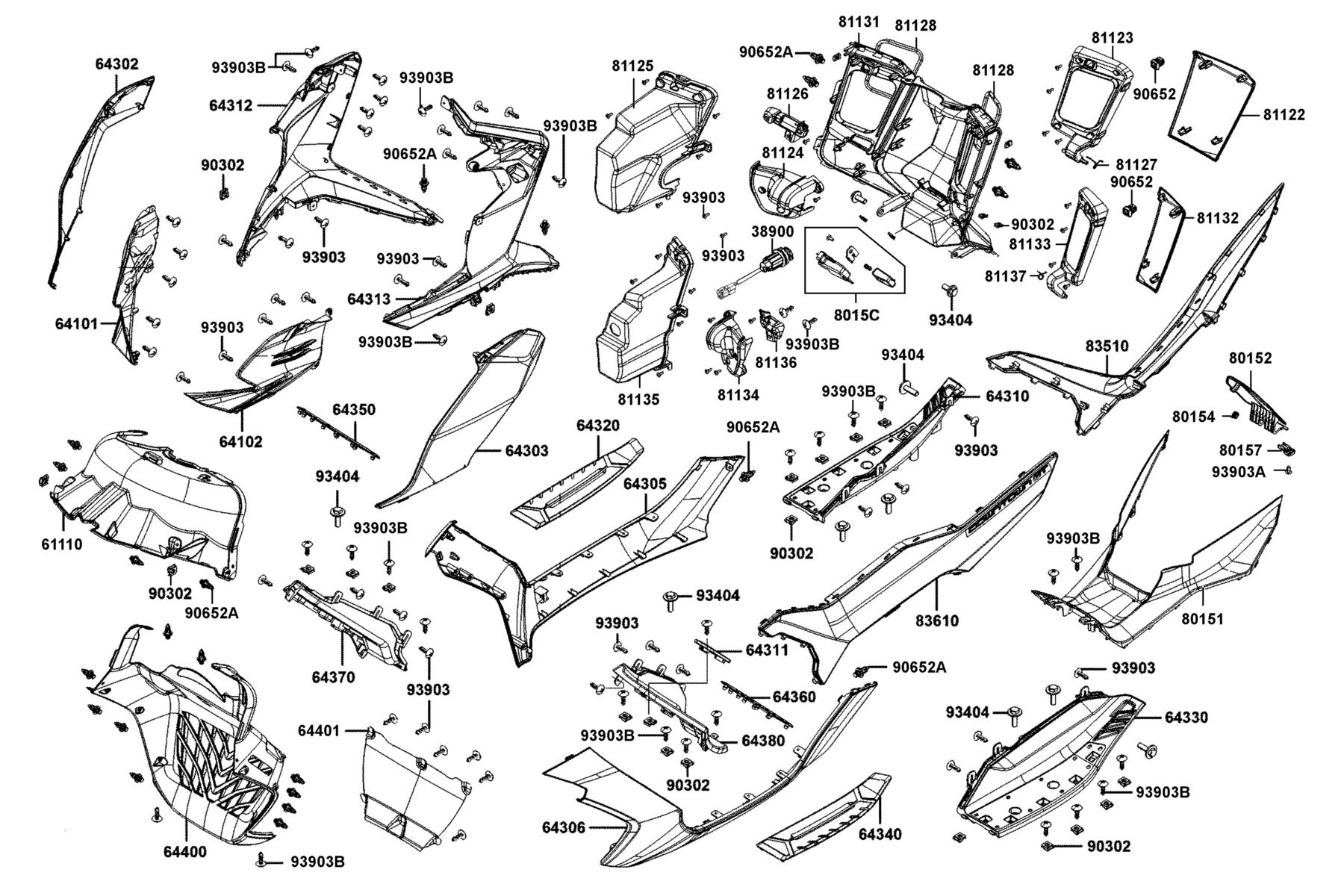

F05 — Fender Front

#PartNameQtyPrice
1 38900-ACD5-E00 CONTROLLER USB CHARGER 1 $112.29 USD View product →
2 61110-BAA7-E00-N1R FENDER FRONT INNER (Black) 1 — Part details →
3 64101-BAA7-E00-N1P COVER B FRONT R SIDE 1 — Part details →
4 64102-BAA7-E00-N1P COVER B FRONT L SIDE 1 — Part details →
5 64302-BAA7-E00-NEP MOLDING A R SIDE 1 $168.03 USD View product →
6 64303-BAA7-E00-NEP MOLDING A L SIDE 1 $177.36 USD View product →
7 64305-BAA7-E00-NEP SKIRT R SIDE 1 $112.32 USD View product →
8 64306-BAA7-E00-NEP SKIRT L SIDE 1 $112.32 USD View product →
9 64310-BAA7-E00-N1R PANEL A R FLOOR (Black) 1 $5.94 USD View product →
10 64311-BAA7-E00-N1R LID RESERVE TANK (Black) 1 $6.90 USD View product →
11 64312-BAA7-E00-N1P MOLDING B R SIDE 1 $89.37 USD View product →
12 64313-BAA7-E00-N1P MOLDING B L SIDE 1 $89.37 USD View product →
13 64320-BAA7-E00-N1R MAT R FLOOR (Black) 1 $39.69 USD View product →
14 64330-BAA7-E00-N1R PANEL A L FLOOR (Black) 1 $24.24 USD View product →
15 64340-BAA7-E00-N1R MAT L FLOOR (Black) 1 $20.88 USD View product →
16 64350-BAA7-E00-N1R MAT R LEG SHIELD (Black) 1 $13.77 USD View product →
17 64360-BAA7-E00-N1R MAT L LEG SHIELD (Black) 1 $10.95 USD View product →
18 64370-BAA7-E00-N1R PANEL B R FLOOR (Black) 1 $24.36 USD View product →
19 64380-BAA7-E00-N1R PANEL B L FLOOR (Black) 1 $24.36 USD View product →
20 64400-BAA7-E00-N1R COWL UNDER (Black) 1 $101.07 USD View product →
21 64401-BAA7-E00 MESH UNDER COWL 1 $65.13 USD View product →
22 80151-BAA7-E00-N1R COVER A CENTER (Black) 1 — Part details →
23 80152-BAA7-E00-N1R LID FUEL CAP MAINT (Black) 1 — Part details →
24 80154-BAC8-E00 SPRING 1 — Part details →
25 80157-BAA7-E00 HOLDER LID FUEL CAP MAINT 1 — Part details →
26 8015C-BAA7-E00-N1R LOCK ASSY FR BOX (Black) 1 — Part details →
27 81122-BAA7-E00-N1R LID R FR INNER BOX (Black) 1 — Part details →
28 81123-BAA7-E00-N1R HINGE R FR INNER BOX (Black) 1 — Part details →
29 81124-BAA7-E00-N1R LID A R INNER BOX HINGE (Black) 1 — Part details →
30 81125-BAA7-E00 BOX R FR INNER BOX 1 — Part details →
31 81126-BAA7-E00 LID B R INNER BOX HINGE 1 — Part details →
32 81127-BAA7-E00 SPRING R FR INNER BOX 1 — Part details →
33 81128-BAA7-E00 SPONGE FR INNER BOX 1 — Part details →
34 81131-BAA7-E00-N1R LEG SHIELD LOW (Black) 1 — Part details →
35 81132-BAA7-E00-N1R LID L FR INNER BOX (Black) 1 — Part details →
36 81133-BAA7-E00-N1R HINGE L FR INNER BOX (Black) 1 — Part details →
37 81134-BAA7-E00-N1R LID A L INNER BOX HINGE (Black) 1 — Part details →
38 81135-BAA7-E00 BOX L FR INNER BOX 1 — Part details →
39 81136-BAA7-E00 LID B L INNER BOX HINGE 1 — Part details →
40 81137-BAA7-E00 SPRING L FR INNER BOX 1 — Part details →
41 83510-BAA7-E00-N1P BOARD A R SIDE 1 — Part details →
42 83610-BAA7-E00-N1P BOARD A L SIDE 1 — Part details →
43 90302-SA4-0040 NUT SPRING 4MM 19 $4.26 USD View product →
44 90652-BAB7-900 D.C. LATCH ASSY 2 — Part details →
45 90652-LFB5-900 CLIP MUDGUARD 22 $7.17 USD View product →
46 93404-06012-07G 0 10 $1.32 USD View product →
47 93903-24360 SCREW TAPPING 4*12 66 $4.92 USD View product →
48 93903-25260 SCREW TAPPING 5*12 2 $1.86 USD View product →
49 93903-GFY6-900 SCREW TAPPING 4*14 31 $2.61 USD View product →

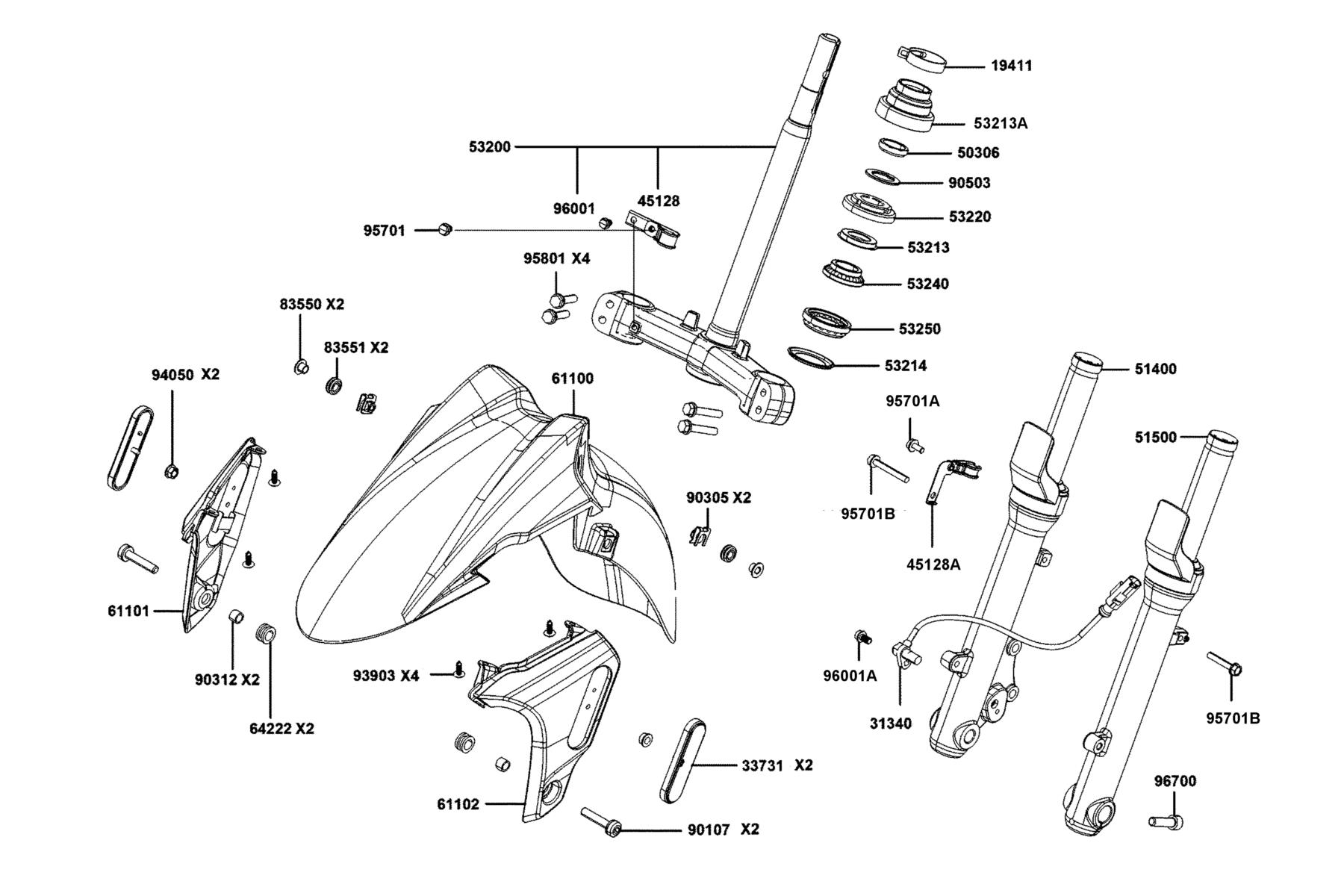

F06 — Stem Steering

#PartNameQtyPrice
1 19411-LFG2-E00 CLIP HOSE 1 $22.17 USD View product →
2 31340-LEA7-E00 SENSOR FR WHEEL SPEED 1 $139.17 USD View product →
3 33731-PUA6-MX0 REFLEX REFLECTOR 2 $19.26 USD View product →
4 45128-BAA7-E00 CLAMPER FR BRK HOSE(STEM) 1 — Part details →
5 45128-LBA2-920 CLAMPER FR BRK HOSE 1 $22.92 USD View product →
6 50306-1F96-001 NUT STRG STEM LOCK 1 $17.28 USD View product →
7 51400-BAA7-E00-NEA FORK ASSY FR R 1 $351.09 USD View product →
8 51500-BAA7-E00-NEA FORK ASSY FR L 1 $340.38 USD View product →
9 53200-BAA7-E00 STEM COMP STRG 1 $213.18 USD View product →
10 53213-LBA2-E00 DUST SEAL STRG HEAD TOP 1 $11.31 USD View product →
11 53213-LEA7-E00 DUST SEAL. STRG 1 $25.23 USD View product →
12 53214-LBA2-E00 DUST SEAL STRG (HEAD) 1 $13.17 USD View product →
13 53220-LBA2-E00 THREAD COMP STRG HEAD TOP 1 $37.86 USD View product →
14 53240-LEA7-90A BEARING TOP STRG 1 $78.84 USD View product →
15 53250-LEA7-90A BEARING BOT STRG 1 $78.84 USD View product →
16 61100-BAA7-E00-D02 FENDER FRONT 1 $163.17 USD View product →
17 61101-BAA7-E00-NEP FENDER COVER R SIDE 1 $52.62 USD View product →
18 61102-BAA7-E00-NEP FENDER COVER L SIDE 1 $38.25 USD View product →
19 64222-LLJ3-E00 RUBBER WIND SCREEN 2 $3.66 USD View product →
20 83550-KEC8-900 COLLAR 2 $10.35 USD View product →
21 83551-KEC8-900 GROMMET COVER 2 $6.09 USD View product →
22 90107-LEA7-E00 BOLT SPECIAL 8MM 2 $25.65 USD View product →
23 90305-LBA2-E00 NUT CLIP 6MM 2 $3.78 USD View product →
24 90312-LLJ3-E01 COLLAR WIND SCREEN 2 $7.53 USD View product →
25 90503-LEA7-E00 WASHER STRG STEM NUT 1 $23.31 USD View product →
26 93903-24360 SCREW TAPPING 4*12 4 $4.92 USD View product →
27 94050-06080 NUT FLANGE 6MM 2 $2.31 USD View product →
28 95701-06008-06 BOLT FLANGE 6X8 1 $4.92 USD View product →
29 95701-06012-06 BOLT FLANGE 6X12 1 $1.86 USD View product →
30 95701-06050-06 BOLT FLANGE 6*50 2 $4.92 USD View product →
31 95801-08040-06 BOLT FLANGE 8*40 1 $6.54 USD View product →
32 96001-06010-06 BOLT FLANGE 6*10 1 $1.95 USD View product →
33 96001-06012-06 BOLT FLANGE SH 6*12 1 $1.95 USD View product →
34 96700-KED9-900 BOLT SOCKET 8*30 1 $4.92 USD View product →

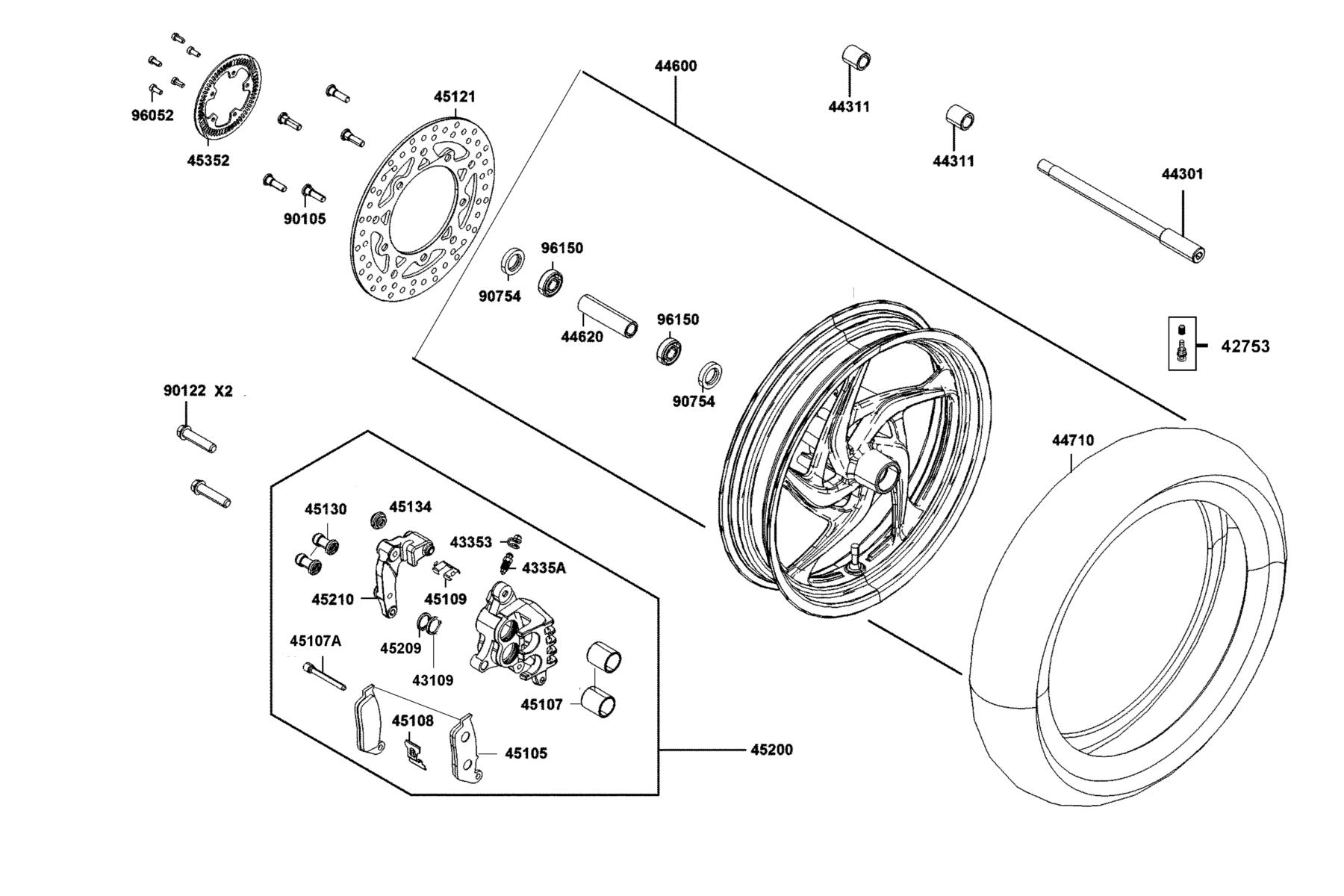

F07 — Front Wheel

#PartNameQtyPrice
1 42753-KNBN-90B VALVE RIM (TR412) 1 $17.70 USD View product →
2 43109-MCA3-007 DUST SEAL 1 $8.67 USD View product →
3 43353-KED9-900 CAP BLEEDER 1 $5.67 USD View product →
4 4335A-LBA2-E01 BLEEDER ASSY 1 $39.72 USD View product →
5 44301-BAA7-E00 AXLE FR WHEEL 1 $42.39 USD View product →
6 44311-LEA7-E00 COLLAR FR WHEEL SIDE 2 $35.85 USD View product →
7 44600-BAA7-305-N1A WHEEL SET FR CAST 1 — Part details →
8 44620-BAA7-E00 COLLAR FR DIST 1 $16.38 USD View product →
9 44710-LKF5-E00 TIRE ASSY FR(120/70-15 56S) 1 $496.35 USD View product →
10 45105-LEA7-305 PAD SET 1 $137.76 USD View product →
11 45107-KED9-900 PISTON C/P (??27MM) 1 $72.21 USD View product →
12 45107-LEA7-E00 PIN HANGER 1 $66.21 USD View product →
13 45108-LEA7-E00 SPRING PAD 1 $57.84 USD View product →
14 45109-KED9-900 SLIDE PAD 1 $9.39 USD View product →
15 45121-BAA7-E00 DISK FR BRK 1 $131.76 USD View product →
16 45130-KED9-900 BUSH PIN 2 $11.31 USD View product →
17 45134-KED9-900 BOOT B 1 $15.63 USD View product →
18 45200-LEA7-E00-NEA CALIPER ASSY FR 1 $332.76 USD View product →
19 45209-KED9-900 SEAL PISTON 1 $36.24 USD View product →
20 45352-BAA7-E00 TOOTHED RING FR SENSOR 1 — Part details →
21 90105-KCR3-001 BOLT FR DISK 8*24 5 $11.94 USD View product →
22 90105-KCR3-001-invalid BOLT FR DISK 8*24 5 $15.51 USD View product →
23 90122-LEA7-E00 BOLT FLANGE 10X42 2 $25.65 USD View product →
24 90754-LLB1-900 DUST SEAL 22*35*7 2 $0.93 USD View product →
25 96052-PRA1-E00 BOLT M5*16 5 $0.87 USD View product →
26 96150-62020-10 BEARING BALL RADIAL 6202 2 $44.07 USD View product →

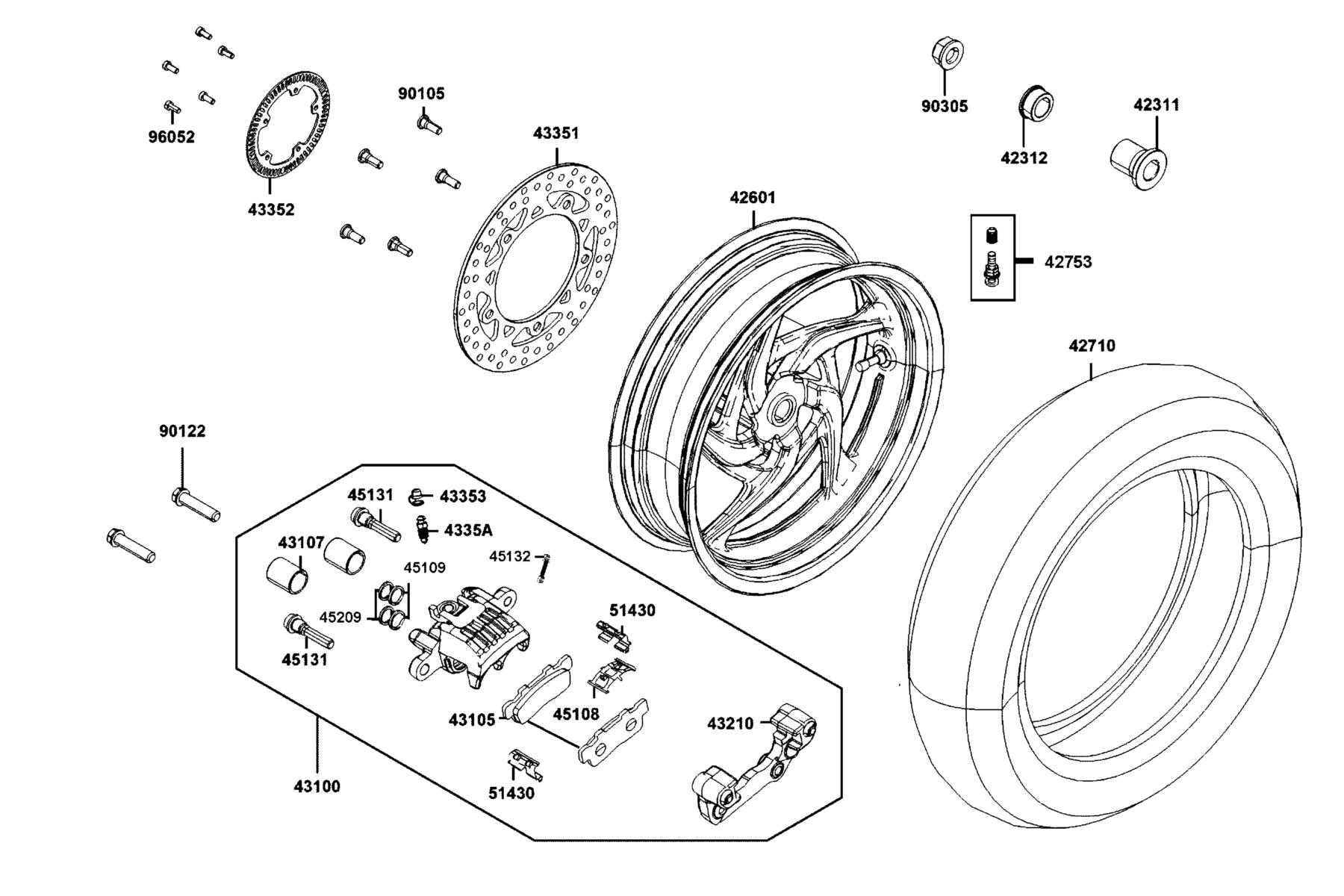

F08 — Rear Wheel

#PartNameQtyPrice
1 42311-LEA7-E00 COLLAR RR AXLE SIDE A 1 $49.26 USD View product →
2 42312-LEA7-E00 COLLAR RR AXLE SIDE 1 $40.38 USD View product →
3 42601-BAA7-E00-N1A WHEEL COMP RR 1 $302.58 USD View product →
4 42710-BAA7-E00 TIRE ASSY RR 140/70-14 1 — Part details →
5 42753-KNBN-90B VALVE RIM (TR412) 1 $17.70 USD View product →
6 43100-LEA7-E01-NEA CALIPER ASSY RR 1 $485.85 USD View product →
7 43105-LEA7-306 PAD COMP 1 — Part details →
8 43107-LEA7-E00 PISTON C/P (Ø25.4MM) 2 — Part details →
9 43210-LEA7-E00 BRACKET 1 $120.90 USD View product →
10 43351-BAA7-E00 DISK RR BRK 1 $146.10 USD View product →
11 43352-BAA7-E00 TOOTHED RING REAR SENSOR 1 — Part details →
12 43353-4A61-77A CAP BLEEDER 1 $5.67 USD View product →
13 4335A-LBA2-E01 BLEEDER ASSY 1 $39.72 USD View product →
14 45108-LDH1-E00 PAD SPRING 1 $16.38 USD View product →
15 45109-GBE2-007 DUST SEAL 1 $14.31 USD View product →
16 45131-LDH1-E00 PIN BOLT 1 $36.24 USD View product →
17 45132-LDH1-E00 BOOT 1 $23.40 USD View product →
18 45209-GBE2-007 SEAL PISTON 1 $21.84 USD View product →
19 51430-LEA7-E00 SLIDE PAD 2 $17.37 USD View product →
20 90105-KCR3-001 BOLT FR DISK 8*24 5 $11.94 USD View product →
21 90105-KCR3-001-invalid BOLT FR DISK 8*24 5 $15.51 USD View product →
22 90122-LEA7-E00 BOLT FLANGE 10X42 2 $25.65 USD View product →
23 90305-KKAK-900 NUT U 16MM 1 $22.38 USD View product →
24 96052-PRA1-E00 BOLT M5*16 5 $0.87 USD View product →

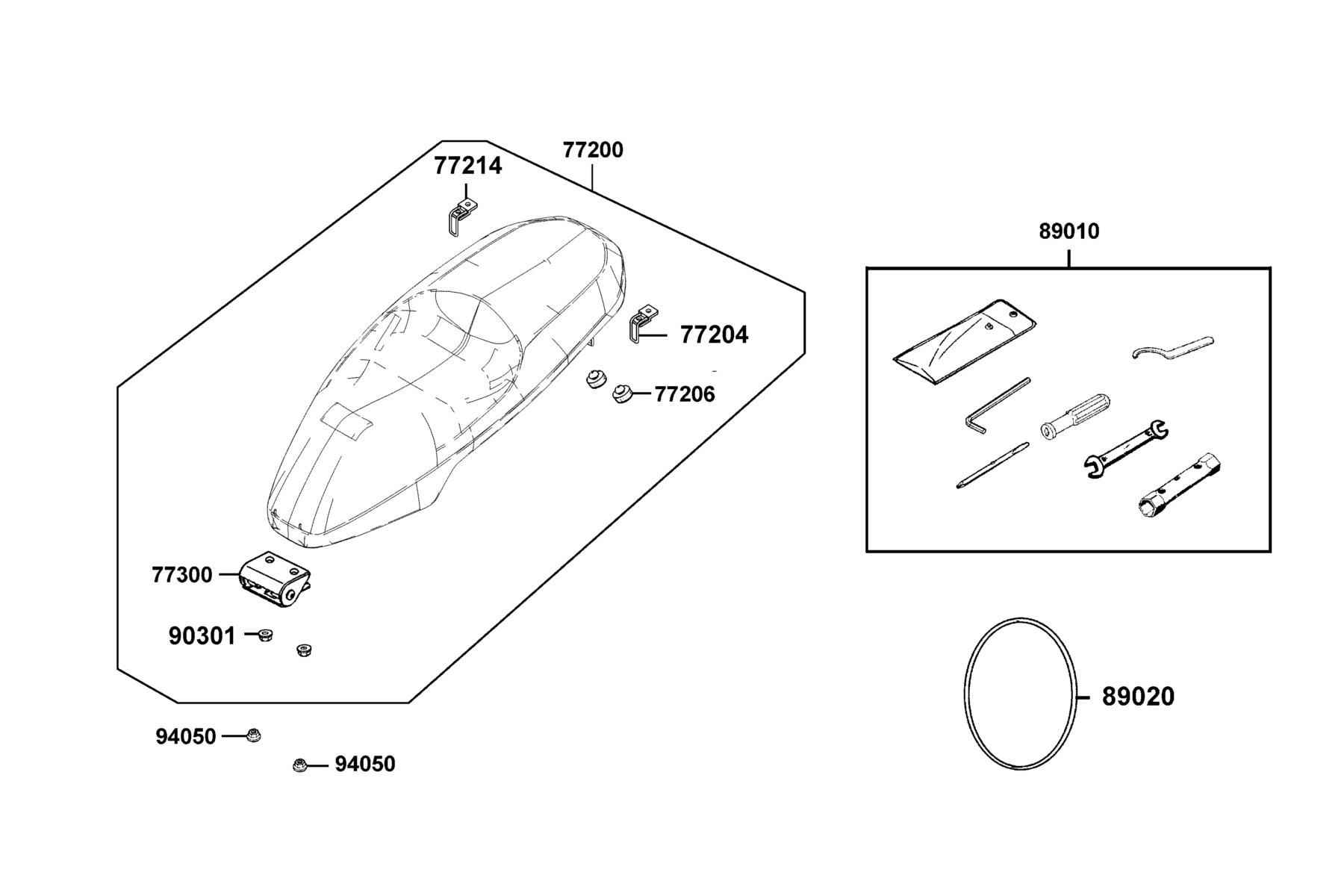

F09 — Seat

#PartNameQtyPrice
1 77200-BAA7-E00-T01 SEAT ASSY 1 $462.18 USD View product →
2 77204-BAA7-E00 HOOK SEAT L LOCK 1 — Part details →
3 77206-LKB9-900 RUBBER SEAT CUSH 2 $4.77 USD View product →
4 77214-BAA7-E00 HOOK SEAT R LOCK 1 — Part details →
5 77300-BAA7-E00 HINGE ASSY 1 — Part details →
6 89010-ACD5-E00 TOOL SET 1 $70.83 USD View product →
7 89020-KKC4-900 BAND TOOL SET 1 $3.00 USD View product →
8 90301-LAC5-681 NUT FLANGE 6MM (KG) 2 — Part details →
9 94050-06080 NUT FLANGE 6MM 8 $2.31 USD View product →

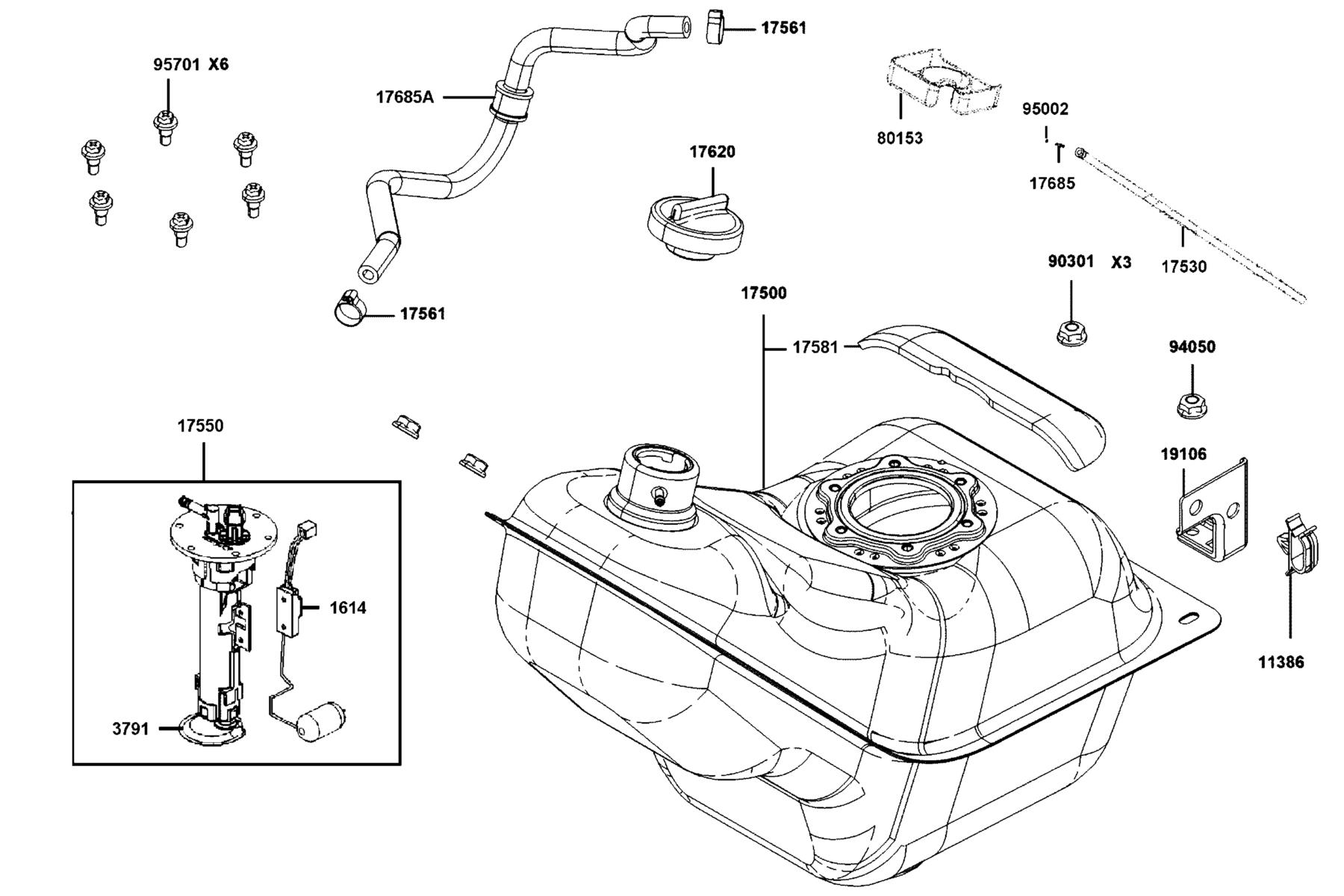

F10 — Fuel Tank

#PartNameQtyPrice
1 11386-GFY6-900 CLIP VACUUM TUBE 1 $12.09 USD View product →
2 1614-A22C-0000-Y FUEL LEVER SENSOR COMP 1 $269.52 USD View product →
3 17500-BAC8-E00 TANK COMP FUEL 1 $335.07 USD View product →
4 17530-KGB5-900 TUBE ASSY DRAIN 1 $12.45 USD View product →
5 17550-LEA7-M30 FUEL PUMP MODULE ASSY 1 $567.93 USD View product →
6 17561-LKB9-900 CLIP 12.5 2 $8.10 USD View product →
7 17581-LEA7-E00 SPONGE FUEL TANK 1 $9.51 USD View product →
8 17620-BAA7-M30 CAP COMP FUEL FILLER 1 $114.36 USD View product →
9 17685-KZCZ-900 JOINT TUBE 1 $5.67 USD View product →
10 17685-LEA7-M30 TUBE FUEL PUMP 1 $162.06 USD View product →
11 19106-BAA5-E00 STAY CLIP 1 — Part details →
12 3791-HN80-0000 FILTER COMP 1 $143.58 USD View product →
13 80153-BAC8-E00 TRAY FUEL CAP 1 — Part details →
14 90301-6D34-671 NUT FLANGE 6MM 4 $3.00 USD View product →
15 94050-06060 NUT FLANGE 6MM 1 $4.92 USD View product →
16 95002-02080 CLIP B8 TUBE 1 $1.86 USD View product →
17 95701-LDF2-800 BOLT FLANGE 5*6.5 6 $12.45 USD View product →

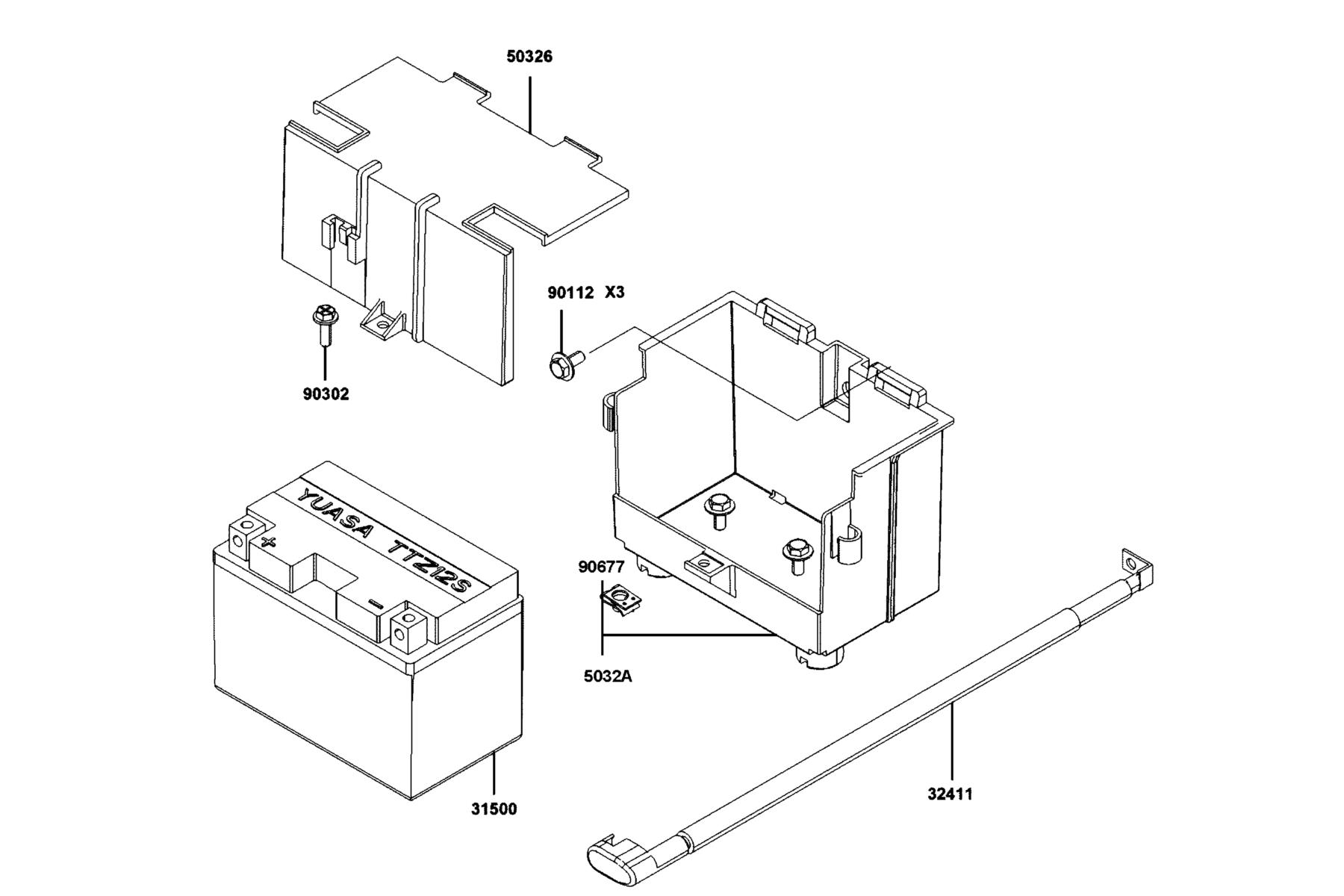

F11 — Battery

#PartNameQtyPrice
1 31500-LEA6-900 BATTERY YT12A-BS 1 $387.63 USD View product →
2 32411-BAA7-E00 CABLE BATTERY 1 $41.16 USD View product →
3 50326-BAA5-E00-N1R COVER BATTERY (Black) 1 $26.67 USD View product →
4 5032A-BAA7-E00-N1R CASE ASSY BATTERY (Black) 1 $32.13 USD View product →
5 90112-KNBN-901 BOLT FLANGE 6MM 3 $3.78 USD View product →
6 90302-GFY6-940 BOLT-WASH 5*16 4 $1.86 USD View product →
7 90677-GAR1-004 NUT CLIP 5MM 1 $3.00 USD View product →

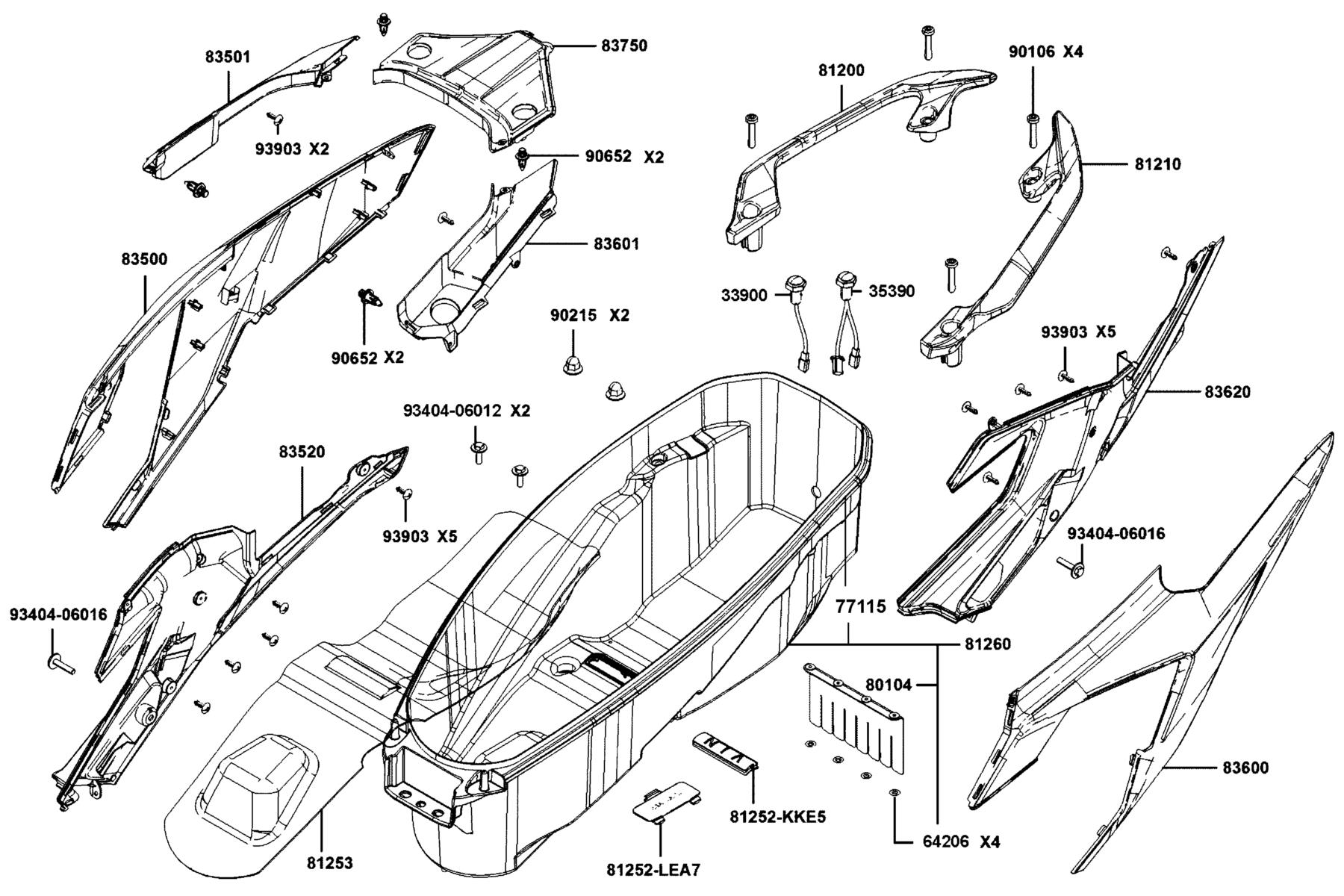

F12 — Body Cover ● Luggage Box

#PartNameQtyPrice
1 33900-BAA7-E00 LIGHT ASSY LUGGAGE BOX 1 $76.17 USD View product →
2 35390-AEE2-600 SENSOR LUGGAGE BOX LIGHT 1 $165.18 USD View product →
3 64206-MLJ0-001 NUT SPEED 4MM 4 $3.96 USD View product →
4 77115-BAA7-E00 RUBBER SEAL 1 $114.84 USD View product →
5 80104-LBA2-E00 PLATE C SPLASH GUARD 1 $37.02 USD View product →
6 81200-BAA7-E00-N1P CARRIER R REAR 1 $173.67 USD View product →
7 81210-BAA7-E00-N1P CARRIER L REAR 1 $169.53 USD View product →
8 81252-KKE5-E00 PLUG LUGGAGE BOX 1 $11.55 USD View product →
9 81252-LEA7-E00 COVER P.D.A. MAINT 1 $11.55 USD View product →
10 81253-BAA7-E00 BAG LUGGAGE 1 — Part details →
11 81260-BAA7-M30 BOX ASSY LUGGAGE 1 $147.84 USD View product →
12 83500-BAA7-E00-NEP COVER A R BODY 1 — Part details →
13 83501-BAA7-E00-N1R COVER B R BODY (Black) 1 $36.15 USD View product →
14 83520-BAA7-E00-N1R BOARD B R SIDE (Black) 1 — Part details →
15 83600-BAA7-E00-NEP COVER A L BODY 1 $172.05 USD View product →
16 83601-BAA7-E00-N1R COVER B L BODY (Black) 1 — Part details →
17 83620-BAA7-E00-N1R BOARD B L SIDE (Black) 1 — Part details →
18 83750-BAA7-E00-N1R COVER RR CENTER (Black) 1 — Part details →
19 90106-KKE5-E00 BOLT SPECIAL M8*45 1 $25.89 USD View product →
20 90215-AKD3-900 NUT CAP 6MM 2 $6.06 USD View product →
21 90652-LFB5-900 CLIP MUDGUARD 4 $7.17 USD View product →
22 93404-06012-07G 0 2 $1.32 USD View product →
23 93404-06016-07G BOLT WASHER 6*16 (KG) 2 $2.31 USD View product →
24 93903-24360 SCREW TAPPING 4*12 12 $4.92 USD View product →

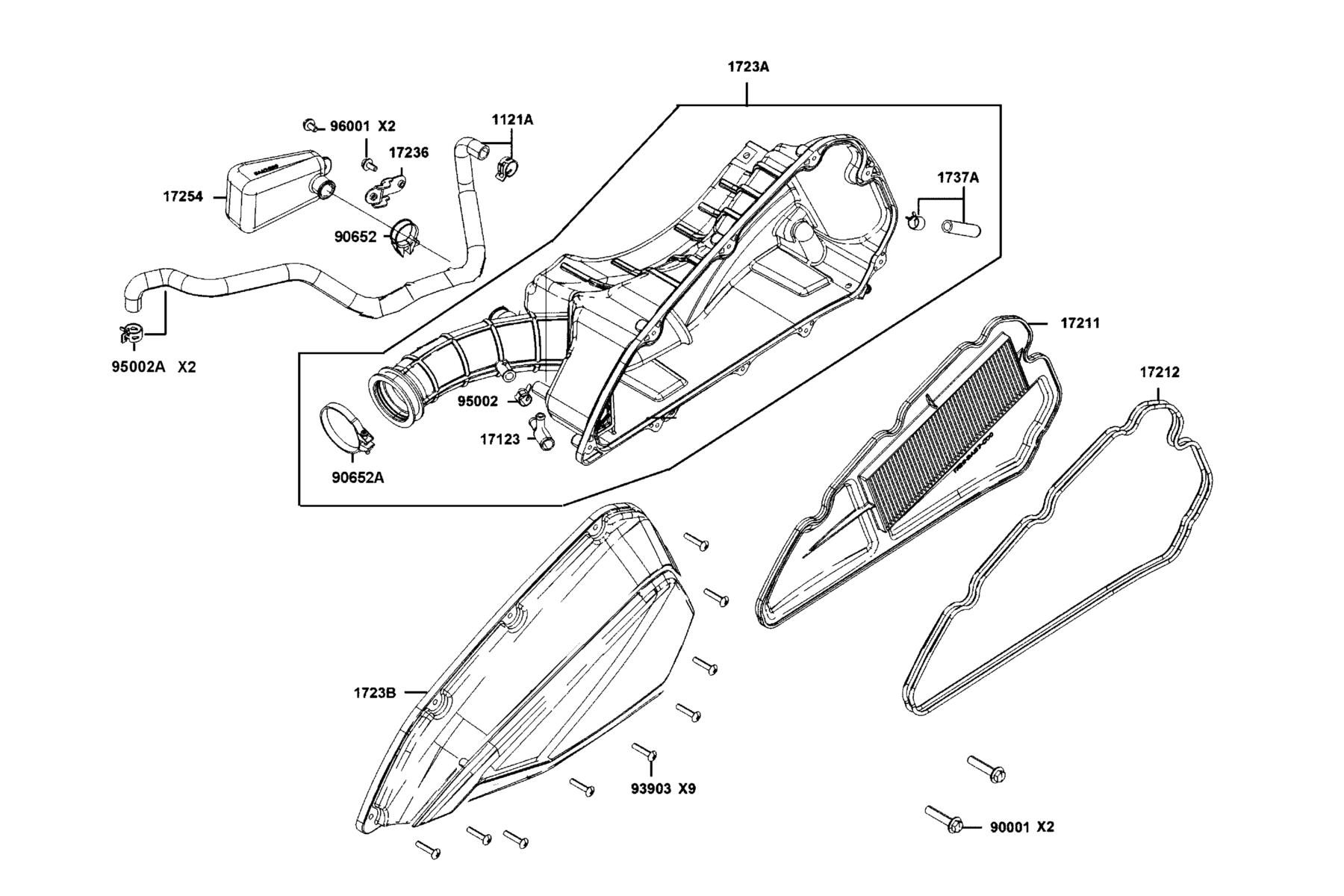

F13 — Air Cleaner

#PartNameQtyPrice
1 1121A-BAA7-E00 TUBE BREATHER 1 $56.46 USD View product →
2 17123-BAC8-E00 JOINT 3 WAY 1 $19.23 USD View product →
3 17211-BAB7-C00 ELEMENT AIR/C 1 $56.61 USD View product →
4 17212-BAA7-E00 SEAL RUBBER 2 — Part details →
5 17236-BAA7-E00 PLATE CHAMBER FIX 1 — Part details →
6 1723A-BAA7-E00 CASE COMP AIR/C 1 $164.25 USD View product →
7 1723B-BAA7-E00 COVER COMP AIR/C 1 $85.65 USD View product →
8 17254-BAA7-E00 CHAMBER NOISE SILENCE 1 — Part details →
9 1737A-BAA7-E00 V TUBE ASSY 1 $19.71 USD View product →
10 90001-GBHB-681 BOLT FLANGE SHF 6*28 2 $4.92 USD View product →
11 90652-ACD5-B80 BAND D21.5 CHAMBER 1 — Part details →
12 90652-KHE7-900 BAND CONNECTING TUBE 1 $13.17 USD View product →
13 95002-41100-04 CLIP D11 TUBE 1 $11.79 USD View product →
14 95002-LKF5-E00 CLAMP D14.6 TUBE 2 $22.23 USD View product →
15 96001-06012-08G BOLT FLANGE SH 6X12 (C) 2 $0.99 USD View product →

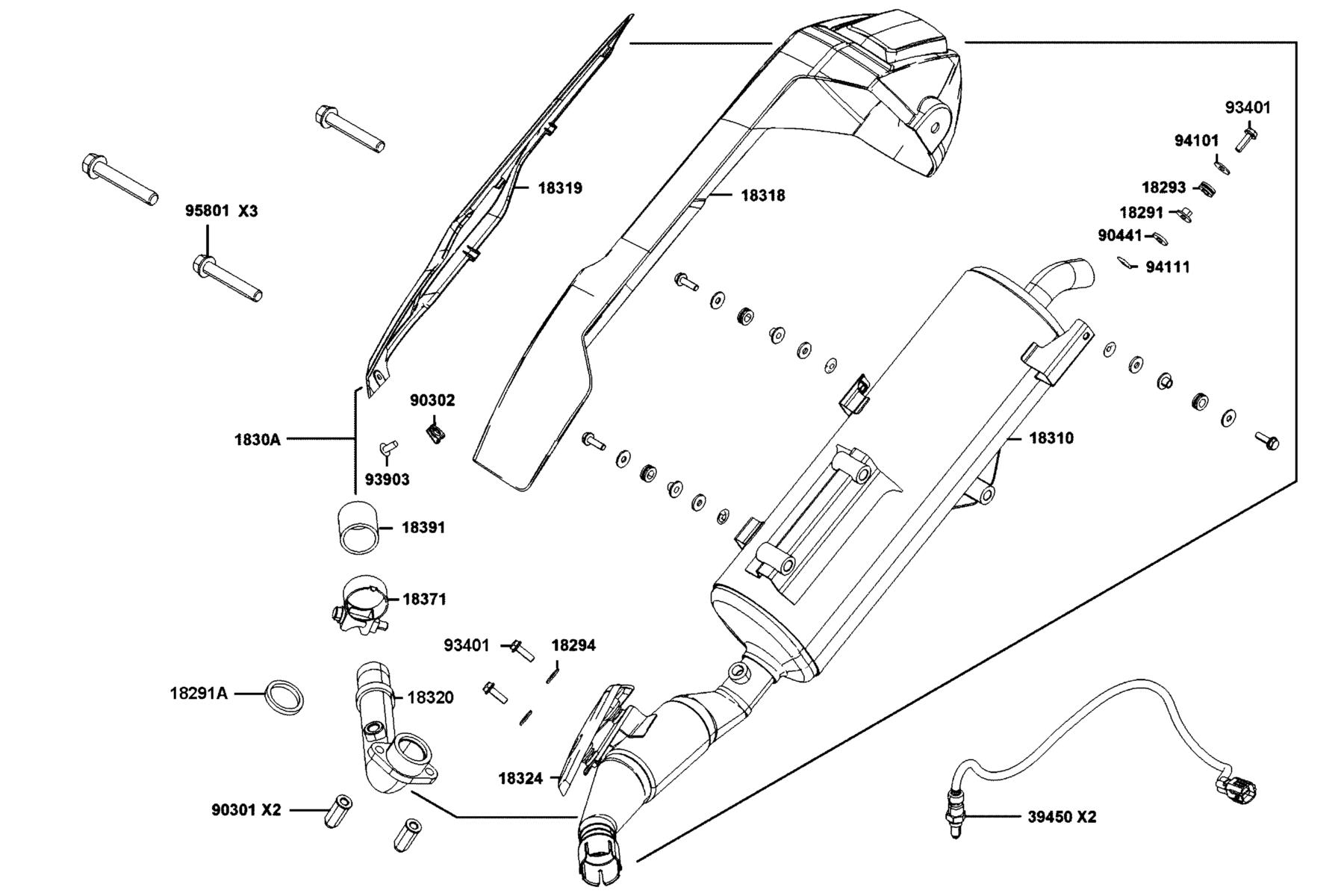

F14 — Exhaust Muffler

#PartNameQtyPrice
1 18291-LKG2-90A COLLAR 5 $2.76 USD View product →
2 18291-PWB1-910 SEAL EXHAUST PIPE 1 $21.75 USD View product →
3 18293-LHJ8-900 RUBBER PKG PROTR 5 $11.79 USD View product →
4 18294-KEBE-900 PACKING PROTECTOR 2 $12.84 USD View product →
5 18294-KEBE-900(wrong) PACKING PTOTECTOR 2 $3.78 USD View product →
6 1830A-BAA7-E00-T01 MUFFLER ASSY EXHAUST 1 $498.24 USD View product →
7 18310-BAA7-E00 MUFFLER COMP 1 $911.84 USD View product →
8 18318-BAA7-E00 PROTECTOR MUFFLER 1 $110.67 USD View product →
9 18319-BAA7-E00 PROTECTOR B MUFFLER 1 — Part details →
10 18320-BAA7-E00 PIPE EXHAUST 1 $225.03 USD View product →
11 18324-BAA7-E00 PROTECTOR EXHAUST 1 — Part details →
12 18371-ACD5-E00 BAND MUFFLER 1 $74.28 USD View product →
13 18391-ACD5-E00 GASKET 1 $106.05 USD View product →
14 39450-AEH1-900 O2 SENSOR 1 $307.47 USD View product →
15 90301-GFY6-901 NUT (HEX) CAP 8MM(C) 2 $19.26 USD View product →
16 90302-LKB9-900 NUT SPRING 5MM 1 $11.79 USD View product →
17 90441-ACD5-E00 WASHER PLATE 5 $3.27 USD View product →
18 93401-06022-07G BOLT WASHER 6*22 5 $3.66 USD View product →
19 93903-25280-G SCREW TAPPING 5*12 (KG) 1 $0.81 USD View product →
20 94101-LEA2-900 WASHER PLAIN 6.5*18*1.5 5 $5.88 USD View product →
21 94111-ACD5-E00 WASHER.SPG 5 $11.79 USD View product →
22 95801-10065-06 BOLT FLANGE 10*65 3 $7.02 USD View product →

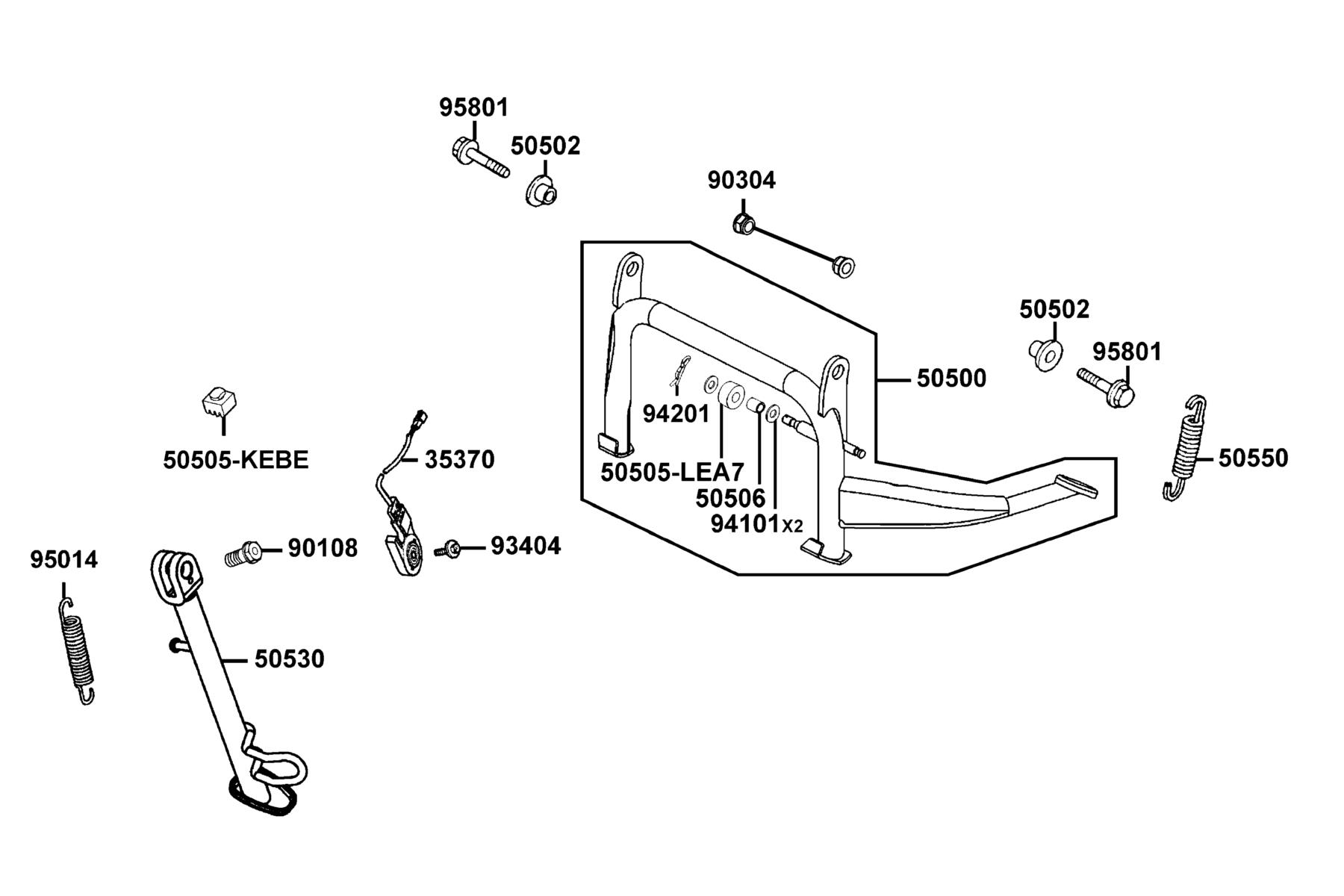

F15 — Stand

#PartNameQtyPrice
1 35370-BAA7-E00 SW UNIT SIDE STAND 1 $91.14 USD View product →
2 50500-BAA7-E00 STAND MAIN COMP 1 — Part details →
3 50502-LDF7-E10 COLLAR MAIN STAND 2 $15.51 USD View product →
4 50505-KEBE-900 STOPPER RUBBER 1 $4.92 USD View product →
5 50505-LEA7-E00 STOPPER RUBBER 1 $16.68 USD View product →
6 50506-KHE7-E00 COLLAR STOPPER RUBBER 1 $9.78 USD View product →
7 50530-BAA7-E00 BAR SIDE STAND 1 $61.38 USD View product →
8 50550-KKC2-E00 SPG ASSY MAIN STAND 1 $27.42 USD View product →
9 90108-KKC4-900 SCREW SIDE STAND PIVOT 1 $15.06 USD View product →
10 90304-LEA1-900 NUT U FLANGE 10MM 2 $11.31 USD View product →
11 93404-06016-07G BOLT WASHER 6*16 (KG) 1 $2.31 USD View product →
12 94101-08600 WASH PLAIN 8MM 2 $2.25 USD View product →
13 95014-72204 SPG B1 SIDE STAND 1 $6.54 USD View product →
14 95801-10030-06 BOLT FLANGE 10X30 2 $16.68 USD View product →

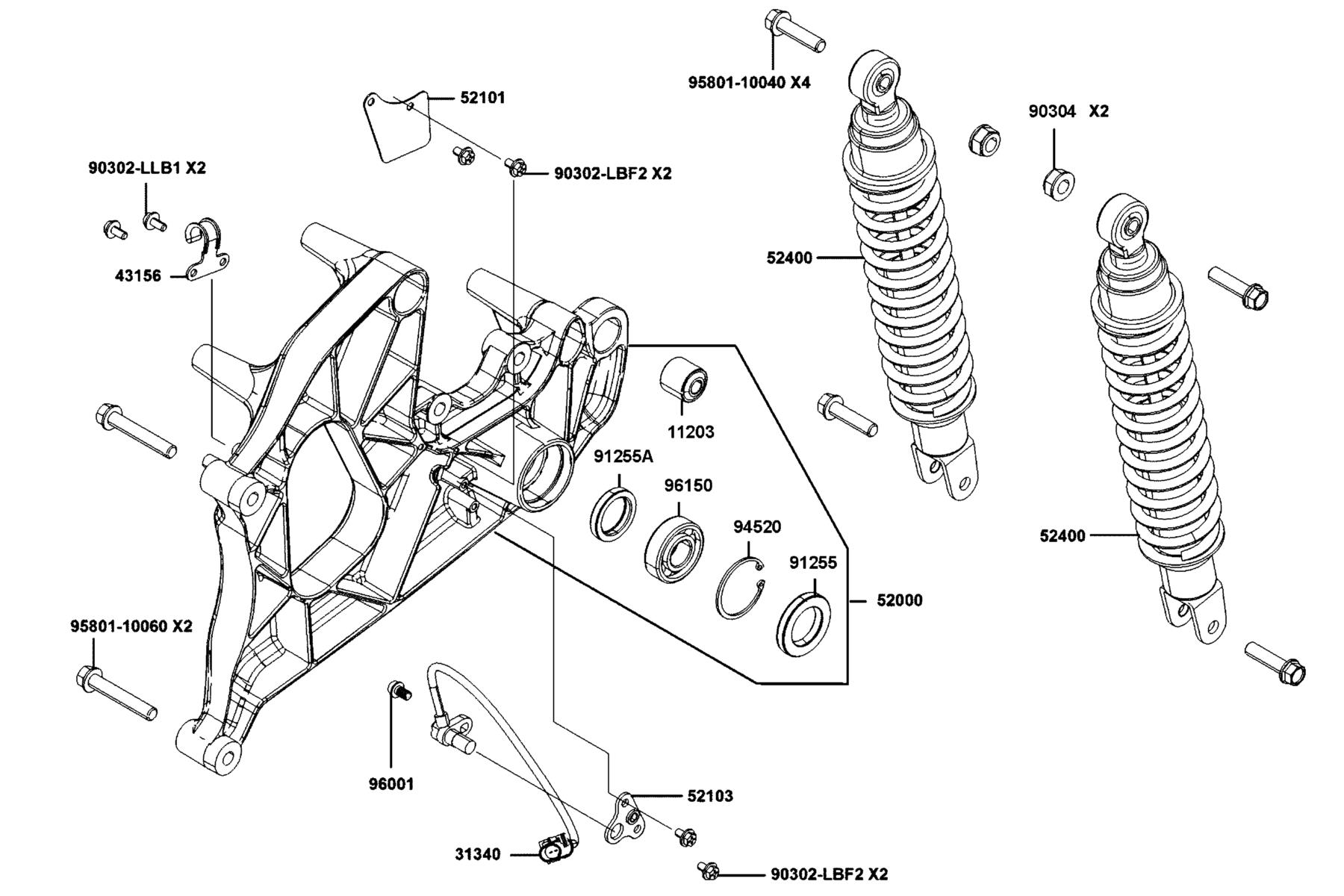

F16 — Rr Cushion

#PartNameQtyPrice
1 11203-LBA2-E00 RUB BUSH L CASE 1 $27.30 USD View product →
2 31340-LFH1-E00 SENSOR RR WHEEL SPEED 1 $168.96 USD View product →
3 43156-LEA7-E00 CLAMPER HOSE RR 2 $25.65 USD View product →
4 52000-BAA7-E00-NEA FORK CAST RR 1 — Part details →
5 52101-BAA7-E00 PLATE, RR SPEED SENSOR 1 — Part details →
6 52103-LEA7-E01 STAY ABS SENSOR 1 — Part details →
7 52400-BAA7-E00-NES CUSHION ASSY RR 2 $268.05 USD View product →
8 90302-LBF2-900 BOLT-WASH M5X10 3 $5.67 USD View product →
9 90302-LLB1-E00 BOLT-WASH 5X12 2 $2.61 USD View product →
10 90304-LEA1-900 NUT U FLANGE 10MM 2 $11.31 USD View product →
11 91255-LGE5-E00 OIL SEAL 30*48*7 1 $19.26 USD View product →
12 91255-LLB1-900 OIL SEAL 30*40*7 1 $25.95 USD View product →
13 94520-47000 CIR CLIP IN 47 1 $11.31 USD View product →
14 95801-10040-06 BOLT FLANGE 10X40 4 $21.60 USD View product →
15 95801-10060-06 BOLT FLANGE 10*60 2 $15.45 USD View product →
16 96001-06012-06 BOLT FLANGE SH 6*12 1 $1.95 USD View product →
17 96150-62040-10 BEARING BALL RADIAL 6204 1 $54.18 USD View product →

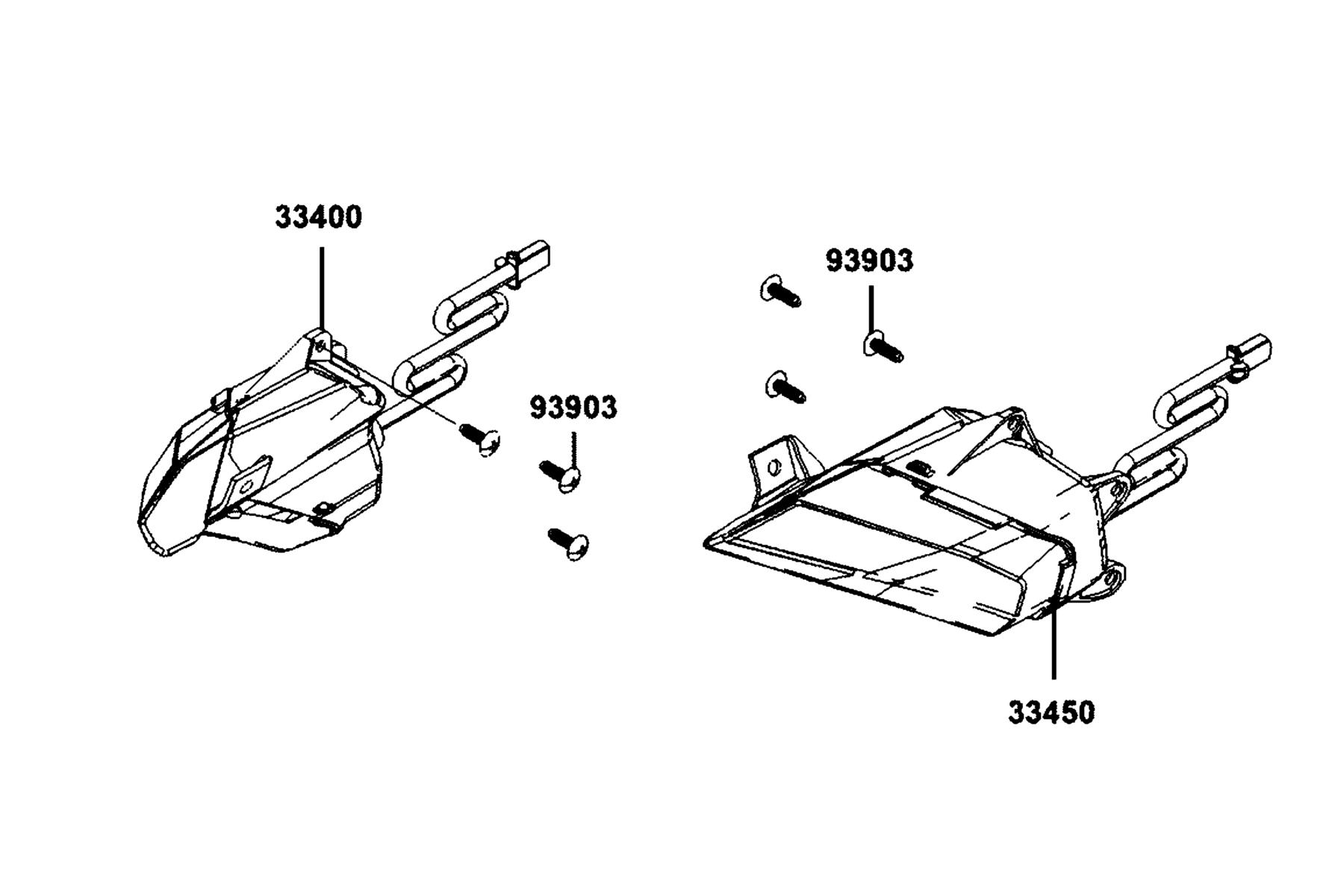

F17 — Front Winker

#PartNameQtyPrice
1 33400-BAA7-E00 WINKER ASSY RH FR 1 $120.84 USD View product →
2 33450-BAA7-E00 WINKER ASSY LH FR 1 $123.54 USD View product →
3 93903-25260 SCREW TAPPING 5*12 6 $1.86 USD View product →

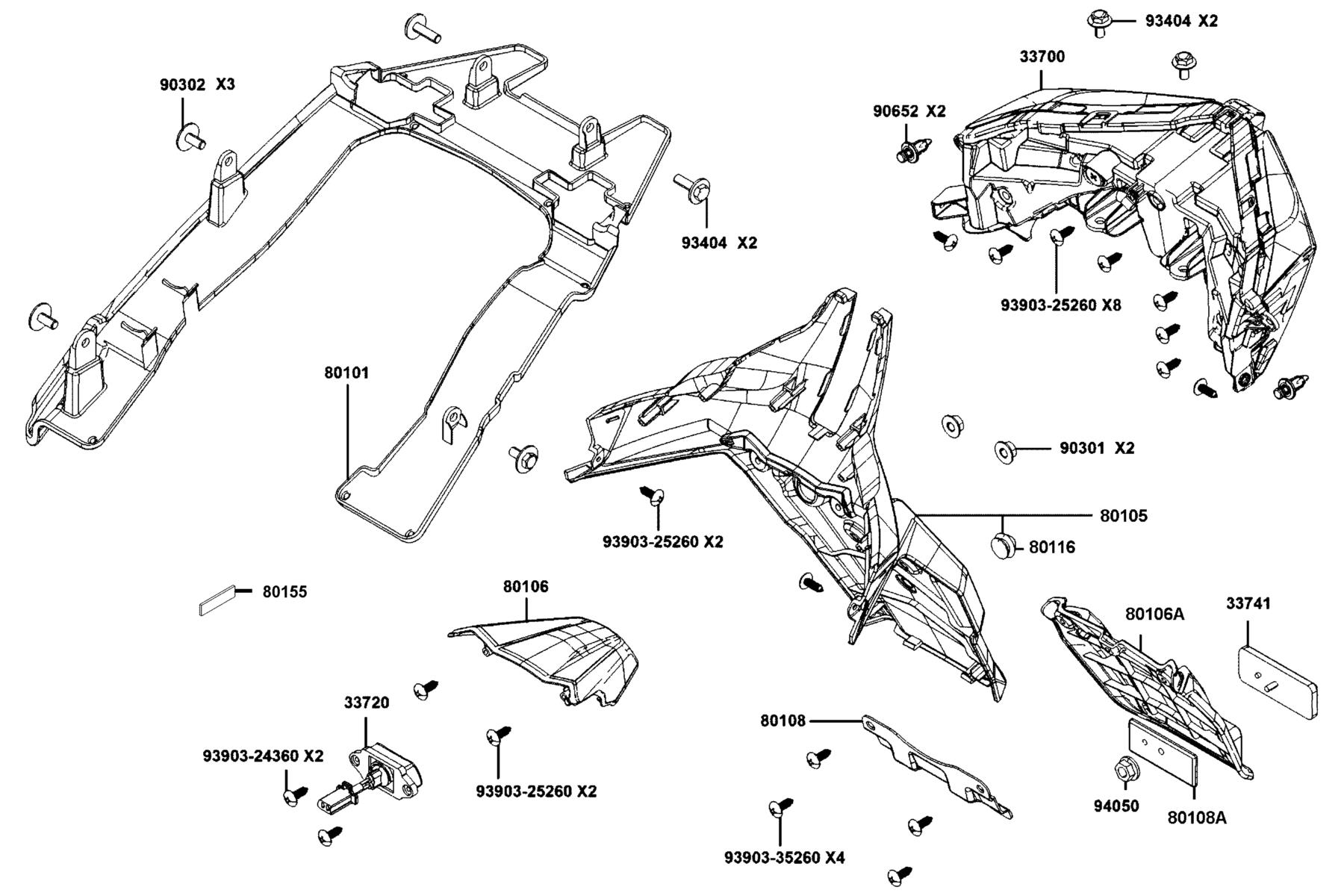

F18 — Light Tail

#PartNameQtyPrice
1 33700-BAA7-E00 LIGHT ASSY RR COMB 1 $188.55 USD View product →
2 33720-LBB5-E00 LIGHT ASSY LICENSE 1 $49.26 USD View product →
3 33741-KHC5-M00 REFLEX REFLECTOR 1 $21.06 USD View product →
4 80101-BAA7-E00-N1R FENDER RR INNER (Black) 1 $31.74 USD View product →
5 80105-BAA7-M30-N1R FENDER A REAR (Black) 1 — Part details →
6 80106-BAA7-E00-N1R FENDER B REAR (Black) 1 $19.38 USD View product →
7 80106-LKF5-E00-N1R RR FENDER LOW (Black) 1 $24.72 USD View product →
8 80108-BAA7-E00 STAY RR FENDER 1 $26.55 USD View product →
9 80108-LGE5-E00 PLATE REAR FENDER 1 $25.17 USD View product →
10 80116-AEG9-900 RUBBER LICENSE PLATE STOP 1 $2.88 USD View product →
11 80155-AKB8-E00 SPONGE B LID FUEL CAP 1 — Part details →
12 90301-6D34-671 NUT FLANGE 6MM 1 $3.00 USD View product →
13 90302-PWA5-900 BOLT-WASH 5*12 4 $4.92 USD View product →
14 90652-LFB5-900 CLIP MUDGUARD 1 $7.17 USD View product →
15 93404-06012-07G 0 4 $1.32 USD View product →
16 93903-24360 SCREW TAPPING 4*12 2 $4.92 USD View product →
17 93903-25260 SCREW TAPPING 5*12 12 $1.86 USD View product →
18 93903-35260 SCREW TAPPING 5*12 4 $4.92 USD View product →
19 94050-05080 NUT FLANGE 5MM 1 $1.86 USD View product →

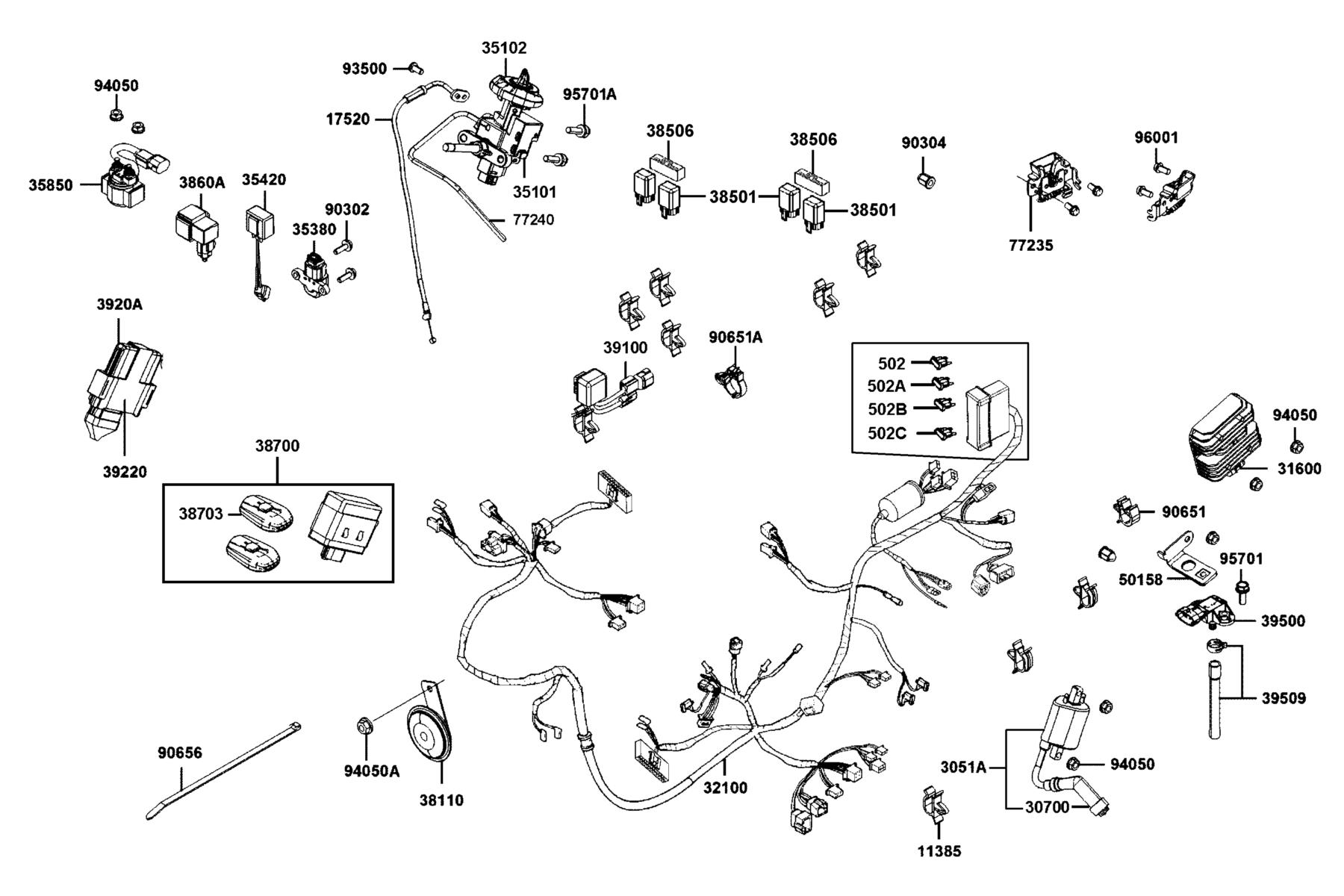

F19 — Harness Wire

#PartNameQtyPrice
1 11385-KGBG-900 CLIP VACUUM TUBE 1 $4.26 USD View product →
2 17520-BAA7-E00 CABLE COMP FUEL CAP 1 $55.77 USD View product →
3 3051A-LKF5-E00 COIL ASSY IGN 1 $236.67 USD View product →
4 30700-KKE3-900 CAP ASSY NOISE SUPPRESOR 1 $63.75 USD View product →
5 31600-ZXA6-M01 REG RECT COMP 1 $233.85 USD View product →
6 32100-BAA7-E00 HARNESS WIRE 1 $327.12 USD View product →
7 35101-AHG1-E00 KEY SET LOCK& COMB 1 — Part details →
8 35102-AGE2-E00 COLLAR MAIN SW 1 $17.85 USD View product →
9 35380-ABE1-E00 SENSOR ANGLE DETECT (D106) 1 $114.06 USD View product →
10 35420-LEA7-E00 CONTROLLER，OIL LAMP 1 $106.56 USD View product →
11 35850-KHB4-90F SET START MAG 1 $68.52 USD View product →
12 38110-BAA7-E00 HORN COMP 1 $76.02 USD View product →
13 38501-LGL3-90E RELAY COMP LIGHT 4 $87.48 USD View product →
14 3860A-AFB6-600 CONTROL ASSY AUTO LIGHTING 1 — Part details →
15 38700-AGE2-305 KEYLESS SET 1 — Part details →
16 38703-AGE2-E00 REMOTE CONTROL 2 $373.23 USD View product →
17 39100-ACD5-E00 EMI FILTER FAN MOTOR 1 $88.77 USD View product →
18 3920A-BAA7-E00 ECU ASSY 1 $577.42 USD View product →
19 39220-AKC8-E00 CUSHION CASE ECU 1 $30.42 USD View product →
20 39500-AAC9-900 SENSOR T-MAP 1 $278.58 USD View product →
21 39509-AEB5-B10 TUBE,T-MAP 1 — Part details →
22 50158-BAA7-E00 STAY SENSOR T-MAP 1 — Part details →
23 502-00063 BLADE FUSE MINI 30A 2 — Part details →
24 502-00149 BLADE FUSE MINI 15A 2 $2.04 USD View product →
25 502-00151 BLADE FUSE MINI 10A 3 $2.04 USD View product →
26 502-00164 BLADE FUSE MINI 5A 2 $3.18 USD View product →
27 77235-BAA7-E00 SEAT CATCH COMP 2 $47.13 USD View product →
28 77240-BAA7-E00 CABLE ASSY SEAT LOCK 1 $57.27 USD View product →
29 90302-GFY6-940 BOLT-WASH 5*16 2 $1.86 USD View product →
30 90304-ZZA6-E00 NUT CAP 6MM 1 — Part details →
31 90651-LEA2-900 CLIP TUBE 1 $6.24 USD View product →
32 90651-LGM9-900 CLIP CABLE 1 $1.26 USD View product →
33 90656-KUDU-900-N1R BAND HARNESS WIRE (Black) 8 $4.92 USD View product →
34 93500-KHC4-90A SCREW PAN 5*10 2 $8.19 USD View product →
35 94050-06060 NUT FLANGE 6MM 11 $4.92 USD View product →
36 94050-08060 NUT FLANGE 8MM 1 $5.31 USD View product →
37 95701-06016-06 BOLT FLANGE 6X16 1 $1.65 USD View product →
38 95701-LEA5-E00 BOLT TORQUE 8*25 2 $14.31 USD View product →
39 96001-06012-06 BOLT FLANGE SH 6*12 2 $1.95 USD View product →

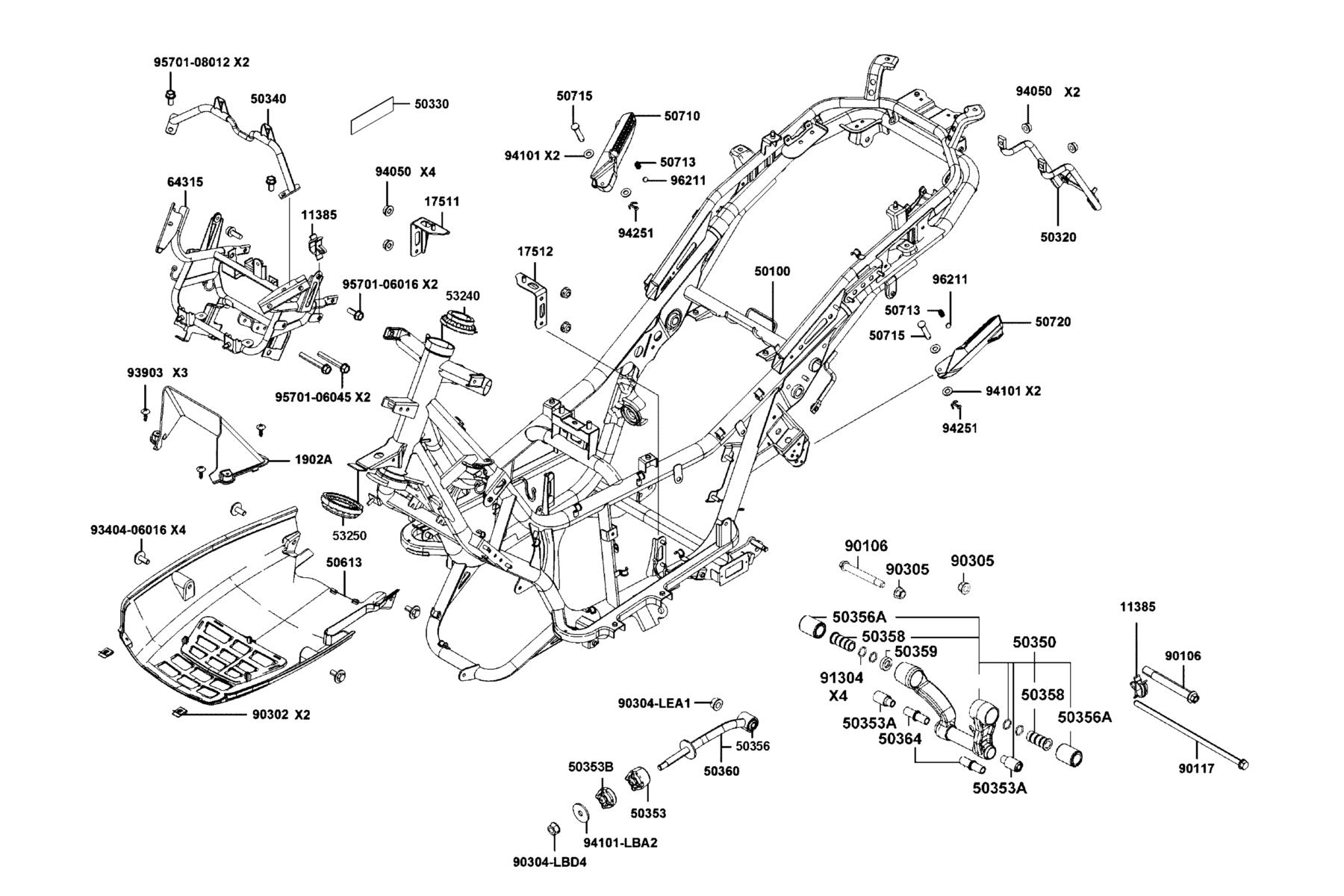

F20 — Frame Body

#PartNameQtyPrice
1 11385-KGBG-900 CLIP VACUUM TUBE 2 $4.26 USD View product →
2 17511-ACD5-E00 STAY R FUEL TANK 1 $30.75 USD View product →
3 17512-ACD5-E00 STAY L FUEL TANK 1 $24.09 USD View product →
4 1902A-ACD5-E00 COVER ASSY RADIATOR 1 — Part details →
5 50100-BAA7-305 BODY ASSY FRAME 1 $699.64 USD View product →
6 50320-BAA7-E00 STAY RR FENDER 1 $84.90 USD View product →
7 50330-AFB5-900 SPONGE FRAME 23X80 1 — Part details →
8 50340-BAA7-E00 STAY METER 1 — Part details →
9 50350-BAA7-E00 HANGER ASSY ENG 1 $183.48 USD View product →
10 50353-ACD5-E00 RUBBER STOPPER 1 $19.26 USD View product →
11 50353-KGN7-901 BUSH A ENG HANGER 2 $23.40 USD View product →
12 50353-LEA7-E00 RUBBER STOPPER 1 $19.26 USD View product →
13 50356-LEA7-E01 RUB BUSH ENG HANGER 1 $49.02 USD View product →
14 50356-LHG7-E00 RUBBER BUSH ENG HANGER 2 $75.03 USD View product →
15 50358-LKF5-E01 BUSH INNER SWING LOCK 1 $47.10 USD View product →
16 50359-LKF5-E01 COLLAR 1 — Part details →
17 50360-ACD5-E00 TIE ROD ASSY ENG 1 — Part details →
18 50364-KHE7-E00 COLLAR 2 $14.31 USD View product →
19 50613-BAA7-E00-N1R COVER UNDER (Black) 1 $68.31 USD View product →
20 50710-BAA7-E00-J2A BAR R RR STEP 1 $86.16 USD View product →
21 50713-KEB7-900 SPRING 2 $4.92 USD View product →
22 50715-KEB7-900 PIN RR STEP 6*31.5 2 $9.39 USD View product →
23 50720-BAA7-E00-J2A BAR L RR STEP 1 $99.45 USD View product →
24 53240-LEA7-90A BEARING TOP STRG 1 $78.84 USD View product →
25 53250-LEA7-90A BEARING BOT STRG 1 $78.84 USD View product →
26 64315-BAA7-E00 BRKT FR COVER 1 $237.75 USD View product →
27 90106-LKF5-E00 BOLT FLANGE 15X122(M14) 2 $71.52 USD View product →
28 90117-KED9-950 BOLT FLANGER 10X265 1 $25.83 USD View product →
29 90302-SA4-0040 NUT SPRING 4MM 2 $4.26 USD View product →
30 90304-LBD4-900 NUT U FLANGE 10MM 1 $7.53 USD View product →
31 90304-LEA1-900 NUT U FLANGE 10MM 1 $11.31 USD View product →
32 90305-LBD4-900 NUT U 14MM 2 $21.21 USD View product →
33 91304-LGE5-E00 O-RING 17.8x2.4 4 $24.33 USD View product →
34 93404-06016-07G BOLT WASHER 6*16 (KG) 9 $2.31 USD View product →
35 93903-24360 SCREW TAPPING 4*12 3 $4.92 USD View product →
36 94050-06060 NUT FLANGE 6MM 10 $4.92 USD View product →
37 94101-06000 WASHER PLAIN 6MM 4 $4.92 USD View product →
38 94101-LBA2-E00 WASHER PLATE 10.5*38*3.0 1 $5.67 USD View product →
39 94251-08400 PIN LOCK 8MM 2 $4.92 USD View product →
40 95701-06016-06 BOLT FLANGE 6X16 2 $1.65 USD View product →
41 95701-06045-06 BOLT FLANGE 6*45 2 $4.92 USD View product →
42 95701-08012-06 BOLT FLANGE 8*12 2 $6.24 USD View product →
43 96211-08000 BALL STEEL 8 2 $1.83 USD View product →

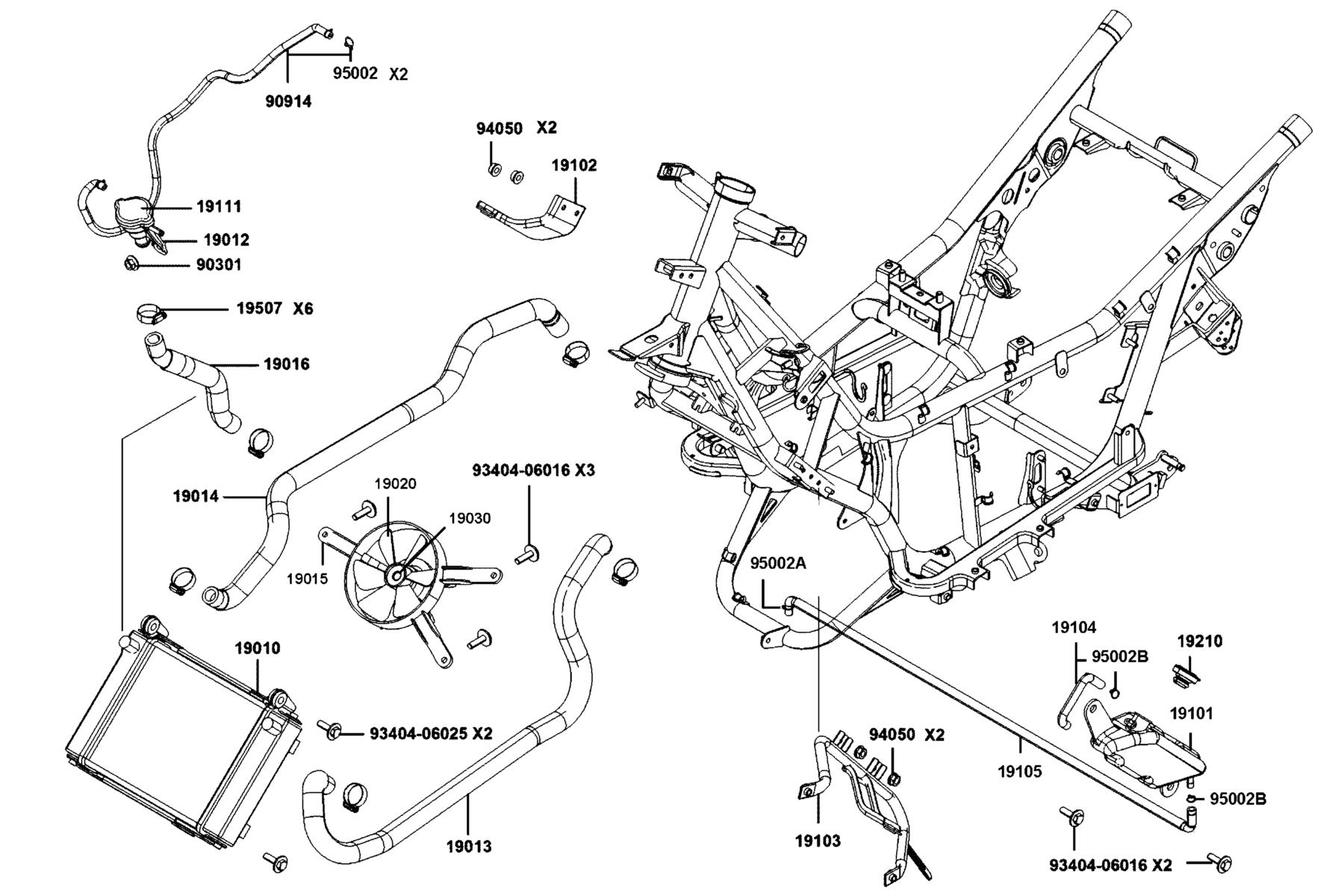

F21 — Radiator

#PartNameQtyPrice
1 19010-ACD5-E00 RADIATOR COMP 1 $293.37 USD View product →
2 19012-LEA7-E05 UNIT RADIATOR 1 $75.09 USD View product →
3 19013-ACD5-E00 HOSE WATER INLET 1 $69.33 USD View product →
4 19014-BAA7-E00 HOSE WATER OUTLET 1 $122.04 USD View product →
5 19015-KKC4-900 SHROUD 1 $66.12 USD View product →
6 19016-BAA7-E00 HOSE WATER UNIT CAP 1 $58.77 USD View product →
7 19020-KED9-900 FAN 1 $36.78 USD View product →
8 19030-KHD8-900 MOTOR 1 $200.34 USD View product →
9 19101-BAA7-E00 TANK REVESER 1 — Part details →
10 19102-BAA7-E00 STAY R RES TANK 1 — Part details →
11 19103-BAA7-E00 STAY L RES TANK 1 — Part details →
12 19104-ACD5-E00 HOSE ASSY DRAIN 1 $7.56 USD View product →
13 19105-BAA7-E00 HOSE ASSY RESERVE TANK-PRESSURE VALVE 1 $57.06 USD View product →
14 19111-PRB3-900 CAP COMP RADIATOR 1 $68.82 USD View product →
15 19210-KKC4-900 CAP RESERVE TANK 1 $9.39 USD View product →
16 19507-PRA1-E00 CLAMP D28(ZNS3) 5 — Part details →
17 90301-6D34-671 NUT FLANGE 6MM 1 $3.00 USD View product →
18 90914-LEA7-E05 TUBE ASSY WATER 1 $64.14 USD View product →
19 93404-06016-07G BOLT WASHER 6*16 (KG) 5 $2.31 USD View product →
20 93404-06025-06 BOLT WASHER 6*25 2 $4.17 USD View product →
21 94050-06060 NUT FLANGE 6MM 2 $4.92 USD View product →
22 95002-02070 CLIP B7 TUBE 2 $1.86 USD View product →
23 95002-02100 CLIP B15 TUBE 1 $4.92 USD View product →
24 95002-70000 CLIP C11 TUBE 2 $4.92 USD View product →

F22 — Air Cleaner Two

#PartNameQtyPrice
1 17301-GFY6-940 RUBBER CANISTER MOUINT 1 $13.17 USD View product →
2 17308-BAA7-M30 TUBE ASSY CANISTER-AIR/C 1 — Part details →
3 17310-KED9-90A CANISTER COMP 1 $75.96 USD View product →
4 17460-AGA6-M01 VALVE COMP VAPOR CONTROL 1 $43.62 USD View product →
5 17686-BAA7-M30 TUBE ASSY FILLER/CANISTER 1 — Part details →
6 17691-BAA7-E00 TUBE C ASSY 1 — Part details →
7 17692-BAA7-M30 TUBE D ASSY 1 — Part details →
8 17693-BAA7-E00 TUBE FUEL 7.5*37 1 — Part details →
9 17694-BAA7-E00 TUBE E ASSY 1 — Part details →
10 17904-BAA7-E00 TUBE B ASSY 1 — Part details →
11 17905-BAA7-E00 TUBE A ASSY 1 — Part details →
12 17906-BAA7-E00 TUBE FUEL 8*48 1 — Part details →
13 38773-KBCB-900 JOINT 3 WAY 1 $4.26 USD View product →
14 38773-KEC3-900 JOINT ASSY TANK CAP 1 $14.31 USD View product →
15 90660-PWA2-900 CLAMP TUBE 1 $4.92 USD View product →
16 95002-40650-08 CLAMP D6.5 TUBE 1 $4.92 USD View product →
17 95002-40800-08 CLAMP D8 TUBE 1 $8.49 USD View product →
18 95002-41250-08G CLIP D12.5 TUBE 3 $3.30 USD View product →

F23 — Separated Parts Of Fr Fork

#PartNameQtyPrice
1 51401-BAA7-900 SPRING 1 $30.06 USD View product →
2 51404-LFB6-E00 SPRING COLLAR 1 $39.57 USD View product →
3 51410-BAA7-E00 FORK PIPE COMP 1 $150.33 USD View product →
4 51412-LCD3-E00 REBOUND SPRING 1 $11.31 USD View product →
5 51420-BAA7-E00-NEA PIPE R FR FORK BOTTOM 1 — Part details →
6 51422-LFB5-900 OIL LOCK PIECE 1 $22.86 USD View product →
7 51423-KKAK-900 OIL SEAL 1 $22.62 USD View product →
8 51425-BAA7-E00 FORK FENDER R 1 — Part details →
9 51428-KKAK-900 RING OIL SEAL STOPPER 1 $4.92 USD View product →
10 51429-BAA7-E00 PIPE SEAT COMP 1 $54.03 USD View product →
11 51520-BAA7-E00-NEA BOTTOM CASE LH 1 $382.20 USD View product →
12 51525-BAA7-E00 FORK FENDER L 1 — Part details →
13 90116-KHD8-900 BOLT 1 $17.82 USD View product →
14 90544-KEC8-900 PACKING 1 $3.00 USD View product →
15 90651-LFB6-E00 STOPPER RING 1 $4.92 USD View product →
16 91254-AEG9-900 DUST SEAL 1 $17.46 USD View product →
17 94605-LFB5-900 FORK BOLT CAP 1 $39.93 USD View product →
18 94608-LFB6-E00 O-RING 1 $4.92 USD View product →

F24 — Caution Label

#PartNameQtyPrice
1 87515-LGC6-E00-T01 CAUTION LABEL 1 $4.05 USD View product →
2 87541-ZZA6-E00-T01 NOTICE MOBILE PHONE 1 $5.22 USD View product →
3 87546-ADG5-E00-T01 LABEL FUEL TANK 1 $3.54 USD View product →
4 87560-BAA7-E00-T01 MARK DRIVER CAUTION 1 $8.34 USD View product →

F25 — Emblem ● Stripe

#PartNameQtyPrice
1 86020-BAA7-E00-T01 EMB HANDLE COVER 1 $71.31 USD View product →
2 86102-AEE2-500-T01 STRIPE K-LOGO 1 — Part details →
3 86304-BAA7-E00-T02 EMB SIDE COVER 1 — Part details →
4 86332-BAA7-E00-T02 EMB SKIRT 1 — Part details →
