MXU 150X 2025MY EPA
- Model code
- LB30ER(US)
- Model year
- 2025
- Submodel
- MXU 150X
- Color
- Deep Gray (NH409SA)
- Diagrams
- 31
- Factory catalog
- download PDF

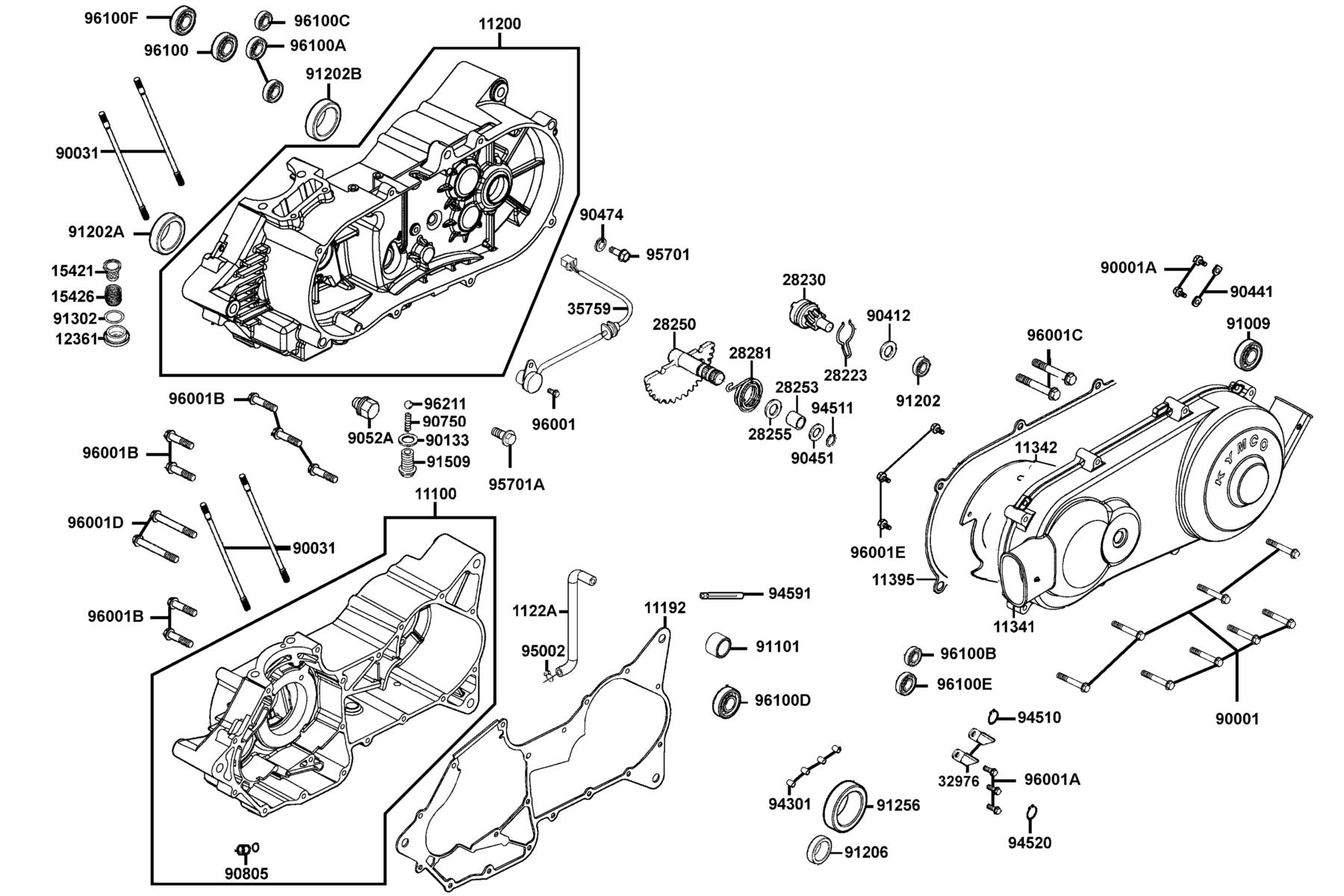

E01 — Crank Case
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 11100-LLB1-910 | CRANK CASE COMP RIGHT | 1 | $339.96 USD | View product → |
| 2 | 11192-LLB1-900 | GASKET CRANK CASE A | 1 | $60.51 USD | View product → |
| 3 | 11200-LLB1-900 | CRANK CASE COMP LEFT | 1 | $262.02 USD | View product → |
| 4 | 1122A-LLB1-900 | TUBE ASSY MISSION BREATHER | 1 | $13.41 USD | View product → |
| 5 | 11341-LCA4-E00-N8A | COVER L (Bright Silver) | 1 | $220.44 USD | View product → |
| 6 | 11342-LCA4-E00 | PLATE L COVER | 1 | $17.46 USD | View product → |
| 7 | 11395-LLB1-900 | GASKET L COVER A | 1 | $51.66 USD | View product → |
| 8 | 12361-GFY6-901 | HOLE CAP TAPPET ADJUSTING | 1 | $11.70 USD | View product → |
| 9 | 15421-1G07-001 | SCREEN OIL FILTER | 1 | $15.06 USD | View product → |
| 10 | 15426-GAE1-921 | SPG OIL FILTER SCREEN | 1 | $5.67 USD | View product → |
| 11 | 28223-KNBN-901 | SPG KICK DRIVEN GEAR | 1 | $4.92 USD | View product → |
| 12 | 28230-GHAH-721 | GEAR COMP KICK DRIVEN | 1 | $77.52 USD | View product → |
| 13 | 28250-LCA4-E00 | SPINDLE COMP KICK STARTER | 1 | $71.76 USD | View product → |
| 14 | 28253-GBN2-60A | BUSH KICK SPINDLE | 1 | $12.84 USD | View product → |
| 15 | 28255-GFS6-001 | COLLAR KICK BOSS | 1 | $10.14 USD | View product → |
| 16 | 28281-GBN2-60A | SPRING KICK RETURN | 1 | $22.65 USD | View product → |
| 17 | 32976-1G07-001 | CLAMPER WIRE HARNESS | 2 | $6.06 USD | View product → |
| 18 | 35759-LLB1-900 | SW ASSY GEAR CHANGE | 1 | $87.33 USD | View product → |
| 19 | 90001-GBHB-711 | BOLT FLANGE SHF 6X40 | 8 | $4.92 USD | View product → |
| 20 | 90001-GFY6-901 | SOCKET BOLT 6*10 | 2 | $4.53 USD | View product → |
| 21 | 90031-KEBE-900 | BOLT A STUD 8*218 | 4 | $18.06 USD | View product → |
| 22 | 90133-LLB1-900 | WASHER BOLT SEAT | 1 | $2.61 USD | View product → |
| 23 | 90412-3K29-001 | WASHER THRUST 10M/M | 1 | $7.53 USD | View product → |
| 24 | 90441-KDY4-901 | PLATE BRG HOLD | 2 | $4.92 USD | View product → |
| 25 | 90451-1E55-001 | WASHER 14MM | 1 | $5.22 USD | View product → |
| 26 | 90474-3C33-001 | WASHER 8MM | 1 | $2.85 USD | View product → |
| 27 | 9052A-LEB1-900 | BOLT ASSY DRAIN PLUG | 1 | $16.38 USD | View product → |
| 28 | 90750-LLB1-900 | SPRING BOLT SEAT INNER | 1 | $4.17 USD | View product → |
| 29 | 90805-GBHB-901 | CONE TYPE PLUG 6*7 | 1 | $4.92 USD | View product → |
| 30 | 91009-KKC3-900 | BRG BALL RADIAL 6300LLUC3/2A | 1 | $48.60 USD | View product → |
| 31 | 91101-LLB1-90A | BRG NEEDLE 30*42*17 | 1 | $140.22 USD | View product → |
| 32 | 91202-3B02-001 | OIL SEAL 14*24*5 | 1 | $25.71 USD | View product → |
| 33 | 91202-KKJ9-004 | OIL SEAL 20*32*6 | 1 | $6.78 USD | View product → |
| 34 | 91202-LHG7-E00 | OIL SEAL 22X34X6 | 1 | $17.28 USD | View product → |
| 35 | 91206-2F86-014 | OIL SEAL 14*28*7 | 1 | $16.20 USD | View product → |
| 36 | 91256-LLB1-900 | OIL SEAL 24.8*52.2*7 | 1 | $36.27 USD | View product → |
| 37 | 91302-001-0210 | O-RING 30.8M/M | 1 | $6.72 USD | View product → |
| 38 | 91509-LLB1-900 | BOLT SEAT BALL STOPPER | 1 | $12.84 USD | View product → |
| 39 | 94301-10160 | DOWEL PIN 10*16 | 4 | $3.00 USD | View product → |
| 40 | 94510-20000 | CIR CLIP EX 20 | 1 | $6.39 USD | View product → |
| 41 | 94511-14000 | CIR CLIP EX 14 | 1 | $6.39 USD | View product → |
| 42 | 94520-52000 | CIR CLIP IN 52 | 1 | $10.53 USD | View product → |
| 43 | 94591-LLB1-900 | CLIP 2X100 | 1 | $4.89 USD | View product → |
| 44 | 95002-02150 | CLIP B14.5 TUBE | 1 | $4.92 USD | View product → |
| 45 | 95701-08012-06 | BOLT FLANGE 8*12 | 1 | $6.24 USD | View product → |
| 46 | 95701-10012-06 | BOLT FLANGE 10X12 | 1 | $3.27 USD | View product → |
| 47 | 96001-06010-06 | BOLT FLANGE 6*10 | 1 | $1.95 USD | View product → |
| 48 | 96001-06012-06 | BOLT FLANGE SH 6*12 | 1 | $1.95 USD | View product → |
| 49 | 96001-06032-06 | BOLT FLANGE SH 6*32 | 1 | $11.46 USD | View product → |
| 50 | 96001-06040-06 | BOLT FLANGE SH 6*40 | 1 | $12.12 USD | View product → |
| 51 | 96001-06060-06 | BOLT FLANE 6*60 | 1 | $3.60 USD | View product → |
| 52 | 96001-GFY6-900 | BOLT SPECIAL 5*10 | 3 | $4.92 USD | View product → |
| 53 | 96100-62020-00 | BEARING BALL RADIAL 6202 | 1 | $48.24 USD | View product → |
| 54 | 96100-62030-00 | BRG BALL RADIAL 6203 | 2 | $42.36 USD | View product → |
| 55 | 96100-62040-00 | BEARING BALL RADIAL 6204 | 1 | $48.96 USD | View product → |
| 56 | 96100-62043-00-M1 | BEARING BALL RADIAL 6204 | 1 | $43.50 USD | View product → |
| 57 | 96100-62043-00-invalid | BEARING BALL RADIAL 6204 | 1 | $37.23 USD | View product → |
| 58 | 96100-62050-00 | BEARING BALL RADIAL 6205 | 1 | $58.29 USD | View product → |
| 59 | 96100-63020-00 | BRG BALL RADIAL 6302 | 1 | $47.01 USD | View product → |
| 60 | 96100-63030-00 | BEARING BALL RADIAL 6303 | 1 | $42.84 USD | View product → |
| 61 | 96211-12000 | BALL STEEL #12 | 1 | $4.92 USD | View product → |

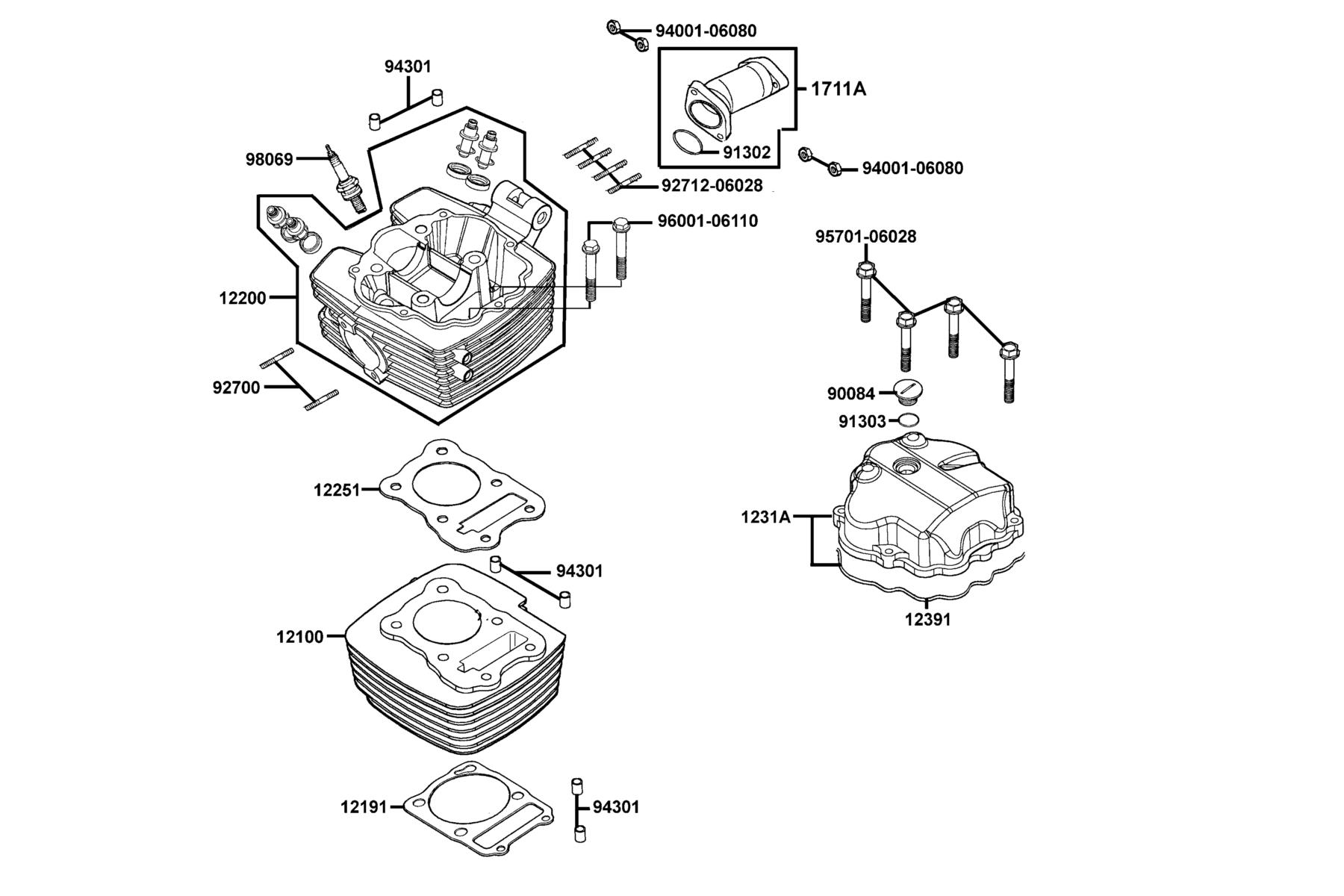

E02 — Cylinder Head
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 12100-KKA8-900-NJS | CYLINDER COMP | 1 | $284.13 USD | View product → |
| 2 | 12191-KEC8-9000 | GASKET CYLINDER | 1 | $20.40 USD | View product → |
| 3 | 12200-KFB1-E00 | HEAD COMP CYLINDER | 1 | $325.11 USD | View product → |
| 4 | 12251-KFB1-900 | GASKET CYLINDER HEAD | 1 | $40.86 USD | View product → |
| 5 | 1231A-LLB1-920 | COVER ASSY HEAD | 1 | $137.40 USD | View product → |
| 6 | 12391-KEC8-920 | PACKING CYLINDER HEAD | 1 | $73.65 USD | View product → |
| 7 | 1711A-LCA4-900 | PIPE ASSY INLET | 1 | $73.14 USD | View product → |
| 8 | 90084-4H28-001-NJA | CAP ACG (Silver) | 1 | $0.78 USD | View product → |
| 9 | 91302-2L00-001 | O-RING 33.5*3 | 1 | $4.92 USD | View product → |
| 10 | 91303-3G77-001 | O-RING 13.8*2.5 | 1 | $4.92 USD | View product → |
| 11 | 92700-06035-3E | BOLT STUD ??? 6X35 | 2 | $2.61 USD | View product → |
| 12 | 92712-06028-0B | BOLT STUD 6*28 | 4 | $4.68 USD | View product → |
| 13 | 94001-06080-0S | NUT HEX 6MM | 4 | $4.92 USD | View product → |
| 14 | 94301-10160 | DOWEL PIN 10*16 | 6 | $3.00 USD | View product → |
| 15 | 95701-06028-06 | BOLT FLANGE 6X28 | 1 | $0.87 USD | View product → |
| 16 | 96001-06110-06 | BOLT FLANGE SH 6*110 | 1 | $0.63 USD | View product → |
| 17 | 98069-5771R | SPARK PLUG (DR-8EA) | 1 | $16.59 USD | View product → |

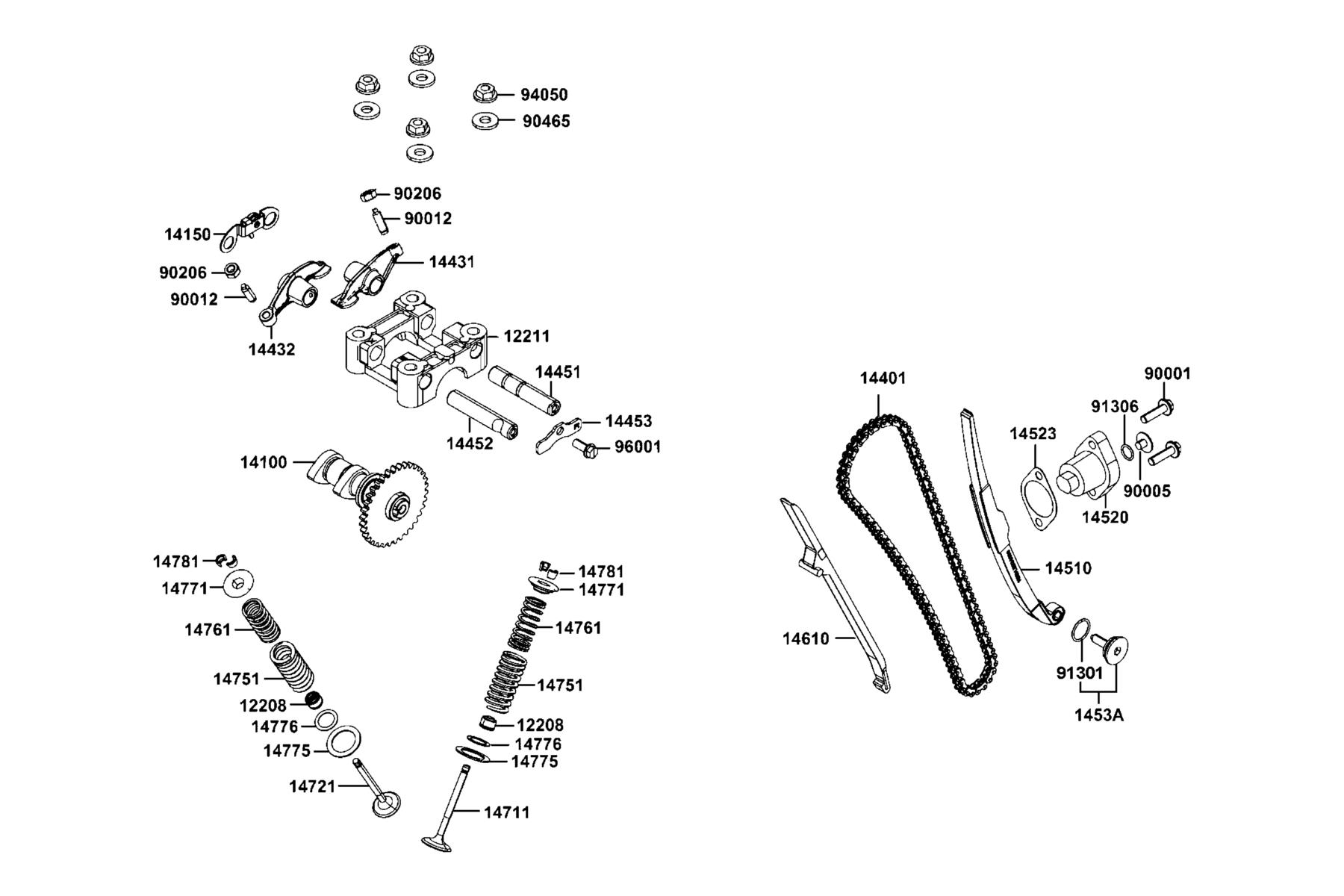

E03 — Valve
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 12208-4C13-004 | SEAL VALVE STEM | 2 | $30.18 USD | View product → |
| 2 | 12211-LCA4-E00 | HOLDER CAM SHAFT | 1 | $88.74 USD | View product → |
| 3 | 14100-LCA4-E00 | SHAFT COMP CAM | 1 | $211.14 USD | View product → |
| 4 | 14150-LCA4-E00 | PLATE COMP STOPPER | 1 | $27.12 USD | View product → |
| 5 | 14401-KEC8-90A | CHAIN CAM | 1 | $106.35 USD | View product → |
| 6 | 14431-LCA4-E00 | ARM VALVE ROCKER | 1 | $109.02 USD | View product → |
| 7 | 14432-LCA4-E00 | ARM EX VALVE ROCKER | 1 | $109.02 USD | View product → |
| 8 | 14451-LCA4-E00 | SHAFT IN ROCLER ARM | 1 | $35.07 USD | View product → |
| 9 | 14452-KEC8-900 | SHAFT EX ROCKER ARM | 1 | $23.40 USD | View product → |
| 10 | 14453-KEC8-900 | SET PLATE ROCKER ARM SHAFT | 1 | $4.98 USD | View product → |
| 11 | 14510-LLB1-900 | TENSIONER CAM CHAIN | 1 | $43.17 USD | View product → |
| 12 | 14520-GFY6-90C | LIFTER ASSY.. TENSIONER | 1 | $125.97 USD | View product → |
| 13 | 14523-KED9-920 | GASKET TENSIONER LIFTER @A | 1 | $3.81 USD | View product → |
| 14 | 1453A-LLB1-900 | PIVOT CAM CHAIN SET | 1 | $13.95 USD | View product → |
| 15 | 14610-LLB1-900 | GUIDE COMP CAM CHAIN | 1 | $19.35 USD | View product → |
| 16 | 14711-4G37-001 | VALVE INLET | 1 | $85.14 USD | View product → |
| 17 | 14721-4G37-0001 | VALVE EXHAUST | 1 | $79.74 USD | View product → |
| 18 | 14751-LLB1-900 | SPRING VALVE OUTER | 2 | $50.07 USD | View product → |
| 19 | 14761-LLB1-900 | SPRING VALVE INNER | 2 | $28.74 USD | View product → |
| 20 | 14771-1G07-021 | RETAINER VALVE SPRING | 2 | $24.03 USD | View product → |
| 21 | 14775-1G07-001 | SEAT VALVE SPG OUTER | 2 | $4.98 USD | View product → |
| 22 | 14776-1G07-011 | SEAT VALVE SPRING INNER | 2 | $5.07 USD | View product → |
| 23 | 14781-1G07-021 | COTTER VALVE | 4 | $16.68 USD | View product → |
| 24 | 90001-GBHB-661 | BOLT FLANGE SH 6*22 | 2 | $4.92 USD | View product → |
| 25 | 90005-KED9-900 | BOLT SPECIAL 6*6 | 1 | $2.76 USD | View product → |
| 26 | 90012-4E15-001 | SCREW TAPPING ADJUSTING | 2 | $17.82 USD | View product → |
| 27 | 90206-2L50-001 | NUT TAPPET ADJUSTING | 2 | $3.36 USD | View product → |
| 28 | 90465-MDC4-001 | WASHER 8MM | 4 | $3.78 USD | View product → |
| 29 | 91301-GLR0-005 | O-RING 15.2X1.5 | 1 | $3.00 USD | View product → |
| 30 | 91306-1E05-691 | O-RING 1.5*9.5 | 1 | $4.92 USD | View product → |
| 31 | 94050-08080 | NUT FLANGE 8MM | 4 | $4.92 USD | View product → |
| 32 | 96001-06014-06 | BOLT FLANGE SH 6X14 | 1 | $4.92 USD | View product → |

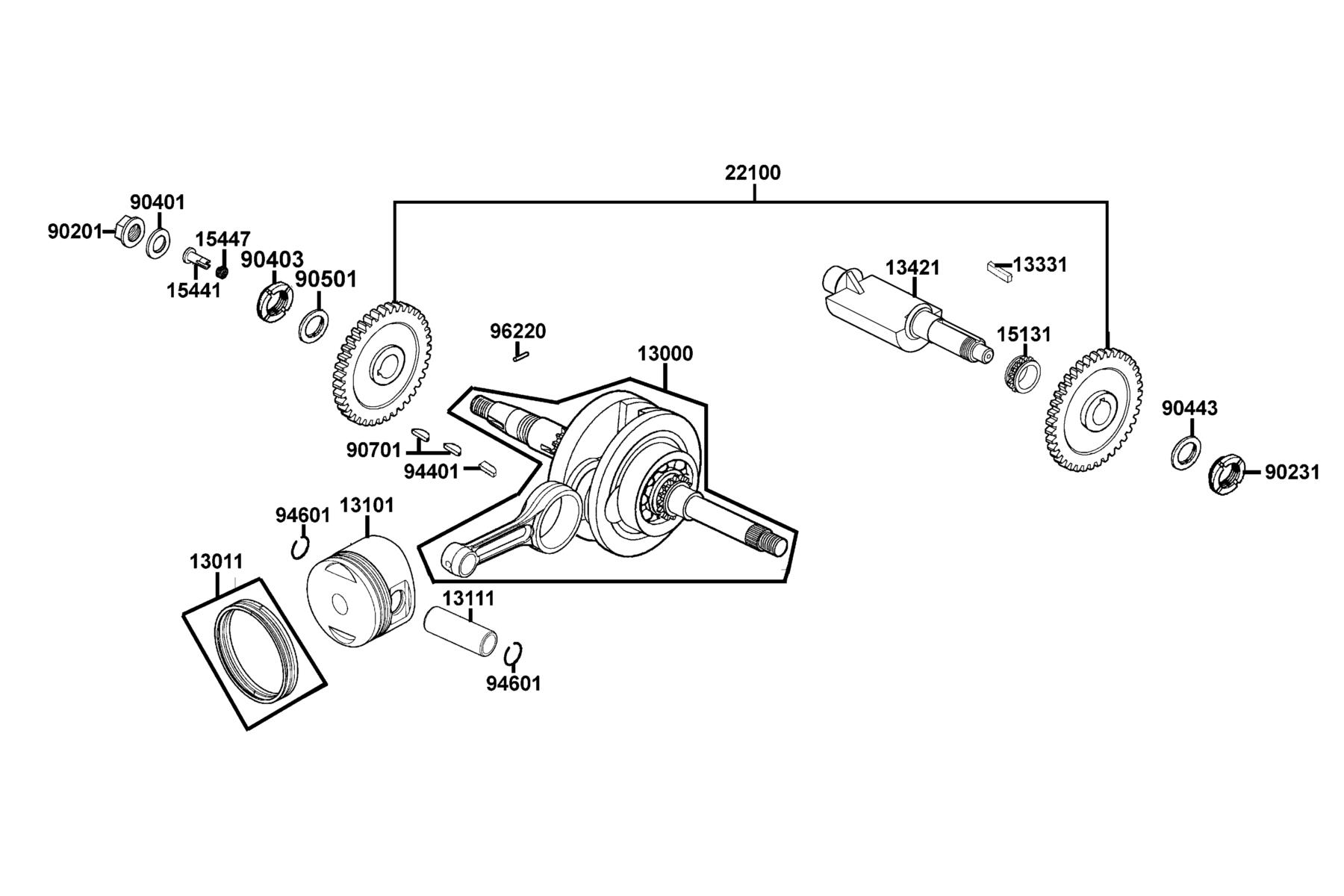

E04 — Piston ● Crankshaft
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 13000-LCA4-E00 | CRANK SHAFT COMP | 1 | $480.33 USD | View product → |
| 2 | 13011-KGAG-900 | RING SET PISTON | 1 | $82.50 USD | View product → |
| 3 | 13101-KGAG-901 | PISTON | 1 | $89.46 USD | View product → |
| 4 | 13111-4D14-001 | PIN PISTON | 1 | $17.79 USD | View product → |
| 5 | 13331-LLB1-900 | KEY 5*4*20 | 1 | $5.31 USD | View product → |
| 6 | 13421-LLB1-900 | SHAFT BALANCER | 1 | $89.22 USD | View product → |
| 7 | 15131-LLB1-900 | SPROCKET OIL PUMP DRIVE | 1 | $37.77 USD | View product → |
| 8 | 15441-1K49-001 | OIL THROUGH | 1 | $16.38 USD | View product → |
| 9 | 15447-1K49-001 | SPG OIL THROUGH | 1 | $4.92 USD | View product → |
| 10 | 22100-KKA8-305 | GEAR COMP BLANCER | 1 | $170.88 USD | View product → |
| 11 | 90201-LLB1-900 | NUT FLANGE 14MM | 1 | $10.14 USD | View product → |
| 12 | 90231-KEC2-900 | NUT LOCK 16MM | 1 | $21.99 USD | View product → |
| 13 | 90401-KKJ9-001 | WASHER THRUST 14*28*2 | 1 | $5.67 USD | View product → |
| 14 | 90403-LLB1-900 | WASHER THRUST 22.2*39*2.5 | 1 | $14.31 USD | View product → |
| 15 | 90443-KEC2-900 | WASHER GEAR BAL | 1 | $12.09 USD | View product → |
| 16 | 90501-KNBN-901 | WASHER 16MM | 1 | $5.67 USD | View product → |
| 17 | 90701-HFB6-011 | KEY WOODRUFF 25X14X4 | 2 | $5.67 USD | View product → |
| 18 | 94401-KEC2-900 | KEY WOODRUFF 16*13 | 1 | $1.26 USD | View product → |
| 19 | 94601-15000 | CLIP PISTON PIN 15MM | 2 | $5.67 USD | View product → |
| 20 | 96220-20118 | ROLLER 2*11.8 | 1 | $4.92 USD | View product → |

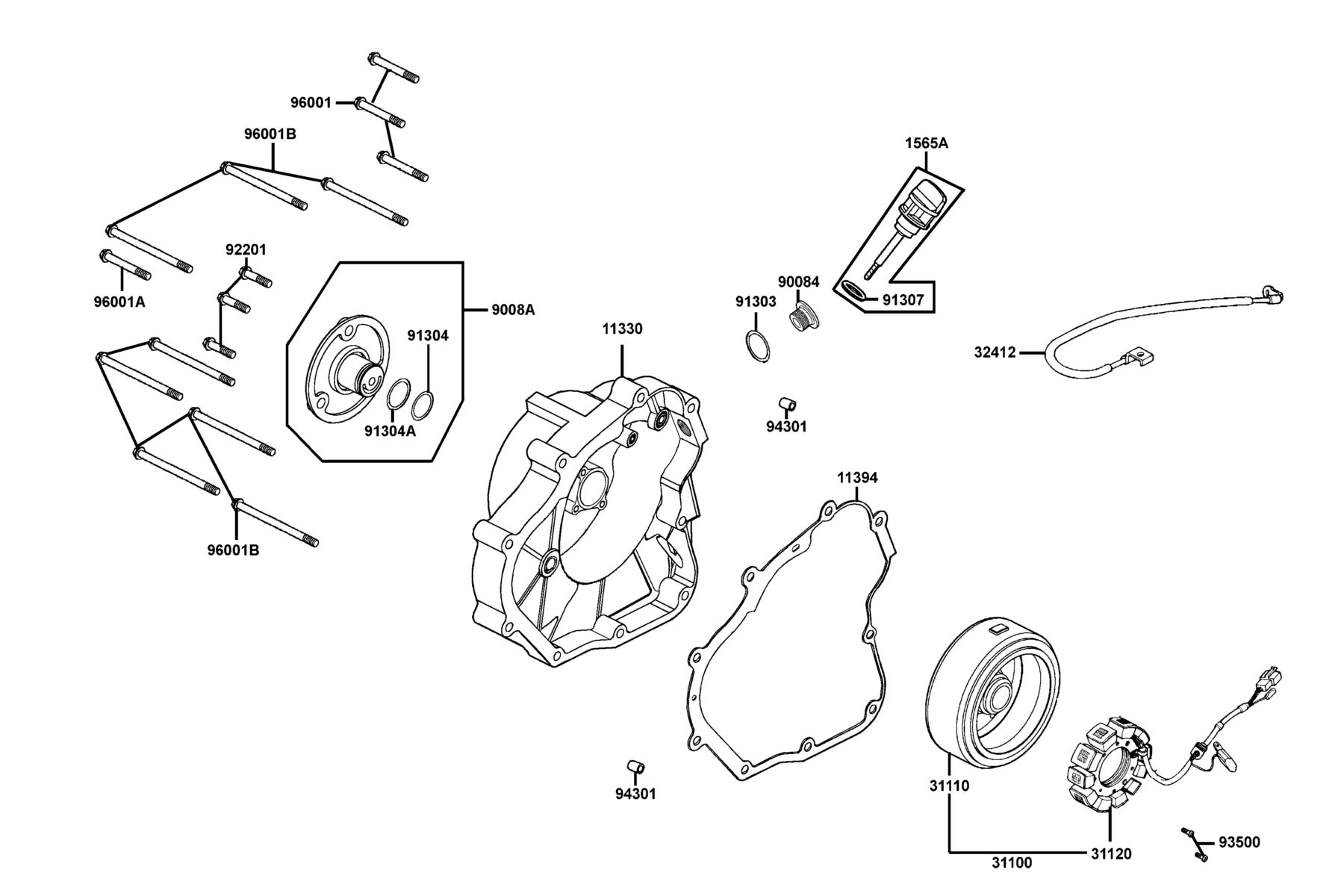

E05 — Right Crankcase Cover●Generator
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 11330-LLB1-900 | COVER COMP R CRANK CASE | 1 | $173.70 USD | View product → |
| 2 | 11394-LLB1-900 | GASKET R COVER A | 1 | $38.52 USD | View product → |
| 3 | 1565A-GFY6-900 | GAUGE OIL LEVEL ASSY | 1 | $10.53 USD | View product → |
| 4 | 31100-LCA4-E0B | AC GEN ASSY | 1 | $453.57 USD | View product → |
| 5 | 31110-LCA4-E0B | FLYWHEEL COMP (D402) | 1 | $176.46 USD | View product → |
| 6 | 31120-LCA4-E0B | STATOR COMP (D402) | 1 | $199.20 USD | View product → |
| 7 | 32412-LLB1-900 | CABLE EARTH | 1 | $44.70 USD | View product → |
| 8 | 90084-4H28-001-NJA | CAP ACG (Silver) | 1 | $0.78 USD | View product → |
| 9 | 9008A-LLB1-900 | CAP R COVER | 1 | $44.04 USD | View product → |
| 10 | 91303-3G77-001 | O-RING 13.8*2.5 | 1 | $4.92 USD | View product → |
| 11 | 91304-GHC8-004 | O RING 23*2.4 | 1 | $4.92 USD | View product → |
| 12 | 91304-LLB1-900 | O-RING 26.5*4 | 1 | $3.27 USD | View product → |
| 13 | 91307-0E35-001 | O RING 18*3 | 1 | $4.92 USD | View product → |
| 14 | 92201-05025-0G | BOLT HEX 5*25 | 1 | $6.51 USD | View product → |
| 15 | 93500-05016-0F | SCREW PAN 5*16 | 1 | $11.79 USD | View product → |
| 16 | 94301-10160 | DOWEL PIN 10*16 | 2 | $3.00 USD | View product → |
| 17 | 96001-06012-06 | BOLT FLANGE SH 6*12 | 1 | $1.95 USD | View product → |
| 18 | 96001-06045-06 | BOLT FLANGE SH 6*45 | 1 | $7.23 USD | View product → |
| 19 | 96001-06125-06 | BOLT FLANGE SH 6*125 | 1 | $4.92 USD | View product → |

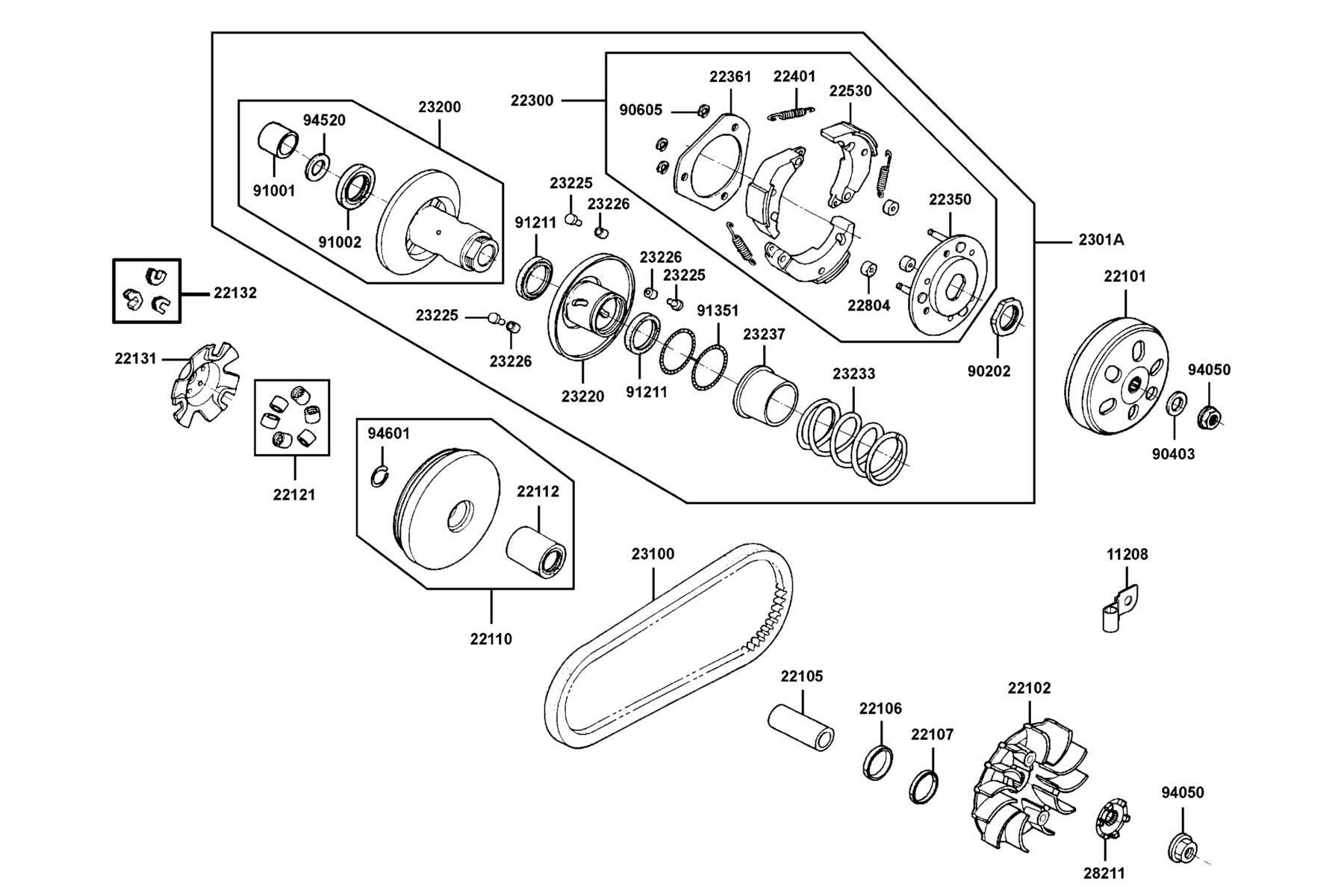

E06 — Driven Pulley
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 11208-LLB1-900 | CLAMPER CARB DRAIN | 1 | $3.60 USD | View product → |
| 2 | 22101-KEBE-900 | OUTER CLUTCH | 1 | $165.81 USD | View product → |
| 3 | 22102-KKC3-900 | FACE DRIVE | 1 | $75.60 USD | View product → |
| 4 | 22105-LLB1-910 | BOSS DRIVE FACE | 1 | $40.98 USD | View product → |
| 5 | 22106-LLB1-910 | COLLAR DRIVE FACE A | 1 | $15.45 USD | View product → |
| 6 | 22107-PWA8-900 | COLLAR DRIVE FACE | 1 | $10.50 USD | View product → |
| 7 | 22110-KKC3-900 | FACE COMP MOVABLE DRIVE | 1 | $101.91 USD | View product → |
| 8 | 22112-KAAA-900 | COLLAR DRIVE FACE | 1 | $14.01 USD | View product → |
| 9 | 22121-KAAA-305 | ROLLER SET WEIGHT (1SET:6PCS) | 1 | $56.22 USD | View product → |
| 10 | 22131-KAAA-900 | PLATE RAMP | 1 | $53.61 USD | View product → |
| 11 | 22132-KGN7-305 | PIECE SLIDE SET(1SET:3PCS) | 1 | $8.49 USD | View product → |
| 12 | 22300-LLB1-900 | PLATE ASSY DRIVE | 1 | $122.55 USD | View product → |
| 13 | 22350-KGN7-671 | PLATE COMP DRIVE | 1 | $148.02 USD | View product → |
| 14 | 22361-LGE7-E00 | PLATE CLUTCH SIDE | 1 | $13.77 USD | View product → |
| 15 | 22401-LLB1-900 | SPRING CLUTCH | 3 | $8.67 USD | View product → |
| 16 | 22530-LLB1-900 | WEIGHT CLUTCH | 3 | $47.91 USD | View product → |
| 17 | 22804-GGB2-001 | RUBBER CLUTCH DAMPER | 3 | $8.19 USD | View product → |
| 18 | 2301A-LLB1-900 | PULLEY SUB ASSY | 1 | $322.02 USD | View product → |
| 19 | 23100-LLB1-90B | BELT DRIVE | 1 | $124.56 USD | View product → |
| 20 | 23200-KEBE-900 | FACE ASSY DRIVEN | 1 | $173.16 USD | View product → |
| 21 | 23220-LLB1-900 | FACE COMP MOVABLE DRIVEN | 1 | $160.92 USD | View product → |
| 22 | 23225-GHC8-004 | PIN ROLLER GUIDE | 3 | $4.92 USD | View product → |
| 23 | 23226-GHC8-004 | ROLLER GUIDE | 3 | $4.92 USD | View product → |
| 24 | 23233-KGN7-671 | SPG DRIVEN FACE | 1 | $62.04 USD | View product → |
| 25 | 23237-KHG8-901 | COLLAR SEAL | 1 | $29.22 USD | View product → |
| 26 | 28211-KFC8-900 | RATCHET KICK STARTER | 1 | $43.35 USD | View product → |
| 27 | 90202-KGN7-671 | NUT SPECIAL 28MM | 1 | $15.84 USD | View product → |
| 28 | 90403-KGN7-671 | WASHER THRUST 28X44X1.5 | 1 | $14.73 USD | View product → |
| 29 | 90605-1F66-721 | CIR CLIP 7MM | 3 | $4.92 USD | View product → |
| 30 | 91001-GFY6-90A | BRG NDL 20*29*18 | 1 | $70.02 USD | View product → |
| 31 | 91002-GGA7-70A | BRG BALL RADIAL 6902U | 1 | $51.27 USD | View product → |
| 32 | 91211-KEBE-900 | SEAL DRIVEN FACE 34X41X4 | 2 | $37.41 USD | View product → |
| 33 | 91351-6B42-000 | O-RING PINION CAP | 2 | $14.70 USD | View product → |
| 34 | 94050-12080 | NUT FLANGE 12MM | 2 | $4.92 USD | View product → |
| 35 | 94520-28000 | CIR CLIP IN 28 | 1 | $4.92 USD | View product → |
| 36 | 94601-33000 | CLIP PISTON PIN 33MM | 1 | $4.92 USD | View product → |

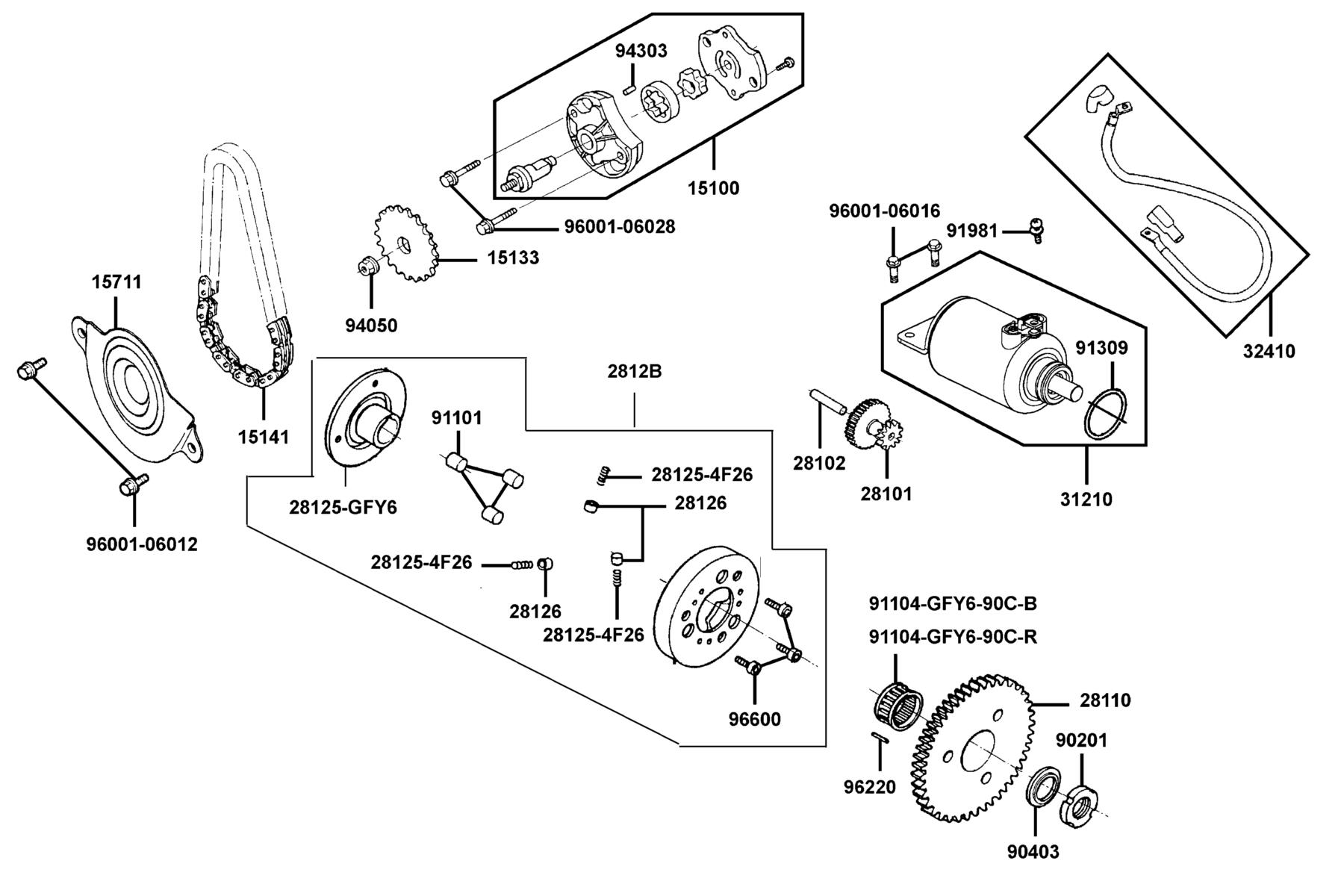

E07 — Starting Motor
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 15100-LLB1-900 | PUMP ASSY OIL | 1 | $73.74 USD | View product → |
| 2 | 15133-GFY6-901 | SPROCKET OIL PUMP DRIVE | 1 | $23.40 USD | View product → |
| 3 | 15141-KEC2-900 | CHAIN OIL PUMP | 1 | $79.86 USD | View product → |
| 4 | 15711-LLB1-900 | SEPARATOR OIL | 1 | $7.53 USD | View product → |
| 5 | 28101-GFY6-C00 | GEAR STARTER REDUCTION | 1 | $73.20 USD | View product → |
| 6 | 28102-GFY6-901 | SHAFT STARTER REDUCTION GEAR | 1 | $13.95 USD | View product → |
| 7 | 28110-GFY6-901 | GEAR COMP STARTING CLUTCH | 1 | $93.30 USD | View product → |
| 8 | 28125-4F26-001 | SPRING ROLLER STARTER CLUTCH | 3 | $3.84 USD | View product → |
| 9 | 28125-4F26-001(wrong) | SPRING ROLLER STARTER CLUTCH | 3 | $4.98 USD | View product → |
| 10 | 28125-GFY6-901 | FLANGE STARTING CLUTCH | 1 | $57.93 USD | View product → |
| 11 | 28126-KUDU-900 | CAP STARTING ROLLER SPRING | 3 | $11.31 USD | View product → |
| 12 | 2812B-GFY6-200 | OUTER COMP STARTING CLUTCH **(0) C.2008. | 0 | — | Part details → |
| 13 | 31210-LLB1-900 | MOTOR UNIT START | 1 | $176.79 USD | View product → |
| 14 | 32410-LLB1-900 | CABLE START MOTOR | 1 | $51.12 USD | View product → |
| 15 | 90201-GFY6-901 | NUT LOCK 22MM | 1 | $15.63 USD | View product → |
| 16 | 90403-KUDU-900 | WASHER THRUST 22.2X39X2.5 | 1 | $12.45 USD | View product → |
| 17 | 91101-1K79-711 | ROLLER 10*10 | 3 | $6.78 USD | View product → |
| 18 | 91104-GFY6-90C-B | BRG NEEDLE 28X32X17 blue(-0.002~-0.004) | 1 | $45.78 USD | View product → |
| 19 | 91104-GFY6-90C-R | BRG NEEDLE 28X32X17 red(0~-0.002) | 1 | $41.25 USD | View product → |
| 20 | 91309-4E25-004 | O-RING 24.4*3.1 | 1 | $4.92 USD | View product → |
| 21 | 91981-KGN7-670 | SCREW WASH 5*8 | 1 | $4.92 USD | View product → |
| 22 | 94050-06080 | NUT FLANGE 6MM | 1 | $2.31 USD | View product → |
| 23 | 94303-04065 | DOWEL PIN 4X6.5 | 1 | $5.43 USD | View product → |
| 24 | 96001-06012-06 | BOLT FLANGE SH 6*12 | 1 | $1.95 USD | View product → |
| 25 | 96001-06016-06 | BOLT FLANGE SH 6X16 | 1 | $12.12 USD | View product → |
| 26 | 96001-06028-06 | BOLT FLANGE SH 6*28 | 1 | $1.95 USD | View product → |
| 27 | 96220-60100 | ROLLER 6X10 | 1 | $4.92 USD | View product → |
| 28 | 96600-08010-16 | SOCKET BOLT 8X10 | 1 | $6.06 USD | View product → |

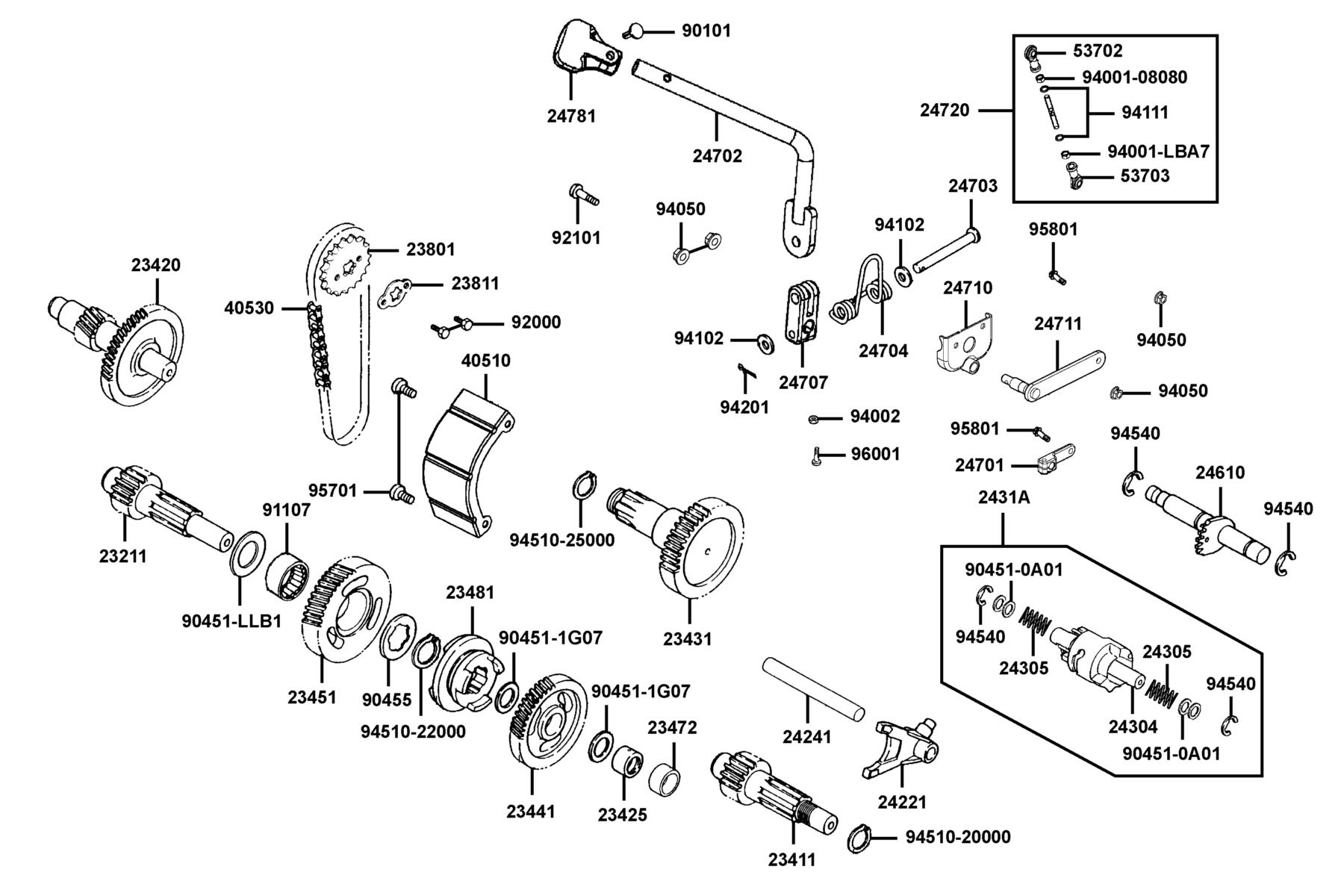

E08 — Transmission
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 23211-LLB1-900 | SHAFT MAIN | 1 | $119.91 USD | View product → |
| 2 | 23411-LCA4-E00 | SHAFT DRIVE | 1 | $137.82 USD | View product → |
| 3 | 23420-LCA4-E00 | SHAFT COMP COUNTER | 1 | $165.21 USD | View product → |
| 4 | 23425-LLB1-900 | BUSH 15MM | 1 | $14.70 USD | View product → |
| 5 | 23431-LLB1-910 | SHAFT FINAL | 1 | $181.11 USD | View product → |
| 6 | 23441-LCA4-E00 | GEAR FORWARD | 1 | $115.80 USD | View product → |
| 7 | 23451-LLB1-900 | GEAR BACKWARD | 1 | $113.34 USD | View product → |
| 8 | 23472-LLB1-900 | COLLAR 15X20X11 | 1 | $16.14 USD | View product → |
| 9 | 23481-LCA4-E00 | SHIFT MAIN | 1 | $132.99 USD | View product → |
| 10 | 23801-LLB1-900 | SPROCKET DRIVE 14T | 1 | $62.04 USD | View product → |
| 11 | 23811-LLB1-900 | PLATE A2 FIXING | 1 | $4.17 USD | View product → |
| 12 | 24221-LLB1-900 | FORK GEAR SHIFT | 1 | $98.25 USD | View product → |
| 13 | 24241-KGB4-C00 | SHAFT GEAR SHIFT FORK GUIDE | 1 | $15.45 USD | View product → |
| 14 | 24304-LLB1-900 | SHAFT DRUM | 1 | $30.96 USD | View product → |
| 15 | 24305-LLB1-900 | SPRING DRUM | 2 | $14.04 USD | View product → |
| 16 | 2431A-LLB1-E00 | DRUM ASSY GEAR SHIFT | 1 | $138.63 USD | View product → |
| 17 | 24610-LLB1-900 | SPINDLE ASSY DRUM SHIFT | 1 | $56.58 USD | View product → |
| 18 | 24701-LCA4-E00 | GEAR CHANGE HANDLE | 1 | $44.49 USD | View product → |
| 19 | 24702-LCA4-E00 | BAR CHANGE HANDLE | 1 | $38.52 USD | View product → |
| 20 | 24703-LLB1-900 | PIN CHANGE HANDLE | 1 | $5.31 USD | View product → |
| 21 | 24704-LBA7-900 | SPRING CHANGE HANDLE | 1 | $31.17 USD | View product → |
| 22 | 24707-LBA7-900 | BRKT CHANGE HANDLE | 1 | $65.22 USD | View product → |
| 23 | 24710-LCA4-E00 | STAY CHANGE HANDLE ASSY | 1 | $37.83 USD | View product → |
| 24 | 24711-LCA4-E00 | SHAFT COMP CHANGE HANDLE | 1 | $57.00 USD | View product → |
| 25 | 24720-LCA4-E00 | ROD ASSY CHANGE HANDLE | 1 | $123.09 USD | View product → |
| 26 | 24781-LCA5-E00 | COVER CHANGE HANDLE | 1 | $23.40 USD | View product → |
| 27 | 40510-LLB1-900 | COVER CHAIN | 1 | $10.74 USD | View product → |
| 28 | 40530-LLB1-900 | CHAIN DRIVE | 1 | $180.18 USD | View product → |
| 29 | 53702-LBA7-900 | JOINT R BALL | 1 | $65.70 USD | View product → |
| 30 | 53703-LBA7-900 | JOINT L BALL | 1 | $65.70 USD | View product → |
| 31 | 90101-LCA5-E00 | SOCKET BOLT 5X12 | 1 | $6.06 USD | View product → |
| 32 | 90451-0A01-001 | WASHER THRUST 14M/M | 4 | $1.95 USD | View product → |
| 33 | 90451-1G07-001 | WASHER THRUST 15MM | 2 | $4.77 USD | View product → |
| 34 | 90451-LLB1-900 | WASHER THRUST 22MM | 1 | $4.17 USD | View product → |
| 35 | 90455-LLB1-900 | WASHER SPLINE 22MM | 1 | $9.39 USD | View product → |
| 36 | 91107-LLB1-900 | BRG NEEDLE 22*30*13 | 1 | $71.79 USD | View product → |
| 37 | 92000-06010-0G | BOLT HEX 6*10 (G) | 1 | $12.60 USD | View product → |
| 38 | 92101-06020-0G | BOLT HEX 6*20 | 1 | $0.99 USD | View product → |
| 39 | 94001-08080-0S | NUT HEX 8MM | 1 | $1.86 USD | View product → |
| 40 | 94001-LBA7-900 | NUT HEX LH 8MM | 1 | $3.78 USD | View product → |
| 41 | 94002-06060-0S | NUT HEX 6MM | 1 | $0.99 USD | View product → |
| 42 | 94050-08080 | NUT FLANGE 8MM | 4 | $4.92 USD | View product → |
| 43 | 94102-08000 | WASHER PLAIN 8MM | 2 | $1.86 USD | View product → |
| 44 | 94111-08800 | WASHER SPG 8MM | 2 | $4.92 USD | View product → |
| 45 | 94201-20150 | PIN SPLIT 2*15 | 1 | $2.61 USD | View product → |
| 46 | 94510-20000 | CIR CLIP EX 20 | 1 | $6.39 USD | View product → |
| 47 | 94510-22000 | CIR CLIP EX 22MM | 1 | $1.65 USD | View product → |
| 48 | 94510-25000 | CIR CLIP EX 25 | 1 | $3.78 USD | View product → |
| 49 | 94540-12028 | E RING 12 | 4 | $4.53 USD | View product → |
| 50 | 95701-06012-06 | BOLT FLANGE 6X12 | 1 | $1.86 USD | View product → |
| 51 | 95801-08028-06 | BOLT FLANGE 8*28 | 2 | $4.53 USD | View product → |
| 52 | 96001-06016-06 | BOLT FLANGE SH 6X16 | 1 | $12.12 USD | View product → |

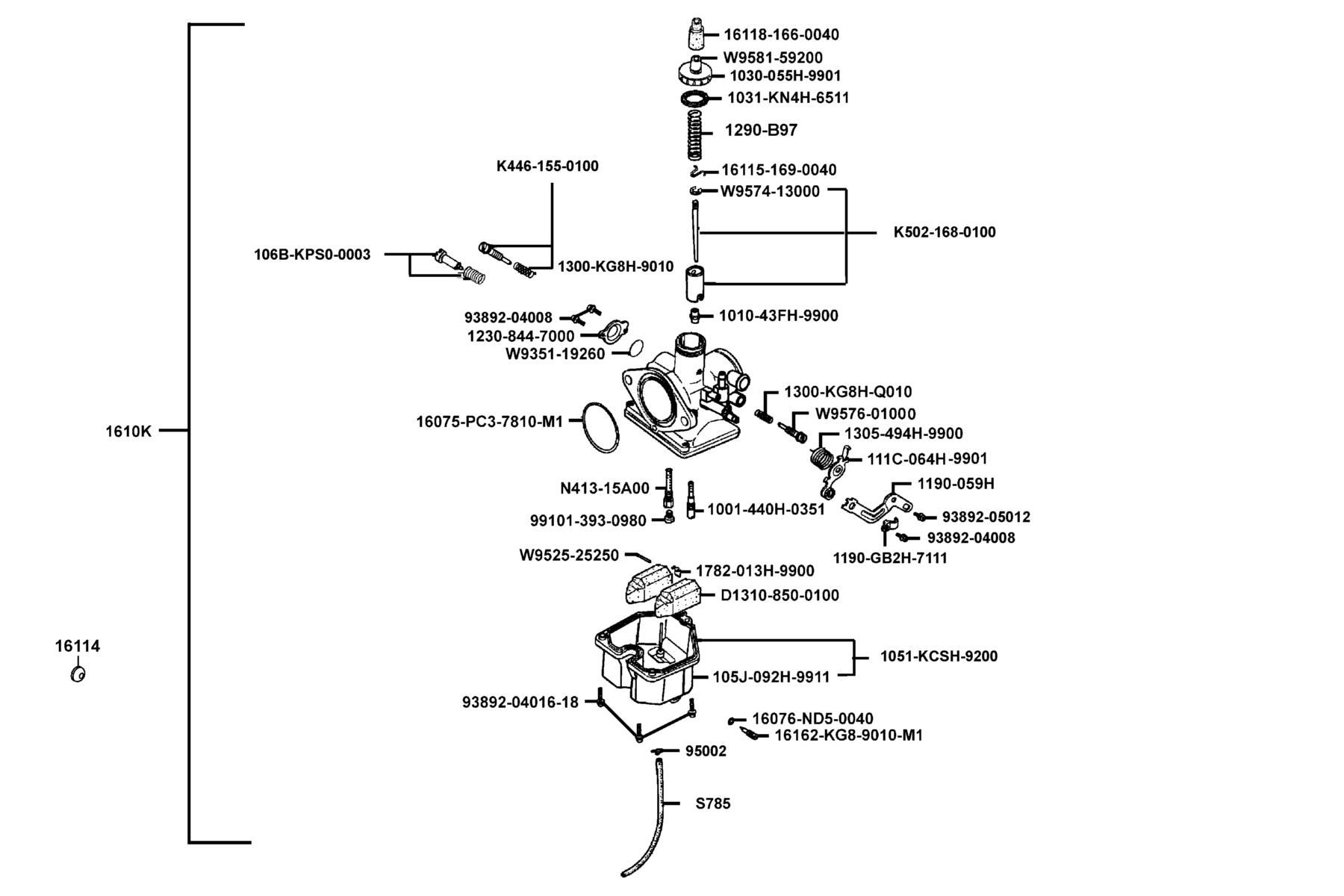

E09 — Carburetor
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1001-440H-0351 | SLOW JET | 1 | $32.73 USD | View product → |
| 2 | 1010-43FH-9900 | NEEDLE JET | 1 | $32.61 USD | View product → |
| 3 | 1030-055H-9901 | TOP | 1 | $27.69 USD | View product → |
| 4 | 1031-KN4H-6511 | TOP GASKET | 1 | $9.06 USD | View product → |
| 5 | 105J-092H-9911 | F.C.B COMP | 1 | $97.20 USD | View product → |
| 6 | 106B-KPS0-0003 | FLOAT VALVE COMP | 1 | $21.93 USD | View product → |
| 7 | 111C-064H-9901 | CHOKE LEVER | 1 | $37.80 USD | View product → |
| 8 | 1190-059H-9901 | STAY PLATE | 1 | $38.49 USD | View product → |
| 9 | 1190-GB2H-7111 | STAY PLATE | 1 | $19.80 USD | View product → |
| 10 | 1230-844-7000 | DIAPHRAGM COVER | 1 | $10.50 USD | View product → |
| 11 | 1290-B97-2000-K | SPG COMPRESSION | 1 | $12.12 USD | View product → |
| 12 | 1300-KG8H-9010 | COMPR SPG | 1 | $10.35 USD | View product → |
| 13 | 1300-KG8H-Q010 | COMPR SPG | 1 | $4.92 USD | View product → |
| 14 | 1305-494H-9900 | TORSION SPG | 1 | $12.78 USD | View product → |
| 15 | 16075-PC3-7810-M1 | O-RING | 1 | $5.85 USD | View product → |
| 16 | 16076-ND5-0040 | O RING | 1 | $4.92 USD | View product → |
| 17 | 1610K-LLB1-810 | CARBURETOR ASSY | 1 | $432.96 USD | View product → |
| 18 | 16114-LDB5-E00 | SHAFT COVER | 1 | $4.92 USD | View product → |
| 19 | 16115-169-0040 | BAR CLIP | 1 | $7.02 USD | View product → |
| 20 | 16118-166-0040 | CABLE SEALING CAP | 1 | $10.50 USD | View product → |
| 21 | 16162-KG8-9010-M1 | DRAIN SCREW PAN | 1 | $14.70 USD | View product → |
| 22 | 16163-KCS-9200 | FLOAT CHAMBER GASKET | 1 | $7.89 USD | View product → |
| 23 | 1782-013H-9900 | SPECIAL CLIP | 1 | $9.06 USD | View product → |
| 24 | 93892-04008-16 | SCREW WASHER 4X8 | 1 | $8.85 USD | View product → |
| 25 | 93892-04016-18-3 | SCREW WASHER 4X16 | 1 | $4.26 USD | View product → |
| 26 | 93892-05012-06 | SCREW WASHER 5*12 | 1 | $11.79 USD | View product → |
| 27 | 95002-02080 | CLIP B8 TUBE | 1 | $1.86 USD | View product → |
| 28 | 99101-393-0980 | MAIN JET | 1 | $36.48 USD | View product → |
| 29 | D1310-850-0100 | FLOAT COMP | 1 | $59.58 USD | View product → |
| 30 | K446-155-0100 | ADJUST SCREW ASSY | 1 | $29.01 USD | View product → |
| 31 | K502-168-0100 | THROTTLE VALVE ASSY | 1 | $223.62 USD | View product → |
| 32 | N413-15A00 | NEEDLE JET HOLDER | 1 | $37.68 USD | View product → |
| 33 | S785-1170 | TUBE SET | 1 | $10.50 USD | View product → |
| 34 | W9351-19260 | O-RING | 1 | $5.22 USD | View product → |
| 35 | W9525-25250 | ARM PIN | 1 | $4.53 USD | View product → |
| 36 | W9574-13000 | NEEDLE CLIP PLATE | 1 | $5.07 USD | View product → |
| 37 | W9576-01000 | STOP SCREW | 1 | $6.36 USD | View product → |
| 38 | W9581-59200 | CABLE ADJUSTING BOLT | 1 | $9.33 USD | View product → |

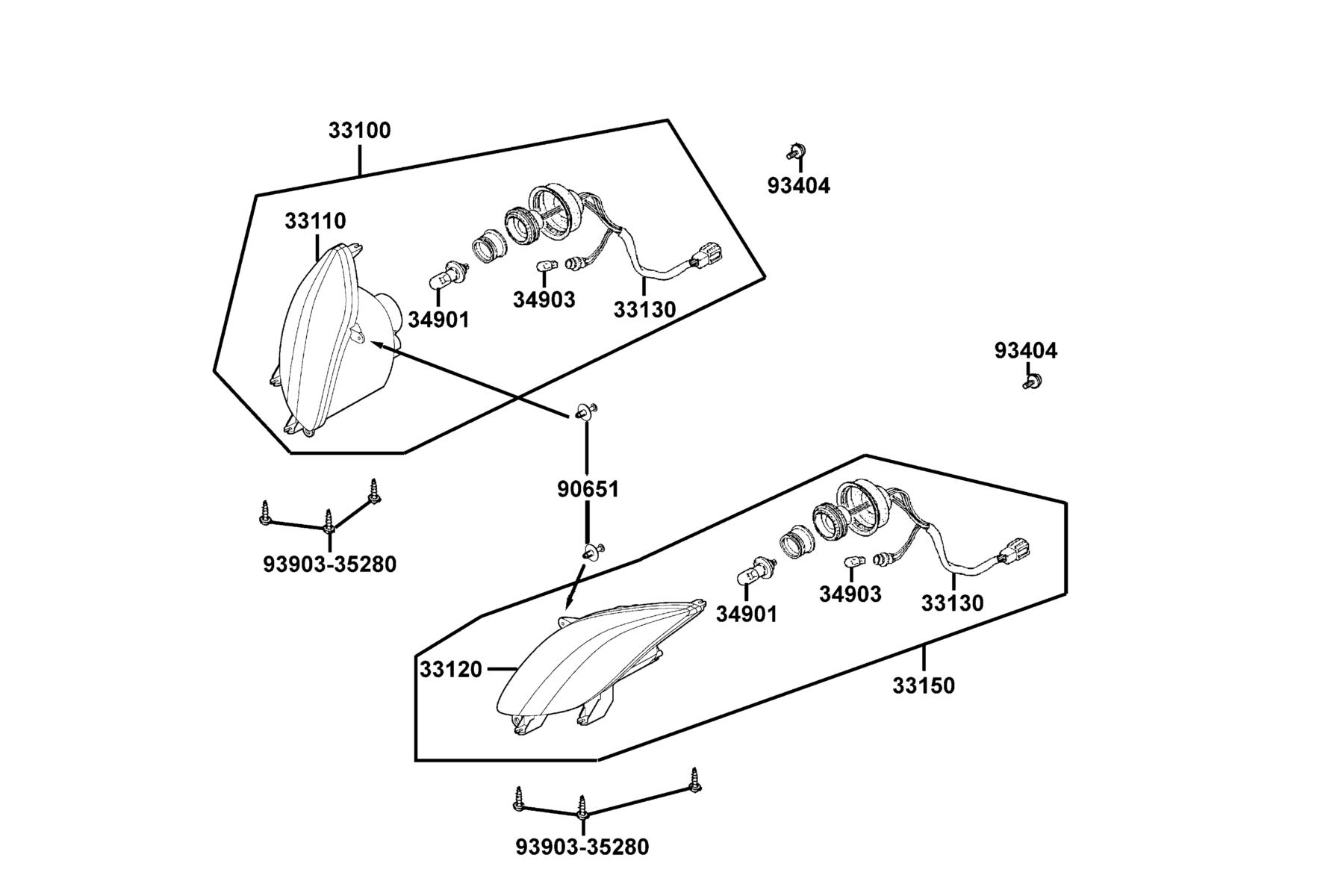

F01 — Head Light
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 044.698 | BULB POSITION LIGHT 12V5W | 2 | $4.11 USD | View product → |
| 2 | 33100-LCA5-E00 | LIGHT ASSY R HEAD | 1 | $254.37 USD | View product → |
| 3 | 33110-LCA5-E00 | UNIT HEAD LIGHT R | 1 | $222.00 USD | View product → |
| 4 | 33120-LCA5-E00 | UNIT HEAD LIGHT L | 1 | $222.00 USD | View product → |
| 5 | 33130-LCA5-E00 | SOCKET COMP | 2 | $55.08 USD | View product → |
| 6 | 33150-LCA5-E00 | LIGHT ASSY L HEAD | 1 | $254.37 USD | View product → |
| 7 | 34901-KFA6-900 | BULB HEAD LIGHT (HSI 12V 35/35W) | 2 | $38.37 USD | View product → |
| 8 | 44.698 | BULB POSITION LIGHT 12V5W | 2 | $4.11 USD | View product → |
| 9 | 90651-LCA5-E00 | CLIP FENDER | 2 | $4.92 USD | View product → |
| 10 | 93404-06016-06 | BOLT WASHER 6*16 | 2 | $7.89 USD | View product → |
| 11 | 93903-35260 | SCREW TAPPING 5*12 | 6 | $4.92 USD | View product → |

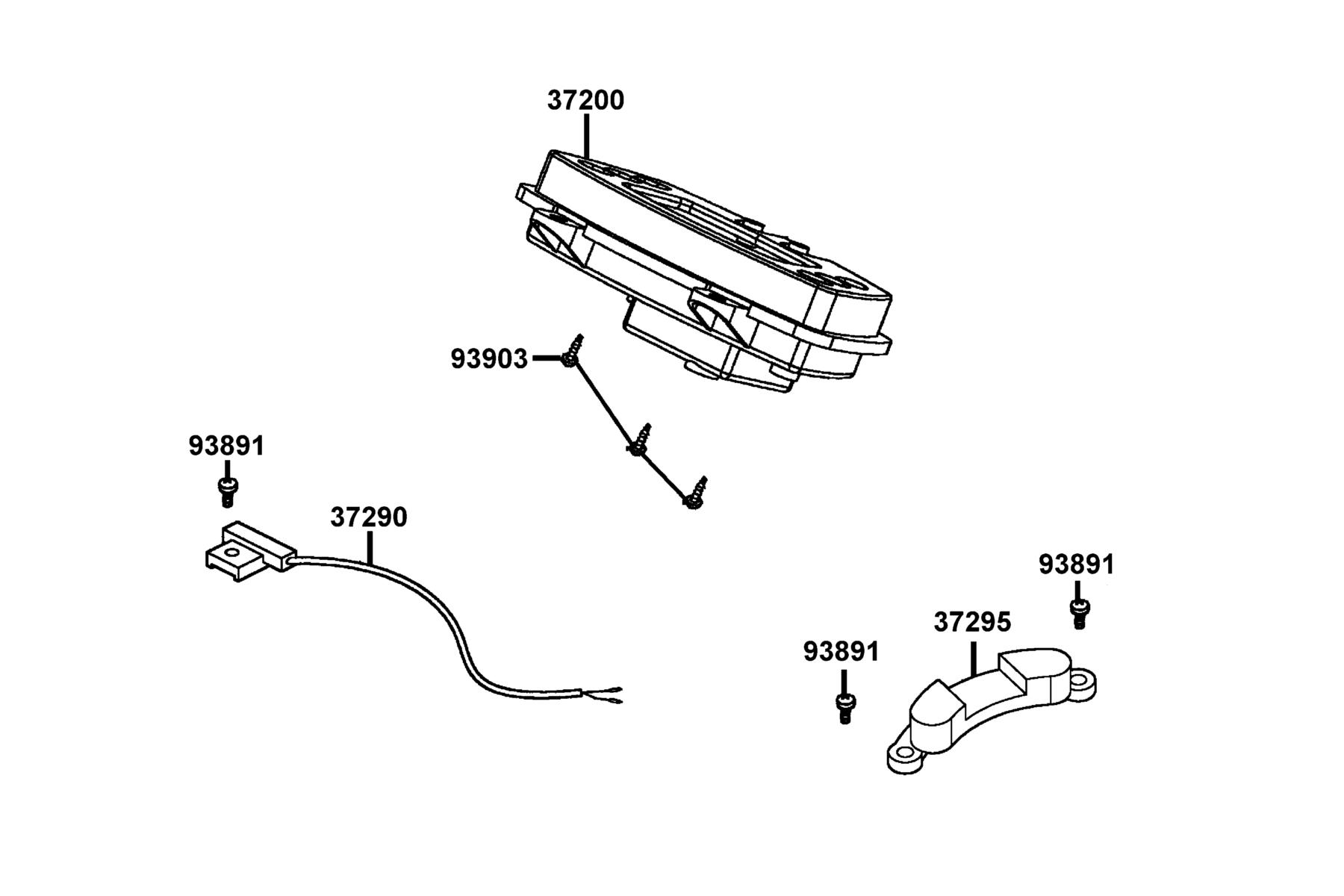

F02 — Speedmeter
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 37200-PWA8-900 | METER ASSY SPEED | 1 | $333.21 USD | View product → |
| 2 | 37290-LLB1-E00 | SENSOR WHEEL RPM | 1 | $46.65 USD | View product → |
| 3 | 37295-LLB1-E00 | SENSOR MAGNET WHEEL RPM | 1 | $24.96 USD | View product → |
| 4 | 93891-05012-06 | SCREW WASHER 5*12 | 3 | $4.92 USD | View product → |
| 5 | 93903-35260 | SCREW TAPPING 5*12 | 3 | $4.92 USD | View product → |

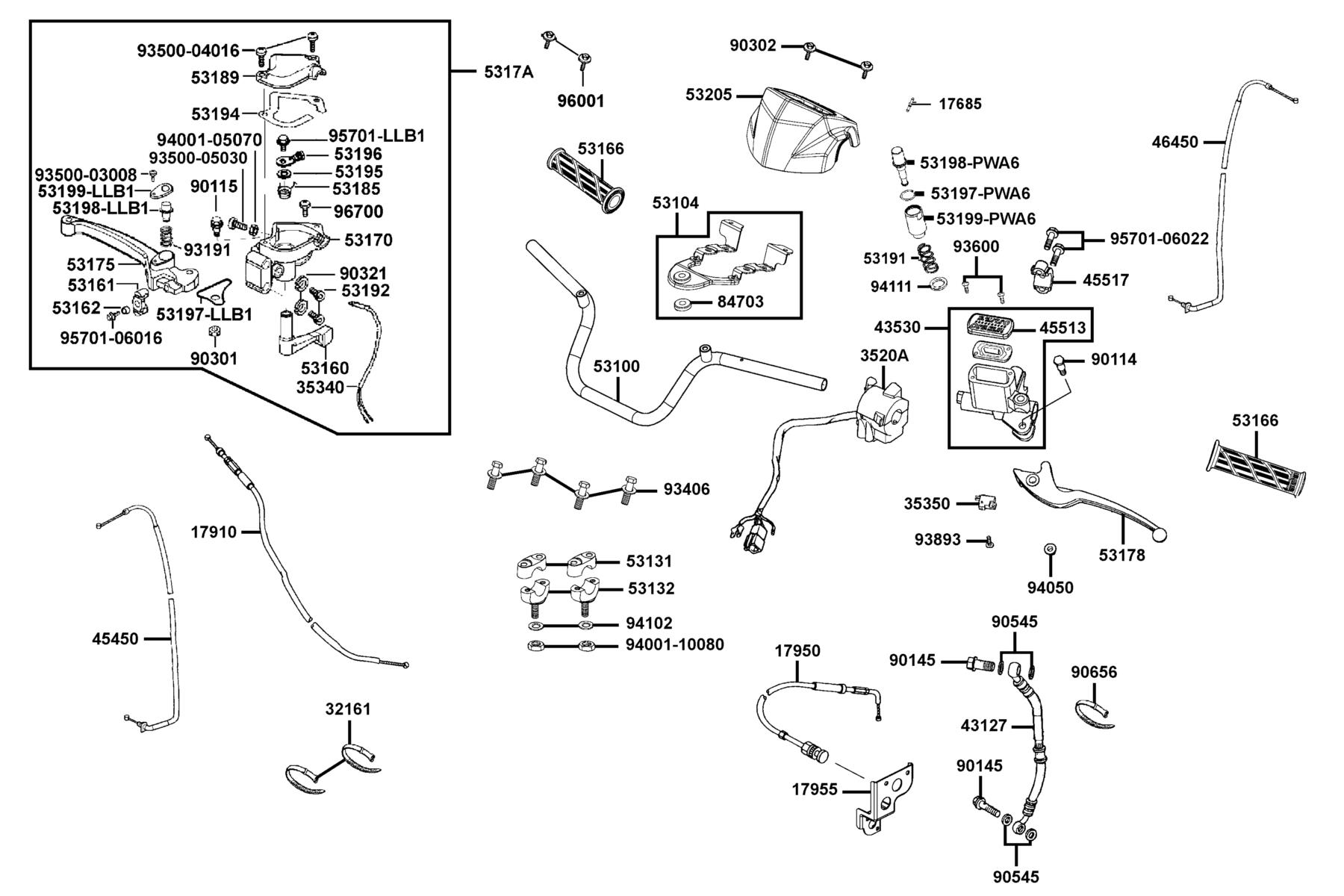

F03 — Handle Steering
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 17685-LCA4-M00 | JOINT 2 WAY | 1 | — | Part details → |
| 2 | 17910-LCA4-E00 | CABLE COMP THROT | 1 | $80.10 USD | View product → |
| 3 | 17950-LLB1-900 | CABLE COMP CHOKE | 1 | $44.07 USD | View product → |
| 4 | 17955-LLB1-900 | STAY CHOKE & FUEL COCK | 1 | $19.38 USD | View product → |
| 5 | 32161-4D04-001 | BAND BI WIRE | 2 | $4.53 USD | View product → |
| 6 | 3520A-LDF3-900 | SW ASSY HANDLE COMP | 1 | $148.20 USD | View product → |
| 7 | 35340-LLB1-800 | SW ASSY FR STOP | 1 | $44.07 USD | View product → |
| 8 | 35350-KNBN-901 | SW ASSY RR STOP | 1 | $38.34 USD | View product → |
| 9 | 43127-LLB1-800 | HOSE ASSY RR BRAKE | 1 | $193.05 USD | View product → |
| 10 | 43530-PWA6-305 | CYLINDER SET RR MASTER | 1 | $195.15 USD | View product → |
| 11 | 45450-LLB1-900 | CABLE COMP FR BRK R | 1 | $58.50 USD | View product → |
| 12 | 45513-GLW0-91A | CAP MASTER CYLINDER | 1 | $20.58 USD | View product → |
| 13 | 45517-KFAF-900 | HOLDER M/C | 1 | $20.91 USD | View product → |
| 14 | 46450-LLB1-900 | CABLE COMP FR BRK L | 1 | $58.50 USD | View product → |
| 15 | 53100-LCA4-600 | HANDLE PIPE STEERING | 1 | $127.02 USD | View product → |
| 16 | 53104-LCA4-E00 | STAY COMP HANDLE COVER | 1 | $32.49 USD | View product → |
| 17 | 53131-4K39-001 | HOLDER HANDLE PIPE | 2 | $17.79 USD | View product → |
| 18 | 53132-LLB1-900 | HOLDER UNDER HANDLE PIPE | 2 | $56.58 USD | View product → |
| 19 | 53160-LLB1-800 | THUMB THROTTLE | 1 | $38.52 USD | View product → |
| 20 | 53161-LLB1-800 | EQUALIZER BRAKE CABLE | 1 | $22.47 USD | View product → |
| 21 | 53162-LLB1-810 | SPACER | 1 | $4.50 USD | View product → |
| 22 | 53166-KC5-0010 | GRIP L HANDLE | 2 | $24.15 USD | View product → |
| 23 | 53170-LLB1-800 | BRKT HANDLE R | 1 | $57.03 USD | View product → |
| 24 | 53175-LBD4-900-M2A | LEVER R STRG HANDLE | 1 | $53.61 USD | View product → |
| 25 | 53178-PWA8-900-M2A | LEVER L STRG HANDLE | 1 | $38.01 USD | View product → |
| 26 | 5317A-LCA4-M01 | BRKT ASSY HANDLE R | 1 | $131.82 USD | View product → |
| 27 | 53185-LLB1-800 | SPPING RETURN | 1 | $17.46 USD | View product → |
| 28 | 53189-LLB1-800 | COVER BRKT R | 1 | $33.39 USD | View product → |
| 29 | 53191-PWA6-900 | SPRING RETURN | 1 | $5.82 USD | View product → |
| 30 | 53192-LLB1-810 | BOLT WIRE ADJUST | 2 | $10.65 USD | View product → |
| 31 | 53194-LLB1-800 | PACKING | 1 | $11.40 USD | View product → |
| 32 | 53195-LLB1-800 | WASHER FLAT | 1 | $15.72 USD | View product → |
| 33 | 53196-LLB1-810 | PLATE CHOKE | 1 | $17.70 USD | View product → |
| 34 | 53197-LLB1-810 | STOPPER PBK | 1 | — | Part details → |
| 35 | 53197-PWA6-900 | CLIP | 1 | $5.34 USD | View product → |
| 36 | 53198-LLB1-810 | BUTTON PBK | 1 | — | Part details → |
| 37 | 53198-PWA6-900 | BUTTON PARKING | 1 | $11.04 USD | View product → |
| 38 | 53199-LLB1-810 | COVER PBK | 1 | — | Part details → |
| 39 | 53199-PWA6-900 | COVER PARING | 1 | $11.61 USD | View product → |
| 40 | 53205-LCA5-M00-KDR | COVER HANDLE | 1 | $47.52 USD | View product → |
| 41 | 84703-LLB1-900 | RUBBER TAIL LIGHT | 1 | $3.96 USD | View product → |
| 42 | 90114-1F66-007 | BOLT HANDLE LEVER | 1 | $4.92 USD | View product → |
| 43 | 90115-LLB1-810 | BOLT HANDLE LEVER PIROT | 1 | — | Part details → |
| 44 | 90145-LEA3-E00 | OIL BOLT 10*22 | 2 | $22.86 USD | View product → |
| 45 | 90301-LLB1-810 | NUT U 6MM(K) | 1 | — | Part details → |
| 46 | 90302-PWA1-900 | BOLT-WASH 5*16 | 2 | $4.92 USD | View product → |
| 47 | 90321-LLB1-810 | NUT FIXING | 3 | $3.54 USD | View product → |
| 48 | 90545-3L00-001 | WASHER OIL BOLT | 4 | $2.91 USD | View product → |
| 49 | 90545-3L00-001(wrong) | WASHER OIL BOLT | 4 | $3.78 USD | View product → |
| 50 | 90656-KCBC-900 | BAND OIL HANDLE 8X146 | 1 | $3.93 USD | View product → |
| 51 | 93191-LLB1-810 | SPG HAND BRAKE | 1 | — | Part details → |
| 52 | 93406-LLB1-900 | BOLT-WASHER 8*35 | 4 | $4.92 USD | View product → |
| 53 | 93500-03008-0GG | SCREW PAN M3*8 | 1 | — | Part details → |
| 54 | 93500-04016-0GG | SCREW PAN M4*16 | 2 | — | Part details → |
| 55 | 93500-05030-0G | SCREW BOLT M5*30 | 1 | $1.95 USD | View product → |
| 56 | 93600-04012-1G | SCREW FLAT 4*12 | 2 | $5.67 USD | View product → |
| 57 | 93893-04012-18 | SCREW WASHER 4*12 | 1 | $1.86 USD | View product → |
| 58 | 94001-05070-0SG | NUT HEX 5MM | 1 | $4.92 USD | View product → |
| 59 | 94030-10080 | NUT HEX 10MM | 2 | $12.09 USD | View product → |
| 60 | 94050-06080 | NUT FLANGE 6MM | 1 | $2.31 USD | View product → |
| 61 | 94101-10800 | WASHER PLAIN 10MM | 2 | $2.61 USD | View product → |
| 62 | 94111-PWA6-900 | WASHER SPRING | 1 | $5.16 USD | View product → |
| 63 | 95701-06016-07G | BOLT FLANGE SH 6*16 (KG) | 1 | $0.99 USD | View product → |
| 64 | 95701-06022-06 | BOLT FLANGE 6*22 | 2 | $4.26 USD | View product → |
| 65 | 95701-LLB1-810 | BOLT FLANGE M8X12 | 1 | — | Part details → |
| 66 | 96001-06022-06 | BOLT FLANGE SH 6X22 | 2 | $4.26 USD | View product → |
| 67 | 96600-06020-07G | SOCKET BOLT 6X20 | 1 | $6.72 USD | View product → |

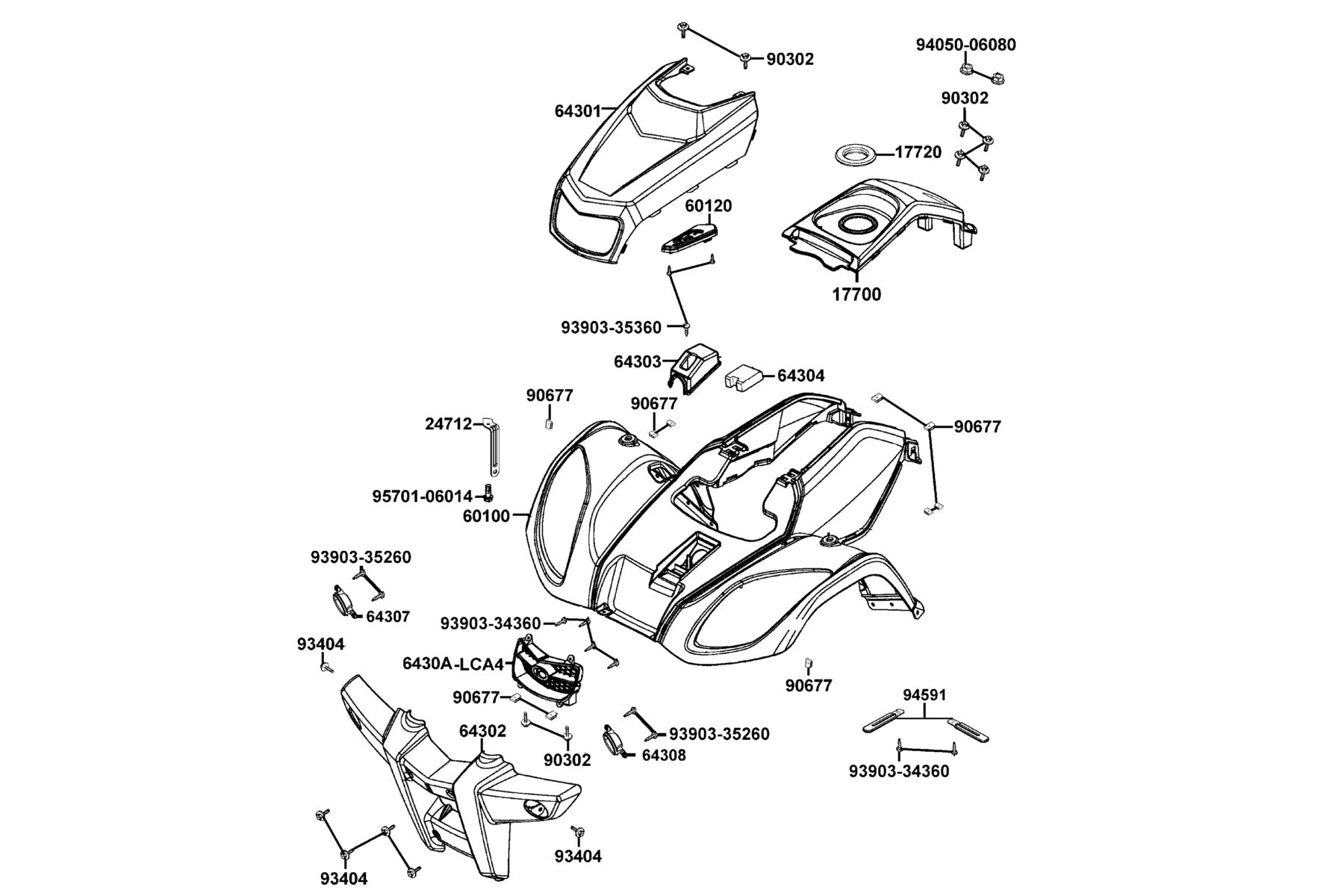

F04 — Front Cover●Tank Cover
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 17700-LCA4-E00-N1R | COVER TANK (Black) | 1 | $57.42 USD | View product → |
| 2 | 17720-LBA7-900 | TRAY TANK COVER | 1 | $17.07 USD | View product → |
| 3 | 24712-LCA4-E00 | STAY GUIDE COVER | 1 | $10.14 USD | View product → |
| 4 | 60100-LCA4-M00-KDR | FENDER FRONT | 1 | $170.58 USD | View product → |
| 5 | 60120-LCA4-E00-N1R | GUIDE COVER CHANGE HANDLE (Black) | 1 | $13.80 USD | View product → |
| 6 | 64301-LCA4-E00-KDR | COVER FRONT | 1 | $41.58 USD | View product → |
| 7 | 64302-LCA5-E01-N1R | BUMPER FRONT (Black) | 1 | $110.22 USD | View product → |
| 8 | 64303-LLB1-900 | COVER CVT ELEMENT | 1 | $5.55 USD | View product → |
| 9 | 64304-LLB1-900 | CVT ELEMENT | 1 | $4.89 USD | View product → |
| 10 | 64307-LCA5-900 | CAP R FR BUMPER | 1 | $7.59 USD | View product → |
| 11 | 64308-LCA5-900 | CAP L FR BUMPER | 1 | $7.59 USD | View product → |
| 12 | 6430A-LCA4-E00-T01 | COVER ASSY GRILLE | 1 | — | Part details → |
| 13 | 90302-PWA1-900 | BOLT-WASH 5*16 | 8 | $4.92 USD | View product → |
| 14 | 90677-GAR1-004 | NUT CLIP 5MM | 10 | $3.00 USD | View product → |
| 15 | 93404-KKC2-900-06 | BOLT-WASH 6X16 | 6 | $4.92 USD | View product → |
| 16 | 93903-34360 | SCREW TAPPING 4X12 | 6 | $4.29 USD | View product → |
| 17 | 93903-35260 | SCREW TAPPING 5*12 | 4 | $4.92 USD | View product → |
| 18 | 93903-35360 | SCREW TAPPING 5*16 | 3 | $3.78 USD | View product → |
| 19 | 94050-06080 | NUT FLANGE 6MM | 2 | $2.31 USD | View product → |
| 20 | 94591-27000 | CLIP 2X70 | 2 | $3.78 USD | View product → |
| 21 | 95701-06014-06 | BOLT FLANGE 6*14 | 1 | $1.65 USD | View product → |

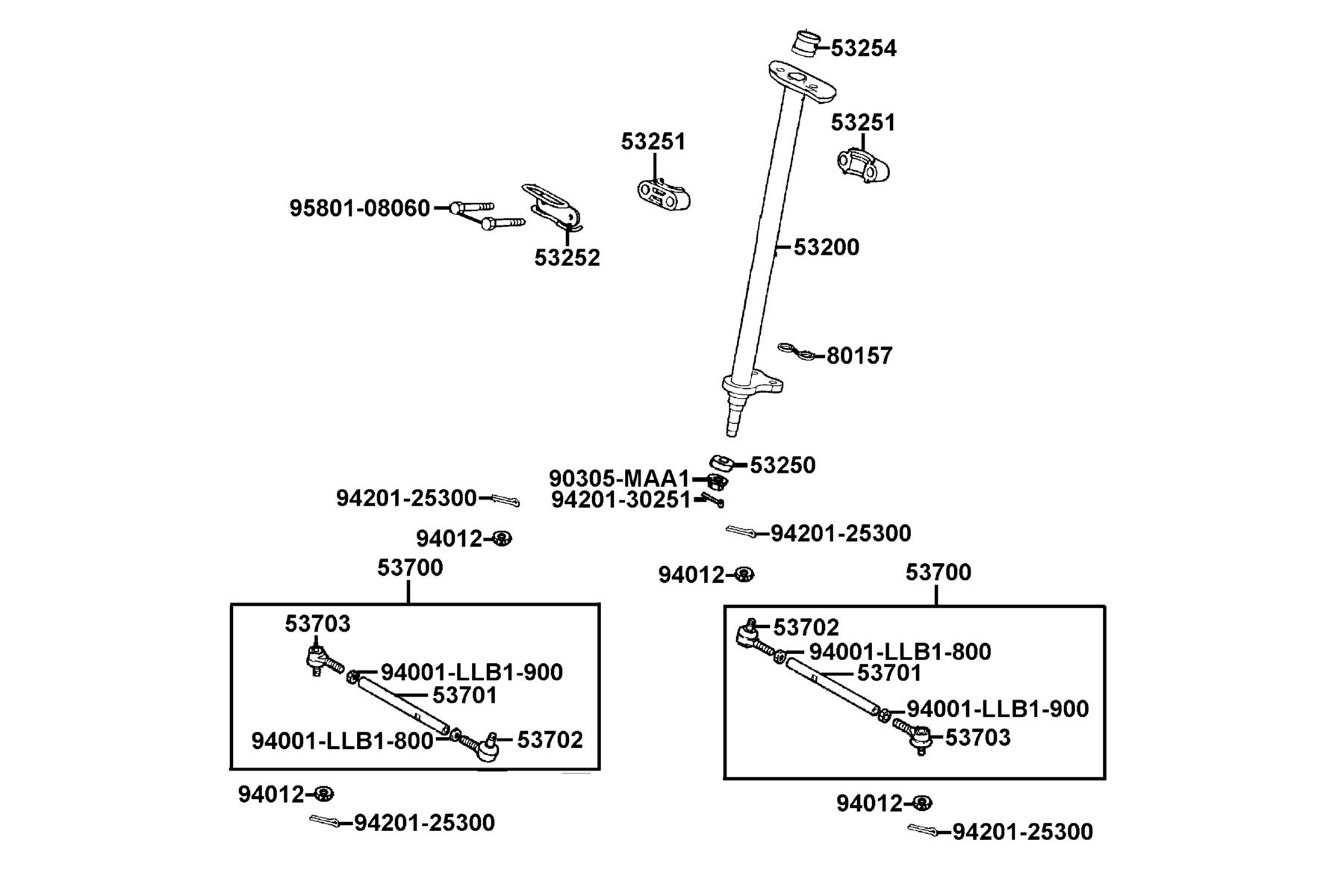

F05 — Stem Steering
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 53200-LCA4-900 | STEM COMP STRG | 1 | $160.92 USD | View product → |
| 2 | 53250-LLB1-900 | COLLAR STEM BOTTOM | 1 | $6.78 USD | View product → |
| 3 | 53251-LCA5-E00 | HOLDER STEM STEERING | 2 | $24.96 USD | View product → |
| 4 | 53252-LBA7-900 | CLAMPER STEM HOLDER | 1 | $18.72 USD | View product → |
| 5 | 53254-LBA7-900 | SLEEVE STEM | 1 | $9.39 USD | View product → |
| 6 | 53700-LCA4-E00 | ROD ASSY STEERING | 2 | $165.00 USD | View product → |
| 7 | 53701-LCA4-E00 | ROD TIE | 2 | $110.22 USD | View product → |
| 8 | 53702-LLB1-900 | JOINT R BALL | 2 | $69.30 USD | View product → |
| 9 | 53703-LLB1-900 | JOINT L BALL | 2 | $69.30 USD | View product → |
| 10 | 80157-KCBC-900 | WASHER | 2 | $4.23 USD | View product → |
| 11 | 90305-MAA1-004 | U NUT FLANGE 14MM | 1 | $5.85 USD | View product → |
| 12 | 94001-LLB1-800 | NUT HEX 10MM | 2 | $4.53 USD | View product → |
| 13 | 94001-LLB1-900 | NUT HEX LH 10MM | 2 | $4.53 USD | View product → |
| 14 | 94012-LLB1-900 | NUT CASTLE 10MM | 4 | $13.77 USD | View product → |
| 15 | 94201-25300 | PIN SPLIT 2.5*30 | 4 | $1.86 USD | View product → |
| 16 | 94201-30250 | PIN SPLIT 3X25 | 1 | $4.92 USD | View product → |
| 17 | 95801-08060-06 | BOLT FLANGE 8*60 | 2 | $11.31 USD | View product → |

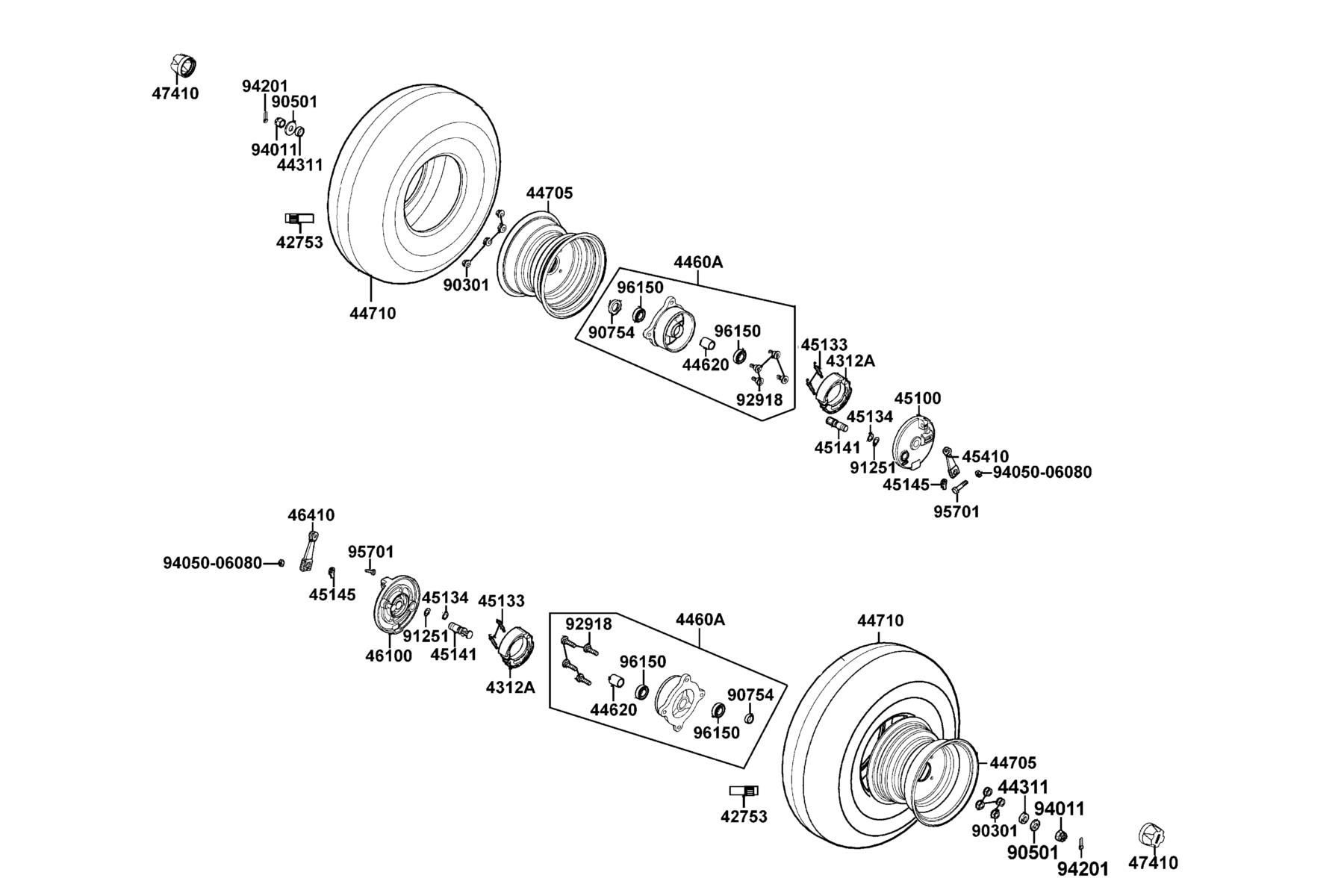

F06 — Front Wheel
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 42753-KNBN-90B | VALVE RIM (TR412) | 2 | $17.70 USD | View product → |
| 2 | 4312A-KXCX-900 | SHOE ASSY RR BRK | 2 | $39.36 USD | View product → |
| 3 | 44311-LLB1-900 | COLLAR FR WHEEL SIDE | 2 | $6.78 USD | View product → |
| 4 | 4460A-LCA4-E00 | HUB ASSY FR | 2 | $204.87 USD | View product → |
| 5 | 44620-LLB1-900 | COLLAR FR DIST | 2 | $21.54 USD | View product → |
| 6 | 44705-LCA5-E00-N1S | RIM COMP FR WHEEL | 2 | $39.96 USD | View product → |
| 7 | 44710-LCA4-M0A | TIRE ASSY FR AT21*7-10 4P TL PATHFINDER/KENDA | 1 | $433.83 USD | View product → |
| 8 | 45100-LLB1-900-NJA | PANEL COMP FR RH (Silver) | 1 | $87.87 USD | View product → |
| 9 | 45133-0H28-001 | SPRING BRAKE SHOE | 4 | $3.87 USD | View product → |
| 10 | 45134-2L50-001 | BRAKE CAM DUST SEAL | 2 | $4.92 USD | View product → |
| 11 | 45141-LLB1-900 | CAM FR BRAKE | 2 | $32.61 USD | View product → |
| 12 | 45145-LLB1-900 | INDICATOR FR BRK | 2 | $4.92 USD | View product → |
| 13 | 45410-LLB1-900 | ARM FR BRK RH | 1 | $18.42 USD | View product → |
| 14 | 46100-LLB1-900-NJA | PANEL COMP FR LH (Silver) | 1 | $87.87 USD | View product → |
| 15 | 46410-LLB1-900 | ARM FR BRK LH | 1 | $16.59 USD | View product → |
| 16 | 47410-LCA5-E00 | CAP WHEEL SHAFT | 2 | $1.26 USD | View product → |
| 17 | 90301-LBA7-900 | NUT WHEEL M10 | 8 | $7.71 USD | View product → |
| 18 | 90501-LCA4-E00 | WASHER 14MM | 2 | $12.09 USD | View product → |
| 19 | 90754-LLB1-900 | DUST SEAL 22*35*7 | 2 | $0.93 USD | View product → |
| 20 | 91251-GHC8-004 | SEAL OIL 41*51*5 | 2 | $7.17 USD | View product → |
| 21 | 92918-LCA4-E00 | BOLT STUD II 10*21 | 8 | $7.17 USD | View product → |
| 22 | 94011-LLB1-900 | NUT FLANGE CASTLE 14MM | 2 | $2.19 USD | View product → |
| 23 | 94050-06080 | NUT FLANGE 6MM | 2 | $2.31 USD | View product → |
| 24 | 94201-30300 | PIN SPLIT 3*30 | 2 | $4.92 USD | View product → |
| 25 | 95701-06028-06 | BOLT FLANGE 6X28 | 1 | $0.87 USD | View product → |
| 26 | 96150-60030-10 | BEARING BALL RADIAL 6003 | 4 | $48.24 USD | View product → |

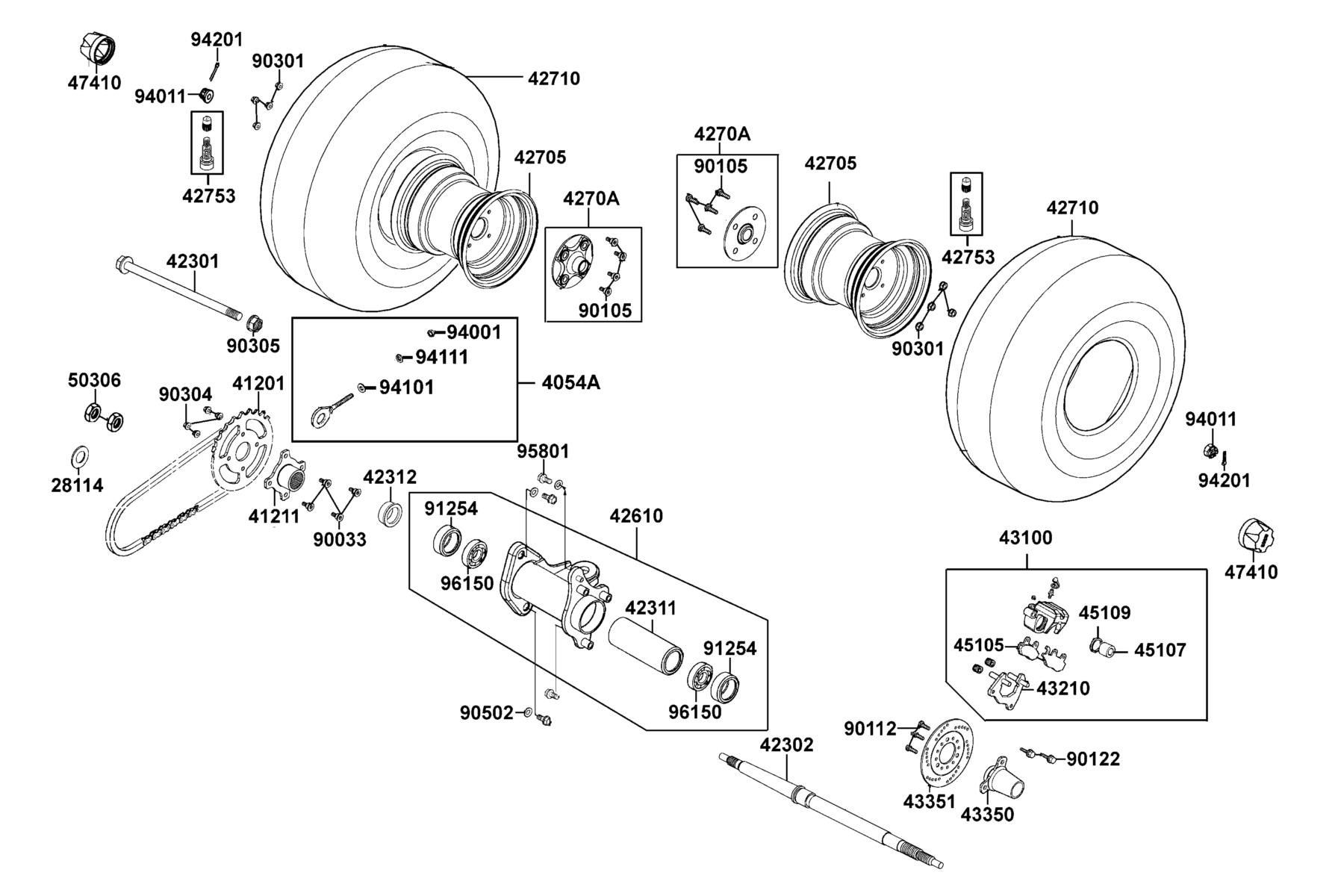

F07 — Rear Wheel
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 28114-GAE1-94A | DISK SPRING | 1 | $16.08 USD | View product → |
| 2 | 4054A-LLB1-900 | DRIVE CHAIN ADJUSTER ASSY | 1 | $8.67 USD | View product → |
| 3 | 41201-LLB1-E00 | SPRKT FINAL DRIVEN | 1 | $149.70 USD | View product → |
| 4 | 41211-LLB1-900 | HOLDER SPROCKET | 1 | $45.42 USD | View product → |
| 5 | 42301-LLB1-900 | AXLE RR FORK M14*265MM | 1 | $39.72 USD | View product → |
| 6 | 42302-LCA4-E00 | SHAFT RR WHEEL | 1 | $299.22 USD | View product → |
| 7 | 42311-LLB1-900 | COLLAR RR HUB | 1 | $32.58 USD | View product → |
| 8 | 42312-LLB1-900 | COLLAR RR SIDE | 1 | $22.74 USD | View product → |
| 9 | 42610-LLB1-E01-N1S | HUB ASSY RR | 1 | $170.85 USD | View product → |
| 10 | 42705-LCA5-E00-N1S | RIM COMP RR WHEEL | 2 | $177.06 USD | View product → |
| 11 | 4270A-LCA5-E00 | CONNECTOR ASSY RR | 2 | $149.43 USD | View product → |
| 12 | 42710-LCA4-M0A | TIRE ASSY RR AT22*10-10 4P TL PATHFINDER/KEND | 1 | $403.14 USD | View product → |
| 13 | 42753-KNBN-90B | VALVE RIM (TR412) | 2 | $17.70 USD | View product → |
| 14 | 43100-LLB1-800-NJA | CALIPER ASSY RR (Silver) | 1 | $251.01 USD | View product → |
| 15 | 43210-LLB1-305 | BRACKET RR | 1 | $86.76 USD | View product → |
| 16 | 43350-LLB1-800 | BRACKET BRAKE DISK | 1 | $103.02 USD | View product → |
| 17 | 43351-KEBE-900 | DISK RR BRAKE | 1 | $123.27 USD | View product → |
| 18 | 45107-KFA6-900 | PISTON C/P (??33.96MM) | 1 | $31.17 USD | View product → |
| 19 | 45109-KFA6-900 | DUST SEAL | 1 | $4.92 USD | View product → |
| 20 | 47410-LCA5-E00 | CAP WHEEL SHAFT | 2 | $1.26 USD | View product → |
| 21 | 50306-LLB1-900 | NUT REAR SHAFT | 2 | $25.56 USD | View product → |
| 22 | 90033-LLB1-900 | BOLT STUD 10*20 | 4 | $5.31 USD | View product → |
| 23 | 90105-LBA7-900 | BOLT CONNECTOR ( STUD 10X36 ) | 8 | $13.17 USD | View product → |
| 24 | 90112-LBD4-800 | BOLT DISK | 3 | $11.91 USD | View product → |
| 25 | 90122-LLB1-800 | BOLT FLANGE 8*28 | 2 | $7.53 USD | View product → |
| 26 | 90301-LBA7-900 | NUT WHEEL M10 | 8 | $7.71 USD | View product → |
| 27 | 90304-GLW0-90A | NUT U FLANGE 10MM | 4 | $9.39 USD | View product → |
| 28 | 90305-GHE8-004 | NUT U 14MM | 1 | $29.10 USD | View product → |
| 29 | 90502-LLB1-900 | WASHER 12.2*28*4 | 3 | $4.17 USD | View product → |
| 30 | 91254-LLB1-900 | SEAL DUST | 2 | $37.77 USD | View product → |
| 31 | 94001-08080-0S | NUT HEX 8MM | 1 | $1.86 USD | View product → |
| 32 | 94011-LBA7-900 | NUT FLANGE CASTLE 16MM | 2 | $31.44 USD | View product → |
| 33 | 94101-08800 | WASHER PLAIN 8MM | 1 | $1.86 USD | View product → |
| 34 | 94111-08800 | WASHER SPG 8MM | 1 | $4.92 USD | View product → |
| 35 | 94201-30300 | PIN SPLIT 3*30 | 2 | $4.92 USD | View product → |
| 36 | 95801-LLB1-900 | BOLT FLANGE 12X28 | 4 | $9.84 USD | View product → |
| 37 | 96150-69070-10 | BEARING BALL RADIAL 6907 | 2 | $96.30 USD | View product → |
| 38 | FA305R | PAD ASSY (A+B) | 1 | $75.57 USD | View product → |

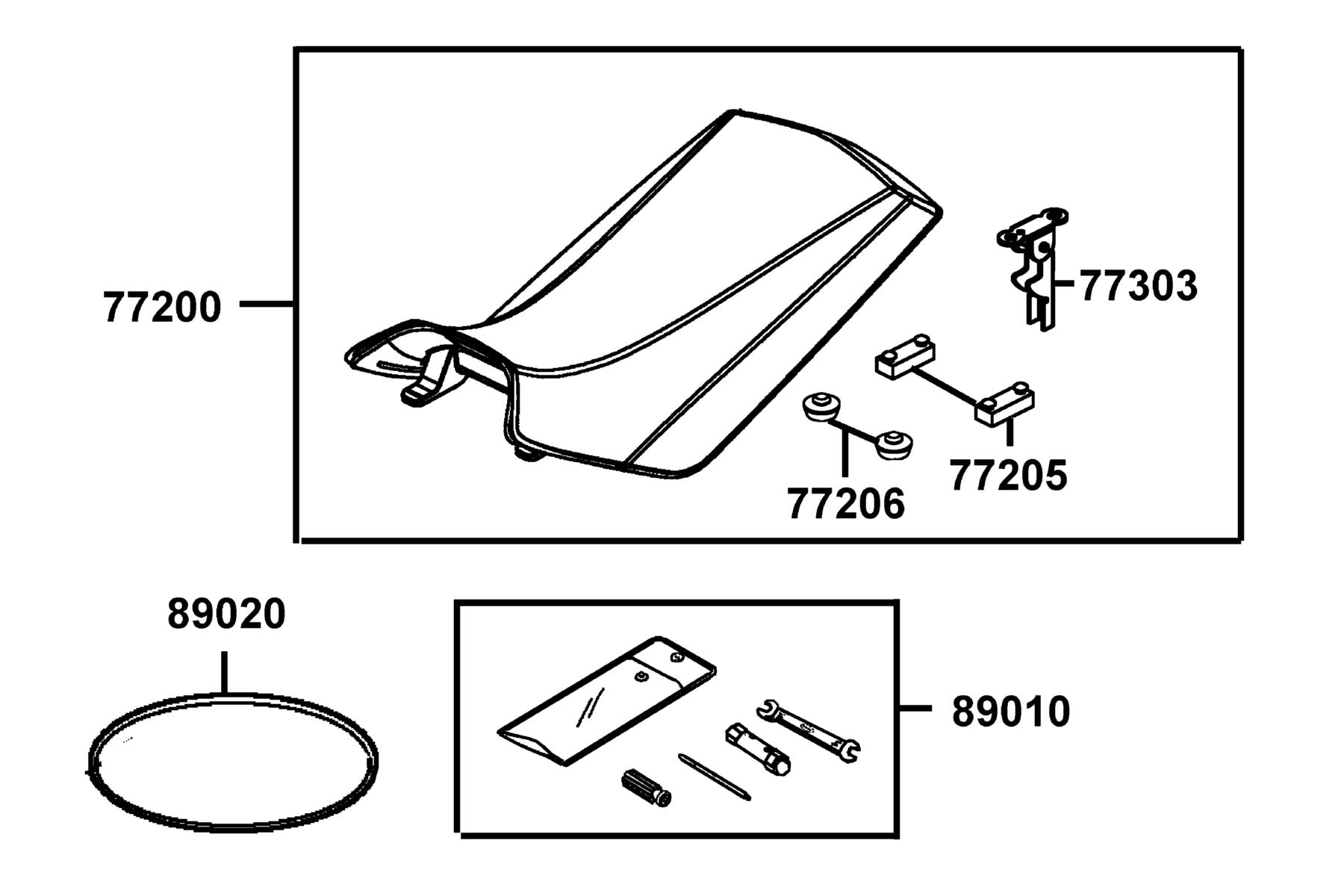

F08 — Seat
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 77200-LCA4-E00-T01 | SEAT ASSY (REACH) | 1 | $260.64 USD | View product → |
| 2 | 77205-2F86-001 | RUBBER B SEAT SETTING | 2 | $8.28 USD | View product → |
| 3 | 77206-LBA7-900 | RUBBER SEAT CUSH | 2 | $7.53 USD | View product → |
| 4 | 77303-LLB1-900 | HOOK ASSY SEAT LOCK | 1 | $37.65 USD | View product → |
| 5 | 89010-LLB1-900 | TOOL SET | 1 | $37.77 USD | View product → |
| 6 | 89020-KKC4-900 | BAND TOOL SET | 1 | $3.00 USD | View product → |

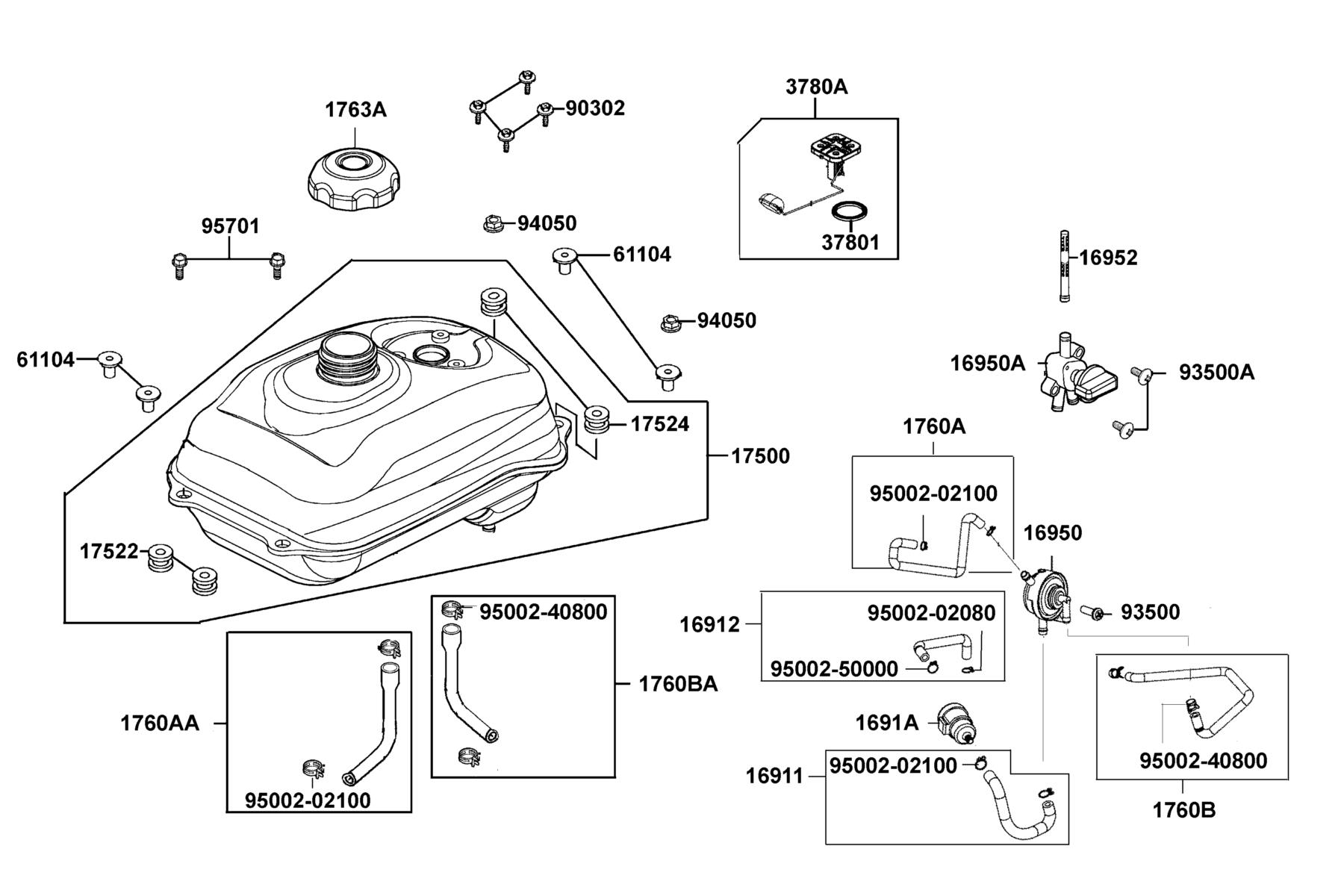

F09 — Fuel Tank
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 16911-LCA4-MY0 | TUBE ASSY FUEL | 1 | $43.68 USD | View product → |
| 2 | 16912-LCA4-MY0 | TUBE ASSY FUEL | 1 | $29.16 USD | View product → |
| 3 | 1691A-PVA2-90A | STRAINER ASSY FUEL | 1 | $40.98 USD | View product → |
| 4 | 16950-LDE9-M00 | AUTO COCK ASSY FUEL | 1 | $65.19 USD | View product → |
| 5 | 16950-LLB1-920 | COCK FUEL | 1 | $51.63 USD | View product → |
| 6 | 16952-LLB1-900 | SCREEN FUEL STRAINER | 1 | $13.95 USD | View product → |
| 7 | 17500-LCA4-MYA | TANK COMP FUEL | 1 | $470.80 USD | View product → |
| 8 | 17522-LLB1-900 | RUBBER FUEL TANK | 2 | $9.39 USD | View product → |
| 9 | 17524-LLB1-900 | RR RUBBER FUEL TANK | 2 | $4.53 USD | View product → |
| 10 | 1760A-LCA4-M00 | TUBE ASSY AUTOCOCK | 1 | $42.99 USD | View product → |
| 11 | 1760A-LLB1-MY0 | TUBE ASSY FUEL TANK | 1 | $40.86 USD | View product → |
| 12 | 1760B-LCA4-M00 | TUBE ASSY INNER PIPE | 1 | — | Part details → |
| 13 | 1760B-LLB1-MY0 | TUBE ASSY FUEL TANK RES | 1 | $45.39 USD | View product → |
| 14 | 1763A-LCA4-MY0 | CAP ASSY FUEL TANK | 1 | $78.45 USD | View product → |
| 15 | 37801-LDH1-MY0 | PACKING BASE | 1 | $41.97 USD | View product → |
| 16 | 3780A-LCA4-900 | FUEL UNIT ASSY | 1 | $121.35 USD | View product → |
| 17 | 61104-357-0010 | COLLAR FR FENDER | 4 | $11.19 USD | View product → |
| 18 | 90302-GBR2-001 | BOLT-WASH 5x16 | 4 | $3.99 USD | View product → |
| 19 | 93500-05012-0F | SCREW PAN 5X12 | 1 | $12.12 USD | View product → |
| 20 | 93500-05016-1B | SCREW PAN 5*16 | 2 | $1.86 USD | View product → |
| 21 | 94050-06080 | NUT FLANGE 6MM | 2 | $2.31 USD | View product → |
| 22 | 95002-02080 | CLIP B8 TUBE | 1 | $1.86 USD | View product → |
| 23 | 95002-02100 | CLIP B15 TUBE | 6 | $4.92 USD | View product → |
| 24 | 95002-40800-08 | CLAMP D8 TUBE | 2 | $8.49 USD | View product → |
| 25 | 95002-50000 | CLIP C9 TUBE | 1 | $1.86 USD | View product → |
| 26 | 95701-06022-06 | BOLT FLANGE 6*22 | 2 | $4.26 USD | View product → |

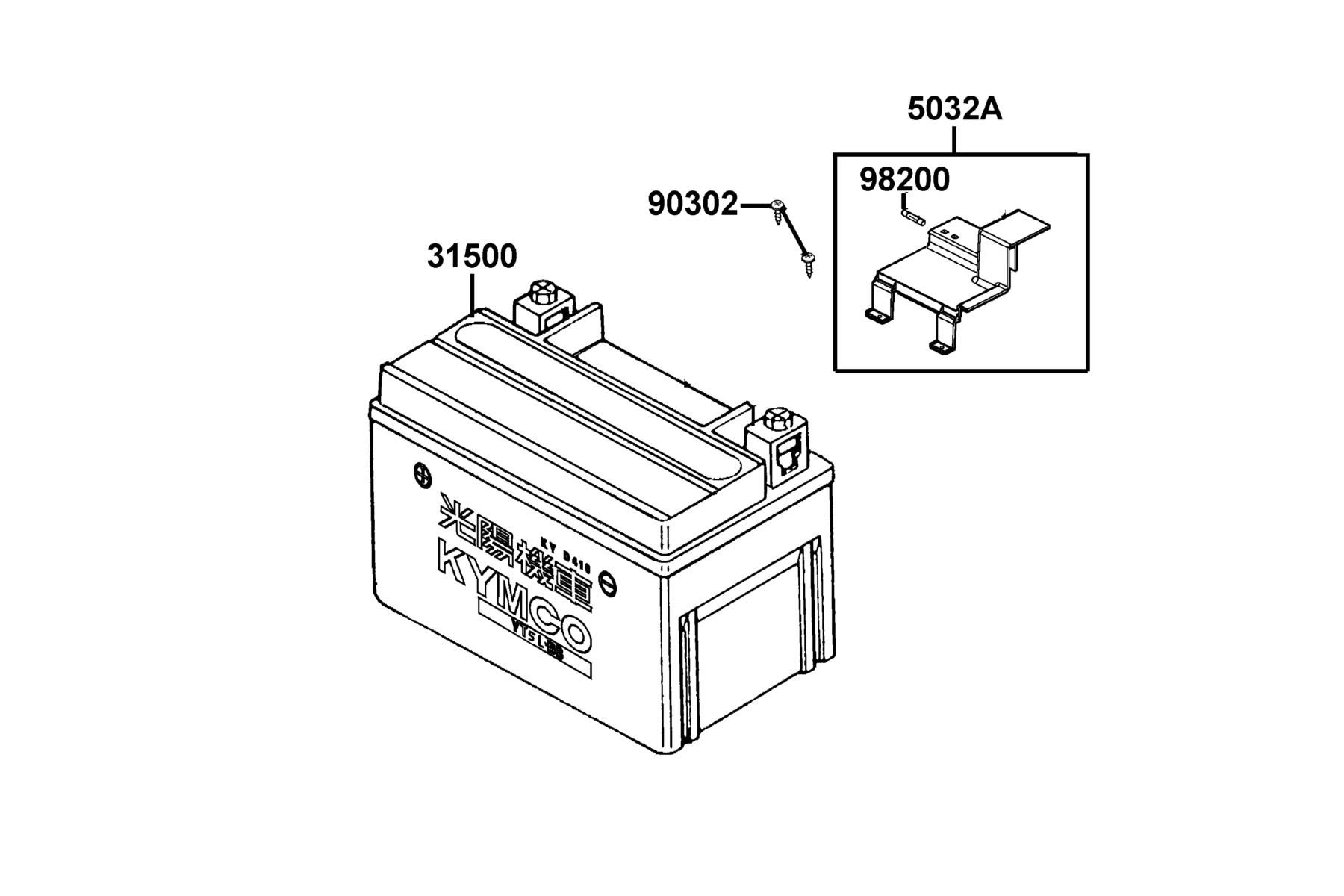

F10 — Battery
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 31500-KFAF-90B | BATTERY GTX9-BS | 1 | $232.89 USD | View product → |
| 2 | 5032A-LCA4-E00 | COVER ASSY BATTERY | 1 | $39.36 USD | View product → |
| 3 | 90302-PWA1-900 | BOLT-WASH 5*16 | 2 | $4.92 USD | View product → |
| 4 | 98200-12000 | FUSE 20A | 1 | $5.10 USD | View product → |

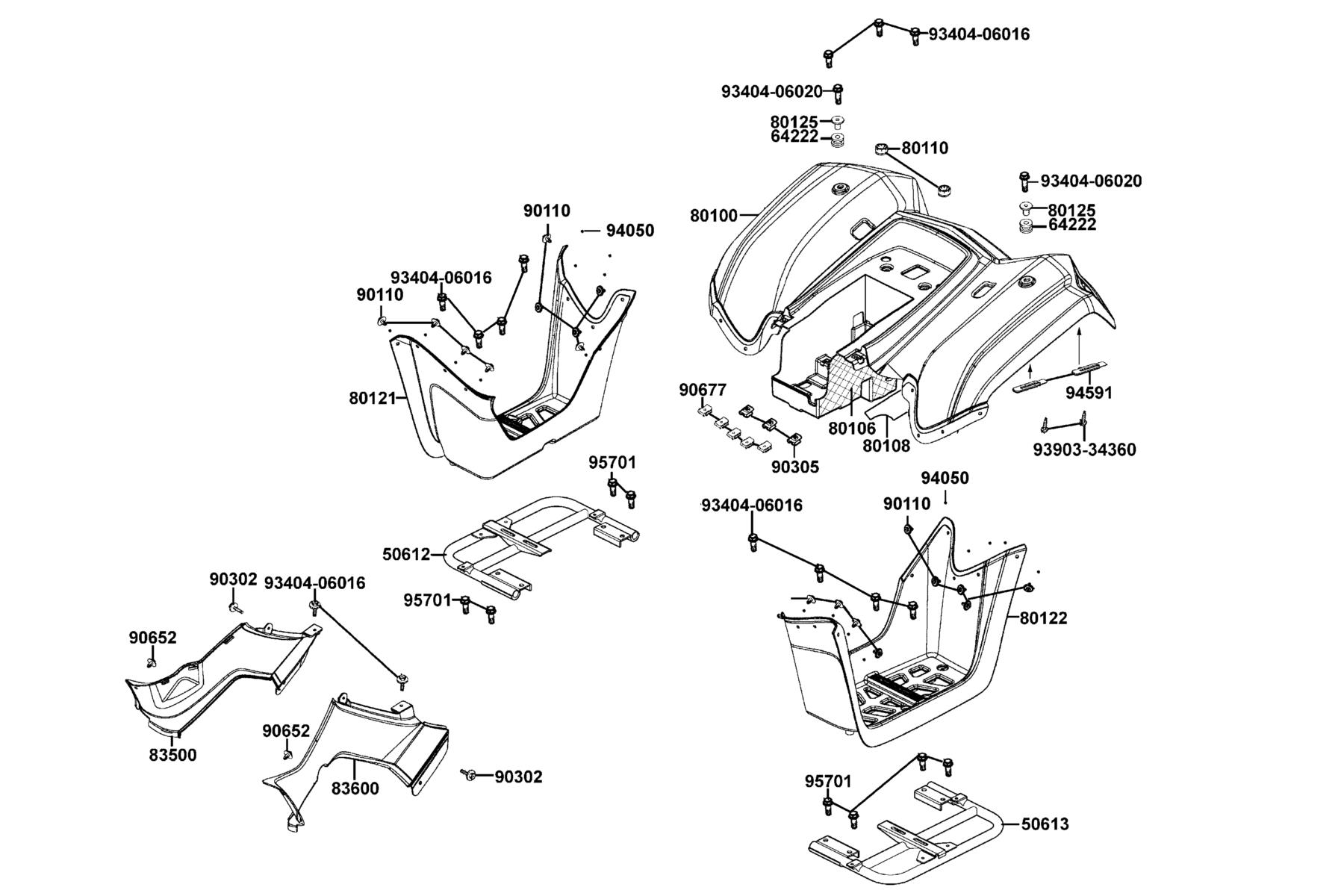

F11 — Luggage Box
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 50612-LCA4-E00 | STAY R FOLLR PANEL | 1 | $118.80 USD | View product → |
| 2 | 50613-LCA4-E00 | STAY L FLOOR PANEL | 1 | $118.80 USD | View product → |
| 3 | 64222-LLJ3-E00 | RUBBER WIND SCREEN | 2 | $3.66 USD | View product → |
| 4 | 80100-LCA4-E00-N1R | FENDER RR (Black) | 1 | $274.29 USD | View product → |
| 5 | 80106-LCA4-E00 | HEAT GUARD A RR FENDER | 1 | $31.83 USD | View product → |
| 6 | 80108-LCA4-E00 | HEAT GUARD B RR FENDER | 1 | $14.10 USD | View product → |
| 7 | 80110-LBA7-900 | RUBBER REAR FENDER | 2 | $3.66 USD | View product → |
| 8 | 80121-LCA4-E00-N1R | MUDGUARD.R FLOOR (Black) | 1 | $134.01 USD | View product → |
| 9 | 80122-LCA4-E01-N1R | MUDGUARD.L FLOOR (Black) | 1 | $134.01 USD | View product → |
| 10 | 80125-LBD4-900 | COLLAR FLOOR | 2 | $4.56 USD | View product → |
| 11 | 83500-LCA4-E01-N1R | COVER.R SIDE (Black) | 1 | $67.50 USD | View product → |
| 12 | 83600-LCA4-E01-N1R | COVER.L SIDE (Black) | 1 | $27.21 USD | View product → |
| 13 | 90110-PWB1-900 | SCREW SPECIAL 6X20 | 18 | $7.17 USD | View product → |
| 14 | 90302-PWA1-900 | BOLT-WASH 5*16 | 2 | $4.92 USD | View product → |
| 15 | 90305-GHK8-001 | NUT CLIP 6MM | 3 | $4.92 USD | View product → |
| 16 | 90652-LCA4-E00 | CLIP MUDGUARD | 2 | $4.92 USD | View product → |
| 17 | 90677-GAR1-004 | NUT CLIP 5MM | 5 | $3.00 USD | View product → |
| 18 | 93404-06016-06 | BOLT WASHER 6*16 | 13 | $7.89 USD | View product → |
| 19 | 93404-06020-06 | BOLT WASHER 6X20 | 2 | $3.00 USD | View product → |
| 20 | 93903-34360 | SCREW TAPPING 4X12 | 2 | $4.29 USD | View product → |
| 21 | 94050-LDE9-E00 | NUT LOCK | 18 | $2.61 USD | View product → |
| 22 | 94591-27000 | CLIP 2X70 | 2 | $3.78 USD | View product → |
| 23 | 95701-08016-06 | BOLT FLANGE 8*16 | 8 | $4.53 USD | View product → |

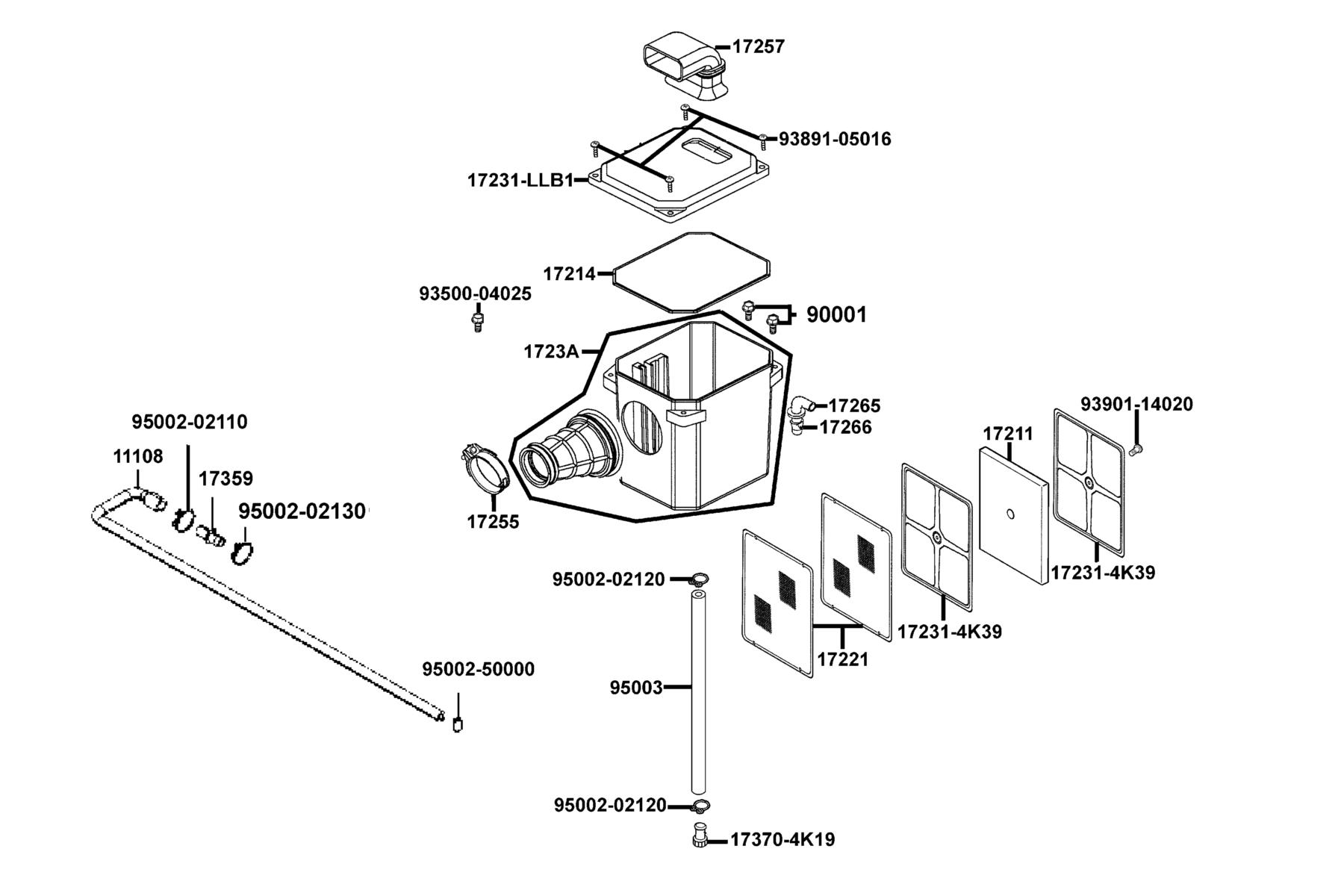

F12 — Air Cleaner
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 11108-LCA4-900 | HOSE CRANK CASE VENT | 1 | — | Part details → |
| 2 | 17211-4K39-001 | ELEMENT AIR/C | 1 | $28.05 USD | View product → |
| 3 | 17214-LLB1-900 | SEAL AIR/C COVER | 1 | $6.78 USD | View product → |
| 4 | 17221-KGG7-001 | TRAP COMP | 2 | $17.79 USD | View product → |
| 5 | 17231-4K39-001 | PLATE ELEMENT SET | 2 | $8.67 USD | View product → |
| 6 | 17231-LLB1-900 | COVER AIR/C | 1 | $58.38 USD | View product → |
| 7 | 1723A-LLB1-900 | CASE ASSY AIR/C | 1 | $120.60 USD | View product → |
| 8 | 17255-KAK-9000 | BAND A AIR/C CONNECTING TUBE | 1 | $12.09 USD | View product → |
| 9 | 17257-LLB1-900 | DUCT AIR/C COVER | 1 | $17.13 USD | View product → |
| 10 | 17265-KGG7-001 | JOINT BLOW BY | 1 | $12.09 USD | View product → |
| 11 | 17266-KGG7-001 | PACKING ACV JOINT | 1 | $6.06 USD | View product → |
| 12 | 17359-4K19-671 | JOINT BREATHER TUBE | 1 | $4.92 USD | View product → |
| 13 | 17370-4K19-701 | PLUG BREATHER TUBE | 1 | $4.92 USD | View product → |
| 14 | 90001-GBHB-681 | BOLT FLANGE SHF 6*28 | 2 | $4.92 USD | View product → |
| 15 | 93500-04025-0F | SCREW PAN 4X25 | 1 | $0.99 USD | View product → |
| 16 | 93891-05016-06 | SCREW WASHER 5* 16 | 1 | $1.86 USD | View product → |
| 17 | 93901-14020 | SCREW TAPPING 4*6 | 1 | $3.51 USD | View product → |
| 18 | 95002-02110 | CLIP | 1 | $4.92 USD | View product → |
| 19 | 95002-02120 | CLIP B12 TUBE | 2 | $1.86 USD | View product → |
| 20 | 95002-02130 | CLIP B12.5 TUBE | 1 | $1.86 USD | View product → |
| 21 | 95002-50000 | CLIP C9 TUBE | 1 | $1.86 USD | View product → |
| 22 | 95003-23006-60 | V TUBE 8*12*60 | 1 | $5.22 USD | View product → |

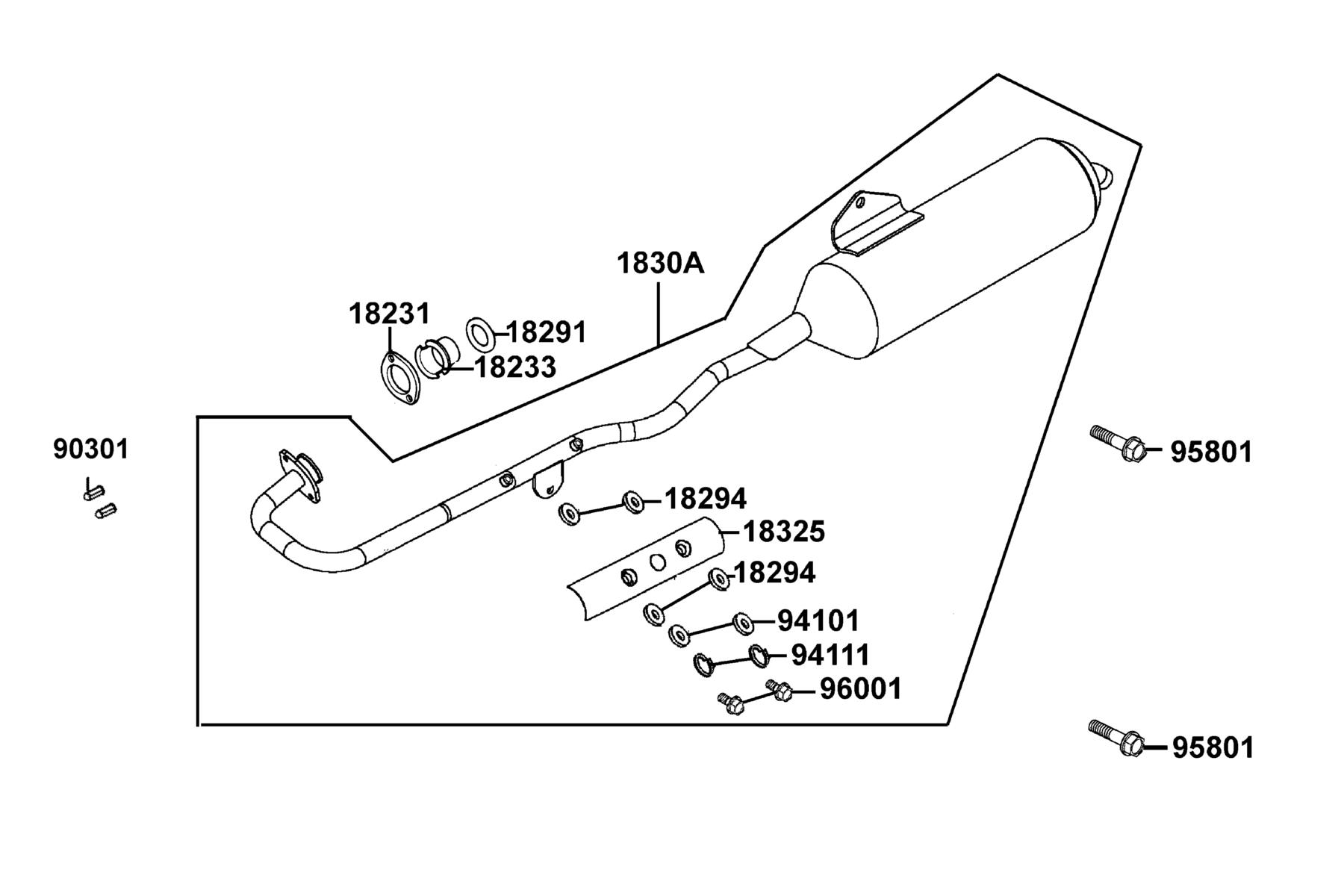

F13 — Exhaust Muffler
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 18231-3E65-671 | JOINT EXH PIPE | 1 | $23.49 USD | View product → |
| 2 | 18233-3C83-901 | COLLAR EXHARST PIPE JOINT | 2 | $10.38 USD | View product → |
| 3 | 18291-LLB1-900 | GASKET EXH PIPE | 1 | $10.50 USD | View product → |
| 4 | 18294-KTCT-900 | PACKING PROTECTOR | 4 | $6.06 USD | View product → |
| 5 | 1830A-LLB1-710 | MUFFLER ASSY EXH | 1 | $621.44 USD | View product → |
| 6 | 18325-LLB1-900 | PROTECTOR EXH PIPE | 1 | $21.54 USD | View product → |
| 7 | 90301-KGBG-900 | NUT CAP 6MM | 2 | $10.74 USD | View product → |
| 8 | 94101-06200 | WASHER PLAIN 6MM | 2 | $4.92 USD | View product → |
| 9 | 94111-06800 | WASHER SPRING 6MM | 2 | $4.92 USD | View product → |
| 10 | 95801-08028-06 | BOLT FLANGE 8*28 | 2 | $4.53 USD | View product → |
| 11 | 96001-06012-02 | BOLT FLANGE SH 6*12 (Cr) | 2 | $2.61 USD | View product → |

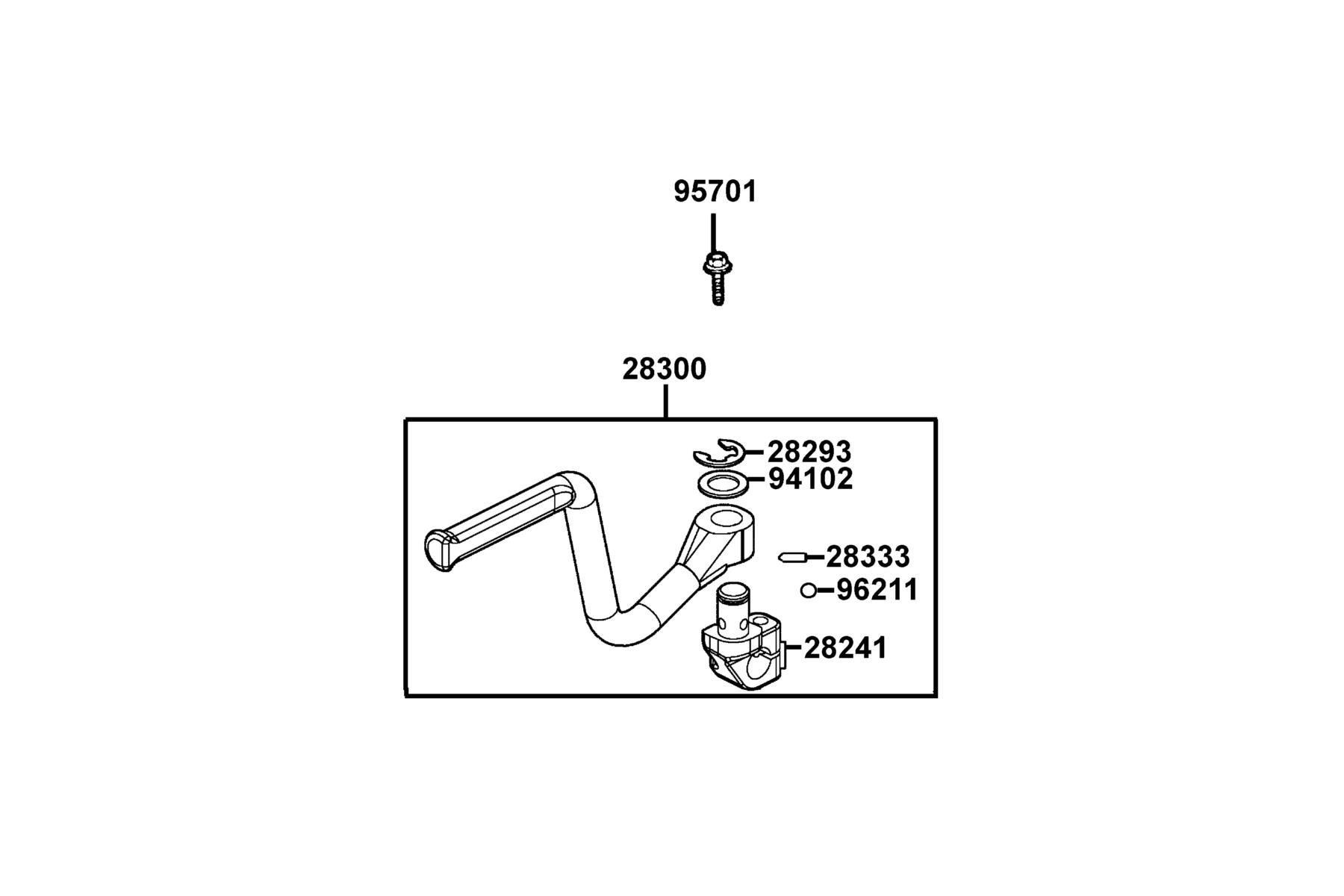

F14 — Kick Starter Arm
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 28241-LBD4-900 | JOINT KICK ARM | 1 | $75.63 USD | View product → |
| 2 | 28293-3C33-001 | CLIP KICK STARTER ARM | 1 | $12.78 USD | View product → |
| 3 | 28300-LCA4-E00 | ARM ASSY KICK STARTER | 1 | $109.68 USD | View product → |
| 4 | 28333-1D24-001 | SPG KICK STARTER | 1 | $13.74 USD | View product → |
| 5 | 94102-13700 | WASHER PLAIN 13MM | 1 | $4.92 USD | View product → |
| 6 | 95701-06022-06 | BOLT FLANGE 6*22 | 1 | $4.26 USD | View product → |
| 7 | 96211-08000 | BALL STEEL 8 | 1 | $1.83 USD | View product → |

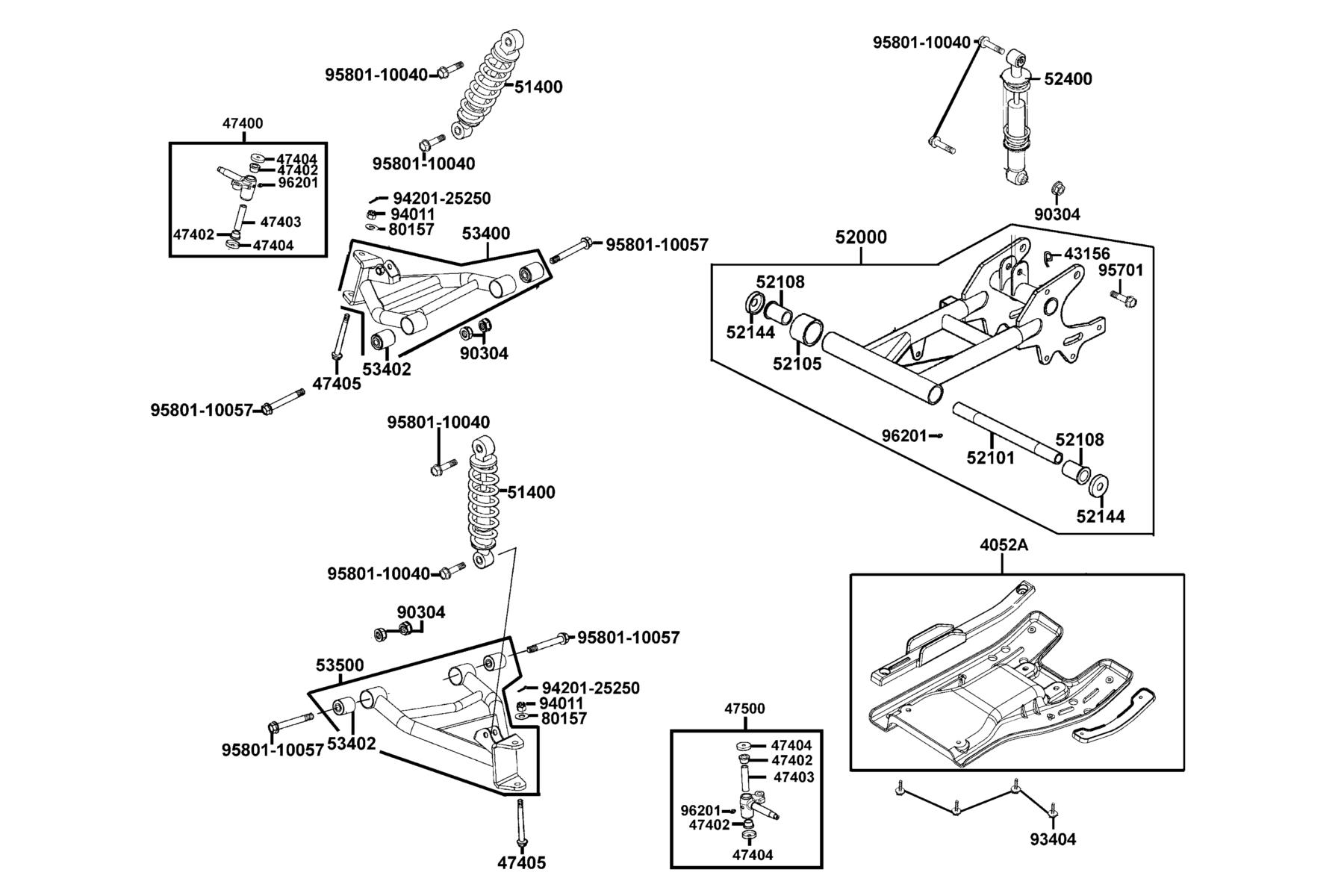

F15 — Cushion
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4052A-LCA4-E01 | GUARD ASSY REAR FORK | 1 | $110.22 USD | View product → |
| 2 | 43156-LLB1-800 | CLAMPER BRAKE HOSE | 1 | $0.63 USD | View product → |
| 3 | 47400-LLB1-900 | SHAFT ASSY R STEERING | 1 | $147.09 USD | View product → |
| 4 | 47402-LLB1-900 | BUSH STRG SHAFT | 4 | $39.00 USD | View product → |
| 5 | 47403-LLB1-900 | COLLAR STRG SHAFT | 2 | $42.72 USD | View product → |
| 6 | 47404-LLB1-900 | CAP STRG SHAFT | 4 | $16.89 USD | View product → |
| 7 | 47405-LLB1-900 | BOLT FLANGE 10*105 | 2 | $17.46 USD | View product → |
| 8 | 47500-LLB1-900 | SHAFT ASSY L STEERING | 1 | $147.09 USD | View product → |
| 9 | 51400-LCA4-E00-N1S | CUSHION ASSY FRS | 2 | $220.59 USD | View product → |
| 10 | 52000-LCA4-E00 | FORK ASSY RR | 1 | $359.94 USD | View product → |
| 11 | 52101-LLB1-900 | COLLAR RR FORK DIST | 1 | $48.12 USD | View product → |
| 12 | 52105-LLB1-900 | SLEEVE RUBBER | 1 | $0.93 USD | View product → |
| 13 | 52108-KEE5-004 | BUSH RR FORK | 2 | $19.35 USD | View product → |
| 14 | 52144-LBA7-900 | CAP RR FORK DUST SEAL | 2 | $38.37 USD | View product → |
| 15 | 52400-LCA4-E00-N1S | CUSHION ASSY RR | 1 | $310.65 USD | View product → |
| 16 | 53400-LCA4-E00 | ARM ASSY R SWING | 1 | $193.05 USD | View product → |
| 17 | 53402-LLB1-900 | BUSH SWING ARM | 4 | $21.54 USD | View product → |
| 18 | 53500-LCA4-E00 | ARM ASSY L SWING | 1 | $193.05 USD | View product → |
| 19 | 80157-KCBC-900 | WASHER | 2 | $4.23 USD | View product → |
| 20 | 90304-GLW0-90A | NUT U FLANGE 10MM | 5 | $9.39 USD | View product → |
| 21 | 93404-06016-06 | BOLT WASHER 6*16 | 4 | $7.89 USD | View product → |
| 22 | 94011-10080-0S | NUT CASTLE 10MM | 2 | $13.77 USD | View product → |
| 23 | 94201-25250 | PIN SPLIT 2.5*25 | 2 | $1.86 USD | View product → |
| 24 | 95701-06010-06 | BOLT FLANGE 6*10 | 1 | $4.92 USD | View product → |
| 25 | 95801-10040-06 | BOLT FLANGE 10X40 | 1 | $21.60 USD | View product → |
| 26 | 95801-10057-06 | BOLT FLANGE 10*57 | 4 | $11.31 USD | View product → |
| 27 | 96201-10000 | NIPPLE GREASE | 3 | $21.93 USD | View product → |

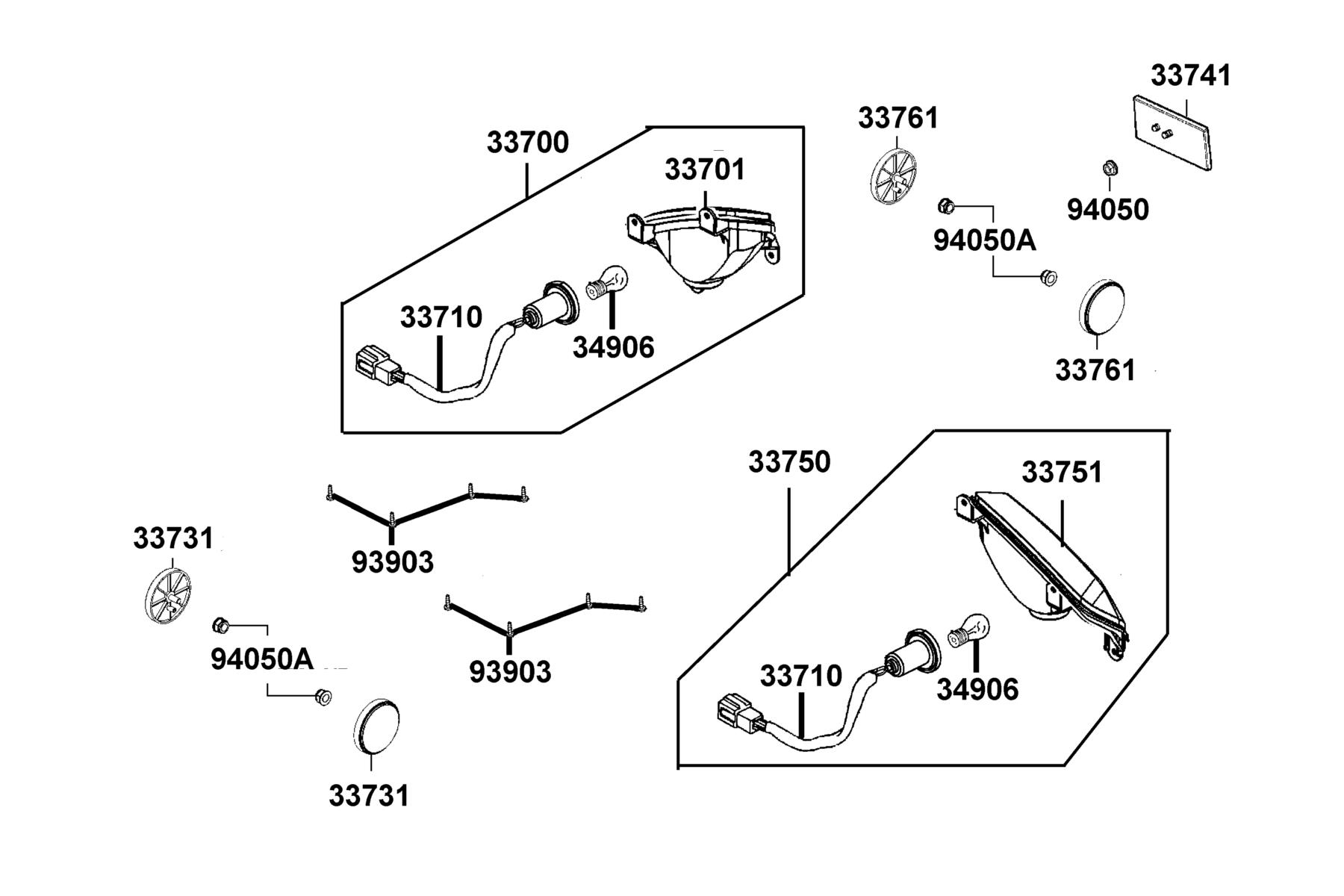

F16 — Rear Light
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 33700-LCA4-900 | LIGHT ASSY R TAIL | 1 | $176.88 USD | View product → |
| 2 | 33701-LCA4-900 | UNIT TAIL R LIGHT | 1 | $142.32 USD | View product → |
| 3 | 33710-LCA4-900 | SOCKET COMP RR COMB | 2 | $50.07 USD | View product → |
| 4 | 33731-KHC5-M00 | REFLEX REFLECTOR SIDE | 2 | $35.79 USD | View product → |
| 5 | 33741-KHC5-M00 | REFLEX REFLECTOR | 1 | $21.06 USD | View product → |
| 6 | 33750-LCA4-900 | LIGHT ASSY L TAIL | 1 | $176.88 USD | View product → |
| 7 | 33751-LCA4-900 | UNIT TAIL L LIGHT | 1 | $142.32 USD | View product → |
| 8 | 33761-KHC5-M00 | REFLEX REFLECTOR | 2 | $14.01 USD | View product → |
| 9 | 34906-KPCP-900 | BULB TAIL & STOP | 2 | $8.76 USD | View product → |
| 10 | 34906-KPCP-900-invalid | BULB TAIL & STOP | 2 | $11.40 USD | View product → |
| 11 | 93903-35260 | SCREW TAPPING 5*12 | 8 | $4.92 USD | View product → |
| 12 | 94050-05080 | NUT FLANGE 5MM | 1 | $1.86 USD | View product → |
| 13 | 94050-06080 | NUT FLANGE 6MM | 4 | $2.31 USD | View product → |
F17 — Wire Harness
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 30400-LCA4-900 | UNIT ASSY CDI | 1 | $171.60 USD | View product → |
| 2 | 3051A-LLB1-900 | COIL ASSY IGN | 1 | $83.85 USD | View product → |
| 3 | 30700-KBE2-941 | CAP ASSY NOISE SUPPER | 1 | $50.07 USD | View product → |
| 4 | 31600-LBA7-900 | REG REC COMP | 1 | $119.73 USD | View product → |
| 5 | 32100-LCA4-700 | HARNESS WIRE | 1 | $220.35 USD | View product → |
| 6 | 32101-LLB1-MX0 | SUB CORD | 1 | $8.49 USD | View product → |
| 7 | 32411-LLB1-900 | CABLE BAT | 1 | $35.10 USD | View product → |
| 8 | 35010-LCA4-90A | KEY SET (D206) | 1 | $127.38 USD | View product → |
| 9 | 35850-KHB4-90F | SET START MAG | 1 | $68.52 USD | View product → |
| 10 | 3860A-LCA5-E01 | CONTROL ASSY LIGHTING | 1 | $160.92 USD | View product → |
| 11 | 39000-LLB1-900 | CONTROL UNIT GEAR CHANGE | 1 | $126.78 USD | View product → |
| 12 | 90112-KRDR-900 | BOLT FLANGE 5*22 | 2 | $7.53 USD | View product → |
| 13 | 90656-KCBC-900 | BAND OIL HANDLE 8X146 | 8 | $3.93 USD | View product → |
| 14 | 94050-06080 | NUT FLANGE 6MM | 4 | $2.31 USD | View product → |
| 15 | 98200-12000 | FUSE 20A | 1 | $5.10 USD | View product → |
F18 — Frame Body
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 11344-LLB1-900 | DUCT B L COVER | 1 | $66.90 USD | View product → |
| 2 | 11345-LLB1-900 | DUCT L COVER | 1 | $43.02 USD | View product → |
| 3 | 11346-GFY6-901 | BAND L COVER DUCT | 1 | $14.31 USD | View product → |
| 4 | 11346-KKC3-900 | BAND L COVER DUCT | 1 | $14.70 USD | View product → |
| 5 | 50100-LCA4-M00 | BODY COMP FRAME | 1 | $646.92 USD | View product → |
| 6 | 50162-LCA4-E00 | STAY COIL & REG | 1 | $31.56 USD | View product → |
| 7 | 50166-LLB1-900 | BRKT START MAG SW | 1 | $5.31 USD | View product → |
| 8 | 50351-LLB1-900 | BRKT ENG HANGER | 2 | $22.74 USD | View product → |
| 9 | 77330-LCA4-MG0-N1S | REAR CARRIER LUGGAGE | 1 | $241.32 USD | View product → |
| 10 | 77430-LCA4-E00-MAS | FR CARRIER LUGGAGE | 1 | $173.28 USD | View product → |
| 11 | 81201-KKA8-900 | CAP RR GRIP END | 2 | $8.46 USD | View product → |
| 12 | 85100-LCA4-MG0 | PIPE COMP FR BUNPER | 1 | $98.82 USD | View product → |
| 13 | 85101-LCA5-E00 | CAP PIPE | 2 | $3.66 USD | View product → |
| 14 | 90302-LLB1-E00 | BOLT-WASH 5X12 | 1 | $2.61 USD | View product → |
| 15 | 90304-GLW0-90A | NUT U FLANGE 10MM | 3 | $9.39 USD | View product → |
| 16 | 90656-KCBC-900 | BAND OIL HANDLE 8X146 | 1 | $3.93 USD | View product → |
| 17 | 90656-KUDU-900-N1R | BAND HARNESS WIRE (Black) | 1 | $4.92 USD | View product → |
| 18 | 91201-LLB1-900 | OIL SEAL 18*32*7 | 1 | $6.06 USD | View product → |
| 19 | 91202-LLB1-900 | OIL SEAL 22*35*7 | 1 | $7.53 USD | View product → |
| 20 | 94050-06080 | NUT FLANGE 6MM | 8 | $2.31 USD | View product → |
| 21 | 94050-08060 | NUT FLANGE 8MM | 2 | $5.31 USD | View product → |
| 22 | 94520-32180 | CIR CLIP IN 32 | 1 | $5.31 USD | View product → |
| 23 | 95701-08012-06 | BOLT FLANGE 8*12 | 1 | $6.24 USD | View product → |
| 24 | 95701-08016-06 | BOLT FLANGE 8*16 | 10 | $4.53 USD | View product → |
| 25 | 95801-10100-06 | BOLT FLANGE 10*100 | 2 | $21.99 USD | View product → |
| 26 | 95801-10160-06 | BOLT FLANGE 10*160 | 1 | $30.72 USD | View product → |
| 27 | 96130-60020-10 | BEARING BALL RADIAL 6002 | 1 | $49.62 USD | View product → |
F19 — Caution Label
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 87322-LBA7-E01-T01 | CAUTION SHIFIT GEARS | 1 | $5.58 USD | View product → |
| 2 | 87505-PWA8-M35-T01 | WARNING LABEL TIRE | 1 | $32.76 USD | View product → |
| 3 | 87514-PWA8-M35-T01 | CAUTION MAXIMUM CAPACITY | 1 | $19.80 USD | View product → |
| 4 | 87515-LFE9-E00-T01 | WARNING GENERAL DECAL | 1 | $32.73 USD | View product → |
| 5 | 87517-PTA7-M35-T01 | WARNING AGE 12 | 1 | $68.10 USD | View product → |
| 6 | 87519-LDE9-M30-T01 | SPEED LIMIT | 1 | $7.38 USD | View product → |
| 7 | 87520-LDB5-M31-T01 | CAUTION SHIFT HANGTAG | 1 | $7.26 USD | View product → |
| 8 | 87522-LCA4-M30-T01 | USA EPA HANG TAG | 1 | $19.80 USD | View product → |
| 9 | 87522-PTA7-M35-T01 | WARNING TAG Y-12 | 1 | $25.35 USD | View product → |
| 10 | 87556-LLB1-E00-T01 | CAUTION CARRIER MAX LOAD | 1 | $12.09 USD | View product → |
| 11 | 87556-LLB1-E01-T01 | CAUTION CARRIER MAX LOAD | 1 | $12.09 USD | View product → |
| 12 | 87560-PWB1-M35-T01 | WARNING DOUBLE RIDER | 1 | $12.12 USD | View product → |
| 13 | 87666-BLD3-M30-T01 | SVIA CERTIFICATE LABEL | 1 | $10.14 USD | View product → |
F20 — Emblem●Stripe
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 86182-LCA5-MVV-T01 | SW LABEL | 1 | $22.98 USD | View product → |
| 2 | 86201-AGA9-M00-T02 | EMB FR COVER | 2 | $62.22 USD | View product → |
| 3 | 86623-LCA4-M00-T02 | STRIPE R SIDE COVER | 2 | $30.60 USD | View product → |
| 4 | 86633-LCA4-M00-T02 | STRIPE L SIDE COVER | 2 | $30.60 USD | View product → |
| 5 | 86700-LCA4-M00-T01 | STRIPE KYMCO-150MM (PP) | 1 | — | Part details → |
| 6 | 87532-LBE8-900-T02 | STRIPE KYMCO | 1 | $17.82 USD | View product → |
| 7 | 87532-LCA5-900-T03 | STRIPE K-LOGO 60MM | 1 | $18.72 USD | View product → |
| 8 | 87571-LCA5-M30-T01 | LABEL MIT | 1 | $4.53 USD | View product → |
F21 — Key Comp
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 35111-LCA5-325-M1 | KEY COMP(FOR SERVICE) | 1 | $27.12 USD | View product → |
| 2 | 35111-LCA5-325-M2 | KEY COMP(FOR SERVICE) | 1 | $27.12 USD | View product → |
| 3 | 35111-LCA5-326-M1 | KEY COMP(FOR SERVICE) | 1 | $27.12 USD | View product → |
| 4 | 35111-LCA5-326-M2 | KEY COMP(FOR SERVICE) | 1 | $24.42 USD | View product → |
F22 — Canister
| # | Part | Name | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 17301-LEC1-M00 | RUBBER CANISTER MOUNT | 2 | $8.94 USD | View product → |
| 2 | 17302-LCA4-M00 | STAY CANISTER | 1 | — | Part details → |
| 3 | 17304-LCA4-M00 | TUBE ASSY CANISTER-V.C.V | 1 | $43.68 USD | View product → |
| 4 | 17305-LCA4-M00 | TUBE ASSY CANISTER-JOINT | 1 | $44.70 USD | View product → |
| 5 | 17307-LCA4-M00 | TUBE ASSY V.C.V-AIR/C | 1 | $86.94 USD | View product → |
| 6 | 17310-LEC1-M00 | CANISTER COMP | 1 | $96.45 USD | View product → |
| 7 | 17460-AGA6-M01 | VALVE COMP VAPOR CONTROL | 1 | $43.62 USD | View product → |
| 8 | 17466-LGS6-M3A | RUBBER VAPOR CONTROL MOUNT | 1 | — | Part details → |
| 9 | 17688-LCA4-M00 | TUBE ASSY VACUUM | 1 | — | Part details → |
| 10 | 90663-ADF8-C00 | CLAMP HOSE | 1 | $4.05 USD | View product → |
| 11 | 93404-06016-06 | BOLT WASHER 6*16 | 2 | $7.89 USD | View product → |
| 12 | 95002-02070 | CLIP B7 TUBE | 2 | $1.86 USD | View product → |
| 13 | 95002-40800-08 | CLAMP D8 TUBE | 4 | $8.49 USD | View product → |
| 14 | 95002-50000 | CLIP C9 TUBE | 1 | $1.86 USD | View product → |
