KYMCO Motorcycle parts diagrams

4 models — pick yours to see every part and diagram.

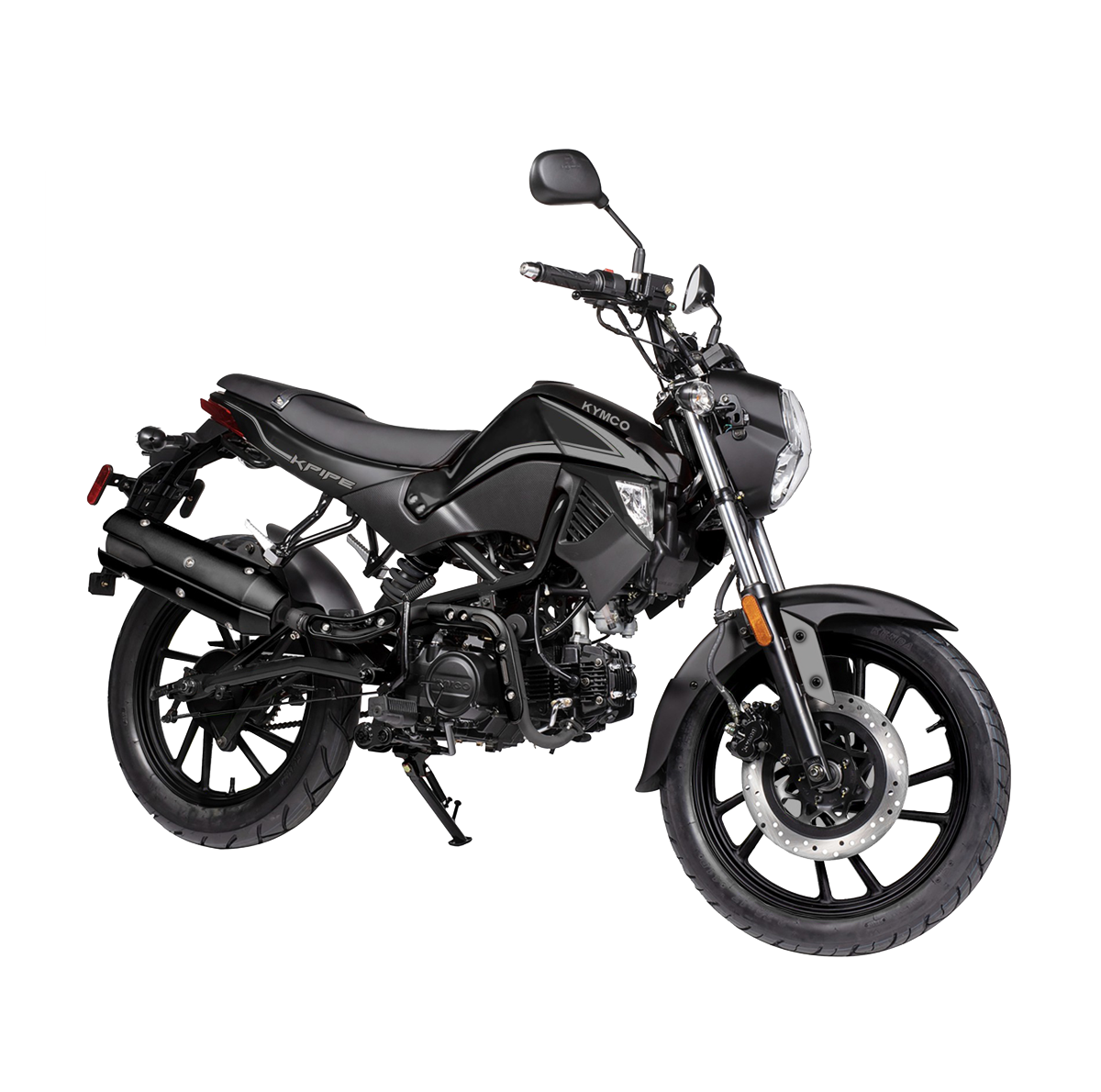

KYMCO K-Pipe 125

K-Pipe 125

2016–2022 · 695 parts

 Quannon 150 parts diagram

Quannon 150

2009 · 758 parts

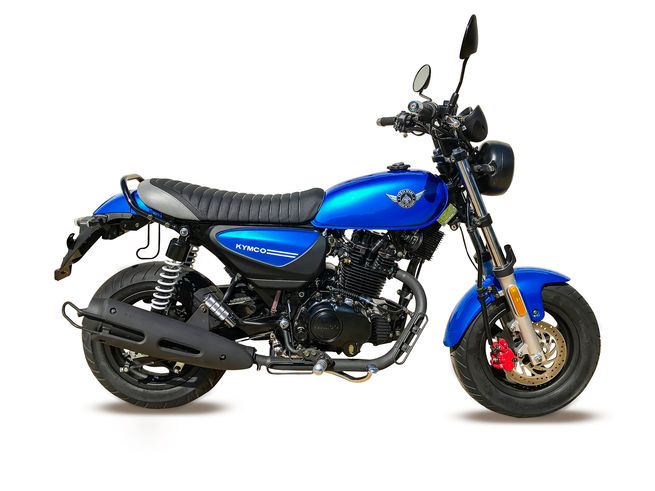

 KYMCO SPADE 150

SPADE 150

2018–2021 · 756 parts

 Venox 250 parts diagram

Venox 250

2003–2008 · 983 parts

Common questions

How do I find the right part for my KYMCO motorcycle?

Pick your model below, then the model year and color — every version has exploded-view diagrams with factory part numbers and prices. If you’re not sure which model you have, look it up by VIN and we’ll identify it down to the color.

Which KYMCO motorcycles are covered?

All 4 models — including the K-Pipe 125, Quannon 150, SPADE 150 — with 3,192 genuine OEM parts across every model year.

Are these genuine KYMCO parts?

Yes. Every listing comes from KYMCO’s official parts catalogs with the original factory part number — no aftermarket substitutes.
