MXU 450i (2023) LC90LK(US)

Model code
LC90LK(US)
Model year
2023
Submodel
MXU 450i
Color
Grayish (NH410SA)
Diagrams
36

Parts diagrams

Pick an assembly to see its exploded-view drawing and every part in it.

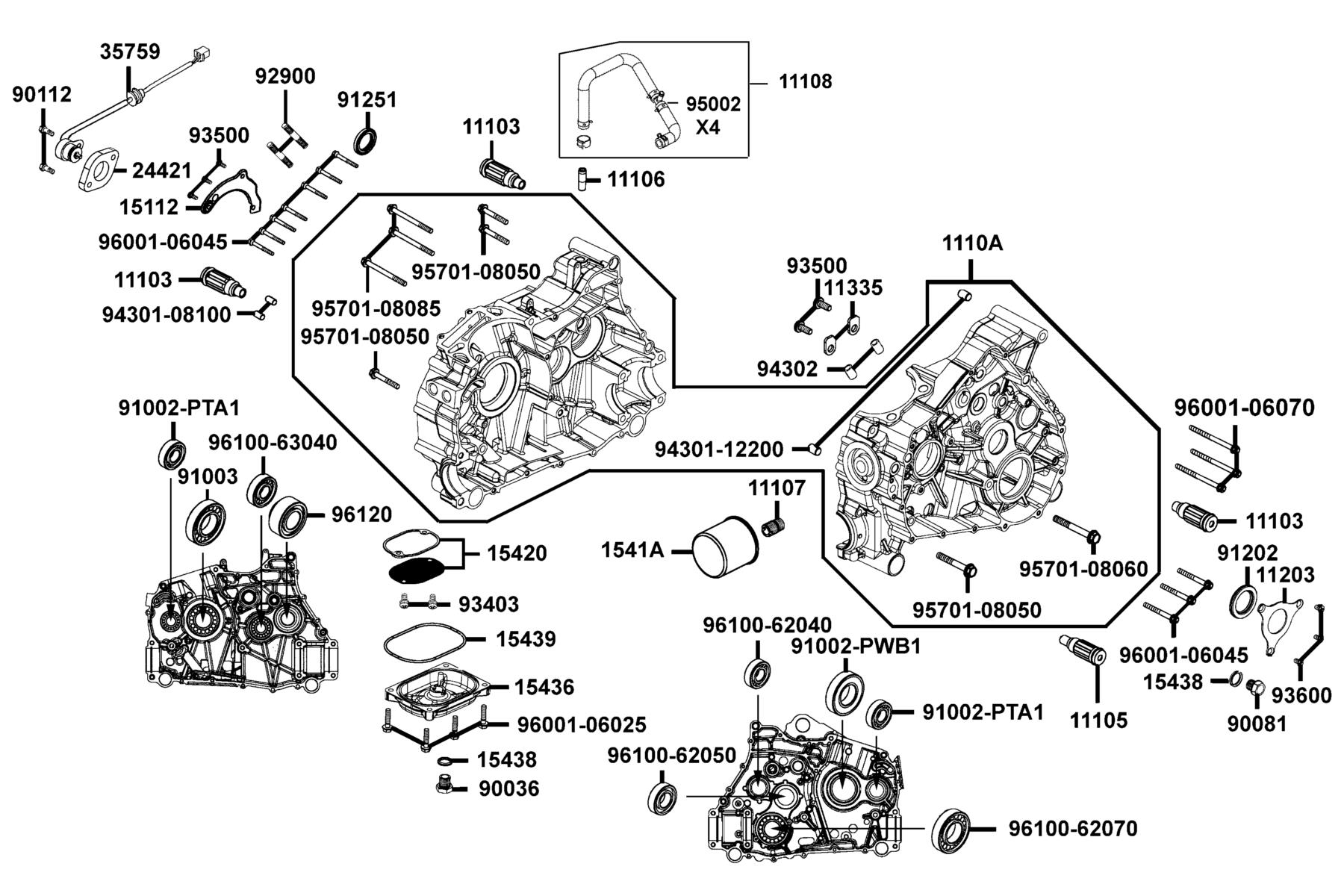

E01 Right Crank Case parts diagram thumbnail

E01 — Right Crank Case

44 parts

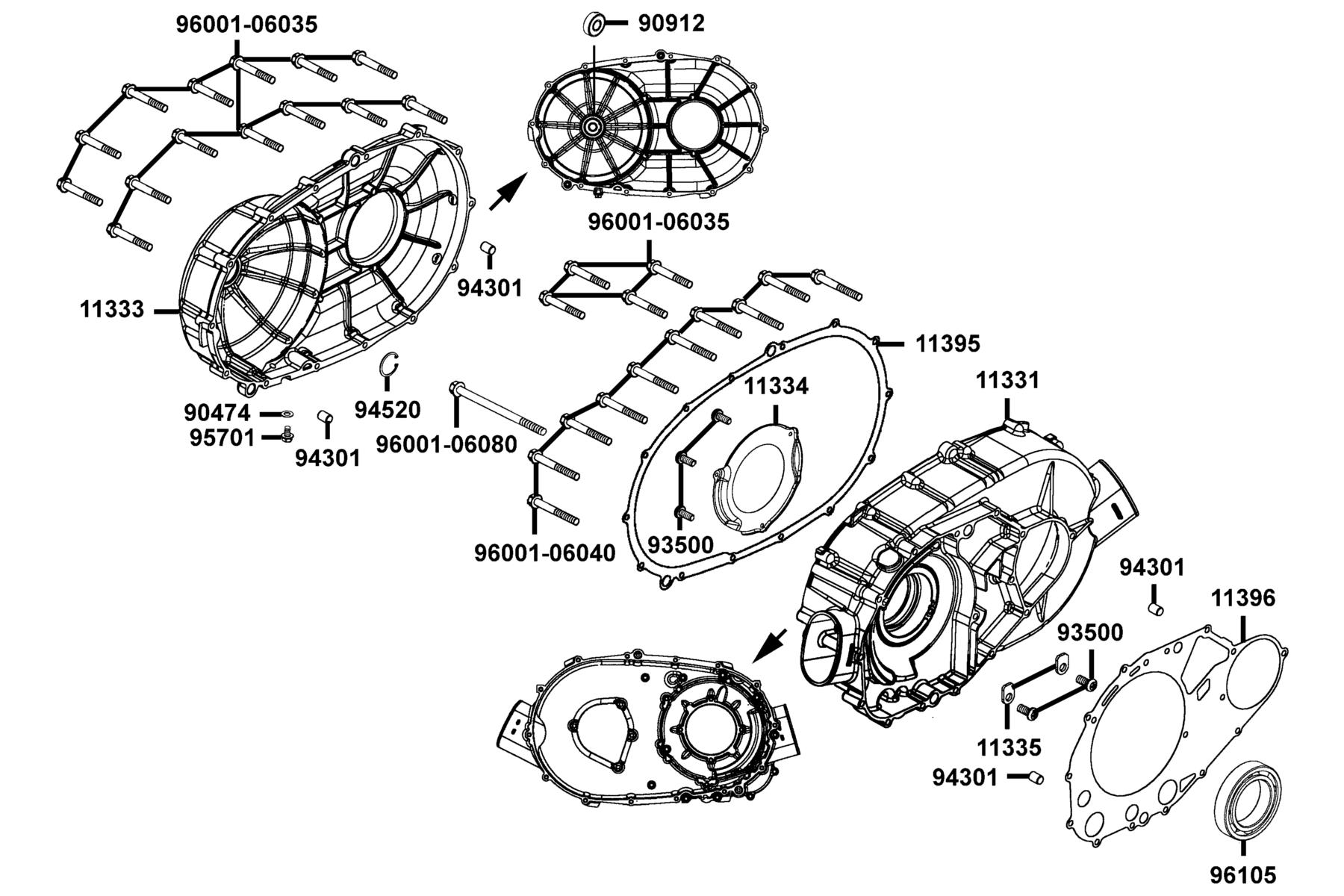

View diagram → E02 Cover Right Crank Case parts diagram thumbnail

E02 — Cover Right Crank Case

16 parts

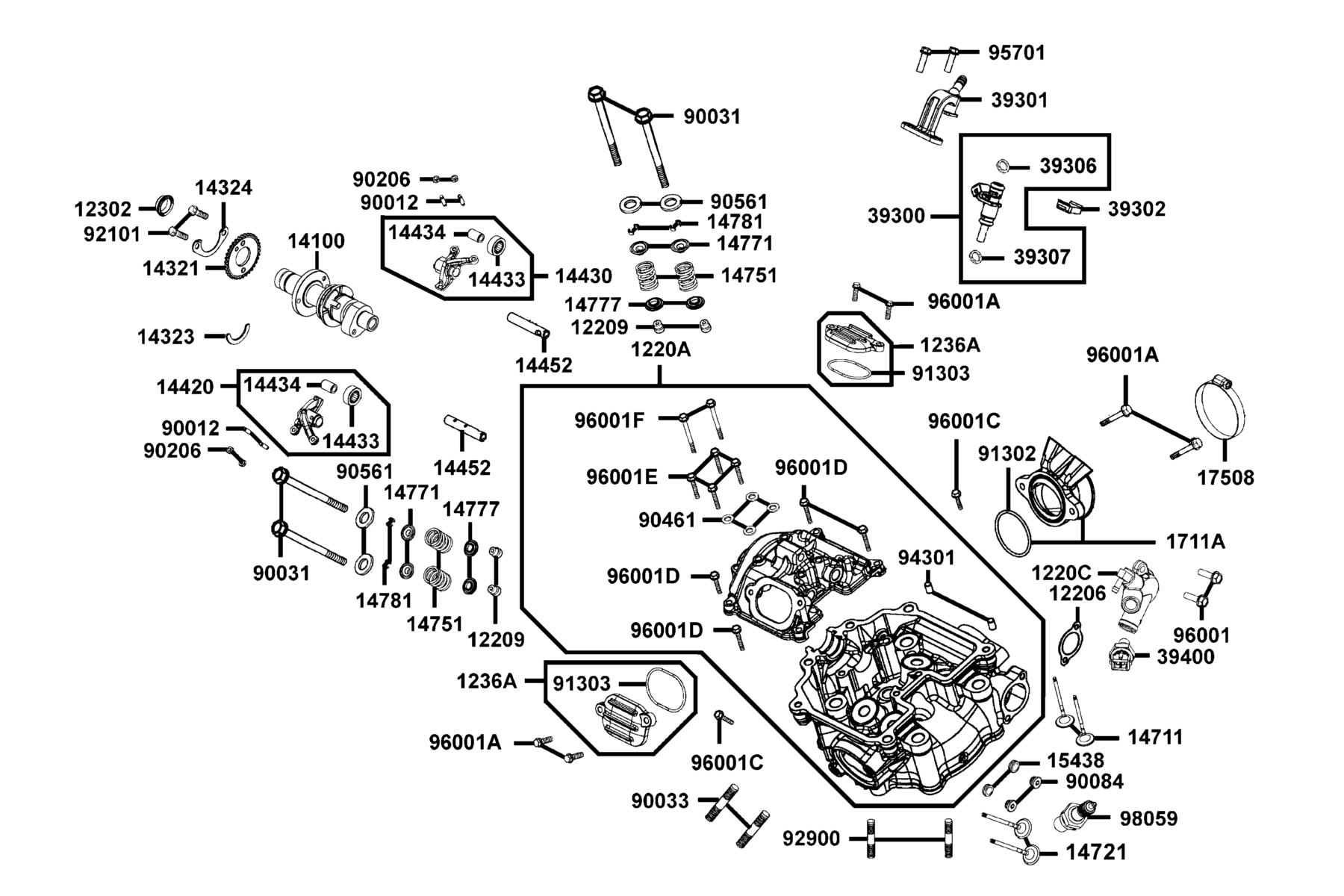

View diagram → E03 Cylinder Head Cover ● Cylinder Head parts diagram thumbnail

E03 — Cylinder Head Cover ● Cylinder Head

51 parts

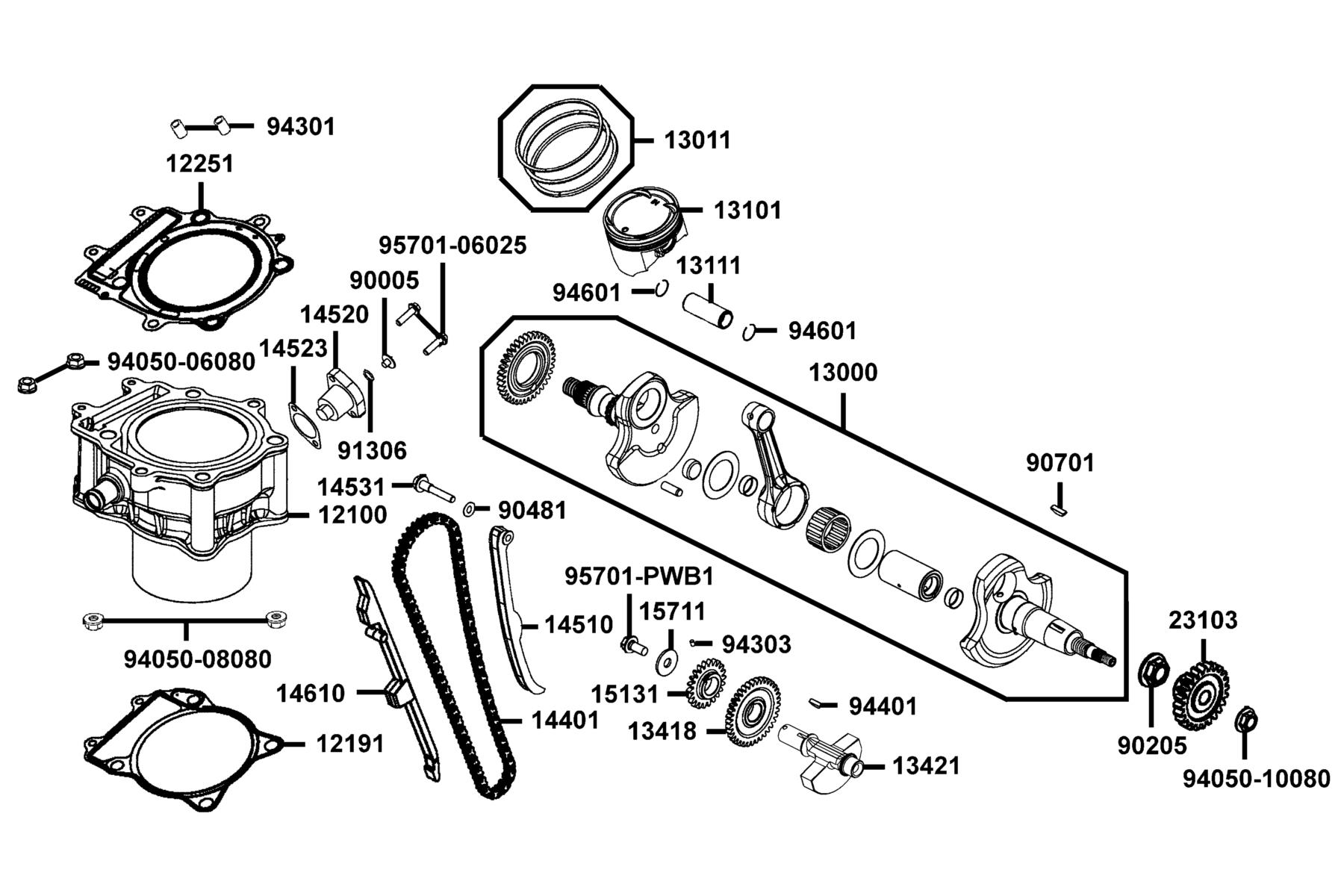

View diagram → E04 Cylinder ● Piston ● Crankshaft parts diagram thumbnail

E04 — Cylinder ● Piston ● Crankshaft

32 parts

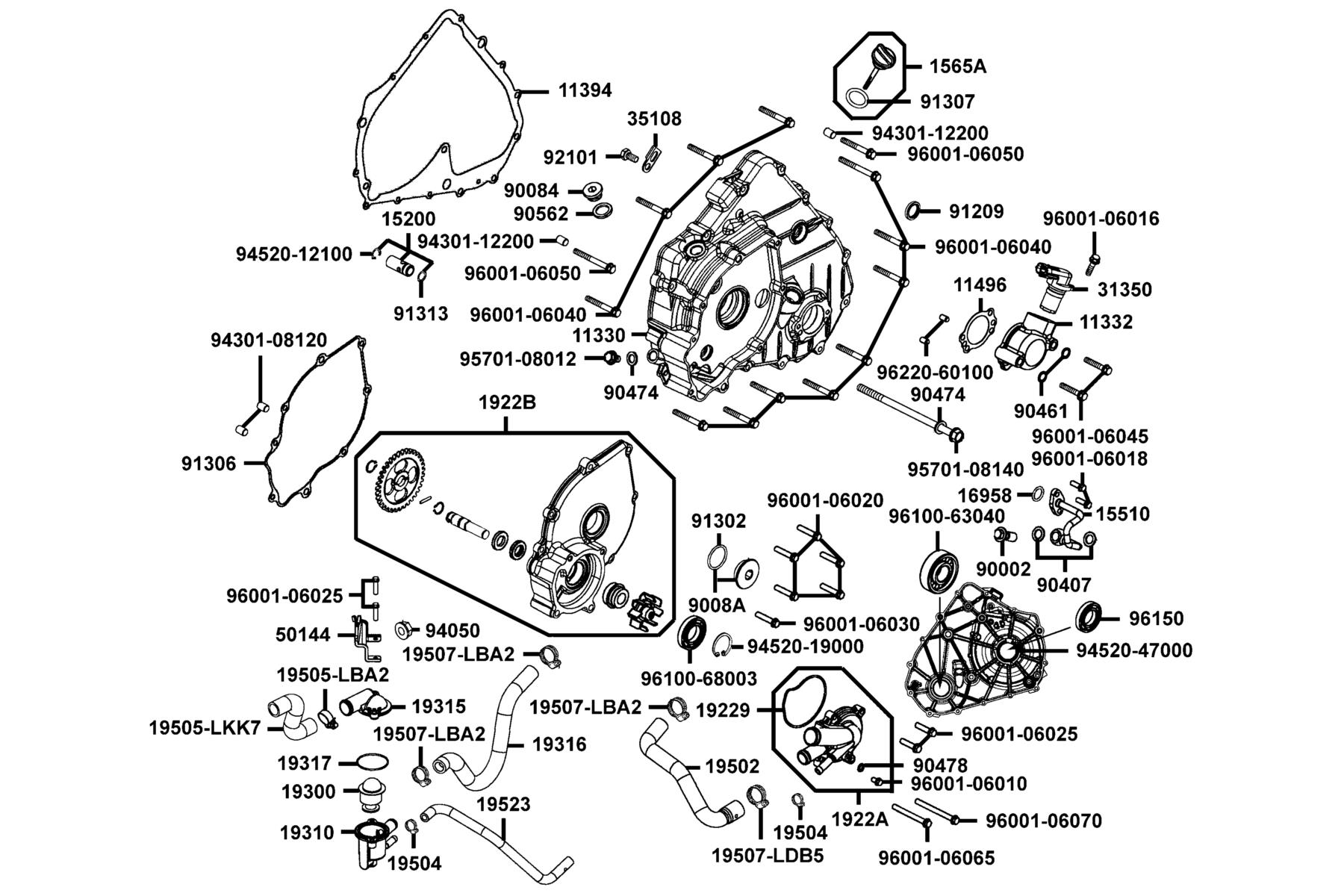

View diagram → E05 Cover Left Crank Case parts diagram thumbnail

E05 — Cover Left Crank Case

62 parts

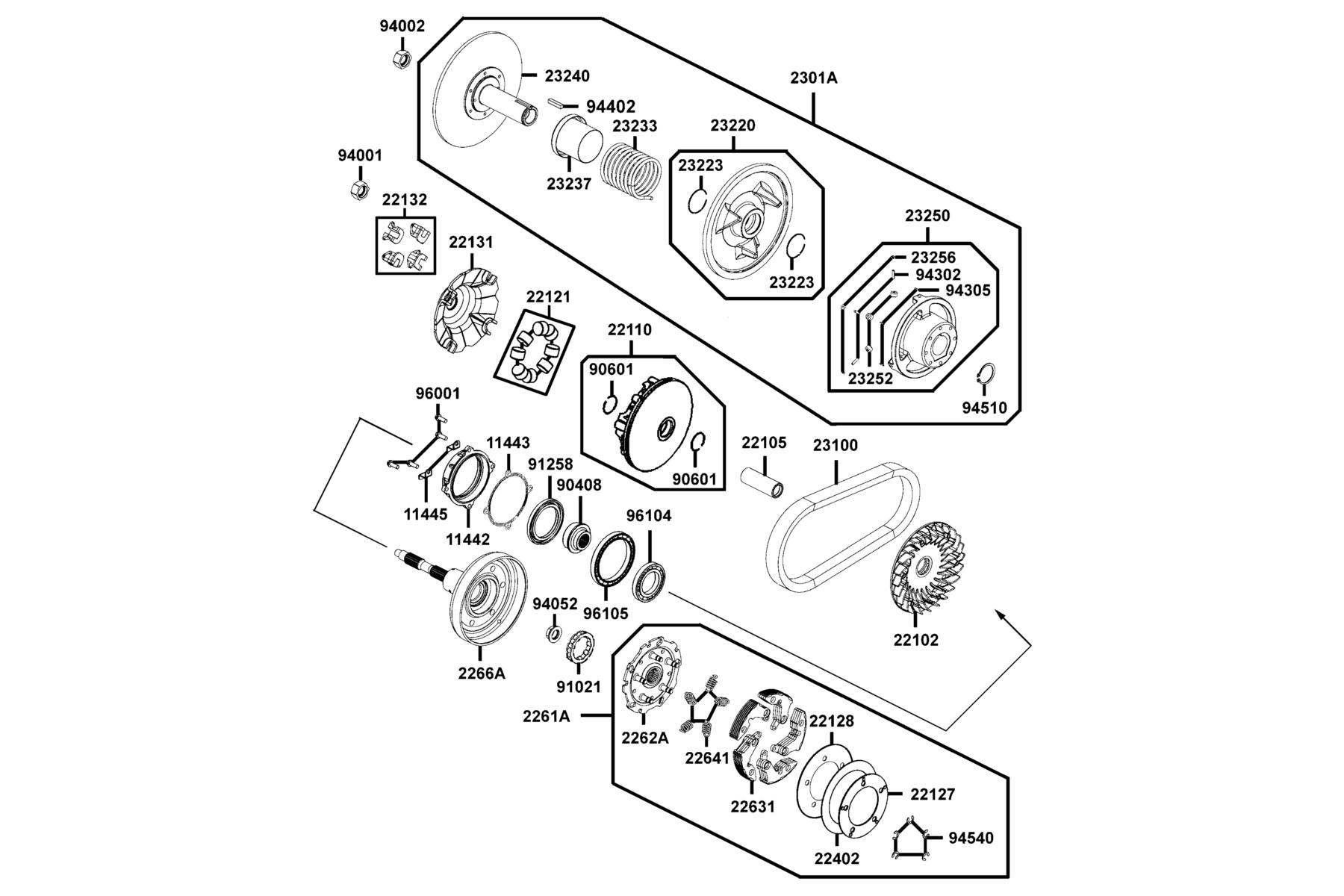

View diagram → E06 Drive Pulley parts diagram thumbnail

E06 — Drive Pulley

42 parts

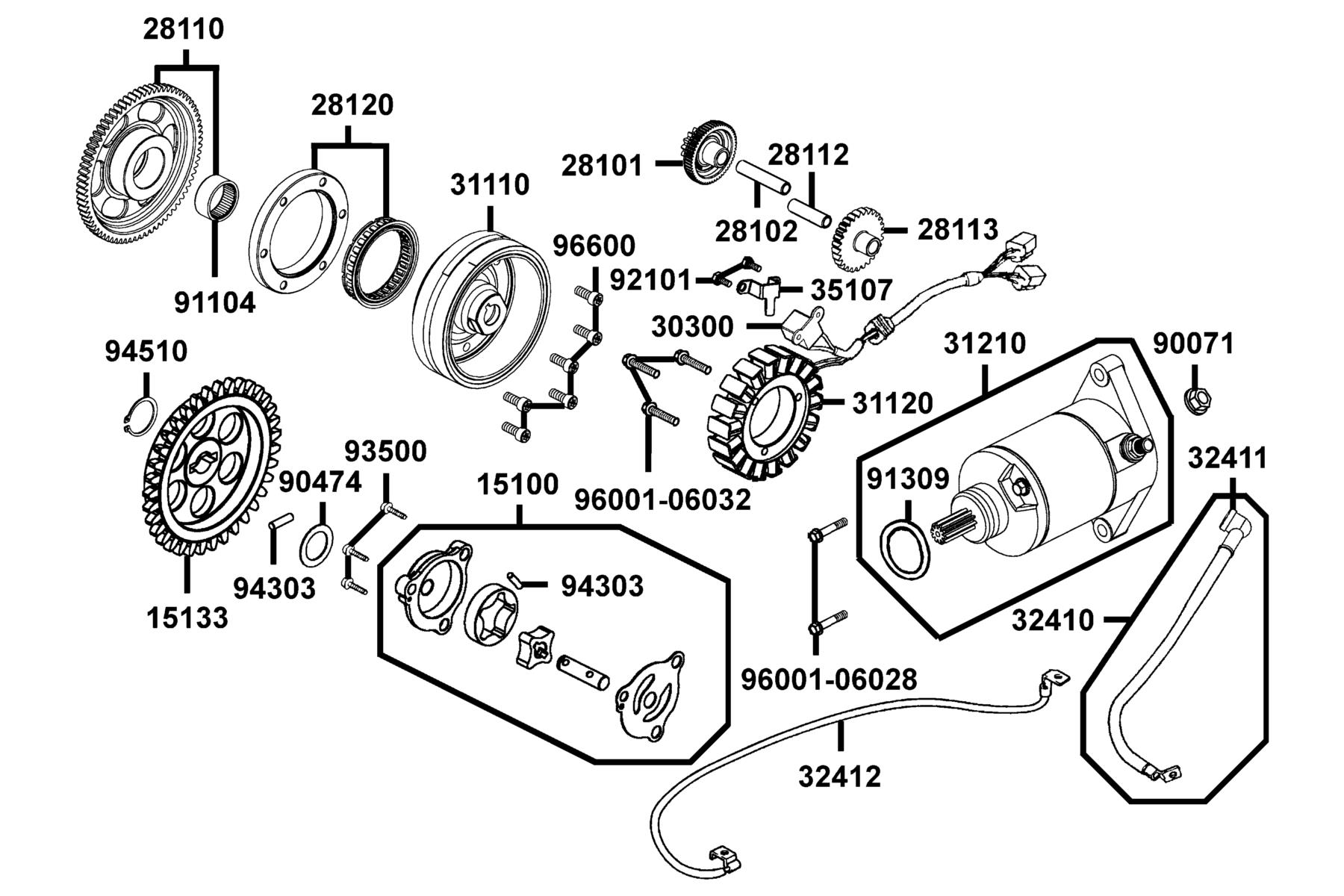

View diagram → E07 Starting Motor ● Generator parts diagram thumbnail

E07 — Starting Motor ● Generator

27 parts

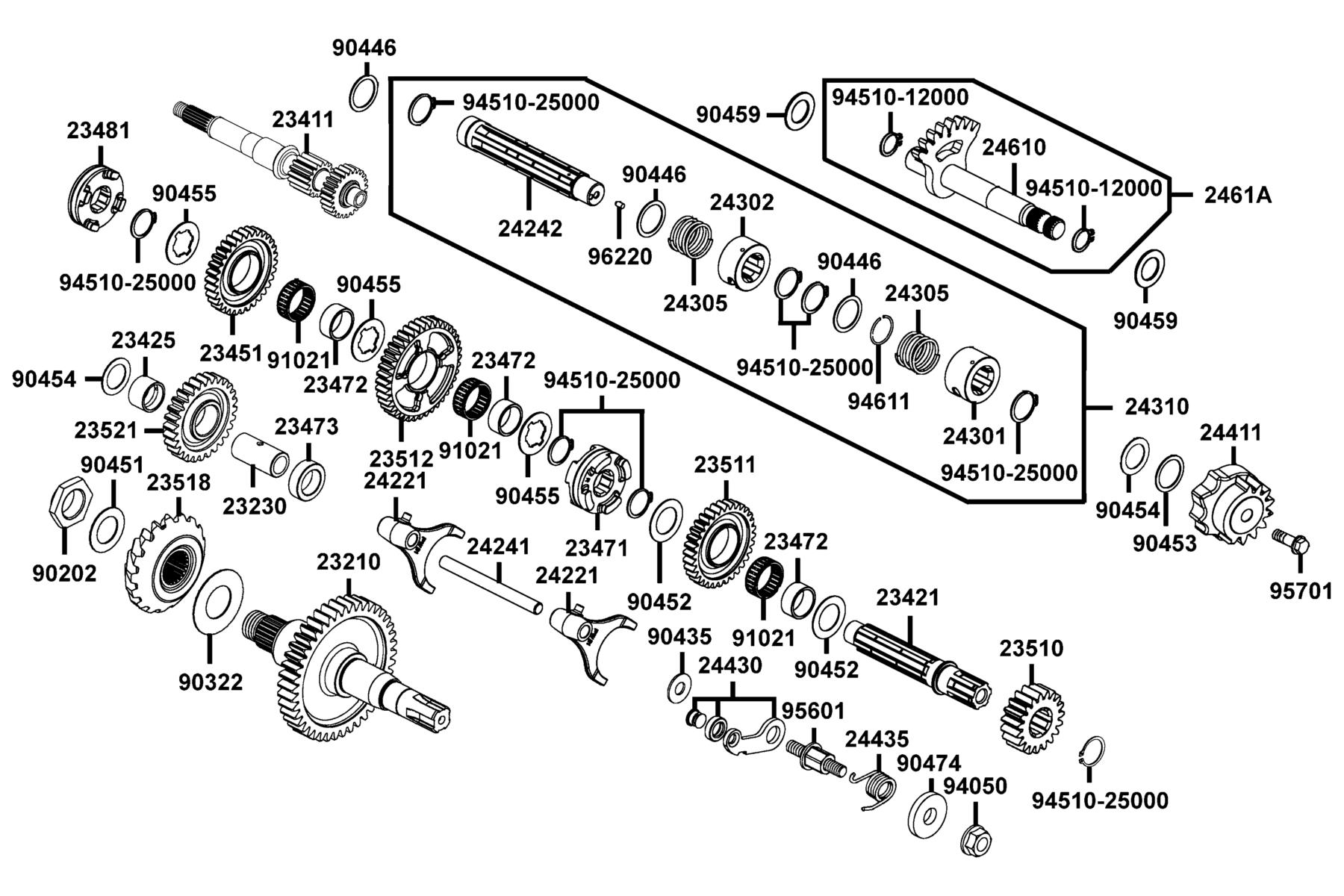

View diagram → E08 Clutch Assy Primary parts diagram thumbnail

E08 — Clutch Assy Primary

46 parts

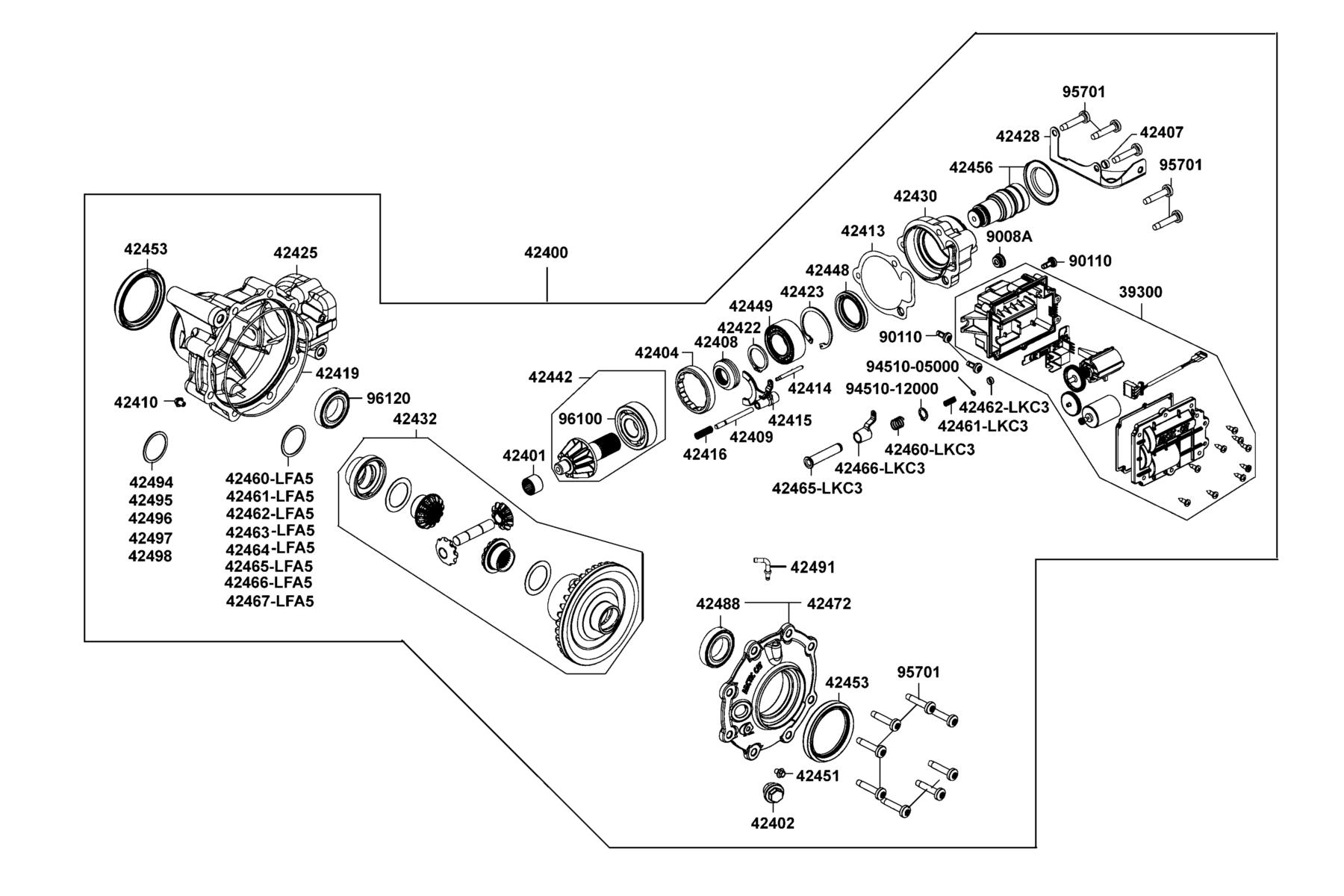

View diagram → E09 Gear Case Front parts diagram thumbnail

E09 — Gear Case Front

54 parts

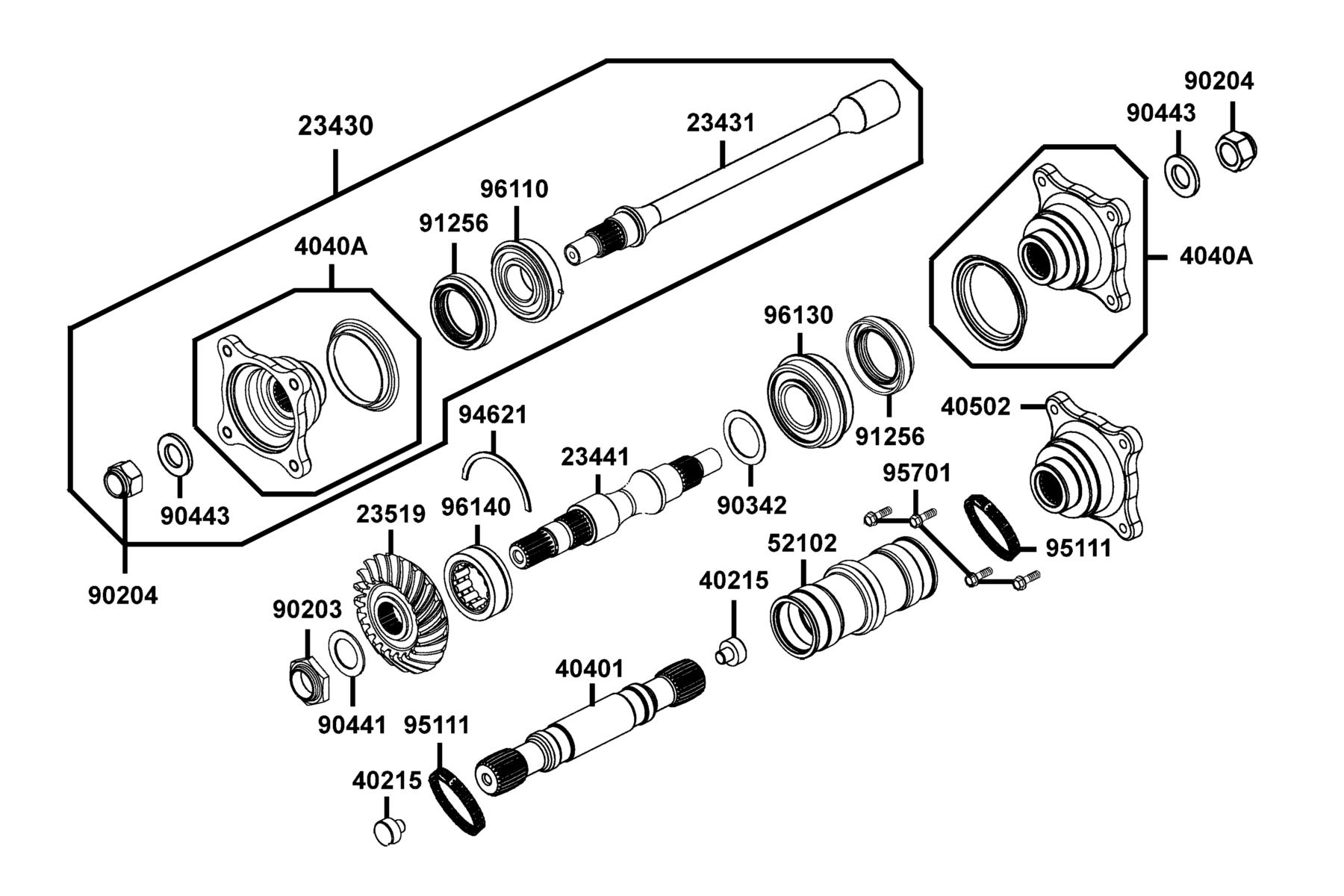

View diagram → E10 Shaft Drive Front parts diagram thumbnail

E10 — Shaft Drive Front

21 parts

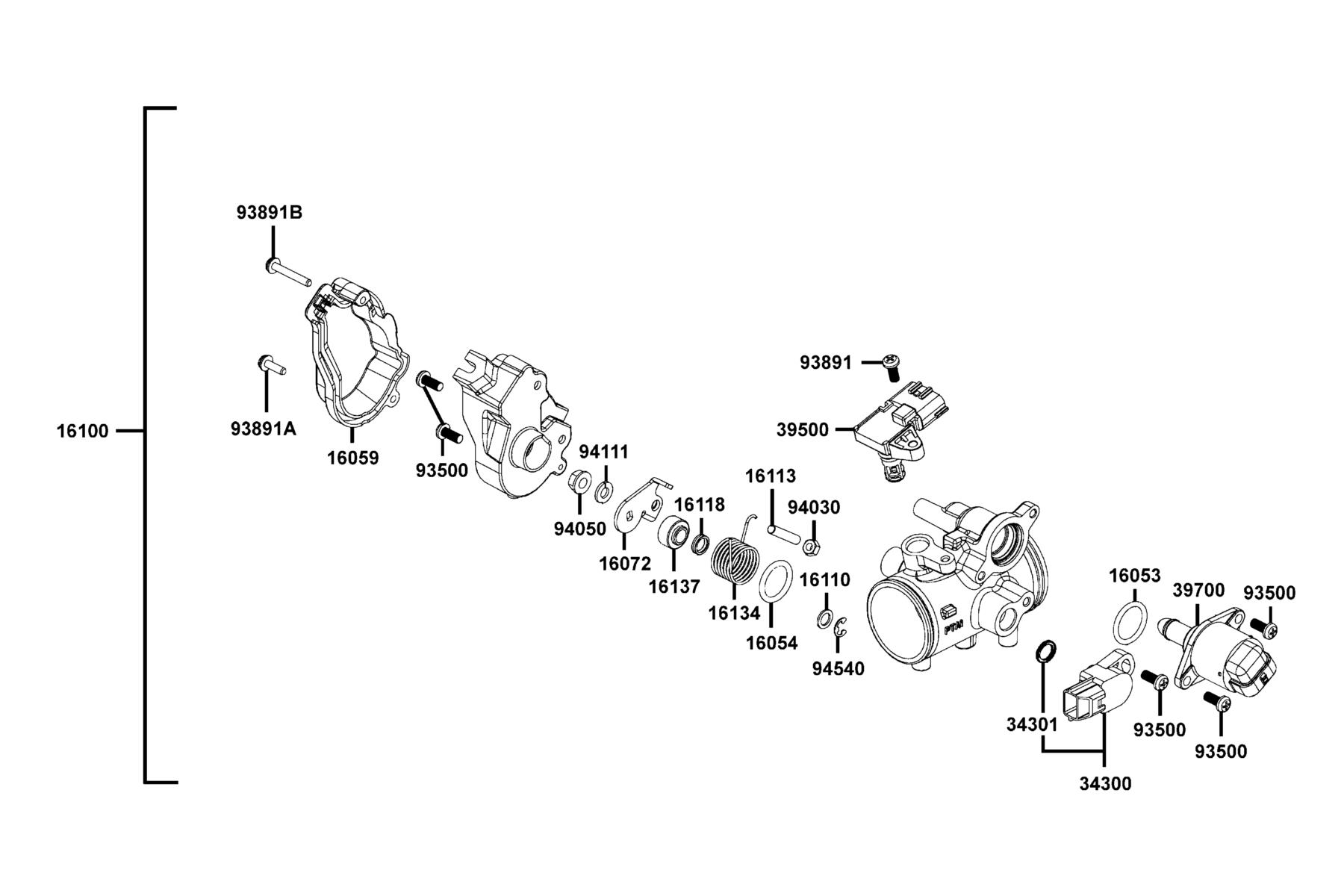

View diagram → E11 Throttle Body Assy parts diagram thumbnail

E11 — Throttle Body Assy

22 parts

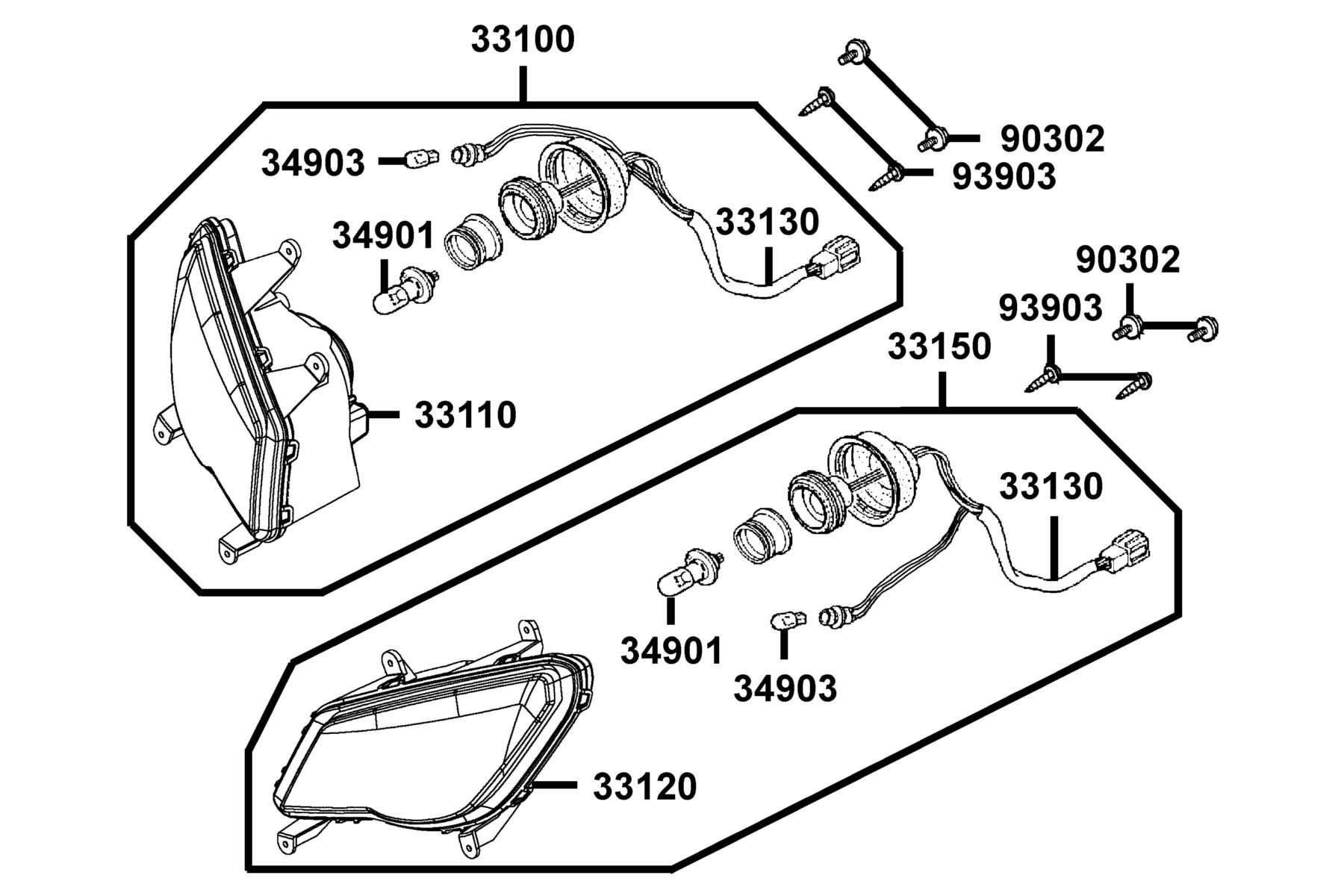

View diagram → F01 Head Light parts diagram thumbnail

F01 — Head Light

10 parts

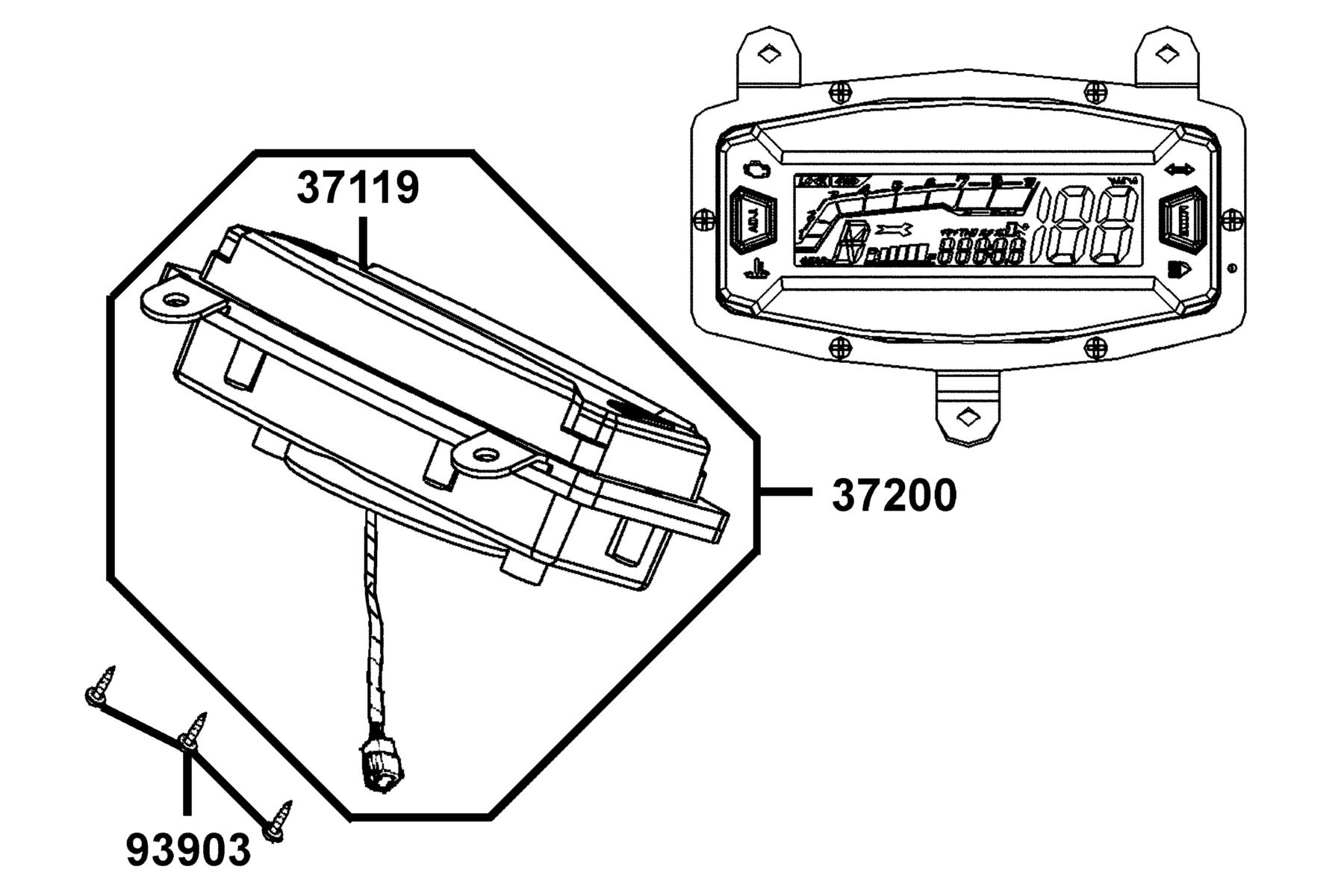

View diagram → F02 DIGITAL GAUGE parts diagram thumbnail

F02 — DIGITAL GAUGE

3 parts

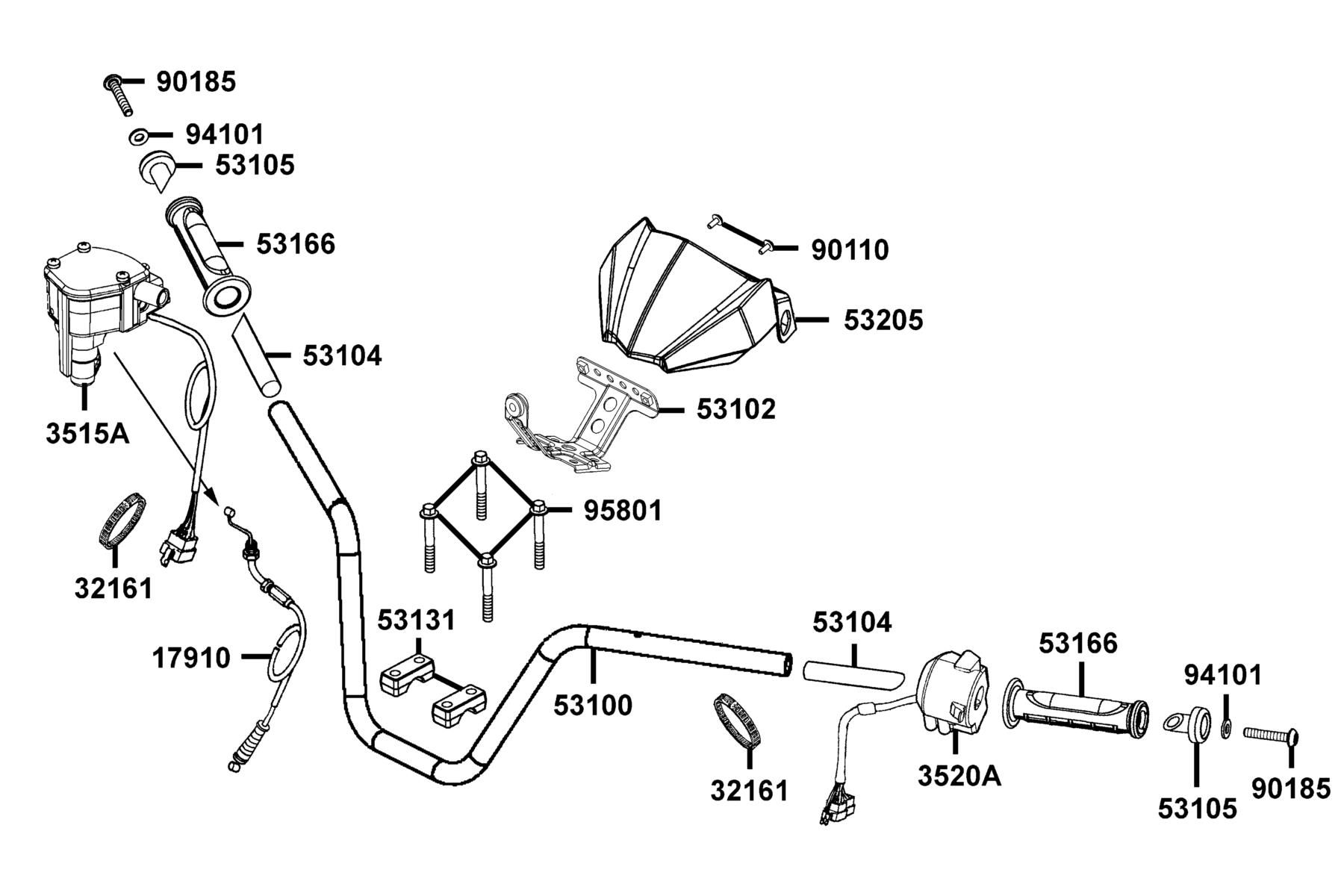

View diagram → F03 Tube Handlebar parts diagram thumbnail

F03 — Tube Handlebar

15 parts

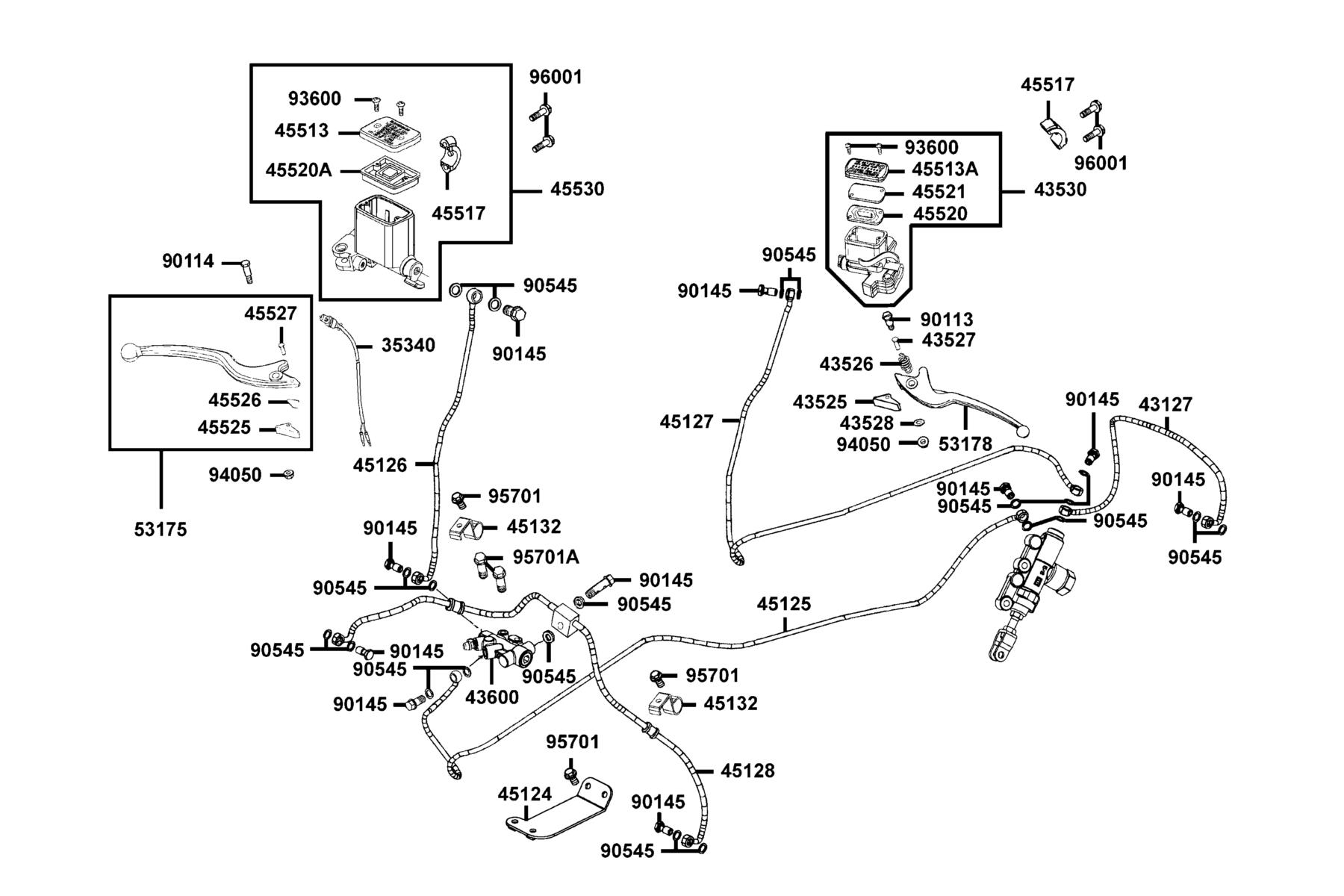

View diagram → F04 Master Cylinder parts diagram thumbnail

F04 — Master Cylinder

37 parts

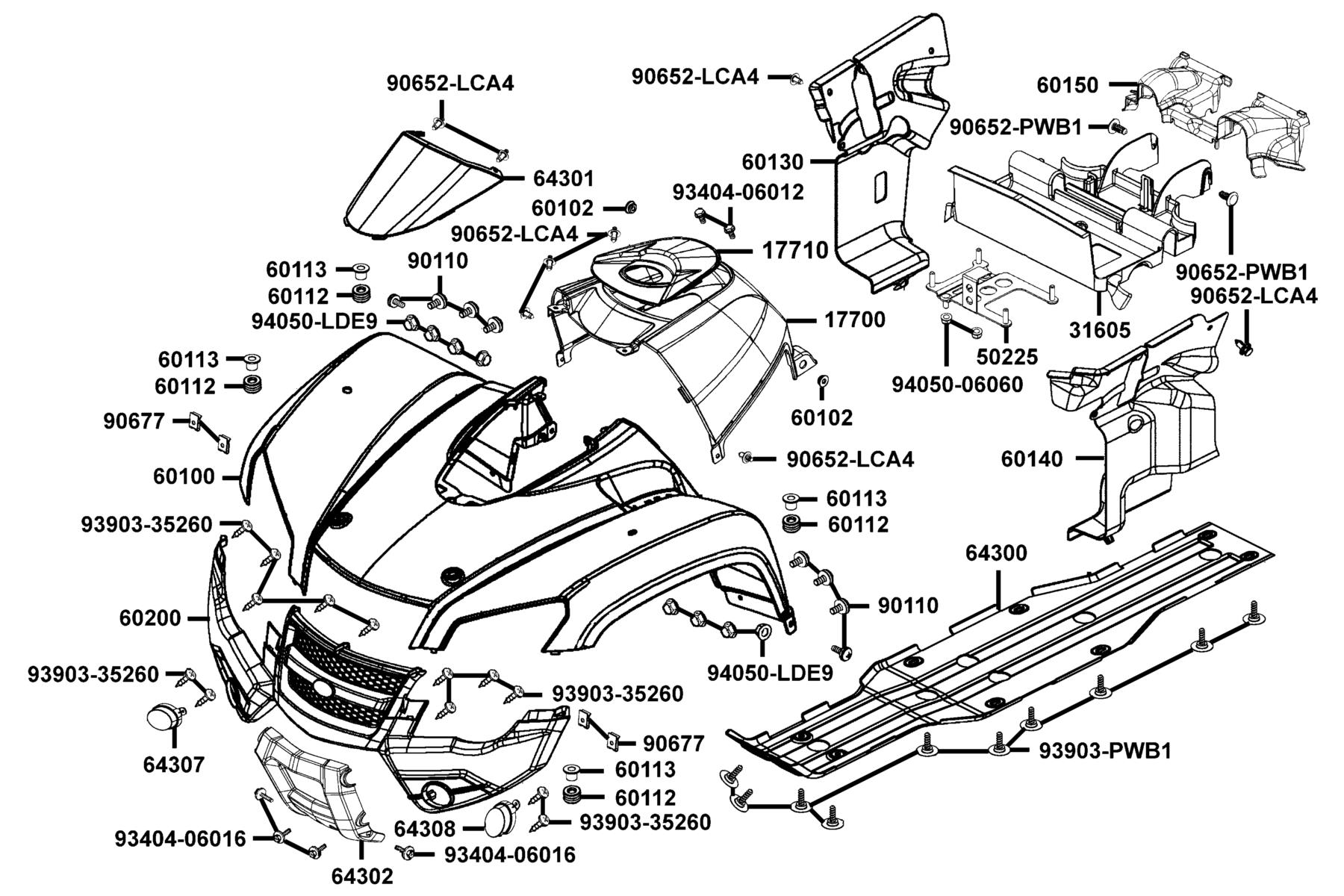

View diagram → F05 Fender Front parts diagram thumbnail

F05 — Fender Front

27 parts

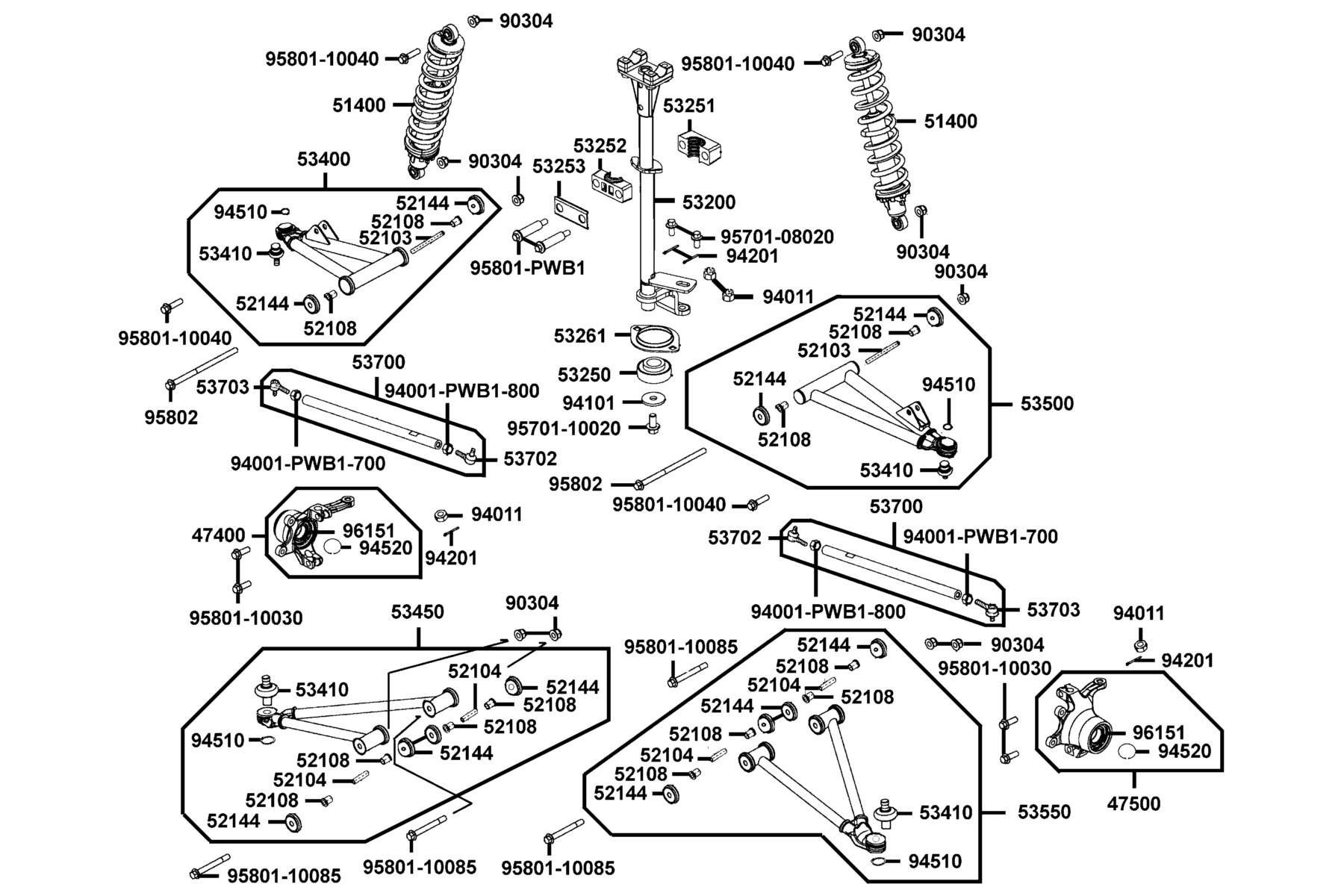

View diagram → F06 Post Steering parts diagram thumbnail

F06 — Post Steering

37 parts

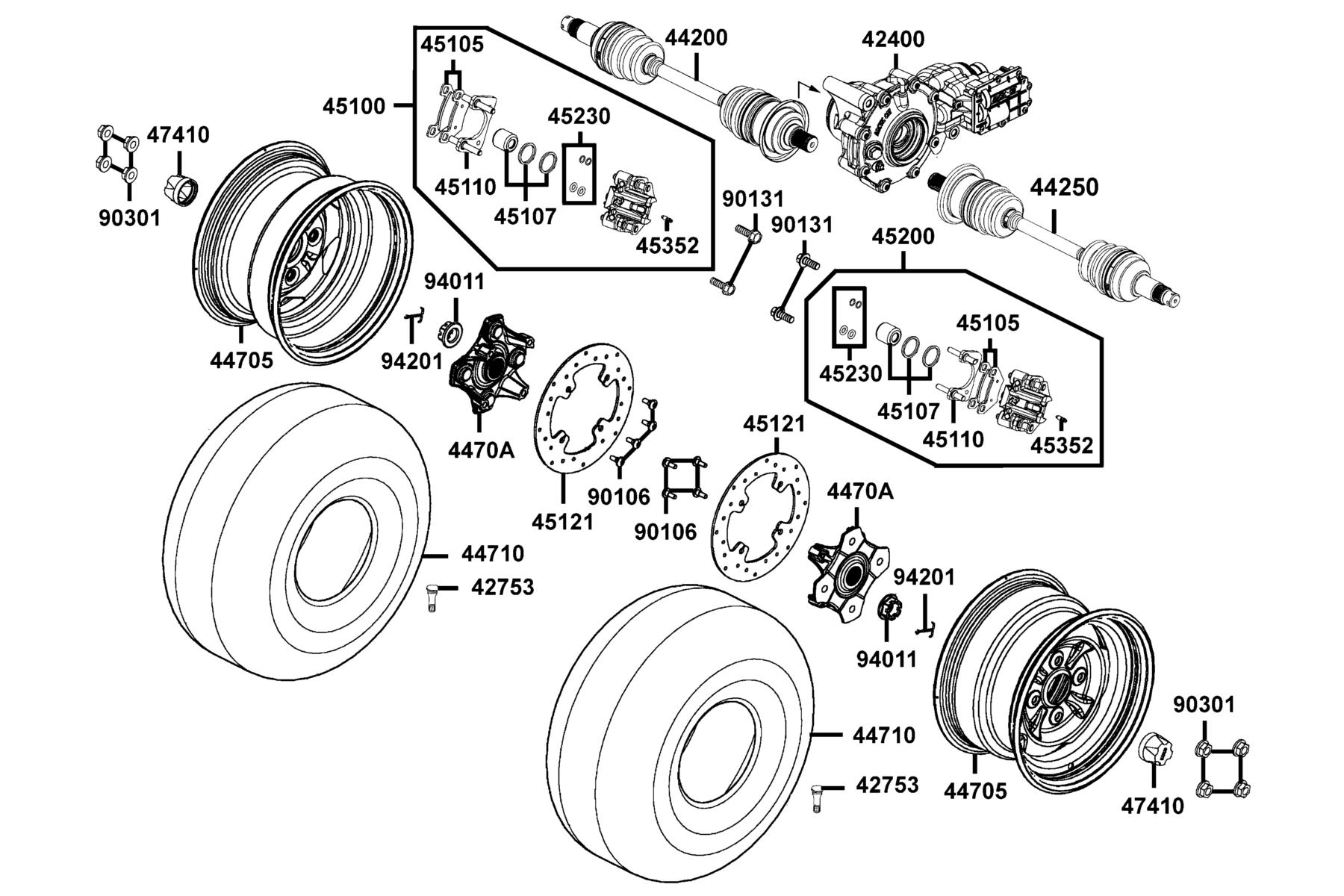

View diagram → F07 Front Wheel parts diagram thumbnail

F07 — Front Wheel

21 parts

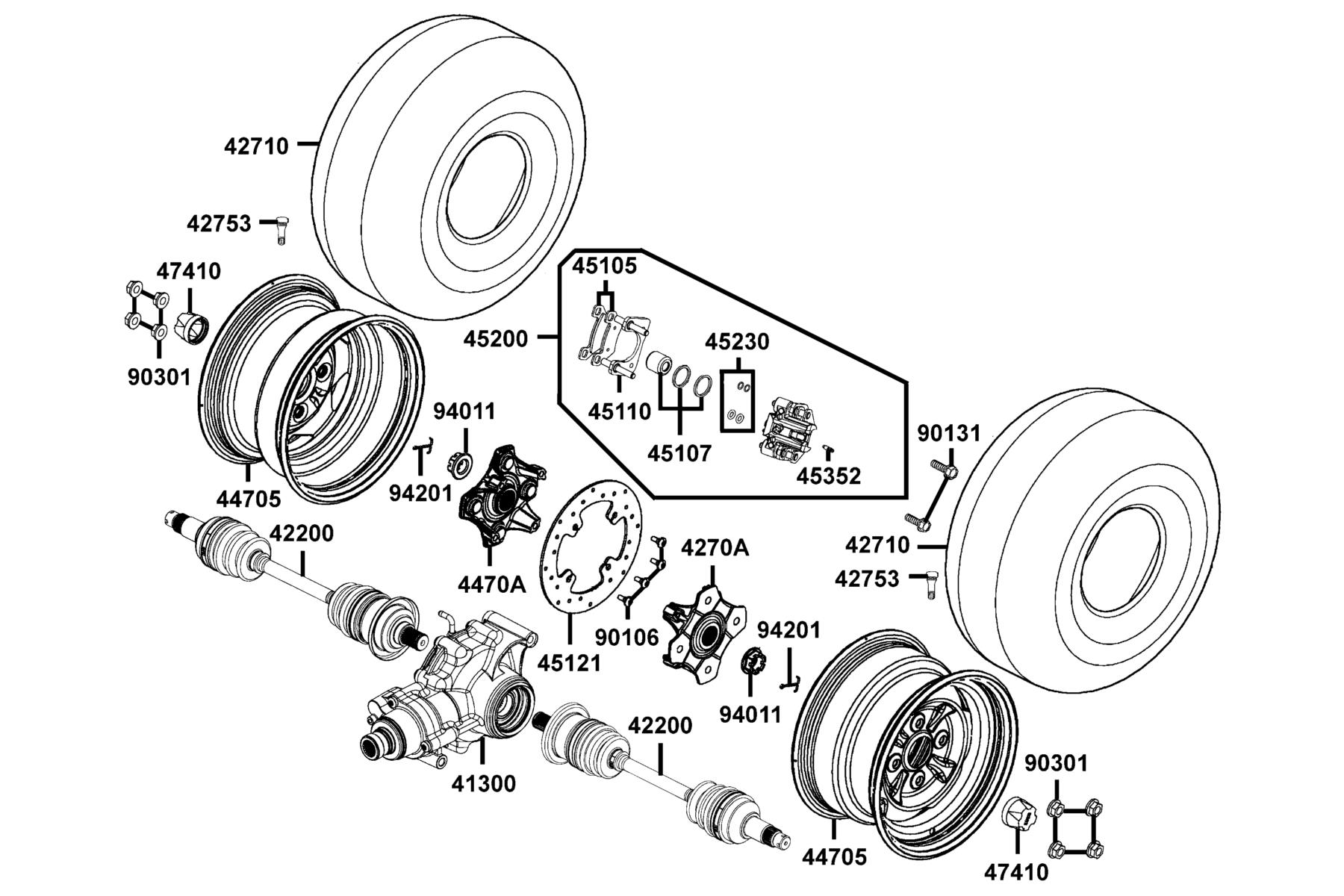

View diagram → F08 Rear Wheel parts diagram thumbnail

F08 — Rear Wheel

20 parts

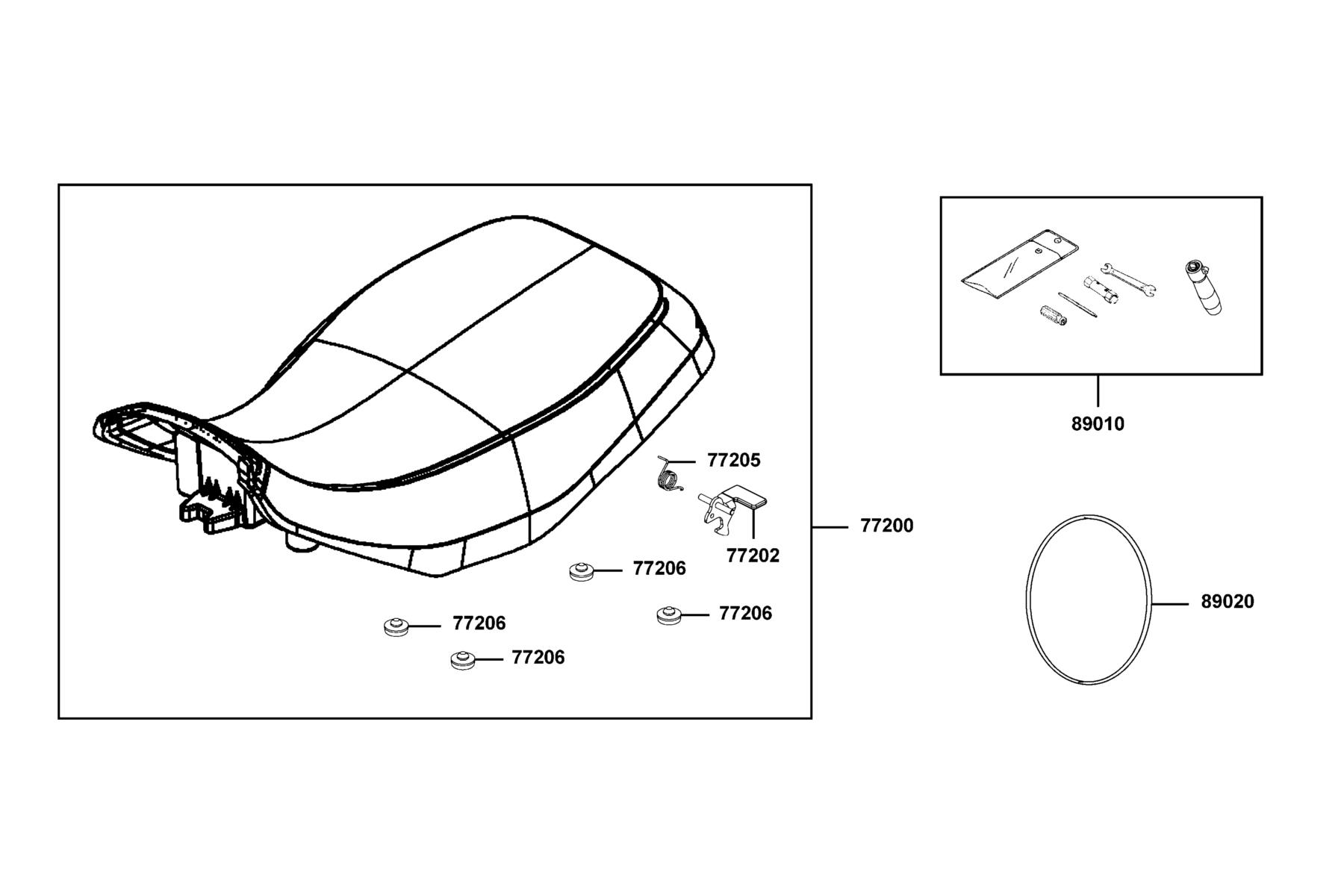

View diagram → F09 Seat parts diagram thumbnail

F09 — Seat

6 parts

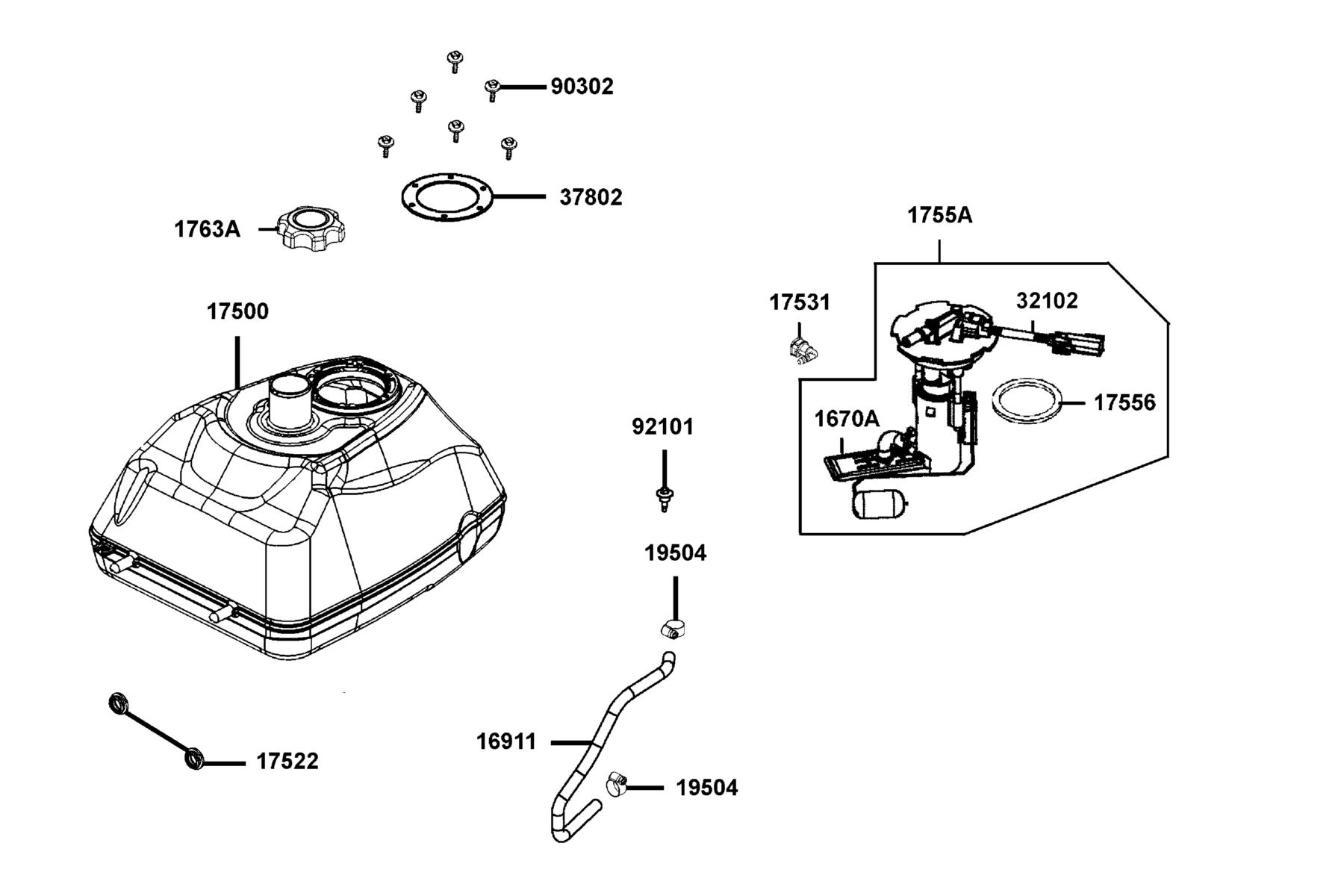

View diagram → F10 Fuel Tank parts diagram thumbnail

F10 — Fuel Tank

13 parts

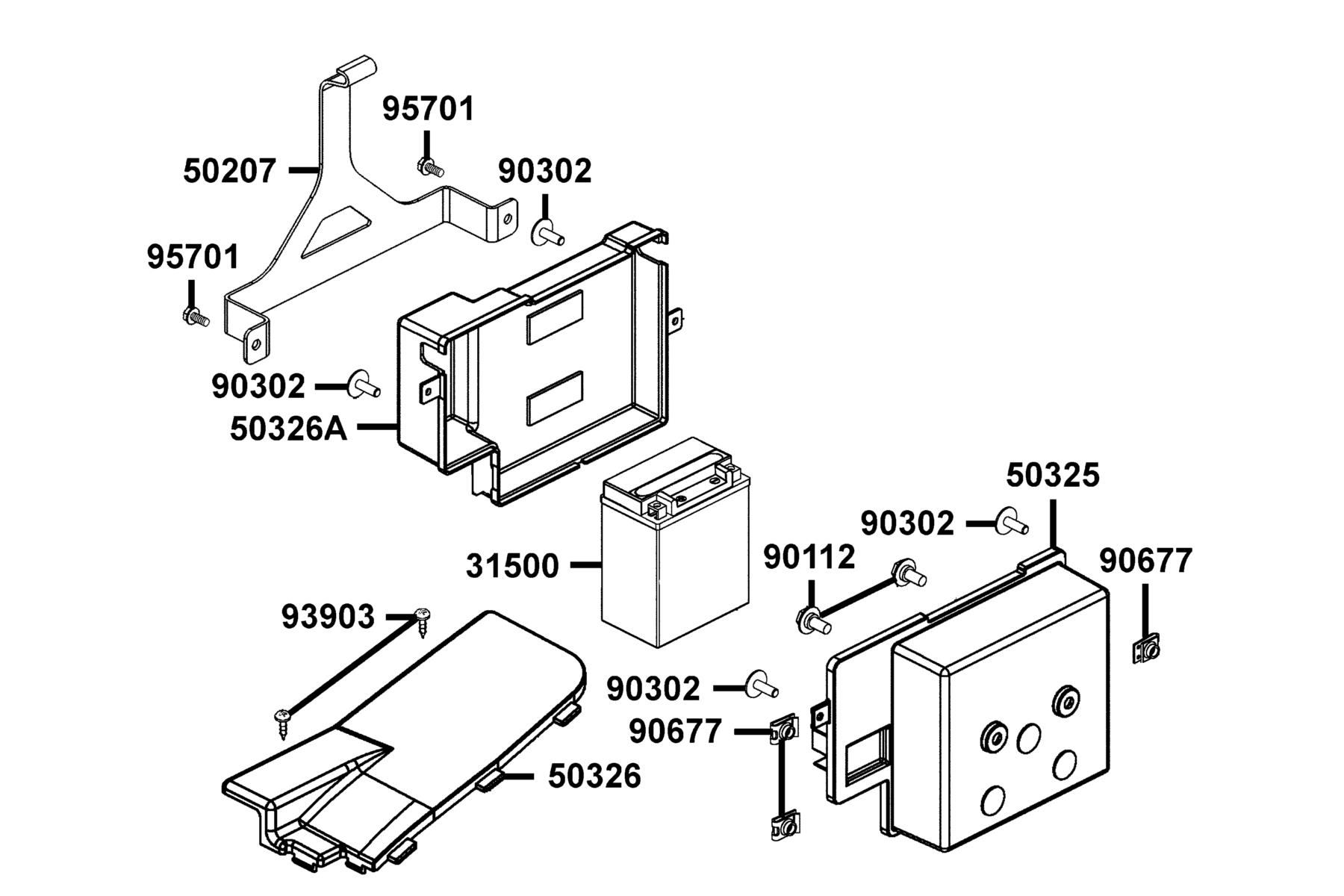

View diagram → F11 Battery parts diagram thumbnail

F11 — Battery

10 parts

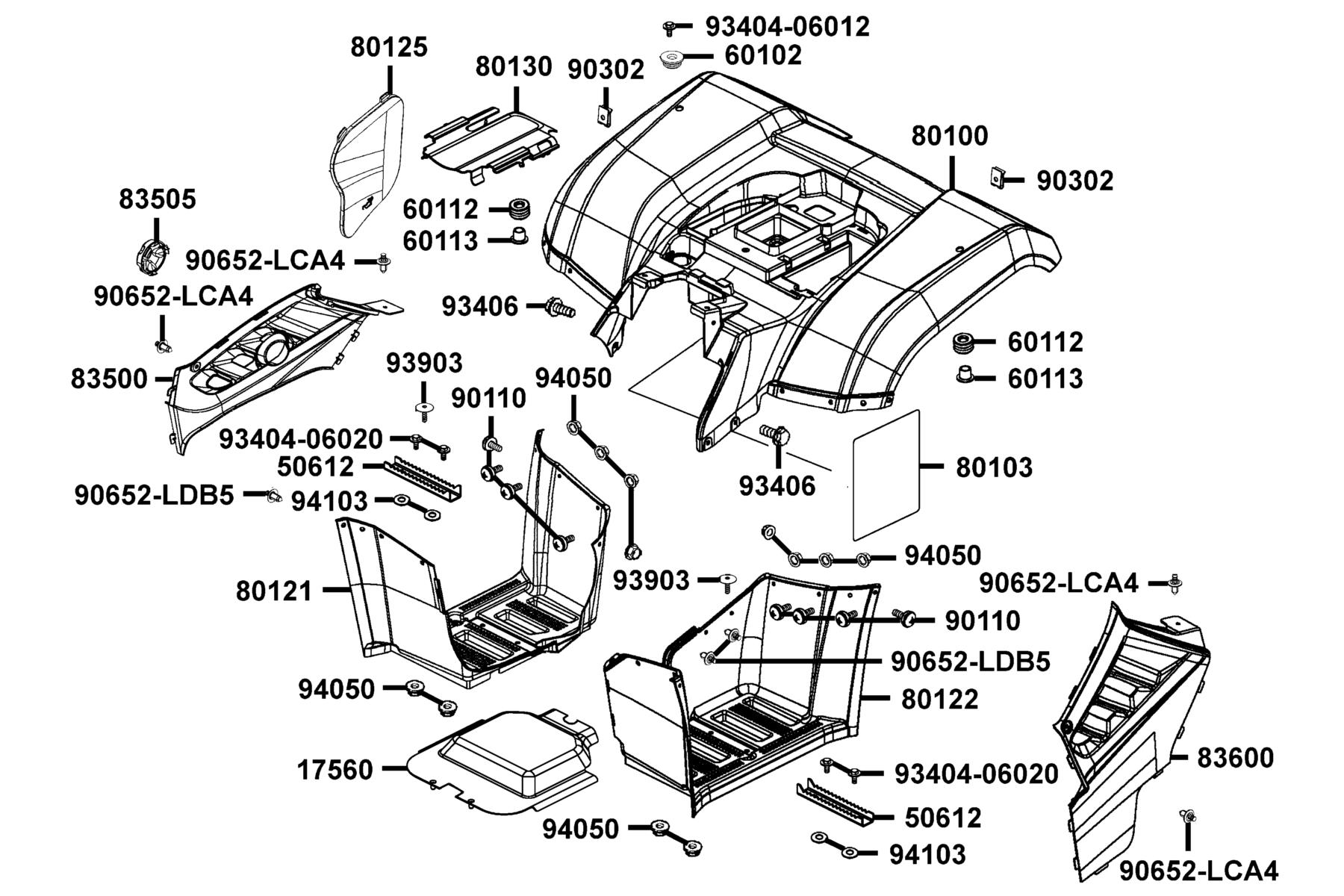

View diagram → F12 Fender Rear ● Mudguard Floor parts diagram thumbnail

F12 — Fender Rear ● Mudguard Floor

24 parts

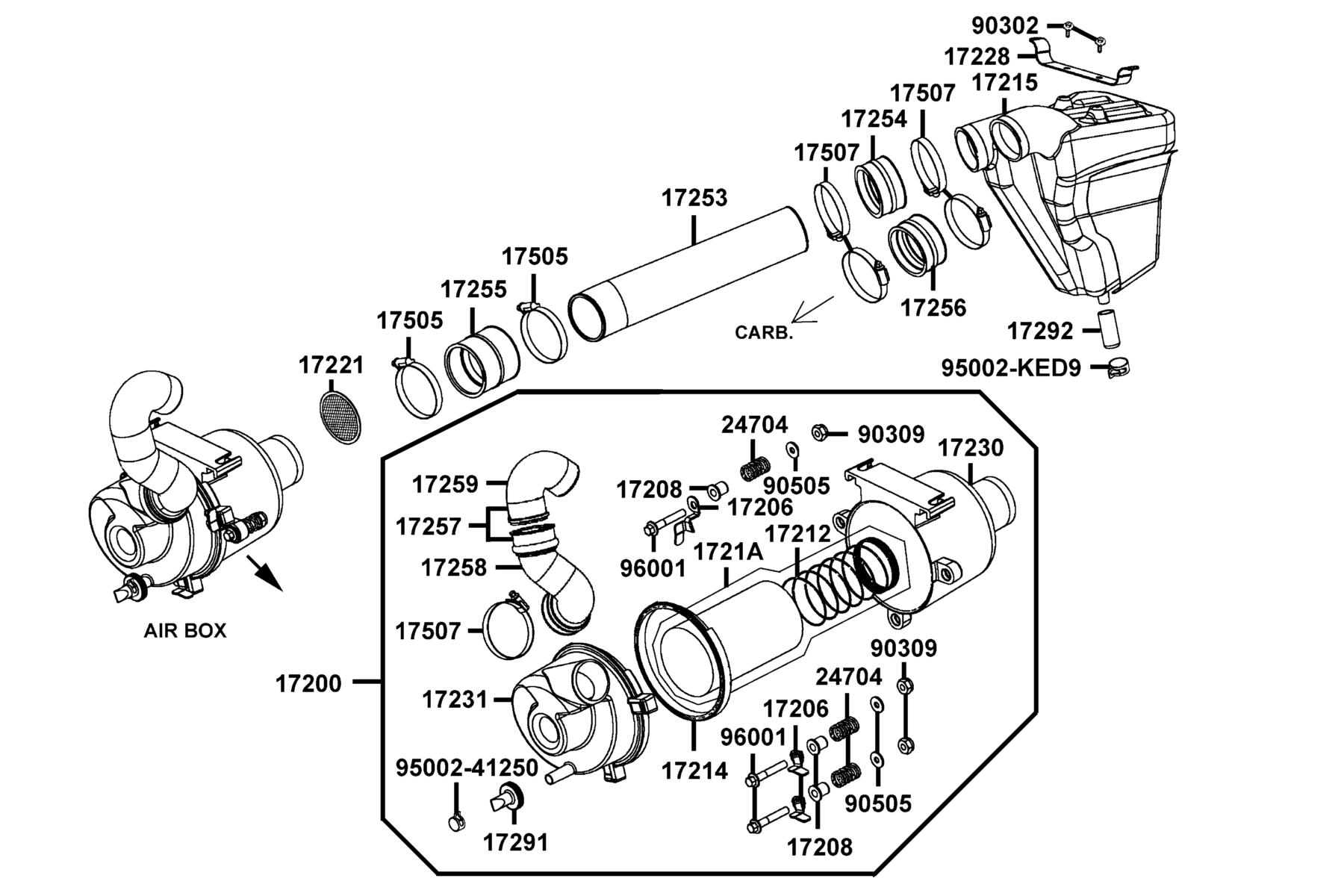

View diagram → F13 Air Box Cyclonic parts diagram thumbnail

F13 — Air Box Cyclonic

29 parts

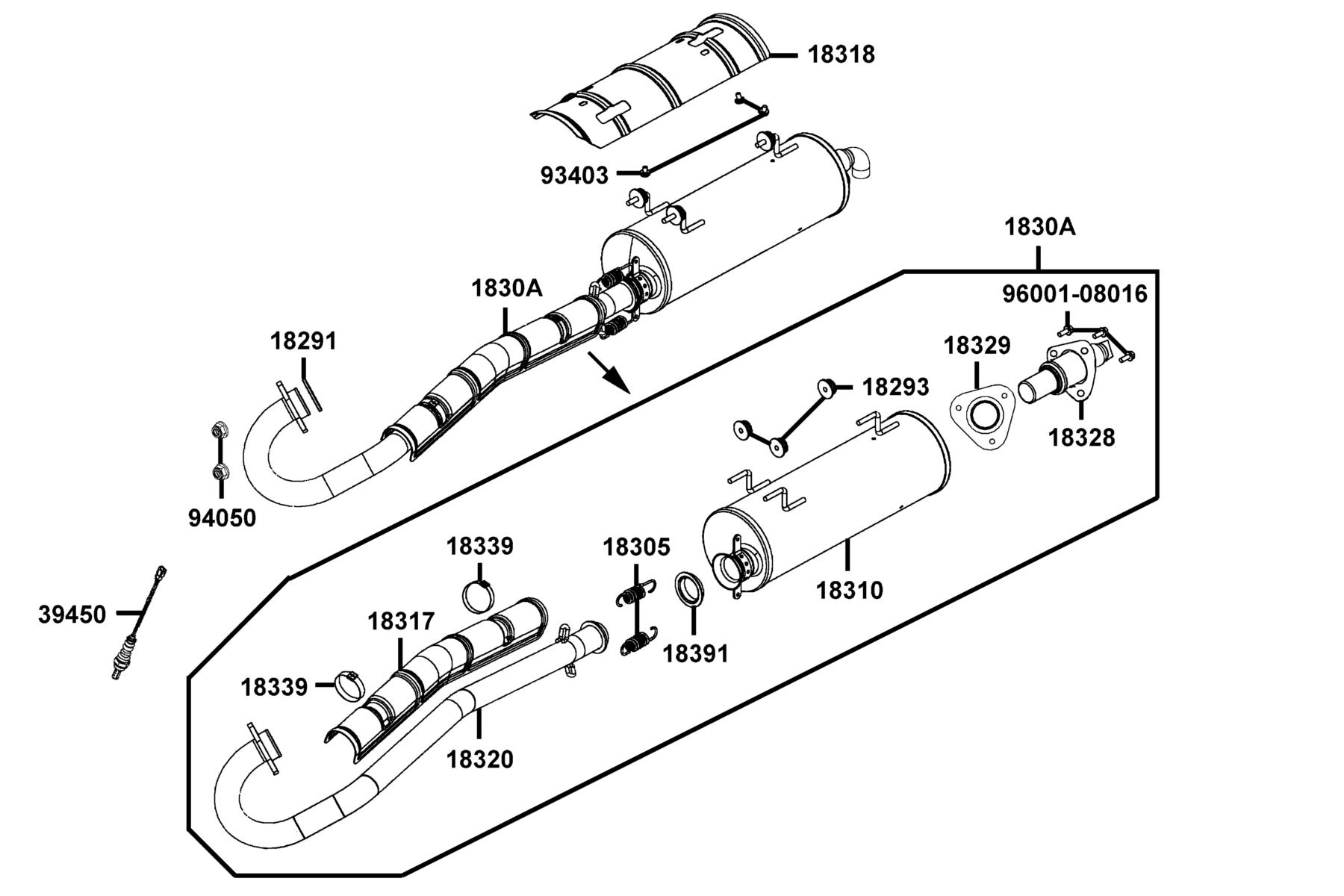

View diagram → F14 Exhaust Muffler parts diagram thumbnail

F14 — Exhaust Muffler

16 parts

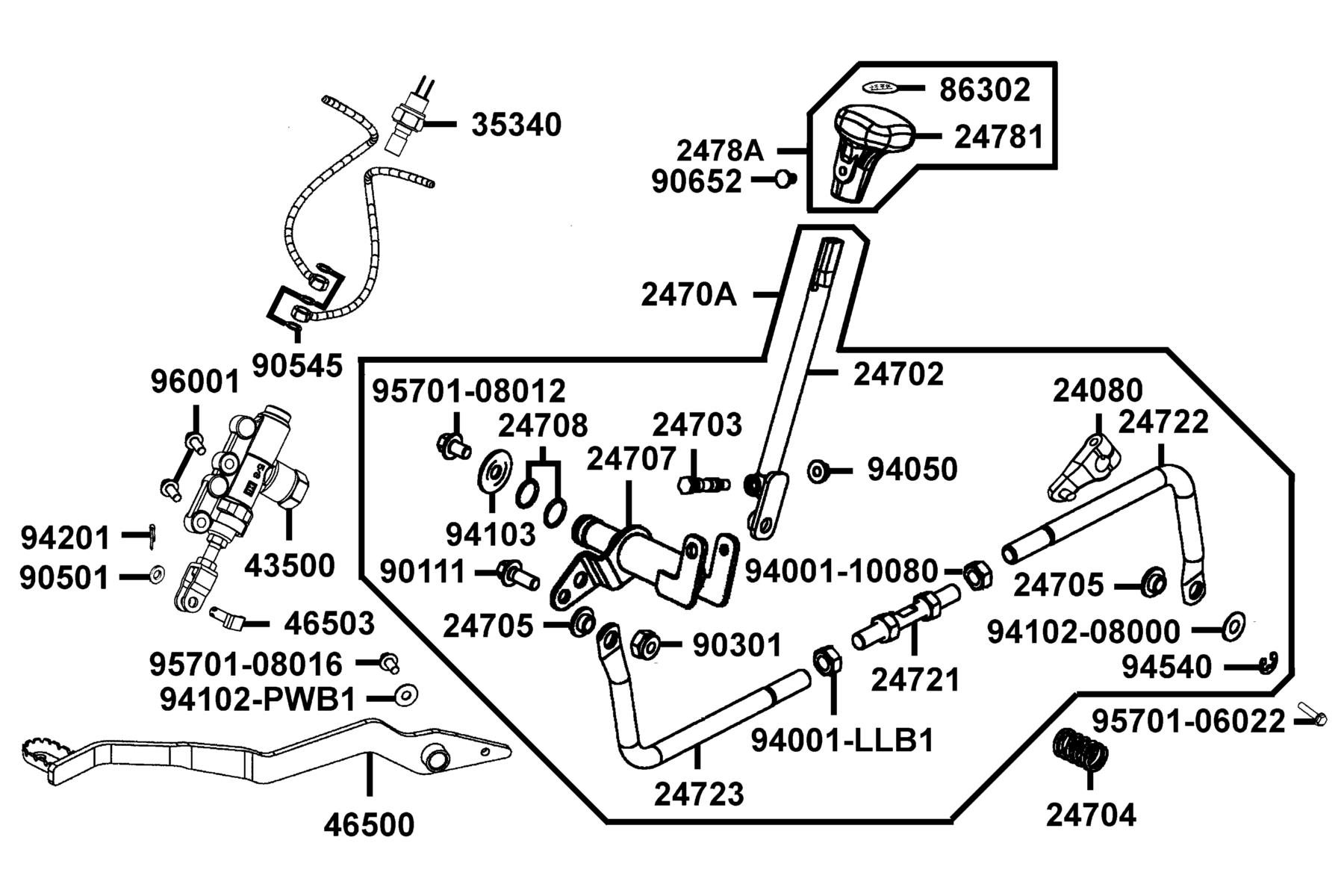

View diagram → F15 Fwd / Rev Shift Assy ● Master Cylinder Rear parts diagram thumbnail

F15 — Fwd / Rev Shift Assy ● Master Cylinder Rear

36 parts

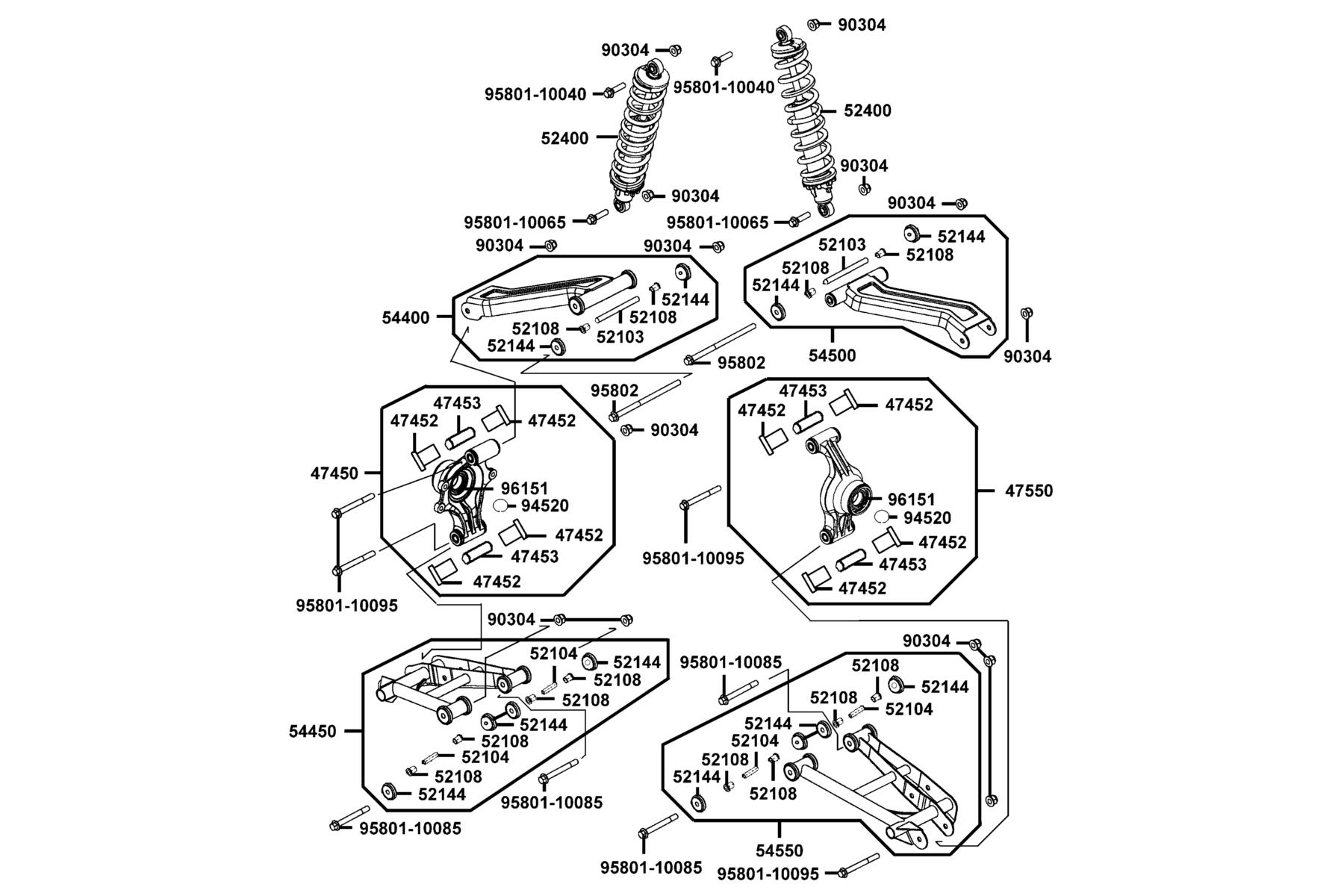

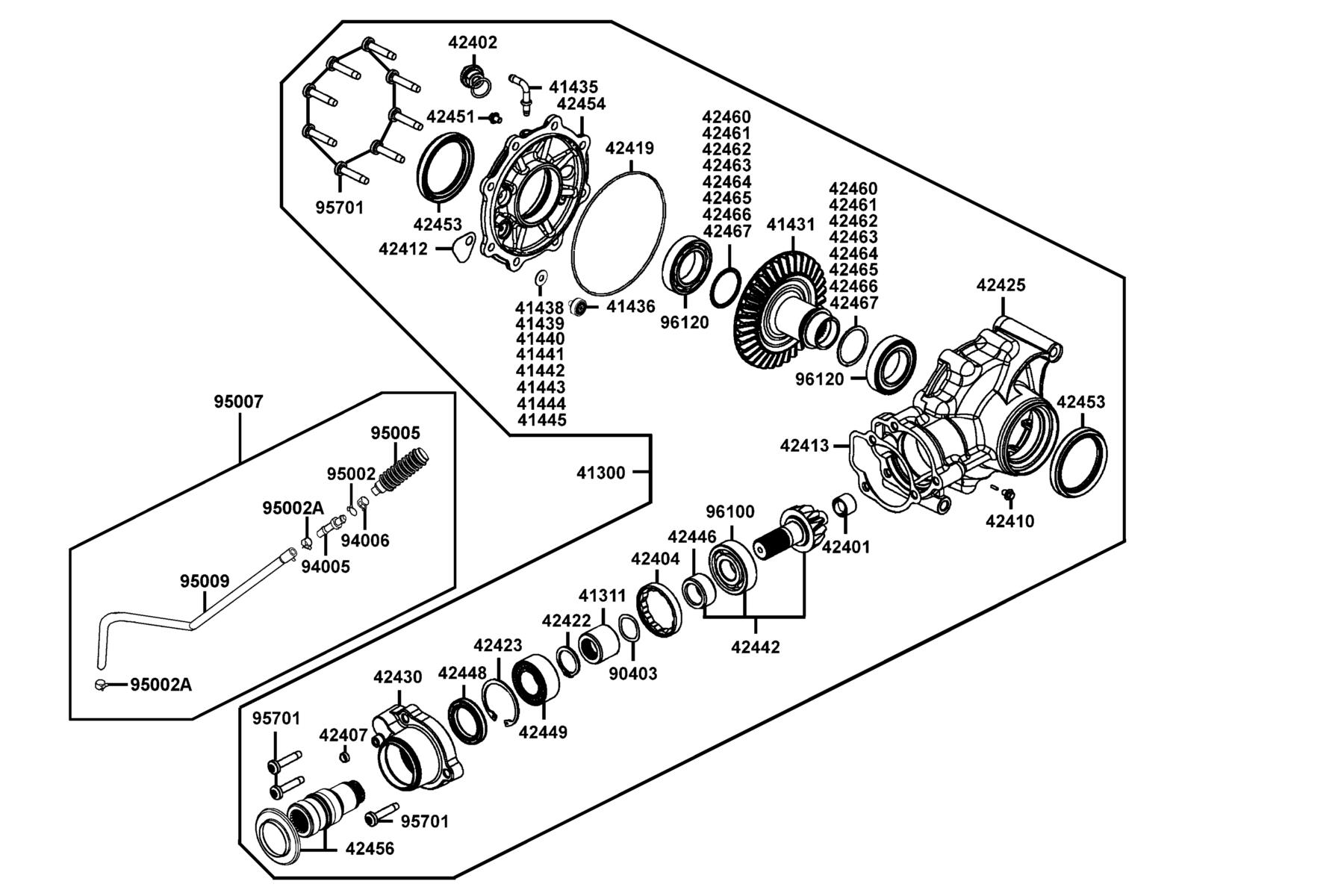

View diagram → F16 Control Arm Assy parts diagram thumbnail

F16 — Control Arm Assy

21 parts

View diagram → F17 Control Arm Assy parts diagram thumbnail

F17 — Control Arm Assy

49 parts

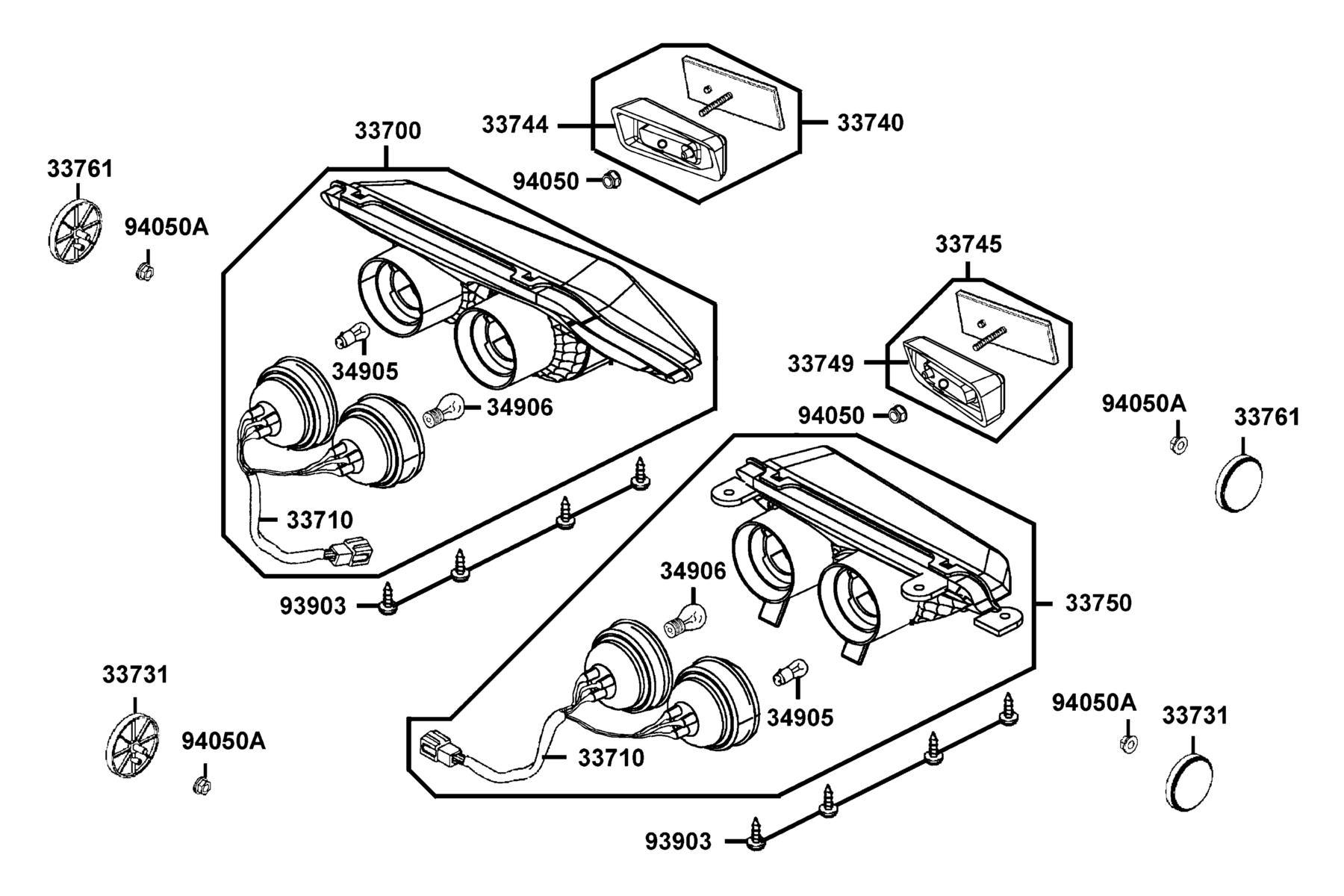

View diagram → F18 Light Tail parts diagram thumbnail

F18 — Light Tail

14 parts

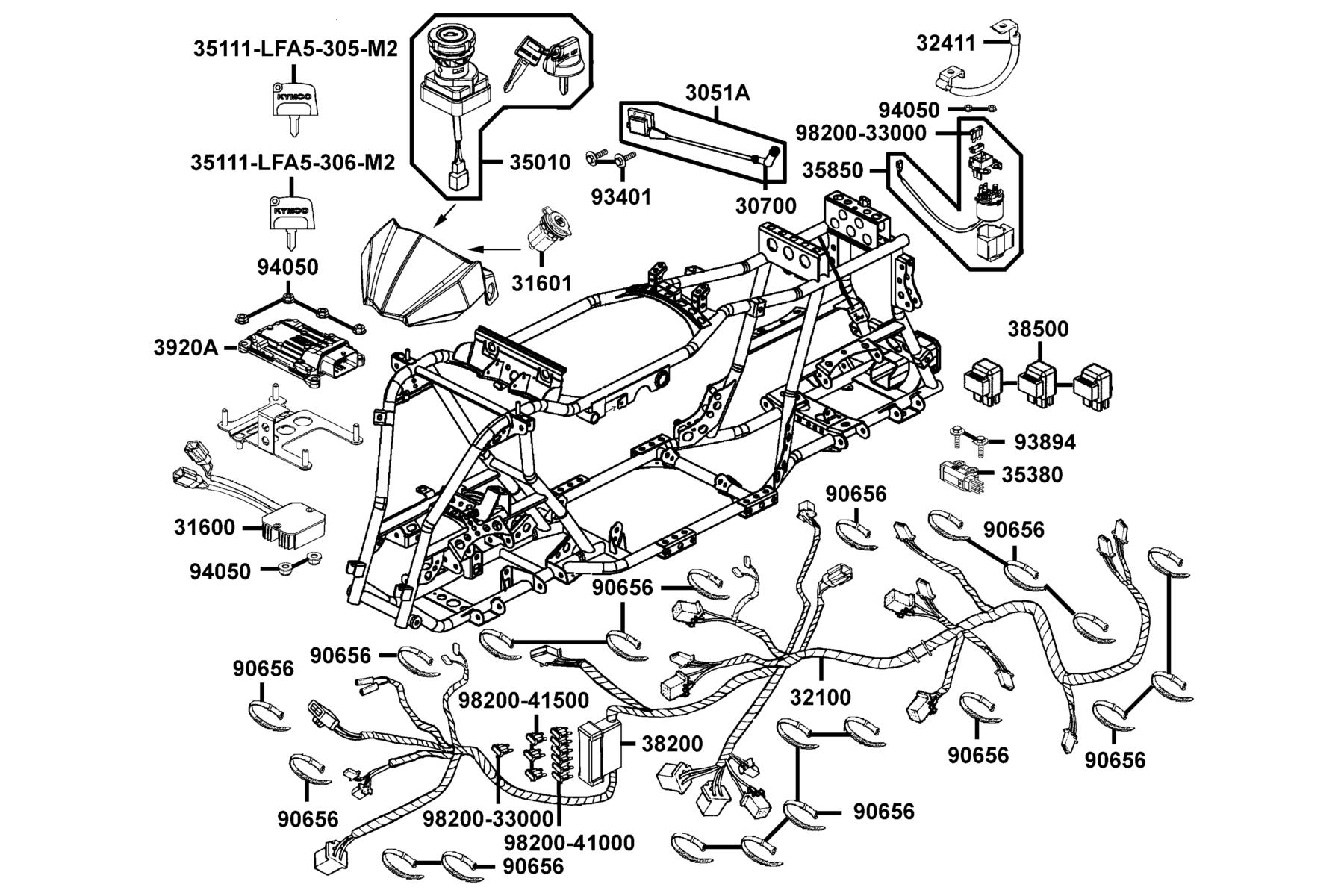

View diagram → F19 Harness Wire parts diagram thumbnail

F19 — Harness Wire

20 parts

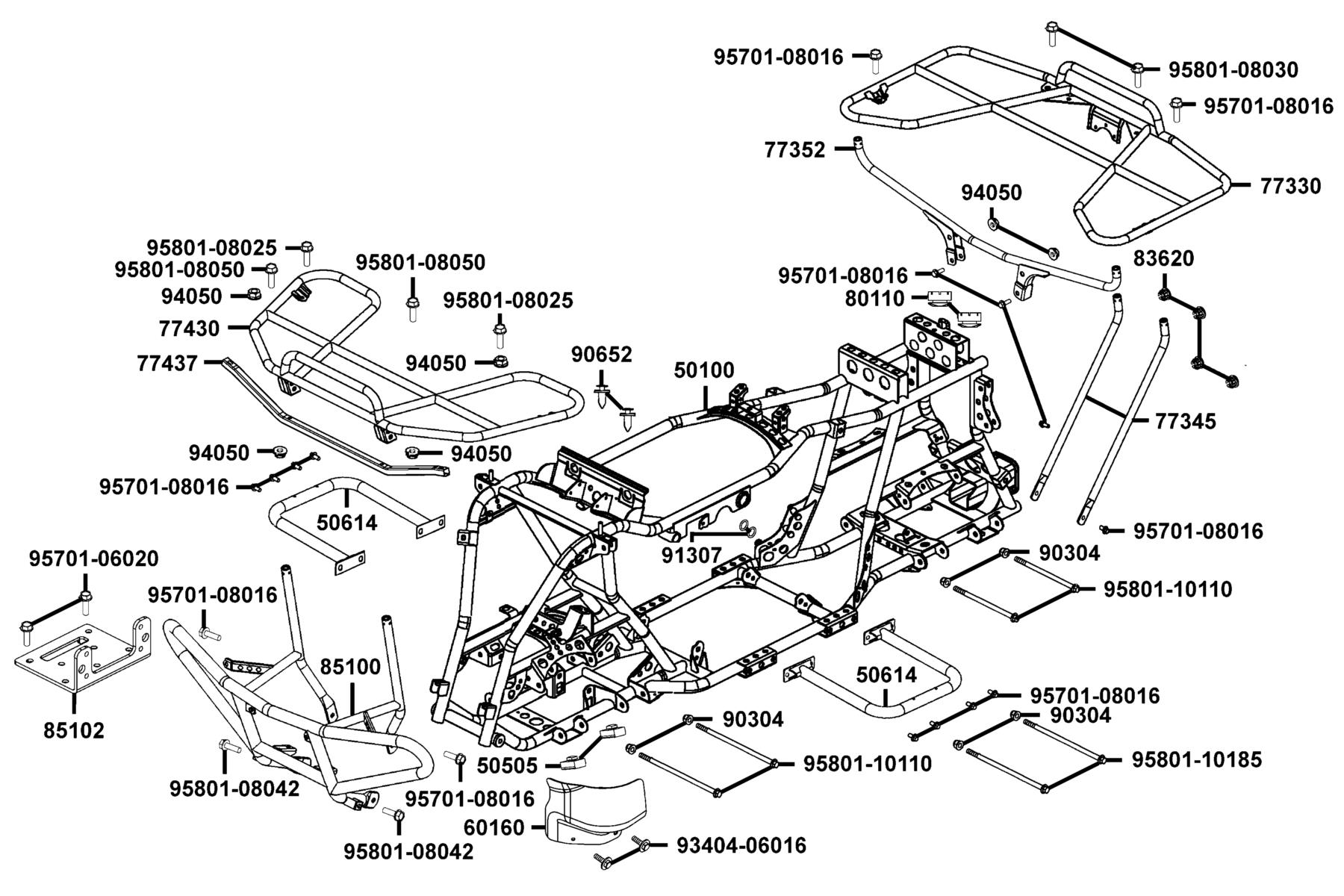

View diagram → F20 Frame Body parts diagram thumbnail

F20 — Frame Body

26 parts

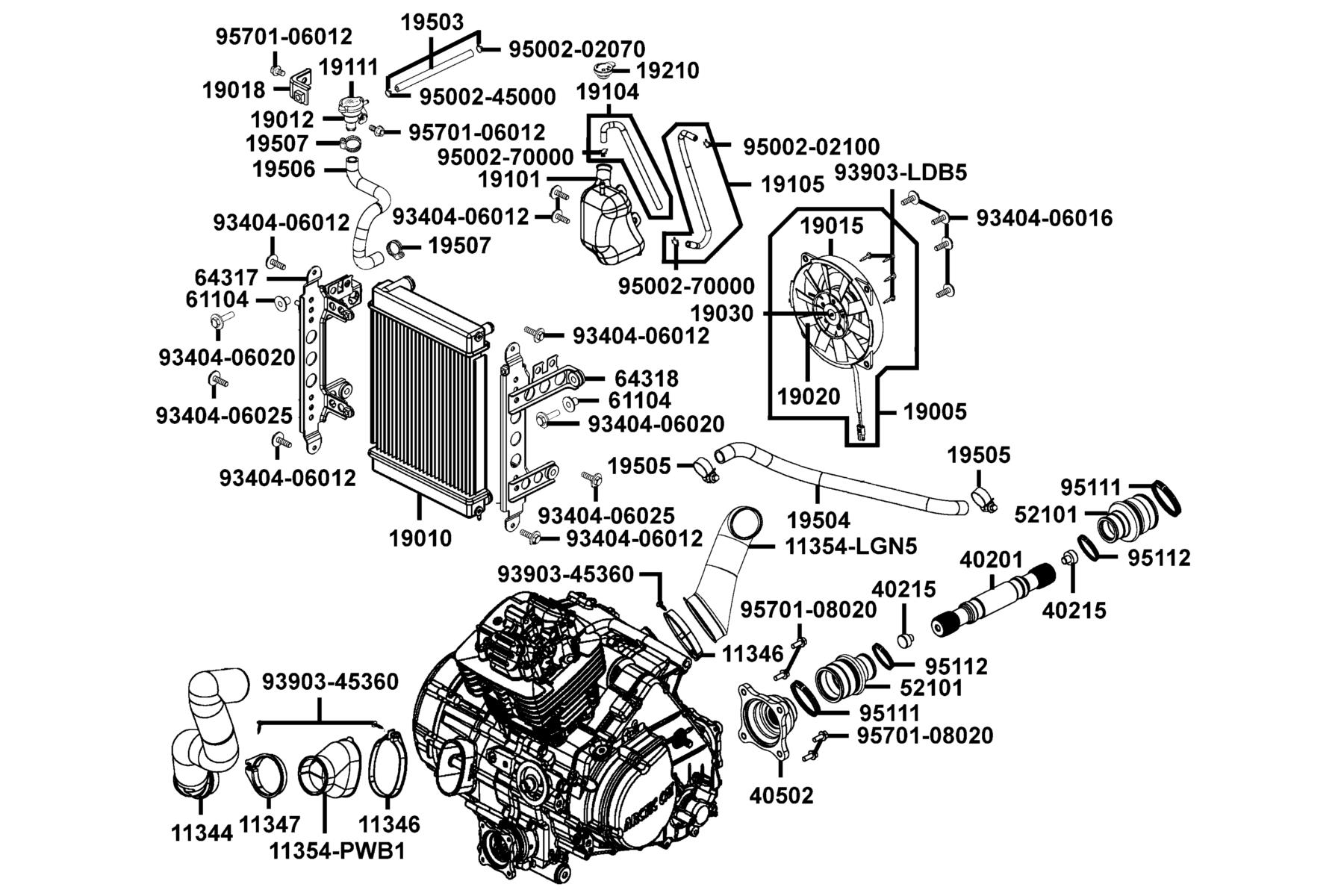

View diagram → F21 Cooler Oil parts diagram thumbnail

F21 — Cooler Oil

42 parts

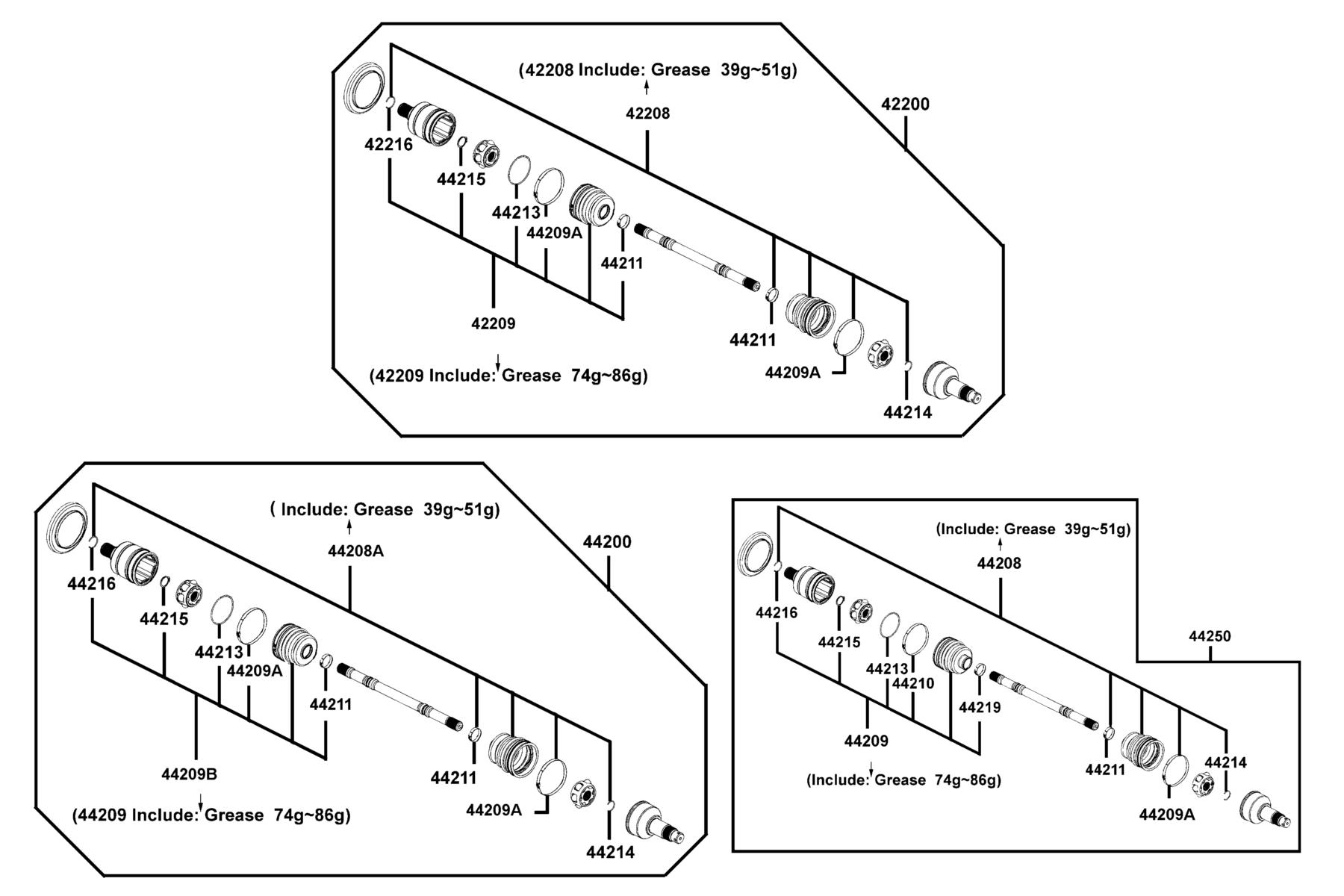

View diagram → F22 Separated Parts Of Halfshaft parts diagram thumbnail

F22 — Separated Parts Of Halfshaft

18 parts

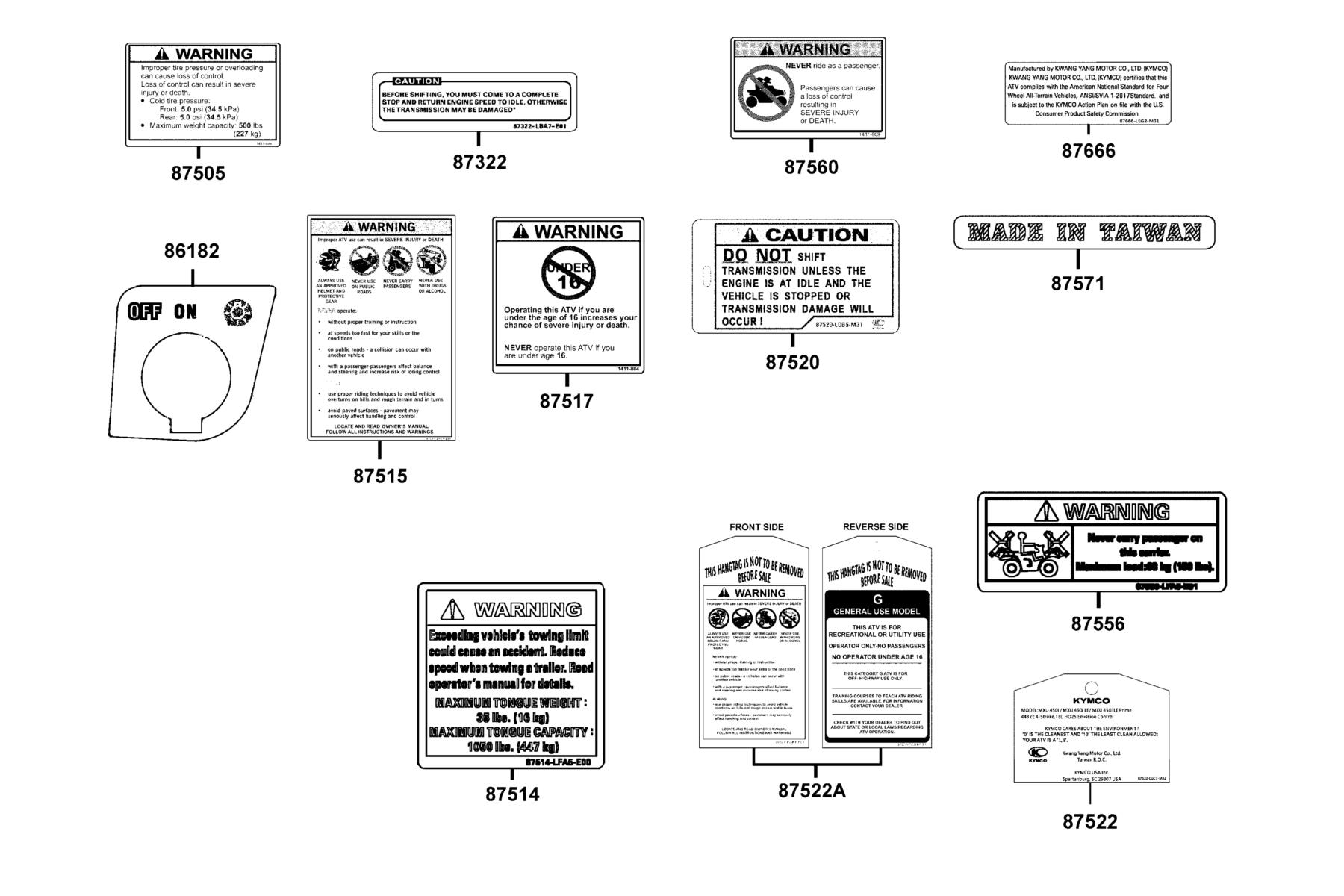

View diagram → F23 Caution Label parts diagram thumbnail

F23 — Caution Label

13 parts

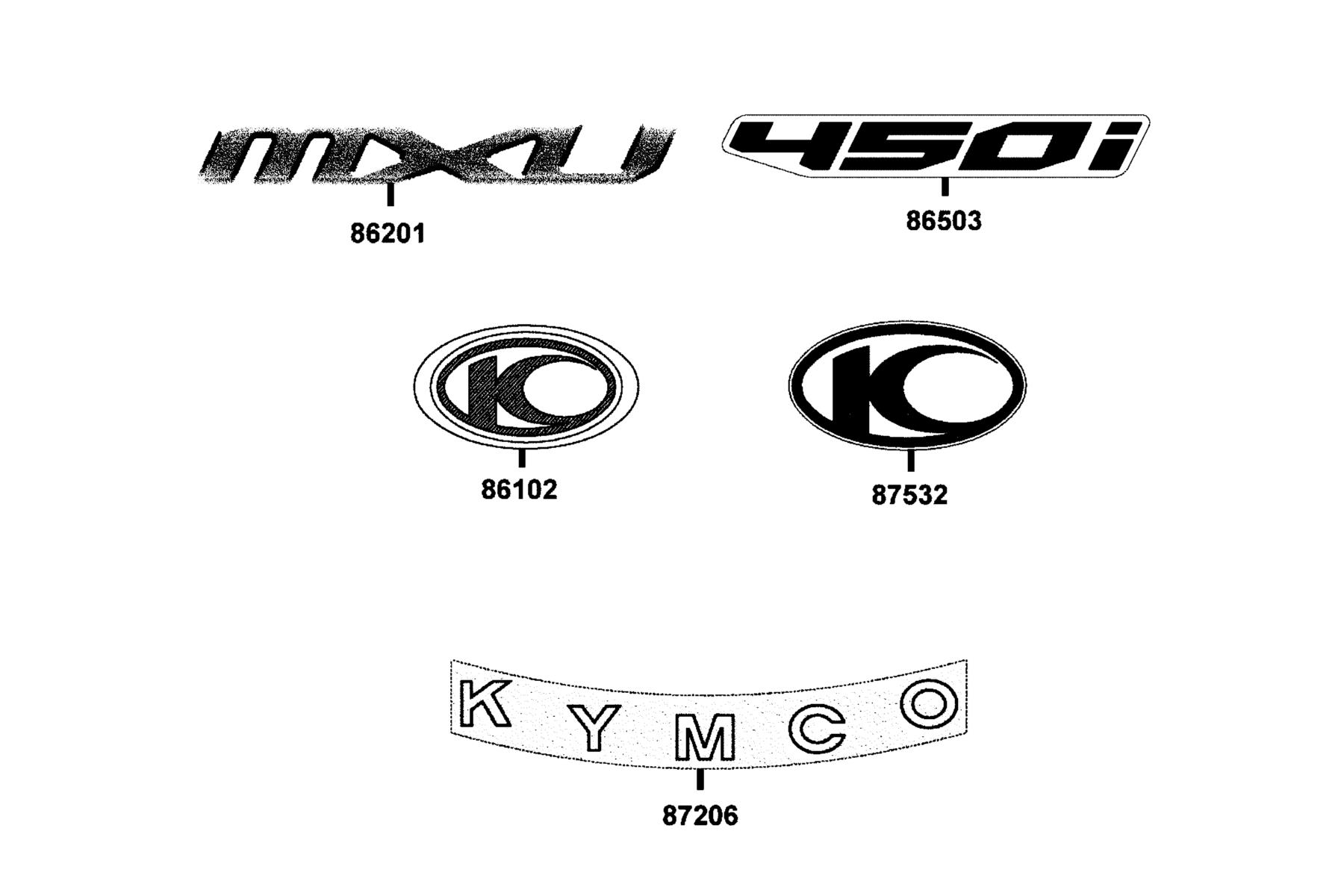

View diagram → F24 Emblem ● Stripe parts diagram thumbnail

F24 — Emblem ● Stripe

5 parts

View diagram →

F25 — Canister

16 parts

View diagram →

Common questions

How do I find a part number for the MXU 450i (2023)?

Open the assembly it belongs to below — each diagram is an exploded-view drawing with numbered callouts. Hover a callout to highlight the part in the list, then click through for the price and the add-to-cart button.

What do the diagrams for the MXU 450i (2023) cover?

36 factory assemblies with 945 genuine OEM parts — engine (E-codes) and frame/bodywork (F-codes), exactly as KYMCO documents this version.

Will these parts fit my MXU 450i (2023)?

This catalog is specific to model code LC90LK(US) (2023) in Grayish. If that matches your vehicle — or your VIN lookup points here — every part number on these diagrams is the factory-verified fit.
