E03 — Cylinder ● Piston ● Crankshaft

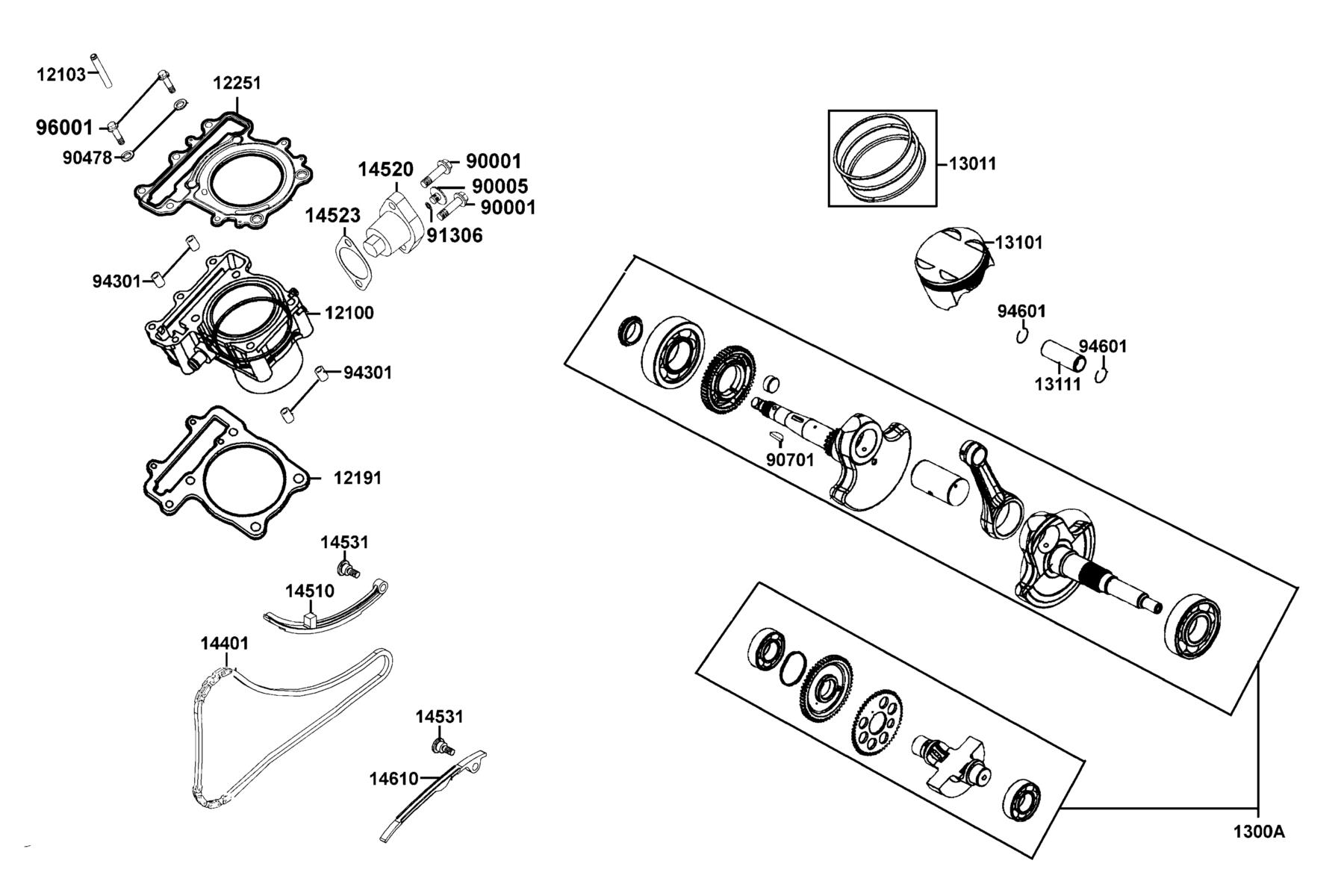

The Cylinder ● Piston ● Crankshaft diagram contains 22 genuine OEM parts for the KYMCO MXU 550i EPS(2025MY). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 12100-LDB5-E00 | CYLINDER COMP | 1 | $384.36 USD | View product → | |
| 2 | 12103-LBA2-E00 | STOPPER CYLN WATER | 1 | $7.53 USD | View product → | |
| 3 | 12191-LDB5-E00 | GASKET CYLINDER @A | 1 | $66.18 USD | View product → | |
| 4 | 12251-LBA2-E00 | GASKET CYLINDER HEAD | 1 | $111.24 USD | View product → | |
| 5 | 1300A-ALC1-305 | CRANK BALANCER COMP | 1 | $637.60 USD | View product → | |
| 6 | 13011-LBA2-C00 | RING SET PISTON | 1 | $116.28 USD | View product → | |
| 7 | 13101-LDG7-E00 | PISTON | 1 | $109.68 USD | View product → | |
| 8 | 13111-LBA2-E00 | PIN PISTON | 1 | $42.84 USD | View product → | |
| 9 | 14401-LBA2-E00 | CHAIN CAM | 1 | $174.45 USD | View product → | |
| 10 | 14510-LDB5-E00 | TENSIONER CAM CHAIN | 1 | $88.74 USD | View product → | |
| 11 | 14520-LDB5-E00 | LIFTER ASSY TENSIONER | 1 | $117.21 USD | View product → | |
| 12 | 14523-KED9-920 | GASKET TENSIONER LIFTER @A | 1 | $3.81 USD | View product → | |
| 13 | 14531-KED9-900 | PIVOT TENSION GUIDE | 2 | $17.13 USD | View product → | |
| 14 | 14610-LBA2-E00 | GUIDE COMP CAM CHAIN | 1 | $83.31 USD | View product → | |
| 15 | 90001-GBHB-661 | BOLT FLANGE SH 6*22 | 2 | $4.92 USD | View product → | |
| 16 | 90005-KED9-900 | BOLT SPECIAL 6*6 | 1 | $2.76 USD | View product → | |
| 17 | 90478-7L00-001 | WASHER A 6MM | 2 | $4.92 USD | View product → | |
| 18 | 90701-LDB5-E00 | KEY WAY ACG | 1 | $7.53 USD | View product → | |
| 19 | 91306-1E05-691 | O-RING 1.5*9.5 | 1 | $4.92 USD | View product → | |
| 20 | 94301-12200 | DOWEL PIN 12*20 | 4 | $6.39 USD | View product → | |
| 21 | 94601-22000 | CLIP PISTON PIN 22MM | 2 | $1.86 USD | View product → | |
| 22 | 96001-06040-06 | BOLT FLANGE SH 6*40 | 1 | $12.12 USD | View product → |
