F06 — Stem Steering ● Front Cushion

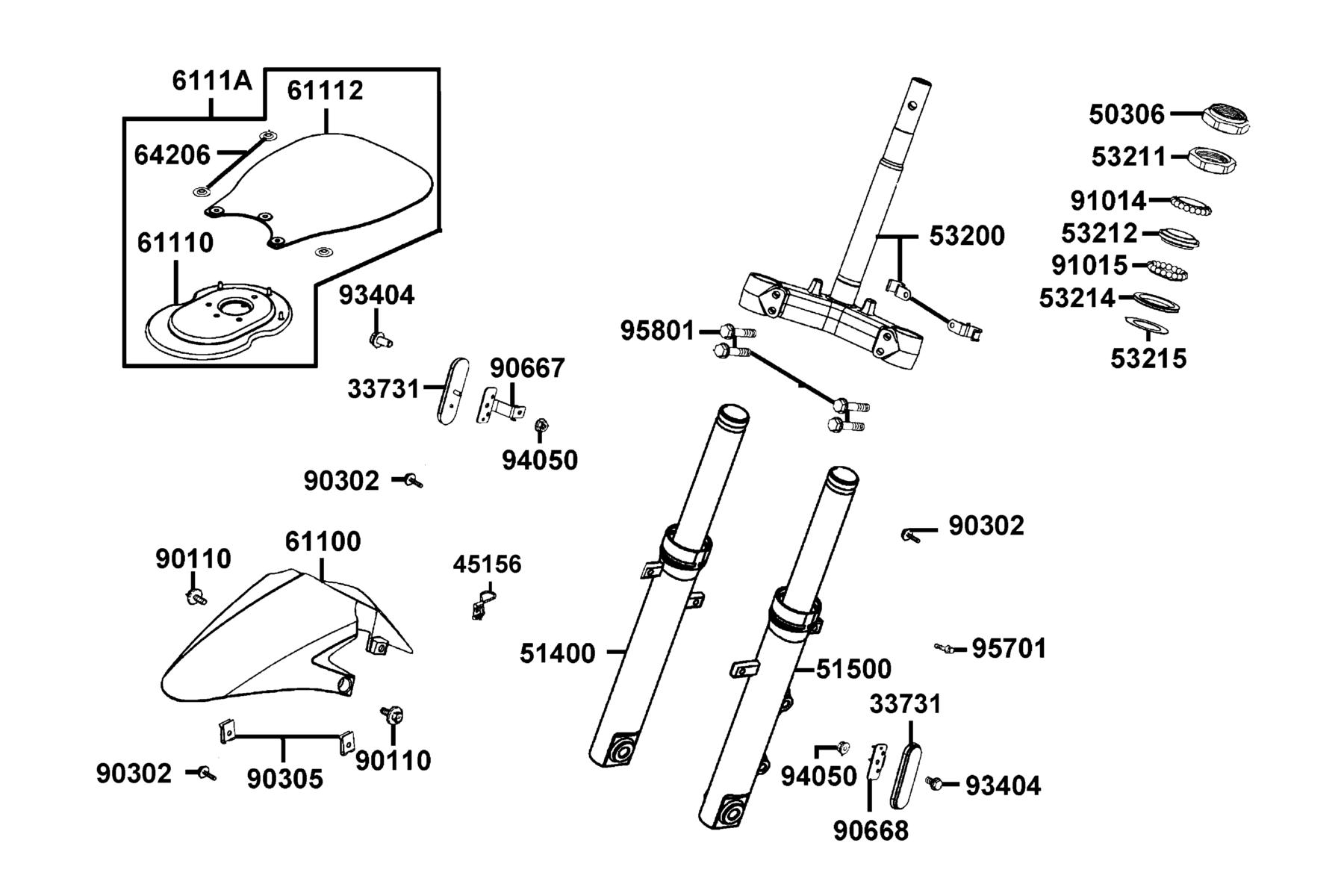

The Stem Steering ● Front Cushion diagram contains 38 genuine OEM parts for the KYMCO Super 8 50 MY2026. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 33731-KGB5-EZ0 | REFLEX REFLECTOR SIDE | 1 | $12.84 USD | View product → | |
| 2 | 45156-KHC5-E10 | CLAMPER FR BRAKE HOSE | 1 | $19.59 USD | View product → | |
| 3 | 50306-1F96-C00 | NUT STRG STEM LOCK | 1 | $12.12 USD | View product → | |
| 4 | 51400-LEJ2-E10-NEA | FORK ASSY RH FR | 1 | $266.58 USD | View product → | |
| 5 | 51401-LEJ2-E10 | SPRING | 2 | $30.90 USD | View product → | |
| 6 | 51410-LEJ2-E10 | FORK PIPE COMP | 2 | $150.27 USD | View product → | |
| 7 | 51412-LEJ2-E10 | REBOUND SPRING | 2 | $6.24 USD | View product → | |
| 8 | 51420-LEJ2-E10-NEA | BOTTOM CASE RH | 1 | $136.92 USD | View product → | |
| 9 | 51428-LEJ2-E10 | OIL SEAL STOP RING | 2 | $5.31 USD | View product → | |
| 10 | 51429-LEJ2-E10 | PIPE SEAT | 2 | $38.61 USD | View product → | |
| 11 | 51437-LEJ2-E10 | PISTON RING | 2 | $5.31 USD | View product → | |
| 12 | 51500-LEJ2-E10-NEA | FORK ASSY LH FR | 1 | $218.85 USD | View product → | |
| 13 | 51520-LEJ2-E10-NEA | BOTTOM CASE L | 1 | $130.17 USD | View product → | |
| 14 | 53200-AHF8-M40 | STEM COMP STRG | 1 | $229.47 USD | View product → | |
| 15 | 53211-GFY6-C00 | RACE STRG TOP CONE | 1 | $16.41 USD | View product → | |
| 16 | 53212-2L50-C00 | RACE (STRG BOTTOM) CONE | 1 | $30.66 USD | View product → | |
| 17 | 53214-2L50-C00 | DUST SEAL STRG (HEAD) | 1 | $6.39 USD | View product → | |
| 18 | 53215-2L50-C00 | WASH STRG HDL DUST-SEAL | 1 | $7.53 USD | View product → | |
| 19 | 61100-LEJ2-E10-2AP | FENDER . FR. INNER | 1 | $130.77 USD | View product → | |
| 20 | 61110-LDC8-E90 | "FENDER , FR. INNER" | 1 | $17.46 USD | View product → | |
| 21 | 61112-LDC8-E90 | "PLATE , FR. INNER SPLASH GUARD" | 1 | $31.50 USD | View product → | |
| 22 | 6111A-LDC8-E90 | FENDER FR | 1 | $44.25 USD | View product → | |
| 23 | 64206-MLJ0-C01 | NUT SPEED 4MM | 3 | $4.65 USD | View product → | |
| 24 | 90110-KEB7-C01 | SCREW SPECIAL 6*14 | 2 | $4.92 USD | View product → | |
| 25 | 90302-PUA3-B51 | BOLT-WASH 5*12 | 3 | $4.65 USD | View product → | |
| 26 | 90305-GHK8-C01 | NUT CLIP 6MM | 1 | $2.61 USD | View product → | |
| 27 | 90544-LEJ2-E10 | PACKING | 2 | $5.22 USD | View product → | |
| 28 | 90667-BLA2-E70 | STAY SIDE REFLECTOR R | 1 | — | Part details → | |
| 29 | 90668-LFC2-MG0 | "STAY,SIDE REFLECTOR" | 1 | — | Part details → | |
| 30 | 91014-LLJ3-C00 | CAGE STRG TOPP | 1 | $22.65 USD | View product → | |
| 31 | 91015-LLJ3-C00 | CAGE STRG BOT | 1 | $28.35 USD | View product → | |
| 32 | 91251-LEJ2-E10 | SEAL OIL | 2 | $36.78 USD | View product → | |
| 33 | 91254-LEJ2-E10 | DUST SEAL | 2 | $19.26 USD | View product → | |
| 34 | 93404-06030-07G | 0 | 2 | $4.11 USD | View product → | |
| 35 | 94050-05080-G | NUT FLANGE 5MM | 2 | $0.99 USD | View product → | |
| 36 | 94608-LEJ2-E10 | O-RING 23X2.4 | 2 | $4.92 USD | View product → | |
| 37 | 95701-06012-08G | BOLT FLANGE 6*12 (C) | 1 | $0.99 USD | View product → | |
| 38 | 95801-08040-08G | BOLT FLANGE 8*40 | 4 | $4.89 USD | View product → |
