F21 — Emblem ● Stripe

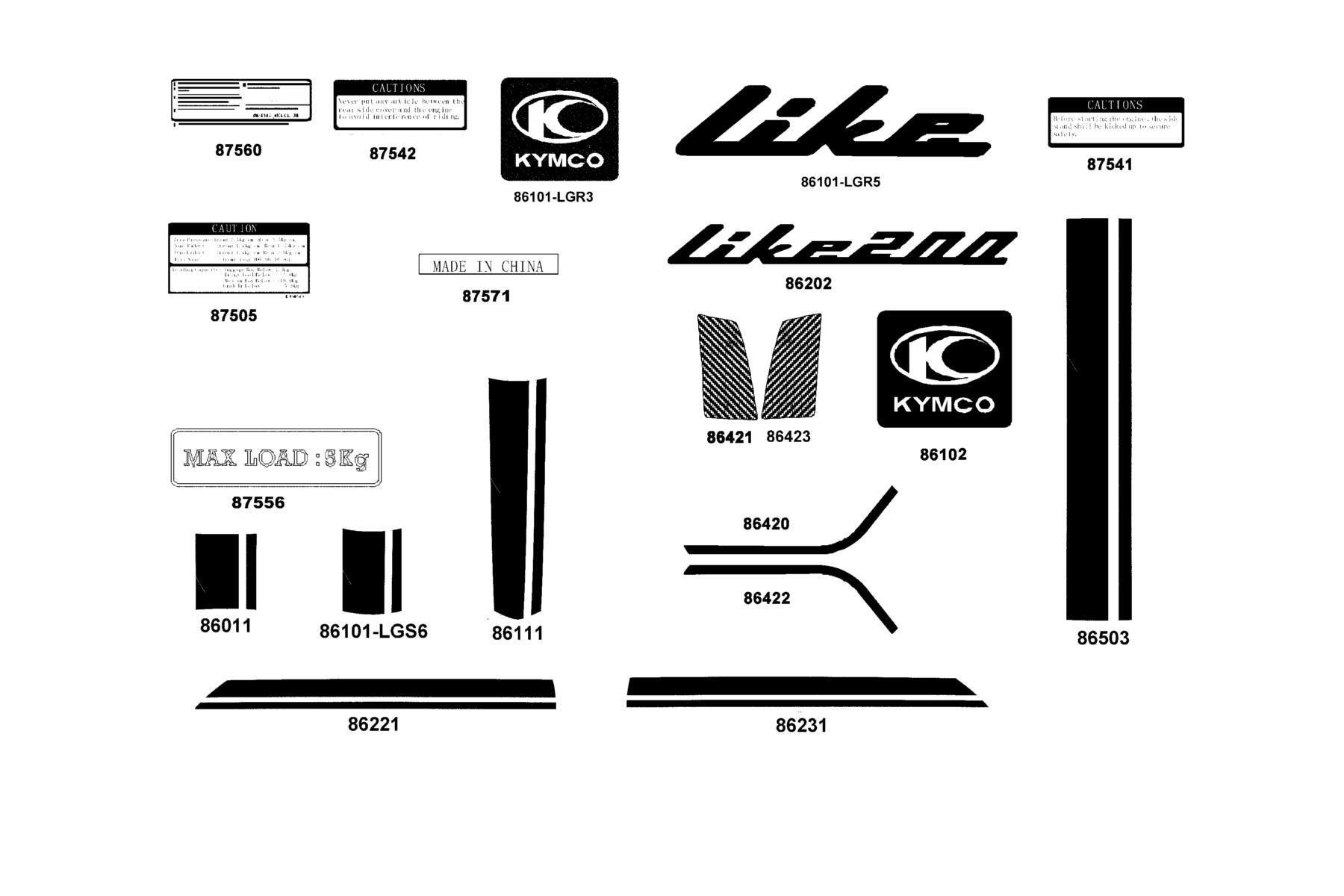

The Emblem ● Stripe diagram contains 20 genuine OEM parts for the KYMCO LIKE 200(2010~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 86011-LGS6-M30-T04 | STRIPE HANDLE COVER FR | 1 | $14.31 USD | View product → | |
| 2 | 86101-LGR3-E00-T01 | STRIPE FR COVER | 1 | $4.92 USD | View product → | |
| 3 | 86101-LGR5-E10-T01 | STRIPE FR COVER | 1 | $26.01 USD | View product → | |
| 4 | 86101-LGS6-M30-T04 | STRIPE FR COVER | 1 | $14.31 USD | View product → | |
| 5 | 86102-LGR5-E00-T01 | EMB K-LOGO | 1 | $34.32 USD | View product → | |
| 6 | 86111-LGS6-M30-T04 | STRIPE B FR COVER | 1 | $29.16 USD | View product → | |
| 7 | 86202-LGS6-E10-T01 | EMB BODY COVER | 2 | $38.64 USD | View product → | |
| 8 | 86221-LGS6-M30-T04 | STRIPE R BODY COVER | 1 | $38.85 USD | View product → | |
| 9 | 86231-LGS6-M30-T04 | STRIPE L BODY COVER | 1 | $38.85 USD | View product → | |
| 10 | 86420-LGR5-E00-T01 | EMB R FRINGE | 1 | $37.71 USD | View product → | |
| 11 | 86421-LGR5-E00-T01 | STRIPE REAR BOX | 1 | $24.99 USD | View product → | |
| 12 | 86422-LGR5-E00-T01 | EMB L FRINGE | 1 | $37.71 USD | View product → | |
| 13 | 86423-LGR5-E00-T01 | STRIPE REAR BOX | 1 | $24.99 USD | View product → | |
| 14 | 86503-LGS6-M30-T04 | STRIPE FR FENDER | 1 | $36.69 USD | View product → | |
| 15 | 87505-LDC8-E10-T01 | LABEL TIRE | 1 | $1.32 USD | View product → | |
| 16 | 87541-GAR1-C01-T01 | CAUTION SIDE STAND | 1 | $5.34 USD | View product → | |
| 17 | 87542-GAR1-C01-T01 | MARK MAINT CAUTION R | 1 | $2.97 USD | View product → | |
| 18 | 87556-LEJ2-E00-T01 | STRIPE GRAB RR | 1 | $4.92 USD | View product → | |
| 19 | 87560-GFY6-E11-T01 | MARK DRIVE CAUTION | 1 | $6.87 USD | View product → | |
| 20 | 87571-LDC8-B90-T01 | LABEL MIC | 1 | $7.23 USD | View product → |
