F19 — Wire Harness

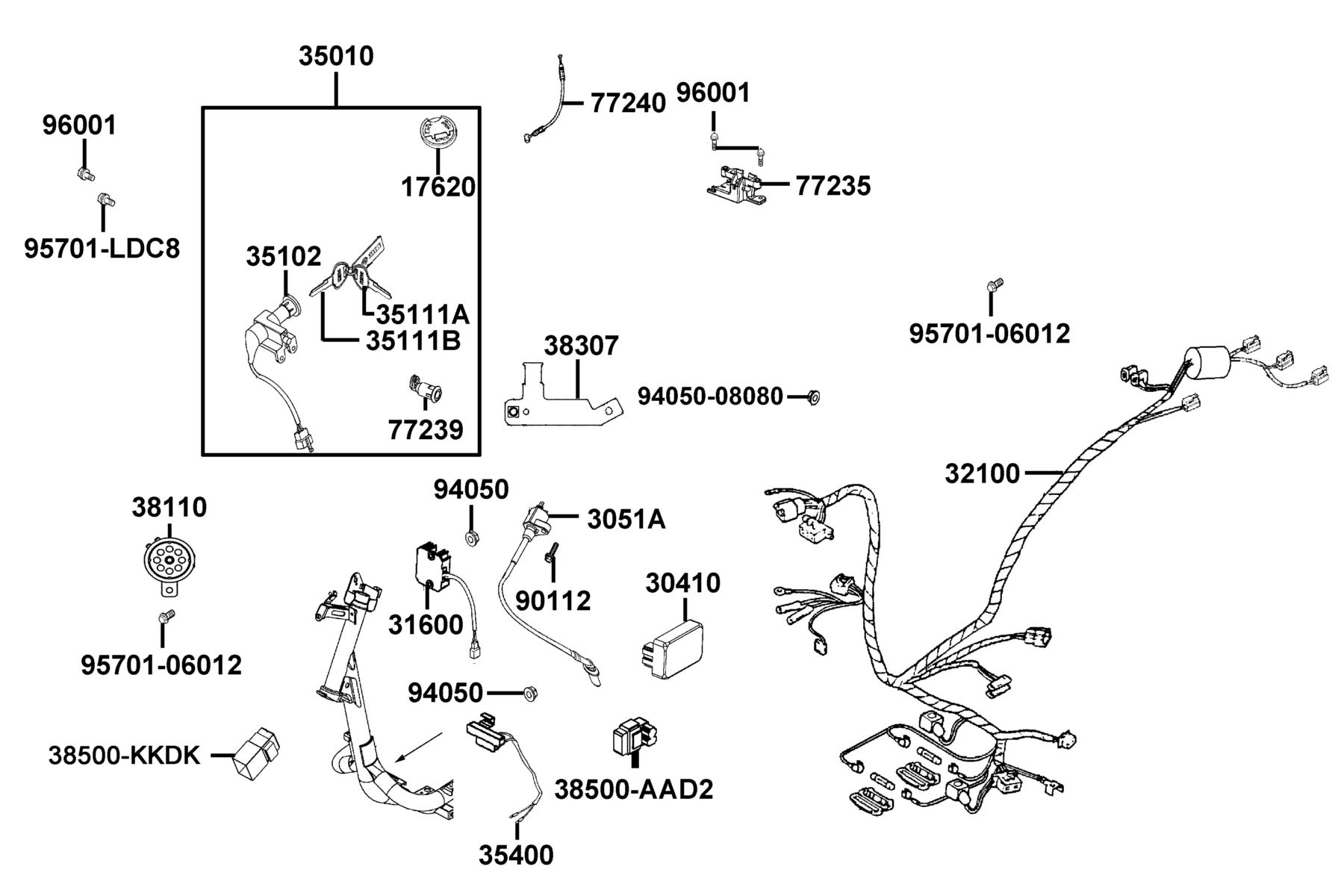

The Wire Harness diagram contains 23 genuine OEM parts for the KYMCO SUPER 8 50X MY2026. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17620-KGBG-MY0 | CAP COMP FILLER | 1 | $47.49 USD | View product → | |
| 2 | 30410-LEJ2-E10 | UNIT COMP C.D.I. | 1 | $202.80 USD | View product → | |
| 3 | 3051A-KHC4-C00 | COIL ASSY IGN | 1 | $94.47 USD | View product → | |
| 4 | 31600-LEA5-C01 | REG RECT COMP | 1 | $145.23 USD | View product → | |
| 5 | 32100-ADA9-M30 | HARNESS WIRE | 1 | $235.41 USD | View product → | |
| 6 | 35010-ADA9-M30 | KEY SET | 1 | $179.82 USD | View product → | |
| 7 | 35102-KGBG-91B | COLLAR MAIN SW | 1 | $8.49 USD | View product → | |
| 8 | 35111-LGB5-305 | KEY COMP R | 1 | $34.92 USD | View product → | |
| 9 | 35111-LGB5-306 | KEY COMP L | 1 | $34.92 USD | View product → | |
| 10 | 35400-LEJ2-E10 | RESISTOR COMP | 1 | $36.78 USD | View product → | |
| 11 | 38110-KGC4-B50 | HORN COMP | 1 | $60.87 USD | View product → | |
| 12 | 38307-ADA9-M30 | "STAY,WINKER RELAY" | 1 | $15.21 USD | View product → | |
| 13 | 38500-AAD2-C00 | RELAY ASSY LIGHT | 1 | $125.46 USD | View product → | |
| 14 | 38500-KKDK-C00 | SET START MAG | 1 | $152.13 USD | View product → | |
| 15 | 77235-LGB5-E10 | SEAT CATCH COMP | 1 | $72.51 USD | View product → | |
| 16 | 77239-GFY6-C00 | KEY SEAT LOCK | 1 | $78.12 USD | View product → | |
| 17 | 77240-LGB5-E10 | "CABLE.,SEAT LOCK" | 1 | $26.37 USD | View product → | |
| 18 | 90112-PUA3-B50 | BOLT FLANGE 5*22 | 1 | $0.99 USD | View product → | |
| 19 | 94050-06080-G | NUT FLANGE 6MM | 2 | $0.99 USD | View product → | |
| 20 | 94050-08080-G | NUT FLANGE 8MM | 1 | $1.95 USD | View product → | |
| 21 | 95701-06012-08G | BOLT FLANGE 6*12 (C) | 2 | $0.99 USD | View product → | |
| 22 | 95701-LDC8-E11 | BOLT TORQUE 6x16 | 1 | $2.82 USD | View product → | |
| 23 | 96001-06016-08G | BOLT FLANGE SH 6x16 (C) | 1 | $0.99 USD | View product → |
