E07 — Starting Motor

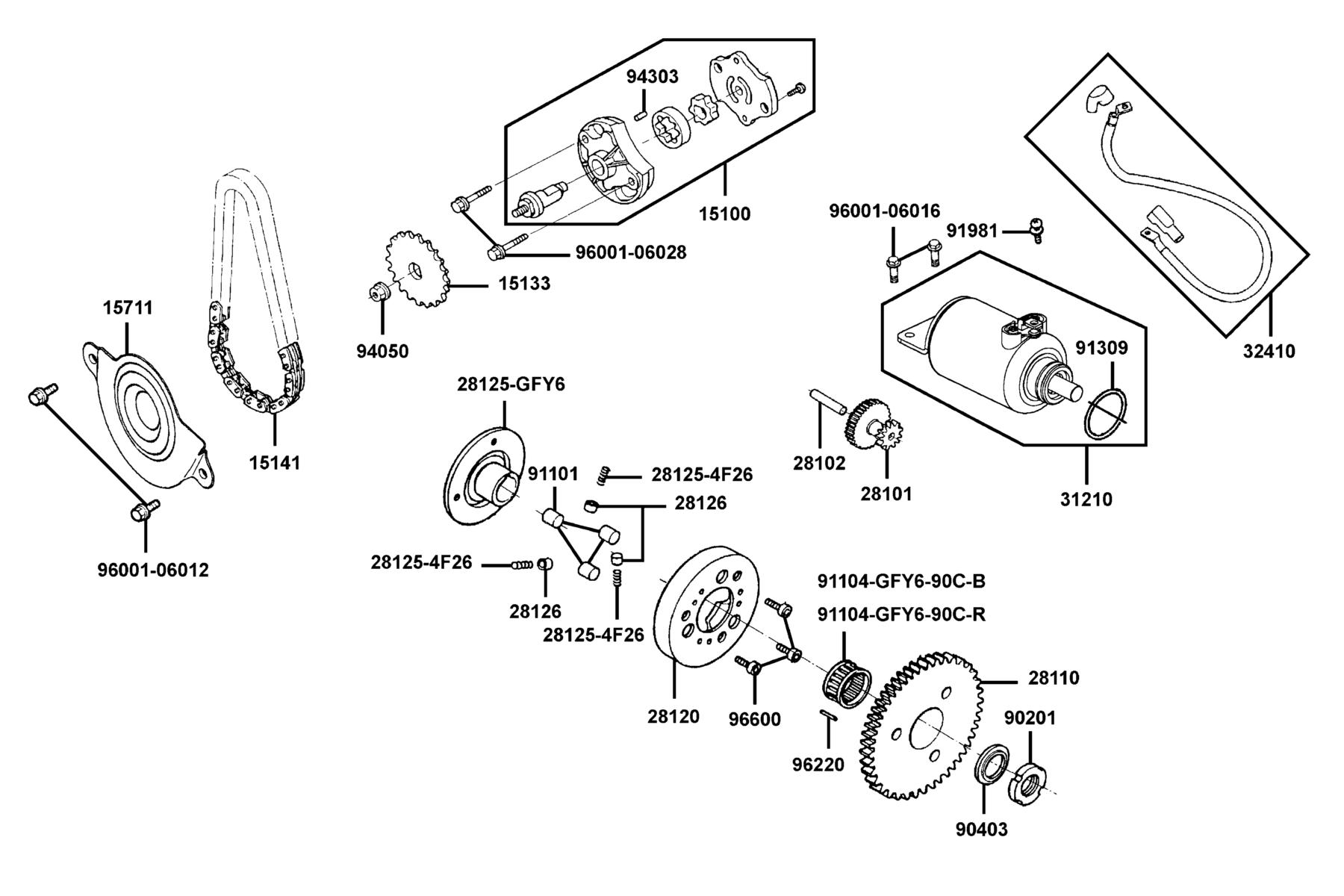

The Starting Motor diagram contains 28 genuine OEM parts for the KYMCO MXU 150X 2021MY EPA(2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 15100-LLB1-900 | PUMP ASSY OIL | 1 | $73.74 USD | View product → | |
| 2 | 15133-GFY6-901 | SPROCKET OIL PUMP DRIVE | 1 | $23.40 USD | View product → | |
| 3 | 15141-KEC2-900 | CHAIN OIL PUMP | 1 | $79.86 USD | View product → | |
| 4 | 15711-LLB1-900 | SEPARATOR OIL | 1 | $7.53 USD | View product → | |
| 5 | 28101-GFY6-901 | GEAR STARTER REDUCTION | 1 | $75.96 USD | View product → | |
| 6 | 28102-GFY6-901 | SHAFT STARTER REDUCTION GEAR | 1 | $13.95 USD | View product → | |
| 7 | 28110-GFY6-901 | GEAR COMP STARTING CLUTCH | 1 | $93.30 USD | View product → | |
| 8 | 28120-GFY6-315 | OUTER COMP STARTING CLUTCH | 1 | $109.80 USD | View product → | |
| 9 | 28125-4F26-001 | SPRING ROLLER STARTER CLUTCH | 3 | $3.84 USD | View product → | |
| 10 | 28125-4F26-001(wrong) | SPRING ROLLER STARTER CLUTCH | 3 | $4.98 USD | View product → | |
| 11 | 28125-GFY6-901 | FLANGE STARTING CLUTCH | 1 | $57.93 USD | View product → | |
| 12 | 28126-KUDU-900 | CAP STARTING ROLLER SPRING | 3 | $11.31 USD | View product → | |
| 13 | 31210-LLB1-900 | MOTOR UNIT START | 1 | $176.79 USD | View product → | |
| 14 | 32410-LLB1-900 | CABLE START MOTOR | 1 | $51.12 USD | View product → | |
| 15 | 90201-GFY6-901 | NUT LOCK 22MM | 1 | $15.63 USD | View product → | |
| 16 | 90403-KUDU-900 | WASHER THRUST 22.2X39X2.5 | 1 | $12.45 USD | View product → | |
| 17 | 91101-1K79-711 | ROLLER 10*10 | 3 | $6.78 USD | View product → | |
| 18 | 91104-GFY6-90C-B | BRG NEEDLE 28X32X17 blue(-0.002~-0.004) | 1 | $45.78 USD | View product → | |
| 19 | 91104-GFY6-90C-R | BRG NEEDLE 28X32X17 red(0~-0.002) | 1 | $41.25 USD | View product → | |
| 20 | 91309-4E25-004 | O-RING 24.4*3.1 | 1 | $4.92 USD | View product → | |
| 21 | 91981-KGN7-670 | SCREW WASH 5*8 | 1 | $4.92 USD | View product → | |
| 22 | 94050-06080 | NUT FLANGE 6MM | 1 | $2.31 USD | View product → | |
| 23 | 94303-04065 | DOWEL PIN 4X6.5 | 1 | $5.43 USD | View product → | |
| 24 | 96001-06012-06 | BOLT FLANGE SH 6*12 | 1 | $1.95 USD | View product → | |
| 25 | 96001-06016-06 | BOLT FLANGE SH 6X16 | 1 | $12.12 USD | View product → | |
| 26 | 96001-06028-06 | BOLT FLANGE SH 6*28 | 1 | $1.95 USD | View product → | |
| 27 | 96220-60100 | ROLLER 6X10 | 1 | $4.92 USD | View product → | |
| 28 | 96600-08010-16 | SOCKET BOLT 8X10 | 1 | $6.06 USD | View product → |
