E07 — Starting Motor ● Oil Pump

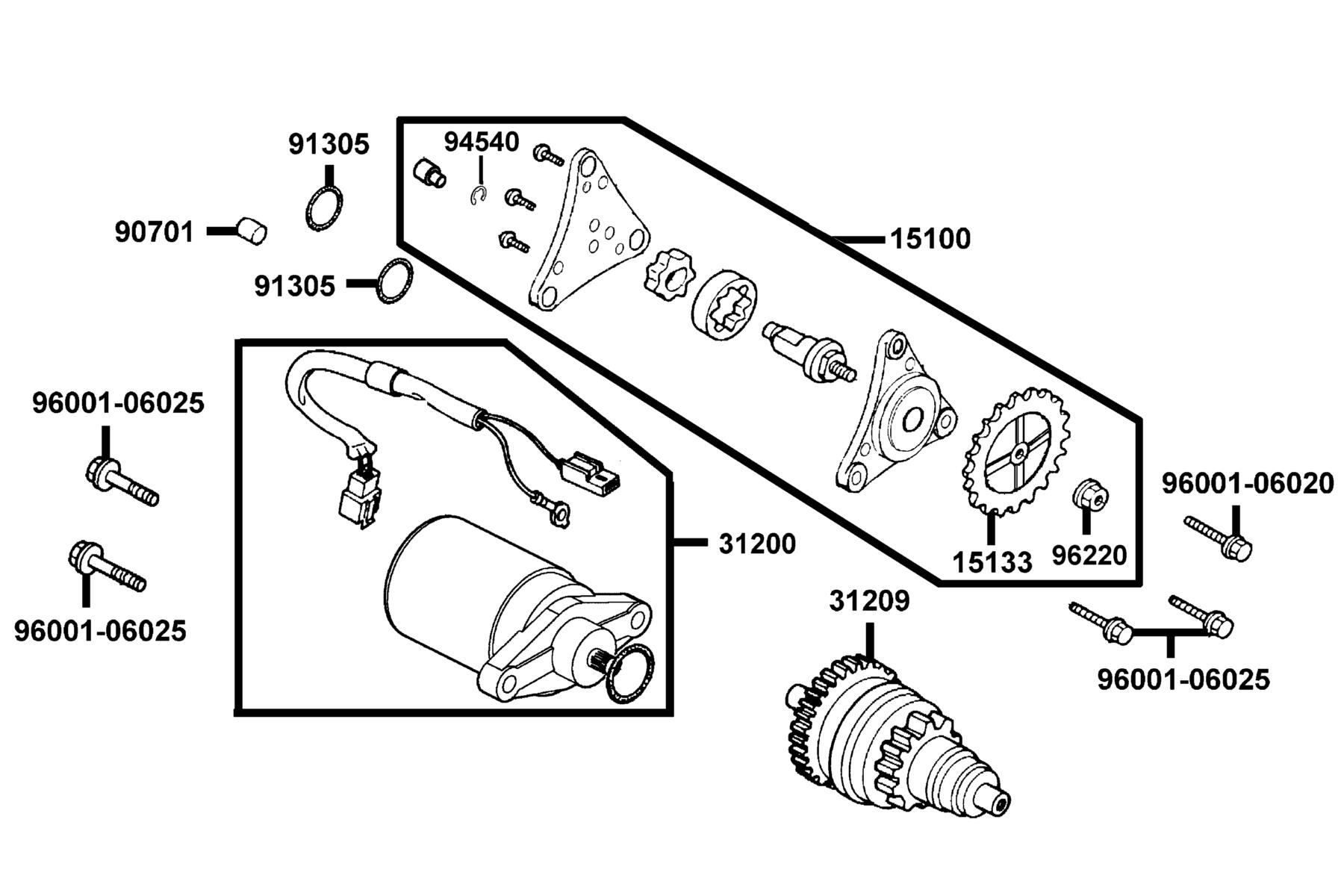

The Starting Motor ● Oil Pump diagram contains 10 genuine OEM parts for the KYMCO SUPER 8 50X (2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 15100-LDC5-C00 | PUMP ASSY OIL | 1 | $69.48 USD | View product → | |
| 2 | 15133-LDC5-C00 | "GEAR, OIL PUMP DRIVEN" | 1 | $68.04 USD | View product → | |
| 3 | 31200-LEJ2-E10 | MOTOR ASSY START | 1 | $172.50 USD | View product → | |
| 4 | 31209-KEE1-C01 | PINION ASSY STARTER | 1 | $166.11 USD | View product → | |
| 5 | 90701-HDC4-C00 | DOWEL PIN 8*12 | 1 | $2.31 USD | View product → | |
| 6 | 91305-0H28-C00 | O-RING 9*1.6 | 1 | $2.61 USD | View product → | |
| 7 | 94540-06018 | E RING 6 | 1 | $1.95 USD | View product → | |
| 8 | 96001-06020-08G | BOLT FLANGED SMALL | 2 | $2.04 USD | View product → | |
| 9 | 96001-06025-08G | BOLT FLANGE SH 6*25 (C) | 3 | $0.99 USD | View product → | |
| 10 | 96220-LDC5-C00 | ROLLER 2*14.8 | 1 | $4.92 USD | View product → |
