E01 — Crank Case

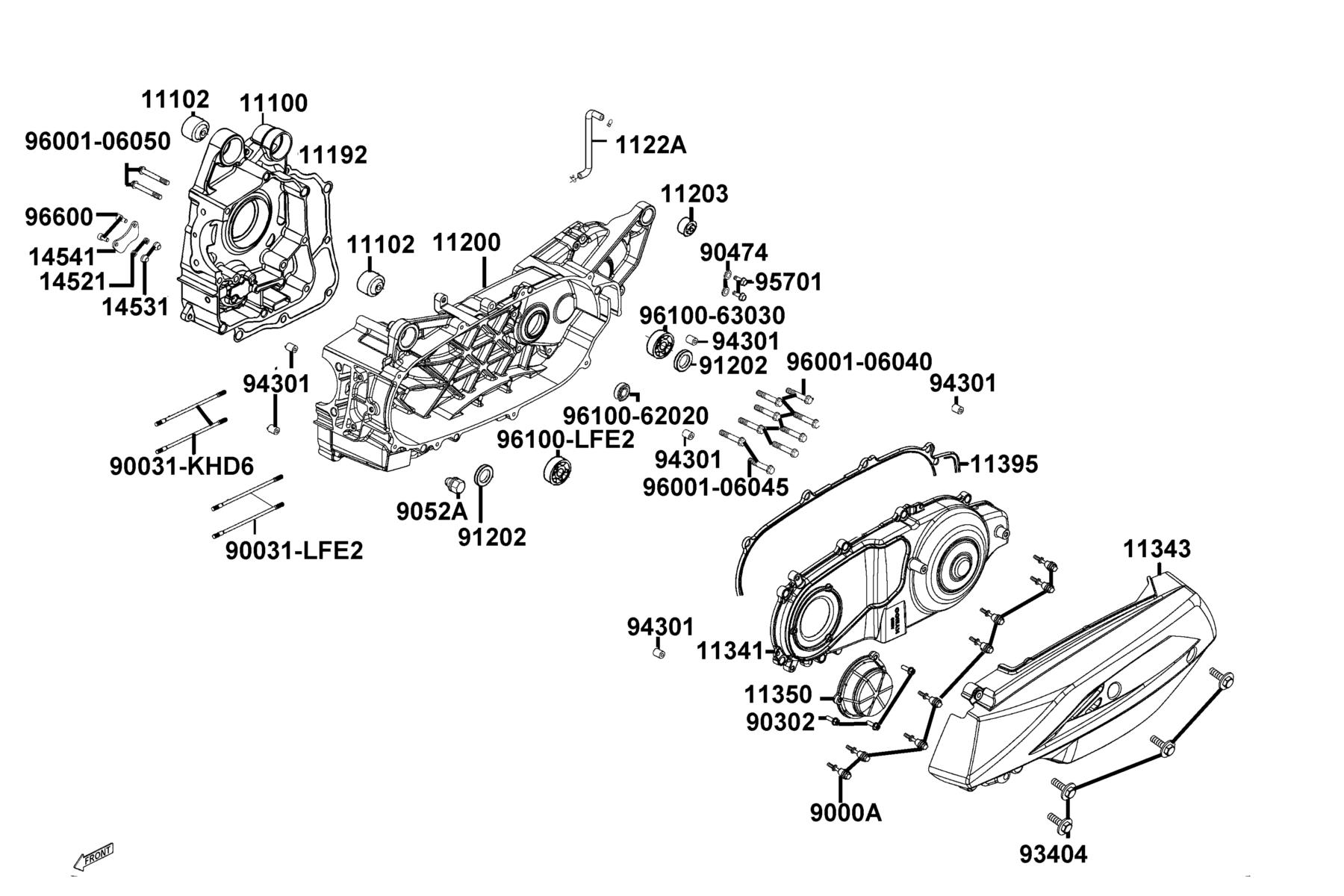

The Crank Case diagram contains 30 genuine OEM parts for the KYMCO People S 150i ABS(2022). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11100-AEA7-E10 | CRANK CASE COMP RIGHT | 1 | $253.95 USD | View product → | |
| 2 | 11102-1G87-C00 | RUB BUSH ENG HANGER | 2 | $21.30 USD | View product → | |
| 3 | 11192-LEB1-C00 | GASKET CRANK CASE @ A | 1 | $18.87 USD | View product → | |
| 4 | 11200-AEB9-E00 | CRANK CASE COMP LEFT | 1 | $438.15 USD | View product → | |
| 5 | 11203-GGC7-W10 | BUSH | 1 | $14.31 USD | View product → | |
| 6 | 1122A-LFB5-C00 | TUBE ASSY MISSION BREATHER | 1 | $8.61 USD | View product → | |
| 7 | 11341-AEB9-E00 | COVER COMP L SIDE | 1 | $208.14 USD | View product → | |
| 8 | 11343-AEB9-E00-N1R | PLATE L COVER | 1 | $76.98 USD | View product → | |
| 9 | 11350-AEB9-E00 | "ELEMENT COMP., L COVER" | 1 | $26.01 USD | View product → | |
| 10 | 11395-AEB9-E00 | GASKET L COVER@A | 1 | $37.08 USD | View product → | |
| 11 | 14521-AAG1-C00 | "PLUG,BEARING PUSH" | 2 | $11.16 USD | View product → | |
| 12 | 14531-AAG1-C00 | PIVOT CAM CHIAN TENSIONER | 2 | $2.61 USD | View product → | |
| 13 | 14541-ALH4-C00 | "PLATE, BEARING PUSH" | 1 | $7.89 USD | View product → | |
| 14 | 9000A-ADG1-C01 | BOLT ASSY SPECIAL | 8 | $22.74 USD | View product → | |
| 15 | 90031-KHD6-C01 | BOLT A STUD 8*218 | 2 | $19.89 USD | View product → | |
| 16 | 90031-LFE2-C01 | BOLT A STUD 8*225 | 2 | $25.23 USD | View product → | |
| 17 | 90302-PUA3-B51 | BOLT-WASH 5*12 | 3 | $4.65 USD | View product → | |
| 18 | 90474-3C33-C00 | WASHER 8MM(T*2) | 1 | $0.99 USD | View product → | |
| 19 | 9052A-LEB1-C01 | BOLT ASSY DRAIN PLUG12*15(C) | 1 | $7.23 USD | View product → | |
| 20 | 91202-LEB1-900 | OIL SEAL 25*35*5 | 1 | $42.84 USD | View product → | |
| 21 | 93404-06022-07G | BOLT WASHER 6*22 (KG) | 4 | $4.65 USD | View product → | |
| 22 | 94301-10160 | DOWEL PIN 10*16 | 6 | $3.00 USD | View product → | |
| 23 | 95701-08012-07G | BOLT FLANGE 8*12 (G) | 2 | $1.95 USD | View product → | |
| 24 | 96001-06040-07G | BOLT FLANGE SH 6*40 (KG) | 7 | $4.65 USD | View product → | |
| 25 | 96001-06045-07G | BOLT FLANGE SH 6*45 (C) | 2 | $1.95 USD | View product → | |
| 26 | 96001-06050-07G | BOLT FLANGE SH 6*50 (K) | 2 | $1.95 USD | View product → | |
| 27 | 96100-62020-00 | BEARING BALL RADIAL 6202 | 1 | $48.24 USD | View product → | |
| 28 | 96100-63030-00 | BEARING BALL RADIAL 6303 | 1 | $42.84 USD | View product → | |
| 29 | 96100-LFE2-900 | BRG. BALL RADIAL TMB2/22CC4 | 1 | $132.42 USD | View product → | |
| 30 | 96600-06016-08G | SOCKET BOLT 6*16(B) | 2 | $2.31 USD | View product → |
