F22 — Emblem ● Stripe

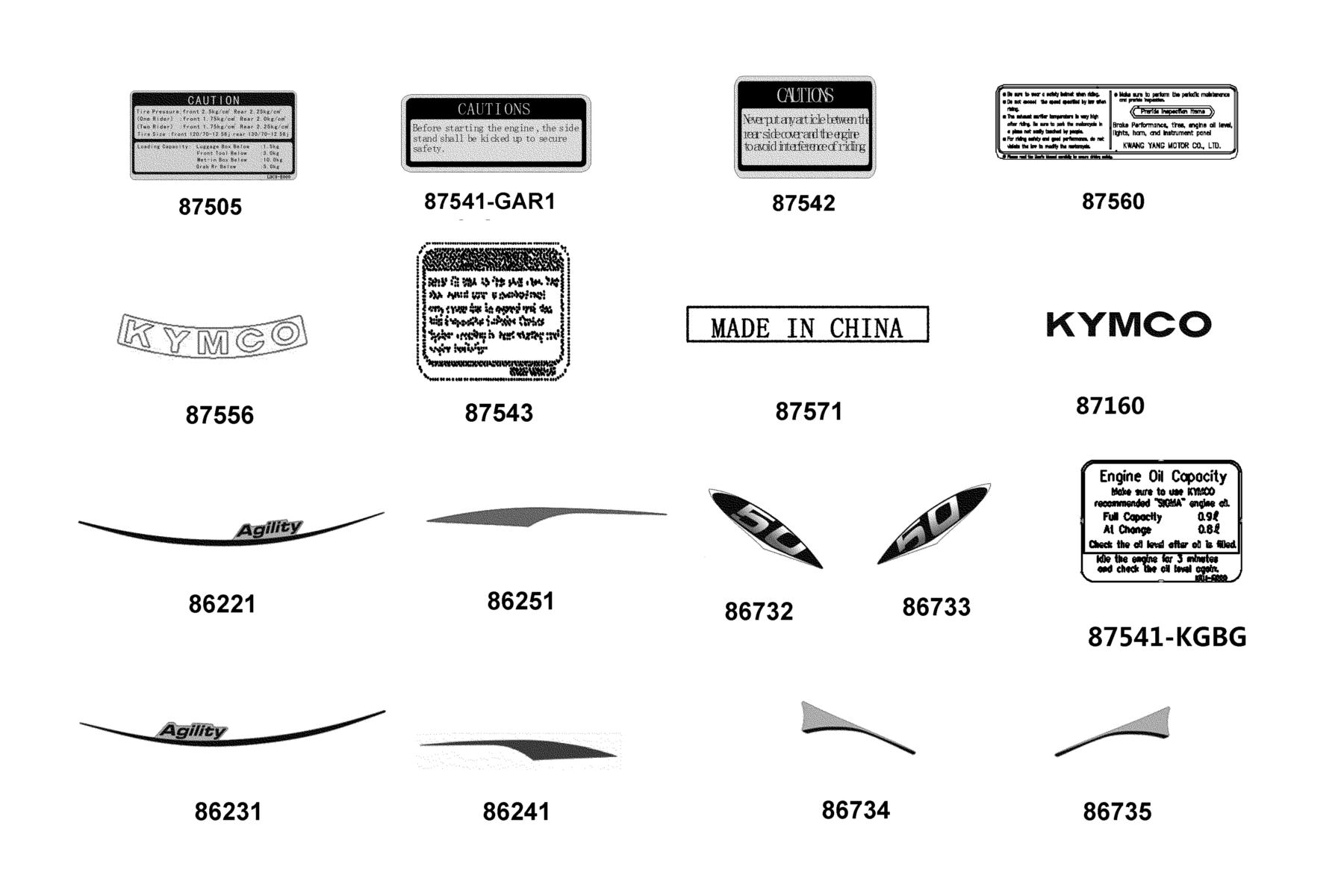

The Emblem ● Stripe diagram contains 17 genuine OEM parts for the KYMCO Agility 50(2022). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 86221-LDC8-M32-T02 | STRIPE R SIDE COVER | 1 | $74.94 USD | View product → | |
| 2 | 86231-LDC8-M32-T02 | STRIPE L SIDE COVER | 1 | $41.61 USD | View product → | |
| 3 | 86241-LDC8-M32-T01 | STRIPE R SIDE COVER B | 1 | $42.51 USD | View product → | |
| 4 | 86251-LDC8-M32-T01 | STRIPE L SIDE COVER B | 1 | $27.39 USD | View product → | |
| 5 | 86732-LDC8-M32-T02 | STRIPE R LEG SHIELD | 1 | $81.36 USD | View product → | |
| 6 | 86733-LDC8-M32-T02 | STRIPE L LEG SHIELD | 1 | $93.57 USD | View product → | |
| 7 | 86734-LDC8-M32-T02 | STRIPE B R LEG SHIELD | 1 | $26.28 USD | View product → | |
| 8 | 86735-LDC8-M32-T02 | STRIPE B L LEG SHIELD | 1 | $26.28 USD | View product → | |
| 9 | 87160-LDC8-M30-T02 | STRIPE KYMCO | 2 | $21.93 USD | View product → | |
| 10 | 87505-LDC8-E10-T01 | LABEL TIRE | 1 | $1.32 USD | View product → | |
| 11 | 87541-GAR1-C01-T01 | CAUTION SIDE STAND | 1 | $5.34 USD | View product → | |
| 12 | 87541-KGBG-E01-T01 | LABEL OIL CAP | 1 | $6.54 USD | View product → | |
| 13 | 87542-GAR1-C01-T01 | MARK MAINT CAUTION R | 1 | $2.97 USD | View product → | |
| 14 | 87543-KED9-M30-T01 | LABEL FUEL FILL CAUTION | 1 | $7.80 USD | View product → | |
| 15 | 87556-KCLC-C00-T02 | KYMCO?????? | 1 | $9.18 USD | View product → | |
| 16 | 87560-GFY6-E11-T01 | MARK DRIVE CAUTION | 1 | $6.87 USD | View product → | |
| 17 | 87571-LDC8-B90-T01 | LABEL MIC | 1 | $7.23 USD | View product → |
