F18 — Tail Light

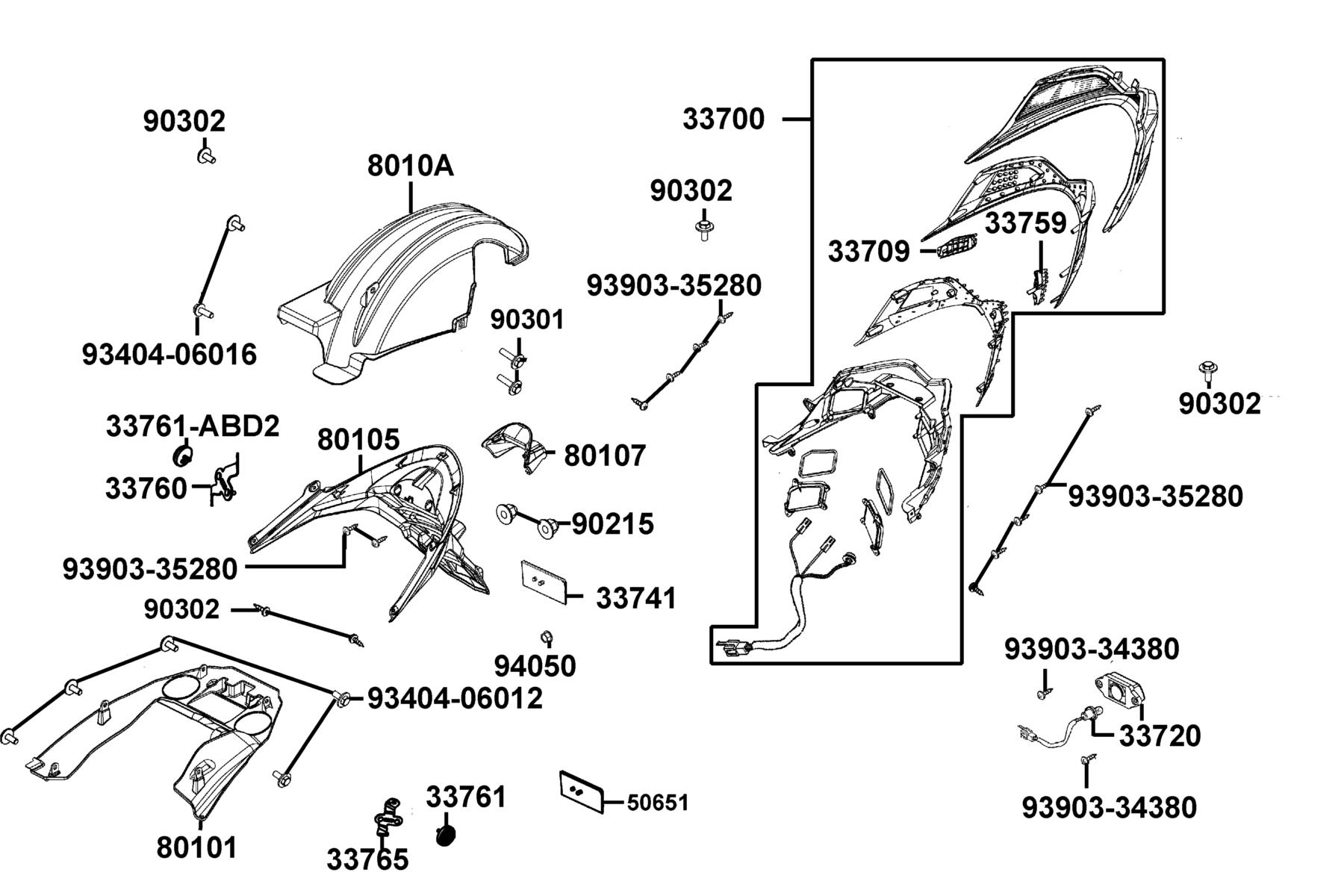

The Tail Light diagram contains 22 genuine OEM parts for the KYMCO X-Town 300i ABS (2020). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 33700-ABD2-M30 | LIGHT ASSY RR COMB | 1 | $489.24 USD | View product → | |
| 2 | 33709-ABD2-C00 | PCB TAIL LIGHT | 1 | $189.00 USD | View product → | |
| 3 | 33720-ADA9-M30 | LIGHT ASSY LICENSE | 1 | $68.04 USD | View product → | |
| 4 | 33741-LEH3-EZ0 | REFLEX REFLECTOR | 1 | $9.36 USD | View product → | |
| 5 | 33759-ABD2-C00 | LED PCB RR L | 1 | $134.40 USD | View product → | |
| 6 | 33760-ABD2-M30 | R STAY REFLEX REFLECTOR ;RR | 1 | $57.27 USD | View product → | |
| 7 | 33761-ABD2-M30 | REFLEX REFLECTOR SIDE | 1 | $26.16 USD | View product → | |
| 8 | 33765-ABD2-M30 | L STAY REFLEX REFLECTOR ;RR | 1 | $18.30 USD | View product → | |
| 9 | 50651-LFC4-E10 | STAY RR FENDER BALANCE | 1 | $8.85 USD | View product → | |
| 10 | 80101-ABD2-C00-N1R | "FENDER,RR INNER" | 1 | $30.42 USD | View product → | |
| 11 | 80105-ABD2-M30-N1R | FENDER RR UP | 1 | $55.20 USD | View product → | |
| 12 | 80107-ABD2-C00-N1R | COVER LICENSE LIGHT | 1 | $8.73 USD | View product → | |
| 13 | 8010A-ABD2-C00-N1R | FENDER ASSY RR (Black) | 1 | $37.83 USD | View product → | |
| 14 | 90215-KKC4-C00 | NUT CAP 6MM | 2 | $9.18 USD | View product → | |
| 15 | 90301-6D34-C01 | NUT FLANGE 6MM(C) | 2 | $5.37 USD | View product → | |
| 16 | 90302-GBR2-C01 | BOLT WASHER 5*16 | 1 | $1.32 USD | View product → | |
| 17 | 90302-GFY6-C11 | BOLT-WASH 5*16 | 3 | $4.65 USD | View product → | |
| 18 | 93404-06012-07G | 0 | 5 | $1.32 USD | View product → | |
| 19 | 93404-06016-08G | BOLT WASHER 6*16 | 4 | $1.65 USD | View product → | |
| 20 | 93903-34380-G | SCREW TAPPING 4*12 (KG) | 2 | $2.73 USD | View product → | |
| 21 | 93903-35280-G | SCREW TAPPING 5*12 (K) | 11 | $0.99 USD | View product → | |
| 22 | 94050-05080-G | NUT FLANGE 5MM | 1 | $0.99 USD | View product → |
