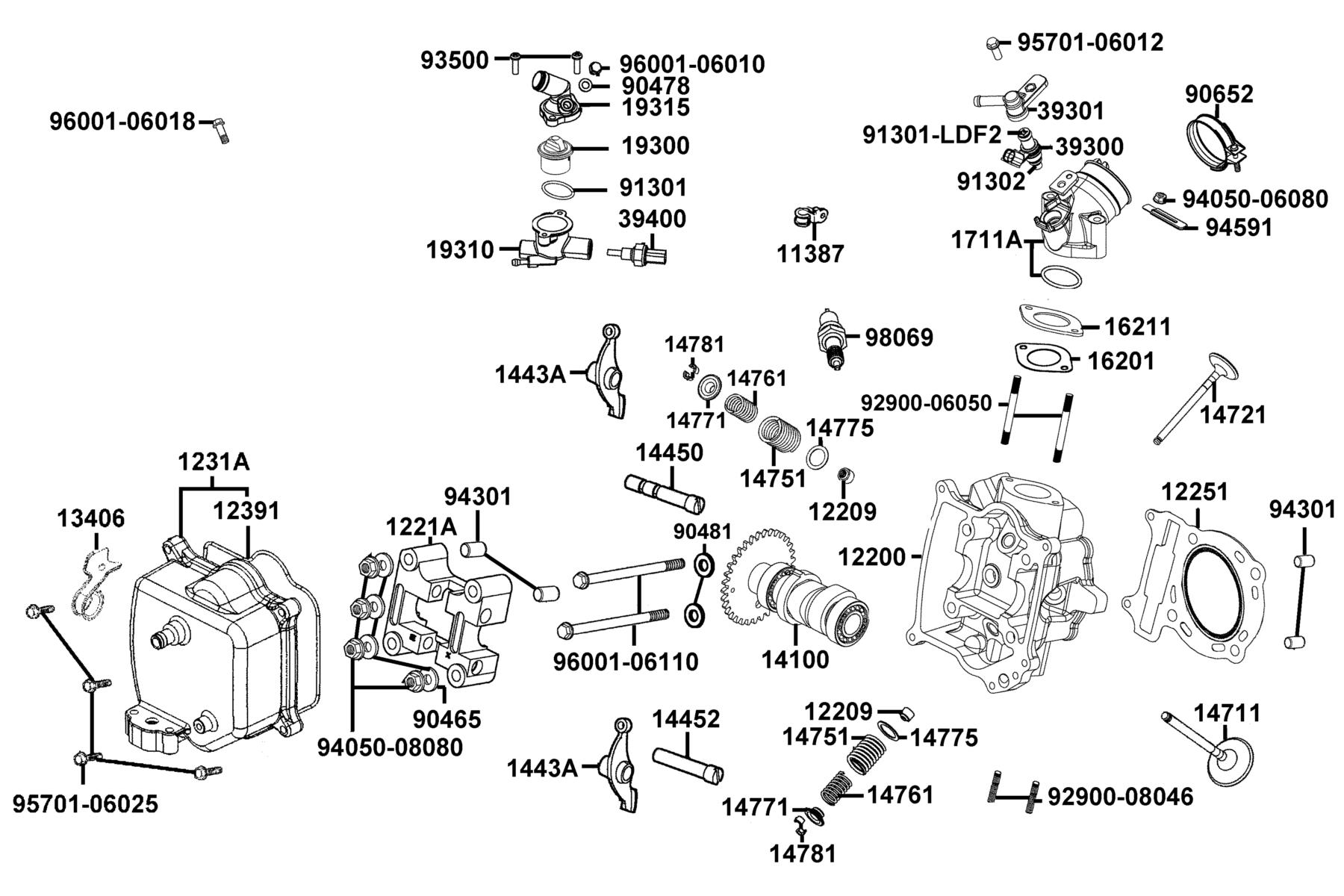

E02 — Cylinder Head
The Cylinder Head diagram contains 48 genuine OEM parts for the KYMCO X-Town 300i ABS (2020). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11387-ABD2-C00 | "CLAMPER, BREATHER TUBE" | 1 | $6.54 USD | View product → | |
| 2 | 12200-ABD2-E00 | HEAD COMP CYLINDER | 1 | $316.77 USD | View product → | |
| 3 | 12209-GDB4-C00 | SEAL VALVE STEM | 2 | $23.25 USD | View product → | |
| 4 | 1221A-ABD2-C00 | HOLDER COMP CAM SHAFT | 1 | $87.06 USD | View product → | |
| 5 | 12251-KHE7-901 | GASKET CYLINDER HEAD | 1 | $77.94 USD | View product → | |
| 6 | 1231A-LDE9-C00 | COVER ASSY CYLINDER HEAD | 1 | $93.54 USD | View product → | |
| 7 | 12391-LDB2-C00 | GASKET HEAD COVER | 1 | $39.72 USD | View product → | |
| 8 | 13406-ABD2-C00 | PLATE EX AIR INJECTOR | 1 | $32.10 USD | View product → | |
| 9 | 14100-ABD2-C00 | SHAFT COMP CAM | 1 | $205.08 USD | View product → | |
| 10 | 1443A-ABD2-C00 | ARM ASSY.. VALVE ROCKER" | 2 | $87.63 USD | View product → | |
| 11 | 14450-KEBE-900 | SHAFT COMP IN ROCKER ARM | 1 | $32.10 USD | View product → | |
| 12 | 14452-LDB2-E00 | SHAFT EX ROCKER | 1 | $20.28 USD | View product → | |
| 13 | 14711-LFG2-C00 | VALVE INLET | 1 | $156.66 USD | View product → | |
| 14 | 14721-LFG2-C00 | VALVE EXHAUST | 1 | $163.29 USD | View product → | |
| 15 | 14751-ABD2-C00 | SPG VALVE OUTER | 2 | $9.84 USD | View product → | |
| 16 | 14761-ABD2-C00 | SPG VALVE INNER | 2 | $9.84 USD | View product → | |
| 17 | 14771-GDB4-C00 | RETAINER VALVE SPRING | 2 | $20.64 USD | View product → | |
| 18 | 14775-MFA6-C00 | SEAT VALVE SPG OUTER | 2 | $11.79 USD | View product → | |
| 19 | 14781-MFA6-C0C | COTTER VALVE | 4 | $7.65 USD | View product → | |
| 20 | 16201-LHG7-C00 | "GASKET,INSULATOR" | 1 | $4.59 USD | View product → | |
| 21 | 16211-LDF2-C00 | INSULATOR CARB | 1 | $10.50 USD | View product → | |
| 22 | 1711A-LDF2-C00 | PIPE ASSY.???A INLET | 1 | $123.18 USD | View product → | |
| 23 | 19300-KAE1-004 | THERMOSTAT ASSY | 1 | $99.87 USD | View product → | |
| 24 | 19310-ABD2-E00 | CASE COMP THERRMO | 1 | $72.21 USD | View product → | |
| 25 | 19315-LHG7-E00 | COVER COMP THERMOSTAT | 1 | $24.99 USD | View product → | |
| 26 | 39300-LHG7-E00 | INJECTOR FUEL | 1 | $238.02 USD | View product → | |
| 27 | 39301-LDF2-C00 | CUP COMP FUEL INJECTOR | 1 | $13.41 USD | View product → | |
| 28 | 39400-LDF2-800 | WATER TEMP SENSOR | 1 | $93.90 USD | View product → | |
| 29 | 90465-MDC4-C01 | "WASHER,8MM(CG)" | 1 | $4.11 USD | View product → | |
| 30 | 90478-7L00-001 | WASHER A 6MM | 1 | $4.92 USD | View product → | |
| 31 | 90481-GGS7-C00 | WASHER 6.5MM | 2 | $4.65 USD | View product → | |
| 32 | 90652-GFY6-C00 | BAND 49 AIR/C CONNECTING TUBE | 1 | $10.14 USD | View product → | |
| 33 | 91301-KHE7-900 | O-RING 17.8*1.9 | 1 | $3.00 USD | View product → | |
| 34 | 91301-LDF2-C00 | O-RING 7.3*2.2 | 1 | — | Part details → | |
| 35 | 91302-LDF2-M90 | SEAL RING 6.5X2.5 (BLACK) | 1 | $33.45 USD | View product → | |
| 36 | 92900-06050-08G | BOLT STUD ??? 6*50 (CG) | 2 | $9.51 USD | View product → | |
| 37 | 92900-08046-0BG | BOLT STUD 8X46 | 2 | $13.62 USD | View product → | |
| 38 | 93500-05016-0H | SCREW PAN 5*16 | 1 | $2.19 USD | View product → | |
| 39 | 94050-06080-G | NUT FLANGE 6MM | 2 | $0.99 USD | View product → | |
| 40 | 94050-08080-G | NUT FLANGE 8MM | 4 | $1.95 USD | View product → | |
| 41 | 94301-10160 | DOWEL PIN 10*16 | 4 | $3.00 USD | View product → | |
| 42 | 94591-KFBF-C00 | CLIP 2*70 | 1 | $13.95 USD | View product → | |
| 43 | 95701-06012-08G | BOLT FLANGE 6*12 (C) | 1 | $0.99 USD | View product → | |
| 44 | 95701-06025-07G | BOLT FLANGE 6*25 (C) | 4 | $1.65 USD | View product → | |
| 45 | 96001-06010-00 | BOLT FLANGE SH 6X10 | 1 | $1.65 USD | View product → | |
| 46 | 96001-06018-08G | BOLT FLANGE SH 6*18 (C) | 1 | $0.99 USD | View product → | |
| 47 | 96001-06110-08G | BOLT FLANGE SH 6*110 (B) | 2 | $4.05 USD | View product → | |
| 48 | 98069-5691R-00 | SPARK PLUG(DPR6EA-9) | 1 | $25.98 USD | View product → |
