F09 — Fuel Tank

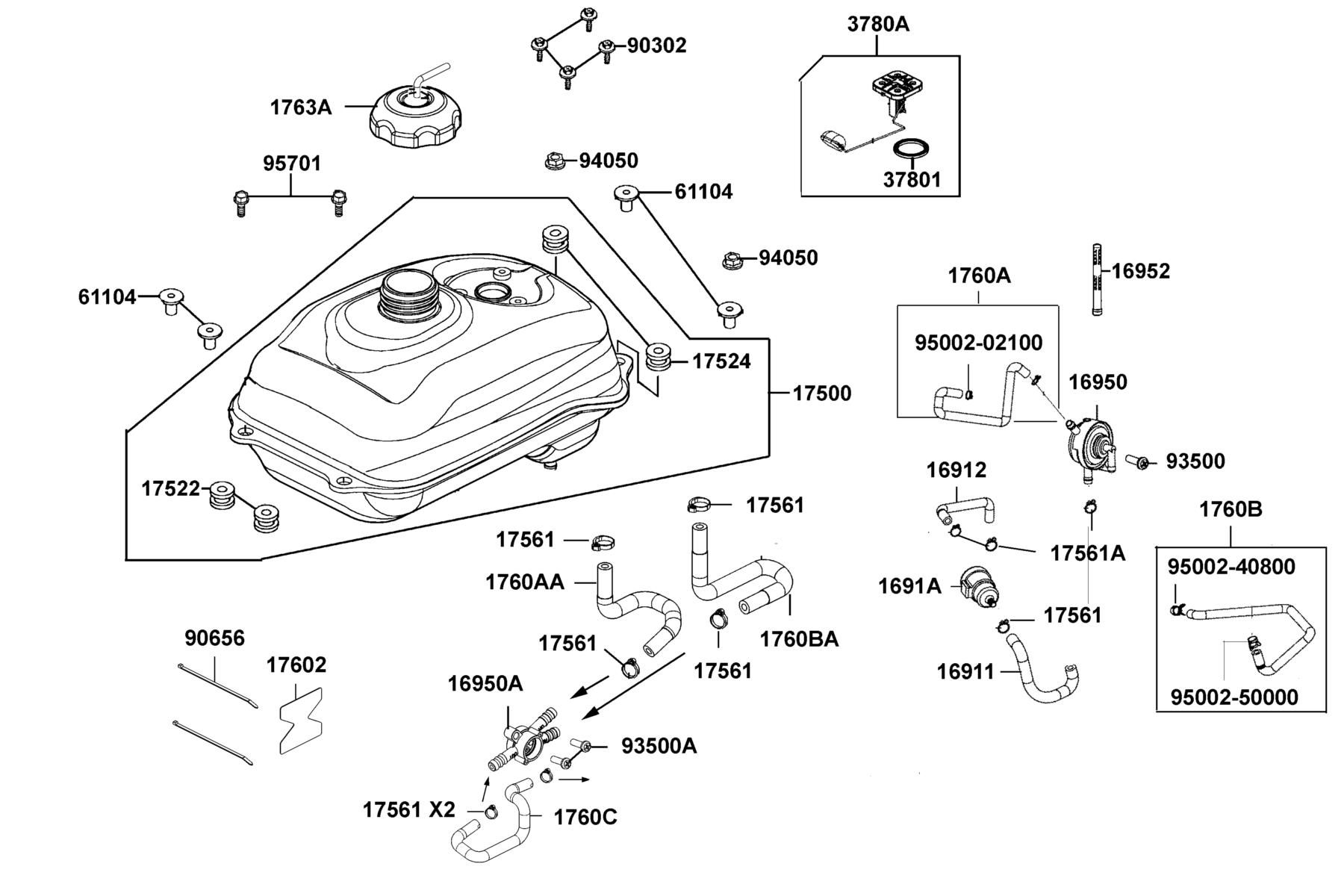

The Fuel Tank diagram contains 28 genuine OEM parts for the KYMCO MXU 150 2026 EPA. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 16911-LCA4-M01 | TUBE ASSY FUEL | 1 | $42.45 USD | View product → | |
| 2 | 16912-GPC2-M00 | TUBE ASSY FUEL | 1 | $40.92 USD | View product → | |
| 3 | 1691A-PVA3-M00 | STRAINER ASSY FUEL | 1 | $67.26 USD | View product → | |
| 4 | 16950-LCA4-M01 | AUTO COCK ASSY FUEL | 1 | $97.83 USD | View product → | |
| 5 | 16950-PVA3-M00 | COCK FUEL | 1 | $86.52 USD | View product → | |
| 6 | 16952-PVA3-M00 | SCREEN FUEL STRAINER | 1 | $16.20 USD | View product → | |
| 7 | 17500-LCA4-M01 | TANK COMP FUEL | 1 | $335.07 USD | View product → | |
| 8 | 17522-LLB1-900 | RUBBER FUEL TANK | 2 | $9.39 USD | View product → | |
| 9 | 17524-LLB1-900 | RR RUBBER FUEL TANK | 2 | $4.53 USD | View product → | |
| 10 | 17561-LGK8-900 | CLIP 12.0 | 6 | $22.17 USD | View product → | |
| 11 | 17561-LKB9-900 | CLIP 12.5 | 4 | $8.10 USD | View product → | |
| 12 | 1760A-LCA4-M00 | TUBE ASSY AUTOCOCK | 1 | $42.99 USD | View product → | |
| 13 | 1760A-LCA4-M01 | TUBE ASSY | 1 | — | Part details → | |
| 14 | 1760B-LCA4-M00 | TUBE ASSY INNER PIPE | 1 | — | Part details → | |
| 15 | 1760B-LCA4-M01 | TUBE ASSY | 1 | — | Part details → | |
| 16 | 1763A-LCA4-MY0 | CAP ASSY FUEL TANK | 1 | $78.45 USD | View product → | |
| 17 | 37801-LDH1-MY0 | PACKING BASE | 1 | $41.97 USD | View product → | |
| 18 | 3780A-LCA4-900 | FUEL UNIT ASSY | 1 | $121.35 USD | View product → | |
| 19 | 61104-357-0010 | COLLAR FR FENDER | 4 | $11.19 USD | View product → | |
| 20 | 90302-GBR2-001 | BOLT-WASH 5x16 | 4 | $3.99 USD | View product → | |
| 21 | 90656-KUDU-900-N1R | BAND HARNESS WIRE (Black) | 2 | $4.92 USD | View product → | |
| 22 | 93500-05012-0F | SCREW PAN 5X12 | 1 | $12.12 USD | View product → | |
| 23 | 93500-05016-1B | SCREW PAN 5*16 | 2 | $1.86 USD | View product → | |
| 24 | 94050-06080 | NUT FLANGE 6MM | 2 | $2.31 USD | View product → | |
| 25 | 95002-02100 | CLIP B15 TUBE | 2 | $4.92 USD | View product → | |
| 26 | 95002-40800-08 | CLAMP D8 TUBE | 1 | $8.49 USD | View product → | |
| 27 | 95002-50000-G | CLIP C9 TUBE | 1 | $1.89 USD | View product → | |
| 28 | 95701-06022-06 | BOLT FLANGE 6*22 | 2 | $4.26 USD | View product → |
