F04 — Brake Master Cylinder

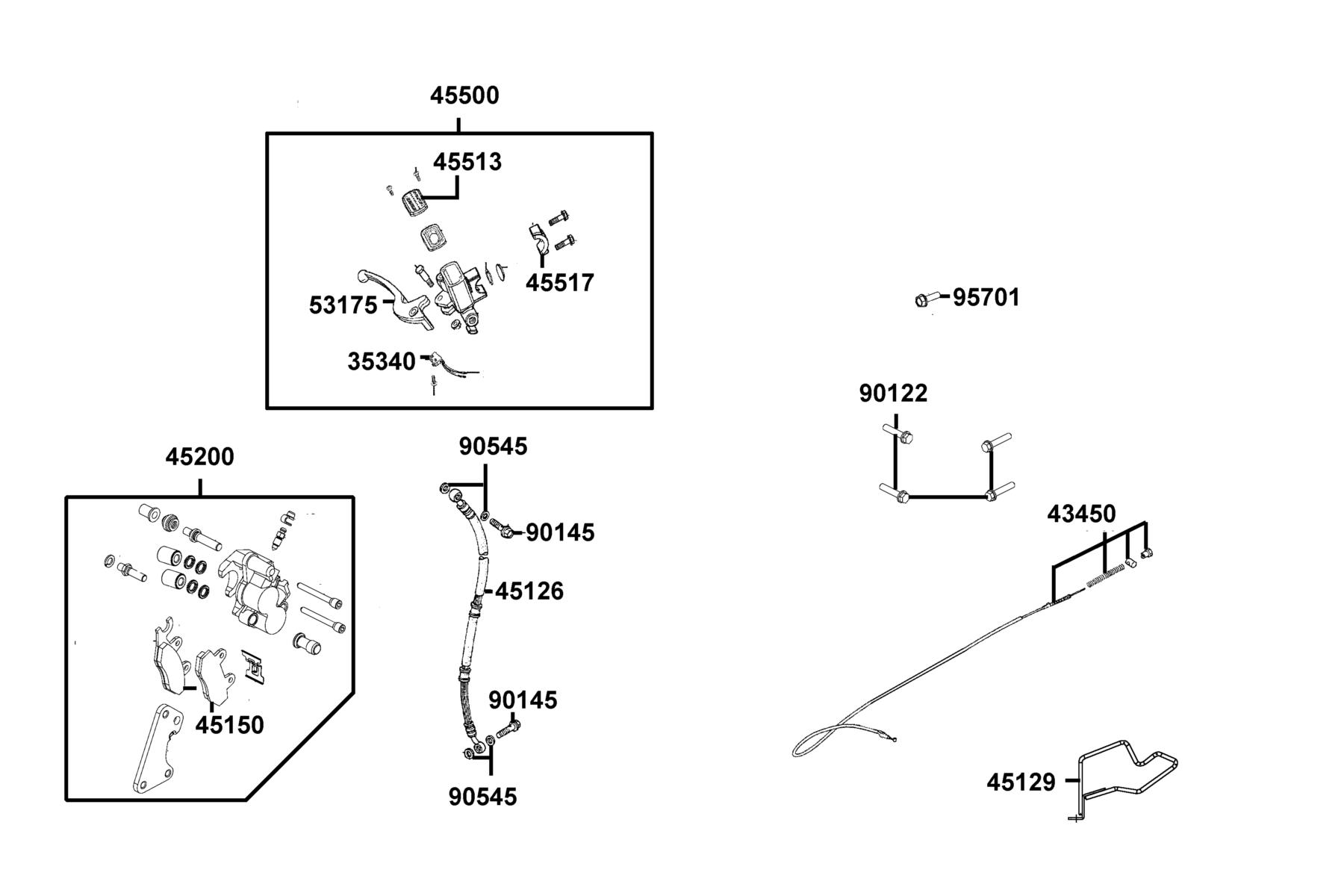

The Brake Master Cylinder diagram contains 14 genuine OEM parts for the KYMCO LIKE(2)50(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 35340-KNBN-C00 | SW ASSY FR STOP | 1 | $44.07 USD | View product → | |
| 2 | 43450-ACB9-E10 | CABLE COMP FR BRK | 1 | $36.87 USD | View product → | |
| 3 | 45126-ACB9-E10 | HOSE ASSY FR BRK | 1 | $127.50 USD | View product → | |
| 4 | 45129-ACC1-E10 | CLAMPER FR BRAKE | 1 | $11.16 USD | View product → | |
| 5 | 45150-AEA7-305 | PAD COMP A+B | 1 | $116.34 USD | View product → | |
| 6 | 45513-LEB2-900 | CAP. M/C | 1 | $28.11 USD | View product → | |
| 7 | 45517-KFAF-910 | HOLDER M/C | 1 | $17.43 USD | View product → | |
| 8 | 45517-KFAF-910(wrong) | HOLDER M/C | 1 | $13.41 USD | View product → | |
| 9 | 53175-KXBX-E00 | LEVER R STRG HNDL | 1 | $70.50 USD | View product → | |
| 10 | 90122-KHC7-C01 | BOLT FLANGE 8*38 | 4 | $5.58 USD | View product → | |
| 11 | 90145-MKS9-61A | OIL BOLT 10X22 | 2 | $9.06 USD | View product → | |
| 12 | 90145-MKS9-61A(wrong) | OIL BOLT 10X22 | 2 | $11.79 USD | View product → | |
| 13 | 90545-3L00-C00 | WASHER OIL BOLT | 1 | $2.31 USD | View product → | |
| 14 | 95701-06020-08G | BOLT FLANGE 6*20 (C) | 1 | $2.31 USD | View product → |
