F06 — Stem Steering ● Front Cushion

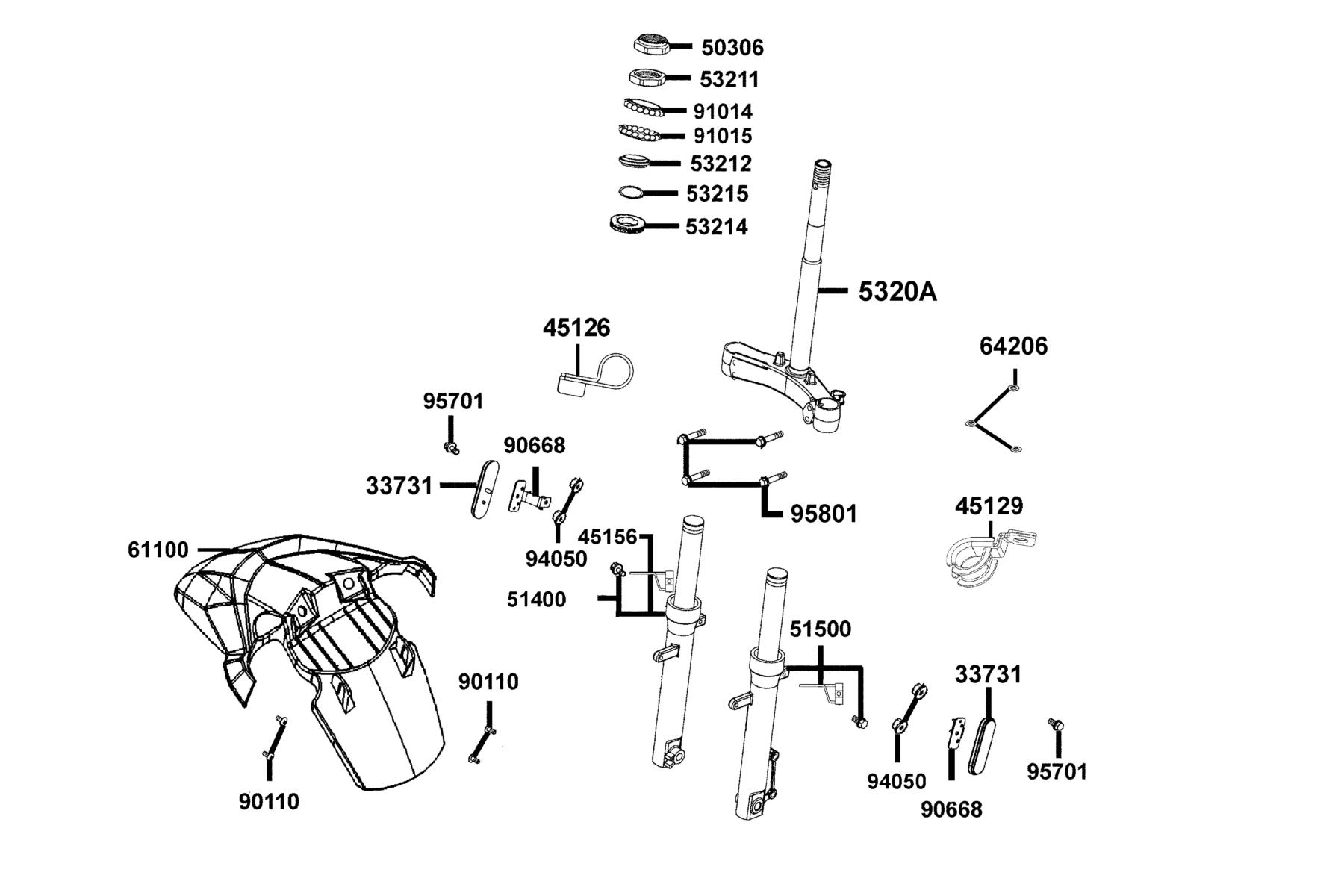

The Stem Steering ● Front Cushion diagram contains 21 genuine OEM parts for the KYMCO SUPER 8 50X MY2025. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 33731-KGB5-EZ0 | REFLEX REFLECTOR SIDE | 2 | $12.84 USD | View product → | |
| 2 | 45126-ADB1-M31 | CLAMPER FR BRK HOSE | 1 | $6.87 USD | View product → | |
| 3 | 45129-ADB1-M31 | CLAMPER FR BRAKE HOSE | 1 | $10.50 USD | View product → | |
| 4 | 45156-LCB9-B20 | CLAMPER FR SPDMT CABLE (??????) | 1 | $20.28 USD | View product → | |
| 5 | 50306-1F96-C00 | NUT STRG STEM LOCK | 1 | $12.12 USD | View product → | |
| 6 | 51400-ACB3-M40-NEA | FORK ASSY FR R | 1 | $365.73 USD | View product → | |
| 7 | 51500-ACB3-M40-NEA | FORK ASSY FR L | 1 | $365.73 USD | View product → | |
| 8 | 5320A-ADA9-M31 | STEM ASSY STRG. | 1 | $233.61 USD | View product → | |
| 9 | 53211-GFY6-C00 | RACE STRG TOP CONE | 1 | $16.41 USD | View product → | |
| 10 | 53212-2L50-C00 | RACE (STRG BOTTOM) CONE | 1 | $30.66 USD | View product → | |
| 11 | 53214-2L50-C00 | DUST SEAL STRG (HEAD) | 1 | $6.39 USD | View product → | |
| 12 | 53215-2L50-C00 | WASH STRG HDL DUST-SEAL | 1 | $7.53 USD | View product → | |
| 13 | 61100-ADA9-M31-NEP | FENDER FR | 1 | $133.50 USD | View product → | |
| 14 | 64206-MLJ0-C01 | NUT SPEED 4MM | 3 | $4.65 USD | View product → | |
| 15 | 90110-KEB7-C01 | SCREW SPECIAL 6*14 | 4 | $4.92 USD | View product → | |
| 16 | 90668-LEJ2-E10 | STAY SIDE REFLECTOR | 2 | $21.60 USD | View product → | |
| 17 | 91014-LLJ3-C00 | CAGE STRG TOPP | 1 | $22.65 USD | View product → | |
| 18 | 91015-LLJ3-C00 | CAGE STRG BOT | 1 | $28.35 USD | View product → | |
| 19 | 94050-05080-G | NUT FLANGE 5MM | 2 | $0.99 USD | View product → | |
| 20 | 95701-06012-07G | BOLT FLANGE 6*12 (K) | 2 | $0.99 USD | View product → | |
| 21 | 95801-08040-08G | BOLT FLANGE 8*40 | 4 | $4.89 USD | View product → |
