F12 — Panel Rr Fender

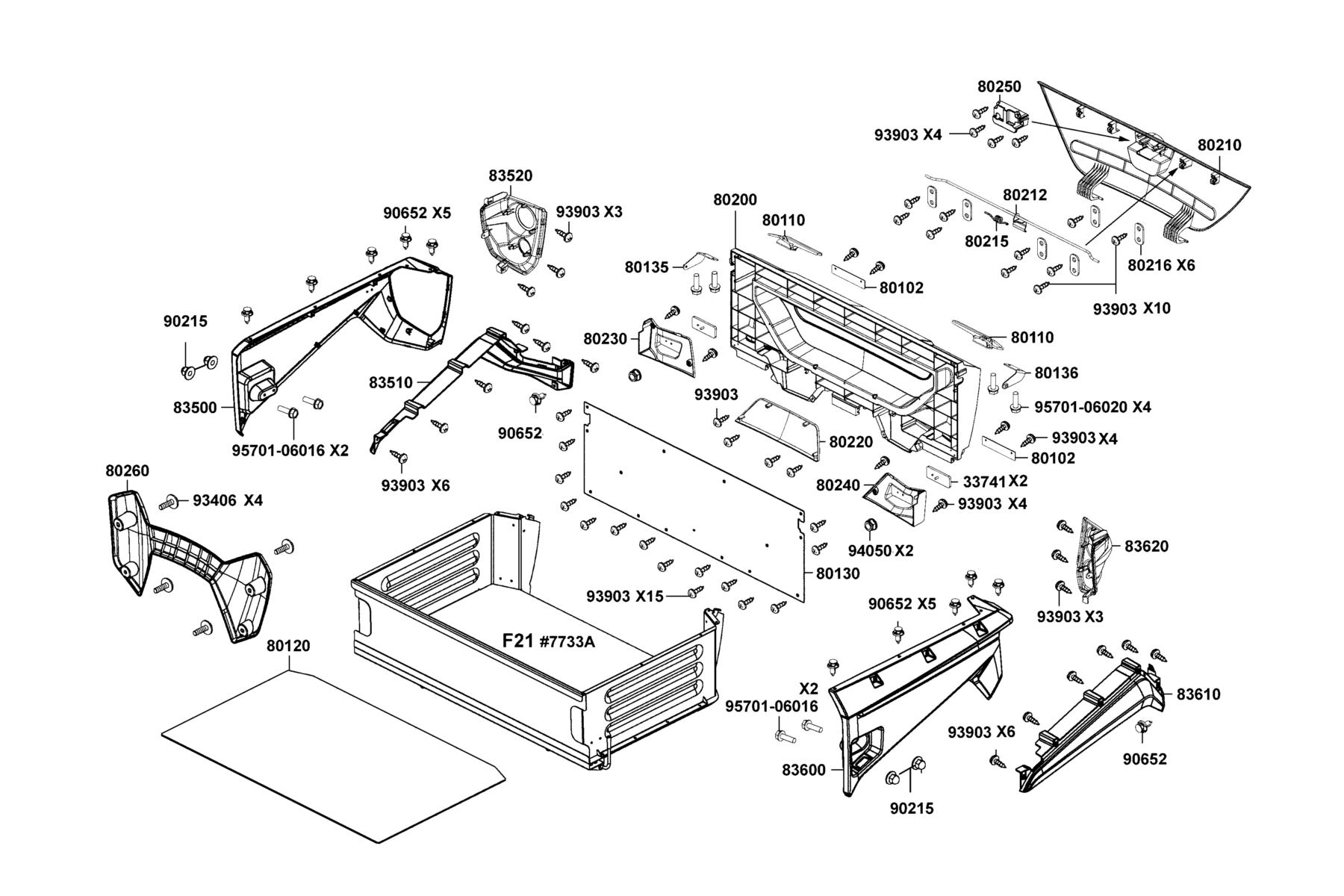

The Panel Rr Fender diagram contains 30 genuine OEM parts for the KYMCO UXV 450i LE(2018). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 33741-KHC5-M00 | REFLEX REFLECTOR | 2 | $21.06 USD | View product → | |
| 2 | 80102-LEE8-E00 | STAY HINGE | 2 | $9.78 USD | View product → | |
| 3 | 80110-LEE8-E00 | LATCH REAR STORAGELID | 2 | $71.37 USD | View product → | |
| 4 | 80120-ALE8-E00 | MAT CARGO BED | 1 | $259.92 USD | View product → | |
| 5 | 80130-ALE8-E00-N1R | PLATE TAIL GATE (Black) | 1 | $135.15 USD | View product → | |
| 6 | 80135-ALE8-E00 | BRACKET R TRUNK STOPPER | 1 | $27.72 USD | View product → | |
| 7 | 80136-ALE8-E00 | BRACKET L TRUNK STOOPER | 1 | $27.72 USD | View product → | |
| 8 | 80200-ALE8-E00-N1R | COVERTAIL GATE (Black) | 1 | $193.74 USD | View product → | |
| 9 | 80210-AEE9-600-VEP | LID TAIL GATE COVER | 1 | $581.04 USD | View product → | |
| 10 | 80212-ALE8-E00 | LATCH LID | 1 | $5.82 USD | View product → | |
| 11 | 80215-ALE8-E00 | SPRING LATCH | 1 | $4.56 USD | View product → | |
| 12 | 80216-ALE8-E00 | STAY LATCH | 6 | $6.69 USD | View product → | |
| 13 | 80220-ALE8-E00-N1R | COVER B TAIL GATE (Black) | 1 | $39.00 USD | View product → | |
| 14 | 80230-ALE8-E00-N1R | COVER RH REFLECTOR (Black) | 1 | $25.11 USD | View product → | |
| 15 | 80240-ALE8-E00-N1R | COVER LH REFLECTOR (Black) | 1 | $25.11 USD | View product → | |
| 16 | 80250-ALE8-E00-N1R | HOLDER LATCH (Black) | 1 | $17.19 USD | View product → | |
| 17 | 80260-ALE8-E00-N1R | COVER REAR (Black) | 1 | $51.03 USD | View product → | |
| 18 | 83500-ALE8-600-VEP | PANEL RH REAR FENDER | 1 | $463.74 USD | View product → | |
| 19 | 83510-ALE8-E00-N1R | MOLDING RH REAR FENDER (Black) | 1 | $187.71 USD | View product → | |
| 20 | 83520-AEE9-E00-N1R | COVER RH TAIL LIGHT (Black) | 1 | $41.40 USD | View product → | |
| 21 | 83600-ALE8-600-VEP | PANELLH REAR FENDER | 1 | $463.74 USD | View product → | |
| 22 | 83610-ALE8-E00-N1R | MOLDING LH REAR FENDER (Black) | 1 | $171.87 USD | View product → | |
| 23 | 83620-AEE9-E00-N1R | COVER LH TAIL LIGHT (Black) | 1 | $41.40 USD | View product → | |
| 24 | 90215-KKC4-900 | NUT CAP 6MM | 4 | $5.67 USD | View product → | |
| 25 | 90652-LEE8-E00 | RIVET | 12 | $4.92 USD | View product → | |
| 26 | 93406-08016-06 | BOLT WASHER 8X16 | 4 | $12.09 USD | View product → | |
| 27 | 93903-35360 | SCREW TAPPING 5*16 | 59 | $3.78 USD | View product → | |
| 28 | 94050-05060 | NUT FLANGE 5MM | 2 | $4.92 USD | View product → | |
| 29 | 95701-06016-06 | BOLT FLANGE 6X16 | 4 | $1.65 USD | View product → | |
| 30 | 95701-06020-06 | BOLT FLANGE 6*20 | 4 | $2.25 USD | View product → |
