F08 — Rear Wheel

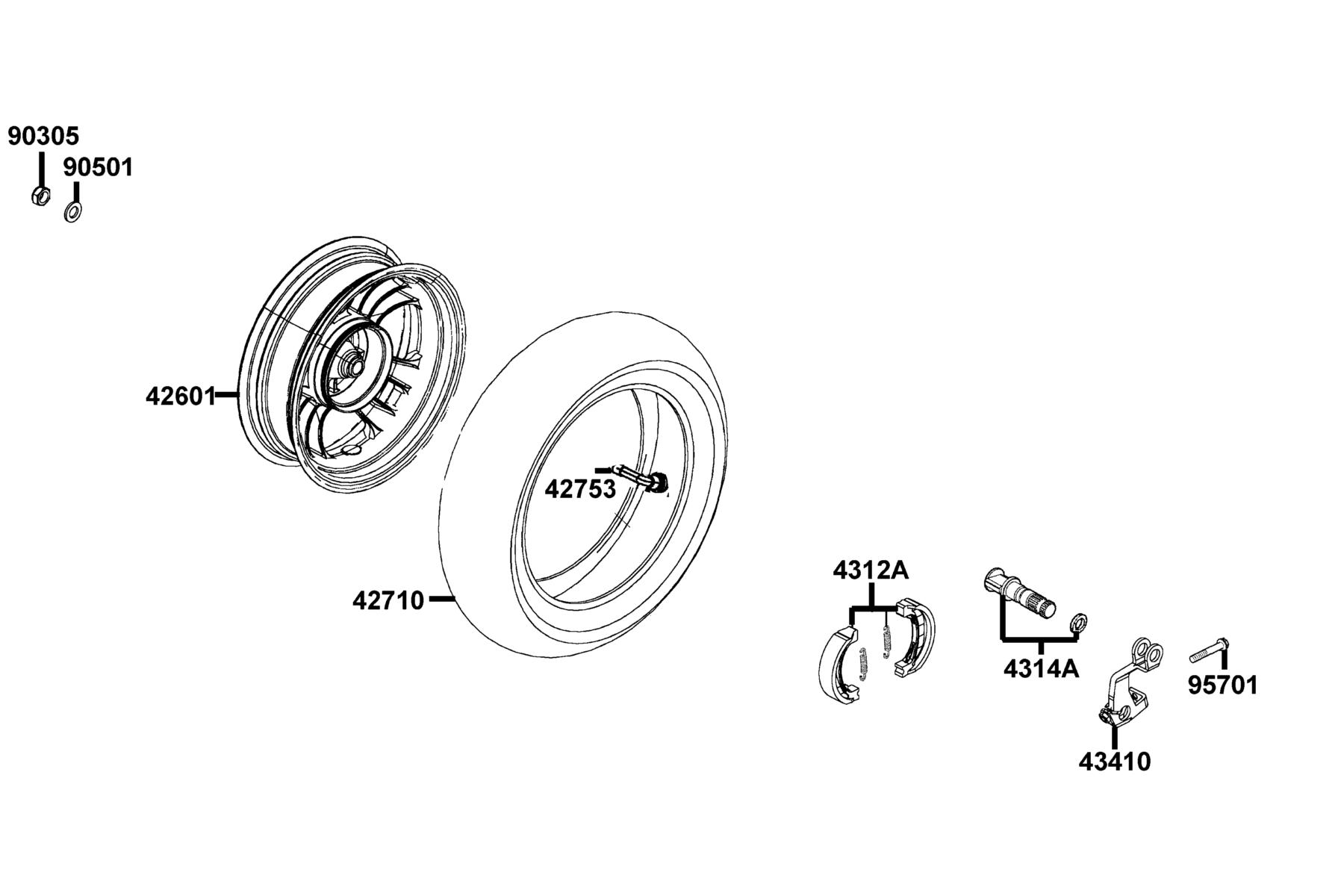

The Rear Wheel diagram contains 9 genuine OEM parts for the KYMCO LIKE 50(2013~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 42601-LGR3-E10-NJA | WHEEL COMP RR CAST | 1 | $308.52 USD | View product → | |
| 2 | 42710-LDC8-E10 | TIRE ASSY RR | 1 | $310.08 USD | View product → | |
| 3 | 42753-0A01-C00 | VALVE (TR 412) & CAP (C) | 1 | $18.54 USD | View product → | |
| 4 | 4312A-KXCX-C00 | SHOE ASSY RR BRAKE | 1 | $55.95 USD | View product → | |
| 5 | 4314A-KKD6-E00 | CAM ASSY RR BRAKE | 1 | $69.06 USD | View product → | |
| 6 | 43410-KFA1-C00 | ARM REAR BRAKE | 1 | $56.10 USD | View product → | |
| 7 | 90305-PUA3-B51 | NUT U 16MM(C) | 1 | $14.94 USD | View product → | |
| 8 | 90501-KNBN-C00 | WASHER 16MM | 1 | $4.59 USD | View product → | |
| 9 | 95701-06032-08 | BOLT FLANGE 6*32 | 1 | $4.92 USD | View product → |
