KYMCO DT X 360 2026 Mat Black parts diagrams

Model code
KS60EC(US)
Model year
2026
Submodel
DTX 360
Color
Mat Black (CH294FAB)

Parts diagrams

Pick an assembly to see its exploded-view drawing and every part in it.

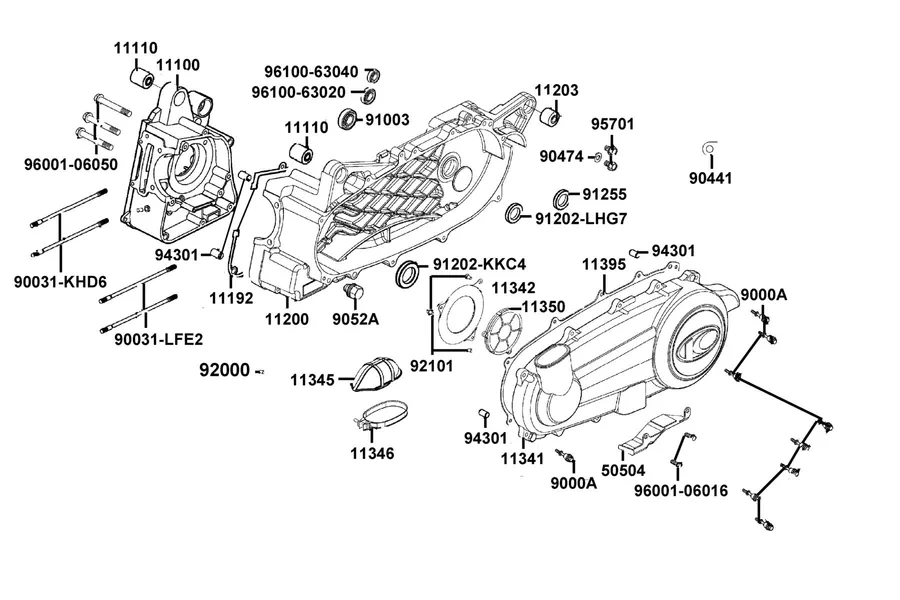

E01 Crank Case parts diagram

E01 — Crank Case

30 parts

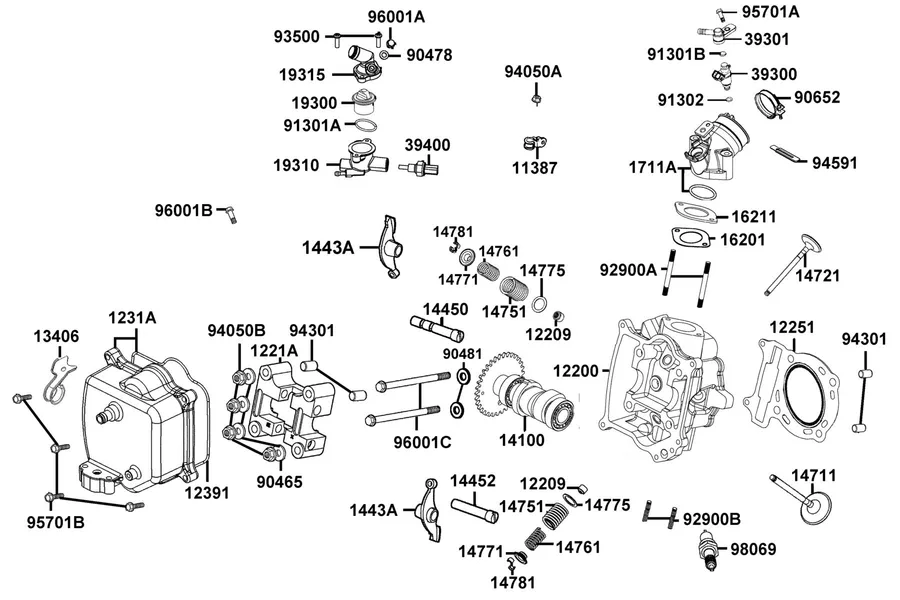

View diagram → E02 Cylinder Head parts diagram

E02 — Cylinder Head

48 parts

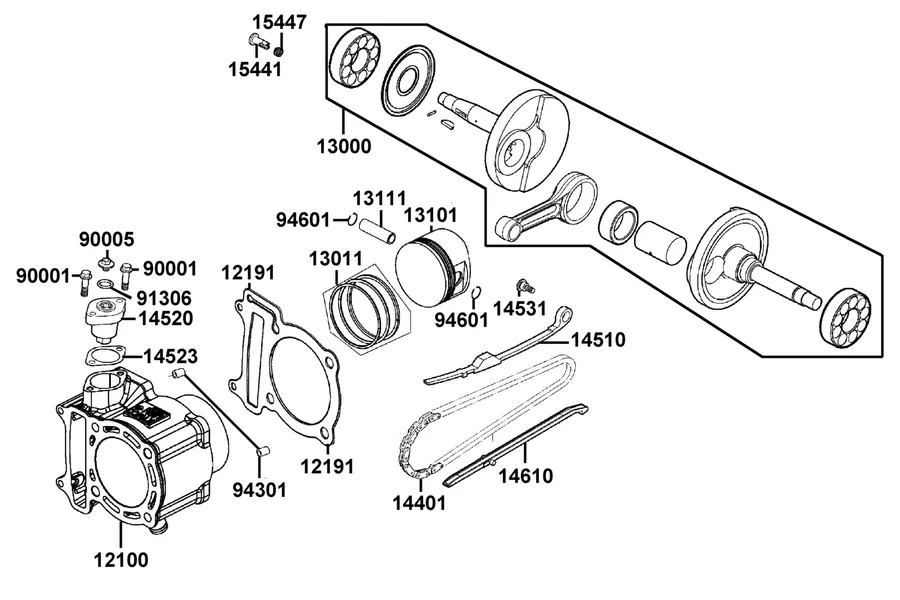

View diagram → E03 Cylinder, Piston and Crankshaft parts diagram

E03 — Cylinder ● Piston ● Crankshaft

19 parts

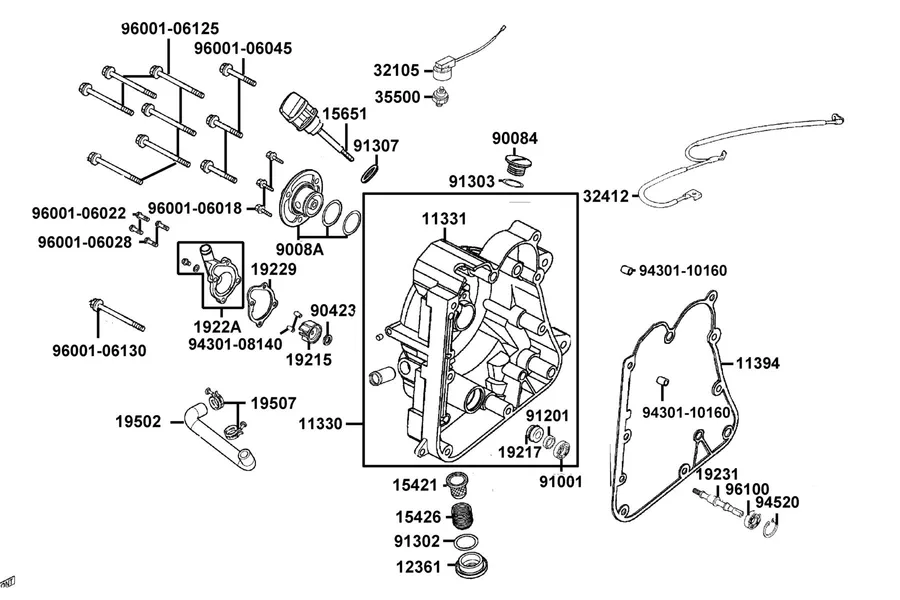

View diagram → E04 Right Crankcase Cover parts diagram

E04 — Right Crankcase Cover

35 parts

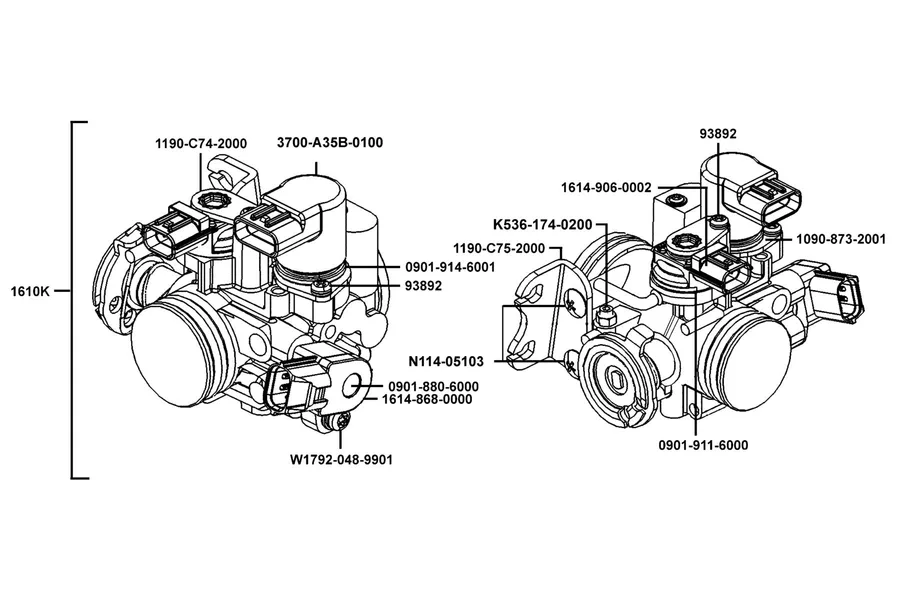

View diagram → E05 Carburetor parts diagram

E05 — Carburetor

14 parts

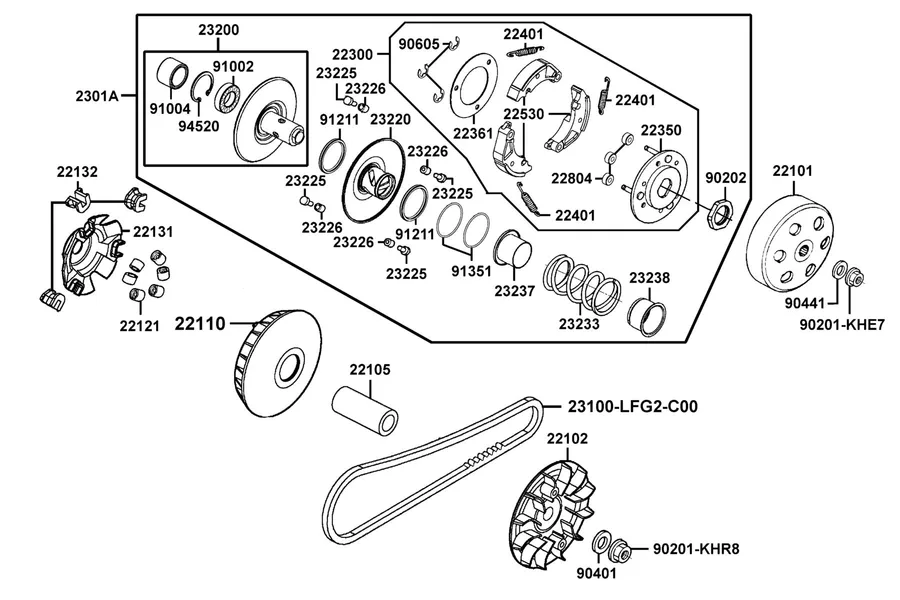

View diagram → E06 Driven Pulley parts diagram

E06 — Driven Pulley

33 parts

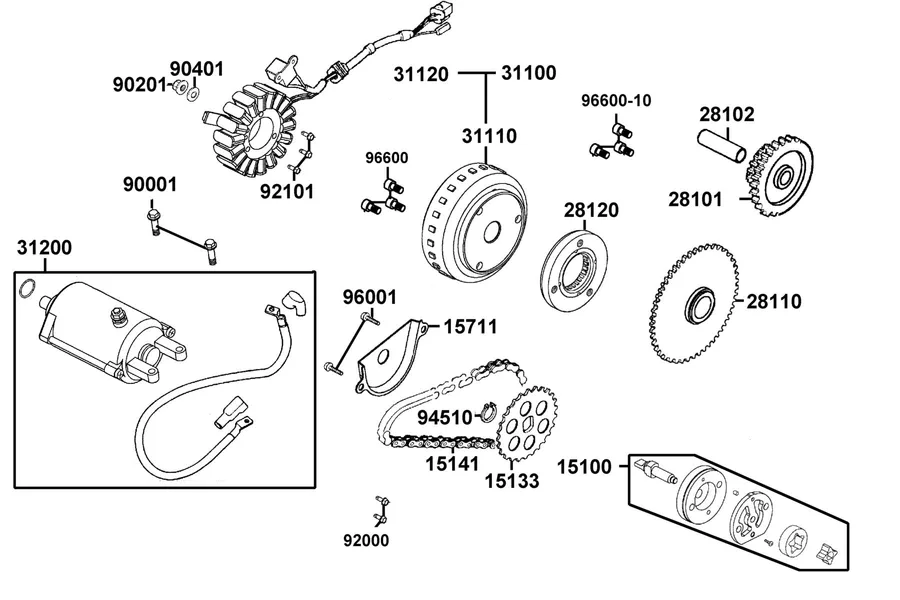

View diagram → E07 Starting Motor and Oil Pump parts diagram

E07 — Starting Motor ● Oil Pump

21 parts

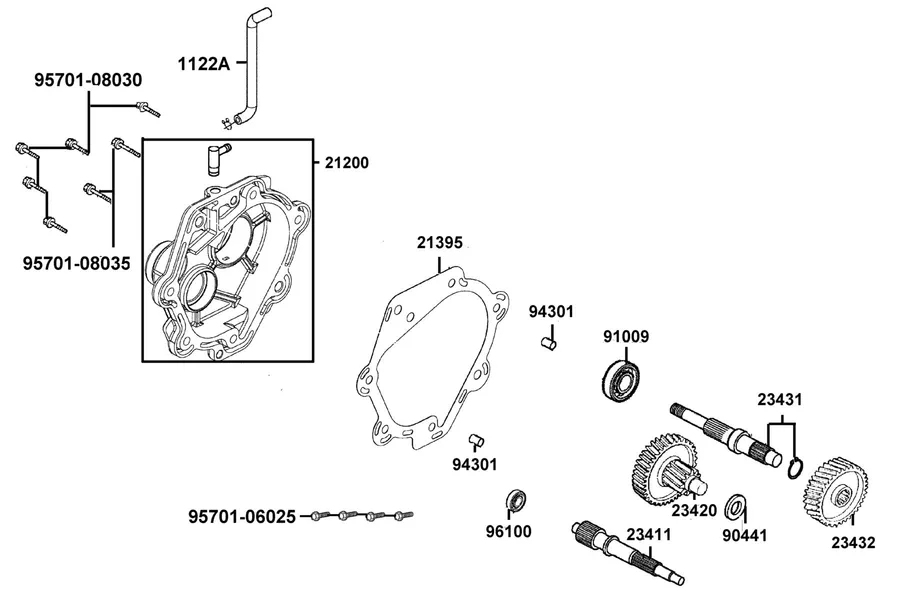

View diagram → E08 Transmission parts diagram

E08 — Transmission

14 parts

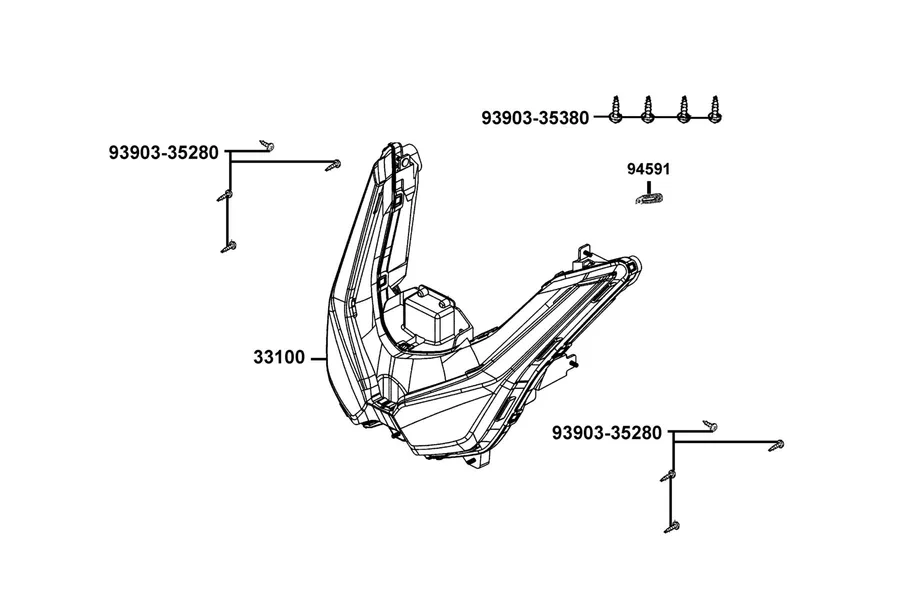

View diagram → F01 Head Light parts diagram

F01 — Head Light

4 parts

View diagram → F02 Speed Meter parts diagram

F02 — Speed meter

2 parts

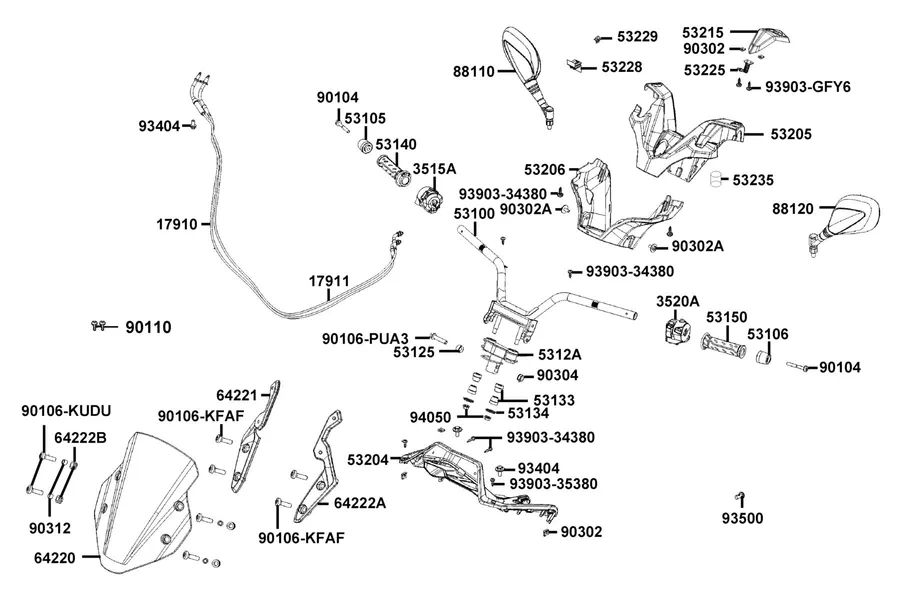

View diagram → F03 Handle Steering parts diagram

F03 — Handle Steering

41 parts

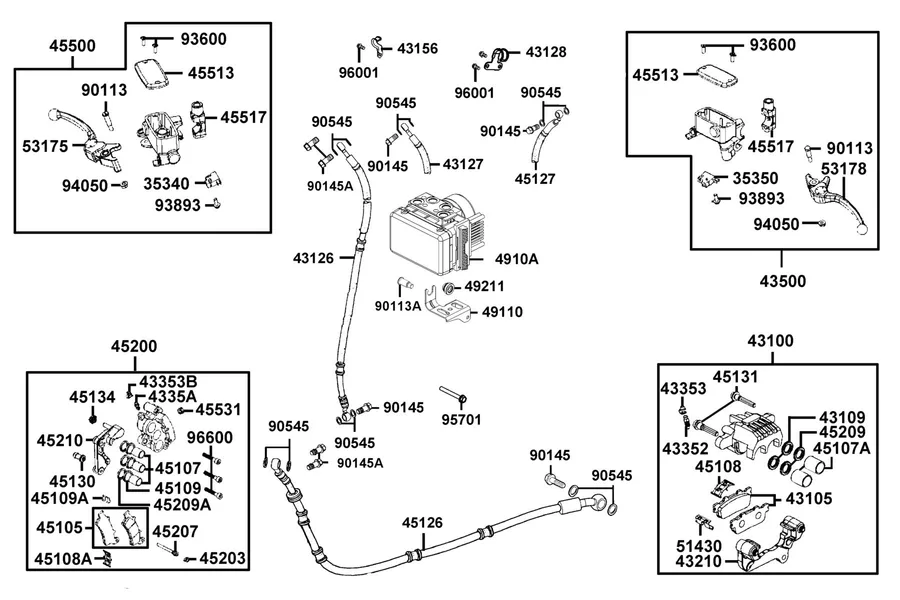

View diagram → F04 Master Cylinder parts diagram

F04 — Master Cylinder

52 parts

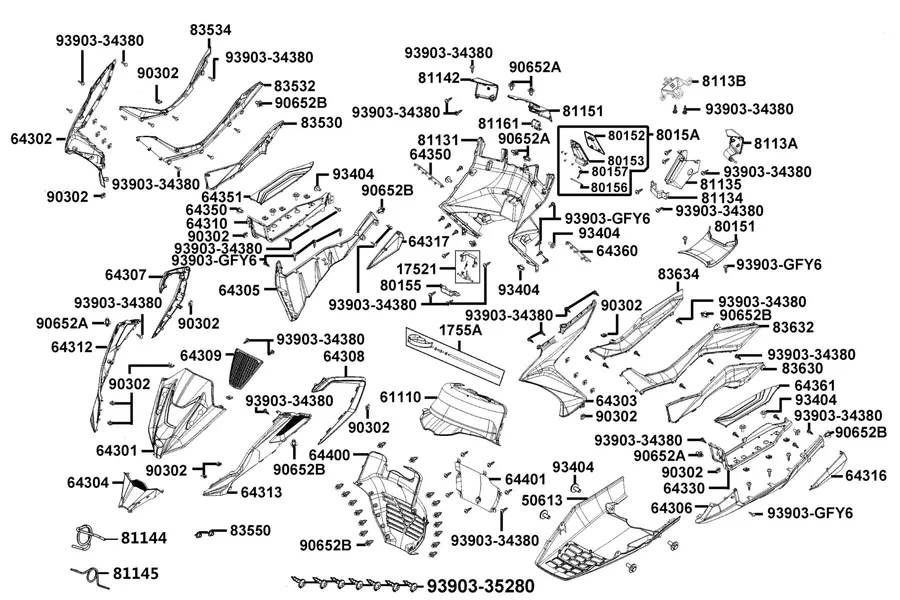

View diagram → F05 Fender Front parts diagram

F05 — Fender Front

56 parts

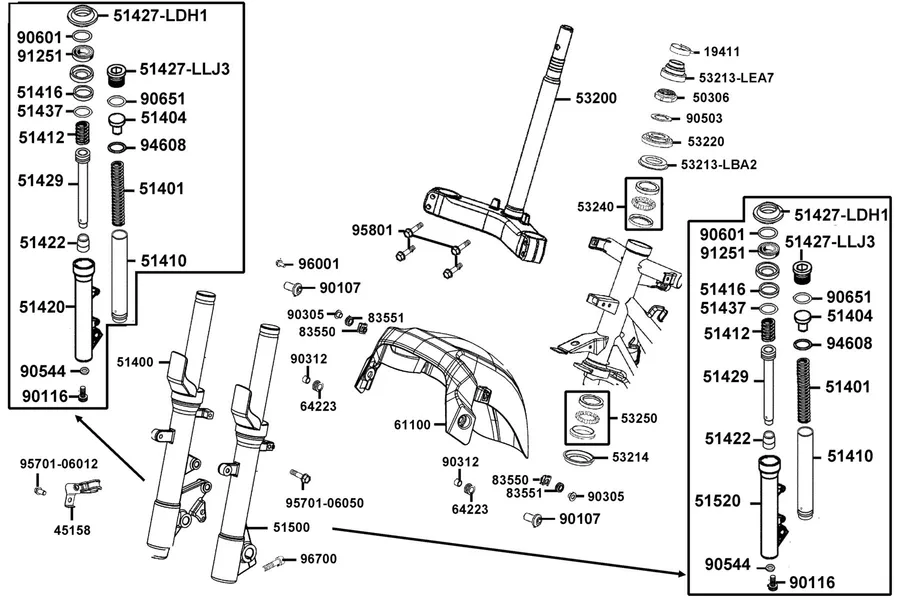

View diagram → F06 Stem Steering parts diagram

F06 — Stem Steering

43 parts

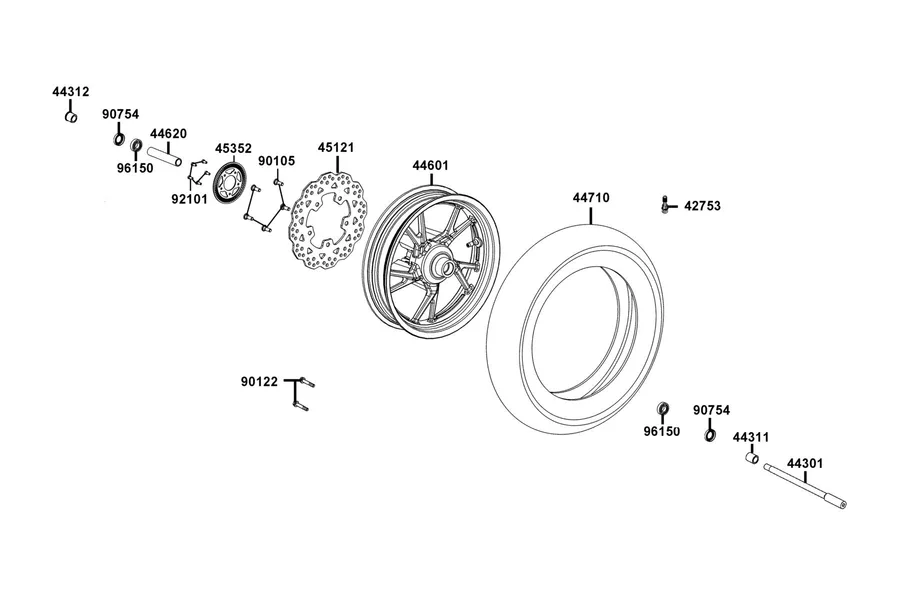

View diagram → F07 Front Wheel parts diagram

F07 — Front Wheel

14 parts

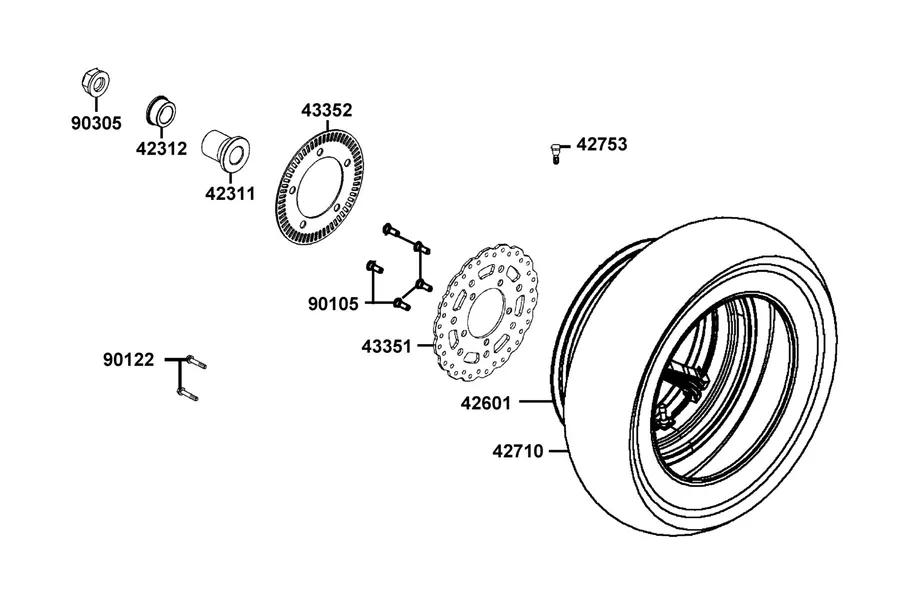

View diagram → F08 Rear Wheel parts diagram

F08 — Rear Wheel

10 parts

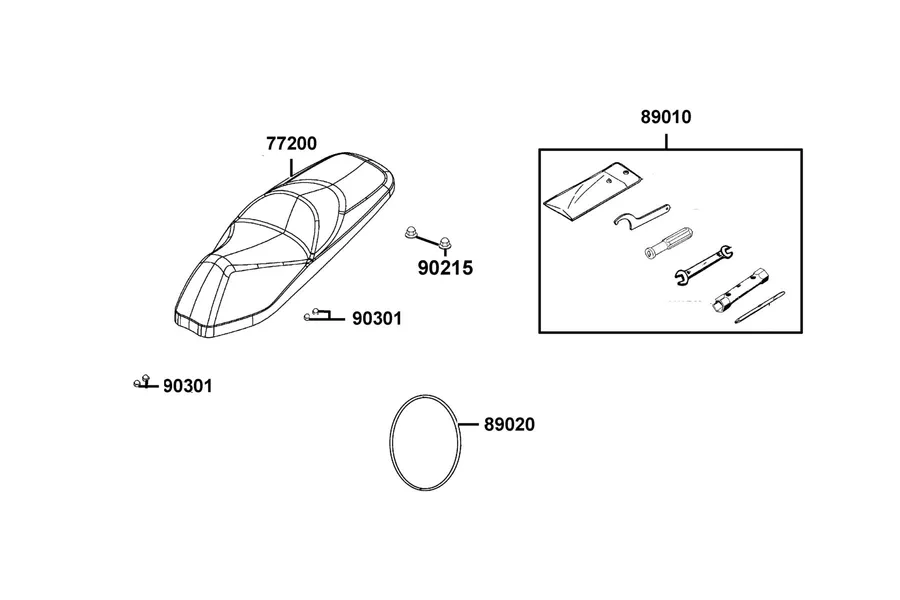

View diagram → F09 Seat parts diagram

F09 — Seat

5 parts

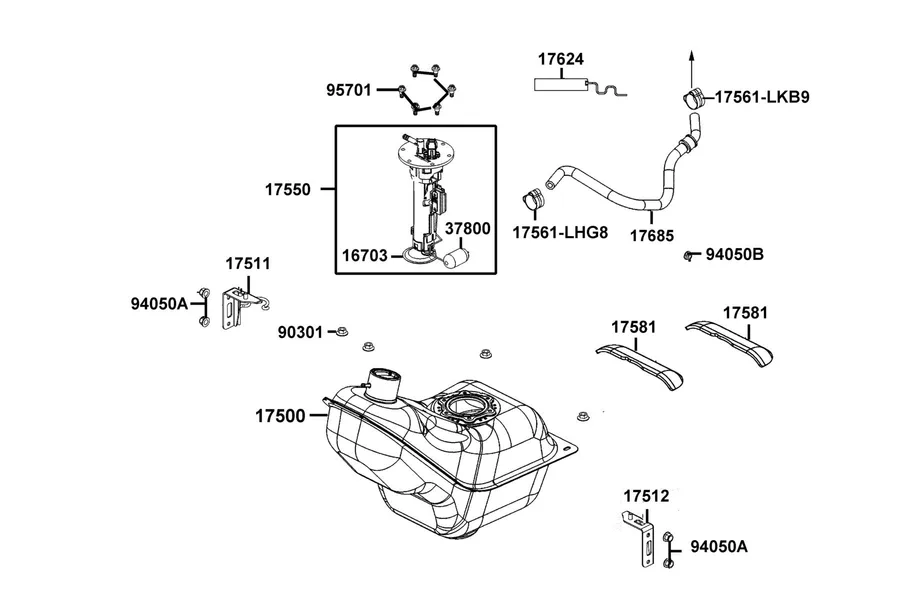

View diagram → F10 Fuel Tank parts diagram

F10 — Fuel Tank

15 parts

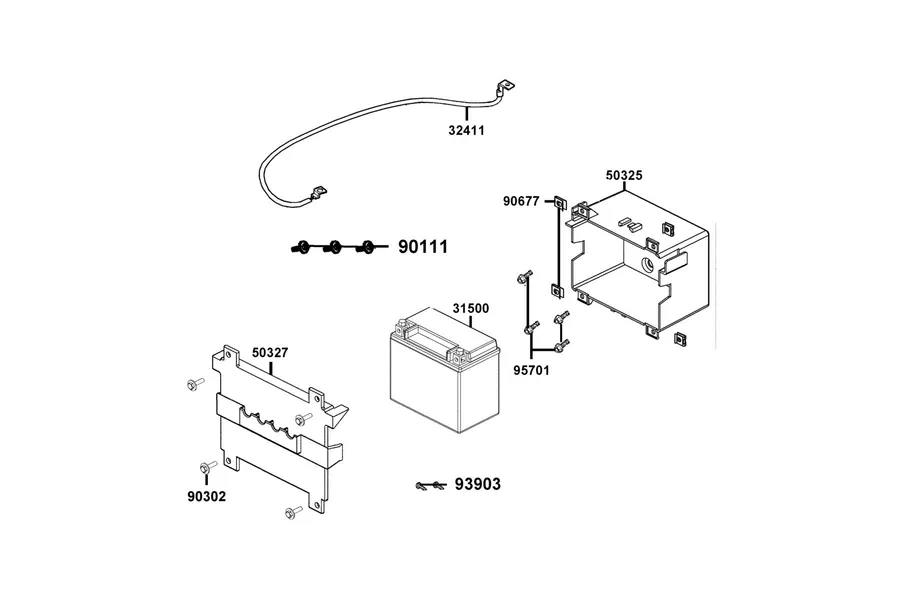

View diagram → F11 Battery parts diagram

F11 — Battery

9 parts

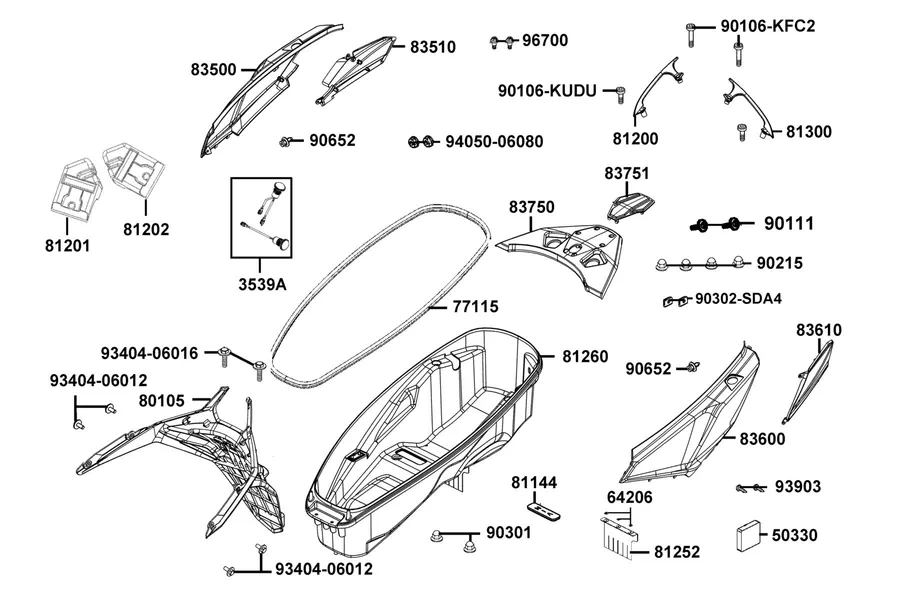

View diagram → F12 Body Cover and Luggage Box parts diagram

F12 — Body Cover ● Luggage Box

30 parts

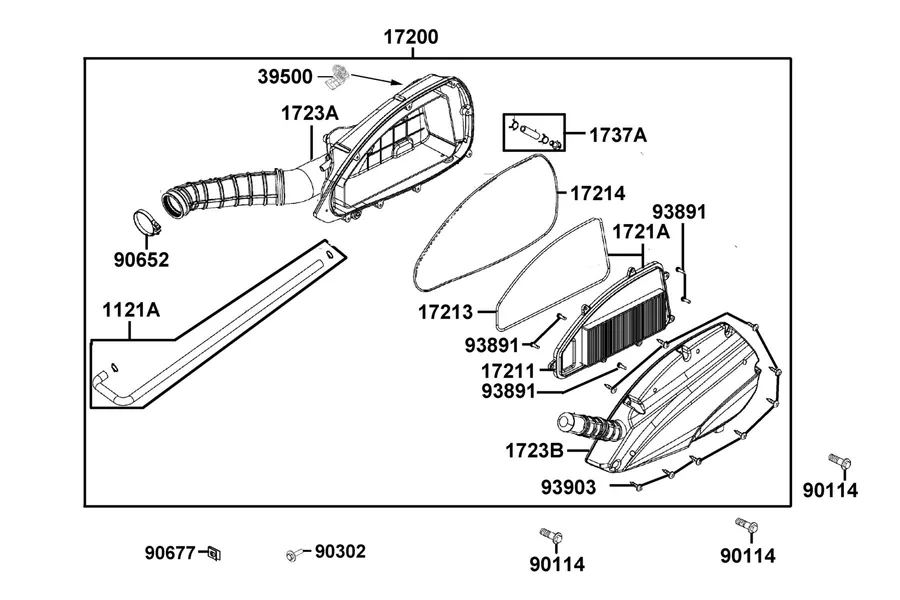

View diagram → F13 Air Cleaner parts diagram

F13 — Air Cleaner

16 parts

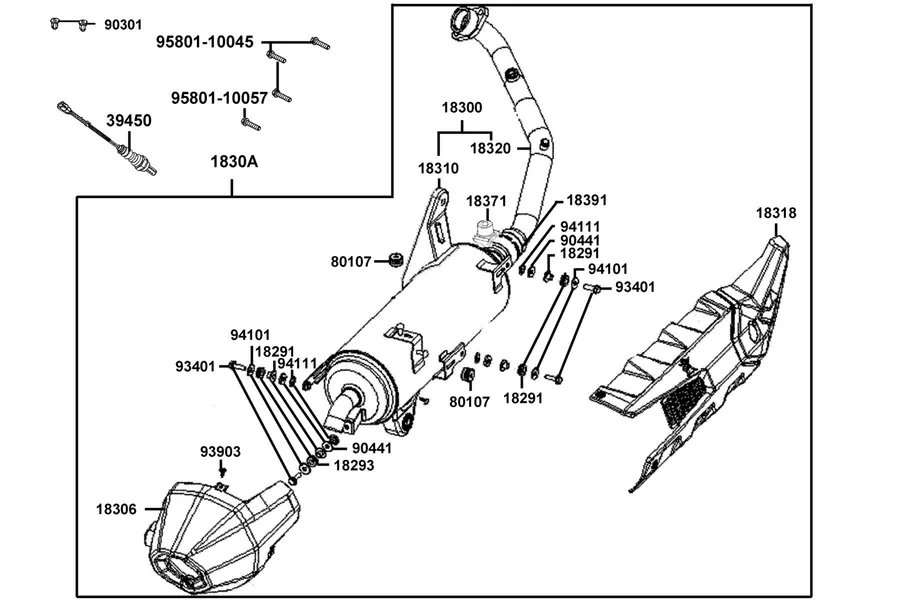

View diagram → F14 Exhaust Muffler parts diagram

F14 — Exhaust Muffler

20 parts

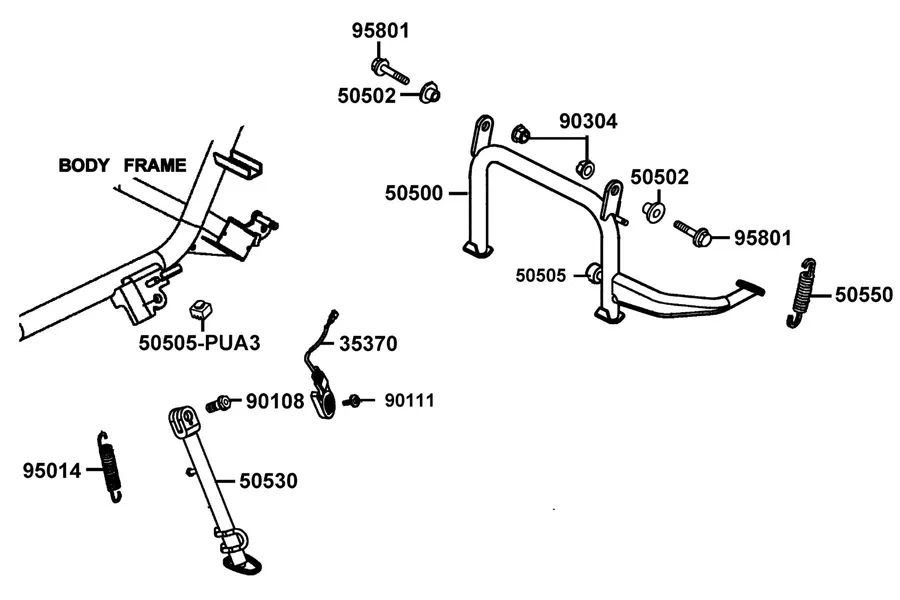

View diagram → F15 Stand parts diagram

F15 — Stand

12 parts

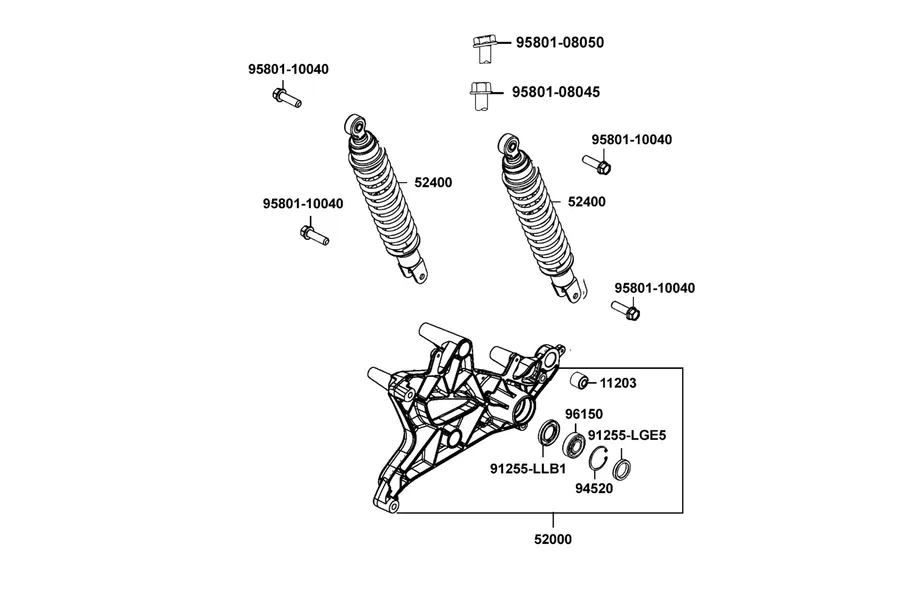

View diagram → F16 Rr Cushion parts diagram

F16 — Rr Cushion

10 parts

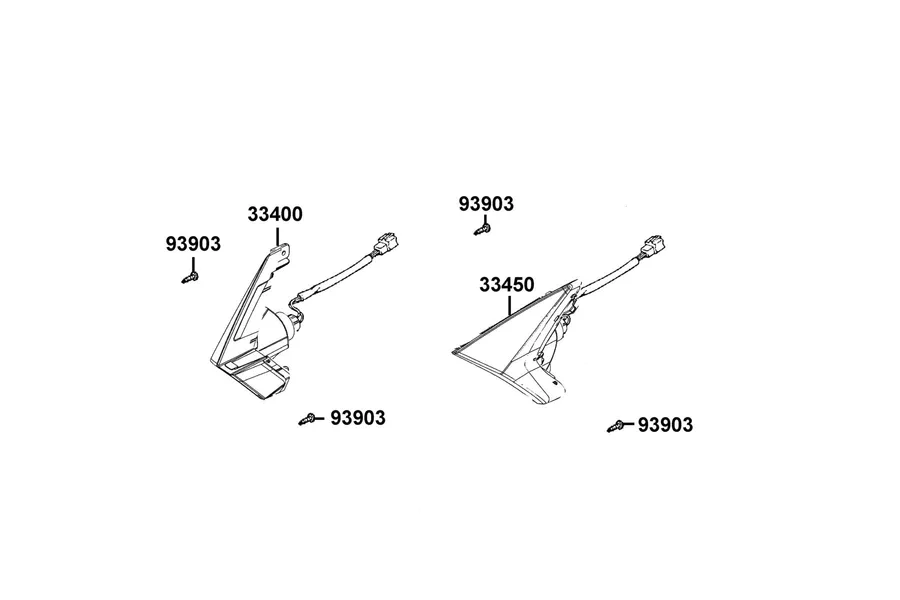

View diagram → F17 Front Winker parts diagram

F17 — Front Winker

3 parts

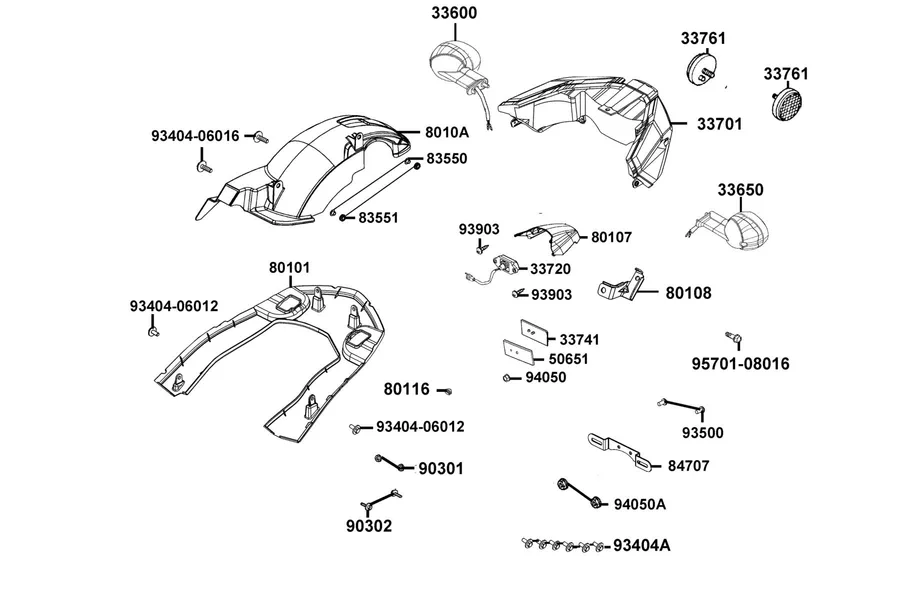

View diagram → F18 Light Tail parts diagram

F18 — Light Tail

25 parts

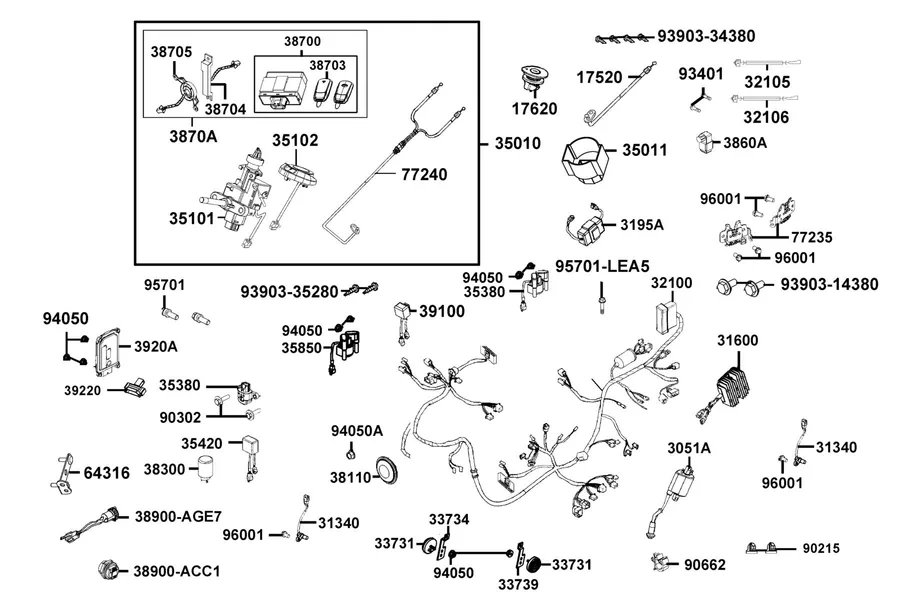

View diagram → F19 Harness Wire parts diagram

F19 — Harness Wire

46 parts

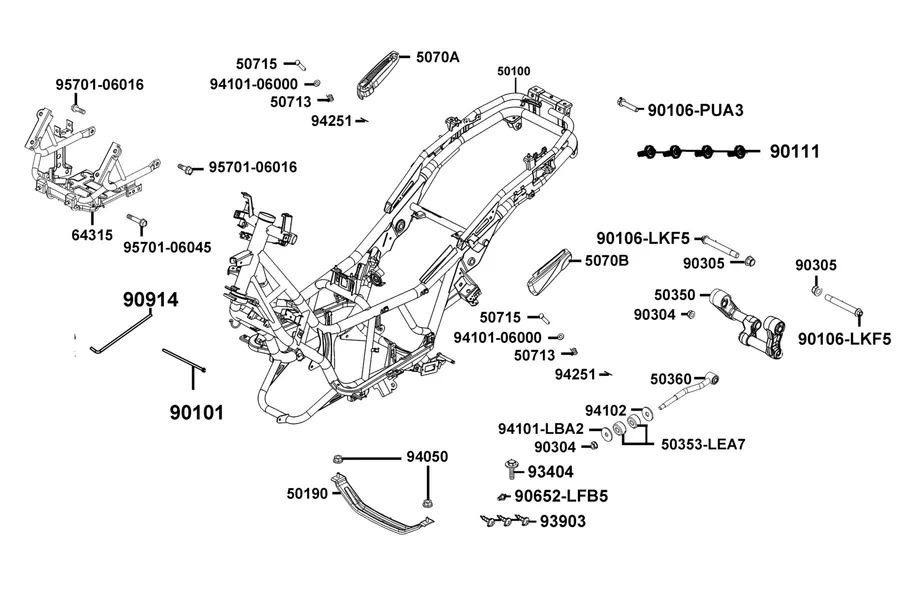

View diagram → F20 Frame Body*Radiator parts diagram

F20 — Frame Body*Radiator

27 parts

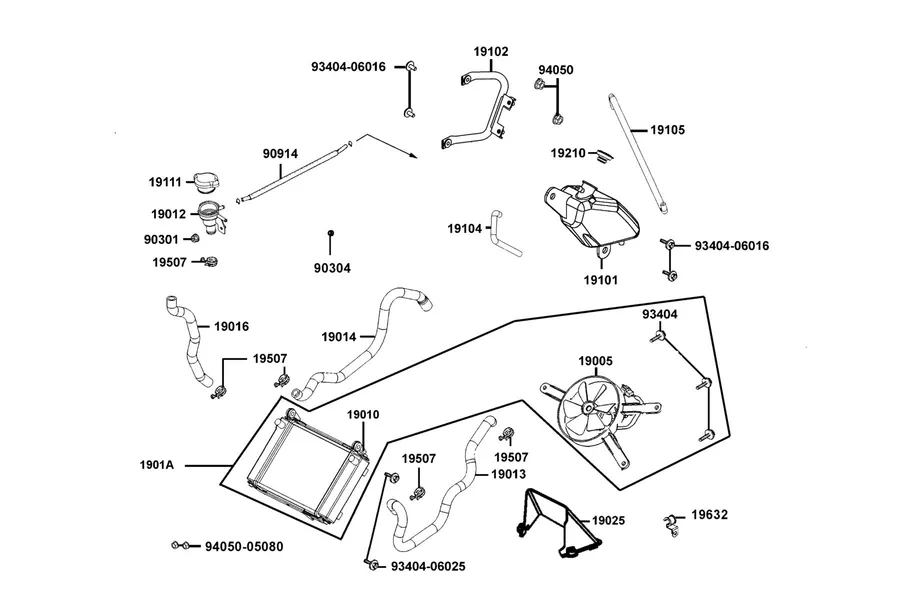

View diagram → F21 Radiator parts diagram

F21 — Radiator

24 parts

View diagram → F22 Canister-Pcv Assy parts diagram

F22 — CANISTER-PCV ASSY

2 parts

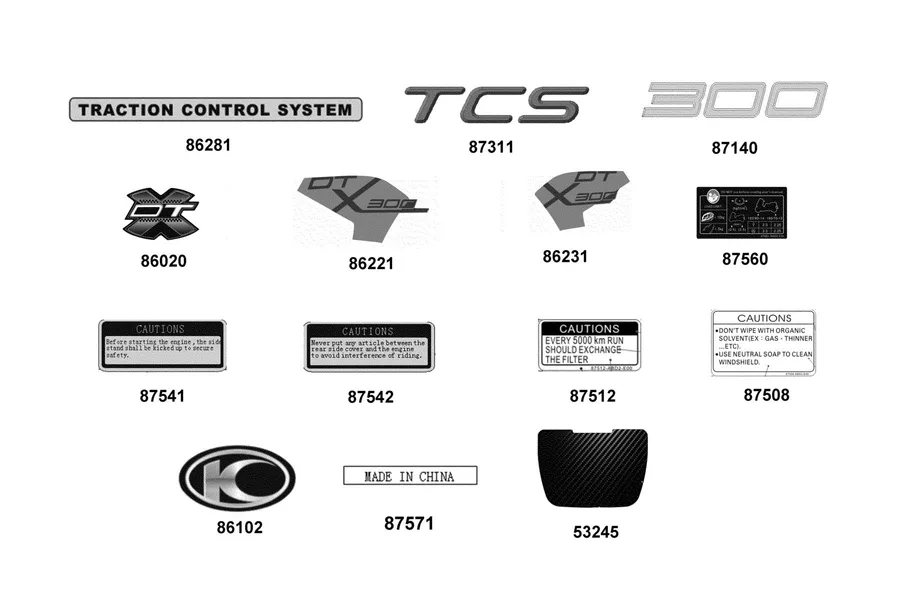

View diagram → F23 Emblem and Stripe parts diagram

F23 — Emblem ● Stripe

14 parts

View diagram →

Common questions

How do I find a part number for the 2026 KYMCO DT X 360?

Open the assembly it belongs to below — each diagram is an exploded-view drawing with numbered callouts. Hover a callout to highlight the part in the list, which shows its factory number and price, then click the row to open that part’s product page on kymcopartsstore.com.

What do the diagrams for the 2026 KYMCO DT X 360 cover?

31 factory assemblies with 694 genuine OEM parts — engine (E-codes) and frame/bodywork (F-codes), exactly as KYMCO documents this version.

Will these parts fit my 2026 KYMCO DT X 360?

This catalog is specific to model code KS60EC(US) (2026) in Mat Black. If that matches your vehicle — or your VIN lookup points here — every part number on these diagrams is the factory-verified fit.
