KYMCO Generator KP-3000 2009 Navy Blue (Canada) parts diagrams

Model code
GA39AE(CA)
Model year
2009
Submodel
Generator KP-3000
Color
PB198SA

Parts diagrams

Pick an assembly to see its exploded-view drawing and every part in it.

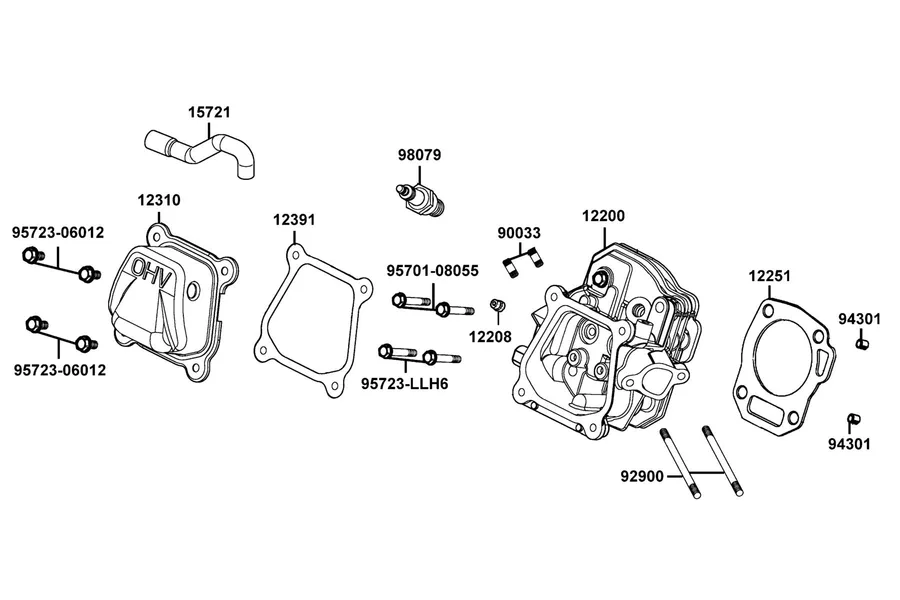

E01 Cylinder Head parts diagram

E01 — Cylinder Head

10 parts

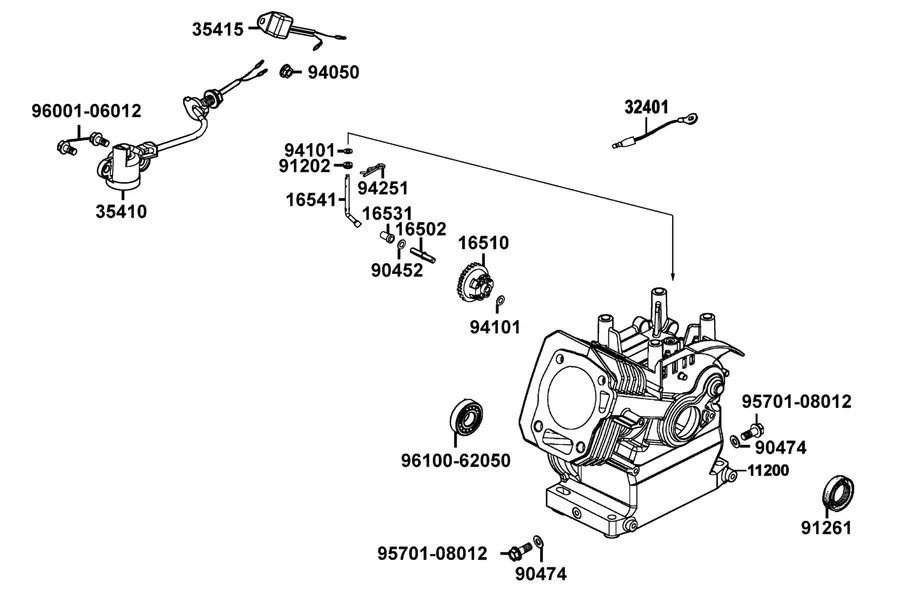

View diagram → E02 Crank Case Comp Left parts diagram

E02 — Crank Case Comp Left

15 parts

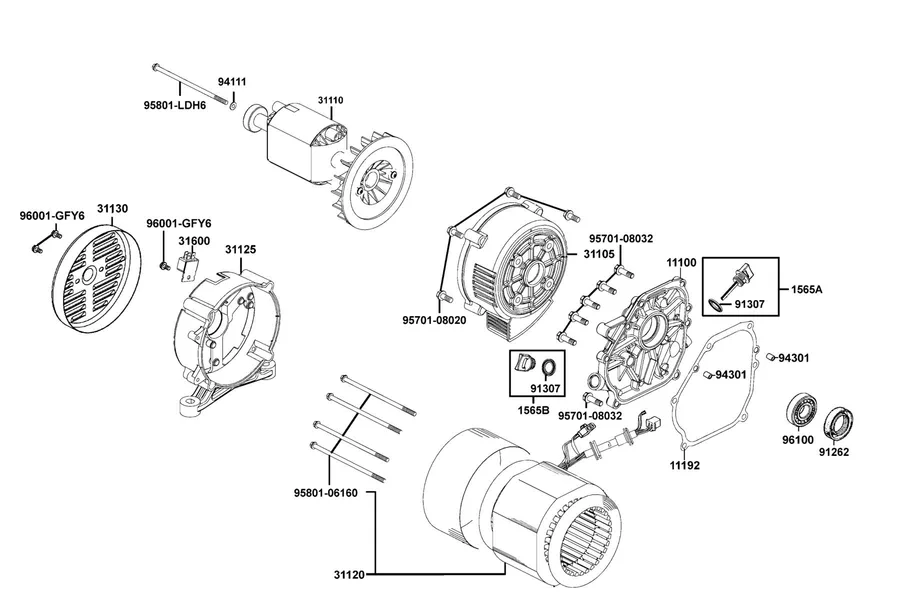

View diagram → E03 Crank Case Comp Right parts diagram

E03 — Crank Case Comp Right

20 parts

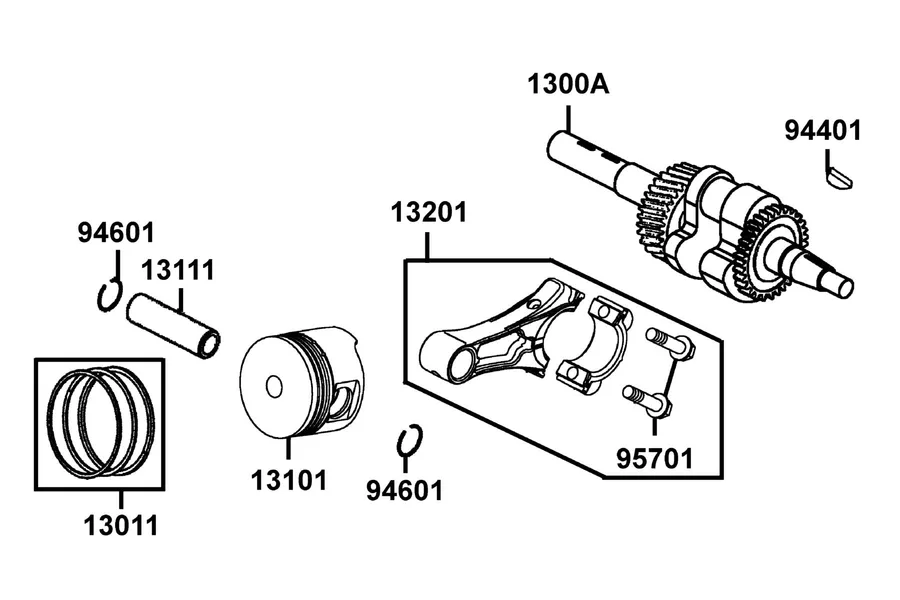

View diagram → E04 Crankshaft and Piston parts diagram

E04 — Crankshaft●Piston

3 parts

View diagram → E05 Cam Shaft Comp and Valve parts diagram

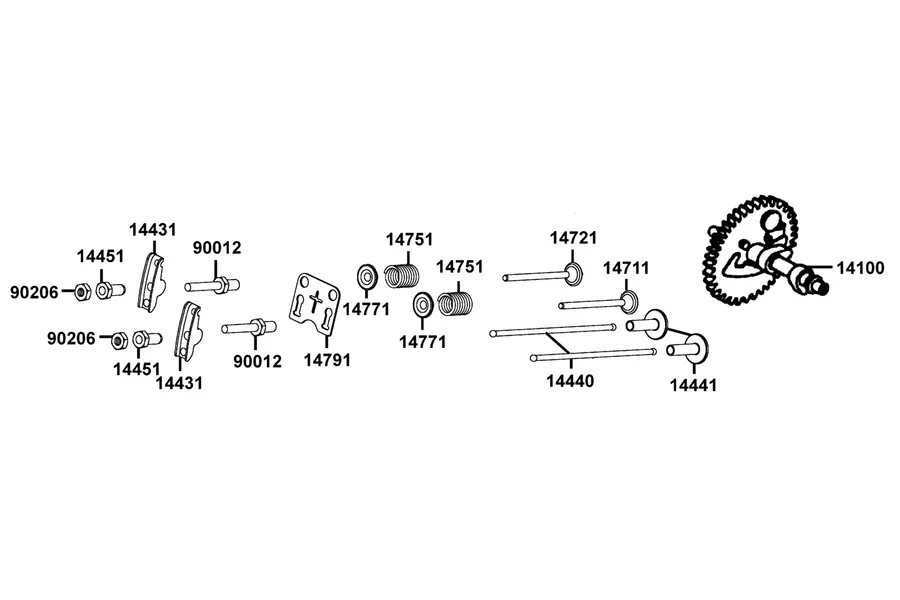

E05 — Cam Shaft Comp●Valve

1 part

View diagram → E06 Flywheel and Flywheel Comp parts diagram

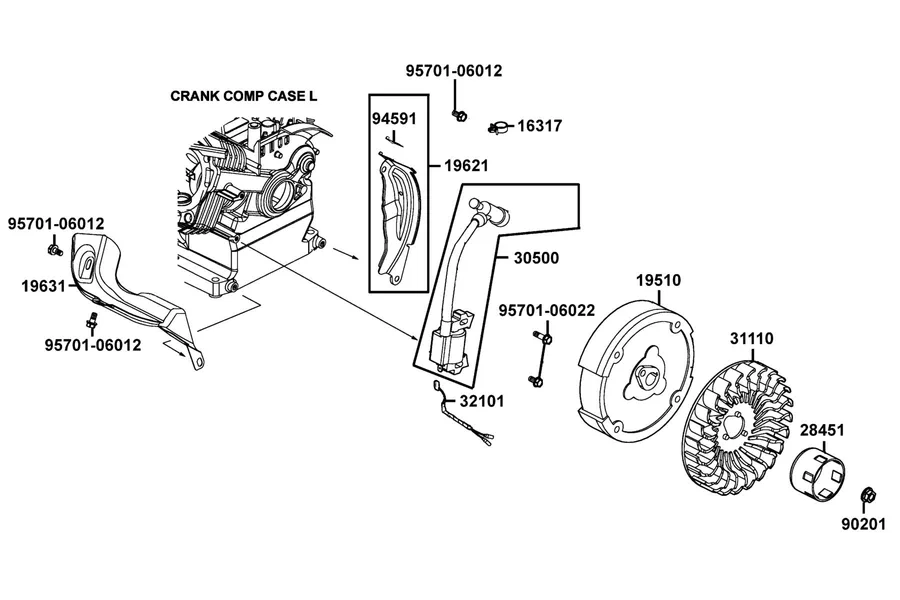

E06 — Flywheel●Flywheel Comp

11 parts

View diagram → E07 Carburetor Assy parts diagram

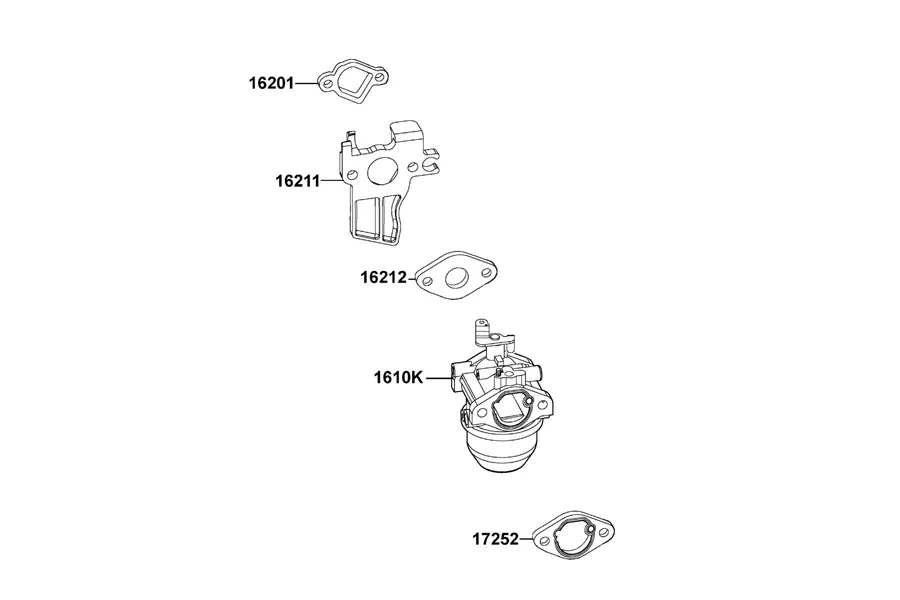

E07 — Carburetor Assy

4 parts

View diagram → E08 Air Cleaner parts diagram

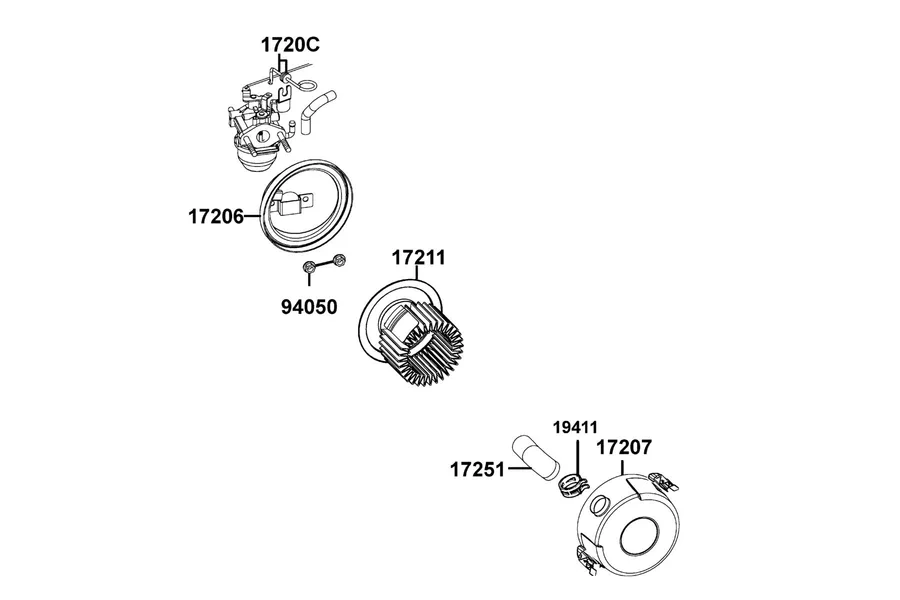

E08 — Air Cleaner

7 parts

View diagram → E09 Exhaust Muffler parts diagram

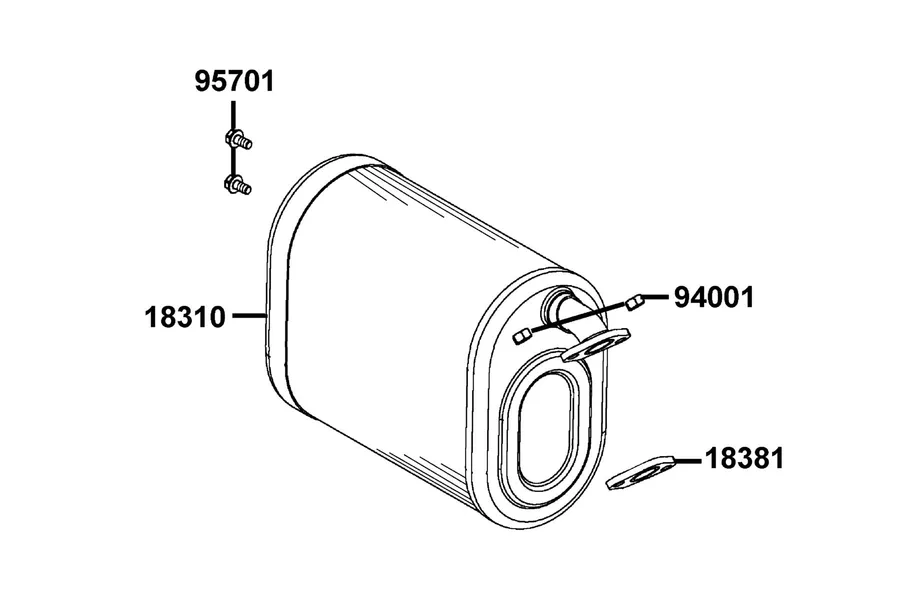

E09 — Exhaust Muffler

4 parts

View diagram → E10 Fuel Tank parts diagram

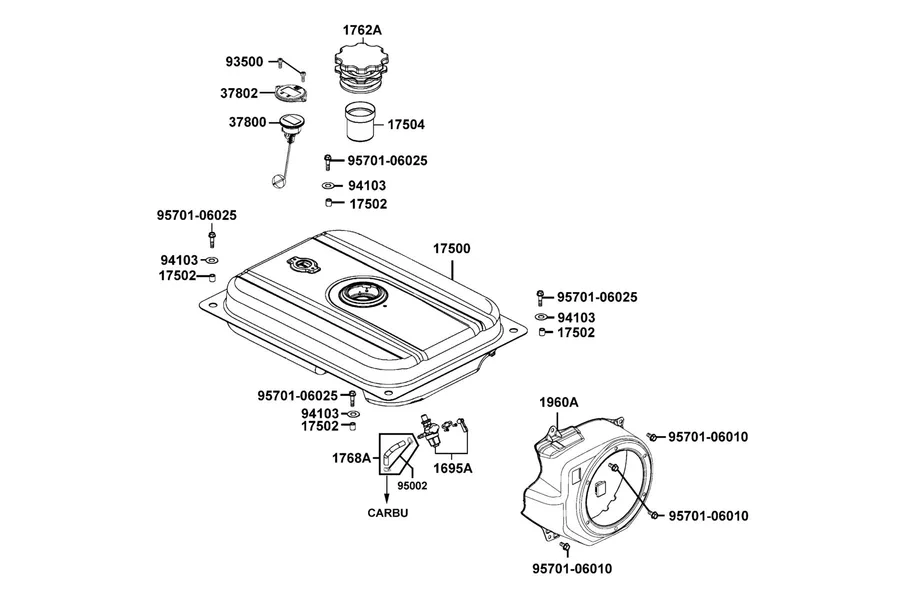

E10 — Fuel Tank

13 parts

View diagram → E11 Carburetor Assy Stay parts diagram

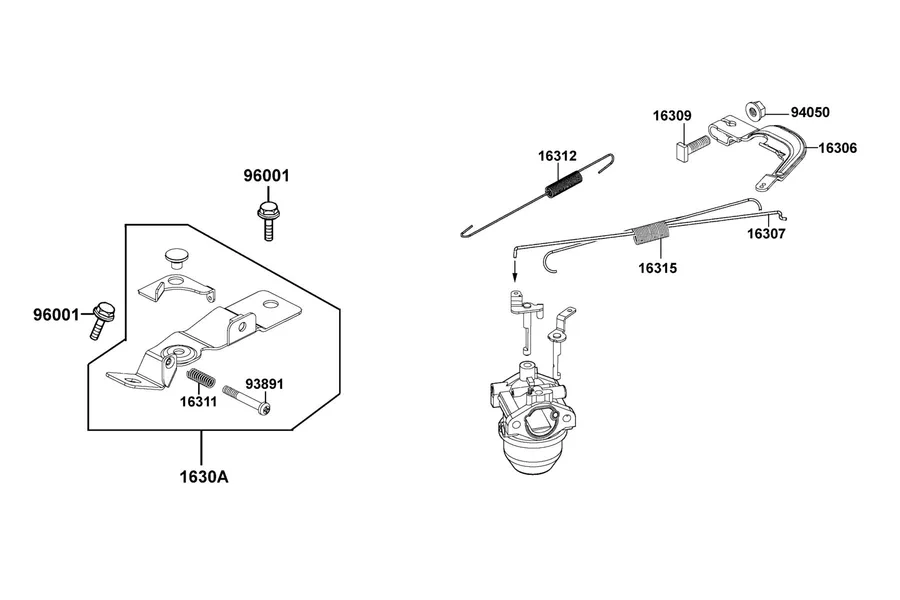

E11 — Carburetor Assy Stay

10 parts

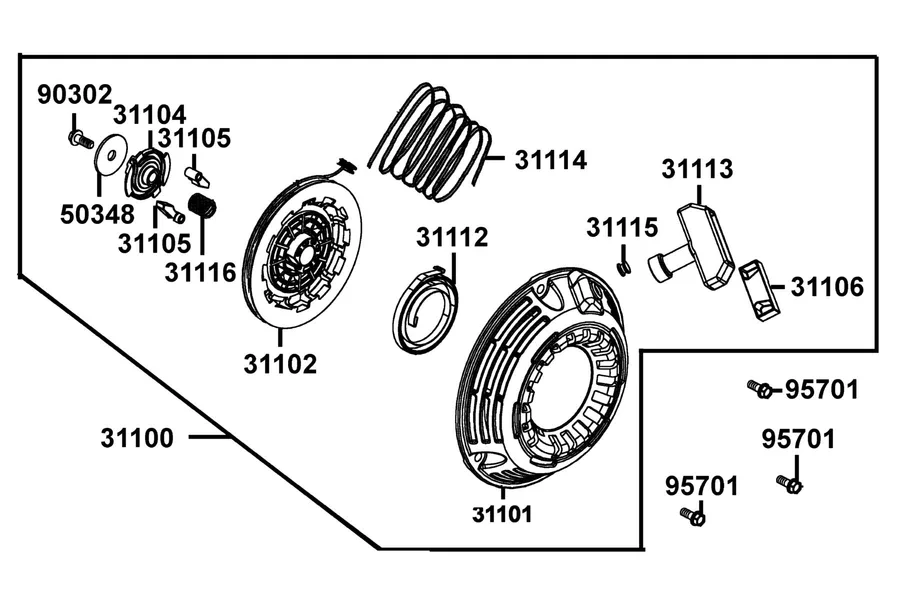

View diagram → E12 Recoil Starting parts diagram

E12 — Recoil Starting

8 parts

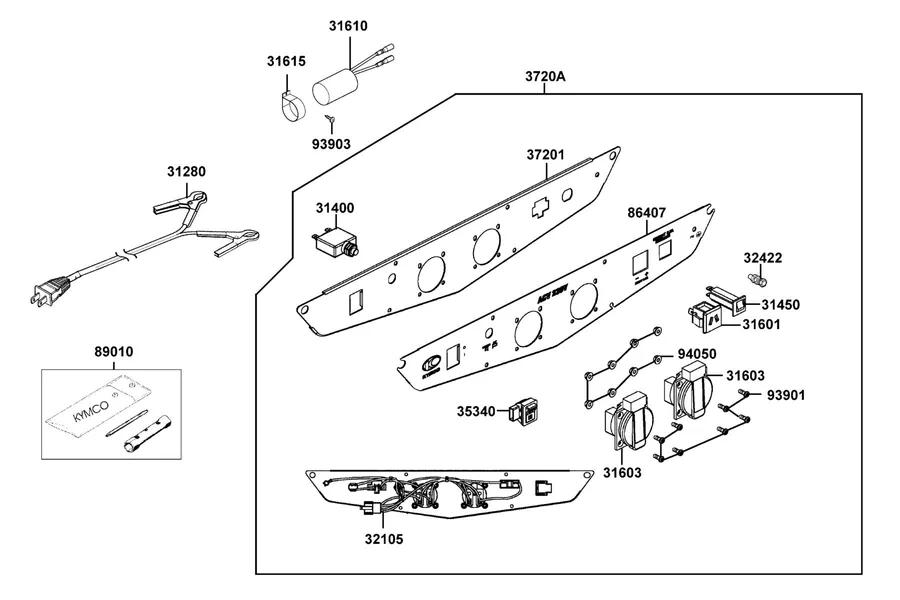

View diagram → E13 Elec Panel parts diagram

E13 — ELEC PANEL

17 parts

View diagram → E14 "Body Comp.,Frame" parts diagram

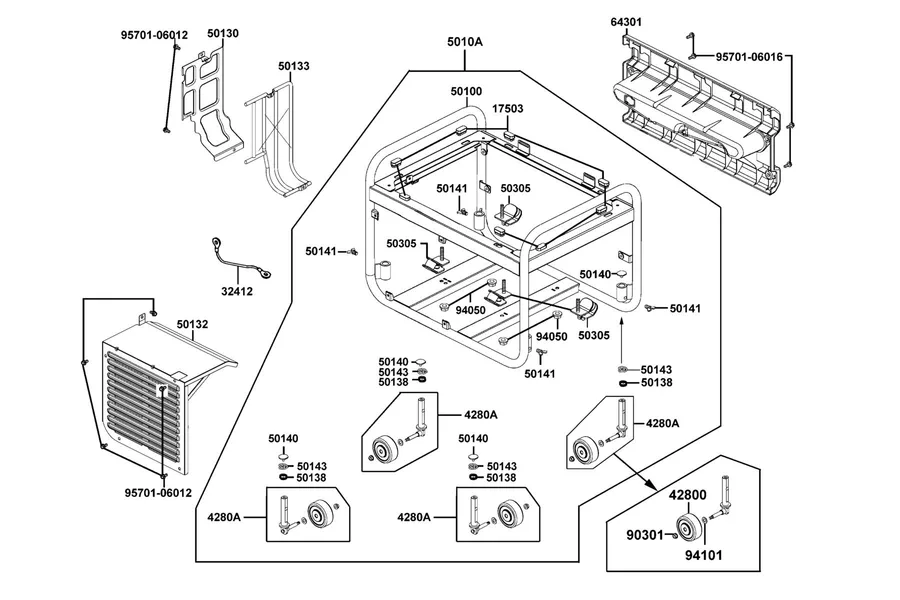

E14 — "BODY COMP.,FRAME"

20 parts

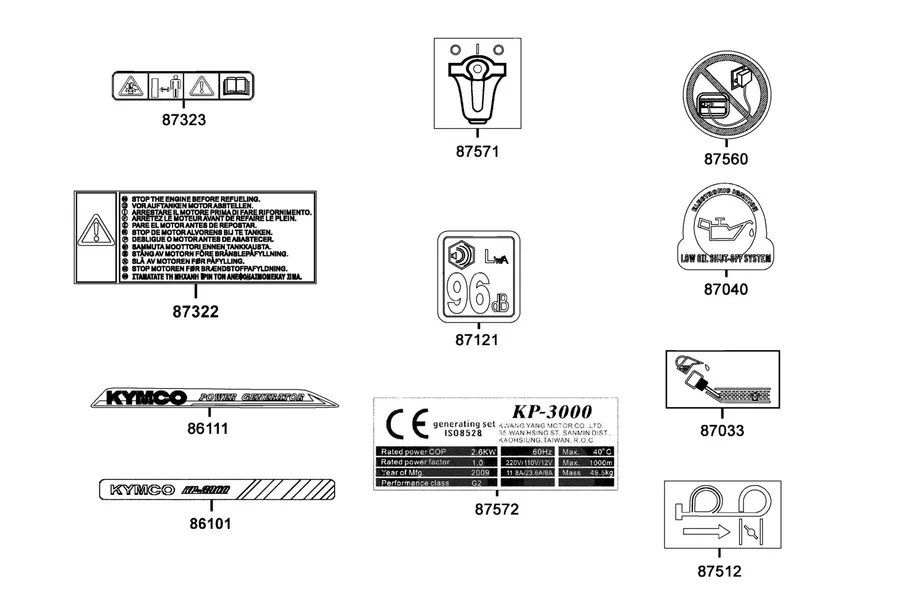

View diagram → E15 Emblem and Stripe parts diagram

E15 — Emblem●Stripe

11 parts

View diagram →

Common questions

How do I find a part number for the 2009 KYMCO Generator KP-3000?

Open the assembly it belongs to below — each diagram is an exploded-view drawing with numbered callouts. Hover a callout to highlight the part in the list, which shows its factory number and price, then click the row to open that part’s product page on kymcopartsstore.com.

What do the diagrams for the 2009 KYMCO Generator KP-3000 cover?

15 factory assemblies with 154 genuine OEM parts — engine (E-codes) and frame/bodywork (F-codes), exactly as KYMCO documents this version.

Will these parts fit my 2009 KYMCO Generator KP-3000?

This catalog is specific to model code GA39AE(CA) (2009) in Navy Blue (Canada). If that matches your vehicle — or your VIN lookup points here — every part number on these diagrams is the factory-verified fit.
