KYMCO Grand Vista 250 2008 Ruby Red parts diagrams

Model code
SH50DG(US)
Model year
2008
Submodel
Grand Vista 250
Color
Ruby Red (RR004CA)

Parts diagrams

Pick an assembly to see its exploded-view drawing and every part in it.

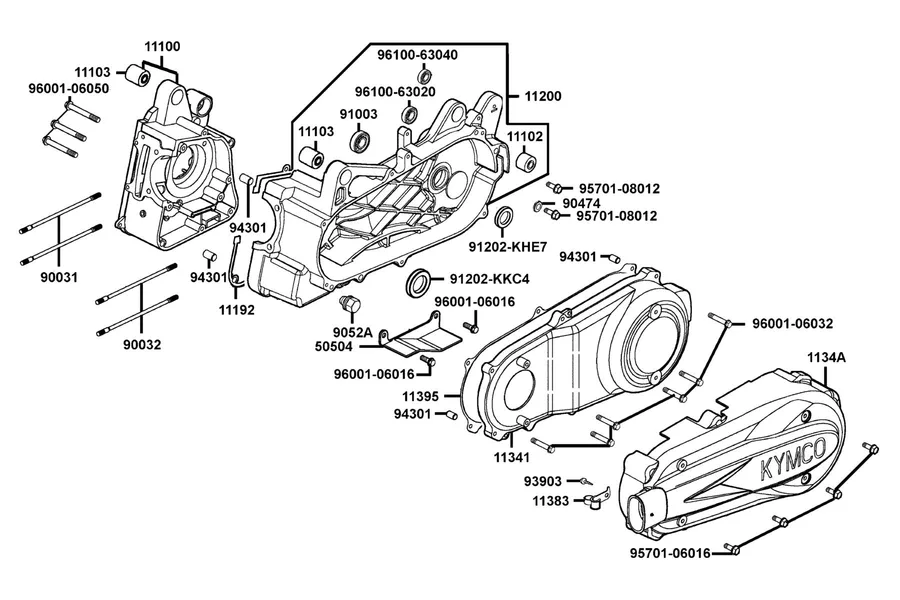

E01 Crank Case parts diagram

E01 — Crank Case

27 parts

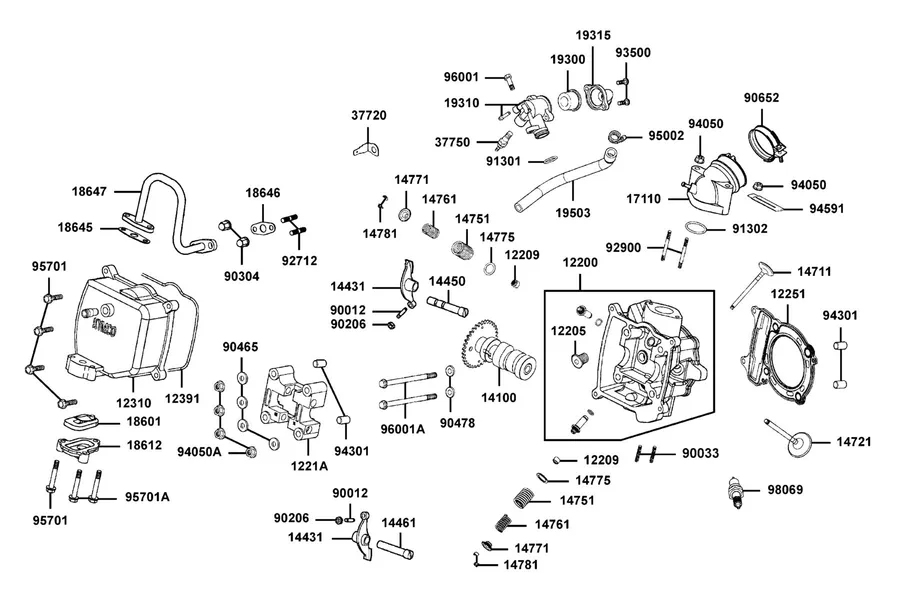

View diagram → E02 Cylinder Head Cover and Cylinder Head parts diagram

E02 — Cylinder Head Cover ●Cylinder Head

53 parts

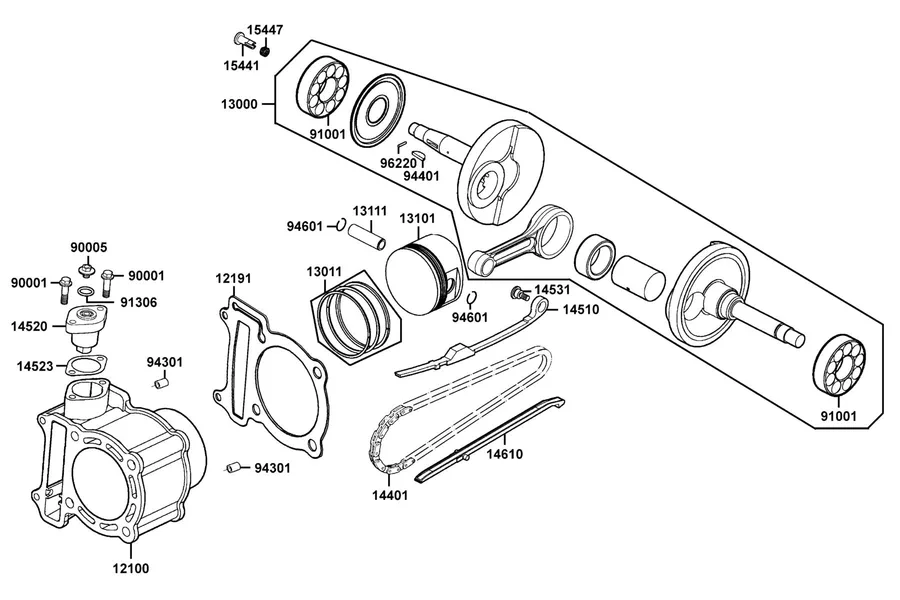

View diagram → E03 Cylinder, Piston and Crankshaft parts diagram

E03 — Cylinder●Piston●Crankshaft

23 parts

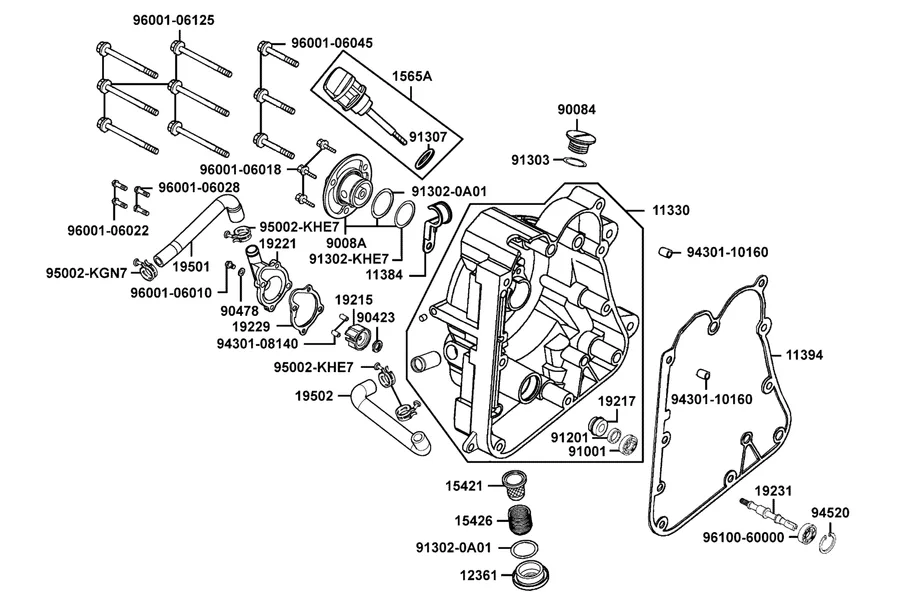

View diagram → E04 Right Crankcase Cover parts diagram

E04 — Right Crankcase Cover

35 parts

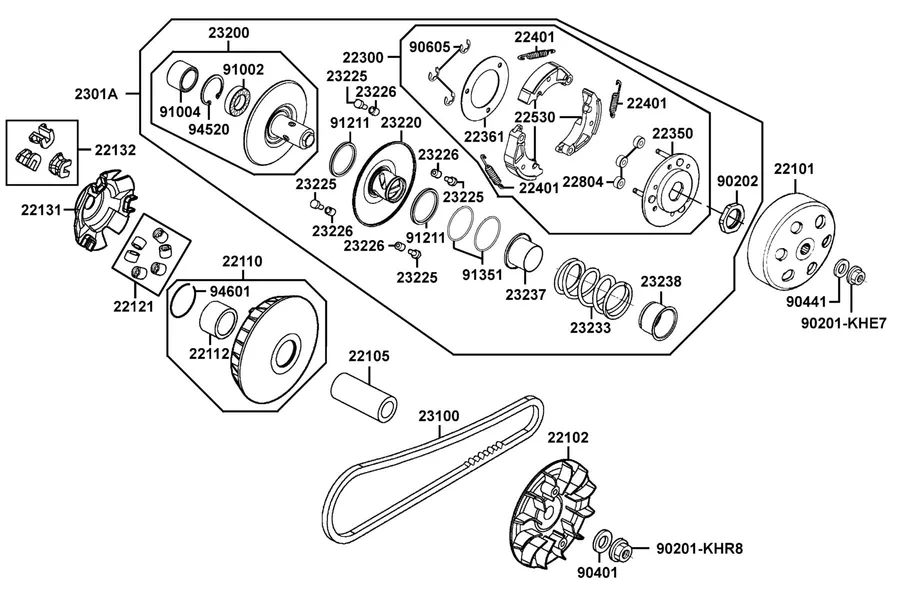

View diagram → E05 Transmission Pulley parts diagram

E05 — Transmission Pulley

40 parts

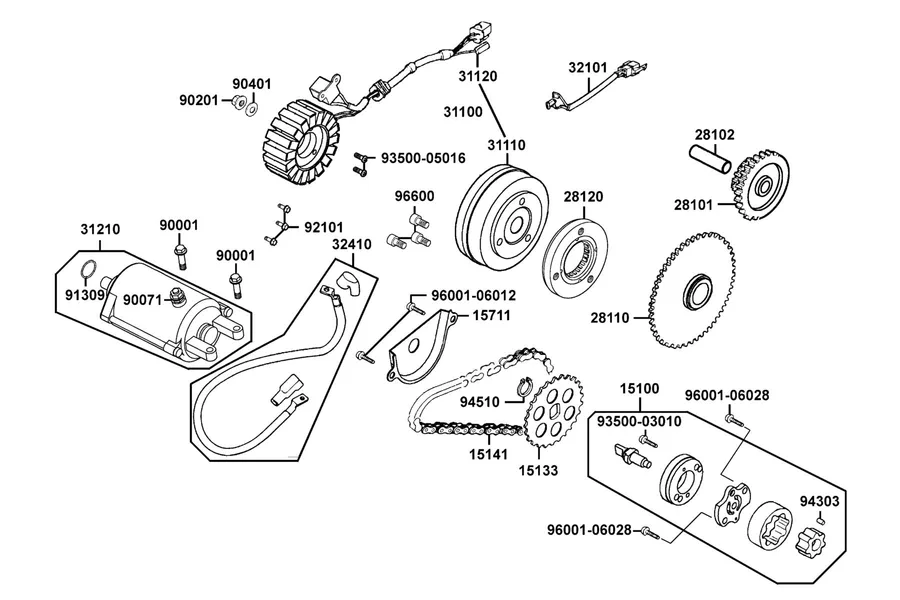

View diagram → E06 Starting Motor and Generator parts diagram

E06 — Starting Motor●Generator

28 parts

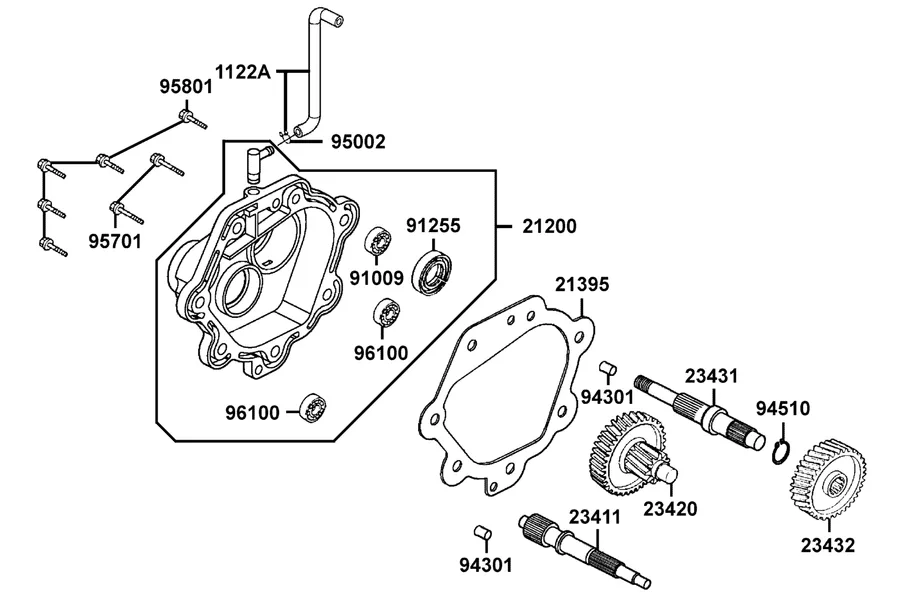

View diagram → E07 Transmission parts diagram

E07 — Transmission

15 parts

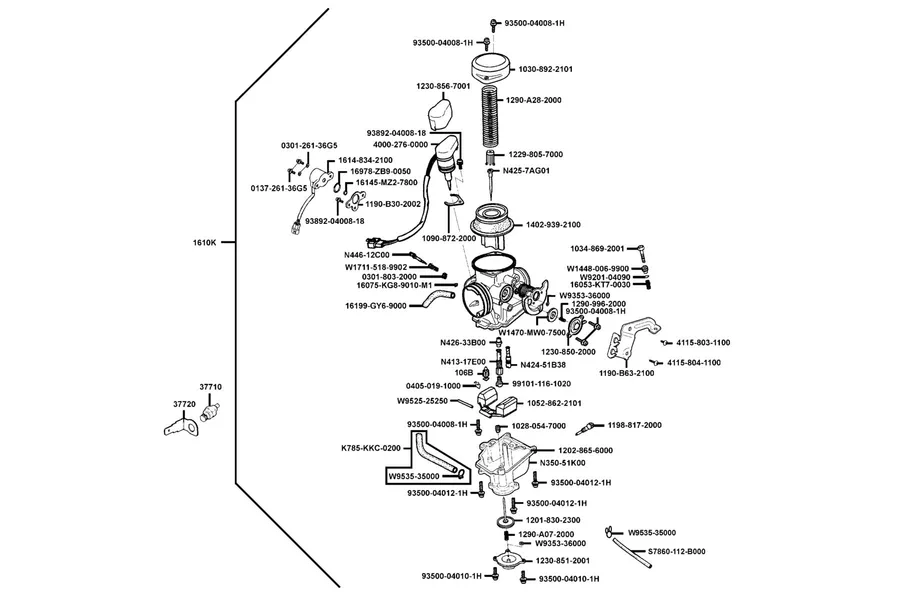

View diagram → E08 Carburetor parts diagram

E08 — Carburetor

55 parts

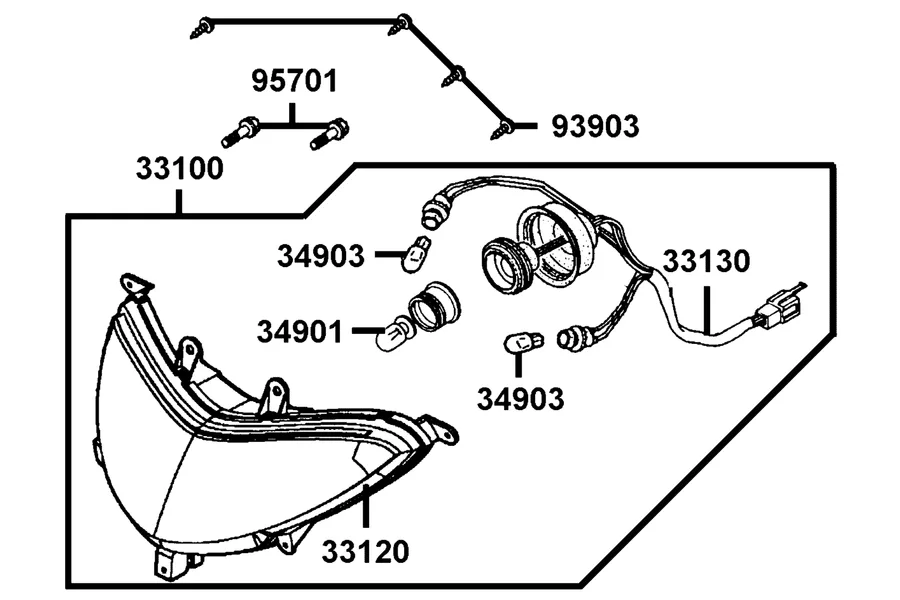

View diagram → F01 Head Light parts diagram

F01 — Head Light

8 parts

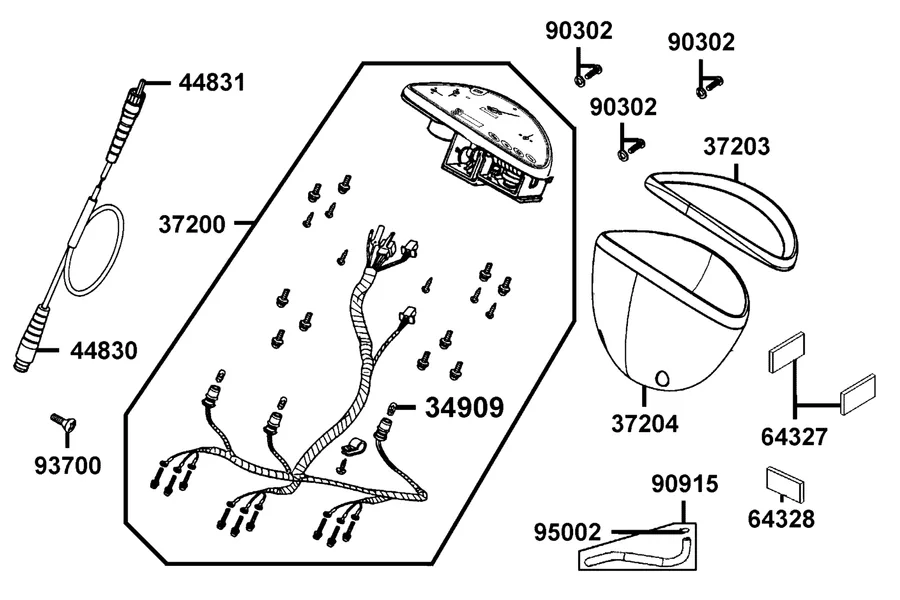

View diagram → F02 Speedometer parts diagram

F02 — Speedometer

12 parts

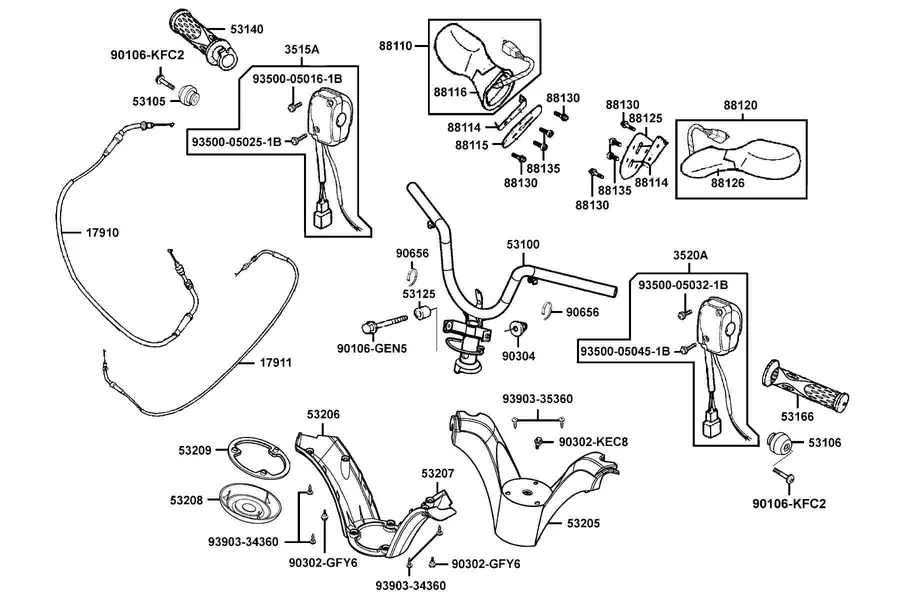

View diagram → F03 Heandle Steering and Headle Cover parts diagram

F03 — Heandle Steering●Headle Cover

36 parts

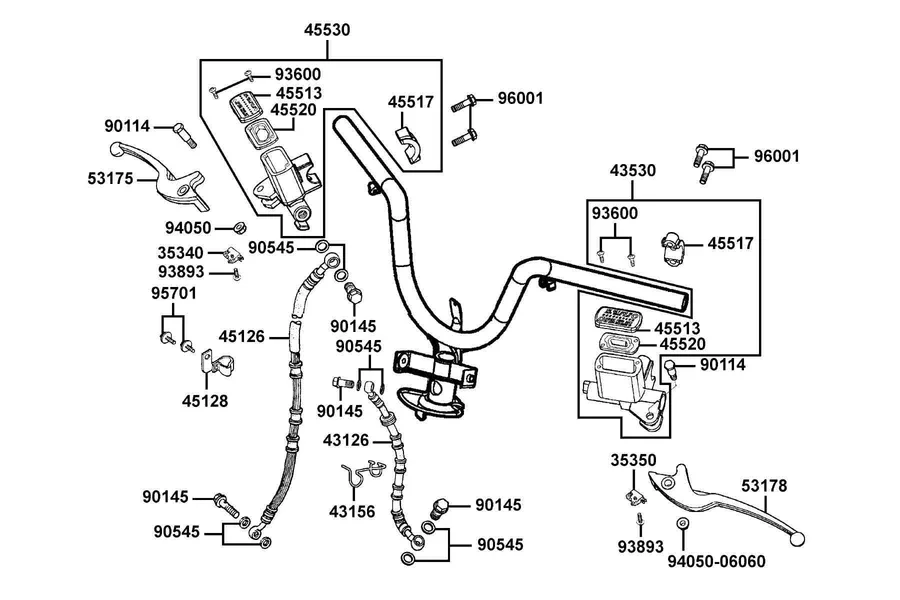

View diagram → F04 Brake Master Cylinder parts diagram

F04 — Brake Master Cylinder

21 parts

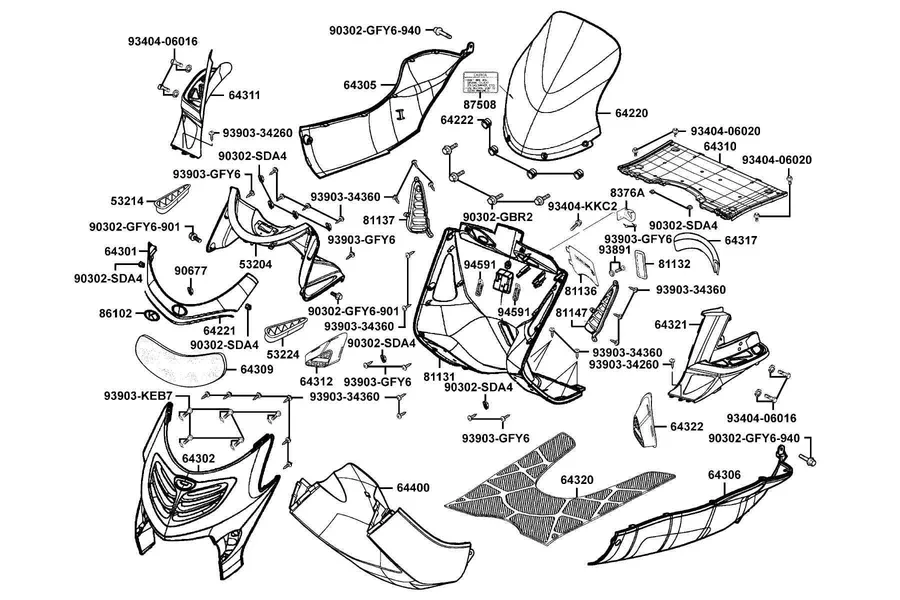

View diagram → F05 Front Cover and Floor Panel parts diagram

F05 — Front Cover●Floor Panel

41 parts

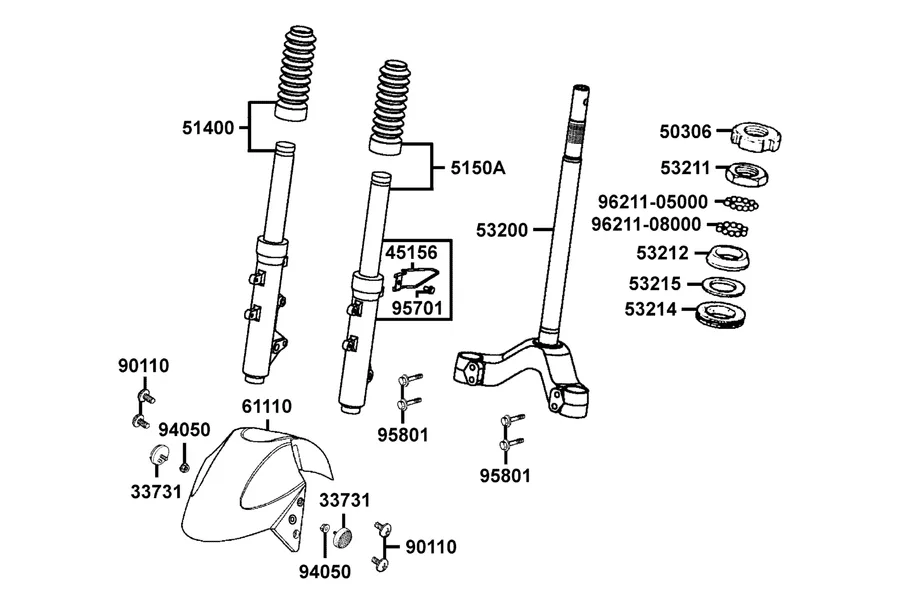

View diagram → F06 Front Cushion parts diagram

F06 — Front Cushion

17 parts

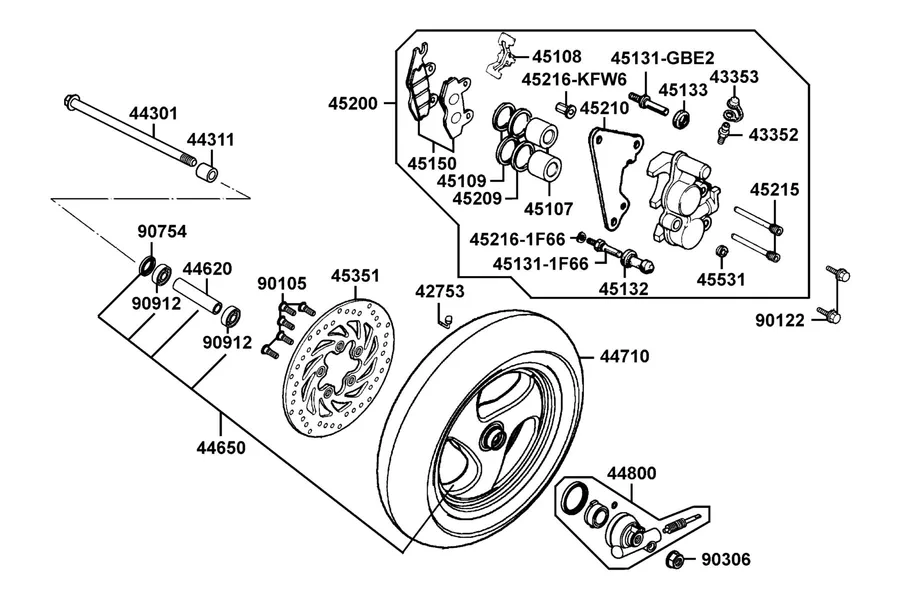

View diagram → F07 Front Wheel parts diagram

F07 — Front Wheel

30 parts

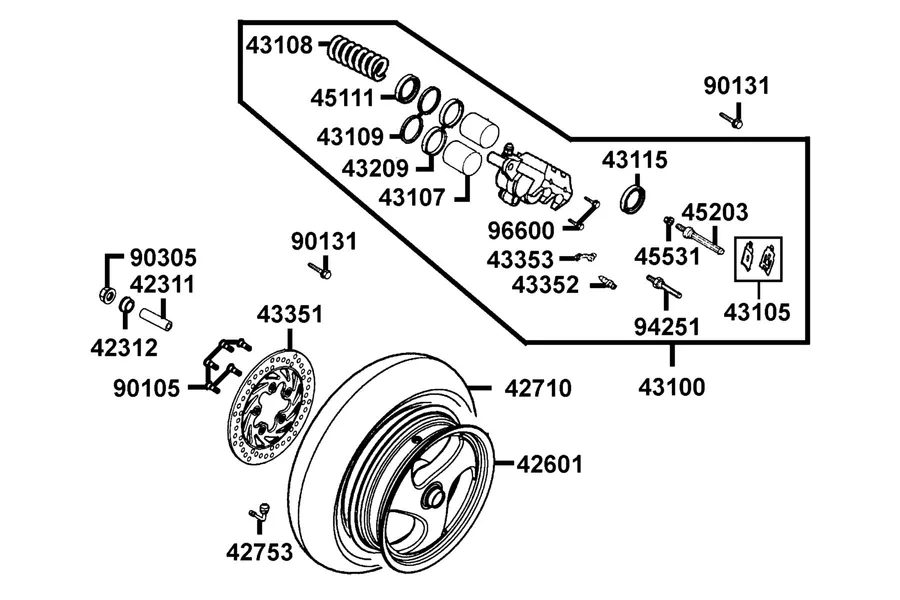

View diagram → F08 Rear Wheel parts diagram

F08 — Rear Wheel

23 parts

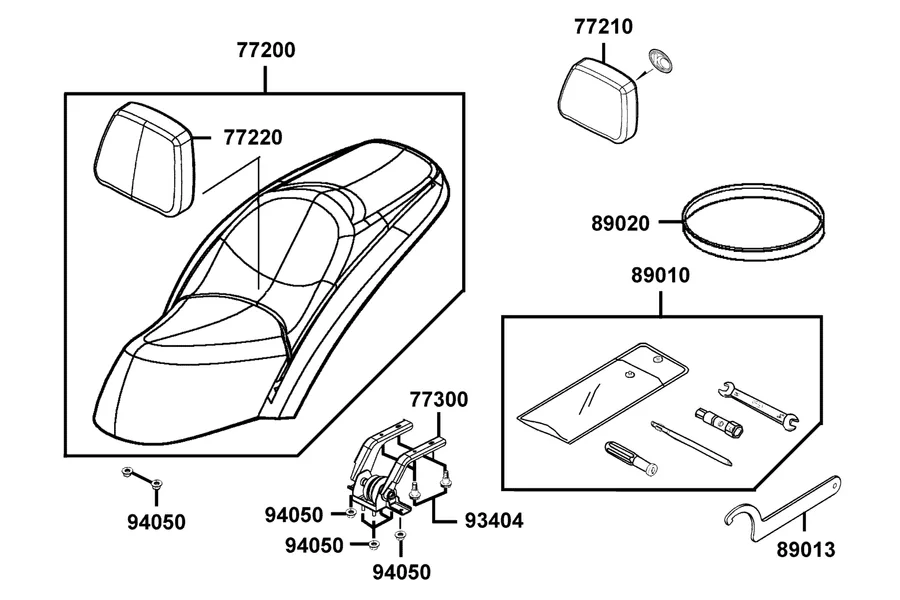

View diagram → F09 Seat parts diagram

F09 — Seat

9 parts

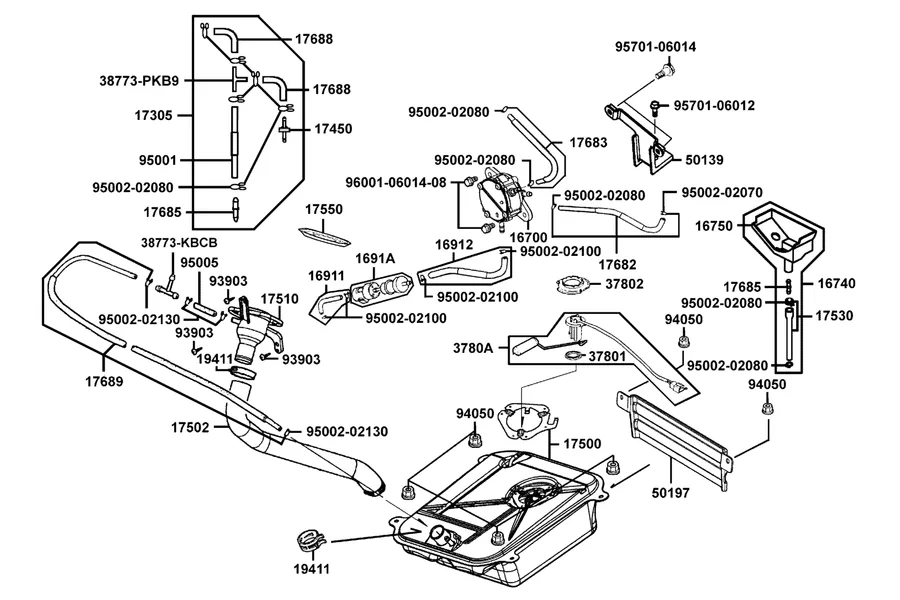

View diagram → F10 Fuel Tank parts diagram

F10 — Fuel Tank

37 parts

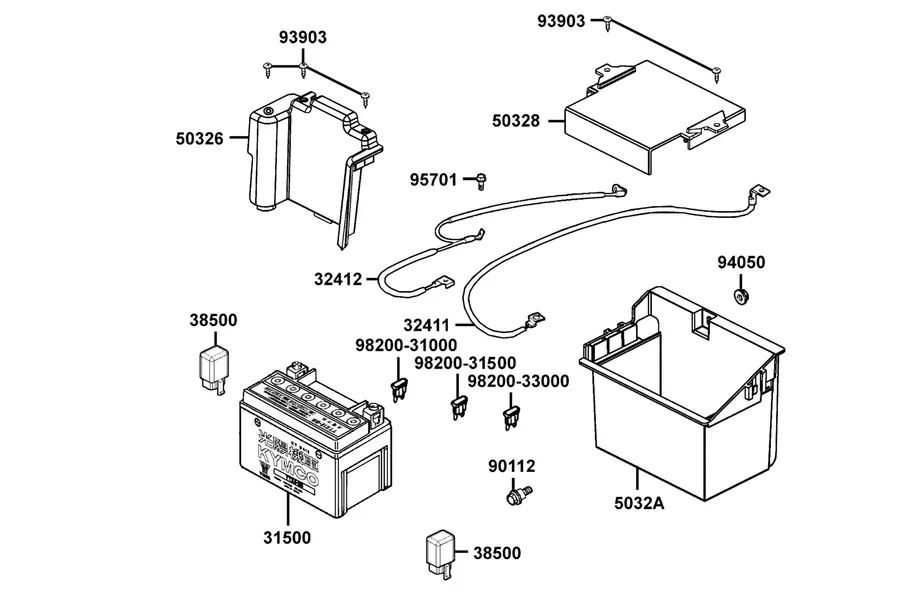

View diagram → F11 Battery parts diagram

F11 — Battery

14 parts

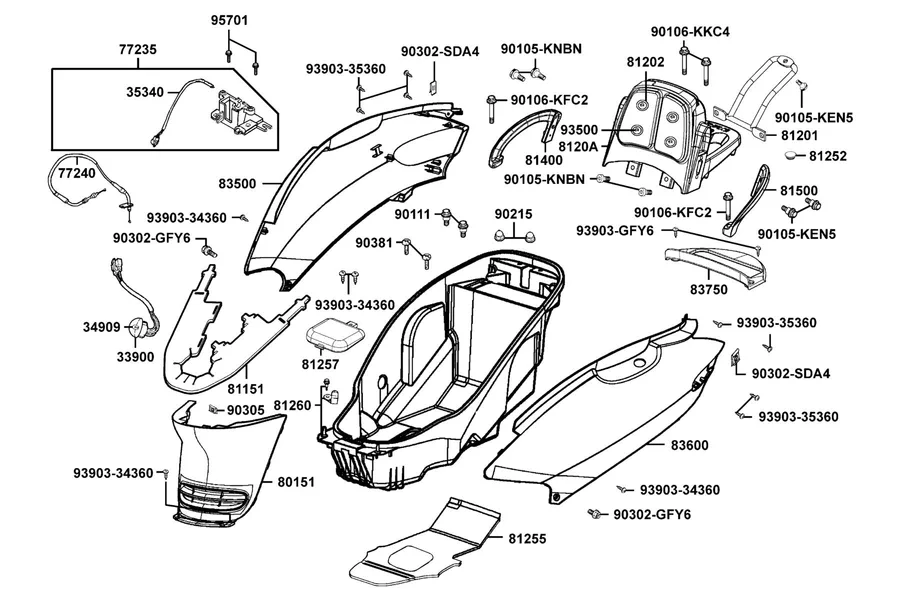

View diagram → F12 Body Cover and Laggage Box parts diagram

F12 — Body Cover●Laggage Box

34 parts

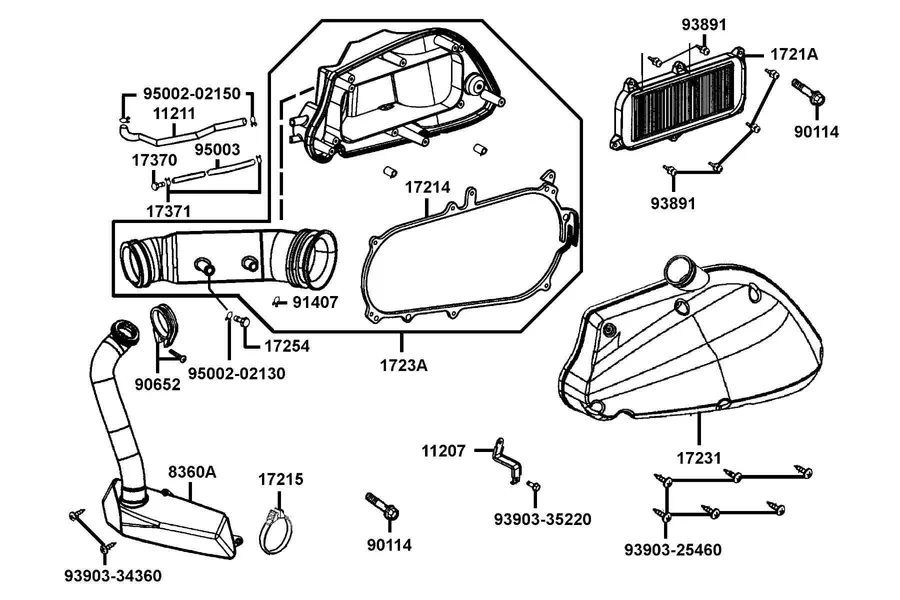

View diagram → F13 Air Cleaner parts diagram

F13 — Air Cleaner

21 parts

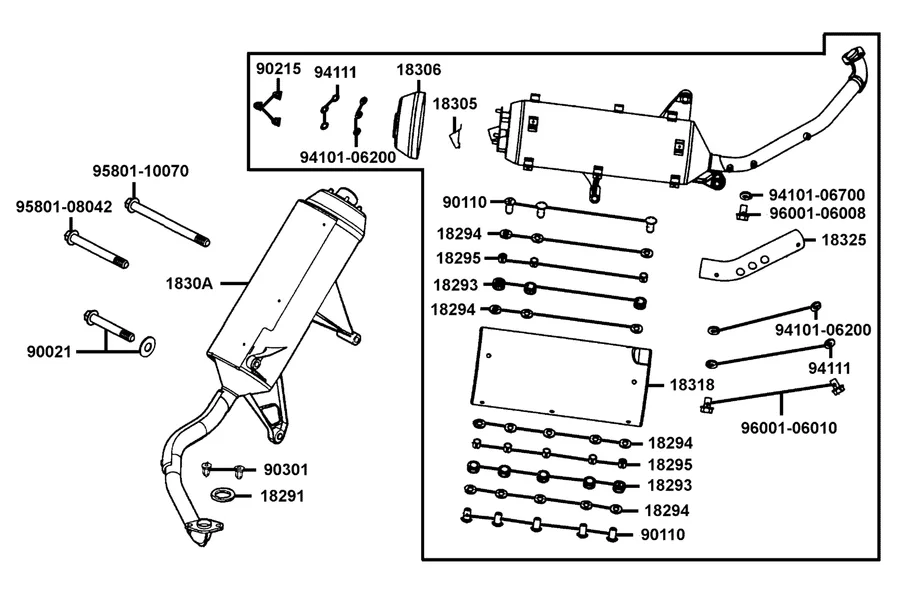

View diagram → F14 Exhaust Muffler parts diagram

F14 — Exhaust Muffler

20 parts

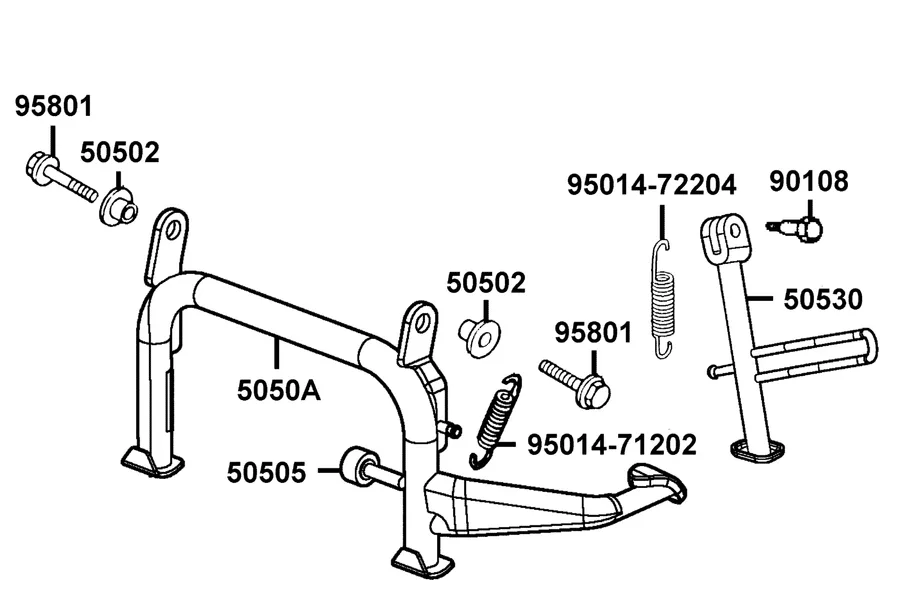

View diagram → F15 Stand and Kick Starter Arm parts diagram

F15 — Stand●Kick Starter Arm

8 parts

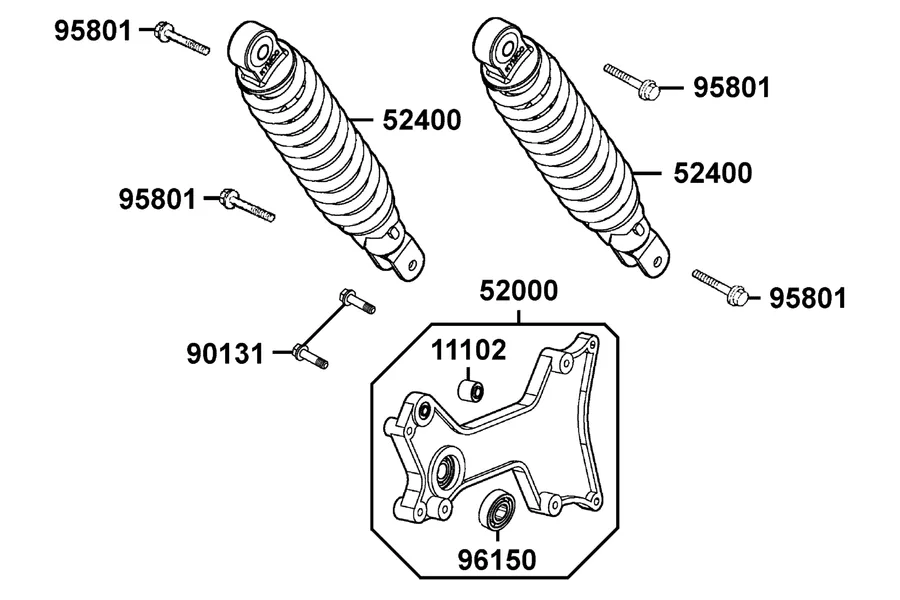

View diagram → F16 Rear Cushion parts diagram

F16 — Rear Cushion

6 parts

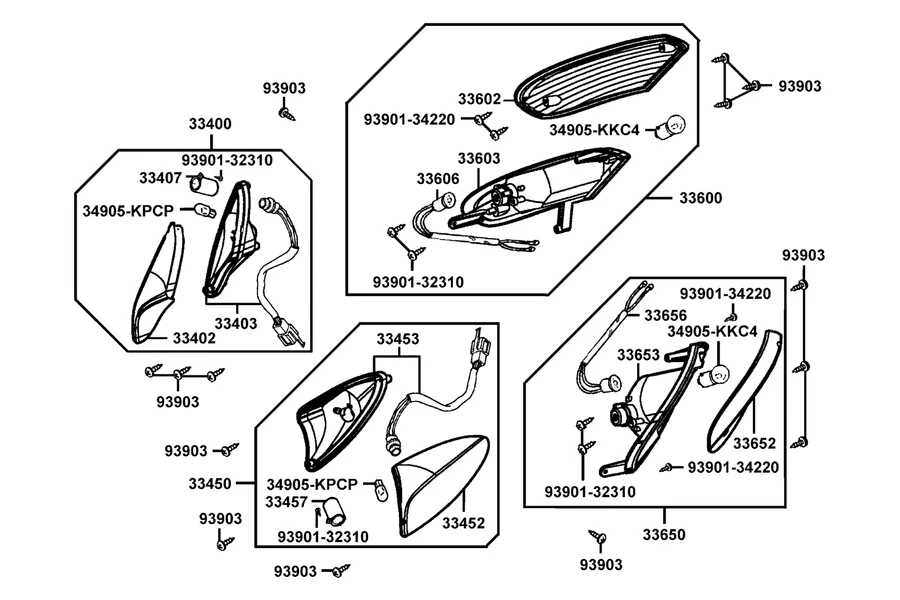

View diagram → F17 Front Winker parts diagram

F17 — Front Winker

21 parts

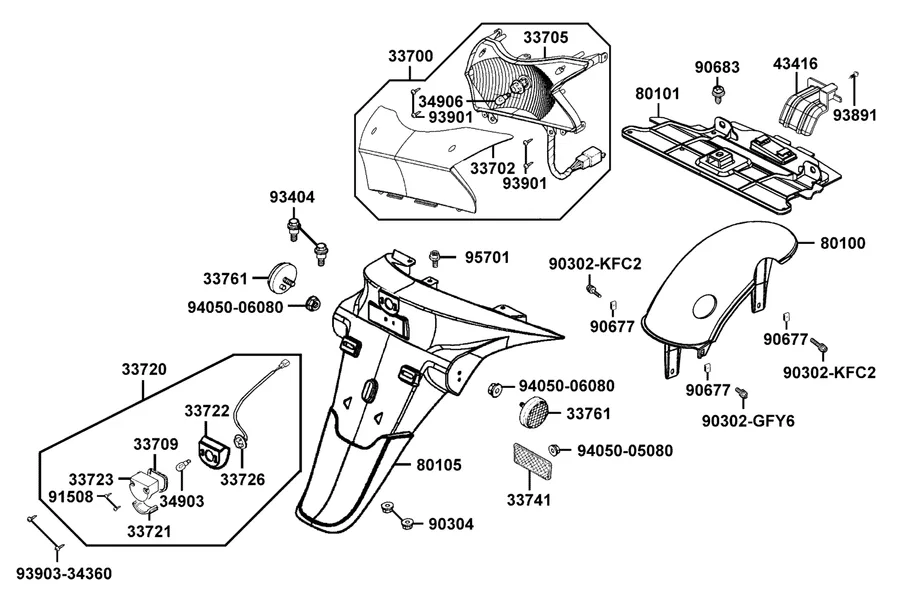

View diagram → F18 Rear Light and Rear Fender parts diagram

F18 — Rear Light●Rear Fender

31 parts

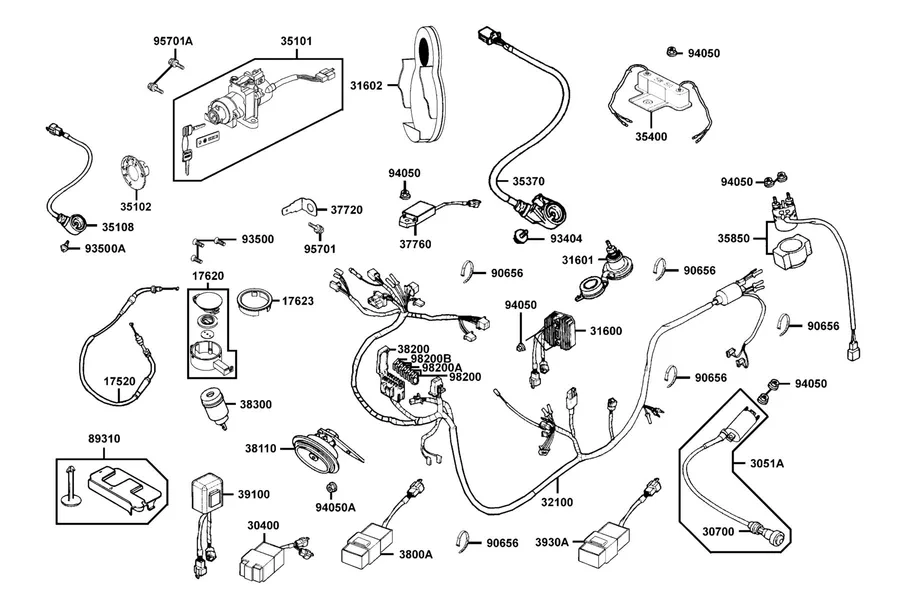

View diagram → F19 Wire Harness parts diagram

F19 — Wire Harness

36 parts

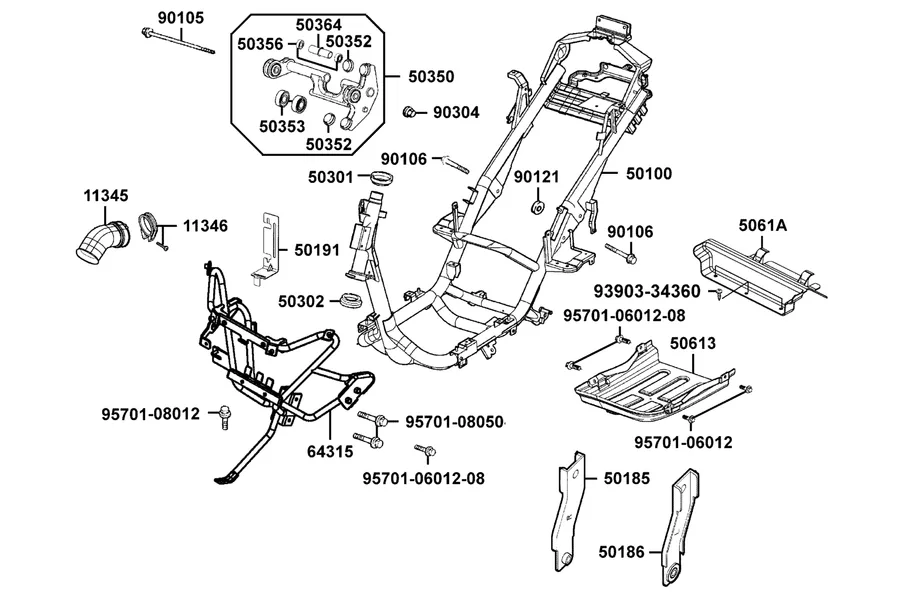

View diagram → F20 Frame Body parts diagram

F20 — Frame Body

24 parts

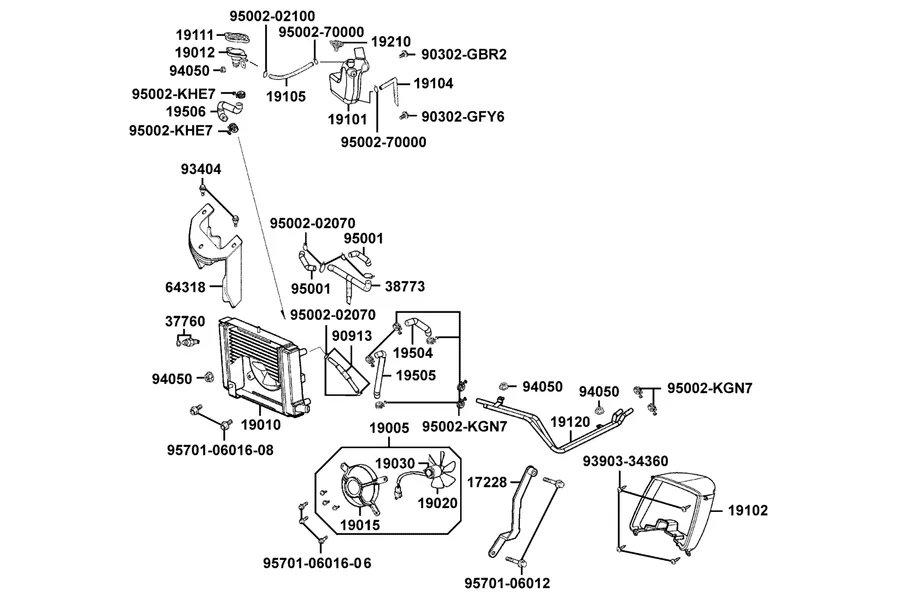

View diagram → F21 Radiator parts diagram

F21 — Radiator

34 parts

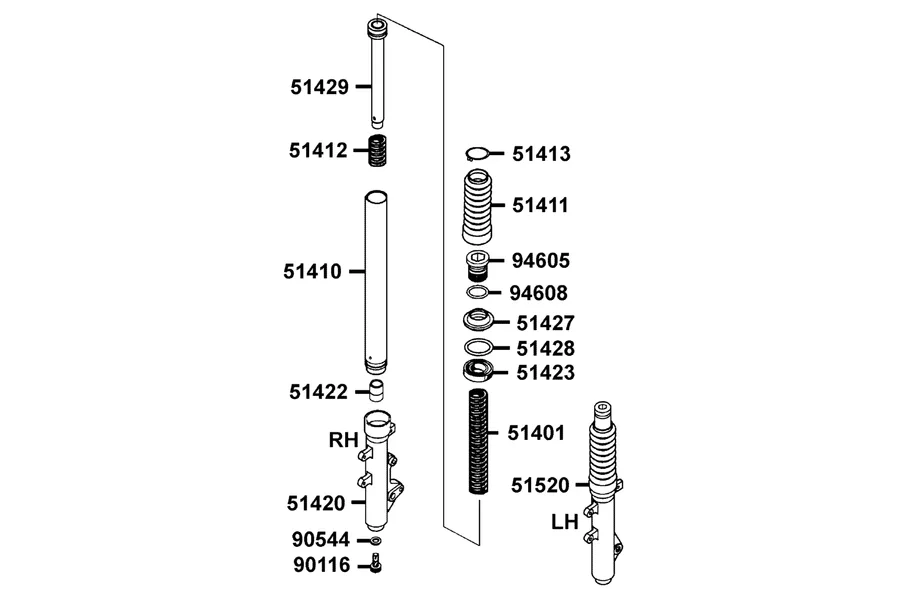

View diagram → F22 Separated Parts Of Fr Fork parts diagram

F22 — Separated Parts Of Fr Fork

16 parts

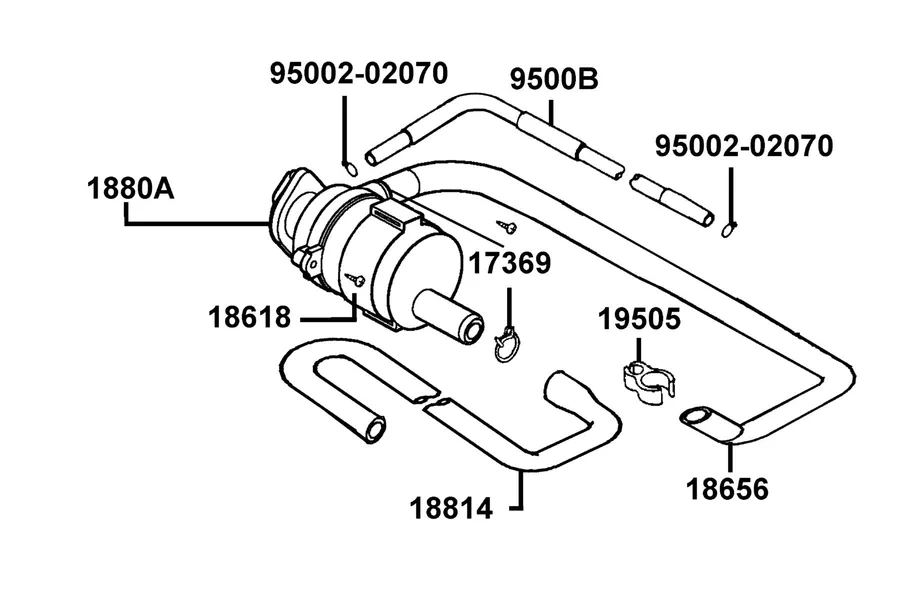

View diagram → F23 Air Cleaner Two parts diagram

F23 — Air Cleaner Two

8 parts

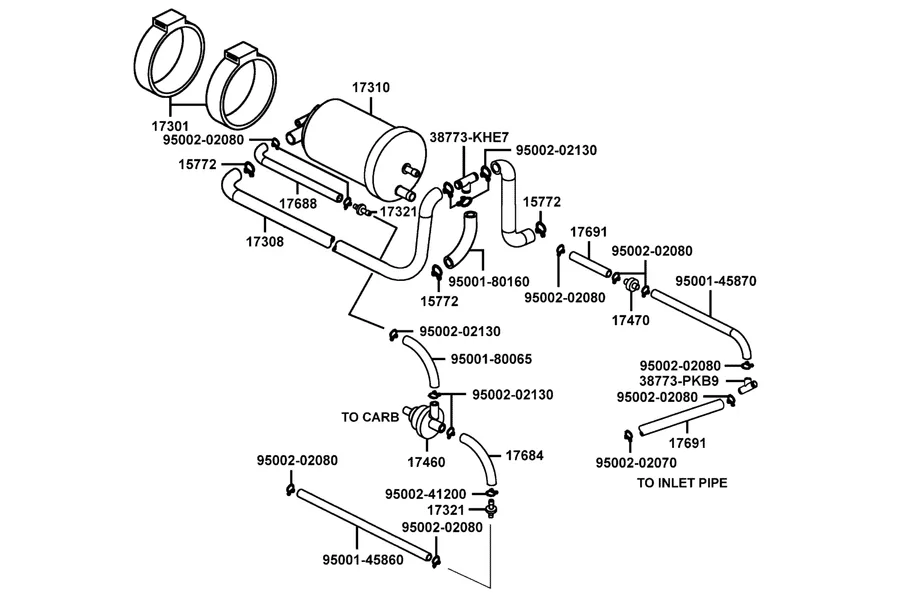

View diagram → F24 Aicv parts diagram

F24 — Aicv

20 parts

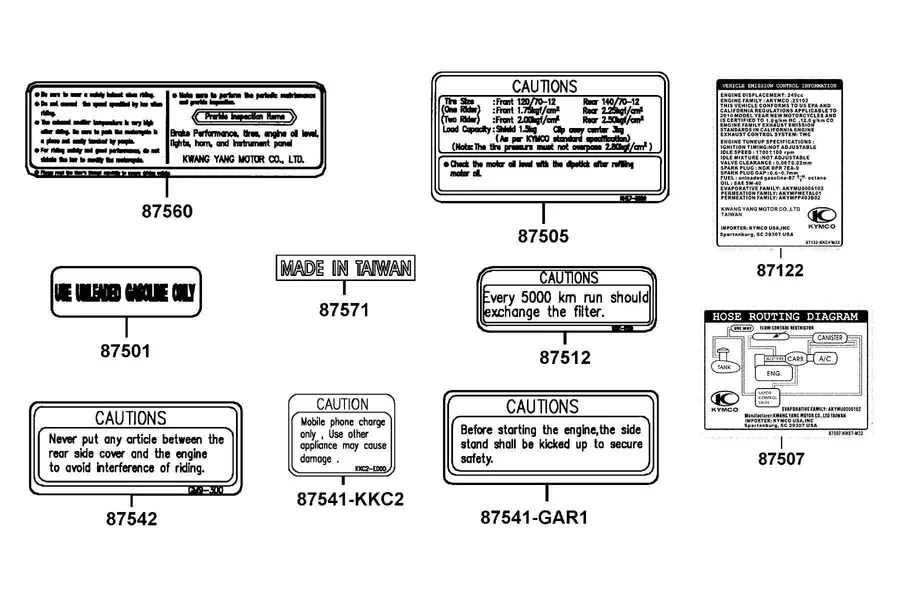

View diagram → F25 Caution Lable parts diagram

F25 — Caution Lable

8 parts

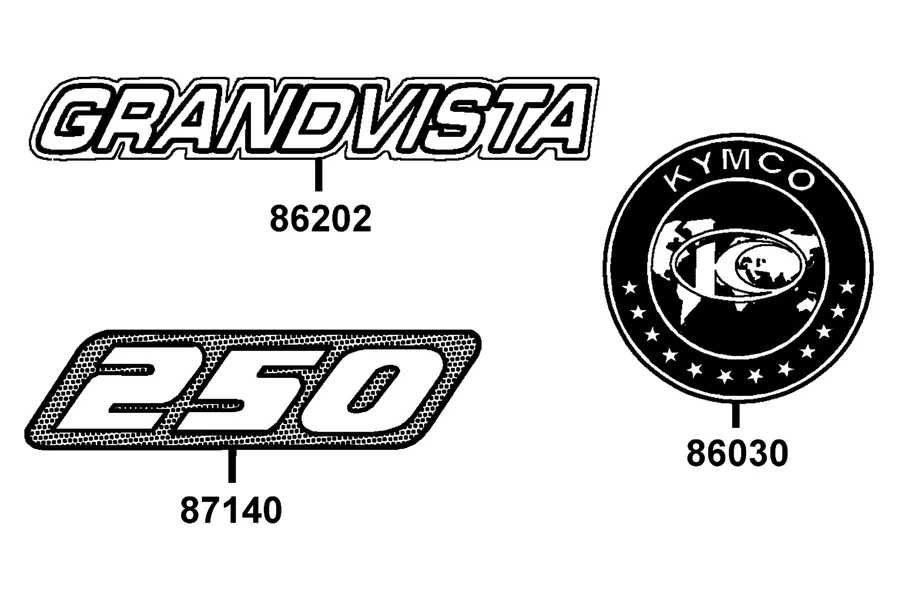

View diagram → F26 Emblem and Stripe parts diagram

F26 — Emblem●Stripe

3 parts

View diagram →

Common questions

How do I find a part number for the 2008 KYMCO Grand Vista 250?

Open the assembly it belongs to below — each diagram is an exploded-view drawing with numbered callouts. Hover a callout to highlight the part in the list, which shows its factory number and price, then click the row to open that part’s product page on kymcopartsstore.com.

What do the diagrams for the 2008 KYMCO Grand Vista 250 cover?

34 factory assemblies with 814 genuine OEM parts — engine (E-codes) and frame/bodywork (F-codes), exactly as KYMCO documents this version.

Will these parts fit my 2008 KYMCO Grand Vista 250?

This catalog is specific to model code SH50DG(US) (2008) in Ruby Red. If that matches your vehicle — or your VIN lookup points here — every part number on these diagrams is the factory-verified fit.
