F12 — Frame Body

DELUXE X"(2018) · Deep Gray Metallic · OEM parts diagram

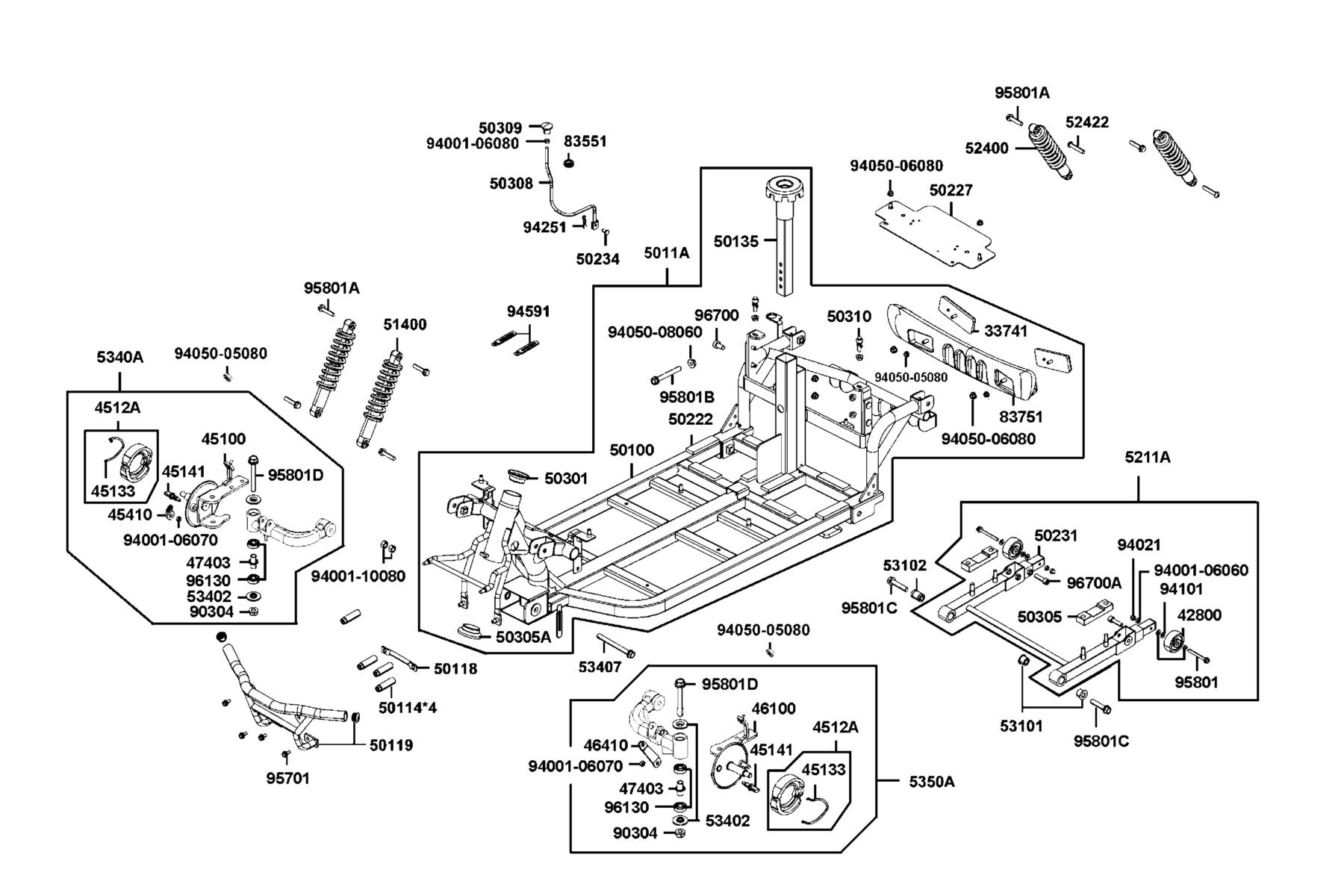

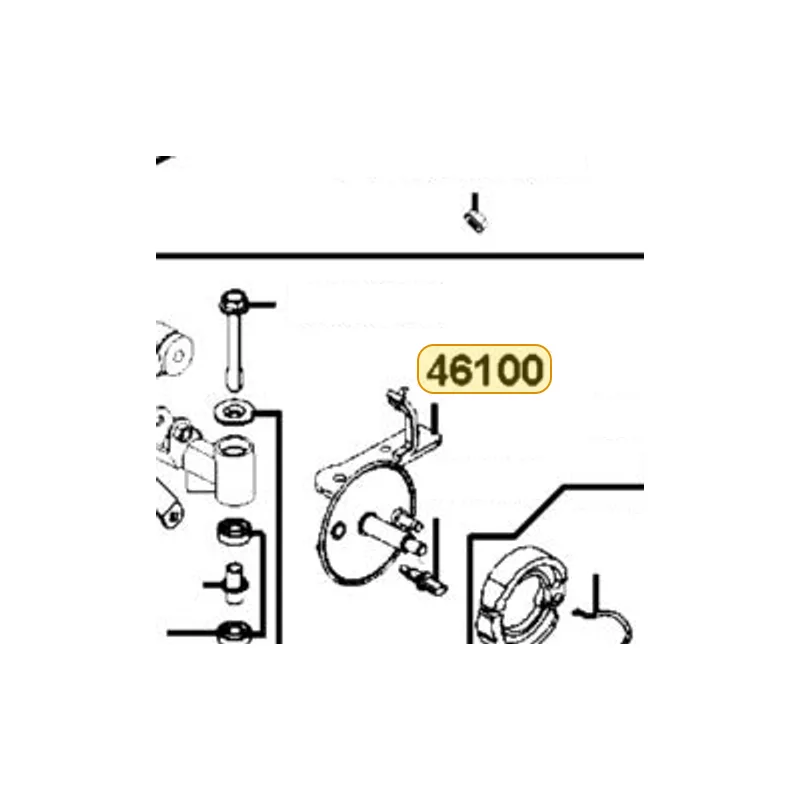

The Frame Body diagram contains 59 genuine OEM parts for the KYMCO DELUXE X"(2018). Hover a callout on the drawing to highlight the part in the list, click it to open that part’s product page on kymcopartsstore.com, or click the drawing to zoom.

US shipping, calculated at checkout · Special orders come from KYMCO’s US distributor · 14-day returns & fitment guarantee

KYMCO DELUXE X" (2018) Frame Body parts diagram

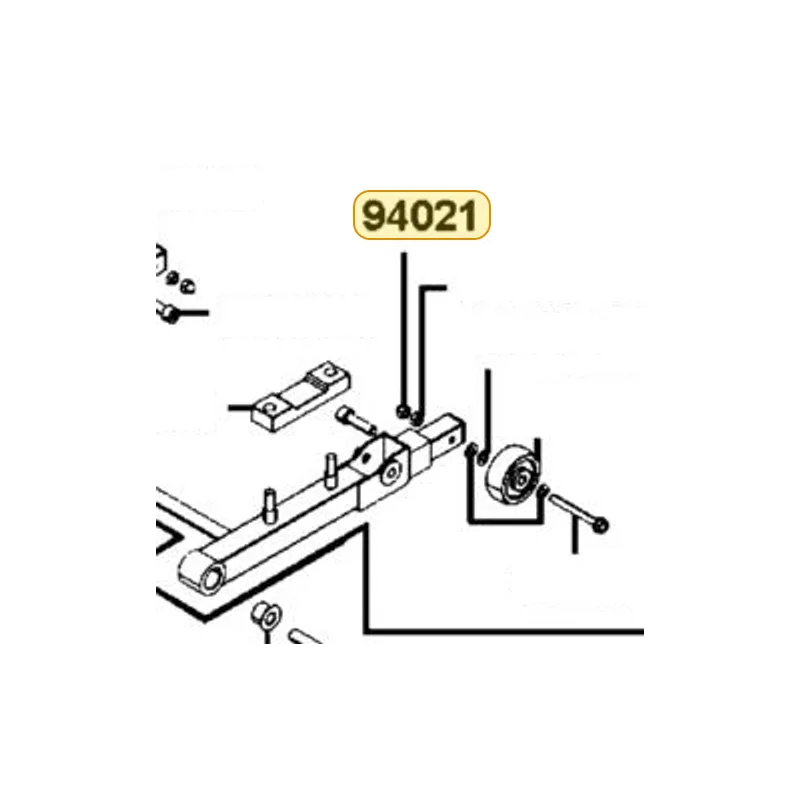

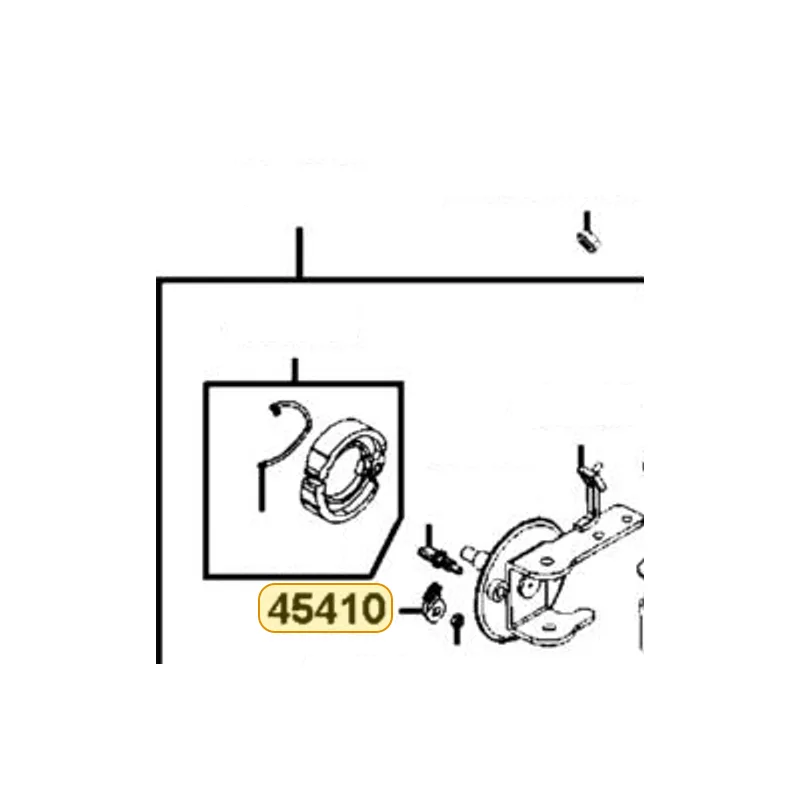

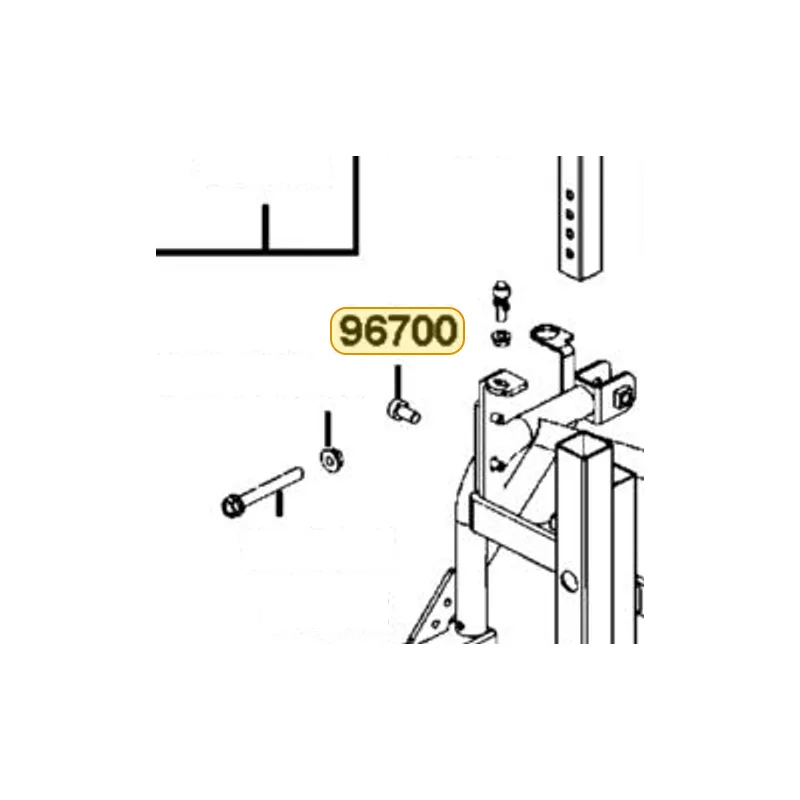

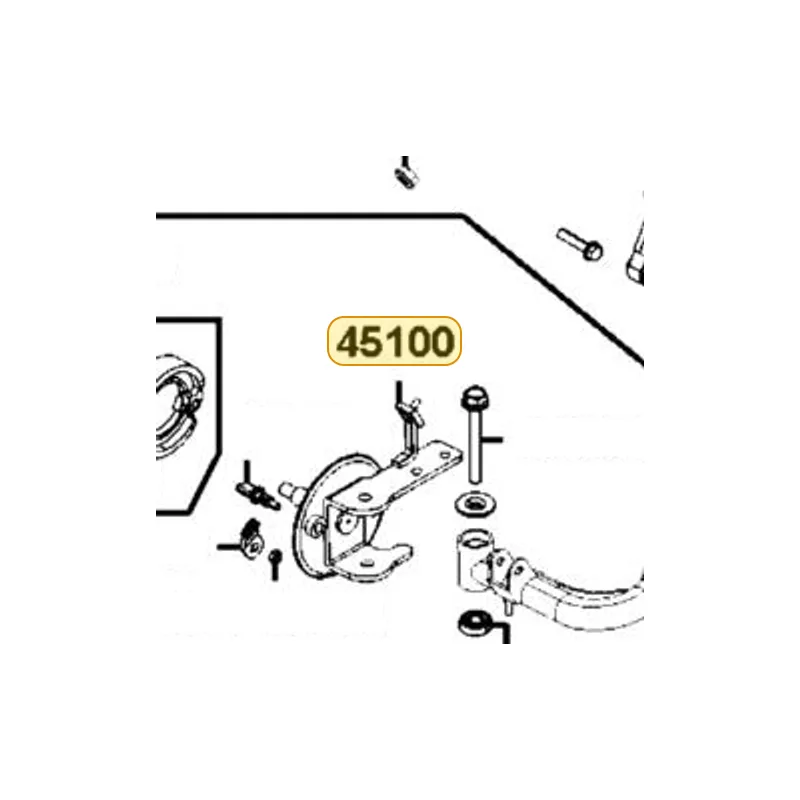

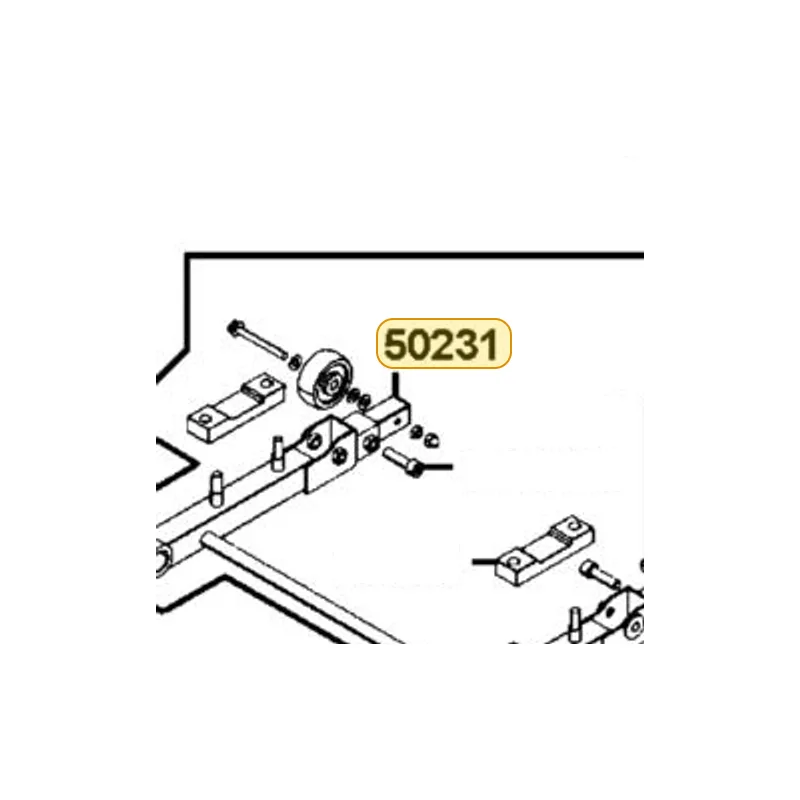

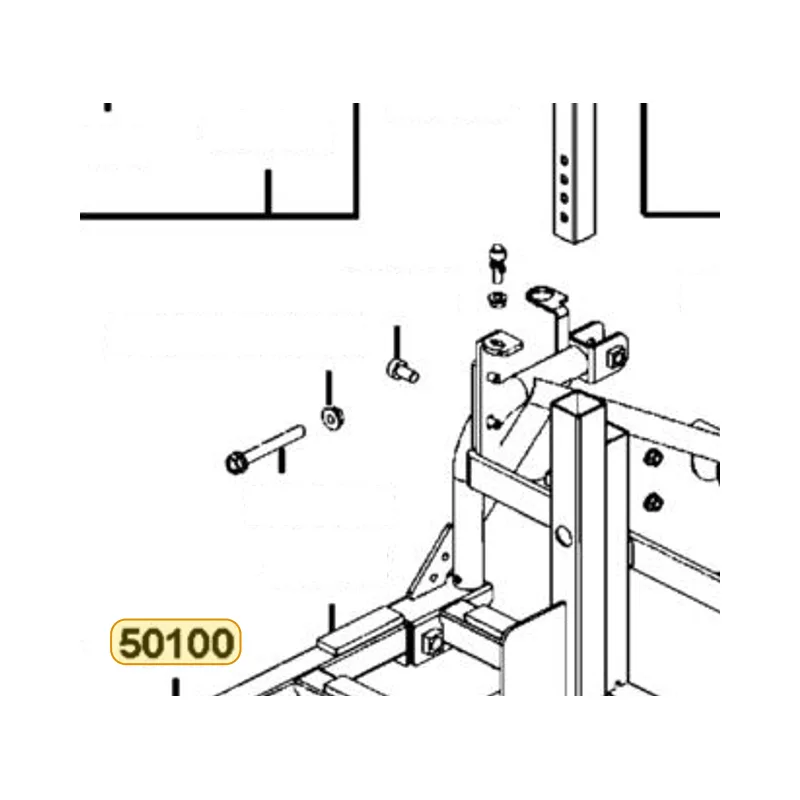

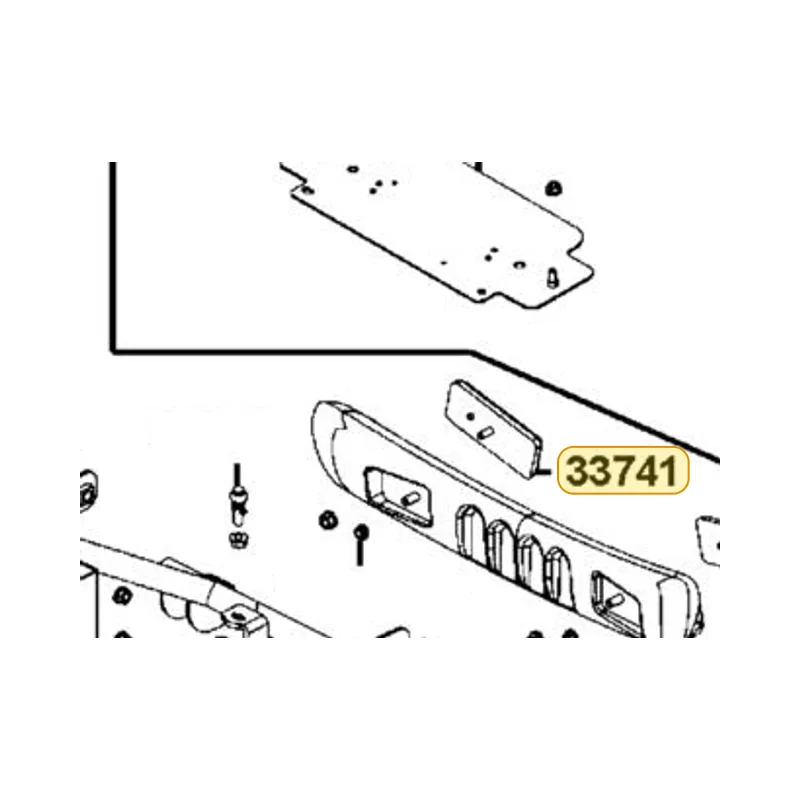

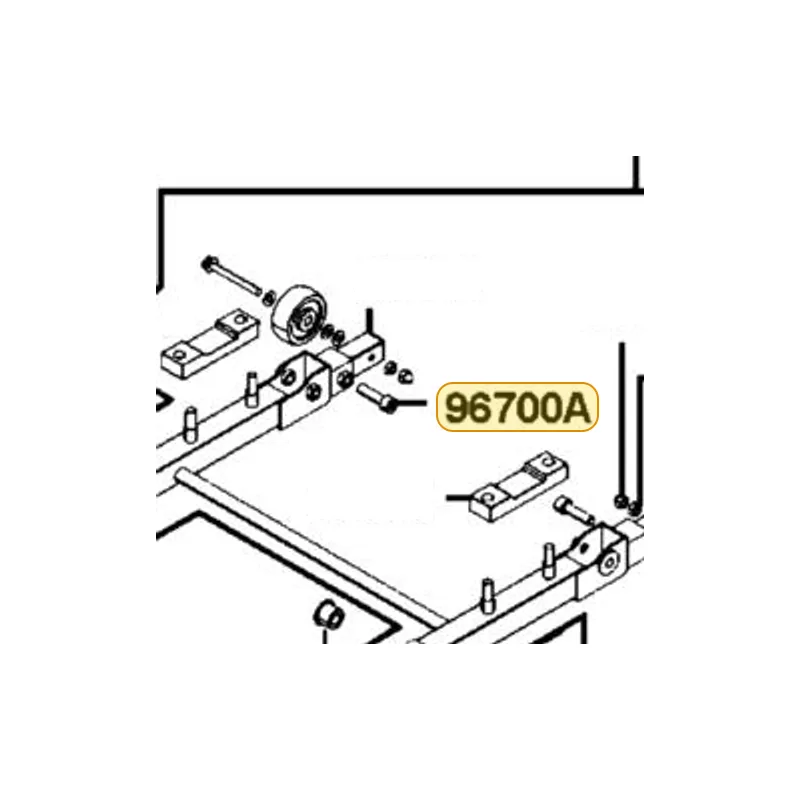

59 of 59 parts
