F10 — Frame Body

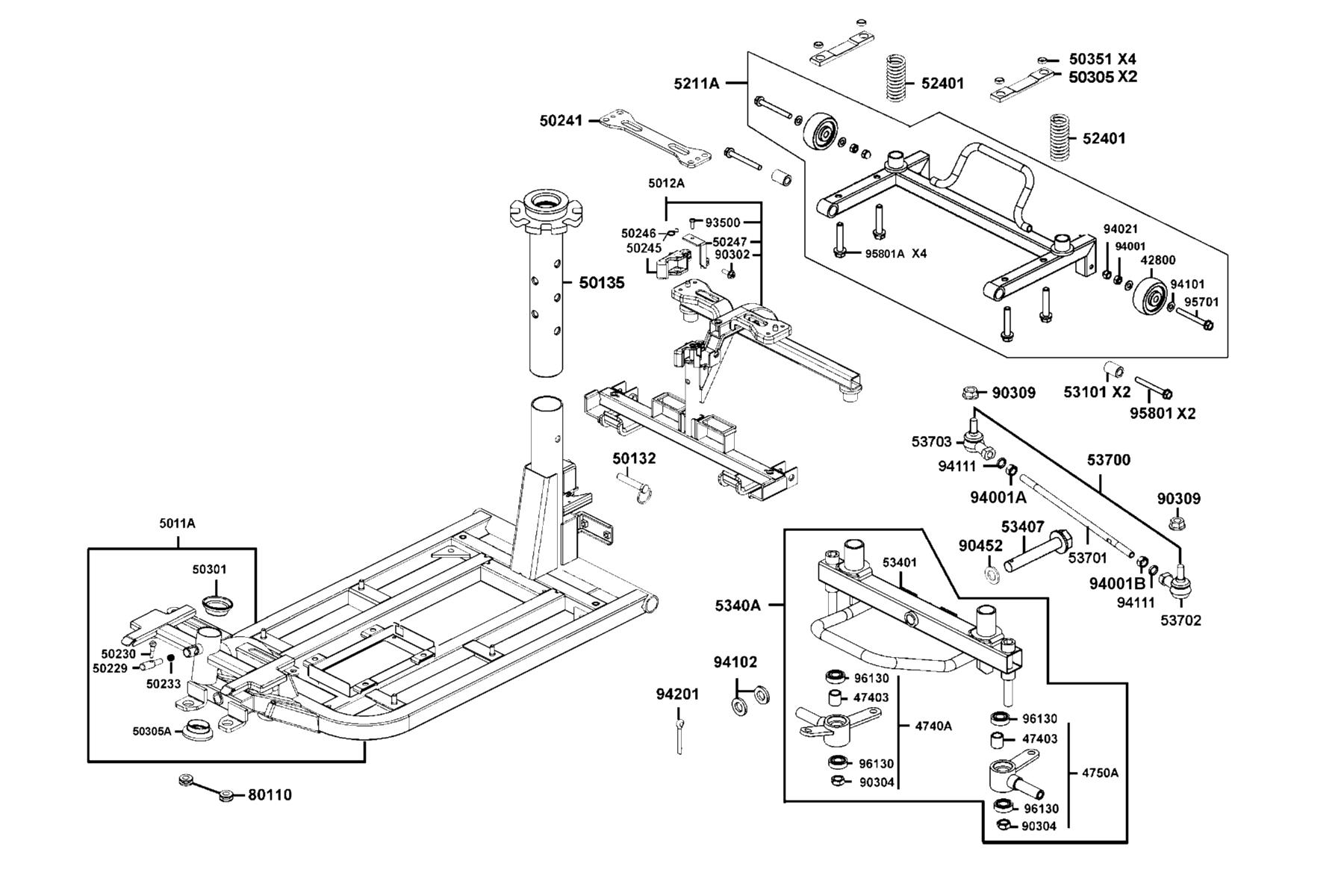

The Frame Body diagram contains 47 genuine OEM parts for the KYMCO Mini S ForU (2017~). Hover a callout on the drawing to highlight the part in the list, click it to open that part’s product page on kymcopartsstore.com, or click the drawing to zoom.
US shipping, calculated at checkout · Special orders come from KYMCO’s US distributor · 14-day returns & fitment guarantee
-
WHEEL AUX -
DIST COLLAR .SHAFT -
SHAFT ASSY RH SWING -
SHAFT ASSY LH SWING -
FRONT FRAME ASSY -
REAR FRAME ASSY -
PIN.LOCK -
PIPE B SEAT SET -
PINA HANDLE LOCK -
PIN B HANDLE LOCK -
SPG HANDLE LOCK -
STAY REAR FRAME ASSY. -
HOOK RR FRAME CATCH -
SPRING RR FRAME LOCK -
STAY LOCK -
HEAD CUP TOP 1" -
RUBBER MOTOR -
HEAD CUP BOTTOM 1" -
COLLAR .GEAR BOX -
FORK ASSY RARE -

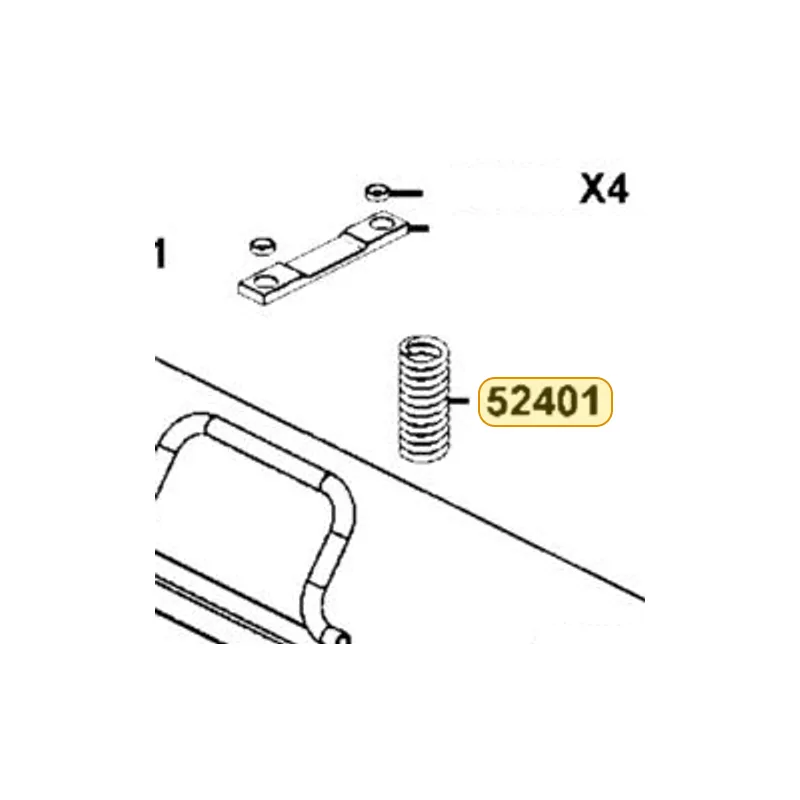

SPRING RR -
COLLAR RR FORK -

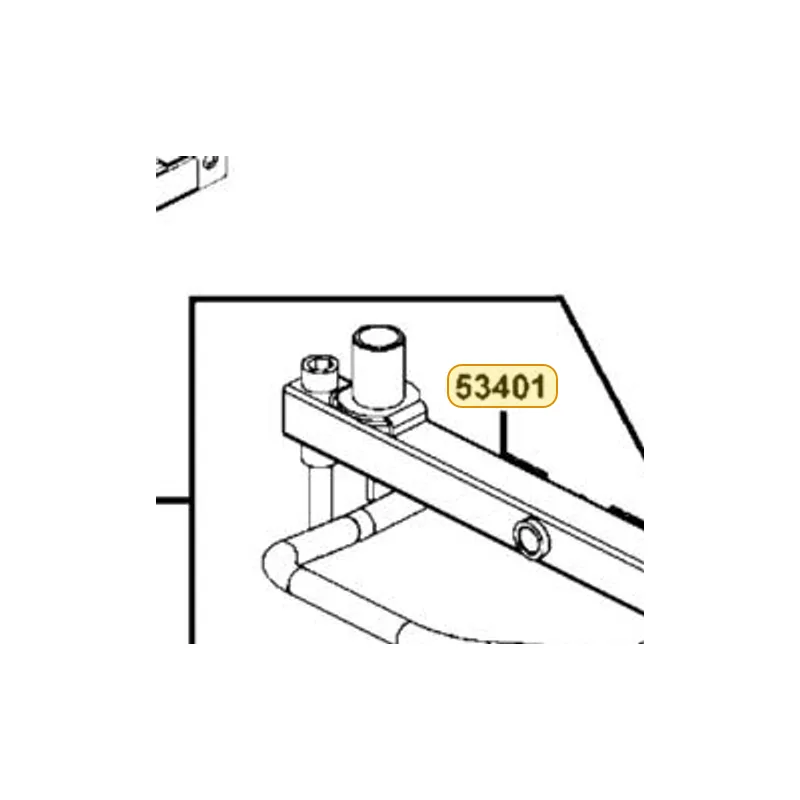

ARM COMP SWING -
BOLT FLANGE 12*85 -
ARM ASSY SWING -
ROD ASSY SWING ARM -
ROD SWING ARM -
$39.06 View product → -
$39.06 View product → -
$3.66 View product → -
BOLT-WASH 5X12 -
HEX NUT U 10MM(B) -
NUT U FLANGE 8MM -
WASHER -
SCREW PAN 4*12 -
NUT HEX 6MM -
$0.27 View product → -
NUT HEX 8MM L -
NUT HEX CAP 6MM -
$0.27 View product → -
WASHER PLAIN 12MM -
$0.99 View product → -
PIN SPLIT 3*25 -
BOLT FLANGE 68*55 -
$10.50 View product → -
$6.54 View product → -
BEARING BALL RADIAL 6900ZZ
