F10 — Frame Body

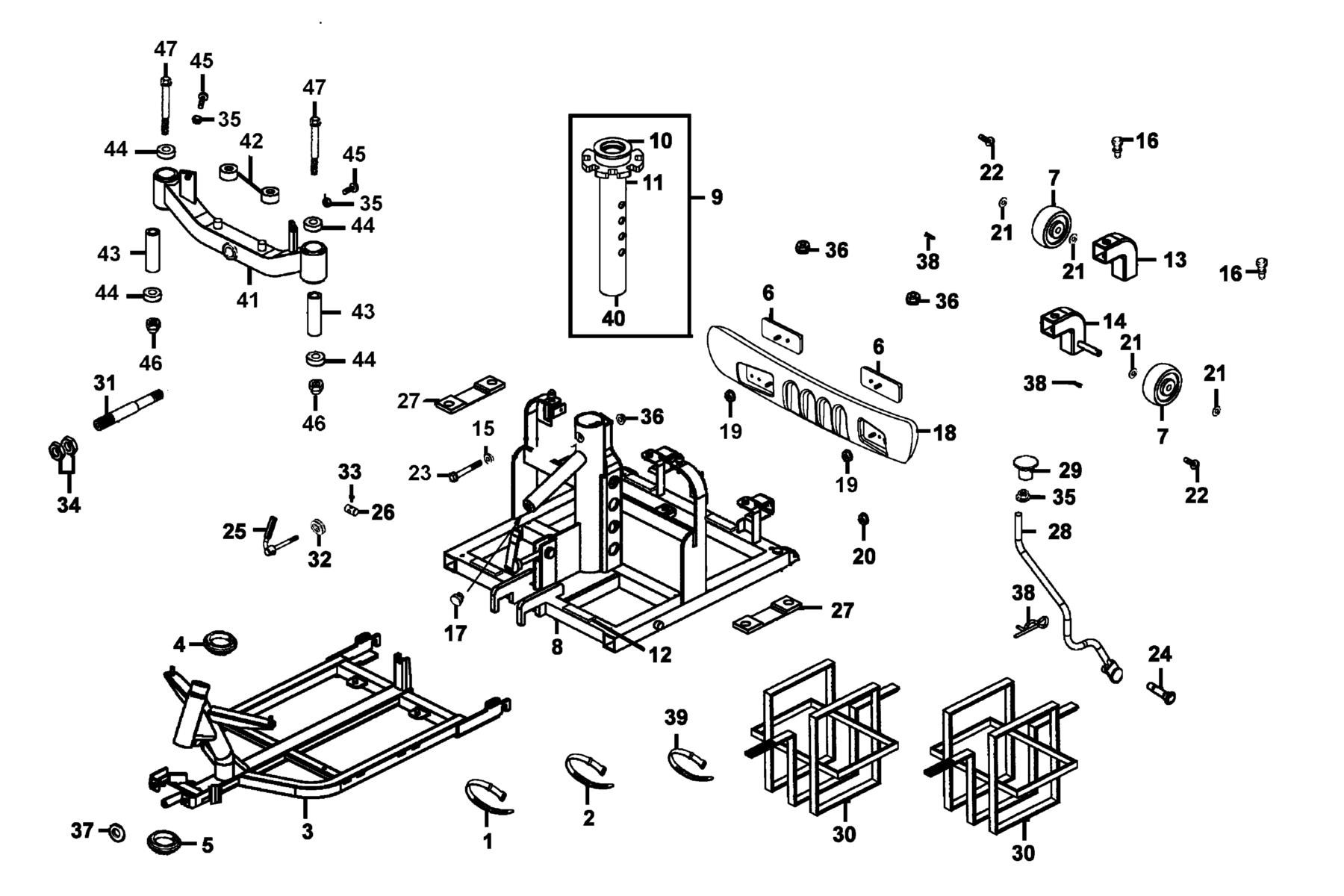

The Frame Body diagram contains 46 genuine OEM parts for the KYMCO Strider (2005~2006). Hover a callout on the drawing to highlight the part in the list, click it to open that part’s product page on kymcopartsstore.com, or click the drawing to zoom.
US shipping, calculated at checkout · Special orders come from KYMCO’s US distributor · 14-day returns & fitment guarantee
-
BAND BATTERY -
BAND B BATTERY -
REFLEX REFLECTOR -
WHEEL AUX -
COLLAR STRG SHAFT -

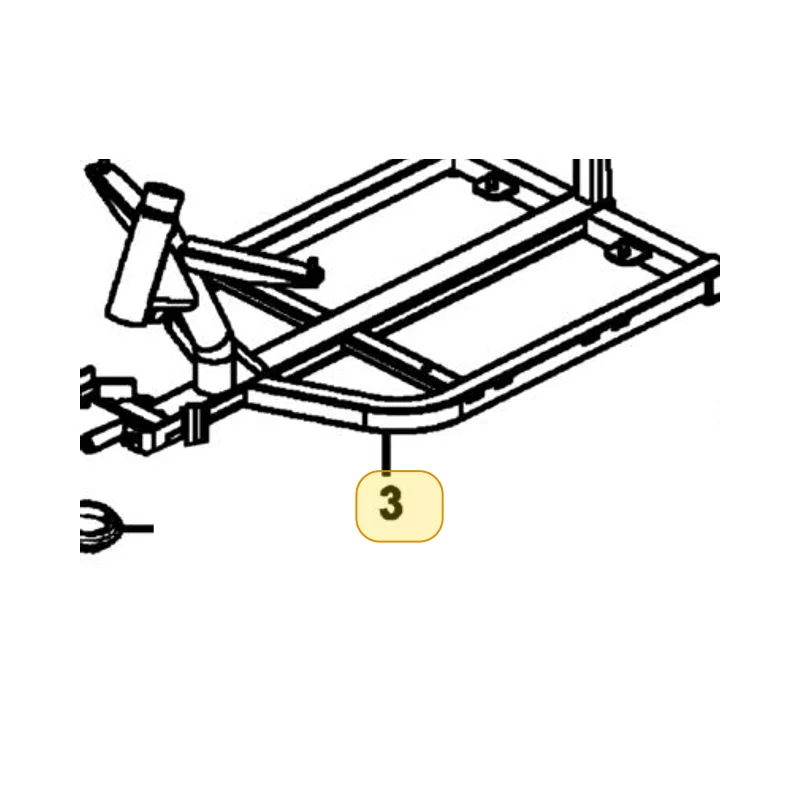

BODY COMP FRONT FRAME -

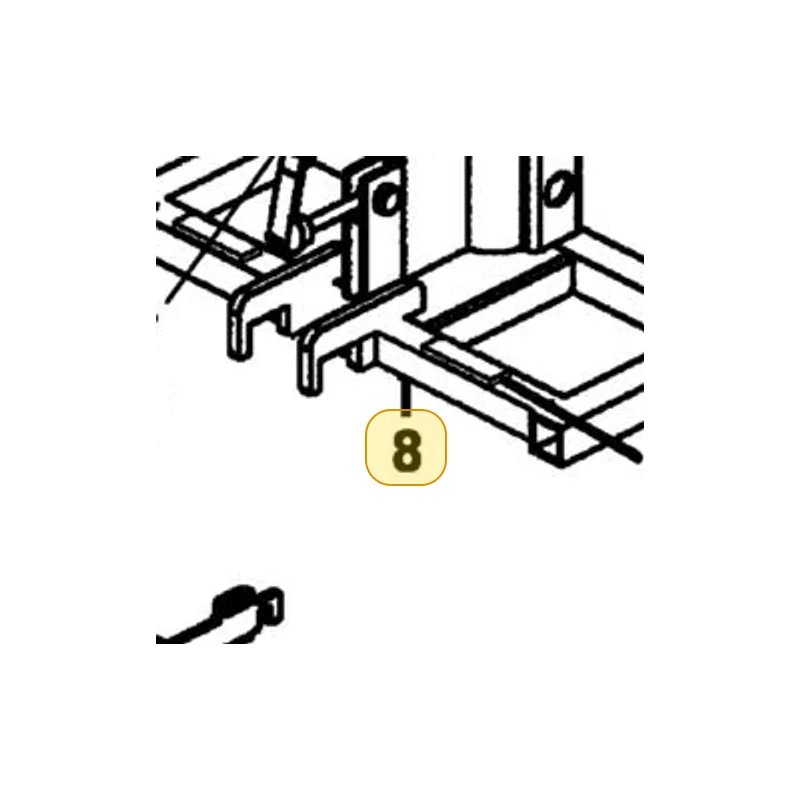

BODY COMP REAR FRAME -
PIPE B SEAT SET -
RUBBER SEAT SET -
RUBBER A SEAT PIPE -
RUBBER B SEAT PIPE -
RUBBER BATTERY SET -
BRKT R REAR WHEEL -
BRKT L REAR WHEEL -
SHAFT BRAKE LEAVE -
RACE UP STRG BALL -
FAST DISMANTLE SEAT -
COLLAR SEAT SET PIPE -
COLLAR FRAME LOCK -
RUBBER MOTOR -
RACE UNDER STRG BALL -
BAR BRAKE LEAVE -
GRASP BRAKE LEAVE -
BOLT LOCK PIN -
BAG BATTERY -
RUBBER BLOCK -

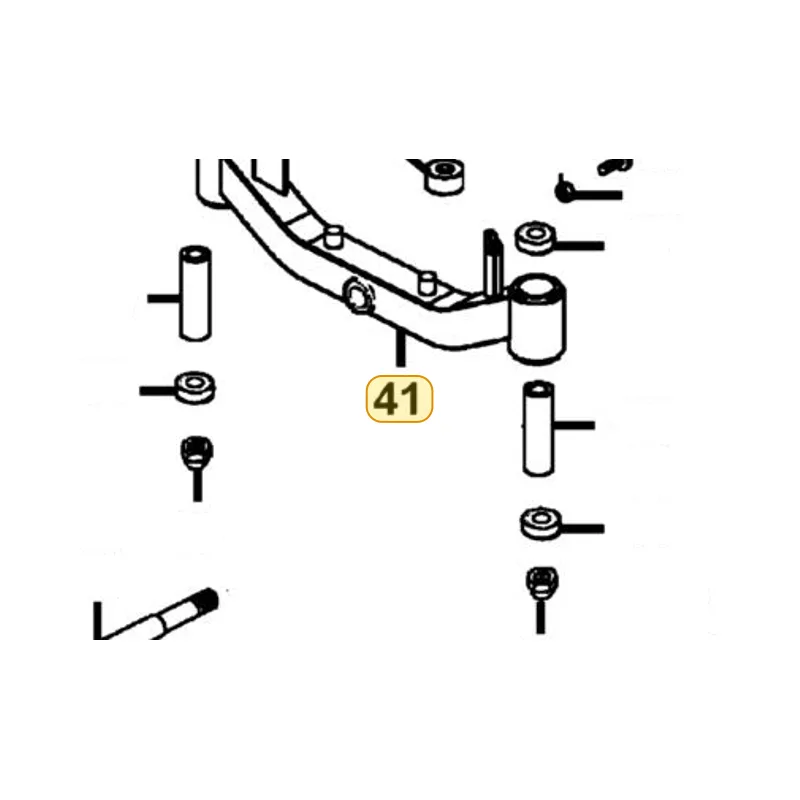

ARM COMP SWING -

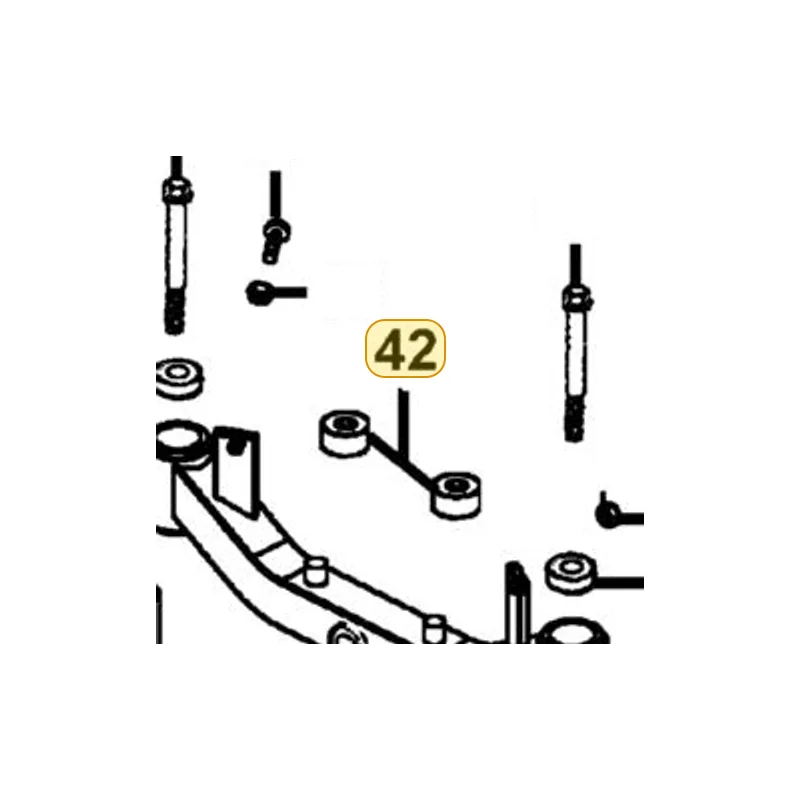

RUBBER SWING ARM -
BOLT SWING ARM M10XM12 -
BUMPER RR (Black) -
$3.96 View product → -
$12.84 View product → -
$0.99 View product → -
SCREW PAN 4*12 -
$0.27 View product → -
$0.99 View product → -
$0.99 View product → -
$5.31 View product → -
$0.27 View product → -
$1.86 View product → -
$4.92 View product → -
$3.78 View product → -
BOLT FLANGE 68*55 -
BOLT FLANGE 8*65 -
BOLT FLANGE 10X80 -
BEARING 6000Z
