F02 — Floor
The Floor diagram contains 13 genuine OEM parts for the KYMCO SUPERIOR X "(2018). Hover a callout on the drawing to highlight the part in the list, click it to open that part’s product page on kymcopartsstore.com, or click the drawing to zoom.
US shipping, calculated at checkout · Special orders come from KYMCO’s US distributor · 14-day returns & fitment guarantee
-
BUMPER FR (Black) -

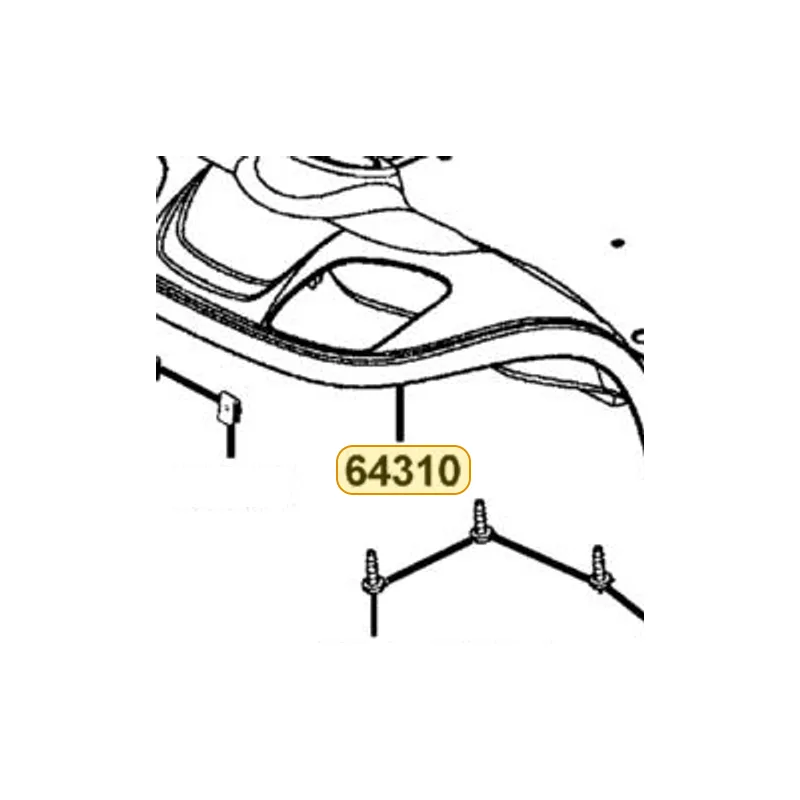

FLOOR PANEL -
MOLD A -
MOLD B -
PLUG FLOOR -
MAT FLOOR (Black) -
COVER FLOOR (Black) -
BOLT SEAT LOCK 6X13.5 -
NUT 6MM OPENSTAY -
$1.95 View product → -
NUT SPRING 4MM -
SCREWTAPPING 4x12 -
$4.29 View product →
Common questions
What does the F02 Floor diagram for the SUPERIOR X "(2018) contain?
13 genuine OEM parts from KYMCO’s factory catalog for the SUPERIOR X "(2018), 13 of them priced. The exploded view shows exactly where each part sits in the assembly, and every listed part links to its product page on kymcopartsstore.com, where it is ordered.
How do I find the OEM part number from this diagram?
Hover a numbered callout on the drawing and the matching row highlights in the parts list with its factory part number, required quantity, and price. Click the row to open that part’s product page on kymcopartsstore.com. Click the drawing to zoom, or use the position numbers to match by hand.
Are the parts on this diagram original KYMCO parts?
Yes — every part number comes from KYMCO’s official catalog for this exact model, year, and color. Genuine OEM only, no aftermarket substitutes.
