KYMCO Healthcare Superior X 2018 Ruby Red parts diagrams

Model code
EQ40BJ(US)
Model year
2018
Submodel
Healthcare Superior X
Color
Ruby Red (RR004CA)

Parts diagrams

Pick an assembly to see its exploded-view drawing and every part in it.

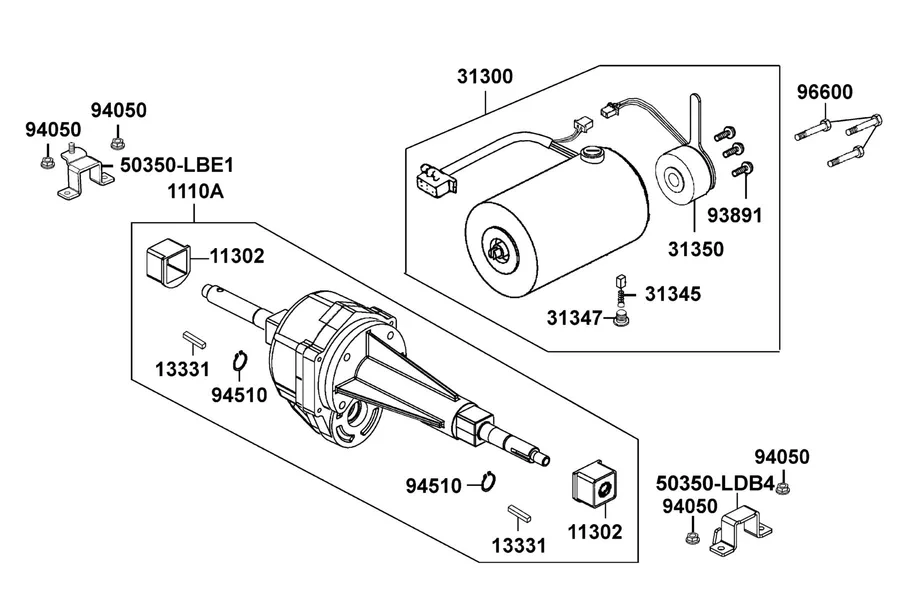

E01 Motor parts diagram

E01 — Motor

13 parts

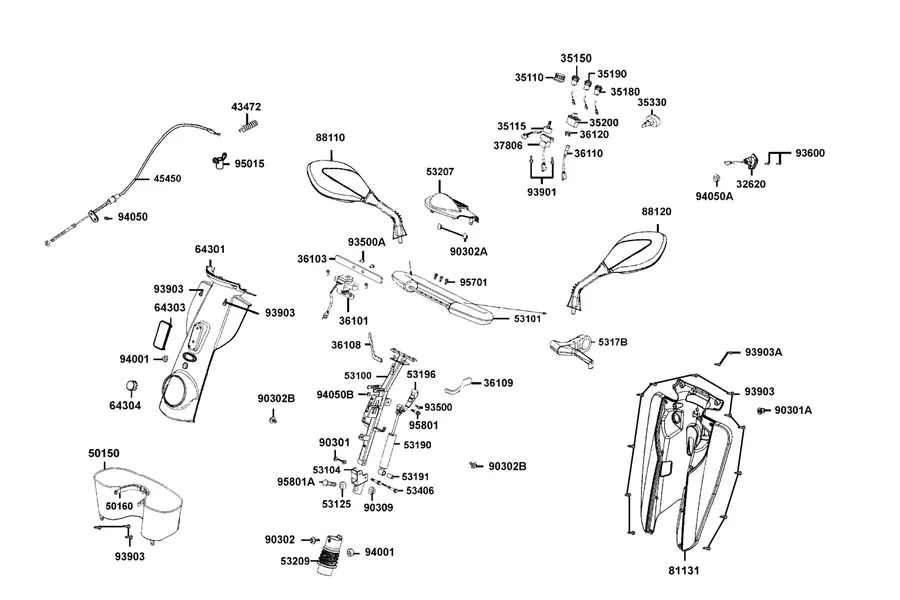

View diagram → F01 Handle Steering parts diagram

F01 — Handle Steering

56 parts

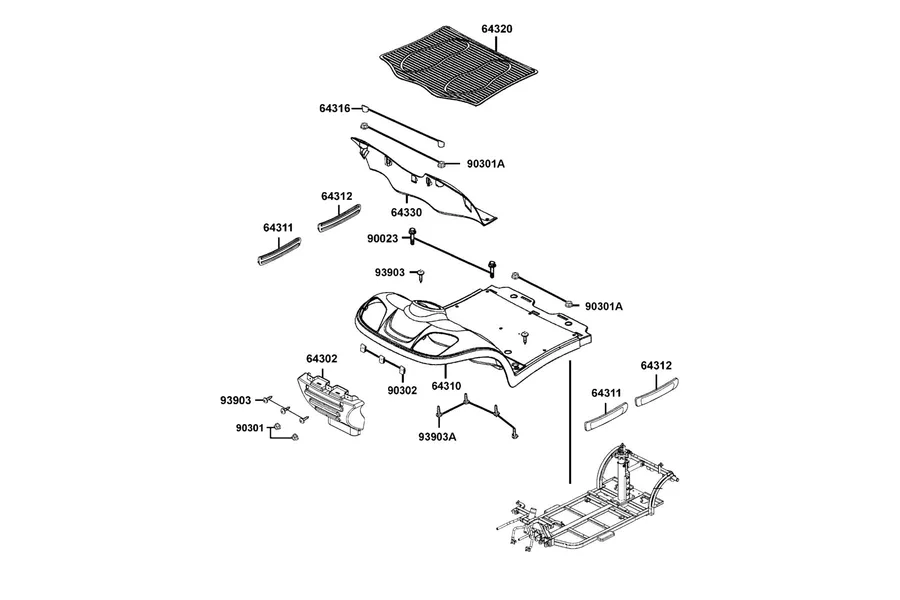

View diagram → F02 Floor parts diagram

F02 — Floor

13 parts

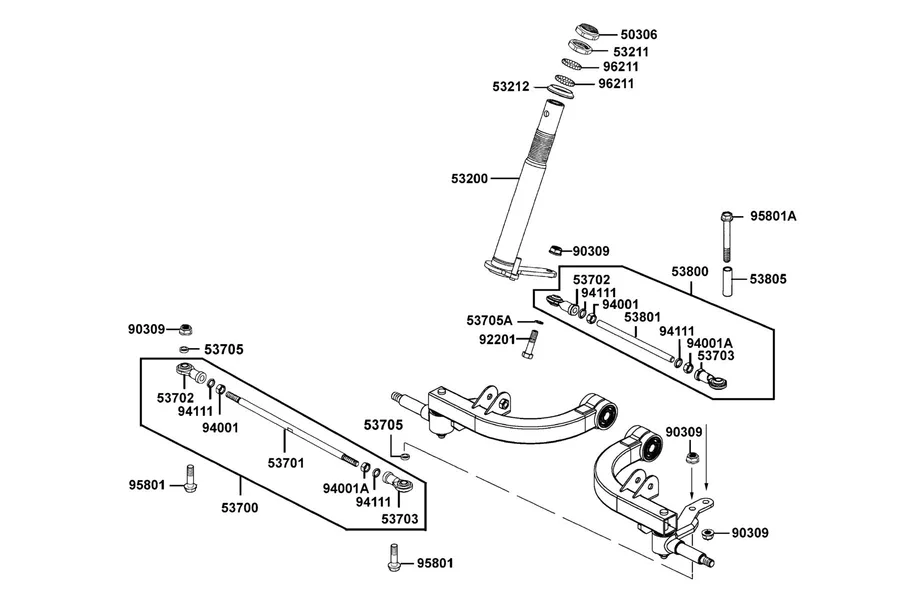

View diagram → F03 Steering Stem parts diagram

F03 — Steering Stem

21 parts

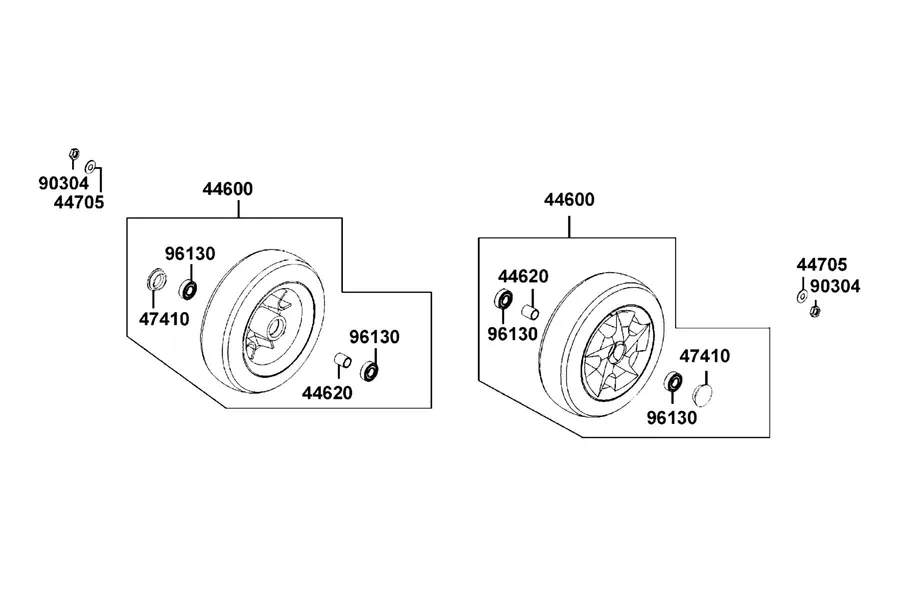

View diagram → F04 Front Wheel parts diagram

F04 — Front Wheel

6 parts

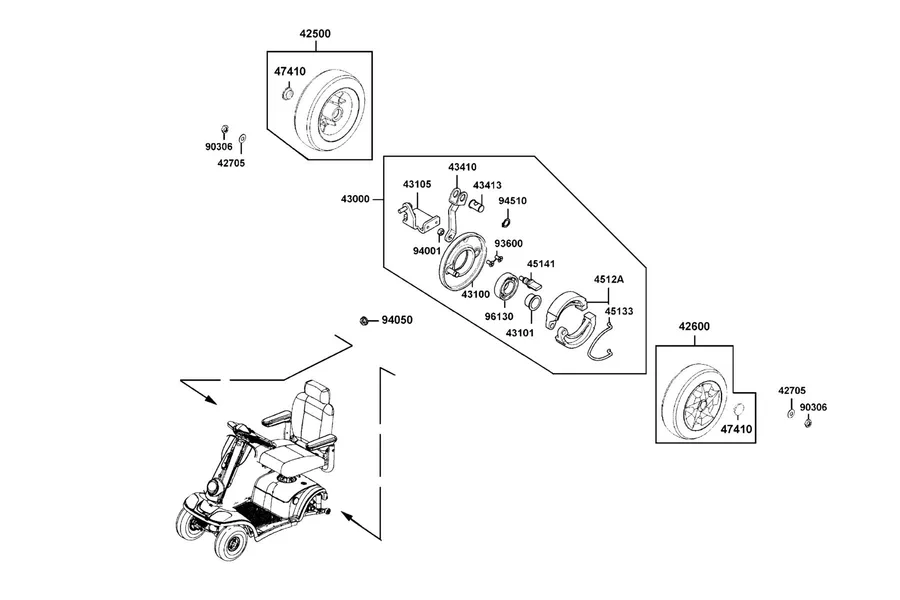

View diagram → F05 Rear Wheel parts diagram

F05 — Rear Wheel

19 parts

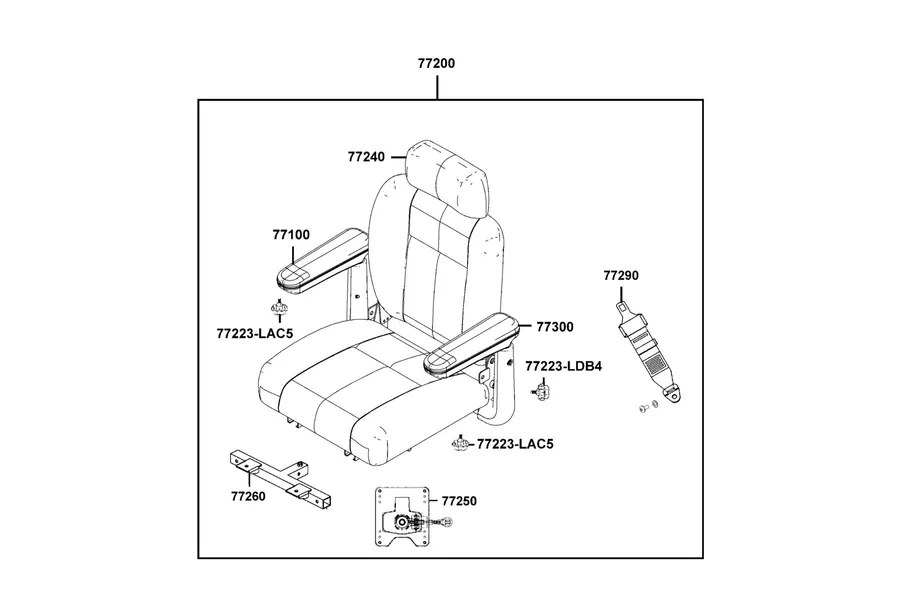

View diagram → F06 Seat parts diagram

F06 — Seat

8 parts

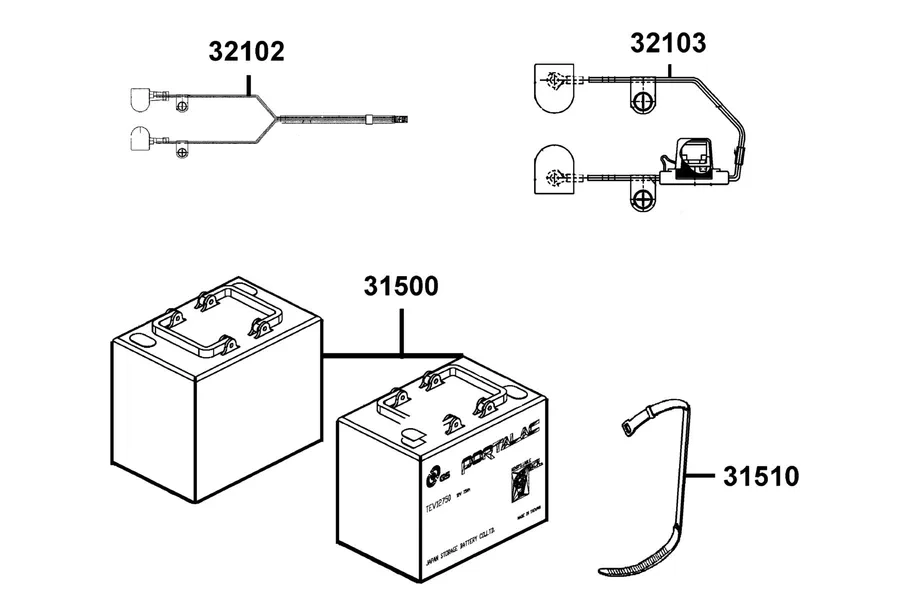

View diagram → F07 Battery parts diagram

F07 — Battery

5 parts

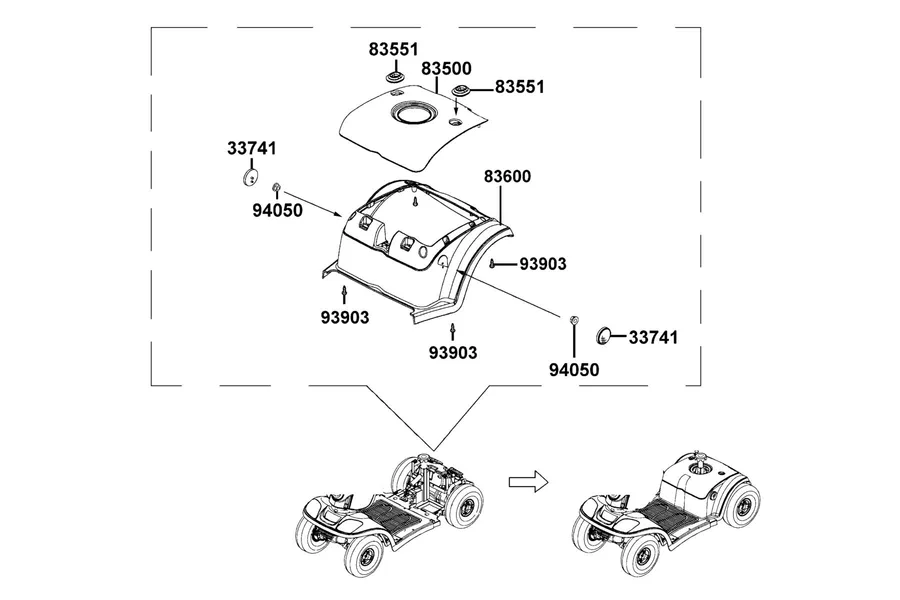

View diagram → F08 Body Cover parts diagram

F08 — Body Cover

6 parts

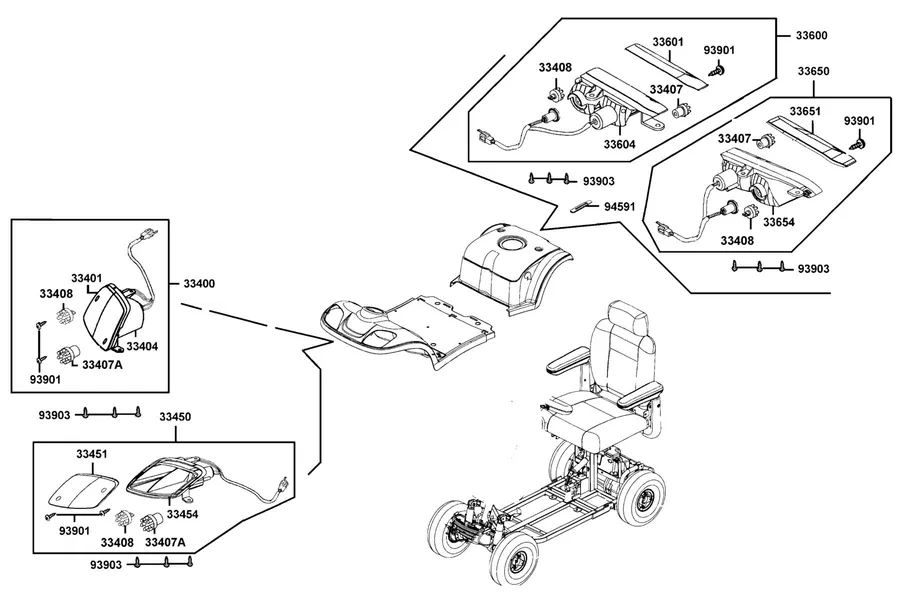

View diagram → F09 Winker Assy Rh parts diagram

F09 — Winker Assy RH

18 parts

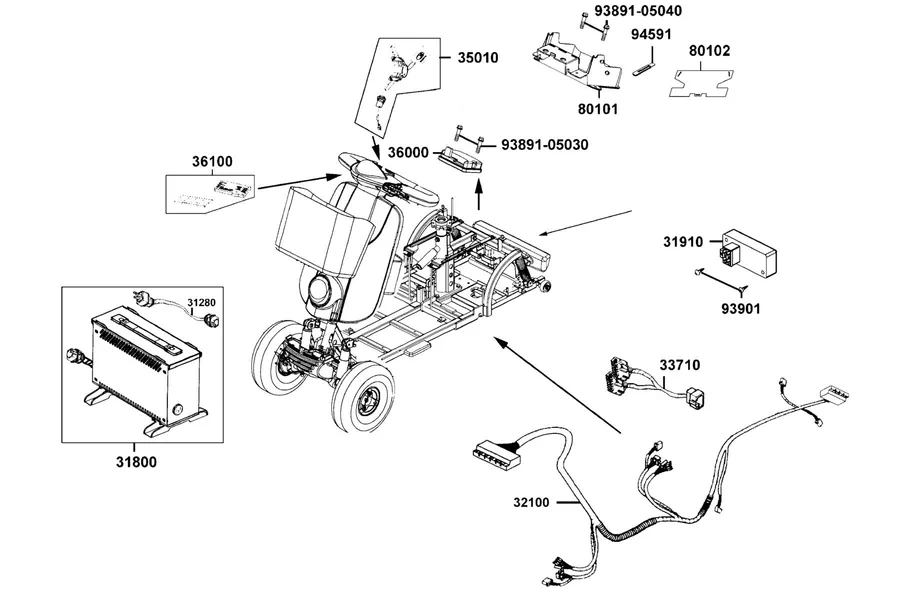

View diagram → F10 Harness Wire parts diagram

F10 — Harness Wire

14 parts

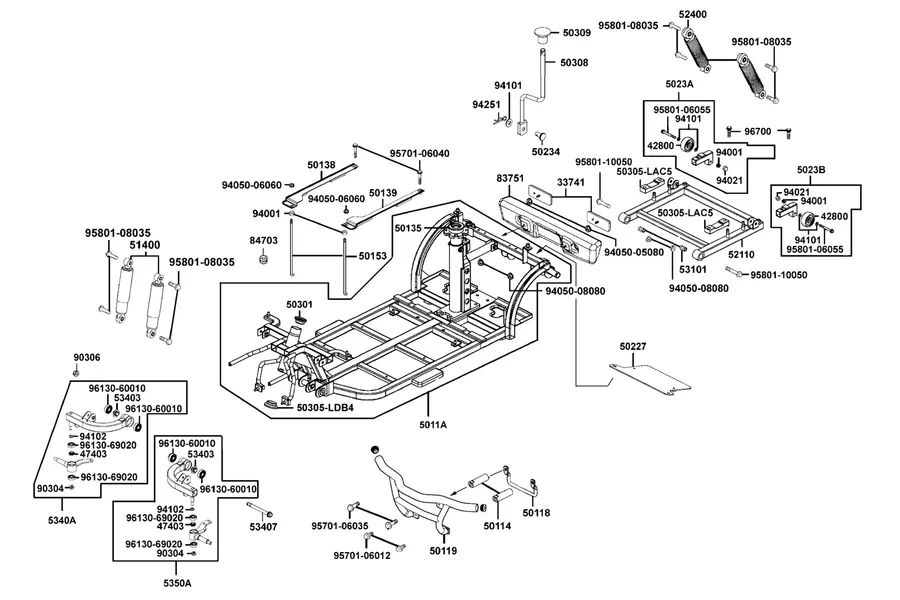

View diagram → F11 Frame Body parts diagram

F11 — Frame Body

49 parts

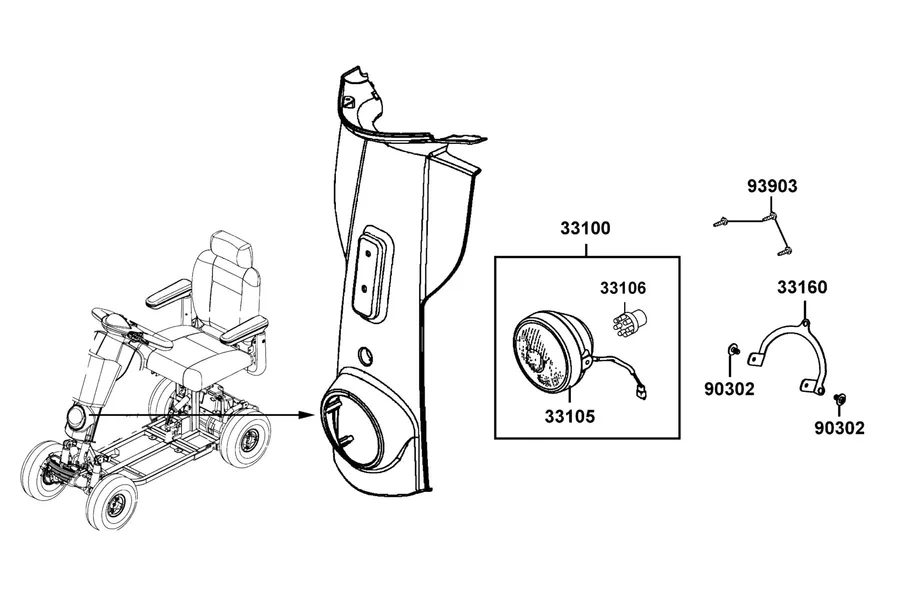

View diagram → F12 Head Light parts diagram

F12 — Head Light

6 parts

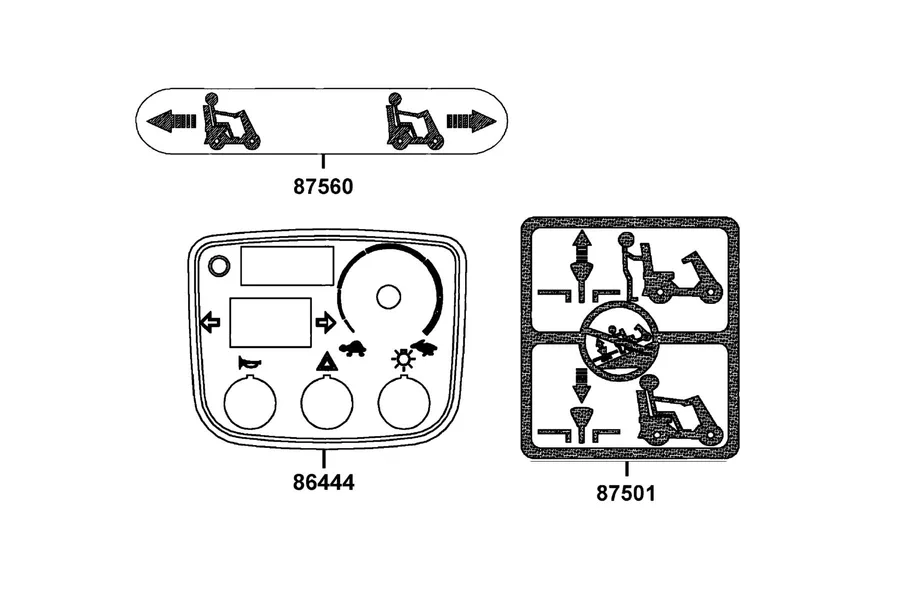

View diagram → F13 Caution Label parts diagram

F13 — Caution Label

3 parts

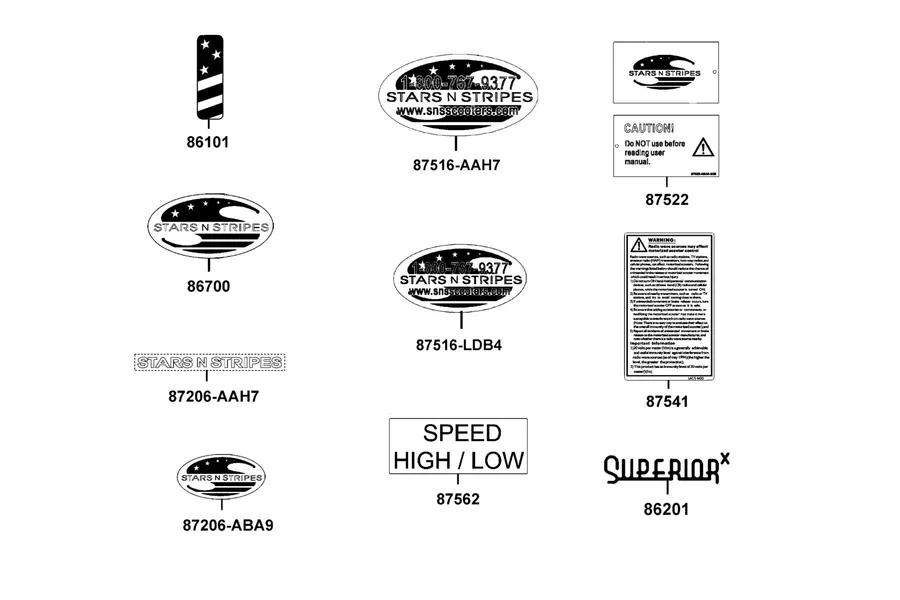

View diagram → F14 Emblem parts diagram

F14 — Emblem

10 parts

View diagram → F15 Key Comp parts diagram

F15 — KEY COMP

1 part

View diagram →
