E04 — Cylinder ● Piston ● Crankshaft

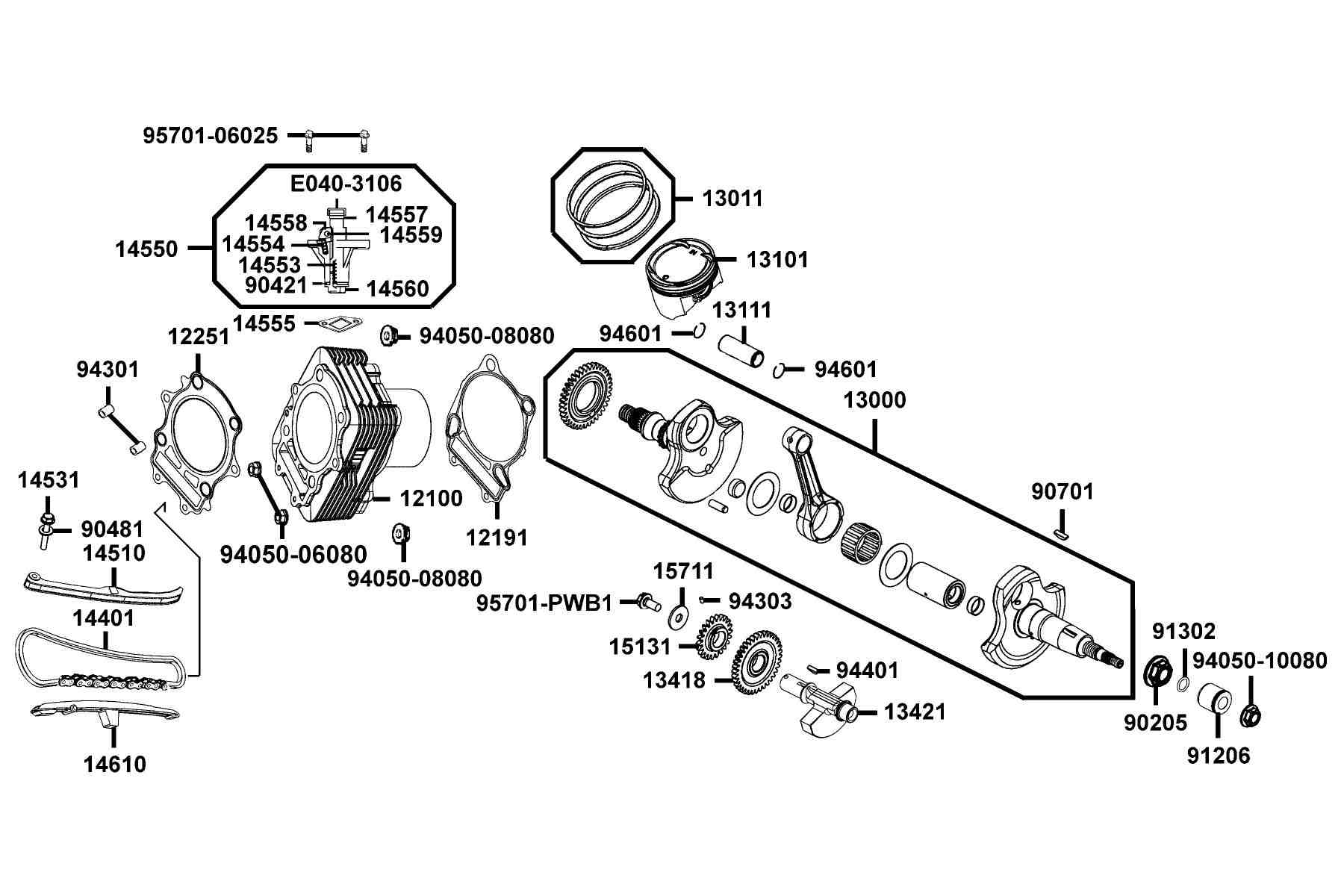

The Cylinder ● Piston ● Crankshaft diagram contains 39 genuine OEM parts for the KYMCO MXU 375 LE 2010 - 2011. Hover a callout on the drawing to highlight the part in the list, click it to open that part’s product page on kymcopartsstore.com, or click the drawing to zoom.
US shipping, calculated at checkout · Special orders come from KYMCO’s US distributor · 14-day returns & fitment guarantee
-
CYLINDER COMP -
GASKET CYLINDER A -
GASKET CYLINDER HEAD -
$468.68 View product → -
RING SET PISTON -
PISTON -
$33.66 View product → -
$124.68 View product → -
$178.65 View product → -
$146.58 View product → -
$98.10 View product → -
$14.31 View product → -
ADJUSTER CAM CHAIN -
SPRING CAM CHAIN ADJUSTER -
$9.39 View product → -
$7.53 View product → -
PLUNGER ADJUSTER -
CAM ADJUSTER -
PIN ADJUSTER -
PLUG COMP ADJUSTER -
GUIDE COMP CAM CHAIN -
$78.81 View product → -
$12.09 View product → -
$47.70 View product → -
WASHER SEALING 10*16*1 -
$1.65 View product → -
$7.53 View product → -
COLLAR -
O-RING 12x2 -
$2.31 View product → -
$4.92 View product → -
$4.92 View product → -
DOWEL PIN 13X22 -
$5.43 View product → -
$5.31 View product → -
$5.31 View product → -
$1.95 View product → -
$13.41 View product → -
CAP
