E08 — Shaft Reduction

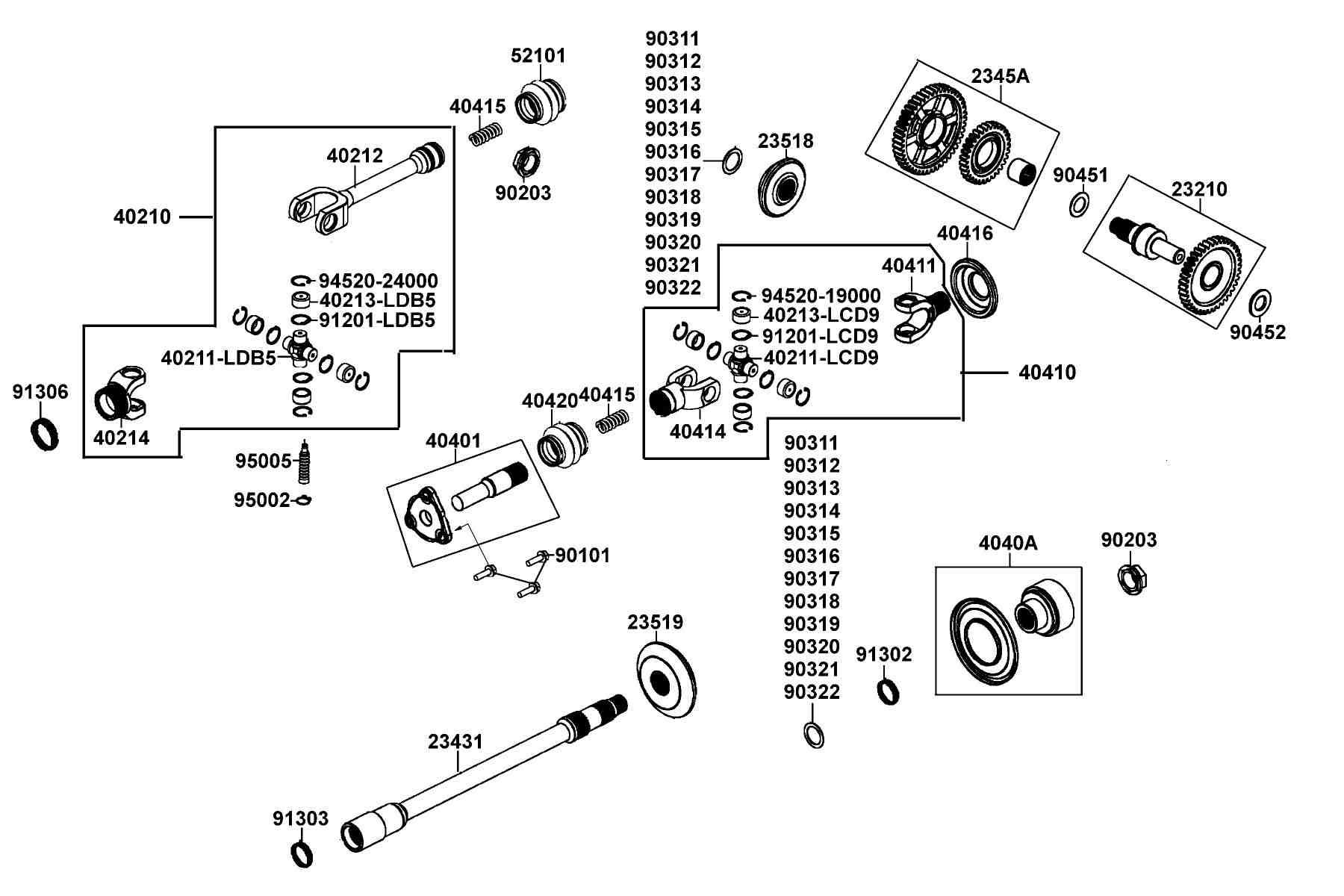

The Shaft Reduction diagram contains 46 genuine OEM parts for the KYMCO MXU 500 (2007~2008). Hover a callout on the drawing to highlight the part in the list, click it to open that part’s product page on kymcopartsstore.com, or click the drawing to zoom.
