F19 — Wire Harness

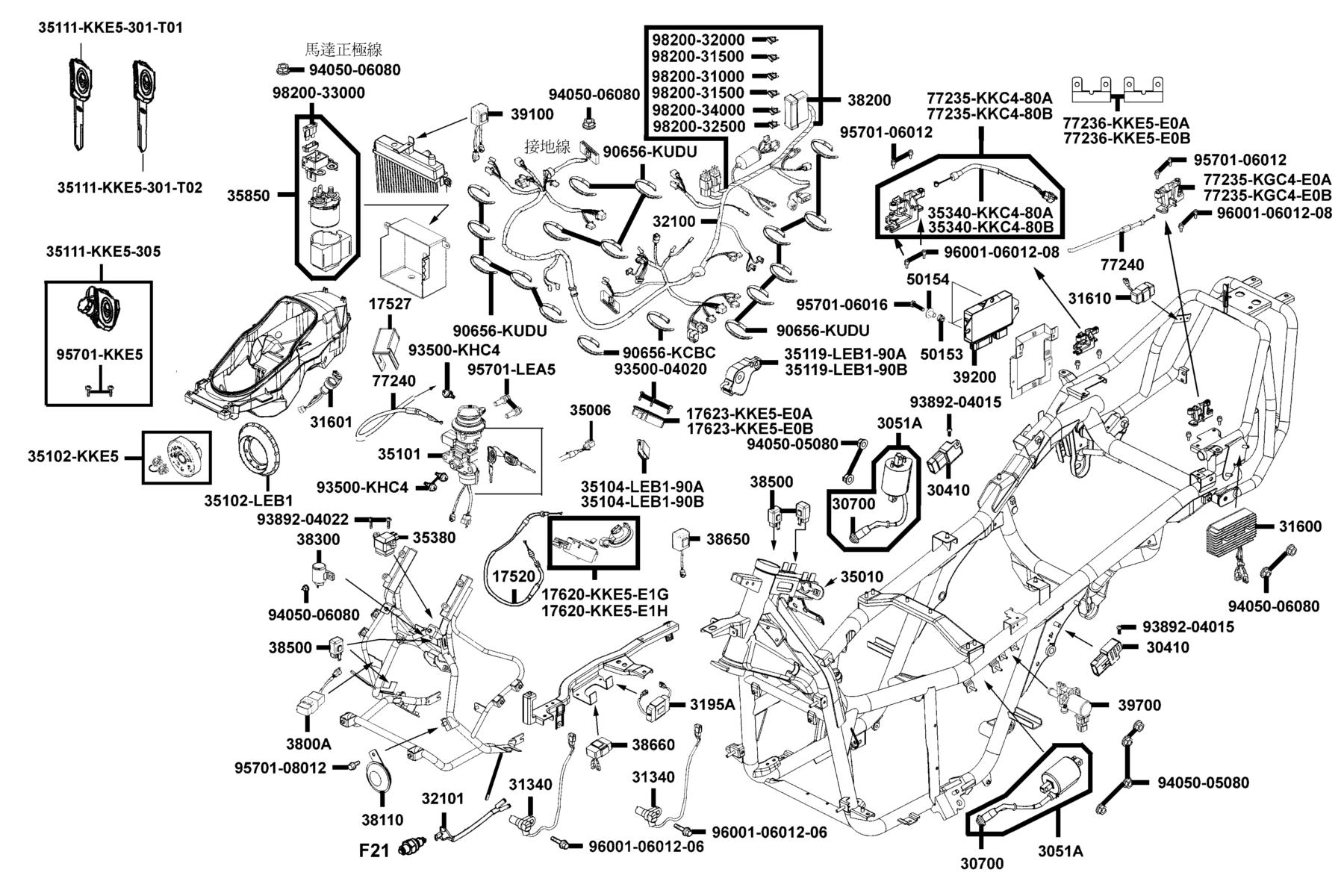

The Wire Harness diagram contains 62 genuine OEM parts for the KYMCO MYROAD 700i (2014~). Hover a callout on the drawing to highlight the part in the list, click it to open that part’s product page on kymcopartsstore.com, or click the drawing to zoom.
US shipping, calculated at checkout · Special orders come from KYMCO’s US distributor · 14-day returns & fitment guarantee
-

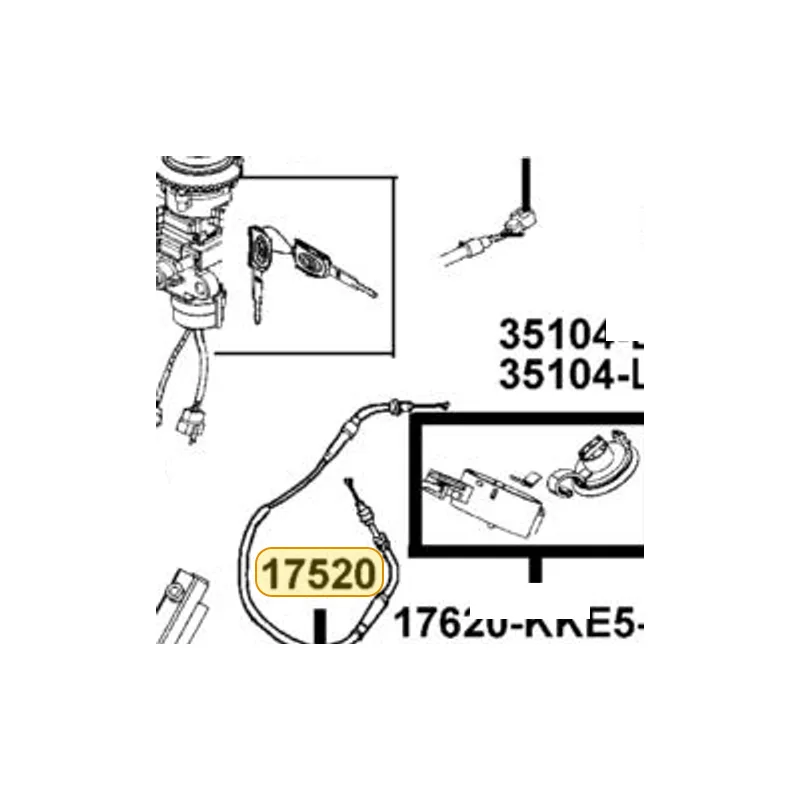

CABLE COMP FUEL CAP -
$14.31 View product → -

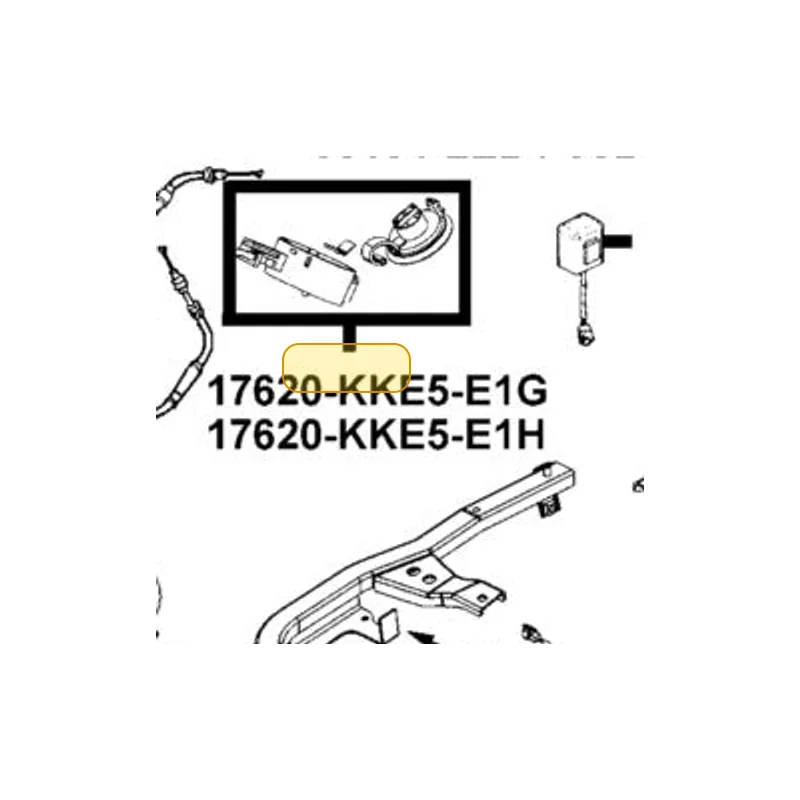

CAP COMP FUEL FILLER -

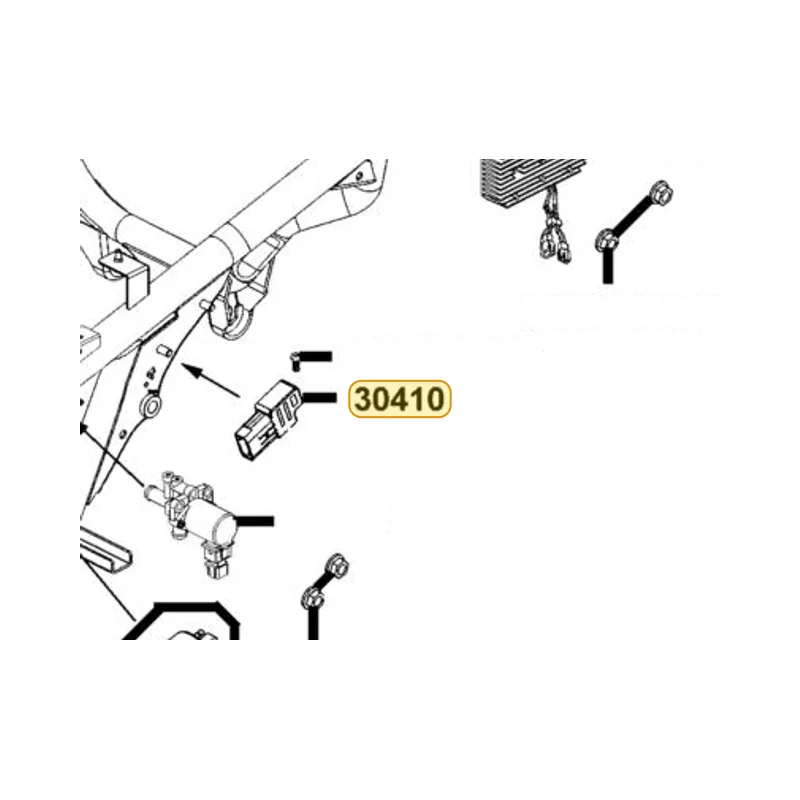

UNIT ASSY CDI -

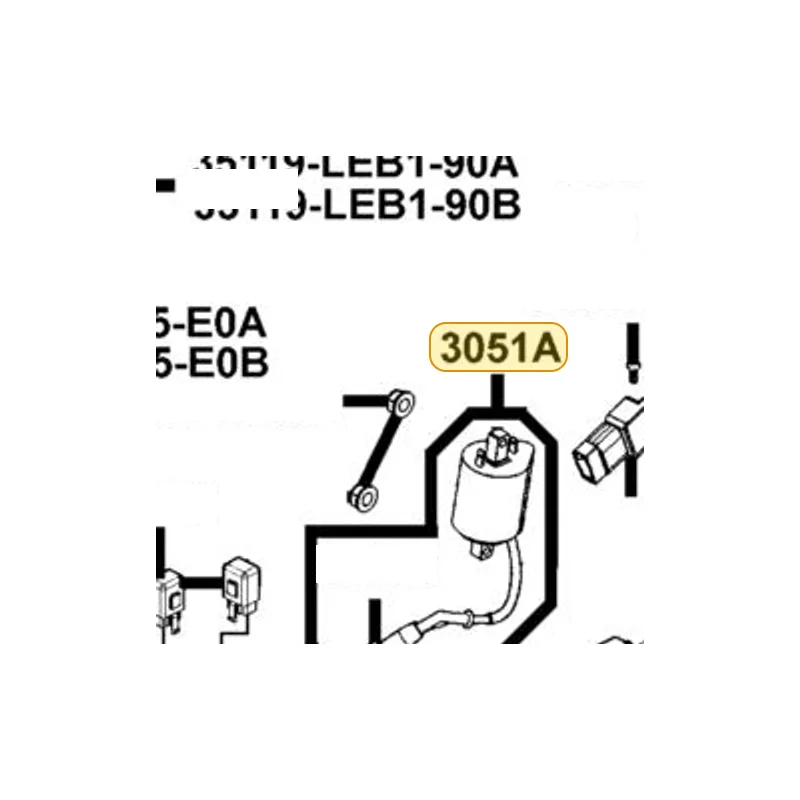

COIL ASS.Y IGN..R.H. -

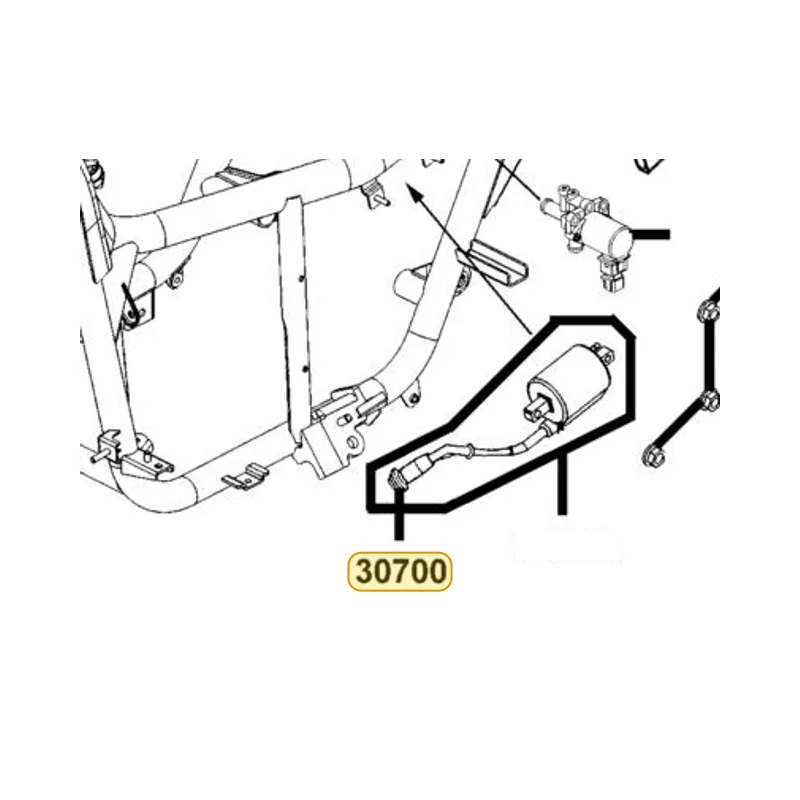

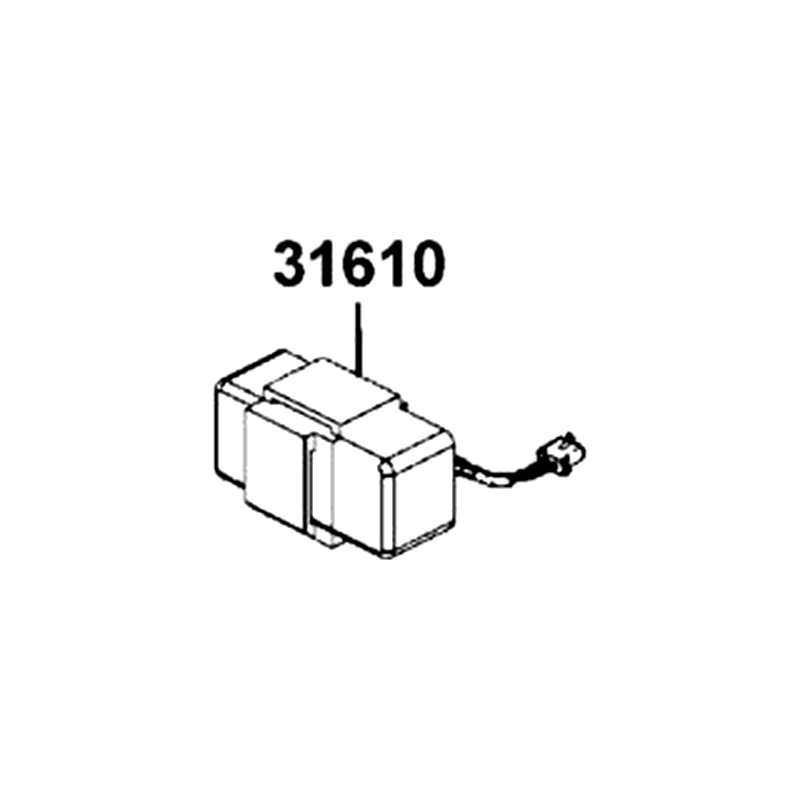

CAP ASSY NOISE SUPPRESOR -
$168.96 View product → -

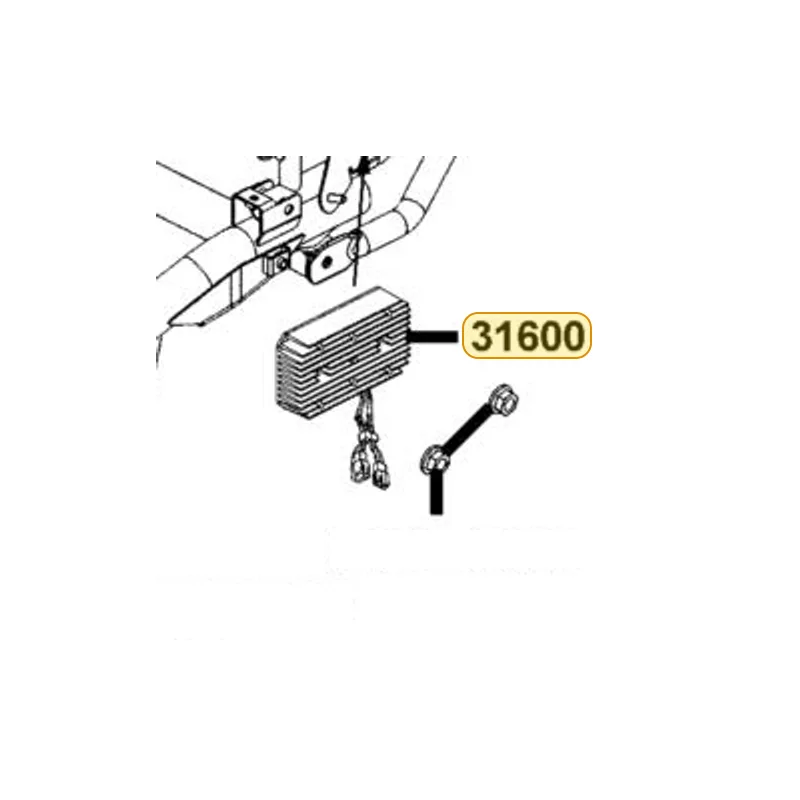

REG. REC. COMP. -

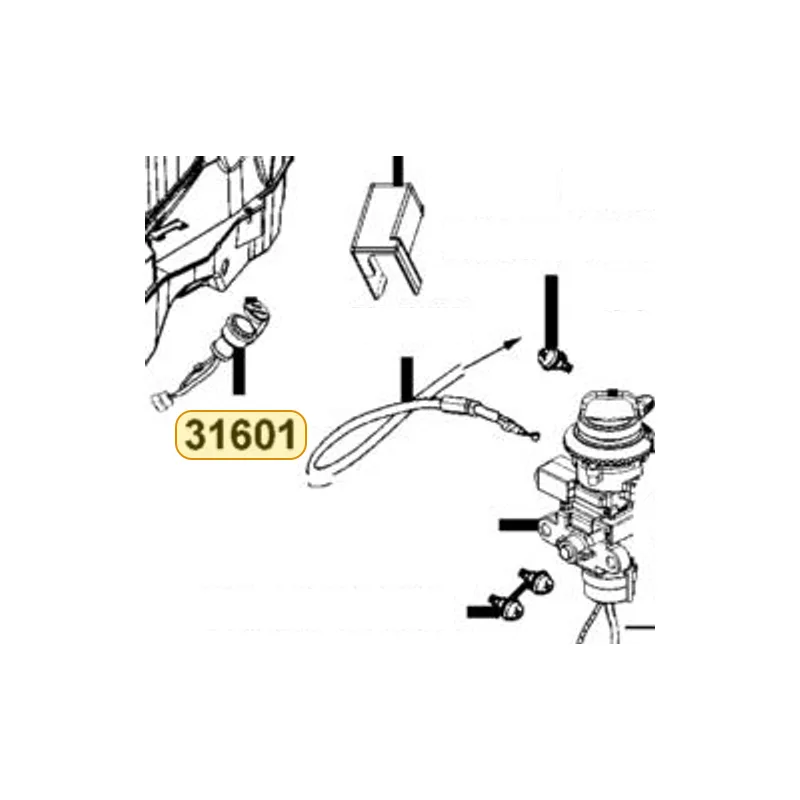

SOCKET COMP DC 12V -
$95.61 View product → -

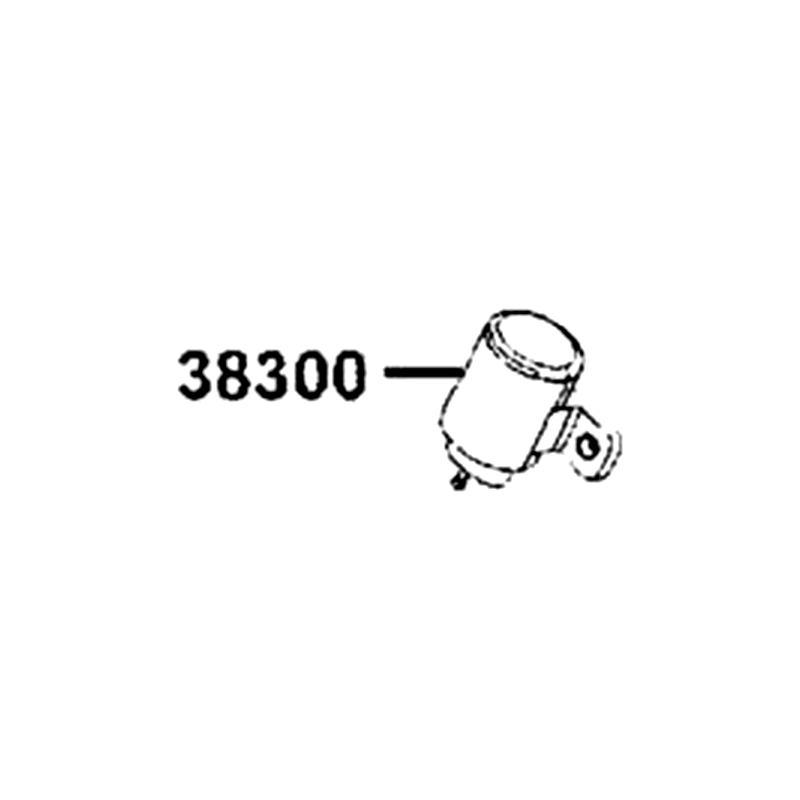

CONTROL ASSY..HAZARD -

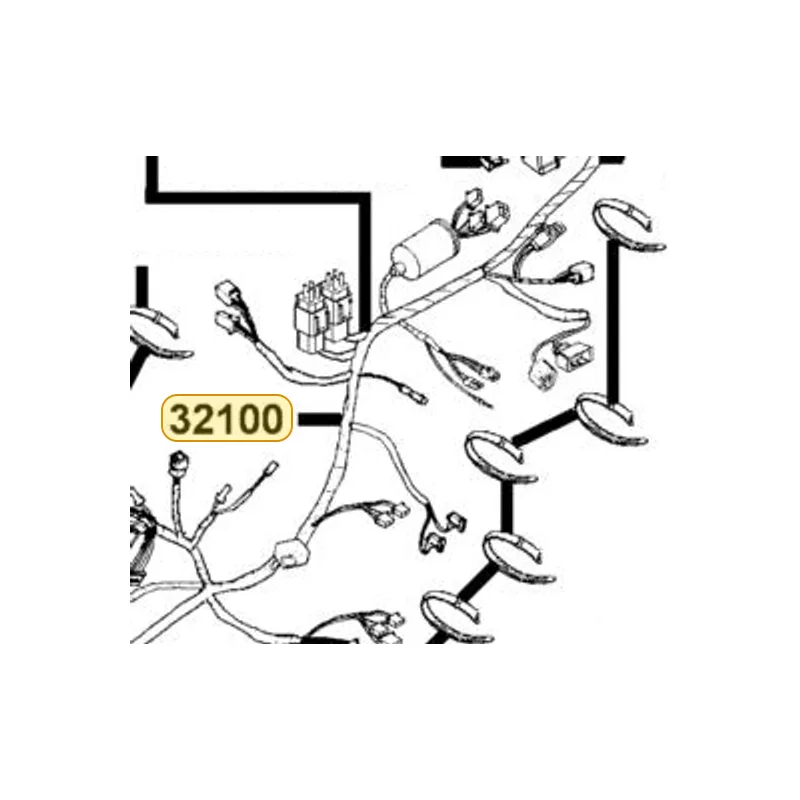

HARNESS WIRE -

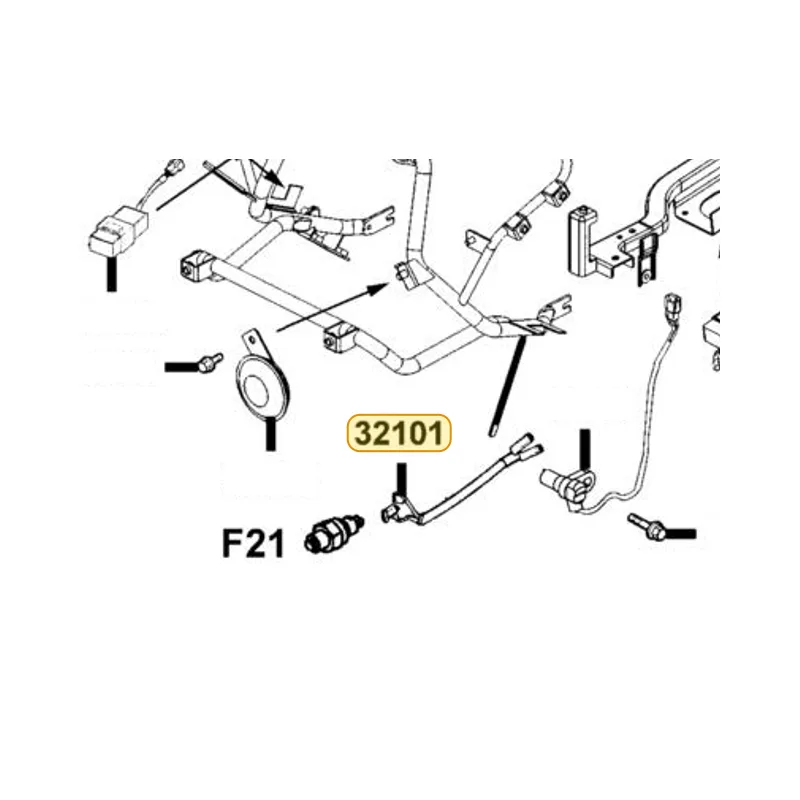

SUB HARNESS A -

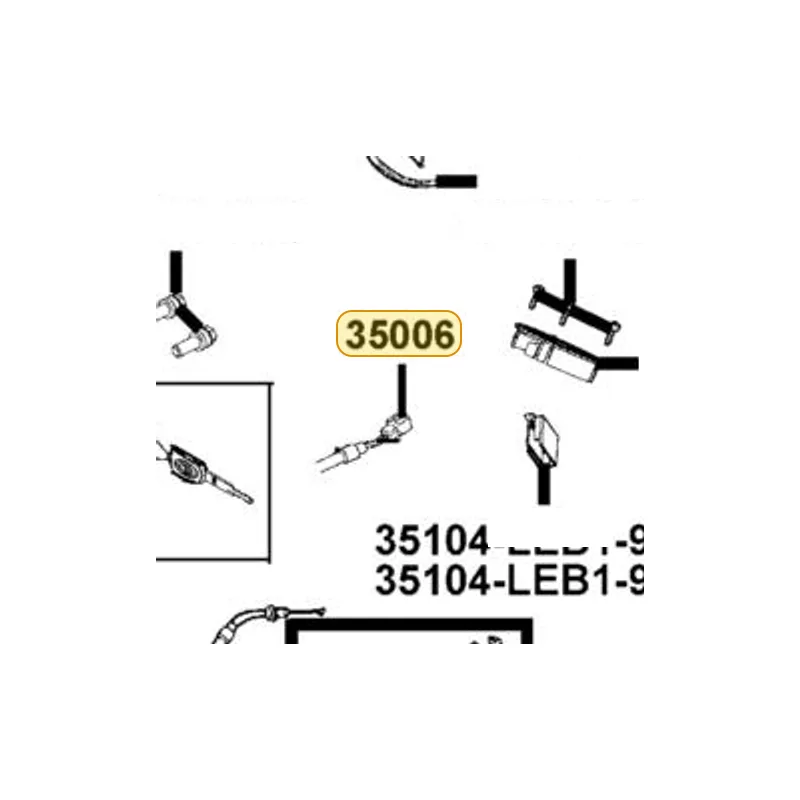

HAZARD SW COMP -
KEY SET (D106) -

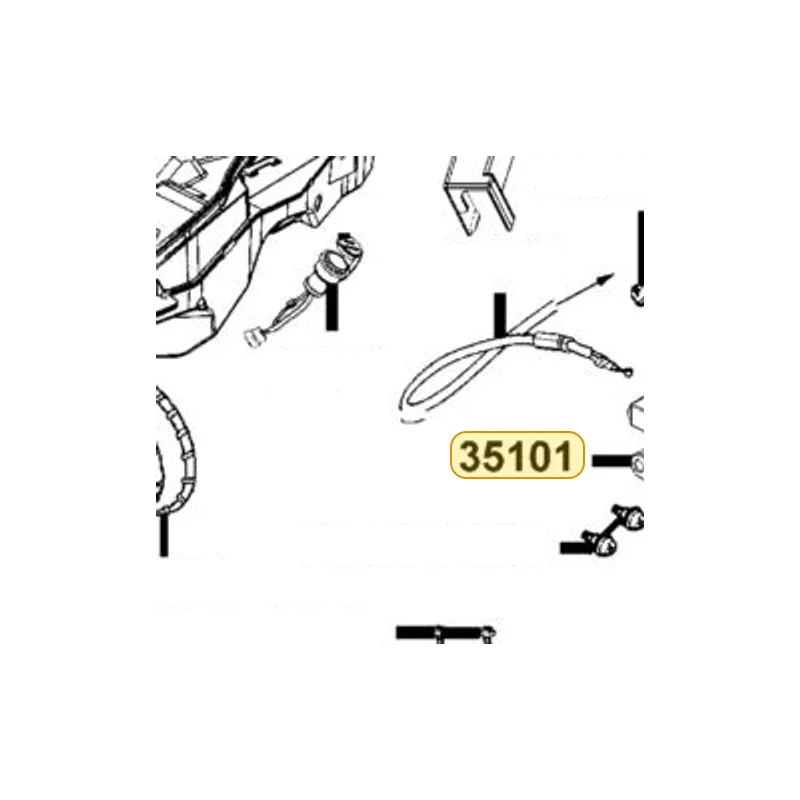

SW SET COMB & LOCK -
SHUTTER MAGNETIC LOCK SET -
COLLAR MAIN SW -

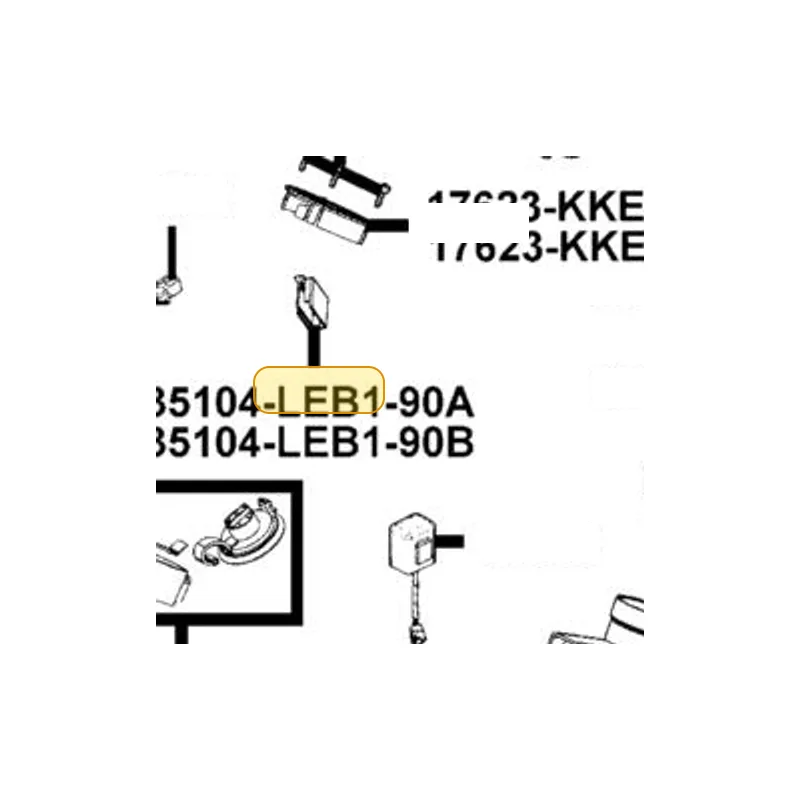

PLATE COVER FUEL CAP CABLE -
KEY COMP (R TANGENT PLANE/TJ) -
KEY COMP (L TANGENT PLANE/TJ) -
KEY COMP SHUTTER MAGNETIC (TJ) -

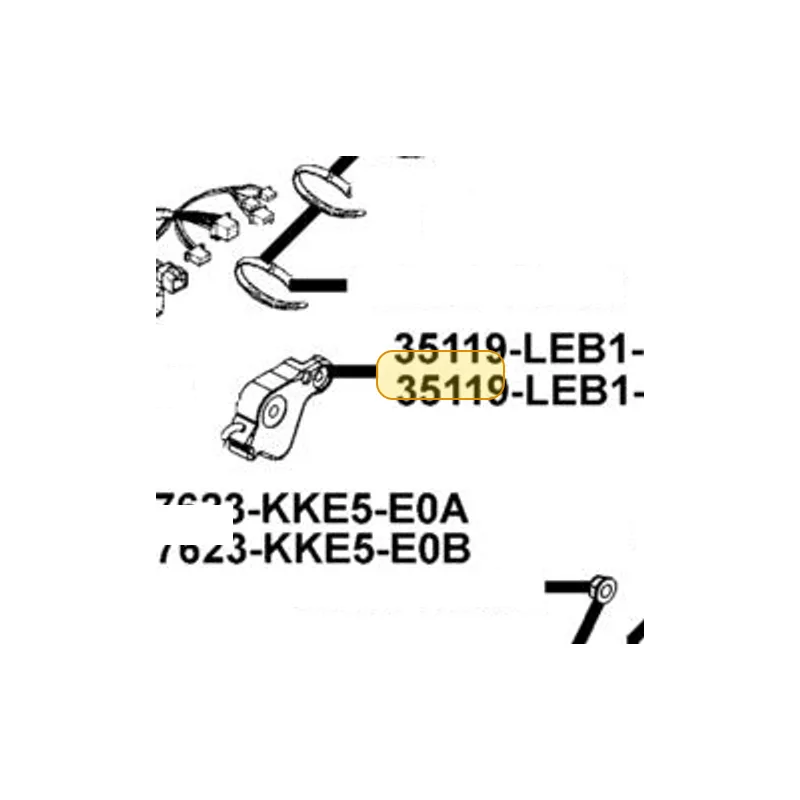

COVER SEAT CABLE -
STOP SWITCH -
SENSOR ANGLE DETECT -
$112.17 View product → -
UNIT ASSY ENG STOP -
$91.08 View product → -
$19.65 View product → -
$119.52 View product → -
$93.66 View product → -

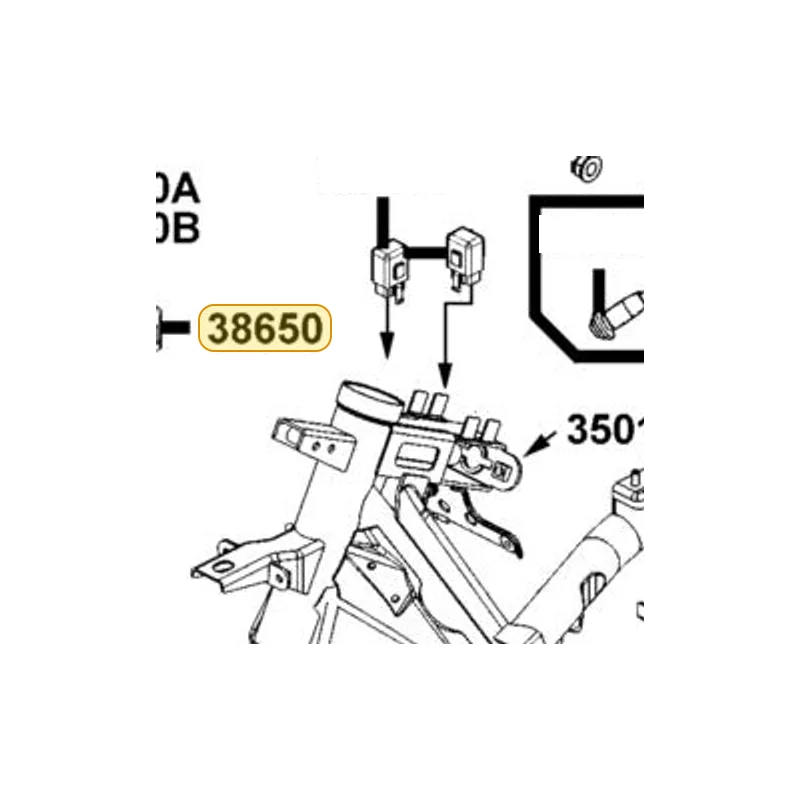

CONTROL RELAY START -

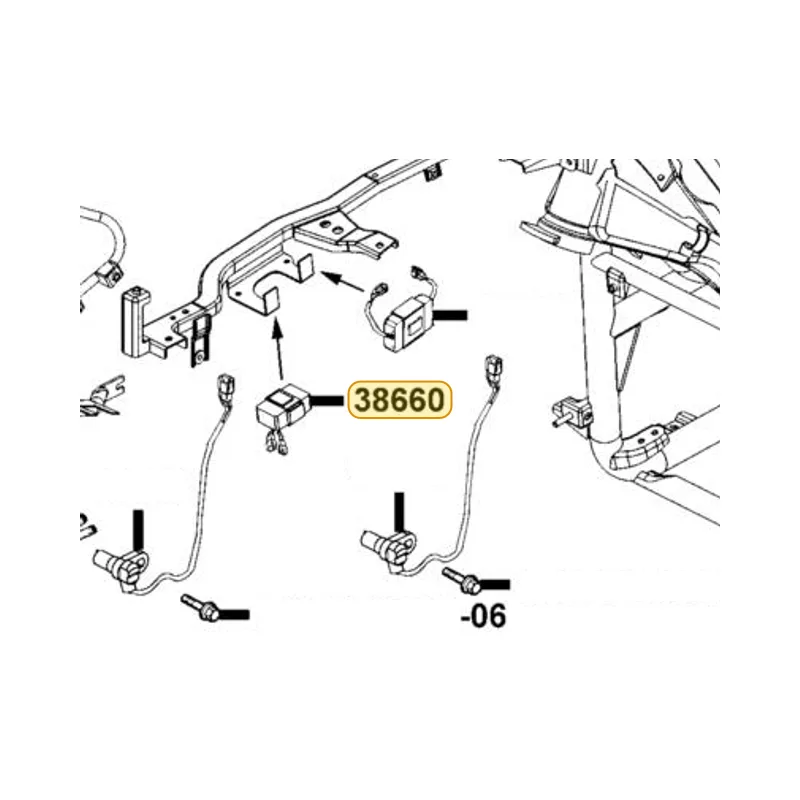

CONTROLLER ADJUSTABLE -
$106.53 View product → -

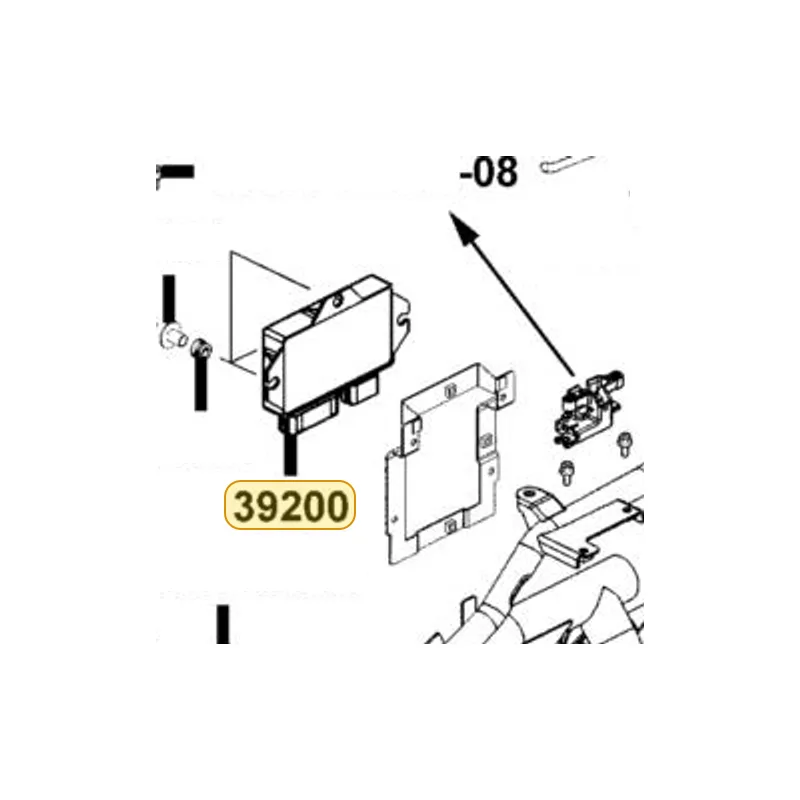

ASSY ECU -

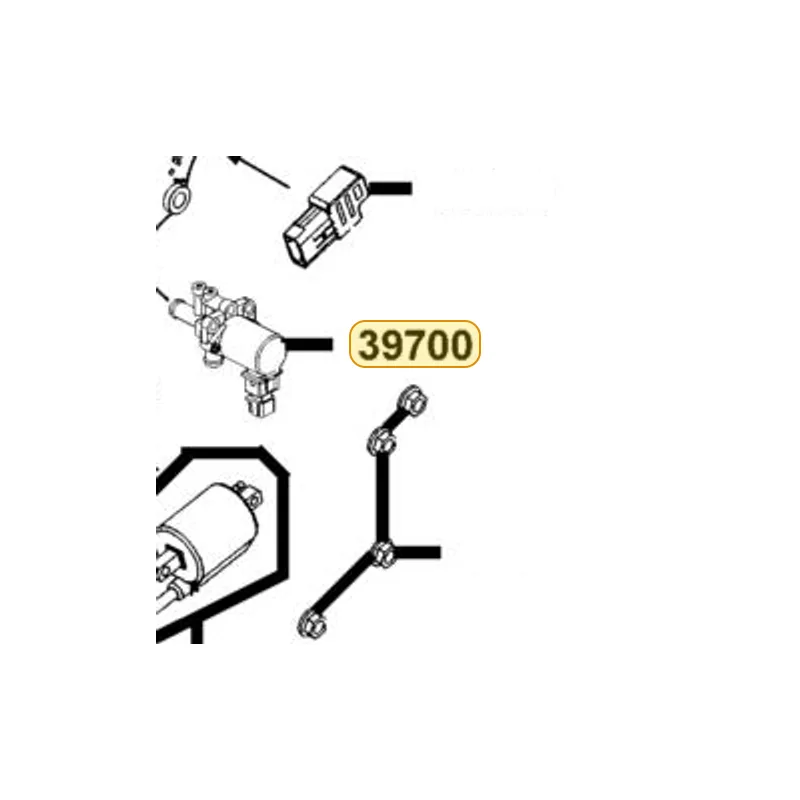

VALVE COMPL ISC -
RUBBER ECU -
COLLAR ECU -
SEAT CATCH -
SEAT CATCH -
COVER STAY SEAT CATCH -

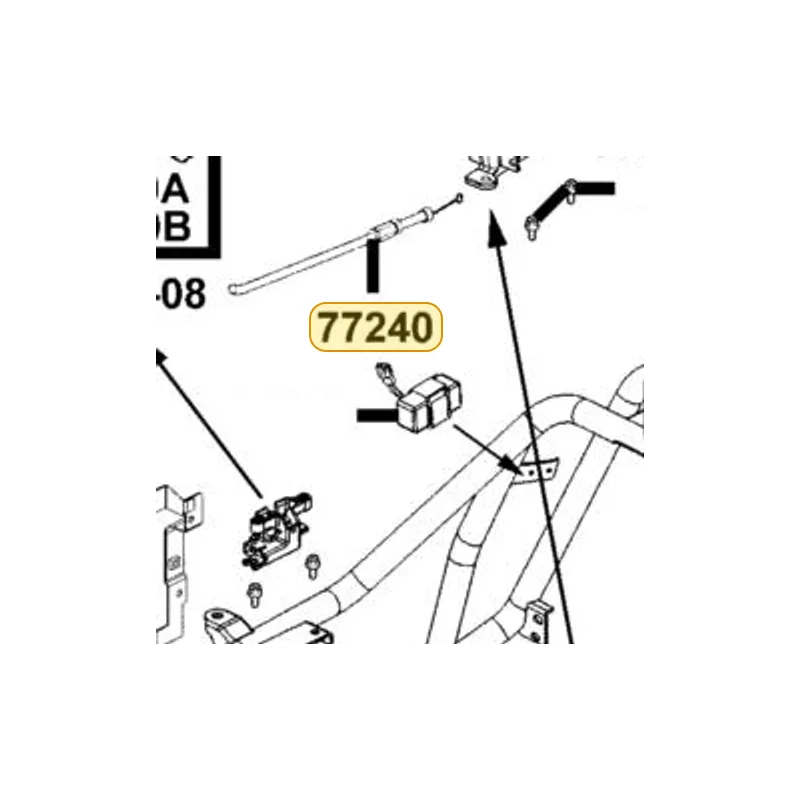

CABLE SEAT LOCK -
$3.93 View product → -
$4.92 View product → -
$4.92 View product → -
$8.19 View product → -

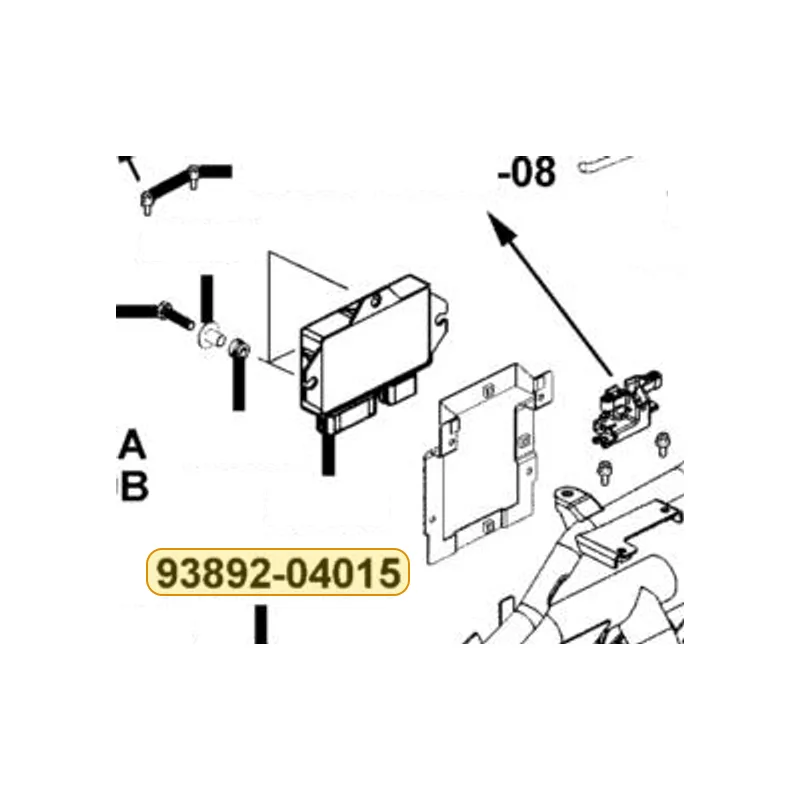

SCREW WASHER 4X15 -
SCREW WASHER 4X22 -
$1.86 View product → -
$2.31 View product → -
$1.86 View product → -
$1.65 View product → -
$6.24 View product → -
SCREW M2*5 -
$14.31 View product → -
$1.95 View product → -
$4.92 View product → -
$4.92 View product → -
BLADE FUSE 20A -
$18.57 View product → -
$4.92 View product → -
$24.99 View product →
