Model code
BA50AB(US)
Model year
2007
Submodel
People S 250
Color
Red (RR123PA)

Parts diagrams

Pick an assembly to see its exploded-view drawing and every part in it.

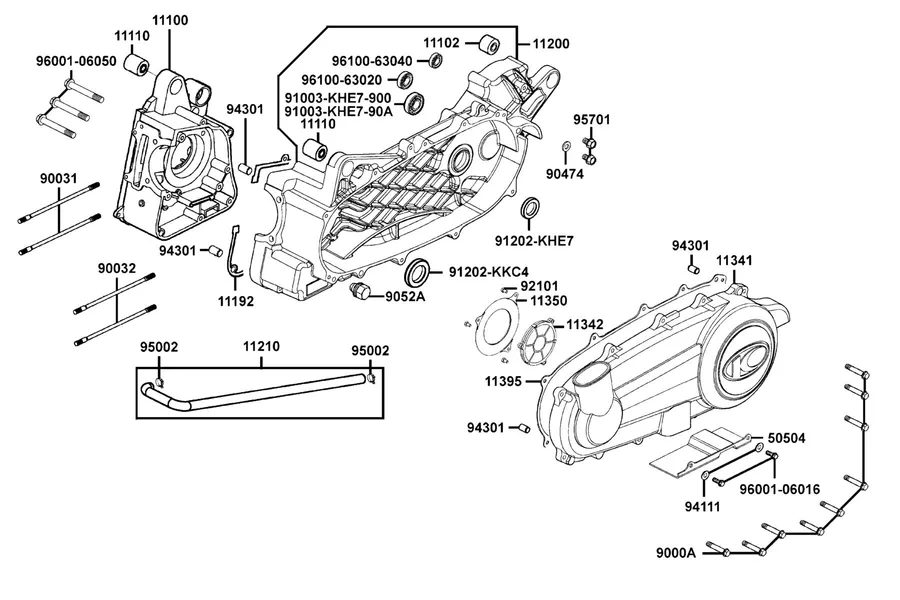

E01 Crank Case parts diagram

E01 — Crank Case

30 parts

View diagram → E02 Cylinder Head Cover and Cylinder Head parts diagram

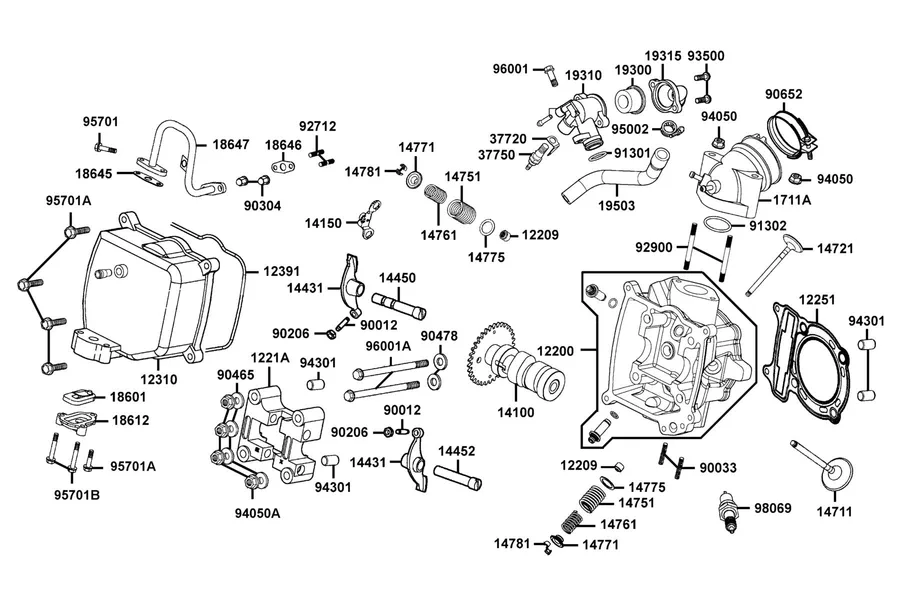

E02 — Cylinder Head Cover●Cylinder Head

53 parts

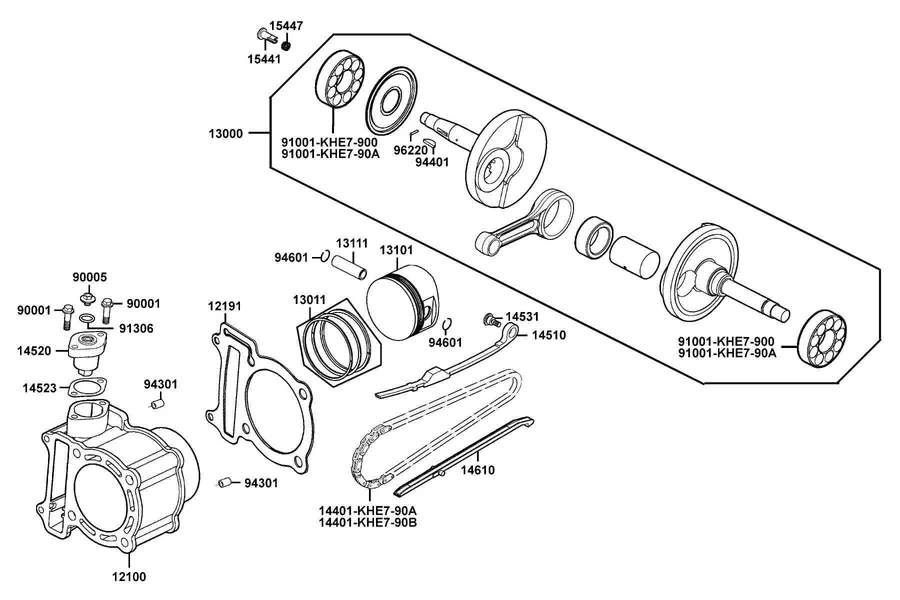

View diagram → E03 Cylinder, Piston and Crankshaft parts diagram

E03 — Cylinder●Piston●Crankshaft

23 parts

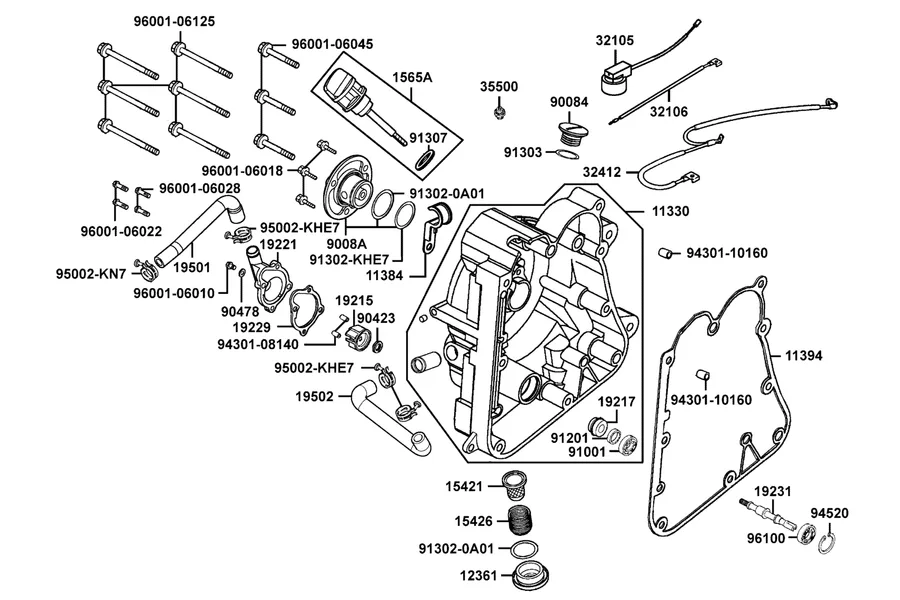

View diagram → E04 Right Crankcase Cover and Water Pump parts diagram

E04 — Right Crankcase Cover●Water Pump

36 parts

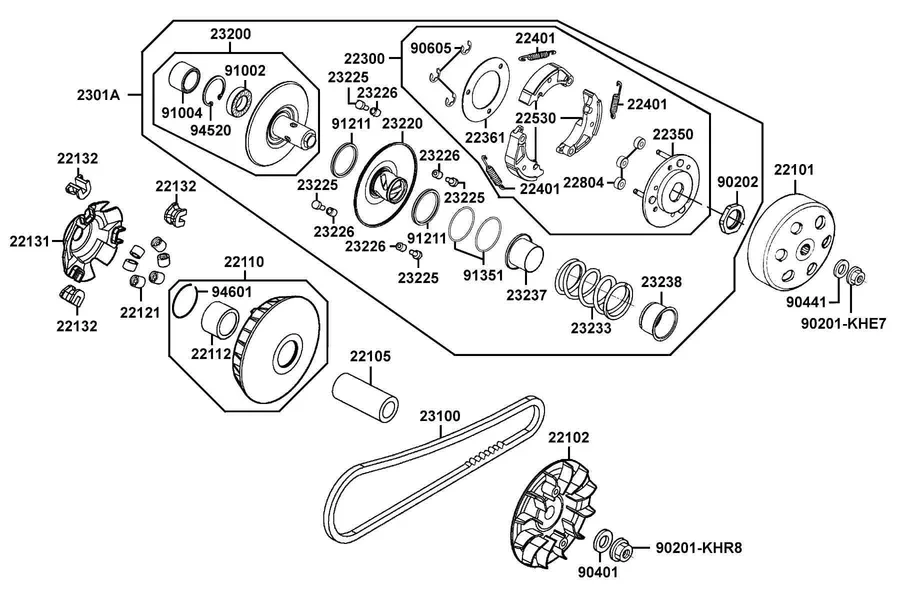

View diagram → E05 Transmission Pulley parts diagram

E05 — Transmission Pulley

40 parts

View diagram → E06 Starting Motor and Generator parts diagram

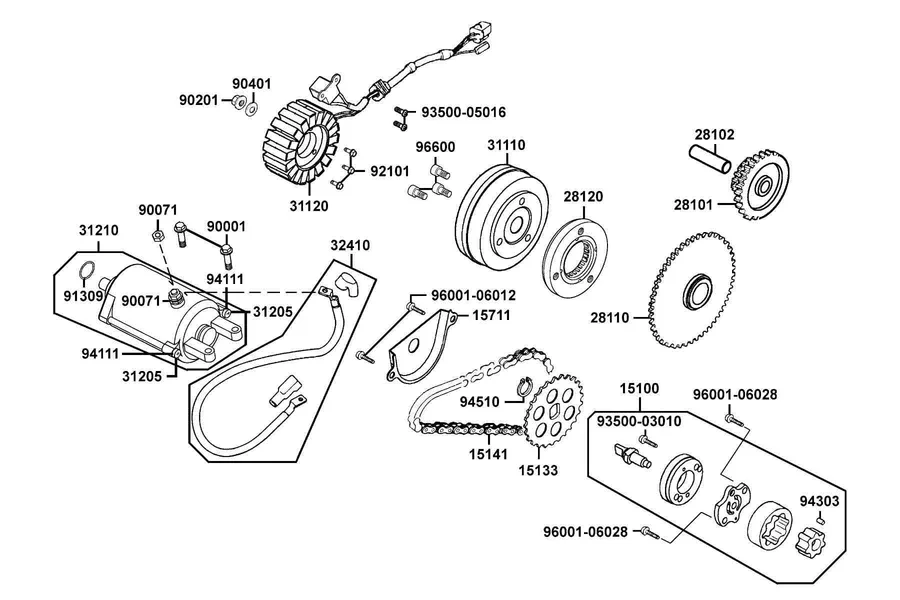

E06 — Starting Motor●Generator

28 parts

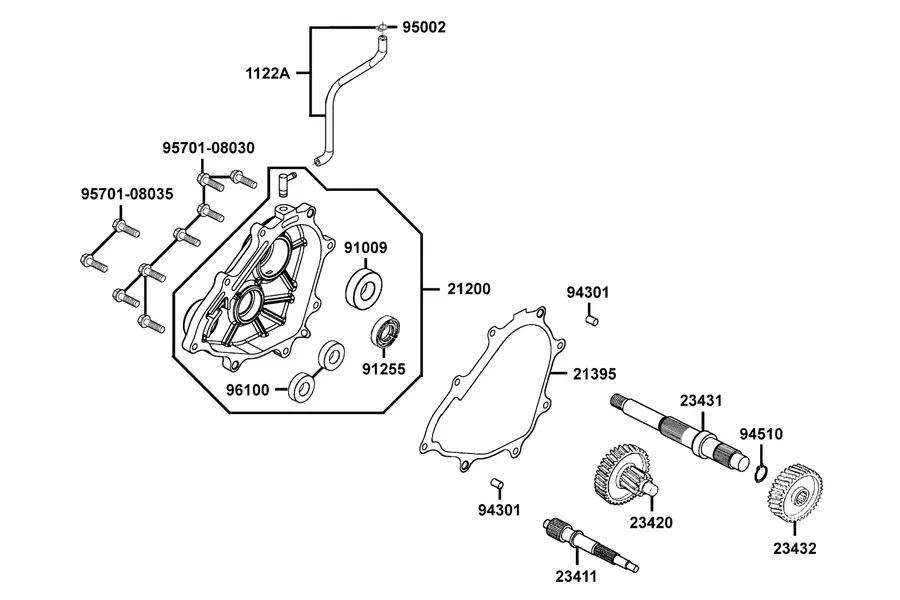

View diagram → E07 Transmission parts diagram

E07 — Transmission

15 parts

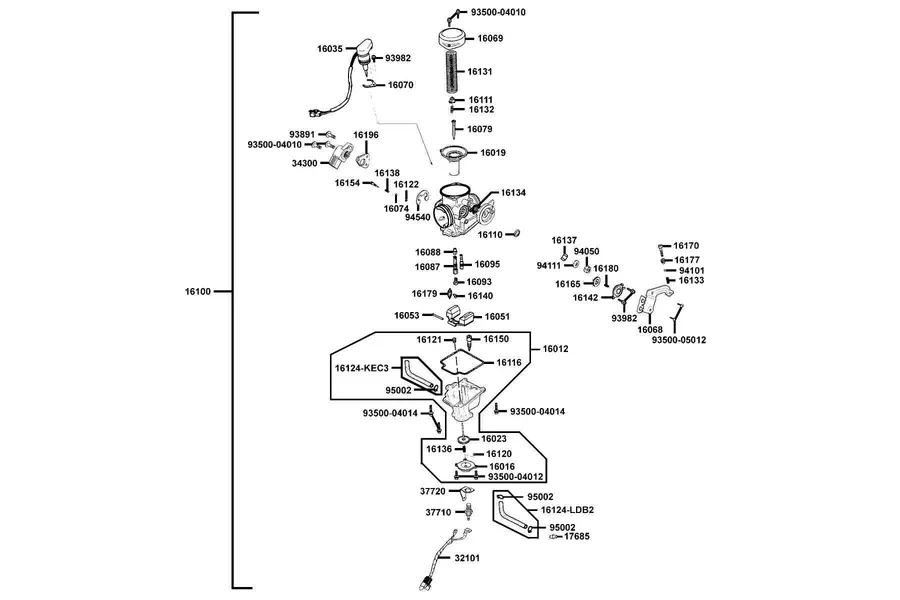

View diagram → E08 Carburetor parts diagram

E08 — Carburetor

57 parts

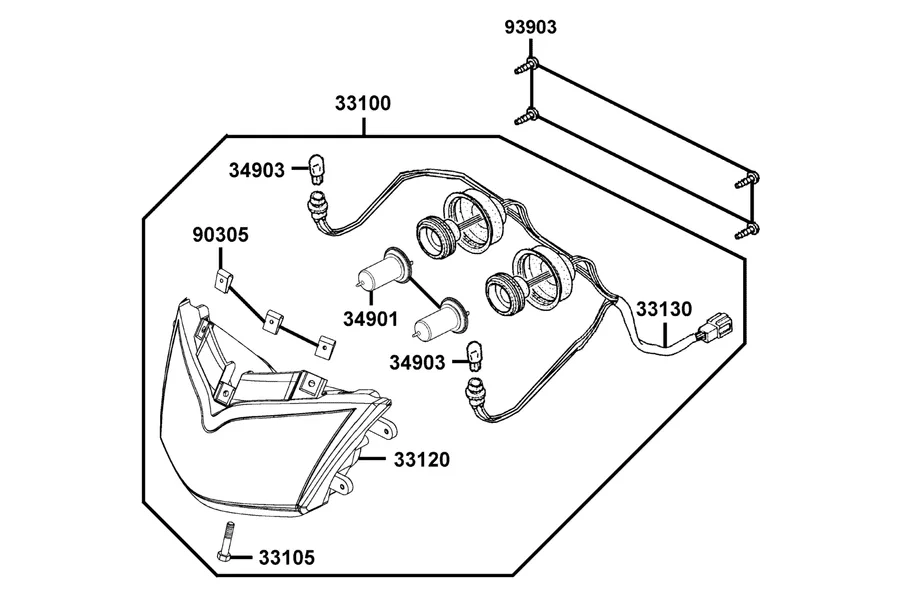

View diagram → F01 Head Light parts diagram

F01 — Head Light

9 parts

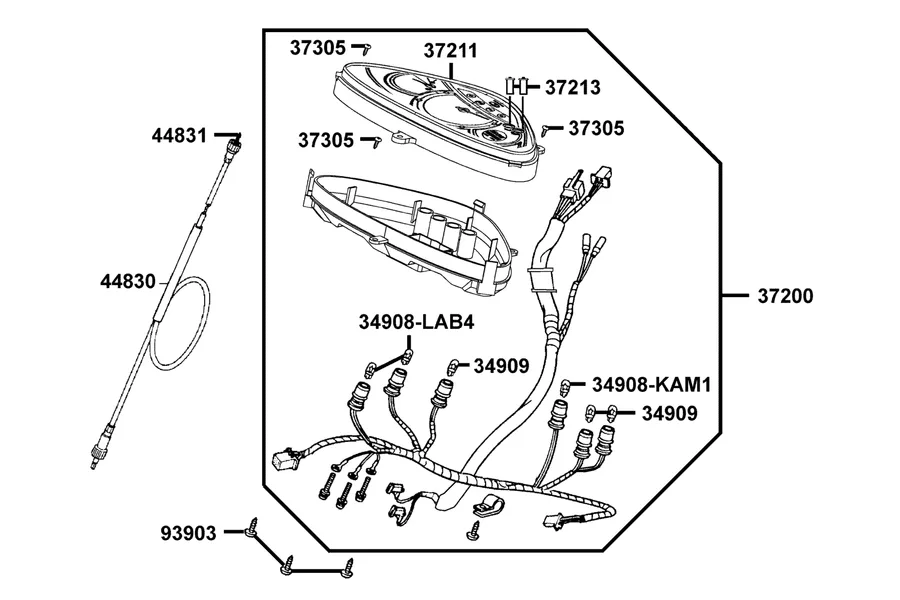

View diagram → F02 Speedometer parts diagram

F02 — Speedometer

10 parts

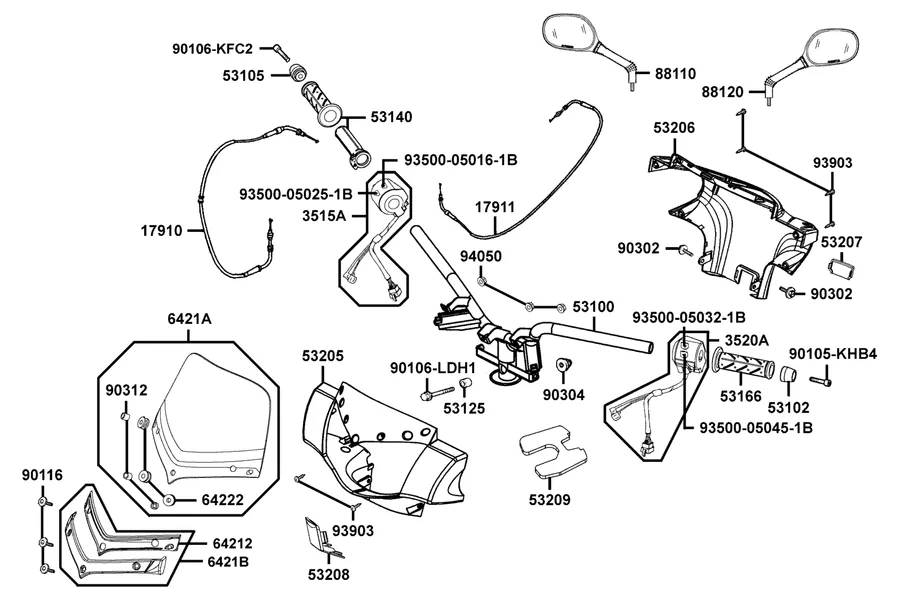

View diagram → F03 Handle Steering and Handle Cover parts diagram

F03 — Handle Steering●Handle Cover

34 parts

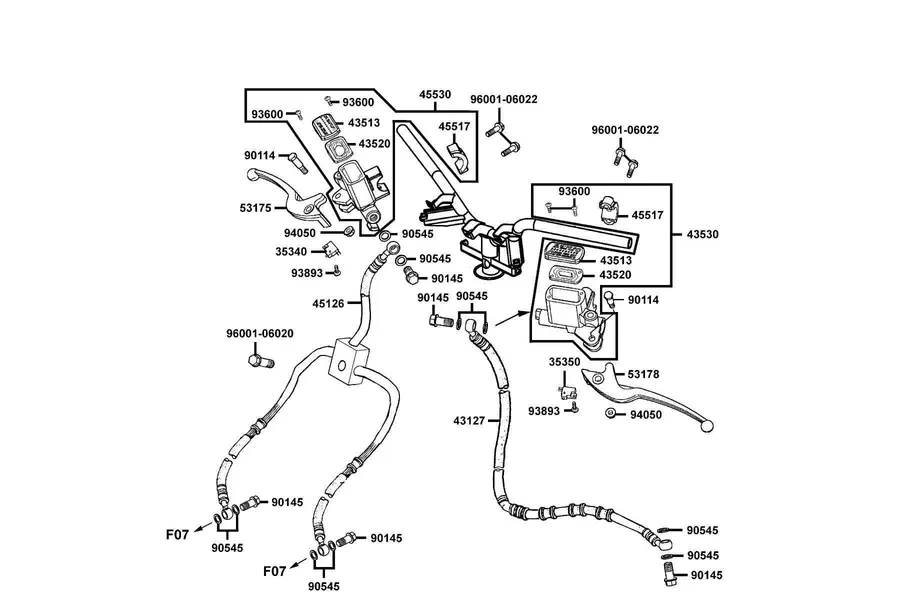

View diagram → F04 Brake Master Cylinder parts diagram

F04 — Brake Master Cylinder

19 parts

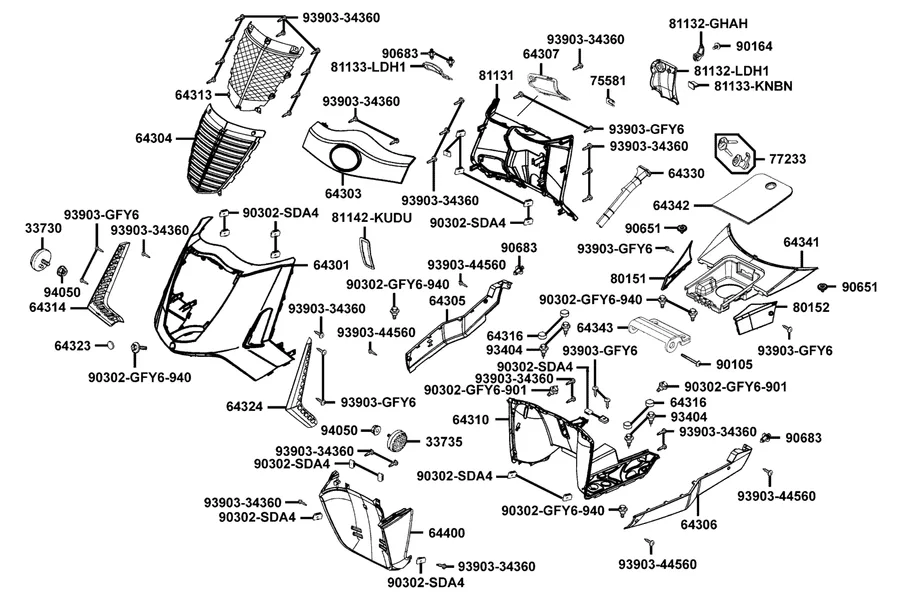

View diagram → F05 Front Cover parts diagram

F05 — Front Cover

41 parts

View diagram → F06 Front Cushion parts diagram

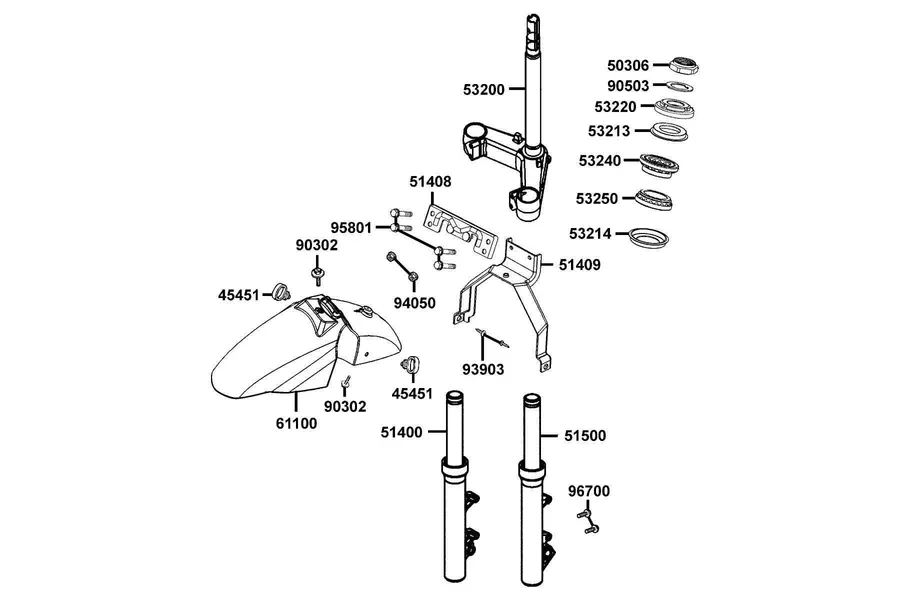

F06 — Front Cushion

19 parts

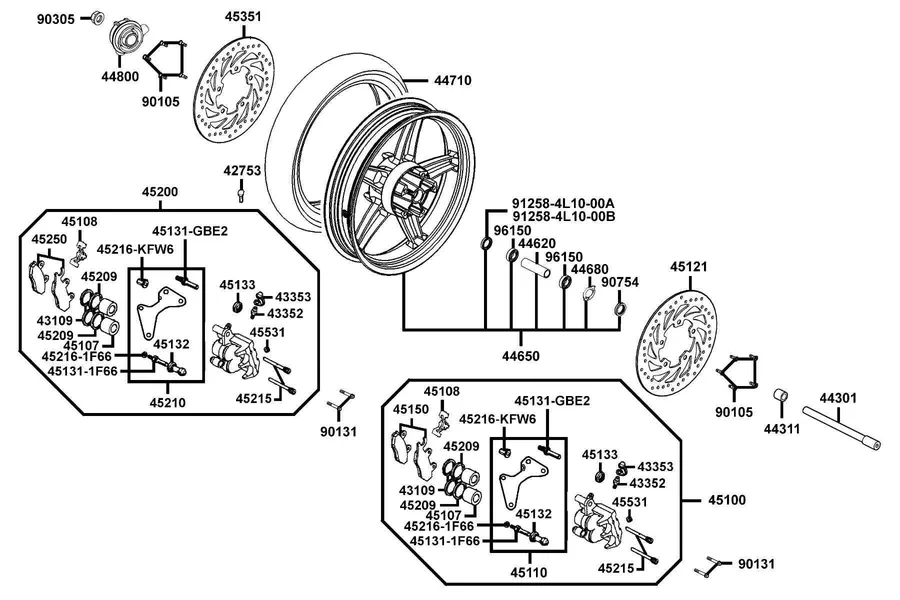

View diagram → F07 Front Wheel parts diagram

F07 — Front Wheel

36 parts

View diagram → F08 Rear Wheel parts diagram

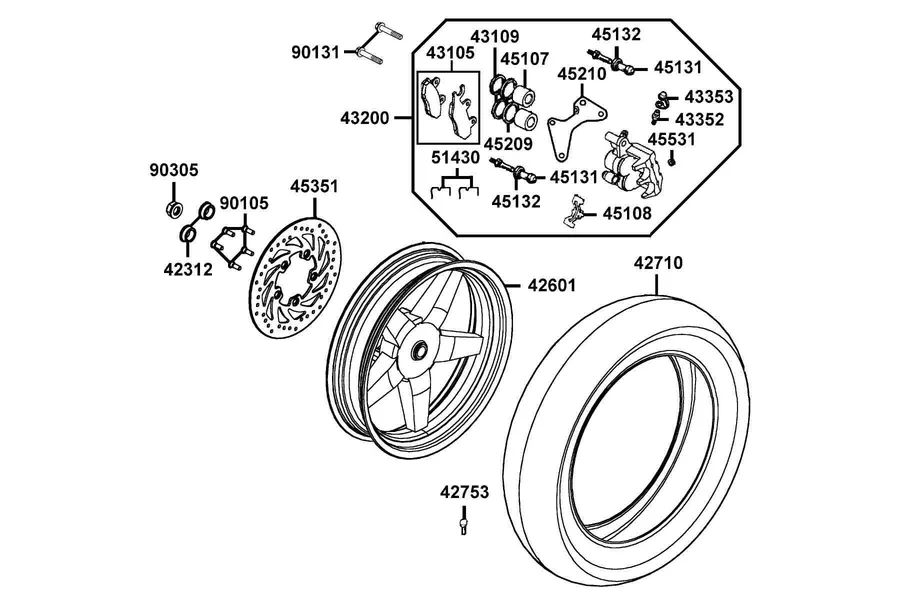

F08 — Rear Wheel

21 parts

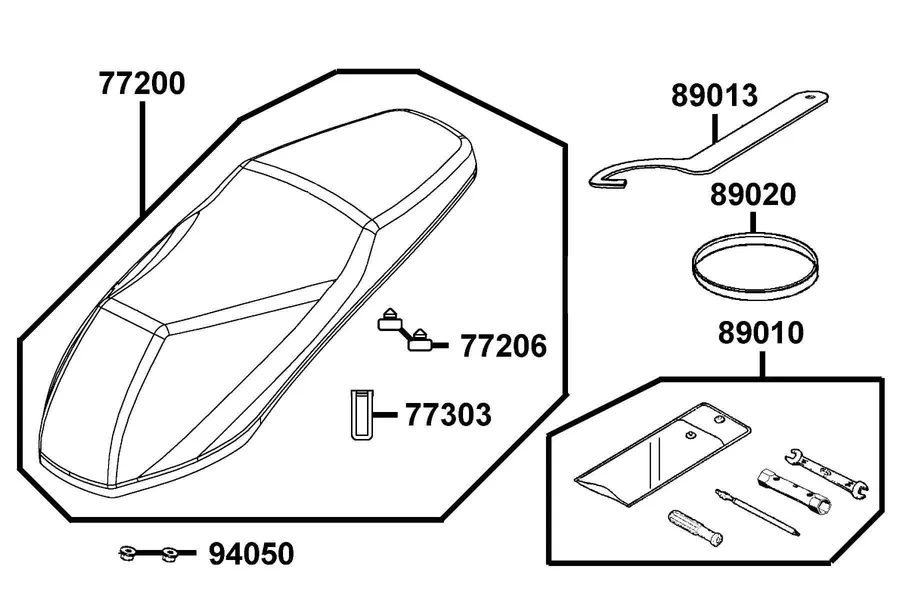

View diagram → F09 Seat parts diagram

F09 — Seat

7 parts

View diagram → F10 Fuel Tank parts diagram

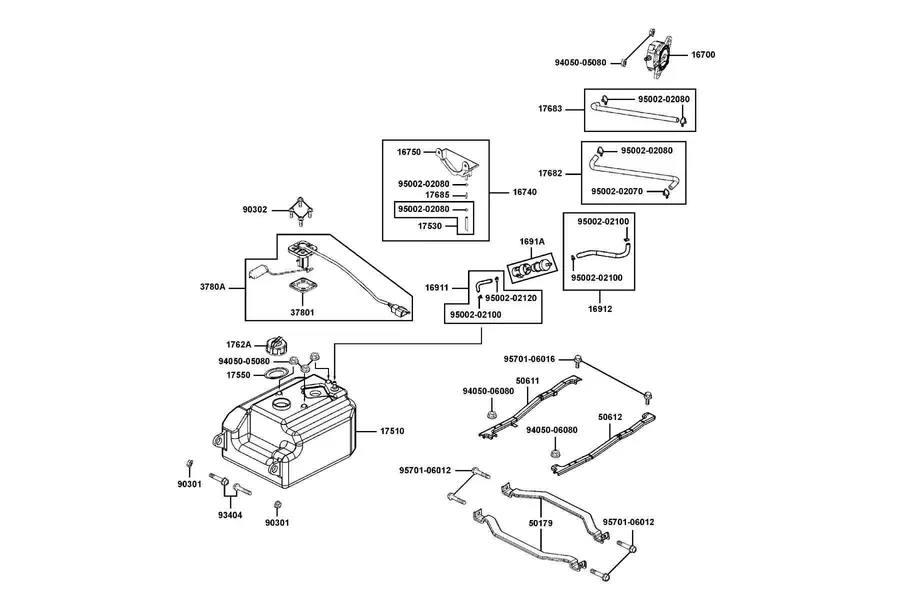

F10 — Fuel Tank

29 parts

View diagram → F11 Battery parts diagram

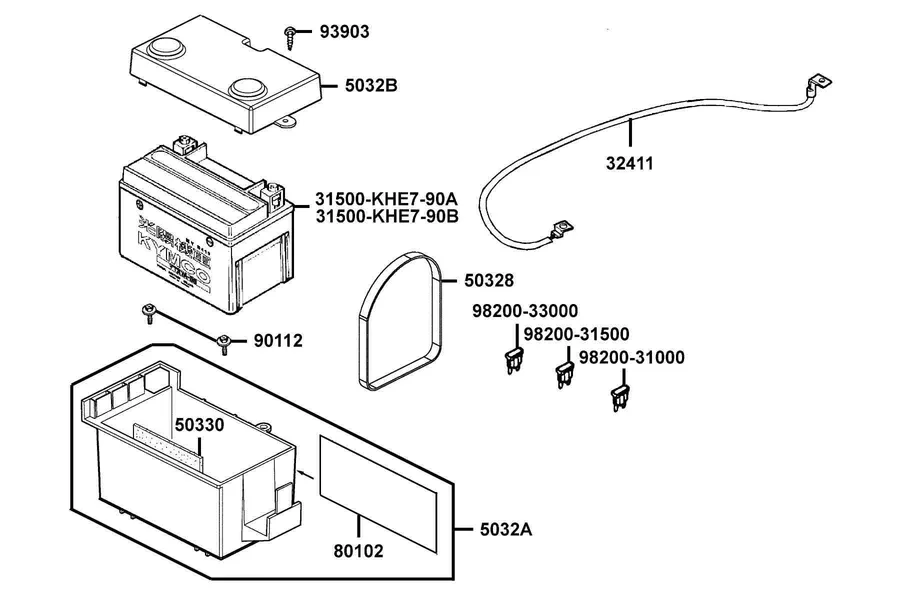

F11 — Battery

12 parts

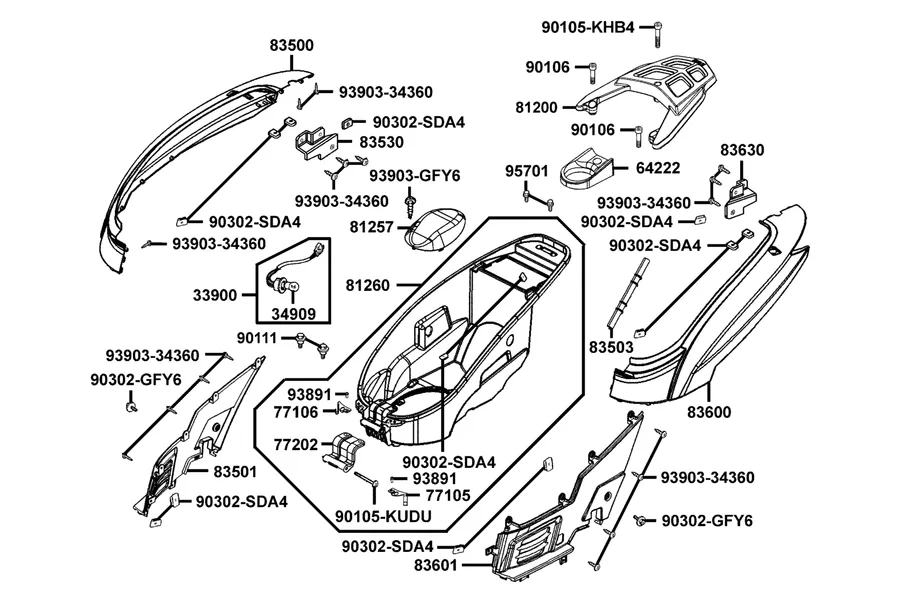

View diagram → F12 Body Cover and Luggage Box parts diagram

F12 — Body Cover●Luggage Box

26 parts

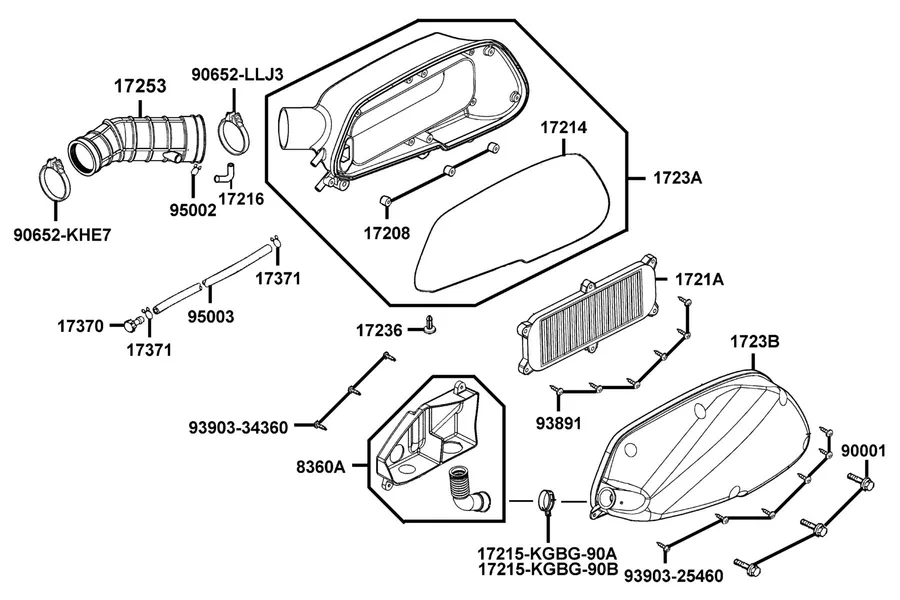

View diagram → F13 Air Cleaner parts diagram

F13 — Air Cleaner

20 parts

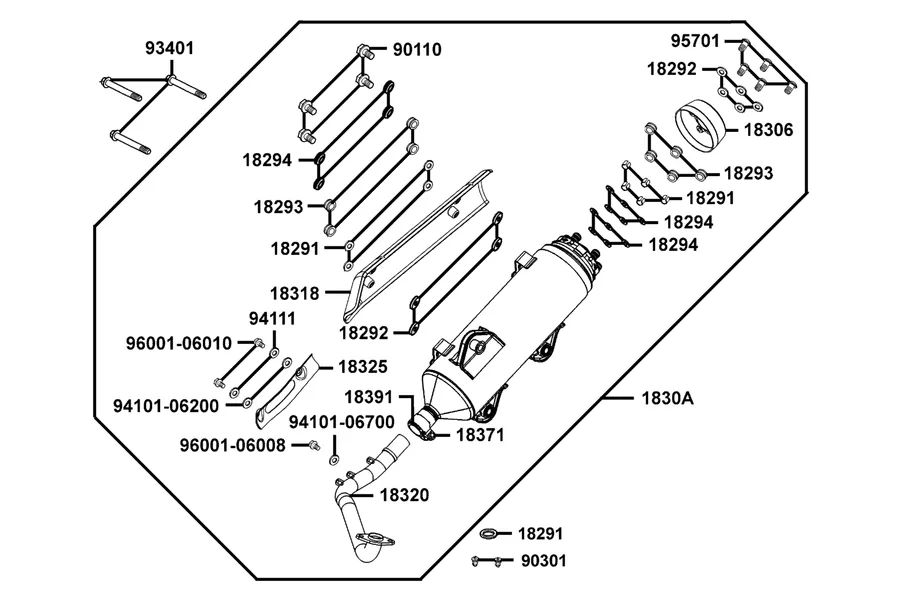

View diagram → F14 Exhaust Muffler parts diagram

F14 — Exhaust Muffler

18 parts

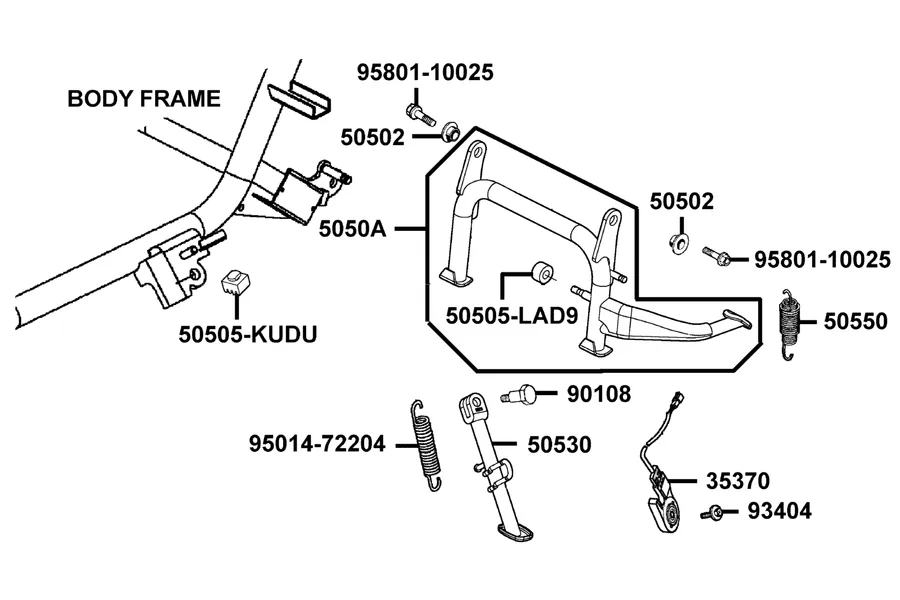

View diagram → F15 Stand parts diagram

F15 — STAND

11 parts

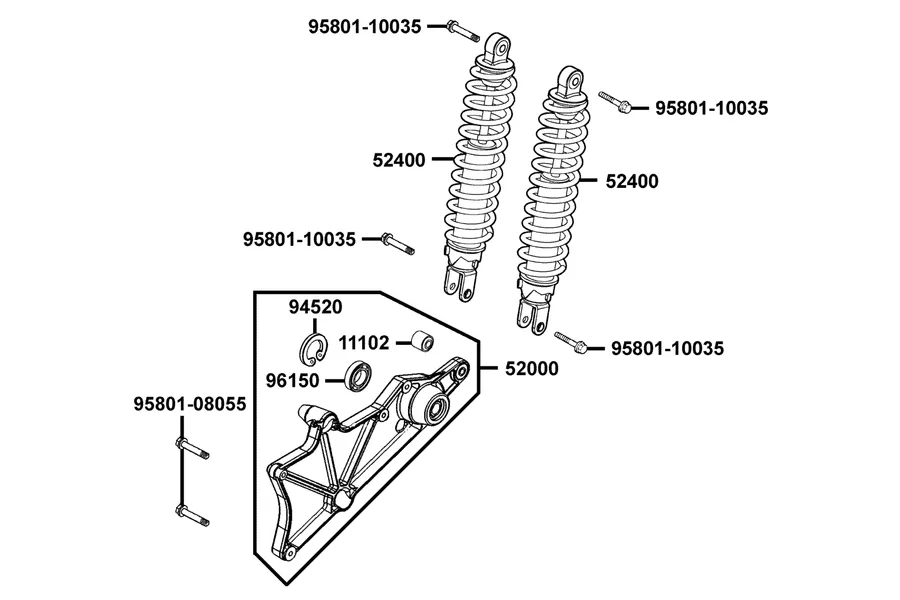

View diagram → F16 Rear Cushion parts diagram

F16 — Rear Cushion

6 parts

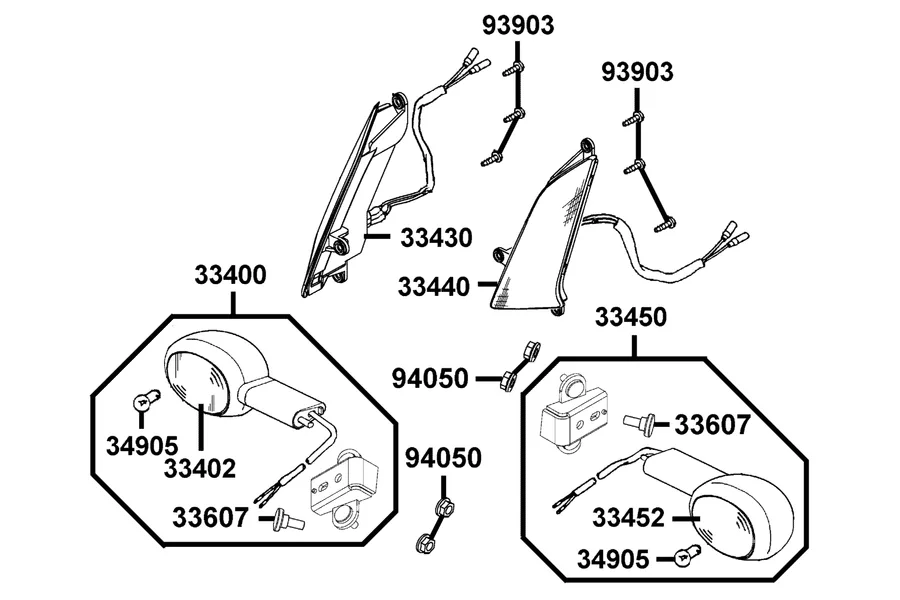

View diagram → F17 Front Winker and Rr Winker parts diagram

F17 — Front Winker ● RR WINKER

10 parts

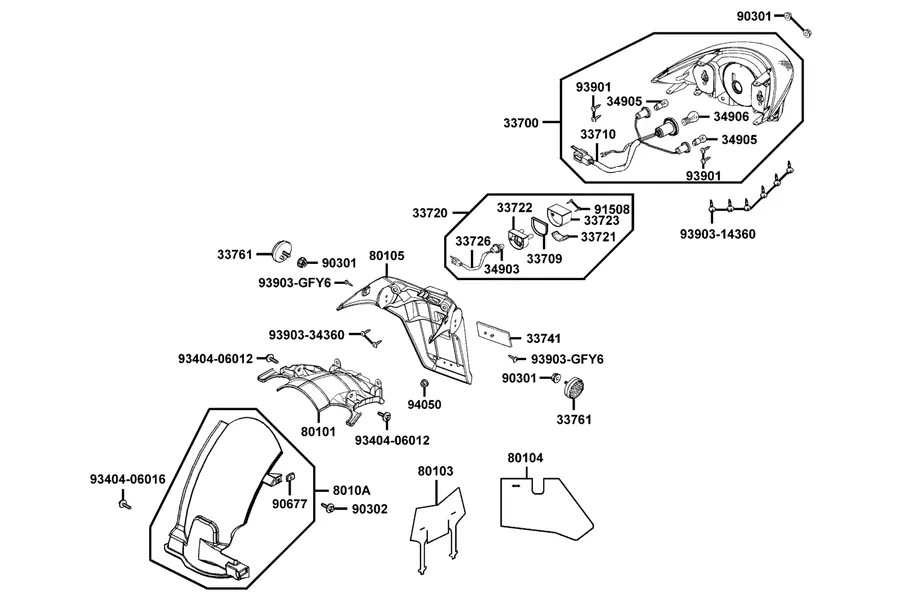

View diagram → F18 Rear Light and Rear Fender parts diagram

F18 — Rear Light●Rear Fender

30 parts

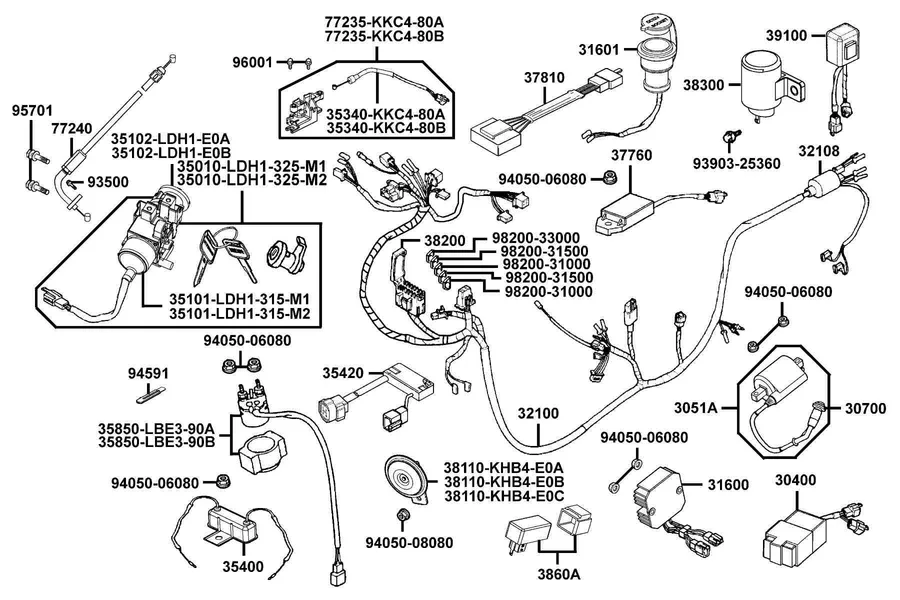

View diagram → F19 Wire Harness parts diagram

F19 — Wire Harness

36 parts

View diagram → F20 Frame Body parts diagram

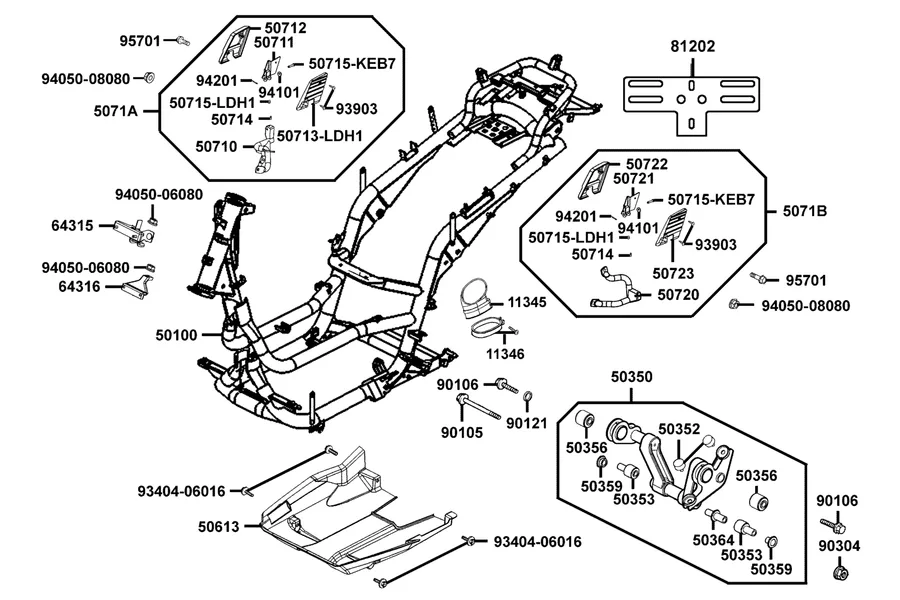

F20 — Frame Body

37 parts

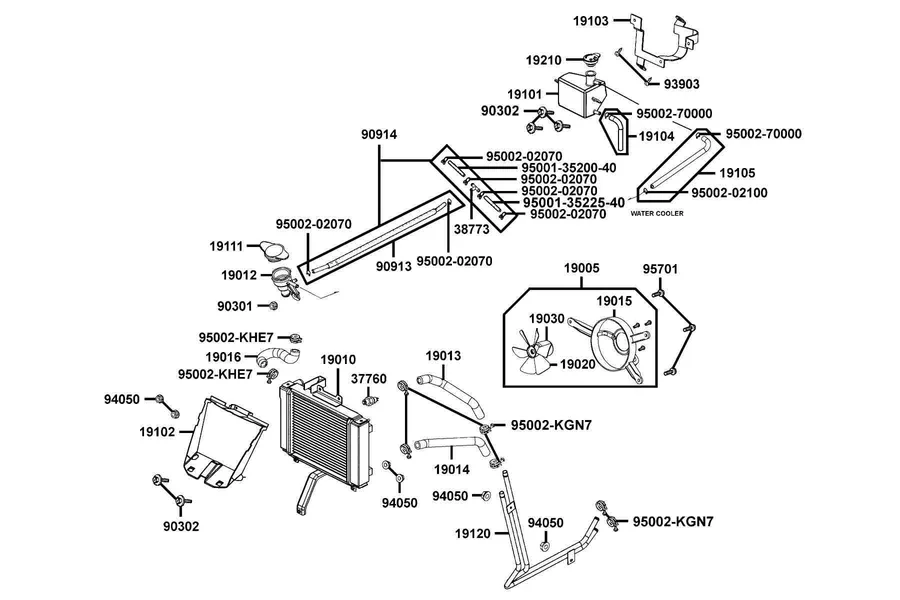

View diagram → F21 Radiator parts diagram

F21 — Radiator

33 parts

View diagram → F22 Separated Parts Of Fr Fork parts diagram

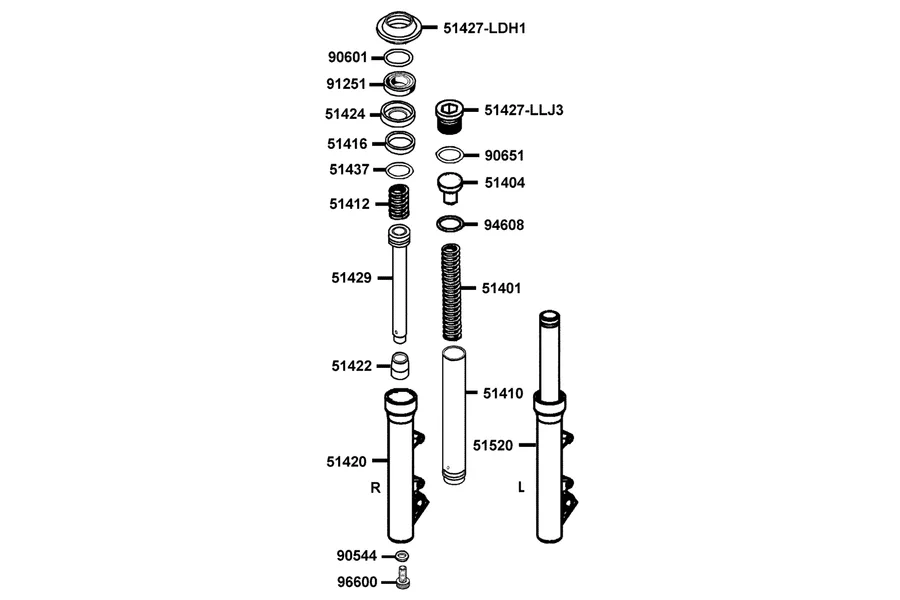

F22 — Separated Parts Of Fr Fork

19 parts

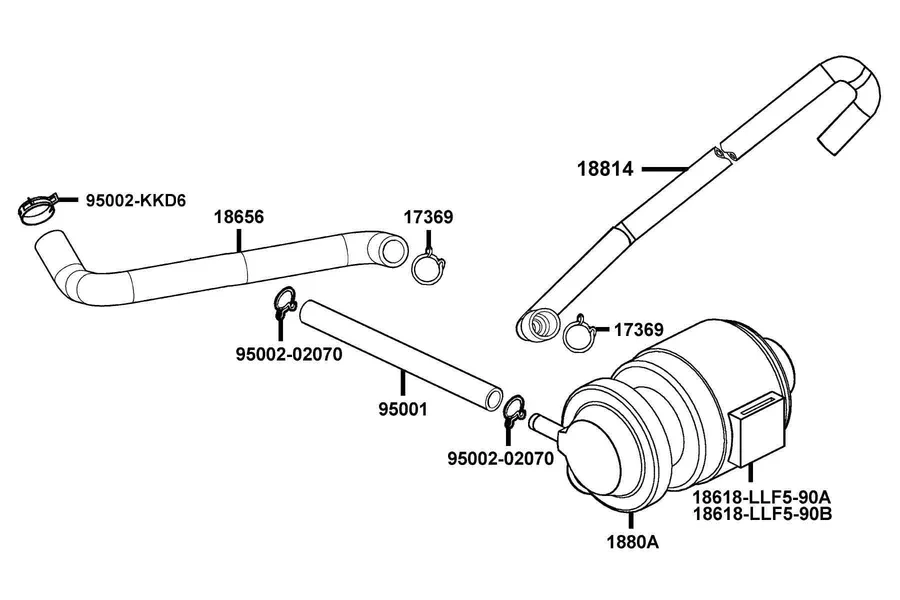

View diagram → F23 Assy Air-Aicv parts diagram

F23 — ASSY Air-Aicv

8 parts

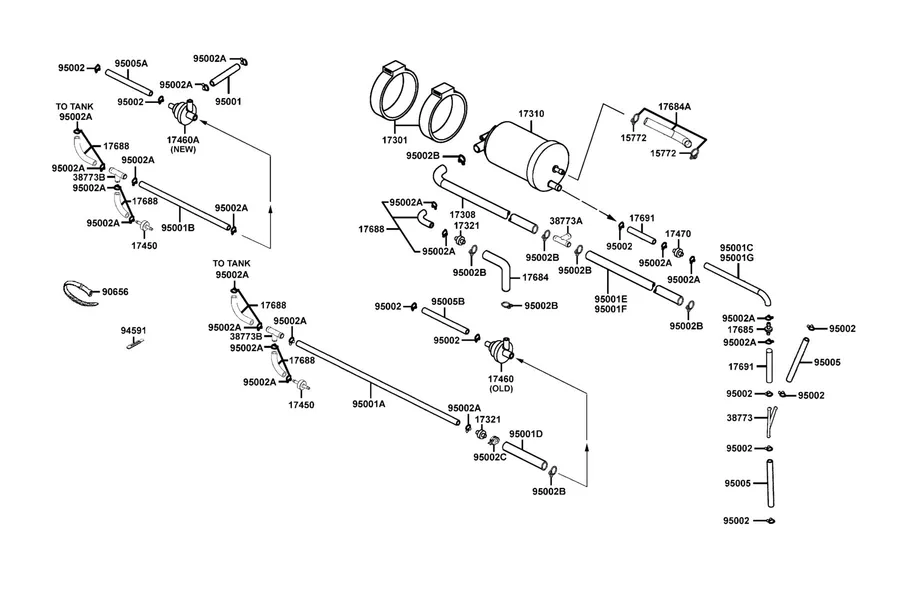

View diagram → F24 Canister parts diagram

F24 — Canister

34 parts

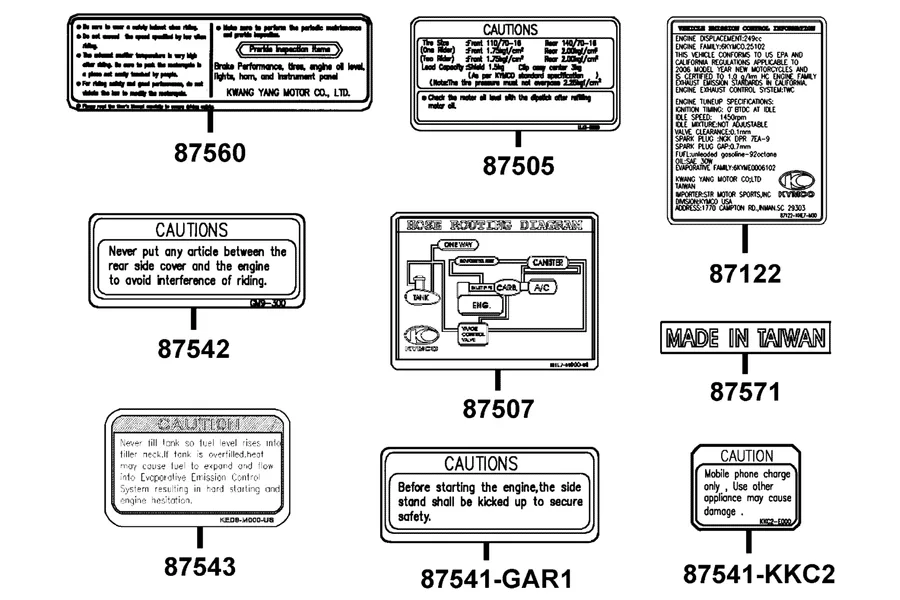

View diagram → F25 Caution Label parts diagram

F25 — Caution Label

8 parts

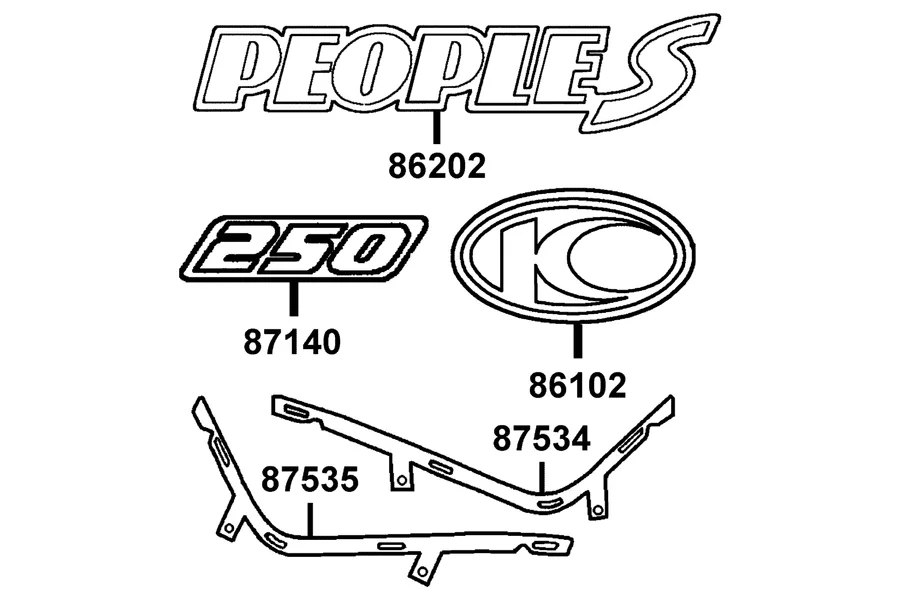

View diagram → F26 Emblem and Stripe parts diagram

F26 — Emblem●Stripe

5 parts

View diagram →

Common questions

How do I find a part number for the 2007 KYMCO People S 250?

Open the assembly it belongs to below — each diagram is an exploded-view drawing with numbered callouts. Hover a callout to highlight the part in the list, which shows its factory number and price, then click the row to open that part’s product page on kymcopartsstore.com.

What do the diagrams for the 2007 KYMCO People S 250 cover?

34 factory assemblies with 820 genuine OEM parts — engine (E-codes) and frame/bodywork (F-codes), exactly as KYMCO documents this version.

Will these parts fit my 2007 KYMCO People S 250?

This catalog is specific to model code BA50AB(US) (2007) in Red. If that matches your vehicle — or your VIN lookup points here — every part number on these diagrams is the factory-verified fit.
