F10 — Fuel Tank

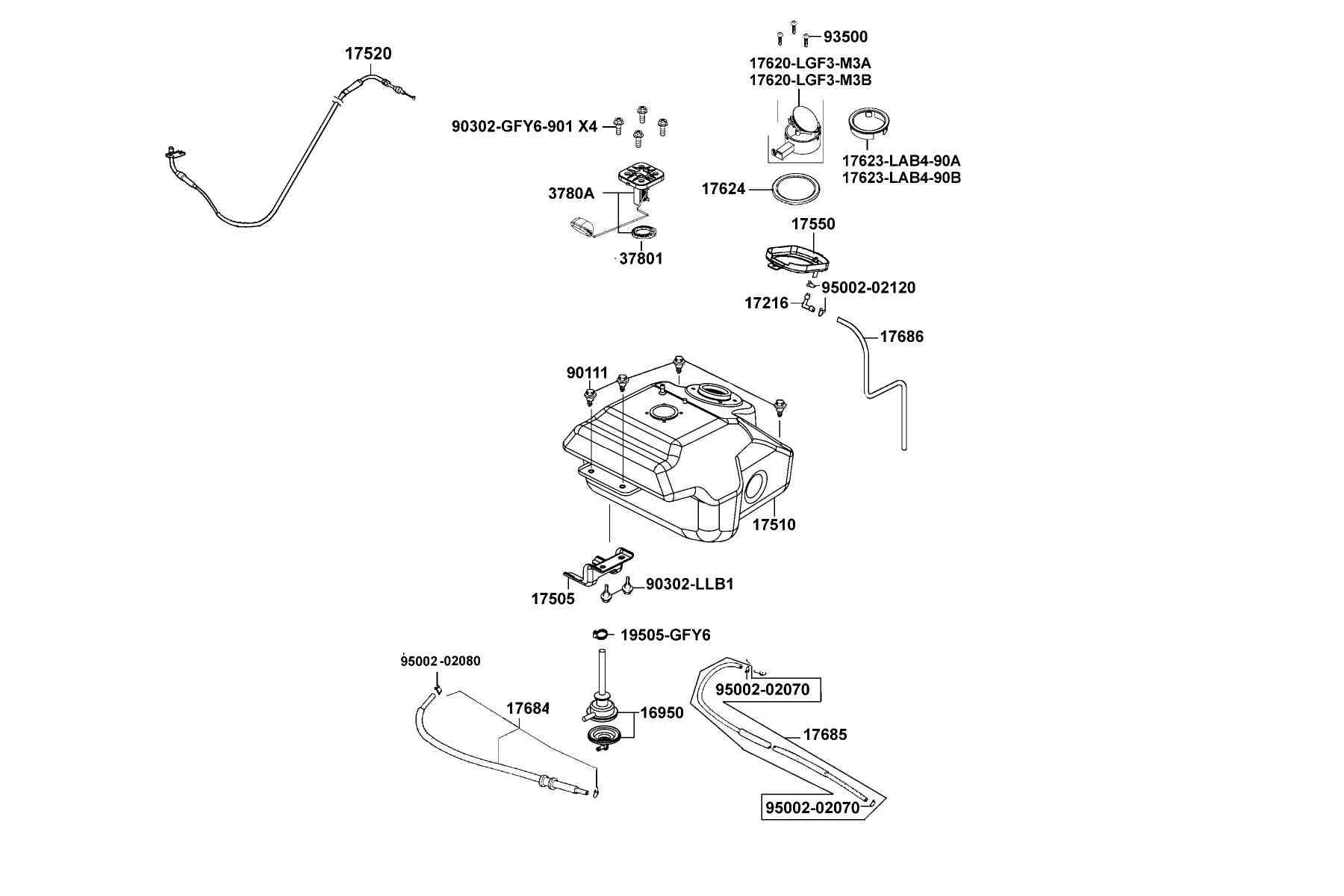

The Fuel Tank diagram contains 22 genuine OEM parts for the KYMCO Sento 50 (2009~2012). Hover a callout on the drawing to highlight the part in the list, click it to open that part’s product page on kymcopartsstore.com, or click the drawing to zoom.
US shipping, calculated at checkout · Special orders come from KYMCO’s US distributor · 14-day returns & fitment guarantee
-
AUTO COCK FUEL -
L JOINT BREATHER TUBE -
PLATE AUTO COCK -

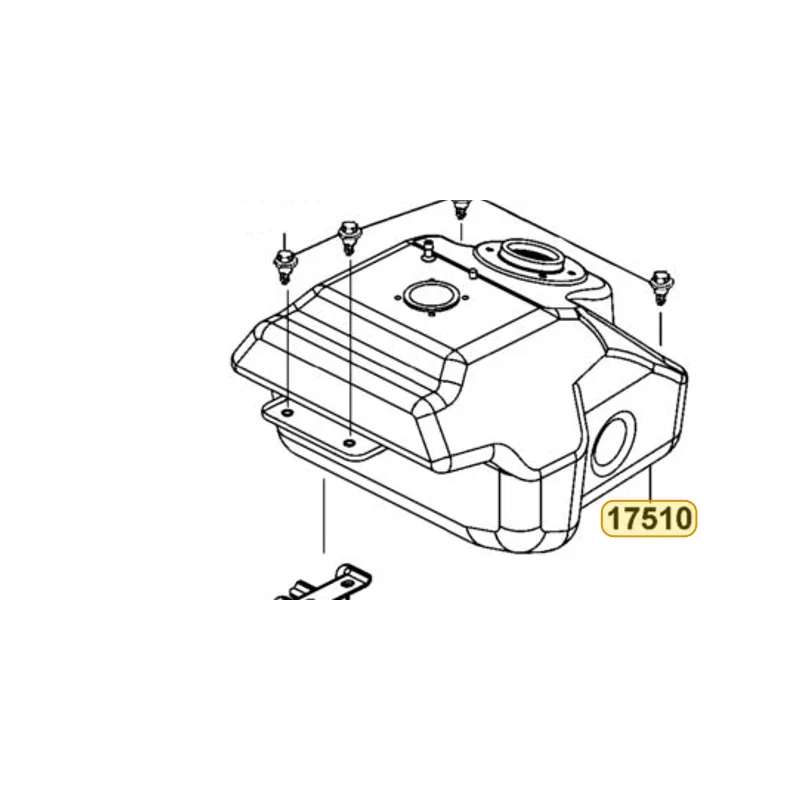

TANK COMP FUEL -
CABLE COMP FUEL CAP -

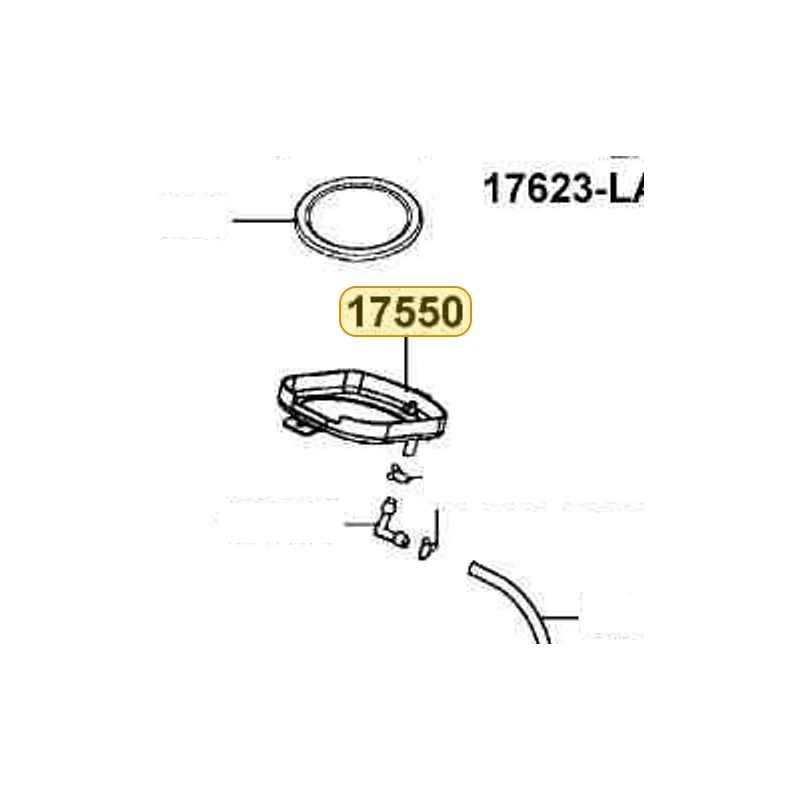

TRAY FUEL CAP -

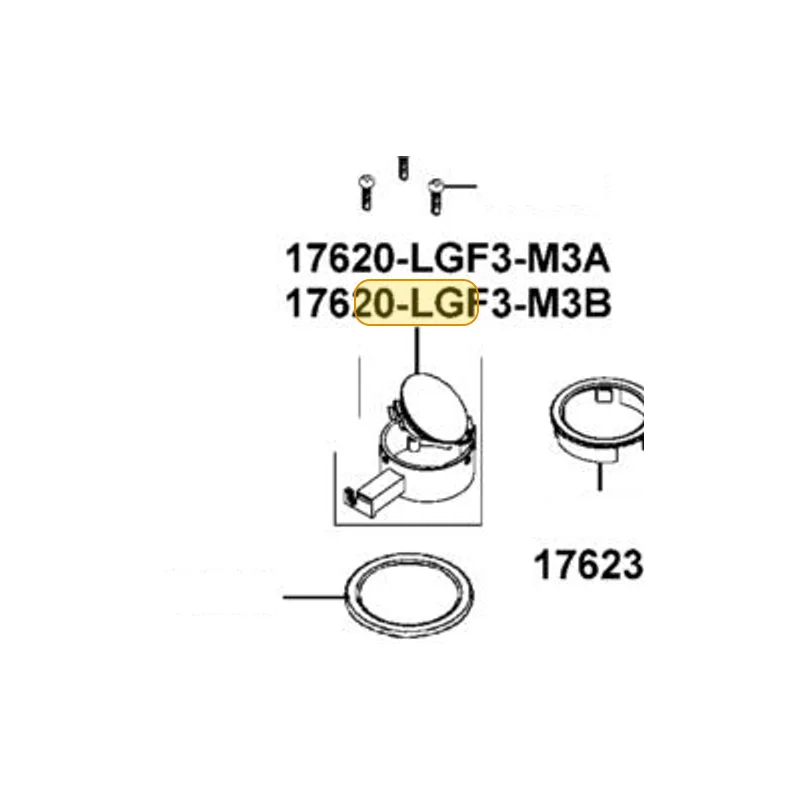

CAP COMP FUEL FILLER -
COLLAR FUEL FILLER -
PACKING FUEL CAP -
TUBE ASS'Y FUEL -
TUBE ASSY(COCK-INLET PIPE) -
TUBE ASSY DRAIN -
CLAMP A WATER HOSE -
$41.97 View product → -
FUEL UNIT ASSY -
$10.14 View product → -
$3.99 View product → -
$2.61 View product → -
$8.19 View product → -
$1.86 View product → -
$1.86 View product → -
$1.86 View product →
