E09 — Transmission

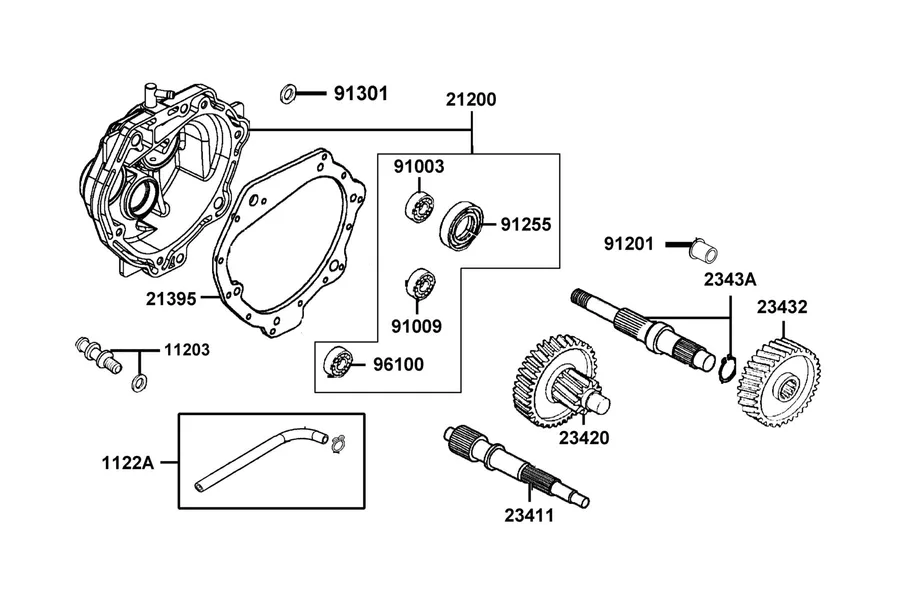

The Transmission diagram contains 14 genuine OEM parts for the KYMCO SUPER 8 150. Hover a callout on the drawing to highlight the part in the list, click it to open that part’s product page on kymcopartsstore.com, or click the drawing to zoom.
US shipping, calculated at checkout · Special orders come from KYMCO’s US distributor · 14-day returns & fitment guarantee
-
$20.85 View product → -
$22.98 View product → -
$291.24 View product → -
$20.88 View product → -
$131.04 View product → -
$176.28 View product → -
$126.51 View product → -
$94.98 View product → -
$49.68 View product → -
$36.51 View product → -
$29.76 View product → -
$8.70 View product → -
$0.99 View product → -
$53.61 View product →
Common questions
What does the E09 Transmission diagram for the SUPER 8 150 contain?
14 genuine OEM parts from KYMCO’s factory catalog for the SUPER 8 150 (2023), 14 of them priced. The exploded view shows exactly where each part sits in the assembly, and every listed part links to its product page on kymcopartsstore.com, where it is ordered.
How do I find the OEM part number from this diagram?
Hover a numbered callout on the drawing and the matching row highlights in the parts list with its factory part number, required quantity, and price. Click the row to open that part’s product page on kymcopartsstore.com. Click the drawing to zoom, or use the position numbers to match by hand.
Are the parts on this diagram original KYMCO parts?
Yes — every part number comes from KYMCO’s official catalog for this exact model, year, and color. Genuine OEM only, no aftermarket substitutes.
