E09 — Gearcase Fr Assy

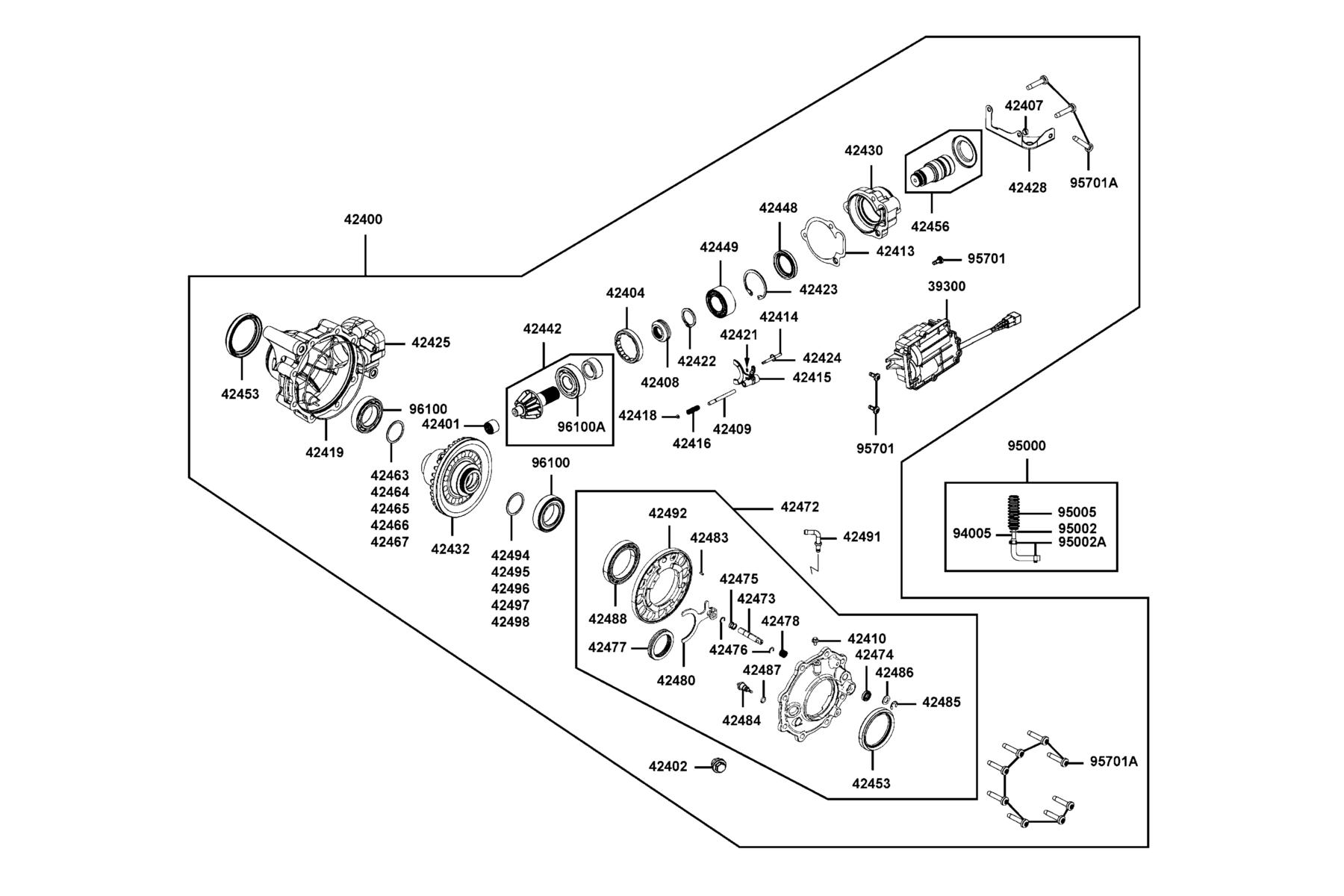

The Gearcase Fr Assy diagram contains 63 genuine OEM parts for the KYMCO UXV 500(Off Road LE) (2011~2011). Hover a callout on the drawing to highlight the part in the list, click it to open that part’s product page on kymcopartsstore.com, or click the drawing to zoom.
US shipping, calculated at checkout · Special orders come from KYMCO’s US distributor · 14-day returns & fitment guarantee
-
2X 4X ACTUATOR ASM -
GEARCASE FRONT ASSEMBLY VIN SPECIFIC -
BEARING NEEDLE(16NQ2316) -
PLUG FULL -
COLLAR LOCK M64X1.5RH -
PIN DOWEL -
COUPLE DRIVE -
SHAFT.SHUTTLE -
PLUG DRAIN-MAG -
GASKET FLANGE -
SHAFT SELECTOR -
FORK SELECTOR -
SPRING RETURN-4WD -
O-RING 3X2MM -
O-RING 150X2MM -
RING RETAINING-EXT 4 -
RING RETAINING ONE -
RING RETAINING -
O-RING ACTUATOR -
HOUSING GEARCASE-FRONT MACH -
BRACKET ACTUATOR-WELDMENT -
HOUSING PINION-MACH -
GEAR (34 TOOTH 3.1)-WELDMENT -
PINION (10 TOOTH) ASSEMBLY -
SEAL 38X55X14 -
BEARING BALL-DOUBLE ROW -
SEAL 67X84X9 -
SHAFT INPUT-ASSEMBLY -
SHIM 41*49*1.3 -
SHIM 41*49*1.4 -
SHIM 41*49*1.5 -
SHIM 41*49*1.6 -
SHIM 41*49*1.7 -
COVER LOCKER ASSEMBLY -
SHAFT LOCK -
SEAL -
SPRING -
RING RETAINING -
COLLAR SLIDING LOCK -
SPRING SHAFT -
FORK -
PIN PARALLEL -
SWITCH INDICATOR -
RING RETAINING INDICATOR -
WASHER FLAT -
O-RING -
BEARING BALL -
BARB 90 DEG -
FLANGE BEARING MACH -
SHIM 61*69*1.3mm -
SHIM 61*69*1.4mm -
SHIM 61*69*1.5mm -
SHIM 61*69*1.6mm -
SHIM 61*69*1.7 mm -
$25.35 View product → -
$4.17 View product → -
$66.96 View product → -
$4.92 View product → -
$6.06 View product → -
$32.10 View product → -
$9.06 View product → -
BRG RADIAL BALL 6008 -
$49.86 View product →
