F05 — Box Assy Luggage● Panel Assy R/L Footrest

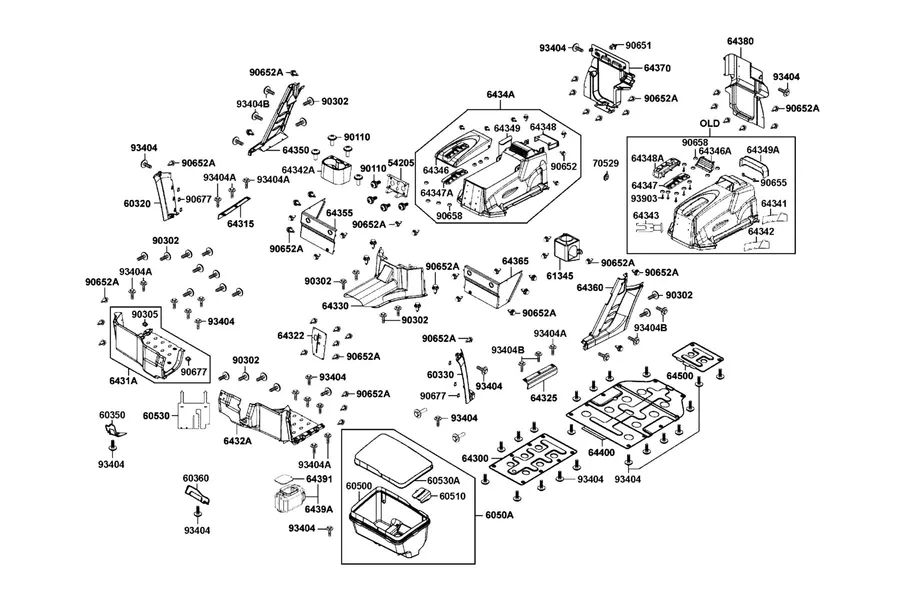

The Box Assy Luggage● Panel Assy R/L Footrest diagram contains 55 genuine OEM parts for the KYMCO UXV 500i (2017~). Hover a callout on the drawing to highlight the part in the list, click it to open that part’s product page on kymcopartsstore.com, or click the drawing to zoom.
