E05 — THROTTLE BODY ASSY

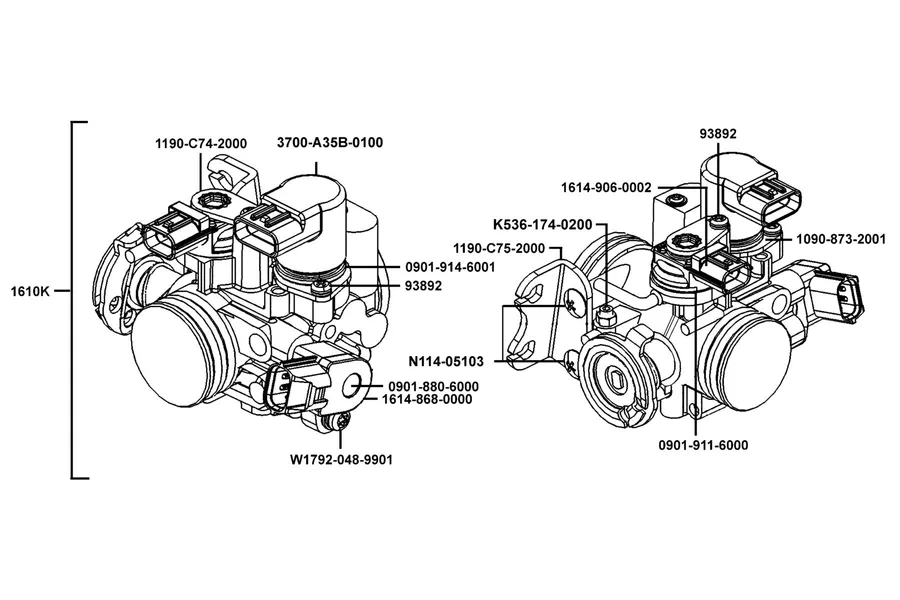

The THROTTLE BODY ASSY diagram contains 14 genuine OEM parts for the KYMCO X-Town 300i ABS (2022). Hover a callout on the drawing to highlight the part in the list, click it to open that part’s product page on kymcopartsstore.com, or click the drawing to zoom.
US shipping, calculated at checkout · Special orders come from KYMCO’s US distributor · 14-day returns & fitment guarantee
-
$4.92 View product → -
$6.06 View product → -
$4.92 View product → -
$4.92 View product → -
$39.99 View product → -
$39.12 View product → -
$522.30 View product → -
$311.85 View product → -
$215.76 View product → -
$376.56 View product → -
$8.85 View product → -
$36.78 View product → -
$7.23 View product → -
$9.06 View product →
