E08 — Carburetor

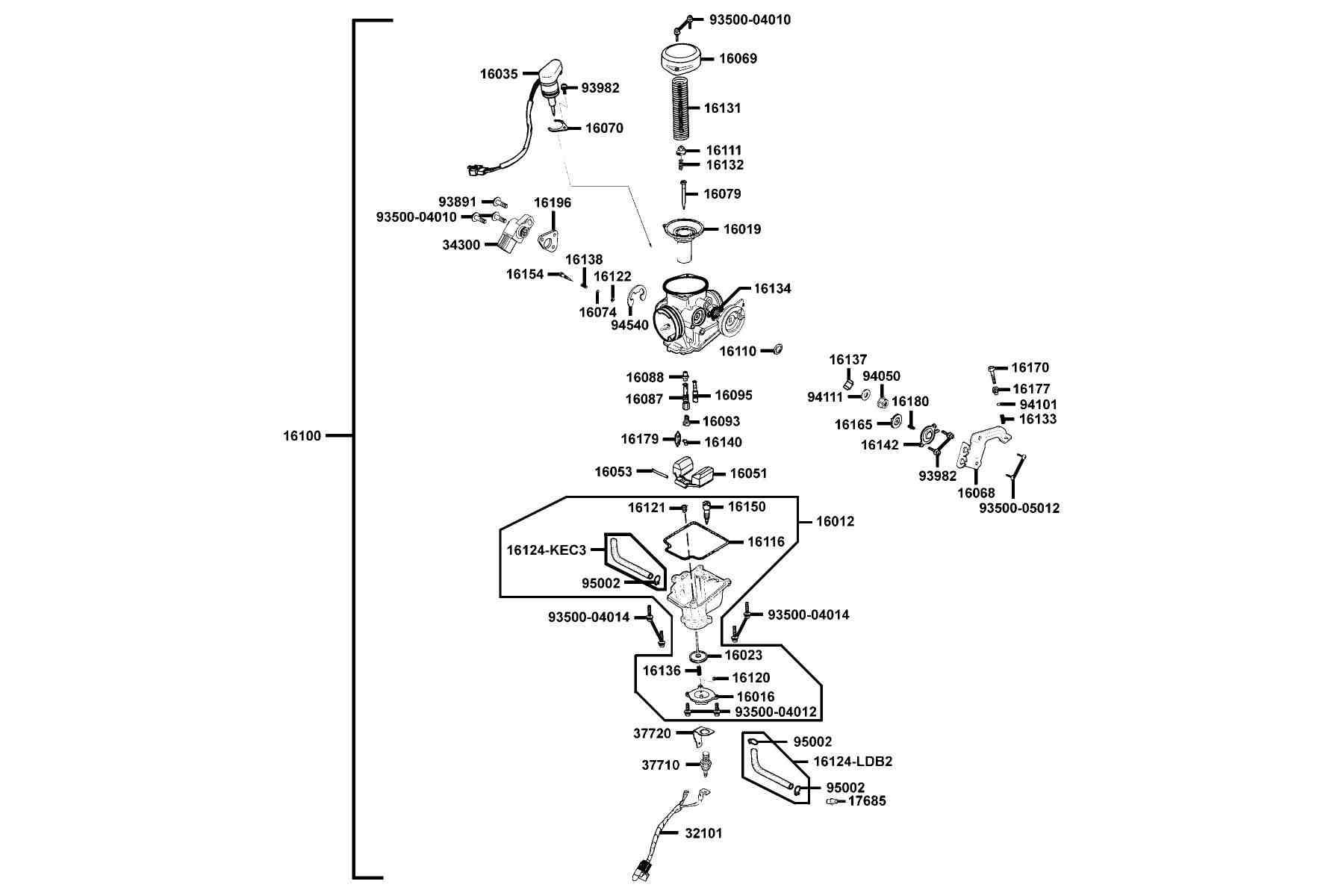

The Carburetor diagram contains 55 genuine OEM parts for the KYMCO XCITING 250 (2006~2007). Hover a callout on the drawing to highlight the part in the list, click it to open that part’s product page on kymcopartsstore.com, or click the drawing to zoom.
US shipping, calculated at checkout · Special orders come from KYMCO’s US distributor · 14-day returns & fitment guarantee
-
CHANBER FLOAT ASSY -
$16.14 View product → -
VALVE ASSY PISTON -
DIAPHRAGM ASSY ACCP -
UNIT BY-ST -
$33.66 View product → -
$4.92 View product → -
PLATE WIRE FIXED COMP -
COVER PISTON VALVE DIAPHRAGM -
STOPPER BY-ST -
$1.86 View product → -
NEEDLE ASSY JET -
TUBE EMULSION (NEEDLE JET HOLDER) -
JET NEEDLE -

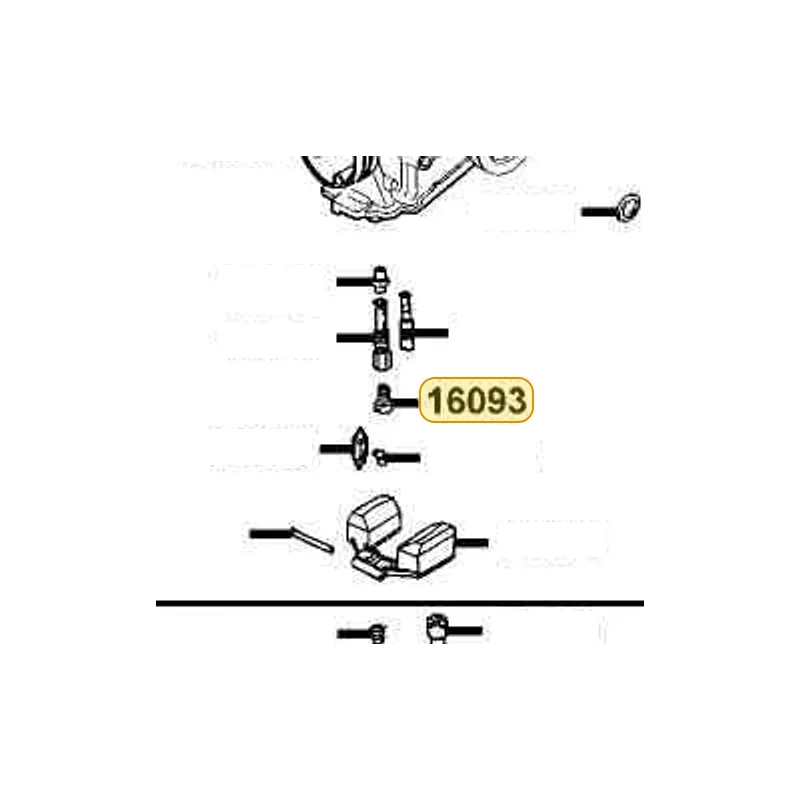

JET MAIN #96 -
JET SLOW #35 -
CARBURETOR ASSY -
$1.86 View product → -
STOPPER JET NEEDLE SPG -
$8.67 View product → -
$5.67 View product → -
BELLOW ACCP ROD -
$4.92 View product → -
$6.54 View product → -
TUBE COMP 3.5*220 -
SPRING VACUUM PISTION -
$1.86 View product → -
SPRING THROTTLE ADJUST SCREW -
$5.88 View product → -
$8.88 View product → -
$1.86 View product → -
CLIP FLOAT VALVE -
$16.14 View product → -
SCREW COMP DRAIN -
SCREW IDLE ADJUST -
$22.74 View product → -
SCREW THROTTLE ADJUST -
COLLAR THROTTLE ADJUST SCREW -
VALVE ASSY FLOAT -
$1.86 View product → -
PLATE TPS -
$6.78 View product → -
SUB CORD -
$105.60 View product → -
HEATER -
EARTH TERMINAL HEATER -
$13.95 View product → -
SCREW PAN 4*12 -
$12.12 View product → -
$8.85 View product → -
$2.31 View product → -
$4.92 View product → -
$4.92 View product → -
$4.92 View product → -
$1.86 View product →
Common questions
What does the E08 Carburetor diagram for the XCITING 250 (2006~2007) contain?
55 genuine OEM parts from KYMCO’s factory catalog for the XCITING 250 (2006~2007), 55 of them priced. The exploded view shows exactly where each part sits in the assembly, and every listed part links to its product page on kymcopartsstore.com, where it is ordered.
How do I find the OEM part number from this diagram?
Hover a numbered callout on the drawing and the matching row highlights in the parts list with its factory part number, required quantity, and price. Click the row to open that part’s product page on kymcopartsstore.com. Click the drawing to zoom, or use the position numbers to match by hand.
Are the parts on this diagram original KYMCO parts?
Yes — every part number comes from KYMCO’s official catalog for this exact model, year, and color. Genuine OEM only, no aftermarket substitutes.
