E06 — Throttle Body

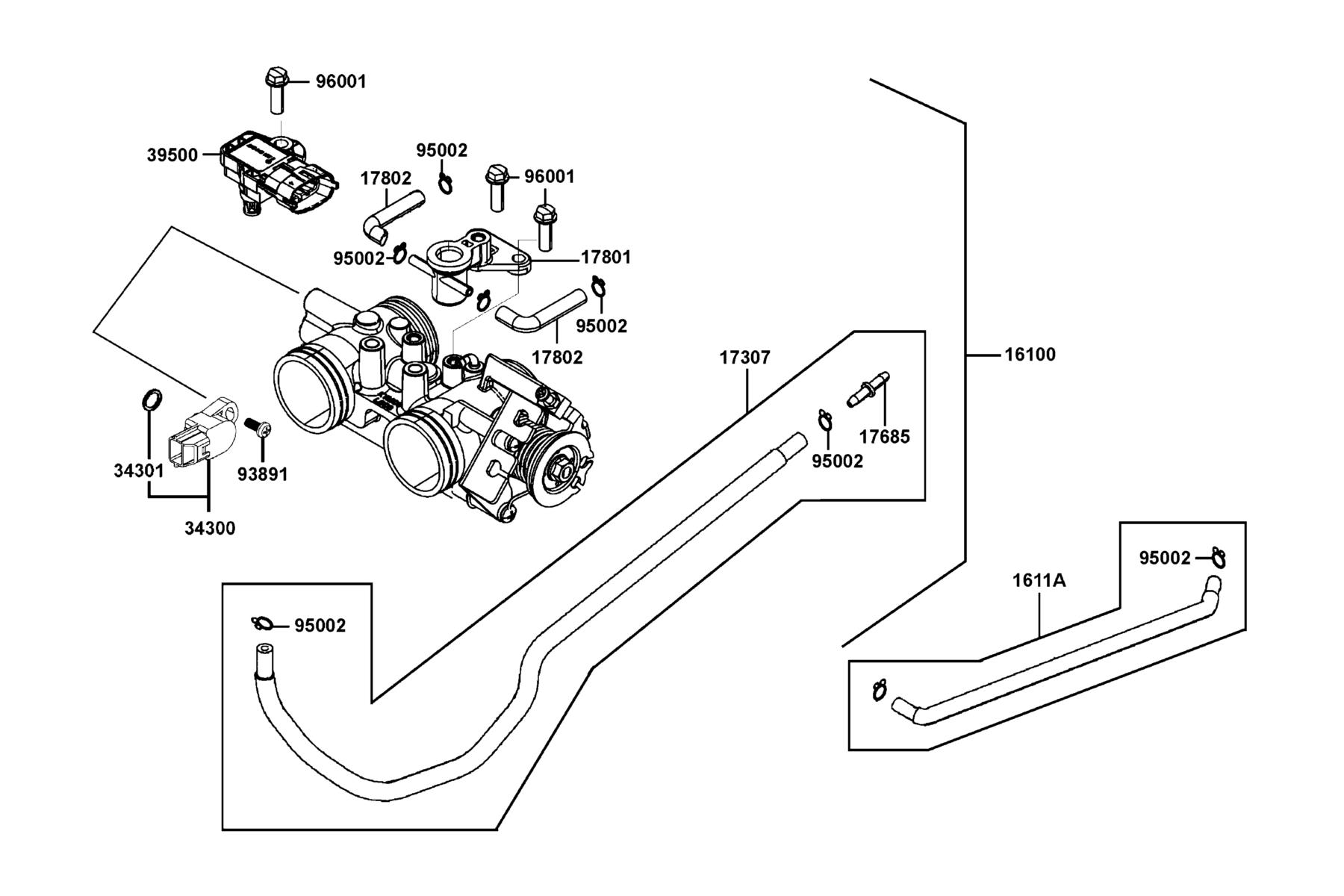

The Throttle Body diagram contains 12 genuine OEM parts for the KYMCO AK550. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 16100-LGC6-E00 | THROTTLE BODY ASSY | 1 | $592.68 USD | View product → | |
| 2 | 1611A-LGC6-E00 | HOSE A ASSY T/H BODY | 1 | $15.03 USD | View product → | |
| 3 | 17307-LGC6-E00 | TUBE ASSY | 1 | $12.57 USD | View product → | |
| 4 | 17685-GLE0-301 | JOINT COCK-CARB TUBE | 1 | $5.22 USD | View product → | |
| 5 | 17801-LGC6-E00 | JOINT 3 WAY | 1 | $41.91 USD | View product → | |
| 6 | 17802-LGC6-E00 | TUBE A AIR | 1 | $12.45 USD | View product → | |
| 7 | 34300-LKM8-E00 | THROTTLE. POSITION SENSOR | 1 | $144.42 USD | View product → | |
| 8 | 34301-KKE3-900 | O-RING T.P.S. | 1 | $4.92 USD | View product → | |
| 9 | 39500-AAC9-900 | SENSOR T-MAP | 1 | $278.58 USD | View product → | |
| 10 | 93891-05016-06 | SCREW WASHER 5* 16 | 1 | $1.86 USD | View product → | |
| 11 | 95002-02070 | CLIP B7 TUBE | 5 | $1.86 USD | View product → | |
| 12 | 96001-06018-06 | BOLT FLANGE SH 6*18 | 3 | $12.12 USD | View product → |
