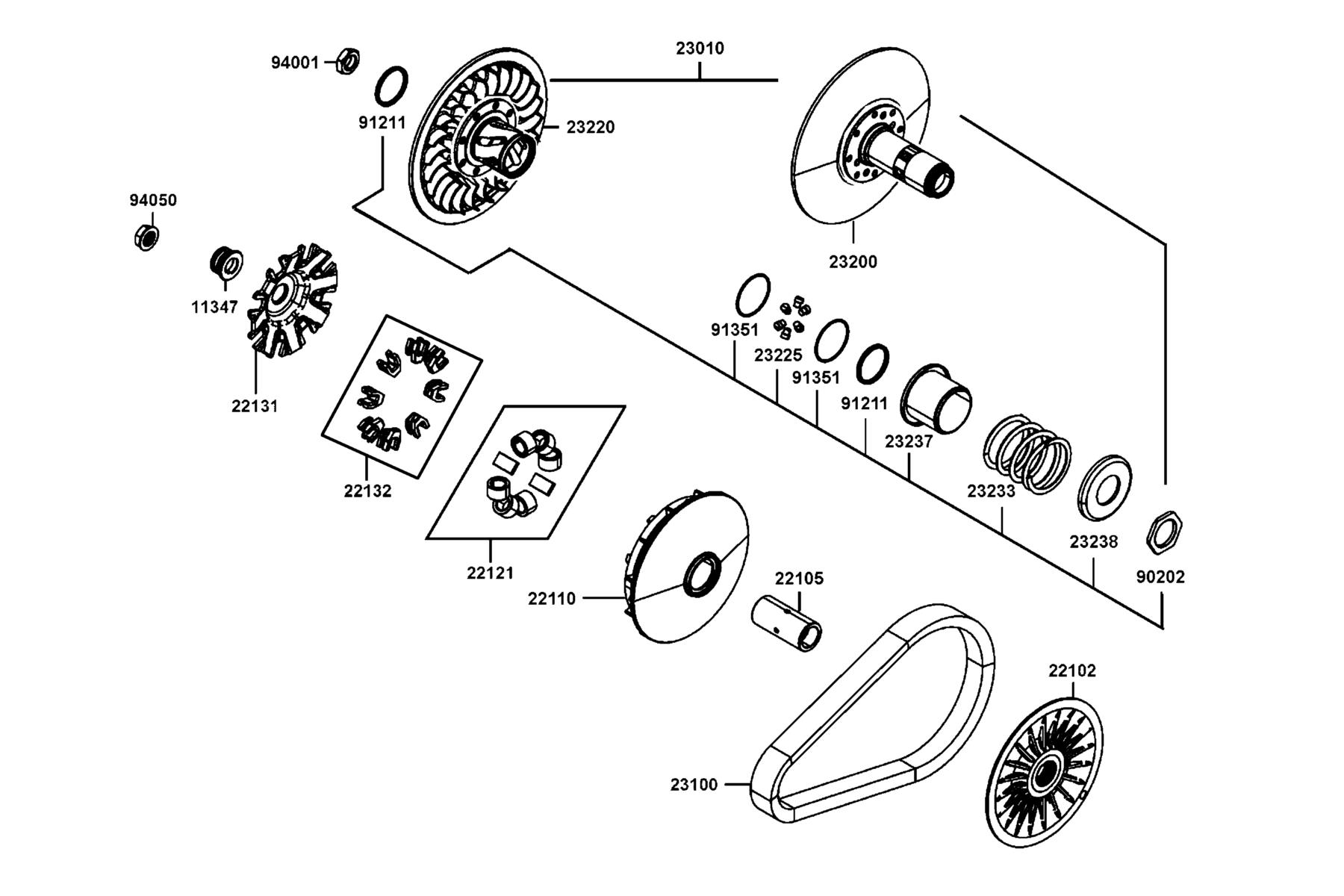

E07 — Transmission Pulley
The Transmission Pulley diagram contains 20 genuine OEM parts for the KYMCO AK550. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11347-LKF5-E00 | BOSS DRIVE SHAFT | 1 | $75.81 USD | View product → | |
| 2 | 22102-LGC6-E00 | FACE DRIVE | 1 | $123.09 USD | View product → | |
| 3 | 22105-LGC6-E00 | BOSS DRIVE FACE | 1 | $16.86 USD | View product → | |
| 4 | 22110-LGC6-E00 | FACE COMP MOVABLE | 1 | $205.50 USD | View product → | |
| 5 | 22121-LGC6-305 | ROLLER SET WEIGHT (1SET:8 PCS) | 1 | $121.71 USD | View product → | |
| 6 | 22131-LGC6-E00 | PLATE RAMP | 1 | $42.78 USD | View product → | |
| 7 | 22132-ADG5-305 | PIECE SET SLIDE(1 SET:8 PCS) | 1 | $80.31 USD | View product → | |
| 8 | 23010-LGC6-E00 | PULLEY ASSY DRIVEN | 1 | $560.58 USD | View product → | |
| 9 | 23100-LGC6-E00 | BELT DRIVE (N-6N) | 1 | $504.30 USD | View product → | |
| 10 | 23200-LGC6-E00 | FACE COMP DRIVEN A | 1 | $489.90 USD | View product → | |
| 11 | 23220-LGC6-E00 | FACE COMP. MOVABLE DRIVEN | 1 | $424.68 USD | View product → | |
| 12 | 23225-LKF5-E00 | PIN ROLLER GUIDE | 6 | $56.58 USD | View product → | |
| 13 | 23233-LGC6-E00 | SPG DRIVEN FACE | 1 | $49.98 USD | View product → | |
| 14 | 23237-LGC6-E00 | COLLAR SEAL | 1 | $30.96 USD | View product → | |
| 15 | 23238-LDB5-E00 | COLLAR SPG | 1 | $44.85 USD | View product → | |
| 16 | 90202-LDB5-E00 | NUT SPECIAL 36MM | 1 | $23.40 USD | View product → | |
| 17 | 91211-LGC6-E00 | SEAL DRIVEN 41X47X4 | 2 | $14.13 USD | View product → | |
| 18 | 91351-LDB5-E00 | O-RING PINION CAP | 2 | $16.14 USD | View product → | |
| 19 | 94001-LGC6-E00 | NUT FLANGE M18X1.0 | 1 | $14.13 USD | View product → | |
| 20 | 94050-LKF5-E00 | NUT FLANGE 18MM | 1 | $41.61 USD | View product → |
