E07 — Fan Cover●Generator

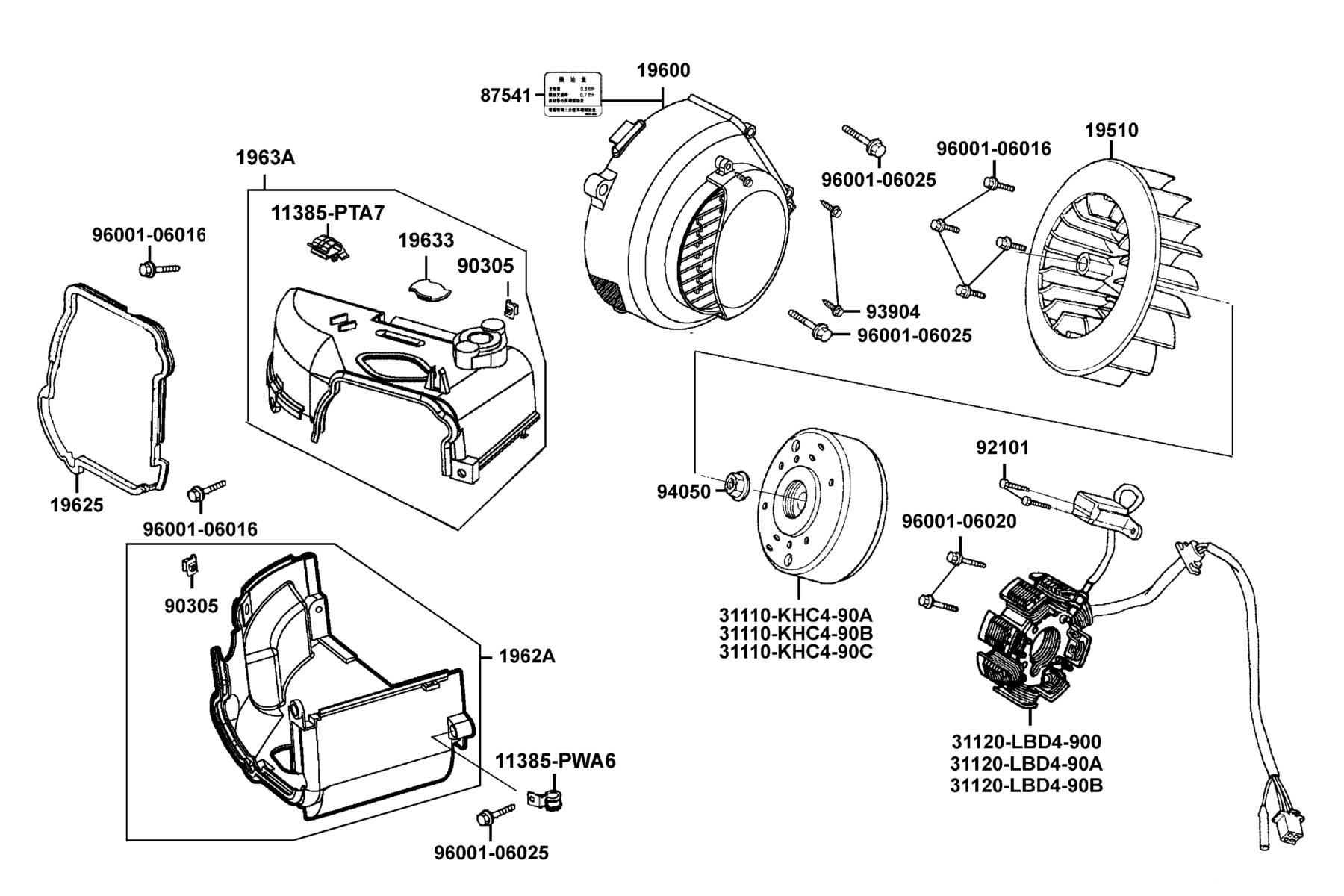

The Fan Cover●Generator diagram contains 19 genuine OEM parts for the KYMCO Mongoose 90S (2016~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11385-PTA7-900 | CLIP VACUUM TUBE | 1 | $7.89 USD | View product → | |
| 2 | 11385-PWA6-900 | CLAMPER CARB DRAIN TUBE | 1 | $7.92 USD | View product → | |
| 3 | 19510-GBW2-901 | FAN COMP COOLING | 1 | $31.50 USD | View product → | |
| 4 | 19600-LBD4-900 | COVER ASSY FAN | 1 | $50.73 USD | View product → | |
| 5 | 19625-KHC4-900 | SEAL SHROUD | 1 | $19.11 USD | View product → | |
| 6 | 1962A-KHC4-900 | SHROUD ASSY A | 1 | $39.72 USD | View product → | |
| 7 | 19633-GFY6-901 | GROMET SHROUD B | 1 | $6.06 USD | View product → | |
| 8 | 1963A-PTA7-900 | SHROUD ASSY B | 1 | $49.92 USD | View product → | |
| 9 | 31100-LBD4-900 | AC GEN ASSY (D402) | 1 | $220.80 USD | View product → | |
| 10 | 31110-KHC4-90A | FLYWHEEL COMP (D402) | 1 | $170.04 USD | View product → | |
| 11 | 31120-LBD4-900 | STATOR COMP (D402) | 1 | $167.19 USD | View product → | |
| 12 | 87541-KGBG-E00-T01 | LABEL OIL CAP | 1 | $13.41 USD | View product → | |
| 13 | 90305-GHK8-001 | NUT CLIP 6MM | 2 | $4.92 USD | View product → | |
| 14 | 92101-05012-0G | BOLT HEX 5X12 | 1 | $11.46 USD | View product → | |
| 15 | 93904-35360 | SCREW TAPPING 5*12 | 2 | $2.61 USD | View product → | |
| 16 | 94050-10080 | NUT FLANGE 10MM | 1 | $4.92 USD | View product → | |
| 17 | 96001-06016-06 | BOLT FLANGE SH 6X16 | 1 | $12.12 USD | View product → | |
| 18 | 96001-06020-06 | BOLT FLANGE SH 6*20 | 1 | $3.27 USD | View product → | |
| 19 | 96001-06025-06 | BOLT FLANGE SH 6*25 | 1 | $2.61 USD | View product → |
