F05 — Fender Front

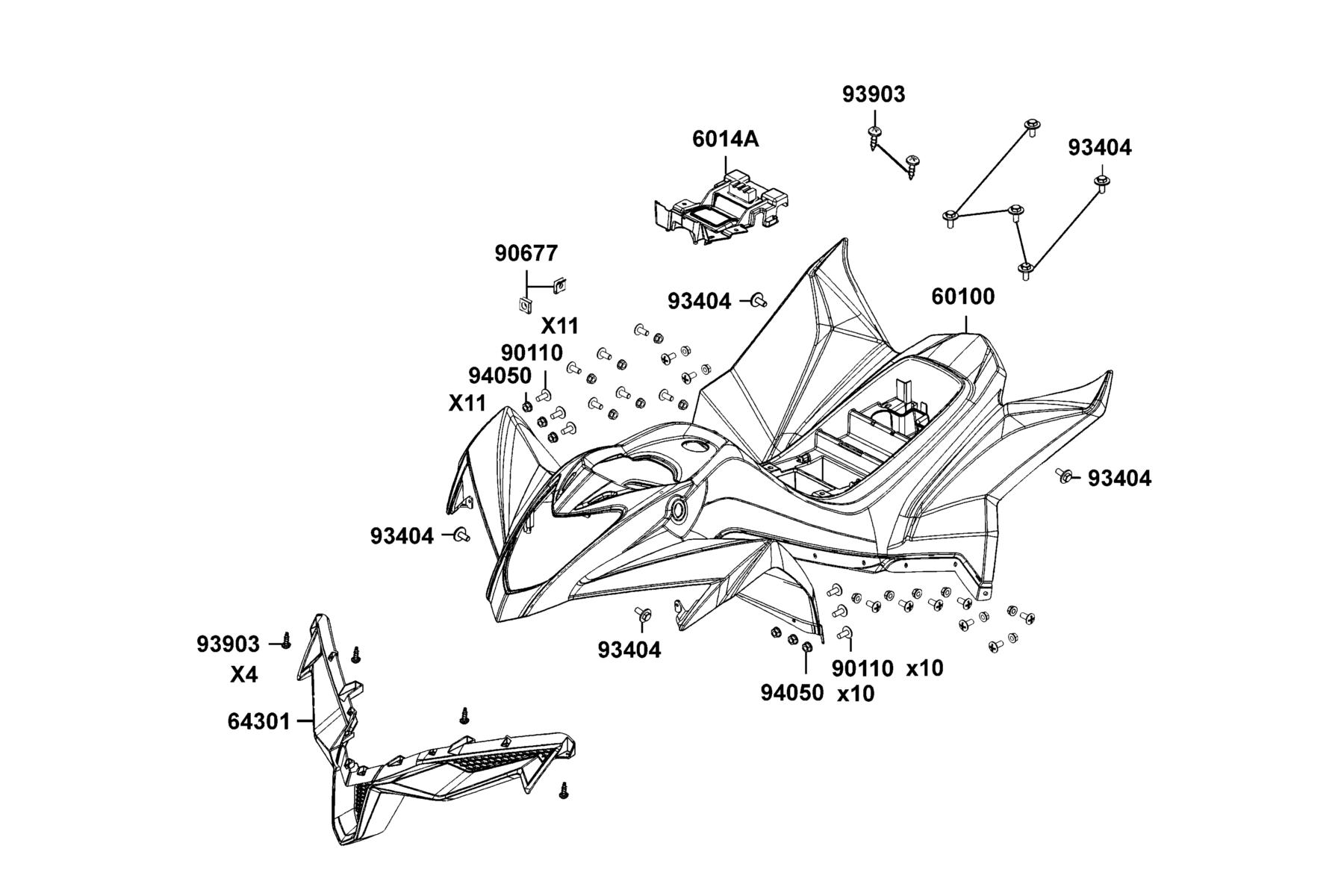

The Fender Front diagram contains 8 genuine OEM parts for the KYMCO Mongoose 90S (2016~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 60100-ABC9-M00-YUR | FENDER FRONT | 1 | $326.76 USD | View product → | |
| 2 | 6014A-ABC9-M00-N1R | PANEL ASSY SPLASH (Black) | 1 | $25.14 USD | View product → | |
| 3 | 64301-ABC9-M00-N1R | COVER FRONT (Black) | 1 | $43.11 USD | View product → | |
| 4 | 90110-PWB1-900 | SCREW SPECIAL 6X20 | 21 | $7.17 USD | View product → | |
| 5 | 90677-GAR1-004 | NUT CLIP 5MM | 2 | $3.00 USD | View product → | |
| 6 | 93404-06016-06 | BOLT WASHER 6*16 | 9 | $7.89 USD | View product → | |
| 7 | 93903-35360 | SCREW TAPPING 5*16 | 6 | $3.78 USD | View product → | |
| 8 | 94050-LDE9-E00 | NUT LOCK | 21 | $2.61 USD | View product → |
