F15 — Kick Starter Arm

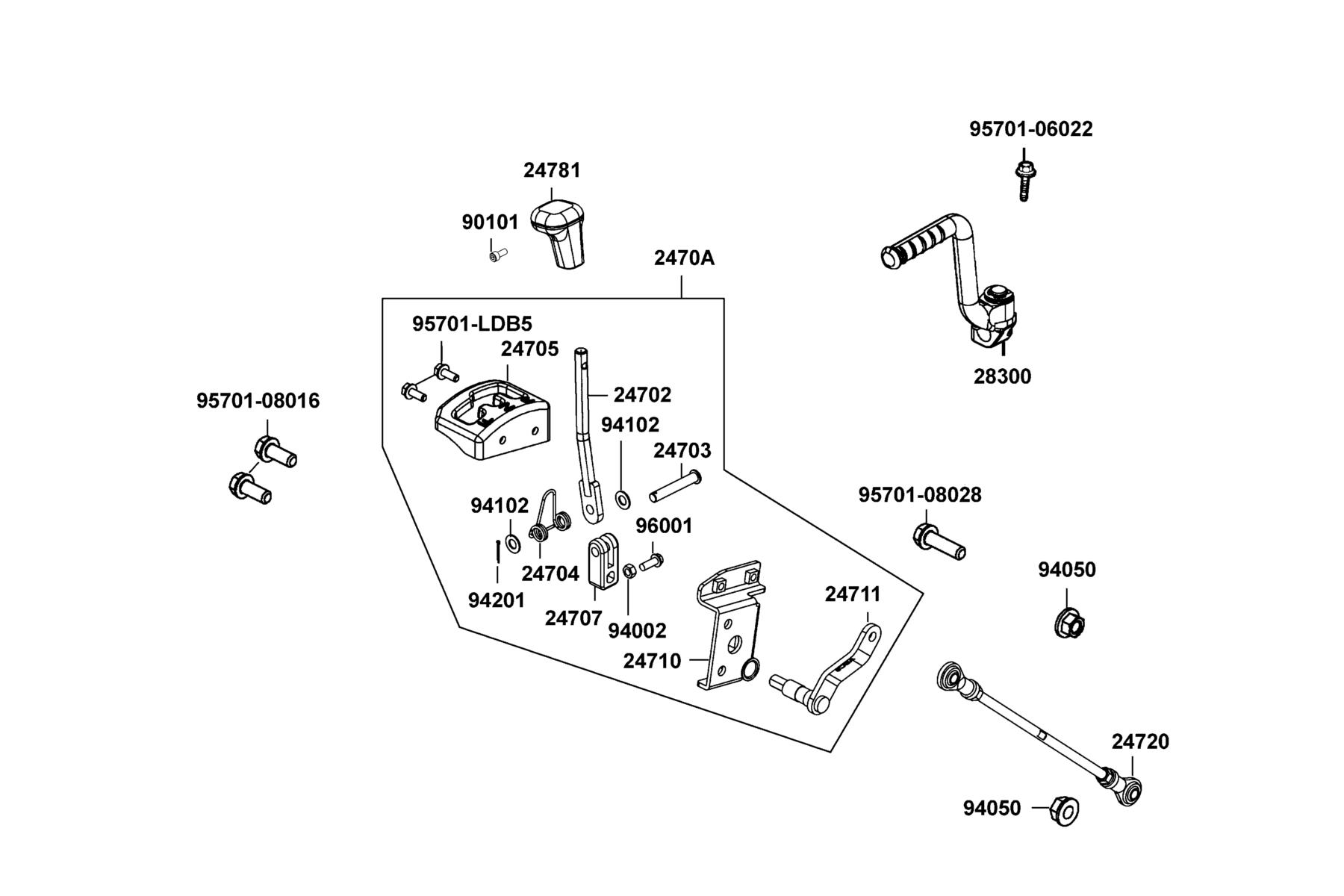

The Kick Starter Arm diagram contains 21 genuine OEM parts for the KYMCO Mongoose 90S(2018). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 24702-ABC9-M00 | BAR CHANGE HANDLE | 1 | $20.67 USD | View product → | |
| 2 | 24703-LLB1-900 | PIN CHANGE HANDLE | 1 | $5.31 USD | View product → | |
| 3 | 24704-ABC9-M00 | SPRING SHIFT | 1 | $12.12 USD | View product → | |
| 4 | 24705-ABC9-M00 | COVER SHIFT LEVER GUIDE | 1 | $14.07 USD | View product → | |
| 5 | 24707-LBA7-900 | BRKT CHANGE HANDLE | 1 | $65.22 USD | View product → | |
| 6 | 2470A-ABC9-M00 | SHIFTER ASSY | 1 | $114.30 USD | View product → | |
| 7 | 24710-ABC9-M00 | STAY CHANGE HANDLE | 2 | $35.37 USD | View product → | |
| 8 | 24711-ABC9-M00 | SHAFT COMP CHANGE HANDLE | 1 | $29.40 USD | View product → | |
| 9 | 24720-LCA4-E00 | ROD ASSY CHANGE HANDLE | 1 | $123.09 USD | View product → | |
| 10 | 24781-LCA5-E00 | COVER CHANGE HANDLE | 1 | $23.40 USD | View product → | |
| 11 | 28300-PVA1-900 | ARM ASSY KICK STARTER | 1 | $159.99 USD | View product → | |
| 12 | 90101-LCA5-E00 | SOCKET BOLT 5X12 | 1 | $6.06 USD | View product → | |
| 13 | 94002-06060-0S | NUT HEX 6MM | 1 | $0.99 USD | View product → | |
| 14 | 94050-08060 | NUT FLANGE 8MM | 2 | $5.31 USD | View product → | |
| 15 | 94102-08000 | WASHER PLAIN 8MM | 2 | $1.86 USD | View product → | |
| 16 | 94201-20150 | PIN SPLIT 2*15 | 1 | $2.61 USD | View product → | |
| 17 | 95701-06022-06 | BOLT FLANGE 6*22 | 1 | $4.26 USD | View product → | |
| 18 | 95701-08016-06 | BOLT FLANGE 8*16 | 2 | $4.53 USD | View product → | |
| 19 | 95701-08028-06 | BOLT FLANGE 8*28 | 2 | $4.53 USD | View product → | |
| 20 | 95701-LDB5-E00 | BOLT FLANGE 6*16 | 2 | $3.93 USD | View product → | |
| 21 | 96001-06016-06 | BOLT FLANGE SH 6X16 | 1 | $12.12 USD | View product → |
