E03 — Cylinder ● Piston ● Crankshaft

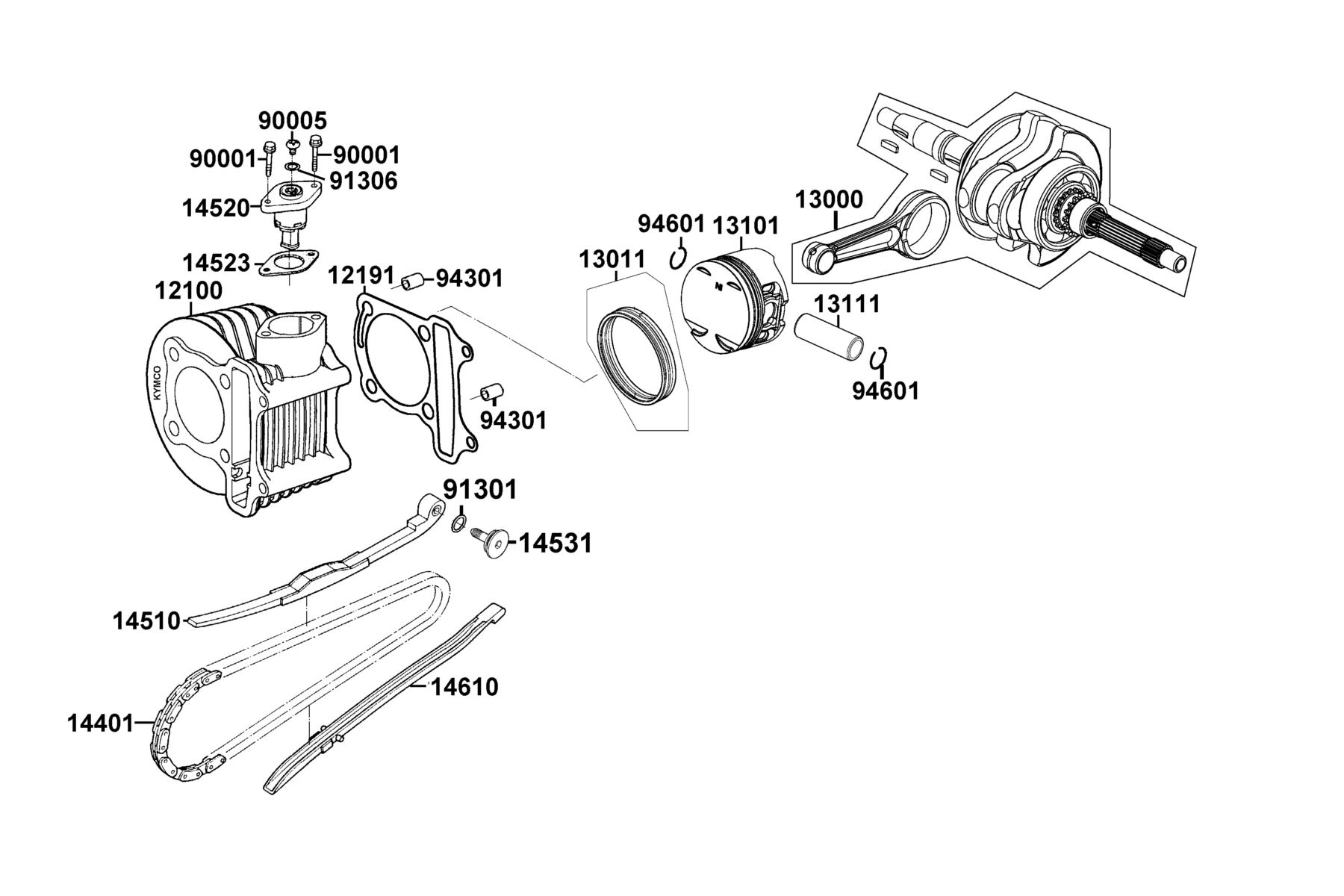

The Cylinder ● Piston ● Crankshaft diagram contains 18 genuine OEM parts for the KYMCO New People S 150(2023). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 12100-LFE2-900 | CYLINDER COMP | 1 | $315.78 USD | View product → | |
| 2 | 12191-LFE2-C00 | GASKET CYLINDER @A | 1 | $48.60 USD | View product → | |
| 3 | 13000-AEB9-E00 | CRANK SHAFT COMP | 1 | $275.55 USD | View product → | |
| 4 | 13011-LFE2-C00 | RING ASSY PISTON | 1 | $105.12 USD | View product → | |
| 5 | 13101-AAG1-C00 | PISTON | 1 | $55.95 USD | View product → | |
| 6 | 13111-KKJ9-C10 | PIN PISTON | 1 | $22.86 USD | View product → | |
| 7 | 14401-LFE2-C00 | CHAIN CAM | 1 | $103.92 USD | View product → | |
| 8 | 14510-LEB1-C00 | TENSIONER CAM CHAIN | 1 | $54.87 USD | View product → | |
| 9 | 14520-LFA7-C00 | LIFTER ASSY TENSIONER | 1 | $45.15 USD | View product → | |
| 10 | 14523-KED9-C00 | GASKET TENSIONER LIFTER @A | 1 | $7.92 USD | View product → | |
| 11 | 14531-GLR0-W11 | PIVOT CAM CHAIN TENSIONER | 1 | $6.54 USD | View product → | |
| 12 | 14610-LEB1-C00 | GUIDE,CAM CHAIN | 1 | $22.11 USD | View product → | |
| 13 | 90001-GBHB-C05 | BOLT FLANGE SHF 6*22 | 1 | $4.59 USD | View product → | |
| 14 | 90005-KAW1-C00 | SCREW PAN 6*6(G) | 1 | $4.65 USD | View product → | |
| 15 | 91301-GLR0-W10 | O-RING 15.2*1.5 | 1 | $4.92 USD | View product → | |
| 16 | 91306-1E05-C00 | O-RING 1.5*9.5 | 1 | $9.51 USD | View product → | |
| 17 | 94301-10160 | DOWEL PIN 10*16 | 2 | $3.00 USD | View product → | |
| 18 | 94601-15000 | CLIP PISTON PIN 15MM | 2 | $5.67 USD | View product → |
