F08 — Rear Wheel

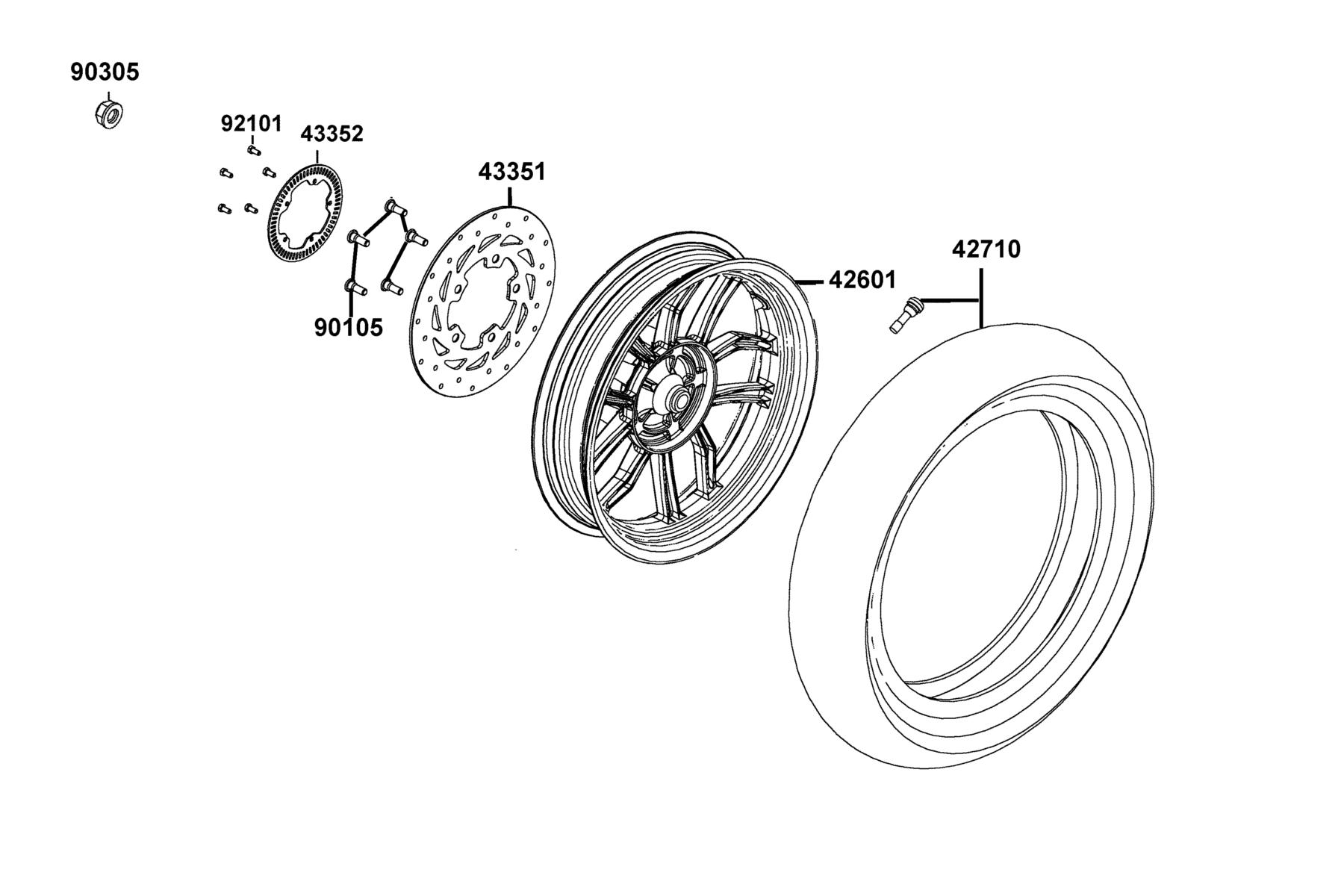

The Rear Wheel diagram contains 7 genuine OEM parts for the KYMCO New People S 150(2023). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 42601-AEB9-E00-N1A | WHEEL COMP RR CAST | 1 | $381.75 USD | View product → | |
| 2 | 42710-ALJ8-E10 | TIRE ASSY RR 120/80-14 | 1 | $321.39 USD | View product → | |
| 3 | 43351-LFC3-E80 | DISK FR BRK | 1 | $113.16 USD | View product → | |
| 4 | 43352-AED9-E10 | TOOTTHED RING SENSOR | 1 | $13.38 USD | View product → | |
| 5 | 90105-KCR3-C01 | BOLT FR DISK 8X24 | 5 | $7.92 USD | View product → | |
| 6 | 90305-KNBN-C03 | NUT U 16MM(K) | 1 | $22.08 USD | View product → | |
| 7 | 92101-05012-0HG | BOLT HEX 5*12 | 5 | $0.66 USD | View product → |
