F06 — Stem Steering ● Front Cushion

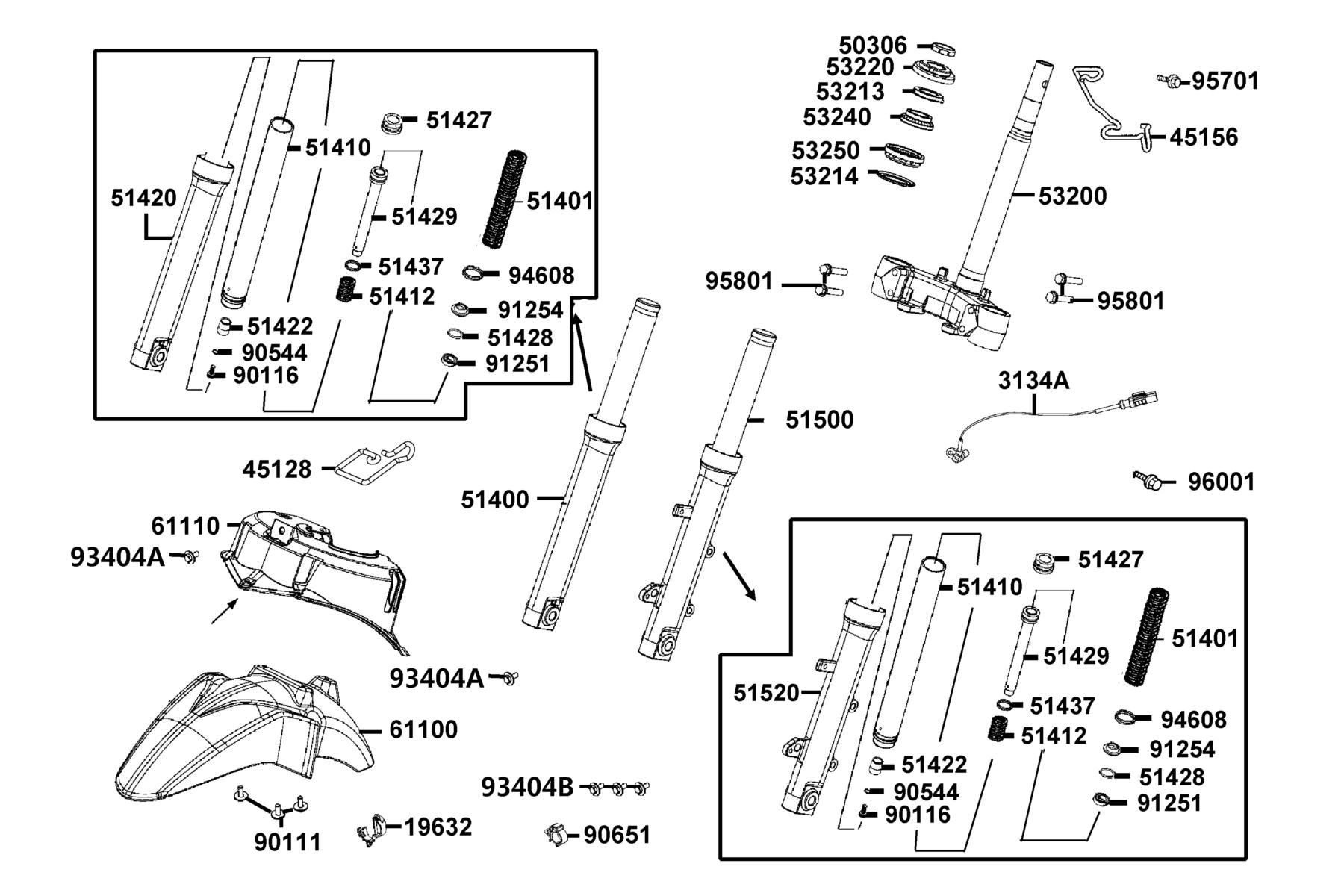

The Stem Steering ● Front Cushion diagram contains 34 genuine OEM parts for the KYMCO New People S 150(2023). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 19632-LFB6-C00 | CLIP???FUEL HOSE | 1 | $2.97 USD | View product → | |
| 2 | 3134A-AEB9-E00 | SPEED SENSOR ASSY | 1 | $245.76 USD | View product → | |
| 3 | 45128-AEB9-E00 | CLAMPER FR BRK HOSE | 2 | $12.36 USD | View product → | |
| 4 | 45156-AEB9-E00 | "CLIP ,FR WIRE" | 1 | $8.97 USD | View product → | |
| 5 | 50306-1F96-C00 | NUT STRG STEM LOCK | 1 | $12.12 USD | View product → | |
| 6 | 51400-AEB9-M30-HLA | FORK ASSY RH FR | 1 | $281.55 USD | View product → | |
| 7 | 51401-AEB9-E00 | SPRING | 2 | $30.06 USD | View product → | |
| 8 | 51410-AEB9-E00 | FORK PIPE COMP | 2 | $247.14 USD | View product → | |
| 9 | 51412-LEJ2-E10 | REBOUND SPRING | 2 | $6.24 USD | View product → | |
| 10 | 51420-AEB9-M30-HLA | BOTTOM CASE RH | 1 | $253.50 USD | View product → | |
| 11 | 51428-LEJ2-E10 | OIL SEAL STOP RING | 2 | $5.31 USD | View product → | |
| 12 | 51429-LFC3-E10 | PIPE SEAT | 2 | $50.67 USD | View product → | |
| 13 | 51437-LEJ2-E10 | PISTON RING | 2 | $5.31 USD | View product → | |
| 14 | 51500-AEB9-M30-HLA | FORK ASSY LH FR | 1 | $281.55 USD | View product → | |
| 15 | 51520-AGH5-E00-HLA | BOTTOM CASE L | 1 | $134.40 USD | View product → | |
| 16 | 53200-AEB9-E00 | STEM COMP STRG | 1 | $226.32 USD | View product → | |
| 17 | 53213-LBA2-C00 | DUST SEAL STRG HEAD TOP | 1 | $10.50 USD | View product → | |
| 18 | 53214-LBA2-C00 | DUST SEAL STRG HEAD BOT | 1 | $15.36 USD | View product → | |
| 19 | 53220-LBA2-C00 | THREAD COMP STRG HEAD TOP | 1 | $37.53 USD | View product → | |
| 20 | 53240-LEA7-C00 | BEARING TOP STRG | 1 | $51.42 USD | View product → | |
| 21 | 53250-LEA7-C00 | BEARING BOT STRG | 1 | $63.75 USD | View product → | |
| 22 | 61100-AEB9-E00-79P | FENDER FRONT | 1 | $118.23 USD | View product → | |
| 23 | 61110-AEB9-E00-N1R | FENDER FR INNER | 1 | $27.84 USD | View product → | |
| 24 | 90111-1G87-C01 | BOLT FLANGE 6MM | 3 | $5.31 USD | View product → | |
| 25 | 90544-LEJ2-E10 | PACKING | 2 | $5.22 USD | View product → | |
| 26 | 90651-LKE6-900 | CLIP CABLE | 1 | $1.32 USD | View product → | |
| 27 | 91251-LEJ2-E10 | SEAL OIL | 2 | $36.78 USD | View product → | |
| 28 | 91254-LEJ2-E10 | DUST SEAL | 2 | $19.26 USD | View product → | |
| 29 | 93404-06012-07G | 0 | 3 | $1.32 USD | View product → | |
| 30 | 93404-06025-07G | 0 | 2 | $2.31 USD | View product → | |
| 31 | 94608-LEJ2-E10 | O-RING 23X2.4 | 2 | $4.92 USD | View product → | |
| 32 | 95701-06010-08G | BOLT FLANGE 6*10 | 2 | $0.99 USD | View product → | |
| 33 | 95801-08040-08G | BOLT FLANGE 8*40 | 4 | $4.89 USD | View product → | |
| 34 | 96001-06012-08G | BOLT FLANGE SH 6X12 (C) | 1 | $0.99 USD | View product → |
